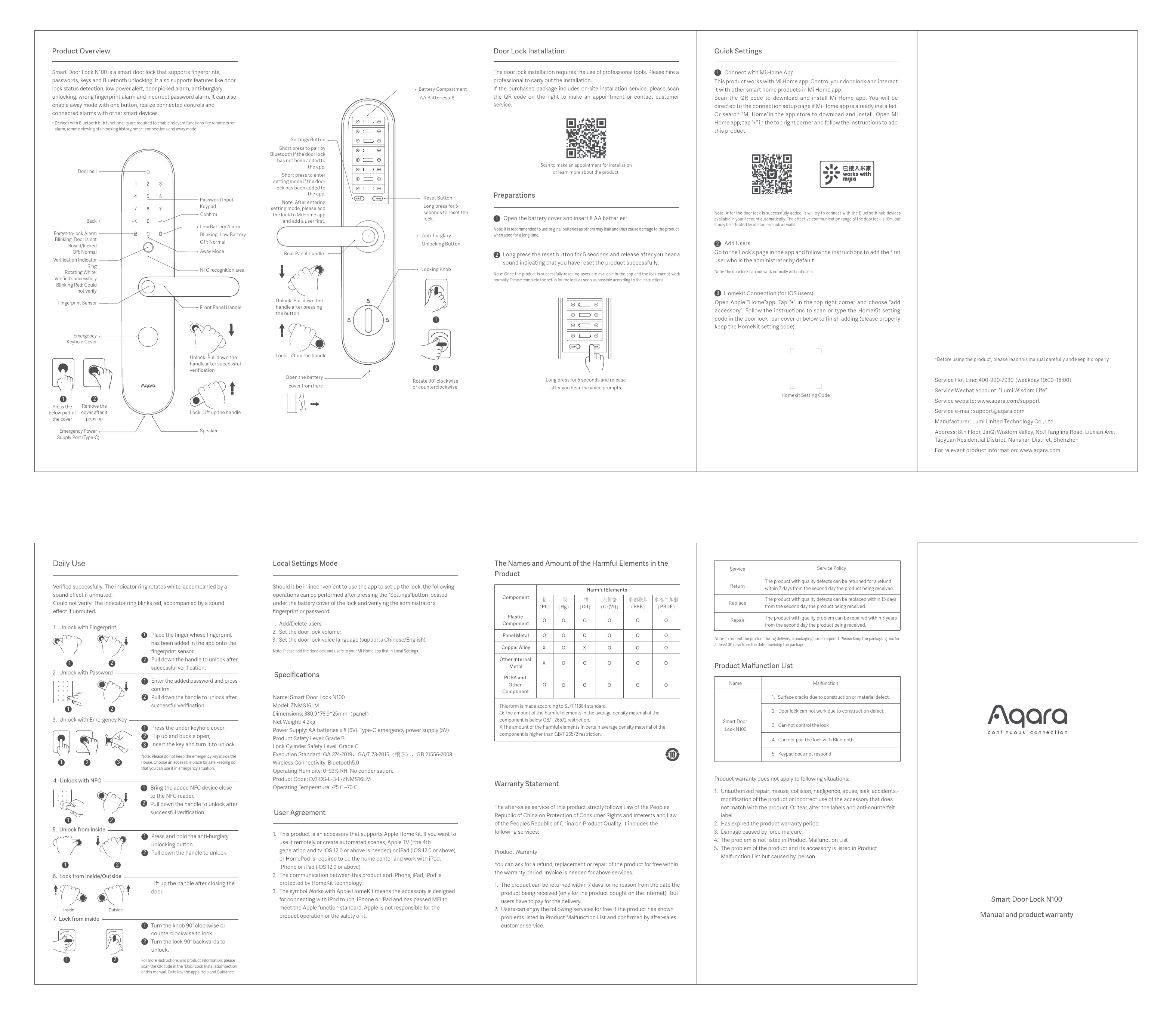

Door Lock Components and Operation

The door lock consists of several components on its front and rear panels, along with internal mechanisms.

Front Panel Components:

• Fingerprint Sensor: For biometric authentication.
• Emergency Keyhole Cover: Conceals the mechanical keyhole for emergency access.
• Emergency Power Supply Port (Type-C): For providing temporary power.
• Password Input Keypad: For entering numeric passcodes.
• Front Panel Handle: Used for unlocking and opening the door.
• Speaker: Emits audio feedback.
• Settings Button: Short press to pair via Bluetooth if not added to the app; short press to enter setting mode if already added. Note: After entering setting mode, add the lock to the Mi Home app and a user first.

Rear Panel Components:

• Rear Panel Handle: For operating the lock from the inside.
• Battery Compartment: Houses 8 AA batteries.
• Reset Button: Long press for 5 seconds to reset the lock.
• Anti-burglary Unlocking Button: For secure locking from the inside.
• Locking Knob: For manual locking and unlocking.

Indicators and Alarms:

• Forget-to-lock Alarm: Blinking indicates the door is not closed/locked; Off indicates normal status.
• Verification Indicator: Ring status: Rotating White for successful verification, Blinking Red for failed verification.
• Low Battery Alarm: Blinking indicates low battery; Off indicates normal status.
• Away Mode: A feature to enable when leaving the premises.
• NFC Recognition Area: For unlocking via NFC devices.

Operational Descriptions:

Diagrams illustrate the following actions:

• Opening Emergency Keyhole Cover: Press the lower part of the cover until it pops up, then remove it.
• Unlocking with Front Panel Handle: Pull down the handle after successful verification (fingerprint, password, NFC).
• Locking with Rear Panel Handle: Lift up the handle after closing the door.
• Opening Battery Cover: Slide or lift the cover from the indicated area.
• Resetting the Lock: Long press the reset button for 5 seconds until a sound prompt is heard.
• Rotating Locking Knob: Rotate 90° clockwise or counterclockwise to lock, and 90° backwards to unlock.

Door Lock Installation

Professional installation is recommended for the door lock. If your purchase includes on-site installation service, please scan the QR code (link provided in original document) to schedule an appointment or contact customer service.

Preparations

1. Open the battery cover and insert 8 AA batteries.

   Note: It is recommended to use original batteries as others may leak and cause damage to the product over time.
2. Long press the reset button for 5 seconds and release after hearing a sound indicating successful reset.

   Note: Once reset, all users are removed from the app, and the lock will not function normally until setup is complete according to instructions.

Quick Settings

1. Connect with Mi Home App

This product is compatible with the Mi Home app. Control your door lock and integrate it with other smart home products. Scan the QR code (link provided in original document) to download and install the Mi Home app. If the app is already installed, you will be directed to the connection setup page. Alternatively, search for "Mi Home" in your app store.

Open the Mi Home app, tap "+" in the top right corner, and follow the on-screen instructions to add this product. After successful addition, the door lock will automatically attempt to connect with available Bluetooth hub devices in your account. The effective communication range is 10 meters, but can be affected by obstacles like walls.

2. Add Users

Navigate to the lock's page within the app and follow the instructions to add the first user, who will be the administrator by default. The door lock cannot function normally without registered users.

3. HomeKit Connection (for iOS users)

Open the Apple "Home" app. Tap "+" in the top right corner and select "add accessory". Follow the instructions to scan or type the HomeKit setting code, which can be found on the door lock's rear cover or below the handle, to complete the setup. Please keep the HomeKit setting code safe.

HomeKit Setting Code: [Location indicated on rear cover or below handle]

Daily Use

Verified successfully: The indicator ring rotates white, accompanied by an audible sound (if unmuted).

Could not verify: The indicator ring blinks red, accompanied by an audible sound (if unmuted).

Unlocking Methods:

1. Unlock with Fingerprint
   1. Place the finger whose fingerprint has been added in the app onto the fingerprint sensor.
   2. Pull down the handle to unlock after successful verification.
2. Unlock with Password
   1. Enter the added password and press confirm.
   2. Pull down the handle to unlock after successful verification.
3. Unlock with Emergency Key
   1. Press under the keyhole cover.
   2. Flip up and buckle open the cover.
   3. Insert the key and turn it to unlock.

   Note: Do not keep the emergency key inside the house. Store it in an accessible, safe place for emergency situations.

4. Unlock with NFC
   1. Bring the added NFC device close to the NFC reader.
   2. Pull down the handle to unlock after successful verification.
5. Unlock from Inside
   1. Press and hold the anti-burglary unlocking button.
   2. Pull down the handle to unlock.

Locking Methods:

6. Lock from Inside/Outside

   Lift up the handle after closing the door.

7. Lock from Inside
   1. Turn the knob 90° clockwise or counterclockwise to lock.
   2. Turn the lock 90° backwards to unlock.

For more instructions and product information, please scan the QR code in the "Door Lock Installation" section of this manual or follow the app's Help and Guidance.

Local Settings Mode

If using the app is inconvenient, the following operations can be performed by pressing the "Settings" button located under the battery cover of the lock and verifying the administrator's fingerprint or password:

1. Add/Delete users.
2. Set the door lock volume.
3. Set the door lock voice language (supports Chinese/English).

Note: Ensure the door lock and users are added to your Mi Home app first before using Local Settings.

Specifications

Name: Smart Door Lock N100

Model: ZNMS16LM

Dimensions: 380.9*76.9*25mm (panel)

Net Weight: 4.2kg

Power Supply: AA batteries x 8 (6V). Type-C emergency power supply (5V)

Product Safety Level: Grade B

Lock Cylinder Safety Level: Grade C

Execution Standard: GA 374-2019, GA/T 73-2015 (锁芯), GB 21556-2008

Wireless Connectivity: Bluetooth 5.0

Operating Humidity: 0-93% RH. No condensation.

Product Code: DZFDS-L-B-II/ZNMS16LM

Operating Temperature: -25 °C ~ 70 °C

User Agreement

1. This product is an accessory that supports Apple HomeKit. For remote use or automated scenes, an Apple TV (4th generation and tvOS 12.0 or above), or an iPad (iOS 12.0 or above), or a HomePod is required as the home center, working with iPod, iPhone, or iPad (iOS 12.0 or above).
2. Communication between this product and iPhone, iPad, iPod is protected by HomeKit technology.
3. The "Works with Apple HomeKit" symbol indicates that the accessory is designed for connection with iPod touch, iPhone, or iPad and meets Apple's functional standards. Apple is not responsible for the product's operation or safety.

The Names and Amount of the Harmful Elements in the Product

This form is made according to SJ/T 11364 standard.

O: The amount of harmful elements in the average density material of the component is below GB/T 26572 restriction.

X: The amount of harmful elements in certain average density material of the component is higher than GB/T 26572 restriction.

Warranty Statement

The after-sales service of this product strictly follows the Law of the People's Republic of China on Protection of Consumer Rights and Interests and the Law of the People's Republic of China on Product Quality. It includes the following services:

Product Warranty

You can request a refund, replacement, or repair of the product free of charge within the warranty period. An invoice is required for these services.

1. The product can be returned within 7 days for no reason from the date of receipt (only for products purchased online), but users must cover the delivery costs.
2. Users are entitled to the following free services if the product exhibits problems listed in the Product Malfunction List and confirmed by after-sales customer service.

Service Policy

Note: To protect the product during delivery, a packaging box is required. Please keep the packaging box for at least 30 days from the date of receiving the package.

Product Malfunction List

Product Warranty Exclusions

Product warranty does not apply to the following situations:

1. Unauthorized repair, misuse, collision, negligence, abuse, leak, accidents, modification of the product, or incorrect use of an accessory that does not match the product. This also includes tearing or altering labels and anti-counterfeit labels.
2. The product warranty period has expired.
3. Damage caused by force majeure.
4. Problems not listed in the Product Malfunction List.
5. Problems of the product and its accessory listed in the Product Malfunction List but caused by the user.

Contact Information

Service Hot Line: 400-990-7930 (weekday 10:00~18:00)

Service Wechat account: "Lumi Wisdom Life"

Service website: www.aqara.com/support

Service e-mail: support@aqara.com

Manufacturer: Lumi United Technology Co., Ltd.

Address: 8th Floor, JinQi Wisdom Valley, No.1 Tangling Road, Liuxian Ave, Taoyuan Residential District, Nanshan District, Shenzhen

For relevant product information: www.aqara.com
