V .2019 08 28 page 2 Ordering Code Dimensions INDOOR RGB2 01 FT - 01 ft Reel 04 FT - 04 ft Reel CB - ColorBright™ 12V 24V Brand Color Voltage Length 12V
The ColorBright™ Color Changing 300 LED strip light has double the amount of bright LEDs than the RGB 150 series. They are made as a.
UL Listed Color changing LED strip Lights | 300 LED RGB Light Strips

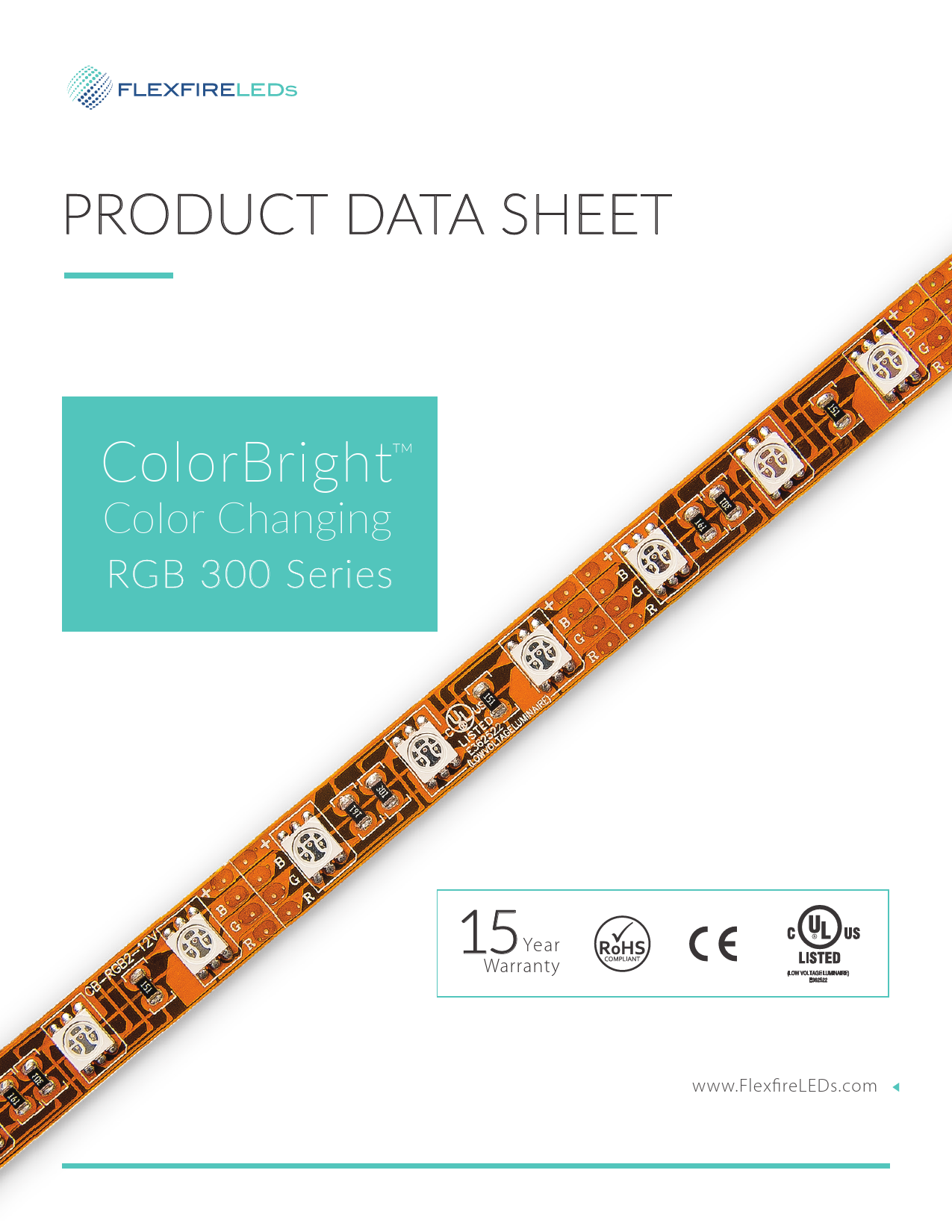

PRODUCT DATA SHEET ColorBrightTM Color Changing RGB 300 Series 15Year Warranty www.FlexfireLEDs.com Color Changing RGB 300 Series · Product Datasheet The ColorBrightTM Color Changing 300 LED strip light has double the amount of bright LEDs than the RGB 150 series. They are made as a reel of linear color changing LED lights mounted on a flexible strip of printed circuit board (PCB) with a strong adhesive backing. With an RGB controller, these strips can change to nearly any color combination you could think of, offering a wide range of creative options. These strips have 300 LEDs per reel, which means they deliver double the brightness of the 150 RGB LEDs. Color changing RGB 300 LED strip lights are perfect for applications that require not only adjustable color settings, but also high brightness lighting. Product Features · Highest Brightness RGB LED Chips · Fully dimmable and color controllable · Highest quality components and premium packaged 5050 LEDs · Single BIN LED selection to ensure color consistency (3-Step MacAdam) · Thermally Resistant 3M VHB 4930 adhesive for long lasting bond · 120° Beam Angle · Only 3/8" (10mm) strip width · Short LED pitch of 3/4" (17mm) · 12V or 24V DC Input Options · Segment length of 2" (4" for 24V) · Can be cut every 3 LEDs (6 LEDs for 24V) · 18 LEDs / Foot (60 / Meter) · Thick double layer 2 oz copper PCB for excellent thermal management · Operating Temperature -4°F to +104°F (-20°C to 40°C) Product SKU CB-RGB2-12V CB-RGB2-24V LED Chips per foot Voltage (Meter) Input Watts / foot (Meter) 18 LEDs/Foot (60/Meter) 12V DC 4.4 W/ft (14.4 W/m) 18 LEDs/Foot (60/Meter) 24V DC 4.4 W/ft (14.4 W/m) Lumen / foot (Meter) R: 20LM (65/m) G: 92LM (300/m) B: 19LM (60/m) R: 20LM (65/m) G: 92LM (300/m) B: 19LM (60/m) Color Wavelengths Max. Run Length (Nanometer) in Series R: 617-627 nm G: 515-525 nm B: 464-474 nm R: 617-627 nm G: 515-525 nm B: 464-474 nm 16' 5" (5 meters) 32' 10" (10 meters) V.2019.08.28 1 page Ordering Code Brand CB - ColorBrightTM Color Changing RGB 300 Series · Product Datasheet INDOOR Color RGB2 Voltage 12V 24V Length 01 FT - 01 ft Reel 04 FT - 04 ft Reel 08 FT - 08 ft Reel 16 FT - 16 ft Reel 3/8" 10mm Dimensions 2" 50mm 3/4" 17mm 16 5 " 5m (Reel) 1/16" 2mm 3/8" 10mm 16 5 " 5m (Reel) 4" 100mm 5/8" 16mm V.2019.08.28 12V 24V 1/16" 2mm 2 page Color Changing RGB 300 Series · Product Datasheet AC Outlet ( or AC source) Transformer IN SERIES Dimmer / Controller LED Strip AC Outlet ( or AC source) Transformer Dimmer / Controller LED Strips V.2019.08.28 3 page Color Changing RGB 300 Series · Product Datasheet RF WIRELESS I4 I2 7 I 6 I3 B/S B/S FLASH7 AUTO 5 FLASH FADE3 FADE7 CYAN BLUE JUMP7 PURPLE YELLOW JUM P3 GREEN RED AC Mean Well Power Supply DC * The receiver and controller may differ from the one shown. POWER DC DC ADRESS SETTING NW WW NC WW V Receiver* LED CONTROLLER RF WIRELESS REMOTE CONTROL MODEL: M4-5A POWER INPUT: DC5V-DC24V OUTPUT: 5Ax4CH MAX:20A 8mm wire preparation 1-2.5º / 17-13 AWG OUTPUT WWW V R G B WV RF V.2019.08.28 4 page Color Changing RGB 300 Series · Product Datasheet SKU RGB-C1* Description Attaches LED strip directly to a Power Supply/Driver, low voltage control or DC source. Wire Gauge Amp Limit** 22 AWG RGB-C2* Attaches two sections of LED strip together. Wire lead allows for turns around tight corners. 22 AWG 5 Amps RGB-C3* Attaches two sections of LED strip together in a continuous run. - Mockup * Calculate max length of LED strip to follow the solderless connector based on an amperage draw of 0.37 amps per foot (1.20 A/m) at 12 volts, or at 24 volts use 0.18 A/ft (0.60 A/m). ** The max continuous run of the RGB 300 LED strip is 16 feet (5 meters) at 12V. Be sure no more than 5 amps is drawn after any solderless connector. 1. 2. 3. 1. Open the RGB strip connector. See Diagram 1 2. Take a look at the cut mark on the strip and you will see +, B, G, R. Match the colors on the wires as follows: Black to positive, Blue to B, Green to G and R to red. See Diagram 2 3. Insert the end of the strip under the 4 metal pins on the connector, make sure the pins are making contact on the copper contact points and finally close the lid on the connector. See Diagram 4 NOTE: Soldering is the preferred method. If you need further assistance, please download our Solderless Connector Installation Guide from our website V.2019.08.28 5 page AC Power Supply DC Color Changing RGB 300 Series · Product Datasheet LED Strip Length 1 - 9 ft 10 - 22 ft 23 - 35 ft 36 - 44 ft SKU 24V-WMPS-1 24V-DPS-2.5 24V-DPS-4 24V-DPS-5 Mean Well HLG LED Strip Length SKU 1 - 7 ft 8 - 12 ft 13 - 19 ft 20 - 24 ft 25 - 36 ft 37 - 48 ft 49 - 67 ft 68 - 120 ft HLG-40H-24A HLG-60H-24A HLG-100H-24A HLG-120H-24A HLG-185H-24A HLG-240H-24A HLG-320H-24A HLG-600H-24A Mean Well LPV LED Strip Length 1 - 4 ft 5 - 7 ft 8 - 12 ft SKU LPV-20-24 LPV-35-24 LPV-60-24 DC AC AC DC V.2019.08.28 6 page Color Changing RGB 300 Series · Product Datasheet KLUS GIP Anodized Extrusion Covers - G-L Frosted Cover (SKU: KL-00413-1m) End Caps - GIP - L End Cap without Wire Hole (SKU: KL-00306) (SKU: KL-B4574ANODA-1m) Mounting Accessories - GP Surface Spring (SKU: KL-00293) · minimum surface thickness 10mm (3/8") - Mounting Bracket (SKU: KL-24143) GIZA Anodized Extrusion Covers - HS 22 Clear Cover (SKU: KL-17022-1m) - HS 22 Frosted Cover (SKU: KL-17011-1m) End Caps - GIZA End Cap without Wire Hole (SKU: KL-24007) (SKU: KL-B5556ANODA-1m) Mounting Accessories - GP Surface Spring (SKU: KL-00293) · minimum surface thickness 10mm (3/8") - Mounting Bracket (SKU: KL-24143) 45-ALU Anodized Extrusion Covers - HS Clear Cover (SKU: KL-1370-1m) - HS Frosted Cover (SKU: KL-1369-1m) - LIGER Frosted Cover (SKU: KL-17031-1m) End Caps - 45-ALU End Cap without Wire Hole (SKU: KL-1383) - 45-ALU End Cap with Wire Hole (SKU: KL-1440) (SKU: KL-B4023ANODA-1m) Mounting Accessories - Zinc Mounting Bracket (SKU: KL-1399) NOTE: All solderless connectors do not fit inside this aluminum extrusion. KLUS MICRO-ALU Anodized Extrusion Covers - HS Clear Cover (SKU: KL-1370-1m) - HS Frosted Cover (SKU: KL-1369-1m) - LIGER Frosted Cover (SKU: KL-17031-1m) End Caps - MICRO-ALU End Cap without Wire Hole (SKU: KL-1059) - MICRO-ALU End Cap with Wire Hole (SKU: KL-1060) (KL-B1888ANODA-1m) Mounting Accessories - Zinc Mounting Bracket (SKU: KL-1072) NOTE: All solderless connectors do not fit inside this aluminum extrusion. KLUS PDS4-ALU Anodized Extrusion Covers - HS Clear Cover (SKU: KL-1370-1m) - HS Frosted Cover (SKU: KL-1369-1m) - LIGER Frosted Cover (SKU: KL-17031-1m) End Caps - PDS4-ALU End Cap without Wire Hole (SKU: KL-1055) - PDS4-ALU End Cap with Wire Hole (SKU: KL-1057) V.2019.08.28 (KL-B1718ANODA-1m) Mounting Accessories - Zinc Mounting Bracket (SKU: KL-1072) NOTE: All solderless connectors do not fit inside this aluminum extrusion. 7 page Color Changing RGB 300 Series · Product Datasheet 1. Installation must be in accordance with local and national electrical code regulations. 2. To ensure safety and correct installation, our strips are intended to be installed by a qualified, licensed electrician. 3. Only install with a Class 2 DC Constant Voltage LED driver to meet UL requirements. 4. Do not install in environment where excessive heat may exist. 5. LED strip lights must be handled with care. Excessive handling, bending, and pressure may damage the product, voiding the warranty. 6. Do not install indoor LED tape light products in outdoor / wet location environments. Only use copper wiring. Use wires rated for at least 176°F (80°C) and certified for use with external connection of electrical equipment. 7. Each maximum run requires a dedicated power feed from the driver. Do not extend beyond the recommended maximum run length. 8. Make sure the appropriate gauge wire is installed between driver, LEDs, and any dimmers. When choosing wire, calculate voltage drop, maximum amperage rating, and the location ratings on the wire. Improper wire selection and installation could overheat wires, and cause fire. 9. Do not modify product beyond instructions or warranty will be void. 10. We reserve the right to modify and improve the design of our fixtures without prior notice. Although we try our best to order the same colors every time, due to changes in technology and phosphors over time, we cannot guarantee to match existing installed fixtures for subsequent orders or replacements in regards to product appearance, CCT, or lumen output. This product has a 15 year limited warranty from the date of shipment. This warranty only includes the main product outlined in this specification sheet and does not include the additional accessories that are used as a reference. Complete warranty details for fixtures and additional accessories are available at https://www.flexfireleds.com/warranties/ within the Policies section. For warranty related questions please contact product support team at (support@flexfireleds.com). Flexfire LEDs, Inc. stands behind its products when they are used properly and according to our specifications. When you purchase our products, you are agreeing to the terms and conditions outlined in our warranty section. We try our best to make recommendations, but the burden of proper installation, design, and maintenance relies on the purchaser. Not using a voltage regulated power supply to connect the LED product or controls; Connecting LED products to the wrong output voltage; Improper connection of power supplies, LED products, or controls; Connecting LED products or controls directly to any AC power source if they are stated for DC only input; Connecting power supplies backwards to an AC power source; Products used in an inappropriate location or in environmental conditions (temperature, humidity, moisture, etc.) outside the normal specified range; Water damage to products not specifically sold as waterproof products; Electrical power surges and spikes; Damage from hail, flooding, tornado, fire, wind, earthquake, lightning, electrical storm, or any other natural disasters or "force majeure" incidences; Damage caused by a vehicle or other accident; Damage caused when transporting the item; Damage to any products that were modified by the user, used for purposes other than as intended or directed, or connected to LED systems or components not purchased from Flexfire LEDs; Products that have been subjected to misuse, mishandling, misapplication or accident. Products used in connection with any components, devices or systems other than those explicitly approved as compatible with Company's products and listed on Company's website. Excessive wear and tear and/or physical or accidental abuse, loss, or theft. Improper repairs or warranty services performed by someone other than Flexfire LEDs will void this warranty. V.2019.08.28 8 pageAdobe PDF library 15.00 Adobe Illustrator(R) 24.0
