HP Notebook Power Banks
HP Ultra-light Docking Stations
QuickSpec, c04912951, DA 15498, Worldwide
c04912951 DA 15498 Worldwide Version 15 June 3, 2019. Page 2. HP
QuickSpecs HP Notebook Power Banks Overview Not all configuration components are available in all regions/countries. c04912951 – DA 15498 – Worldwide – Version 15 – June 3, 2019
Part number. N9F71AA. Dimensions (H x W x D). 6.85 x 2.84 x .85 in. 174 x 72 x 21.5 mm. Weight .88 lb (400 g). Battery Capacity. 19,200 mAH. Connectors.
Extracted Text

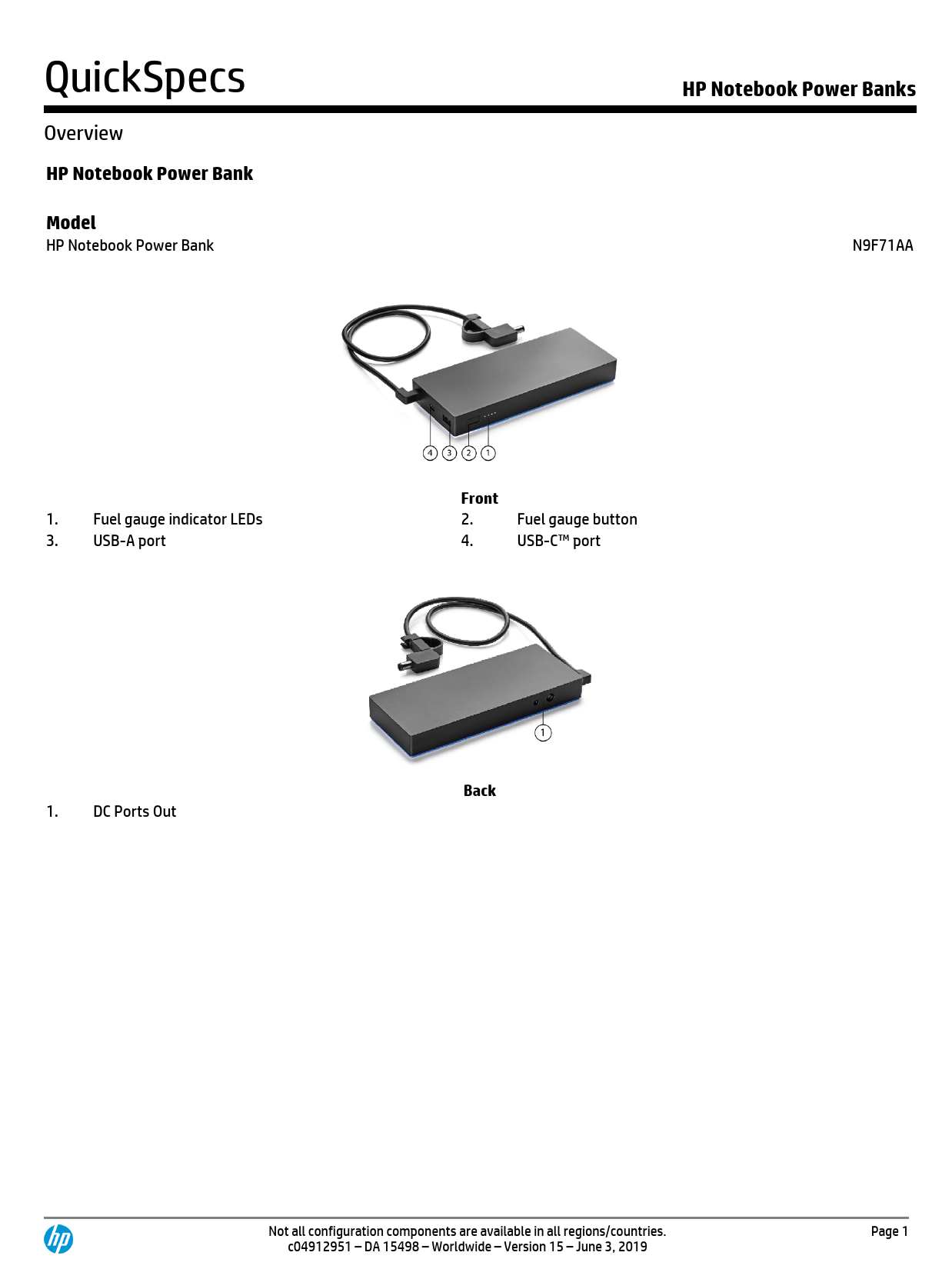

QuickSpecs Overview HP Notebook Power Bank Model HP Notebook Power Bank HP Notebook Power Banks N9F71AA 1. Fuel gauge indicator LEDs 3. USB-A port Front 2. Fuel gauge button 4. USB-CTM port 1. DC Ports Out Back Not all configuration components are available in all regions/countries. c04912951 � DA 15498 � Worldwide � Version 15 � June 3, 2019 Page 1 QuickSpecs Technical Specifications HP Notebook Power Banks HP Notebook Power Bank is a high end backup power for charging notebook and mobile devices which carries 6200mAh-6400mAh * capacity. It has one 19V barrel type output port, USB type-CTM output port, and USB type A output ports. Specifications Part number Dimensions (H x W x D) Weight Battery Capacity Connectors Rated Input Rated Output LED Indicator Charging method Limited Warranty Compatibility N9F71AA 6.85 x 2.84 x .85 in 174 x 72 x 21.5 mm .88 lb (400 g) 19,200 mAH Power In -1 4.5mm, 1 7.4mm Power Out � 1 4.5mm, 1 USB-C, 1 USB-A 19V, Max 2 A DC 19V, Max 2.35 A (45W max) DC 5V, 3A (15W max) USB Type C DC 5V, 2.4A (12W max) USB Type A 4 LED/Power Indicators 100%~75% 4 LEDS 75%~50% 3 LEDs 50%-25% 2 LEDs Lower 25% 1 LED HP 45W Power adapter (not included) 1 year HP 200 G3 and G4 Series HP ProBook 400 G2, G3, G4 and G5 HP ProBook 600 G1, G2, and G3 HP EliteBook 700 and 800 G1, G2, G3 and G4 HP EliteBook 1020 G1 HP EliteBook 1040 G2, G3 and G4 HP EliteBook Revolve 810 G3 HP ChromeBook 14 G4 HP Stream 11 Pro G1 and G2 HP Stream 14 Pro G3 HP Chromebook 11 G5 HP Chromebook 13 G1 HP EliteBook 1030 G1 HP Spectre Pro x360 *Total mAH calculation based on 6 cells: ~ 3,200 mAh running in parallel � (2*~3,200 mAh) = ~6,400 mAh. 3 sets of parallel batteries: 3*6,400= ~19,200 mAh. Not all configuration components are available in all regions/countries. c04912951 � DA 15498 � Worldwide � Version 15 � June 3, 2019 Page 2 QuickSpecs Technical Specifications HP USB-C Notebook Power Bank Model HP USB-C Notebook Power Bank HP Notebook Power Banks 2NA10AA 1. Fuel gauge indicator LEDs 3. USB-CTM port (charge out) 5. USB-CTM port (charge in/out) Front 2. Fuel gauge button 4. USB-A port (charge out) Not all configuration components are available in all regions/countries. c04912951 � DA 15498 � Worldwide � Version 15 � June 3, 2019 Page 3 QuickSpecs Technical Specifications HP Notebook Power Banks Charge and power your notebook and your USB devices from one USB-CTM connection, even when you can't get to a power outlet or stop to change a battery with the HP USB-C Notebook Power Bank. Specifications Part number Dimensions (H x W x D) Weight Battery Capacity Connectors Rated Input Rated Output Cell Type Voltage Operating Temperature (charging) Operating (discharging) Non-operating Battery Recharge Time (System in OFF or Standby Mode) Fuel Gauge LED LED Indicator Charging method Limited Warranty Compatibility 2NA10AA 6.65 x 2.90 x .91 in (169 x 73.6 x 23 mm) 0.96 lbs (0.44kg) 20,100 mAh, Wh: 72.36WH USB-C ( 3 amps), USB- A ( 2.4 amps) 60W maximum USB-C Power in: Output voltage:20V/15V/12V/10V/9V/5V; Output current: 3A (Max) USB-C Power Out: Output voltage:5V, Output current: 3A (Max) USB-A Power Out: 5V, Output current: 2.4A (Max) Cylindrical SDI 18650 35E; LGC 18650 MJ1 10.8V 0~45 (following cell SPEC) -10~60 (following cell SPEC) Storage Temperature: 1 year 0~23 (following cell SPEC) 3 months 0~45 (following cell SPEC) 1 month 0~60 (following cell SPEC) 0%-100% Less than 3 hours Yes 4 LED/Power Indicators 100%~75% 4 LEDS 75%~50% 3 LEDs 50%-25% 2 LEDs Lower 25% 1 LED HP 45W USB-C Power Adapter (not included) HP 65W USB-C Power Adapter (recommended not included) 1 year HP x2 1012 G1, G2 Tablet HP x2 612 G2 Tablet HP EliteBook x360 1020 G2 HP EliteBook Folio G1 HP Elite x3, Not all configuration components are available in all regions/countries. c04912951 � DA 15498 � Worldwide � Version 15 � June 3, 2019 Page 4 QuickSpecs Technical Specifications HP Pro Tablet 608 G1 HP ChromeBook x360 11 G1 EE HP ChromeBook 13 G1 HP EliteBook x360 HP Notebook Power Banks Not all configuration components are available in all regions/countries. c04912951 � DA 15498 � Worldwide � Version 15 � June 3, 2019 Page 5 QuickSpecs Technical Specifications HP USB-C Essential Power Bank Model HP USB-C Essential Power Bank HP Notebook Power Banks 3TB55AA Charge and power your Windows or macOS� notebook and USB devices from a single USB-CTM connection, even when you can't plug in, with the HP USB-C Essential Power Bank. Enjoy the functionality of an AC adapter and battery with the expansion of a USB hub in one essential device. Specifications Part number Dimensions Cable length Weight Cell type Voltage Power in Power out Battery capacity Operating temperature (charging) Operating temperature (discharging) Non-operating Battery recharge time (system in off or standby mode) Fuel gauge LED 3TB55AA 5.7 x 2.9 x 0.9 in (145 x 73.6 x 23 mm) 13.8 in (350 mm) 11 oz (312 g) SAMSUNG SDI INR18650-29E6 14.6V Type C Connect 20V/3A, 15V/3A Type C cable 5V/3A Pogo In 19.5V/1.5A Type C cable 20V/3A, 15V/3A, 12V/3A, 10V/3A, 9V/3A, 5V/3A Type C Connect 5V/3A Type A 5V/2.4A 11400 mAH @ 40 Wh Charge: 0 ~45�C Discharge: -20 ~ 60�C Within 1 year :-20~20�C Within 3 month :-20~45�C Within 1 month :-20~60�C Battery Recharge Time @ Charge Power Bank only -> 20V/15V , 2.5 HR Yes Not all configuration components are available in all regions/countries. c04912951 � DA 15498 � Worldwide � Version 15 � June 3, 2019 Page 6 QuickSpecs Change Log Date of change Sep 27 2016 Sep 28 2016 June 27, 2017 July 17 2017 August 14, 2017 August 16, 2017 August 17, 2017 August 18, 2017 August 22, 2017 August 28, 2017 August 9, 2018 Version History V1 to V2 V2 to V3 V3 to V4 V4 to V5 V5 to V6 V6 to V7 V7 to V8 V8 to V9 V9 to V10 V10 to V11 V11 to V12 November 1, 2018 December 5, 2018 June 3, 2019 V12 to V13 V13 to V14 V14 to V15 HP Notebook Power Banks Added Added Added Added Added Added Added Change Added Added Correction Description of change Battery capacity "Thunder Bolt Out" to "DC Ports Out"; Dimensions mm size Compatibility added for EliteBook G4, 820, 840, 850 Picture with DC adapter ports added replacing line art HP USB-C Notebook Power Bank (2NA10AA) added HP Notebook Power Bank front view picture added replacing line art Callouts added for HP Notebook Power Bank Callouts added for HP USB-C Notebook Power Bank HP USB-C Notebook Power Bank specs added HP USB-C Notebook Power Bank callouts updated Battery capacity, Connectors power out and rated output Specs updated HP USB-C Essential Power Bank Battery Capacity row added to HP USB-C Essential Power Bank HP Notebook Power Bank�s Battery Capacity corrected � Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. USB Type-CTM and USB-CTM are trademarks of USB Implementers Forum. Not all configuration components are available in all regions/countries. c04912951 � DA 15498 � Worldwide � Version 15 � June 3, 2019 Page 7
