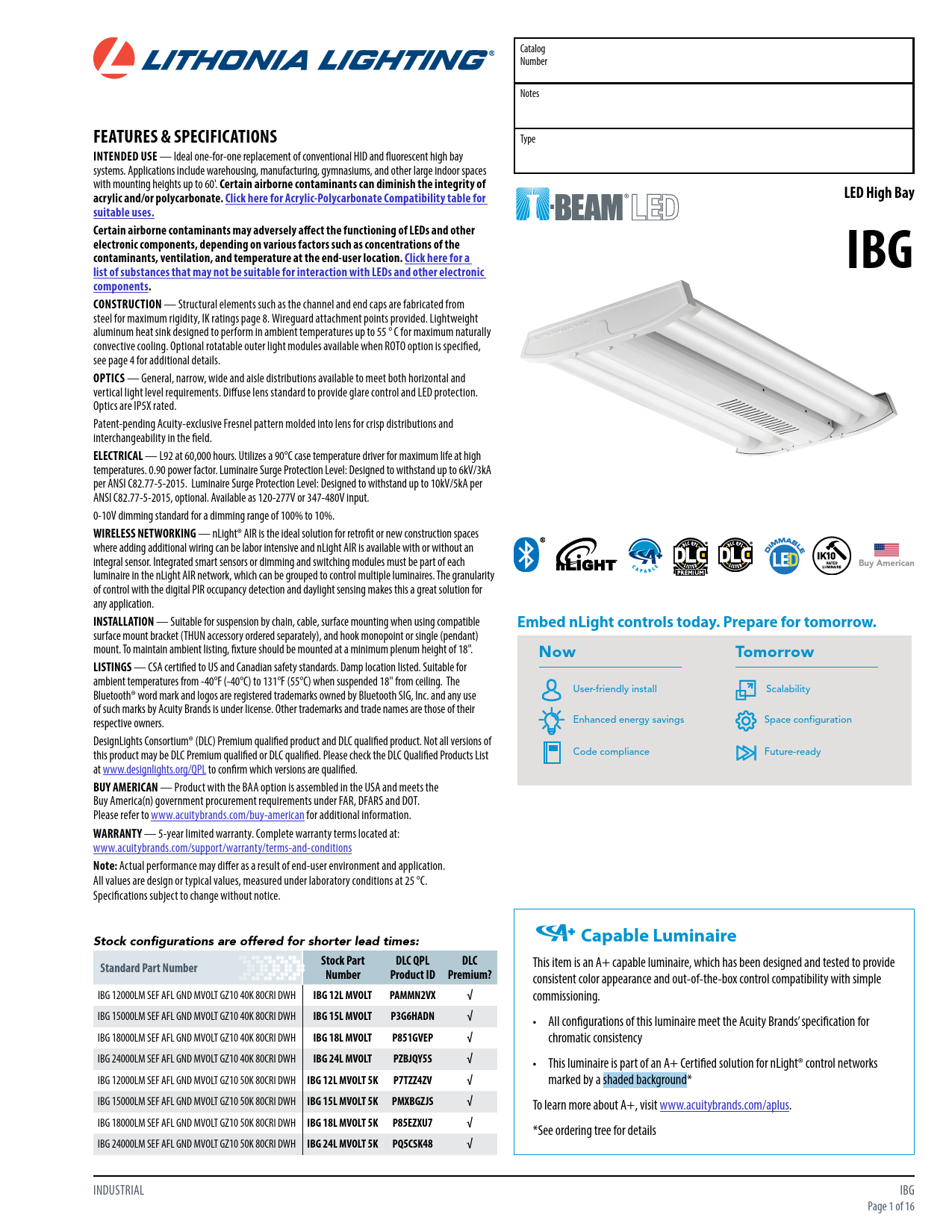

2019 22:26:55&DOC Type=SPEC SHEET Catalog Number
Notes
FEATURES & SPECIFICATIONS
INTENDED USE -- Ideal one-for-one replacement of conventional HID and fluorescent high bay systems. Applications include warehousing, manufacturing, gymnasiums, and other large indoor spaces with mounting heights up to 60'. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION -- Structural elements such as the channel and end caps are fabricated from steel for maximum rigidity, IK ratings page 8. Wireguard attachment points provided. Lightweight aluminum heat sink designed to perform in ambient temperatures up to 55 ° C for maximum naturally convective cooling. Optional rotatable outer light modules available when ROTO option is specified, see page 4 for additional details.
OPTICS -- General, narrow, wide and aisle distributions available to meet both horizontal and vertical light level requirements. Diffuse lens standard to provide glare control and LED protection. Optics are IP5X rated.
Patent-pending Acuity-exclusive Fresnel pattern molded into lens for crisp distributions and interchangeability in the field.
ELECTRICAL -- L92 at 60,000 hours. Utilizes a 90°C case temperature driver for maximum life at high temperatures. 0.90 power factor. Luminaire Surge Protection Level: Designed to withstand up to 6kV/3kA per ANSI C82.77-5-2015. Luminaire Surge Protection Level: Designed to withstand up to 10kV/5kA per ANSI C82.77-5-2015, optional. Available as 120-277V or 347-480V input.
0-10V dimming standard for a dimming range of 100% to 10%.
WIRELESS NETWORKING -- nLight® AIR is the ideal solution for retrofit or new construction spaces where adding additional wiring can be labor intensive and nLight AIR is available with or without an integral sensor. Integrated smart sensors or dimming and switching modules must be part of each luminaire in the nLight AIR network, which can be grouped to control multiple luminaires. The granularity of control with the digital PIR occupancy detection and daylight sensing makes this a great solution for any application.
INSTALLATION -- Suitable for suspension by chain, cable, surface mounting when using compatible surface mount bracket (THUN accessory ordered separately), and hook monopoint or single (pendant) mount. To maintain ambient listing, fixture should be mounted at a minimum plenum height of 18".
LISTINGS -- CSA certified to US and Canadian safety standards. Damp location listed. Suitable for ambient temperatures from -40°F (-40°C) to 131°F (55°C) when suspended 18" from ceiling. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Acuity Brands is under license. Other trademarks and trade names are those of their respective owners.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN -- Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY -- 5-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Type
LED High Bay
IBG
Buy American
Embed nLight controls today. Prepare for tomorrow.
Now
Tomorrow
User-friendly install Enhanced energy savings Code compliance
Scalability Space configuration Future-ready
Stock configurations are offered for shorter lead times:
Standard Part Number
Stock Part Number
DLC QPL
DLC
Product ID Premium?
IBG 12000LM SEF AFL GND MVOLT GZ10 40K 80CRI DWH IBG 12L MVOLT PAMMN2VX
IBG 15000LM SEF AFL GND MVOLT GZ10 40K 80CRI DWH IBG 15L MVOLT P3G6HADN
IBG 18000LM SEF AFL GND MVOLT GZ10 40K 80CRI DWH IBG 18L MVOLT P851GVEP
IBG 24000LM SEF AFL GND MVOLT GZ10 40K 80CRI DWH IBG 24L MVOLT PZBJQY5S
IBG 12000LM SEF AFL GND MVOLT GZ10 50K 80CRI DWH IBG 12L MVOLT 5K P7TZZ4ZV
IBG 15000LM SEF AFL GND MVOLT GZ10 50K 80CRI DWH IBG 15L MVOLT 5K PMXBGZJS
IBG 18000LM SEF AFL GND MVOLT GZ10 50K 80CRI DWH IBG 18L MVOLT 5K P85EZXU7
IBG 24000LM SEF AFL GND MVOLT GZ10 50K 80CRI DWH IBG 24L MVOLT 5K PQ5CSK48
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
· All configurations of this luminaire meet the Acuity Brands' specification for chromatic consistency
· This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
INDUSTRIAL
IBG Page 1 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
A+ Capable options indicated by this color background.
ORDERING INFORMATION
Lead times will vary depending on options selected. Consult with your sales representative.
Example: IBG 24000LM SEF AFL GND MVOLT GZ10 40K 80CRI DWH
Series IBG
Lumen package
Performance package
8000LM 12000LM 15000LM 18000LM 24000LM 30000LM 36000LM 48000LM 60000LM 72000LM
8,000 lumens 12,000 lumens 15,000 lumens 18,000 lumens 24,000 lumens 30,000 lumens 36,000 lumens 48,000 lumens 60,000 lumens 72,000 lumens
SEF Standard efficiency
HEF Premium efficiency
Lens
Distribution
AFL Acrylic, frosted ACL Clear acrylic PCL Clear polycarbonate PFL Semi-diffuse
polycarbonate L/LENS Less lens
GND General
ATL Acrylic textured lens ND Narrow
PTL Polycarbonate textured lens
WD Wide ADL Rack
Voltage
MVOLT 120-277V HVOLT 347-480V 120 120V 208 208V 240 240V 277 277V 347 347V 480 480V
Driver
GZ10 0-10V dimming
Color temperature
35K 3500 K 40K 4000 K 50K 5000 K
Coloring rendering index
70CRI 70 CRI 80CRI 80 CRI 90CRI 90 CRI
Options
BAA
Buy America(n) Act Compliant
Emergency batteries
E10WCP
10W emergency battery pack, Certified in CA Title 20 MAEDBS
IE20WCPHE Iota 20W emergency battery pack, Certified in CA Title 20 MAEDBS
IE30WCPHE Iota 30W emergency battery pack, Certified in CA Title 20 MAEDBS
SPD ETS SF DF OUTCTR
OCS
OCS4C
OCU__
IMP RRL_
WGX
ROTO JP
Cord sets CPSBW
CPTLW
CNPW CNP4CW
CNP5CW
CNP5CDW
Surge protection device
Generator transfer device
Single fuse
Double fuse
Wiring leads pulled through back center of fixture
RELOC® OnePass® selectable cable 6' installed
RELOC® One Pass® selectable cable 6' installed.
RELOC® OnePass® unselectable cable 6' installed (must specify tap position)
Integrated modular plug
RELOC®-Ready luminaire. (Not available with Haleon sensor options) See page 11 for ordering information
Standard wire guard, installed (not available with Haleon sensor)
Rotateable optics
Job Pack Packaging (Consult table on page 10 for details)
6' white damp location cord with straight blade plug (voltage will match fixture)
6' white damp location cord with twistlock plug (voltage will match fixture)
6' white cord, no plug
6' white cord with 4 conductors, no plug (for use when unswitched hot is required for battery pack)
6' white cord, 5 conductor, no plug, damp location
6' white cord, 5 conductors (for bringing dimming leads out of fixture)
Finish
Individual Controls (LSXR):
LSXR6 LSXR6 HL
360° integral high mount motion sensor with standard on/off operation (formerly LAOZU) LINK
360° integral high mount motion sensor with high/low/(Off) occupancy operation (formerly LAHOSZU) (For High/Low only, bypass relay)
LSXR6 P
360° integral high mount motion sensor with On/Off switching photocell (formerly LAPZU)
LSXR6 ADC
360° integral high mount motion sensor with dimming & switching photocell (formerly LAMOSZU)
LSXR6 ANL
360° integral high mount motion sensor with High/Low (Off) occupancy dimming & auto-dimming photocell;
*For 360° integral Low Mount sensors, replace "6" in nomenclature with "10". For High Mount Aisleway sensors, replace "6" in nomenclature with "50". Ex: LSXR10 ADC
DNA Natural aluminum
DWH Gloss white
MB Matte black
Individual Controls with Bluetooth Programming (Haleon)
HLN45 OCC
360° integral high mount motion sensor; Bluetooth enabled LINK (formerly HLN360)
HLN45 HL
360° integral high mount motion sensor with High/Low (Off) occupancy detection; Bluetooth enabled (formerly HLN360HL)
HLN45 ADC
360° integral high mount motion sensor. On/Off occupancy detection with auto-dimming photocell; Bluetooth enabled (formerly HLN360ADC)
HLN45 ANL
360° integral high mount motion sensor with High/Low (Off) occupancy dimming & auto-dimming photocell; Bluetooth enabled (formerly HLN360ANL)
*For integral Aisle Mount sensors, replace "45" in nomenclature with "45A". Ex: HLN45A ADC
C6D0SUEM
360° high mount motion sensor, dimming only (photocell disabled), pre-wired; UL924 listed (not available with battery pack or ETS)
*For Low Mount sensor, replace "6" in nomenclature with "10"
nLight Wired Network Controls
NCMB6
nLight High Mount Occupancy Sensor with Dimming, pre-wired LINK (Includes dimming Power Pack)
NPP16 D
nLight dimming & switching module LINK
*For 360° integral Low Mount sensors, replace "6" in nomenclature with "10". For high Aisle Mount sensors, replace "6" with "50". Ex: NCMB50
nLight AIR Wireless Controls
NLTAIR2 RMSOD45 nLight AIR (wireless) gen 2 control device with high mount occupancy and daylight sensor LINK
NLTAIR2 RIO
nLight AIR (wireless) gen 2 control device (dimming & switching) LINK
*For 360° integral Low Mount sensors, replace "45" in nomenclature with "7". For high Aisle Mount sensors, replace "45" with "45A". Ex: NLTAIR2 RMSOD45A
**For guidance on which sensors to use with emergency generator power, consult table on page 9.
NOTE: indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 4. Options are sorted alphanumerically.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
See Accessories and option value restrictions on next page IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 2 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
Accessories: Order as separate catalog number.
Mounting: IBAC120 M100 IBAC240 M75 IBHMP HBBS36 IBGACVH IBGPMPHB
THUN
Aircraft cable 10' with hook (one pair)
Aircraft cable 20' with hook (one pair)
Hook monopoint
Chain hanger with chain, 36" (one pair)
Aircraft 10' V hanger (one pair)
Pendant monopoint splice box, includes side covers (3/4" hub) for use with OUTCTR option, not available with backpack
Tong hanger bracket (order 2 per fixture)
Cord sets and sensors for IMP option:
CS1WIMP Straight plug, 120V
CS3WIMP Twist-lock, 120V
CS7WIMP Straight plug, 277V
CS11WIMP Twist-lock, 277V
CS25WIMP Twist-lock 347V
CS93WIMP
600V SO white cord, no plug (no voltage required)
CS97WIMP Twist-lock 480V
MSIIMPIBG Aisle sensor for use with IMP option
MSI360IMPIBG 360° sensor for use with IMP option
*Base fixture must be ordered with IMP option when ordering this accessory.
CORD SET ORDERING INFORMATION
Cord sets cannot be ordered as accessories
Wire guards (gloss white*) - not available with Haleon sensor
SEF Lumen Packages
HEF Lumen Packages
WGIBG22 8000LM, 12000LM, 15000LM 8000LM
WGIBG24 18000LM, 24000LM, 30000LM 12000LM, 15000LM
WGIBG26 36000M
18000LM, 24000LM, 30000LM, 36000LM
WGIBG44 48000LM, 60000LM
-
WGIBG46 72000LM
48000LM, 60000LM, 72000LM
*For DNA wire guards, add DNA to end of nomenclature. Ex: WGIBG26DNA
*For MB wire guards, add MB to end of nomenclature. Ex: WGIBG26MB
Plug Option
CNP Cord Only CP Cord with Plug
Plug type
(blank)
TL SB
No Plug Option (for Cord Only option)
Locking Type
Straight blade*
Amperage**
(blank) 15 amps 20A 20 amps
Gauge
(blank)
12 14 16
18 gauge standard 12 gauge
14 gauge
16 gauge
# of conductors
(blank) 3 conductors (blk/ wht/grn)
4C 4 conductors; Use with Battery option when unswitched hot is needed
5C 5 conductors; Use when fixture has 2 drivers and separate operation is required
5CD *** 5 conductors; Use with dimming driver when dimming leads are desired (Not for use with dimming sensors)
Color
(blank) Black
W
White
Location
(blank) Damp Location
Length
(blank) 3FT 10FT 12FT 15FT 20FT
6 feet 3 feet 10 feet 12 feet 15 feet 20 feet
* Not available wet location. ** Amperage is only configurable for cords with plugs *** Not available with plugs.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 3 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
Option value 347 36000LM 480 48000LM
60000LM
72000LM
8000LM 90CRI C6D0SUEM
Cord sets
DF E10WCP Emergency batteries
ETS
HVOLT IBGPMPHB
IE20WCPHE IE30WCPHE IMP Individual controls (Haleon)
Individual controls (LSXR)
nLight wireless L/LENS NCMB6
nPP16 D OCS OCS4C OCU_ OUTCTR ROTO RRL SF SPD
THUN
Option Value Ordering Restrictions
Restriction
Not available with ETS or, emergency batteries and EM or ER sensor solutions.
When ordering 347V or 480V with NLTAIR2 or Haleon, fixture utilizes backpack adding 3.09" depth to fixture (see page 9 for line art).
Not available with ETS, nPP16 D, EM or ER sensor solutions and emergency batteries.
When using IBGPMPHB, mono-point bracket mounts off-center, requiring aircraft cables for additional fixture support and fixture leveling. Must use additional method such as flexible conduit (supplied by others) to bring wiring to pendant mono-point when using for wiring box.
When using IBGPMPHB, mono-point bracket mounts off-center, requiring aircraft cables for additional fixture support and fixture leveling. Must use additional method such as flexible conduit (supplied by others) to bring wiring to pendant mono-point when using for wiring box.
When using IBGPMPHB, mono-point bracket mounts off-center, requiring aircraft cables for additional fixture support and fixture leveling. Must use additional method such as flexible conduit (supplied by others) to bring wiring to pendant mono-point when using for wiring box.
When ordering 347V or 480V with NLTAIR2 or Haleon option, fixture utilizes backpack adding 3.09" depth to fixture (see page 9 for line art).
Only available with SEF. 90CRI configurations have longer lead times.
Daylight harvesting functionality not enabled by default. See page 15 for default sequence of operation. Utilizes XPA CMRB6. Not available with 36000LM. Not available with other controls.
Must specify voltage on cord sets with plugs. Cords come standard out center back of fixture. Refer to cord set ordering table, page 3 for more configurations. Non-standard configurations have extended lead times.
Available on 208, 240, 480V. Not available with MVOLT or HVOLT.
Only available with 8000LM. MVOLT only. Not available with IMP option. Fixture utilizes backpack, adding 3.08" to fixture depth (see page 9 for line art).
Not available with IMP option. Emergency batteries alter fixture construction, (see pg. 9 for batteries that use a backpack and line art) Not available with cords with plugs. Use CNP4CW or OCS4C when unswitched hot is required for batter pack options. Consult standard wiring detail on page 9.
MVOLT only. Not available with cord sets or batteries. When sensor is required, please use the ER sensor option (reference page 9). When ordered with 72000LM, fixture cannot be surface mounted (THUN brackets). Consult table on page 7 for max operating temperature. Utilizes ETS20 DR for 72000LM and ETS 924 DR for all others.
Not available with ETS, nPP16 D, EM or ER sensor solutions and emergency batteries.
48000LM, When using IBGPMPHB, mono-point bracket mounts off-center, requiring aircraft cables for additional fixture support and fixture leveling. Must use additional method such as flexible conduit (supplied by others) to bring wiring to pendant mono-point when using for wiring box.
MVOLT and HVOLT only. Not available with 8000LM or IMP option. Battery adds 2.8" depth to fixture (see page 9 for line art).
MVOLT and HVOLT only. Not available with 8000LM or IMP option. Battery adds 2.8" depth to fixture (see page 9 for line art).
Must specify voltage. Not available with NLight wired sensors, batteries, or OUTCTR option. Fixture requires IMP power cord accessory.
Refer to page 13 for Haleon sensor default settings matrix. When ordered with ER sensor, ETS is used. Not available with other controls. Low temperature (LT) option standard, do not call out.
Comes standard with SPD. This sensor configuration is suitable for minimum ambient temperature of 14°F (-10°C). When ordered with ER sensor, ETS is used. Not available with other controls. Refer to page 14 for additional LSXR ordering options.
Not available with Haleon or nLight wired options. When ordered with ER sensor, ETS is used. Not available with other controls.
Lens is always recommended.
Sensor wired via CAT5 to nPP16 D dimming power pack. CAT5e connector cable also included. Ships standard with SPD. Only available with 120, 277 or 347V. Not available with other controls.
Not for use with THUN accessory. Ships standard with SPD. Only available with 120, 277, or 347V. Not available with IMP or nLight wireless options.
Must specify voltage. Fixture will bear dry location label. Order OCS10 for 10' cord. Consult standard wiring detail on page 9.
Fixture will bear a dry location label. Use when unswitched hot is required for battery pack options, consult standard wiring detail on page 9.
Must specify voltage. When 0-10V dimming leads are required, use C12S option. C12S option is not availalble with dimming sensors. Fixture will bear dry location label.
Not available with emergency batteries. Requires IBGPMPHB accessory to mount fixture. Not available with cord set, ETS and IMP options.
Available with IBG 8000LM, 12000LM, 15000LM, 18000LM, 24000LM, 30000LM or 36000LM only.
When dimming leads are required use C12S option. Not for use with dimming sensors.
Available on 120, 277, 347V. Not available with MVOLT or HVOLT.
Standard with HVOLT, 347, 480, ETS, E10WCP, IE20WCPHE HVOLT, IE30WCPHE HVOLT, LSXR, NPP16 D, NPP16 D ER and RPP20 D EM options. Standard with 8000LM when ordered with Haleon and NLTAIR2. Only specify MVOLT, 120, 208, 240, or 277V when additional surge protection is needed.
Maximum ambient temperature of standard fixture mounted with THUN is 113°F (45°C). Not available with MSIIMPIBG, MSI360IMPIBG, NPP16 D options, or any configurations that utilize fixture backpack (see pg. 9 for batteries that use a backpack). Not available with 72000LM with ETS.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 4 of 16
IBG LED High Bay
ROTATABLE OPTICS
· Rotate in 30° increments, 0° - 180° · Create Custom Distributions · 30° - light up rack · 90° - wall wash · 180° - Uplight
HANGER HOLE DIMENSIONS
1.11
.45 4.30
1.11 .45 4.30
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
23.38 1.11
45.06 1.11
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 5 of 16
IBG LED High Bay
LINE ART AND DIMENSIONS
All dimensions are in inches (centimeters) unless otherwise indicated. Dimensions may vary with options or accessories.
2', 2 Bar
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
IBG SEF DIMENSIONS 2', 4 Bar
2', 6 Bar
25.60 25.60
25.60
25.60 25.60
25.60
25.60 25.60
25.60
11.80 11.80
11.80 25.60 25.60
25.60 2.68 2.6815.51 125..6581
15.51 25.60 25.60
25.60
2.68 2.68
2.68
20.71 20.71
20.71
25.60 25.60
25.60
2.90
12.62 2.90
12.62 2.90
IBG 81021.0652I0B0LG0M081L0M21005000L00ML0IBM1LGM20800201.09L500M0L0M01L2M2.9000106L.1M2
16.12 2.90
(with wire g(uwairtdh)wire guard)(with wire guard)
IBG161.1820I0B0GLM182040000L0IMBLMG2410800020.L608MLM 242.06800LM 30000LM30000LM 30000LM
2.68 21.42
21.42
2.93 2.93
2.93
21.42 IBG 360I0B0GLM36000LIMBG 36000LM
(with wire g(uwairtdh)wire guard)(with wire guard)
(with wire g(uwairtdh)wire guard)(with wire guard)
4', 4 Bar
47.28 47.28
47.28
47.28
4', 6 Bar
Weight: (may vary with options or accessories) 8L/12L/15L: 7.75 lbs (3.515Kg) 18L/24L/30L: 10.5 lbs (4.762Kg) 36L: 15.9 lbs (7.212Kg) 48L/60L: 20 lbs (9.07Kg) 72L: 21.75 lbs (9.865Kg)
5.77
Fixture backp
47.28
5.48
PS3025
11.80 11.80 2.68 2.68 15.51 2.68
2.68
16.12 2.90
11.80
47.28 47.28
47.28
47.28
IBGN 18I0B0G0NLM18000ILBMGN 18000LM
IBG 48000LM 60000LM
11.80 11.80
2.68 2.68
2.68
20.71
2.68
11.80
47.28 47.28
47.28
IBGN 24I0B0G0NLM243000000ILB0MGLNM3023046000000L00M4LL7MM.32683000000L0MLM 36000LM
IBG 72000LM
2', 2 Bar
IBG HEF DIMENSIONS 2', 4 Bar
2', 6 Bar
25.60
25.60
25.60 25.60
25.60
25.60
25.60
25.60
25.60
11.80
11.8205.60
121.6.88025.60 15.51
25.60 2.68
15.51 25.602.68
2.68
2.68
2.68
15.51 25.60
25.60 20.71
20.71
25.60 20.71
25.60
25.60
2.90
12.62 2.90
IB12G.682 000LM
2.90
I1B2.G628000LM16.12
2.90
(with wire guard)
(with wire guard)
(with wire guard)
IBG
800I0BLGM1162.10200LM
15000LIMBG116.21220.6080LM
15000ILBMG 12020.608LM
21.42
1500IB0GLM18201.04220.6L8M
24000LIMBG31028010.040020LLMM3264000000LILMBMG
3108000LM
3264000LM
30000LM
36000LM
2.90
2.90
2.93
2.93
2.93
(with wire guard)
(with wire guard)
(with wire guard)
(with wire guard)
(with wire guard)
(with wire guard)
4', 6 Bar
47.28 47.28
47.28
47.28
5.77
Fixture backpack dimension.
5.48
PS30250 OPTION
Weight: (may vary with options or accessories) 8L: 7.75 lbs (3.515Kg) 12L/15L: 10.5 lbs (4.762Kg) 18L/24L/30L/36L: 15.9 lbs (7.212Kg) 48L/60L/72L: 4' - 6' Mod - 21.75 lbs (9.865Kg)
20.71
47.28
2.68
IBG 48000LM 60000LM 72000LM
For dimensional changes with emergency batteries, see line art on page 9.
11.80 2.68
11.80
47.1218.80
47.28
2.68
2.68
427.6.288
11.80 2.68
IBGN 18000LM IBGN 18000LM IBGN 18000LM
11.80
47.1218.80
47.28
47.28
2.68
IBGN 24000LM 30000IBLGMN3264000000LLMM 3000IB0LGMN 3264000LM 30000LM 36000LM
IBG
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 6 of 16
IBG LED High Bay
IBG OPERATIONAL DATA
IBG SEF
Delivered Lumens 4000K, 80CRI
SEF
Delivered Lumens 5000K, 80CRI
SEF
Lumen Package
8000LM 12000LM 15000LM 18000LM 24000LM 30000LM 36000LM 48000LM 60000LM 72000LM
8000LM 12000LM 15000LM 18000LM 24000LM 30000LM 36000LM 48000LM 60000LM 72000LM
Wattage (277V)
48 76 93 105 144 178 218 284 357 426
48 76 93 105 144 178 218 284 357 426
AFL GND
Acrylic Frosted, General
Lumen Output
LPW
7845
163
11856
156
14774
159
18531
176
24490
170
29586
166
35451
163
47261
166
59715
167
71168
167
7970
165
12045
158
15010
161
18297
174
25046
174
30059
169
36018
165
48017
169
60670
170
72306
170
IBG HEF
Delivered Lumens 4000K, 80CRI
HEF
Delivered Lumens 5000K, 80CRI
HEF
Lumen Package
8000LM 12000LM 15000LM 18000LM 24000LM 30000LM 36000LM 48000LM 60000LM 72000LM
8000LM 12000LM 15000LM 18000LM 24000LM 30000LM 36000LM 48000LM 60000LM 72000LM
Wattage (277V)
47 68 85 100 134 170 214 280 343 425
47 68 85 100 134 170 214 280 343 425
AFL GND
Acrylic Frosted, General
Lumen Output
LPW
7913
167
11944
176
14941
176
17902
179
23845
178
29819
175
35900
168
47662
170
57621
168
71124
167
8092
171
12215
180
15280
180
18308
183
24386
182
30495
179
36715
172
48744
174
58929
172
72738
171
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
SCALING FACTOR TABLES
CCT
Multiplier
3000K
0.93
3500K
0.96
4000K
0.98
5000K
1.00
CRI
Multiplier
70CRI
1.05
80CRI
1.00
90CRI
0.87
General Distributions AFL GND ACL GND PFL GND L/Lens
Multiplier 1.00 1.01 0.83 1.04
Other Distributions AFL GND ATL ND ATL WD ATL AD
Multiplier 1.00 1.00 1.00 1.01
PHOTOMETRICS
See www.lithonia.com. INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 7 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
IBG CHARACTERISTICS
Lumen package
Standard efficiency
Wattage
120V 277V 347V 480V 120V
8000LM
48
48
48
48
47
12000LM
77
76
75
75
69
15000LM
95
93
93
93
86
18000LM 106 105 106 105 100
24000LM 147 144 145 145 135
30000LM 182 178 179 179 172
36000LM 223 218 217 217 214
48000LM 290 284 287 285 280
60000LM 365 357 361 359 346
72000LM 435 426 431 428 428
High efficiency
277V 347V
47
47
68
67
85
85
100
99
134 134
170 171
214 214
280 279
343 344
425 426
Length
Width
Depth
Dimensions are shown in inches (centimeters)
480V
unless otherwise noted.
Dimensions are for SEF fixtures.
Comparable Light Source
47
25.6
11.8
2.75 100W MH, 4-lamp T8 NBF
68
25.6
11.8
2.75 175W MH, 4-lamp T8 HBF, 2-lamp T5HO
85
25.6
11.8
2.75 200W MH, 6-lamp T8 NBF
99
25.6
15.51
2.75 250W MH, 6-lamp T8 HBF, 4-lamp T5HO
135
25.6
15.51
2.75 400W MH, 6-lamp T5HO
171
25.6
15.51
2.75 575W MH, 10-lamp T8 HBF
213
25.6
20.65
2.75 750W MH, 8-lamp T5HO
278
47.29
15.51
2.75 875W MH, 10-lamp T5HO
345
47.29
15.51
2.75 1000W MH
427
47.29
20.65
2.75 1000W MH
PROJECTED LUMEN MAINTENANCE
IBG 2ft & 4ft Operating hours Lumen maintenance factor
0
15,000 30,000 45,000 60,000 100,000
1
0.98
0.96
0.94
0.92
0.86
IK RATING
IK Rating
Poly-carbonate Lens
IK10
Acrylic Lens
IK06
AMBIENT TEMPERATURE RATINGS
LUMENS
SUSPENDED
SUSPENDED SENSORS/ CONTROL
SURFACE
SURFACE SENSORS/ CONTROL
BATTERY
ETS
8000LM
55
55
45
45
45
40
12000LM
55
55
45
45
40
40
15000LM
55
55
45
45
40
40
18000LM
55
55
45
45
40
40
24000LM
55
55
45
45
40
40
30000LM
55
55
45
45
40
40
36000LM
55
55
45
45
40
40
48000LM
55
55
45
45
40
40
60000LM
55
55
45
45
40
40
72000LM
55
55
45
45
40
40
Note: Various add-on components such as sensors and batteries impact operating temperature range of IBG fixture. Consult component specification sheets or consult factory to determine if components have a different operating temperature range than IBG.
LUMENS VS. AMBIENT TEMPERATURE
Ambient °C
0 5 10 15 20 25 30 35 40 45 50 55
Ambient °F
32 41 50 59 68 77 86 95 104 113 122 131
Lumen Multiplier
1.03 1.03 1.02 1.01 1.01 1 0.99 0.99 0.98 0.97 0.96 0.95
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 8 of 16
IBG LED High Bay
EMERGENCY BATTERY PACK OPTIONS
5.48 2.68
IE20WCPHE
2.80
Factory-Installed Nomenclature
Battery Part Number
E10WCP
PS1055CP
IE20WCPHE (with MVOLT) ILBLP-CP20-HE-SD-HV
IE30WCPHE (with MVOLT) ILBLP-CP30-HE-SD-HV
IE20WCPHE (with HVOLT) ILBHI-CP20-HE-SD-HV
IE30WCPHE (with HVOLT) ILBHI-CP30-HE-SD-HV
Note: ILBHI is standard HVOLT battery pack
Utilizes BPK?*
Suitable for Field InEs3ta0lWlatCioPnHE
Yes 5.48 No 2.68
No
2.80
Yes
No
Yes
No
Yes
No
Yes
CORD SETS WITH EMERGENCY WIRING DETAILS
When battery is ordered with a 3-conductor cord set or Reloc® cord (OCS):
The 3 conductor cord set will include the hot (BL), neutral (WH), and ground (GR) conductors but not the unswitched hot for the battery.
· The unswitched hot for powering the battery (BK) will exit the fixture out of the KO of the backpack (for E10WCP batteries) or out of the KO on the end plate (all other battery options).
· If KO-mounted sensor is included, the unswitched hot will come out of opposite end plate KO.
When battery is ordered with a 4-conductor cord set or Reloc® cord (OCS4C):
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
PS30250
2.80 5.48
2.68
FIXTURE BACKPACK
IE20WCPHE
2.80 5.48
2.68
PS3
5.48 2.68
5.77
3.08
2.68
Use with E10WCP
IE30WCPHE
2.80 5.48
2.68
FIXTURE
5.77 2.68
Use with PS E10WCP
EMERGENCY LUMENS AFL GND (5000K 80CRI)
8000
12000
15000
18000
SEF
24000 30000
36000
48000
60000
72000
E10WCP
2000 -
IE20WCPHE
3900 3900 3900 4000 4000 4000 4000 4000 4000
IE30WCPHE
5800 5800 5800 6000 6000 6000 6000 6000 6000
E10WCP
IE20WCPHE IE30WCPHE
8000
2100
-
-
12000
-
4200
6200
15000
-
4200
6200
18000
-
4300
6300
HEF
24000 30000
-
4300
6300
4300
6300
36000
-
4300
6300
48000
-
4300
6300
60000
-
4300
6300
72000
-
4100
6100
Note: Based on AFL GND, 50K, 80CRI. For emergency lumen output of specific model, please consult factory.
Note: IE20WCPHE & IE30WCPHE both for MVOLT and HVOLT battery packs.
The 4 conductor cord set will include include the hot (BL), neutral (WH), and ground (GR) conductors AND the unswitched hot will be a separate conductor (RED).
Note: To get IBG wired from the factory for 24/7 operation, with on/off controlled by sensor rather than switch, contact your factory representative to request the normal hot and unswitched hot wired together in the fixture. Consult local codes to determine if this is allowable.
When ETS is used (individually or on ER sensor) with a 3-conductor cord set or Reloc® cord (OCS):
BK (Emergency Hot, Cord set Labeled)
WH (Neutral)
BL (Hot) WH (Neutral) GR (Ground)
EMERGENCY LUMENS CROSS AFL GND (5000K, 80CRI)
IE20WCPHE IE30WCPHE
12000
3900
5800
15000
3900
5800
18000
3900
5800
SEF
24000 30000
4000 4000
6000 6000
36000
4000
6000
48000
4000
6000
60000
4000
6000
The 3 conductor cord set will include the hot (BL), neutral (WH), and ground (GR) conductors but not the dedicated hot and neutral for emergency function
· The emergency hot (BK) and neutral (WH) will exit the fixture out of the KO of the end plate. · If KO-mounted sensor is included, the emergency hot and neutral will come out of opposite end plate
KO.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 9 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
EMERGENCY OPERATION SCENARIOS
Standard Sensor or Control Device (commonly used with Battery Pack Option)
Emergency Lighting *Luminaire-integral battery pack and emergency driver
Strategy
*Generator transfer device
Recommended Control Device Option
*Not specifically listed for emergency use. *Wired such that a separately listed emergency device provides emergency lighting power and/or control during loss of normal power scenarios.
EM Solution (Used when switching single incoming hot to generator power)
*Diesel genset emergency backup supply *Slow transfer inverter (>30ms) emergency backup supply
*UL924 listed *Utilizes Power Interruption Detection to initiate lighting control override during loss of normal power scenarios. *Requires power interruption > 30 ms to luminaire during transfer to emergency backup supply.
ER Solution (Used when switching to generator power via a 2nd hot lead)
*Fast Transfer (FT) inverter emergency backup supply *Uninterruptible Power System (UPS) emergency
*UL924 listed *Utilizes dedicated Normal Power sensing leads to initiate lighting control override during loss of normal power scenarios. *Requires connections to both emergency and normal power circuits.
Standalone Sensors (Individual control per fixture)
Function
Sequence of Operations
Standard Sensor or Control Device
EM Solution (Generator
1 Hot)
ER Solution* (Generator
2 Hots)
On/Off
Lights turn on when motion detected; Upon vacancy, Lights turn off after timeout. LSXR6
SBOR6 OEX EM LSXR6 ER
"Lights turn on to high trim when presence is detected; Upon vacancy, the lights
High/Low (Off)
dim to low trim after timeout and turn off after"Dim To Off"" Time Delay. For High/Low (Never Off) function, bypass the relay by bringing power directly
LSXR6 HL
-
into driver rather than wiring hot through LSXR device."
LSXR6 HL ER
Lights turn on unless ambient light level is above set point; If ambient light
Photocell
levels in the space exceed the photocell set point, lights will turn off even during LSXR6 P
-
occupancy.
LSXR6 P ER
Dimming + Photocell
Lights turn on when presence is detected unless ambient light level is above set point; Upon vacancy, the lights dim to low trim , then turn off after timeout; During occupancy, automatically raise and lower electric light level to maintain set point and turn off, depending on ambient light.
LSXR6 ADC
SBOR6 ODP EM LSXR6 ADC ER
Lights turn on when presence is detected unless ambient light level is above set
Dimming + point; Upon vacancy, lights dim to low trim after timeout and remain at low trim
Photocell + until presence is detected; Automatically raise and lower electric light level to
LSXR6 ANL
-
High/Low
maintain set point during occupancy and during vacancy keeps lights at low trim
if ambient light is not sufficient.
LSXR6 ANL ER
Note: For 360° integral Low Mount sensors, replace "6" in nomenclature with "10". Ex. LSXR10 P. For High Aisle Mount sensors, replace "6" with "50".
IBG Standard Sensor Settings
Vacancy Time Out
Dim to Off Time Delay
High Trim
Low Trim (Vacancy
Dim Level)
Photocell Set Point
10 min -
-
-
-
10 min 2.5 min 100%
"10% (Driver Low)"
-
-
-
-
4 fc
10 min 2.5
-
-
4 fc
10 min -
100% 10%
4 fc
Bluetooth Sensors (Configurable via mobile Bluetooth app)
On/Off
Lights turn on when motion detected; Upon vacancy, Lights turn off after timeout. HLN45 OCC
-
High/Low (Off)
Lights turn on to high trim when presence is detected; Upon vacancy, the lights dim to low trim after timeout and turn off after"Dim To Off" Time Delay.
HLN45 HL
-
Lights turn on when presence is detected unless ambient light level is above set
Dimming + Photocell
point; Upon vacancy, the lights dim to low trim during timeout; During occupancy, automatically raise and lower electric light level to maintain set point and turn off,
HLN45 ADC
-
depending on ambient light.
Dimming + Photocell + High/Low (Never Off)
Lights turn on when presence is detected unless ambient light level is above set point; Upon vacancy, lights dim to low trim after timeout and remain at low trim until presence is detected; Automatically raise and lower electric light level to maintain set point during occupancy and during vacancy keeps lights at low trim if ambient light is not sufficient.
HLN45 ANL
-
Note: For High Aisle Mount sensors, replace "45" in nomenclature with "45A". Ex. HLN45A HL
HLN45 OCC ER 10 min -
-
-
-
HLN45 HL ER
10 min 2.5 min 100% 10%
-
HLN45 ADC ER 10 min -
-
10%
50 fc
HLN45 ANL ER 10 min -
100% 10%
50 fc
nLight wired Networked Controls
Dimming + Photocell + Occupancy
Programmable network sensor - On/Off Occupancy detection with Dimming (includes dimming powerpack externally mounted to fixture access plate)
NCMB6
-
Dimming
Programmable On/Off control only with dimming - no sensor (device externally mounted to fixture access plate)
NPP16 D
-
NCMB6 ER NPP16 D ER
Note: For 360° integral Low Mount sensors, replace "6" in nomenclature with "10". For high Aisle Mount sensors, replace "6" with "50". Ex: NCMB50
10 min 7.5 min 100% 10%
5 fc
-
-
100% 1%
-
nLight AIR Wireless Sensors
Dimming + Photocell + Occupancy
Wirelessly programmable network sensor - On/Off control with dimming, occupancy detection, and daylight harvesting (Sensor embedded in fixture)
NLTAIR2 RMSOD45
NLTAIR2 RLSXR6 NLTAIR2
EM
RMSOD45 ER
7.5 min -
Dimming
Wirelessly programmable On/Off control with dimming - no sensor (Device embedded in fixture)
NLTAIR2 RIO
NLTAIR2 RPP20 D EM
NLTAIR2 RIO ER
-
-
Note: For 360° integral Low Mount sensors, replace "45" in nomenclature with "7". For high Aisle Mount sensors, replace "45" with "45A". Ex: NLTAIR2 RMSOD45A EM sensors/controls are KO-mounted; all others integral. RPP20 D EM de-rates fixture to Damp Location.
100% 30%
50 fc
"10% 100% (driver -
low)"
*All ER solutions except nLight wired, include standard sensor or control device with a factory-installed Iota ETS##-DR (UL924 bypass device). This device is integral to the fixture and will include a hot and neutral lead for the dedicated emergency circuit.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 10 of 16
IBG LED High Bay
JOB PACK QUANTITIES
Series IBG
Performance SEF
Lumens
8000LM 12000LM 15000LM 18000LM 24000LM 30000LM 36000LM 48000LM 60000LM 72000LM
8000LM 12000LM 15000LM 18000LM 24000LM HEF 30000LM 36000LM 48000LM 60000LM 72000LM
Standard / Base configuration 90
64 52 30 26 90 64
52
26
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
Job Pack Quantities With Sensor, Cord Set, or RELOC
With Wire guards
With Battery
60
60
48
40
40
32
32
32
28
24
20
14
18
18
14
60
60
48
40
40
32
32
32
28
18
18
14
Breakout Example: Ordered Line:
Qty: 90
IBG 24000LM SEF AFL GND MVOLT GZ10 50K 80CRI LSXR6 DWH JP *Above configuration shows 40 units for Job Pack
Breakout Line 1:
Qty: 80
IBG 24000LM SEF AFL GND MVOLT GZ10 50K 80CRI LSXR6 DWH JP40 *Will have 2 pallets of 40 units each
Breakout Line 2:
Qty: 10
IBG 24000LM SEF AFL GND MVOLT GZ10 50K 80CRI LSXR6 DWH *Balance will ship in unit cartons
Note: If quantity ordered is less than Job Pack quantity for that configuration, the breakout line will default to unit packs.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 11 of 16
IBG LED High Bay
nLIGHT AIR SENSOR - RMSOD
nLIGHT® AIR Dimming and Photo Sensor
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
.86 .48
HIGH MOUNT
7 - MINI-LOW BAY 360° LENS
· Recommended for walking motion detection from mounting heights between 8 ft (2.44m) and 20 ft (6.10 m)
· Initial detection of walking motion along sensor axes at distances of 2x the mounting height up to 15 ft (4.57 m)and 1.75x up to 20 ft (6.10 m)
· Provides 12 ft (3.66 m) radial detection of small motion when mounted at 9 ft (2.74) · Initial detection will occur earlier when walking across sensor's field of view than
walking directly at sensor
45- HIGH MOUNT 360°
· Optimized full coverage pattern for 10 40 ft. (3.1 12 m) · Reliable detection of large motion (e.g. pedestrian walking traffic) up to 30 ft.
(9.1 m) mounting height · Reliable detection of extra-large motion (e.g. forklift traffic) up to 40 ft. (12 m)
mounting height
HISGIDHEVVIEIEWW
0 ft 0 m 0 ft 0 m
1150 43.6.0 9.2 7.4 5.4 3.6 1.8 0 m 1.8 3.6 5.4 7.4 9.2
20 6.1 30 24 18 12 6 0 ft 6 12 18 24 30
TOP VIEW
30 9.1 HIGH MOUNT
40 12
12
6.1
40
20
LOWSVIDIEEWVIEW
0 m
6.1
0 ft
20
0 ft 0 m 0 ft 0 m
12 40
TOP VIEW
10 3.0 9 2.7
20 65.1.4 4.6 3.6 2.7 1.8 0.9 0 m 0.9 1.8 2.7 3.6 4.6 5.4 18 15 12 9 6 3 0 ft 3 6 9 12 15 18
30 9.1
40 12
12
6.1
0 m
6.1
12
40
20
0 ft
20
40
45A HIGH MOUNT AISLEWAY
· Optimized bi directional coverage pattern for aisleways with 10 40 ft. (3.1 12 m) mounting heights
· 1.5X's mounting height equals approximate detection range
· Reliable detection of large motion (e.g. pedestrian walking traffic) up to 30 ft. (9.1 m) mounting height
· Reliable detection of extra-large motion (e.g. forklift traffic) up to 40 ft. (12 m) mounting height
9.2 30 7.4 24 5.4 18 3.6 12 1.8 6 0 m 0 ft 1.8 6 3.6 12 5.4 18 7.4 24 9.2 30
40 12 20 6.1 0 ft 0 m
5.5 18 4.6 15 403.7 12 12 2.7 9 1.8 6 0.9 3 0 m 0 ft 200.9 6.13 1.8 6 2.7 9 3.7 12 4.6 15 0 5ft.5 0 m18
20 6.1 40 12
20 6.1
40 12
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 12 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
HALEON - Integrated Occupancy Sensor with Bluetooth® Programmability
· Programmable sensor settings over Bluetooth® with Acuity VLP smartphone app. · Default programming options to service various application spaces - occupancy detection, 0-10V dimming and daylight harvesting. · 360° High Mount and High Mount Aiselway lens detection options for mounting heights up to 40 ft. · Integrated retractable lens mask included to block unwanted detection. · Sensor ambient temperature rating of -40°F (-40°C) to 158°F (70°C).
Haleon Default Programming
Model
Default Operation
LSXR Equivalent
Occupancy Time Delay
HLNxxx
On/Off Occupancy Only LSXR6 LT or LAO0STU
10 minutes
HLNxxx HL
Occupancy w/ 0-10V Dimming (High/Low/Off)
HLNxxx ADC
Occupancy w/ Dim & Switch Photocell
HLNxxx ANL
Dim & Switch Photocell with High/Low Occupancy
Operation
Note: Lens detection noted in place of 'xxx'
LSXR6 HL LT or LAH0STU
LSXR6 ADC LT or LAM0STU
LSXR6 ANL LT or LAG0STU
10 minutes 10 minutes 10 minutes
Photocell Mode Disabled Disabled
On/Off & Auto Dim On/Off & Auto Dim
Photocell Set-point
n/a
Low Trim High Trim
n/a
100%
Dim to Off Time Delay
Disabled
n/a
10%
100% 2.5 minutes
50 fc
10%
100%
0 seconds
50 fc
10%
100%
Stay Dim/ Never Off
HALEON COVERAGE PATTERNS
HIGH MOUNT
45- HIGH MOUNT 360°
· Optimized full coverage pattern for 10 40 ft. (3.1 12 m)
· Reliable detection of large motion (e.g. pedestrian walking traffic) up to 30 ft. (9.1 m) mounting height
SIDE VIEW
0 ft 0 m 10 3.0
TOP VIEW
40 12 20 6.1
· Reliable detection of extra-large motion (e.g. forklift traffic) up to 40 ft. (12 m)
20 6.1
mounting height 30 9.1
0 ft 0 m
· Stow-able rotating lens shield can be utilized to mask areas in which detection is not
desired
40 12
12
6.1
0 m
6.1
12
20 6.1
40
20
0 ft
20
40
40 12
45A HIGH MOUNT AISLEWAY
· Optimized bi directional coverage pattern for aisleways with 10 40 ft. (3.1 12 m) mounting heights
· 1.2X's mounting height equals approximate detection range
· Reliable detection of large motion (e.g. pedestrian walking traffic) up to 30 ft. (9.1 m) mounting height
· Reliable detection of extra-large motion (e.g. forklift traffic) up to 40 ft. (12 m) mounting height
· Stow-able rotating lens shield can be utilized to mask areas in which detection is not desired
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 13 of 16
IBG LED High Bay
LSXR Fixture Mount Occupancy Sensor (see
www.AcuityControls.com for additional information) · Three interchangeable lens options to satisfy multiple mounting heights and coverage pattern requirements. · Integrated mounting bracket drops lens down 3" from chase nipple. · Single or dual relay versions -- designed with robust protection from the harsh switching requirements of T5 and LED loads. · Photocell and 0-10VDC dimming options. · No PIR field calibration or sensitivity adjustments required. · Sensor ambient temperature rating of 14°F (-10°C) to 131°F (55°C).
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
LSXR configuration
Comparable CMRB sensor
Old style sensor nomenclature
For shortest lead times use one of the following LSXR configurations
LSXR50 / LC0ZU
CMRB 50
MSI
LSXR50 HL / LCH0SZU
CMRB 50 D
MSID
LSXR50 P / LCPZU
CMRB 50 P
MSIPED
LSXR6 / LA0ZU
CMRB 6
MSI360
LSXR6 HL / LAH0SZU
CMRB 6 D
MSI360D
LSXR6 P / LAPZU
CMRB 6 P
MSI360PED
LSXR COVERAGE PATTERNS
HIGH MOUNT 360º LENS (#6)
· Best choice for 15 to 45 ft (4.57 to 13.72 m) mounting heights
· 15 to 20 ft (4.57 to 6.10 m) radial coverage overlaps area lit by a typical high bay fixture
· Excellent detection of large motion (e.g. walking) up to a 35 ft (10.76 m) mounting height
· Excellent detection of extra large motion (e.g. forklifts) up to a 45 ft (13.72 m) mounting height
HIGH MOUNT AISLEWAY LENS (#50)
· Provides a bi-directional coverage pattern ideal for warehouse racking
· 1.2x mounting height equals approximate detection range in either direction
· Typical 40 ft (12.19 m) mounting detects 50 ft (15.24 m) in either direction
· Superior aisleway coverage compared to a masked 360º lens
LOW VIEW
0 ft 0 m
15 4.6
6
3
20
10
SIDE VIEW
0 ft 0 m
10 3
20 6
30 9.1
40 12.2
15.2
7.6
50
25
0 m 0 ft
HIGH VIEW
4.6 15 9.1 30
0 m
3
6
0 ft
10
20
9.1 6 3 30 20 10
13.7 45
0 m 3 6 9.1 0 ft 10 20 30
TOP VIEW
7 2.1
0 ft 0 m
7 2.1
0 m
7.6
15.2
15.2
7.6
0 ft
25
50
50
25
0 m
7.6
15.2
0 ft
25
50
LOW MOUNT 360º LENS (#10)
· Best choice for large motion detection (e.g. walking) · 360º conical shaped pattern · Provides ~24 ft (7.32 m) radial coverage (~2000 ft2)
when mounted at 9 ft (2.74 m) · 7 to 15 ft (2.13 to 4.57 m) mounting heights provide
16 to 36 ft (4.88 to 10.97 m) radial coverage · Detection range improves when walking across
beams compared to into beams
SIDE VIEW
0 ft 0 m
TOP VIEW
9 2.7 8.5 6.4
28
21
4.3 2.1 0 m 2.1 4.3 6.4 8.5
14
7
0 ft 7
14 21
28
8.5 28 4.3 14 0 m 0 ft 4.3 14 8.5 28
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 14 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
C6D0SUEM & C10D0SUEM - UL924 Listed Sensors
SENSOR DEFAULT SEQUENCE OF OPERATION · The occupied light level is full output. · The unoccupied light level is approximately 30%. · The time delay following sensor vacancy is 5 minutes, with an additional 5 minute slow ramp from the occupied light level to the unoccupied light level. · The onboard daylight sensor is not enabled by default - sensor will not respond to changing daylight conditions.
Daylight sensor settings can be enabled and programmed by a trained technician after installation.
EGRESS MODE SEQUENCE OF OPERATION The UL924 C6D0SUEM & C10D0SUEM controls are designed to provide fully tuned light output for 90 minutes following power loss or interruption, ignoring automatic dimming/occupancy/daylight control signals during this time.
· Typical sequence upon power loss: Backup power source activates, transfer switch moves the emergency circuit powering the sensor onto the backup source, and sensor regains power. This sensor is programmed to detect any power interruption or transfer > 30 ms
· The sensor then ignores occupancy & daylight status and controls the luminaire to full light output for 90 minutes. · The device resumes normal dimming & occupancy controls after 90 minutes. · This sensor should not be used with online power backup systems or any transfer devices with < 30 ms transfer time.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 15 of 16
IBG LED High Bay
DIGITAL NAVIGATION | Home | Ordering | nLight Platform | Controls | Operational Data
IMP - Integrated Modular Plug
· The integrated modular plug (IMP) option allows the installer to plug and play a multitude of accessories. · Cord sets connect quickly to any fixture with IMP option. · IMP accessories include occupancy sensors, photocells, X-point relays.
IMP compatible cord sets1 CS1WIMP Straight plug, 120V CS3WIMP Twist-lock, 120V CS7WIMP Straight plug, 277V CS11WIMP Twist-lock, 277V CS25WIMP Twist-lock, 347V CS93WIMP 600V SEOOW white cord, no plug CS97WIMP Twist-lock, 480V
IMP compatible sensors
MSIIMP
Aisle sensor
MSI360IMP 360° sensor
Ordering Example
Order As: Qty 1 - IBG 12000LM SEF AFL GND 120 GZ10 40K 80CRI IMP CP5BW DWH
Ships As: Qty 1 - IBG 12000LM SEF AFL GND MVOLT GZ10 40K 80CRI DWH Qty 1 - CS1WIMP
Notes 1 Cord set required for fixture operation. All cord sets are 18/3, 6' white.
RRL - RELOC®-Ready Luminaire
· RRL connectors to be used with the OnePass system. · Load side of connector factory installed to luminaire. · 4-pole mating connector with push-in terminations allows for simple installation. · Touch-safe design on both halves meets UL/CSA requirement. · Wiping contact design allows safe disconnect under load.
ORDERING INFORMATION
Lead times will vary depending on options selected. Consult with your sales representative.
Series RRL RELOC®-ready luminaire
Wiring instructions
A Hot conductor wired to position #1 (phase A); non-dimming B Hot conductor wired to position #2 (phase B); non-dimming AE Hot conductor wired to position #1 (phase A), hot conductor #2 wired to position #2 (phase B); non-dimming1 C12S Hot conductor in position #1 (phase A), low voltage conductor #1 in position #2,low voltage conductor #2 in position #3; dimming 2
Example: RRLA
Compatible RELOC® Cables for Industrial Luminaires (ordered and shipped separately)
(click to view RELOC product page for more information)
OCS
OCU
OD
Notes
1 AE commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. Requires fixture to have battery option.
2 C12S option is used with the OnePass for 0-10V/DALI applications. Not for use with dimming sensors.
INDUSTRIAL: One Lithonia Way, Conyers, GA 30012 Phone: 1-800-705-SERV (7378) techsupport-Industrial@acuitybrands.com www.lithonia.com
IBG
© 2016-2021 Acuity Brands Lighting, Inc. All rights reserved. Rev. 08/20/21 Page 16 of 16
Adobe PDF Library 15.0 Adobe InDesign 16.3 (Macintosh)
