Release Date 2021/01/08
2020/11/10

Version V4.8.0.9
v4.7.0.7

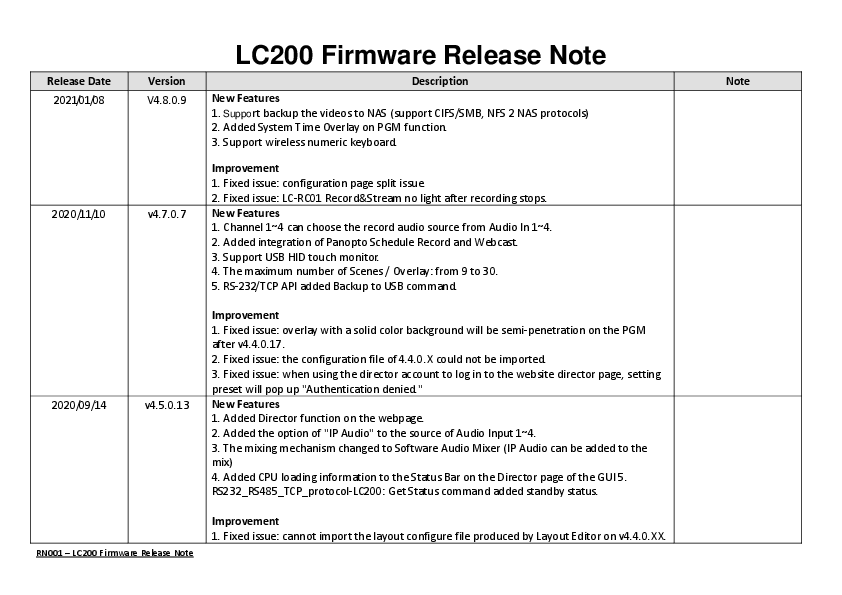

LC200 Firmware Release Note
Description New Features 1. Support backup the videos to NAS (support CIFS/SMB, NFS 2 NAS protocols) 2. Added System Time Overlay on PGM function. 3. Support wireless numeric keyboard.
Improvement 1. Fixed issue: configuration page split issue. 2. Fixed issue: LC-RC01 Record&Stream no light after recording stops. New Features 1. Channel 1~4 can choose the record audio source from Audio In 1~4. 2. Added integration of Panopto Schedule Record and Webcast. 3. Support USB HID touch monitor. 4. The maximum number of Scenes / Overlay: from 9 to 30. 5. RS-232/TCP API added Backup to USB command.

2020/09/14

v4.5.0.13

Improvement 1. Fixed issue: overlay with a solid color background will be semi-penetration on the PGM after v4.4.0.17. 2. Fixed issue: the configuration file of 4.4.0.X could not be imported. 3. Fixed issue: when using the director account to log in to the website director page, setting preset will pop up "Authentication denied." New Features 1. Added Director function on the webpage. 2. Added the option of "IP Audio" to the source of Audio Input 1~4. 3. The mixing mechanism changed to Software Audio Mixer (IP Audio can be added to the mix) 4. Added CPU loading information to the Status Bar on the Director page of the GUI 5. RS232_RS485_TCP_protocol-LC200: Get Status command added standby status.

RN001 � LC200 Firmware Release Note

Improvement 1. Fixed issue: cannot import the layout configure file produced by Layout Editor on v4.4.0.XX.

Note

Release Date 2020/07/15
2020/06/10

Version V4.4.0.19

Description
New Features 1. Added Mixer Level volume adjustment (0~125). 2. Added Mute/UnMute function. 3. All volume adjustment items added a field showing the current value. 4. Support exFAT formatted USB flash drives. 5. Added Standby and Wakeup command.

V4.4.0.17

Improvement 1. Audio Input noise. 2. TCP connection mechanism. New Features 1. Compatible with Lumens' new IP Camera products:
VC-A71P / VC-A61P / VC-BC701P / VC-BC601P / VC-BC301P 2. Support LC-RC01 3. Added functions on configuration page of webpage
3.1 Video Source Manager 3.2 Macro setting page (with LC-RC01) 4. Added function: keypad Channel 3 button can switch to Channel 4. 5. Added IP/RS-232 commands: 5.1. Set / Get Channel Source 5.2. Save Camera Preset 5.3. Set Macro command

Note

RN001 � LC200 Firmware Release Note
