c06712909 — Worldwide — Version 2 — February 23, 2021. Page 1. HP FLEX IO v2 Option Cards. Models. Part number. HP VGA Port Flex IO v2. 13L53AA.Missing:
HP FLEX IO v2 Option Cards. Models. Part number. HP VGA Port Flex IO v2. 13L53AA. HP DisplayPort Port Flex IO v2. 13L54AA. HP HDMI Port Flex IO v2. 13L55AA.

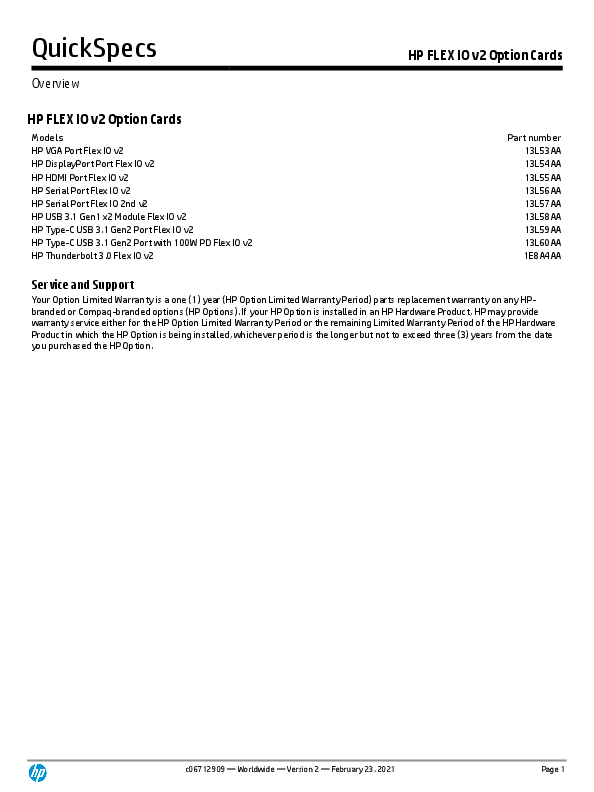

QuickSpecs Overview HP FLEX IO v2 Option Cards HP FLEX IO v2 Option Cards Models HP VGA Port Flex IO v2 HP DisplayPort Port Flex IO v2 HP HDMI Port Flex IO v2 HP Serial Port Flex IO v2 HP Serial Port Flex IO 2nd v2 HP USB 3.1 Gen1 x2 Module Flex IO v2 HP Type-C USB 3.1 Gen2 Port Flex IO v2 HP Type-C USB 3.1 Gen2 Port with 100W PD Flex IO v2 HP Thunderbolt 3.0 Flex IO v2 Part number 13L53AA 13L54AA 13L55AA 13L56AA 13L57AA 13L58AA 13L59AA 13L60AA 1E8A4AA Service and Support Your Option Limited Warranty is a one (1) year (HP Option Limited Warranty Period) parts replacement warranty on any HPbranded or Compaq-branded options (HP Options). If your HP Option is installed in an HP Hardware Product, HP may provide warranty service either for the HP Option Limited Warranty Period or the remaining Limited Warranty Period of the HP Hardware Product in which the HP Option is being installed, whichever period is the longer but not to exceed three (3) years from the date you purchased the HP Option. c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 1 QuickSpecs Technical specifications HP VGA Port Flex IO v2 HP FLEX IO v2 Option Cards Part Number 13L53AA Introduction Maximize the life of your PC as your business needs change with the flexible display connectivity of the HP VGA Port Flex IO v2. Flex IO. Key Benefits · Add an extra flexible VGA Port to your desktops · Interchangeable with other modules NOTE: Not all products available in all regions Technical Specifications Dimensions (H x W x D) Weight 1.64 x 1.53 x 0.64 in (4.18 x 3.9 x 1.65 cm) .025 lb (11.5 gr) Compatibility HP EliteDesk 800 G6/G8 TWR, HP EliteDesk 800 G6/G8 SFF, HP EliteDesk 800 G6/G8 DM, HP EliteDesk 805 G6/G8 SFF, HP EliteDesk 805 G6/G8 DM , HP ProDesk 600/680 G6/G8 MT, HP ProDesk 600 G6/G8 SFF, HP ProDesk 600 G6/G8 DM, HP ProDesk 400 G7/480 G7/G8 MT, HP ProDesk 400 G6 DM, HP ProDesk 400 G7 SFF, HP ProDesk 405 G6/G8 SFF, HP ProDesk 405 G6/G8 DM Only one FLEX IO module can be used at a time What Is In The Box HP VGA Port Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 2 QuickSpecs Technical specifications HP DisplayPort Port Flex IO v2 HP FLEX IO v2 Option Cards Part Number 13L54AA Introduction Maximize the life of your PC as your business needs change with the flexible display connectivity of the HP DisplayPort Port Flex IO v2. Key Benefits · Add an extra flexible DisplayPort IO to your desktops · Interchangeable with other modules · Supports up to DisplayPortTM 1.4 · Supports DP++ NOTE: Not all products available in all regions Technical specifications Dimensions (H x W x D) 1.64 x 1.53 x 0.64 in (4.18 x 3.9 x 1.65 cm) Product weight .025 lb (11.5 gr) Compatibility HP EliteDesk 800 G6/G8 TWR, HP EliteDesk 800 G6/G8 SFF, HP EliteDesk 800 G6/G8 DM, HP EliteDesk 805 G6/G8 SFF, HP EliteDesk 805 G6/G8 DM, HP ProDesk 600/680 G6/G8 MT, HP ProDesk 600 G6/G8 SFF, HP ProDesk 600 G6/G8 DM, HP ProDesk 400 G7/480 G7/G8 MT, HP ProDesk 400 G6 DM, HP ProDesk 400 G7 SFF, HP ProDesk 405 G6/G8 SFF, HP ProDesk 405 G6/G8 DM. What Is In The Box HP DisplayPort Port Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 3 QuickSpecs Technical specifications HP HDMI Port Flex IO v2 HP FLEX IO v2 Option Cards Part Number 13L55AA Introduction Maximize the life of your PC as your business needs change with the flexible display connectivity of the HP HDMI Port Flex IO v2. Key Benefits · Add an extra flexible HDMI IO to your desktops · Interchangeable with other modules · Supports HDMI 1.4 + HDCP 2.2 (HDR not supported on Bristol Ridge and Raven Ridge) NOTE: Not all products available in all regions Technical Specifications Dimensions (H x W x D) Weight 1.64 x 1.53 x 0.64 in (4.18 x 3.9 x 1.65 cm) .025 lb (11.5 gr) Compatibility HP EliteDesk 800 G6/G8 TWR, HP EliteDesk 800 G6/G8 SFF, HP EliteDesk 800 G6/G8 DM, HP EliteDesk 805 G6/G8 SFF, HP EliteDesk 805 G6/G8 DM, HP ProDesk 600/680 G6/G8 MT, HP ProDesk 600 G6/G8 SFF, HP ProDesk 600 G6/G8 DM, HP ProDesk 400 G7/480 G7/G8 MT, HP ProDesk 400 G6 DM, HP ProDesk 400 G7 SFF, HP ProDesk 405 G6/G8 SFF, HP ProDesk 405 G6/G8 DM Only one FLEX IO module can be used at a time What Is In The Box HP HDMI Port Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 4 QuickSpecs Technical specifications HP Serial Port Flex IO v2 HP FLEX IO v2 Option Cards Part Number 13L56AA Introduction Maximize the life of your PC as your business needs change with the flexible display connectivity of the HP Serial Port Flex IO v2. Key Benefits · Add an extra flexible Serial Port IO to your desktops · Interchangeable with other modules NOTE: Not all products available in all regions Technical specifications Dimensions (H x W x D) Weight 1.64 x 1.53 x 0.64 in (4.18 x 3.9 x 1.65 cm) .028 lb (13 gr) Compatibility HP EliteDesk 800 G6/G8 TWR, HP EliteDesk 800 G6/G8 SFF, HP EliteDesk 800 G6/G8 DM, HP EliteDesk 805 G6/G8 SFF, HP EliteDesk 805 G6/G8 DM, HP ProDesk 600/680 G6/G8 MT, HP ProDesk 600 G6/G8 SFF, HP ProDesk 600 G6/G8 DM, HP ProDesk 400 G7/480 G7/G8 MT, HP ProDesk 400 G6 DM, HP ProDesk 400 G7 SFF, HP ProDesk 405 G6/G8 SFF, HP ProDesk 405 G6/G8 DM Only one FLEX IO module can be used at a time What Is In The Box HP Serial Port Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 5 QuickSpecs Technical specifications HP Serial Port Flex IO 2nd v2 HP FLEX IO v2 Option Cards Part Number 13L57AA Introduction Maximize the life of your Desktop Mini as your business needs change with the flexible connectivity of the HP Serial Port Flex IO 2nd v2. Key Benefits · Add an extra flexible Serial Port to your Desktop Mini · Interchangeable with other modules NOTE: Not all products available in all regions Technical specifications Dimensions (H x W x D) 2.25 x 1.26 x 0.72 in (6.35 x 3.22 x 1.83 cm) Weight 0.036 lb (16.5 g) Compatibility HP EliteDesk 800 G6/G8 DM (35W/65W); HP EliteDesk 805 G6/G8 DM, HP ProDesk 600/405 G6/G8, HP ProDesk 400 G6 DM Only one FLEX IO module can be used at a time Not compatible with 800 G6 DM 95W processors and discrete graphics What Is In The Box HP Serial Port Flex IO 2nd v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 6 QuickSpecs Technical specifications HP USB 3.1 Gen1 x2 Module Flex IO v2 HP FLEX IO v2 Option Cards Part Number 13L58AA Introduction Maximize the life of your PC as your business needs change with the flexible connectivity of HP USB 3.1 Gen1 x2 Module Flex IO v2. Key Benefits · Add 2 extra flexible SuperSpeed USB Type-A 5Gbps signaling rate Port to your Desktops. · Interchangeable with other modules NOTE: Not all products available in all regions Technical specifications Dimensions (H x W x D) Weight 1.64 x 1.53 x 0.64 in (4.18 x 3.9 x 1.65 cm) .028 lb (13 gr) Compatibility HP EliteDesk 800 G6/G8 TWR, HP EliteDesk 800 G6/G8 SFF, HP EliteDesk 800 G6/G8 DM, HP EliteDesk 805 G6/G8 SFF, HP EliteDesk 805 G6/G8 DM, HP ProDesk 600/680 G6/G8 MT, HP ProDesk 600 G6/G8 SFF, HP ProDesk 600 G6/G8 DM, HP ProDesk 400 G7, HP ProDesk 480 G7/G8 MT, HP ProDesk 400 G6 DM, HP ProDesk 400 G7 SFF, HP ProDesk 405 G6/G8 SFF, HP ProDesk 405 G6/G8 DM Only one FLEX IO module can be used at a time What Is In The Box HP USB 3.1 Gen1 x2 Module Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 7 QuickSpecs Technical specifications HP Type-C USB 3.1 Gen2 Port Flex IO v2 HP FLEX IO v2 Option Cards Part Number 13L59AA Introduction Maximize the life of your PC as your business needs change with the flexible connectivity of the HP Type-C USB 3.1 Gen2 Port Flex IO v2 Key Benefits · Add an extra flexible SuperSpeed USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPortTM 1.4, HP Sleep and Charge) to your DM and Tower. · Interchangeable with other modules · Supports up to DisplayPortTM 1.4 NOTE: Not all products available in all regions Technical Specifications Dimensions (H x W x D) Weight 1.64 x 1.53 x 0.64 in (4.18 x 3.9 x 1.65 cm) .028 lb (13 gr) Compatibility HP EliteDesk 800 G6/G8 TWR, HP EliteDesk 800 G6/G8 SFF, HP EliteDesk 805 G6/G8 SFF, HP ProDesk 600/680 G6/G8 MT, HP ProDesk 600 G6/G8 SFF, HP ProDesk 400 G7/480 G7/G8 MT, HP ProDesk 400 G7 SFF, HP ProDesk 405 G6/G8 SFF Only one FLEX IO module can be used at a time What Is In The Box HP Type-C USB 3.1 Gen2 Port Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 8 QuickSpecs Technical specifications HP Type-C USB 3.1 Gen2 Port with 100W PD Flex IO v2 HP FLEX IO v2 Option Cards Part Number 13L60AA Introduction Maximize the life of your PC as your business needs change with the flexible connectivity of the HP Type-C USB 3.1 Gen2 Port with 100W power delivery Flex IO, which supports ultrafast transfer speeds compared to USB 3.1 Gen1 and transmits data and power through one cable. Key Benefits · Add an extra flexible SuperSpeed USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPortTM 1.4, HP Sleep and Charge) to your Desktop Mini · Interchangeable with other modules · 100W power delivery Technical specifications Dimensions (H x W x D) Weight 1.64 x 1.53 x 0.64 in (4.18 x 3.9 x 1.65 cm) .02 lb (11 gr) Compatibility HP ProDesk 400/405 G6 Desktop Mini, HP ProDesk 600 G6 Desktop Mini, HP EliteDesk 800 G6 Desktop Mini (35W/65W), HP EliteDesk 805 G6 Desktop Mini Only one FLEX IO module can be used at a time Not compatible with 800 G6 DM 95W processors and discrete graphics What Is In The Box HP Type-C USB 3.1 Gen2 Port with 100W PD Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 9 QuickSpecs Technical specifications HP Thunderbolt 3.0 Flex IO v2 HP FLEX IO v2 Option Cards Part Number 1E8A4AA Introduction Maximize the life of your PC as your business needs change with the flexible connectivity of the HP Thunderbolt 3.0 Port Flex IO which supports ultra-fast file backup, editing, and sharing with transfer speeds up to 40 Gbps. Key Benefits · Add an extra flexible ThunderboltTM 3 (40 Gbps signaling rate*) with SuperSpeed USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPortTM 1.4, HP Sleep and Charge) to your DM · Interchangeable with other modules NOTE: Not all products available in all regions Technical Specifications Dimensions (H x W x D) 1.64 x 2.36 x 0.64 in (4.18 x 6 x 1.65 cm) Weight 0.032 lb (14.5 g) Country of origin Made in China Compatibility HP EliteDesk 800 G6 Desktop Mini, HP ProDesk 600 G6 Desktop Mini Only one FLEX IO module can be used at a time What Is In The Box HP Thunderbolt 3.0 Flex IO v2; 2 Screws; Installation Guide c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 10 QuickSpecs HP FLEX IO v2 Option Cards Change log © Copyright 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. DisplayPortTM and the DisplayPortTM logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. Date of change: February 23, 2021 Version History: From v1 to v2 From v2 to v3 Update Description of change: G8 added to compatibility section for all items except HP Type-C USB 3.1 Gen2 Port with 100W PD Flex IO v2 c06712909 -- Worldwide -- Version 2 -- February 23, 2021 Page 11Microsoft Word for Microsoft 365 Microsoft Word for Microsoft 365
