User Manual for AGM models including: Thermal Imaging Monocular, ASP TM25-384, ASP TM35-384, ASP TM35-640
If you have questions that are not covered in this manual, or need service, contact AGM Global Vision customer support for additional information prior.
No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted by any electronic medium or in machine-readable ... 2020.01.01 - FW5.4.12. ASP USER MANUAL 3 LIST OF CONTENTS TITLE PAGE Safety Summary 4 1. GENERAL INFORMATION 5 11. System Descrpi toi n 5 1.2 Key Features 5 1.3 Standard Components 6 2 ...
ASP USER MANUAL 5 1 GENERAL INFORMATION 1.1 SYSTEM DESCRIPTION The Asp monocular is a handheld thermal camera with functions of observation, hot spot mark, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in IR detector provides you with clear view even in total darkness. TABLE 1-1. MAIN PARTS ITEM DESCRIPTION ITEM ...

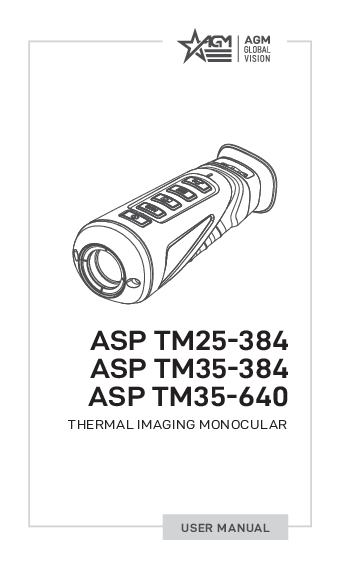

ASP TM25-384 ASP TM35-384 ASP TM35-640
THERMAL IMAGING MONOCULAR
USER MANUAL
© 2019 AGM Global Vision. All rights reserved worldwide. This documentation is subject to change without notice. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted by any electronic medium or in machine-readable form without the prior written permission of AGM Global Vision.
If you have questions that are not covered in this manual, or need service, contact AGM Global Vision customer support for additional information prior to returning a product.
AGM Global Vision 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. 928.333.4300 Fax 480.393.4882 support@agmglobalvision.com www.agmglobalvision.com
EXPORT INFORMATION
Buyer acknowledges that all products supplied by AGM Global Vision are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S. embargoes and sanctions. AGM Global Vision products may not be exported, re-exported, or transferred contrary to U.S. export control laws. In particular, AGM Global Vision products may not be exported, re-exported, or transferred to prohibited countries, individuals, organizations, or entities, including but not limited to those individuals and entities listed on the List of Specially Designated Nationals and Blocked Persons administered or maintained by the U.S. Office of Foreign Assets Control ("OFAC"), the various lists maintained by the Bureau of Industry and Security of the Department of Commerce, and the U.S. State Department and Buyer represents and warrants that neither Buyer nor any of its officers, directors, or employees are on such lists. Distribution or resale by Buyer to such countries, individuals, organizations, or entities is expressly prohibited. Buyer has and will maintain a positive process to ensure compliance with this Section.
2020.01.01 - FW5.4.12
LIST OF CONTENTS
TITLE
Safety Summary 1. GENERAL INFORMATION 1.1 System Description 1.2 Key Features 1.3 Standard Components 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE INSTRUCTIONS 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications
PAGE
4 5 5 5 6 7 7 10 15 18 18 18 20 20 22 22
ASP USER MANUAL
3
SAFETY SUMMARY
· Read and follow all instructions · Read all warnings · Only use the attachments/accessories specified by the manufacturer · All service must be provided by the manufacturer
WARNING:
This product contains natural rubber latex, which may cause potentially fatal allergic reactions! If you are allergic to latex, it is important that you strictly avoid exposure to products that contain it.
WARNINGS AND CAUTIONS:
· All electronic operation should be in strict compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.
· Please use the power adapter, which is provided by a proven manufacturer. The power consumption cannot be less than the required value.
· Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire hazard.
· Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the device installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
· Do not place the device in extremely hot (refer to the specification of the device for the detailed operating temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
· The device cover for indoor use should be kept from rain and moisture. · Exposing the device to direct sun light, low ventilation or heat source such as
heater or radiator is forbidden (ignorance can cause fire danger). · Do not aim the device at the sun or extra bright places. A blooming or smear
may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time. · For long-term storage of the battery, make sure you fully charge it every 6 months, to ensure the battery quality. Otherwise, you may damage the battery.
NOTES:
The detector spectral band provides better visibility through smoke, dust, rain, smog, etc.
Infrared radiation does not travel through glass. As a result, the monocular does not detect objects if they are behind glass windows or other barriers.
4
AGM Global Vision
1 GENERAL INFORMATION
1.1 SYSTEM DESCRIPTION
The Asp monocular is a handheld thermal camera with functions of observation, hot spot mark, distance measurement, Wi-Fi hotspot, and so on. The highsensitivity built-in IR detector provides you with clear view even in total darkness.
8
7 6
9
5
10 11
4
3
14
2
12
1 13
FIGURE 1-1. MAIN PARTS
ITEM 1 2 3 4 5 6 7
TABLE 1-1. MAIN PARTS
DESCRIPTION
ITEM
DESCRIPTION
Body
8
LED Indicator
Lens Cap
9
Eyepiece
POWER Button
10 Focus Knob
MODE Button
11 USB Interface Cover
CAPTURE Button
12 Micro-USB Interface
MENU Button
13 Battery Status Indicator
ZOOM Button
14 Tripod Screw
ASP USER MANUAL
5
1.2 KEY FEATURES
· High sensitivity detector · Adaptive AGC, Digital Detail Enhancement (DDE), 3D DNR · 1024×768 resolution OLED display · Distance measurement function · The device detects and marks the hot spot of highest temperature · A wide variety of color palettes · Built-in memory supports video recording/snapshot capturing · 1x, 2x, and 4x digital zoom · Wi-Fi Hotspot · Device can capture snapshots, record videos, and set parameters via
APP after being connected to your phone with Wi-Fi hotspot · Built-in rechargeable Li-Ion battery · Up to five hours continuous running (with Wi-Fi hotspot function off) · Limited 3-year warranty
1.3 STANDARD COMPONENTS
The standard components are shown in Figure 1-2 and listed in Table 1-2. The ITEM NO. column indicates the number used to identify items in Figure 1-2.
2
3
6
1
4
5
FIGURE 1-2. STANDARD COMPONENTS
ITEM NO. 1 2 3 4 5 6
TABLE 1-2. STANDARD COMPONENTS DESCRIPTION
Monocular USB Cable Neck Belt Lens Cloth Operation Manual Protective Bag
QUANTITY 1 1 1 1 1 1
6
AGM Global Vision
2 OPERATING INSTRUCTIONS
2.1. BASIC OPERATIONS
2.1.1 UNPACKING The following steps must be completed prior to each mission. 1. Open the carrying case, remove the monocular, and verify that all components
are included. 2. Inspect the monocular for any obvious evidence of damage to the optical
surfaces, body, eyecup, operation buttons, etc. Ensure that all optical surfaces are clean and ready for use. Clean all optical surfaces with a lens tissue. 2.1.2 CHARGING THE MONOCULAR NOTE: Please charge the monocular with the delivered USB cable and power adapter. The charging temperature should be 0°C to 45°C (32°F to 113°F). 1. Lift the USB cover.
USB INTERFACE
BATTERY STATUS INDICATOR
FIGURE 2-1. CHARGING THE MONOCULAR
ASP USER MANUAL
7
2. Plug in the USB cable and connect the other terminal into the power adapter.
3. Plug the power adapter to the power source.
When the monocular is turned on, the OSD (on-screen display) shows the battery status. When you see the Low Battery status, charge the monocular and ensure it's working properly.
TABLE 2-1. BATTERY LED INDICATOR STATUS
I N D I C AT O R S Red Flash Solid Red Solid Green Off
FUNCTIONS Error occurred. Battery is properly charged. Battery is fully charged. Battery is not charged.
2.1.3 BUTTONS
FIGURE 2-2. BUTTONS AND LED INDICATOR
TABLE 2-2. BATTERY LED INDICATOR STATUS
BUTTONS
FUNCTIONS
POWER
Hold: Power On/Off
MODE CAPTURE MENU ZOOM ±
Press: Switch Pallet Hold: Shutter Release
Press: Capture Snapshot Hold: Start/Stop Record Video Menu Navigation: Cursor Up
Press: Sleep Mode Hold: Menu Operation Menu Navigation: Confirm
Press: Digital Zoom Menu Navigation: Cursor Down
8
AGM Global Vision
2.1.4 POWER ON AND OFF
Power On Hold the POWER button for two seconds and the LED indicator in the front turns green. After the device is powered on, an image will appear on the display. Refer to the figure below for the main view of the monocular.
DIGITAL ZOOM HOT SPOT
STORAGE B AT T E R Y
FIGURE 2-3. THE MAIN VIEW
Power Off When the monocular is turned on, hold the POWER button for two seconds to power off the device.
2.1.5 THERMAL VIEW OBSERVATION 1. Power on the monocular. 2. Hold the monocular and make sure the eyepiece covers your eye. 3. Slide the focus knob to adjust the focus until the OSD text or image is clear.
FOCUS KNOB
FIGURE 2-4. FOCUS KNOB
NOTE: You must perform the focus adjustment before any further use of the monocular.
4. Point the monocular towards the target of the view.
ASP USER MANUAL
9
2.1.6 USB PORT OPERATION
Connect the thermal monocular to your PC with USB cable, you can export the recorded videos and captured snapshots.
1. Hold the
button to enter the menu and select the icon.
2. Press
, the icon turns on and the Wi-Fi hotspot function is disabled.
3. Connect the thermal monocular to your PC with USB cable, you can see a detected removable disk.
NOTES:
When you connect the device to PC for the first time, it installs the drive program automatically.
When you connect the device to PC, the device displays images, but functions such as recording, capturing and Wi-Fi hotspot are disabled.
File Export 1. Connect the thermal monocular to your PC with USB cable and open the
detected disk.
2. Enter DCIM>100EZVIZ to view the videos and snapshots.
- Select and copy the videos to PC and play the file with the player. - Select and copy the snapshots to PC and view the files. 3. Disconnect the device from your PC.
Upgrade 1. Connect the thermal monocular to your PC with USB cable and open the
detected disk.
2. Copy the upgrade file and paste it to the root directory of the device.
3. Disconnect the device from your PC.
4. Reboot the monocular and the device upgrades automatically. The upgrading process will be displayed in the main interface.
2.2 MAIN FUNCTION
2.2.1 MENU OPERATION
When the monocular is turned on, hold the button display the OSD menu.
for three seconds to
FIGURE 2-5. THE MAIN MENU
10
AGM Global Vision
Press the button
to move the cursor up, and press the button
to
move the cursor down. Press the button
to confirm.
TABLE 2-3. MENU FUNCTION
MENU
FUNCTION
Press
to display or hide the OSD information.
Press
to enable/disable hot spot mark (marking the
spot of highest temperature).
Press
to enable or disable the Wi-Fi hotspot. Connect
your phone to the monocular via the Wi-Fi hotspot and
record/capture with App.
Press
to enter distance measurement mode. For
details, refer to Section 2.2.2 Distance Measurement.
Press
to adjust the brightness. The icons on the left
indicate: high Brightness, medium Brightness, and low
Brightness.
Press
to adjust the contrast. The icons on the left
indicate: high contrast, medium contrast, and low contrast.
Press
to switch between the summer mode and
winter mode.
Press
to adjust the FFC mode to auto, manual, or
external.
Press
to correct dead pixel manually.
Press
to view the version number and serial number.
Press
to correct dead pixel manually.
Palette Settings Under the same scene, you can select different palettes to see the scene in different effects.
TABLE 2-4. PALETTE SETTINGS
PA L E T T E WHITE HOT BLACK HOT
FUSION RED HOT
DESCRIPTION
The hot part is white-colored in view.
The hot part is black-colored in view. The hot part is yellow-colored and cold part is purplecolored in view. The hot part is red-colored in view.
ASP USER MANUAL
11
Brightness Adjusting
In white hot mode, you can adjust the brightness as > > to adjust the image darker and darker.
In black hot mode, the brightness of the image turns in the opposite way.
FIGURE 2-6. BRIGHTNESS ADJUSTING
2.2.2 DISTANCE MEASUREMENT
Before you start:
In the view mode you can hold the
button to enter the menu and select
to enter the distance measurement mode.
Purpose:
You can mark the top and bottom of the target in the distance to calculate the distance between you and the target.
1. Enter the distance measurement mode. You can refer to Before you start part above.
2. Define the target height.
a) Press b) Press Custom. c) Press d) Press e) Press
to enter the height setting interface.
and
to select the target from Deer, Wolf, Bear, and
to confirm.
and
to select the target height.
to confirm.
FIGURE 2-7. DISTANCE MEASUREMENT
3. Set the top of the target.
a) Move the monocular slightly to place the top.
b) Press
to confirm.
4. Set the bottom of the target.
mark above the target
12
AGM Global Vision
a) Move the monocular slightly to place the bottom.
b) Press
to confirm.
mark below the target
The distance between you and the target will display on the upper left corner of the live view interface.
NOTE:
Enter the distance measurement interface, press distance.
to view the measured
2.2.3 HOT SPOT MARK
In the menu, select
/ and press
to enable/disable hot spot mark
(marking the spot of highest temperature).
When the hot spot mark is enabled, the mark displays in the spot of the highest temperature. When the scene changes, the mark moves.
2.2.4 RECORD/CAPTURE
Video Recording
In the view mode, hold the
button for three seconds, and the monocular
starts to record. In the upper left corner, the recording time displays.
FIGURE 2-8. VIDEO RECORDING
After recording the video, hold the monocular stops recording.
button for three seconds again, and the
Snapshot Capturing
In the view mode, press the
button, the live view freezes for one second,
and the snapshot is captured.
2.2.5 DIGITAL ZOOM
Press the
button in the view mode, the live view will switch between 1×
digital zoom, 2× digital zoom, and 4× digital zoom.
2.2.6 SHUTTER RELEASE In the view mode, press the MOD button once to release the shutter once.
ASP USER MANUAL
13
2.2.7 FLAT FIELD CORRECTION
Purpose:
Flat Field Correction (FFC) function can correct nonuniformity of display.
Steps:
1. Hold the
button to show the menu of monocular.
2. Press the key.
3. Press the
button to switch the FFC mode.
Manual: Hold the MOD button in live view to correct the nonuniformity of display.
Auto: The monocular performs FFC automatically when switching on or rebooting the camera.
External: Cover the lens cover, then hold the MOD button in live view to correct the nonuniformity of display.
4. Hold the
button to confirm.
2.2.8 DEFECTIVE PIXELS CORRECTION
Defective Pixels Correction (DPC) function can correct the defective pixels on the screen which are not performed as expected.
Before you start:
Switch the palettes mode to white hot mode.
Steps:
1. Hold the
button to show the menu of monocular.
2. Press the key.
3. Press the
to select the offset. The offset refers to the moving length of
cursor.
4. Press
and
to select the moving direction.
5. Press
to move the cursor to the position of dead pixel.
6. Hold
to correct the dead pixel.
2.2.9 NETWORK CONFIGURATION
Connect your phone to the Wi-Fi hotspot of the monocular, you can configure the parameters and realize functions of the device.
1. Hold the
button to show the menu of monocular.
2. Press the key to enable Wi-Fi hotspot function.
3. Turn on the WLAN and connect to the Wi-Fi hotspot.
- Hotspot Name: Wlan-IPTS Serial No. - Hotspot Password: Serial No. 4. Search the client software on App Store (iOS System) or Google PlayTM (Android System) to download and install the app.
5. Open the APP and connect your phone with the device. You can view the interface of monocular on your phone.
14
AGM Global Vision
NOTE:
When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically.
2.3 CLIENT SOFTWARE INTRODUCTION
Before you start:
We recommend using T-Vision (V5.4.12 and below) software. Install the client software on your mobile phone first, and then connect your phone to the hotspot of the monocular. Refer to chapter 2.2.9 for details of hotspot connection.
NOTE:
The device password is set by user at first activation. If the password was lost or forgotten, it can be reset. To make a reset, provide the following action:
1. When the monocular is turned on, hold the button activate the OSD menu.
for three seconds to
2. Move the cursor to and press the button default settings.
to restore all parameters to
Steps: 1. Open the APP and connect the phone or pad with the device.
ASP USER MANUAL
15
2. If the device is inactivated, set the password and activate it. If the device is activated, enter the password to add it to app.
16
AGM Global Vision
3. When the device is added, the live view can be seen. You can view the interface of the monocular on the software. User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or pad as well as record video on phone/pad memory.
ASP USER MANUAL
17
3 MAINTENANCE INSTRUCTIONS
3.1 MAINTENANCE
3.1.1 CLEANING PROCEDURES
1. Gently brush off any dirt from the body of the device using a clean, soft cloth. 2. Moisten the cloth with fresh water and gently wipe down the external
surfaces (except lenses). 3. Dry any wet surfaces (except lenses) using another dry, clean, soft cloth. 4. Using a lens brush, carefully remove all loose dirt from the lenses. 5. Dampen a cotton swab with ethanol and slowly, gently wipe down the lenses.
Clean the glass surfaces using circular movements, starting from the center of the lens and moving out towards the edge, without touching the lens holder. Change the cotton swab after each circular stroke. Repeat this step until the glass surfaces are clean. 6. Clean the accessories with a soft brush (or cloth) dampened with soap and water.
3.1.2 PREPARING FOR EXTENDED STORAGE
CAUTION: Thoroughly dry each item before placing them into the storage case.
To prepare the monocular for extended storage: 1. Clean the monocular and accessories. 2. Place all items into the storage case.
3.2 TROUBLESHOOTING
Table 3-1 lists the most common malfunctions that may occur with your equipment. Perform the tests, inspections, and corrective actions in the order they appear in the table. This table does not list all the malfunctions that may occur with your device, or all of the tests, inspections, and corrective actions that may be necessary to fix them. If the equipment malfunction is not corrected by the suggested actions, or a problem occurs that is not listed in this table, please contact AGM Global Vision's Customer Support center or your retailer.
18
AGM Global Vision
TABLE 3-1. TROUBLESHOOTING
MALFUNCTION
The charge indicator flashes improperly.
CORRECTIVE ACTION
Examine whether the device is charged with standard power adapter and the charging temperature is 0°C to 45°C (32°F to 113°F).
Device power indicator is off.
Examine whether the device is off-battery.
The image of the monocular is not clear.
Perform the sight adjustment referring to section 2.1.5.
Wi-Fi is not found.
Examine whether the Wi-Fi function is turned on. If not, go to OSD menu and turn on Wi-Fi.
Capturing or recording fails.
Examine the items below: 1. Whether the device is connected to your PC and disabled the capturing and recording. 2. Whether the storage space is full. 3. Whether the device is low-battery.
The PC cannot identify the monocular.
Examine the items below: 1. Whether the device is connected to your PC with standard USB cable. 2. If you use other USB cables, make sure the cable length is no longer than 1m. 3. Whether the Wi-Fi function is turned on. If so, go to OSD menu and turn off Wi-Fi.
ASP USER MANUAL
19
4 WARRANTY INFORMATION
4.1 WARRANTY INFORMATION AND
REGISTRATION
4.1.1 WARRANTY INFORMATION
This product is guaranteed to be free from manufacturing defects in material and workmanship under normal use for a period of three (3) years from the date of purchase. In the event that a defect covered by the warranty below occurs during the applicable period stated above, AGM Global Vision, at its discretion, will either repair or replace the product; such action on the part of AGM Global Vision shall be the full extent of AGM Global Vision's liability, and the Customer's sole and exclusive reparation. This warranty does not cover a product if it has been (a) used in ways other than its normal and customary manner; (b) subjected to misuse; (c) subjected to alterations, modifications or repairs by the Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as "close-out" merchandise or merchandise sold "as-is" by either AGM Global Vision or the AGM Global Vision dealer; or (e) merchandise that has been discontinued by the manufacturer and either parts or replacement units are not available due to reasons beyond the control of AGM Global Vision. AGM Global Vision shall not be responsible for any defects or damage that in AGM Global Vision's view are a result from the mishandling, abuse, misuse, improper storage or improper operation of the device, including use in conjunction with equipment that is electrically or mechanically incompatible with, or of inferior quality to, the product, as well as failure to maintain the environmental conditions specified by the manufacturer. This warranty is extended only to the original purchaser. Any breach of this warranty shall be enforced unless the customer notifies AGM Global Vision at the address noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other warranties written or oral, statutory, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose, shall apply to the product. All such implied warranties are hereby and expressly disclaimed.
4.1.2 LIMITATION OF LIABILITY
AGM Global Vision will not be liable for any claims, actions, suits, proceedings, costs, expenses, damages, or liabilities arising out of the use of this product. Operation and use of the product are the sole responsibility of the Customer. AGM Global Vision's sole undertaking is limited to providing the products and services outlined herein in accordance with the terms and conditions of this Agreement. The provision of products sold and services performed by AGM Global Vision to the Customer shall not be interpreted, construed, or regarded, either expressly or implied, as being for the benefit of or creating any
20
AGM Global Vision
obligation toward any third party of legal entity outside AGM Global Vision and the Customer; AGM Global Vision's obligations under this Agreement extend solely to the Customer. AGM Global Vision's liability hereunder for damages, regardless of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the customer or customer's dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential damages, including, but not limited to, lost income, lost revenue, or lost profit, whether such damages were foreseeable or not at the time of purchase, and whether or not such damages arise out of a breach of warranty, a breach of agreement, negligence, strict liability, or any other theory of liability.
4.1.3 PRODUCT REGISTRATION
In order to validate the warranty on your product, the customer must complete and submit AGM Global Vision PRODUCT REGISTRATION FORM on our website (www.agmglobalvision.com/customer-support).
4.1.4 OBTAINING WARRANTY SERVICE
To obtain warranty service on your unit, the End-user (Customer) must notify the AGM Global Vision service department via e-mail. Send any requests to support@agmglobalvision.com to receive a Return Merchandise Authorization number (RMA). When returning any device, please take the product to your retailer, or send the product, postage paid and with a copy of your sales receipt, to AGM Global Vision's service center at the address listed above. All merchandise must be fully insured with the correct postage; AGM Global Vision will not be responsible for improper postage or merchandise that becomes lost or damaged during shipment. When sending product back, please clearly write the RMA# on the outside of the shipping box. Please include a letter that indicates your RMA#, the Customer's Name, a Return Address, reason for the return, contact information (valid telephone numbers and/or an e-mail address), and proof of purchase that will help us to establish the valid start date of the warranty. Product merchandise returns that do not have an RMA# listed may be refused, or a significant delay in processing may occur. Estimated Warranty service time is 10-20 business days. The End-user/Customer is responsible for postage to AGM Global Vision for warranty service. AGM Global Vision will cover return postage/shipping after warranty repair to the End-user/ Customer only if the product is covered by the aforementioned warranty. AGM Global Vision will return the product after warranty service by domestic UPS Ground service and/or domestic mail. Should any other requested, required, or international shipping methods be necessary, the postage/shipping fee will be the responsibility of the End-user/Customer.
For service, repair or replacement, please contact:
AGM Global Vision
173 West Main Street
PO Box 962
Springerville, AZ 85938
Tel. 928.333.4300
Fax 480.393.4882
support@agmglobalvision.com
www.agmglobalvision.com
ASP USER MANUAL
21
5 SPECIFICATIONS
5.1 SPECIFICATIONS
Image sensor Detector Pitch Response Wavebond NETD Refresh Rate Max. Resolution Lens (Focal Length) F number Field of View Optical Magnification Digital Zoom Flat Field Correction Palettes Monitor Hot Track Storage Record Video Capture Snapshot Wi-Fi Battery Operating Time Battery Capacity Display Power Working Temperature Protection Level
Dimensions
Weight
ASP TM25-384 ASP TM35-384 ASP TM35-640
Vanadium Oxide Uncooled Focal Plane Arrays
17um
8um to 14um
< 35mk (@25°C, F#=1.0)
50 Hz
384×288
384×288
640×512
25mm
35mm
35mm
1.0
1.0
1.0
14.9° × 11.2°
10.7° × 8°
17.7° × 14.2°
1.7×
2.4×
1.4×
1×, 2×, 4×
1×, 2×, 4×
1×, 2×, 4×
Auto, Manual, External Correction
Black hot, White hot, Red hot, Fusion
0.39-inch, OLED, 1024 × 768
Yes
Built-in memory module (16GB)
Support on-board video recording
Yes
Yes, Hotspot
Built-in rechargeable Lithium battery
Up to 5 hours continuous running
Yes
5V DC/2A, 2W
-30°C to 55°C (-22°F to 131°F)
IP67 189 × 74 × 66 mm 202 × 74 × 66 mm 202 × 74 × 66 mm (7.4 × 2.9 × 2.6 in) (7.9 × 2.9 × 2.6 in) (7.9 × 2.9 × 2.6 in)
460 g (16.2 oz) 480 g (16.9 oz) 480 g (16.9 oz)
*All data subject to change without notice.
22
AGM Global Vision
AGM Global Vision MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 USA Tel. +1.928.333.4300 Fax +1.480.393.4882 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE Andrey Lyapchev #7 Sofia, P.C. 1756 Bulgaria Tel. +44.292.255.0509 info@agmglobalvision.eu www.agmglobalvision.eu
AGMglobalvision.com
AGM Global Vision: Night Vision and Thermal Imaging Equipment for Law Enforcement, Hunting, Outdoor and Military Gear
AGM Global Vision: Night Vision and Thermal Imaging Equipment for Law Enforcement, Hunting, Outdoor and Military GearCustomer Support - AGM Global Vision
AGM Globalvision: Night Vision and Thermal Imaging Equipment for Law Enforcement, Hunting, Outdoor and Military Gear
