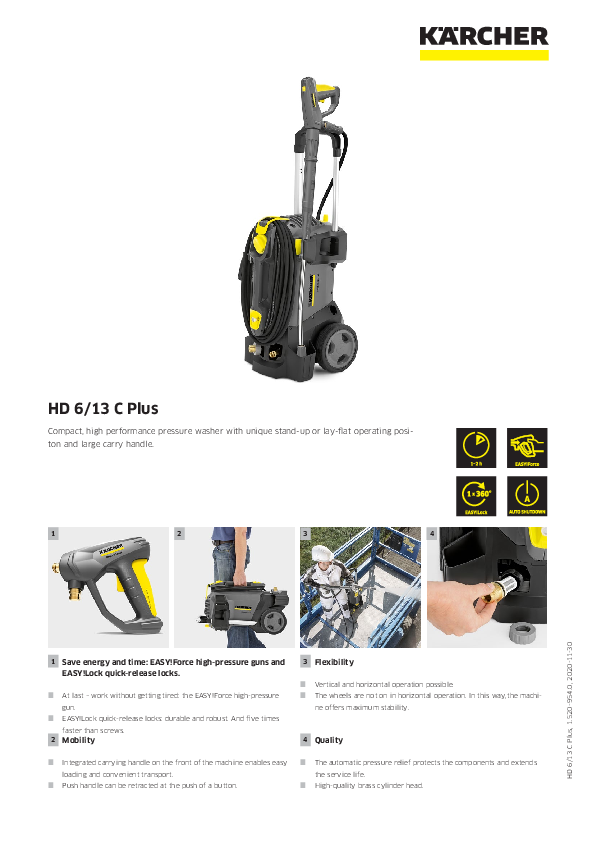

HD 6/13 C Plus
Compact, high performance pressure washer with unique stand-up or lay-flat operating positon and large carry handle.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

1 Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.
At last � work without getting tired: the EASY!Force high-pressure
gun.
EASY!Lock quick-release locks: durable and robust. And five times
faster than screws.
2 Mobility

3 Flexibility Vertical and horizontal operation possible. The wheels are not on in horizontal operation. In this way,the machi-
ne offers maximum stability.
4 Quality

Integrated carrying handle on the front of the machine enables easy
loading and convenient transport.
Push handle can be retracted at the push of a button.

The automatic pressure relief protects the components and extends
the service life.
High-quality brass cylinder head.

TECHNICAL DATA AND EQUIPMENT.

Technical data
Order Number EAN code Current type Flow Rate Operating pressure Max. Pressure Max. water feed temperature number of simultaneous users Mobility Power rating Weight without accessories Dimensions (L x W x H)
Equipment
Trigger gun High-pressure hose Spray lance Triple nozzle (0�/25�/40�) Dirt Blaster spray lance ANTI!Twist Pressure switch control Servo Control
Included in delivery.

HD 6/13 C Plus

Automatic pressure relief For horizontal and vertical operation Save energy and time: EASY!Force high-pressure guns and EASY!Lock
quick-release locks.

Ph / V / Hz l/h bar / MPa bar / MPa �C
kW kg mm

1.520-954.0 4054278164915 1 / 230 / 50 590 130 / 13 190 / 19 up to 60 1 ultra 2,9 26,2 380 � 360 � 930

EASY!Force

10 / ID 6, 250 bar

840

Manual

�

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

1�4, 13

5, 9, 11

7�8, 10

12, 14

15�17

Order Number ID

Standard with unions on both sides

High-pressure hose, 10 m DN 8, AVS trigger gun connector

1 6.110-031.0 8

High-pressure hose, 15 m DN 8, AVS trigger gun connector

2 6.110-030.0 8

High-pressure hose, 20 m DN 8, AVS trigger gun connector

3 6.110-032.0 8

High-pressure hose, 30 m DN 8, including rotary coupling High-pressure hose, 15 m DN 10, 220 bar, extension

4 6.110-014.0 8 5 6.110-042.0 10

High-pressure hose, 20 m DN 10,

6 6.110-043.0 10

220 bar, extension

High-pressure hose, 25 m DN 10,

7 6.110-044.0 10

extension, not rotatable

Hose assembly premium DN10

8 6.110-045.0 10

22MPa 40m

Hose assembly premium DN12

9 6.110-059.0 12

21MPa 15m

Hose assembly premium DN12

10 6.110-060.0 12

21MPa 40m

Hose assembly TR DN10 22MPa 11 6.110-041.0 10

10m

High-pressure hose, 10 m DN 6,

12 6.110-034.0 6

AVS trigger gun connector

13 6.110-035.0 6

High-pressure hose, 10 m, DN 6, 14 6.110-056.0 6 300 bar, AVS trigger gun connec-

tion

Longlife 400 with unions on both sides

High-pressure hose Longlife 400, 15 6.110-023.0 8 30 m DN 8, including rotary coup-

ling

High-pressure hose Longlife 400, 16 6.110-027.0 8 20 m, DN 8, extension

High-pressure hose Longlife 400, 17 6.110-029.0 8 15 m, DN 8, including rotary coupling

High-pressure hose 1.5 m, DN 8, including connectors

18 6.110-024.0 8

Longlife 400 high-pressure hose, 1 19 6.110-069.0 8 x EASY!Lock, 1 x M22 x 1.5, DN 8, 400 bar, 1.5 m

High-pressure hose packaged

20 6.110-038.0 8

Max. working

pressure

Length

315 bar

10 m

315 bar

15 m

315 bar

20 m

315 bar 220 bar

30 m 15 m

220 bar 220 bar 220 bar 210 bar 210 bar 220 bar 250 bar 250 bar 300 bar

20 m 25 m 40 m 15 m 40 m 10 m 10 m 10 m 10 m

400 bar 400 bar 400 bar 400 bar 400 bar

30 m 20 m 15 m 1,5 m 1,5 m

400 bar

10 m

Included in delivery. Available accessories. Extension hose.

Price Description

10 m high-pressure hose (M 22 x 1.5) with kink protection.

With patented rotating AVS trigger gun connector and manu-

al coupling. Further data: DN 8/155�C/315 bar.

15 m high-pressure hose (M 22 x 1.5) with kink protection.

With patented rotating AVS trigger gun connector and manu-

al coupling. Further data: DN 8/155�C/315 bar.

20 m high-pressure hose (M 22 x 1.5) with kink protection.

With patented rotating AVS trigger gun connector and manu-

al coupling. Further data: DN 8/155�C/315 bar.

With rotary coupling, 2 x M 22 x 1.5

15 m high-pressure hose M 22 x 1.5) with kink protection

and threaded couplings at both ends. Further data: DN

10/155�C/220 bar.

with union on both sides, M 22 x 1.5 with anti-kink protection. NW 10/155�C/220 bar

High-pressure hose for water volumes greater than 1,800 l / h. With union on both sides. 2x M 22 x 1.5 with anti-kink

protection.

10 m high-pressure hose (M 22 x 1.5) with kink protection.

With patented rotating AVS trigger gun connector and manu-

al coupling. Further data: DN 6/155�C/250 bar.

With patented AVS connection in the trigger gun (pivot-

mounted) and hand screw union. M 22 x 1.5 with anti-kink

protection. NW 6/155�C/300 bar

With rotary coupling, 2 x M 22 x 1.5

with rotary coupling, 2 x M 22 x 1.5

With rotary coupling, 2 x M 22 x 1.5

1.5 m high-pressure hose (DN 8, M 22 x 1.5) with kink pro-

tection and connectors at both ends. For connecting to hose

reels with appropriate connector (M 22 x 1.5).

High-pressure hose (ID 8) with double steel reinforcement,

1.5 m long, suitable for up to 400 bar pressure. Connectors: M 22 � 1.5, quick and convenient EASY!Lock hand screw

connection.

Durable, 10 m long high-pressure hose (ID 8) with double

steel reinforcement and EASY!Lock hand screw connection at both ends and ANTI!Twist. Approved for 400 bar pressu-

re.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

Order Number ID

Food industry version with unions on both sides

High-pressure hose, 10 m ID 8,

21 6.110-051.0 8

suitable for food industry, extensi-

on piece

High-pressure hose, 20 m ID 8,

22 6.110-052.0 8

suitable for food industry, extensi-

on piece

Max. working

pressure

Length

250 bar

10 m

250 bar

20 m

High-pressure hose 15 m ID 6, AVS 23 6.110-063.0 6 trigger gun connector 11 mm, suitable for food industry, grey Longlife food industry version with unions on both sides
High pressure hose food DN 8 / 10 24 6.110-053.0 8 m

250 bar

15 m

400 bar

10 m

HIgh-pressure hose Longlife 400, 25 6.110-054.0 8 15 m, ID 6, AVS trigger gun connection

400 bar

20 m

Included in delivery. Available accessories. Extension hose.

Price Description

10 m high-pressure hose (DN 8) with patented (rotating)

AVS trigger gun connector. Non-discolouring outer layer for

use in the food industry. M 22 x 1.5 with anti-kink sleeve.

20 m high-pressure hose (DN 8) with swivel coupling. Non-

discolouring outer layer for use in the food industry. Connectors at both ends, M 22 x 1.5, with kink protection. NW

8/155�C/250 bar.

15 m high-pressure hose (DN 6) with patented (rotating)

AVS trigger gun connector. Non-discolouring outer layer for

use in the food industry. DN 6/155�C/250 bar.

Longlife HP hose for use in the food industry. Au�ende-

cke## animal-grease-resistant, non-colour-bleeding materi-

al. With rotary coupling, 2 x M 22 x 1,5

Longlife HP hose for use in the food industry. Au�ende-

cke## animal-grease-resistant, non-colour-bleeding material. With patented AVS connection in the pistol (pivot moun-

ted)

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

Trigger guns EASY!Force Advanced

Order Number Flow Rate 1 4.118-005.0

Conversion kit 1 from high pressu- 2 4.111-050.0 re hose

Conversion kit 2 from device

3 4.111-051.0

Conversion kit 3 only EASY!Force 4 4.111-052.0

Quick connect Quick-fitting pipe union coupler trapezo

5 2.115-000.0

Quick-fitting pipe union plug nipp- 6 2.115-001.0 le tra Included in delivery. Available accessories.

Extension hose.

Price Description

Effortless, not energy-sapping: the EASY!Force high-pressure

gun uses the recoil force of the high-pressure jet to reduce

the holding force for the operator to zero.

A conversion kit which enables secure connection from an

M22 hose onto our innovative EASY!Force trigger gun. The

kit includes the EASY!Force Trigger gun, adaptors and lance.

Provides all the parts required to utilise our EASY!Force

technology even on our non-Easy!Force machines. Including

adaptors, lance, Easy!Force trigger gun and hose.

A conversion kit for the EASY!Force gun, which includes the

correct adaptors to conncect to the M22 style lance and

hose.

For fast changes between different spray lances/accessories.

Perfect for K�rcher spray unit, suitable for trigger gun/spray

lance interface. With M 22 x 1.5 internal thread.

Hardened stainless steel male coupling for quick coupling 2.115-000. With M 22 x 1.5 external thread.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

Rotating spray lances Lance 850 mm, rotatable, ergonomic
Nozzle Light

Max. working

Order Number pressure

Length

1 4.112-006.0 300 bar

840 mm

2 2.680-002.0

125 mm

Lance 250 mm, non-rotatable

3 4.112-027.0 300 bar

250 mm

400 mm rotatable lance

4 4.112-024.0 300 bar

400 mm

Rotatable lance, 600 mm, ergonomic

5 4.112-007.0 300 bar

1050 mm lance, rotatable, ergonomic

6 4.112-000.0

300 bar

Lance 1550 mm, rotatable, ergonomic

7 4.112-018.0 300 bar

Lance 2050 mm, rotatable, ergonomic

8 4.112-021.0 300 bar

Jet pipe extension TR 1000 mm

9 4.112-048.0 300 bar

Double lance Double lance 960 mm

10 2.112-016.0 310 bar

600 mm 1050 mm 1550 mm 2050 mm 1000 mm 960 mm

Angular spray lance WC and gutter lance

11 4.112-029.0

Flexible spray lance Flexible lance 1050 mm
Articulated joint TR 20

12 4.112-035.0 210 bar 13 4.112-057.0 300 bar

1050 mm

Telescopic spray lance Telescopic jet pipe

14 4.112-037.0 225 bar

5400 mm

Restraint belt for telescopic jet pipe
Gutter cleaner Gutter cleaning lance

15 6.373-987.0 16 2.112-015.0

960 mm

Included in delivery. Available accessories. Extension hose.

Price Description

850 mm stainless steel lance (manual coupling) with ergono-

mic handle for ease of use and protection. Rotatable 360�

under pressure.

LED work light for assembly on EASY!Force spray lances,

providing a clear view in poor lighting conditions ensuring

controlled cleaning results.

600 mm stainless steel lance (manual coupling) with ergono-

mic handle for ease of use and protection. Rotatable 360�

under pressure.

400 mm stainless steel lance (manual coupling) with ergono-

mic handle for ease of use and protection. Rotatable 360�

under pressure.

600 mm stainless steel lance (manual coupling) with ergono-

mic handle for ease of use and protection. Rotatable 360�

under pressure.

1050 mm stainless steel lance (manual coupling) with ergo-

nomic handle for ease of use and protection. Rotatable 360�

under pressure.

1550 mm stainless steel lance (manual coupling) with ergo-

nomic handle for ease of use and protection. Rotatable 360�

under pressure.

2050 mm stainless steel lance (manual coupling) with ergo-

nomic handle for ease of use and protection. Rotatable 360�

under pressure.

Spray lance extension with EASY!Lock connection. Length 1000 mm.

960 mm double lance for variable pressure adjustment on
handle at full water flow rate. Suitable for agricultural use (
e.g. stable cleaning).

Stainless steel lance WC and gutter with nozzle insert. Spe-
cially shaped for effective and hygienic cleaning of gutters
and toilets.

1050 mm flexible lance with variable bend from 20� to 140�, ideal for cleaning difficult to reach areas, e.g. gutters.

For hard-to-reach areas: High-pressure articulated joint with

infinite angle adjustment up to 120�. Simply attach directly

to the spray lance of the pressure washer.

Can be continuously extended from 1.8 to 5.4 m. For

cleaning areas that are difficult to reach, such as ceilings or facades. With integrated HD trigger gun, M 22 x 1.5 connec-

tion with rotary coupling. Connection for M 18 x 1.5 nozzles.

Convenient strap for relief when working with the telesco-

pic spray lance (6.394-690). The burden is optimally distri-

buted on the body and longer periods of use are possible.

The lance is suited for cleaning of gutter systems. Because
of the shape of the lance and the special nozzle the gutter
can be cleaned without removing the cover plates.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

Undercarriage spray lance Underbody lance
Additional handle Additional handle for EASY!Lock spray lances

Max. working

Order Number pressure

Length

17 4.112-032.0

700 mm

18 4.321-380.0

PowerControl spray lance PowerControl spray lance 038

19 4.112-047.0

Included in delivery. Available accessories. Extension hose.

Price Description

Stainless steel lance for effective and easy underbody and wheel arch cleaning. Without high-pressure nozzle.

Comfortable in every situation � the additional handle is

easy to attach to the spray lance of our new EASY!Lock generation and makes work easier by allowing you to adjust

your posture to suit the particular task.

Infinitely variable pressure adjustment during operation
directly in the operator's gripping area, especially for machi-
nes without servo control function.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

Dirt Blaster, small Dirt Blaster Nozzle

Max. working

Order Number pressure

Nozzle size

1 4.114-020.0 180 bar

Triple nozzles Triple Nozzle

2 4.117-032.0 300 bar

Dirt blaster, large Dirt Blaster Nozzle

3 4.114-041.0 300 bar

Included in delivery. Available accessories. Extension hose.

Price Description

With rotating point jet for more efficient removal: the new

performance dirt blaster with nozzle size 040 achieves up to 50% higher cleaning and area performance than its prede-

cessor.

Triple nozzle with manual nozzle changeover. Convenient

spray adjustment. For high-pressure cleaners with injector; low-pressure fan jet for detergent removal and application.

Connector M 18x1.5.

The dirt blaster with rotating pencil jet offers 10 times

better cleaning performance. Ceramic nozzle and bearing ring for a long service life. Further data: Max. 300 bar, 30

MPa, 85�C.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0
1�4

HP nozzle spray angle 0� Power Nozzle

Order Number Nozzle size 1 2.113-001.0 40

Power nozzle spray angle 15� Power Nozzle Power nozzle spray angle 25� Power Nozzle

2 2.113-044.0 38 3 2.113-006.0 38

Power nozzle spray angle 40� Power Nozzle

4 2.113-003.0 40

Included in delivery. Available accessories. Extension hose.

Price Description

High-pressure nozzle with powerful jet for extremely stubborn dirt.

Flat jet nozzle for stubborn dirt.

Fan jet nozzle with 25� spray angle, suitable for large areas and removing stubborn dirt and stains.

Power nozzle with a 40� spray angle large areas and sensitive surfaces.

and fan

jet,

suitable

for

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

5�6

Nozzle union Nozzle screws

Order Number 1 4.112-011.0

HP detergent injector

Detergent injector for high and low pressure (without nozzles)

2 4.637-032.0

Detergent injector for high pressure

3 4.637-033.0

Machine-specific nozzle kit with order no. 3.637-170

Nozzle insert trapezoidal thread HD-GER.

4 4.769-005.0

Nozzle insert with order no. 3.637-001

Nozzle insert for Order No. 3.637001, high-pressure for machines up to 1100 l/h.

5 4.769-003.0

Low pressure for units rated up to 1100 l/h

6 4.769-001.0

Rotary coupling

7 4.111-021.0

Coupling Coupler -2xM22x1,5

8 4.111-037.0

Connector Nozzle connector/screw connector

9 4.111-022.0

Y distributor Short spray unit
Adapter EASY!Lock Adapter 1 M22AG-TR22AG Adapter 2 M22IG-TR22AG Adapter 3 M22IG-TR22AG Adapter M22 - Swivel

10 4.111-024.0 11 4.111-038.0
12 4.111-029.0 13 4.111-030.0 14 4.111-031.0 15 4.111-032.0

Adapter 5 TR22IG-M22AG

16 4.111-033.0

Adapter 6 TR22IG-M22AG

17 4.111-034.0

Adapter 7 M18IG-TR20AG

18 4.111-035.0

Adapter 8 TR20IG-M18AG

19 4.111-036.0

Included in delivery. Available accessories. Extension hose.

Price Description

Nozzle screws with protectors for high-pressure and power nozzles

Detergent injector for independent high and low pressure dosage. Maximum dosage about 15%.

Cleaning agent dosage at high pressure 3 - 5 %

For HD 500 - 700 l/h. Consists of nozzle insert + HP power nozzle + union

Nozzle insert for detergent injector 3.637-001 for high-

pressure detergent application. For high-pressure cleaners

with a water flow rate up to 1100 l/h.

For low pressure with machines up to 1.100 l/h

K�rcher rotary coupling prevents twisting and kinking of
high-pressure hoses for ease of use. Connector M 22 x 1.5
m. With grip protection.

Brass double connector for connecting and extending high-
pressure hoses. With rubber protection. Connector: 2x M 22
x 1.5 m.

Nozzle connector/screw connector for connecting high-

pressure nozzles and accessories to the high-pressure trigger gun (with nozzle connector). Connectors: 1x M 22 x 1.5

and 1x M 18 x 1.5.

Offers the option to connect two spray units to the machine. Installation on the high pressure outlet.

For attaching high-pressure nozzles and accessory parts to

HP trigger gun (with nozzle screws). Not compatible with

triple nozzles.

Adapter 1 to connect the old hose with the new hose

Adapter 2 to connect the old device with the new hose and the old gun with the new hose

Adapter 3 to connect the old gun with the new spray lance and new servo regulator

M22 x 1,5female and swivel connection. For extension of

high-pressure hoses with AVS connection or for usage of the telescopic lance with a high-pressure hose with AVS connec-

tion.

Adapter 5 to connect the new gun with the old spray lance and new servo regulator with the old spray lance

Adapter 6 to connect the new device with the old hose and the old hose with the new gun

Adapter 7 to connect the old spray lance with the new nozzle

Adapter 8 to connect the new spray lance with the old nozzle

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0
20

Order Number

ADAPTER for replacement TR22IG- 20 4.111-046.0 M22AG Er Included in delivery. Available accessories.

Extension hose.

Price

Description

Rotatable adapter for connecting EASY!Force high-pressure gun and high-pressure hoses with M 22x1.5 connection

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

1�3

4�6

9�10

Pipe cleaning hose, ID 6 Hose assembly TR pipe cleaning DN6 max.2

Max. working

Order Number pressure

Nozzle size

Diameter

1 6.110-046.0 250 bar

Pipe cleaning hose, DN 6, 20 m, 220 bar Hose assembly TR pipe cleaning DN6 max.2

2 6.110-008.0 250 bar 3 6.110-047.0 250 bar

Hose assembly TR pipe cleaning DN6 14MPa Pipe cleaning hose

4 6.110-048.0 140 bar 5 6.110-049.0 140 bar

Pipe cleaning hose, DN 6, 30 m

6 6.110-050.0 140 bar

Pipe cleaning nozzle Dirt blaster pipe cleaning D21/040 Dirt blaster pipe cleaning D30/040

7 4.765-001.0 8 4.765-004.0

21 mm

30 mm

Pipe cleaning nozzle

9 5.763-015.0 10 5.763-020.0
11 5.763-017.0

16 mm

30 mm

Rotating pipe cleaning nozzle

12 6.415-428.0

16 mm

Drum and tank cleaning Add-on kit mud sucker Barrel and tank cleaning Barrel cleaner BC 14/12

13 2.641-798.0 14 2.112-020.0

Included in delivery. Available accessories. Extension hose.

Price Description

The 10 m pipe cleaning hose is a highly flexible high pressu-

re hose for pipe interior cleaning (threaded connection for

nozzle R 1/8).

20 m flexible high-pressure hose (DN 6) for cleaning pipes up to 220 bar (threaded connection for R 1/8 nozzle).

The 30 m pipe cleaning hose is a highly flexible high pressu-

re hose for pipe interior cleaning (threaded connection for

nozzle R 1/8).

10 m flexible high-pressure hose (DN 6) for cleaning pipes (threaded connection for R 1/8 nozzle).

20 m flexible high-pressure hose (DN 6) for cleaning pipes (threaded connection for R 1/8 nozzle).

30 m flexible high-pressure hose (DN 6) for cleaning pipes (threaded connection for R 1/8 nozzle).

The forward-tilted rotating pencil jet removes the most

stubborn dirt. The three backwards-tilted jets ensure the

necessary forward movement, as well as convenient hand-
ling.

16 mm pipe cleaning nozzle with internal thread. Various jet

directions for environmentally-friendly cleaning of blocked

drains and pipes.

30 mm pipe cleaning nozzle with internal thread. Various jet

directions for environmentally-friendly cleaning of blocked

drains and pipes.

Rotating pipe cleaning nozzle with internal thread and four

rotating jets for environmentally-friendly cleaning of blo-

cked drains and pipes.

The barrel cleaner BC 14/12 is a spray unit for the internal
cleaning of containers and drums - in particular oak barrels
with a capacity between 225 and 600 liters.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

3, 12

Hard surface cleaner FR Classic FR Classic surface cleaner

Order Number Flow Rate

Nozzle size

Diameter

1 2.111-016.0

300 mm

Hard Surface Cleaner FRV 30 Add-on kit rubber lip

2 2.642-910.0

Extension hose 5 m Add-on kit hose attachment Add-on kit dirt trap
FRV 30 Hard surface cleaner FR 30 FR 30 Surface Cleaner
Hard surface cleaner FR 30 ME FR 30 ME surface cleaner

3 4.440-939.0 4 2.642-528.0 5 2.642-532.0 6 2.111-010.0
7 2.111-011.0
8 2.111-013.0

300 mm 300 mm

Machine-specific nozzle kit for FR

Nozzle kit for surface cleaners (type-specific) 500 - 650 l/h

9 2.640-401.0

Machine-specific nozzle kits for FRV

Nozzle kit 040 � for FRV

10 2.642-431.0

500 � 650 l/h 40

Machine-specific nozzle kits for FR Classic

Nozzle kit for FR Classic 040

11 2.885-312.0

Hard surface cleaner FRV 30 Me

Extension hose FRV 30 Me and FRV 50 Me

12 4.441-040.0

FRV 30 Me Surface Cleaner

13 2.111-012.0

Included in delivery. Available accessories. Extension hose.

Price Description

The ideal entry-level model in the K�rcher surface cleaner

range for cleaning surfaces indoors and outdoors. With

splash guard and up to 150 bar working pressure.

For smooth floors indoors. The squeegee increases the

suction performance of the FRV 30 and minimises the amount of water remaining. This means the floor is dry in

just a few minutes.

5m extension hose for FRV 30. Connection sleeve included.

Suction cup for fixing the suction hose to smooth surfaces.

Galvanised steel bucket for collecting coarse dirt and for fixing the suction hose in outside areas.

Surface cleaner with integrated waste water pick-up

Up to 10 times greater area coverage compared with the conventional high pressure jet.

Hot water resistant stainless steel surface cleaner with

double ceramic bearings, non-marking swivel castors and suction hose connection. Ideal for indoor cleaning, e.g. food

industry.

Nozzle kit includes power nozzles and unions. For K�rcher surface cleaners (500 to 650 l/h).

Machine-specific nozzle kit K�rcher power nozzles and jet nozzle for FRV 30.

Nozzle kit specifically for FR Classic surface cleaner.

5 m extension hose for FRV 30 Me. Includes connecting adapter.

Thanks to automatic suction of the dirty water, the stainless

steel FRV 30 Me Surface Cleaner makes surface cleaning more efficient in both inside and outside areas. Hot water

cleaning up to 85�C.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

Cup foam lance Cup foam lance Basic 1

Order Number Flow Rate 1 4.112-053.0 350 � 600 l/h

Bottle cleaning agents 1L Cup foam lance Advanced 042

2 5.071-414.0 3 2.112-018.0

Tank grey only for replacement 1L 4 6.414-050.0

Inno Foam Set Inno foam kit with detergent injector

5 2.112-000.0

Easy Foam Set Easy Foam Set with RM injector

6 2.112-010.0

Nozzle kits for Inno/Easy Foam Set Nozzle kit 060 for Inno/Easy Set 600 - 700 l/h Foam nozzle mounting kit Foam nozzle kit

7 2.111-018.0 8 2.112-013.0

600 � 700 l/h

Included in delivery. Available accessories. Extension hose.

Price Description

For high-pressure cleaners with a flow rate of 350�600 l/h:

new, robust and very high-quality foam cup lance with outstanding foam quality while consuming half as much

cleaning agent.

Short, handy foam lance with adjustable spray angle with 1

litre detergent tank. Ideal for cleaning cars due to its com-

pact design.

Additional 1-litre cleaning agent container for quick replace-

ment of the cleaning agent (for foam lance 2.112-017.0 and

2.112-018.0).

High-pressure foam system with double lance (foam nozzle

and high-pressure jet for rinsing). For use with mobile and stationary high-pressure and HDS pressure cleaners for

cleaning or disinfection.

HP foam system for use with. HD/HDS units for cleaning and

disinfecting. Foam nozzle for connection to lance and HP chemical injector with precision 0-5% metering valve. The

machine specific nozzle kit has to be ordered separately.

Optimal adaptation to different machine outputs for economic use.

Foaming agent kit. The foam nozzle is ideal for use in sani-
tary areas and the food industry and wherever long applica-
tion times are necessary.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

9�10

Automatic, self-winding hose reels Wall-mounted hose reel Add-on kit hose reel plastics

Order Number Length

1 2.639-257.0 2 6.392-074.0

15 m 20 m

Add-on kit hose reel

3 6.392-083.0 20 m

Hose reel, automatic, 20 m, painted Hose reel, automatic, basalt greycoated Hose reel, automatic, 20 m, stainless steel ABS hose reel stainless steel

4 6.392-106.0 20 m 5 6.392-105.0 20 m 6 6.392-076.0 20 m 7 6.392-122.0 20 m

Add-on kit hose reel TR 40m

8 6.392-442.0 40 m

Swivel holder

9 2.639-931.0

ABS wall fastening stainless steel 10 2.641-867.0

Included in delivery. Available accessories. Extension hose.

Price Description

Automatic hose reel for 20 m high-pressure hose. The con-

sole is made from powder-coated steel, the drum is made

from plastic.

Automatic hose reel for 20 m high-pressure hose. The con-

sole consists of stainless steel, the drum is made from plas-

tic.

Automatic hose reel of durable plastic. Painted Suitable for 20 m high-pressure hose.

steel

bracket.

Automatic hose reels provide the highest level of safety and convenience for winding and unwinding HP hoses.

Automatic stainless steel hose reel. With swivel holder. Suitable for 20 m high-pressure hose.

High-grade, automatic steel hose reel. Especially suitable for

use in the food industry. The material and finish provide for a corrossion-resistant, watertight capsuled sprong drive.

Connection for HP hoses with nipple.

Automatic hose reels provide the highest level of safety and

convenience for winding tible high-pressure hose,

and unwinding HP hoses. Compae.g. order no. 6.110-076.0 (ID 8, 40

m, 400 bar, 1x hose reel connection attachment kit).

Swivel holder for automatic hose reel wall mounting. For

maximum action radius and flexibility of high-pressure hose.

Rotatable 120�. Galvanised steel.

Swivelling wall bracket made of high-grade steel (for 2.641-

866). This makes maximum flexibility and convenience

possible when working with the HP hose.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

2�3

4�5

Order Number Flow Rate

Water feed temperature Length Length Price Description

Teleskopstangen

Ball valve

1 4.580-097.0

max. 40 �C

Telescope lance glass fibre 7 m

2 4.762-609.0

max. 60 �C

Telescope lance hybrid 7 m

3 4.762-610.0

max. 60 �C

Telescope lance hybrid 10 m

4 4.762-611.0

max. 60 �C

Telescope lance carbon 10 m

5 4.762-612.0

max. 60 �C

Telescope lance carbon 14 m

6 4.762-613.0

max. 60 �C

Pistol

7 4.775-154.0

max. 60 �C

Included in delivery. Available accessories. Extension hose.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

1�2

Order Number Nozzle size

Wet blasting attachment (without nozzle)

Wet blasting attachment with flow control (without nozzles)

1 4.115-000.0

Wet blasting attachment without flow control (nozzles not included)

2 4.115-006.0

Nozzle pack for wet blasting attachment

Nozzle pack TR wet jet set 0040

3 2.112-019.0 40

Boron carbide nozzle

Boron carbide nozzle, for machines as of 1000 l/h

4 6.415-084.0

Included in delivery. Available accessories.

6 mm
Extension hose.

Price Description

Paint, rust and scale removal made easy: K�rcher wet blas-
ting attachment with flow control for adding blasting abrasi-
ve to the high-pressure jet.
Paint, rust and scale removal made easy: K�rcher wet blas-
ting attachment with flow control for adding blasting abrasi-
ve to the high-pressure jet. Without flow control.

Nozzle kit with wet blasting nozzle and nozzle insert (type

specific). For optimal K�rcher wet blasting attachment performance. Only in combination with wet blasting attachment

4.115-000.0 | 4.115-006.0.

In addition to nozzle packs. Very wear-resistant nozzle with boron carbide chuck for continuous-duty operation.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

1�3

Geka coupling With hose nozzle, R 1/2" With hose nozzle, R 3/4" With hose nozzle, R 1" With female thread, R 3/4" Suction filter Water filter

Order Number
1 6.388-461.0 2 6.388-455.0 3 6.388-465.0 4 6.388-473.0
5 6.414-956.0

Suction filter with check valve
Fine-mesh water filter Add-on kit water filter universal Fine-mesh water filter with adapter

6 4.730-012.0
7 2.637-020.0 8 4.730-102.0

Water supply hose Water supply hose
Backflow check valve Backflow preventer

9 4.440-038.0 10 4.440-207.0
11 2.641-374.0

Other HP Accessories Starting current limiter

12 2.637-495.0

Included in delivery. Available accessories. Extension hose.

Price Description

with hose liner

with hose barb

with female thread

Suitable for ponds, storage tanks or similar, polyamide filter

casing, stainless steel strainer, 800 m mesh, R 3/4" and R

1" connection, without non-return valve

Brass suction filter suitable for ponds, storage tanks, etc. With check valve.

Fine-mesh water filter, 125 m, max. temperature 50�C.

Protects the high-pressure cleaner from dirt particles contained in the water. Water flow rate up to 1200 l/h. Connection

3/4", with adapter, 1".

NW 13 R1" / R 3/4", up to 30 �C

NW 19 R1" / R 3/4", up to 85 �C, for pick-up

To prevent detergent getting into the drinking water cycle in

case of inlet at low-pressure. - hot water resistant up to 80 �C - tested according to IEC 60335-2-79 - integrated leakage

protection

Reduces starting current in single-phase supply and protects line fuse.

HD 6/13 C Plus, 1.520-954.0, 2020-11-30

HD 6/13 C PLUS 1.520-954.0

Push-on washing brush Push-on washing brush

Order Number Flow Rate 1 4.762-497.0

Push-on wash brush, M 18 x 1.5

2 4.113-001.0

Rotating washing brush Rotating wash brush for < 800 l/h machines, nylon bristles

3 4.113-004.0

500 � 800 l/h

Rotating wash brush for < 800 l/h machines, natural bristles

4 4.113-003.0

500 � 800 l/h

Included in delivery. Available accessories. Extension hose.

Price Description

With clamp for mounting directly to units' double or triple nozzle. Fits on new double and triple nozzles.

Push-on wash brush for universal use. Simply push on to lance. Connector: M 18 x 1.6.

The rotating wash brush gently removes fine dust and traf-
fic film from all surfaces. Temperature resistant up to 60�C.
(M 18 x 1.5, replaceable brush insert).
Driven by water stream. Gently removes fine dust and
traffic film from any surface. Temperature resistant up to
60�C, M 18 x 1.5 (replaceable brush insert).

HD 6/13 C Plus, 1.520-954.0, 2020-11-30
