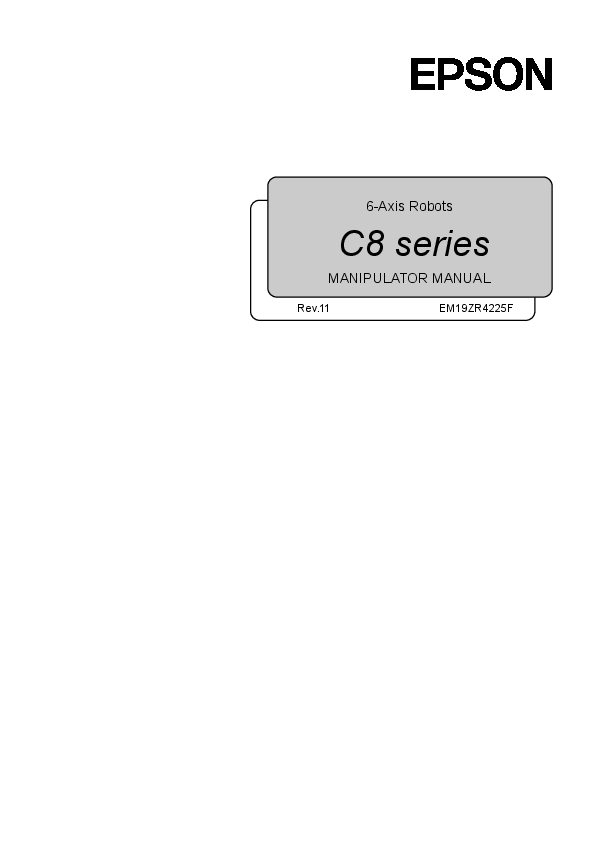

6-Axis Robots
C8 series
MANIPULATOR MANUAL
Rev.11
EM19ZR4225F
Manipulator manual C8 series Rev.11
6-Axis Robots
C8 series Manipulator Manual
Rev. 11
Copyright 2015-2019 SEIKO EPSON CORPORATION. All rights reserved.
C8 Rev.11
iii
FOREWORD
Thank you for purchasing our robot products. This manual contains the information necessary for the correct use of the manipulator. Please carefully read this manual and other related manuals before installing the robot system. Keep this manual handy for easy access at all times.
WARRANTY
The robot and its optional parts are shipped to our customers only after being subjected to the strictest quality controls, tests, and inspections to certify its compliance with our high performance standards.
Product malfunctions resulting from normal handling or operation will be repaired free of charge during the normal warranty period. (Please contact the supplier of your region for warranty period information.)
However, customers will be charged for repairs in the following cases (even if they occur during the warranty period):
1. Damage or malfunction caused by improper use which is not described in the manual, or careless use.
2. Malfunctions caused by customers' unauthorized disassembly. 3. Damage due to improper adjustments or unauthorized repair attempts. 4. Damage caused by natural disasters such as earthquake, flood, etc.
Warnings, Cautions, Usage:
1. If the robot or associated equipment is used outside of the usage conditions and product specifications described in the manuals, this warranty is void.
2. If you do not follow the WARNINGS and CAUTIONS in this manual, we cannot be responsible for any malfunction or accident, even if the result is injury or death.
3. We cannot foresee all possible dangers and consequences. Therefore, this manual cannot warn the user of all possible hazards.
iv
C8 Rev.11
TRADEMARKS
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of the respective holders.
NOTICE
No part of this manual may be copied or reproduced without authorization. The contents of this manual are subject to change without notice. Please notify us if you should find any errors in this manual or if you have any comments regarding its contents.
MANUFACTURER
CONTACT INFORMATION
Contact information is described in "SUPPLIERS" in the first pages of the following manual:
Robot System Safety and Installation Read this manual first
C8 Rev.11
v
Regarding battery disposal
The crossed out wheeled bin label that can be found on your product indicates that this product and incorporated batteries should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health please separate this product and its batteries from other waste streams to ensure that it can be recycled in an environmentally sound manner. For more details on available collection facilities please contact your local government office or the retailer where you purchased this product. Use of the chemical symbols Pb, Cd or Hg indicates if these metals are used in the battery.
This information only applies to customers in the European Union, according to DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 6 September 2006 on batteries and accumulators and waste batteries and accumulators and repealing Directive 91/157/EEC and legislation transposing and implementing it into the various national legal systems. For other countries, please contact your local government to investigate the possibility of recycling your product.
The battery removal/replacement procedure is described in the following manuals: Robot Controller manual / Manipulator manual (Maintenance section)
vi
C8 Rev.11
Before Reading This Manual
This section describes what you should know before reading this manual.
Structure of Control System
C8 Manipulators can be used with the following combinations of Controllers and software.
Controller : RC700-A Software : EPSON RC+ 7.0 Ver.7.1.3 or later (C8XL)
EPSON RC+ 7.0 Ver.7.1.4 or later (C8, C8L) EPSON RC+ 7.0 Ver.7.2.0 or later (wall mounting)
Setting by Software
EPSON RC+
This manual contains setup procedures using the software. Those sections are indicated by the symbol on the left.
Turning ON/OFF Controller
When you see the instruction "Turn ON/OFF the Controller" in this manual, be sure to turn ON/OFF all the hardware components.
Photos and Illustrations Used in This Manual
The appearance of some parts may differ from those on an actual product depending on when it was shipped or the specifications. The procedures themselves, however, are accurate.
C8 Rev.11
vii
viii
C8 Rev.11
Table of Contents
Setup & Operation
1. Safety
3
1.1 Conventions............................................................................................3 1.2 Design and Installation Safety................................................................4 1.3 Operation Safety ....................................................................................5 1.4 Emergency Stop .....................................................................................7 1.5 How to Move Arms with the Electromagnetic Brake ..............................9
1.5.1 Moving the Arm using the brake release unit...........................10 1.5.2 Moving the Arm using the software ..........................................10 1.6 Precaution for Operation in Low Power Status ....................................10 1.7 Warning Labels.....................................................................................11
2. Specifications
13
2.1 Features of Manipulators .....................................................................13 2.2 Model Number ......................................................................................14 2.3 Part Names and Motion Range of Each Arm .......................................15 2.4 Outer Dimensions.................................................................................17
2.4.1 C8-A701*** (C8) .......................................................................17 2.4.2 C8-A901*** (C8L) .....................................................................18 2.4.3 C8-A1401*** (C8XL).................................................................19 2.5 Standard Motion Range .......................................................................20 2.5.1 C8-A701*** (C8) .......................................................................20 2.5.2 C8-A901*** (C8L) .....................................................................21 2.5.3 C8-A1401*** (C8XL).................................................................22 2.6 Specifications .......................................................................................23 2.6.1 Specifications table ..................................................................23 2.6.2 Option .......................................................................................27 2.7 How to Set the Model ...........................................................................28
3. Environment and Installation
29
3.1 Environmental Conditions ....................................................................29 3.2 Unpacking, Transportation, and Relocation .........................................31 3.3 Mounting Dimensions...........................................................................34
3.3.1 Cable Backward Model ............................................................34 3.3.2 Cable Downward Model ...........................................................36 3.4 Installation ............................................................................................37 3.5 Connecting the Cables .........................................................................40 3.6 User Wires and Pneumatic Tubes........................................................42 Electrical wires .....................................................................................43 Pneumatic tubes ..................................................................................44 3.7 Checking the Basic orientation.............................................................45
C8 Rev.11
ix
Table of Contents
4. End Effectors
46
4.1 Attaching an End Effector ....................................................................46 4.2 Attaching Camera and Air Valves ........................................................46 4.3 WEIGHT and INERTIA Settings...........................................................48
4.3.1 WEIGHT setting .......................................................................50 4.3.2 INERTIA setting........................................................................54 4.4 Precautions for Auto Acceleration/Deceleration ..................................59
5. Motion Range
60
5.1 Motion Range Setting by Pulse Range (for Each Joint) ......................60 5.1.1 Max. Pulse Range of Joint #1 ..................................................61 5.1.2 Max. Pulse Range of Joint #2 ..................................................61 5.1.3 Max. Pulse Range of Joint #3 ..................................................62 5.1.4 Max. Pulse Range of Joint #4 ..................................................62 5.1.5 Max. Pulse Range of Joint #5 ..................................................63 5.1.6 Max. Pulse Range of Joint #6 ..................................................63
5.2 Motion Range Setting by Mechanical Stops........................................64 5.2.1 Motion Range Setting of Joint #1.............................................64 5.2.2 Motion Range Setting of Joint #2.............................................65 5.2.3 Motion Range Setting of Joint #3.............................................66
5.3 Restriction of Manipulator Operation by Joint Angle Combination ......67 5.4 Coordinate System...............................................................................71 5.5 Changing the Robot .............................................................................72 5.6 Setting the Cartesian (Rectangular) Range
in the XY Coordinate System of the Manipulator ................................73
6. Options
74
6.1 Brake Release Unit ..............................................................................74 Mount the brake release unit ...............................................................76 Remove the brake release unit............................................................76 How to use the brake release unit .......................................................77
6.2 Camera Plate Unit................................................................................78 6.3 Tool Adapter (ISO Flange) ...................................................................80 6.4 Adjustable Mechanical Stops...............................................................81 6.5 User Wires and Pneumatic Tubes .......................................................82 6.5 User Wires and Pneumatic Tubes .......................................................83
x
C8 Rev.11
Table of Contents
Maintenance
1. Safety Maintenance
85
2. General Maintenance
86
2.1 Maintenance Inspection .......................................................................86 2.1.1 Schedule for Maintenance Inspection ......................................86 2.1.2 Inspection Point ........................................................................87
2.2 Overhaul (Parts Replacement).............................................................89 2.3 Greasing ...............................................................................................91
2.3.1 Joint #1 Reduction Gear Unit (Table Top Mounting) ................93 2.3.2 Joint #1 Reduction Gear Unit
(Ceiling Mounting, Wall mounting) ............................................94 2.3.3 Joint #2 Reduction Gear Unit ...................................................95 2.3.4 Joint #3 Reduction Gear Unit ...................................................96 2.3.5 Joint #4 Reduction Gear Unit ...................................................97 2.3.6 Joint #5 Reduction Gear Unit ...................................................98 2.3.7 Joint #6 Reduction Gear Unit ...................................................99 2.3.8 Joint #6 Bevel Gear ............................................................... 100 2.4 Tightening Hexagon Socket Head Bolts ........................................... 101 2.5 Layout of Maintenance Parts ............................................................ 102
3. Covers
103
3.1 Arm #1 Center Cover ........................................................................ 106 3.2 Arm #1 Side Cover ............................................................................ 107 3.3 Arm #2 Side Cover ............................................................................ 109 3.4 Arm #3 Cover .....................................................................................110 3.5 Arm #3 Maintenance Cover ............................................................... 111 3.6 Arm #4 Side Cover .............................................................................113 3.7 Arm #4 Maintenance Cover (C8XL only) ...........................................115 3.8 Arm #4 D-sub Attachment ..................................................................117 3.9 Base Cover ...........................................................................................118
3.9.1 M/C Cable Backward..............................................................118 3.9.2 M/C Cable Downward ............................................................119 3.10 Base Maintenance Cover................................................................ 123 3.11 Connector Plate ............................................................................... 125 3.11.1 M/C Cable Backward ........................................................... 125 3.11.2 M/C Cable Downward.......................................................... 129 3.12 Connector Sub Plate ....................................................................... 130
C8 Rev.11
xi
Table of Contents
4. Cable Unit
132
4.1 Replacing the Cable Unit ...................................................................132 4.1.1 Replacing the Cable Unit (M/C Cable Backward)..................134 4.1.2 Replacing the Cable Unit (M/C Cable Downward) ................164
4.2 Connector Pin Assignment.................................................................169 4.2.1 Signal Cable ...........................................................................169 4.2.2 Power Cable...........................................................................172 4.2.3 User Cable .............................................................................175 4.2.4 Color of Cables.......................................................................175
5. Joint #1
176
5.1 M/C Cable Backward (Joint #1) .........................................................177 5.1.1 Joint #1 - Replacing the Motor (M/C Cable Backward) .........177 5.1.2 Joint #1 - Replacing the Reduction Gear Unit (M/C Cable Backward)............................................................185 5.1.3 Joint #1 - Replacing the Timing Belt (M/C Cable Backward).192 5.1.4 Joint #1 - Replacing the Electromagnetic Brake (M/C Cable Backward)............................................................199
5.2 M/C Cable Downward (Joint #1)........................................................201 5.2.1 Joint #1 - Replacing the Motor (M/C Cable Downward) ........201 5.2.2 Joint #1 - Replacing the Reduction Gear Unit (M/C Cable Downward)...........................................................205 5.2.3 Joint #1 - Replacing the Timing Belt (M/C Cable Downward)208 5.2.4 Joint #1 - Replacing the Electromagnetic Brake (M/C Cable Downward)...........................................................213
6. Joint #2
216
6.1 Joint #2 - Replacing the Motor...........................................................217 6.2 Joint #2- Replacing the Reduction Gear Unit ....................................226 6.3 Joint #2 - Replacing the Timing Belt ..................................................233 6.4 Joint #2 - Replacing the Electromagnetic Brake................................234
7. Joint #3
235
7.1 Joint #3 - Replacing the Motor...........................................................236 7.2 Joint #3 - Replacing the Reduction Gear Unit ...................................244 7.3 Joint #3 - Replacing the Timing Belt ..................................................250 7.4 Joint #3 - Replacing the Electromagnetic Brake................................251
8. Joint #4
252
8.1 Joint #4 - Replacing the Motor...........................................................253 8.2 Joint #4 - Replacing the Reduction Gear Unit ...................................259 8.3 Joint #4 - Replacing the Timing Belt ..................................................266 8.4 Joint #4 - Replacing the Electromagnetic Brake................................272
xii
C8 Rev.11
Table of Contents
9. Joint #5
273
9.1 Joint #5 - Replacing the Motor .......................................................... 274 9.2 Joint #5 - Replacing the Reduction Gear Unit
(Replacing the Joint #5, #6 Reduction Gear Unit Set) ..................... 281 9.3 Joint #5 - Replacing the Timing Belt ................................................. 287 9.4 Joint #5 - Replacing the Electromagnetic Brake............................... 288
10. Joint #6
290
10.1 Joint #6 - Replacing the Motor ........................................................ 291 10.2 Joint #6 - Replacing the Reduction Gear Unit
(Replacing the Joints #5, #6 Reduction Gear Unit Set).................... 297 10.3 Joint #6 - Replacing the Timing Belt ............................................... 298 10.4 Joint #6 - Replacing the Electromagnetic Brake............................. 299
11. Replacing the Battery Unit
301
11.1 Replacing the Battery Unit (Lithium Battery) ................................... 303 11.2 Replacing the Battery Board ........................................................... 305
12. Replacing the Control Board
308
12.1 Replacing the Control Board 1 ........................................................ 309 12.2 Replacing the Control Board 2.........................................................311
13. Replacing the LED Lamp
313
14. Replacing the M/C Cable
315
15. Replacing the Fan
319
16. Calibration
321
16.1 Overview.......................................................................................... 321 16.2 Calibration Procedure...................................................................... 324
17. Maintenance Parts List
328
18. Option Parts List
332
C8 Rev.11
xiii
Table of Contents
xiv
C8 Rev.11
Setup & Operation
This volume contains information for setup and operation of the Manipulators. Please read this volume thoroughly before setting up and operating the Manipulators.
Setup & Operation 1. Safety
1. Safety
Installation and transportation of the Manipulators and robotic equipment shall be performed by qualified personnel and should conform to all national and local codes. Please read this manual and other related manuals before installing the robot system or before connecting cables. Keep this manual handy for easy access at all times.
1.1 Conventions
Important safety considerations are indicated throughout the manual by the following symbols. Be sure to read the descriptions shown with each symbol.
WARNING WARNING CAUTION
This symbol indicates that a danger of possible serious injury or death exists if the associated instructions are not followed properly.
This symbol indicates that a danger of possible harm to people caused by electric shock exists if the associated instructions are not followed properly.
This symbol indicates that a danger of possible harm to people or physical damage to equipment and facilities exists if the associated instructions are not followed properly.
C8 Rev.11
3
Setup & Operation 1. Safety
1.2 Design and Installation Safety
Only trained personnel should design and install the robot system. Trained personnel are defined as those who have taken robot system training and maintenance training classes held by the manufacturer, dealers, or local representative companies, or those who understand the manuals thoroughly and have the same knowledge and skill level as those who have completed the training courses. To ensure safety, a safeguard must be installed for the robot system. For details on the safeguard, refer to the Installation and Design Precautions in the Safety chapter of the EPSON RC+ User's Guide.
The following items are safety precautions for design personnel:
WARNING
Personnel who design and/or construct the robot system with this product must read the Safety chapter in the EPSON RC+ User's Guide. Designing and/or constructing the robot system without understanding the safety requirements is extremely hazardous, and may result in serious bodily injury and/or severe equipment damage to the robot system.
The Manipulator and the Controller must be used within the environmental conditions described in their respective manuals. This product has been designed and manufactured strictly for use in a normal indoor environment. Using the product in an environment that exceeds the specified environmental conditions may not only shorten the life of the product but may also cause serious safety problems.
The robot system must be used within the installation requirements described in the manuals. Using the robot system outside of the installation requirements may not only shorten the life of the product but also cause serious safety problems.
Further precautions for installation are described in the chapter Setup & Operation 3. Environment and Installation. Please read this chapter carefully to understand safe installation procedures before installing the robots and robotic equipment.
4
C8 Rev.11
Setup & Operation 1. Safety
1.3 Operation Safety
The following items are safety precautions for qualified Operator personnel:
WARNING
Please carefully read the Safety-related Requirements in the Safety chapter of the Safety and Installation manual. Operating the robot system without understanding the safety requirements is extremely hazardous and may result in serious bodily injury and/or severe equipment damage to the robot system.
Do not enter the operating area of the Manipulator while the power to the robot system is turned ON. Entering the operating area with the power ON is extremely hazardous and may cause serious safety problems as the Manipulator may move even if it seems to be stopped.
Before operating the robot system, make sure that no one is inside the safeguarded area. The robot system can be operated in the mode for teaching even when someone is inside the safeguarded area. The motion of the Manipulator is always in restricted status (low speeds and low power) to secure the safety of an operator. However, operating the robot system while someone is inside the safeguarded area is extremely hazardous and may result in serious safety problems in case that the Manipulator moves unexpectedly.
Immediately press the Emergency Stop switch whenever the Manipulator moves abnormally during operation. Continuing the operation while the Manipulator moves abnormally is extremely hazardous and may result in serious bodily injury and/or severe equipment change to the robot system.
WARNING
Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source. To shut off power to the robot system, disconnect the power plug from the power source. Performing any work while connecting the AC power cable to a factory power source is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
C8 Rev.11
5
Setup & Operation 1. Safety
CAUTION
Whenever possible, only one person should operate the robot system. If it is necessary to operate the robot system with more than one person, ensure that all people involved communicate with each other as to what they are doing and take all necessary safety precautions.
If the joints are operated repeatedly with the operating angle less than 5 degrees, they may get damaged early because the bearings are likely to cause oil film shortage in such situation. To prevent early breakdown, move the joints larger than 30 degrees for about five to ten times a day.
Oscillation (resonance) may occur continuously in low speed Manipulator motion (Speed: approx. 5 to 20%) depending on combination of Arm orientation and end effector load. Oscillation arises from natural oscillation frequency of the Arm and can be controlled by following measures.
Changing Manipulator speed Changing the teach points Changing the end effector load
6
C8 Rev.11
Setup & Operation 1. Safety
1.4 Emergency Stop
If the Manipulator moves abnormally during operation, immediately press the Emergency Stop switch. Pressing the Emergency Stop switch immediately changes the Manipulator to deceleration motion and stops it at the maximum deceleration speed.
However, avoid pressing the Emergency Stop switch unnecessarily while the Manipulator is running normally. Otherwise, the Manipulator may hit the peripheral equipment since the operating trajectory until the robot system stops is different from that in normal operation.
Do not press the Emergency Stop switch unnecessarily while the Manipulator is operating. Pressing the switch during operation makes the brakes work. This will shorten the life of the brakes due to the worn friction plates.
Normal brake life cycle: About 2 years (when the brakes are used 100 times/day)
Also, the Emergency Stop during operation applies impact on the reduction gear unit, and it may result in the short life of the reduction gear unit.
To place the robot system in emergency mode during normal operation, press the Emergency Stop switch while the Manipulator is not moving. Refer to the Robot Controller manual for instructions on how to wire the Emergency Stop switch circuit.
Do not turn OFF the Controller while the Manipulator is operating. If you attempt to stop the Manipulator in emergency situations such as "Safeguard Open", make sure to stop the Manipulator using the Emergency Stop switch of the Controller. If the Manipulator is stopped by turning OFF the Controller while it is operating, the following problems may occur.
Reduction of the life and damage of the reduction gear unit Position gap at the joints In addition, if the Controller was forced to be turned OFF by blackouts and the like while the Manipulator is operating, make sure to check the following points after power restoration. Whether or not the reduction gear is damaged Whether or not the joints are in their proper positions
If there is a position gap, perform calibration by referring to the Maintenance 16. Calibration in this manual.
Before using the Emergency Stop switch, be aware of the followings. - The Emergency Stop (E-STOP) switch should be used to stop the Manipulator only in
case of emergencies. - To stop the Manipulator operating the program except in emergency, use Pause (halt)
or STOP (program stop) commands. Pause and STOP commands do not turn OFF the motors. Therefore, the brake does not function. - For the Safeguard system, do not use the circuit for E-STOP.
C8 Rev.11
7
Setup & Operation 1. Safety
For details of the Safeguard system, refer to the following manuals.
EPSON RC+ User's Guide 2. Safety - Installation and Design Precautions
- Safeguard System
Safety and Installation
2.6 Connection to EMERGENCY Connector
To check brake problems, refer to the following manuals.
Manipulator Manual Maintenance 2.1.2 Inspection Point
- Inspection While the Power is ON
(Manipulator is operating)
Safety and Installation
5.1.1 Manipulator
- Inspection While the Power is ON
(Manipulator is operating)
Free running distance in emergency
The Manipulator in operation cannot stop immediately after the Emergency Stop switch is
pressed. However, time, angle, and distance of the free running vary by following factors:
Hand weight
WEIGHT Setting ACCEL Setting
Workpiece weight SPEED Setting
Posture etc.
Approximate time and distance of the free running are as follow: Conditions of Measurement
ACCEL Setting SPEED Setting
Load [kg] WEIGHT Setting
C8 series 100 100 8 8
Robot Controller
Manipulator
Arm #1
Free running Arm #2 time [s] Arm #3 Arm #4 Arm #5 Arm #6
Arm #1
Free running Arm #2 angle [�] Arm #3 Arm #4 Arm #5 Arm #6
Table Top Ceiling Wall
Table Top Ceiling Wall
C8-A701*** (C8)
0.5
0.9 0.5 0.5 0.5 0.2 0.2
60
110 60 70 70 30 40
RC700-A C8-A901*** (C8L)
0.5
0.9 0.6 0.5 0.4 02 0.2
50
100 60 50 60 30 30
C8-A1401*** (C8XL)
0.9
1.7 0.7 0.4 0.5 0.3 0.3
70
130 40 30 90 50 30
8
C8 Rev.11
Setup & Operation 1. Safety
1.5 How to Move Arms with the Electromagnetic Brake
There are two methods to release the electromagnetic brake. Follow either method to release the electromagnetic brake and move the arms manually.
1.5.1 Moving the arm using the brake release unit Follow the method when you just unpack the delivered boxes or when the Controller does not start up yet.
1.5.2 Moving the arm using the software Follow the method when you can use the software.
While the electromagnetic brake is ON (such as in emergency mode), you cannot move any arm by pushing manually.
Arm Motion
Arm #4 J5+
J6-
Joint #4 J4-
Arm #6
Joint #6
J6+
J5-
J4+
J3-
Arm #5
Joint #5
J2-
J3+ Arm #3
Joint #3 Arm #2 J2+
J1+ Joint #2 Arm #1 (Lower Arm) J1-
Joint #1 Base
(Figure: C8-A701* (C8))
C8 Rev.11
9
Setup & Operation 1. Safety
1.5.1 Moving the Arm using the brake release unit
The C8 series has the Brake Release Unit as an option. For details, refer to Setup & Option: 6 Options.
1.5.2 Moving the Arm using the software
CAUTION
Normally, release the brake of joints one by one. Take extra care if you need to release the brakes of two or more joints simultaneously. Releasing the brakes of two or more joints simultaneously may cause hands and fingers to be caught and/or equipment damage to or malfunction of the Manipulator as the arms of the Manipulator may move in unexpected directions.
Be careful of the arm falling when releasing the brake. While the brake is being released, the Manipulator's arm falls by its own mass. The arm falling may cause hands and fingers to be caught and/or may cause equipment damage to or malfunction of the Manipulator.
Before releasing the brake, be sure to keep the Emergency Stop switch handy so that you can immediately press the Emergency Stop switch. Otherwise, you cannot immediately stop the arm falling due to an erroneous operation. The arm falling may cause equipment damage to and/or malfunction of the Manipulator.
EPSON RC+
After releasing the Emergency Stop switch, execute the following command in [Command Window]. >Reset
>Brake Off,[the number (from 1 to 6) corresponding to the arm whose brake will be turned off]
Execute the following command to turn on the brake again. >Brake On,[The number (from 1 to 6) corresponding to the arm whose brake will be
turned on]
1.6 Precaution for Operation in Low Power Status
In the low power status, the Manipulator operates at low speed and low torque. However, comparatively high torque as shown in the table below may be generated to support the Manipulator's own mass. Carefully operate the Manipulator since it may get your hands or fingers caught during operation. The Manipulator may also collide with peripheral equipment and cause equipment damage to or malfunction of the Manipulator.
Maximum Joint Torque in Low Power Status Joint #1
[Unit: N�m]
#2
#3
#4
#5
#6
C8-A701*** (C8)
144.9 245.1 114.2
C8-A901*** (C8L) Joint Torque
149.5 270.9 129.3 35.0 40.0 20.5
C8-
(C8XL) 299.9 487.6 248.9
A1401***
CAUTION
Carefully operate the Manipulator in the low power status. A comparatively high joint torque may be generated. It may cause your hands and fingers caught and/or cause equipment damage to or malfunction of the Manipulator as it may collide with peripheral equipment.
10
C8 Rev.11
Setup & Operation 1. Safety
1.7 Warning Labels
The Manipulator has the following warning labels.
The warning labels are attached around the locations where specific dangers exist. Be sure to comply with descriptions and warnings on the labels to operate and maintain the Manipulator safely. Do not tear, damage, or remove the warning labels. Use meticulous care when handling those parts or units to which the following warning labels are attached as well as the nearby areas.
Location
Warning Label
NOTE
To avoid getting hands or fingers
A
caught, fold the Arm and fix it with a belt or a similar tool before removing
the base mounting screws.
Do not enter the work space when the
Manipulator is operating. It is
B
extremely hazardous since the Arm
may collide and cause serious safety
problems.
Do not touch the current-carrying parts
C
inside the Manipulator while the power
is ON. It may cause electrical shock.
When releasing the brakes, be careful of the arm falling due to its own mass.
This warning label is attached on the Manipulator and optional brake release box.
D
When the brake release box is used:
Details of procedures for releasing the brakes using the brake release box are described in the Manipulator manuals.
Only authorized personnel should
perform sling work and operate a
crane and a forklift. When these
E
operations are performed by unauthorized personnel, it is extremely
hazardous and may result in serious
bodily injury and/or severe equipment
damage to the robot system.
C8 Rev.11
11
Setup & Operation 1. Safety
Location
Warning Label
F
NOTE
You may get your hand or fingers caught when bringing your hand close to moving parts.
Location Warning Label
Note
Location
HOT
G
Be careful not
to burn yourself.
H
Label
Location of Labels
I Top View
C
12
C G C
C C
Cable Downward model Bottom View
C C
C
E
C
D
I
A
Lateral View
Back View
G
H Lateral View
F
B Front View
(Figure: C8-A1401* (C8XL))
C8 Rev.11
2. Specifications
Setup & Operation 2. Specifications
2.1 Features of Manipulators
Speed & Accuracy
Increased productivity by balanced, best-in class fast and accurate operation. High-speed, low-oscillation, and high-precision positioning by our technology even in heavy weight transportation.
Average cycle time (300 mm)
1 kg
C8-A701*** (C8)
About 0.31 s
C8-A901*** (C8L)
About 0.35 s
C8-A1401*** (C8XL) About 0.53 s
5 kg About 0.39 s About 0.43 s About 0.62 s
8 kg About 0.48 s About 0.50 s About 0.72 s
Slim Body
High space efficiency Less interference with peripherals, walls, and ceiling permits more compact installation. The system cost and installation cost can be reduced.
Basic machine mass C8-A701*** (C8) : 49 kg (108 lbs.) C8-A901*** (C8L) : 52 kg (115 lbs.) C8-A1401*** (C8XL) : 62 kg (137 lbs.)
Skillful Wrist
Compact wrist (Joint #5) with wide motion range enables smooth movement and the ability to work from many angles Minimal interference with surroundings improves flexibility in hand design
C8 Rev.11
13
Setup & Operation 2. Specifications
2.2 Model Number
C8 � A 14 0 1 S
UL specification -UL : UL compliant : Non UL compliant
Mounting type : Table Top mounting
R : Ceiling mounting W : Wall mounting
M/C cable installation direction : Cable backward B : Cable downward
Environment S : Standard model C : Cleanroom & ESD (electrostatic discharge) model P : Protection model (IP67)
Brake equipment 1 : Brakes on all joints
Example
Arm length 7 : 710 mm (C8-A701***: C8) 9 : 900 mm (C8-A901***: C8L) 14 : 1400 mm (C8-A1401***: C8XL)
14
C8 Rev.11
Setup & Operation 2. Specifications
2.3 Part Names and Motion Range of Each Arm
Upper Arm (Arms #3 to #6)
Arm #4
Joint #4
J5+
J4-
J6-
Arm #6
Joint #6
J6+
J5-
J4+
J3-
Arm #5
Joint #5
J2-
LED Lamp (This lamp lights up while the motors are ON.)
J3+ Arm #3
Joint #3 Arm #2
J2+
J1+
Joint #2
Joint Motion Joint #1 : The whole Manipulator revolves. Joint #2 : The lower arm swings. Joint #3 : The upper arm swings. Joint #4 : The wrist revolves. Joint #5 : The wrist swings. Joint #6 : The hand rotates.
Arm #1 J1(Lower Arm)
Joint #1 Base
(Figure: C8-A701* (C8))
NOTE
When the LED lamp is lighting or the Controller power is on, current is being applied to the Manipulator. (The LED lamp may not be seen depending on the Manipulator's posture. Be very careful.) Performing any work with the power ON is extremely hazardous and it may result in electric shock and/or improper function of the robot system. Make sure to turn OFF the Controller power before the maintenance work.
C8 Rev.11
15
Setup & Operation 2. Specifications
Cable backward model
F-sensor cable connector
User cable connector (15-pin D-sub connector)
Power cable Signal cable
Ethernet cable connector
Standard-model : Cover Clean-room model : Exhaust port
For �12 mm pneumatic tube
For �6 mm pneumatic tubes (Air1, Air2)
Cable downward model
User cable connector (15-pin D-sub connector)
F sensor cable connector Ethernet cable
connector Power cable
Standard-model : Cover Clean-room model : Exhaust port
For �12 mm pneumatic tube
For �6 mm pneumatic tubes (Air1, Air2)
Signal cable
Cable backward model / Cable downward model
Signature label (Serial No. of Manipulator)
Bolt hole M5 (for grounding)
(Figure: Cable backward model)
16
C8 Rev.11
2.4 Outer Dimensions
2.4.1 C8-A701*** (C8)
Setup & Operation 2. Specifications [Unit: mm]
C8 Rev.11
17
Setup & Operation 2. Specifications
2.4.2 C8-A901*** (C8L)
18
C8 Rev.11
2.4.3 C8-A1401*** (C8XL)
Setup & Operation 2. Specifications
C8 Rev.11
19
Setup & Operation 2. Specifications
2.5 Standard Motion Range
2.5.1 C8-A701*** (C8)
Top View
[Unit: mm]
Arm #1 0 pulse position
P point*
Motion range of P point*
Front View
Arms #4, #6 0 pulse position
Lateral View
Arm #2 0 pulse position
P point*
Arms #3, #5 0 pulse position
a c b ed
f
Motion range of P point*
a +135� b -135� c +202�
d -61�
e
R181.8 *3
f
R317.3 *4
* P point *1 *2 *3 *4
(deg.=�) : Intersection of the rotation centers for Joints #4, #5, and #6 : P point from top with Joint #3 declining -61� (Joint #1 center � P point center) : P point from top with Joint #3 tilting up +202� (Joint #1 center � P point center) : P point from lateral with Joint #3 declining -61� (Joint #2 center � P point center) : P point from lateral with Joint #3 tilting up +202� (Joint #2 center � P point center)
CAUTION
Pay attention to the arm pose of the basic arms (Arms #1, #2, and #3) when operating the Manipulator. Arm #5 moves keeping a constant angle regardless of the arm pose. Depending on the arm pose of the basic arms, the wrist may collide with the Manipulator. The collision may cause equipment damage to and/or malfunction of the Manipulator.
20
C8 Rev.11
2.5.2 C8-A901*** (C8L) Top View
Setup & Operation 2. Specifications [Unit: mm]
Arm #1 0 pulse position
P point*
Motion range of P point*
Front View
Arms #4, #6 0 pulse position
Lateral View
Arm #2 0 pulse position
P point*
Arms #3, #5 0 pulse position
Motion range of P point*
(deg.=�)
* P point *1 *2 *3 *4
: Intersection of the rotation centers for Joints #4, #5, and #6 : P point from top with Joint #3 declining -61� (Joint #1 center � P point center) : P point from top with Joint #3 tilting up +202� (Joint #1 center � P point center) : P point from lateral with Joint #3 declining -61� (Joint #2 center � P point center) : P point from lateral with Joint #3 tilting up +202� (Joint #2 center � P point center)
CAUTION
Pay attention to the arm pose of the basic arms (Arms #1, #2, and #3) when operating the Manipulator. Arm #5 moves keeping a constant angle regardless of the arm pose. Depending on the arm pose of the basic arms, the wrist may collide with the Manipulator. The collision may cause equipment damage to and/or malfunction of the Manipulator.
C8 Rev.11
21
Setup & Operation 2. Specifications
2.5.3 C8-A1401*** (C8XL) Top View
[Unit: mm]
Arm #1 0 pulse position
P point*
Motion range of P point*
Front View
Arms #4, #6 0 pulse position
Lateral View
Arm #2 0 pulse position
P point*
Arms #3, #5 0 pulse position
Motion range of P point*
* P point *1 *2 *3 *4
(deg.=�)
: Intersection of the rotation centers for Joints #4, #5, and #6 : P point from top with Joint #3 declining -61� (Joint #1 center � P point center) : P point from top with Joint #3 tilting up +202� (Joint #1 center � P point center) : P point from lateral with Joint #3 declining -61� (Joint #2 center � P point center) : P point from lateral with Joint #3 tilting up +202� (Joint #2 center � P point center)
CAUTION
Pay attention to the arm pose of the basic arms (Arms #1, #2, and #3) when operating the Manipulator. Arm #5 moves keeping a constant angle regardless of the arm pose. Depending on the arm pose of the basic arms, the wrist may collide with the Manipulator. The collision may cause equipment damage to and/or malfunction of the Manipulator.
22
C8 Rev.11
2.6 Specifications
Setup & Operation 2. Specifications
2.6.1 Specifications table
Item
Model Number
Model Name
Mounting type*1
Mass
Standard
(not include the mass of Cleanroom & ESD
cables or shipping jigs) Protection
Driving method
All joints
Joint #1
Joint #2
Max. operating speed Joint #3
*2
Joint #4
Joint #5
Joint #6
Maximum synthetic speed
Repeatability
Joints #1 to #6
Joint #1
Joint #2
Max. motion range
Joint #3 Joint #4
Joint #5
Joint #6
Joint #1
Joint #2
Max. pulse range
Resolution
Motor rated capacity Payload *3 Allowable moment Allowable moment of inertia (GD2/4) *4
Joint #3
Joint #4 Joint #5 Joint #6 Joint #1 Joint #2 Joint #3 Joint #4 Joint #5 Joint #6 Joint #1 Joint #2 Joint #3 Joint #4 Joint #5 Joint #6 Rated Max. Joint #4 Joint #5 Joint #6 Joint #4 Joint #5 Joint #6
Specification
C8-A701***
C8-A901***
C8-A1401***
C8
C8L
C8XL
Table Top mounting, Ceiling mounting, Wall mounting
49 kg (108 lbs.)
52 kg (115 lbs.)
62 kg (137 lbs.)
53 kg (117 lbs.)
331�/s 332�/s 450�/s
8958 mm/s � 0.02 mm - 158� to + 65�
� 9507090 -6245685 to
+2569428 -1776754 to
+5883677
0.0000252�/pulse 0.0000253�/pulse 0.0000343�/pulse
56 kg (123 lbs.)
AC servo motor 294�/s 300�/s 360�/s 450�/s 450�/s 720�/s
9679 mm/s
� 0.03 mm
� 240� - 158� to + 65� - 61� to + 202�
� 200� � 135� � 360� � 10695600 - 6903178 to +2839915 - 2220949 to +7354618 � 5461400 � 3932280 � 6553800 0.0000224�/pulse 0.0000229�/pulse 0.0000275�/pulse 0.0000366�/pulse 0.0000343�/pulse 0.0000549�/pulse 1000 W 750 W 400 W 100 W 100 W 100 W
3 kg 8 kg 16.6 N�m (1.69 kgf�m)
16.6 N�m (1.69 kgf�m)
9.4 N�m (0.96 kgf�m) 0.47 kg�m2 0.47 kg�m2 0.15 kg�m2
66 kg (146 lbs.)
200�/s 167�/s 200�/s
8858 mm/s � 0.05 mm - 135� to + 55�
� 15736800 - 10616940 to
+4325420 - 3997696 to +13238272
0.0000153�/pulse 0.0000127�/pulse 0.0000153�/pulse
C8 Rev.11
23
Setup & Operation 2. Specifications
Item
Specification
Model Number
C8-A701***
C8-A901***
C8-A1401***
Model Name
C8
C8L
C8XL
15 wires (D-sub)
Installed wire for customer use
Installed pneumatic tube for customer use *5
Environmental requirements *6
Noise level *7
Ambient Temperature Ambient relative humidity
Vibration
Environment
Applicable Controller
8 pin (RJ45) Cat 5e or equivalent 6 pin (for Force Sensor)
�6 mm pneumatic tubes (2 tubes), Allowable pressure: 0.59 MPa (6 kgf/cm2) (86 psi)
5 to 40�C
10 to 80 % (no condensation)
4.9 ms2 (0.5 G) or less LAeq = 70 dB (A) or under
Standard Cleanroom model & ESD *8 Protection model (IP67) *9
RC700-A, RC700DU-A
SPEED ACCEL *10
3 (100) 5, 5 (120, 120)
Default values (Max. setting values)
SPEEDS ACCELS *11
FINE
50 (2000)
200 (35000)
120 (25000)
10000, 10000, 10000, 10000, 10000, 10000
(130000, 130000, 130000, 130000, 130000, 130000)
WEIGHT
3 (8)
INERTIA
0.03 (0.15)
CE Marking : EMC Directive, Machinery Directive,
RoHS Directive
Safety standard
KC Marking, KCs Marking
UL standards (In case of UL specification): UL1740
ANSI/RIA R15.06, NFPA 79
*1: Mounting types other than "Table Top mounting", "Ceiling mounting", and "Wall mounting" are out of
specification. If you prefer other mounting types, please contact the supplier of your region.
*2: In case of PTP control
*3: Do not apply the load exceeding the maximum payload.
*4: If the center of gravity is at the center of each arm. If the center of gravity is not at the center of each arm, set the eccentric quantity using INERTIA command.
*5: For details of the installed pneumatic tube for customer use, refer to the Setup & Operation 3.6 User Wires and Pneumatic Tubes.
*6: For details of the environmental requirements, refer to the Setup & Operation 3.1 Environmental Conditions.
*7: Conditions of Manipulator at measurement are as follows: Operating conditions: Under rated load, 6 arms simultaneous motion, maximum speed, maximum acceleration, and duty 50% for C8/ C8L, 30% for C8XL. Measurement point: 1000 mm apart from the rear of Manipulator
24
C8 Rev.11
Setup & Operation 2. Specifications
*8: The exhaust system in the Cleanroom-model Manipulator draws air from the base interior and arm cover interior. A crack or other opening in the base unit can cause loss of negative air pressure in the outer part of the arm, which can cause increased dust emission.
Cleanliness level : C8, C8L ISO Class 3 (ISO14644-1)
: C8XL ISO Class 4 (ISO14644-1)
Exhaust system : Fitting for �8 mm pneumatic tube
(Reference: Setup & Operation: 3.6 User Wires and Pneumatic Tubes)
60 L/min vacuum
Exhaust tube
: Polyurethane tube Outer diameter: �8 mm (Inner diameter: �5 to 6 mm)
ESD specification uses resin materials with antistatic treatment. This model controls adhesion of dust
due to electrification.
*9 Protection level for the protection-model Manipulators is IP67 (IEC standard). The Manipulators can be used in environments where the possibility of dust, water, and water-soluble cutting oil falling of the Manipulator exists. However, please be careful of the following:
- The Manipulator is not rust-proofed. Do not use the Manipulator in environment where corrosive liquids exist.
- Fluids that deteriorate the sealing materials, such as organic solvents, acids, alkalis, and chlorine cutting fluids, cannot be used
- The Manipulator cannot be used for underwater operations. - The Controller does not have protection features against the environment (Controller's protection
level: IP20) Make sure to install the system where environmental requirements for the Controller are satisfied.
<Reference> - IP40 of IEC standard
[Protection level against ingress of solid objects] Protection from entry by solid objects with a diameter or thickness greater than 1.0 mm.
[Protection level against ingress of liquids] No protection
- IP67 of IEC standard [Protection level against ingress of solid objects] Totally protected against dust. [Protection level against liquids] Protection from ingress of water in harmful quantity when the Manipulator is immersed in water for 30 minutes under the condition that the highest point of the Manipulator is located 0.15 m below the surface of the water and the lowest point is located 1 m below the surface of the water. (Tested while the Manipulator is stopped.)
*10: In general use, Accel setting 100 is the optimum setting that maintains the balance of acceleration and
vibration when positioning. Although values larger than 100 can be set to Accel, it is recommended to
minimize the use of large values to necessary motions since operating the Manipulator continuously with
the large Accel setting may shorten the product life remarkably.
*11: Maximum AccelS setting value varies depending on the load. Refer to the table below for details.
Setting the value which exceeds the maximum AccelS causes an error. In such a case, check the setting
value.
C8 Rev.11
25
Setup & Operation 2. Specifications
Maximum AccelS setting value
Table Top mounting, Ceiling mounting
40000
35000 30000
35000 35000
32000
30000
25000
25000
20000
15000
17000
10000
21000
20000
15000
13000 11000 11000
13000 12000 11000
5000
C8-A701*** : C8 C8-A901*** : C8L C8-A1401*** : C8XL
0
2
4
6
8 (kg) End effector weight
Wall mounting
40000
35000
30000
25000
25000
25000
20000 15000
17000
10000
5000
21000 20000
15000 13000
11000 11000 11000
C8-A701**W : C8 C8-A901**W : C8L C8-A1401**W : C8XL
0
2
4
6
8 (kg) End effector weight
26
C8 Rev.11
Setup & Operation 2. Specifications
2.6.2 Option
C8 series have the following options. For details of options, refer to Setup& Operation: 6. Options.
User wires and pneumatic tube
Standard user connector kit : Standard D-sub 15-pin � 2
Waterproof user connector kit : IP67 waterproof D-sub 15-pin � 2
IP67 waterproof for RJ45 � 2
Fittings for customer use
: �6, straight � 2
�6, elbow � 2
Adjustable mechanical stop Adjustable mechanical stop
: J1 C8/C8L_J2 C8XL_J2 J3
Tool adapter C8 ISO flange (J6)
Camera plate unit Camera mounting tool (common for C3 and C4 series)
Brake release box *1 For EU (power supply voltage 200 V, short connector included) For US/JP(power supply voltage 100 V, short connector included) Short connector for the brake release box
*1: When using the brake release box with C8 series, it is necessary to connect the short connector to the M/C power cable or connect the M/C power cable with the Controller. (The brake release box can be used while the Controller is deenergized state.) If you are using C3 or C4 series Manipulator and already have the brake release box, you can use it by connecting the M/C cable with the Controller, or purchasing the short connector separately and connecting it to the M/C power cable.
C8 Rev.11
27
Setup & Operation 2. Specifications
2.7 How to Set the Model
The Manipulator for your system has been set before shipment.
CAUTION
When you need to change the setting of the Manipulator model, be sure to set the Manipulator model properly. Improper setting of the Manipulator model may result in abnormal or no operation of the Manipulator and/or cause safety problems.
NOTE
If the custom specifications number (MT***) is described on MODEL of the signature label (S/N label), the Manipulator has custom specifications. (A label with only the custom specifications number may be attached depending on shipment time).
The custom specifications may require a different configuration procedure; check the custom specifications number (MT***) and contact the supplier of your region if necessary.
The Manipulator model can be set from software. Refer to the chapter Robot Configuration in the EPSON RC+ User's Guide.
28
C8 Rev.11
Setup & Operation 3. Environment and Installation
3. Environment and Installation
Installation and transportation of robots and robotic equipment shall be performed by qualified personnel and should conform to all national and local codes.
3.1 Environmental Conditions
A suitable environment is essential for the robot system to function properly and safely. Be sure to install the robot system in an environment that meets the following conditions:
Item
Conditions
Ambient temperature*1
5 to 40 �C
Ambient relative humidity 10 to 80 % (no condensation)
First transient burst noise 2 kV or less (Power supply wire)
1 kV or les (Signal wire)
Electrostatic noise
4 kV or less
Environment
- Install indoors.
- Keep away from direct sunlight.
- Keep away from dust, oily smoke, salinity, metal powder or other contaminants.
- Keep away from flammable or corrosive solvents and gases.
- Keep away from water.
- Keep away from shock or vibration.
- Keep away from sources of electric noise.
*1 The ambient temperature conditions are for the Manipulators only. For the Controller which the Manipulator is connected to, refer to the Robot Controller manual.
NOTE
When using the Manipulators in inadequate environments that do not meet the above conditions, please contact the distributor.
For the Protection-model Manipulator, be sure to install the robot system in an environment that also meets the following conditions:
Item Environment
Conditions
- Install indoors. - Keep away from direct sunlight. - Keep away from salinity or other contaminants. - Keep away from flammable or corrosive solvents
(including water) and gases. - Keep away from organic solvents, acids, alkalis, and
chlorine cutting fluids. - Do not use in water. - Keep away from shock or vibration. - Keep away from sources of electric noise. - Available under the environment with dust, oily smoke,
and metal *2.
C8 Rev.11
29
Setup & Operation 3. Environment and Installation
*1 The Manipulator body is mainly made of iron and aluminum. It is not rust-proofed. Do not use the Manipulator under conditions where it can be exposed to water or any other corrosive liquid (including water).
*2 Any contaminants that can deteriorate sealing performance of nitrile rubber oil sealing, O-rings, packing seals and liquid gasket should be avoided.
Special Environmental Conditions The protective seals are attached on the Protection-model Manipulator to prevent dust, water, etc. from the outside. Follow the precautions in use environment described below: The surface of the Manipulator has general oil resistance. However, if your requirements specify that the Manipulator must withstand certain kinds of oil, please the supplier of your region. Rapid change in temperature and humidity can cause condensation inside the Manipulator. If your requirements specify that the Manipulator handles food, please the supplier of your region to check whether the Manipulator will damage the food or not. The Manipulator cannot be used in corrosive environments where acid or alkaline is used. In a salty environment where the rust is likely to gather, the Manipulator is susceptible to rust. The Controller used with the Protection-model Manipulator does not have protection features for dusty, wet, or oily environment. The Controller must be placed in an environment that meets the specified conditions.
WARNING
Use an earth leakage breaker on the AC power cable of the Controller to avoid the electric shock and circuit breakdown caused by an unexpected water leak. Prepare the earth leakage breaker that pertains the Controller you are using. For details, refer to the Robot Controller manual.
CAUTION
When cleaning the Manipulator, do not rub it strongly with alcohol or benzene. It may lose luster on the coated face.
30
C8 Rev.11
Setup & Operation 3. Environment and Installation
3.2 Unpacking, Transportation, and Relocation
Using a cart or similar equipment, transport the Manipulator in the same conditions as it was delivered. Observe the following when unpacking the Manipulator. The installation shall be made by qualified installation personnel and should conform to all national and local codes.
WARNING
Only authorized personnel should perform sling work and operate a crane or a forklift. When these operations are performed by unauthorized personnel, it is extremely hazardous and may result in serious bodily injury and/or severe equipment damage to the robot system.
Stabilize the Manipulator with your hands when hoisting it. Unstable hoisting is extremely hazardous and may result in serious bodily injury and/or severe equipment damage to the robot system as the fall of the Manipulator.
When removing the anchor bolts, support the Manipulator to prevent falling. Removing the anchor bolts without supporting the Manipulator may get hands, fingers, or feet caught as the Manipulator may fall.
To transport the Manipulator, secure it to the delivery equipment or have at least 2 people to hold it by hand. Also, do not hold the bottom of the base (the screened parts in the figure). Holding these parts by hand is extremely hazardous and may cause your hands and fingers caught.
CAUTION
Figure: C8-A901* (C8L) DO NOT hold the bottom of the base by hand.
Manipulator mass
C8-A701***: C8 C8-A901***: C8L C8-A1401***: C8XL
Standard, Cleanroom 49 kg: 108 lbs.
52 kg: 115 lbs.
62 kg:137 lbs.
Protection
53 kg: 117 lbs.
56 kg: 123 lbs.
66 kg: 146 lbs.
Avoid excessive vibration or shock during Manipulator transporting. Excessive
vibration or shock may cause equipment damage to and/or malfunction of the
Manipulator.
Be sure to transport and store the robot system in environments that meet the following
conditions:
Item
Conditions
Ambient temperature
0 to 45 �C
Ambient relative humidity 10 to 80 % (no condensation)
During unpacking and relocation, avoid applying external force to the arms and motors of
the Manipulator.
When transporting the Manipulator for a long distance, secure it to the delivery equipment
so that the Manipulator cannot fall. If necessary, pack the Manipulator in the same way as
it was delivered.
C8 Rev.11
31
Setup & Operation 3. Environment and Installation
When condensation occurs on the Manipulator during transport or storage, turn ON the power only after the condensation dries.
When using the Manipulator for the robot system again after long-term storage, perform a test run to verify that the Manipulator works properly. Then, operate the Manipulator thoroughly.
Relocating Follow the procedures described below when relocating the Manipulator.
(1) Turn OFF the power for all devices and unplug the power cable connector and signal cable connector from the Controller. Do not unplug the M/C cable (power cable and signal cable) from the Manipulator. (M/C cable 3 m: 2 kg)
NOTE
Remove the mechanical stops if using them to limit the motion range. For details on the motion range, refer to the Setup & Operation 5.2 Motion Range Setting by Mechanical Stops.
(2) Unscrew the anchor bolts. Then, remove the Manipulator from the base table.
(3) Position the Manipulator as shown in the figure. Then, secure the Manipulator to the delivery equipment or have at least 2 people to carry the Manipulator.
Recommend: Joint #2 +55� Joint #3 -55�
* The posture is common to all models.
Do not hold the bottom of the base (the screened parts in the figure). Holding these parts by hand is extremely hazardous and may cause your hands and fingers to be caught.
Figure: C8-A901* (C8L) DO NOT hold the bottom of the base by hand.
Manipulator mass
Standard, Cleanroom Protection
C8-A701***: C8 49 kg: 108 lbs. 53 kg: 117 lbs.
C8-A901***: C8L 52 kg: 115 lbs. 56 kg: 123 lbs.
C8-A1401***: C8XL 62 kg: 137 lbs. 66 kg: 146 lbs.
32
C8 Rev.11
Setup & Operation 3. Environment and Installation
Using Eyebolt Check that the eyebolts are securely fastened before carrying the Manipulator. After transporting the Manipulator, remove the eyebolts and keep them for future use.
The eyebolts (accessory, 2 pcs) and wire must be strong enough to withstand the mass (See the figures below).
If you use the eyebolts to lift up the Manipulator, make sure to put hands on it to keep the balance. The Manipulator may fall if the balance is lost and this is extremely hazardous.
To prevent damage on the covers and arms, it is recommended to protect the contacting parts of the wire and arm with a cloth. Be very careful not to damage the covers since they are made of plastic.
Holes for eye bolt 2-M12 depth 25
(Figure: C8-A1401* (C8XL))
* Locations of the screw holes for eyebolts are common to all models.
Manipulator mass
Standard, Cleanroom Protection
C8-A701***: C8 49 kg: 108 lbs. 53 kg: 117 lbs.
C8-A901***: C8L 52 kg: 115 lbs. 56 kg: 123 lbs.
C8-A1401***: C8XL 62 kg: 137 lbs. 66 kg: 146 lbs.
CAUTION
Remove the eyebolts from the Manipulator after transportation/relocation is completed.
If the Manipulator is operated with the eyebolts left on it, the arm may collide with the eyebolts and it may cause equipment damage to and/or malfunction of the Manipulator.
C8 Rev.11
33
Setup & Operation 3. Environment and Installation
3.3 Mounting Dimensions
Mounting Area Be sure to have the following space available in addition to the space for mounting the Manipulator, Controller, and peripheral equipment.
Space for teaching points Space for maintenance and inspections (for installing jigs) Space for cables
NOTE
The minimum bend radius of the power cable is 90 mm. When installing the cable, be sure to maintain sufficient distance from obstacles. In addition, leave enough space for other cables so that they are not bent forcibly.
NOTE
In case of C8-A1401*** (C8XL): Make sure to leave 35 mm or more space around the fan cover.
C8-A701** (C8)
3.3.1 Cable Backward Model
[Unit: mm]
34
C8 Rev.11
C8-A901** (C8L)
Setup & Operation 3. Environment and Installation
C8 Rev.11
35
Setup & Operation 3. Environment and Installation C8-A1401** (C8XL)
3.3.2 Cable Downward Model
The following part differs from the cable backward model. C8-A701*B* (C8), C8-A901*B* (C8L) C8-A1401*B* (C8XL)
36
C8 Rev.11
Setup & Operation 3. Environment and Installation
3.4 Installation
The installation shall be made by qualified installation personnel and should conform to all national and local codes.
WARNING
To ensure safety, a safeguard must be installed for the robot system. For details on the safeguard, refer to the Installation and Design Precautions in the Safety chapter of the EPSON RC+ User's Guide.
Install the Manipulator in a location with sufficient space so that a tool or a work piece does not touch a wall or a safeguard when the Manipulator extends its arm fully while holding a work piece. Installing the Manipulator at a location with insufficient space is extremely hazardous and may result in serious bodily injury and/or severe equipment damage to the robot system as a tool or a work piece may collide with a wall or a safeguard.
Anchor the Manipulator before turning ON the power to or operating the Manipulator. Turning ON the power to or operating the Manipulator that is not anchored is extremely hazardous and may result in serious bodily injury and/or severe equipment damage to the robot system as the Manipulator may fall down.
Before installing and operating the Manipulator, make sure that all parts of the Manipulator are in place and have no external defects. Missing or defective parts may cause improper operation of the Manipulator. Improper operation of the Manipulator is extremely hazardous and may result in serious bodily injury and/or severe equipment damage to the robot system.
CAUTION
The Manipulator must be installed to avoid interference with buildings, structures, utilities, other machines and equipment that may create a trapping hazard or pinch points.
Oscillation (resonance) may occur during operation depending on rigidity of the installation table. If the oscillation occurs, improve rigidity of the table or change the speed or acceleration and deceleration settings.
Mounting bolt For the dimensions, refer to Setup & Operation 3.3 Mounting Dimensions.
There are four threaded holes for the Manipulator base. Use M12 mounting bolts conforming to the strength of ISO898-1 property class 10.9 or 12.9.
4-M12�40
Spring Washer
Tightening torque: 100.0 � 5.0 N�m (1,020 � 51 kgf�cm)
Plane Washer
16 mm
Screw Hole (depth 25 mm or more)
C8 Rev.11
37
Setup & Operation 3. Environment and Installation
Base table A base table for anchoring the Manipulator is not supplied. Please make or obtain the base table for your Manipulator. The shape and size of the base table differ depending on the intended use of the robot system. The following is the basic requirements of Manipulator table for your reference.
The base table must not only be able to bear the weight of the Manipulator but also be able to withstand the dynamic movement of the Manipulator when it operates at maximum acceleration. Ensure that there is enough strength on the base table by attaching reinforcing materials such as crossbeams.
The torque and reaction force produced by the movement of the Manipulator are as follows:
Model number C8-A701***
Model name Max. Horizontal rotating (N�m) torque Max. Horizontal reaction force (N) Max. Vertical rotating torque (N�m) Max. Vertical rotating torque (N)
C8 1,600
1,200 1,900 6,600
C8A901***
C8L
1,800 1,300 2,200 6,000
C8A1401***
C8XL 2,600
1,300 3,400 7,800
The plate for the Manipulator mounting face should be 30 mm thick or more and made of steel to reduce vibration. The surface roughness of the steel plate should be 25 m or less. The base table must be secured on the floor to prevent it from moving. The Manipulator must be installed horizontally. When using a leveler to adjust the height of the base table, use a screw with M16 diameter or more.
Connector If you are passing cables through the holes on the base table, see the figures below.
[unit : mm]
86 66
M/C Cables
82
35
54 Power Cable Connector (Straight)
44
11
49 Signal Cable
Connector
80
35 85 Power Cable Connector (L-shaped)
Do not remove the M/C cables from the Manipulator.
38
C8 Rev.11
Setup & Operation 3. Environment and Installation
NOTE
For environmental conditions regarding space when placing the Controller on the base table, refer to the Robot Controller manual.
When using the Manipulator in the cleanroom, follow the steps below before the installation. (1) Unpack the Manipulator outside of the cleanroom. (2) Secure the Manipulator to delivery equipment such as a pallet with bolts so that the
Manipulator does not fall over. (3) Wipe off the dust on the Manipulator with a little alcohol or distilled water on a lint-
free cloth. (4) Transport the Manipulator into the cleanroom. (5) Secure the Manipulator to the base table.
C8 Rev.11
39
Setup & Operation 3. Environment and Installation
3.5 Connecting the Cables
WARNING
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source. To shut off power to the robot system, disconnect the power plug from the power source. Performing any work while connecting the AC power cable to a factory power source is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Be sure to connect the cables properly. Do not allow unnecessary strain on the cables. (Do not put heavy objects on the cables. Do not bend or pull the cables forcibly.) The unnecessary strain on the cables may result in damage to the cables, disconnection, and/or contact failure. Damaged cables, disconnection, or contact failure is extremely hazardous and may result in electric shock and/or improper function of the robot system.
Before wiring, turn OFF the Controller and related equipment, and then pull up a warning sign (e.g. DO NOT TURN ON THE POWER.). Wiring with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Grounding the Manipulator is done by connecting with the Controller. However, it is recommended to use the grounding hole on the base to ground directly for more secure grounding.
If the ground wire is improperly connected to ground, it may result in the fire or electric shock.
When connecting or replacing the brake release unit and the external short connector, turn OFF the power to the Controller and the brake release unit. Inserting and removing the connector while the power is ON may result in electrical shock.
CAUTION
When connecting the Manipulator and the Controller, make sure that the serial numbers on each equipment match. Improper connection between the Manipulator and Controller may not only cause improper function of the robot system but also safety problems. The connection method varies with the Controller used. For details on the connection, refer to the Robot Controller manual.
Only authorized or certified personnel should be allowed to perform wiring. Wiring by unauthorized or uncertified personnel may result in bodily injury and/or malfunction of the robot system.
If the Manipulator is operated without connecting the brake release unit and the external short connector, the brakes cannot be released and it may cause damage on them. After using the brake release unit, be sure to connect the external short connector to the Manipulator, or check connection of the connector for the brake release unit.
40
C8 Rev.11
Setup & Operation 3. Environment and Installation
Cleanroom-model Manipulator For the Cleanroom-model, an exhaust system is necessary. For details, refer to Setup & Operation: 2.6 Specifications.
CAUTION
Protection-model Manipulator
For the Protection-model, also make sure to follow the following precautions.
When operating the Manipulator under special environmental conditions (adverse conditions with dust and oily smoke), do not place the Controller in the same condition since the Controller does not comply with IP67. Doing so may cause equipment damage to and/or malfunction of the Controller.
After using the brake release unit, be sure to reconnect the external short connector to the Manipulator. The brake release unit is not certified with the protection rating (IP67).
M/C Cable Connection method Connect the power connector and the signal connector of the M/C cables to the Controller.
WARNING
Grounding
Ground resistance must be 100 or less. Improper ground resistance may result in fire and/or electric shock.
Do not use the ground line for the Manipulator in common with other ground lines or grounding electrodes for other electric power, motor power, welding devices, etc. Using the ground line for the Manipulator in common with other ground lines or grounding electrodes may result in electric shock and/or malfunction of the robot system.
When using metal ducts, metallic conduits, or distributing racks for cable, ground in accordance with national and local electric equipment technical standards. Grounding that does not meet the standards may result in electric shock and/or malfunction of the robot system.
Follow local regulations for grounding. It is recommended that the core size of the grounding wire be 5.5 mm2 or more. Directly connect the ground line to the Manipulator as shown in the figure below.
Bolt hole M5 (for grounding)
5.5 mm2 or more
Detail of A
C8 Rev.11
41
Setup & Operation 3. Environment and Installation
3.6 User Wires and Pneumatic Tubes
CAUTION
Only authorized or certified personnel should be allowed to perform wiring. Wiring by unauthorized or uncertified personnel may result in bodily injury and/or malfunction of the robot system.
User electrical wires and pneumatic tubes are contained in the cable unit.
Detail of B
One-touch fitting for
B
�6 mm pneumatic tube (Air1, Air2)
Ethernet cable connector
User cable connector (15-pin D-sub connector) Force Sensor cable connector
Detail of A: Cable backward model Force Sensor cable connector
A
One-touch fitting for �6 mm pneumatic tube
(Air1, Air2)
Ethernet cable connector
Standard model: Cover Clean-room model: Exhaust port
(One-touch fitting for �12 mm pneumatic tube) User cable connector ) (15-pin D-sub connector)
(Figure: C8-A701* (C8))
Detail of C :Cable downward model User cable connector
(15-pin D-sub connector)
F sensor cable connector
Ethernet cable connector
Power cable
C
Standard-model : Cover
Clean-room model : Exhaust port For �12 mm pneumatic tube
For �6 mm pneumatic tubes (Air1, Air2)
Signal cable
(Figure: C8-A701*B (C8))
42
C8 Rev.11
Setup & Operation 3. Environment and Installation
Electrical wires
Specifications of the user wires D-sub 15-pin
Rated Voltage
Allowable Current
Wires
Nominal Sectional Area
AC/DC30 V
1 A
15
0.106 mm2
Note Shielded
Pins with the same number, indicated on the connectors on both ends of the cables, are connected.
Attached connector for the user wires (standard�model, cleanroom-model)
Maker
Standard
Connector 15 pin
Clamp Hood
JAE DA-15PF-N
(Solder type)
HRS HDA-CTH(4-40)(10) (Connector setscrew: #4-40 UNC)
Two parts are attached for each.
Attached connector for the user wires (protection-model)
Maker
Standard
Connector 15 pin
HARTING 09 67 015 5615
Clamp Hood HARTING 09 67 015 0538
(Solder type) (Connector setscrew: #4-40 UNC)
Two parts are attached for each.
8 pin (RJ45) Cat.5e or equivalent For the standard and cleanroom model Manipulators, commercially available Ethernet cables can be used. For the protection-model, use the following optional part.
User connector kit (IP67 waterproof, for RJ45, 2 pcs) For details, refer to Setup & Operation 6. Option.
Other The 6-pin cable for the F sensor option is included.
C8 Rev.11
43
Setup & Operation 3. Environment and Installation
Pneumatic tubes
Max. Usable Pneumatic Pressure
0.59 MPa (6 kgf/cm2 : 86 psi)
Pneumatic Tubes
2
Outer Diameter � Inner Diameter
�6 mm � �4 mm
Standard model, Cleanroom model The elbow fitting is attached on the Arm #4 at the time of shipment. The part can be replaced with the straight fitting (accessory) according to application.
Protection model The plugs are installed on the Arm #4 and the base. To use the air tubes, remove the plugs and install the fittings (accessory) on the Arm #4. Screw hole size for installing the Arm #4 fitting: M6
For the protection-model, see the following precautions as well.
CAUTION
Be sure to use IP67 compliant wires and tubes when using the Manipulator under special environmental conditions (adverse condition with dust and oily smoke). Using unprotected wires and tubes may cause equipment damage to and/or malfunction of the Manipulator as proper operation of the Manipulator under the conditions is no more guaranteed.
Be sure to attach the cap or plug (attached at the time of shipment) on the user cable connector when not using the connector. Using the Manipulator without the cap or plug may cause equipment damage to and/or malfunction of the Manipulator as dust or oily smoke gets into the connector.
44
C8 Rev.11
Setup & Operation 3. Environment and Installation
3.7 Checking the Basic orientation
After parts have been replaced (motors, reduction gear units, belts, etc.), the Manipulator cannot operate properly because a gap exists between the origin positions stored in each motor and these stored in the Controller. The process to compensate the position gap is called "Calibration". At the time of shipment, the basic orientation of the Manipulator shown below is set as the origin position.
After installing the Manipulator and setup the operating environment, move the Manipulator to the origin position and check if it moves to the basic position properly.
To make the Manipulator move to the origin position, select [Tool]-[Robot Manager] [Control Panel] and click <Home>.
If the gap still exists and the Manipulator cannot be in the basic orientation after the calibration, please contact the supplier of your region.
Basic orientation
(Figure: C8-A701** (C8))
C8 Rev.11
45
Setup & Operation 4. End Effectors
4. End Effectors
4.1 Attaching an End Effector
Create an end effector for your Manipulator. Flange dimensions of the wrist attached to the end of Arm #6 is as below.
CAUTION
If you use an end effector equipped with a gripper or chuck, connect wires and/or pneumatic tubes properly so that the gripper does not release the work piece when the power to the robot system is turned OFF. Improper connection of the wires and/or pneumatic tubes may damage the robot system and/or work piece as the work piece is released when the Emergency Stop switch is pressed. I/O outputs are configured at the factory so that they are automatically shut off (0) by power disconnection, the Emergency Stop switch, or the safety features of the robot system.
Wrist Flange
Arm #6 Attach an end effector to the end of the Arm #6 using the M5 bolts.
Layouts When you operate the Manipulator with an end effector, the end effector may interfere with the Manipulator body depending on the outer diameter of the end effector, the size of the work piece, or the position of the arms. When designing your system layout, pay close attention to the interference area of the end effector.
Compatibility with ISO flange: To install the end effector whose mounting dimensions are designed for the ISO flange, we provide the optional C8 ISO flange (J6). For details, refer to Setup & Operation: 6. Options.
4.2 Attaching Camera and Air Valves
Decks are equipped to Arms #3 and #5 to enable the easy installation of air valve.
To mount the camera, the camera plate unit is necessary. We provide the optional Camera Plate Unit. For details, refer to Setup & Operation: 6. Options.
46
C8 Rev.11
C8-A701*** (C8)
Setup & Operation 4. End Effectors
C8-A901*** (C8L)
[Unit: mm]
Arm #5 Deck
Arm #3 Deck
Rotation Center of the Upper Arm
Arm #5 Deck
Arm #3 Deck
Rotation Center of the Upper Arm
C8-A1401*** (C8XL)
Arm #5 Deck
Arm #3 Deck
Rotation Center of the Upper Arm
C8 Rev.11
47
Setup & Operation 4. End Effectors
4.3 WEIGHT and INERTIA Settings
The WEIGHT and INERTIA (inertia moment and eccentricity) commands are for setting the load parameters of the Manipulator. These settings optimize the Manipulator motion.
WEIGHT Setting The WEIGHT command is for setting the load weight. The more the load weight increases, the more the speed and acceleration/deceleration are reduced.
INERTIA Setting The INERTIA command is for setting the inertia moment and the eccentricity of the load. The more the inertia moment increases, the more the acceleration and deceleration of the Arm #6 are reduced. The more the eccentricity increases, the more the acceleration and deceleration for the Manipulator movement are reduced.
To ensure optimum Manipulator performance, make sure that the load (weight of the end effector and work piece) and inertia moment of the load are within the maximum rating for the Manipulator, and that Arm #6 does not become eccentric. If the load or the inertia moment exceeds the ratings or if the load becomes eccentric, follow the steps in the Setup & Operation 4.3.1 WEIGHT Setting and 4.3.2 INERTIA Setting, to set parameters. Setting parameters makes the operation of the Manipulator optimal, reduces vibration to shorten the operating time, and improves the capacity for larger loads. In addition, it reduces persistent vibration produced when the inertia moment of the end effector and work piece is bigger.
The allowable load for C8 series Manipulators is 8 kg at the maximum.
Due to the limitations of the moment and inertia moment shown in the table below, the load (end effector weight + work piece weight) should also meet these conditions.
Allowable Load
Joint
Allowable Moment
#4
16.6 N�m (1.69 kgf�m)
#5
16.6 N�m (1.69 kgf�m)
#6
9.4 N�m (0.96 kgf�m)
GD2/4 Allowable Moment of Inertia
0.47 kg�m2 0.47 kg�m2 0.15 kg�m2
Moment The moment indicates amount of torque applied on the joint in order to support the gravity on the load (end effector + work piece). The moment increases as weight of the load and amount of eccentricity increase. As this also increases the load applied on the joint, make sure to keep the moment within the allowable value.
Inertia moment The inertia moment indicates how difficult the load (end effector + work piece) to rotate when the Manipulator joint starts to rotate (amount of inertia). The inertia moment increases as weight of the load and amount of eccentricity increase. As this also increase the load applied on the joint, make sure to keep the inertia moment within the allowable value.
48
C8 Rev.11
Setup & Operation 4. End Effectors
The moment M (Nm) and inertia moment I (kgm2) when the volume of the load (end effector + work piece) is small can be obtained by the following formula.
M (Nm) = m(kg) � L (m) � g (m/s2)
L
I (kgm2) = m(kg) � L2 (m)
m : Weight of load (kg) L : Eccentric quantity of load (m) g : Gravitational acceleration (m/s2)
Joint Rotation Center T
The figure below shows distribution of the center of gravity when the volume of the load (end effector + work piece) is small. Design the end effector so that the center of gravity is within the allowable moment. If the volume of the load is large, calculate the moment and inertia moment by referring to Setup & Operation 4.3.2 INERTIA setting - Calculating the Inertia Moment.
Center of gravity of load from the Arm #6 rotation center [mm]
300 250
200
1 kg
2 kg
150
3 kg 4 kg
5 kg
100
6 kg
7 kg
50
8 kg
0 0 50 100 150 200 250 300 350 400 450 500 550 600
Center of gravity of load from the Arm #5 rotation center [mm]
Max. Eccentric Quantity of Load (Distance between the joint rotation center and the load's center of gravity)
Joint #4 #5 #6
1 kg 600 mm 600 mm 300 mm
2 kg 485 mm 485 mm 274 mm
3 kg 396 mm 396 mm 224 mm
4 kg 343 mm 343 mm 194 mm
5 kg 307 mm 307 mm 173 mm
6 kg 280 mm 280 mm 158 mm
7 kg 242 mm 242 mm 137 mm
8 kg 212 mm 212 mm 120 mm
When calculating the critical dimension of the load using the allowable moment and inertia moment, the calculated value represents a distance from the Arm #5 rotation center, not the distance from the flange. To calculate the distance from the flange to the load's center of gravity, subtract the distance from the center of the Arm #5 rotation center to the flange (=80 mm) as shown in the example below.
C8 Rev.11
49
Setup & Operation 4. End Effectors
Example: Calculation of the critical dimension of the load (a) when the load is 8 kg. Center of gravity by the allowable moment control: 16.6 N�m/(8 kg�9.8 m/s2) = 0.212 m = 212 mm Center of gravity by the allowable inertia moment control: (0.47 kgm2/8 kg)1/2 = 0.242 m = 242 mm Due to the allowable moment control, center of gravity for the load limit is 212 mm from the Arm #5 rotation center. Distance from the flange to the center of gravity for the load limit a = 212 mm80 mm = 132 mm
Critical Dimension of Load
Load's Center of Gravity
Arm #6 Rotation Center
Flange Arm #5 Rotation Center
[Unit: mm]
4.3.1 WEIGHT setting
CAUTION
Set the total weight of the end effector and the work piece smaller than the maximum payload. The C8 series Manipulators can operate without limitations on the condition unless and until the load exceeds this maximum payload. Always set the Weight parameters of the WEIGHT command according to the load. Setting a value that is smaller than the actual load may cause errors, excessive shock, insufficient function of the Manipulator, and/or shorten the life cycle of parts/mechanisms.
The acceptable weight capacity (end effector and work piece) for C8 series Manipulators is as follows:
Rated 3 kg
Maximum 8 kg
Change the setting of the Weight parameter according to the load. After changing the Weight parameter setting, the maximum acceleration/deceleration and speed of the robot system corresponding to the load is set automatically.
EPSON RC+
Setting method of Weight parameters Select [Tools]-[Robot Manager]-[Weight] panel and set the value in [Weight:]. You may also execute the Weight command from [Command Window].
50
C8 Rev.11
Load on the Manipulator Mounting location of the load
C8-A701*** (C8)
Load on the fore end of Arm #6
Setup & Operation 4. End Effectors
Arm #5 Deck Arm #3 Deck
C8-A901*** (C8L)
Load on the fore end of Arm #6
Arm #5 Deck
Arm #3 Deck
C8-A1401*** (C8XL)
Load on the fore end of Arm #6
Arm #5 Deck
Details of the deck
Arm #3 Deck
4�M4 depth8
2�M4 depth8
Arm #5 Deck
Arm #3 Deck
[Unit: mm]
When you attach the equipment to the decks on the upper arm, convert its weight into equivalent weight assuming that the equipment is attached to the end of the Arm #6. Then, this equivalent weight added to the load will be a Weight parameter.
C8 Rev.11
51
Setup & Operation 4. End Effectors
Calculate the Weight parameter by using the formula below and enter the value.
Weight Parameter Formula Weight parameter = Mw + Wa + Wb Mw : Load on the fore end of Arm #6 (kg) Wa : Equivalent weight of the Arm #3 deck (kg) Wb : Equivalent weight of the Arm #5 deck (kg)
Wa = Ma (La)�/ (L)� Wb = Mb (Lb)�/ (L)�
Ma : Weight of the air valve on the Arm #3 deck Mb : Weight of the camera on the Arm #5 deck L : Length of the upper arm (315 mm) La : Distance between the Joint #3 and the center of gravity of
the air valve on the Arm #3 deck (mm) Lb : Distance between the Joint #3 and the center of gravity
of the camera on the Arm #5 deck (mm)
<Example> The fore end of the Arm #6 is 730 mm (L) away from the Joint #3 of C8-A1401*** (C8XL). Load on the fore-end of Arm #6 is 5 kg (Mw). Load on the Arm #3 deck is 1.5 kg (Ma). The deck is 0 mm (La) away from Joint #3. Load on the Arm #5 deck is 1.0 kg (Mb). The deck is 690 mm (Lb) away from the Joint #3.
Wa=1.5 � 02/7302=0 Wb=1.0 � 6902/7302=0.89 0.9 (round up) Mw + Wa + Wb=5 + 0 + 0.9=5.9
Enter "5.9" for the Weight parameter.
52
C8 Rev.11
Setup & Operation 4. End Effectors
Automatic speed setting by Weight parameter The percentages in the graphs are based on the speed at rated weight (3 kg) as 100%.
C8-A701***(C8)
(%) 140
130
120
110
100
100 100 100
100
100 100
80
65
60
45
40
35
20
Acceleration / Deceleration Speed
0
2
4
6
8 (kg) Weight Parameter
C8-A901***(C8L)
(%) 140 120 100 80 60 40 20
130
110 100
100 100
0
2
4
100
100 100
60 45 35
Acceleration / Deceleration Speed
6
8 (kg) Weight Parameter
C8-A1401***(C8XL)
(%) 140 120 100 80 60 40 20
120 105 100
100 100
0
2
4
100
100 100
72
51 45
Acceleration / Deceleration Speed
6
8 (kg) Weight Parameter
C8 Rev.11
53
Setup & Operation 4. End Effectors
4.3.2
INERTIA setting
Inertia Moment and the INERTIA Setting The inertia moment is defined as "the ratio of the torque applied to a rigid body and its resistance to motion". This value is typically referred to as "the moment of inertia", "inertia", or "GD2". When the Manipulator operates with objects such as an end effector attached to the Arm #6, the moment of inertia of load must be considered.
CAUTION
The inertia moment of the load (weight of the end effector and work piece) must be 0.15 kg�m2 or less. The C8 series Manipulators are not designed to work with inertia moment exceeding 0.15 kg�m2. Always set the inertia moment (INERTIA) parameter according to the inertia moment. Setting a value that is smaller than the actual inertia moment may cause errors, excessive shock, insufficient function of the Manipulator, and/or shorten the life of parts/mechanisms.
The acceptable inertia moment of load for C8 series Manipulators is 0.03 kgm2 nominal rating and 0.15 kgm2 maximum. Change the setting of the inertia moment according to the inertia moment of the load using the INERTIA command. After the setting has been changed, the maximum acceleration/deceleration speed of Arm #6 responding to "inertia moment" is set automatically.
Inertia moment of load on Arm #6 The inertia moment of the load (weight of the end effector and work piece) on the Arm #6 can be set by the "inertia moment (INERTIA)" parameter of the INERTIA command.
EPSON Select [Tools]�[Robot Manager]-[Inertia] panel and enter the value in [Load inertia:]. RC+ You may also execute the Inertia command from [Command Window].
54
C8 Rev.11
Setup & Operation 4. End Effectors
CAUTION
Eccentric Quantity and the INERTIA Setting
The eccentric quantity of the load (weight of the end effector and work piece) must be 300 mm or less. The C8 series Manipulators are not designed to work with eccentric quantity exceeding 300 mm. Always set the eccentric quantity parameter according to the eccentric quantity. Setting a value that is smaller than the actual eccentric quantity may cause errors, excessive shock, insufficient function of the Manipulator, and/or shorten the life cycle of parts/mechanisms.
The acceptable eccentric quantity of the load for C8 series Manipulators is 50 mm at nominal rating and 300 mm at maximum. When the eccentric quantity of the load exceeds the rating, change the setting of eccentric quantity parameter using the INERTIA command. After changing the setting, the maximum acceleration/deceleration speed of Manipulator corresponding to "eccentric quantity" is set automatically.
Rotation Center
a Flange
a, b = Eccentric Quantity (300 mm or less)
b
To set the parameter, enter the larger value of "a" or "b".
Position of Load's Center of Gravity
Eccentric Quantity
Eccentric quantity of load on Arm #6 The eccentric quantity of the load (weight of the end effector and work piece) on the Arm #6 can be set by the "eccentric quantity" parameter of the INERTIA command. Enter the larger value of either "a" or "b" in the figure above to [Eccentricity].
EPSON Select [Tools]�[Robot Manager]-[Inertia] panel and enter the value into [Eccentricity:]. RC+ You may also execute the Inertia command from [Command Window].
C8 Rev.11
55
Setup & Operation 4. End Effectors
Automatic acceleration/deceleration setting by INERTIA (eccentric quantity) Automatic setting by inertia moment setting (common to C8 series)
(%)150 140 140
120
100
100
80
60
50
40
20
15
0
0.05
0.10
0.15 (kg�m2) Inertia moment
* The percentage in the graph is based on the acceleration/ deceleration at rated eccentricity (0.03 kg�m2) as 100%.
Automatic setting by eccentricity setting (common to C8 series)
(%) 120
100 100
100
80
60
50
40
20
25 15
0 100 200 300 (mm) Eccentricity * The percentage in the graph is based on the acceleration/ deceleration at rated
eccentricity (50 mm) as 100%.
56
C8 Rev.11
Setup & Operation 4. End Effectors
Calculating the Inertia Moment Refer to the following example formulas to calculate the inertia moment of the load (end effector with work piece). The inertia moment of the entire load is calculated by the sum of (a), (b), and (c).
Rotation Center
Work Piece (b)
End Effector (a) Work Piece (c)
Whole Moment of Inertia
=
Moment of Inertia of End Effector (a)
+
Moment of Inertia of Work Piece (b)
+
Moment of Inertia of Work Piece (c)
The methods for calculating the inertia moment for (a), (b), and (c) are shown in this and the next page. Figure out the whole inertia moment using the basic formulas below.
(a) Inertia moment of a rectangular parallelepiped
Rotation Center Rectangular Parallelepiped's Center of Gravity
Weight = m
L b
h
(b) Inertia moment of a cylinder
Cylinder's Center of Gravity Rotation Center
r Weight = m
L
m b2 + h2 12
+ m � L2
m r2 2
+ m � L2
C8 Rev.11
57
Setup & Operation 4. End Effectors (c) Inertia moment of a sphere
Rotation Center
Sphere's Center of Gravity
r Weight = m
L
m
2 5
r 2+ m � L2
58
C8 Rev.11
Setup & Operation 4. End Effectors
4.4 Precautions for Auto Acceleration/Deceleration
The speed and acceleration/deceleration of the Manipulator motion are automatically optimized according to the values of WEIGHT and INERTIA and the Manipulator's postures.
WEIGHT Setting The speed and acceleration/deceleration of the Manipulator are controlled according to the load weight set by the WEIGHT command. The more the load weight increases, the more the speed and acceleration/deceleration are reduced to prevent residual vibration.
INERTIA Setting The acceleration/deceleration of Arm #6 are controlled according to the inertia moment set by the INERTIA command. The acceleration/deceleration of the whole Manipulator are controlled according to the eccentricity set by the INERTIA command. The more the inertia moment and eccentricity of the load increase, the more the acceleration/ deceleration are reduced.
Auto Acceleration/Deceleration According to Manipulator's Posture The acceleration/deceleration are controlled according to the Manipulator's posture. When the Manipulator extends its arms or when the movement of the Manipulator produces vibration frequently, the acceleration/deceleration are reduced.
Set appropriate values for WEIGHT and INERTIA so that the Manipulator operation is optimized.
C8 Rev.11
59
Setup & Operation 5. Motion Range
5. Motion Range
WARNING
When limiting the motion range for safety, be sure to set by both the pulse range and mechanical stops. Failure to do so may cause serious safety problems.
The motion range is preset at the factory as describes in the Setup & Operation 2.5 Standard Motion Range. This is the maximum motion range of the Manipulator.
Motion range is set by the following three methods: 1. Setting by pulse range (for all arms) 2. Setting by mechanical stops 3. Setting the Cartesian (rectangular) range in the X, Y coordinate system of the Manipulator
Rectangular Range Setting
Mechanical Stop
Motion Range
Mechanical Stop
Pulse Range
When the motion range is changed due to layout efficiency or safety, follow the descriptions in 5.1 through 5.4 to set the range.
5.1 Motion Range Setting by Pulse Range (for Each Joint)
Pulses are the basic unit of Manipulator motion. The motion range of the Manipulator is controlled by the pulse range (the lower limit and the upper limit) of each axis. Pulse values are read from the encoder output of the servo motor. The pulse range should be set within the mechanical stop range.
NOTE NOTE
The Arm #1 and #4 do not have a mechanical stop.
Once the Manipulator receives an operating command, it checks whether the target position specified by the command is within the pulse range before operating. If the target position is out of the set pulse range, an error occurs and the Manipulator does not move.
EPSON The pulse range can be set in [Tools]-[Robot manager]-[Range] panel. RC+ You may also execute the Range command from the [Command Window].
60
C8 Rev.11
Setup & Operation 5. Motion Range
5.1.1 Max. Pulse Range of Joint #1
Pulse values in counterclockwise direction are positive (+) and values in clockwise direction are negative (-).
- direction
Arm #1 0 pulse position
+ direction
Angle (�) Pulse (pulse)
C8-A701*** (C8) � 9507090
C8-A901*** (C8L) � 240
� 10695600
C8-A1401*** (C8XL) � 15736800
5.1.2 Max. Pulse Range of Joint #2
Pulse values in clockwise direction are positive (+) and values in counterclockwise direction are negative (-).
Arm #2 0 pulse position
direction
direction
C8 Rev.11
Angle (�) Pulse (pulse)
C8-A701*** (C8) C8-A901*** (C8L)
- 158 to + 65
- 6245685 to
- 6903178 to
+ 2569428
+ 2839915
C8-A1401*** (C8XL) - 135 to + 55 - 10616940 to + 4325420
61
Setup & Operation 5. Motion Range
5.1.3 Max. Pulse Range of Joint #3
Pulse values in clockwise direction are positive (+) and values in counterclockwise direction are negative (-).
Arm #3 0 pulse position
direction
direction
Angle (�) Pulse (pulse)
C8-A701*** (C8)
- 1776754 to + 5883677
C8-A901*** (C8L)
- 61 to + 202 - 2220949 to
+ 7354618
C8-A1401*** (C8XL)
- 3997696 to + 13238272
5.1.4 Max. Pulse Range of Joint #4
From the angle of arm end, clockwise pulse values are positive (+) and counterclockwise pulse values are negative (-). The max. pulse range of the Arm #4 is common to C8 series Manipulators.
Arm #4 0 pulse position
-5461400 pulse
+5461400 pulse
(deg.= �)
62
C8 Rev.11
Setup & Operation 5. Motion Range
5.1.5 Max. Pulse Range of Joint #5
Pulse values in clockwise direction are positive (+) and values in counterclockwise direction are negative (-). The max. pulse range of the Arm #5 is common to C8 series Manipulators.
+3932280 pulse
Arm #5 0 pulse position
-3932280 pulse
(deg.= �)
5.1.6 Max. Pulse Range of Joint #6
From the angle of arm end, clockwise pulse values are positive (+) and counterclockwise pulse values are negative (-). The max. pulse range of the Arm #6 is common to C8 series Manipulators.
Arm #6 0 pulse position
- 6553800 pulse
+ 6553800 pulse
C8 Rev.11
(deg.= �)
63
Setup & Operation 5. Motion Range
5.2 Motion Range Setting by Mechanical Stops
Using the adjustable mechanical stops physically limits the absolute area that the Manipulator can move. Be sure to turn OFF the Manipulator in advance. Use bolts conforming to the specified length and surface processing (ex: nickel plating) with high corrosion resistance. Specify the pulse range again after changing the position of the mechanical stop. For details on the pulse range setting, refer to the Setup & Operation 5.1 Motion Range Setting by Pulse Range (for All Arms). Be sure to set the pulse range not to exceed the setting angles of the mechanical stop.
5.2.1 Motion Range Setting of Joint #1
Install the adjustable mechanical stop (J1) to the threaded hole corresponding to the angle you want to set.
Normally the mechanical stop is not installed.
Hexagon socket head cap bolt M12�30�2 bolts
Tightening torque
42.0 � 2.1N�m (428 � 21 kgf�cm)
a
b
c
Angle (�)
C8-A701*** (C8)
Pulse (pulse) C8-A901*** (C8L)
C8-A1401*** (C8XL)
Adjustable mechanical stop (J1)
a -145, +110 -5743867 +4357416 -6461925 +4902150 -9507650 +7212700
Applied
b -110, +145 -4357416 +5743867 -4902150 +6461925 -7212700 +9507650
Applied
c �240 �9507090
�10695600
�15736800 Not applied (standard)
64
C8 Rev.11
Setup & Operation 5. Motion Range
5.2.2
Motion Range Setting of Joint #2
C8-A701*** (C8), C8-A901*** (C8L) Remove the mechanical stop installed as standard and install the adjustable mechanical stop (C8/C8L_J2). (Joint #2 standard motion range -158 to +65�)
Hexagon socket head cap bolt M10�35�1 bolt
Tightening torque
32.0 � 1.6 N�m (326 � 16 kgf�cm)
d
e
Angle (�)
Pulse(pulse)
C8-A701*** (C8) C8-A901*** (C8L)
Adjustable mechanical stop (C8/C8L_J2)
d -158, +30 -6245685 +1185890 -6903178 +1310730
Applied
e -158, +65 -6245685 + 2569428 -6903178 +2839915
Applied (standard)
C8 Rev.11
65
Setup & Operation 5. Motion Range
C8-A1401***(C8XL)
Remove the mechanical stop installed as standard and install the adjustable mechanical stop (C8XL_J2). (Joint #2 standard motion range -135 to +55�)
Hexagon socket head cap bolt M10�35�2 bolts
Tightening torque
32.0 � 1.6 N�m (326 � 16 kgf�cm)
d
e
Angle (�)
Pulse(pulse)
C8-A1401*** (C8XL)
Adjustable mechanical stop (C8XL_J2)
d -125, +45 -9830500 +3538980
Applied
e -135, +55 -10616940 +4325420
Applied (standard)
5.2.3 Motion Range Setting of Joint #3
Remove the mechanical stop installed as standard and install the adjustable mechanical stop (J3). (Joint #3 standard motion range-61 to +202�)
Hexagon socket head cap bolt M6�15�2 bolts
Tightening torque
13.0 � 0.6 N�m (133 � 6 kgf�cm)
f
g
Angle (�)
C8-A701*** (C8)
Pulse(pulse) C8-A901*** (C8L)
C8-A1401*** (C8XL) Adjustable mechanical stop (J3)
f -51, +192 -1485483 +5592406
-1856859 +6990528
-3342336 +12582912
Applied
g -61, +202 -1776754 +5883677
-2220949 +7354618 -3997696 +13238272 Applied (standard)
66
C8 Rev.11
Setup & Operation 5. Motion Range
5.3 Restriction of Manipulator Operation by Joint Angle Combination
To prevent the arms of the Manipulator from interfering each other, the Manipulator operation is restricted in the specified motion range according to the joint angle combination of the Arm #1, #2, and #3. The Manipulator operation is restricted and the Manipulator stops when the joint angles of the Arm are within the gray areas in the following figure.
The restriction to Manipulator operation is enabled: - During CP motion command execution - When you attempt to execute the motion command for moving the Manipulator to a target
point (or pose) in the specified motion range.
The restriction to the Manipulator operation is disabled: - The Arms of the Manipulator momentarily go through the specified motion range during
the PTP motion command execution even though the joint angles of the Arms are in the colored area of the figures above.
C8 Rev.11
67
Joint #3 Angle
Joint #3 Angle
Setup & Operation 5. Motion Range C8-A701***(C8) Combination of Joints #2 and #3 -50 deg. <= J1 <= 50 deg.
Joint #2 Angle
-120 deg. <= J1< -50 deg. or 50 deg. < J1<= 120 deg.
Joint #2 Angle
-240 deg. <= J1 < -120 deg. or 120 deg. < J1<= 240 deg.
Joint #2 Angle
Combination of Joints #1 and #2 -240 deg. <= J1 <= -100 deg. or 100 deg. <= J1 <= 240 deg.
Joint #3 Angle
Joint #2 Angle
Joint #1 Angle
(deg = �)
68
C8 Rev.11
C8-A901***(C8L) Combination of Joints #2 and #3 -50 deg. <= J1 <= 50 deg.
Setup & Operation 5. Motion Range
Joint #3 Angle
Joint #3 Angle
Joint #2 Angle
-120 deg. <= J1< -50 deg. or 50 deg. < J1<= 120 deg.
Joint #2 Angle
-240 deg. <= J1 < -120 deg. or 120 deg. < J1<= 240 deg.
Joint #2 Angle
Combination of Joints #1 and #2 -240 deg. <= J1 <= -100 deg. or 100 deg. <= J1 <= 240 deg.
Joint #3 Angle
Joint #2 Angle
C8 Rev.11
Joint #1 Angle
(deg = �)
69
Joint #3 Angle
Setup & Operation 5. Motion Range C8-A1401***(C8XL) Combination of Joints #2 and #3 -110 deg. <= J1 <= 110 deg.
Joint #2 Angle
-140 deg. < J1< -110 deg. or 110 deg. < J1< 140 deg. -240 deg. < J1< -220 deg. or 220 deg. < J1< 240 deg.
Joint #2 Angle
-220 deg. <= J1<= -140 deg. or 140 deg. < J1< 220 deg.
Joint #3 Angle
Joint #3 Angle
Joint #2 Angle
(deg = �)
70
C8 Rev.11
Setup & Operation 5. Motion Range
5.4 Coordinate System
The origin point is where the Manipulator's installation face intersects with the rotation axis of Joint #1. For details on the coordinate system, refer to the EPSON RC+ Users Guide manual.
Table Top mounting
Ceiling mounting
+X
+Z
+Y
Wall mounting
+Z +X
+Y
+X
+Z
+Y
+X +Y
+X +Y
BASE setting is suitable for install the robot obliquely.
BASE setting can change a specific coordinate system of the robot and match the World coordinate system of the Jog & Teach and the coordinate system of the equipment.
For procedure of the BASE setting, refer to SPEL+ Language Reference:
With BASE setting +Z
+X
Without BASE setting +Z
+X
BASE Command.
+Y
+Y
+Z +Y
+Z +Y
C8 Rev.11
71
Setup & Operation 5. Motion Range
5.5 Changing the Robot
This section describes how to change the manipulator model on EPSON RC+.
CAUTION
Changing the Manipulator should be done with great caution. It initializes the robot calibration parameters (Hofs, CalPls), additional axis information, and PG parameter data.
Before changing the robot, make sure to save the calibration data by following the procedure below.
1. Select the EPSON RC+ 7.0 menu-[Setup]-[System Configuration].
2. Select [Robot]-[Robot**]-[Calibration] from the tree list. Then, click <Save>.
(1) Select the EPSON RC+ 7.0 menu-[Setup]-[System Configuration]. (2) Select [Robot]-[Robot**] from the tree list.
(3) Click the <Change...> button. The following dialog box will be displayed.
(4) Input the robot name and serial number printed on the name plate of the Manipulator. Any serial number can be entered. However, enter the number printed on the Manipulator.
(5) Select the robot type in the [Robot type] box.
72
C8 Rev.11
Setup & Operation 5. Motion Range
(6) Select the series name of the Manipulator in the [Series] box. (7) Select the robot model in the [Model] box. Available robots will be displayed
according to the format of the currently installed motor driver. When [Dry run] is used, all the Manipulators of the series selected in Step 6 will be displayed. (8) Click the <OK> button. The Controller will be restarted.
5.6 Setting the Cartesian (Rectangular) Range in the XY Coordinate System of the Manipulator
The Cartesian (rectangular) range in the XY coordinate system of the Manipulator is specified by the limited Manipulator operation area and the XYLIM setting. The limited Manipulator operation area is defined so that the end effector does not interfere with the rear side of the Manipulator. The XYLIM setting that you can determines the upper and lower limits of the X and Y coordinates.
The limited Manipulator operation area and the XYLIM setting apply only to the software. Therefore, these settings do not change the physical range. The maximum physical range is based on the position of the mechanical stops.
These settings are disabled during a joint jogging operation. Therefore, be careful not to allow the end effector to collide with the Manipulator or peripheral equipment.
The method for changing the XYLIM setting varies with the software used.
EPSON Set the XYLIM setting in [Tools]-[Robot manager]-[XYZ Limits] panel. RC+ You may also execute the XYLim command from the [Command Window].
C8 Rev.11
73
Setup & Operation 6. Options
6. Options
C8 series Manipulator has the following options. 6.1 Brake Release Unit 6.2 Camera Plate Unit 6.3 Tool Adapter (ISO flange) 6.4 Adjustable Mechanical Stops 6.5 User Wires and Pneumatic Tubes
6.1 Brake Release Unit
With the electromagnetic brake is ON (such as in Emergency Stop status), all arms don't move. You can move the Arms by hand using the brake release unit while the Controller power is OFF or right after unpacking.
WARNING
Before connecting/disconnecting the connector of the Brake release unit, be sure to turn OFF the powers of the Controller and break release unit. Otherwise, it leads to the electrical shock or breakdown.
When connecting or replacing the brake release unit and the external short connector, turn OFF the power to the Controller and the brake release unit. Inserting and removing the connector while the power is ON may result in electrical shock.
CAUTION
Normally, release the brake of joints one by one. Take extra care if you need to release the brakes of two or more joints simultaneously. Releasing the brakes of two or more joints simultaneously may cause hands and fingers to be caught and/or equipment damage to or malfunction of the Manipulator as the arms of the Manipulator may move in unexpected directions.
Be careful of the arm falling when releasing the brake. While the brake is being released, the Manipulator's arm falls by its own mass. The arm falling may cause hands and fingers to be caught and/or may cause equipment damage to or malfunction of the Manipulator.
74
C8 Rev.11
Setup & Operation 6. Options
Width Depth Height Mass (Cables are not included.) Cable to the Manipulator Power cable length Power cable (US) Power cable (EU) M/C Short connector
A
180 mm 150 mm 87 mm 1.7 kg 2 m 2 m 100 V specification 200 V specification For M/C power cable short-circuit
View from A
Power switch Power cable
Power lamp
Arm switches
Precautions for use If the Manipulator is operated without connecting the brake release unit and the external short connector, the brakes cannot be released and it may cause damage on them. After using the brake release unit, be sure to connect the external short connector to the Manipulator, or check connection of the connector for the brake release unit.
CAUTION
Keep the external short connector. Otherwise you cannot release the brakes.
If you turn ON the brake release unit while the brake release switch is being pressed, an unintended arm may move downward. Before turning ON the brake release unit, make sure that the brake release switch is not pressed.
If you turn ON the brake release unit without the connector, it may lead to the short for the male pin used in the connector. Before turning ON the brake release unit, make sure that the connector is connected.
C8 Rev.11
75
Setup & Operation 6. Options
Mount the brake release unit
(1) Turn OFF the Controller.
(2) If the M/C power cable is not connected to the Controller: Connect the M/C short connector, or connect the Controller. (Keep the Controller power OFF)
The M/C short connector can be purchased singly.
If the M/C power cable is already connected to the Controller:
Go to the step (3).
(3) Remove the external short connector.
External short connector
(4) Connect the brake release unit to the connector of the connection cable.
Connection cable Connector
Remove the brake release unit
(1) Turn OFF the brake release unit.
(2) Remove the power cable of the brake release unit.
(3) Disconnect the brake release unit from the connector of the connection cable. (4) If the M/C short connector is connected to the M/C power cable, remove the short
conenctor. (5) Connect the external short connector to the connector of the connection cable.
76
C8 Rev.11
Setup & Operation 6. Options
How to use the brake release unit
CAUTION
Be careful of the arm falling when releasing the brake. While the brake is being released, the Manipulator's arm falls by its own mass. The arm falling may cause hands and fingers to be caught and/or may cause equipment damage to or malfunction of the Manipulator.
If the arm you released its brake moves awkwardly or faster than usual, stop the operation promptly and contact the supplier of your region. The brake release unit may be broken. If you keep operating the Manipulator, it may lead to the breakdown of the Manipulator or you may get your hand or fingers caught.
(2) Power switch (1) Power cable (2) Power lamp (3) Arm switches
(1) Plug the power cable into the brake release unit.
(2) Plug the power cable into the power supply plug.
(3) Turn ON the brake release unit. When the brake release unit is enabled, the power lamp lights up.
(4) Press the switch of the arm (J1 to J6) you want to move and then move the arm. Press the switch again. The brake will be released. The brake will be enabled by pressing the switch once again.
NOTE
Move the arm the brake is released by two persons or more (one presses the switch and one moves the arm). The arm can be very heavy and needs the significant force to move.
C8 Rev.11
77
Setup & Operation 6. Options
6.2 Camera Plate Unit
To mount a camera to the C8 series Manipulator, you need to mount the camera plate unit first. Appearance of arm end with camera
Camera
D
D
Camera plate unit
Parts included A Camera adapter plate B Camera mid plate C Camera base plate D Hexagon socket head screws
M4�12 E Hexagon socket head screws
M4�20 F Plain washer for M4
(small washer)
D
Qty.
1
1
E
1
F
6 A: Camera adapter plate
B: Camera mid plate
2
C: Camera base plate
2
Installation
Mounting holes for the camera base plate on the C8 series Manipulator
Camera base plate mounting hole
For the installation steps, refer to the following manual: EPSON RC+ Option Vision Guide 7.0 Hardware & Setup
Dimension of the camera plate unit
6�M4 depth 8.5 (for securing cables)
Camera
78
C8 Rev.11
Setup & Operation 6. Options
Dimensions X and Y will change depending on the position of camera mid plate and camera size. Refer to the table below for the values.
Camera mid plate The camera mid plate uses the mounting holes A to D. By using the different mounting holes, it can be mounted to the camera base plate in the different four positions.
Camera and C8 series Manipulator Joint #5 motion range (reference values)
The Joint #5 motion range varies depending on the mounting position of camera mid plate and the camera you are using.
The table below shows the motion range (reference values) based on the available cameras for this option and the mounting positions of the camera mid plate. The values in the table may vary depending on how to secure the cables.
By changing the Y position, you can extend the distance from the end effector mounting surface to the camera. Also, you can attach the larger end effector. However, be careful about the Joint #5 motion range that will be limited in this case.
USB camera, GigE camera
A -135to +70�
A
Y
50 mm
B -135 to
+60�
B 30 mm
C -135 to
+45�
C 10 mm
D -135 to
+35�
X 95.5 mm
D -10 mm
Direction of the Joint #5 motion
C8 Rev.11
79
Setup & Operation 6. Options
6.3 Tool Adapter (ISO Flange)
Using the tool adapter, you can mount the end effector whose dimensions are designed for the ISO flange to the C8 series Manipulators.
Parts included
Qty.
ISO flange
1
Flange
1
Pin
2
Hexagon socket head screw with low head M5�10
6
Hexagon socket head screw M5�15
4
Dimensions of ISO flange
4-M5 depth 12 (at 90 � pitch)
To mount the ISO flange (1) Press-fit the pin to the Arm #6 end flange.
Pin projection : 4 mm from the flange
depth 5 depth 4
(2) Align the pin and the pin hole on the flange, and then mount the flange. Hexagon socket head screw: 4-M5�15
(3) Press-fit the pin to the installed flange. Pin protrusion: 4 mm from the flange
Pin
Hexagon socket head screw 4-M5�15 Flange
(4) Align the pin and the pin hole on the ISO flange, and then mount the ISO flange.
Hexagon socket head screw with low head: 6-M5�10
Pin
ISO flange Hexagonal socket head screw with low head
6 M5�10
80
C8 Rev.11
Setup & Operation 6. Options
6.4 Adjustable Mechanical Stops
This option is used to mechanically limit the motion range of the Manipulator.
For installation and angle restriction measures, refer to Setup & Operation 5.2 Motion Range Setting by Mechanical Stops.
Adjustable mechanical stop (J1)
Item
Qty.
Adjustable mechanical stop (J1)
1
Hexagon socket head screw M12�30
2
Adjustable mechanical stop (C8/C8L_J2)
Item
Qty.
Adjustable mechanical stop (C8/C8L_J2)
1
Hexagon socket head screw M10�35
1
Adjustable mechanical stop (C8XL_J2)
Item
Qty.
Adjustable mechanical stop(C8XL_J2)
1
Hexagon socket head screw M10�35
2
Adjustable mechanical stop (J3)
Item
Qty.
Adjustable mechanical stop (J3)
1
Hexagon socket head screw M6�15
2
C8 Rev.11
81
Setup & Operation 6. Options
6.5 User Wires and Pneumatic Tubes
Use the following options when using the internal wiring and tubing for the end effector drive.
Fitting for customer use (�6 straight)
Item �6 straight fitting
Qty. Manufacturer
Standard
2
SMC KQ2S06-M6N
* Attached as standard. The parts can be purchased additionally in case of lost or shortage.
Fitting for customer use (�6 elbow)
Item �6 elbow fitting
Qty. Manufacturer
Standard
2
SMC KQ2L06-M6N
* Attached as standard. The parts can be purchased additionally in case of lost or shortage.
Standard user connector kit (D-sub)
Item Connector
Clamp hood
Qty. Manufacturer
Standard
2
JAE
DA-15PF-N
(Solder type)
2
HRS
HDA-CTH(4-40)(10) (Connector setscrew:
#4-40 UNC)
* Attached to standard and cleanroom-model Manipulators as standard. The parts can be additionally purchased in case of lost or shortage.
Waterproof User Connector Kit (D-sub)
Item Connector
Clamp hood
Qty. Manufacturer
Standard
2 HARTING 09 67 015 5615
(Solder type)
2 HARTING 09 67 015 0538
(Connector setscrew: #4-40 UNC)
* Attached to the protection model Manipulators as standard. The parts can be additionally purchased in case of lost or shortage.
Waterproof User Connector Kit (Ethernet)
Item Connector
Qty. Manufacturer
Standard
2 HARTING 09 45 145 1560
* Not attached as standard. Please purchase the item if needed. Please note that the protection rating IP67 cannot be satisfied if other connectors are used.
82
C8 Rev.11
Maintenance
This volume contains maintenance procedures with safety precautions for C8 series Manipulators.
Maintenance 1. Safety Maintenance
1. Safety Maintenance
Please read this chapter, this manual, and other relevant manuals carefully to understand safe maintenance procedures before performing any maintenance.
Only authorized personnel who have taken safety training should be allowed to perform the robot maintenance. Safety training is the program for industrial robot operators to follow the laws and regulations of each nation. The personnel who have taken safety training acquire knowledge of industrial robots (operations, teaching, etc.), inspections, and related rules/regulations. The personnel who have completed the robot system-training and maintenancetraining held by the manufacturer, dealer, or locally-incorporated company are allowed to perform maintenance.
WARNING
Do not remove any parts unless otherwise instructed by this manual. Follow the maintenance procedure strictly as described. Improper removal of parts or improper maintenance may cause not only malfunction of the robot system but serious safety problems.
If you have not received training, keep away from the Manipulator while the power is ON. Do not enter the operating area while the power is ON. Entering the operating area with the power ON is extremely hazardous and may cause serious safety problems as the Manipulator may move even it seems to be stopped.
When you check the operation of the Manipulator after replacing parts, be sure to check it while you are outside of the safeguarded area. Checking the operation of the Manipulator while you are inside of the safeguarded area may cause serious safety problems as the Manipulator may move unexpectedly.
Before operating the robot system, make sure that both the Emergency Stop switches and safeguard switch function properly. Operating the robot system when the switches do not function properly is extremely hazardous and may result in serious bodily injury and/or serious damage to the robot system as the switches cannot fulfill their intended functions in an emergency.
WARNING
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
When connecting or replacing the brake release unit and the external short connector, turn OFF the power to the Controller and the brake release unit. Connecting or disconnecting the connector while the power is ON may result in electrical shock.
C8 Rev.11
85
Maintenance 2. General Maintenance
CAUTION
Be sure to connect the cables properly. Do not allow unnecessary strain on the cables. (Do not put heavy objects on the cables. Do not bend or pull the cables forcibly.) It may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system.
If the Manipulator is operated without connecting the brake release unit and the external short connector, the brakes cannot be released and it may cause damage on them. After using the brake release unit, be sure to connect the external short connector to the Manipulator, or check connection of the connector for the brake release unit.
The Manipulator arms may become hot after the Manipulator operation due to heat generation of the motors. Be careful when performing maintenance.
2. General Maintenance
This chapter describes maintenance inspection procedures. Performing maintenance inspection properly is essential to prevent trouble and ensure safety. Be sure to perform the maintenance inspections in accordance with the schedule.
2.1
Maintenance Inspection
2.1.1 Schedule for Maintenance Inspection
Inspection points are divided into five stages: daily, monthly, quarterly, biannual, and annual. The inspection points are added every stage. If the Manipulator is operated for 250 hours or longer per month, the inspection points must be added every 250 hours, 750 hours, 1500 hours, and 3000 hours operation.
1 month (250 h) 2 months (500 h) 3 months (750 h) 4 months (1000 h) 5 months (1250 h) 6 months (1500 h) 7 months (1750 h) 8 months (2000 h) 9 months (2250 h) 10 months (2500 h) 11 months (2750 h) 12 months (3000 h) 13 months (3250 h)
Inspect every day
Daily inspection
Monthly inspection
Inspection Point Quarterly Biannual inspection inspection
Annual
Overhaul
inspection (replacement)
... ... ... ... ... ... ...
h = hour
20000 h
86
C8 Rev.11
Maintenance 2. General Maintenance
2.1.2 Inspection Point
Inspection While the Power is OFF (Manipulator is not operating)
Inspection Point
Inspection Place
Daily Monthly Quarterly Biannual Annual
Check looseness or backlash of
End effector mounting bolts
bolts/screws.
Manipulator mounting bolts
Tighten them if necessary.
Each arm locking bolts
(For the tightening torque, refer to Bolts/screws around shaft
Maintenance: 2.4 Tightening Hexagon Socket Head Cap Bolts.)
Bolts/screws securing motors, reduction gear units, etc.
External connectors on
Check looseness of connectors.
Manipulator (on the connector
If the connectors are loosen, push it
plates etc.)
securely or tighten.
Manipulator cable unit
Visually check for external defects. Clean up if necessary.
External appearance of Manipulator External cables
Check for bends or improper location. Repair or place it properly Safeguard etc. if necessary.
Check tension of timing belts. Tighten it if necessary.
Base Inside of Arms #1, 2, 3, 4
Grease conditions
Refer to Maintenance: 2.3 Greasing.
Battery
Refer to Maintenance: 11 Replacing the Battery.
The external short connector
Check either the external short
on the back side of the
connector or the brake release unit
Manipulator, or the brake
connector is connected.
release unit connector.
C8 Rev.11
87
Maintenance 2. General Maintenance
Inspection While the Power is ON (Manipulator is operating)
Inspection Point
Inspection Place
Daily Monthly Quarterly Biannual Annual
Check motion range
Each joint
Move the cables back and forth lightly to
check whether the cables are
External cables
disconnected.
Push each arm in MOTOR ON status to
Each arm
check whether backlash exists.
Check whether unusual sound or vibration occurs.
Whole
Measure the accuracy repeatedly by a
Whole
dial gauge.
When brake release unit is installed:
Connect the brake release unit and
check the sound of the electromagnetic brake with the brake released.
If there is no sound, replace the brake.
When brake release unit is not installed: Brake
Execute Brake off command (brake off,
joint #) from the command window of
the EPSON RC+ while the motors are
OFF, and then check the sound of the
electromagnetic brake. If there is no
sound, replace the brake.
Check if the fan is operating Fan
(C8-A1401*** (C8XL) Only)
88
C8 Rev.11
Maintenance 2. General Maintenance
2.2 Overhaul (Parts Replacement)
CAUTION
Overhaul timing is based on an assumption that all joints are operated for equal distance. If a particular joint has a high duty or high load, it is recommended to overhaul all joints (as many as possible) before exceeding 20,000 operation hours with the joint as a basis.
The parts for the Manipulator joints may cause accuracy decline or malfunction due to deterioration of the Manipulator resulting from long term use. In order to use the Manipulator for a long term, it is recommended to overhaul the parts (parts replacement).
The time between overhauls is 20,000 operation hours of the Manipulator as a rough indication.
NOTE
However, it may vary depending on usage condition and degree of the load (such as when operated with the maximum motion speed and maximum acceleration / deceleration in continuous operation) applied on the Manipulator.
For the EPSON RC+ 7.0 Ver. 7.2.x or later (firmware Ver.7.2.x.x or later), the recommended replacement time for the parts subject to maintenance (motors, reduction gear units, and timing belts) can be checked in the [Maintenance] dialog box of the EPSON RC+ 7.0. For details, refer to the following manual.
Robot Controller RC700 / RC700-A Maintenance 6. Alarm
Note: The recommended replacement time for the maintenance parts is when it reaches the L10 life (time until 10% failure probability). In the [Maintenance] dialog box, the L10 life is displayed as 100%.
C8 Rev.11
89
Maintenance 2. General Maintenance The Manipulator operation hours can be checked in [Controller Status Viewer] dialog [Motor On Hours]. (1) Select EPSON RC+ menu-[Tools]-[Controller] to open the [Controller Tools] dialog. (2) Click the <View Controller Status> button to open the [Browse For Folder] dialog. (3) Select the folder where the information is stored. (4) Click <OK> to view the [Controller Status Viewer] dialog. (5) Select [Robot] from the tree menu on the left side.
For the parts subject to overhaul, refer to Maintenance 17. Maintenance Parts List. For details of replacement of each part, refer to the Maintenance section. Please contact the supplier of your region for further information.
90
C8 Rev.11
Maintenance 2. General Maintenance
2.3
Greasing
The reduction gear units and the bevel gear need greasing regularly. Only use the grease specified in the following table.
WARNING
Before greasing, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
Keep enough grease in the Manipulator. Operating the Manipulator with insufficient grease will cause the noise or damage sliding parts and/or result in insufficient function of the Manipulator. Once the parts are damaged, a lot of time and money will be required for the repairs.
If grease gets into your eyes, mouth, or on your skin, follow the instructions below.
If grease gets into your eyes: Flush them thoroughly with clean water, and then see a doctor immediately.
If grease gets into your mouth: If swallowed, do not induce vomiting. See a doctor immediately. If grease just gets into your mouth, wash out your mouth with water thoroughly.
If grease gets on your skin: Wash the area thoroughly with soap and water.
Greasing part
Joints #1, 2, 3, 4, 5 Joint # 6 Joint # 6
Reduction gear units Bevel gear
Greasing Interval Overhaul timing Once a year (every 8000 hours)
Grease SK-1A SK-2 SK-2
As a rough indication, perform greasing at the same timing as overhaul. However, it may vary depending on usage condition and degree of the load (such as when operated with the maximum motion speed and maximum acceleration / deceleration in continuous operation) applied on the Manipulator.
C8 Rev.11
91
Maintenance 2. General Maintenance
Name
Maintenance parts
Tools
Grease up kit
Grease plug O-ring for grease inlet Hexagonal wrench (width across flats: 2 mm) Hexagonal wrench (width across flats: 2.5 mm) Cross-point screwdriver (#2) Flat head screwdriver
Quantity
Note
1674592 1
(A set of grease gun, nipple, and extension jig)
1
1656158
1
1657289
1
For M3 hexagon socket countersunk head bolts
1
For M3 hexagon socket head cap bolts
1
For cross-recessed head screws
1
For grease plug
NOTE
Before greasing, move the Manipulator so that the grease inlet is not directed down. Do not remove the grease plug while the grease inlet is directed down. Otherwise the oil content separated from the grease may leak out.
NOTE
Do not use any tool to install and remove the grease nipple and grease line extension jig. Always handle them directly by your hand. If the grease nipple or grease line extension jig is installed or removed with a tool such as wrench, they may be damaged.
92
C8 Rev.11
Greasing
Maintenance 2. General Maintenance
2.3.1 Joint #1 Reduction Gear Unit (Table Top Mounting)
1. Remove the Arm #1 side cover. For details, refer to Maintenance: 3. Covers.
2. Remove the grease plug from the Joint #1 grease inlet located inside the Arm #1.
3. Attach the grease nipple to the Joint #1 grease inlet.
4. Inject grease from the grease nipple using a grease gun Grease: SK-1A Grease amount: 11g
5. Remove the grease nipple from the Joint #1 grease inlet.
6. Attach the grease plug to the Joint #1 grease inlet. If the grease plug is damaged or deteriorated, replace it with a new one.
7. Install the Arm #1 side cover. For details, refer to Maintenance: 3. Covers.
C8 Rev.11
93
Maintenance 2. General Maintenance
Greasing
2.3.2 Joint #1 Reduction Gear Unit (Ceiling Mounting, Wall mounting)
1. Remove the base grease inlet cover. Hexagon socket flat head bolts: 4-M3�6
2. Remove the O-ring located in the base groove.
3. Remove the grease plug from the Joint #1 grease inlet located inside the base.
4. Attach the grease line extension jig and grease nipple to the Joint #1 grease inlet.
5. Inject grease from the grease nipple using a grease gun. Grease: SK-1A Grease amount: 11g
6. Remove the grease nipple and grease line extension jig from the Joint #1 grease inlet.
7. Attach the grease plug to the Joint #1 grease inlet. If the grease plug is damaged or deteriorated, replace it with a new one.
8. Apply a thin coat of grease (SK-1A) to the O-ring. Fit the O-ring into the base groove. Do not allow the O-ring to come out of the groove. If the O-ring is swollen, damaged, or deteriorated, replace it with a new one.
94
C8 Rev.11
Maintenance 2. General Maintenance
9. Install the base grease inlet cover. Hexagon socket flat head bolts: 4-M3�6 Tightening torque: 2.0 � 0.1 N�m
Greasing
2.3.3 Joint #2 Reduction Gear Unit
1. Remove the grease plug from the Joint #2 grease inlet of the Arm #1.
2. Attach the grease nipple to the Joint #2 grease inlet.
3. Inject grease from the grease nipple using a grease gun Grease: SK-1A Grease amount: 6g (C8, C8L) 12g (C8XL)
4. Remove the grease nipple from the Joint #2 grease inlet.
5. Attach the grease plug to the Joint #2 grease inlet.
If the grease plug is damaged or deteriorated, replace it with a new one.
C8 Rev.11
95
Maintenance 2. General Maintenance
Greasing
2.3.4 Joint #3 Reduction Gear Unit
1. Remove the grease plug from the Joint #3 grease inlet of the Arm #2.
2. Attach the grease nipple to the Joint #3 grease inlet.
3. Inject grease from the grease nipple using a grease gun Grease: SK-1A Grease amount: 3g
4. Remove the grease nipple from the Joint #3 grease inlet.
5. Attach the grease plug to the Joint #3 grease inlet.
If the grease plug is damaged or deteriorated, replace it with a new one.
96
C8 Rev.11
Greasing
Maintenance 2. General Maintenance
2.3.5 Joint #4 Reduction Gear Unit
1. Remove the grease plug from the Joint #4 grease inlet of the Arm #4.
2. Attach the grease nipple to the Joint #4 grease inlet.
NOTE
The grease plug attaching hole located near the label with "4" printed is the Joint #4 grease inlet. The grease inlet position differs depending on the model. Carefully identify the correct position.
3. Inject grease from the grease nipple using a grease gun Grease: SK-1A Grease amount: 2g
4. Remove the grease nipple from the Joint #4 grease inlet.
5. Attach the grease plug to the Joint #4 grease inlet.
If the grease plug is damaged or deteriorated, replace it with a new one.
C8 Rev.11
97
Maintenance 2. General Maintenance
Greasing
2.3.6 Joint #5 Reduction Gear Unit
1. Remove the grease plug from the Joint #5 grease inlet of the Arm #5.
2. Attach the grease nipple to the Joint #5 grease inlet.
NOTE
The grease plug attaching hole located near the label with "5" printed is the Joint #5 grease inlet. Be careful not to confuse it with the Joint #6 grease inlet.
3. Inject grease from the grease nipple using a grease gun. Grease: SK-1A Grease amount: 1g
NOTE
Be careful not to mix with the grease used in the Joint #6 (SK-2).
4. Remove the grease nipple from the Joint #5 grease inlet.
5. Attach the grease plug to the Joint #5 grease inlet.
If the grease plug is damaged or deteriorated, replace it with a new one.
98
C8 Rev.11
Maintenance 2. General Maintenance
Greasing
2.3.7 Joint #6 Reduction Gear Unit
1. Remove the grease plug from the Joint #6 grease inlet of the Arm #5.
2. Attach the grease nipple to the Joint #6 grease inlet.
NOTE
The grease plug attaching hole located near the label with "6" printed is the Joint #6 grease inlet. Be careful not to confuse it with the Joint #5 grease inlet.
3. Inject grease from the grease nipple using a grease gun. Grease: SK-2 Grease amount: 0.5g
NOTE
Be careful not to mix with the grease used in the Joint #5 (SK-1A).
4. Remove the grease nipple from the Joint #6 grease inlet.
5. Attach the grease plug to the Joint #6 grease inlet.
If the grease plug is damaged or deteriorated, replace it with a new one.
C8 Rev.11
99
Maintenance 2. General Maintenance
Greasing
2.3.8 Joint #6 Bevel Gear
1. Remove the Arm #5 grease inlet cover. Hexagon socket head cap bolts: 4-M3�6
2. Remove the O-ring located in the base groove.
3. Apply grease to the mating surface of the bevel gear inside the Arm #5. Grease: SK-2 Grease amount: 2g
4. Apply a thin coat of grease (SK-2) to the O-ring. Fit the O-ring into the base groove.
Do not allow the O-ring to come out of the groove.
If the O-ring is swollen, damaged, or deteriorated, replace it with a new one. 5. Install the Arm #5 grease inlet cover. Hexagon socket head cap bolts: 4-M3�6 Tightening torque: 2.0 � 0.1 N�m
100
C8 Rev.11
Maintenance 2. General Maintenance
2.4
Tightening Hexagon Socket Head Bolts
Hexagon socket head cap bolts (hereinafter, "bolts") are used in places where mechanical strength is required. These bolts are fastened with the tightening torque shown in the following tables.
When it is required to refasten the bolts in some procedures in this manual (except special cases as noted), use a torque wrench so that the bolts are fastened with appropriate tightening torque as shown below.
Bolt
Tightening Torque
M3 2.0 � 0.1 Nm (21 � 1 kgfcm)
M4 4.0 � 0.2 Nm (41 � 2 kgfcm)
M5 8.0 � 0.4 Nm (82 � 4 kgfcm)
M6 13.0 � 0.6 Nm (133 � 6 kgfcm)
M8 32.0 � 1.6 Nm (326 � 16 kgfcm)
M10 58.0 � 2.9 Nm (590 � 30 kgfcm)
M12 100.0 � 5.0 Nm (1,020 � 51 kgfcm)
See below for the set screw.
Set Screw
Tightening Torque
M4
2.4 � 0.1 Nm (26 � 1 kgfcm)
M5
3.9 � 0.2 Nm (40 � 2 kgfcm)
M6
8.0 � 0.4 Nm (82 � 4 kgfcm)
It is recommended to fasten the bolts aligned on a circumference in a crisscross pattern as shown in the figure below.
1 5 Bolt hole 3
7
Do not fasten all bolts securely at one time.
8
Divide the number of times to fasten the bolts into
two or three and fasten the bolts securely with a
4 hexagonal wrench. Then, use a torque wrench to fasten the bolts with tightening torques shown in the
6
table above.
2
C8 Rev.11
101
Maintenance 2. General Maintenance
2.5 Layout of Maintenance Parts
LED lamp
Joint #3 Reduction gear unit
Joint #2 Reduction gear unit Joint #2 Timing belt Joint #2 Motor +
Electromagnetic brake Joint #1 Reduction gear unit
Joint #1 Timing belt
Joint #3 Timing belt Joint #3 Motor + Electromagnetic brake
Joint #1 Electromagnetic brake
Joint #1 Motor
Joint #5 Motor +Electromagnetic brake
Joint #4 Timing belt
Joint #5, #6 Reduction Gear Unit Set Joint #6 Timing belt
Joint #5 Timing belt
Joint #4 Motor
Joint #6 Motor
Joint #4
+Electromagnetic brake
Reduction gear unit
Joint #4 Electromagnetic brake
Battery
Battery board
Control board 1 Fan
Control board 2
Fan (Figure: C8-A1401* (C8XL))
102
C8 Rev.11
Maintenance 3. Covers
3. Covers
This chapter describes methods of removing and installing the covers and gaskets which are common to all maintenance procedures by Manipulator model.
S: Standard model C: Clean-room & ESD model P: Protection model
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Be careful not to get any foreign substances in the Manipulator, connectors, and pins during maintenance. Turning ON the power to the robot system when any foreign substances exist in them is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
C8 Rev.11
103
Maintenance 3. Covers
Cable backward model
Arm #4 side cover Arm #2 side cover Arm #1 side cover
Arm #1 center cover Connector sub plate
Arm #3 cover
Arm #2 side cover
Arm #1 maintenance cover
Connector plate
Arm #4 D-sub attachment
Arm #4 side cover
Arm #1 side cover
Arm #4 maintenance cover
Arm #3 maintenance cover
Fan C8-A1401* (C8XL) only
Base cover (Figure: C8-A1401* (C8XL))
Cable downward model
Fan C8-A1401*B* (C8XL) only
Base cover
Connector sub plate
Connector plate
(Figure: C8-A1401*B* (C8XL))
104
C8 Rev.11
Maintenance 3. Covers
Name
Quantity
Note
Metal cover
Arm #1 Center cover
1 1675435 Common to Standard/ Clean-room models
Side cover
2 1674537
Cover
Arm #2 Arm #3
Side cover (left) Side cover (right) Cover
1 1655114
Standard model
1
1674542 Plastic cover
1 1674543
Arm #4 Side cover
2 1674547
Arm #1 Side cover
2 1674548
Arm #2 Arm #3
Side cover (left) Side cover (right) Cover
1 1655127
1
1674550 Cleanroom model
Plating cover
1 1674551
Arm #4 Side cover
2 1674553
Maintenance parts
Arm #1 Arm #2 Arm #3
Center gasket Side gasket Side gasket Cover gasket Maintenance gasket
1 1665238 2 1665240 2 1665241 1 1665242 1 1665254
Side gasket
2 1665243
Gasket
Arm #4
Maintenance gasket D-sub attachment gasket
1 1665257 Protection model
1 1665255
Rear gasket
1 1665244
Bottom gasket
1 1665247
Maintenance gasket
1 1665248
Base
Sub plate gasket
1 1665246
Installation gasket
1 1668377
Gasket For heat sink
1
1694610
Cleanroom model Protection model
Seal washer
4 1665882 For M4
Air plug
2 1657011 For M6
width across flats: 2.5 mm Hexagonal
1
For M3 hexagon socket head cap bolts
Tools
wrench
width across flats: 3 mm
1
For M4 hexagon socket head cap
bolts
Cross-point screwdriver (#2)
1 For cross recessed screws
C8 Rev.11
105
Maintenance 3. Covers
3.1 Arm #1 Center Cover
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal Installation
Remove the screws and then remove the Arm #1 center cover.
S, C models: Cross recessed truss head small screws: 5-M4�10
P model: Hexagon socket head cap bolts with captive washer: 5-M4�12
Remove the Arm #1 center gasket together.
S, C models: Install the Arm #1 center cover to the Manipulator. Cross recessed truss head small screws: 5-M4�10 Tightening torque: 0.9 � 0.1 N�m
P model: Install the gasket to the grove on the Arm #1 center cover. Install the Arm #1 center cover to the Manipulator.
Hexagon socket head cap bolts with washer: 5M4�12
Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
106
C8 Rev.11
Maintenance 3. Covers
3.2 Arm #1 Side Cover
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal
Remove the screws and then remove the Arm #1 side cover.
S, C models: Cross recessed truss head small screws: 4-M4�10 (one side)
P model: Hexagon socket head cap bolts with captive washer: 8-M4�12 (one side) Remove the Arm #1 side gasket together.
NOTE The Arm #1 side covers and Arm #1 side gaskets are the same between right and left.
C8 Rev.11
107
Maintenance 3. Covers
Installation
S, C models: Install the Arm #1 side cover to the Manipulator. Cross recessed truss head small screws: 4-M4�10 (one side)
Tightening torque: 0.9 � 0.1 N�m
P model: Install the gasket to the grove on the Arm #1 side cover. Install the Arm #1 side cover to the Manipulator.
Hexagon socket head cap bolts with captive washer: 8-M4�12 (one side) Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator.
Replace the gasket if there are flaws or deteriorations.
When replacing the side cover for the right side of the Arm #1, attach the electrical shock warning label to the place indicated in the photo.
108
C8 Rev.11
Maintenance 3. Covers
3.3 Arm #2 Side Cover
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal
Remove the screws and then remove the Arm #2 side cover.
S, C models: Cross recessed truss head small screws: 4-M4�10 (one side)
P model: Hexagon socket head cap bolts with captive washer: 8-M4�12 (one side) Remove the Arm #2 side gasket together.
NOTE
Note that the Arm #2 side covers and Arm #2 side gaskets are different between right and left.
Installation
S, C models: Install the Arm #2 side cover to the Manipulator.
Cross recessed truss head small screws: 4-M4�10 (one side) Tightening torque: 0.9 � 0.1 N�m
P model: Install the gasket to the grove on the Arm #2 side cover. Install the Arm #2 side cover to the Manipulator.
Hexagon socket head cap bolts with captive washer: 8-M4�12 (one side)
Tightening torque: 4.0�0.2N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator.
Replace the gasket if there are flaws or deteriorations.
C8 Rev.11
109
Maintenance 3. Covers
3.4 Arm #3 Cover
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal
Remove the screws and then remove the Arm #3 head cover.
S, C models: Cross recessed truss head small screws: 4-M4�10
Installation
P model: Hexagon socket head cap bolts with captive washer: 4-M4�12 Remove the Arm #3 gasket together.
S, C models: Install the Arm #3 cover to the Manipulator. Cross recessed truss head small screws: 4-M4�10 Tightening torque: 0.9 � 0.1 N�m
P model: Install the gasket to the grove on the Arm #3 head cover, and then install the Arm #3 cover to the Manipulator.
Cross recessed truss head small screws with captive washer: 4-M4�12
Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator.
Replace the gasket if there are flaws or deteriorations.
110
C8 Rev.11
Maintenance 3. Covers
3.5 Arm #3 Maintenance Cover
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal
1. Before removing the Arm #3 maintenance cover, move the arm to the position where you can remove the cover easily.
2. Remove the screws and then remove the Arm #3 maintenance cover.
S, C models: Cross recessed truss head small screws: 4-M4�8
P model: Hexagon socket head cap bolts: 4-M4�10
NOTE Remove the Arm #3 maintenance gasket together. The gasket has the spacers. Be careful not to lose them.
C8 Rev.11
111
Maintenance 3. Covers
Installation (S, C models)
Install the Arm #3 maintenance cover to the Manipulator. Cross recessed truss head small screws: 4-M4�8 Tightening Torque: 0.9 � 0.1 N�m Be careful not to get the cables caught between the cover and the Manipulator.
Installation (P model)
1. Install the spacers to the holes on the gasket. (4 places)
2. Apply the liquid gasket to the Arm #3 maintenance gasket. Install the Arm #3 maintenance gasket to the Arm #3 maintenance cover. (See the figure for gasket applying points)
Gasket applying point (�4)
Arm #3 maintenance cover
Arm #3 maintenance gasket
Spacer (�4)
NOTE After applying the liquid gasket, leave the gasket until the liquid gasket becomes solid and the gasket is fixed.
3. Install the Arm #3 maintenance cover to the Manipulator.
Hexagon socket head cap bolts: 4-M4�10
Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
112
C8 Rev.11
Maintenance 3. Covers
3.6 Arm #4 Side Cover
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal
1. Remove the screws and then remove the Arm #4 side cover. S, C models: Cross recessed truss head small screws: 7-M4�10 (one side)
P model: Hexagon socket head cap bolts with captive washer: 7-M4�12 (one side) Remove the Arm #4 side gasket together.
NOTE The Arm #4 side cover and Arm #4 side gasket are the same between right and left.
2. Remove the connectors.
RJ45 connector (left): Remove the RJ45 connector from the connector on the cover.
F-sensor connector (right): Open the two plastic clips of the connector on the cover and pull out the metallic connector.
C8 Rev.11
113
Maintenance 3. Covers
Installation
Insert the connectors.
RJ45 connector: Insert the RJ45 connector to the connector on the cover.
F-sensor connector: Insert the metallic connector to the connector on the cover.
S, C models: Install the Arm #4 side cover to the Manipulator. Cross recessed truss head small screws: 7-M4�10 (one side) Tightening torque: 0.9 � 0.1 N�m
P model: Install the Arm #4 side gasket to the grove on the Arm #4 side cover. Install the Arm #4 cover to the Manipulator.
Cross recessed truss head small screws:
7-M4�12 (one side)
Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator.
Replace the gasket if there are flaws or deteriorations.
When replacing the cover, attach the electrical shock warning label and other labels to the places indicated in the photos.
114
C8 Rev.11
Maintenance 3. Covers
3.7 Arm #4 Maintenance Cover (C8XL only)
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal
1. Before removing the Arm #4 maintenance cover, move the arm to the position where you can remove the cover easily.
2. Remove the screws and then remove the Arm #4 maintenance cover.
S, C models: Cross recessed truss head small screws: 4-M4�10
P model: Hexagon socket head cap bolts: 4-M4�10
NOTE Remove the Arm #3 maintenance gasket together. The gasket has the spacers. Be careful not to lose them.
C8 Rev.11
115
Maintenance 3. Covers
Installation (S, C models)
Install the Arm #4 maintenance cover to the Manipulator. Cross recessed truss head small screws: 4-M4�10 Tightening torque: 0.9 � 0.1 N�m Be careful not to get the cables caught between the cover and the Manipulator.
Installation (P model)
1. Install the spacers to the holes on the gasket. (4 places)
2. Apply the liquid gasket to the Arm #4 maintenance gasket. Install the Arm #4 maintenance gasket to the Arm #4 maintenance cover. (See the figure for gasket applying points)
Spacer (�4) Arm #4 maintenance cover Arm #4 maintenance gasket
Gasket applying point (�4)
NOTE After applying the liquid gasket, leave the gasket until the liquid gasket becomes
solid and the gasket is fixed.
3. Install the Arm #4 maintenance cover to the Manipulator. Hexagon socket head cap bolts: 4-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
116
C8 Rev.11
Maintenance 3. Covers
3.8 Arm #4 D-sub Attachment
Do not remove the D-sub attachment forcibly. Removing it forcibly may result in damage to the cables, disconnection, and/or contact failure. Damaged cables, disconnection, or contact failure is extremely hazardous and may result in electric shock and/or improper function of the robot system.
CAUTION
When installing the D-sub attachment, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the D-sub attachment. Be sure to place the cables back to their original locations.
Removal
Remove the screws and then remove the D-sub attachment.
Hexagon socket head cap bolts: 2-M4�10
P mode: Remove the D-sub attachment gasket together.
Installation
S, C models: Install the D-sub attachment.
Hexagon socket head cap bolts: 2-M4�10
Tightening torque: 4.0 � 0.2 N�m P model:
Install the D-sub attachment gasket to the Manipulator, and then install the D-sub attachment.
Hexagon socket head cap bolts: 2-M4�10
Tightening Torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the gasket and cables caught between the cover and the Manipulator.
Replace the gasket if there are flaws or deteriorations.
C8 Rev.11
117
Maintenance 3. Covers
3.9 Base Cover
CAUTION Removal
3.9.1 M/C Cable Backward
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
The base cover of the M/C cable backward model is located on the bottom face of the base.
Remove the bolts and then remove the base cover. Hexagon socket head cap bolts: 8-M4�10
P model: Remove the base bottom gasket together.
Installation
S, C models: Install the base cover to the Manipulator.
Hexagon socket head cap bolts: 8-M4�10
Tightening Torque: 4.0 � 0.2 N�m
P model: Install the gasket to the grove on the base bottom face, and then install the base cover to the Manipulator.
Hexagon socket head cap bolts: 8-M4�10
Tightening Torque: 4.0 � 0.2 N�m
NOTE
If the bolts other than the hexagon socket head cap bolts are used, the bolt heads may protrude from the end face of the base and the cover may not be fixed stably.
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
118
C8 Rev.11
Maintenance 3. Covers
3.9.2 M/C Cable Downward
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
The base cover of the M/C cable downward model is located on the backside of the base.
C8-A701*B* (C8), C8-A901*B* (C8L)
Removal
Remove the bolts and then remove the base cover. Hexagon socket head cap bolts: 11-M4�10
P model: Remove the base rear gasket together.
NOTE The gasket has the spacers. Be careful not to lose them.
C8 Rev.11
119
Maintenance 3. Covers
C8-A701*B* (C8), C8-A901*B* (C8L)
Installation (S, C models)
Install the base cover to the Manipulator. Hexagon socket head cap bolts: 11-M4�10
Tightening Torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the cables caught between the cover and the Manipulator.
C8-A701*B* (C8), C8-A901*B* (C8L)
Installation (P model)
1. Install the spacers to the holes on the gasket. (11 places)
2. Apply the liquid gasket to the base rear gasket. Install the base rear gasket to the base cover. (See the figure for gasket applying points)
Gasket Applying point (�11)
Spacer (�11) Base area gasket
Base cover
NOTE
After applying the liquid gasket, leave the gasket until the liquid gasket becomes solid and the gasket is fixed.
3. Install the base cover to the Manipulator.
Hexagon socket head cap bolts: 11-M4�10
Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
120
C8 Rev.11
Maintenance 3. Covers
C8-A1401*B* (C8XL)
Removal
1. Remove the fan. For details, refer to Maintenance 15. Replacing the Fan..
2. Remove the bolts on the heat sink. Hexagon socket head cap bolts: 4-M4�15
3. Remove the heat sink.
NOTE For cleanroom and protection models, remove the gasket between the heat sink and the base cover.
4. Remove the bolts, and then remove the base cover and the base rear gasket.
NOTE
Hexagon socket head cap bolts: 11-M4�10 The gasket has the spacers. Be careful not to lose them.
C8-A1401*B* (C8XL)
Installation
1. Install the spacers to the holes on the gasket. (11 places)
2. Apply the liquid gasket to the base rear gasket. Install the base rear gasket to the base cover. (See the figure for gasket applying points)
Gasket Applying point (�11)
Spacer (�11) Base area gasket
Base cover
NOTE After applying the liquid gasket, leave the gasket until the liquid gasket becomes solid and the gasket is fixed.
C8 Rev.11
121
Maintenance 3. Covers
3. Install the base cover to the Manipulator. Hexagon socket head cap bolts: 11-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
NOTE For cleanroom and protection models, install the gasket between the heat sink and the base cover.
4. Install the heat sink. Hexagon socket head cap bolts: 4-M4�15 Tightening torque: 4.0 � 0.2 N�m
5. Install the fan. For details, refer to Maintenance 15. Replacing the Fan.
122
C8 Rev.11
Maintenance 3. Covers
3.10 Base Maintenance Cover
CAUTION
When mounting the cover, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the cover. Be sure to place the cables back to their original locations.
Removal
Remove the screws and then remove the base maintenance cover.
S, C models: Cross recessed truss head small screws: 6-M4�10
P model: Hexagon socket head cap bolts: 6-M4�10
Remove the base maintenance gasket together. The gasket has the spacers. Be careful not to lose them.
Installation (S, C models)
Install the base maintenance cover to the Manipulator. Hexagon socket head cap bolts: 6-M4�10 Tightening Torque: 0.9 � 0.1 N�m
NOTE
Be careful not to get the cables caught between the cover and the Manipulator.
C8 Rev.11
123
Maintenance 3. Covers
Installation (P model)
1. Install the spacers to the holes on the gasket. (6 places)
2. Apply the liquid gasket to the base maintenance gasket. Install the base maintenance gasket to the base cover. (See the figure for gasket applying points)
Gasket applying point (�6)
Spacer (�6) Base maintenance gasket Base maintenance plate
NOTE After applying the liquid gasket, leave the gasket until the liquid gasket becomes solid and the gasket is fixed. 3. Install the base maintenance cover to the Manipulator.
Hexagon socket head cap bolts: 6-M4�10
Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
124
C8 Rev.11
Maintenance 3. Covers
3.11 Connector Plate
CAUTION
3.11.1 M/C Cable Backward
Do not remove the connector plate forcibly. It may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system.
When installing the connector plate, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the connector plate. Be sure to place the cables back to their original locations.
C8-A701** (C8), C8-A901** (C8L)
Removal
Remove the bolts and then remove the connector plate.
Hexagon socket head cap bolts: 11-M4�10
P model: Remove the base rear gasket together.
NOTE The gasket has the spacers. Be careful not to lose them.
C8 Rev.11
125
Maintenance 3. Covers
C8-A701** (C8), C8-A901** (C8L)
Installation (S, C models)
Install the connector plate to the Manipulator. Hexagon socket head cap bolts: 11-M4�10
Tightening Torque: 4.0 � 0.2 N�m
Be careful not to get the cables caught between the cover and the Manipulator.
C8-A701** (C8), C8-A901** (C8L)
Installation (P model)
1. Install the spacers to the holes on the gasket. (11 places)
2. Apply the liquid gasket to the base rear gasket. Install the base rear gasket to the connector plate. (See the figure for gasket applying points)
Gasket Applying point (�11)
Spacer (�11) Base area gasket
Connector plate
NOTE After applying the liquid gasket, leave the gasket until the liquid gasket becomes solid
and the gasket is fixed.
3. Install the connector plate to the Manipulator.
Hexagon socket head cap bolts: 11-M4�10
Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
126
C8 Rev.11
Maintenance 3. Covers
C8-A1401** (C8XL)
Removal
1. Remove the fan. For details, refer to Maintenance 15. Replacing the Fan.
2. Remove the bolts on the heat sink Hexagon socket head cap bolts: 4-M4�15
3. Remove the heat sink.
NOTE For cleanroom and protection models, remove the gasket between the heat sink and the connecter plate.
4. Remove the bolts, and then remove the connecter plate. and the base rear gasket. Hexagon socket head cap bolts: 11-M4�10
NOTE The gasket has the spacers. Be careful not to lose them.
C8-A1401** (C8XL)
Installation
1. Install the spacers to the holes on the gasket. (11 places)
2. Apply the liquid gasket to the base rear gasket. Install the base rear gasket to the base cover. (See the figure for gasket applying points)
Gasket Applying point (�11)
Spacer (�11) Base area gasket
Base cover
NOTE After applying the liquid gasket, leave the gasket until the liquid gasket becomes solid and the gasket is fixed.
C8 Rev.11
127
Maintenance 3. Covers
3. Install the connecter plate to the Manipulator. Hexagon socket head cap bolts: 11-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the gasket and cables caught between the cover and the Manipulator. Replace the gasket if there are flaws or deteriorations.
NOTE For cleanroom and protection models, install the gasket between the heat sink and the connector plate. 4. Install the heat sink. Hexagon socket head cap bolts: 4-M4�15 Tightening torque: 4.0 � 0.2 N�m
5. Install the fan. For details, refer to Maintenance 15. Replacing the Fan.
128
C8 Rev.11
Maintenance 3. Covers
CAUTION
3.11.2 M/C Cable Downward
Do not remove the connector plate forcibly. It may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system.
When installing the connector plate, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the connector plate. Be sure to place the cables back to their original locations.
Removal
Remove the bolts and then remove the connector plate. Hexagon socket head cap bolts: 8-M4�10
P model: Remove the base bottom gasket together.
Installation
S, C models: Install the connector plate to the Manipulator.
Hexagon socket head cap bolts: 8-M4�10
Tightening Torque: 4.0 � 0.2 N�m
P model: Install the base bottom gasket to grove on the base bottom face. Install the connector plate to the Manipulator.
Hexagon socket head cap bolts: 8-M4�10
Tightening Torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the gasket and cables caught between the cover and the Manipulator.
Replace the gasket if there are flaws or deteriorations.
C8 Rev.11
129
Maintenance 3. Covers
3.12 Connector Sub Plate
Do not remove the connector sub plate forcibly. It may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system.
CAUTION
When removing the connector sub plate, make sure to remove all connectors of the connector plate and the M/C cable. Removing only the connector sub plate may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system.
When installing the connector sub plate, be careful not to get the cables caught in it or bend them forcibly to push into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations at removing the connector sub plate. Be sure to place the cables back to their original locations.
Removal
Remove the bolts and then remove the connector sub plate.
S, C models: Hexagon socket head cap bolts: 4-M4�10
P model: Hexagon socket head cap bolts: 4-M4�10 (with a seal washer)
NOTE
Remove the base sub plate gasket together. The gasket has the spacers. Be careful not to lose the seal washers and spacers.
130
C8 Rev.11
Maintenance 3. Covers
Installation (S, C models)
Install the connector sub plate to the Manipulator. Hexagon socket head cap bolts: 4-M4�10
NOTE
Tightening Torque: 4.0 � 0.2 N�m Be careful not to get the cables caught between the cover and the Manipulator.
Installation (P model)
1. Install the spacers to the holes on the gasket. (4 places)
2. Apply the liquid gasket to the base sub plate gasket. Install the base sub plate gasket to the connector sub plate. (See the figure for gasket applying points)
Spacer (�4) Connector sub plate
Gasket applying point (�4)
Sub plate gasket
NOTE
After applying the liquid gasket, leave the gasket until the liquid gasket becomes solid and the gasket is fixed.
3. Install the connector sub plate to the Manipulator.
Hexagon socket head cap bolts: 4-M4�10 (with a seal washer) Tightening torque: 4.0 � 0.2 N�m
NOTE
Be careful not to get the gasket and cables caught between the cover and the Manipulator.
Replace the seal washers and gasket if there are flaws or deteriorations.
C8 Rev.11
131
Maintenance 4. Cable Unit
4. Cable Unit
4.1 Replacing the Cable Unit
WARNING
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source. To shut off power to the robot system, disconnect the power plug from the power source. Performing any work while connecting the AC power cable to a factory power source is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Be careful not to get any foreign substances in the Manipulator, connectors, and pins during maintenance. Turning ON the power to the robot system when any foreign substances exist in them is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Be sure to connect the cables properly. Do not allow unnecessary strain on the cables. (Do not put heavy objects on the cables. Do not bend or pull the cables forcibly.) Unnecessary strain on the cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system.
When mounting the cover, be careful not to allow the cables to interfere with the cover mounting and do not bend these cables forcibly to push them into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. Damaged cables, disconnection, or contact failure is extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, observe the cable locations after removing the cover. Be sure to place the cables back to their original locations.
132
C8 Rev.11
Maintenance 4. Cable Unit
CAUTION
When disconnecting the connectors during the replacement of the cable unit, be sure to reconnect the connectors to their proper positions. Improper connection of the connectors may result in improper function of the robot system. For details on the connections, refer to the Maintenance 4.2 Connector Pin Assignments.
Carefully use alcohol and adhesive following respective instructions and also instructions below. Otherwise, it may cause a fire and/or safety problems.
- Never put alcohol or adhesive close to fire. - Use alcohol or adhesive while ventilating the room. - Wear protective gear including a mask, protective goggles, and oil-resistant
gloves. - If alcohol or adhesive gets on your skin, wash the area thoroughly with soap
and water. - If alcohol or adhesive gets into your eyes or mouth, flush your eyes or wash
out your mouth with clean water thoroughly, and then see a doctor immediately.
Wear protective gear including a mask, protective goggles, and oil-resistant gloves during grease up. If grease gets into your eyes, mouth, or on your skin, follow the instructions below. If grease gets into your eyes : Flush them thoroughly with clean water, and then see a doctor immediately. If grease gets into your mouth : If swallowed, do not induce vomiting. See a doctor immediately. If grease just gets into your mouth, wash out your mouth with water thoroughly. If grease gets on your skin : Wash the area thoroughly with soap and water.
C8 Rev.11
133
Maintenance 4. Cable Unit
4.1.1 Replacing the Cable Unit (M/C Cable Backward)
Name
Qty.
Note
C8-A701** (C8)
Cable unit C8-A901** (C8L)
Maintenance Parts
C8-A1401** (C8XL)
Tools
Belt tensile jig*
J1 brake positioning jig*
Wire tie
AB100 AB150
width across flats: 2.5 mm
Hexagonal width across flats: 3 mm
wrench width across flats: 4 mm
width across flats: 5 mm
Box wrench
width across flats: 5 mm
Long nose pliers
Nippers
Cross-point screwdriver (#2)
Torque rench
Belt tension meter
For standard, cleanroom 1
models
2172929
1 For protection model
2172932
For standard, cleanroom 1 models
2172930
1 For protection model
2172933
For standard, cleanroom 1 models
2172931
1 For protection model
2172934
1 1674582
1 1675081
1 1675753
1 1675754
1 For M3 hexagon socket head cap bolts
1 For M4 hexagon socket head cap bolts
1 For M5 hexagon socket head cap bolts
1 For M6 hexagon socket head cap bolts
1 For D-Sub connector
1 For removing an air tube 1 For cutting a wire tie 1 For cross recessed head screws 1 For tightening torque control 1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use this jig when adjusting belt tension. The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 motor, tilt the Arm #2 and press it against the Arm #1. Reference: Maintenance: 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When removing the Joint #3 motor, tilt the Arm #2 and press it against the Arm #2. Reference: Maintenance: 7.1 Joint #3 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
134
C8 Rev.11
Maintenance 4. Cable Unit
Removal: Cable unit (M/C cable backward) 1. Move the Manipulator to the origin posture (0 pulse position).
2. Turn OFF the Controller.
3. Remove the following covers and plate.
For details, refer to Maintenance: 3. Covers.
Arm #4 side covers (both sides) Arm #4 maintenance cover (C8XL only)
Arm #3 cover
Arm #3 maintenance cover
Arm #2 side covers (both sides) Arm #1 side covers (both sides)
Arm #1 center cover
Base maintenance cover
Connector plate (M/C cable backward)
4. Remove the two air tubes inside the base.
5. Remove the two D-sub connectors.
6. Disconnect the cables from the base and disconnect the following connectors.
Connectors: X11, X12, X14, BR010, BR011, X010, X020, X040, LED, GS01, BT1 (Hold the clip to remove.)
7. Disconnect the following connectors.
RJ45 connector: Hold the clip to remove.
F-sensor connector: Open the clips on the both ends of the connector and pull it out.
C8 Rev.11
135
Maintenance 4. Cable Unit 8. Remove the ground wire plate (M/C cable backward).
Hexagon socket head cap bolts: 2-M4�10
9. Remove the ground wire terminals. Cross recessed head screws with washer S, C models : 9-M4�8, 2-M3�6 P model : 10-M4�8, 2-M3�6
10. Remove the brake power supply. Cross recessed head screws with washer: 2-M3�6
11. Disconnect the following cables through the opening of the base. D-sub cable Ground wire RJ45 connector F-sensor connector
12. Remove the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1 - Replacing the Motor (M/C Cable Backward, Removal steps (6) and (7).
13. Remove the plate for preventing cable interference. Hexagon socket head cap bolts: 2-M3�6
136
C8 Rev.11
14. Remove the base cable bracket (C1) and the cable protection sheet. Hexagon socket head cap bolts: 2-M3�6
Maintenance 4. Cable Unit
15. Remove the Joint #1 timing belt.
16. Remove the battery from the battery box.
17. Disconnect the battery connector.
NOTE Hold the board by hand and pull up the battery cable to disconnect the connector.
18. Remove the plate to which the battery board is fixed. Hexagon socket head cap bolts: 2-M4�10
C8 Rev.11
137
Maintenance 4. Cable Unit
19. Disconnect the battery connectors. Connectors: CN3, CN6
20. Remove the two ground wire terminals from the Arm #1. Cross recessed head screws with washer: 2-M4�8
21. Remove the Joint #2 motor unit. For details, refer to Maintenance: 6.1 Joint #2 - Replacing the Motor, Removal steps (1) to (3) and (5) to (9).
22. Cut off the wire tie that binds the cables inside the Arm #1 and remove the connector connected to the control board 1. Connector: GS01
23. Remove the Joint #1 cable fixing plate (Arm #1 side). Hexagon socket head cap bolts: 2-M4�10
24. Disconnect the internal cables from the base side to the Arm #1 side. Protect the connectors with masking tapes. - To protect the connector's clips - To avoid adherence of cable grease
NOTE Disconnect the connectors one by one in order from the smallest connector to the largest one.
138
C8 Rev.11
25. Remove the Arm #1 cable brackets (C1: 2 pieces) and cable protection tube.
Hexagon socket head cap bolts: 4-M3�6
Maintenance 4. Cable Unit
26. Remove the Arm #1 cable brackets (C2 and S2: one each) and cable protection tube. Hexagon socket head cap bolts: 2-M3�6 (C2) 2-M4�10 (S2)
27. Remove the Arm #2 cable bracket (C2) and cable protection tube. Hexagon socket head cap bolts: 2-M3�6
28. Remove the Arm #2 cable fixing plate. Hexagon socket head cap bolts: 2-M4�10
29. Cut off the wire tie that binds the cable protection coils inside the Arm #2.
C8 Rev.11
139
Maintenance 4. Cable Unit 30. Remove the two ground wire terminals from the Arm #2.
Cross recessed head screws with washer: 2-M4�8 0
31. Remove the Joint #3 motor unit. For details, refer to Maintenance: 7.1 Joint #3 - Replacing the Motor, Removal steps (1) to (3) and (5) to (8).
32. Remove the two Arm #2 cable brackets (C3A and S3). Hexagon socket head cap bolts: 2-M4�8 (C3A) 2-M4�8 (S3)
33. Remove the two air tubes inside the Arm #3. Remove the air tube fittings from the air tubes. The air tube fittings will be used again. Be careful not to lose them.
34. Remove the two ground wire terminals from the Arm #3. Cross recessed head screws with washer: 2-M4�8
35. Disconnect the connectors inside the Arm #3. Connectors: X141, X151, X161, BR041, BR051, X041, X71, X72, PS, LED, BT51, BT4 (Hold the clip to remove.)
36. Remove the connector connected to the control board 2. Connector: GS02
140
C8 Rev.11
37. Remove the fixing plate of the Arm #3 control board 2. Hexagon socket head cap bolts: 2-M4�10
Maintenance 4. Cable Unit
38. Remove the Arm #3 cable bracket (C3B). Hexagon socket head cap bolts: 2-M3�6
39. Remove the Arm #3 cable fixing plate 1. Hexagon socket head cap bolts: 2-M4�10
40. Cut off the wire tie that binds the cable protection coils inside the Arm #3.
41. Disconnect the cables from the Arm #3 side to the Arm #2 side.
C8 Rev.11
141
Maintenance 4. Cable Unit 42. Pull out the separated cable unit (base side) from the Arm #1 side to
the Arm #2 side. To protect the connectors and facilitate the work, first cover the connectors with a plastic bag. Then, pass the cable unit through the arm.
43. Remove the Arm #3 cable fixing plate 2. Hexagon socket head cap bolts: 2-M4�10
44. Remove the Arm #3 cable bracket (C4) and the cable protection sheet. Hexagon socket head cap bolts: 2-M3�6
C8XL: Remove the cable bracket (C4) and the cable protection sheet at the Arm #4 maintenance cover. Hexagon socket head cap bolts: 2-M3�6
142
C8 Rev.11
45. Remove the two air tubes inside the Arm #4.
Maintenance 4. Cable Unit
46. Cut off the wire tie that binds the cables of the Arm #4.
47. Loosen the bolts that fix the cable protection plate attached on the Arm #4, and disconnect the cables. Hexagon socket head cap bolts: 2-M4�10
48. Remove the ground wire terminals from the cable protection plate. Cross recessed head screws with washer: 4-M4�8
C8 Rev.11
143
Maintenance 4. Cable Unit 49. Remove the Joints #5 and #6 motor units.
For details, refer to Maintenance: 9.1 Joint #5 - Replacing the Motor, Removal steps (4) to (8), and Maintenance: 10.1 Joint #6 - Replacing the Motor, Removal steps (4) to (7). The air tube fittings removed together with the Joint #5 motor unit will be used again. Be careful not to lose them. 50. Remove the Arm #4 D-sub attachment.
Hexagon socket head cap bolts: 2-M4�10 For details, refer to Maintenance: 3. Covers.
51. Remove the following parts from the Arm #4 D-sub attachment. S, C models: D-sub connector D-sub connector fixing plate P model: D-sub connector
52. Remove the Arm #4 cable fixing plate. Hexagon socket head cap bolts: 2-M4�10
53. Remove the cable bracket (C4). Hexagon socket head cap bolts: 2-M3�6
144
C8 Rev.11
54. Disconnect the following cables that have no relays from the Arm #4 side to the Arm #3 side. Ethernet cable X052/X062 cable Ground wire (green/yellow)
Maintenance 4. Cable Unit
C8 Rev.11
145
Maintenance 4. Cable Unit
Installation: Cable unit (M/C cable backward) 1. Check if the cable unit contains the following parts.
Silicone sheet: 3 sheets (25 mm � 120 mm) F-sensor connector housing 2 pieces
Silicon sheet
3 sheets (25 mm � 120 mm)
2. Remove the Ethernet cable from the connector. Protect the cable ends with masking tapes to prevent the clip from damage.
3. Remove the locking screws and nuts of the D-sub connector.
The screws and nuts will be used again for fixing the connector. Be careful not to lose them.
4. Disconnect the following connectors to separate the cables.
Connectors: X051, X061, X151, X161, XGND, BR051, BR061, BT51, BT61, X71, X72, SW1
146
C8 Rev.11
Maintenance 4. Cable Unit
5. Place a mark at the fixing position of each cable you are going to pass through the Arm #4.
130 mm
D-sub Other cables Air tube
: 130 mm from the connector end : 190 mm from the connector end : 210 mm from the end
6. Pass the separated cable unit (base side) from the Arm #2 to the Arm #1. To protect the connectors and facilitate the work, first cover the connectors with a plastic bag. Then, pass the cable unit through the arm.
Pass the following cables that have no relays through the arm to the Arm #3 side.
Ethernet cable X052/X062 cable Ground wire (green/yellow)
C8 Rev.11
147
Maintenance 4. Cable Unit
Leave out the other connector cables for a certain length, as shown in the photo, in order to store them in the Arm #3.
7. Pass the Ethernet cable, X052/X062 cable, and ground wire (green/yellow) from the Arm #3 side to the Arm #4 side.
C8/C8L: Pass the cables one by one through the arm from the Arm #3 side.
C8XL: First pass the braid tube from the Arm #4 side to the Arm #3 side. Insert the connectors through the braid tube, as shown in the photo, and fix the tube with the wire tie so that connectors are not to be pulled out. Then, pull the braid tube from the Arm #4 side while pushing the cables from the Arm #3 side to pass the cables through. (See the photo.)
8. Pass the separated cable unit (Arm #4 side) from the Arm #4 to the Arm #3.
C8/C8L: No silicone tube is provided.
C8XL: Silicone tube is provided. Leave out the silicone tube on the Arm #4 side. Pass the following cables through the silicone tube: Ethernet cable, X052/X062 cable, and ground wire (green/yellow) that have been passed from the Arm #3 side.
148
C8 Rev.11
Maintenance 4. Cable Unit
NOTE
As shown in the photo, disconnect the Ethernet cable and air tube (blue) at one side of the Arm #4. Disconnect the remaining cables at the other side.
Align the marked positions and the position on the Arm #4 indicated with the arrow in the photo.
9. Install the cable fixing plate to the Arm #4. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
10. Use a cable bracket (C4) to fix the cables. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m
C8/C8L: Wrap the cables with the attached silicone sheet. Use a cable bracket to fix the wrapped silicone sheet.
C8XL: Place the silicone tube to the position where it is fixed with a cable bracket. Use a cable bracket to fix the silicone tube.
C8 Rev.11
149
Maintenance 4. Cable Unit
11. Install the D-sub connector to the D-sub attachment of the Arm #4. S, C models: A D-sub connector fixing plate is provided. Hold the D-sub connector between the D-sub attachment of the Arm #4 and the D sub connector fixing plate, and fix them with the locking screws removed in step 3 above. (The nuts and washers are not used.)
P model: No D-sub connector fixing plate is provided. The D-sub connector has screw holes. Fix the D-sub connector using the locking screws removed in step 3 above.
12. Install the D-sub attachment to the Arm #4. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE
Do not to let the cables caught in the attachment.
For details, refer to Maintenance: 3. Covers.
150
C8 Rev.11
Maintenance 4. Cable Unit
13. Install the motors for the Joints #5 and #6. Connect the cables and air tube and store them inside.
Upper photo: Joint #5 motor side Place the Ethernet cable and the air tube (blue) on the near side.
Lower photo: Joint #6 motor side Place the other cables and the air tube (clear) on the front side.
Fix the cables by binding them with a wire tie (INSULOC AB150 or equivalent) inserted through the hole of the cable fixing plate so that the cables do not interfere with the Joint #6 motor pulley.
Pay attention so that no connector is installed incorrectly and no cable is caught between components.
For details, refer to Maintenance: 9.1 Joint #5 - Replacing the Motor, Installation steps (4) to (8), and Maintenance: 10.1 Joint #6 - Replacing the Motor, Installation steps (4) and (7).
NOTE
Use the air tube fittings removed in the cable removal steps again. 14. Mount the brake power supply to the plate. Mount the power so that the cables are directed down.
Cross recessed head screws with washer: 4-M3�6 Tightening torque: 0.45 � 0.1 N�m
Installation locations: Brake power supply for Joint #5: right side Brake power supply for Joint #6: left side
15. Fix the cable protection plate to the Arm #4. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the cables caught. It may cause cable breakage.
C8 Rev.11
151
Maintenance 4. Cable Unit
16. C8XL: Fix the cables to the Arm #4 maintenance cover using a cable bracket (C4).
Wrap the cables with the attached silicone sheet. Use a cable bracket to fix the wrapped silicone sheet.
Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m 17. Apply grease to the cables in the sleeve.
Grease: Krytox Amount: C8/C8XL approximately 3g
C8L: approximately 6g
Divide the above grease into halves and apply each half from the Arm #4 side and the Arm #3 side respectively.
Pay attention so that the grease does not get into the cable fixing area in the Arm #3 and connectors.
18. Use a cable bracket (C4) to fix the cables to the Arm #3 cable fixing plate 2.
Wrap the cables with the attached silicone sheet. Use a cable bracket to fix the wrapped silicone sheet.
Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m 19. Install the Arm #3 cable fixing plate 2 to the Arm #3. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
152
C8 Rev.11
20. Use the cable protection spring to bind cables at the Arm #3 cable fixing plate 1. Type of wire tie: AB100 Number of wire ties: 4
Maintenance 4. Cable Unit
21. Install the Arm #3 cable fixing plate 1 to the Arm #3. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
22. Use a cable bracket (C3B) to fix the cables. Place the two air tubes at the bottom part of the cables. Place the silicone tube to the position where it is fixed with a cable bracket. Use a cable bracket to fix the silicone tube. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m
23. Install the control board 2 fixing plate to the Arm #3. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
C8 Rev.11
153
Maintenance 4. Cable Unit
24. Connect the connector to the control board 2. Connector: GS02
25. Connect the cable connectors inside the Arm #3.
Connectors: X141, X151, X161, BR041, BR051, X041, X71, X72, PS, LED, BT51, BT4 (Hold the clip to remove.)
26. Install the two ground wire terminals to the Arm #3.
Green/yellow: Left side
Green: Right side
Cross recessed head screws with washer: 2-M4�8
Tightening torque: 0.9 � 0.1 N�m
27. Use air tube fittings (elbows) to connect air tubes of the same color.
Remove the air tube fittings from the old cables to use them again.
Adjust the connector protrusion so that the cover can be installed.
154
C8 Rev.11
28. Use brackets (S3) to fix the cable protection spring to the Arm #2. Hexagon socket head cap bolts: 2-M4�8 Tightening torque: 4.0 � 0.2 N�m
Maintenance 4. Cable Unit
29. Use cable brackets (C3A) to fix the cables to the Arm #2 temporarily.
Place the silicone tube to the position where it is fixed with a cable bracket. Use a cable bracket to fix the silicone tube temporarily.
Hexagon socket head cap bolts: 2-M4�8 Rough guide of temporary fixing:
The cables can be pushed up even after fixing the cables.
30. Push up the whole cables by 10 mm to the direction indicated with the arrow in the photo to allow for some space.
31. Fix the cables to the Arm #2 by fixing the cable brackets (C3A). Check that the silicone tube is not shifted away from the fixed position. Hexagon socket head cap bolts: 2-M4�8 Tightening torque: 4.0 � 0.2 N�m
32. Install the Joint #3 motor unit. For details, refer to Maintenance: 7.1 Joint #3 - Replacing the Motor, Installation steps (4) and (8).
33. Fix the two ground wire terminals to the Arm #2. Green: Right side Green/yellow: Left side Cross recessed head screws with washer: 2-M4�8 Tightening torque: 0.9 � 0.1 N�m
C8 Rev.11
155
Maintenance 4. Cable Unit
34. Use the cable protection spring to bind cables at the Arm #2 cable fixing plate. Type of wire tie: AB100 Number of wire ties: 4
Be careful of the orientation of the Arm #2 cable fixing plate. The side with two U-shaped grooves should be placed down.
35. Use cable brackets (C2) to fix the cables to the Arm #2 cable fixing plate temporarily.
Place the silicone tube to the position where it is fixed with a cable bracket. Use a cable bracket to fix the silicone tube temporarily.
Hexagon socket head cap bolts: 2-M3�6 Rough guide of temporary fixing:
The cables can be pushed up even after fixing the cables. 36. Install the Arm #2 cable fixing plate to the Arm #2.
After fitting the two U-shaped grooves to the fixing bolts, tighten the bolts.
Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
37. Fix the cables to the Arm #2 cable fixing plate. Check that the silicone tube is not shifted away from the fixed position. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m
156
C8 Rev.11
38. Use brackets (S2) to fix the cable protection spring to the Arm #1. Hexagon socket head cap bolts: 2-M4�8 Tightening torque: 4.0 � 0.2 N�m
Maintenance 4. Cable Unit
39. Use cable brackets (C2) to fix the cables to the Arm #2 temporarily. Place the silicone tube to the position where it is fixed with a cable bracket. Use a cable bracket to fix the silicone tube temporarily.
Hexagon socket head cap bolts: 2-M3�6
Rough guide of temporary fixing: The cables can be pushed up even after fixing the cables.
40. Push up the whole cables by 10 mm to the direction indicated with the arrow in the photo to allow for some space.
41. Fix the cables to the Arm #1. Check that the silicone tube is not shifted away from the fixed position. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m
42. Place a mark at a position 250 mm from the cable bracket (C2).
C8 Rev.11
250 mm
157
Maintenance 4. Cable Unit 43. For the GS01 cable to be installed on the control board 1, place
a mark at a position 130 mm from the connector.
44. For the X021, X121, BR021, and CN3 cables, place a mark at a position 160 mm from the connector respectively.
45. Use cable brackets (C1) to fix the cables to the Arm #1 cable fixing plate temporarily (2 positions). Temporarily fix the silicone tube by aligning its end to the mark. Hexagon socket head cap bolts: 4-M3�6 Rough guide of temporary fixing: The cables can be pushed up even after fixing the cables.
158
C8 Rev.11
46. Fix the Arm #1 cable fixing plate temporarily to the Arm #1 and finely adjust the cable length.
Hexagon socket head cap bolts: 2-M4�10
Rough guide of temporary fixing: The plate should not move.
Notes for fine adjustment:
- No excess looseness or tension on the cables. The cables should not be pressed strongly against the arm edge.
- The X021, X121, BR021, and CN3 connectors should reach the end face of the Arm #1 when they are pulled out. The cables should not be too long.
Maintenance 4. Cable Unit
47. Place a mark on the cables at the sleeve outlet on the base side.
48. Fix the cable bracket (C1)-A on the near side so that the cable positions do not change. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m
49. Remove the Arm #1 cable fixing plate fixed temporarily, and fix another cable bracket (C1)-B.
Removing Arm #1 cable fixing plate: Hexagon socket head cap bolts: 2-M4�10
Fixing cable bracket (C1)-B: Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.4 � 0.1 N�m
B A
C8 Rev.11
159
Maintenance 4. Cable Unit 50. Apply grease to the cables inside the J1 sleeve.
Grease: Krytox Amount: Approximately 7.5g Application position: Between fixing section of the bracket (C1) and the mark on the base side 51. Fix the Arm #1 cable fixing plate to the Arm #1. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
52. Install the connector GS01 to the control board 1.
53. Install the Joint #2 motor and connect the connector. For details, refer to Maintenance: 6.1 Joint #2 - Replacing the Motor, Installation steps (4) and (9).
54. Fix the two ground wire terminals to the Arm #2.
Green: Right side
Green/yellow: Left side
55. Connect the battery connectors. Connectors: CN3, CN6
160
C8 Rev.11
56. Install the battery board fixing plate. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
57. Connect the battery connectors.
58. Install the battery to the battery box. 59. Pass the Joint #1 timing belt through the cable.
Maintenance 4. Cable Unit
60. Use cable brackets (C1) to fix the cables to the base cable fixing plate.
Wrap the cables with the attached silicone sheet. Use a cable bracket to fix the wrapped silicone sheet.
Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.0 � 0.1 N�m
61. Install the plate for preventing cable interference. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.0 � 0.1 N�m
62. Install the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1 - Replacing the Motor (M/C Cable Backward), Installation steps (1) to (4).
C8 Rev.11
161
Maintenance 4. Cable Unit
63. Push out the following cables upward through the opening of the base. D-sub cable Ground wire RJ45 connector F-sensor connector
64. Install the brake power supply to the plate. The cables should be located in the direction as shown in the photo. (See the photo.) Cross recessed head screws with washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
65. Install the ground wire terminals to the plate.
Cross recessed head screws with washer
S, C models
:9-M4�8, 2-M3�6
P model
:10-M4�8, 2-M3�6
Tightening torque :0.9 � 0.1 N�m (M4�8) 0.45 � 0.1 N�m (M3�6)
NOTE The installation positions of the D-sub cable ground terminals are predetermined. Make sure to install them to the two screw holes on the backside of the Manipulator (indicated with arrows in the photo).
66. Install the ground wire plate (M/C cable backward). Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
67. Install the following connectors according to the marks on the connector plate.
RJ45 connector: Ether F-sensor connector: F-sensor
162
C8 Rev.11
68. Connect the M/C cable connectors.
Connectors: X11, X12, X14, BR010, BR011, X010, X020, X040, LED, GS01, BT1
Maintenance 4. Cable Unit
69. Install the D-sub connectors according to the marks on the connector plate. Left: D-sub connector for brake release (with a wire marker: SW1): B-release Right: D-sub connector for user wiring (without a wire marker: With round terminal): D-sub
70. Install the two air tubes according to the marks on the connector plate.
Air1: Clear NOTE Air2: Blue
Install the air tube with the correct color. 71. Install the covers and plate indicated below.
Arm #4 side covers (both sides) Arm #4 maintenance cover (C8XL only)
Arm #3 cover
Arm #3 maintenance cover
Arm #2 side covers (both sides) Arm #1 side covers (both sides)
Arm #1 center cover
Base maintenance cover
Connector plate (M/C cable backward)
For details, refer to Maintenance: 3. Covers.
72. Perform calibration.
For details, refer to Maintenance: 16. Calibration.
C8 Rev.11
163
Maintenance 4. Cable Unit
4.1.2 Replacing the Cable Unit (M/C Cable Downward)
Name
Qty.
Note
C8-A701*B* (C8)
For standard, cleanroom 1
models
2172929
1 For protection model
2172932
Cable unit C8-A901*B* (C8L)
For standard, cleanroom 1
models
2172930
Maintenance Parts
C8-A1401*B* (C8XL)
1 For protection model For standard, cleanroom
1 models
2172933 2172931
1 For protection model
2172934
Belt tensile jig*
1 1674582
J1 brake positioning jig*
1 1675081
Wire tie
AB100 AB150
1 1675753 1 1675754
Hexagonal wrench
width across flats: 2.5 mm width across flats: 3 mm width across flats: 4 mm
1 For M3 hexagon socket head cap bolts
1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts
width across flats: 5 mm
1 For M6 hexagon socket head cap bolts
Tools
Box wrench
width across flats: 5 mm
1 For D-Sub connector
Long nose pliers
1 For removing an air tube
Nippers
1 For cutting a wire tie
Cross-point screwdriver (#2)
1 For cross recessed head screws
Torque rench
1 For tightening torque control
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use this jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 motor, tilt the Arm #2 and press it against the Arm #1. Reference: Maintenance: 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When removing the Joint #3 motor, tilt the Arm #3 and press it against the Arm #2. Reference: Maintenance: 7.1 Joint #3 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
164
C8 Rev.11
Maintenance 4. Cable Unit
Removal: Cable unit (M/C cable downward) 1. Move the Manipulator to the origin posture (0 pulse position). 2. Turn OFF the Controller. 3. Turn the Manipulator laterally.
CAUTION
When turning the Manipulator laterally, there must be two or more people to work on it so that at least one of them can support the arm while the others are removing the bolts. Removing the bolts without supporting the arm may result in the arm falling, bodily injury, and/or malfunction of the robot system.
4. Remove the covers and plate indicated below.
Arm #4 side covers (both sides) Arm #4 maintenance cover (C8XL only)
Arm #3 cover
Arm #3 maintenance cover
Arm #2 side covers (both sides) Arm #1 side covers (both sides)
Arm #1 center cover
Base cover (M/C cable downward)
Base maintenance cover
Connector plate (M/C cable downward)
For details, refer to Maintenance: 3. Covers.
5. Remove the two air tubes in the base.
6. Remove the two D-sub connectors. 7. Disconnect the cable from the base and disconnect the following
connectors. Connectors: X11, X12, X14, BR010, BR011, X010, X020,
X040, LED, GS01, BT1 (Hold the clip to remove.)
8. Disconnect the following connectors.
RJ45 connector: Hold the clip to remove.
F-sensor connector: Open the clips on the both ends of the connector and pull it out.
C8 Rev.11
165
Maintenance 4. Cable Unit
9. Remove the ground wire terminals.
Cross recessed head screws with washer
S, C models: : 9-M4�8, 2-M3�6
P model
: 10-M4�8, 2-M3�6
10. Remove the brake power supply. Cross recessed head screws with washer: 2-M3�6
11. The subsequent steps are the same as those for the M/C cable (backward).
For details, refer to Maintenance: 4.1.1 Replacing the Cable Unit (M/C Cable Backward), Removal steps (13) to (54).
166
C8 Rev.11
Maintenance 4. Cable Unit
Installation: Cable unit (M/C cable downward)
1. Perform the installation steps (1) to (62) of Maintenance: 4.1.1 Replacing the Cable Unit (M/C Cable Backward).
2. Turn the Manipulator laterally.
CAUTION
When turning the Manipulator laterally, there must be two or more people to work on it so that at least one of them can support the arm while the others are removing the bolts. Removing the bolts without supporting the arm may result in the arm falling, bodily injury, and/or malfunction of the robot system.
3. Install the brake power supply to the plate. The cables should be located in the direction as shown in the photo. (See the photo.)
Cross recessed head screws with washer: 2-M3�6
Tightening torque: 0.45 � 0.1 N�m
4. Install the ground wire terminals to the plate.
Cross recessed head screws with washer
S, C models: P model Tightening torque
: 9-M4�8, 2-M3�6 : 10-M4�8, 2-M3�6 : 0.9 � 0.1 N�m (M4�8)
0.45 � 0.1 N�m (M3�6)
5. Install the following connectors according to the marks on the connector plate. RJ45 connector: Ether F-sensor connector: F-sensor
6. Connect the M/C cable connectors. Connectors: X11, X12, X14, BR010, BR011, X010, X020, X040, LED, GS01, BT1
7. Install the D-sub connectors according to the marks on the connector plate. Left: D-sub connector for brake release (with a wire marker: SW1): B-release Right: D-sub connector for user wiring (without a wire marker: With round terminal): D-sub
C8 Rev.11
167
Maintenance 4. Cable Unit
8. Install the two air tubes according to the marks on the connector plate.
NOTE
Air1: Clear Air2: Blue
Install the air tube with the correct color.
9. Install the following covers and plate.
Arm #4 side covers (both sides) Arm #4 maintenance cover (C8XL only)
Arm #3 cover
Arm #3 maintenance cover
Arm #2 side covers (both sides) Arm #1 side covers (both sides)
Arm #1 center cover
Base cover (M/C cable downward)
Base maintenance cover
Connector plate (M/C cable downward)
For details, refer to Maintenance: 3. Covers.
10. Perform calibration. For details, refer to Maintenance: 16. Calibration.
168
C8 Rev.11
4.2 Connector Pin Assignment
4.2.1 Signal Cable
Maintenance 4. Cable Unit
C8 Rev.11
169
Maintenance 4. Cable Unit
170
C8 Rev.11
Maintenance 4. Cable Unit
C8 Rev.11
171
Maintenance 4. Cable Unit
4.2.2 Power Cable
C8-A701*** (C8), C8-A901*** (C8L)
172
C8 Rev.11
C8-A1401*** (C8XL)
Maintenance 4. Cable Unit
C8 Rev.11
173
Maintenance 4. Cable Unit C8-A701*** (C8), C8-A901*** (C8L), C8-A1401*** (C8XL)
174
C8 Rev.11
4.2.3 User Cable
Maintenance 4. Cable Unit
4.2.4 Color of Cables
The following table shows the codes and cable colors indicated in the pin assignments 4.2.1 Signal Cable 4.2.2 Power Cable 4.2.3 User Cable
Code
B W R G Y BR L V A O GL P
Cable color
Black White Red Green Yellow Brown Blue Violet Azure Orange Gray Pink
C8 Rev.11
175
Maintenance 5. Joint #1
5. Joint #1
WARNING
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source. To shut off power to the robot system, disconnect the power plug from the power source. Performing any work while connecting the AC power cable to a factory power source is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
Be careful not to apply excessive shock to the motor shaft during replacement procedures. The shock may shorten the life of the motors and encoder and/or damage them.
Never disassemble the motor and encoder. Disassembled motor and encoder will cause a positional gap and cannot be used again.
After parts have been replaced (motors, reduction gear units, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller. After replacing the parts, it is necessary to match these origins. The process of aligning the two origins is called "Calibration". Refer to Maintenance 16. Calibration and follow the steps to perform calibration.
Joint #1 Reduction gear unit
Joint #1 Electromagnetic brake
Joint #1 Timing belt
Joint #1 Motor
(Figure: C8-A1401* (C8XL))
Maintenance procedures differ depending on the installation type of the M/C cable. 5.1 M/C Cable Backward (Joint #1) 5.2 M/C Cable Downward (Joint #1)
176
C8 Rev.11
5.1 M/C Cable Backward (Joint #1)
Maintenance 5. Joint #1
5.1.1 Joint #1 - Replacing the Motor (M/C Cable Backward)
Name
Qty.
Note
Maintenance Parts
Tools
Motor unit (Joint #1)
C8-A701** (C8) C8-A901** (C8L) C8-A1401** (C8XL)
Belt tensile jig*
J1 brake positioning jig*
Wire tie
Hexagonal wrench
AB100 AB350 width across flats: 3 mm width across flats: 4 mm width across flats: 5 mm
Cross-point screwdriver (#2)
Torque wrench
Nippers
Pliers
Belt tension meter
1 2172921
1 2172922 1 1674582 1 1675081 - 1675753 - 1697428 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control 1 For cutting the wire tie 1 For tightening the wire tie 1 Refer: Unitta U-505
* The belt tensile jig and J1 brake positioning jig are assembly jigs. Use these jigs in relevant maintenance steps.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
C8 Rev.11
177
Maintenance 5. Joint #1
Removal: Joint #1 Motor (M/C Cable Backward) 1. Turn OFF the Controller. 2. Remove the base maintenance cover.
For details, refer to Maintenance: 3. Covers. 3. Remove the connector plate (M/C cable backward).
For details, refer to Maintenance: 3. Covers. 4. Disconnect the cables from the base and disconnect the connectors.
Connector: X11, X010, BT1, BR011 (Hold the clip to remove.)
NOTE When replacing only the brake, do not disconnect the connector BT1. If the connector is disconnected, perform calibration.
C8-A701** (C8) C8-A901** (C8L)
C8-A1401** (C8XL): Remove the heat radiation block
1. Remove the wire tie and the bolts to remove the heat radiation block Hexagon socket head cap bolts: M5�15 Wire tie: AB350
NOTE
2. Remove the heat radiation sheet between the heat
C8-A1401** (C8XL)
radiation block and the motor.
The heat radiation block, the heat radiation sheet, and the bolts will be used again. Be careful not to
lose them.
Be careful not to tear the heat radiation sheet.
5. Remove the brake power supply.
Cross recessed head screws with washer: 2-M3�6
178
C8 Rev.11
6. Remove the Joint #1 brake plate from the Joint #1 motor unit. Hexagon socket head cap bolts: 3-M4�20
Maintenance 5. Joint #1
7. Remove the Joint #1 motor unit from the base. Hexagon socket head cap bolts: 3-M6�30 (with a plain washer) Be careful not to tear and lose the heat radiation sheet attached to the motor.
C8 Rev.11
179
Maintenance 5. Joint #1 Installation: Joint #1 Motor (M/C Cable Backward) 1. Put the Joint #1 timing belt on the Joint #1 pulley 2 of the Joint #1. Hold the belt so as not to drop it.
2. Check that the heat radiation sheet is attached on the right side of the motor (when seeing from the rear side of the Manipulator).
NOTE If the Manipulator is operated without the heat radiation sheet, the motor generates heat and the error may occur. If the heat radiation sheet has the protection film, remove the film.
Pass the pulley 1 of the Joint #1 motor unit to the Joint #1 timing belt and loosely secure it to the base.
Hexagon socket head cap bolts: 3-M6�30 (with a plain washer) Make sure that the gear grooves of the timing belt are fit into those of the pulley completely. When securing the motor unit loosely, make sure that the motor unit can be moved by hand and it does not tilt when being pulled. If the unit is secured too loose or too tight, the belt will not have proper tension.
180
C8 Rev.11
3. Apply proper tension to the Joint #1 motor unit and secure it. When securing the motor unit, attach the heat dissipation sheet to the right side of the base (when seeing from the rear side of the Manipulator).
Joint #1 timing belt tension: 89 to 149 N Belt tension meter setting values Weight: 4.0 g/mm width � m span, Width: 20 mm, Span: 160 mm
Hexagon socket head cap bolts: 3-M6�30 (with a plain washer) Tightening torque: 13.0 � 0.6 N�m
Maintenance 5. Joint #1
NOTE Regarding belt tension: - Jumping (position gap) may occur if the value is below the lower limit. - Vibration (abnormal noise) or reduction in life of the parts may occur if the value exceeds the upper limit. - When you replace with a new belt, belt extends and the belt tension may decrease in the initial stage. Make sure to operate the robot two to three days and check the belt tension again. When using the belt tension tensile jig (maintenance part): Fix the belt tension tensile jig (for J1, J2, J3) to the Joint #1 motor plate.
Hexagon socket head cap bolts: M5�45
Use the belt tension tensile jig (for J1, J2, J3) as shown in the photo to apply a specified tension.
As the screw is tightened, the Joint #1 motor unit will be pulled and tension will be applied.
C8-A1401** (C8XL): Install the heat radiation block For details, refer to the Heat radiation block Installation
C8 Rev.11
181
Maintenance 5. Joint #1
4. Install the Joint #1 electromagnetic brake / brake plate to the Joint 1 motor unit. Hexagon socket head cap bolts: 3-M4�20 Tightening torque: 4.0 � 0.2 N�m
Check that the motor and the brake core are aligned.
Regarding brake misalignment: - Misalignment of the brake core may cause abnormal sound or
apply abnormal torque on the brake. It may result in breakdown of the brake.
When using the J1 brake positioning jig (maintenance part):
Using the J1 brake positioning jig, check that the motor and the brake core are aligned when fixing the brake. If the J1 brake positioning jig cannot be inserted all the way, the motor and the brake core may be misaligned. In such a case, use the brake release unit (option part) to release the brake, and then align the brake.
Correct
Wrong
5. Install the brake power supply to the plate. Make sure to install the brake power supply so that the cables will be in the direction as shown in the photo. Cross recessed head screws with washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
6. Connect the following connectors. Connectors: X11, X010, BT1, BR011
7. Mount the connector plate (M/C cable backward). For details, refer to Maintenance: 3. Covers.
8. Mount the base maintenance cover. For details, refer to Maintenance: 3. Covers.
9. Calibrate the Joint #1. For details, refer to Maintenance: 16. Calibration.
Heat radiation block Installation
182
C8 Rev.11
Maintenance 5. Joint #1 1. Check that the heat radiation sheet is attached on the heat radiation block.
NOTE If the Manipulator is operated without the heat radiation sheet, the motor generates heat and the error may occur. If the heat radiation sheet has the protection film, remove the film.
(Image of the protection film) 2. Fix the upper part of the heat radiation block to the Joint #1 motor plate
with the bolts. Hexagon socket head cap bolts: M5�15 Tightening torque: 4.0 � 0.2 N�m 3. Fix the lower part of the heat radiation block to the motor with the wire tie. Wire tie: AB350 3-1 Insert the wire tie under the motor.
3-2 Hold the end of the wire tie.
3-3 While holding the end of the wire tie, push the wire tie to the direction as indicated with the arrow in the photo.
C8 Rev.11
183
Maintenance 5. Joint #1 3-4 Wrap the wire tie around the motor.
3-5 Tighten the wire tie to hold the heat radiation sheet firmly. Make sure that the heat radiation sheet sticks out of the heat radiation block.
NOTE Do not tighten the wire tie too much. It may result in cable breakage.
184
C8 Rev.11
Maintenance 5. Joint #1
5.1.2 Joint #1 - Replacing the Reduction Gear Unit (M/C Cable Backward)
Name
Qty.
Note
Maintenance Parts
Tools
Reduction gear unit (Joint #1)
C8-A701** (C8) C8-A901** (C8L) C8-A1401** (C8XL)
Belt tensile jig*
J1 brake positioning jig*
Wire tie (AB100) width across flats: 2.5 mm
Hexagonal wrench
width across flats: 3 mm width across flats: 4 mm width across flats: 5 mm
Cross-point screwdriver (#2)
Torque wrench
Belt tension meter
Cloth (cushioning)
1 1674602 1 1674603 1 1674604 1 1674582 1 1675081 1 1675753 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control 1 Refer: Unitta U-505 1 For pressing arms
* The belt tensile jig and J1 brake positioning jig are assembly jigs. Use the jigs when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 motor unit, tilt the Arm #2 and press it toward the Arm #1. Reference: Maintenance 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
C8 Rev.11
185
Maintenance 5. Joint #1
Removal: Joint #1 Reduction gear unit (M/C Cable Backward)
CAUTION
This procedure has possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when performing maintenance.
Do not loosen the bolts while the Arm #2 is not tilted.
It may cause the belt come off and the Arm #2 falls down, and it is extremely hazardous. Be sure to do the Removal steps (1) and (2) in Maintenance 6.1 Joint #2 - Replacing the Motor before removing the motor.
When removing the Arm #1, there must be two or more people to work on it so that at least one of them can support the arm while the others are removing the bolts. Removing the bolts without supporting the arm may result in the arm falling, bodily injury, and/or malfunction of the robot system.
1. Remove the following parts.
Connector plate Connector Cable grounding plate Brake power supply
For details, refer to Maintenance 5.1.3 Joint #1 - Replacing the Timing Belt (M/C Cable Backward), Removal steps (1) to (9).
2. Remove the ground terminals.
Cross recessed head screws with washer
S, C models : 9-M4�8, 2-M3�6
P model : 10-M4�8, 2-M3�6
3. Disconnect the following parts from the hole inside the base.
D-sub cable Ground wire RJ45 connector F-sensor connector
4. Remove the Joint #1 motor unit.
For details, refer to Maintenance 5.1.1 Joint #1 � Replacing the Motor Unit (M/C Cable Backward), Removal steps (6) to (7).
186
C8 Rev.11
5. Remove the cable interference prevention plate. Hexagon socket head cap bolts: 2-M3�6
6. Remove the base cable bracket (C1). Hexagon socket head cap bolts: 2-M3�6
7. Remove the Joint #1 timing belt.
Maintenance 5. Joint #1
8. Remove the Joint #2 motor unit. For details, refer to Maintenance 6.1 Joint #2 - Replacing the Motor, Removal steps (1) to (9).
9. Remove the Joint #1 cable fixing plate (Arm #1 side). Hexagon socket head cap bolts: 2-M4�10
10. Remove the connector connected to the control board 1. Connector: GS01
C8 Rev.11
187
Maintenance 5. Joint #1
11. Disconnect the internal cables from the base to the Arm #1 side. Protect the connectors with masking tapes. - To protect the connector's clips - To avoid adherence of cable grease
NOTE
Disconnect the cables one by one in order from the smallest connector to the largest one. Do not attempt to pull all connectors at once. Doing so may damage the cables.
12. Pull out the grease tube (between the base and the Arm #1) on the Arm #1 side from the fitting.
13. Remove the Arm #1 from the base.
Hexagon socket head cap bolts: 15-M6�30 (with a plain washer)
CAUTION
By removing the bolts, the Arm #1, #2, #3, #4, #5, and #6(end effector) can be separated. There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when removing the arm. Have at least two workers so that one can support the Manipulator while the other worker is removing the bolts.
14. Remove the Joint #1 reduction gear unit. Hexagon socket head cap bolts: 12-M6�50
188
C8 Rev.11
Installation: Joint #1 Reduction gear unit (M/C Cable Backward) 1. Install the Joint #1 reduction gear unit.
Hexagon socket head cap bolts: 12-M6�50 Tightening torque: 18.0 � 0.9 N�m
Installation face of the base reduction gear unit has clearance holes. Install the reduction gear unit to match the screws and the clearance holes.
2. Install the Arm #1 to the base. Hexagon socket head cap bolts: 15-M6�30 (with a plain
washer) Tightening torque: 18.0 � 0.9 N�m
Maintenance 5. Joint #1
CAUTION
There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when installing the arm. Have at least two workers so that one can support the Manipulator while the other worker is removing the bolts.
3. Connect the grease tube for the Arm #1 side to the fitting.
4. Pass the internal cables from the Arm #1 side to the base. Protect the connectors with masking tapes. - To protect the connector's clips - To avoid adherence of cable grease
NOTE
Disconnect the cables one by one in order from the largest connector to the smallest one. Do not attempt to pull all connectors at once. Doing so may damage the cables.
C8 Rev.11
189
Maintenance 5. Joint #1 5. Connect the connector to the control board 1. Connector: GS01
6. Install the Joint #1 cable bracket (Arm #1 side). Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
7. Install the Joint #2 motor unit. For details, refer to Maintenance 6.1 Joint #2 - Replacing the Motor, Installation steps (4) to (9).
8. Pass the cables and the air tube inside the Joint #1 timing belt.
9. Mount the base cable bracket (C1). Wrap the cables with the attached silicone sheet. Use a cable bracket to fix the wrapped silicone sheet. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.0 � 0.1 N�m
10. Install the cable interference prevention plate. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.0 � 0.1 N�m
190
C8 Rev.11
Maintenance 5. Joint #1
11. Install the Joint #1 motor unit. For details, refer to Maintenance 5.1.1 Joint #1 � Replacing the Motor (M/C Cable Backward), Removal steps (1) to (4).
12. Pass the following parts through the hole inside the base to the upper part of the base. D-sub cable Ground wire RJ45 connector F-sensor connector
13. Connect the ground wires.
Cross recessed head screws with washer
S, C models : 9-M4�8, 2-M3�6
P model
: 10-M4�8, 2-M3�6
Tightening torque : 0.9 � 0.1N�m (M4�8) 0.45 � 0.1 N�m (M3�6)
NOTE The ground terminals of the D-sub cables have fixed installation positions. Install them to the two screw holes. (Photo: indicated by the arrows). 14. Install the following parts. Connector plate Connector Cable grounding plate Brake power supply For details, refer to Maintenance 5.1.3 Joint #1 � Replacing the Timing Belt (M/C Cable Backward), Installation steps (6) to (14).
C8 Rev.11
191
Maintenance 5. Joint #1
5.1.3 Joint #1 - Replacing the Timing Belt (M/C Cable Backward)
Name
Qty.
Note
Maintenance Part
Timing belt (Joint #1)
C8-A701** (C8) C8-A901** (C8L) C8-A1401** (C8XL)
Belt tensile jig *
1 560 mm 1 580 mm 1 595 mm 1 1674582
1655928 1655929 1655930
J1 brake positioning jig*
1 1675081
Wire tie AB100
1 1675753
Tools
width across flats: 2.5 mm
Hexagonal width across flats: 3 mm
wrench
width across flats: 4 mm
width across flats: 5 mm
Box wrench width across flats: 5 mm
Long nose pliers
Cross-point screwdriver
Torque wrench
Belt tension meter
1 For M3 hexagon socket head cap bolt 1 For M4 hexagon socket head cap bolt 1 For M5 hexagon socket head cap bolt 1 For M6 hexagon socket head cap bolt 1 For D-Sub connector 1 For removing the air tube 1 For cross recessed head screws 1 For tightening torque control 1 Refer: Unitta U-505
* The belt tensile jig and J1 brake positioning jig are assembly jigs. Use these jigs in relevant maintenance steps.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
192
C8 Rev.11
Removal: Joint #1 Timing belt (M/C Cable Backward) 1. Turn OFF the Controller. 2. Remove the base maintenance cover.
For details, refer to Maintenance 3. Covers. 3. Remove the connector plate (M/C cable backward).
For details, refer to Maintenance 3. Covers. 4. Remove two air tubes inside the base.
5. Remove two D-sub connectors.
6. Disconnect the cables from the base and disconnect the connectors.
Connector: X11, X12, X14, BR010, BR011, X010, X020, X040, LED, GS01, BT1 (Hold the clip to remove.)
7. Disconnect the following connectors.
RJ45 connector: Hold the clip to remove.
Maintenance 5. Joint #1
F-sensor connector: Open the clips on the both ends of the connector and pull it out.
C8 Rev.11
193
Maintenance 5. Joint #1
Remove the ground wire from each connector. To remove the ground wire, hold the connector by hand and pull the ground wire.
8. Remove the brake power supply. Cross recessed head screws with washer: 2-M3�6
9. Remove the ground wire plate (M/C cable backward). Hexagon socket head cap bolts: 2-M4�10
10. Remove the following ground wire terminals. D-sub cable ground wire terminals (�2) Ground wire (green/yellow) terminal (�1) indicated by an arrow
Cross recessed head screws with washer: 3-M4�8
NOTE
Positions of the ground wire (green/yellow) terminals may differ from the photo. Check the positions of the terminals before removing them.
194
C8 Rev.11
11. Disconnect the following parts downward from the hole inside the base.
D-sub cable Ground wire RJ45 connector F-sensor connector
Maintenance 5. Joint #1
12. Remove the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1-Replacing the Motor (M/C Cable Backward), Removal steps (6) to (7).
13. Remove the Joint #1 cable fixing plate. Hexagon socket head cap bolts: 2-M3�6
Do not remove the base cable bracket (C1)
14. Remove the Joint #1 timing belt.
C8 Rev.11
195
Maintenance 5. Joint #1 Installation: Joint #1 Timing belt (M/C Cable Downward) 1. Pass the cables and air tubes to the Joint #1 timing belt.
2. Mount the Joint #1 cable fixing plate. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.0 � 0.1 N�m
3. Mount the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1-Replacing the Motor (M/C Cable Backward), Installation steps (1) to (4).
4. Disconnect the following parts from the hole inside the base to the upper side of the base. D-sub cable Ground wire RJ45 connector F-sensor connector
5. Install the terminals of the D-sub cable ground wire and ground wire (green/yellow). D-sub cable ground wire terminals (�2) indicated by arrows Ground wire (green/yellow) terminal (�1) Cross recessed head screws with washer: 3-M4�8 Tightening torque: 0.9 � 0.1 N�m
NOTE The installation positions of the D-sub cable ground terminals are fixed. Make sure to install them to the two screw holes on the backside of the Manipulator (as indicated by arrows in the photo).
196
C8 Rev.11
6. Mount the ground wire plate (M/C cable backward). Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
Maintenance 5. Joint #1
7. Install the brake power supply to the plate. Make sure to install the brake power supply so that the cables will be in the direction as shown in the photo. Cross recessed head screws with washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
8. Install the following connectors in accordance with the indications on the connector plates. RJ45 connector: Ether F-sensor connector: F-sensor
Install the ground wire to each connector. To connect the ground wire, insert it while holding the connector by hand.
9. Connect the M/C cable connectors. Connector: X11, X12, X14, BR010, BR011, X010, X020, X040, LED, GS01, BT1
10. Install the D-sub connectors in accordance with the indications on the connector plates. Left: D-sub for brake release (with a wire marker: SW1) : B-release Right: D-sub for user wiring (no wire marker: with a round terminal): D-sub
11. Install two air tubes in accordance with the indications on the connector plates. Air1: Semitransparent Air2: Blue
NOTE
Be careful not to install the air tube of wrong color.
12. Install the connector plate (M/C cable backward). For details, refer to Maintenance: 3 Covers.
C8 Rev.11
197
Maintenance 5. Joint #1
13. Install the base maintenance cover. For details, refer to Maintenance: 3 Covers.
14. Calibrate the Joint #1. For details, refer to Maintenance: 16. Calibration.
198
C8 Rev.11
Maintenance 5. Joint #1
5.1.4 Joint #1 - Replacing the Electromagnetic Brake (M/C Cable Backward)
Name
Qty.
Note
Maintenance Parts
Tools
Electromagnetic brake (Joint #1, 2) J1 brake positioning jig * Wire tie (AB100) Hexagonal wrench (width across flats: 3 mm) Cross-point screwdriver (#2) Torque wrench
1
2172926
1
1675081
1
1675753
1
For M4 hexagon socket head cap bolt
1
For cross recessed head screws
1
For tightening torque control
* The belt tensile jig and J1 brake positioning jig are assembly jigs. Use these jigs in relevant maintenance steps.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
C8 Rev.11
199
Maintenance 5. Joint #1
Removal: Joint #1 Electromagnetic brake (M/C Cable Backward) 1. Remove the Joint #1 electromagnetic brake from the Joint #1 motor unit.
For details, refer to Maintenance: 5.1.1 Joint #1-Replacing the Motor (M/C Cable Backward), Removal steps (1) to (6).
NOTE Do not disconnect the connector BT1. If the connector is disconnected, perform calibration.
2. Remove the Joint #1 brake from the brake plate. Hexagon socket head cap bolts: 3-M4�25
Installation: Joint #1 Electromagnetic brake (M/C Cable Backward) 1. Install the Joint #1 brake to the brake plate.
Hexagon socket head cap bolts: 3-M4�25 Tightening torque: 4.0 � 0.2 N�m
Be careful of the assembly direction of the Joint #1 electromagnetic brake. (See the photo)
2. Mount the Joint #1 brake plate to the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1-Replacing the Motor (M/C Cable Backward), Installation steps (4) to (8).
NOTE
If you disconnected the connector BT1 in the removal steps, perform calibration.
200
C8 Rev.11
5.2 M/C Cable Downward (Joint #1)
Maintenance 5. Joint #1
5.2.1 Joint #1 - Replacing the Motor (M/C Cable Downward)
Name
Qty.
Note
Maintenance Parts
Tools
Motor unit (Joint #1)
C8-A701*B* (C8) C8-A901*B* (C8L) C8-A1401*B* (C8XL)
Belt tensile jig*
J1 brake positioning jig*
Wire tie
AB100 AB350
Hexagonal wrench
width across flats: 3 mm width across flats: 4 mm width across flats: 5 mm
Cross-point screwdriver (#2)
Torque wrench
1 2172921
1 2172922 1 1674582 1 1675081 1 1675753 1 1697428 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control
Nippers
1 For cutting the wire tie
Pliers
1 For tightening the wire tie
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig and J1 brake positioning jig are assembly jigs. Use these jigs in relevant maintenance steps.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
C8 Rev.11
201
Maintenance 5. Joint #1
Removal: Joint #1 Motor (M/C Cable Downward) 1. Turn OFF the Controller. 2. Turn the Manipulator laterally.
CAUTION
When turning the Manipulator laterally, there must be two or more people to work on it so that at least one of them can support the arm while the others are removing the bolts. Removing the bolts without supporting the arm may result in the arm falling, bodily injury, and/or malfunction of the robot system.
3. Remove the following covers.
Base maintenance cover Base cover (M/C cable downward) Connector plate (M/C cable downward)
For details, refer to Maintenance: 3 Covers.
4. Disconnect the cables from the base and disconnect the following connectors. Connector: X11, X010, BT1, BR011 (Hold the clip to remove.)
NOTE When only replacing the brake, do not disconnect the connector BT1. If the connector is disconnected, perform calibration.
C8-A1401** (C8XL): Remove the heat radiation block.
1. Remove the wire tie and the bolts to remove the heat radiation block. Hexagon socket head cap bolts: M5�15 Wire tie: AB350
C8-A701** (C8) C8-A901** (C8L)
2. Remove the heat radiation sheet between the heat radiation block and the motor.
C8-A1401*B* (C8XL)
NOTE The heat radiation block, the heat radiation sheet, and the bolts will be used again. Be careful not to lose them. Be careful not to tear the heat radiation sheet.
5. Remove the brake power supply.
Cross recessed head screws with washer: 2-M3�6
202
C8 Rev.11
6. Remove the Joint #1 brake plate from the Joint #1 motor unit. Hexagon socket head cap bolts: 3-M4�20
Maintenance 5. Joint #1
7. Remove the Joint #1 motor unit from the base. Hexagon socket head cap bolts: 3-M6�30 (with a plain washer)
Be careful not to tear and lose the heat radiation sheet attached to the motor.
C8 Rev.11
203
Maintenance 5. Joint #1
Installation: Joint #1 Motor (M/C Cable Downward) 1. Mount the Joint #1 motor unit to the base.
For details, refer to Maintenance: 5.1.1 Joint #1-Replacing the Motor (M/C Cable Backward), Removal steps (1) to (4).
2. Install the brake power supply to the plate. Make sure to install the brake power supply so that the cables will be in the direction as shown in the photo. Cross recessed head screws with washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
3. Connect the following connectors. Connector: X11, X010, BT1, BR011
4. Install the following covers. Connector plate (M/C cable downward). Base cover (M/C cable downward) Base maintenance cover For details, refer to Maintenance: 3 Covers.
5. Calibrate the Joint #1. For details, refer to Maintenance: 16. Calibration.
204
C8 Rev.11
Maintenance 5. Joint #1
5.2.2 Joint #1 - Replacing the Reduction Gear Unit (M/C Cable Downward)
Name
Qty.
Note
Maintenance Parts
Tools
Reduction gear unit (Joint #1)
C8-A701*B* (C8) C8-A901*B* (C8L) C8-A1401*B* (C8XL)
Belt tensile jig*
J1 brake positioning jig*
Wire tie AB100
Hexagonal wrench
width across flats: 2.5 mm width across flats: 3 mm width across flats: 4 mm width across flats: 5 mm
Cross-point screwdriver (#2)
Torque wrench
Belt tension meter
Cloth (cushioning)
1 1674602 1 1674603 1 1674604 1 1674582 1 1675081 1 1675753 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control 1 Refer: Unitta U-505 1 For pressing arms
* The belt tensile jig and J1 brake positioning jig are assembly jigs. Use the jigs when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 motor unit, tilt the Arm #2 and press it toward the Arm #1. Reference: Maintenance 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
C8 Rev.11
205
Maintenance 5. Joint #1
Removal: Joint #1 Reduction gear unit (M/C cable downward)
CAUTION
This procedure has possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when performing maintenance.
Do not loosen the bolts while the Arm #2 is not tilted.
It may cause the belt come off and the Arm #2 falls down, and it is extremely hazardous. Be sure to do the Removal steps (1) and (2) in Maintenance 6.1 Joint #2 - Replacing the Motor before removing the motor.
When removing the Arm #1, there must be two or more people to work on it so that at least one of them can support the arm while the others are removing the bolts. Removing the bolts without supporting the arm may result in the arm falling, bodily injury, and/or malfunction of the robot system.
1. Remove the following parts.
Connector plate Connector Brake power supply
For details, refer to Maintenance 5.2.3 Joint #1 - Replacing the Timing Belt (M/C Cable Downward), Removal steps (1) to (8).
2. Remove the ground terminals.
Cross recessed head screws with washer
S, C models : 9-M4�8, 2-M3�6
P model
: 10-M4�8, 2-M3�6
3. Remove the Joint #1 reduction gear unit.
For details, refer to Maintenance 5.1.2 Joint #1 - Replacing the Reduction Gear Unit (M/C Cable Backward), Removal steps (4) to (14).
206
C8 Rev.11
Maintenance 5. Joint #1
Installation: Joint #1 Reduction gear unit (M/C Cable Downward)
1. Install the Joint #1 reduction gear unit.
For details, refer to Maintenance 5.1.2 Joint #1- Replacing the Reduction Gear Unit (M/C Cable Backward), Installation steps (1) to (11).
2. Install the ground terminals to the plate.
Cross recessed head screws with washer
S, C models : 9-M4�8, 2-M3�6
P model
: 10-M4�8, 2-M3�6
3. Install the following parts.
Connector plate Connector Brake power supply
For details, refer to Maintenance 5.2.3 Joint #1 - Replacing the Timing Belt (M/C Cable Downward), Installation steps (4) to (10).
C8 Rev.11
207
Maintenance 5. Joint #1
5.2.3 Joint #1 - Replacing the Timing Belt (M/C Cable Downward)
Name
Qty.
Note
Maintenance Part
Tools
Timing belt (Joint #1)
C8-A701*B* (C8) C8-A901*B* (C8L) C8-A1401*B* (C8XL)
Belt tensile jig*
J1 brake positioning jig*
Wire tie AB100
Hexagonal wrench
width across flats: 3 mm width across flats: 4 mm width across flats: 5 mm
Box wrench width across flats: 5 mm
Long nose pliers
Cross-point screwdriver
Torque wrench
Belt tension meter
1 560 mm
1655928
1 580 mm
1655929
1 595 mm
1655930
1 1674582
1 1675081
1 1675753
1 For M4 hexagon socket head cap bolt
1 For M5 hexagon socket head cap bolt
1 For M6 hexagon socket head cap bolt 1 For D-Sub connector 1 For removing the air tube 1 For cross recessed head screws 1 For tightening torque control 1 Refer: Unitta U-505
* The belt tensile jig and J1 brake positioning jig are assembly jigs. Use these jigs in relevant maintenance steps.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
208
C8 Rev.11
Maintenance 5. Joint #1
Removal: Joint #1 Timing belt (M/C Cable Downward) 1. Turn OFF the Controller.
2. Turn the Manipulator laterally.
CAUTION
When turning the Manipulator laterally, there must be two or more people to work on it so that at least one of them can support the arm while the others are removing the bolts. Removing the bolts without supporting the arm may result in the arm falling, bodily injury, and/or malfunction of the robot system.
3. Remove the following covers.
Base maintenance cover Base cover (M/C cable downward) Connector plate (M/C cable downward)
For details, refer to Maintenance: 3 Covers.
4. Disconnect the cables from the base and disconnect the following connectors.
Connector: X11, X12, X14, BR010, BR011, X010, X020, X040,
LED, GS01, BT1 (Hold the clip to remove.)
5. Disconnect the following parts. Air tubes RJ45 connector F-sensor connector D-sub connector For details, refer to Maintenance: 5.1.3 Joint #1-Replacing the Timing Belt (M/C Cable Backward), Removal steps (4) to (5), and (7).
6. Remove the brake power supply. Cross recessed head screws with washer: 2-M3�6
C8 Rev.11
209
Maintenance 5. Joint #1 7. Remove the ground wire plate (M/C cable downward). Hexagon socket head cap bolts: 2-M4�12
8. Remove the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1-Replacing the Motor (M/C cable backward), Removal steps (6) to (7).
9. Remove the Joint #1 motor unit.
210
C8 Rev.11
Installation: Joint #1 Timing belt (M/C Cable Downward) 1. Pass the cables and the air tubes to the Joint #1 timing belt.
Maintenance 5. Joint #1
2. Mount the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1-Replacing the Motor (M/C Cable Backward), Installation steps (1) to (4).
3. Mount the ground wire plate (M/C cable downward). Hexagon socket head cap bolts: 2-M4�12 Tightening torque: 4.0 � 0.2 N�m
4. Install the brake power supply to the plate. Make sure to install the brake power supply so that the cables will be in the direction as shown in the photo. Cross recessed head screws with washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
5. Connect the following connectors in accordance with the indications on the connector plates. RJ45 connector: Ether F-sensor connector: F-sensor
Install the ground wire to each connector. To connect the ground wire, insert in while holding the connector by hand.
6. Connect the M/C cable connectors. Connector: X11, X12, X14, BR010, BR011, X010, X020, X040, LED, GS01, BT1
C8 Rev.11
211
Maintenance 5. Joint #1 7. Install the D-sub connector in accordance with the indications on the connector plates. Left: D-sub for brake release (with a wire marker: SW1): B-release Right: D-sub for user wiring (no wire marker: with a round terminal): D-sub
8. Install two air tubes in accordance with the indications on the connector plates. Air1: Semitransparent Air2: Blue
NOTE
Be careful not to install the air tube of wrong color.
9. Install the following covers. Connector plate (M/C cable downward) Base cover (M/C cable downward) Base maintenance cover For details, refer to Maintenance: 3 Covers.
10. Calibrate the Joint #1. For details, refer to Maintenance: 16. Calibration.
212
C8 Rev.11
Maintenance 5. Joint #1
Maintenance Parts
Tools
5.2.4 Joint #1 - Replacing the Electromagnetic Brake (M/C Cable Downward)
Name
Qty.
Note
Electromagnetic brake (Joint #1, #2) J1 brake positioning jig * Wire tie AB100 Hexagonal wrench (width across flats: 3 mm) Cross-point screwdriver (#2) Torque wrench
1
2172926
1
1675081
1
1675753
1
For M4 hexagon socket head cap bolt
1
For cross recessed head screws
1
For tightening torque control
* The J1 brake positioning jig is an assembly jig. Use the jig in relevant maintenance steps.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
C8 Rev.11
213
Maintenance 5. Joint #1
Removal: Joint #1 Electromagnetic brake (M/C Cable Downward) 1. Remove the Joint #1 brake plate from the Joint #1 motor unit.
For details, refer to Maintenance: 5.2.1 Joint #1-Replacing the Motor (M/C Cable Downward), Removal steps (1) to (6).
NOTE Do not disconnect the connector BT1. If the connector is disconnected, perform calibration.
2. Remove the Joint #1 brake from the brake plate. Hexagon socket head cap bolts: 3-M4�25
214
C8 Rev.11
Maintenance 5. Joint #1
Installation: Joint #1 Electromagnetic brake (M/C Cable Downward) 1. Install the Joint #1 brake to the brake plate.
Hexagon socket head cap bolts: 3-M4�25 Tightening torque: 4.0 � 0.2 N�m
Be careful of the assembly direction of the Joint #1 electromagnetic brake. (See the photo)
2. Mount the Joint #1 brake plate to the Joint #1 motor unit. For details, refer to Maintenance: 5.1.1 Joint #1 - Replacing the Motor (M/C Cable Backward), Installation step (4).
3. Install the brake power supply to the plate. Make sure to install the brake power supply so that the cables will be in the direction as shown in the photo. Cross recessed head screws with washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
4. Connect the M/C cable connectors. Connector: X11, X010, BT1, BR011
5. Install the following covers. Connector plate (M/C cable downward) Base cover (M/C cable downward) Base maintenance cover For details, refer to Maintenance: 3 Covers.
NOTE
If you disconnected the connector BT1 in the removal steps, perform calibration.
C8 Rev.11
215
Maintenance 6. Joint #2
6. Joint #2
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
Be careful not to apply excessive shock to the motor shaft during replacement. It may shorten the life of the motors and encoder and/or damage them.
Never disassemble the motor and the encoder. Disassembled motor and encoder will cause a positional gap and cannot be used again.
After parts have been replaced (motors, reduction gear units, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller. Therefore, it is necessary to match these origins after replacing the parts. The process of aligning the two origins is called "Calibration". Refer to Maintenance 16. Calibration and perform the calibration after the parts replacement.
Joint #2 Reduction gear unit Joint #2 Timing belt
Joint #2 Motor + Electromagnetic brake
(Figure: C8-A1401* (C8XL))
216
C8 Rev.11
Maintenance 6. Joint #2
6.1 Joint #2 - Replacing the Motor
Name
Qty.
Note
Maintenance Parts
Tools
AC servo motor 750 W
Belt tensile jig*
width across flats: 2.5
Hexagonal wrench
mm width across flats: 3 mm width across flats: 4 mm
width across flats: 5 mm
Cross-point screwdriver (#2)
1 2168683 1 1674582
1 For M5 hexagon socket set screw
1 For M6 hexagon socket head cap bolt 1 For M5 hexagon socket head cap bolt 1 For M6 hexagon socket head cap bolt 1 For cross recessed head screws
Torque wrench
1 For tightening torque control
Thickness gauge (0.5 mm)
2 For pulley position adjustment
Belt tension meter Cloth (cushioning)
1 Refer: Unitta U-505 1 For pressing arms
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 motor, tilt the Arm #2 and press it against the Arm #1. Reference: Maintenance: 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
C8 Rev.11
217
Maintenance 6. Joint #2
Removal: Joint #2 Motor
CAUTION
This procedure has possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when performing maintenance.
Do not loosen the bolts while the Arm #2 is not tilted.
It may cause the belt come off and the Arm #2 falls down, and it is extremely hazardous. Be sure to do the Removal steps 1 and 2 before removing the motor.
1. Turn ON the Controller power.
2. Release the Joint #2 brake. Tilt the Arm #2 and push it against the Arm #1.
The Arm #2 falls by its own mass when the Joint #2 motor unit is removed. Therefore, release the brake and tilt the Arm #2 in advance. Put a cloth between the Arm #1 and Arm #2 so that the arms do not touch each other.
EPSON RC+
Command: >brake off, 2
CAUTION
There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when moving the Manipulator.
3. Turn OFF the Controller power.
4. Remove the Arm #1 center cover and the Arm #1 side cover. For details, refer to Maintenance: 3. Covers.
5. Remove the heat dissipation block and the heat dissipation sheet from the Arm #1.
Hexagon socket head cap bolts: 2-M4�10
The heat dissipation sheet attached to the motor unit will be used again. Be careful not to tear and lose it.
218
C8 Rev.11
6. Disconnect the following connectors of the motor. Connector: X121, X021, BT2, BR021 (Hold the clip to remove.)
Maintenance 6. Joint #2
7. Remove the brake power supply. Cross recessed head screws with captive washer: 2-M3�6
8. Loosen the bolts securing the Joint #2 motor unit and remove the belt.
Hexagon socket head cap bolts: 3-M5�25 (with a plain washer)
WARNING
Loosening the bolts while the Arm #2 is not bent may cause the belt come off and the Arm #2 falls down, and it is extremely hazardous. Be sure to do the Removal steps 1 and 2 before loosening the bolts.
C8 Rev.11
219
Maintenance 6. Joint #2 9. Remove the Joint #2 motor unit.
10. Remove the Joint #2 pulley 1 and the drive boss from the motor shaft of the Joint #2 motor unit. Remove two screws at the flat (D-cut) part of the motor shaft when viewing from above. (A in the figure)
Pulley and the motor shaft (A) Hexagon socket set screws: 2-M5�12
NOTE Do not remove the pulley and drive boss screws (B in the figure). There is a brass bushing on one of the set screws. If you removed the screws (B), be careful not to lose the brass bushing.
A: Pulley and motor shaft screws (D-cut part of the motor shaft � 2)
B: Pulley and drive boss screws Do not remove these screws.
C: Bushing
B
A
C
B
A
Pulley Drive boss
11. Remove the Joint #2 electromagnetic brake. Hexagon socket set screws: 2-M6�6 (with a brass bushing)
220
C8 Rev.11
12. Remove the motor plate from the Joint #2 motor. Hexagon socket head cap bolts: 4-M6�20
Maintenance 6. Joint #2
C8 Rev.11
221
Maintenance 6. Joint #2
Installation: Joint #2 Motor 1. Install the motor plate to the Joint #2 motor.
Hexagon socket head cap bolts: 4-M6�20 Tightening torque: 13.0 � 0.6 N�m
NOTE Be careful of the assembly direction of the motor plate. (See the photo.)
2. Mount the Joint #2 electromagnetic brake to the Joint #2 motor unit. Hexagon socket set screws: 2-M6�6 (with a brass bushing) Tightening torque: 8.0 � 0.4 N�m
Be careful of the assembly direction of the Joint #2 electromagnetic brake. (See the photo.)
Fix the set screws while pressing the electromagnetic brake to the motor plate. The brass bushing is not necessary for the screw for the flat surface (D-cut). Set the bushing to the other screw and then fix the screw.
NOTE If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the brake and may result in the part being unable to be removed.
222
C8 Rev.11
3. Mount the drive boss and the pulley 1 to the Joint #2 motor unit.
Insert the pulley 1 so that the set screw is aligned to the flat surface of the motor shaft.
Fix the pulley 1 and the motor shaft. Leave 0.5 mm between the pulley 1 and the electromagnetic brake. The countersunk screw of the electromagnetic brake is projecting. Using the feeler gauge (0.5 mm), leave a space for the projection.
Maintenance 6. Joint #2
NOTE If there is no space for the projection, the parts may chafe while the motor is driving and it may result in breakage. Hexagon socket set screws: 2-M5�12 Tightening torque: 3.9 � 0.2 N�m
If the drive boss and the pulley 1 are removed: Align the end faces of the drive boss and the pulley 1, and then fix them.
Hexagon socket set screws: 2-M5�8 (with a brass bushing) Tightening torque: 3.9 � 0.2 N�m
NOTE If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the part and may result in the part being unable to be removed.
Set the set screws to the positions indicated in the right figure.
A: Pulley and motor shaft screws (D-cut part of the motor shaft � 2)
B: Pulley and drive boss screws Do not remove these screws.
C: Bushing
4. Put the Joint #2 motor unit in the Arm #1.
5. Set the timing belt around the pulley 1 and the pulley 2 and fix it temporarily. Check that the teeth of the timing belt engage with these of the pulley. As a rough guide of temporary fixing, check that the motor unit can be moved by hand, and it does not tilt when being pulled. If the belt is too loose or too tight, it will not have proper tension.
Hexagon socket set screws: 3-M5�25 (with a plain washer)
B
A
C
B A
Pulley Drive boss
C8 Rev.11
223
Maintenance 6. Joint #2
6. Apply tension to the Joint #2 timing belt and fix Joint #2 motor unit. Joint #2 timing belt tension: 58 to 95 N Belt tension meter setting values Weight: 4.0 g/mm width � m span, Width: 14 mm, Span: 146 mm Hexagon socket set screws: 3-M5�25 (with a plain washer) Tightening torque: 8.0 � 0.4 N�m
NOTE Regarding belt tension: - Jumping (position gap) may occur if the value is below the lower limit. - Vibration (abnormal noise) or reduction in life of the parts may occur if the value exceeds the upper limit. - When you replace with a new belt, belt extends and the belt tension may decrease in the initial stage. Make sure to operate the robot two to three days and check the belt tension again. When using the belt tension tensile jig (maintenance part): Fix the belt tension tensile jig (for J1, J2, and J3) with the screws (2M4�35) and push the rubber against the pulley. Tension is applied by pushing the set screw (M6�25) with the rubber.
7. Install the brake power supply. Cross recessed head screws with captive washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
8. Connect the following connectors. Connectors: X121, X021, BT2, BR021
224
C8 Rev.11
9. Remove the heat dissipation block and the heat dissipation sheet to the Arm #2. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
Maintenance 6. Joint #2
10. Mount the Arm #1 cover and the Arm #1 side cover. For details, refer to Maintenance: 3. Covers.
11. Perform calibration. For details, refer to Maintenance: 16. Calibration.
C8 Rev.11
225
Maintenance 6. Joint #2
6.2 Joint #2- Replacing the Reduction Gear Unit
Name
Qty.
Note
Reduction C8-A701*** (C8) gear unit C8-A901** *(C8L)
1 1674605
(Joint #2) C8-A1401*** (C8XL)
1 1674606
Maintenance
C8-A701*** (C8) Arm #1 1 1263978
Parts
O-ring
C8-A901** *(C8L) Arm #2 1 1656161
(Joint #2) C8-A1401***
Arm #1 1 1670635
(C8XL)
Arm #2 1 1656140
Belt tensile jig*
1 1674582
Hexagonal wrench
width across flats: 2.5 mm
width across flats: 3 mm width across flats: 4 mm
For M3 hexagon socket head cap bolts 1
For M5 hexagon socket set screws 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts
Tools
width across flats: 5 mm Cross-point screwdriver (#2)
1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws
Torque wrench
1 For tightening torque control
Belt tension meter (0.5 mm)
2 For adjusting the pulley position
Belt tension meter
1 Refer: Unitta U-505
Cloth (cushioning)
1 For pressing arms
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 timing belt, tilt the Arm #2 and press it against the Arm #1. Reference: Maintenance: 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
226
C8 Rev.11
Maintenance 6. Joint #2 Removal: Joint #2 Reduction gear unit 1. Remove the Joint #2 timing belt.
For details, refer to Maintenance 6.3 Joint #2 - Replacing the Timing Belt, Removal steps (1) to (3). 2. Remove the following parts.
Battery Battery board Battery connector For details, refer to Maintenance 11.2 Replacing the Battery Board, Removal steps (3) to (6). 3. Remove the battery box. Countersunk screws: 2-M3�8
4. Arm #1 side arm fixing bolts. Hexagon socket head cap bolts: 8-M6�25 (with a plain washer)
5. Remove the Joint #2 pulley 2 from the Joint #2 shaft. Hexagon socket set screws: 2-M5�10 There is a brass bushing on one of the set screws. Be careful not to lose it. C8XL: Remove the key from the shaft. The key will be used again. Be careful not to lose it.
6. Pull out the grease tube on the Arm #1 side from the fitting. The grease tube connects between the base and the Arm #1.
C8 Rev.11
227
Maintenance 6. Joint #2
7. Remove the Arm #2. Hexagon socket head cap bolts (with a plain washer) C8, C8L: 16-M5�30 C8XL: 16-M6�35
Remove a wave washer on the Arm #1 side. The wave washer will be used again. Be careful not to lose it.
Wipe grease on the part while removing it.
CAUTION
By removing the bolts, the Arm #1, #2, #3, #4, #5, and #6(end effector) can be separated. There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when removing the arm. Have at least two workers so that one can support the Manipulator while the other worker is removing the bolts.
The Arms are connected by the internal cables. When replacing the parts, place the removed arm while not applying load on the cables. It may result in cable disconnection.
8. Remove the wave generator from the reduction gear unit. If the wave generator unit does not come off easily, set the pulley 2 as shown in the photo to the shaft and pull out the parts. Wipe grease on the part while removing it.
9. Remove the reduction gear unit from the Arm #2. Hexagon socket head cap bolts (with plain washer) C8, C8L: 12-M5�40 C8XL: 12-M6�45
Wipe grease on the part while removing it.
228
C8 Rev.11
10. Remove the O-ring from the groove on the Arm #2. Wipe grease on the part while removing it.
Maintenance 6. Joint #2
C8 Rev.11
229
Maintenance 6. Joint #2
Installation: Joint #2 Reduction gear unit 1. Apply a thin coat of grease (SK-1A) to the O-ring.
Fit the O-ring to the groove on the Arm #2. Do not allow the O-ring to come out of the groove. If the O-ring is swollen, damaged, or deteriorated, replace it with a new one.
2. Install the reduction gear unit to the Arm #2.
C8, C8L: Hexagon socket head cap bolts: 12-M5�40 Tightening torque: 10.0 � 0.5 N�m
C8XL: Hexagon socket head cap bolts: 12-M6�45 Tightening torque: 18.0 � 0.9 N�m
Installation face of the Arm #2 reduction gear unit has clearance holes. Install the reduction gear unit to match the screws and the clearance holes.
3. Grease the inner side of the flexspline.
Grease
: SK-1A
Grease amount : C8, C8L: 55 g C8XL: 102g
4. Insert the wave generator to the reduction gear unit and fix it.
230
C8 Rev.11
5. Apply a thin coat of grease (SK-1A) to the O-ring. Fit the O-ring to the groove on the reduction gear unit. Do not allow the O-ring to come out of the groove. If the O-ring is swollen, damaged, or deteriorated, replace it with a new one.
6. Temporarily fix the Arm #1 side arm to the Arm #1. At this time, set the wave washer to the Arm #1. Hexagon socket head cap bolts: 8-M6�2 5(with a plain washer)
Maintenance 6. Joint #2
CAUTION
There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when installing the arm. Have at least two workers so that one can support the Manipulator while the other worker is removing the bolts.
7. Fix the Arm #2.
C8, C8L: Hexagon socket head cap bolts: 16-M5�30 (with a plain washer) Tightening torque: 10.0 � 0.5 N�m
C8XL: Hexagon socket head cap bolts: 16-M6�35 (with a plain washer) Tightening torque: 18.0 � 0.9 N�m
After fixing the Arm, check that there is no backlash or misalignment on the reduction gear unit by moving the Arm by hand.
C8 Rev.11
231
Maintenance 6. Joint #2
8. After fixing the Arm #2, fix the Arm #1 side arm. Hexagon socket head cap bolts: 8-M6�25 (with a plain washer) Tightening torque: 18.0 � 0.9 N�m
9. Install the Joint #2 pulley 2 to the Joint #2 shaft. Hexagon socket head cap bolts: 2-M5�10 (with a brass washer) Tightening torque: 3.9 � 0.2 N�m C8, C8L: Insert the pulley 2 so that one of the set screws is at the flat face of the shaft. The brass bushing is not necessary for the screw for the flat surface. Set the bushing to the other screw and then fix the screw.
C8XL: Set the key to the shaft and insert the pulley 2 while aligning to the key groove. The brass bushing is not necessary for the screw for the flat surface. Set the bushing to the other screw and then fix the screw.
NOTE If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the brake and may result in the part being unable to be removed.
10. Install the battery box. Countersunk screws: 2-M3�8 Tightening torque: 0.45 � 0.1 N�m
11. Install the following parts. Battery Battery board Battery connector For details, refer to Maintenance 11.2 Replacing the Battery Board, Installation steps (2) to (5).
12. Install the Joint #2 timing belt. For details, refer to Maintenance 6.3 Joint #2 � Replacing the Timing Belt, Installation steps (1) to (2).
232
C8 Rev.11
Maintenance 6. Joint #2
6.3 Joint #2 - Replacing the Timing Belt
Name
Qty.
Note
Timing belt Maintenance (Joint #2) Parts
C8-A701*** (C8) C8-A901*** (C8L) C8-A1401*** (C8XL)
1 475 mm 1 485 mm 1 540 mm
1655920 1655924 1655927
Belt tensile jig *
1 1674582
Hexagonal wrench (width across flats: 4 mm)
1 For M5 hexagon socket head cap bolt
Tools
Cross-point screwdriver Torque wrench
1 For cross recessed head screws 1 For tightening torque control
Cloth (cushioning)
1 For pressing arms
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 motor, tilt the Arm #2 and press it against the Arm #1. Reference: Maintenance: 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
Removal: Joint #2 Timing belt 1. Follow Removal steps (1) through (4) of Maintenance: 6.1 Joint #2 � Replacing the Motor.
2. Loosen the Joint #2 motor unit set screws.
Hexagon socket head cap bolts: 3-M5�25 (with a plain washer)
3. Remove the Joint #2 timing belt.
Installation: Joint #2 Timing belt 1. Pass the Joint #2 timing belt around the pulley 1 and the pulley 2 of the Joint #2.
Pass the timing belt to the pulley 2 first, then, place it to the pulley 1.
2. Secure the Joint #2 motor unit. For details, refer to Maintenance: 6.1 Joint #2 � Replacing the Motor, Installation steps (5) to (6) and (10) to (11).
C8 Rev.11
233
Maintenance 6. Joint #2
6.4 Joint #2 - Replacing the Electromagnetic Brake
Name
Qty.
Note
Maintenance Electromagnetic brake (Joint #1, #2)
1 2172926
Parts
Belt tensile jig*
1 1674582
width across flats: 2.5 mm
1
For M5 hexagon socket set screw
Hexagonal width across flats: 3 mm
1 For M6 hexagon socket set screw
wrench
width across flats: 4 mm
1 For M5 hexagon socket head cap bolt
width across flats: 5 mm
1 For M6 hexagon socket head cap bolt
Tools
Cross-point screwdriver
1 For cross recessed head screws
Torque wrench
1 For tightening torque control
Feeler gauge (0.5 mm)
2 For adjusting the pulley position
Belt tension meter
1 Refer: Unitta U-505
Cloth (cushioning)
1 For pressing arms
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #2 motor, tilt the Arm #2 and press it against the Arm #1. Reference: Maintenance: 6.1 Joint #2 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
Removal: Joint #2 Electromagnetic brake
1. Remove the Joint #2 electromagnetic brake. For details, refer to Maintenance: 6.1 Joint #2 � Replacing the Motor, Removal steps (1) through (11).
Installation: Joint #2 Electromagnetic brake
1. Mount the Joint #2 electromagnetic brake to the Joint #2 motor unit. For details, refer to Maintenance: 6.1 Joint #2 � Replacing the Motor, Installation steps (2) through (11).
234
C8 Rev.11
Maintenance 7. Joint #3
7. Joint #3
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
Be careful not to apply excessive shock to the motor shaft during replacement. The shock may shorten the life of the motors and encoder and/or damage them.
Never disassemble the motor and the encoder. Disassembled motor and encoder will cause a positional gap and cannot be used again.
After parts have been replaced (motors, reduction gear units, electromagnetic brakes, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller. Therefore, it is necessary to match these origins after replacing the parts. The process of aligning the two origins is called "Calibration". Refer to Maintenance 16. Calibration and perform the calibration after the parts replacement.
Joint #3 Reduction gear unit
Joint #3 Timing belt
Joint #3 Motor + Electromagnetic brake
(Figure: C8-A1401* (C8XL))
C8 Rev.11
235
Maintenance 7. Joint #3
7.1 Joint #3 - Replacing the Motor
Name
Qty.
Note
Maintenance AC servo motor 400 W
1
Parts
Belt tensile jig*
1
width across flats: 2.5 mm 1
Hexagonal
wrench
width across flats: 3 mm
1
width across flats: 4 mm
1
Cross-point screwdriver (#2)
1
Tools
Torque wrench
1
Feeler gauge (0.5 mm)
2
Belt tension meter
1
Cloth (cushioning)
1
2168684 1674582 For M5 hexagon socket set screws For M4 hexagon socket head cap bolts For M5 hexagon socket head cap bolts For cross recessed head screws For tightening torque control For pulley position adjustment Refer: Unitta U-505 For pressing arms
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #3 motor, tilt the Arm #2 and press it against the Arm #2. Reference: Maintenance: 7.1 Joint #3 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
236
C8 Rev.11
Maintenance 7. Joint #3
Removal: Joint #3 Motor
CAUTION
This procedure has possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when conducting maintenance.
Do not loosen the bolts while the Arm #3 is not tilted.
It may cause the belt come off and the Arm #3 falls down, and it is extremely hazardous. Be sure to do the Removal steps 1 and 2 before removing the motor.
1. Turn ON the Controller power.
2. Release the Joint #3 brake. Tilt the Arm #3 and push it against the Arm #2.
The Arm #3 falls by its mass when the Joint #3 motor unit is removed. Therefore, release the brake and tilt the Arm #3 in advance.
EPSON RC+
Command: >brake off, 3
CAUTION
There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when moving the Manipulator.
Put a cloth between the Arm #2 and Arm #3 so that the arms do not touch each other.
3. Turn OFF the Controller power.
4. Remove the Arm #2 side cover. For details, refer to Maintenance: 3. Covers.
5. Disconnect the following connectors.
Connectors: X131, X031, BT3, BR031
(Hold the clip to remove.)
NOTE Be careful not to drop the removed connectors inside the Arm.
C8 Rev.11
237
Maintenance 7. Joint #3 6. Remove the brake power supply. Cross recessed head screws with captive washer: 2-M3�6
7. Loosen the bolts securing the Joint #3 motor unit and remove the belt. Hexagon socket head cap bolts: 3-M4�20 (with a plain washer)
WARNING
Loosening the bolts while the Arm #3 is not bent may cause the belt come off and the Arm #3 falls down, and it is extremely hazardous.
Be sure to do the Removal steps 1 and 2 before loosening the bolts.
238
C8 Rev.11
8. Remove the Joint #3 motor unit.
NOTE Be careful not to drop the removed connectors inside the Arm.
Maintenance 7. Joint #3
9. Remove the Joint #3 pulley 1 and the drive boss from the motor shaft of the Joint #3 motor unit. Remove two screws at the flat (D-cut) part of the motor shaft when viewing from above. (A in the figure)
Pulley and motor shaft screws (A) Hexagon socket set screws: 2-M5�12
NOTE Do not remove the pulley and drive boss screws (B in the figure. There is a brass bushing on one of the set screws. If you removed the screws (B), be careful not to lose the brass bushing.
Pulley and drive boss screws (B) Hexagon socket set screws: 2-M5�6 (with a brass bushing)
A: Pulley and motor shaft screws (D-cut part of the motor shaft � 2)
B: Pulley and drive boss screws Do not remove these screws.
C: Bushing
B A
A C
B
Pulley
Drive boss
C8 Rev.11
239
Maintenance 7. Joint #3 10. Remove the Joint #3 electromagnetic brake.
Hexagon socket set screws: 2-M5�10 (with a brass bushing) The screws have a brass bushing. Be careful not to lose them.
11. Remove the motor plate from the Joint #3 motor. Hexagon socket head cap bolts: 4-M5�15
240
C8 Rev.11
Installation: Joint #3 Motor 1. Install the motor plate to the Joint #3 motor.
Hexagon socket head cap bolts: 4-M5�15 Tightening torque: 8.0 � 0.4 N�m
NOTE Be careful of the assembly direction of the motor plate. (See the figure.)
Maintenance 7. Joint #3
2. Mount the Joint #3 electromagnetic brake to the Joint #3 motor unit. Hexagon socket set screws: 2-M5�10 (with a brass bushing) Tightening torque: 3.9 � 0.2 N�m
NOTE Be careful of the assembly direction of the Joint #3 electromagnetic brake. (See the photo.)
Fix the set screws while pressing the electromagnetic brake to the motor plate. The brass bushing is not necessary for the screw for the flat surface (D-cut). Set the bushing to the other screw and then fix the screw.
NOTE If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the brake and may result in the part being unable to be removed.
C8 Rev.11
241
Maintenance 7. Joint #3
3. Mount the drive boss and the pulley 1 to the Joint #3 motor unit.
Insert the pulley 1 so that the set screw is aligned to the flat surface of the motor shaft.
Fix the pulley 1 and the motor shaft. Leave 0.5 mm between the pulley 1 and the electromagnetic brake. The countersunk screw of the electromagnetic brake is projecting. Using the feeler gauge (0.5 mm), leave a space for the projection.
NOTE If there is no space for the projection, the parts may chafe while the motor is driving and it may result in breakage. Hexagon socket set screws: 2-M5�12 Tightening torque: 3.9 � 0.2 N�m
If the drive boss and the pulley 1 are removed: Align the end faces of the drive boss and the pulley 1, and then fix them.
Hexagon socket set screw: 2-M5�6 (with a brass bushing) Tightening torque: 3.9 � 0.2 N�m
Set the set screws to the positions indicated in the right figure.
A: Pulley and motor shaft screws (D-cut part of the motor shaft � 2)
B: Pulley and drive boss screws Do not remove these screws.
C: Bushing
B A
A C
B
Pulley
Drive boss
NOTE If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the part and may result in the part being unable to be removed.
4. Put the Joint #3 motor unit in the Arm #2.
5. Set the timing belt around the pulley 1 and the pulley 2 and fix it temporarily. Check that the teeth of the timing belt engage with these of the pulley. As a rough guide of temporary fixing, check that the motor unit can be moved by hand, and it does not tilt when being pulled. If the belt is too loose or too tight, it will not have proper tension.
Hexagon socket set screws: 3-M4�20 (with a plain washer)
242
C8 Rev.11
Maintenance 7. Joint #3
6. Apply tension to the Joint #3 timing belt and fix the Joint #3 motor unit. Joint #3 timing belt tension: 25 to 85 N Belt tension meter setting value Weight: 2.5 g/mm width � m span, Width: 10 mm, Span: 168 mm Hexagon socket set screw: 3-M4�20 (with a plain washer) Tightening torque: 4.0 � 0.2 N�m
NOTE
Regarding belt tension: - Jumping (position gap) may occur if the value is below the lower limit - Vibration (abnormal noise) or reduction of life of the parts may occur if the value exceeds the upper limit. - When you replace with a new belt, belt extends and the belt tension may decrease in the initial stage. Make sure to operate the robot two to three days and check the belt tension again. When using the belt tension tensile jig (maintenance part): Fix the belt tension tensile jig (for J1, J2, J3) with the screws (2-M4�35) and push the rubber against the pulley. Tension is applied by pushing the set screw (M6�25) with the rubber.
7. Install the brake power supply. Cross recessed head screw with captive washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
8. Connect the following connectors. Connectors: X131, X031, BT3, BR031
9. Install the Arm #2 side cover. For details, refer to Maintenance: 3. Covers.
10. Perform the calibration. For details, refer to Maintenance: 16. Calibration.
C8 Rev.11
243
Maintenance 7. Joint #3
7.2 Joint #3 - Replacing the Reduction Gear Unit
Name
Qty.
Note
Maintenance Parts
Reduction C8-A701*** (C8)
gear unit C8-A901*** (C8L)
(Joint #3) C8-A1401*** (C8XL)
O-ring
Arm #2 side
(Joint #3) Arm #3 side
Belt tensile jig*
Tools
width across flats: 2.5 mm Hexagonal width across flats: 3 mm wrench
width across flats: 4 mm width across flats: 5 mm Cross-point screwdriver (#2) Torque wrench Feeler gauge (0.5 mm) Belt tension meter Cloth (cushioning)
1 1674607
1 1674608 1 1263977 1 1510528 1 1674582
For M3 hexagon socket head cap bolts 1 For M5 hexagon socket set screws 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control 2 For adjusting the pulley position 1 Refer: Unitta U-505 1 For pressing arms
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #3 timing belt, tilt the Arm #2 and press it against the Arm #2. Reference: Maintenance: 7.1 Joint #3 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
244
C8 Rev.11
Removal: Joint #3 Reduction gear unit 1. Remove the Joint #3 timing belt.
For details, refer to Maintenance 7.3 Joint #3 - Replacing the Timing Belt, Removal steps (1) to (3).
2. Remove the Arm #2 side arm fixing bolts. Hexagon socket head cap bolts: 6-M5�20 (with a plain washer)
3. Remove the Joint #3 pulley 2 from the Joint #3 shaft. Hexagon socket set screws C8, C8L: 2-M5�10 C8XL: 2-M5�12
There is a brass bushing on one of the set screws. Be careful not to lose it.
4. Remove the Arm #3. Hexagon socket head cap bolts: 16-M4�25 (with a plain washer)
Remove a wave washer on the Arm #1 side. The wave washer will be used again. Be careful not to lose it.
Wipe grease on the parts while removing them.
Maintenance 7. Joint #3
CAUTION
By removing the bolts, the Arm #2 side arm, the Arm #3, #4, #5, and #6(end effector) can be separated. There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when removing the arm. Have at least two workers so that one can support the Manipulator while the other worker is removing the bolts.
The Arms are connected by the internal cables. When replacing the parts, place the removed arm while not applying load on the cables. It may result in cable disconnection.
C8 Rev.11
245
Maintenance 7. Joint #3 5. Remove the wave generator from the reduction gear unit. If the wave generator unit does not come off easily, set the pulley 2 as shown in the photo to the shaft and pull out the parts. Wipe grease on the wave generator while removing it.
6. Remove the reduction gear unit from the Arm #3. Hexagon socket head cap bolts: 12-M4�30 Wipe grease on the reduction gear unit while removing it.
7. Remove the O-ring from the groove on the Arm #3. Wipe grease on the O-ring while removing it.
246
C8 Rev.11
Installation: Joint #3 Reduction gear unit 1. Apply a thin coat of grease (SK-1A) to the O-ring.
Fit the O-ring into the groove on the Arm #3. Do not allow the O-ring to come out of the groove. If the O-ring is swollen, damaged, or deteriorated, replace it with a new one.
2. Install the reduction gear unit to the Arm #3. Hexagon socket head cap bolts: 12-M4�30 Tightening torque: 5.5 � 0.2 N�m
Installation face of the Arm #3 reduction gear unit has clearance holes. Install the reduction gear unit to match the screws and the clearance holes.
3. Grease the inner side of the flexspline. Grease: SK-1A Grease amount: 26 g
Maintenance 7. Joint #3
4. Insert the wave generator to the reduction gear unit and fix it.
5. Apply a thin coat of grease (SK-1A) to the O-ring. Fit the O-ring into the groove on the reduction gear unit.
Do not allow the O-ring to come out of the groove.
If the O-ring is swollen, damaged, or deteriorated, replace it with a new one.
C8 Rev.11
247
Maintenance 7. Joint #3
6. Temporarily fix the Arm #1 side arm to the Arm #2. At this time, set the wave washer to the Arm #2. Hexagon socket head cap bolts: 6-M5�20 (with a plain washer)
CAUTION
There is a possibility of hands and fingers being caught and/or damage or malfunction to the Manipulator. Be very careful when installing the arm. Have at least two workers so that one can support the Manipulator while the other worker is removing the bolts.
7. Fix the Arm #3. Hexagon socket head cap bolts: 16-M4�25 (with a plain washer) Tightening torque: 5.5 � 0.2 N�m
After fixing the Arm, check that there is no backlash or misalignment on the reduction gear unit by moving the Arm by hand.
8. After fixing the Arm #3, fix the Arm #2 side arm. Hexagon socket head cap bolts: 6-M5�20 (with a plain washer) Tightening torque: 10.0 � 0.5 N�m
248
C8 Rev.11
Maintenance 7. Joint #3
9. Install the Joint #3 pulley 2 to the Joint #3 shaft. Hexagon socket head cap bolts (with 1 brass bushing) C8, C8L: 2-M5�10 C8XL: 2-M5�12 Tightening torque: 3.9 � 0.2 N�m
NOTE Insert the pulley 2 so that one of the set screws is at the flat face of the shaft. The brass bushing is not necessary for the screw for the flat surface. Set the bushing to the other screw and then fix the screw. If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the brake and may result in the part being unable to be removed.
10. Install the Joint #3 timing belt. For details, refer to Maintenance 7.3 Joint #2 � Replacing the Timing Belt, Installation steps (1) to (2).
C8 Rev.11
249
Maintenance 7. Joint #3
7.3 Joint #3 - Replacing the Timing Belt
Name
Qty.
Note
Maintenance Parts
Timing belt (Joint #3)
C8-A701*** (C8) C8-A901*** (C8L) C8-A1401*** (C8XL)
1 471 mm 1655915 1 480 mm 1655918 1 501 mm 1655919
Belt tensile jig*
1 1674582
Hexagonal wrench (width across flats: 3 mm)
1 For M4 hexagon socket head cap bolt
Tools
Cross-point screwdriver (#2) Torque wrench
1 For cross recessed head screws 1 For tightening torque control
Cloth (cushioning)
1 For pressing arms
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #3 motor, tilt the Arm #2 and press it against the Arm #2. Reference: Maintenance: 7.1 Joint #3 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
Removal: Joint #3 Timing belt 1. Follow Removal steps (1) through (4) of Maintenance: 7.1 Joint #3 � Replacing the Motor.
2. Loosen the Joint #3 motor unit set screw. Hexagon socket head cap bolts: 3-M4�20 (with a plain washer)
3. Remove the Joint #3 timing belt.
Installation: Joint #3 Timing belt 1. Pass the Joint #3 timing belt around the pulley 1 and the pulley 2 of the Joint #3.
Pass the timing belt to the pulley 2 first, then, place the timing belt to the pulley 1.
2. Secure the Joint #2 motor unit. For details, refer to Maintenance: 7.1 Joint #3 � Replacing the Motor, Installation steps (5) to (6) and (9) to (10).
250
C8 Rev.11
Maintenance 7. Joint #3
7.4 Joint #3 - Replacing the Electromagnetic Brake
Name
Qty.
Note
Maintenance Parts
Tools
Electromagnetic brake (Joint #3)
Belt tensile jig*
Hexagonal wrench
width across flats: 2.5 mm width across flats: 3 mm width across flats: 4 mm
Cross-point screwdriver (#2)
Torque wrench
Feeler gauge (0.5 mm)
Belt tension meter
Cloth (cushioning)
1 2172927 1 1674582 1 For M5 hexagon socket set screw 1 For M4 hexagon socket head cap bolt 1 For M5 hexagon socket head cap bolt 1 For cross recessed head screws 1 For tightening torque control 2 For adjusting the pulley position 1 Refer: Unitta U-505 1 For pressing arms
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
When removing the Joint #3 motor, tilt the Arm #2 and press it against the Arm #2. Reference: Maintenance: 7.1 Joint #3 - Replacing the Motor, Removal step (2)
When pressing the arm, put a piece of cloth or a similar material between the arms to avoid contacting each other. This protects the arm surfaces from scratching and paint peeling off.
Removal: Joint #3 Electromagnetic brake
1. Remove the Joint #3 electromagnetic brake. For details, refer to Maintenance: 7.1 Joint #3 � Replacing the Motor, Removal steps (1) through (10).
Installation: Joint #3 Electromagnetic brake
1. Mount the Joint #3 electromagnetic brake to the Joint #3 motor unit. For details, refer to Maintenance: 7.1 Joint #3 � Replacing the Motor, Installation steps (2) through (10).
C8 Rev.11
251
Maintenance 8. Joint #4
8. Joint #4
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
Be careful not to apply excessive shock to the motor shaft during replacement. The shock may shorten the life of the motors and encoder and/or damage them.
Never disassemble the motor and the encoder. Disassembled motor and encoder will cause a positional gap and cannot be used again.
After parts have been replaced (motors, reduction gear units, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller.
Therefore, it is necessary to match these origins after replacing the parts. The process of aligning the two origins is called "Calibration". Refer to Maintenance 16. Calibration and perform the calibration after the parts replacement.
Joint #4 Timing belt
Joint #4 Motor
Joint #4 Reduction gear unit Joint #4 Electromagnetic brake
(Figure: C8-A1401* (C8XL))
252
C8 Rev.11
Maintenance 8. Joint #4
8.1 Joint #4 - Replacing the Motor
Name
Qty.
Note
Maintenance Parts
Tools
AC servo motor 100 W
Belt tensile jig*
Hexagonal wrench
width across flats: 2 mm
width across flats: 2.5 mm width across flats: 3 mm
Cross-point screwdriver (#2)
Feeler gauge (0.5 mm)
Belt tension meter
1 2172051 (common to Joints #4, #5, #6)
1 1674582 1 For M4 hexagon socket set screws 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For cross recessed head screws 2 For pulley position adjustment
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
NOTE
The motors are common for Joints #4, #5, and #6. The Joints #5 and #6 motors have an identification label for preventing misconnection of the connectors. The label is not necessary for the Joint #4 motor. (There is no connector identification label for the Joint #4.)
C8 Rev.11
253
Maintenance 8. Joint #4 Removal: Joint #4 Motor 1. Turn OFF the Controller power. 2. Remove the following covers. Arm #3 cover Arm #3 maintenance cover Arm #2 side cover For details, refer to Maintenance: 3. Covers. 3. Pull out the cables from the Arm #3 and disconnect the following connectors. Connector: X141, X041, BT4, BR041 (Hold the clip to remove.) 4. Remove the brake power supply. Cross recessed head screws with captive washer: 2-M3�6
5. Remove the cable bracket. Hexagon socket head cap bolts: 2-M4�10
6. Remove the Joint #4 motor unit from the Arm #3. Hexagon socket head cap bolts: 2-M4�15 (with a small plain washer)
254
C8 Rev.11
7. Remove the Joint #4 pulley 1 and the drive boss from the motor shaft of the Joint #4 motor unit.
Pulley 1 and drive boss screws Hexagon socket set screws: 2-M4�4 (with a brass bushing)
Drive boss and motor shaft screws Hexagon socket set screws: 2-M4�4
There is a brass bushing on one of the set screws fixing the drive boss and the pulley. Be careful not to lose it.
A: Pulley and motor shaft screws
B: Pulley and drive boss screws
C: Bushing
Drive boss
Pulley
A A
B
C
Maintenance 8. Joint #4
8. Remove the Joint #4 electromagnetic brake. Hexagon socket set screws: 3-M3�15 (with a spacer) Be careful not to lose the spacers.
9. Remove the motor plate from the Joint #4 motor. Hexagon socket head cap bolts: 2-M4�10
C8 Rev.11
255
Maintenance 8. Joint #4
Installation: Joint #4 Motor 1. Install the motor plate to the Joint #4 motor.
Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful of the assembly direction of the motor plate. (See the photo.)
2. Mount the Joint #4 electromagnetic brake to the Joint #4 motor unit. Set the spacers between the hexagon socket set screws and the Joint #4 electromagnetic brake.
Hexagon socket set screws: 3-M3�15 (with a spacer)
Tightening torque: 2.0 � 0.1 N�m
NOTE Be careful of the direction of the Joint #4 electromagnetic brake wire. (See the photo.)
3. Mount the drive boss and the pulley 1 to the Joint #4 motor unit.
Fix the drive boss and the motor shaft. There is an uneven part for the feeler gauge (0.5 mm) on the boss. Use the uneven part to leave 0.5 mm space.
NOTE If there is no space, the parts may chafe while the motor is driving and it may result in breakage while the motor is moving.
Set the set screws to the positions indicated in the figure.
A: Pulley and motor shaft screws
B: Pulley and drive boss screws
C: Bushing
Drive boss
Pulley
A A
B
C
NOTE If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the part and may result in the part being unable to be removed.
Motor cable position Electromagnetic
brake wire
Uneven part for a feeler gauge (0.5 mm) 2 places, at 90 deg pitch
t = 0.5 mm
256
C8 Rev.11
Maintenance 8. Joint #4
Drive boss and the motor shaft: Hexagon socket set screws: 2-M4�4 Tightening torque: 2.5 � 0.2 N�m
Align the screws to the two flat faces of the motor shaft and fix them.
Drive boss and the pulley 1: Hexagon socket set screws: 2-M4�4 (with a brass bushing) Tightening torque: 2.5 � 0.2 N�m
Fix the set screws while pressing the pulley 1 to the drive boss. The brass bushing is not necessary for the screw for the flat surface (D-cut). Set the bushing to the other screw and then fix the screw. 4. Put the Joint #4 motor unit inside the Arm #4.
5. Pass the timing belt around the pulley 1 and pulley 2 and temporarily fix it. Hexagon socket head cap bolts: 2-M4�15 (with a washer) Check that the teeth of the timing belt engage with these of the pulley.
As a rough guide of temporary fixing, check that the motor unit can be moved by hand, and it does not tilt when being pulled. If the belt is too loose or too tight, it will not have proper tension.
6. Apply tension to the Joint #4 timing belt and fix the Joint #4 motor unit. Joint #4 timing belt tension: 15 to30 N Belt tension meter setting value Weight: 2.5 g/mm width � m span, Width: 6 mm, Span: 61 mm Hexagon socket head cap bolt: 2-M4�15 (with a plain washer) Tightening torque: 4.0 � 0.2 N�m
C8 Rev.11
257
Maintenance 8. Joint #4
Regarding belt tension:
NOTE - Jumping (position gap) may occur if the value is below the lower limit. - Vibration (abnormal noise) or reduction in life of the parts may occur if the value exceeds the upper limit. - When you replace with a new belt, belt may stretch and the belt tension will decrease in the initial stage of operation. Make sure to operate the robot two to three days and check the belt tension again. When using the belt tension tensile jig (maintenance part): Fix the belt tension tensile jig (for J4) to the Joint #4 motor plate. Hexagon socket head cap bolt: 2-M4�15 Push the belt tension tensile jig (for J4, J5, and J6) against the Arm #3 as shown in the photo. Insert the screw to the through hole at the center and fix it lightly to the hole for the belt tension tensile jig. Hexagon socket head cap bolt: M4�15 Tension is applied as the Joint #4 motor unit is stretched by tightening the screw.
7. Install the plate for fixing the cables. Hexagon socket head cap bolts: 2-M4�10
8. Install the brake power supply to the plate. Install the brake power supply so that the cable is facing to the left. Cross recessed head screw with captive washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
9. Connect the following connectors. Connectors: X141, X041, BT4, BR041
10. Install the following cover. Arm #3 cover Arm #3 maintenance cover Arm #2 side cover For details, refer to Maintenance: 3. Covers.
11. Calibrate the Joint #4. For details, refer to Maintenance: 16. Calibration.
258
C8 Rev.11
Maintenance 8. Joint #4
8.2 Joint #4 - Replacing the Reduction Gear Unit
Name
Qty.
Note
Reduction C8-A701*** (C8)
Maintenance gear unit C8-A1401*** (C8XL)
Parts
(Joint #4) C8-A901*** (C8L)
Belt tensile jig*
width across flats: 2.5 mm
Hexagonal width across flats: 3 mm
wrench
width across flats: 4 mm
Tools
width across flats: 5 mm
Cross-point screwdriver (#2)
Torque wrench
Belt tension meter
1 1674609
1 1675434 1 1674582 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control 1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
C8 Rev.11
259
Maintenance 8. Joint #4
Removal: Joint #4 Reduction gear unit 1. Turn OFF the Controller power. 2. Remove the Arm #4 side cover and Arm #3 cover.
For details, refer to Maintenance 3. Covers.
3. Remove the Joints #5 and #6 motors. For details, refer to the Removal steps in Maintenance 9.1 Joint #5 - Replacing the Motor and Maintenance 10.1 Joint #6 - Replacing the Motor.
4. Remove the cables passing through the Arm #4 as shown in the photo. For details, refer to the Removal steps in Maintenance 4.1 Cable Unit.
5. Loosen the fixing bolts of the Joint #4 motor plate and remove the belt. (Do not remove the Joint #4 motor.) Hexagon socket head cap bolts: 2-M4�15 (with a small plain washer)
6. Remove the bolts fixing the J4 flange, and remove the Arm #4 from the Arm #3. To remove all bolts, change the position of the Joint #4 by rotating it. Hexagon socket head cap bolts: 8-M5�30
C8L: The bolts can be removed from the four through holes on the extension flange of the Arm #4.
260
C8 Rev.11
7. Remove the bolts fixing the J4 flange and the Joint #4 reduction gear unit. Hexagon socket head cap bolts: 16-M3�20
8. Remove the wave generator of the Joint #4 reduction gear unit together with the J4 flange. If the wave generator does not come off easily, insert a tool in a gap between the J4 flange and the Arm and remove the wave generator little by little.
Be careful not to damage the parts.
Maintenance 8. Joint #4
9. Remove the Joint #4 reduction gear unit. Hexagon socket head cap bolts: 12-M3�28
10. Remove the J4 sleeve holder. Then, remove the J4 sleeve. Hexagon socket head cap bolts: 4-M3�6 The J4 sleeve is attached by gasket and may not be removed easily. If the part cannot be removed, pull the sleeve while rotating it. Handle the sleeve with care since it is thin and easy to deform.
C8 Rev.11
261
Maintenance 8. Joint #4 11. Remove the bolts of the bearing holder on the pulley. Hexagon socket head cap bolts: 3-M3�8 (with a plain washer)
12. Remove the pulley from the pulley spacer. Hexagon socket set screws: 2-M4�4
13. Remove the pulley spacer from the wave generator. Hexagon socket head cap bolts: 4-M3�8
262
C8 Rev.11
Installation: Joint #4 Reduction gear unit 1. Apply grease to the mating surface of the sleeve and the fixing bolts.
(for grease leakage prevention for the reduction gear unit) Fit the J4 sleeve and install the J4 sleeve holder.
Hexagon socket head cap bolts: 4-M3�6 Tightening torque: 2.0 � 0.1 N�m
Maintenance 8. Joint #4
2. Install the O-ring to the O-ring groove. Install the Joint #4 reduction gear unit. Hexagon socket head cap bolts: 12-M3�28 Tightening torque: 2.4 � 0.1 N�m
3. Apply grease to the Joint #4 reduction gear unit. Grease: SK-1A Grease amount: 20 g
Apply 10g of grease to the wave generator. Apply the remaining 10 g to the inner side of the flexspline as shown in the photo.
C8 Rev.11
263
Maintenance 8. Joint #4 4. Install the wave generator of the Joint #4 reduction gear unit.
5. Set the O-ring attached to the reduction gear unit to the O-ring groove on the Joint #4 reduction gear unit. Then, install the J4 flange. Hexagon socket head cap bolts: 16-M3�20 Tightening torque: 2.4 � 0.1 N�m
6. Fix the pulley spacer to the wave generator of the Joint #4 reduction gear unit. Hexagon socket head cap bolts: 4-M3�8 Tightening torque: 2.0 � 0.1 N�m
7. Fix the J4 pulley to the J4 pulley spacer. Hexagon socket set screws: 2-M4�4
264
C8 Rev.11
8. Apply adhesive to the following parts of the J4 pulley. Bearing mating part Inner ring (J4 sleeve) Outer ring (J4 pulley)
Adhesive: Loctite 641 Install the J4 pulley bearing, and tighten the bearing bolt.
Hexagon socket head cap bolts: 3-M3�8 (with a plain washer) Tightening torque: 2.0 � 0.1 N�m
9. Install the Arm #4 to the Arm #3. To fix all bolts, change the position of the Joint #4 by rotating it. Hexagon socket head cap bolts: 8-M5�30 Tightening torque: 10.0 � 0.5 N�m
Maintenance 8. Joint #4
10. Install the Joint #4 timing belt with a proper tension.
For details, refer to Maintenance 8.1 Joint #4 � Replacing the Motor, Installation steps (5) and (6).
11. Pass the cables to the Arm #4. For details, refer to Installation steps in Maintenance 4.1 Cable Unit.
12. Install the Joint #5 and #6 motors. For details, refer to Installation steps of Maintenance 9.1 Joint #5 � Replacing the Motor and Maintenance 10.1 Joint #6 � Replacing the Motor.
13. Install the removed covers. For details, refer to Maintenance 3. Covers.
14. Perform the calibration. For details, refer to Maintenance 16. Calibration.
C8 Rev.11
265
Maintenance 8. Joint #4
8.3 Joint #4 - Replacing the Timing Belt
Name
Qty.
Note
Maintenance Parts
Tools
Timing belt (Joint #4)
Belt tensile jig
Hexagonal width across flats: 2.5 mm
wrench
width across flats: 3 mm
Cross-point screwdriver (#2)
Belt tension meter
Nippers
Masking tape
Wire tie (AB100 or equivalent)
Braid tube (600 mm or longer)
1 1 1 1 1 1 1 1 As needed 1
1655931 1674582 For M3 hexagon socket head cap bolt For M4 hexagon socket head cap bolt For cross recessed head screws Refer: Unitta U-505 For cutting the wire tie For protecting the connector clips
For passing the cables
For passing the cables
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
Removal: Joint #4 Timing belt
1. Remove the Joint #4 motor unit. For details, refer to Maintenance: 8.1 Joint #4 � Replacing the Motor, Installation steps (1) through (6).
2. Remove the connectors inside the Arm #3 and the air tube (transparent). Connectors: X71, X72, X041, BR041, BR051, PS, BT4, BT51, X141, X151, X161
3. Remove the cable bracket inside the Arm #3. Hexagon socket head cap bolts: 4-M4�10
266
C8 Rev.11
4. Remove the Arm #3 cable bracket and cable protection sheet. Hexagon socket head cap bolts: 2-M3�6
The Arm #3 cable bracket and cable protection sheet will be used again. Be careful not to lose them.
5. Remove the Arm #4 side cover. For details, refer to Maintenance: 3 Covers.
Maintenance 8. Joint #4
6. Remove the cable protection plate attached to the Arm #4. Hexagon socket head cap bolts: 2-M4�10
7. Remove the green/yellow ground wire and the green ground wire connected to X052 and X062 from the cable protection plate. Cross recessed head screws with captive washer: 2-M4�8 Positions of the ground wire terminals may differ from the photo. Check which connector the terminal is connected to.
8. Remove the following connectors. Connector: X052, X062
9. Remove the Arm #4 cable bracket and the cable protection sheet.
Hexagon socket head cap bolts: 2-M3�6
The Arm #4 cable bracket and cable protection sheet will be used again. Be careful not to lose them.
C8XL: The cable protection tube is used instead of the cable protection sheet.
C8 Rev.11
267
Maintenance 8. Joint #4
10. Remove the air tube (blue) from the fitting.
C8XL: 11. Remove the Arm #4 maintenance cover.
For details, refer to Maintenance: 3 Covers. C8XL: 12. Remove the Arm #4 cable bracket and the cable protection sheet.
Hexagon socket head cap bolts: 2-M3�6 The Arm #4 cable bracket and cable protection sheet will be used again. Be careful not to lose them.
13. Pull the following parts from the Arm #4 to the Arm #3. LAN cable X052 and X062 cables Ground wire Air tube (blue)
Protect the connectors with masking tapes. - To protect the connector's clips - To avoid adherence of cable grease
14. Remove the Joint #4 timing belt.
268
C8 Rev.11
Installation: Joint #4 Timing belt 1. Pass the Joint #4 timing belt around the Joint #4 pulley 2
Maintenance 8. Joint #4
2. Install the Joint #4 motor unit. For details, refer to Maintenance: 8.1 Joint #4 � Replacing the Motor, Installation steps (4) through (6).
3. Pass the following parts from the Arm #3 to the Arm #4. X052 and X062 cables LAN cable Ground wire Air tube (blue)
How to pass the cables: First pass the braid tube from the Arm #4 side to the Arm #3 side. Insert the connectors through the braid tube, as shown in the photo, and fix the tube with the wire tie so that connectors are not to be pulled out. Then, pull the braid tube from the Arm #4 side while pushing the cables from the Arm #3 side to pass the cables through. (See the photo.)
NOTE
Pulling the cables forcibly may cause falling off or breakage of the connectors and disconnection of the cables. If it is difficult to pass the cables, pass the cables one by one in the following order.
X052 and X062 cables LAN cable Ground wire Air tube (blue)
C8XL: 4. Wrap the cables inside the Arm #4 extension part with a cable
protection sheet and install the Arm #4 cable bracket.
Hexagon socket head cap bolts: 2-M3�6
Tightening torque: 2.0 � 0.1 N�m
5. Wrap the cables inside the Arm #4 with a cable protection sheet and install the Arm #4 cable bracket.
C8XL: Install the Arm #4 cable bracket on the cable protection tube. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.0 � 0.1 N�m
C8 Rev.11
269
Maintenance 8. Joint #4
6. Wrap the cables inside the Arm #3 with a cable protection sheet and install the Arm #3 cable bracket. Hexagon socket head cap bolts: 2-M3�6 Tightening torque: 2.0 � 0.1 N�m
7. Install the cable bracket inside the Arm #3. Hexagon socket head cap bolts: 4-M4�10 Tightening torque: 4.0 � 0.2 N�m
8. Install the brake power supply to the plate. Install the brake power supply so that the cable is facing to the left. Cross recessed head screws with captive washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
9. Connect the connectors inside the Arm #3 and the air tube (transparent). Connector: X71, X72, X041, BR041, BR051, PS, BT4, BT51, X141, X151, X161
10. Connect the ground wire terminals inside the Arm #4 to the Arm #4 cable protection bracket. Cross recessed head screws with captive washer: 2-M4�8 Tightening torque: 0.45 � 0.1 N�m
270
C8 Rev.11
11. Connect the connectors inside the Arm #4. Connector: X052, X062
12. Fix the cable protection bracket to the Arm #4. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the cables caught. It may cause cable breakage. 13. Install the air tube (blue) to the fitting.
14. Install the following covers. Arm #3 cover Arm #3 maintenance cover Arm #4 side cover Arm #4 maintenance cover : C8XL only
For details, refer to Maintenance 3. Covers.
Maintenance 8. Joint #4
C8 Rev.11
271
Maintenance 8. Joint #4
8.4 Joint #4 - Replacing the Electromagnetic Brake
Name
Qty.
Note
Maintenance Electromagnetic brake
Parts
Belt tensile jig
2172928 1
(common for Joints #4, #5, #6) 1 1674582
Tools
Hexagonal wrench
width across flats: 2 mm width across flats: 2.5 mm width across flats: 3 mm
Cross-point screwdriver (#2)
1 For M4 hexagon socket set screws 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For cross recessed head screws
Feeler gauge (0.5 mm)
1 For adjusting the drive boss position
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
NOTE
The electromagnetic brakes are common for Joints #4, #5, and #6. The Joints #5 and #6 electromagnetic brakes have an identification label for preventing misconnection of the connectors. The label is not necessary for the Joint #4 electromagnetic brake. (There is no connector identification label for the Joint #4.)
Removal: Joint #4 Electromagnetic brake
1. Remove the Joint #4 electromagnetic brake. For details, refer to Maintenance: 8.1 Joint #4 � Replacing the Motor, Removal steps (1) through (8).
Installation: Joint #4 Electromagnetic brake
1. Mount the Joint #4 electromagnetic brake to the Joint #4 motor unit. For details, refer to Maintenance: 8.1 Joint #4 � Replacing the Motor, Installation steps (2) through (11).
272
C8 Rev.11
Maintenance 9. Joint #5
9. Joint #5
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
Be careful not to apply excessive shock to the motor shaft during replacement. The shock may shorten the life of the motors and encoder and/or damage them.
Never disassemble the motor and the encoder. Disassembled motor and encoder will cause a positional gap and cannot be used again.
After parts have been replaced (motors, reduction gear units, electromagnetic brakes, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller. Therefore, it is necessary to match these origins after replacing the parts. The process of aligning the two origins is called "Calibration". Refer to Maintenance 16. Calibration and perform the calibration after the parts replacement.
Joint #5, #6 Reduction gear unit set
Joint #5 Motor + Electromagnetic brake
Joint #5 Timing belt
C8 Rev.11
(Figure: C8-A1401* (C8XL))
273
Maintenance 9. Joint #5
9.1 Joint #5 - Replacing the Motor
Name
Qty.
Note
Maintenance Parts
Tools
AC servo motor 100 W
Belt tensile jig *
width across flats: 2 mm
Hexagonal width across flats: 2.5
wrench
mm
width across flats: 3 mm
Cross-point screwdriver (#2)
Torque wrench
Spanner (width across flats: 8 mm)
Feeler gauge (0.5 mm)
Belt tension meter
1 2172051 (Common for Joints #4, #5, #6)
1 1674582 1 For M4 hexagon socket set screws 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control
1 For air tube fitting
2 For adjusting the drive boss position 1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
Attaching the labels
The motors are common for Joints #4, #5, and #6. In order to prevent misconnection of the connectors, attach the label for the motor as shown in the photos.
Joint #5 motor Locations of the connector labels
X152
X052
BT52
_BT52
274
C8 Rev.11
Removal: Joint #5 Motor 1. Turn OFF the Controller power. 2. Remove the Arm #4 side cover.
For details, refer to Maintenance: 3. Covers. 3. Loosen the screws fixing the cable protection bracket on the Arm
#4 and pull out the cables. Hexagon socket head cap bolts: 2-M4�10
Maintenance 9. Joint #5
4. Remove the brake power supply connected to the connector (BR052) from the plate.
Cross recessed head screw with captive washer: 2-M3�6
5. Disconnect the following connectors. Connector: X052, X152, BT52, BR052
6. Remove the air tube fitting located in the front of the Joint #5 motor unit.
C8 Rev.11
275
Maintenance 9. Joint #5
7. Loosen the screws fixing the Joint #5 motor unit and remove the belt. Hexagon socket head cap bolts: 2-M4�15 (with a plain washer)
8. Remove the Joint #5 motor unit.
Hexagon socket head cap bolts: 2-M4�15 (with a plain washer)
9. Remove the Joint #5 pulley 1 and the drive boss from the motor shaft of the Joint #5 motor unit.
Pulley 1 and drive boss screws Hexagon socket set screws: 2-M4�4 (with a brass bushing)
Drive boss and motor shaft screws Hexagon socket set screws: 2-M4�4
There is a brass bushing on one of the set screws fixing the drive boss and the pulley. Be careful not to lose it.
A: Pulley and motor shaft screws B: Pulley and drive boss screws C: Bushing
Drive boss
Pulley
A A
B
C
276
C8 Rev.11
10. Remove the Joint #5 electromagnetic brake. Hexagon socket head cap bolts: 3-M3�15 (with a spacer) Be careful not to lose the spacers.
11. Remove the motor plate from the Joint #5 motor. Hexagon socket head cap bolts: 2-M4�10
Maintenance 9. Joint #5
C8 Rev.11
277
Maintenance 9. Joint #5
Installation: Joint #5 Motor 1. Install the motor plate to the Joint #5 motor.
Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful of the assembly direction of the motor plate. (See the photo.)
2. Mount the Joint #5 electromagnetic brake to the Joint #5 motor unit. Insert the spacers between the hexagon socket set screws and the Joint #5 electromagnetic brake. Hexagon socket set screws: 3-M2.5�10 (with a spacer) Tightening torque: 2.0 � 0.1 N�m
NOTE Be careful of the assembly direction of the Joint #5 electromagnetic brake wiring. (See the photo.)
3. Mount the drive boss and the pulley 1 to the Joint #5 motor unit. Fix the drive boss and the motor shaft. There is an uneven part for the feeler gauge (0.5 mm) on the boss. Use the uneven part to leave 0.5 mm space.
NOTE If there is no space, the parts may chafe while the motor is driving and it may result in breakage while the motor is moving.
Set the set screws to the positions indicated in the figure. A: Pulley and motor shaft screws B: Pulley and drive boss screws C: Bushing
Drive boss
Pulley
A A
B
C
NOTE If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the part and may result in the part being unable to be removed.
278
Motor cable position Electromagnetic brake wiring
Uneven part for a feeler gauge (0.5 mm) 2 places, at 90 deg pitch
t = 0.5 mm
C8 Rev.11
Maintenance 9. Joint #5
Drive boss and the motor shaft: Hexagon socket set screws: 2-M4�4 Tightening torque: 2.5 � 0.2 N�m
Align the screws to the two flat faces of the motor shaft and fix them.
Drive boss and the pulley 1: Hexagon socket set screws: 2-M4�4 (with a brass bushing) Tightening torque: 2.5 � 0.2 N�m
Fix the set screws while pressing the pulley 1 to the drive boss. The brass bushing is not necessary for the screw for the flat surface (D-cut). Set the bushing to the other screw and then fix the screw.
4. Put the Joint #5 motor unit inside the Arm #4. Pass the cables of the Joint #5 motor unit to the Joint #6 motor unit side so that the cables can be stored in the storage space. (See the photo)
5. Pass the timing belt around the pulley 1 and pulley 2 and fix it temporarily. Make sure that the teeth of the timing belt engage with these of the pulley.
As a rough guide of temporary fixing, check that the motor unit can be moved by hand, and it does not tilt when being pulled. If the belt is too loose or too tight, it will not have proper tension
6. Apply tension to the Joint #5 timing belt and fix the Joint #5 motor unit.
Joint #5 Timing belt tension: 15 to 30 N
Bet tension meter setting value Weight: 2.5 g/mm width � m span, Width: 6 mm, Span: 117 mm Hexagon socket head cap bolts: 2-M4�15 (with a plain washer) Tightening torque: 4.0 � 0.2 N�m
NOTE Regarding belt tension: - Jumping (position gap) may occur if the value is below the lower limit.
- Vibration (abnormal noise) or reduction in life of the parts may occur if the value exceeds the upper limit.
- When you replace with a new belt, belt extends and the belt tension may decrease in the initial stage. Make sure to operate the robot two to three days and check the belt tension again.
C8 Rev.11
279
Maintenance 9. Joint #5
When using the belt tension tensile jig (maintenance part): Fix the belt tension tensile jig (for J4, J5, and J6) with the screws (2-M4�15) and push the rubber against the pulley. Tension is applied as the set screw (M6�15) is pushed by the rubber.
7. Install the air tube fitting in the front of the Joint #5 motor unit. After tightening by hand, tighten one sixth to quarter of a turn.
NOTE Tightening of the fitting: Fitting is too tight: It may cause air leakage due to screw breakage or gasket deformation. Fitting is too loose: It may cause loose screws and air leakage. 8. Connect the following connectors. Connectors: X052, X152, BT52, BR052 9. Install the brake power supply to the plate. Cross recessed head screw with captive washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
10. Fix the cable protection bracket to the Arm #4. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the cables caught. It may result in cable breakage.
11. Install the Arm #4 side cover. For details, refer to Maintenance: 3. Covers.
12. Perform the calibration. For details, refer to Maintenance: 16. Calibration.
280
C8 Rev.11
Maintenance 9. Joint #5
9.2 Joint #5 - Replacing the Reduction Gear Unit (Replacing the Joint #5, #6 Reduction Gear Unit Set)
For replacement of the Joint #5 and Joint #6 reduction gear unit, replace the Joints #5, #6 reduction gear unit set.
The Joints #5 and #6 reduction gear unit set is adjusted in advance.
Name
Qty.
Note
Maintenance Parts
Tools
Joints #5, #6 Reduction gear unit set
Belt tensile jig*
width across flats: 2 mm
Hexagonal wrench
width across flats: 2.5 mm width across flats: 3 mm width across flats: 4 mm
width across flats: 5 mm
Cross-point screwdriver (#2)
Torque wrench
Spanner ( width across flats: 8 mm)
Feeler gauge (0.5 mm)
Belt tension meter
1 1674610 (common to C8 series) 1 1674582 1 For M4 hexagon socket set screws 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control 1 For air fittings 2 For drive boss position adjustment 1 Refer: Unitta U-505
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
C8 Rev.11
281
Maintenance 9. Joint #5
Removal: Joints #5, #6 Reduction gear unit set 1. Turn OFF the Controller power. 2. Remove the Arm #4 side cover and Arm #3 cover.
For details, refer to Maintenance 3. Covers.
3. Remove the Joints #5 and #6 motors. For details, refer to the Removal steps in Maintenance 9.1 Joint #5 - Replacing the Motor and Maintenance 10.1 Joint #6 - Replacing the Motor.
4. Remove the cables passing through the Arm #4 as shown in the photo. For details, refer to the Removal steps in Maintenance 4.1 Cable Unit.
5. Remove the Joints #5, #6 reduction gear unit.
C8: Loosen the fixing bolts of the Joint #4 motor plate and remove the belt. (Do not remove the Joint #4 motor.)
Hexagon socket head cap bolts: 2-M4�15 (with a small plain washer)
Remove the bolts fixing the J4 flange, and remove the Joints #5 and #6 reduction gear unit (with the Joint #4 reduction gear unit) from the Arm #3.
Hexagon socket head cap bolts: 8-M5�30
C8L, C8XL: Remove the bolts fixing the Arm #4 extension flange, and remove the Joints #5 and #6 reduction gear unit from the Arm #4 extension part.
Hexagon socket head cap bolts: 4-M6�20
282
C8 Rev.11
6. Follow the following steps according to the model.
C8: Remove the Joint #4 reduction gear unit. For details, refer to Removal steps in Maintenance 8.2 Joint #4 � Replacing the Reduction Gear Unit.
Maintenance 9. Joint #5
C8L, C8XL: Remove the Arm #4 extension flange. C8XL does not have the J4 sleeve on the Arm #4.
Hexagon socket head cap bolts: 12-M3�18
7. C8, C8L: First, remove the J4 sleeve holder. Then, remove the J4 sleeve.
Hexagon socket head cap bolts: 4-M3�6
The J4 sleeve is adhered with gasket and may not be removed easily. If the part cannot be removed, pull the sleeve while rotating it. Handle the sleeve with care since it is thin and easy to deform.
C8 Rev.11
283
Maintenance 9. Joint #5
Installation: Joints #5, #6 Reduction gear unit set 1. C8, C8L:
Apply grease to the mating part of the sleeve and the fixing bolts. (for grease leakage prevention for the reduction gear unit) Fit the J4 sleeve and install the J4 sleeve holder.
Hexagon socket head cap bolts: 4-M3�6 Tightening torque: 2.0 � 0.1 N�m
2. C8: Install the Joint #4 reduction gear unit. For details, refer to Installation steps in Maintenance 8.2 Joint #4 � Replacing the Reduction Gear Unit.
C8L, C8XL: Install the Arm #4 extension flange. (C8XL does not have the sleeve.) Hexagon socket head cap bolts: 12-M3�18 Tightening torque: 2.4 � 0.1 N�m
3. Install the Joints #5 and #6 reduction gear unit.
C8: Install the J4 flange to the Arm #3.
Hexagon socket head cap bolts: 8-M5�30 Tightening torque: 10.0 � 0.5 N�m Apply proper tension to the Joint #4 timing belt and fix the Joint #4 motor unit. For details, refer to Maintenance 8.1 Joint #4 � Replacing the Motor, Installation steps (6).
284
C8 Rev.11
C8L,C8XL: Install the Arm #4 extension flange to the Arm #4 extension part.
C8L: Apply adhesive to the J4 sleeve and the J4 pulley bearing mating part (indicated by a yellow mark in the right photo) Adhesive: Loctite641
Hexagon socket head cap bolts: 4-M6�20 Tightening torque: 13.0 � 0.6 N�m
Maintenance 9. Joint #5
4. Pass the cables to the Arm #4.
Connect all the connectors inside the Arm #3 and bind them together.
Fix the cables inside the Arm #4, and connect the D-sub to the Arm #4.
For details, refer to Installation steps in Maintenance 4.1 Cable Unit.
C8 Rev.11
285
Maintenance 9. Joint #5 5. Install the Joints #5 and #6 motors. For details, refer to Installation steps in Maintenance 9.1 Joint #5 � Replacing the Motor and Maintenance 10.1 Joint #6 � Replacing the Motor.
6. Install the removed covers. For details, refer to Maintenance 3. Covers.
7. Perform the calibration. For details, refer to Maintenance 16. Calibration.
286
C8 Rev.11
Maintenance 9. Joint #5
9.3 Joint #5 - Replacing the Timing Belt
Name
Qty.
Note
Maintenance Joint #5 timing belt 330 mm
1 1655932
Parts
Belt tensile jig
1 1674582
Hexagonal wrench (width across flats: 3 mm)
1 For M4 hexagon socket head cap bolts
Tools
Cross-point screwdriver (#2)
1 For cross recessed head screws
Torque wrench
1 For tightening torque control
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
Removal: Joint #5 Timing belt
1. Turn OFF the Controller power.
2. Remove the Arm #4 side cover. For details, refer to Maintenance: 3. Covers.
3. Loosen the Joint #5 motor unit set screws. Hexagon socket head cap bolts: 2-M4�15 (with a plain washer)
4. Remove the Joint #5 timing belt.
Installation: Joint #5 Timing belt. 1. Pass the Joint #5 timing belt around the pulley 1 and the pulley 2 of the Joint #5. 2. Secure the Joint #5 motor unit.
For details, refer to Maintenance: 9.1 Joint #5 � Replacing the Motor, Installation steps (5) to (6) and (11) to (12).
C8 Rev.11
287
Maintenance 9. Joint #5
9.4 Joint #5 - Replacing the Electromagnetic Brake
Name
Qty.
Note
Maintenance Electromagnetic brake
1 2172928 (Common for Joints #4, #5, #6)
Parts
Belt tensile jig
1 1674582
width across flats: 2 mm
1 For M4 hexagon socket set screws
Hexagonal width across flats: 2.5 mm 1 For M3 hexagon socket head cap bolts
wrench
width across flats: 3 mm
1 For M4 hexagon socket head cap bolts
Tools
Cross-point screwdriver (#2) Torque wrench
1 For cross recessed head screws 1 For tightening torque control
Spanner (width across flats: 8 mm)
1 For air tube fitting
Feeler gauge (0.5 mm)
1 For adjusting the pulley position
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
Attaching the labels The electromagnetic brakes are common for Joints #4, #5, and #6. In order to prevent misconnection of the connectors, attach the label for the electromagnetic brakes as shown in the photos.
Joint #5 electromagnetic brakes Locations of the connector labels
BR052 Cable (red/black)
BR053 Cable (blue/blue)
BR053 Cable(blue/orange)
NOTE BR053 is connected at the time of shipment. Before attaching the label, disconnect the connector.
One side of BR052 and BR053 have the same shape. Identify the connectors by color.
288
C8 Rev.11
Maintenance 9. Joint #5
Removal: Joint #5 Electromagnetic brake 1. Remove the Joint #5 electromagnetic brake.
For details, refer to Maintenance: 9.1 Joint #5 � Replacing the Motor, Removal steps (1) through (10).
Installation: Joint #5 Electromagnetic brake 1. Mount the Joint #5 electromagnetic brake to the Joint #5 motor unit.
For details, refer to Maintenance: 9.1 Joint #5 � Replacing the Motor, Installation steps (2) through (12).
C8 Rev.11
289
Maintenance 10. Joint #6
10. Joint #6
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
Be careful not to apply excessive shock to the motor shaft during replacement. The shock may shorten the life of the motors and encoder and/or damage them.
Never disassemble the motor and the encoder. Disassembled motor and encoder will cause a positional gap and cannot be used again.
After parts have been replaced (motors, reduction gear units, electromagnetic brakes, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller. Therefore, it is necessary to match these origins after replacing the parts. The process of aligning the two origins is called "Calibration". Refer to Maintenance 16. Calibration and perform the calibration after the parts replacement.
Joints #5, #6 Reduction gear unit set Joint #6 Timing belt
Joint #6 Motor + Electromagnetic brake
(Figure: C8-A1401* (C8XL))
290
C8 Rev.11
Maintenance 10. Joint #6
10.1 Joint #6 - Replacing the Motor
Name
Qty.
Note
Maintenance Parts
Tools
AC servo motor 100 W
Belt tensile jig * width across flats: 2 mm
Hexagonal width across flats: 2.5
wrench
mm
width across flats: 3 mm
Cross-point screwdriver (#2)
Feeler gauge (0.5 mm)
Belt tension meter
1 2172051 (common to Joints #4, #5, #6) 1 1674582 1 For M4 hexagon socket set screws
1 For M3 hexagon socket head cap bolts
1 For M4 hexagon socket head cap bolts 1 For cross recessed head screws 2 For adjusting the drive boss position 1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
Attaching the labels The motors are common to Joints #4, #5, and #6. In order to prevent misconnection of the connectors, attach the label for the motor as shown in the photos.
Joint #6 motor Locations of the connector labels
X162 BT62
X062 _BT62
C8 Rev.11
291
Maintenance 10. Joint #6 Removal: Joint #6 Motor 1. Turn OFF the Controller power. 2. Remove the Arm #4 side cover. For details, refer to Maintenance: 3. Covers. 3. Loosen the screws fixing the cable protection plate on the Arm #4 and pull out the cables. Hexagon socket head cap bolts: 2-M4�10
4. Remove the brake power supply connected to the connector (BR062) from the protection plate. Cross recessed head screw with captive washer: 2-M3�6
5. Pull out the cables from the Arm #4 and disconnect the following connectors. Connectors: X062, X162, BT62, BR062
6. Loosen the bolts securing the Joint #6 motor unit and remove the belts. Hexagon socket head cap bolts: 2-M4�15 (with a plain washer)
7. Remove the Joint #6 motor unit. Hexagon socket head cap bolts: 2-M4�15 (with a plain washer)
292
C8 Rev.11
8. Remove the Joint #6 motor pulley 1 and the drive boss from the Joint #6 motor unit.
Pulley 1 and drive boss screws Hexagon socket set bolts: 2-M4�4 (with a brass bushing)
Drive boss and motor shaft screws Hexagon socket set bolts: 2-M4�4
There is a brass bushing on one of the set screws fixing the drive boss and the pulley. Be careful not to lose it.
A: Pulley and motor shaft screws B: Pulley and drive boss screws C: Bushing
Drive boss
Pulley
A A
B
C
9. Remove the Joint #6 electromagnetic brake. Hexagon socket set bolts: 3-M3�15 (with a spacer) Be careful not to lose the spacers.
Maintenance 10. Joint #6
10. Remove the motor plate from the Joint #6 motor. Hexagon socket head cap bolts: 2-M4�10
C8 Rev.11
293
Maintenance 10. Joint #6
Installation: Joint #6 motor 1. Install the motor plate to the Joint #6 motor.
Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful of the assembly direction of the motor plate. (See the photo.)
2. Mount the Joint #6 electromagnetic brake to the Joint #6 motor unit. Insert the spacers between the hexagon socket set screws and the Joint #6 electromagnetic brake.
Hexagon socket set screws: 3-M3�15 (with a spacer)
Tightening torque: 2.0 � 0.1 N�m
NOTE Be careful of the assembly direction of the Joint #5 electromagnetic brake wiring. (See the photo.)
3. Mount the drive boss and the pulley 1 to the Joint #6 motor unit.
Fix the drive boss and the motor shaft. There is an uneven part for the feeler gauge (0.5 mm) on the boss. Use the uneven part to leave 0.5 mm space.
NOTE
If there is no space, the parts may chafe while the motor is driving and it may result in breakage while the motor is moving.
Set the set screws to the positions indicated in the figure.
A: Pulley and motor shaft screws
B: Pulley and drive boss screws
C: Bushing
Drive boss
Pulley
A A
B
C
NOTE
If the screw positions are incorrect or the bushing is not set, it may cause damage on the side of the part and may result in the part being unable to be removed.
294
Motor cable position Electromagnetic brake wiring
Uneven part for a feeler gauge (0.5 mm) 2 places, at 90 deg pitch
t = 0.5 mm
C8 Rev.11
Maintenance 10. Joint #6
Drive boss and the motor shaft: Hexagon socket set screws: 2-M4�4 Tightening torque: 2.5 � 0.2 N�m
Align the screws to the two flat faces of the motor shaft and fix them.
Drive boss and the pulley 1: Hexagon socket set screws: 2-M4�4 (with a brass bushing) Tightening torque: 2.5 � 0.2 N�m
Fix the set screws while pressing the pulley 1 to the drive boss.
The brass bushing is not necessary for the screw for the flat surface (D-cut). Set the bushing to the other screw and then fix the screw.
4. Put the Joint #6 motor unit inside the Arm #4.
5. Pass the timing belt around the pulley 1 and pulley 2 and fix it temporarily. Make sure that the teeth of the timing belt engage with these of the pulley.
As a rough guide of temporary fixing, check that the motor unit can be moved by hand, and it does not tilt when being pulled. If the belt is too loose or too tight, it will not have proper tension. 6. Apply tension to the Joint #6 timing belt and fix the Joint #6 motor unit.
Joint #6 timing belt tension: 15 to 30 N Belt tension meter setting value
Weight: 2.5 g/mm width � m span, Width: 6 mm, Span: 122 mm
Hexagon socket head cap bolt: 2-M4�15 (with a plain washer) Tightening torque: 4.0 � 0.2 N�m
NOTE
Regarding belt tension:
- Jumping (position gap) may occur if the value is below the lower limit.
- Vibration (abnormal noise) or reduction in life of the parts may occur if the value exceeds the upper limit
- When you replace with a new belt, belt may stretch and the belt tension will decrease in the initial stage of operation. Make sure to operate the robot two to three days and check the belt tension again.
C8 Rev.11
295
Maintenance 10. Joint #6
When using the belt tension tensile jig (maintenance part): Fix the belt tension tensile jig (for Joints #4, #5, and #6) with the screws (2-M4�15) and push the rubber against the pulley. Tension is applied as the set screw (M6�15) is pushed by the rubber.
7. Connect the following connectors. Connectors: X062, X162, BT62, BR062
8. Install the brake power supply to the plate. Cross recessed head screw with captive washer: 2-M3�6 Tightening torque: 0.45 � 0.1 N�m
9. Fix the cable protection plate to the Arm #4. Hexagon socket head cap bolt: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
NOTE Be careful not to get the cables caught. It may result in cable breakage.
10. Install the Arm #4 side cover. For details, refer to Maintenance: 3. Covers.
11. Perform the calibration. For details, refer to Maintenance: 16. Calibration.
296
C8 Rev.11
Maintenance 10. Joint #6
10.2 Joint #6 - Replacing the Reduction Gear Unit (Replacing the Joints #5, #6 Reduction Gear Unit Set)
For replacement of the Joint #5 and Joint #6 reduction gear unit, replace the Joints #5, #6 reduction gear unit set.
The Joints #5 and #6 reduction gear unit set is adjusted in advance.
Name
Maintenance Parts
Tools
Joints #5, #6 Reduction gear unit set
Belt tensile jig*
width across flats: 2 mm
Hexagonal wrench
width across flats: 2.5 mm width across flats: 3 mm width across flats: 4 mm
width across flats: 5 mm
Cross-point screwdriver (#2)
Torque wrench
Spanner ( width across flats: 8 mm)
Feeler gauge (0.5 mm)
Belt tension meter
Qty.
Note
1 1674610 (common to C8 series) 1 1674582 1 For M4 hexagon socket set screws 1 For M3 hexagon socket head cap bolts 1 For M4 hexagon socket head cap bolts 1 For M5 hexagon socket head cap bolts 1 For M6 hexagon socket head cap bolts 1 For cross recessed head screws 1 For tightening torque control 1 For air fittings 2 For drive boss position adjustment 1 Refer: Unitta U-505
For details of the replacement procedure, refer to Maintenance 9.2 Joint #5 - Replacing the Reduction Gear Unit (Replacing the Joints #5, #6 Reduction Gear Unit).
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
C8 Rev.11
297
Maintenance 10. Joint #6
10.3 Joint #6 - Replacing the Timing Belt
Name
Qty.
Note
Maintenance Joint #6 timing belt
Parts
Belt tensile jig
339 mm
1 1655933 1 1674582
Tools
Hexagonal wrench (width across flats: 3 mm) Cross-point screwdriver (#2)
1 For M4 hexagon socket head cap bolts 1 For cross recessed head screws
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
Removal: Joint #6 Timing belt
1. Turn OFF the Controller power.
2. Remove the Arm #4 side cover. For details, refer to Maintenance: 3. Covers.
3. Loosen the Joint #6 motor unit set screw. Hexagon socket head cap bolt: 2-M4�15 (with a plain washer)
4. Remove the Joint #6 timing belt.
Installation: Joint #6 Timing belt 1. Place the Joint #6 timing belt around the pulley 1 and 2 of the Joint #6. 2. Secure the Joint #6 motor unit.
For details, refer to Maintenance: 10.1 Joint #6 � Replacing the Motor, Installation steps (5) to (6) and (10) to (11).
298
C8 Rev.11
Maintenance 10. Joint #6
10.4 Joint #6 - Replacing the Electromagnetic Brake
Name
Qty.
Note
Maintenance Electromagnetic brake
1 2172928 (Common to Joints #4, #5, #6)
Parts
Belt tensile jig
1 1674582
Tools
width across flats: 2 mm
1 For M4 hexagon socket set screws
Hexagonal width across flats: 2.5 mm
wrench
width across flats: 3 mm
1 1
For M3 hexagon socket head cap bolts For M4 hexagon socket head cap bolts
Cross-point screwdriver (#2)
1 For cross recessed head screws
Feeler gauge (0.5 mm)
1 For adjusting the pulley position
Belt tension meter
1 Refer: Unitta U-505
* The belt tensile jig is an assembly jig. Use the jig when adjusting belt tension.
The brake is mounted on each joint to prevent the arm from lowering due to its own mass while the Controller power is OFF or the motor is OFF status. The brake does not work during replacement. Be careful when performing maintenance work.
Attaching the labels
The electromagnetic brakes are common to Joints #4, #5, and #6. In order to prevent misconnection of the connectors, attach the label for the electromagnetic brakes as shown in the photos.
Joint #6 electromagnetic brakes Locations of the connector labels
BR062 Cable (red/black)
BR063 Cable (blue/blue)
BR063 Cable(blue/orange)
NOTE BR063 is connected at the time of shipment. Before attaching the label, disconnect the connector.
One side of BR062 and BR063 have the same shape. Identify the connectors by color.
C8 Rev.11
299
Maintenance 10. Joint #6
Removal: Joint #6 Electromagnetic brake 1. Remove the Joint #6 electromagnetic brake.
For details, refer to Maintenance: 10.1 Joint #6 � Replacing the Motor, Removal steps (1) through (9).
Installation: Joint #6 Electromagnetic brake 1. Mount the Joint #6 electromagnetic brake to the Joint #6 motor unit.
For details, refer to Maintenance: 10.1 Joint #6 � Replacing the Motor, Installation steps (2) through (11).
300
C8 Rev.11
Maintenance 11. Replacing the Battery Unit
11. Replacing the Battery Unit
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
WARNING
Take meticulous care when handling the lithium battery. Improper handling of the lithium battery as mentioned below is extremely hazardous and may result in heat generation, leakage, explosion, or inflammation. It also may cause serious safety problems.
<Improper Handling> Attempting to charge Disassembling Connecting batteries improperly Exposing to fire Forcing discharge
Deforming by pressure Short-circuit (Polarity; Positive/Negative) Heating (85 �C or more) Soldering the terminal of the lithium battery directly
When disposing the battery, consult with the professional disposal services or comply with the local regulation. Make sure that the battery terminal is insulated, even for a used buttery. If the terminal contacts with the other metals, it may short and result in heat generation, leakage, explosion, or inflammation.
NOTE
In case of the low lithium battery power, the error to warn the voltage reduction occurs at the Controller startup (the software startup). All position data will be lost and you will need to calibrate all joints.
The life span of the lithium battery varies depending on the energizing hours and installation environment of the Controller. It is about 3 years as a rough guide (when the Controller is connected to power for 8 hours a day). When the Controller is not connected to power, the battery consumption will significantly increase compared to when the Controller is energized. If warnings of voltage reduction occur, replace the lithium metal battery even if it has not reached the above product life.
For the EPSON RC+ 7.0 Ver. 7.2.x or later (firmware Ver.7.2.x.x or later), the recommended replacement time for the battery can be checked in the [Maintenance] dialog box of the EPSON RC+ 7.0. For details, refer to the following manual.
Robot Controller RC700 / RC700-A Maintenance 6. Alarm
C8 Rev.11
301
Maintenance 11. Replacing the Battery Unit
The battery may run out if it passes the recommended replacement time. If no warnings of voltage reduction occur, the calibration for all joints is not necessary. You need to perform calibration if the position moves from the originals after replaced the battery. Designated parts must be used for the lithium battery and battery board. Be careful of the battery polarity to connect it correctly.
Battery
Battery board
(Figure: C8-A1401** (C8XL))
Name
Maintenance Parts Tools
Battery unit (Lithium battery)
Battery board Cross-point screwdriver (#2) Hexagonal wrench (width across flats: 3 mm)
Qty.
Note
2172925
1
(Two lithium batteries for replacement)
1
2173216
1
For cross recessed head screws
1
For M4 hexagon socket head cap bolts
302
C8 Rev.11
Maintenance 11. Replacing the Battery Unit
11.1 Replacing the Battery Unit (Lithium Battery)
1. Turn OFF the Controller power. 2. Remove the Arm #1 side cover.
For details, refer to Maintenance: 3. Covers. 3. Remove the battery from the battery box.
NOTE If you removed all the batteries before connecting the new ones, the calibration data will be deleted and you will need to perform calibration. Follow the steps below to remove the lithium batteries. 4. Connect the two new batteries to the connectors of the battery board which are not connected to anything.
5. Remove the old batteries. Hold the board by hand and pull the battery cable upward to remove the connector.
6. Install the battery to the battery box.
C8 Rev.11
303
Maintenance 11. Replacing the Battery Unit
7. Install the Arm #1 side cover. For details, refer to Maintenance: 3. Covers.
8. Turn ON the Controller power.
9. Check operation to see if the Manipulator's position and posture are out of position. Move the Manipulator to two or three points (poses) of the registered points.
10. If the Manipulator is out of position, calibrate all the joints and axes. For details, refer to Maintenance: 16. Calibration.
304
C8 Rev.11
Maintenance 11. Replacing the Battery Unit
11.2 Replacing the Battery Board
After parts have been replaced (motors, reduction gear units, brakes, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller. Therefore, it is necessary to match these origins after replacing the parts. The process of aligning the two origins is called "Calibration". Refer to Maintenance 16. Calibration and perform the calibration after the parts replacement.
Removal: Battery board 1. Turn OFF the Controller power. 2. Remove the Arm #1 side cover.
For details, refer to Maintenance: 3. Covers. 3. Remove the battery from the battery box.
4. Remove the battery connectors. NOTE Hold the board by hand and pull the battery cable upward to
remove the connector.
5. Remove the plate where the battery box is fixed to. Hexagon socket head cap bolts: 2-M4�10
6. Remove the connectors. Connectors: CN3, CN6
C8 Rev.11
305
Maintenance 11. Replacing the Battery Unit
7. Remove the battery board fixed to the plate. Cross recessed head screws: 3-M3�6
306
C8 Rev.11
Installation: Battery board 1. Install the battery board to the plate.
Cross recessed head screws: 3-M3�6 Tightening torque: 0.45 � 0.1 N�m
Maintenance 11. Replacing the Battery Unit
2. Connect the connectors to the battery board. Connector: CN3, CN6
3. Install the plate where the battery board is installed to. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
4. Connect the battery connectors.
5. Install the battery to the battery box.
6. Install the Arm #1 side cover. For details, refer to Maintenance: 3. Covers.
7. Perform the calibration. For details, refer to Maintenance: 16. Calibration.
C8 Rev.11
307
Maintenance 12. Replacing the Control Board
12. Replacing the Control Board
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Designated parts must be used for the control board.
Control board 1
Control board 2
Maintenance Parts Tools
Name
Control board (1, 2) Hexagonal wrench (width across flats: 3 mm) Spanner (width across flats: 5.5 mm) Cross-point screwdriver
(Figure: C8-A1401** (C8XL))
Qty.
1
2138032
Note
1
For M4 hexagon socket head cap bolts
1
For spacers
1
For cross recessed head screws
308
C8 Rev.11
Maintenance 12. Replacing the Control Board
12.1 Replacing the Control Board 1
Removal: Control board 1 1. Turn OFF the Controller. 2. Remove the Arm #1 center cover.
For details, refer to Maintenance 3. Covers. 3. Remove the connector connected to the control board 1.
Connector: GS01
4. Remove the control board 1 fixed to the Arm #1. Cross recessed head screws: 3-M3�8
NOTE Be careful not to drop the screws inside the Manipulator while
removing them.
5. Remove the control board 1 protection plate. Cross recessed head screws with captive washer: M3�6
It is not necessary to remove the spacer from the plate.
C8 Rev.11
309
Maintenance 12. Replacing the Control Board
Installation: Control board 1 1. Install the control board 1 protection plate.
Cross recessed head screws with captive washer: M3�6 Tightening torque: 0.45 � 0.1 N�m
NOTE Be careful of the assembly direction of the protection plate. (See the photo)
2. Install the control board 1 to the Arm #1. Cross recessed head screws: 3-M3�8 Tightening torque: 0.45 � 0.1 N�m
NOTE Be careful not to drop the screws inside the Manipulator while removing them.
3. Connect the connector to the control board 1. Connector: GS01
4. Install the Arm #1 center cover. For details, refer to Maintenance: 3. Covers.
5. Check operation to see if the Manipulators position and posture are out of position. Move the Manipulator to two or three points (poses) of the registered points.
6. If the Manipulator is out of position, calibrate all the joints and axes. For details, refer to Maintenance: 16. Calibration.
310
C8 Rev.11
Maintenance 12. Replacing the Control Board
12.2 Replacing the Control Board 2
Removal: Control board 2 1. Turn OFF the Controller power. 2. Remove the Arm #3 cover.
For details, refer to Maintenance: 3. Covers. 3. Remove the connector connected to the control board 2.
Connector: GS02
4. Remove the plate fixed to the Arm #3. Hexagon socket head cap bolts: 2-M4�10
5. Remove the control board 2 fixed to the plate. Cross recessed head screws: 4-M3�8
C8 Rev.11
311
Maintenance 12. Replacing the Control Board Installation: Control board 2 1. Install the control board 2 to the plate. Cross recessed head screws: 4-M3�8 Tightening torque: 0.45 � 0.1 N�m
NOTE Be careful of the assembly direction of the control board 2. (See the photo.) 2. Install the plate with the control board 2 to the Arm #3. Hexagon socket head cap bolts: 2-M4�10 Tightening torque: 4.0 � 0.2 N�m
3. Connect the connector to the control board 2. Connector: GS02
4. Install the Arm #3 cover. For details, refer to Maintenance: 3. Covers.
5. Turn ON the Controller power. 6. Check operation to see if the Manipulator's position and posture are out of position.
Move the Manipulator to two or three points (poses) of the registered points. 7. If the Manipulator is out of position, calibrate all the joints and axes.
For details, refer to Maintenance: 16. Calibration.
312
C8 Rev.11
Maintenance 13. Replacing the LED Lamp
13. Replacing the LED Lamp
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
LED lamp
(Figure: C8-A1401** (C8XL))
Maintenance Parts Tools
Name
Qty.
Note
LED lamp
1 1668127 (Standard, Clean-room models)
Cross-point screwdriver (#2)
1 For cross recessed head screws
For Protection model, please contact the supplier of your region.
C8 Rev.11
313
Maintenance 13. Replacing the LED Lamp
Removal: LED lamp 1. Turn OFF the Controller power.
2. Remove the Arm #3 cover. For details, refer to Maintenance: 3. Covers.
3. Remove the connector connected to the LED lamp. The connector for the LED lamp (LED) is under the Arm #3 cover. Connector: LED
4. Remove the LED lamp from the Arm #3.
Turn the plastic nut securing the LED lamp in the Arm #3 counterclockwise.
Installation: LED lamp 1. Install the LED lamp to the Arm #3.
Remove the plastic nut from the LED lamp. Pass the lamp from the inside of the Arm #3. Turn the nut clockwise and secure the lamp to the Arm #3. 2. Connect the following connector. Connector: LED
3. Install the Arm #3 cover. For details, refer to Maintenance: 3. Covers.
Plastic nut
314
C8 Rev.11
Maintenance 14. Replacing the M/C Cable
14. Replacing the M/C Cable
Each motor is fed power by the battery for backup. Therefore, position data is held even after turning OFF the Controller. The position data will be lost when the cable connector connected to the battery is disconnected. And the EPSON RC+ will display the error message of encoder alarm occurrence when the Controller is turned ON.
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
CAUTION
When disconnecting the connectors during the replacement of the cable unit, be sure to reconnect the connectors to their proper positions. Improper connection of the connectors may result in improper function of the robot system. For details on the connections, please contact the supplier of your region.
When installing the cover, be careful not to allow the cables to interfere with the cover mounting and do not bend these cables forcibly to push them into the cover. Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system. When routing the cables, check the cable locations after removing the cover. Be sure to place the cables back to their original locations.
Be sure to connect the cables properly. Do not allow unnecessary strain on the cables. (Do not put heavy objects on the cables. Do not bend or pull the cables forcibly.) Unnecessary strain on cables may result in damage to the cables, disconnection, and/or contact failure. These are extremely hazardous and may result in electric shock and/or improper function of the robot system.
C8 Rev.11
M/C cable (Figure: C8-A1401** (C8XL))
315
Maintenance 14. Replacing the M/C Cable
Name
Maintenance Parts
Tools
3 m Straight L-shaped
Straight 5 m
L-shaped
Straight M/C cable 10 m L-shaped
Straight 15 m
L-shaped
20 m Straight L-shaped
Straight 3 m
L-shaped
Straight 5 m
L-shaped
M/C cable
Straight
10 m
(flexible)
L-shaped
Straight 15 m
L-shaped
Straight 20 m
L-shaped
Hexagonal wrench
(width across flats: 3 mm)
Qty.
Note
1
R12NZ900S1
1
R12NZ900S5
1
R12NZ900S2
1
R12NZ900S6
1
R12NZ900S3
1
R12NZ900S7
1
R12NZ900YC
1
R12NZ900YB
1
R12NZ900S4
1
R12NZ900S8
1
R12NZ900S9
1
R12NZ900SD
1
R12NZ900SA
1
R12NZ900SE
1
R12NZ900SB
1
R12NZ900SF
1
R12NZ900YE
1
R12NZ900YD
1
R12NZ900SC
1
R12NZ900SG
1
For M4 hexagon socket head cap bolts
316
C8 Rev.11
Maintenance 14. Replacing the M/C Cable
Removal: M/C cable 1. Turn OFF the Controller power.
2. Disconnect the following connectors from the Controller. Power cable connector Signal cable connector
3.
NOTE
Remove the connector plate. For details, refer to Maintenance: 3. Covers.
Do not pull the connector plate forcibly. Do not disconnect the M/C cable from the connector plate.
4. Remove the connectors. Connectors: X11, X12, X14, BR010, X010, X020, X040, LED, GS01
NOTE
Each connector is numbered and has a different shape. Do not disconnect the battery connector (BT1*). Otherwise, calibration will be required.
For details, refer to Maintenance: 16. Calibration.
5. Remove the connector sub plate. For details, refer to Maintenance: 3. Covers.
C8 Rev.11
317
Maintenance 14. Replacing the M/C Cable
Installation: M/C cable 1. Install the connector sub plate.
For details, refer to Maintenance: 3. Covers.
2. Connect the connectors of the new M/C cable to these of the cable unit. Connector: X11, X12, X14, BR010, X010, X020, X040, LED, GS01
3. Install the connector plate. For details, refer to Maintenance: 3. Covers.
4. Connect the following connectors to the Controller. Power cable connector Signal cable connector
5. Turn ON the Controller power.
6. Check operation to see if the Manipulators position and posture are out of position. Move the Manipulator to two or three points (poses) of the registered points.
7. If the battery connector (BT1*) was disconnected, calibrate the Joint #1. For details, refer to Maintenance: 16. Calibration.
8. If the Manipulator is off position, calibrate all the joints and axes. For details, refer to Maintenance: 16. Calibration.
318
C8 Rev.11
Maintenance 15. Replacing the Fan
15. Replacing the Fan
WARNING
Do not connect or disconnect the motor connectors while the power to the robot system is turned ON. Connecting or disconnecting the motor connectors with the power ON is extremely hazardous and may result in serious bodily injury as the Manipulator may move abnormally, and also may result in electric shock and/or malfunction of the robot system.
To shut off power to the robot system, disconnect the power plug from the power source. Be sure to connect the AC power cable to a power receptacle. DO NOT connect it directly to a factory power source.
Before performing any replacement procedure, turn OFF the Controller and related equipment, and then disconnect the power plug from the power source. Performing any replacement procedure with the power ON is extremely hazardous and may result in electric shock and/or malfunction of the robot system.
Fan
Maintenance Part Tool
Name Fan Cross-point screwdriver
Fan (Figure: C8-A1401** (C8XL))
Qty.
Note
1
2177465 (standard, cleanroom models)
2178399 (protection model)
1 For cross recessed head screws
C8 Rev.11
319
Maintenance 15. Replacing the Fan
Removal: Fan 1. Remove the fan cover screws while supporting the cover.
Cross recessed head screws with washer: 4-M4�35
NOTE The cover falls when the screws are removed. When removing the screws, be sure to support the cover.
2. Remove the fan cover.
(Figure: Cable backward model)
3. Remove the fan connectors. 4. Remove the fan.
Installation: Fan 1. Install the fan.
NOTE Be careful of the installation direction of the fan. The arrow on the fan (indicated with the arrow in the photo) should point the heat sink, and the cables should come to the upper side of the fan.
Heat sink side
2. Connect the fan connectors. 3. Install the fan cover.
Cross recessed head screws with washer: 4-M4�35 Tightening torque: 0.9 � 0.1 N�m
320
C8 Rev.11
16. Calibration
Maintenance 16. Calibration
16.1 Overview
After parts have been replaced (motors, reduction gear units, timing belts, etc.), the Manipulator cannot perform positioning properly because a gap exists between the origin stored in each motor encoder and its corresponding origin stored in the Controller. Therefore, it is necessary to match these origins after replacing the parts. The process of aligning the two origins is called "Calibration". Note that calibration is not the same as teaching*.
* "Teaching" means to teach the Controller coordinate points (including poses) anywhere in the operating area of the Manipulator.
WARNING
To ensure safety, a safeguard must be installed for the robot system. For details on the safeguard, refer to the Installation and Design Precautions in the Safety chapter of the EPSON RC+ User's Guide.
Before operating the robot system, make sure that no one is inside the safeguarded area. The robot system can be operated in the mode for teaching even when someone is inside the safeguarded area. The motion of the Manipulator is always in restricted (low speeds and low power) status to secure the safety of an operator. However, operating the robot system while someone is inside the safeguarded area is extremely hazardous and may result in serious safety problems in case that the Manipulator moves unexpectedly.
In EPSON RC+, a coordinate point including the arm pose is defined as "point" and its data is called "point data".
There are two methods to move the Manipulator during calibration. - Releasing the electromagnetic brake and moving the arms manually.
For details, refer to the Setup & Operation 1.5 How to Move Arms with the Electromagnetic Brake. - Moving the Manipulator using Jog & Teach.
Moving the Manipulator while releasing the electromagnetic brake involves risk as described below. It is recommended to move the Manipulator using Jog & Teach.
CAUTION
Normally, release the brake of joints one by one. Take extra care if you need to release the brakes of two or more joints simultaneously. Releasing the brakes of two or more joints simultaneously may cause hands and fingers to be caught and/or equipment damage to or malfunction of the Manipulator as the arms of the Manipulator may move in unexpected directions.
Be careful of the arm falling when releasing the brake. While the brake is being released, the Manipulator's arm falls by its own mass. The arm falling may cause hands and fingers to be caught and/or may cause equipment damage to or malfunction of the Manipulator.
C8 Rev.11
321
Maintenance 16. Calibration
Also, pay attention to the following points at the encoder initialization.
CAUTION
The Joint #1 and Joint #4 have no mechanical stops and they may be rotated more than 360 degrees. If the encoder initialization is performed with improper posture, the Manipulator moves outside the operation range. If the Manipulator was moved outside the operation range, the internal wiring may be damaged by being twisted or pinched and it may result in Manipulator malfunction.
NOTE
When the home positions of the Joints #1 and #4 are uncertain, check torsion of the internal cables. The home positions are where the Manipulator has the internal cables not twisted at the basic orientation described in Setup & Operation 3.7 Checking the Basic orientation.
Torsion of the internal cables can be checked by removing the following covers.
Joint #1 : Base cover (Cable backward model)
: Connecter plate (Cable downward model)
Joint #4 : Arm #3 cover (common between cable downward and cable backward models)
Arm #3 cover (common between cable downward and cable backward models)
Connecter plate (Cable downward model)
Base cover (Cable backward model)
322
C8 Rev.11
Maintenance 16. Calibration
For details on Jog & Teach, refer to the following manual. EPSON RC+ User's Guide 5.11.1 Robot Manager Command Tools: Robot Manager: Jog and Teach Page.
NOTE
- For details about the basic orientation, refer to Setup & Operation 3.7 Checking the Basic orientation.
- Whenever possible, calibrate one joint at a time. (Also, replace parts of one joint at a time whenever possible.) If you calibrate the origins for multiple joints simultaneously, it will be more difficult to verify their origins and obtain the origin correct positions. However, joint #5 cannot be calibrated alone due to the structure of the Manipulator. Make sure you calibrate joint #5 and #6 at the same time.
Calibration Flowchart
Start
1. Basic Pose Confirmation
2. Part Replacement
3. Encoder Initialization
4. Calibration
5. Calibration ���������������M��o��r�e���a�c��c�u� rate positioning
Carry out these procedures if necessary
6. Accuracy Testing
Yes
Re-calibrate?
No End
C8 Rev.11
323
Maintenance 16. Calibration
16.2 Calibration Procedure
Command Input Command execution is required in some calibration procedures.
Select the EPSON RC+ menu-[Tools]-[Command Window]. This step is omitted in the calibration procedures.
Jog Motion
Setting of the jog motion is required in some calibration procedures. Select EPSON RC+ menu-[Tools]-[Robot Manager] and select the [Jog & Teach] page.
The panel, window, and page above are indicated as [Jog & Teach] in the calibration procedures.
Follow steps 1 to 6 to calibrate the Manipulator.
1. Basic Pose Confirmation
Pose data (Point data) prior to the part replacement (motors, reduction gear unit, or belt) is necessary for the calibration.
Verify the recorded pulse values of the basic pose obtained in the Setup & Operation 3.7 Checking the Basic orientation.
2. Part Replacement
Replace parts as instructed in this manual. Be careful not to injure yourself or damage parts during part replacement.
3. Encoder Initialization Turn ON the Controller while all joints are in the motion range.
EPSON RC+
The error message "Encoder alarm has occurred. Check robot battery. EPSON RC+ must be restarted." will be displayed. Initialize the encoder at the current position and reset the error. Initialize the encoder using one of the following procedures. Execute the following command at the [Monitor Window]. >Encreset [The joint number (1 to 6) of the encoder to be reset] Select EPSON RC+ menu-[Tools]-[Controller], then click <Reset Controller>.
324
C8 Rev.11
Maintenance 16. Calibration
After resetting the error, the motor encoder of the joint whose parts have been replaced will be initialized. Set the jog mode to "Joint" in [Jog & Teach] and operate the Manipulator in jog motion to match the home position marks (0 pulse position) of the joint accurately.
When the joint cannot move to the home position, operate the Manipulator to match the tram mark placed in Setup & Operation 3.7 Checking the Basic Orientation as accurate as possible.
Initialize the encoder when the joint matches the home position or the tram mark.
For the encoder initialization, refer to the procedure indicated above.
NOTE
When the origin of the Joint #5 is calibrated, the Joint #6 will be out of position. (Due to the structure of the Manipulator, any offset in the position of the Joint #5 affects the Joint #6.) Calibrate the origin of the Joint #6 together when calibrating the Joint #5.
4. Calibration Calibration marks of each joint
EPSON RC+
(Figure: C8-A1401** (C8XL))
4-1 Move the arm you want to calibrate to the position of the calibration mark.
Select menu-[Tool]-[Robot Manager]-[Jog & Teach] panel to move the Manipulator.
If an error occurs after replacing the motor and you cannot use the [Jog & Teach] panel or "Brake OFF, *" does not work (* is an axis number to calibrate.), go through the steps (4) and (5) now.
Then, [Jog & Teach] panel and "Brake OFF, *" will be available. Move the arm you want to calibrate to the position of the calibration mark.
C8 Rev.11
325
Maintenance 16. Calibration
EPSON RC+
EPSON RC+
EPSON RC+
EPSON RC+
4-2 Reset the encoder.
Execute one of the following commands to reset the encoder of the joint you want to calibrate from the menu-[Tool]-[Command Window].
Joint #1 >Encreset 1 Joint #2 >Encreset 2 Joint #3 >Encreset 3 Joint #4 >Encreset 4 Joint #5 >Encreset 5, 6 Joint #6 >Encreset 6
4-3 Reboot the Controller.
Click EPSON RC+ menu-[Tool]-[Controller]-<Reset Controller>.
4-4 Input the command in the Command window and execute it.
Execute one of the following commands to reset the encoder of the joint you want to calibrate from the menu-[Tool]-[Command Window].
>calpls 0,0,0,0,0,0 * Manipulator does not move.
4-5 Perform the calibration.
Execute one of the following commands to reset the encoder of the joint you want to calibrate from the menu-[Tool]-[Command Window].
Joint #1 >calib 1 Joint #2 >calib 2 Joint #3 >calib 3 Joint #4 >calib 4 Joint #5 >calib 5,6 Joint #6 >calib 6
Move the arm to several points to check if the arm moves to the original positions properly. Teach points if fine adjustment is necessary.
326
C8 Rev.11
Maintenance 16. Calibration
5. Calibration (More accurate positioning)
EPSON RC+
Move the Manipulator to the selected point data by jogging in [Jog & Teach]. Move the joint* which is not calibrated to the specified point by motion command.
*When the Joint #5 is being calibrated, move the Joints #1 - #4 to the home positions.
For example, when the selected point data is "P1", execute "Motor On" in [Control Panel] and execute "Go P1" in [Jog & Teach].
Position the calibrating joint* to the selected point data position accurately by jog command.
* When the Joint #5 is being calibrated, move the Joint #5 and #6 to the home positions.
Select the "Joint" jog mode from [Jog & Teach] to operate in the jog motion. Enter the command below in the command window and execute it.
Execute the command below in the menu -[Tools]-[Command Window].
>calpls ppls(P1,1), ppls(P1,2), ppls(P1,3), ppls(P1,4), ppls(P1,5), ppls(P1,6) *The Manipulator will not move.
Perform the calibration. Input one of the following commands according to the joint being calibrated.
Joint #1 : >calib 1 Joint #2 : >calib 2 Joint #3 : >calib 3 Joint #4 : >calib 4 Joint #5 : >calib 5,6 Joint #6 : >calib 6
6. Accuracy Testing
Move the Manipulator to a different pose (point) to verify whether it moves back to the original position. If accuracy is inadequate, it is necessary to re-calibrate the origin using a different pose (point). You must set the pose (point) again if the Manipulator does not move back to the original position after re-calibration.
C8 Rev.11
327
Maintenance 17. Maintenance Parts List
17. Maintenance Parts List
Name
Code
AC servo motor
Joint #1 unit
Joint #2 Joint #3
C8, C8L C8XL
2172921 2172922 2168683 2168684
Joints #4, 5, 6
2172051
C8
1674602
Joint #1 C8L
1674603
C8XL 1674604
Reduction gear unit*
Joint #2 Joint #3
C8, C8L C8XL C8, C8L C8XL
1674605 1674606 1674607 1674608
Joint #4
C8, C8XL 1674609
C8L
1675434
Joints #5, 6
1674610
Joints #1, 2
Electromagnetic
brake
Joint #3
Joints #4, 5, 6
J1 brake positioning jig
2172926 2172927 2172928 1675081
C8
1655928
Joint #1 C8L
1655929
C8XL 1655930
C8
1655920
Joint #2 C8L
1655924
Timing belt
C8XL C8
1655927 1655915
Joint #3 C8L
1655918
C8XL 1655919
Joint #4
1655931
Joint #5
1655932
Joint #6
1655933
Belt tensile jig
1674582
Battery unit
2172925
Battery board
2173216
Note
1000 W, unit 750 W, single item 400 W, single item 100 W, single item
Unit For standard /Clean-room models
A set of brake and power supply Assembly tool
560mm Width 20 mm 580mm
595 mm 475mm Width 14 mm 485mm 540 mm 471 mm Width 10 mm 480 mm 501 mm 243 mm Width 6 mm 330 mm 339 mm Assembly tool (2 lithium batteries for replacement)
Reference in Maintenance 5.1.1, 5.2.1 6.1 7.1 8.1, 9.1, 10.1
5.1.2, 5.2.2
6.2
7.2
8.2 9.2, 10.2 5.1.4, 5.2.4, 6.4 7,4 8.4, 9.4, 10.4 5.1.4, 5.2.4
5.1.3, 5.2.3
6.3
7.3
8.3 9.3 10.3 5, 6, 7, 8, 9, 10
Overhaul **
11.1 11.2
** Overhaul As a rough indication, perform the overhaul (parts replacement) before reaching 20,000 operation hours of the Manipulator. The operation hours can be checked in [Controller Status Viewer] dialog - [Motor On Hours]. For details, refer to Maintenance 2.2 Overhaul.
328
C8 Rev.11
Maintenance 17. Maintenance Parts List
* Reduction Gear Unit: A reduction gear unit consists of the following three parts. When replacing the reduction gear unit, be sure to replace these parts all together as a set.
Waveform generator
Waveform generator
The waveform generator consists of an ellipsoidal
cam and ball bearings on outer circumference.
The inner ring of the bearings is secured to the cam,
while the outer ring is capable of flexible
deformation through the ball bearings.
Flexspline
A thin, elastic, cup-shaped metal body with gear teeth around the outer circumference of the opening. Circular spline Circular spline
A rigid, ring-shaped body with gear teeth on the inner circumference. The circular spline has two more teeth than the flexspline does.
Flexspline
The splines are greased. Be sure to keep the grease from being attaching to the clothes.
Name
Code
Grease **
Liquid gasket ** Adhesive Grease-up kit Grease plug
Joints #1, #2, #3, #4, #5 : SK-1A
-
Joint #6, Bevel gear : SK-2
-
Cable : GPL-224
-
For protection model : 1207B
-
LOCTITE641
-
1674592
1656158
Note
For purchasing grease, liquid gasket, and adhesive, please contact the supplier of your region.
Reference in Maintenance 2.3, 5.1.2, 5.2.2, 7.2, 8.2, 9.2
2.3, 10.2
4
3
8.2, 9.2
Set of grease extension tool
gun,
nipple,
an 2.3
2.3
** Regarding purchase of grease, liquid gasket and adhesive
Due to the chemicals regulations of individual countries (the UN GHS), we are requesting our customers to purchase grease and other materials required for maintenance from the manufacturers listed in the table below as of April 2015.
Regarding purchase of grease and other materials, please contact the following manufacturers. If there is anything unclear, please contact the supplier of your region.
Product name Harmonic Grease SK-1A Harmonic Grease SK-2
Krytox�GPL-224
1207B LOCTITE641
Manufacturer Harmonic Drive Systems Inc.
DuPont
ThreeBond Co.,Ltd LOCTITE
URL
http://www.harmonicdrive.net/
http://www2.dupont.com/Our_Company/en_US/wor ldwide/us_country.html http://www.threebond.com http://loctite.com/
C8 Rev.11
329
Maintenance 17. Maintenance Parts List
Name
Code
Control board 1, 2 O ring LED lamp
M/C cable
M/C cable (flexible)
Cable unit Wire tie Felt sheet Fan (C8XL only) Heat radiation sheet
Arms #1, #3
2138032
Joint #2
C8, C8L C8XL
1263978 1656161 1670635 1656140
Joint #3
1263977 1510528
Joint #4
1263976 1520370
Grease inlet
1657289
1668127
3 m
Straight L-shaped
R12NZ900S1 R12NZ900S5
5 m
Straight L-shaped
R12NZ900S2 R12NZ900S6
10 m
Straight L-shaped
R12NZ900S3 R12NZ900S7
15 m
Straight L-shaped
R12NZ900YC R12NZ900YB
20 m
Straight L-shaped
R12NZ900S4 R12NZ900S8
3 m
Straight L-shaped
R12NZ900S9 R12NZ900SD
5 m
Straight L-shaped
R12NZ900SA R12NZ900SE
10 m
Straight L-shaped
R12NZ900SB R12NZ900SF
15 m
Straight L-shaped
R12NZ900YE R12NZ900YD
20 m
Straight L-shaped
R12NZ900SC R12NZ900SG
C8
2172929 2172932
C8L
2172930 2172933
C8XL
2172931 2172934
AB100
1675753
AB150
1675754
AB350
1697428
For Arm #3
1673981
For Arm #3 maintenance cover
1673980
For Joint #4
1673979
For Joint #5
1673978
2177465
2178399
For heat radiation block 1694609
For Motor
1655043
Note
Arm #1 side Arm #2 side Arm #1 side Arm #2 side Arm #2 side Arm #3 side Arm #3 side Arm #4 side Base, Arm #5 Standard/Clean-room model
Reference in Maintenance 12
6.2
7.2
8.2 2.3, 11 13
14
Standard/Clean-room model Protection model Standard/Clean-room model Protection model Standard/Clean-room model Protection model 1 bag (100 pcs: white) 1 bag (100 pcs: white) 1 bag (50 pcs: white) Square
Square
Round Round Standard/Clean-room model Protection model
Joint #1, 2 common
4
4 5.1, 5.2 8 8 8 9 15 5.1, 5.2 5.1, 5.2, 6.2
330
C8 Rev.11
Maintenance 17. Maintenance Parts List
Name
Code
Arm #1
Cover
Arm #2
Arm #3 Arm #4 Arm #1
Arm #2
Arm #3 Arm #4
Arm #1
Arm #2
Arm #3
Gasket
Arm #4
Base
Seal washer Air plug
Center cover
Side cover Side cover (left) Side cover (right) Cover Side cover Side cover Side cover (left) Side cover (right) Cover Side cover Center gasket Side gasket Side gasket Cover gasket Maintenance gasket Side gasket Maintenance gasket D-sub attachment gasket Rear gasket Bottom gasket Maintenance gasket Sub plate gasket Installation gasket
Gasket For Heat sink
M4 (for sub plate) For M6
1675435
1674537 1655114 1674542 1674543 1674547 1674548 1655127 1674550 1674551 1674553 1665238 1665240 1665241 1665242 1665254 1665243 1665257 1665255 1665244 1665247 1665248 1665246 1668377
1694610
1665882 1657011
Note
Metal cover Common to Standard/ Clean-room models
Reference in Maintenance
3
Standard model Plastic cover
3
Clean-room model Plating cover
3
Protection model
3
Clean-room model Protection model
3
Protection model
3 4
C8 Rev.11
331
Maintenance 18. Option Parts List
18. Option Parts List
Name
Brake release unit
(with cable and M/C short connector) MC short connector
Camera plate unit
Tool adapter (ISO flange)
Adjustable mechanical stop
Fittings for customer use Standard user connector kit Waterproof user connector kit
J1 C8/C8L_J2 C8XL_J2 J3 �6 straight �6 elbow D-sub D-sub Ethernet
Code
R12NZ900N4 R12NZ900N5 R12NZ900N7
R12B031922
R12NZ900LQ R12NZ900LR R12NZ900N6 R12NZ900LT R12NZ900LU R12NZ900LV R12NZ900LW R12NZ900LX R12NZ900LY R12NZ900LZ
Reference in
Note
Setup &
Operation
For Europe (200V)
For U.S. & Japan (100V) 6.1
For brake release unit
Common to C3 and C4 (R12NZ9003F)
6.2
6.3
6.4
6.5
332
C8 Rev.11
