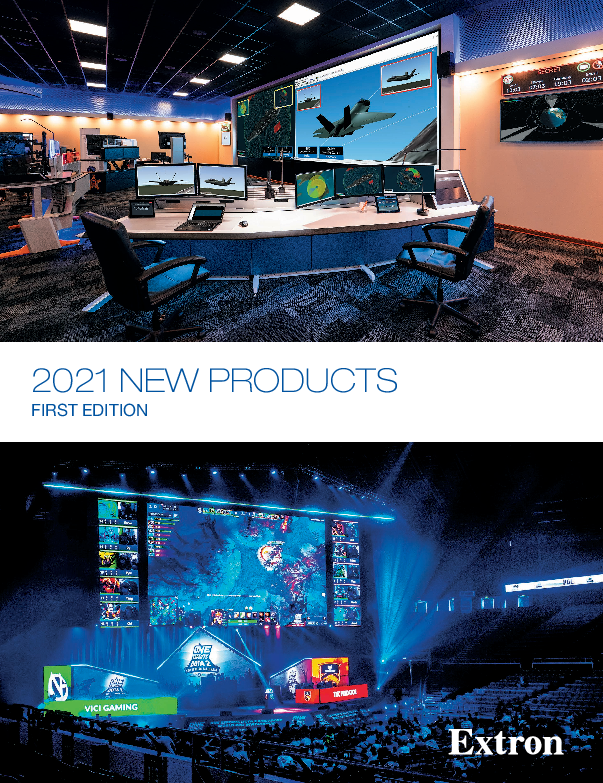

2021 NEW PRODUCTS
FIRST EDITION

The Industry's First 8K Switching and Distribution System
Upgrade to 8K Today with XTP Systems
Our new 8K HDMI input and output boards for XTP Systems� provide a significant leap in capabilities for the XTP platform. They accommodate HDMI 2.1 data rates up to 40.1 Gbps, enabling support of uncompressed 8K video with HDR. These HDCP 2.3-compliant boards provide input equalization and output reclocking and feature connections for powering active, Ultra High Speed HDMI cables. The XTP II CP HD 8K boards are the ideal choice for a professional and future-ready AV infrastructure.
The Only AV Platform for HDMI 2.1 XTP II CP HD 8K boards leverage the 50 Gbps backplane of XTP II CrossPoint� Series matrix switchers to deliver the highest level of performance in the industry. The modular frame design delivers a future-proof AV infrastructure that supports convenient growth and upgrade without need for equipment replacement.

Model
XTP II CP 4i HD 8K XTP II CP 4o HD 8K

Version Description

Part Number

Four Input Board, 8K HDMI w/ Stereo Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1262-01 Four Output Board, 8K HDMI w/ Stereo Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1263-01

To learn more, visit extron.com/XTP8K

XTP WindoWall

XTP Systems Deliver Powerful Capabilities for Videowall Applications

We are pleased to introduce XTP WindoWall�, an exciting enhancement that brings videowall capabilities to XTP Systems�. Utilizing XTP� scaling receivers, XTP WindoWall enables a mix of full screen and image magnification across multiple displays. Up to eight videowalls can be supported within an XTP system, and up to eight assignable presets are available per wall for quick and easy viewing between different image arrangements. Convenient software features such as drag and size layout configuration, mullion compensation, and the ability to create multiple presets expedite the setup process.

Features: � Expands XTP Systems applications to include videowall
environments
� Supports any aspect ratio configuration up to 8x8
� Enables a mix of full screen and image magnification across multiple displays
� XTP System Configuration Software streamlines videowall set up, saving time and money
� Presets offer quick and easy selection between layouts
� Mullion compensation for flat panel displays

XTP System Configuration Software Offers Quick and Easy Setup

Model
XTP SR HD 4K XTP SFR HD 4K MM XTP SFR HD 4K SM

Version Description

Part Number

HDMI Scaling Receiver.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1524-01 HDMI Scaling Receiver - Multimode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1278-21 HDMI Scaling Receiver - Singlemode.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1278-22

To learn more, visit extron.com/XTPWindowall

The Most Advanced AV Over IP Wallplate Encoders

Introducing the latest addition to our award-winning line of NAV� Pro AV over IP products, the NAV Wallplate Encoder Series. Using our patented PURE3� codec, the NAV E 201 D and NAV E 401 D accept HDMI video at 4K/60 and 4:4:4 chroma sampling and stream visually lossless, ultra-low latency video and audio over standard Gigabit Ethernet networks. The NAV E 401 D adds an Ethernet LAN Extension port for convenient access without additional wiring. Purpose-built to add elegant, architectural connectivity into demanding professional AV applications, NAV wallplate encoders are the perfect solution for any installation that requires reliable, high quality AV over IP video distribution.

Features: � Decorator-style wallplate design conveniently installs in walls,
lecterns, floor boxes or any location that accommodates a three-gang junction box
� HDMI input and loop-thru
� PURE3� codec delivers lossless, ultra-low latency video at low bit rates
� Interoperable with all NAV 1 and 10 Gbps Ethernet endpoints
� Supports resolutions up to 4K/60 with 4:4:4 chroma sampling
� Enterprise class security
� FIPS 140-2 validated to ensure the protection of sensitive data
� 802.1X port-based Network Access Control

� Microsoft� Active Directory� support � Integrates with Pro Series control systems for secure, simple
configuration and control � AES67 audio over IP supports flexible integration with Extron
DMP 128 Plus DSPs or other IP-enabled audio components
Another addition to the award-winning NAV Series

To learn more, visit extron.com/navwallplates

NAV PRO AV OVER IP

NAV E 201 D
1G Pro AV over IP Encoder - HDMI - Decorator-Style Wallplate

The NAV E 201 D is a Pro AV over IP encoder in a decorator-style wallplate that streams ultra-low latency, high quality video and audio signals over 1 Gbps Ethernet networks at low bitrates. Using Extron's PURE3� codec, it delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV E 201 D is fully compatible with NAV� 10 Gbps endpoints, increasing scalability for large deployments. Support for AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

FEATURES � Decorator-style wallplate design � Encodes and streams video and audio over
1 Gbps Ethernet networks � Supports HDMI 2.0 at resolutions up to
4K/60 @ 4:4:4 � PURE3� Codec � PURE3 Intelligent Selective Streaming � Interoperable with 10 Gbps NAV� endpoints � Ultra-low latency with high quality video � AES67 audio support � PoE+ compatibility eliminates the need for a local
power supply � Mounts in an included 3-gang decorator-style
wallplate

Model
NAV E 201 D NAV E 201 D

Version Description

Part Number

1G HDMI Encoder - Decorator Black. . . . . . . . . . . . . . . . . . . . . . . . 60-1525-05 1G HDMI Encoder - Decorator White. . . . . . . . . . . . . . . . . . . . . . . . 60-1525-06

NAV E 401 D
1G Pro AV over IP Encoder - HDMI and Ethernet Decorator-Style Wallplate

The NAV E 401 D is a Pro AV over IP encoder in a decorator-style wallplate that streams ultra-low latency, high quality video, audio, and Ethernet signals over 1 Gbps Ethernet networks at low bitrates. Using Extron's patented PURE3� codec, it delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV E 401 D is fully compatible with NAV� 10 Gbps endpoints, increasing scalability for large deployments. Support for AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

FEATURES � Decorator-style wallplate design � Encodes and streams video and audio over
1 Gbps Ethernet networks � Supports HDMI 2.0 at resolutions up to
4K/60 @ 4:4:4 � PURE3� Codec � PURE3 Intelligent Selective Streaming � Interoperable with 10 Gbps NAV� endpoints � Ultra-low latency with high quality video � AES67 audio support � Ethernet expansion � PoE+ compatibility eliminates the need for a local
power supply � Mounts in an included 3-gang decorator-style
wallplate

Model
NAV E 401 D NAV E 401 D

Version Description

Part Number

1G HDMI, Ethernet Encoder - Decorator Black. . . . . . . . . . . . . . 60-1525-07 1G HDMI, Ethernet Encoder - Decorator White. . . . . . . . . . . . . . 60-1525-08

NEW PRODUCTS

For updated product availability, go to www.extron.com

3

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

NAV PRO AV OVER IP

NAV E 101 DTP
1G Pro AV over IP Encoder with DTP Input

The NAV E 101 DTP is the industry's first encoder to bridge DTP Systems with NAV Pro AV over IP. It accepts an input signal from any DTP System transmitter and streams ultra-low latency, high-quality content over standard Gigabit Ethernet networks. Extron's patented PURE3� codec delivers groundbreaking performance with high quality video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV E 101 DTP is fully compatible with NAV� 1 and 10 Gigabit Ethernet decoders, increasing range and scalability for large deployments. Support for embedded digital HDMI and AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. The NAV E 101 DTP is purpose-built to support secure, demanding professional AV applications.

FEATURES � Works with over 40 wallplate and floor box DTP
transmitters available in a variety of architectural form factors. DisplayPort, DVI and HDMI inputs available in MK, EU, and decorator-style packages � Converts, encodes, and streams video and audio signals from DTP transmitters over 1 Gbps Ethernet networks � Supports HDMI 2.0 at resolutions up to 4K/30 @ 4:4:4 � PURE3� Codec � PURE3 Intelligent Selective Streaming � Interoperable with 1 and 10 Gbps NAV endpoints � High quality video with ultra-low latency � AES67 audio support

Model NAV E 101 DTP

Version Description

Part Number

1G Pro AV over IP Encoder with DTP. . . . . . . . . . . . . . . . . . . . . . . . 60-1525-15

NAV E 511
1G Fiber Pro AV over IP Encoder - HDMI, Ethernet, and USB

The NAV E 511 is a Pro AV over IP encoder that streams ultra-low latency, high quality HDMI video, audio, USB 2.0, and Ethernet signals over standard 1 Gbps optical Ethernet. Using the Extron patented PURE3� codec, the NAV� Series delivers groundbreaking performance with real-time, lossless video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling. The NAV E 511 is fully compatible with NAV 1 and 10 Gbps decoders, increasing flexibility, range, and scalability for large deployments. Support for embedded digital HDMI and AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

FEATURES � Encodes and streams HDMI video, audio, USB 2.0,
and Ethernet signals over industry standard 1 Gbps fiber optic Ethernet interface in either singlemode or multimode � Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4 � PURE3� Codec � PURE3 Intelligent Selective Streaming � Interoperable with 1 and 10 Gbps NAV� endpoints � Ultra-low latency with high quality video � AES67 audio support

Model
NAV E 511 MM NAV E 511 SM

Version Description

Part Number

1G Fiber HDMI, Ethernet, USB Encoder - Multimode.. . . . . . . . 60-1958-05 1G Fiber HDMI, Ethernet, USB Encoder - Singlemode. . . . . . . 60-1958-06

NAV E 511 MM

4

USA West

USA East

www.extron.com

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

� 2021 Extron. All rights reserved.

+1.714.491.1517 FAX

+1.919.850.1001 FAX

Prices and specifications subject to change without notice.

NEW PRODUCTS

NAV PRO AV OVER IP

NAV SD 511
1G Fiber Pro AV over IP Scaling Decoder - HDMI, Ethernet, and USB

The NAV SD 511 is a Pro AV over IP scaling decoder that receives ultra-low latency, high quality video, audio, USB 2.0, and Ethernet signals over standard optical 1 Gbps Ethernet. Using the Extron patented PURE3� codec, the NAV� Series delivers groundbreaking performance with lossless video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV SD 511 is fully compatible with NAV 1 and 10 Gbps encoders, increasing range and scalability for large deployments. Support for embedded digital HDMI and AES67 audio over IP facilitates flexible integration with DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

FEATURES � Receives video, audio, USB 2.0 and Ethernet over
industry standard 1 Gbps fiber optic Ethernet interface in either singlemode or multimode � Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4 � PURE3� Codec � PURE3 Intelligent Selective Streaming � Interoperable with 1 and 10 Gbps NAV� endpoints � Ultra-low latency with high quality video � Advanced Extron VectorTM 4K scaling technology � AES67 audio support

Model
NAV SD 511 MM NAV SD 511 SM

Version Description

Part Number

1G Fiber HDMI, Eth., USB Scaling Decoder-Multimode. . . . . . 60-1958-07 1G Fiber HDMI, Eth, USB Scaling Decoder-Singlemode. . . . . . 60-1958-08

NAV SD 511 MM

USB

UCS 900 Series
Fiber Optic SuperSpeed USB Extenders
The UCS 900 Series are Fiber Optic SuperSpeed USB Extenders that extend USB data signals from peripheral devices to a host computer over fiber optic cable. These extenders are compatible with all USB standards up to USB 3.2 including previous standards, and support data rates up to 5 Gbps. The UCS FTR 900 Kit includes a transmitter, receiver, 10 m (32.8 foot) multimode fiber optic cable, power supplies, and ZipClip� mounting brackets for easy, secure mounting of the transmitter and receiver in furniture, behind a display, or under a desk. The transmitter features a USB-C host connection and can be powered by the host computer. The receiver features a twoport USB hub for connecting remote peripherals. The UCS 900 Series easily extends USB cameras, conference systems, and peripherals such as mass storage devices, keyboards, and mice in pro AV environments.

FEATURES � Extends USB peripherals up to 985 feet (300 meters) over fiber optic cable � Supports USB signals up to SuperSpeed USB 5 Gbps � Transmitter can be powered by host device or included power supply � Receiver features an integrated two-port device hub providing 5 Volts, 1.5 Amps
at each port � 10 m (32.8') fiber optic cable included with UCS FTR 900 kit � Patented ZipClip� mounting kits included for easy installation

Model UCS FTR 900 Kit

Version Description

Part Number

SuperSpeed USB Extender Kit.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-298-01

For updated product availability, go to www.extron.com

5

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

USB

SW USB Pro Series
Two and Four Input SuperSpeed USB 10G Switchers

The Extron SW2 USB Pro and SW4 USB Pro are two- and four-input USB switchers that facilitate switching between multiple host devices and multiple USB peripherals. They are compatible with all USB standards up to USB 3.2 including previous standards. They provide integrator-friendly solutions for USB-C and Thunderbolt hosts and peripherals with data rates up to 10 Gbps. HID peripheral ports support hotkey input switching via a connected keyboard. SW USB Pro switchers also support auto and manual host and peripheral switching and control via RS-232 or Ethernet. They feature Host and Peripheral Emulation Mode, which provides "keep alive" functionality by continuously mimicking host and keyboard/mouse communications within the switcher. This emulation eliminates the need for enumeration and reduces the chance of failed device communications throughout the switching process.

FEATURES � SuperSpeed USB 10G compatible � Four port output hub with USBC and Type A
connections � Hot Key, Auto, and manual switching capability � Supports selectable Host and Peripheral emulation � Front panel selection buttons and status indicators � Ethernet and RS232 control options

Model
SW2 USB Pro SW4 USB Pro

Version Description

Part Number

Two Input SuperSpeed USB 10G Switcher.. . . . . . . . . . . . . . . . . . 60-1833-01 Four Input SuperSpeed USB 10G Switcher. . . . . . . . . . . . . . . . . . 60-1834-01

SW2 USB Pro SW4 USB Pro

USB-C HD 101
USB-C to HDMI Interface

The Extron USBC HD 101 converts USBC� signals to HDMI while providing up to 60 watts of power to the USBC source device. It supports USBC Alt Mode video resolutions up to 4K/60 for use by any AV device or system with an HDMI input. It provides an easy way to add a USBC device to an existing AV system. The internal Extron EverlastTM power supply uses USB Power Delivery to provide power and charging capabilities to a source laptop. For convenient mounting, the unit can be located within furniture or under a table using the included ZipClip 200 mounting accessory. The compact one-quarter rack width metal enclosure can also mount in an equipment rack with an optional rack mounting shelf.

FEATURES � Connects USB-C� sources that support DisplayPort
Alt Mode to AV systems with HDMI inputs � Provides up to 60 watts of power to the USB-C
source � Supports computer and video resolutions up to
4K/60 @ 4:4:4 � HDCP 2.3 compliant � Internal Extron EverlastTM power supply � Patented ZipClip� 200 mounting kit included

Model USB-C HD 101

Version Description

Part Number

USB-C to HDMI Interface.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1883-01

6

USA West

USA East

www.extron.com

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

� 2021 Extron. All rights reserved.

+1.714.491.1517 FAX

+1.919.850.1001 FAX

Prices and specifications subject to change without notice.

WIRELESS

ShareLink Pro 1100
Wired and Wireless Presentation System

The ShareLink� Pro 1100 is a 4K Wired and Wireless Presentation System that enables anyone to present content from computers, tablets, or smartphones on a display for easy collaboration. It supports simultaneous display of up to four devices including an HDMI-connected device. The HDMI input supports wired devices, including TeamWork Show Me cables for easy source selection. The ShareLink Pro 1100 has collaboration and moderator modes that facilitate both open and controlled collaboration environments, as well as dual Ethernet ports for more secure environments. When used with Extron GVE GlobalViewer Enterprise software, multiple units can be managed across an enterprise or campus. ShareLink Pro's professional capabilities provide easy integration of AV and mobile devices into huddle, meeting, and collaboration spaces.

FEATURES �  Share Windows content via MiracastTM �  WebShareTM shares content via a Web browser � Provides full screen mirroring for all devices � Supports Mac� and Windows� computers as well as
Apple� and AndroidTM tablets and smartphones � HDMI output supports computer and video
resolutions up to 4K � View up to four pieces of content simultaneously
from any connected user

Model
ShareLink Pro 1100 LinkLicense

Version Description

Part Number

Wired and Wireless Presentation System. . . . . . . 60-1943-01 H.264 Support Upgrade.. . . . . . . . . . . . . . . . . . . . . . . 79-2580-01

NEW PRODUCTS

ShareLink Pro WFA 100
USB to Wi-Fi Miracast Adapter
The ShareLink� Pro WFA 100 is a Wi-Fi MiracastTM adapter that enables anyone to share content from a Windows 10 device to a ShareLink Pro device without installing any software. The WFA 100 adapter connects to the USB port on a ShareLink Pro 1100 or ShareLink Pro 500, making it discoverable to Windows 10 users. Users share content by selecting the desired ShareLink Pro device and mirroring their screen from within Windows. Content shared via Miracast can be presented on the ShareLink Pro display along with content shared via the ShareLink Pro App, Apple mirroring, WebShare browser sharing, or the HDMI input. The ShareLink Pro WFA 100 adapter makes sharing and collaborating in huddle, meeting, and collaboration spaces even quicker and easier with ShareLink Pro devices.

FEATURES � Mirror Windows 10 devices via MiracastTM � Fast content sharing without installing any software � Supports 802.11a/b/g/n/ac on 2.4 and 5 GHz bands � Adapter quickly connects to ShareLink Pro USB port
with no setup required � Models available for US and International regions

Model

Version Description

Part Number

WFA 100 US

USB to Wi-Fi Miracast Adapter; US. . . . . . . . . . . . . 60-1944-01

WFA 100 EU

USB to Wi-Fi Miracast Adapter; EU. . . . . . . . . . . . . 60-1944-02

ShareLink Pro 1100 Miracast Kit US

ShareLink Pro 1100 w/ Miracast; US.. . . . . . . . . . 42-294-01

ShareLink Pro 1100 Miracast Kit EU

ShareLink Pro 1100 w/ Miracast; EU.. . . . . . . . . . 42-294-02

ShareLink Pro 500 Miracast Kit US

ShareLink Pro 500 w/ Miracast; US. . . . . . . . . . . . 42-297-01

ShareLink Pro 500 Miracast Kit EU

ShareLink Pro 500 w/ Miracast; EU. . . . . . . . . . . . 42-297-02

ShareLink Pro 1100 Miracast Upgrade Kit US Miracast Adapter and Power Supply; US. . . . . . . 42-295-01

ShareLink Pro 1100 Miracast Upgrade Kit EU Miracast Adapter and Power Supply; EU.. . . . . . . 42-295-02

For updated product availability, go to www.extron.com

7

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

SMP Series Streaming Media Processors
Enable Learning Anytime, Anywhere

As organizations look for the best way to enable remote communications, learning, and training, finding the right technology to record, stream, and publish content becomes increasingly important. Extron streaming solutions connect students and employees to live or on-demand content anytime, anywhere, on any device.
Our SMP Streaming Media Processors are robust, worry-free recording and streaming appliances that fit easily into any workflow for both ad-hoc and scheduled activities. The purpose-built scalable SMP architecture alleviates the complexity, reliability, security, and network management burdens associated with PC or software-based recording tools. This ensures that customers have the flexibility they need for their different learning environments and can utilize SMP products with any video platform they require, today and in the future.

� Lecture/Event Capture � Live Streaming � Online/Distance Learning � Flipped classroom initiatives

� On-demand digital media library � Skills capture � clinical, sports � Active learning � medical, legal, forums � Governance or policy meetings

Extron Streaming Solutions Integrate with Popular Enterprise Video Platforms

To learn more, visit extron.com/SMP

STREAMING AV

LinkLicenses for SMP 300
Leverage the Power of SMP Streaming Media Processors for Video Capture and Streaming with Ensemble Video and YuJa Platforms

Extron offers seamless video content capture and management to users through native integration of Extron SMP 300 Series Streaming Media Processors into the Ensemble Video and YuJa enterprise video platforms. Publish live or on-demand video content for both ad-hoc and scheduled recording applications to empower video experiences for any institution or organization.

FEATURES � High quality H.264 video � Schedule SMP recordings and live streams directly
from Ensemble Video or YuJa platforms � Automated publishing workflows for LMS
integration � Enables seamless delivery of media for lectures
and events

Model
LinkLicense LinkLicense

Version Description

Part Number

SMP 300 Ensemble Video Features. . . . . . . . . . . . . . . . . . . . . 79-2565-01 SMP 300 YuJa Features.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79-2566-01

NEW PRODUCTS
Record and Live Stream

LinkLicenses for SMP 111
Leverage the Power of SMP 111 for Scheduling, Publishing, and Live Streaming with Kaltura and Panopto Video Platforms

Extron offers enhanced features for the SMP 111 Streaming Media Processor that enable automated scheduling and publishing workflows for the Kaltura and Panopto enterprise video management systems. The LinkLicenses for Enhanced Kaltura Features and Enhanced Panopto Features now extend beyond live streaming to seamlessly enable users to ingest automated recording schedules from these platforms. With the rise of online learning, flipped classrooms, lecture capture and virtual meetings, users will enjoy a unified and integrated experience to access content from any device, anytime, anywhere.

FEATURES � Process high definition video and audio � Live stream to Kaltura or Panopto using RTMP/
RTMPS for scheduled lectures and events �  Ingest automated recording schedules from
Kaltura or Panopto platforms for capturing media from classrooms, studios, and more � Simple to use capture and publishing workflows for any skill level

Model
LinkLicense LinkLicense

Version Description

Part Number

SMP 111 Enhanced Panopto Features.. . . . . . . . . . . . . . . . . . 79-2562-01 SMP 111 Enhanced Kaltura Features.. . . . . . . . . . . . . . . . . . . 79-2548-01

Connect AV Sources

ALARM CONFIG

HDCP USB STORAGE HDMI

INPUT

OUT

CLIP
AUDIO HDMI LINE HDMI

100-240V 0.7A

50-60 Hz

USB STORAGE

INPUTS AUDIO
L LINE R
HDMI

OUTPUT HDMI

MARK
SMP 111 STREAMING MEDIA PROCESSOR

REMOTE

RS-232

CONTROL

+12V

1.0A MAX RESET

SMP 111

Tx Rx G

LAN

Record and Live Stream

For updated product availability, go to www.extron.com

9

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

STUDIO STATION

STUDIO STATION

STUDIO STATION
One Touch Recording and Streaming

With the rise in online learning, flipped classrooms, and lecture capture, educational institutions and corporations are expecting more from their classrooms and presentation spaces. These areas must be dynamic, flexible, and easy to use. Presenters need to reach people beyond their walls, often in remote locations, with a process as easy as recording a favorite television show.

Extron created StudioStation� so that anyone, of any skill level, can quickly and easily record and stream. StudioStation is a convenient solution for recording and streaming high quality audio video presentations with a pre-configured package that takes the guesswork out of designing, installing, and programming a studio recording system.

Key Features � Simple recording and streaming
� Publish to USB drive, network share, or enterprise video platform

� High quality video and audio
� Flexible control with RCP 101 or Virtual RCP

� Mark chapters for quick selection � Easy to use for any skill level

STUDIO STATION
Simple Control and Operation

Insert a USB drive to turn the system on.
CONNECT

Press record on the button panel or your mobile device.
RECORD
To learn more, visit extron.com/studiostation

Recordings are automatically saved to your USB drive.
SAVE

NEW PRODUCTS
StudioStation Standard Components � SMP 111 Streaming Media Processor �  IPCP Pro PCS1 xi Power Controller �  VoiceLift Pro EB Pendant Microphone � RCP 101 Remote Control Panel � SMB 211 Single Gang Surface Mount Box
StudioStation can be customized to fit your needs. Customize using our online StudioStation Builder.
StudioStation Enhancements

Horizontal Mirroring

Recordings from lightboard applications will appear backwards as if seen in a mirror

Horizontal Video Mirroring automatically flips the video to create legible recordings

Horizontal Video Mirroring LinkLicense Flipped classroom environments enhance student learning and achievement by delivering instructional content to students before they set foot in a classroom, typically online. Lightboards are a visually-stimulating way to present content in flipped classroom environments. A lightboard is a large surface of transparent glass that is placed between the camera and the presenter. The presenter is filmed through the glass, writing onto the transparent surface with a neon marker, where the text glows and appears as if floating in air. With the addition of this LinkLicense users are able to natively flip video horizontally on the SMP.

Virtual Remote Control Panel for SMP Series Once you have installed the free vRCP virtual remote control panel FlexOS App on an SMP series streaming media processor, presenters can use the browser on any personal device to control system functions without needing to use a physical control interface. A simple and intuitive on-screen interface provides users with an easy way to start, stop, or pause recordings, and mark chapters from anywhere in the room.

Enhanced Audio and Control with VoiceLift Pro Microphone StudioStation now includes a VoiceLift Pro EB Pendant Microphone, providing an easy to use, high quality solution for capturing the presenter's voice when recording or streaming. Since the function buttons on the pendant microphone can be used to start, pause, and stop recordings, presenters now have another option for effortless system control wherever they are.

Model
StudioStation LinkLicense

Version Description

Part Number

Black. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-296-01 SMP 111 Horizontal Video Mirroring Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79-2553-02

For updated product availability, go to www.extron.com

11

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

PlenumVault Direct View System
The Perfect Partner for Your Classroom Flat Panel Display

PlenumVault Direct View Systems are complete classroom AV systems for flat panel displays. They deliver an excellent experience for students and instructors, providing enhanced audio and video quality for in-person, hybrid, and remote learning environments. Customers can add a choice of user interface options, AV signal extension, speakers, mounting hardware, and cabling for a complete classroom AV solution. The system has advanced audio capabilities, including an integrated audio amplifier, audio input mixing, and line level outputs for remote learning or assistive listening. When coupled with a VoiceLift Pro Microphone, the system lets students hear the instructor clearly throughout the room. Optional integration with Extron Campus Communication Suite implements campus-wide bells, public address announcements, and intercom communications over the network.

Features: � Seamless integration with Extron Campus Communication
Suite, the modern, simple way to implement bells, public address announcements, and intercom communications throughout campus over the network from an intuitive web browser interface
� Controls a variety of AV devices via a range of control ports and supports a variety of intuitive, user-friendly interfaces including TouchLink Pro touchpanels, Network Button Panels, and eBUS button panels

� Add new system features and capabilities with LinkLicenses: - Enable the system to directly decode and play Campus Communication Suite PA announcements and bell audio through classroom speakers
- Use a mobile device or computer as the system's primary control interface
� Supports ShareLink Pro to share content from BYOD laptops, tablets, and smartphones on flat panel displays for collaborative learning

To learn more, visit extron.com/pvdirectview

Make Sure Teachers Are Heard Clearly in the Classroom
VoiceLift Pro Microphone

Even in the best situations, it is often difficult for teachers to make sure every student in the classroom can hear them clearly. Now that teachers' voices will be muffled by their masks, this presents a new challenge, and teachers may find they are raising their voices trying to be understood. The Extron VoiceLift� Pro Microphone System offers an effective, economical classroom amplification solution that distributes the teacher's voice throughout the room, enhancing communications and helping ensure good vocal health.

� Enhanced intelligibility for students throughout the room.
� Minimizes voice strain for teachers.
� Simple, economical installation requires just two Flat Field� speakers.
� Start and stop lesson capture recordings and streaming with push of a button on the pendant microphone.
� Instant Alert button on the pendant microphone enables the teacher to discreetly summon assistance to the classroom.

The VoiceLift System distributes the teacher's voice throughout the room.

To learn more, visit extron.com/beheardclearly

Rise to the Esports Challenge
Extron Technologies Guarantee Your Success
Esports systems represent the bleeding edge of AV Technology. The unique needs of esports facilities present design challenges that must be overcome to ensure the AV system provides a good experience for players and spectators alike. Extron is the only company with the products and expertise to ensure your esports project is a complete success.
Extron is uniquely positioned to deliver the best solutions for your esports applications. We offer a broad range of industryleading products and technologies that deliver versatility, reliability and unsurpassed performance.
� AV distribution products that support resolutions up to 8K and ensure the image integrity of uncompressed video resolutions, refresh rates, and color space
� Fixed and modular switching platforms with support for HDMI, SDI, twisted pair, and fiber optic signal transport � Scalable systems support growth and changes that may occur in relation to games of focus and team sizes
Need help putting together the best esports solution? Contact us at esports@extron.com

TLP Pro 1230WTG
Our Ultra-Wide Touchscreen Puts Everything Within Reach

The TLP Pro 1230WTG is our new ultra-wide touchpanel. Featuring a vibrant 12" 1920x720 resolution touchscreen, the ultra-wide format enhances user experiences since it allows multiple tasks to be seen and managed at the same time. The TLP Pro 1230 WTG provides ample screen space to simultaneously display full AV system controls, video preview and annotation controls. The TLP Pro 1230WTG features HDMI video preview input that supports high resolution HDCP compliant video from an HDMI source. It also supports annotation when used in conjunction with an Extron Annotator. The sleek, low-profile design minimizes visual obstructions and improves collaboration engagement in a wide variety of applications.

Features: � 12" ultra-wide capacitive touchscreen with 1920x720
resolution and 24-bit color
� Gorilla Glass� screen is tough, scratch and smudge-resistant -- Optically-bonded Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
� PoE+ compatible -- Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies.

� Ultra-fast quad-core processor -- Faster processing power enables faster graphics rendering, quicker page loads, and overall runtime performance improvement.
� Full-motion video preview with a direct HDMI input -- Eliminates the need for a separate preview monitor.
� Auto Brightness -- Adjusts screen brightness as the ambient room lighting changes.
� Configurable red and green status light indicate a room's availability or call status

Model
TLP Pro 1230WTG TLP Pro 1230WTG

Version Description

Part Number

White - Tabletop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1668-03 Black - Tabletop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1668-02

To learn more, visit extron.com/tlppro1230wtg

TLP Pro 1525 Series � TLP Pro 1725 Series � TLP Pro 1225 Series

New Touchlink Pro Touchpanels Set Highest Standards for Powerful AV Control

Our latest 12", 15", and 17" touchpanels are packed with quad-core processing power and eight times more memory to meet even the most demanding AV control applications. These tabletop and wall mount touchpanels have capacitive edge-to-edge glass touchscreens with 24-bit color for a vibrant look and an ultra-responsive control surface. As an exciting upcoming feature, they will all soon support annotation when used with an Extron Annotator 300.

SERIES COMMON FEATURES �  Fast, quad-core processing and eight times more
memory - Allows for quicker configuration uploads and more storage for GUI pages.
�  Supports annotation when used in conjunction with an Extron Annotator 300
� Full-motion video preview and monitoring with HDMI and XTP inputs
� Compatible with all Extron IP Link Pro control processors and HC 400 Series systems
� Built-in speakers provide stereo audio -- For video preview and audible feedback from button presses.
� Light sensor adjusts screen brightness as the ambient room lighting changes
� Configurable red and green status light indicate a room's availability or call status
� Two USB 2.0 ports -- For future expansion

� 3.5mm headphone jack provides local audio out from the touchpanels
� Automatic clock synchronization allow touchpanels to display the accurate time and date
� Energy-saving features:
- Adjustable sleep timer puts touchpanel into sleep mode
- Motion detector wakes touchpanel
� Fully customizable using Extron control system software -- GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or Global Scripter.
� Manage, monitor, and control these devices remotely using GVE - GlobalViewer Enterprise Resource Management software
� Contemporary designs that complement the aesthetics of any environment
� Support the Extron Control App

To learn more, visit extron.com/tlppro121517

TOUCHLINK PRO TOUCHPANELS

TLP Pro 1225MG
12" Wall Mount TouchLink Pro Touchpanel

UNIQUE FEATURES � 12" capacitive touchscreen with 1280x800
resolution and 16 million colors -- Vibrant, edgeto-edge glass display with a more responsive control surface. � PoE+ compatible -- Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies.

� Mounts on a wall, lectern, or any flat surface -- The included mounting hardware enables multiple mounting options. The optional back box, BB 700M, can be used where local codes require a rear metal enclosure.

Model
TLP Pro 1225MG TLP Pro 1225MG NC

Version Description

Part Number

Black - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1787-02 Black - Wall Mount, No Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1787-12

NEW PRODUCTS

TLP Pro 1525MG
15" Wall Mount TouchLink Pro Touchpanel

UNIQUE FEATURES � 15" capacitive touchscreen with 1366x768
resolution and 16 million colors -- Vibrant, edge-to-edge glass display with a more responsive control surface. � PoE+ compatible -- Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies.

� Mounts on a wall, lectern, or any flat surface -- The including mounting hardware enables multiple mounting options. The optional back box, BB 700M, can be used where local codes require a rear metal enclosure.

Model
TLP Pro 1525MG TLP Pro 1525MG NC

Version Description

Part Number

Black - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1789-02 Black - Wall Mount, No Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1789-12

TLP Pro 1725MG
17" Wall Mount TouchLink Pro Touchpanel

UNIQUE FEATURES � 17" capacitive touchscreen with 1920x1080
resolution and 16 million colors -- Vibrant, edgeto-edge glass display with a more responsive control surface. � Touchpanel receives power and communication over a single Ethernet cable, eliminating the need for a local power supply - Power injector included

� Mounts on a wall, lectern, or any flat surface -- The included mounting hardware enables multiple mounting options. The optional back box, BB 700M, can be used where local codes require a rear metal enclosure.

Model
TLP Pro 1725MG TLP Pro 1725MG NC

Version Description

Part Number

Black - Wall Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1791-02 Black - Wall Mount, No Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1791-12

For updated product availability, go to www.extron.com

17

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

TOUCHLINK PRO TOUCHPANELS

TLP Pro 1225TG
12" Tabletop TouchLink Pro Touchpanel

UNIQUE FEATURES � 12" capacitive touchscreen with 1280x800
resolution and 16 million colors -- Vibrant, edgeto-edge glass display with a more responsive control surface. � PoE+ compatible -- Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies. � Sits on a tabletop or installs on a VESA mount -- Threaded holes in baseplate allow for secure mounting to a table, while VESA FDMI Type D 100mm mounting pattern standard is used for VESA mounting.

� Weighted base allows up to 40� of tilt � Kensington lock support -- Allows the touchpanel
to be locked to a table or other flat surface. � Supports the optional SMA-1 Swivel Mount Adapter � Highly reliable, energy-efficient external
universal power supply optional, replacement part #70-1246-01 -- Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.

Model
TLP Pro 1225TG TLP Pro 1225TG NC

Version Description

Part Number

Black - Tabletop & VESA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1788-02 Black - Tabletop & VESA, No Camera.. . . . . . . . . . . . . . . . . . . . . . . 60-1788-12

TLP Pro 1525TG
15" Tabletop TouchLink Pro Touchpanel

UNIQUE FEATURES � 15" capacitive touchscreen with 1366x768
resolution and 16 million colors -- Vibrant, edgeto-edge glass display with a more responsive control surface. � PoE+ compatible -- Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies. � Sits on a tabletop or installs on a VESA mount -- Threaded holes in baseplate allow for secure mounting to a table, while VESA FDMI Type D 100mm mounting pattern standard is used for VESA mounting.

� Weighted base allows up to 40� of tilt � Kensington lock support -- Allows the touchpanel
to be locked to a table or other flat surface. � Supports the optional SMA-1 Swivel Mount Adapter � Highly reliable, energy-efficient external
universal power supply optional, replacement part #70-1246-01 -- Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.

Model
TLP Pro 1525TG TLP Pro 1525TG NC

Version Description

Part Number

Black - Tabletop & VESA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1790-02 Black - Tabletop & VESA, No Camera.. . . . . . . . . . . . . . . . . . . . . . . 60-1790-12

TLP Pro 1725TG
17" Tabletop TouchLink Pro Touchpanel

UNIQUE FEATURES � 17" capacitive touchscreen with 1920x1080
resolution and 16 million colors -- Vibrant, edgeto-edge glass display with a more responsive control surface. � Touchpanel receives power and communication over a single Ethernet cable, eliminating the need for a local power supply - Power injector included � Sits on a tabletop or installs on a VESA mount -- Threaded holes in baseplate allow for secure mounting to a table, while VESA FDMI Type D 100mm mounting pattern standard is used for VESA mounting.

� Weighted base allows up to 40� of tilt � Kensington lock support -- Allows the touchpanel
to be locked to a table or other flat surface. � Supports the optional SMA-1 Swivel Mount Adapter � Highly reliable, energy-efficient external
universal power supply optional, replacement part #70-1246-01 -- Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.

Model
TLP Pro 1725TG TLP Pro 1725TG NC

Version Description

Part Number

Black - Tabletop & VESA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1792-02 Black - Tabletop & VESA, No Camera.. . . . . . . . . . . . . . . . . . . . . . . 60-1792-12

18

USA West

USA East

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

+1.714.491.1517 FAX

+1.919.850.1001 FAX

www.extron.com � 2021 Extron. All rights reserved. Prices and specifications subject to change without notice.

Transform your TouchLink Pro Touchpanel into a Powerful All-in-One Control System

Extron LinkLicense for TLP Control Processor and the TLCA 1 TouchLink Control Port Expansion Adapter are two powerful Pro Series control options that will transform your wall mount, tabletop, and Cable Cubby TouchLink Pro touchpanels into powerful, all-in-one control systems. These innovative tools add flexibility and power to our latest TouchLink Pro touchpanels, including the TLP Pro 525 Series, TLP Pro 725 Series, TLP Pro 1025 Series and TLP Pro 300M.
Integrated touchpanel control systems provide many advantages including simpler system designs and streamlined system deployment. In addition, when you introduce a touchpanel control system into a room where an Extron touchpanel and a control processor already exists, you will be able remove the control processor from the system and use it elsewhere.

LinkLicense for TLP Control Processor Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone control system. With this LinkLicense, you can control your AV devices via Ethernet directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 1 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.

TLCA 1 The Extron TLCA 1 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your touchpanel installed with LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.

Model
LinkLicense TLCA 1

Version Description

Part Number

TLP Control Processor Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79-2577-01 TouchLink Control Port Expansion Adapter.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1748-10

To learn more, visit extron.com/tlca

IP Link Pro Expansion Interfaces
An Easy and Secure Way to Expand Your AV Control System

The Extron IPL EXP I/O Series are IP Link Pro Expansion Interfaces designed for easy control system expansion. They are a convenient way to put extra control ports and functionality just where you need them in your system. These expansion interfaces pair with our IPCP Pro xi Series of control processors, which are securely configured with Global Configurator Professional or programmed with Global Scripter�. They feature the convenience of PoE and can be controlled, monitored, and accessed over your network. All these compact control expansion solutions are housed in durable 1U quarter rack enclosures and offer a broad variety of port types as well as mounting options.

IPL EXP Series - Common Features: � Secure Platform Devices that provide control system
expansion for Extron IPCP Pro xi Series control processors
� PoE compatible
� Support secure industry standard communication protocols, including 802.1X
� Fully customizable using Extron control system software -- Global Configurator Plus, Global Configurator Professional, or Global Scripter.
� Extensive library of Pro Series device drivers and modules for use with Global Configurator and Global Scripter respectively

� Compact, 1U quarter rack enclosures with ZipClipTM 200 mounting capability
� Support control system synchronization
� Manage, monitor, and control AV devices using a standard Ethernet network
� Mount directly to Extron basic and universal rack shelf products or a variety of surfaces, including rack rails, tables, lecterns, projector poles, and table legs

To learn more, visit extron.com/iplexp

IP LINK PRO
IPL EXP S2
IP Link Pro Expansion Interface
UNIQUE FEATURES � Two bidirectional RS-232 serial ports with
software handshaking

� High-impact plastic enclosure

Model IPL EXP S2

Version Description

Part Number

Two Serial Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1905-01

IPL EXP S5
IP Link Pro Expansion Interface
UNIQUE FEATURES � Five bidirectional RS-232 serial ports with
software handshaking

� High-impact plastic enclosure

Model IPL EXP S5

Version Description

Part Number

Five Serial Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1906-01

NEW PRODUCTS

IPL EXP RIO8
IP Link Pro Expansion Interface
UNIQUE FEATURES � Eight digital I/O ports � Eight relays � Four 12VDC and four 24VDC output power ports

� UL 2043 plenum rated � Metal enclosure

Model IPL EXP RIO8

Version Description

Part Number

D I/O, Relays, Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1907-01

IPL EXP 200
IP Link Pro Expansion Interface
UNIQUE FEATURES � Two bidirectional RS-232 serial ports with
software handshaking � One unidirectional IR/Serial port

� Four digital I/O ports � One eBUS port � High-impact plastic enclosure

Model IPL EXP 200

Version Description

Part Number

Serial, IR/S, Relays, D I/O, eBUS. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1908-01

For updated product availability, go to www.extron.com

21

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

IPCP Pro xi Series

Our Most Powerful AV Control Processors

As AV systems grow in size and complexity, control systems must meet every demand with fast, dependable performance. At the core of these control systems, our new IPCP Pro xi Series control processors deliver the most powerful and versatile performance standards to date. With up to four times more memory and significantly-enhanced processing power for increased deployment speeds and improved runtime functionality, this new series is designed to excel in even the most demanding AV applications. In addition to increases in performance, these new processors feature advanced security standards and Gigabit Ethernet, which ensures compatibility with multiple TouchLink Pro touchpanels and Network Button Panels using a standard network infrastructure. The new IPCP Pro xi Series control processors are an ideal choice for controlling multiple devices and control signal types within today's most challenging control system designs.

What's new: The IPCP Pro Q xi Series control processors are multi-network models and feature:
� Quad core processors
� Four times more memory with 2 GB of RAM and 8 GB of Flash
The IPCP Pro xi Series control processors are single network models and feature:
� Upgraded single core processors
� Two times more memory with 1 GB of RAM and 8 GB of Flash

SERIES COMMON FEATURES � Supports TouchLink Pro touchpanels, eBUS� button panels,
IP Link Pro Expansion Interfaces and Network Button Panels
� Supports secure industry standard communications protocols
� Supports LinkLicense� for User Interfaces
� Supports popular BMS � Building Management System protocols, such as BACnet, KNX, and DALI
� Multi-level password protection
� Fully customizable using Extron control system software
� An extensive library of Global Configurator device drivers and Global Scripter modules support devices from a broad range of manufacturers, streamlining configuration and programming

To learn more, visit extron.com/ipcpproxi

IP LINK PRO

IPCP Pro 555Q xi
IP Link Pro Quad Core Control Processor

UNIQUE FEATURES �  Quad Core processor and four times more
memory for increased upload speeds, faster runtime performance, and more sophisticated projects � AV LAN port allows AV devices to be isolated from the corporate network � Six bidirectional RS-232 serial ports with software handshaking � Two bidirectional RS-232/RS-422/RS-485 serial ports with hardware and software handshaking � Eight IR/Serial ports for one-way control of external devices

� Four Flex I/O ports � Eight relays for controlling room functions � Four independently switched 12 VDC outputs � DHCP server for AV LAN � The LAN port will permit discovery, setup and
firmware updates for Extron devices connected to the AV LAN port � Integrated IR Learning capability � 1U, half rack width metal enclosure

Model
IPCP Pro 555Q xi IPCP Pro 555Q xi

Version Description

Part Number

IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1917-01 IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1917-01A

NEW PRODUCTS

IPCP Pro 360Q xi
IP Link Pro Quad Core Control Processor

UNIQUE FEATURES �  Quad Core processor and four times more
memory for increased upload speeds, faster runtime performance, and more sophisticated projects � Three AV LAN ports allow AV devices to be isolated from the corporate network � AV LAN ports provide PoE+ to external devices � Two bidirectional RS-232 serial ports with software handshaking � One bidirectional RS-232/RS-422/RS-485 serial port with hardware and software handshaking

� Two IR/Serial ports for one-way control of external devices
� Four Digital I/O ports � Four relays for controlling room functions � DHCP server for AV LAN � The LAN port will permit discovery, setup and
firmware updates for Extron devices connected to the AV LAN port � Extron Pro Series control devices � Integrated IR learning capability � 1U, half rack width metal enclosure

Model
IPCP Pro 360Q xi IPCP Pro 360Q xi

Version Description

Part Number

IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1916-01 IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1916-01A

IPCP Pro 255Q xi
IP Link Pro Quad Core Control Processor

UNIQUE FEATURES �  Quad Core processor and four times more
memory for increased upload speeds, faster runtime performance, and more sophisticated projects � AV LAN port allows AV devices to be isolated from the corporate network � One bidirectional RS-232 serial port with software handshaking � One bidirectional RS-232/RS-422/RS-485 serial port with hardware and software handshaking � One IR/Serial port for one-way control of external devices

� Four Digital I/O ports � Two relays for controlling room functions � Remote volume control port for the Extron MPA
Series and select XTRATM Series amplifiers � DHCP server for AV LAN � The LAN port will permit discovery, setup and
firmware updates for Extron devices connected to the AV LAN port � Integrated IR Learning capability � 1U, quarter rack width metal enclosure

Model
IPCP Pro 255Q xi IPCP Pro 255Q xi

Version Description

Part Number

IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1914-01 IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1914-01A

For updated product availability, go to www.extron.com

23

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

IP LINK PRO

IPCP Pro 355DRQ xi
IP Link Pro Quad Core Control Processor - DIN Rail

UNIQUE FEATURES �  Quad Core processor and four times more
memory for increased upload speeds, faster runtime performance, and more sophisticated projects � Securely mounts to an industry-standard DIN rail commonly used by third party automation equipment in racks and cabinets � AV LAN port allows AV devices to be isolated from the corporate network � Two bidirectional RS-232 serial ports with software handshaking

� One bidirectional RS-232/RS-422/RS-485 serial port with hardware and software handshaking
� Two IR/Serial ports for one-way control of external devices
� Four digital I/O ports � Four relays for controlling room functions � DHCP server for AV LAN � The LAN port will permit discovery, setup and
firmware updates for Extron devices connected to the AV LAN port

Model
IPCP Pro 355DRQ xi IPCP Pro 355DRQ xi

Version Description

Part Number

IP Link Pro Control Processor, DIN Rail. . . . . . . . . . . . . . . . . . . . 60-1915-01 IP Link Pro Control Proc., DIN Rail, LL UI Upgrade. . . . . . . . . . 60-1915-01A

IPCP Pro 550 xi
IP Link Pro Control Processor
UNIQUE FEATURES �  Single Core processor and two times more
memory for increased project upload speeds, faster runtime performance and more sophisticated projects � Six bidirectional RS-232 serial ports with software handshaking � Two bidirectional RS-232/RS-422/RS-485 serial ports with hardware and software handshaking

� Eight IR/Serial ports for one-way control of external devices
� Four Flex I/O ports � Eight relays for controlling room functions � Four independently switched 12 VDC outputs � Integrated IR Learning capability � 1U, half rack width metal enclosure

Model
IPCP Pro 550 xi IPCP Pro 550 xi

Version Description

Part Number

IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1913-01 IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1913-01A

IPCP Pro 350 xi
IP Link Pro Control Processor
UNIQUE FEATURES �  Single Core processor and two times more
memory for increased project upload speeds, faster runtime performance and more sophisticated projects � Two bidirectional RS-232 serial ports with software handshaking � One bidirectional RS-232/RS-422/RS-485 serial port with hardware and software handshaking

� Two IR/Serial ports for one-way control of external devices
� Four Digital I/O ports � Four relays for controlling room functions � Integrated three port network switch � Integrated IR Learning capability � 1U, half rack width metal enclosure

Model
IPCP Pro 350 xi IPCP Pro 350 xi

Version Description

Part Number

IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1912-01 IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1912-01A

24

USA West

USA East

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

+1.714.491.1517 FAX

+1.919.850.1001 FAX

www.extron.com � 2021 Extron. All rights reserved. Prices and specifications subject to change without notice.

IP LINK PRO

IPCP Pro 250 xi
IP Link Pro Control Processor

UNIQUE FEATURES �  Single Core processor and two times more
memory for increased project upload speeds, faster runtime performance and more sophisticated projects � One bidirectional RS-232 serial port with software handshaking � One bidirectional RS-232/RS-422/RS-485 serial port with hardware and software handshaking

� One IR/Serial port for one-way control of external devices
� Four Digital I/O ports � Two relays for controlling room functions � Remote volume control port for the Extron
MPA Series and select XTRATM Series amplifiers � Integrated IR Learning capability � 1U, quarter rack width metal enclosure

Model
IPCP Pro 250 xi IPCP Pro 250 xi

Version Description

Part Number

IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1911-01 IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1911-01A

NEW PRODUCTS

IPCP Pro PCS1 xi
IP Link Pro Power and Device Control Processor

UNIQUE FEATURES �  Single Core processor and two times more
memory for increased project upload speeds, faster runtime performance and more sophisticated projects � Intelligent current sensing with alarm � Outlet status retention during power loss � One male AC input and one female AC output - both using IEC connections

� Easily-accessible, front panel circuit breaker adds over-current protection for remotely controlled connected devices
� One bidirectional RS-232 serial port with software handshaking
� One IR/Serial port for one-way control of external devices
� Three digital I/O ports � Supports control system synchronization � 1U, quarter rack width metal enclosure

Model
IPCP Pro PCS1 xi IPCP Pro PCS1 xi

Version Description

Part Number

IP Link Pro Control Processor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1910-01 IP Link Pro Control Proc., LL UI Upgrade.. . . . . . . . . . . . . . . . . . 60-1910-01A

For updated product availability, go to www.extron.com

25

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

Setting the New Standard in 4K Fiber Optic Distribution

Introducing FOX3 Systems, the industry-leading high-performance family of fiber optic extenders and matrix switchers for end-toend distribution of 4K video, audio, control, USB, and 3D sync. FOX3 extenders feature built-in USB for KVM applications while Extron-exclusive VectorTM 4K scaling technology ensures best-in-class image quality. Delivering exceptional reliability and advanced capabilities such as audio breakaway, audio embedding/deembedding, DMP expansion, and Dante� integration, the FOX3 Series meets the demands of any mission-critical environment.

� Supports mathematically lossless 4K/60 4:4:4 video over one fiber or uncompressed 4K/60 4:4:4 video over two fibers
� Scaling receiver models available with Extron-exclusive Vector 4K scaling technology for design flexibility and easy integration
� HDCP 2.3 compliant

� Supported HDMI 2.0 specifications include data rates up to 18 Gbps, Deep Color up to 12-bit, and 3D
� Integrates DMP expansion, local analog audio insertion and extraction, and Dante with AES67 support
� Advanced 24/7 system monitoring

JITC
CERTIFIED

FIBER OPTICS

FOX3 T 101
Fiber Optic Transmitter for HDMI

The Extron FOX3 T 101 is a compact fiber optic transmitter for long haul transmission of HDCP-compliant HDMI video with embedded audio over fiber optic cabling. Engineered for exceptional high-resolution image performance, the transmitter uses Extron all-digital technology to deliver mathematically lossless transmission of images up to 4K/60 @ 4:4:4 over a fiber optic cable. Designed specifically for AV systems, the FOX3 T 101 also includes many integrator-friendly features such as Key Minder�, EDID Minder�, internal test patterns, a USB-C configuration port, and remote configuration. A compact, low profile enclosure allows for discreet installation.

FEATURES � Extends HDMI video and embedded audio signals
over fiber optic cabling � Supports mathematically lossless 4K video up to
4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fiber � Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 10-bit, and two-channel PCM audio � HDCP 2.3 compliant � Buffered HDMI input loop-through � User-selectable HDCP authorization

Model
FOX3 T 101 MM FOX3 T 101 SM

Version Description

Part Number

Lossless 4K/60 Transmitter - Multimode. . . . . . . . . . . . . . . . . . . . 60-1957-11 Lossless 4K/60 Transmitter - Singlemode. . . . . . . . . . . . . . . . . . . 60-1957-12

NEW PRODUCTS
FOX3 T 101 MM

FOX3 R 101
Fiber Optic Receiver for HDMI

The Extron FOX3 R 101 is a compact fiber optic receiver for long haul transmission of HDCP-compliant HDMI video with embedded audio over fiber optic cabling. Engineered for exceptional high-resolution image performance, the receiver uses Extron alldigital technology to deliver mathematically lossless transmission of images up to 4K/60 @ 4:4:4 over fiber optic cable. Designed specifically for AV systems, the FOX3 R 101 also includes many integrator-friendly features such as Key Minder�, a USBC configuration port, and remote configuration. A compact, low profile enclosure allows for discreet installation.

FEATURES � Receives HDMI video and embedded audio signals
over fiber optic cabling � Supports mathematically lossless 4K video up to
4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fiber � Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 10bit, and two-channel PCM audio � HDCP 2.3 compliant � User-selectable HDCP authorization � Key Minder continuously verifies HDCP compliance for quick, reliable switching

Model
FOX3 R 101 MM FOX3 R 101 SM

Version Description

Part Number

Lossless 4K/60 Receiver - Multimode.. . . . . . . . . . . . . . . . . . . . . . 60-1957-21 Lossless 4K/60 Receiver - Singlemode. . . . . . . . . . . . . . . . . . . . . 60-1957-22

FOX3 R 101 MM

For updated product availability, go to www.extron.com

27

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

SOFTWARE

EDID Manager 2.1
8K EDID Management Software

Extron EDID Manager� 2.1 is a Windows�-based software utility that enables users to manage display device capabilities such as supported video rates, color space, chroma sampling, color bit depth, audio capabilities, and overall video format all from a single convenient software application. The software allows you to open, view, modify, and convert EDID display formats as well as generate PDF status reports that provide critical information about the display device. It can connect and transfer EDID directly to select Extron products, simplifying project start-up and commissioning.

FEATURES � Free EDID management Windows� software utility � Converts EDID files between video formats �  Compatible with HDMI 2.1, DisplayPort 1.2,
DVI Single & Dual link, and VGA �  Supports HDR and resolutions up to 8K/30 @
4:4:4 and 8K/60 @ 4:2:0 �  Accommodates enhanced audio formats,
including Dolby� Atmos�, DTS:X�, and DTSHD Master Audio �  Supports custom CVT 1.2 detailed timings and higher refresh rates up to 240 Hz � Troubleshooting aid for addressing EDID compatibility issues � Easy to use with no prior EDID experience necessary � Open and view EDID files � Edit EDID files

Model EDID Manager 2.1

Version Description

Part Number

EDID Management Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79-536-01

MATRIX SWITCHERS

FPC 6000
Front Panel Controller for FOX and FOX3 Matrix Switchers

The FPC 6000 Front Panel Controller is designed for use with Extron FOX�, FOX3, and Matrix 1K systems. It incorporates an intuitive, 15" touchscreen control interface with simple, straightforward menus for setup, control, monitoring, and diagnostic functions via a local area network. Users can access global and rooming presets. USB switching is supported for FOX3 systems. One or more controllers can be connected to the network for control of the switcher from multiple locations. The FPC 6000 is housed in a 7U high, rackmountable panel that can be installed in an equipment rack or control console.

FEATURES �  Supports FOX, FOX3, and Matrix 1K systems �  USB switching capabilities for FOX3 matrix
switchers �  Enhanced GUI and streamlined menu
structure �  Input/Output labeling of audio types for quick
identification � FOX3 � Provides remote monitoring, access, and
management of setup and control functions

Model FPC 6000

Version Description

Part Number

15" Touchscreen, Rack Mount, 7U. . . . . . . . . . . . . . . . . . . . . . . . . . 60-1706-01

28

USA West

USA East

www.extron.com

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

� 2021 Extron. All rights reserved.

+1.714.491.1517 FAX

+1.919.850.1001 FAX

Prices and specifications subject to change without notice.

Annotator 401

Full-featured Annotation Processor with 4K Scaling and USB Extension

The Extron Annotator 401 is a high performance, hardware-based annotation processor that enables users to draw, point, or type over live content. Presenters can annotate using any combination of a touch display, keyboard, or mouse. Annotated images may be captured and saved to internal memory, a removable USB flash drive, or a network location.

Full 4K/60 Support The HDMI inputs and outputs of the Annotator 401 support data rates up to 18 Gbps, providing full support of signals up to 4K/60 with 4:4:4 chroma sampling. HDCP 2.3 compliance ensures compatibility with encrypted content.

Dual HDMI Outputs The dual HDMI outputs can be individually configured with selectable visibility of annotation, menu, and cursor. This facilitates use as a main annotation display with a duplicated output for viewing or annotation at a separate location.

USB Extension The integrated USB transmitter enables remote use of annotation peripherals. Paired with a receiver, signals can be sent up to 1,980 feet (600 meters) through a Gigabit Ethernet network or up to 330 feet (100 meters) point-to-point over a CATx cable.

On-screen Annotation Toolbar A user-friendly onscreen toolbar facilitates quick and easy selection of annotation tools, including freehand sketching, lines, arrows, rectangular or elliptical shapes, and text with customization options.

Select Annotation Features:

Freehand Draw freely on screen using various colors and line weights

Text Use a keyboard to place text on screen

Spotlight Grey out all video outside a defined ellipse

Model Annotator 401

Version Description

Part Number

4K/60 Annotation Processor with USB Extension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1731-01

To learn more, visit extron.com/annotator401

Capture Save screen to internal memory, removable USB drive, or network location

MGP 641

Easily Scale and Present Up to Four 4K/60 Video Sources on a Single Display

The Extron MGP 641 is a multi-window processor that scales and presents up to four 4K/60 source signals on a single screen. It features advanced Extron VectorTM 4K scaling technology for unequaled image quality. The HDCP 2.3-compliant processor includes four HDMI 2.0 inputs and an additional HDMI background input. HDMI and DTP2 4K/60 outputs deliver duplicate signals to local and remote displays. Audio de-embedding simplifies integration. These features and capabilities enable the MGP 641 processor to deliver professional presentations that are ideal for high-end environments and live events.

Flexible Source Windowing The MGP 641 offers extensive windowing options, enabling side-by-side, overlap, and picture in picture positioning of live sources.

Source and Output Rotation Content received on Inputs 2 and 4 can be rotated 90 degrees. The duplicate HDMI and DTP2 output signals can also be rotated 90 degrees to accommodate displays arranged in portrait or landscape orientations.

Restriction-free window placement
Window Presets and Transitions 128 window presets allow for quick saving and recall of size, positioning and priority for each window. Transitions between presets can be set to Cut or Animated. The Animated effect dynamically resizes and repositions the windows to the selected preset's locations.

4K/60 HDMI Background Input The HDMI background input supports animated backgrounds, tickers, or other live content. It can also accommodate additional MGP 641 processors to present up to 16 fully customizable windows.

Live video or scrolling text

Cascade up to four MGP 641 processors

Model MGP 641

Version Description

Part Number

4 HDMI Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1574-01

To learn more, visit extron.com/MGP641

SCALERS

DSC 401
4K/60 HDMI to HDMI Scalers

The Extron DSC 401 and DSC 401 A are highperformance scalers capable of converting between HDMI resolutions up to 4K/60 with full 4:4:4 color sampling. They support data rates up to 18 Gbps and incorporate the Extron-exclusive VectorTM 4K scaling technology, which is engineered for critical-quality 4K applications. Both HDCP 2.3-compliant models support 4K/60 signals on a single connection and provide many integrator-friendly features, such as on-screen display, internal test patterns, and status LEDs. The DSC 401 A features audio embedding and de-embedding, logo image keying and display, input presets, audio file playback, and Ethernet control with PoE. The DSC 401 and DSC 401 A scalers are ideal for locations such as conference rooms, auditoriums, or anywhere highquality 4K scaling of HDMI signals is required.

FEATURES � 4K/60 HDMI to HDMI scaling � Advanced Extron VectorTM 4K scaling engine � HDCP 2.3 compliant � Advanced 4:4:4 signal processing � Accepts HDMI video from 480i up to
4096x2160 @ 4:4:4 � Selectable output rates from 640x480 up to
4096x2160 @ 4:4:4 � Supported HDMI specification features include data
rates up to 18 Gbps, Deep Color, and HD lossless audio formats � Seamless transitions � HDMI audio embedding - DSC 401 A only � HDMI audio deembedding - DSC 401 A only � Supports custom EDID and output resolutions

Model
DSC 401 DSC 401 A

Version Description

Part Number

4K/60 HDMI to HDMI Scaler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1878-01 4K/60 HDMI to HDMI Scaler w/ Audio. . . . . . . . . . . . . . . . . . . . . . . 60-1878-02

NEW PRODUCTS
DSC 401 DSC 401 A

For updated product availability, go to www.extron.com

31

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

Quantum Ultra II

Videowall Processing Leaps Forward with Advanced Connectivity and 8K-ready Throughput

Quantum� Ultra II represents the next generation of Extron videowall processors, providing advanced connectivity and throughput capabilities. The 18 Gbps HDMI connections on the 4K input and output cards facilitate single-path 4K/60 signals and are HDCP 2.3 compliant. The 8K-ready HyperLane� video bus supports more than twenty 4K/60 sources. Embedded HDMI audio from any source can be routed independently to one or more active canvasses. Features such as portrait and landscape output support, output overlap, bezel compensation, and custom output resolutions ensure compatibility with nearly any display.

4K/60, 4:4:4 on a Single Connection Quantum IN4HDMI 4K PLUS input cards and Quantum OUT4HDMI 4K PLUS output cards offer the convenience of managing 4K/60 video as a single signal. With four connections per card, they dramatically increase the I/O count per chassis when working with 4K/60 sources and displays.

Audio Management Quantum Ultra II provides HDMI embedded audio routing when configured with IN4HDMI 4K PLUS and OUT4HDMI 4K PLUS cards. It supports LPCM stereo as well as multi-channel surround sound formats, and an independent audio source can be selected per canvas from any input.

Expanded 8K-Ready HyperLane Bus The Quantum Ultra II processor's dedicated high-speed video bus delivers real-time performance unattainable by other videowall processors. The HyperLane video bus is 8K-ready and now has a maximum throughput of up to 500 Gbps, providing the capacity to simultaneously carry more than twenty 4K/60 4:4:4 sources.

Source 1 Source 2 Source 3 Embedded Audio Switching

LOCK OPEN
STATUS PRIMARY POWER REDUNDANT POWER
FRONT FAN REAR FANS QUANTUM ULTRA II 610
VIDEOWALL PROCESSOR
Quantum Ultra II

Canvas 1 Canvas 10

To learn more, visit extron.com/quantumultra2

NEW PRODUCTS

VIDEOWALL PROCESSORS

Quantum Ultra II
Ultra-High Bandwidth 4K/60 Videowall Processor with 8K-Ready HyperLane Bus

Quantum� Ultra II represents the next generation of Extron videowall processors, providing advanced, future-ready connectivity and throughput capabilities. The expanded HyperLane� video bus delivers unmatched real-time performance with a throughput of up to 500 Gbps. The 18 Gbps HDMI connectors on the 4K input and output cards support resolutions up to 4K/60 at 4:4:4 with full HDCP 2.3 compliance. Embedded HDMI audio from any source can be routed independently to each active canvas. A single processor can support multiple videowalls with mixed resolutions and screen orientations. Features such as portrait and landscape output support, output overlap, bezel compensation, and custom output resolutions ensure compatibility with nearly any display. RS-232, USB, and Ethernet interfaces provide direct connections for control systems.

NEW FEATURES � Scalable 4K/60 videowall processing for display
systems of any size � Modular architecture accommodates a variety of
input and output arrangements �  Future-ready 500 Gbps HyperLane� video
bus delivers unparalleled real-time performance for resolutions up to 8K �  HDMI 4K PLUS cards support 4K/60 on each connection �  HDMI embedded audio switching �  8K-ready design ensures compatibility with existing as well as next generation input and output cards �  HDCP 2.3 compliant � Compatible with select Quantum Ultra input and output cards � Manage multiple videowalls with varying resolutions and screen arrangements from a single processor � Designed for 24/7, mission-critical environments

Model
Quantum Ultra II 305 Quantum Ultra II 610 Quantum IN4HDMI 4K PLUS Quantum OUT4HDMI 4K PLUS

Version Description

Part Number

3U, 5-slot Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1899-01 6U, 10-slot Frame.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1900-01 Four-channel 4K/60 HDMI Input Card. . . . . . . . . . . . . . . . . . . 70-1199-01 Four-channel 4K/60 HDMI Output Card.. . . . . . . . . . . . . . . . . 70-1200-01

Quantum Ultra II 610
Quantum Ultra II 305 Quantum IN4HDMI 4K Plus Quantum OUT4HDMI 4K Plus

Quantum Ultra Expansion Cards
Link Multiple Processor Frames to Create Large Videowall Systems

Quantum Expansion In and Quantum Expansion Out cards link multiple Quantum Ultra videowall processors together, simplifying the design, integration, and operation of large videowalls. Three fiber optic cables link each pair of expansion cards, which extends the high-speed HyperLane� bus between the processors to create a common, shared bus. This makes all input sources available to all video outputs. Once configured, the processors operate as a single system without the need for frontend switching or distribution amplifiers. Up to five processors can be linked using four pairs of expansion cards. Quantum Ultra outputs are genlocked across all processors, maintaining image synchronization and eliminating video tearing.

FEATURES � Links multiple Quantum Ultra processors together to
create a single large system � Create videowalls with up to five processors and
168 total inputs/outputs � Three fiber optic cables extend the high-speed
HyperLane bus between each expansion card pair � Uncompressed data link between expansion cards
retains critical image quality � Eliminates the need for frontend switching /
distribution of sources across multiple processors � Outputs are genlocked across each Quantum Ultra
processor � Multiple processors operate as single, cohesive
system

Model
Quantum Expansion IN Quantum Expansion OUT MPO MM 1m MPO MM 10m

Version Description

Part Number

Expansion Input Card.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1270-01 Expansion Output Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1271-01 Expansion Link Cable 1m.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-737-01 Expansion Link Cable 10m. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-737-10

Quantum Expansion IN

Quantum Expansion OUT

LOCK OPEN
LOCK OPEN
LOCK OPEN

STATUS PRIMARY POWER REDUNDANT POWER
FRONT FANS REAR FANS
QUANTUM ULTRA 610 VIDEO WALL PROCESSOR

Expansion OUT Card

STATUS PRIMARY POWER REDUNDANT POWER
FRONT FANS REAR FANS
QUANTUM ULTRA 610 VIDEO WALL PROCESSOR

Expansion IN Card Expansion OUT Card

Expansion IN Card
STATUS PRIMARY POWER REDUNDANT POWER
FRONT FANS REAR FANS
QUANTUM ULTRA 610 VIDEO WALL PROCESSOR

Up to 5 Processors

For updated product availability, go to www.extron.com

33

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

DTP3 Series
Pure 4K/60 4:4:4 Transmission. Uncompressed. Zero Latency
Meet the DTP3 Series of digital twisted pair products that extend HDMI with optimal image quality. DTP3 supports HDMI signals up to 4K/60 4:4:4 color sampling with or without embedded audio. AV, bidirectional control, and power can be sent up to 330 feet (100 meters) over a shielded CAT6A cable to any DTP�-enabled product. To maximize image quality and minimize latency, all supported video resolutions are transported without compression. The DTP3 T 202 transmitter includes an HDMI loop-through and the DTP3 R 201 receiver provides audio de-embedding for convenient installation in professional environments. These HDCP 2.3-compliant extenders are compact and offer Extron's industry-leading reliability and functionality on an economical and easily installed cable infrastructure. DTP3 Series products are ideal for presentation venues, esports applications, and placement wherever needed to meet application requirements.
Ensure Success with Extron Cable Extron XTP DTP 22 twisted pair cables are designed and constructed to excel at high speed transport and go the distance on DTP3 runs up to 330 feet (100 m). Advanced shielding design and precise manufacturing tolerances maintain signal integrity and reliable performance in the professional arena.
To learn more, visit extron.com/dtp3

DTP SYSTEMS

DTP3 Series
4K/60 HDMI DTP3 Extenders

The Extron DTP3 Series are third-generation long distance, digital twisted pair extenders that work with Extron DTP�-enabled products to extend HDMI, audio, and bidirectional RS-232 signals up to 330 feet (100 meters) over a shielded CAT6A cable. They support video resolutions up to 4K/60 at 4:4:4 color sampling and comply with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The transmitter features an HDMI input loop-through and the receiver features stereo audio de-embedding for convenient installation in professional environments. The compact enclosure size and flexible remote power capability make the DTP3 Series ideal for discreet placement wherever needed to meet application requirements.

FEATURES � Extends HDMI plus control up to 330' (100 m) over
a shielded CAT6A cable � Supports computer and video resolutions up to
4K/60 @ 4:4:4 � HDCP 2.3 compliant � Supported HDMI 2.0b specification features include
data rates up to 18 Gbps, HDR, Deep Color up to 12bit, 3D, and HD lossless audio formats � Remote power capability with DTP2 and DTP3 products � Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance � Compatible with CAT6A shielded twisted pair cable � DTP3 T 202 transmitter features buffered HDMI input loop-through � DTP3 T 202 transmitter is compatible with HDBaseT-enabled displays � DTP3 R 201 receiver features stereo audio deembedding

Model
DTP3 T 202 DTP3 R 201

Version Description

Part Number

4K/60 HDMI Tx - 330 feet (100 m). . . . . . . . . . . . . . . . . . . . . . . . . 60-1869-52 4K/60 HDMI Rx - 330 feet (100 m). . . . . . . . . . . . . . . . . . . . . . . . . 60-1869-53

NEW PRODUCTS
DTP3 T 202 DTP3 R 201

DTP2 T 201 D
4K/60 HDMI DTP2 Transmitter - Decorator-Style Wallplate

The Extron DTP2 T 201 D is a one-gang decorator-style transmitter for sending HDMI signals up to 330 feet (100 meters) over a shielded CATx cable to an Extron DTP�-enabled product. It supports video resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3. The one-gang wall-mountable design of the DTP2 T 201 D provides the convenience of placing input connections precisely where they are needed.

FEATURES � Transmits HDMI up to 330 feet (100 meters) over a
shielded CATx cable � Supports computer and video resolutions up to
4K/60 @ 4:4:4 � Supported HDMI 2.0 specification features include
data rates up to 18 Gbps, 3D, HD lossless audio formats, and CEC pass-through � HDCP 2.3 compliant � Remote power capability with DTP2 products � Compatible with all DTP receivers and DTPenabled products � Mounts in an included one-gang decorator-style wallplate � DTP2 output is compatible with HDBaseTenabled displays

Model
DTP2 T 201 D DTP2 T 201 D

Version Description

Part Number

HDMI 4K/60 Wallplate Tx, Black - 330 feet (100 m). . . . . . . . . 60-1741-52 HDMI 4K/60 Wallplate Tx, White - 330 feet (100 m). . . . . . . . . 60-1741-53

For updated product availability, go to www.extron.com

35

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

XPA Ultra SB Power Amplifiers
Switchable Bridging. Flexibility for Countless Applications

The new Extron XPA Ultra SB amplifiers are engineered with flexible switchable bridging output technology that can deliver 100 watts to 400 watts per channel into 8 ohm, 4 ohm, 70 volt, or 100 volt loads. When a channel pair is set to mono bridged mode, output power is doubled while retaining the ability to drive a low or high impedance system. A rotary switch on the rear panel of the amplifier makes it quick and easy to select the correct output mode for the speaker type. XPA Ultra SB amplifiers provide the flexibility, proven EverlastTM reliability, and industry leading performance to meet the needs of even the most demanding applications.

� 100 watts to 400 watts per channel into 8 ohm, 4 ohm,

70 volt, or 100 volt loads

� ENERGY STAR qualified

12 10 8 12 10 8

0-240V

�

All

rated

watts

u1sab2le

-

aLPll IRcMhOIaTTnEEnRCe/lTs

14 driven18

6 14 4

6 4

  � Defeatable auto standbySwIGithNuAlLtra-fast wa2k6e up 1 2
1.0�A,R5e0m-6o0Htezvolume / mute control with Extron VCM,1VC0,

12 20

A U 2002 SaBnd select MediaLink controllers

ATTENUATION

� UL 2043 plenum rated when used with optional

Flexible Conduit Adapter Kit

� Professional grade signal-to-noise and THD+N performance

BRIDGED MONO

8 16 70V

1 & 2

8

70V (HPF OFF)

4

100V

STEREO

100V (HPF OFF)

OUTPUT MODE

Simple and reliable output mode selector reduces setup errors

1 (BR)

2

INPUTS

To learn more, visit extron.com/xpau

AUDIO PRODUCTS

XPA U 1004 SB
Four Channel Bridgeable Output Amplifier 100/200 Watts Per Channel

The Extron XPA U 1004 SB is an ENERGY STAR qualified four channel audio power amplifier with flexible channel pairs that can drive 8 ohm, 4 ohm, 70 volt, or 100 volt loads. The individually bridgeable pairs can deliver two 100 watt channels into low impedance systems or one 200 watt channel into low or high impedance systems. A rotary switch on the rear panel makes it quick and easy to select output mode. The convection cooled, plenum rated enclosure of the XPA U 1004 SB does not require empty rack spaces for ventilation and includes rack mount hardware. It features a highly efficient advanced Class D amplifier design with defeatable auto standby, fast wake up from standby, and our patented CDRS - Class D Ripple Suppression. XPA Ultra SB models also offer remote volume and mute control with Extron VCM, VC or select MediaLink controllers.

FEATURES �  Selectable output modes per channel pair:
- Two 100 watt channels into 8 ohms or 4 ohms - One 200 watt bridged channel into 70V or 100V,
with or without HPF - One 200 watt bridged channel into 8 ohms or
16 ohms � ENERGY STAR� qualified amplifier � Extron Patented CDRSTM - Class D Ripple
Suppression � Convection cooled, fanless operation - can be
stacked without extra rack space for ventilation � Defeatable auto-standby with fast wake up � UL 2043 plenum rated when used with optional
Flexible Conduit Adapter Kit

Model XPA U 1004 SB

Version Description

Part Number

Four Channel Bridgeable Output Amp, 100/200 Watts. . . . . . 60-1301-01

XPA U 2002 SB
Two Channel Bridgeable Output Amplifier 200/400 Watts Per Channel

The Extron XPA U 2002 SB is an ENERGY STAR qualified two channel audio power amplifier with a flexible output that can drive 8 ohm, 4 ohm, 70 volt, or 100 volt loads. The bridgeable channels can deliver two 200 watt channels into low impedance systems or a mono 400 watt channel into low or high impedance systems. A rotary switch on the rear panel makes it quick and easy to select output mode. The convection cooled, plenum rated enclosure of the XPA U 2002 SB does not require empty rack spaces for ventilation and includes rack mount hardware. It features a highly efficient advanced Class D amplifier design with defeatable auto standby, fast wake up from standby, and our patented CDRS - Class D Ripple Suppression. XPA Ultra SB models also offer remote volume and mute control with Extron VCM, VC or select MediaLink controllers.

FEATURES �  Selectable output modes:
- Two 200 watt channels into 8 ohms or 4 ohms - One 400 watt bridged channel into 70V or 100V,
with or without HPF - One 400 watt bridged channel into 8 ohms or
16 ohms � ENERGY STAR� qualified amplifier � Extron Patented CDRSTM - Class D Ripple
Suppression � Convection cooled, fanless operation - can be
stacked without extra rack space for ventilation � Defeatable auto-standby with fast wake up � UL 2043 plenum rated when used with optional
Flexible Conduit Adapter Kit

Model XPA U 2002 SB

Version Description

Part Number

Two Channel Bridgeable Output Amp, 200/400 Watts. . . . . . . 60-1758-01

NEW PRODUCTS

For updated product availability, go to www.extron.com

37

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

Industry-Leading Amplifiers Now with Dante and DSP

With the NetPA� Ultra amplifiers, you get all the advantages of our award winning XPA Ultra amplifiers combined with the power of Dante network audio distribution. Dante connectivity makes it easy to distribute audio from a centralized location to decentralized remote amplifiers throughout a facility, building, or campus using standard network hardware. These ENERGY STAR qualified amplifiers also offer integrated DSP, allowing a single device to function as a complete audio system endpoint. NetPA Ultra power amplifiers provide system scalability, easier installation, and simplified wiring, while meeting the stringent quality requirements of professional audio installations.

Dante Connectivity The NetPA Ultra models deliver Dante networked audio to local sound reinforcement systems. They enable decentralized and reliable distribution of Dante audio to multiple speaker zones throughout a facility or building, and are the ideal choice for audio amplification in Dante systems. Offering AES67 for Audio over IP Interoperability and Dante Domain Manager enterprise level network management, the NetPA Ultra power amplifiers can connect to a variety of other devices and network infrastructure.

Mix Matrix with DSP A built-in matrix allows any analog or Dante input to be mixed to any amplifier output, Dante output, or analog line output. Included in the mix matrix is essential processing such as gain adjustments, filters, dynamics, and delay. This offers the possibility to create simplified complete systems that include source ducking and routing, without a separate audio processor.

Analog Inputs & Outputs The analog line outputs allow for connection of additional amplifiers, simplifying connection to the source while processing flexibility. The mic/line inputs can be routed to the amplifier or to the Dante network for additional flexibility.

NetPA U 1004 rear panel

Extron DSP Configurator Software

To learn more, visit extron.com/netpaultra

AUDIO PRODUCTS

NetPA U 2002 SB
Two Channel Bridgeable Output Amplifier with Dante and DSP 200/400 Watts Per Channel

The Extron NetPA U 2002 SB is an ENERGY STAR qualified, Dante-enabled audio power amplifier with flexible outputs that can drive 8 ohm, 4 ohm, 70 volt, or 100 volt loads in a half rack, convection cooled, plenum rated enclosure that includes rack mount hardware. The bridgeable outputs can deliver two 200 watt channels into low impedance systems or one 400 watt channel into low or high impedance systems. Onboard audio DSP includes a 6x6 mix matrix, filters, and dynamics. Four mic/line inputs and two line outputs can be utilized as Dante endpoints or as additional inputs to the onboard DSP. System monitoring via the Dante connection includes detailed amplifier status. The NetPA U 2002 SB features Extron's patented highly efficient Class D amplifier design with CDRS - Class D Ripple Supression, and defeatable auto-standby with fast wake up.

FEATURES � Receives audio from the Dante audio network and
from analog mic/line level inputs �  Two channels with selectable output modes
Available configurations per channel pair: Two 200 watt channels into 8 ohms or 4 ohms One 400 watt bridged channel into 70V or 100V One 400 watt bridged channel into 8 ohms or 16 ohms � ENERGY STAR qualified amplifier with defeatable auto-standby and fast wake up �  Onboard DSP with 6x6 mix matrix � Dante Domain Manager and AES67 support ensure wide compatibility with enterprise configurations and other network audio devices. � Convection cooled, fanless operation - can be stacked without extra rack space for ventilation

Model NetPA U 2002 SB

Version Description

Part Number

Two Ch Bridgeable Output Dante Amp, 200/400 Watts. . . 60-1757-01

NetPA U 8001 SUB
Mono Subwoofer Amplifier with Dante and DSP 800 watts

The Extron NetPA U 8001 SUB is an ENERGY STAR qualified subwoofer amplifier that delivers 800 watts in a plenum rated enclosure that mounts directly to our SF 10C SUB in-ceiling subwoofer. Dante Domain Manager and AES67 support ensure wide compatibility with enterprise configurations and other network audio devices. With its integrated DSP for essential processing, the NetPA U 8001 SUB amplifier is the perfect companion to our SF 10C SUB subwoofer or any subwoofer. This powerful combination meets the requirements of complex, decentralized systems with a complete space-saving solution.

FEATURES � Receives audio from the Dante audio network and
from analog line level inputs � 800 watts rms mono output power at 8 ohms � ENERGY STAR qualified amplifier with selectable
auto-standby and fast wake up � Mounts in a rack or directly to an SF 10C SUB � Onboard DSP with 4x5 mix matrix � Frequency range optimized for subwoofers -
20 Hz to 1 kHz � UL 2043 plenum rated when used with optional
Flexible Conduit Adapter Kit

Model

Version Description

Part Number

NetPA U 8001 SUB

Mono Dante Subwoofer Amp, 800 watts at 8 ohms.. . . . . . 60-1866-01

SF 10C SUB & NetPA U 8001 SUB Package SF 10C SUB & NetPA U 8001 SUB - Discount Package. . . 42-289-04

NEW PRODUCTS

For updated product availability, go to www.extron.com

39

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

AUDIO PRODUCTS

NetPA U 1004
Four Channel Power Amplifiers with Dante and DSP 100 Watts Per Channel

The Extron NetPA U 1004 is a Dante-enabled, ENERGY STAR qualified power amplifier that delivers four 100 watt channels in a half rack, 1U, plenum rated enclosure. With its integrated DSP, the NetPA U 1004 includes essential signal processing that offers the ability to meet the requirements of complex, decentralized systems while Dante Domain Manager and AES67 support ensure wide compatibility with enterprise configurations and other network audio devices. Exceptional thermal design provides the ability to install units without using rack spaces for ventilation, conserving precious rack space. The NetPA U 1004 is a highly efficient advanced Class D amplifier that features defeatable auto-standby with fast wake up and our patented CDRS - Class D Ripple Suppression.

FEATURES �  Receives audio from the Dante audio network
and from analog mic/line level inputs � 100 watts rms output power per channel at 8 ohms,
4 ohms, or 70/100V � ENERGY STAR qualified amplifier � Single and dual rack mount hardware included �  Integrated DSP with 8x8 mix matrix � Convection cooled, fanless operation - can be
stacked without extra rack space for ventilation � Defeatable auto-standby and fast wake up � Extron Patented CDRSTM - Class D Ripple
Suppression � Professional grade signal-to-noise and THD+N
performance � Ultra low inrush current at power up - no need for
power sequencing

Model
NetPA U 1004 NetPA U 1004-70V NetPA U 1004-100V

Version Description

Part Number

Four Channel Dante Amp, 100 watts at 8 or 4 ohms. . . . . . . . 60-1766-01 Four Channel Dante Amp, 100 watts at 70 volts. . . . . . . . . . . . 60-1766-02 Four Channel Dante Amp, 100 watts at 100 volts. . . . . . . . . . . 60-1766-12

NetPA U 1004

NetPA U 1002
Two Channel Power Amplifiers with Dante and DSP 100 Watts Per Channel

The Extron NetPA U 1002 is a Dante-enabled, ENERGY STAR qualified power amplifier that delivers two 100 watt channels in a half rack, 1U, plenum rated enclosure. With its integrated DSP, the NetPA U 1002 includes essential signal processing that offers the ability to meet the requirements of complex, decentralized systems while Dante Domain Manager and AES67 support ensure wide compatibility with enterprise configurations and other network audio devices. Exceptional thermal design provides the ability to install units without using rack spaces for ventilation, conserving precious rack space. The NetPA U 1002 is a highly efficient advanced Class D amplifier that features defeatable auto-standby with fast wake up and our patented CDRS - Class D Ripple Suppression.

FEATURES �  Receives audio from the Dante audio network
and from analog mic/line level inputs � 100 watts rms output power per channel at 8 ohms,
4 ohms, or 70/100V � ENERGY STAR qualified amplifier � Single and dual rack mount hardware included �  Integrated DSP with 6x6 mix matrix � Convection cooled, fanless operation - can be
stacked without extra rack space for ventilation � Defeatable auto-standby and fast wake up � Extron Patented CDRSTM - Class D Ripple
Suppression � Professional grade signal-to-noise and THD+N
performance � Ultra low inrush current at power up - no need for
power sequencing

Model
NetPA U 1002 NetPA U 1002-70V NetPA U 1002-100V

Version Description

Part Number

Two Channel Dante Amp, 100 watts at 8 or 4 ohms.. . . . . . . . 60-1767-01 Two Channel Dante Amp, 100 watts at 70 volts. . . . . . . . . . . . . 60-1767-02 Two Channel Dante Amp, 100 watts at 100 volts.. . . . . . . . . . . 60-1767-12

NetPA U 1002

40

USA West

USA East

www.extron.com

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

� 2021 Extron. All rights reserved.

+1.714.491.1517 FAX

+1.919.850.1001 FAX

Prices and specifications subject to change without notice.

SSP 200
The Compact Surround Sound Processor
Designed for Pro AV

The Extron SSP 200 is a high-performance Surround Sound Processor designed for pro AV applications in corporate and commercial environments. Providing up to ten built-in outputs, or up to 14 outputs via the EXP port, the SSP 200 provides the flexibility needed for multimedia system requirements, including support for the latest immersive formats of Dolby Atmos and DTS:X. An upmix function synthesizes exceptional multichannel audio from stereo content. Designed specifically for Pro AV applications, the SSP 200 is the ideal processor to create enhanced, immersive experiences in upscale presentation environments.

Features: � Supports the latest immersive and lossless audio
formats as well as legacy surround formats
� Automatic format detection and decoding
� Supported HDMI 2.0b specification features include data rates up to 18 Gbps, resolutions up to 4K/60 at 4:4:4, HDR, Deep Color up to 12-bit, and HD lossless audio formats
� Selectable audio inputs: HDMI, coaxial, optical, and analog
� PCS software provides flexible, intuitive control for all processor settings

Unique Pro AV Integration Features: � Compact 1U, half-rack width processor
� Flexible control capability via RS-232 or LAN
� Balanced audio outputs
� DMP EXP expansion port provides easy I/O connection to an Extron DMP Plus Series audio DSP processor. This allows for a higher output count and seamless integration with all DMP capabilities including Dante transport
� Integrated test signals for calibration and connectivity validation during setup

Model SSP 200

Version Description

Part Number

Surround Sound Processor.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1658-01

To learn more, visit extron.com/ssp200

NEW PRODUCTS

AUDIO PRODUCTS

SF 26CT LP
SoundField XD 6.5" Two-Way Ceiling Speaker with Low Profile Back Can

The Extron SoundField� XD model SF 26CT LP is a low profile 6.5" two-way ceiling speaker featuring a 4.2" (107 mm) deep composite back can for use in restricted height plenum environments. The driver complement includes a 6.5" (165 mm) woofer coupled to a 3/4" (19 mm) ferrofluid-cooled dome tweeter. The SF 26CT LP offers both direct 8 ohm and 70/100 volt operation with a behind-the-grille, six position power selector switch. With high impedance taps at 8, 16, 32, and 64 watts, the SF 26CT LP is ideal for applications that require a high power distributed speaker system in plenum spaces that will not accommodate a taller back can.

FEATURES � 6.5" (165 mm) long throw woofer
3/4" (19 mm) ferrofluid-cooled dome tweeter �  4.2" (107 mm) deep low profile composite
back can � Frequency range: 85 Hz to 20 kHz
95� conical dispersion � 65 watts continuous pink noise
130 watts continuous program � Locking arms support ceilings up to 2.25"
(57.1 mm) thick � UL 2043 plenum rated enclosure

Model
SF 26CT LP BCK SF 26CT LP DAK SF 26CT LP

Version Description

Part Number

6.5" LowProfile 2-Way Ceiling Spkrs, Complete Pair. . . . . . . . 60-1881-03 SF 26CT Low Profile back can only, Pair, 1 of 2. . . . . . . . . . . . . 70-1283-01 SF 26CT LP driver/baffle assembly only, Pair, 2of2. . . . . . . . . . 70-1283-03

ARCHITECTURAL CONNECTIVITY

Cable Cubby US Series
Cable Access Enclosure with US AC Power Modules

The Extron Cable Cubby� US Series models are furniture-mountable modular enclosures for AV connectivity, AC power, and cable access. They feature one or two unswitched US outlets accessible from the top of the enclosure. An attached 9.5' cable supplies power to the power module. Each module includes two additional outlets on 2' cords attached below the enclosure to power optional AV devices. An integrated 12 A circuit breaker protects against current over-load and includes an easily accessible reset button. Each enclosure blends seamlessly into surroundings, merging into the surface when closed. A simple, integrated clamp system secures the unit to the furniture surface without the need for tools or additional parts. Cable Cubby US enclosures are available in a black anodized finish to complement any room d�cor or furniture style.

FEATURES � Cable Cubby US enclosures include up to four
unswitched AC outlets �  Integrated 12 A circuit breaker for current
over-load protection �  Provides an attached 9.5' power cord and
two outlets, each on a 2' cord, for powering optional AV equipment and other devices � Includes AAP, Cable Passthrough, and Retractor Brackets, where applicable � Available in a durable black powder-coat finish � UL/c-UL listed � Cable Cubby Builder is available at www.extron.com/cablecubbybuilder

Model
Cable Cubby 222 US Cable Cubby 500 Cable Cubby 700 Cable Cubby 1202 Cable Cubby 1402

Version Description

Part Number

One US AC Outlet, 12 Breaker, 2 Outlets Under.. . . . . . . . . . . . 60-1927-02 Black - 2 US AC, 12A Breaker, 2 Outlets Under.. . . . . . . . . . . . . 60-1892-02 Black - 2 US AC, 12A Breaker, 2 Outlets Under.. . . . . . . . . . . . . 60-1893-02 Black - 2 US AC, 12A Breaker, 2 Outlets Under.. . . . . . . . . . . . . 60-1894-02 Black - 4 US AC, 12A Breaker, 4 Outlets Under.. . . . . . . . . . . . . 60-1895-02

Cable Cubby 700 Cable Cubby 1202

42

USA West

USA East

www.extron.com

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

� 2021 Extron. All rights reserved.

+1.714.491.1517 FAX

+1.919.850.1001 FAX

Prices and specifications subject to change without notice.

NEW PRODUCTS

ARCHITECTURAL CONNECTIVITY

AC and AC+USB US Power Modules
For Cable Cubby� Series, Select TouchLink� Pro, and eBus� plus
Network Button Panel Enclosures

Extron AC and AC+USB US Series power modules are available for Cable Cubby� Series, select TouchLink� Pro, and eBUS plus network button panel enclosures. They are available with two US unswitched AC power outlets and USB Type-C� and/or USB Type-A power outlets. Each module includes two additional bottommounted outlets on attached 2' cords to power optional AV devices. An integrated 12 A circuit breaker provides current overload protection and includes an easily accessible reset button. The AC+USB 244 US model provides +5 VDC up to 4A/20 watts of USB power. The AC+USB 314 US module provides up to 55 watts of USB power for charging mobile devices. For convenient installation, AC+USB US power modules feature an integrated Extron power supply. AC and AC+USB US power modules are UL/c-UL listed.

FEATURES � For use with Cable Cubby� Series, select
TouchLink� Pro, and eBUS� plus network button panel enclosures � Includes two unswitched AC power outlets �  Features an easily accessible 12 A circuit breaker �  Conduit model features an attached 6' (1.83 m) length of 3/8" flexible conduit with a 6" (15.24 cm) pigtail of three-wire cable �  Cord model provides an attached 9.5' power cord and two additional outlets, each on a 2' cord, for powering optional AV equipment and other devices � UL/c UL-listed � Internal Extron EverlastTM power supply � Extron Everlast Power Supply is covered by a 7year parts and labor warranty

Model
AC 104 US, Cord AC 104 US, Conduit AC+USB 244 US, Cord AC+USB 244 US, Conduit AC+USB 314 US, Cord AC+USB 314 US, Conduit

Version Description

Part Number

2 US AC Outlets, 12A Breaker, 2 Outlets Under.. . . . . . . . . . . . . 60-1889-01 2 US Outlets, 12A Breaker, 6' (1.83 m) Conduit. . . . . . . . . . . . . 60-1889-20 2US AC & 2USBA, 12A Breaker, Integ PS, 2 Outlets. . . . . . . . . 60-1890-01 2 US AC, 2 USBA, 12A Breaker, Integ PS, 6' Conduit. . . . . . . . 60-1890-20 2US AC, 1USBC, 1USBA, 12A Brkr, Integ PS, 2 Outlet. . . . . . . 60-1891-01 2US AC, 1USBC, 1USBA, 12A Brkr, Integ PS, Conduit. . . . . . . 60-1891-20

AC 104 US, Cord AC+USB 244 US, Cord AC+USB 314 US, Cord

One USB-C Female to HDMI Female on Pigtail
AAP Module

Black Part # 70-1241-12

White Part #

One USB-C Female to HDMI Female on Pigtail
MAAP Module

Black Part # 70-1242-12

White Part # 70-1242-13

One USB-C Female to HDMI Female on Pigtail
Flex55 Module

Black Part #

White Part # 70-1243-13

For updated product availability, go to www.extron.com

43

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

INTEGRATION TOOLS

PS 125
12 VDC, 60 W Rack Mountable Power Supply

The Extron PS 125 is a multiple output, 12 VDC, 60 W 1U high, quarter rack width, rack mountable power supply. The PS 125 delivers up to 5 Amps of total current to eight two-pin captive-screw connectors. It provides power consolidation and centralized power management by accommodating up to eight devices from a single supply. Since there are no per-port current limitations, this allows each connected device to receive appropriate power based on individual load requirements. Power and overload status LEDs on the front and back panels provide visual status for troubleshooting. Designed and manufactured by Extron, this high-performance EverlastTM power supply exceeds industry standards for energy efficiency.

FEATURES � Provides eight 12 V outputs with 5 amps total
current delivery � No per-port current limitations � Power and overload status indicator on front and
rear panels � Gallium Nitride components improve power
efficiency and reduce operating temperatures � Convection cooled � Rack-mountable 1U, quarter rack width, metal
enclosure � External Extron EverlastTM power supply

Model PS 125

Version Description

Part Number

Eight output, 12 VDC 5.0 Amp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1954-01

EDID 101H 4K PLUS
4K/60 EDID Emulator with EDID Minder� for HDMI

The Extron EDID 101H 4K PLUS is an EDID emulator for 4K/60 HDMI signal sources. It features EDID Minder�, an Extron-exclusive technology that provides automatic and continuous EDID management. This ensures that the source displays the optimal resolution and frame rate upon power up. Prestored EDID information is communicated to the source based on a userselected resolution and refresh rate. Alternatively, the emulator can capture and store EDID from a connected display. It supports signals up to 4K/60 @ 4:4:4 at data rates up to 18 Gbps, as well as HDR. Housed in a compact 1" high, quarter-rack width enclosure, the EDID 101H 4K PLUS provides convenient, discreet installation. An energy-efficient external universal EverlastTM power supply is included.

FEATURES � Supports computer and video resolutions up to
4K/60 @ 4:4:4 � EDID Minder� automatically manages EDID
communication between connected devices � Selectable resolutions and refresh rates � EDID capture mode � Supported HDMI 2.0b specification features
include data rates up to 18 Gbps, HDR, Deep Color up to 12bit, 3D, HD lossless audio formats, and CEC passthrough � HDCP 2.3 compliant

Model EDID 101H 4K PLUS

Version Description

Part Number

EDID Emulator for 4K/60 HDMI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1680-01

44

USA West

USA East

www.extron.com

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

� 2021 Extron. All rights reserved.

+1.714.491.1517 FAX

+1.919.850.1001 FAX

Prices and specifications subject to change without notice.

CABLES & ADAPTERS

USBA Pro Plenum Series
SuperSpeed 5Gbps USB-A 3.2 Optical Extension Cables - Plenum

The Extron USBA Pro Plenum Series of USB-A male to female cables provide extension of USB 3.2 signals and power over distances up to 65 feet. The cables support a SuperSpeed USB data rate of 5 Gbps and deliver 5 V and up to 900 mA of power to the USB peripheral device. The ultra-thin 0.24" (6 mm) diameter and narrow bend radius allows for installation in tight spaces, including plenum air spaces. These opticalcopper extension cables are powered by the host computer, and an LED provides visual notification of host power status. The USBA Pro Plenum Series cables are available in popular lengths from 15 feet up to 65 feet (4.5 meters to 19.8 meters).

FEATURES � Provides USB-A signal extension between the host
and a peripheral device � Supports a SuperSpeed USB data rate of 5 Gbps � Delivers 5 V and up to 900 mA of power � Flexible, ultra-thin 0.24" (6 mm) diameter cable � Plenum, NEC CMPrated cable � Highly resistant to EMI/RFI interference

Model
USBA Pro P/15 USBA Pro P/25 USBA Pro P/35 USBA Pro P/50 USBA Pro P/65

Version Description

Part Number

15' (4.5 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-728-15 25' (7.6 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-728-25 35' (10.6 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-728-35 50' (15.2 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-728-50 65' (19.8 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-728-65

NEW PRODUCTS

USBC Pro Series
SuperSpeed 5Gbps USB-C 3.2 Optical Cables

The Extron USBC Pro Series of active, hybrid opticalcopper USB-C� cables provide transmission of video, audio, data, and power signals over distances up to 25 feet. The cables support SuperSpeed USB at 5 Gbps data rates and deliver up to 60 watts of power to the USB peripheral device. Compatible with USB Type-C Alternate Mode enabled host devices, the cables transmit 4K/30 DisplayPort video and embedded audio signals. The ultra-thin diameter and narrow bend radius cable construction allows for installation in tight spaces. The active cables are unidirectional and draw power from the connected USB device. The USBC Pro Series cables are available in popular lengths from 12 feet up to 25 feet (3.6 meters up to 7.6 meters).

FEATURES � Supports a SuperSpeed USB 3.2 data rate of 5 Gbps � Power delivery of up to 60 watts � Transmits DisplayPort video and embedded
audio signals � Ultra-flexible, ultra-thin diameter cable � No external power is needed � Host and peripheral power status LED indicators � Highly resistant to EMI/RFI Interference � Backwards compatible with previous USB standards � Gold-plated contacts � Color-coded and labeled ends � Compatible with Thunderbolt 3 devices � Available in lengths from 12 feet to 25 feet
(3.6 meters to 7.6 meters)

Model
USBC Pro/12 USBC Pro/15 USBC Pro/25

Version Description

Part Number

12' (3.6 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-741-12 15' (4.5 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-741-15 25' (7.6 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-741-25

For updated product availability, go to www.extron.com

45

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS

CABLES & ADAPTERS

XTP DTP 22 Series
Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems

Extron XTP DTP 22 Series cables are precisionterminated shielded twisted pair cables that optimize high-speed signal transmission and facilitate cabling of Extron XTP Systems� and DTP� systems. The cables are factory-terminated with Extron XTP DTP 22 RJ-45 Connectors and molded strain reliefs. Designed to meet the increased performance capabilities of DTP3, the cables are constructed with Extron XTP DTP 22 bulk cable, which is verified to 500 MHz bandwidth at distances up to 330 feet (100 meters).

FEATURES � Engineered for superior performance with Extron
XTP Systems� and DTP� systems � Bandwidth verified to 500 MHz at distances up to
330' (100 m) � S/FTP design with four shielded twisted pairs inside
an overall braided shield � Non-Plenum, NEC CM-rated cable

Model
XTP DTP 22/3 XTP DTP 22/6 XTP DTP 22/9 XTP DTP 22/12 XTP DTP 22/25 XTP DTP 22/35 XTP DTP 22/50 XTP DTP 22/75 XTP DTP 22/100 XTP DTP 22/125 XTP DTP 22/150 XTP DTP 22/175 XTP DTP 22/200 XTP DTP 22/300

Version Description

Part Number

3' (90 cm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-03 6' (1.8 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-06 9' (2.7 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-09 12' (3.6 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-12 25' (7.6 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-25 35' (10.6 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-35 50' (15.2 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-50 75' (22.8 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-75 100' (30.4 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-100 125' (38.1 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-125 150' (45.7 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-150 175' (53.3 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-175 200' (61.0 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-200 300' (91.4 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-739-300

XTP DTP 22P Series
Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - Plenum

Extron XTP DTP 22P Series cables are precisionterminated plenum-rated, shielded twisted pair cables that optimize high-speed signal transmission and facilitate cabling of Extron XTP Systems� and DTP� systems. The cables are factory-terminated with Extron XTP DTP 22 RJ-45 Connectors and molded strain reliefs. Designed to meet the increased performance capabilities of DTP3, the cables are constructed with Extron XTP DTP 22 bulk cable, which is verified to 500 MHz bandwidth at distances up to 330 feet (100 meters).

FEATURES � Engineered for superior performance with Extron
XTP Systems� and DTP� systems � Bandwidth verified to 500 MHz at distances up to
330' (100 m) � S/FTP design with four shielded twisted pairs inside
an overall braided shield � Plenum, NEC CMP-rated cable

Model
XTP DTP 22P/3 XTP DTP 22P/6 XTP DTP 22P/9 XTP DTP 22P/12 XTP DTP 22P/25 XTP DTP 22P/35 XTP DTP 22P/50 XTP DTP 22P/75 XTP DTP 22P/100 XTP DTP 22P/125 XTP DTP 22P/150 XTP DTP 22P/175 XTP DTP 22P/200 XTP DTP 22P/300

Version Description

Part Number

3' (90 cm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-03 6' (1.8 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-06 9' (2.7 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-09 12' (3.6 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-12 25' (7.6 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-25 35' (10.6 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-35 50' (15.2 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-50 75' (22.8 m).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-75 100' (30.4 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-100 125' (38.1 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-125 150' (45.7 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-150 175' (53.3 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-175 200' (61.0 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-200 300' (91.4 m). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-740-300

46

USA West

USA East

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

+1.714.491.1517 FAX

+1.919.850.1001 FAX

www.extron.com � 2021 Extron. All rights reserved. Prices and specifications subject to change without notice.

NEW PRODUCTS

BULK CABLES

XTP DTP 22
Shielded Twisted Pair Cable for XTP Systems and DTP Systems

Extron XTP DTP 22 cable is a shielded twisted pair cable engineered for optimum high-speed signal transmission with Extron XTP Systems� and DTP� systems. Designed to meet the increased performance capabilities of DTP3, cable bandwidth is verified to 500 MHz at distances up to 330 feet (100 meters). It utilizes an S/FTP design with four, shielded 22 AWG twisted pair conductors inside an overall braided shield, ensuring high-quality signal transmission. XTP DTP 22 cable is available in plenum and non-plenum 1,000-foot spools.

FEATURES � Engineered for superior performance with Extron
XTP Systems� and DTP� systems � Provides added protection from outside interference
and ensures high quality signal transmission � Bandwidth verified to 500 MHz at distances up to
330' (100 m) � S/FTP design with four shielded twisted pairs inside
an overall braided shield � 22 AWG solid copper construction � Available in 1,000-foot (305-meter) spools � Plenum and Non-plenum rated versions available � XTP DTP 22 RJ-45 Connectors, punch down jacks,
and couplers sold separately in packages of 10

Model
XTP DTP 22/1000 XTP DTP 22P/1000

Version Description

Part Number

Non-Plenum 1000' (305 m) spool. . . . . . . . . . . . . . . . . . . . . . . . . . 22-285-03 Plenum 1000' (305 m) spool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-286-03

XTP DTP 22 XTP DTP 22P

XTP DTP 22 RJ-45 Connector
Shielded RJ-45 Plug Kit for Extron XTP DTP 22 Shielded Twisted Pair Cable

The Extron XTP DTP 22 RJ-45 Connector is engineered for use with Extron XTP DTP 22 shielded twisted pair cable. The combination of the XTP DTP 22 shielded RJ-45 connector and XTP DTP 22 shielded twisted pair cable provides enhanced signal transmission when used with Extron XTP Systems� and DTP� systems. The integrated conductor alignment guide separates the individual conductor pairs for quick and easy termination. The XTP DTP 22 RJ-45 Connector is ideal for high EMI/RFI environments where signal integrity is critical.

FEATURES � Engineered for use with XTP DTP 22 Shielded
Twisted Pair Cable � High performance Category 6A shielded RJ45
connector for 22 AWG and 23 AWG twisted pair cables � Metal strain relief and ground bonding � Ideal for high EMI/RFI environments � Compatible with TIA/EIA 568A/B wiring standards � Conductor alignment guide reduces crosstalk and signal interference

Model

Version Description

Part Number

XTP DTP 22 RJ-45 Connector XTP DTP 22 Plug, Package of 10. . . . . . . . . . . . . . . . . . . . . . . . . . . 101-033-01

For updated product availability, go to www.extron.com

47

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

Online Technology Workshop Series

Our new series of instructor-led online workshops empowers system designers, consultants, and sales professionals to master critical AV technology concepts within a short time span of two hours or less. These in-depth workshops are available on a variety of topics, focusing on best practices to design and deploy AV infrastructures for current and future technologies.

Emerging Technologies 4K
� Designing systems for 4K and beyond � 4K Signal Processing Technologies � DTP/XTP Twisted Pair Systems � AV Streaming Technologies � AV Control System Strategies for Today
and Tomorrow � 4K Fiber Optic System Solutions � Extron Systems for Sound Reinforcement
and Audio � Reproduction Signal Extension and
Distribution for Wireless Collaboration

Instructor-Led Online Workshops
Extron Control Technologies � Extron Control Integrates with Everyone's UC � Crafting Safer Meeting Spaces � Integrating Extron Control and Room Scheduling � Securing AV Systems
Extron Education Technologies � Optimizing SMP Solutions for Online Learning � Designing AV Systems for Esports Applications

Coming Soon
Extron Audio Technologies
� What makes Extron Speakers different: From performance to integration
� What makes Extron amplifiers so ULTRA � How the right audio DSP enhances the
meeting experience � Extron network audio: How Dante and AES67
allow for distributed audio systems and flexible audio solutions

To learn more, visit extron.com/training

Get Your Certification Online

We offer instructor-led training options that offer as close to a real-world experience as possible in an interactive small group setting. Led by our seasoned trainers, these courses and workshops focus on up-to-date technology and product information along with the latest guidance on what's working now in the current environment.

Extron Control Professional-ECP
� Learn Global Configurator Professional software, and how to take advantage of the advanced features for more complex system designs
� Sophisticated control system design concepts and advanced configuration techniques
� Create custom control interfaces using GUI Designer software, plus GUI design best practices
� Validate complex Pro Series control systems in multiple AV environments using acquired knowledge of installation, configuration, and commissioning principles

Instructor-Led Online Certifications
Extron Authorized Programmer-EAP � Utilize the Extron ControlScript Library to
understand and implement objects and tools added to Python � Apply best practices and troubleshooting techniques to ensure optimum system performance � Develop and implement reusable modules for control system programs

Extron Network AV Specialist-NAVS
� Best practices for networked AV system design and deployment
� Understanding Pro AV over IP � Configuration of point-to-point and
multipoint-to-multipoint networked AV systems � Overview of NAV Pro AV over IP encoders, decoders, and software � When and how to deploy NAVigator Pro AV over IP System Manager � Effective fault identification, troubleshooting, and commissioning of NAV system

To learn more, visit extron.com/training

A Full Range of Online Technology Training
Videos, Workshops, Courses, and Certification Programs

We've worked hard this year to expand and upgrade our training options to help you expand your skill set and demonstrate your expertise. Whether you have 15 minutes, 2 hours, or a full day available, you can gain valuable industry knowledge safely from home or the office. Our online training site lets you access courses and videos using any desktop, tablet, or mobile device. All courses and certifications offer continuing education units for AVIXA and BICSI certifications.

XTP Systems Engineer � XTP-E
Online Certification � Understand the general principles and best practices of XTP system design � Identify the functionality of the XTP product line and software applications � Navigate within the XTP configuration software and become familiar with the layout, functionality, and features � Demonstrate how to properly design and validate a series of XTP systems
Extron ProDSP Specialist - EDSP
Online Training � Learn to deploy and maintain AV systems that include Extron ProDSP products � Explore advanced features within Extron DSP Configurator Software � Demonstrate mastery of DSP system configuration, control, management, and troubleshooting

Self-Paced Online Training
AV Associate � AVA
Online Certification � Comprehensive training on fundamental AV technologies � Overview of Extron products and applications � Complete the modules at your own pace for industry-wide accreditation

Extron Control Specialist � ECS
Online Certification � Learn to successfully deploy and maintain customized AV control systems � Configure Extron Pro Series control products using Extron Global ConfiguratorTM Plus software � Focus on control system customization for a wide range of applications and remote system management

AV Principles � AVP
Online Training � Series of no-cost online training sessions can be completed from home or work � Provides a general understanding of AV technology � Designed to increase awareness of Extron solutions and system applications

How-To Videos
� Short tutorials on the latest features of Extron software, basic AV skills and device installation
� Step-by-step device installation and software click-thru videos
� Helpful instruction that can be easily accessed from anywhere

To learn more, visit extron.com/training

Notes

NEW PRODUCTS

For updated product availability, go to www.extron.com

51

Europe

Middle East

Asia

China

Japan

+31.33.453.4040 / +800.3987.6673

+971.4.299.1800

+65.6383.4400 / +800.7339.8766

+86.21.3760.1568 / +4000.398766

+81.3.3511.7655

+31.33.453.4050 FAX

+971.4.299.1880 FAX

+65.6383.4664 FAX

+86.21.3760.1566 FAX

+81.3.3511.7656 FAX

NEW PRODUCTS Notes

52

USA West

USA East

www.extron.com

+1.714.491.1500 / +800.633.9876

+1.919.850.1000 / +800.633.9876

� 2021 Extron. All rights reserved.

+1.714.491.1517 FAX

+1.919.850.1001 FAX

Prices and specifications subject to change without notice.

WORLDWIDE SALES OFFICES A n a he i m � R a l e i g h � S i l i con Va l l ey � Da l l a s � N ew Yor k � Wa s h i n g ton, DC � Toronto � M ex i co Ci t y � Pa r i s London � Fra n k f u r t � M ad r i d � S to c k ho l m � A mer s foor t � Mos cow � Du ba i � Te l Av i v � S yd ney � M e l bou r ne
Ba n g a lore � M u m ba i � N ew De l h i � S i n g a pore � S eou l � S h a n g h a i � Be i j i n g � Hon g Kon g � Tok yo
www.extron.com

� 2021 Extron. All rights reserved. All trademarks mentioned are the property of their respective owners. Prices and specifications subject to change without notice.

02-2021 68-3620-01 REV. A Letter - English - NP
