Megapixel and HD lenses
Megapixel and HD lenses - surveillance-video.com
Focus ctrl manual Zoom ctrl manual IR corrected yes Environmental - Operating Temperature-10°C to 50°C ( 14°F to 122°F) - Storage Temperature -40°C to 70°C (-40°F to 158°F) - Operating Humidity Up to 93% non-condensing…
manual. Zoom ctrl manual. IR corrected yes. Environmental. - Operating. Temperature ... Bosch Security Systems 2020 | Data subject to change without notice.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

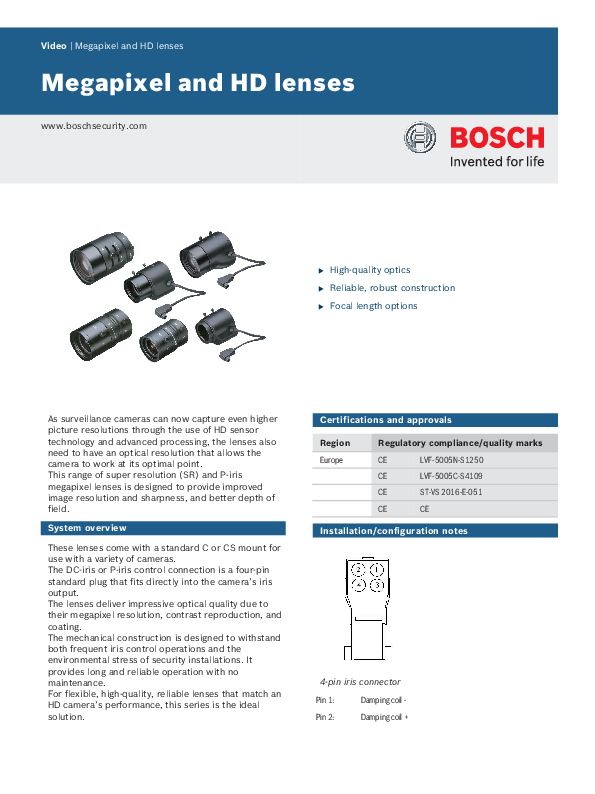

Video | Megapixel and HD lenses Megapixel and HD lenses www.boschsecurity.com u High-quality optics u Reliable, robust construction u Focal length options As surveillance cameras can now capture even higher picture resolutions through the use of HD sensor technology and advanced processing, the lenses also need to have an optical resolution that allows the camera to work at its optimal point. This range of super resolution (SR) and P-iris megapixel lenses is designed to provide improved image resolution and sharpness, and better depth of field. System overview These lenses come with a standard C or CS mount for use with a variety of cameras. The DC-iris or P-iris control connection is a four-pin standard plug that fits directly into the camera's iris output. The lenses deliver impressive optical quality due to their megapixel resolution, contrast reproduction, and coating. The mechanical construction is designed to withstand both frequent iris control operations and the environmental stress of security installations. It provides long and reliable operation with no maintenance. For flexible, high-quality, reliable lenses that match an HD camera's performance, this series is the ideal solution. Certifications and approvals Region Europe Regulatory compliance/quality marks CE LVF-5005N-S1250 CE LVF-5005C-S4109 CE ST-VS 2016-E-051 CE CE Installation/configuration notes 4-pin iris connector Pin 1: Damping coil - Pin 2: Damping coil + 2 | Megapixel and HD lenses Pin 3: Pin 4: Driving coil + (open) Driving coil - Technical specifications LVF-5003C-P2713 Maximum sensor format Optical resolution Focal length Iris range Min object distance Back focus distance (values in air) Weight Dimensions Lens mount Angle of view (HxV) 1/3-inch sensor 4:3 Angle of view (HxV) 1/3-inch sensor 16:9 Angle of view (HxV) 1/2.7-inch sensor 16:9 Angle of view (HxV) 1/2.8-inch sensor 16:9 Iris control Focus ctrl Zoom ctrl IR corrected Environmental - Operating Temperature - Storage Temperature - Operating Humidity 1/2.7inch 3 Megapixels 2.7 - 13 mm F1.4 to close 0.3 m (1 ft) 8 mm (0.315 in) 87 g (0.19 lb) � 47 mm (excluding focus and zoom knobs and iris block) x 75.11 mm CS 102 x 74� Wide 22.4 x 16.9� Tele 113 x 60� Wide 24.3 x 13.8� Tele 126 x 66� Wide 26.7 x 15.2� Tele 122 x 64� Wide 25.9 x 14.7� Tele 4-pin, P-iris control manual manual yes -10�C to+50�C (+14�F to +122�F) -40�C to +60�C (-40�F to + 140�F) Up to 60% RH non-condensing LVF-5005C-S1803 Maximum sensor format Optical resolution Focal length Iris range 1/2.5inch (Sensor diagonal 7.2 mm) 5 Megapixels 1.8 - 3 mm F1.8 to F8 LVF-5005C-S1803 Min object distance Back focus distance (values in air) Weight Dimensions Lens mount Angle of view (HxV) 1/3-inch sensor 4:3 Angle of view (HxV) 1/3-inch sensor 16:9 Angle of view (HxV) 1/2.7-inch sensor 16:9 Angle of view (HxV) 1/2.8-inch sensor 16:9 Iris control Focus ctrl Zoom ctrl IR corrected Environmental - Operating Temperature - Storage Temperature - Operating Humidity LVF-5005C-S4109 Maximum sensor format Optical resolution Focal length Iris range Min object distance Back focus distance (values in air) Weight Dimensions Lens mount Angle of view (HxV) 1/3-inch sensor 4:3 0.5 m (1.64 ft) 8.3 mm (0.33 in) 63 g (0.134 lb) � 50 mm x 49.3 mm CS 102.7 x 86.4� Wide 74.6 x 59.5� Tele 110.4 x 78.2� Wide 82.5 x 52.6� Tele 115.5 x 83.7� Wide 87.9 x 57.1� Tele 113.7 x 81.7� Wide 86 x 55.5� Tele 4-pin, DC control manual manual yes -10�C to+50�C (+14�F to +122�F) -40�C to +70�C (-40�F to + 158�F) Up to 93% non-condensing 1/1.8-inch 5 Megapixels 4.1 - 9 mm F1.6 to F8 0.3 m (1 ft) 12.72 mm (wide), 19.94 mm (tele) 130 g (0.29 lb) � 62.9 mm (excluding focus and zoom knobs) x 66.6 mm (excluding flange) CS 63 x 47.1� Wide 28.9 x 21.7� Tele 3 | Megapixel and HD lenses LVF-5005C-S4109 Angle of view (HxV) 1/3-inch sensor 16:9 Angle of view (HxV) 1/2.7-inch sensor 16:9 Angle of view (HxV) 1/1.8-inch sensor 16:9 Iris control Focus ctrl Zoom ctrl IR corrected Environmental - Operating Temperature - Storage Temperature - Operating Humidity LVF-5005C-S0940 Maximum sensor format Optical resolution Focal length Iris range Min object distance Back focus distance (values in air) Weight Dimensions Lens mount Angle of view (HxV) 1/3-inch sensor 4:3 Angle of view (HxV) 1/3-inch sensor 16:9 Angle of view (HxV) 1/2.7-inch sensor 16:9 Angle of view (HxV) 1/2.8-inch sensor 16:9 Iris control Focus ctrl 72.8 x 40.7� Wide 33.3 x 18.8� Tele 80.4 x 44.8� Wide 36.7 x 20.7� Tele 100.9 x 55.9� Wide 45.7 x 25.7� Tele 4-pin, DC control manual manual yes -10�C to+50�C (+14�F to +122�F) -40�C to +70�C (-40�F to + 158�F) Up to 93% non-condensing 1/2.5inch (Sensor diagonal 7.2 mm) 5 Megapixels 9 - 40 mm F1.5 to F8 2.5 m (8.2 ft) 8.6 mm (wide); 13.19 mm (tele) 88 g (0.19 lb) � 55 mm x 49.3 mm CS 28.4 x 21.2� Wide 6.7 x 5� Tele 32.9 x 18.3� Wide 7.7 x 4.4� Tele 36.3 x 20.2� Wide 8.5 x 4.8� Tele 35.1 x 19.5� Wide 8.2 x 4.6� Tele 4-pin, DC control manual LVF-5005C-S0940 Zoom ctrl IR corrected Environmental - Operating Temperature - Storage Temperature - Operating Humidity LVF-5005N-S1250 Maximum sensor format Optical resolution Focal length Iris range Min object distance Back focus distance (values in air) Weight Dimensions Lens mount Angle of view (HxV) 1/3-inch sensor 4:3 Angle of view (HxV) 1/3-inch sensor 16:9 Angle of view (HxV) 1/2.7-inch sensor 16:9 Angle of view (HxV) 1/1.8-inch sensor 16:9 Iris control Focus ctrl Zoom ctrl IR corrected Environmental - Operating Temperature - Storage Temperature - Operating Humidity manual yes -10�C to+50�C (+14�F to +122�F) -40�C to +70�C (-40�F to + 158�F) Up to 93% non-condensing 1/1.8inch 5 Megapixels 12 - 50 mm F1.8 to T360 0.8 m (2.63 ft) 10.19 mm (wide), 10.12 mm (tele) values in air 175 g (0.386 lb) � 52.4 mm x 89.3 mm C 20.9 x 15.7� Wide 5.3 x 4� Tele 24.1 x 13.5� Wide 6.1 x 3.4� Tele 26.6 x 14.9� Wide 6.7 x 3.8� Tele 33.2 x 18.6� Wide 8.3 x 4.7� Tele 4-pin, DC control manual manual yes -10�C to+50�C (+14�F to +122�F) -20�C to +60�C (-4�F to + 140�F) 35% to 90% non-condensing 4 | Megapixel and HD lenses Ordering information LVF-5003C-P2713 Varifocal lens, 2.7-13mm, 3MP, CS mount Varifocal P-iris megapixel IR corrected lens with 1/2.7 inch sensor and CS-mount Order number LVF-5003C-P2713 LVF-5005C-S0940 Varifocal lens, 9-40mm, 5MP, CS mount Varifocal SR megapixel IR corrected lens with 1/2.5" sensor and CS-mount Order number LVF-5005C-S0940 LVF-5005C-S1803 Varifocal lens, 1.8-3mm, 5MP, CS mount Varifocal SR megapixel IR corrected lens with 1/2.5" sensor and CS-mount Order number LVF-5005C-S1803 LVF-5005C-S4109 Varifocal lens, 4.1-9mm, 5MP, CS mount Varifocal SR megapixel IR corrected lens with 1/1.8" sensor and CS-mount Order number LVF-5005C-S4109 LVF-5005N-S1250 Varifocal lens, 12-50mm, 5MP, C mount Varifocal megapixel IR corrected lens with 1/1.8" sensor max and C-mount Order number LVF-5005N-S1250 Represented by: Europe, Middle East, Africa: Bosch Security Systems B.V. P.O. Box 80002 5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 emea.securitysystems@bosch.com emea.boschsecurity.com Germany: Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com � Bosch Security Systems 2020 | Data subject to change without notice 2048850571 | en, V30, 25. Jun 2020 North America: Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180 onlinehelp@us.bosch.com www.boschsecurity.us Asia-Pacific: Robert Bosch (SEA) Pte Ltd, Security Systems 11 Bishan Street 21 Singapore 573943 Phone: +65 6571 2808 Fax: +65 6571 2699 apr.securitysystems@bosch.com www.boschsecurity.asia
