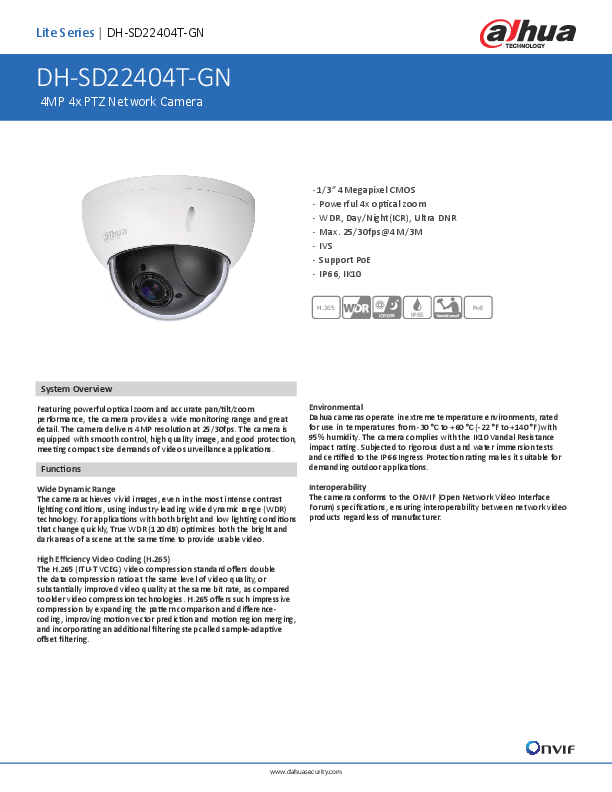

Lite Series | DH-SD22404T-GN
DH-SD22404T-GN
4MP 4x PTZ Network Camera

� 1/3" 4Megapixel CMOS � Powerful 4x optical zoom � WDR, Day/Night(ICR), Ultra DNR � Max. 25/30fps@4M/3M � IVS � Support PoE � IP66, IK10

H.265

PoE IP66

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail. The camera delivers 4MP resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.
Functions

Environmental Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30 �C to +60 �C (-22 �F to +140 �F)with 95% humidity. The camera complies with the IK10 Vandal Resistance impact rating. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.

Wide Dynamic Range The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

High Efficiency Video Coding (H.265) The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and differencecoding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

www.dahuasecurity.com

Lite Series | DH-SD22404T-GN

Technical Specification
Camera

Image Sensor

1/3" CMOS

Effective Pixels

2592(H) x 1520(V), 4 Megapixels

RAM/ROM

256M/128M

Electronic Shutter Speed

1/1s~1/30,000s

Scanning System

Progressive

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Focal Length

2.7mm~11mm

Max. Aperture

F1.6 ~ F2.8

Angle of View

H: 112.5� ~ 30�

Optical Zoom

4x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

*Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

180m(591ft)

72m(236ft)

36m(118ft)

18m(59ft)

PTZ

Pan/Tilt Range

Pan: 0� ~ 355�; Tilt: 0� ~ 90�

Manual Control Speed

Pan: 0.1� ~100� /s; Tilt: 0.1� ~60� /s

Preset Speed

Pan: 100� /s; Tilt: 60� /s

Presets

300

PTZ Mode

8 Tour(up to 32 preset per tour)

Speed Setup Power up Action Idle Motion Protocol

Human-oriented focal Length/ speed adaptation
Auto restore to previous PTZ and lens status after power failure
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
DH-SD

Intelligence

Event Trigger

Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly

Auto Tracking

N/A

IVS Advanced Intelligent Functions Video Compression Streaming Capability
Resolution
Frame Rate
Bit Rate Control Bit Rate Day/Night Backlight Compensation White Balance Gain Control Noise Reduction Motion Detetion Region of Interest Electronic Image Stabilization (EIS) Defog Digital Zoom Flip Privacy Masking Network Ethernet Wi-Fi
Protocol
Interoperability Streaming Method Max. User Access Edge Storage Web Viewer Management Software Smart Phone Certifications
Certifications

Tripwire, Intrusion,Abandoned/Missing Face Detection
H.265/H.264 3 Streams 4M(2592�1520)/3M(2304�1296)/1080P(1920� 1080)/720P(1280�720)/D1(704�576/704�480)/ CIF(352�288/352�240) Main stream: 4M/3M/1080P/1.3M/720P (1~25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 720P/D1/CIF (1~25/30fps) CBR/VBR H.265/H.264: 448K ~ 8192Kbps Auto(ICR) / Color / B/W BLC / HLC / WDR (120dB) Auto, ATW, Indoor, Outdoor, Manual Auto / Manual Ultra DNR (2D/3D) Support Support
N/A
Support 16x 180� Up to 24 areas
RJ-45 (10XBase-T/100Base-TX) N/A IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x ONVIF Profile S&G, API Unicast / Multicast 20 users NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB IE, Chrome, Firefox, Safari Smart PSS, DSS, DMSS IOS, Android
CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

www.dahuasecurity.com

Lite Series | DH-SD22404T-GN

Interface Video Interface RS485 Audio I/O Alarm I/O Electrical Power Supply Power Consumption Environmental Operating Conditions Ingress Protection Vandal Resistance Construction Casing Dimensions Net Weight Gross Weight

N/A N/A N/A N/A
DC 12V/1.5A, PoE(802.3af) 10W
-30�C ~ 60�C (-22�F ~ +140�F) / Less than 95% RH IP66 IK10
Metal 122 (mm) x 89 (mm) 0.66kg(1.46lb) 0.71kg(1.57lb)

Ordering Information

Type

Part Number

DH-SD22404T-GN

4MP PTZ Camera

DH-SD22404TN-GN SD22404T-GN

Accessories

SD22404TN-GN PFA137 DC12V/2A PFB203W PFB200C PFA152-E

Description
4MP 4x PTZ Network Camera, WDR, PAL 4MP 4x PTZ Network Camera, WDR, NTSC 4MP 4x PTZ Network Camera, WDR, PAL 4MP 4x PTZ Network Camera, WDR, NTSC
Mount Adapter
Power Adapter
Wall Mount
In-ceiling Mount
Pole Mount

Accessories
Optional

PFA137 Mount Adapter

DC12V/2A Power Adapter

PFB203W Wall Mount

PFA152-E Pole Mount
Wall Mount
PFB203W

PFB200C Ceiling Mount
In-ceiling Mount
PFB200C

Juncon Box Mount
PFA137

Pole Mount
PFB203W + PFA152-E

Dimensions (mm)
mm

mm

mm

Rev 001.001 � 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
