IECEx Certificate of Conformity. Certificate No.: IECEx CML 14.0001 Date of issue: 2020-10-09 Page 3 of 4 Issue No: 13 EQUIPMENT: Equipment and systems covered by this Certificate are as follows:

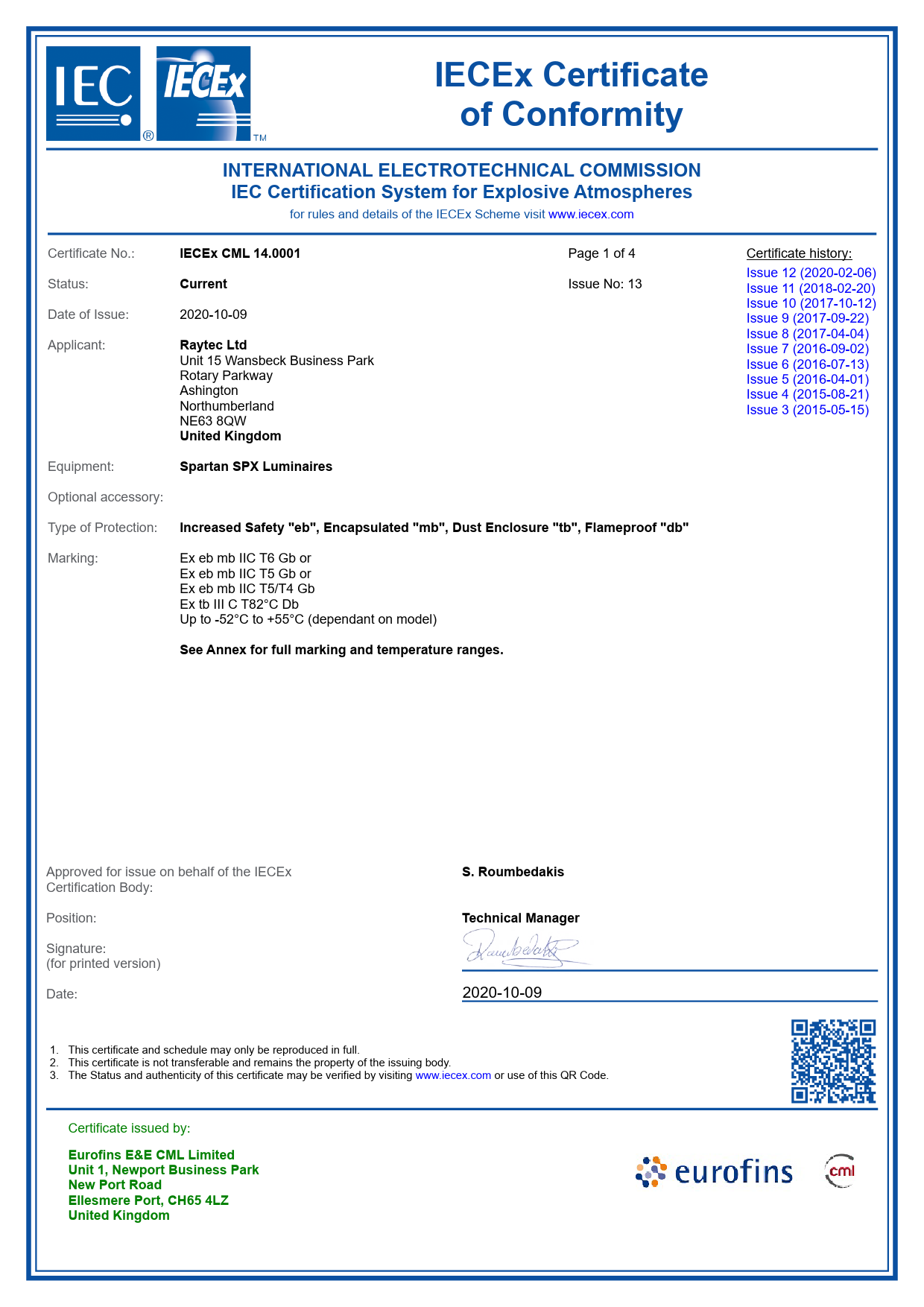

IECEx Certificate of Conformity INTERNATIONAL ELECTROTECHNICAL COMMISSION IEC Certification System for Explosive Atmospheres for rules and details of the IECEx Scheme visit www.iecex.com Certificate No.: IECEx CML 14.0001 Page 1 of 4 Status: Current Issue No: 13 Date of Issue: 2020-10-09 Applicant: Raytec Ltd Unit 15 Wansbeck Business Park Rotary Parkway Ashington Northumberland NE63 8QW United Kingdom Equipment: Spartan SPX Luminaires Optional accessory: Type of Protection: Increased Safety "eb", Encapsulated "mb", Dust Enclosure "tb", Flameproof "db" Marking: Ex eb mb IIC T6 Gb or Ex eb mb IIC T5 Gb or Ex eb mb IIC T5/T4 Gb Ex tb III C T82°C Db Up to -52°C to +55°C (dependant on model) See Annex for full marking and temperature ranges. Certificate history: Issue 12 (2020-02-06) Issue 11 (2018-02-20) Issue 10 (2017-10-12) Issue 9 (2017-09-22) Issue 8 (2017-04-04) Issue 7 (2016-09-02) Issue 6 (2016-07-13) Issue 5 (2016-04-01) Issue 4 (2015-08-21) Issue 3 (2015-05-15) Approved for issue on behalf of the IECEx Certification Body: Position: Signature: (for printed version) Date: S. Roumbedakis Technical Manager 2020-10-09 1. This certificate and schedule may only be reproduced in full. 2. This certificate is not transferable and remains the property of the issuing body. 3. The Status and authenticity of this certificate may be verified by visiting www.iecex.com or use of this QR Code. Certificate issued by: Eurofins E&E CML Limited Unit 1, Newport Business Park New Port Road Ellesmere Port, CH65 4LZ United Kingdom Certificate No.: Date of issue: IECEx CML 14.0001 2020-10-09 IECEx Certificate of Conformity Page 2 of 4 Issue No: 13 Manufacturer: Raytec Unit 15 Wansbeck Business Park Rotary Parkway Ashington Northumberland NE63 8QW United Kingdom Additional manufacturing locations: This certificate is issued as verification that a sample(s), representative of production, was assessed and tested and found to comply with the IEC Standard list below and that the manufacturer's quality system, relating to the Ex products covered by this certificate, was assessed and found to comply with the IECEx Quality system requirements.This certificate is granted subject to the conditions as set out in IECEx Scheme Rules, IECEx 02 and Operational Documents as amended STANDARDS : The equipment and any acceptable variations to it specified in the schedule of this certificate and the identified documents, was found to comply with the following standards IEC 60079-0:2017 Explosive atmospheres - Part 0: Equipment - General requirements Edition:7.0 IEC 60079-1:2014-06 Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d" Edition:7.0 IEC 60079-18:2017 Explosive atmospheres - Part 18: Protection by encapsulation "m" Edition:4.1 IEC 60079-31:2013 Explosive atmospheres - Part 31: Equipment dust ignition protection by enclosure "t" Edition:2 IEC 60079-7:2017 Explosive atmospheres - Part 7: Equipment protection by increased safety "e" Edition:5.1 This Certificate does not indicate compliance with safety and performance requirements other than those expressly included in the Standards listed above. TEST & ASSESSMENT REPORTS: A sample(s) of the equipment listed has successfully met the examination and test requirements as recorded in: Test Reports: GB/CML/ExTR14.0001/00 GB/CML/ExTR17.0163/00 GB/CML/ExTR20.0194/00 GB/CML/ExTR14.0006/00 GB/CML/ExTR17.0178/00 GB/CML/ExTR17.0160/00 GB/CML/ExTR20.0007/00 Quality Assessment Report: GB/SIR/QAR13.0018/07 Certificate No.: Date of issue: IECEx CML 14.0001 2020-10-09 IECEx Certificate of Conformity Page 3 of 4 Issue No: 13 EQUIPMENT: Equipment and systems covered by this Certificate are as follows: The Spartan SPX FL** luminaire is a range of LED luminaires. There are three sizes available in the range FL12 (Small) FL24 (Medium) and FL48 (Large). All size enclosures are offered as LV (Low Voltage); rated at 18V - 48V AC / 18V 68V DC or HV (High Voltage); rated at 110V 254V AC. The HV luminaires may be supplied with a battery pack and inverter to enable operation in `emergency' mode. See Annex for full description and Conditions of Manufacture SPECIFIC CONDITIONS OF USE: NO See certificate Annex for specific condition of safe use. Certificate No.: Date of issue: IECEx CML 14.0001 2020-10-09 IECEx Certificate of Conformity Page 4 of 4 Issue No: 13 DETAILS OF CERTIFICATE CHANGES (for issues 1 and above) Refer to Certificate Annex. Annex: IECEx CML 14.0001 Iss 13 Annex_1.pdf Annexe to: Applicant: Apparatus: IECEx CML 14.0001 Issue 13 Raytec Ltd. Spartan SPX FL** Luminaire Description The Spartan SPX FL** luminaire is a range of LED luminaires. There are three sizes available in the range FL12 (Small) FL24 (Medium) and FL48 (Large). All size enclosures are offered as LV (Low Voltage); rated at 18V - 48V AC / 18V 68V DC or HV (High Voltage); rated at 110V 254V AC or ELV (Extra Low Voltage); rated at 12V AC or DC. The HV luminaires may be supplied with a battery pack and inverter to enable operation in `emergency' mode. The luminaire enclosure comprises, front, centre, and rear cast aluminium housings that are fixed together with bolts. There are fixing points for a mounting bracket that enable the luminaire to be fixed in any orientation, alternative fixing points are also provided for additional mounting accessories. Inside the centre housing there are two independent encapsulated power supplies (electronic control gear) and supply /connection terminal blocks, cable entries are also present for the connection of mains electrical supply. Internal and external earth points are available. The front housing has a soda lime toughened glass lens that is available in clear or coloured options, Suitable for the portable/transportable variant an additional gasket is required to support the glass. Internally the LED's are mounted onto two independent IMS PCBs which are attached to the rear heat sink, each PCB utilises twelve LED's which can be white, infra-red, coloured or a combination. The LED's must be fitted with individual optics, these optics are available in a range of beam patterns to suit the end user application. The LED's/optics are positioned in groups of four, each group of four is in turn covered with an individual clear polycarbonate cover which is then partially encapsulated. The emergency version utilises a modified rear housing which incorporates a rechargeable battery pack, connection terminal block and encapsulated fuse. An optional encapsulated single green LED can be fitted to the wall of the centre housing which provides the end user with an indication that the emergency system is healthy. The luminaire is available in three sizes, small, medium and large. The medium variant as described above, the small variant which only utilises one power supply/LED board and the larger variants which consist of a number of medium luminaires fixed together with unions and alternative mounting brackets. The small, medium and large variants may all be fitted with an optional encapsulated photocell which is located in the wall of the centre housing positioned to suit the customer's application. Also on all variants a `Vario' holographic diffuser film may be fitted behind the glass to give alternative light patterns. The front and middle/rear housing of the luminaires may be split to allow the LED assembly to be mounted remotely from the power supply/emergency enclosure. An EMC filter module may be fitted as an optional extra, this is an additional encapsulated board, located in place of the terminal block bracket (when fitted). 1 of 6 A Spartan SPX FLT** transportable variant of the luminaire is available which consists of one of the luminaires above mounted in a sturdy frame and supplied with suitable cable and certified ATEX plugs and sockets. A Bulkhead variant of the luminaire is available, the Spartan SPX BL24. Based on the FL24 floodlight it is modified to utilise a narrower enclosure and run at half of the power. It is offered as standard with the LV version, HV version or as HV emergency where it is supplied with a battery pack and inverter. The BL24 is designed for wall mounting in any orientation using steel brackets at the back of the luminaire. The enclosure consists of a front cover and rear body and utilises the power supply, inverter, control board and modified light engine from the FL24. The BL luminaire can be offered as transportable and with an optional photo cell. The FL 12, FL 24 and BL 24 are offered as portable variants FLP 12, FLP 24 and BLP 24. The SPX range may be fitted with a selection of separately certified sockets mounted onto the back of the existing luminaire enclosures. When sockets are mounted onto the portable variants they are fitted with an essential carrying frame. An optional replaceable antistatic lens film is available across the range. The equipment may be fitted with alternative labels, when fitted with these labels, the equipment is marketed under the product range name HAZX Nero or WADCO BOSSE LED, carrying the following alternative model names: Original Model Name FL12 FL24 FL48 FL72 BL24 FLP12 FLP24 BLP24 FLT24 Alternative Model Name HAZ-NER-M HAZ-NER-S HAZ-NER-D HAZ-NER-T HAZ-NEB-S HAZ-NEP-M HAZ-NEP-S HAZ-NEP-B HAZ-NET-S Alternative Model Name WBF34S WBF68S WBF136S WBF204S WBF34S 2 of 6 Marking The equipment should be marked with the following: Ex eb mb IIC T5 Gb Ta = -52 ºC to +55 ºC Ex eb mb IIC T6 Gb Ta = -52°C to 48°C Ex tb IIIC T82 ºC Db IP66 IP67 Ex eb mb IIC T4 Gb Ta = -52 ºC to +55 ºC Ex eb mb IIC T5 Gb Ta = -52°C to +48°C Ex tb IIIC T98 ºC Db IP66 & IP67 Ta = Up to -52 ºC to +55 ºC Ta = -52 ºC to +55 ºC All Emergency variants have a lower ambient of -20°C only Ex eb mb IIC T4 Gb Ex tb IIIC T98 ºC Db IP66 IP67 Ta = -20ºC to +46 ºC Sockets Fitted: Socket GHG 54** Fitted: II 2 G D II 2 G Ex db eb mb IIC T6 Gb Ex db eb mb IIC T6 Gb Ex tb IIIC T82°C Db Ta= Up to -20°C to +40°C Ta= Up to -20°C to +40°C When latest version of GHG 5118*** socket is fitted lower ambient may be marked -55°C. Conditions of Manufacture The following conditions are required of the manufacturing process for compliance with the certification. i. Where the product incorporates certified parts or safety critical components the manufacturer shall ensure that any changes to those parts or components do not affect the compliance of the certified product that is the subject of this certificate. ii. A dielectric strength test shall be carried out on all units manufactured in accordance with IEC 60079-7, clause 7.1 and IEC 60079-18, clause 9.2, at 1560 VAC for 1 minute, or alternatively at 1.2 times this test voltage for 100ms. Alternatively, a 1.4 times d.c. voltage dielectric strength test may be carried out. No breakdown shall occur. Tests shall be carried out between each circuit and earth and between each circuit and the surface of the encapsulated parts. iii. A visual inspection shall be carried out on the encapsulated parts to check for damage, in accordance with IEC 60079-18, clause 9.1. Specific Conditions of Use None 3 of 6 Details of Certificate Changes Issue 1 i. To allow a Low Voltage Power Supply option and subsequent amendment to the condition of manufacture for electric strength testing. ii. To include a cable lengthening and repair procedure to the constructional drawings. iii. To include clarification notes to the constructional drawings. iv. To include change to conductors of cables entering the encapsulant for PSU's and LED's. Issue 2 i. The introduction of an alternative bulkhead luminaire version, housed in a modified enclosure. The battery pack and inverter modules have been changed as part of this addition. Issue 3 i. To permit the use of alternative terminal blocks Issue 4 i. To allow an additional larger FL72 (X Large) version to be included for use in the Spartan SPX FL** Luminaire range. Issue 5 i. To allow transparent antistatic film to be fitted to the outer lens cover. ii. To allow separately certified panel mounted socket connectors to be fitted. iii. To allow a portable range of luminaires to be included. iv. Description amended to reflect the modifications above and to correct a reference typographical error. Issue 6 i. To increase the voltage range for the low voltage options. The product description was updated to reflect the changes made by this variation. Issue 7 i. To allow an alternative label to be fitted. ii. To allow the use of alternative model names. Issue 8 i. To assess product against IEC 60079-28:2015. ii. To include Ex op is marking in line with IEC 60079-28:2015. iii. To update IEC 60079-18:2009 to IEC 60079-18:2014. iv. To update the conditions Issue 9 i. To introduce a new ELV variant which contains a new encapsulated power ii. supply operating at nominal 12V. iii. To allow the use of additional alternative certified sockets 4 of 6 iv. The description is modified in accordance with the modifications above. v. To allow an alternative label to be fitted. vi. To allow the use of alternative model names (description updated) Issue 10 i. Replace discrete logic components with microprocessor system. ii. Addition of 3 indication LEDS. Issue 11 i. Reintroduction of the alternative labels for WADCO BOSSE LED. Issue 12 i. To implement minor changes to the PSU electronic circuit. ii. To remove IEC 60079-28:2015 from scope. iii. To update the address on certificate. iv. To update the marking on certificates. v. To reintroduce the standard IEC 60079-1. Issue 13 i. To review and update the certification against the latest Version/Edition of standards as listed in section 1.4 of this evaluation report. ii. To assess and permit the introduction of an alternative toughened glass window assembly for the portable/transportable luminaire variant. iii. To assess and permit an additional silicone gasket for the glass cover. iv. To amend the high voltage variant upper limit from 280V AC to 254V AC. v. To assess and permit a non-metallic paint layer (applied externally to the equipment). Components covered by Ex Certificates issued to older editions of Standards Certificate number IECEx LCI 07.0012U IECEx BVS 14.0089U Standards (incl Ed) IEC 60079-0 (Ed.4.0) (2004) IEC 60079-1 (Ed.5) (2003) IEC 60079-7 (Ed.3) (2001) IEC 61241-0 (Ed.1) (2004) IEC 61241-1 (Ed.1) (2004) IEC 60079-0 (Ed.6.0) (2011) IEC 60079-1 (Ed.6) (2007-04) IEC 60079-7 (Ed.4) (2006-07) Assessment result Technical differences evaluated and found satisfactory. For detail see GB/CML/ExTR16.0032/00 No applicable technical differences. For detail see GB/CML/ExTR16.0032/00 5 of 6 Certificate number IECEx BVS 15.0088U IECEx PTB 16.0028U IECEx PTB 16.0030U Standards (incl Ed) IEC 60079-0 (Ed.6.0) (2011) IEC 60079-1 (Ed.7.0) (2014-06) IEC 60079-31 (Ed.2) (2013) IEC 60079-7 (Ed.5.0) (2015) IEC 60079-0 (Ed.7.0) (2017) IEC 60079-1 (Ed.7.0) (2014-06) IEC 60079-31 (Ed.2) (2013) IEC 60079-7 (Ed.5.0) (2015) IEC 60079-0 (Ed.7.0) (2017) IEC 60079-1 (Ed.7.0) (2014-06) IEC 60079-31 (Ed.2) (2013) IEC 60079-7 (Ed.5.0) (2015) Assessment result No applicable technical differences. For detail see GB/CML/ExTR16.0032/00 No applicable technical differences. For detail see GB/CML/ExTR17.0163/00 No applicable technical differences. For detail see GB/CML/ExTR17.0163/00 6 of 6RealObjects PDFreactor(R) 10.0.10722.2, Serial No: 4409, Licensed for: - International Electrotechnical Commission RealObjects PDFreactor(R) 10.0.10722.2, Serial No: 4409, Licensed for: - International Electrotechnical Commission
