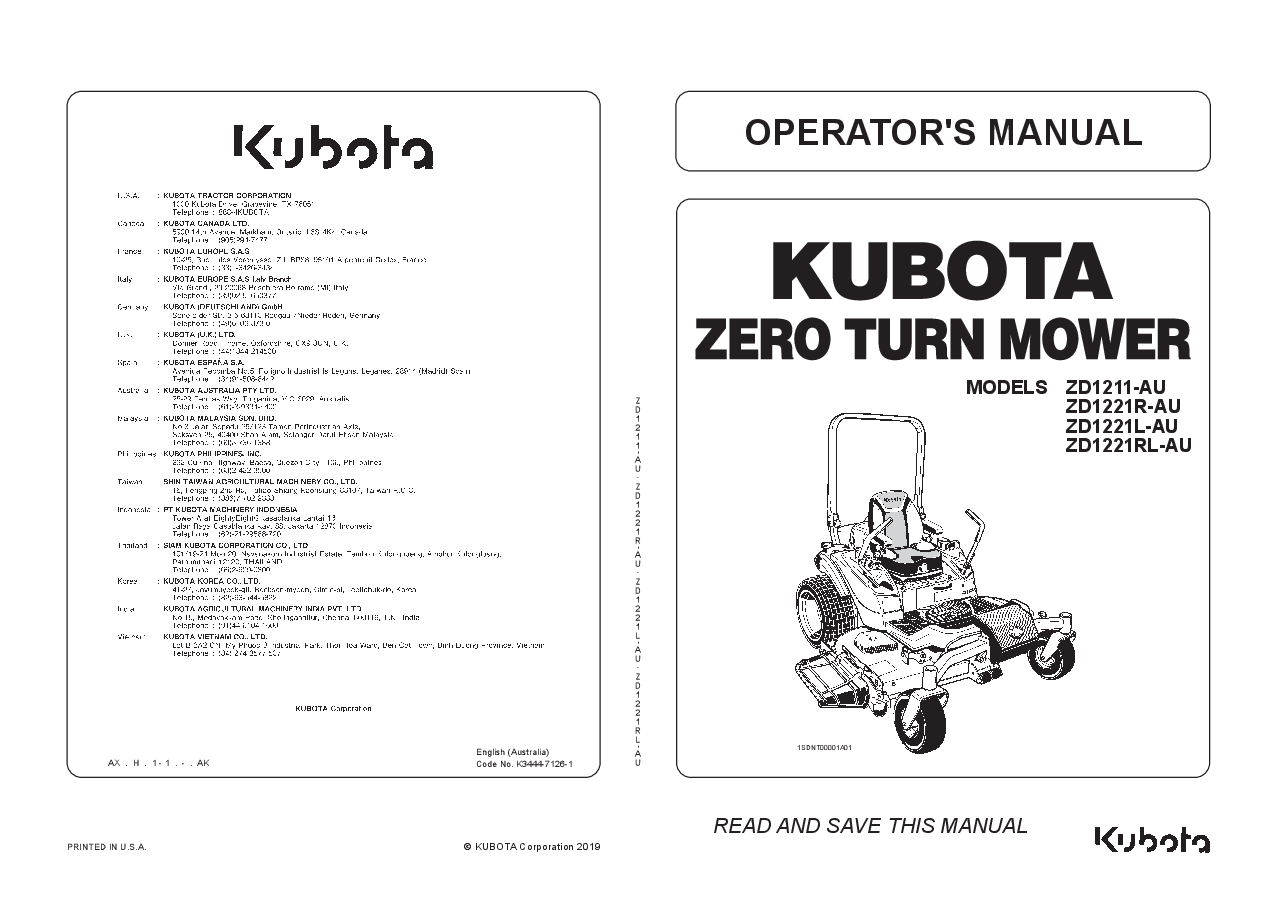

ZD1211, ZD1221 Illegal No.
OPERATOR'S MANUAL
Booklet, *****-*****, /, Output, format=PDF, for, Print, (A4)
KUBOTA Corporation
ZD1211, ZD1221 Illegal No.
operator's manual
ZD1211-60-Operator-Manual AX . H . 1 - 1 . - . AK PRINTED IN U.S.A.
OPERATOR'S MANUAL
Z D 1 2 1 1
-
A U · Z D 1 2 2 1 R
-
A U · Z D 1 2 2 1 L
-
A U · Z D 1 2 2 1 R L
English (Australia)
-
A U
Code No. K3444-7126-1
© KUBOTA Corporation 2019
MODELS
ZD1211-AU ZD1221R-AU ZD1221L-AU ZD1221RL-AU
1SDNT00001A01
READ AND SAVE THIS MANUAL
ABBREVIATION LIST
Abbreviations
Definitions
API ASTM
fpm HST m/s PTO RH/LH
ROPS rpm r/s SAE
American Petroleum Institute American Society for Testing and Materials, USA Feet Per Minute Hydrostatic Transmission Meters Per Second Power Take Off Right-hand and left-hand sides are determined by facing in the direction of forward travel Roll-Over Protective Structures Revolutions Per Minute Revolutions Per Second Society of Automotive Engineers
UNIVERSAL SYMBOLS
As a guide to the operation of your machine, various universal symbols have been utilized on the instruments and controls. The symbols are shown below with an indication of their meaning.
Safety Alert Symbol Diesel Fuel Fuel-Level Parking Brake Engine-Stop Preheat Engine-Run Starter Control Power Take-Off Clutch Control-Off Position (Disengaged) Power Take-Off Clutch Control-On Position (Engaged)
Cutting Height Mower-Lowered position Mower-Raised position Fast Slow Engine Speed Control Neutral Battery Oil Pressure Coolant Temperature
KUBOTA Corporation is ···
Since its inception in 1890, KUBOTA Corporation has grown to rank as one of the major firms in Japan.
To achieve this status, the company has through the years diversified the range of its products and services to a remarkable extent, until today, 30 plants and 35,000 employees produce over 1,000 different items, large and small.
All these products and all the services which accompany them, however, are unified by one central commitment. KUBOTA makes products which, taken on a national scale, are basic necessities. Products which are indispensable, products intended to help individuals and nations fulfill the potential inherent in their environment. For KUBOTA is the Basic Necessities Giant.
This potential includes water supply, food from the soil and from the sea, industrial development, architecture, construction and transportation.
Thousands of people depend on KUBOTA's know-how, technology, experience and customer service. You too can depend on KUBOTA.
FOREWORD
You are now the proud owner of a KUBOTA ZERO TURN MOWER. This machine is a product of KUBOTA's quality engineering and manufacturing. It is made of excellent materials and under a rigid quality control system. It will give you long, satisfactory service. To obtain the best use of your machine, please read this manual carefully. It will help you become familiar with the operation of the machine and contains many helpful hints about machine maintenance. It is KUBOTA's policy to utilize, as quickly as possible, every advance in our research. The immediate use of new techniques in the manufacturing of products may cause some small parts of this manual to become outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult them.
SAFETY FIRST
This symbol, the industry's ''Safety Alert Symbol'', is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use this unit.
DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
IMPORTANT :
Indicates that equipment or property damage could result if instructions are not followed.
NOTE :
Gives helpful information.
CONTENTS
SAFE OPERATION......................................................................................................................5
SERVICING OF MACHINE ........................................................................................................17
WARRANTY........................................................................................................................................................ 18 SCRAPPING THE MACHINE AND ITS PROCEDURE ...................................................................................... 18
SPECIFICATIONS......................................................................................................................19
SPECIFICATION TABLE..................................................................................................................................... 19
IMPLEMENT LIMITATIONS.......................................................................................................21
INSTRUMENT PANEL AND CONTROLS .................................................................................22
INSTRUMENT PANEL, SWITCHES AND HAND CONTROLS .......................................................................... 22 MOWER .............................................................................................................................................................. 23
MOWER MOUNTING.................................................................................................................24
MOUNTING THE MOWER DECK ...................................................................................................................... 24 ADJUSTING THE MOWER ................................................................................................................................ 25 DISMOUNTING THE MOWER DECK ................................................................................................................ 25 INSTALLING PARTS TO THE MOWER ............................................................................................................. 25
1. Installation of skid ...................................................................................................................................... 25 2. Installation of gauge wheel ........................................................................................................................ 25 3. Installation of bolt (adjuster) ...................................................................................................................... 26
OPERATING THE ENGINE .......................................................................................................27
GETTING ON AND OFF THE MACHINE SAFELY............................................................................................. 27 STARTING THE ENGINE ................................................................................................................................... 27
1. Key switch ................................................................................................................................................. 29 STOPPING THE ENGINE................................................................................................................................... 29
1. Engine stop lever (inside the hood) ........................................................................................................... 29 CHECK DURING OPERATING .......................................................................................................................... 29
1. Easy CheckerTM ........................................................................................................................................ 29 LCD MONITOR ................................................................................................................................................... 30
1. Fuel gauge................................................................................................................................................. 30 2. Coolant temperature gauge ....................................................................................................................... 31 3. Hour meter................................................................................................................................................. 31 4. Battery voltage meter ................................................................................................................................ 31 5. Service code display.................................................................................................................................. 31 6. Overheat alarm .......................................................................................................................................... 32 7. Fuel gauge, warning lamp and fuel valve .................................................................................................. 32 COLD WEATHER STARTING............................................................................................................................. 32 WARMING UP THE ENGINE ............................................................................................................................. 32 1. Warm-up and transmission oil in the low temperature range .................................................................... 33 JUMP STARTING ............................................................................................................................................... 33
OPERATING THE MACHINE ....................................................................................................34
OPERATING A NEW MACHINE......................................................................................................................... 34 1. Changing lubricating oil for new machine .................................................................................................. 34 2. Engine break-in ......................................................................................................................................... 34 3. Machine break-in ....................................................................................................................................... 34
OPERATING THE FOLDABLE ROPS ................................................................................................................ 35 1. Folding the ROPS...................................................................................................................................... 35 2. Raising the ROPS to the upright position .................................................................................................. 36 3. Adjusting the foldable ROPS ..................................................................................................................... 36
STARTING THE MACHINE ................................................................................................................................ 36 1. Operator's seat .......................................................................................................................................... 37
ZD1211,ZD1221
1
2. Seat belt .................................................................................................................................................... 37 3. Hydraulic lift control pedal ......................................................................................................................... 38 4. Throttle lever.............................................................................................................................................. 38 5. Parking brake pedal................................................................................................................................... 38 6. Motion control lever ................................................................................................................................... 39
6.1 Stop position of the motion control lever ............................................................................................ 39 6.2 Operating position of the motion control lever.................................................................................... 39 6.3 Re-start on slopes .............................................................................................................................. 41 STOPPING THE MACHINE................................................................................................................................ 41 USING THE FRONT AXLE ................................................................................................................................. 41 1. Fixing the front axle ................................................................................................................................... 41 2. Oscillating the front axle ............................................................................................................................ 42 PARKING THE MACHINE .................................................................................................................................. 42 TRANSPORTING THE MACHINE...................................................................................................................... 43 OPTIONAL EQUIPMENT.................................................................................................................................... 43
OPERATING THE MOWER .......................................................................................................44
MOWING TIPS.................................................................................................................................................... 44 ADJUSTING THE CUTTING HEIGHT ................................................................................................................ 44
1. Cutting height reference chart ................................................................................................................... 46 OPERATING THE MOWER................................................................................................................................ 47
1. PTO lever................................................................................................................................................... 47 2. Starting the machine.................................................................................................................................. 47 TREATMENT OF MOWER DECK INSIDE SKID................................................................................................ 47 1. Removing the skid ..................................................................................................................................... 48 PREVENTING GRASS CLIPPINGS AND DUST FROM SCATTERING ............................................................ 48 1. Rubber plates installation .......................................................................................................................... 48
TIRES AND WHEELS................................................................................................................50
TIRES.................................................................................................................................................................. 50 1. Inflation pressure ....................................................................................................................................... 50
WHEELS ............................................................................................................................................................. 50 1. Removing the front caster wheels ............................................................................................................. 50 2. Installing the front caster wheels ............................................................................................................... 51
PERIODIC SERVICE .................................................................................................................52
OPENING THE HOOD, FRONT COVER AND STEP ........................................................................................ 52 1. Hood .......................................................................................................................................................... 52 2. Front cover ................................................................................................................................................ 52 3. Step ........................................................................................................................................................... 52
RAISING AND LOWERING THE OPERATOR'S SEAT...................................................................................... 52 TILTING UP THE MACHINE............................................................................................................................... 53 OPENING THE LEVER GUIDE .......................................................................................................................... 54 LIFT-UP POINT................................................................................................................................................... 54
1. Front side:.................................................................................................................................................. 55 2. Rear side: .................................................................................................................................................. 55 DAILY CHECK .................................................................................................................................................... 55 LUBRICANTS, FUEL AND COOLANT ............................................................................................................... 57 1. Checking the engine oil level ..................................................................................................................... 59 2. Checking the amount of fuel and refueling ................................................................................................ 59 3. Checking transmission fluid level .............................................................................................................. 60 4. Checking coolant level............................................................................................................................... 60 5. Checking and cleaning radiator screen and hood screen ......................................................................... 60 6. Checking the tire pressure......................................................................................................................... 61
6.1 Inflation pressure................................................................................................................................ 61 7. Lubricating all grease fittings ..................................................................................................................... 62
MAINTENANCE .........................................................................................................................63
SERVICE INTERVALS........................................................................................................................................ 63
2
ZD1211,ZD1221
PERIODIC SERVICE CHART LABEL ................................................................................................................ 65 EVERY 50 HOURS ............................................................................................................................................. 66
1. Checking the engine start system ............................................................................................................. 66 2. Checking the OPC system ........................................................................................................................ 66 3. Checking gear box oil level........................................................................................................................ 67 4. Greasing .................................................................................................................................................... 68 5. Oiling ......................................................................................................................................................... 69 EVERY 100 HOURS ........................................................................................................................................... 69 1. Cleaning air cleaner primary element ........................................................................................................ 69 2. Checking the fuel filter ............................................................................................................................... 70 3. Adjusting fan drive belt tension.................................................................................................................. 71 4. Adjusting parking brake ............................................................................................................................. 71
4.1 Check brake spring ............................................................................................................................ 71 4.2 Check on the slope ............................................................................................................................ 72 5. Greasing .................................................................................................................................................... 72 6. Checking the battery condition .................................................................................................................. 73 6.1 How to read indicator ......................................................................................................................... 73 6.2 Charging the battery........................................................................................................................... 74 6.3 Storing the battery .............................................................................................................................. 74 EVERY 150 HOURS ........................................................................................................................................... 74 1. Changing gear box oil................................................................................................................................ 74 EVERY 200 HOURS ........................................................................................................................................... 76 1. Changing engine oil ................................................................................................................................... 76 2. Replacing the engine oil filter .................................................................................................................... 76 3. Replacing transmission oil filter (HST) ...................................................................................................... 76 4. Adjusting front axle pivot ........................................................................................................................... 77 EVERY 400 HOURS ........................................................................................................................................... 77 1. Changing transmission fluid and rear axle gear case oil (RH and LH) ...................................................... 77 2. Replacing hydraulic oil filter ....................................................................................................................... 78 3. Replacing fuel filter .................................................................................................................................... 79 EVERY 800 HOURS ........................................................................................................................................... 79 1. Adjusting engine valve clearance .............................................................................................................. 79 EVERY 1000 HOURS OR EVERY 1 YEAR........................................................................................................ 79 1. Replacing air cleaner primary element and secondary element................................................................ 79 EVERY 1500 HOURS ......................................................................................................................................... 80 1. Checking fuel injection nozzle (injection pressure).................................................................................... 80 EVERY 2000 HOURS OR EVERY 2 YEARS ..................................................................................................... 80 1. Flushing cooling system and changing coolant ......................................................................................... 80 2. Antifreeze .................................................................................................................................................. 81 EVERY 3000 HOURS ......................................................................................................................................... 82 1. Checking injection pump ........................................................................................................................... 82 EVERY 1 YEAR .................................................................................................................................................. 82 1. Checking fuel lines .................................................................................................................................... 82 2. Checking radiator hose and clamp ............................................................................................................ 82 3. Checking hydraulic hoses.......................................................................................................................... 82 4. Checking intake air line ............................................................................................................................. 83 5. Checking engine breather hose................................................................................................................. 83 6. Checking mower gear box oil seal............................................................................................................. 83 EVERY 4 YEARS................................................................................................................................................ 83 1. Replacing hydraulic hoses......................................................................................................................... 83 2. Replacing fuel lines ................................................................................................................................... 83 3. Replacing engine breather hose................................................................................................................ 83 4. Replacing radiator hose............................................................................................................................. 83 5. Replacing mower gear box oil seal............................................................................................................ 83 6. Replacing intake air line ............................................................................................................................ 83 SERVICE AS REQUIRED................................................................................................................................... 84 1. Replacing fuses ......................................................................................................................................... 84 2. Bleeding fuel system ................................................................................................................................. 84
ZD1211,ZD1221
3
3. Checking and replacing blades ................................................................................................................. 84 4. Replacing the mower belt .......................................................................................................................... 86
ADJUSTMENT ...........................................................................................................................87
MOTION CONTROL LEVER .............................................................................................................................. 87 1. HST neutral ............................................................................................................................................... 87 2. Maximum speed (forward) ......................................................................................................................... 87 3. Adjusting the motion control lever operating strength ............................................................................... 87 4. Motion control lever alignment................................................................................................................... 88 4.1 Checking the alignment...................................................................................................................... 88 4.2 Aligning the motion control levers ...................................................................................................... 88
MOWER DECK LEVEL....................................................................................................................................... 88 1. Anti-scalp rollers ........................................................................................................................................ 88 2. Leveling the mower deck (side-to-side) ..................................................................................................... 89 3. Leveling the mower deck (front-to-rear) .................................................................................................... 90
GENERAL TORQUE SPECIFICATION .............................................................................................................. 92 TIGHTENING TORQUE CHART ........................................................................................................................ 93
STORAGE ..................................................................................................................................94
STORING THE MACHINE .................................................................................................................................. 94 REMOVING THE MACHINE FROM STORAGE................................................................................................. 94
TROUBLESHOOTING ...............................................................................................................96
ENGINE TROUBLESHOOTING ......................................................................................................................... 96 POWER TRAIN TROUBLE SHOOTING............................................................................................................. 97 BATTERY TROUBLESHOOTING....................................................................................................................... 98 MACHINE TROUBLESHOOTING ...................................................................................................................... 99 MOWER TROUBLESHOOTING....................................................................................................................... 100
INDEX.......................................................................................................................................101
4
ZD1211,ZD1221
SAFE OPERATION
SAFE OPERATION
Careful operation is your best insurance against an accident. The owner/user can prevent and is responsible for accidents or injuries occurring to themselves, other people or property. Read and understand this manual carefully before operating the machine. All operators, no matter how much experience they may have had, must read and understand this and other related manuals before operating the machine or any implement attached to it. It is the owner's obligation to instruct all operators in safe operation. If the operator(s) or mechanic(s) cannot understand the contents, it is the owner's responsibility to explain this material to them. This mowing machine is capable of amputating hands, feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.
BEFORE OPERATING THE MACHINE
Know your equipment and its limitations. Read all instructions in this manual before attempting to start and operate the machine.
1. General
· The zero turn mowing machine has different steering characteristics than other machines with a steering wheel and does not have a service brake pedal (but, has a parking brake pedal that can be used to stop the machine in an emergency). Normal slowing down and stopping is done with the motion control levers. Read and understand the operator's manual before operating the machine. Practice operating the machine at low engine speed in an unobstructed area without engaging the mower.
· Pay special attention to the safety labels on the machine itself.
· Do not operate the machine or any attachments while under the influence of alcohol, medication, controlled substances or when fatigued.
· Do not wear loose, torn, or bulky clothing around the machine. The clothing may catch on moving parts or controls, leading to the risk of an accident. Wear and use any additional safety items such as a hard hat, safety boots or shoes, eye and hearing protection, gloves and so on, as appropriate or required.
· Do not wear radio or music headphones while operating the machine.
ZD1211,ZD1221
· Do not operate the machine or any attachments while using or texting with a cellphone or any other electronic device. Safe operation requires your full attention.
· Carefully check the vicinity before operating machine or any implement attached to it. Clear the work area of objects (such as wires and rocks,) that might be picked up and thrown. Check for overhead clearance which may interfere with a grass catcher.
· Check parking brake and other mechanical parts for correct adjustment and wear. Replace worn or damaged parts promptly. Check the tightness of all nuts and bolts regularly. (See PERIODIC SERVICE on page 52 and ADJUSTMENT on page 87.)
· Keep all shields and guards in place. Replace any that are damaged or missing. Do not operate unless they are functioning properly.
· Before allowing other people to use your machine, explain how to operate and have them read this manual before operation.
· Do not allow any bystanders around or near machine during operation.
· Do not allow passengers, children or non-qualified operators on the machine at any time. The operator must remain in the machine seat throughout operation.
· In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern and prudence of personnel involved in the operation, transport, maintenance of the equipment.
· Evaluate the terrain to determine what accessories and attachments are needed to properly and safely perform the job. Keep the machine and attachments in good operating condition and keep safety devices in place and in proper working condition. Do not operate unless they are functioning properly.
· Do not modify the machine. Unauthorized modification may affect the function of the machine, which may result in personal injury.
· Use only implements approved by KUBOTA. Use proper ballast on the front or rear of the machine to reduce the risk of upsets. Follow the safe operating procedures specified in the manuals of the equipment.
· Keep your machine clean. Accumulations of dirt, grease, and trash can contribute to fires and lead to personal injury.
· The exhaust gas from the muffler is very hot. To prevent fire, do not expose dry grass, mowed
5
SAFE OPERATION
grass, oil and any other combustible materials to the exhaust gas. Use a spark arrester where required. Keep the engine and muffler clean all the times.
2. ROPS
· The ROPS is an integral and effective safety device.
· KUBOTA recommends the use of a roll-over protective structure (ROPS) and seat belt in almost all applications. This combination will reduce the risk of serious injury or death, should the machine be upset.
· The machine is equipped with a foldable ROPS, which may be temporarily folded down only when absolutely necessary for areas with height constraints. There is no operator protection provided by the ROPS in the folded position. For operator safety you must set the ROPS in the upright and locked position and put on the seat belt for all other operations.
· Do not remove the ROPS. · If the ROPS is loosened or removed for any reason,
make sure that all parts are reinstalled correctly before operating the machine. · Never modify or repair a ROPS because welding, bending, drilling, grinding, or cutting may weaken the structure. · If any structural member of the ROPS is damaged, replace the entire structure at your local KUBOTA Dealer. Any alterations to a ROPS must be approved by the manufacturer. · Check the area to be mowed and never fold down a foldable ROPS in areas where there are slopes, drop-offs or water. · Check carefully for overhead clearances (such as branches, doorways and electrical wires) before driving under any objects and do not contact them. · Keep the ROPS in safe operating condition by periodically and thoroughly inspecting for damage and keeping all mounting fasteners tight. · Always use the seat belt when the ROPS is upright. Do not use the seat belt if the ROPS is down or if there is no ROPS. Check the seat belt regularly and replace if frayed or damaged. Be certain that the seat belt can be released quickly in the event of an emergency.
(1) ROPS (2) Seat belt
OPERATING THE MACHINE
1. Starting to operate the machine
· Always sit in the operator's seat when starting the engine or operating levers or controls.
· Before starting the engine make sure that the motion control levers are in "NEUTRAL LOCK", the parking brake is applied, and the power take-off (PTO) is disengaged (OFF).
· Do not start the engine by shorting across starter terminals. The machine may start in gear and move if the normal starting circuitry is bypassed.
· Do not operate or idle the engine in a nonventilated area. Carbon monoxide gas is colorless, odorless, and deadly.
· Do not start the engine while tilting deck. · Do not start the engine when the front or rear tires
are not on the ground. · Check before each use that the operator presence
control (OPC) system is functioning correctly. Test the safety systems. (See Checking the engine start system on page 66 and Checking the OPC system on page 66.) Do not operate unless they are functioning correctly. · Check all fluids before starting.
2. Working the machine
· Do not turn sharply when driving at high speed. · To avoid tip-over accidents, slow down when
turning on uneven terrain or before stopping. · Do not operate near ditches, holes, embankments,
or other terrain, which may collapse under the machine's weight. The risk of machine tip-overs increases when the ground is loose or wet. · Park the machine on a firm and level surface. Before you get off, apply the parking brake, place the motion control levers in their neutral lock positions, disengage the PTO, lower all
6
ZD1211,ZD1221
attachments to the ground, turn off the engine, and remove the key. · Watch where you are going at all times. Watch for and avoid obstacles. Be alert at curbs, shrubs, near trees, and other obstructions and hidden hazards. Obstacles can damage machine (fuel hoses, wire harness etc.). · Know what is behind you before backing up. Look to the rear before and when backing. Do not mow while in reverse. Operate in reverse with the blades engaged only when absolutely necessary and make sure the area immediately behind you is clear of obstructions or holes, and small children. Use extra caution when machine is equipped with grass catcher. Your view to the rear is restricted. · When working in groups, always let others know what you are doing ahead of time. · Do not drive the machine on streets or highways. Watch for traffic when you cross roads or operate near roads. · Be aware of the mower discharge direction and do not point it at anyone. Never operate with the discharge deflector raised, removed or altered, unless using a grass catcher. · When using any attachments, never direct discharge material toward bystanders. Do not allow people or pets near the attachments while in operation. Do not mow when bystanders are present in the mowing area. · To reduce fire hazards, keep the engine exhaust area free of grass or leaves. · Be sure that the rotating blades and the engine are stopped and the key is removed before placing hands or feet near blades, cleaning blockages or unclogging the discharge deflector. · Keep hands and feet away from the cutting units. Shut the engine off and wait for all movement to stop before removing grass catcher or unclogging discharge deflector. · Always inspect the mower for damage after striking a foreign object. Repair or replace any damaged parts before restarting. · Operate during daylight or in bright artificial light. · If the machine starts to vibrate abnormally, disengage the drive to the attachments, stop the engine and remove the key. Then check the machine immediately. · Do not operate the machine when there is a possibility of lightning. Even if the machine is equipped with a cabin, the operator is not protected from lightning. · Never raise the deck with the blades running. Disengage the PTO and stop the blades from rotating if not mowing.
SAFE OPERATION
3. Safety for children
Tragic accidents can occur if the operator is not alert of the presence of children. Children are attracted to the machine and mowing activity. · Never assume that children will remain where you
last saw them. · Keep children out of the mowing area and under
the watchful care of another responsible adult. · Be alert and turn the machine off if children enter
the area. · Before and when backing, look behind and down
for small children. · Never carry children. They may fall off and be
seriously injured or interfere with safe machine operation. · Never allow children to operate the machine, even under adult supervision. Local regulation can restrict the age of the operator. · Use extra care when approaching blind corners, shrubs, trees, or other obstructions that might hide children from sight. · Do not mow in reverse. Operate in reverse with the blades engaged only when it is absolutely necessary and make sure that the area to the rear is clear of children before doing so.
4. Operators, age 60 years and older
Data indicates that operators, age 60 years and older, are involved in a large percentage of machine-related injuries. These operators must evaluate their ability to operate the machine safely enough to protect themselves and others from serious injury.
5. Operating on slopes
Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. All slopes require extra caution. · If you cannot back up the slope or if you feel
uneasy on it, do not mow it. · If the engine stops when operating on a slope,
apply the parking brake immediately to prevent machine runaway.
ZD1211,ZD1221
7
SAFE OPERATION
Do · To avoid tip-over accidents, operate across slopes,
not up and down. Stay off hills and slopes too steep for safe operation. · Remove obstacles such as rocks and tree limbs, etc. · Stay alert for holes in the terrain and other hidden hazards. Keep away from drop-offs. Uneven terrain could overturn the machine. Tall grass can hide obstacles. · Follow the manufacturer's recommendations for wheel weight or counterweights to improve stability. · Keep all movement on slopes slow and gradual. Do not make sudden changes in speed or direction. · Avoid starting or stopping on a slope. If tires lose traction, disengage the PTO and proceed slowly straight down the slope. · Reduce the speed and exercise extreme caution on slopes and in sharp turns to prevent tip-over accidents or loss of control. · Use special caution when changing direction on slopes. Slow down, and use extra caution when changing direction on a slope. Do not · Do not turn on slopes unless necessary. If necessary, turn uphill slowly and gradually. · Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a wheel is over the edge of cliff or ditch, or if an edge caves in. · Do not mow on wet grass. Reduced traction could cause sliding and loss of control. · Do not try to stabilize the machine by putting your foot on the ground. · Do not use grass catcher on steep slopes. · Do not start or stop suddenly on slopes. If tires lose traction, disengage the PTO and proceed slowly straight down the slope. · Never "freewheel". Do not let the machine travel downhill with motion control levers at the "NEUTRAL LOCK" position or in "NEUTRAL". · Do not operate the machine without the mower deck installed.
8
6. Stopping the machine
· Park the machine on level ground. · Make sure that the machine and all attachments
have come to a complete stop before you get off. · Before you get off, apply the parking brake, place
the motion control levers in their neutral lock positions, disengage the PTO, lower all attachments to the ground, turn off the engine, and remove the key. · Do not park the machine on dry grass or leaves.
7. Using the PTO
· Before installing or using PTO-driven equipment, read the manufacturer's manual and review the safety labels attached to the equipment.
· Wait until all moving components have completely stopped before connecting, disconnecting, adjusting, cleaning, or servicing any PTO-driven equipment.
· Use the PTO with KUBOTA approved attachments. The speed of PTO: ZD1211-AU, ZD1221R-AU, ZD1221L-AU, ZD1221RLAU without mower: 2450 to 2550 rpm at 3000 engine rpm
8. Using the lift link
· Use lift link only with authorized attachments designed for lift link usage.
TRANSPORTING THE MACHINE
· Disengage power to attachment(s) when transporting or not in use.
· Do not tow this machine. Use a suitable truck or trailer when transporting on public roads.
· Use extra care when loading or unloading the machine into a trailer or truck. Use full width ramps for loading machine into a trailer or truck.
· This machine is not allowed to be used on public roads.
· Shut off fuel while storing or transporting. · Tie the machine down securely using straps,
chains, cables, or ropes. · Both front and rear straps should be directed down
and outward from the machine.
SERVICING AND STORAGE
1. Servicing the machine
· Before servicing, park the machine on a firm, level surface and apply the parking brake. Remove the key to prevent an accidental start-up.
· Allow the machine time to cool before touching the engine, muffler, radiator and so on.
ZD1211,ZD1221
· Always stop the engine before refueling. Avoid spills and overfilling. If fuel is spilled, do not attempt to start the engine and avoid creating any source of ignition until fuel vapors have dissipated.
(1) Fuel tank cap
· Use extra care when handling diesel fuels. They are flammable. 1. Use only an approved container. 2. Do not remove the fuel cap or refuel with the engine running. Allow the engine to cool before refueling. Do not smoke while refueling or when standing near fuel. 3. Do not refuel the machine indoors and always clean up spilled fuel or oil. 4. Do not store the machine or fuel container inside where there is an open flame, such as in a water heater.
· Do not smoke when working around battery or when refueling. Extinguish all cigarettes, cigars, pipes, and other sources of ignition. Keep all sparks and flames away from battery and fuel tank.
SAFE OPERATION
container opening at all times until fueling is complete. Do not use a nozzle lock open device. · If fuel is spilled on clothing, change the clothing immediately. Replace the fuel cap and tighten securely. · Charge batteries in an open, well-ventilated area, away from spark and flames. A battery, especially when charging, will give off hydrogen and oxygen gases, which can explode and cause serious personal injury. · Unplug the charger before connecting or disconnecting from battery. · Before "jump starting" a dead battery, read and observe all of the instructions: · Disconnect the battery or remove the spark plug wire before making any repairs. Disconnect the negative terminal first and the positive last. Reconnect the positive first and negative last. Wear protective clothing and use insulated tools.
· Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
· Remove equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment with a portable container, rather than from a fuel dispenser nozzle. Keep the nozzle in contact with the rim of the fuel tank or
ZD1211,ZD1221
(1) Battery (2) Ground cable
(+) Positive terminal (-) Negative terminal
· Do not use or charge the refillable type battery if the fluid level is below the [LOWER] (lower limit level) mark. Otherwise, the battery component parts may prematurely deteriorate, which may shorten the battery's service life or cause an explosion. Check the fluid level regularly and add distilled water as required so that the fluid level is between the [UPPER] and [LOWER] levels.
9
SAFE OPERATION
· Keep a first aid kit and fire extinguisher handy at all times.
· Do not remove the radiator cap while coolant is hot. When cool, slowly rotate cap to the first stop and allow sufficient time for excess pressure to escape before removing the cap completely. If the machine has a coolant recovery tank, add coolant there instead of the radiator.
· Do not attempt to mount a tire on a rim unless qualified to do so and all proper safety precautions are followed. Never allow untrained personnel to service the machine.
· Always maintain the correct tire inflation pressure. Do not inflate tires above the recommended pressure shown in the operator's manual.
· Fluid escaping from pinholes may be invisible. Use a piece of cardboard or wood to search for suspected leaks: do not use hands. Use safety goggles or other eye protection. If you get injured by escaping fluid, see a medical doctor at once. Serious infection or reaction will result if proper medical treatment is not administered immediately. This fluid can produce gangrene or severe allergic reaction.
· Provide adequate support when changing wheels. · Make sure that wheel nuts and bolts have been
tightened to the specified torque. · Escaping hydraulic fluid under pressure has
sufficient force to penetrate the skin causing serious personal injury. Before disconnecting lines, be sure to relieve all pressure. Before applying pressure to the system, make sure all connections are tight and that lines, pipes, and hoses are not damaged.
(1) Cardboard (2) Hydraulic line
(3) Magnifying glass
· Keep hands and feet away from moving parts. If possible, do not make adjustments or repairs with the engine running.
· Keep the machine free of grass, leaves, or other debris build-up.
· Do not change the engine governor setting or overspeed the engine.
· Do not run the machine inside a closed area. · Mower blades are sharp and can cut your hands.
Wrap the blade(s) or wear gloves, and use extra caution when servicing them. Never straighten or weld blades. · Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition. · Never tamper with safety devices. Check their operation for proper function regularly. · Waste products such as used oil, fuel, coolant, brake fluid, and batteries can harm the
10
ZD1211,ZD1221
environment, people, pets and wildlife. Please dispose of the waste products properly. · Do not use beverage containers for waste fluids or other products. Someone, particularly children, may drink them by mistake. · Securely support the machine or any machine elements with stands or suitable blocking before working underneath. For your safety, do not rely on hydraulically supported devices as they may leak down, suddenly drop or be accidently lowered. · Consult your local recycling center or KUBOTA Dealer to learn how to recycle or get rid of waste products. A Material Safety Data Sheet (MSDS) provides
specific details on chemical products, physical and health hazards, safety procedures, and emergency response techniques. The seller of the chemical products used with your machine is responsible for providing the MSDS for that product upon request.
2. Storage
· Keep the machine and supply of fuel in locked storage and remove the ignition key to prevent children or others from playing or tampering with them.
· To avoid sparks from an accidental short circuit, always disconnect the battery's ground cable (-) first and reconnect it last.
SAFE OPERATION
(1) Battery (2) Ground cable
(+) Positive terminal (-) Negative terminal
· To avoid the danger of exhaust fume poisoning, do not operate the engine indoors without adequate ventilation.
· To reduce fire hazards, clean the machine thoroughly before storage. Dry grass and leaves around the engine and muffler may ignite.
· Let the engine cool before storing and do not store near flames.
· Shut off fuel while storing or transporting.
ZD1211,ZD1221
11
SAFE OPERATION
SAFETY LABELS
12
ZD1211,ZD1221
SAFE OPERATION
ZD1211,ZD1221
13
SAFE OPERATION
14
ZD1211,ZD1221
SAFE OPERATION
ZD1211,ZD1221
15
SAFE OPERATION
CARE OF SAFETY LABELS
· Keep safety labels clean and free from obstructing material. · Clean safety labels with soap and water, and dry with a soft cloth. · Replace damaged or missing safety labels with new labels from your local KUBOTA Dealer. · If a component with safety label(s) attached is replaced with a new part, make sure new label(s) is (are) attached
in the same location(s) as the replaced component. · Attach new safety labels by applying on a clean dry surface and pressing any bubbles to the outside edge.
16
ZD1211,ZD1221
SERVICING OF MACHINE
SERVICING OF MACHINE
After reading this manual thoroughly, you will find that you can do some of the regular maintenance yourself. Your dealer has knowledge of your new machine and has the desire to help you get the best performance and the most value from it. However, when in need of parts or major service, be sure to consult your local KUBOTA Dealer. When in need of parts, be prepared to give your dealer the product identification number (PIN), and the ROPS, engine and mower serial numbers. Locate the PIN and serial numbers now, and record them in the space provided.
Date of purchase Name of dealer To be filled in by purchaser
Machine ROPS Engine Mower To be filled in by purchaser
Type
PIN/Serial number
(1) Engine serial number
RCK60P, RCK72P
(1) Mower identification plate (2) Mower serial number
RCK60R, RCK72R
(1) Machine identification plate (2) Product identification number (3) ROPS serial number
ZD1211,ZD1221
(1) Mower identification plate (2) Mower serial number
17
SERVICING OF MACHINE
WARRANTY
This machine is warranted under the KUBOTA Limited Express Warranty, a copy of which may be obtained from your selling dealer. No warranty shall, however, apply if the machine has not been handled according to the instructions given in the operator's manual, even if it is within the warranty period.
SCRAPPING THE MACHINE AND ITS PROCEDURE
To put the machine out of service, correctly follow the local rules and regulations of the country or territory where you scrap it. If you have questions, consult your local KUBOTA Dealer.
WARRANTY
18
ZD1211,ZD1221
SPECIFICATION TABLE
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATION TABLE
Model Model Power Type Number of cylinders
Bore and stroke
Engine
Total displacement Rated revolution Low idling revolution
Fuel
Starter
Lubrication
Cooling
Battery
Fuel tank
Engine crankcase (with filter)
Capacities
Engine coolant
Recovery tank
Transmission case including rear axle gear case
Overall length
Overall width without mower deck
Dimensions
Overall height
With ROPS upright
With ROPS folded
Wheelbase
Min. ground clearance
Tread
Front Rear
Weight (without fuel, with mower deck)
Tires
Traveling system
Traveling speeds
Steering
Front
Rear Forward Reverse
kW (HP)
mm (in.) cm3 (cu. in.)
rpm rpm
L (U.S.gals.)
ZD1211-AU
ZD1221R-AU
ZD1221L-AU
ZD1221RL-AU
D1105
D1305
18.5 (24.8) *1*2*3
21.7 (29.1) *1*3
Liquid-cooled
3
78 × 78.4 (3.07 × 3.09)
78 × 88.0 (3.07 × 3.46)
1123 (68.5)
1261 (77.0)
3000
1400 to 1500
Diesel fuel No.1 (below -10 (14 )) Diesel fuel No.2 (above -10 (14 ))
Electric starter with battery, glow plug, 12 V, 1.2 kW
Forced lubrication by gear pump
Liquid with pressurized radiator
SMF51R (12 V, RC:80 min, CCA:430 A)
49 (12.9)
L (U.S.qts.)
3.9 (4.1)
5.7 (6.0)
L (U.S.qts.) L (U.S.qts.)
3.5 (3.7) 0.25 (0.26)
L (U.S.qts.)
12.1 (12.8) *4
mm (in.)
2260 (89.0)
2380 (93.7)
mm (in.)
1510 (59.4)
1540 (60.6)
mm (in.)
2000 (78.7)
mm (in.)
1640 (64.6)
mm (in.)
1440 (56.7)
1560 (61.4)
mm (in.)
130 (5.12) with 60"
130 (5.12) with 72"
mm (in.)
1064 (41.9)
1250 (49.2)
mm (in.)
1210 (47.6)
kg (lbs.) 765 (1687) with 60" 780 (1720) with 60" 800 (1764) with 72" 810 (1786) with 72"
15 × 6.5 - 8 Smooth semi-pneumatic low profile tire
26 × 12.0 - 16 4PR turf low profile tire
mph (km/h)
0 to 10.6 (0 to 17.0) *3
mph (km/h)
0 to 5.3 (0 to 8.5) *3
2 - hand levers
(Continued)
ZD1211,ZD1221
19
SPECIFICATIONS
Model
ZD1211-AU
ZD1221R-AU
ZD1221L-AU
ZD1221RL-AU
Traveling system
Transmission Parking brake Min. turning radius
mm (in.)
2 - HST with gear Wet multi disk/foot applied, released
0 (0)
Revolution
1 speed (2540 rpm at 3000 engine rpm)
PTO
Drive system Clutch type
Shaft drive, KUBOTA 10 tooth involute spline Wet multi disks
PTO brake
Wet single disk
Specifications and design subject to change without notice.
*1 SAE J1995 *2 The engine output value indicated on the EPA exhaust gas label is the ISO8178 net value without a cooling fan. ZD1211-AU: 18.2 kW *3 At 3000 engine rpm *4 Oil amount when the oil level is at the upper level.
Model Suitable machine Mounting method Adjustment of cutting height Cutting width Cutting height Weight (approximation) PRO commer- Blade spindle speed cial deck (fabricated deck) Blade tip velocity Blade length Number of blades Mower gear box capacity
Total length Dimensions Total width
Total height *1 Engine maximum min-1 (rpm)
RCK60P-1200Z RCK60RP-1200Z RCK72P-1200Z RCK72RP-1200Z
ZD1211-AU
ZD1221R-AU
ZD1221L-AU
ZD1221RL-AU
Quick joint, parallel linkage
Dial gauge
mm (in.)
1524 (60.0)
1829 (72.0)
mm (in.)
25 to 127 (1.0 to 5.0)
kg (lbs.) 150 (331)
145 (320)
170 (375)
r/s (rpm) 55.9 (3355) *1
52.4 (3145) *1
46.7 (2800) *1
m/s (fpm) 91 (18000) *1
86 (16900) *1
91 (18000) *1
mm (in.)
523 (20.6)
625 (24.6)
3
L (U.S.qts.) 0.5 (0.53)
0.4 (0.42)
0.5 (0.53)
0.4 (0.42)
mm (in.) 974 (38.4)
1000 (39.4)
1162 (45.8)
1155 (45.5)
mm (in.) 1875 (73.8)
1600 (63.0)
2180 (85.8)
1910 (75.2)
mm (in.) 426 (16.8)
420 (16.5)
421 (16.6)
413 (16.3)
20
ZD1211,ZD1221
IMPLEMENT LIMITATIONS
IMPLEMENT LIMITATIONS
The KUBOTA Machine has been thoroughly tested for proper performance with implements sold or approved by KUBOTA. Use with implements below may result in malfunctions or failures of the machine, damage to other property and injury to the operator or others. · Implements which are not sold or approved by KUBOTA · Implements which exceed the maximum specifications listed below, or · Implements which are otherwise unfit for use with the KUBOTA Machine Any malfunctions or failures of the machine resulting from use with improper implements are not covered by the warranty.
Unit
ZD1211-AU, ZD1221R-AU ZD1221L-AU, ZD1221RL-AU
Maximum loading weight
Front axle Wf
Rear axle Wr
200 kg (440 lbs.)
920 kg (2028 lbs.)
Implement weight W1 200 kg (440 lbs.)
Maximum total weight 1120 kg (2468 lbs.)
Option: When using the hitch kit.
IMPORTANT : · Do not operate on slope when pulling loads. · Total towed weight must not exceed combined weight of pulling machine, ballast and operator. · Follow the manufacturer's recommendations for weight limits for towed equipment.
Unit
ZD1211-AU, ZD1221R-AU ZD1221L-AU, ZD1221RL-AU
Maximum loading weight
Front axle Wf
Rear axle Wr
Maximum total weight
200 kg (440 lbs.) 630 kg (1388 lbs.) 830 kg (1829 lbs.)
Tongue weight W1
30 kg (66 lbs.)
Towing capacity W2
100 kg (220 lbs.)
ZD1211,ZD1221
21
INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL, SWITCHES AND HAND CONTROLS
INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL, SWITCHES AND HAND CONTROLS
Illustrated contents
(1) Parking brake pedal...27, 38 (2) Parking brake lock pedal...27, 38 (3) Motion control lever...27, 39 (4) LCD monitor...30 (5) Cup holder...(6) Seat belt...37 (7) Operator's seat...37 (8) Hydraulic lift control pedal (DOWN)...38, 44 (9) Hydraulic lift control pedal (UP)...38, 44 (10) Key switch...29 (11) Cutting height control dial...44 (12) PTO lever...27, 47 (13) Throttle lever...27, 38 (14) PTO clutch indicator...27
(15) Neutral indicator (Motion control lever)...27 (16) Parking brake warning indicator...27 (17) Master system warning indicator...29 (18) Glow plug indicator...29 (19) Engine oil pressure warning indicator...29 (20) Engine overheat warning indicator...29 (21) Electrical charge warning indicator...29 (22) Fuel level warning lamp...29, 32 (23) Coolant temperature gauge...31 (24) Hour meter...31 (25) Battery voltage meter...31 (26) Fuel gauge...30 (27) Service code display...31
NOTE : · Items (17) to (22) correspond to the Easy CheckerTM.
22
ZD1211,ZD1221
MOWER
MOWER
RCK60P, RCK72P
INSTRUMENT PANEL AND CONTROLS
(1) Anti-scalp roller (front, swivel type)...44 (2) Anti-scalp roller (rear, bolt shift type) rear RH roller is only for
RCK72P...44 (3) Discharge deflector (4) Gear box
RCK60R, RCK72R
(1) Anti-scalp roller (front, swivel type)...44 (2) Anti-scalp roller (rear, bolt shift type)...44 (3) Gear box
ZD1211,ZD1221
23
MOWER MOUNTING
MOUNTING THE MOWER DECK
MOWER MOUNTING
MOUNTING THE MOWER DECK
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Apply the parking brake. · Chock the rear tires. · Stop the engine and remove the key.
1. Before mounting the mower deck, raise the lift links to the "FULL UP" position.
2. Adjust the cutting height control dial to 1 in. position.
3. Tilt up the machine with the maintenance lift system. (See TILTING UP THE MACHINE on page 53.)
4. Place the mower deck at the left side of the machine.
(1) Lift link (2) Clevis pin, plain washer, snap ring
(1) Gear box
5. Slide the mower deck under the machine, and make sure that the mower gear box is placed properly in the center of the machine, lower the axle from the "TILT-UP" position to the "NORMAL" position.
6. Place 50 mm (2 in.) wood blocks under each side of the mower deck.
7. Depress the hydraulic lift control pedal (DOWN) and pull down the lift links.
8. Attach the lift links to the mower deck with attaching hardware.
24
ZD1211,ZD1221
ADJUSTING THE MOWER
9. Install universal joint. Pull back the coupler of the universal joint. Push the universal joint onto the PTO shaft until the coupler locks.
IMPORTANT : · Tug the universal joint backward and
forward to make sure it is locked securely.
MOWER MOUNTING
INSTALLING PARTS TO THE MOWER
1. Installation of skid
RCK60R, RCK72R Install the skid with 5 flange bolts.
NOTE : · Right side shown, left side similar
(1) Universal joint (2) Coupler
(A) "PULL"
10. After mounting the mower, check the mower level. If necessary, adjust the mower level and anti-scalp rollers.
ADJUSTING THE MOWER
(See OPERATING THE MOWER on page 44 and ADJUSTMENT on page 87.)
DISMOUNTING THE MOWER DECK
For dismounting the mower deck, reverse the above procedures.
(1) Skid (right) (2) Flange bolt (M10)
2. Installation of gauge wheel
RCK60P, RCK72P Install the anti-scalp roller to the stay (3L gauge) with gauge wheel boss, sems bolt and locking nut.
IMPORTANT : · Choose the hole of the stay (3L gauge) by
cutting height. (See ADJUSTING THE CUTTING HEIGHT on page 44.)
NOTE : · Left side of RCK72P shown, right side of
RCK72P and left side of RCK60P similar · Install the sems bolt from outside.
ZD1211,ZD1221
25
MOWER MOUNTING
INSTALLING PARTS TO THE MOWER
(1) Gauge wheel (2) Stay (3L gauge) (3) Sems bolt (4) Gauge wheel boss (5) Locking nut
RCK60R, RCK72R Install the gauge wheel with gauge wheel boss, plain washer, sems bolt and locking nut.
IMPORTANT : · Choose the hole of the skid by cutting height.
(See ADJUSTING THE CUTTING HEIGHT on page 44.)
NOTE : · Left side of RCK72R shown, right side of
RCK72R and both side of RCK60R similar · Install the sems bolt from inside.
(1) Bolt (adjuster) (2) Nut
(L) 25 mm (reference)
(1) Gauge wheel (2) Skid (Left) (3) Gauge wheels boss (4) Plain washer (5) Sems bolt (6) Locking nut
3. Installation of bolt (adjuster)
1. Install the bolt (adjuster) with the nut. 2. Adjust length (L). 3. Tighten the nut.
26
ZD1211,ZD1221
GETTING ON AND OFF THE MACHINE SAFELY
OPERATING THE ENGINE
OPERATING THE ENGINE
WARNING
To avoid serious injury or death: · Read and understand the safe operation
section. · Read and understand the safety labels located
on the machine. · To avoid the danger of exhaust fume poisoning,
do not operate the engine indoors without proper ventilation. · Never start the engine while standing on the ground. Start the engine only from the operator's seat.
Details regarding safe operation can be found in a different section. (See SAFE OPERATION on page 5.)
GETTING ON AND OFF THE MACHINE SAFELY
Do not step on either side of the mower deck when you get on and get off the machine. When you get on and off the machine use LH side and step over the mower deck.
c. Parking brake warning indicator will come on.
(1) Parking brake pedal (2) Parking brake lock pedal (3) Parking brake warning indi-
cator
(A) "DEPRESS"
To release the parking brake: Depress the parking brake pedal and release it slowly with your right foot without pressing the parking brake lock pedal.
3. Place the PTO lever in the "DISENGAGED" (OFF) position. PTO clutch indicator will come off.
STARTING THE ENGINE
1. Sit on the operator's seat. Put on the seat belt.
2. Apply the parking brake.
To apply the parking brake: a. Depress the parking brake pedal firmly with
your right foot and the parking brake lock pedal simultaneously with your left foot. b. Then release the parking brake pedal while holding the parking brake lock pedal down.
(1) PTO lever (2) PTO clutch indicator
ZD1211,ZD1221
(A) "ENGAGED" (ON) (B) "DISENGAGED" (OFF)
27
OPERATING THE ENGINE
4. Place the motion control levers in the "NEUTRAL LOCK" position. Neutral indicator will come on.
Temperature Over 0 (32 ) Below 0 (32 )
STARTING THE ENGINE
Preheating time 5 seconds 10 seconds
(1) Motion control lever (LH) (2) Motion control lever (RH) (3) Neutral indicator
(A) "NEUTRAL LOCK" position (B) "NEUTRAL" position (C) "FORWARD" (D) "REARWARD"
5. Set the throttle lever 1/2 way forward.
(1) Throttle lever
(A) "FAST" (B) "SLOW"
6. Insert the key into the key switch and turn clockwise 1 notch. Make sure the Easy CheckerTM lights are on. (See Key switch on page 29.)
WARNING
To avoid serious injury or death: · Do not depress the hydraulic lift control
pedal. When the engine is off, depressing the hydraulic lift control pedal (UP or DOWN) will lower the implement.
7. Turn the key switch clockwise, and hold it for about 5 seconds. (at the "PREHEAT" position) For the appropriate preheating time, refer to the table below:
(1) Glow plug indicator
NOTE : · Glow plug indicator (1) comes on while the
engine is being preheated.
8. Turn the key switch to the "START" position and release the key to the "ON" position when the engine starts.
IMPORTANT : · Do not use starting fluid or ether. · To protect the battery and the starter, make
sure that the starter is not continuously turned for more than 10 seconds. · Do not turn the key switch while the engine is running. · When the temperature is below 0 (32 ), run the engine at medium speed to warm up the lubricant of the engine and transmission for at least 10 minutes. If the machine is operated before the lubricant is warm enough, the machine life will be shortened. · Do not operate the machine under full load until it is sufficiently warmed up. · When the ambient temperature is less than -15 (5 ), remove the battery from the machine and store it somewhere warm until next operation.
9. Make sure that the Easy CheckerTM lights have gone off. If the light is still on, immediately stop the engine and check the remedy following the instruction. (See CHECK DURING OPERATING on page 29.)
10. Warm up the engine by running at medium speed.
28
ZD1211,ZD1221
STARTING THE ENGINE
1. Key switch
IMPORTANT : · Because of the engine start system, the engine
may not be started except when the PTO clutch is "DISENGAGED" (OFF), the parking brake lock pedal is applied, motion control levers are in "NEUTRAL LOCK" position, and the operator is sitting in the seat.
OPERATING THE ENGINE
Then open the hood and pull engine stop lever and hold it until the engine stops. Then contact your local KUBOTA Dealer immediately.
WARNING
To avoid serious injury or death: · Do not operate the machine until the engine
stop system is repaired.
(1) OFF The position where the key can be inserted into or removed from the key switch. When the key is turned to this position, the engine shuts off.
(2) ON The engine keeps running.
(3) PREHEAT The glow plug is heated.
(4) START Apply the parking brake and turn the key switch to this position to start the engine.
STOPPING THE ENGINE
1. After idling the engine, turn the key switch to the "OFF" position.
2. Remove the key. 3. Do not leave the key switch "ON" (key in the "ON"
position) as the battery will discharge when the engine is not running. 4. Apply the parking brake.
1. Engine stop lever (inside the hood)
The engine stops when the key switch is turned off. If the engine does not stop, make sure the motion control levers are in the "NEUTRAL LOCK" position, the PTO lever is off, the mower lowered to the ground and apply the parking brake, then carefully get off the machine.
ZD1211,ZD1221
(1) Engine stop lever
CHECK DURING OPERATING
IMPORTANT : Immediately stop the engine if: · The engine suddenly slows down or
accelerates. · Unusual noises suddenly occur. · Exhaust fumes suddenly become discolored. While operating, make the following checks to see that all the parts are functioning normally: · Easy CheckerTM on page 29
(1) Easy CheckerTM
1. Easy CheckerTM
If the warning lamps of the Easy CheckerTM come on during operation, immediately stop the engine, and find the cause as shown below.
29
OPERATING THE ENGINE
Never operate the machine while Easy CheckerTM lamp is on.
(1) Glow plug indicator (pre-heating indicator) When the key switch is in the "PREHEAT" position, the glow plug indicator turns on.
(2) Engine oil pressure If the oil pressure in the engine goes below the prescribed level, the warning lamp in the Easy CheckerTM will come on. If this should happen during operation, and it does not go off when the engine is accelerated to more than 1000 rpm, check level of engine oil. (See Checking the engine oil level on page 59.)
(3) Engine overheat If the water temperature gauge reads an unusual level and the warning lamp in the Easy CheckerTM comes on, the engine may be overheated. Stop machine operation. Check the machine by reading the troubleshooting section of this manual. (See TROUBLESHOOTING on page 96.)
(4) Electrical charge If the alternator is not charging the battery, the warning lamp in the Easy CheckerTM will come on. If this should happen during operation, check the electrical charging system or consult your local KUBOTA Dealer.
(5) Fuel level warning lamp If the fuel in the tank goes below the prescribed level, the warning lamp in the Easy CheckerTM will come on. If this should happen during operation, refuel as soon as possible. (See Checking the amount of fuel and refueling on page 59.) IMPORTANT : · When the fuel warning lamp lights up, refuel the tank as soon as possible. If the machine
LCD MONITOR
runs out of fuel and stalls, the engine and its components may be damaged.
(6) Master system warning If trouble should occur at the disconnection of fuel sensor, coolant temperature sensor or LCD monitor malfunction, the indicator flashes as a warning. If the trouble is not corrected by restarting the machine, consult your local KUBOTA Dealer.
NOTE : · For checking and servicing of your machine,
consult your local KUBOTA Dealer for instructions.
LCD MONITOR
(1) LCD monitor
1. Fuel gauge
When the key switch is on, the fuel gauge indicates the fuel level. Be careful not to run the fuel tank completely empty. Otherwise air may enter the fuel system. Should this happen, the fuel system must be bled. (See Bleeding fuel system on page 84)
(1) Fuel gauge
(A) "EMPTY" (B) "FULL"
30
ZD1211,ZD1221
LCD MONITOR
2. Coolant temperature gauge
WARNING
To avoid serious injury or death: · Do not remove radiator cap until coolant
temperature is well below its boiling point. Then loosen the cap slightly to relieve any pressure before removing the cap completely.
1. With the key switch "ON", this gauge indicates the temperature of the coolant. [C] for "cold" and [H] for "hot".
2. If the indicator reaches the [H] position, engine coolant is overheated. Check the machine by reading the troubleshooting section of this manual. (See TROUBLESHOOTING on page 96.)
OPERATING THE ENGINE
4. Battery voltage meter
This meter gives readings for the battery voltage. Specification: Battery voltage 12.0 V If the battery voltage is below 12.0 V, charge the battery.
(1) Coolant temperature gauge
(1) Battery voltage meter
5. Service code display
The key switch is on, and if the service code (
or
) shown in the figure below is displayed on
the LCD monitor, you must do the servicing jobs
corresponding to the indication on hour meter
(displayed at 10 seconds after that) on the machine.
The service code will show at meter hour: 50 hr, 200 hr,
400 hr, 600 hr, 800 hr, 1000 hr....
(See SERVICE INTERVALS on page 63.)
3. Hour meter
This meter gives readings for the hours the machine has been operated. 1. The hour meter indicates in 5 digits the hours the
machine has been used; the last digit indicates 1/10 of an hour.
(1) Hours used
ZD1211,ZD1221
31
OPERATING THE ENGINE
LCD MONITOR
2. Fuel level warning lamp flashes when fuel amount is below 7 L.
IMPORTANT : · Fill the fuel tank only to bottom of the filler
neck. · Be careful not to empty the fuel tank. Otherwise
air may enter the fuel system. Should this happen, you must bleed the system. (See Bleeding fuel system on page 84.) · When refueling, basically fill both fuel tanks full. · In the case you have a small amount of fuel, if fuel is still in the fuel tank RH, fill the fuel tank LH first. · The fuel gauge shows the fuel level of fuel tank RH. When the fuel gauge flashes, fill fuel as soon as possible. · When the fuel gauge flashes, do not fill fuel on a slope. Fuel can absorb air and the engine can stall. · If the engine stalled with some remaining in the fuel tank RH, close the fuel valve of fuel tank LH and you can operate. (Refer to the following figures.)
(1) Service code (2) Hours used
(A) At 10 seconds after the service code has displayed.
6. Overheat alarm
If the temperature of the coolant rises to overheat temperature, the overheat alarm whistles. Check the machine by reading the troubleshooting section of this manual. (See TROUBLESHOOTING on page 96.)
7. Fuel gauge, warning lamp and fuel valve
(1) Fuel gauge (2) Fuel level warning lamp
(E) "EMPTY" (F) "FULL"
1. The fuel gauge shows the amount of fuel left in the RH tank.
32
(1) Fuel valve
COLD WEATHER STARTING
· When the ambient temperature is below -5 and the engine is very cold. (If the engine fails to start after 10 seconds, turn off the key for 30 seconds.), then repeat steps 7 and 8. Details regarding steps 7 and 8 can be found in a different section. (See STARTING THE ENGINE on page 27.)
· To protect the battery and the starter, make sure not to turn the starter continuously for more than 10 seconds.
WARMING UP THE ENGINE
WARNING
To avoid serious injury or death:
ZD1211,ZD1221
WARMING UP THE ENGINE
· Be sure to apply the parking brake during warm-up.
For 5 minutes after the engine start-up, allow the engine to warm up without applying any load. This is to allow oil to reach every part of the engine. If load is applied to the engine without this warm-up period, problems such as seizure, breakage or premature wear may appear.
1. Warm-up and transmission oil in the low temperature range
Hydraulic oil serves as transmission oil. In cold weather conditions, the oil may be cold with increased viscosity. This can cause delayed oil circulation or abnormally low hydraulic pressure for some time after engine startup. This, in turn, result in trouble in the hydraulic system or damage to the hydraulic clutch. To prevent this from happening warm up the engine at about 50% of rated rpm according to the following table.
Ambient temperature Higher than 0 (32 ) -10 to 0 (14 to 32 ) -20 to -10 (-4 to 14 )
Below -20 (-4 )
Warm-up time requirement Approximately 5 minutes 5 to 10 minutes 10 to 15 minutes More than 15 minutes
IMPORTANT : · Do not operate unless the engine is well
warmed up. If operation is attempted while the engine is still cold, the hydraulic mechanism will not function properly and its service life will be shortened. · If noises are heard after the hydraulic control lever has been activated and the implement is lifting, the hydraulic mechanism is not adjusted properly. Unless corrected, the unit will be damaged. Contact your local KUBOTA Dealer for adjustment.
JUMP STARTING
WARNING
To avoid serious injury or death: · Keep cigarettes, sparks, and flames away from
the battery. · If the machine battery is frozen, do not jump
start the engine. · Do not connect the other end of the negative
jumper cable to the negative terminal of the machine battery.
OPERATING THE ENGINE
When jump starting the engine, observe the following instructions to start the engine safely: 1. Bring a helper vehicle with a battery of the same
voltage as the disabled machine within easy cable reach.
IMPORTANT : · The vehicles must not touch.
2. Apply the parking brakes of both vehicles and put the shift levers in the neutral position. Shut the engine off.
3. Put on safety goggles and rubber gloves. 4. Ensure that vent caps are securely in place (if
equipped). 5. Attach the red clamp to the positive (red, (+) or
pos.) terminal of the dead battery and clamp the other end of the same cable to the positive (red, (+) or pos.) terminal of the helper battery. 6. Clamp the other cable to the negative (black, (-) or neg.) terminal of the helper battery. 7. Clamp the other end to the engine block or the frame of the disabled machine as far from the dead battery as possible. 8. Start the helper vehicle and let its engine run for a few moments. Start the disabled machine. 9. Disconnect the jumper cables in the exact reverse order of attachment (steps 7, 6 and 5).
Connect cables in numerical order. Disconnect in reverse order after use.
(1) Dead battery (2) Jumper cables (3) Engine block or frame
(4) Helper battery
IMPORTANT : · This machine has a 12 volt negative (-)
ground starting system. · Use only same voltage for jump starting. · Use of a higher voltage source on the
machine could result in severe damage to the machine electrical system. Use only a matching voltage source when "jump starting" a low or dead battery.
ZD1211,ZD1221
33
OPERATING THE MACHINE
OPERATING A NEW MACHINE
OPERATING THE MACHINE
OPERATING A NEW MACHINE
How a new machine is operated and maintained will determine the operating life of the machine. A new machine just off the factory production line has been tested, but the various parts are not "broken-in" and are not accustomed to each other, so care should be taken to operate the machine for the first 50 hours at a slower speed and avoid excessive work or operation until the various parts become "broken-in". The manner in which the machine is handled during the "breakingin" period greatly affects the life of your machine. Therefore, to obtain the maximum performance and the longest operating life of the machine, it is very important to properly break-in your machine. In handling a new machine, the following precautions should be observed.
1. Changing lubricating oil for new machine
The lubricating oil is especially important in the case of a new machine. The various parts are not "broken-in" and are not accustomed to each other. Small metal grit may develop during the operation of the machine and this may wear out or damage the parts. Therefore, care should be taken to change the lubricating oil a little earlier than it would ordinarily be required. For further details of change interval hours. (See SERVICE INTERVALS on page 63.)
2. Engine break-in
After the first 50 hours of operation, change the engine oil and filter. (See EVERY 200 HOURS on page 76.)
3. Machine break-in
After the first 400 hours of operation, change the transmission fluid. (See EVERY 400 HOURS on page 77.) After the first 50 hours of operation, change the oil filter. (See EVERY 200 HOURS on page 76 and EVERY 400 HOURS on page 77.)
DANGER
To avoid serious injury or death: · Do not operate the mower without the discharge
deflector in the "DOWN" position.
WARNING
To avoid serious injury or death: · The machine relies upon the engine driven
transmission for speed, direction, and steering control. If the engine is not running, the machine cannot be driven or controlled. If the engine stops when operating on a slope, apply the parking brake immediately to prevent a machine runaway. · Do not allow anyone other than the driver to ride on the machine. · Do not drive the machine close to the edges of ditches or banks which may collapse under the weight of the machine, especially when the ground is loose or wet. · When making a turn, be sure to reduce the travel speed and operate the motion control levers carefully. · To avoid tip-over accidents, operate across slopes, not up and down. Avoid sudden starts and stops on slopes. Slow down and use extra caution when changing direction on a slope. Park the machine on a firm and level surface. · Watch where you are going at all times. Watch for and avoid obstacles. Be alert at curbs, near trees, and other obstructions and hidden hazards. · Do not mow near drop-offs, ditches or embankments. The mower could turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in. · Do not drive the machine on streets or highways. Watch for traffic when you cross roads or operate near roads. · Look to the rear before and when backing. Make sure the area immediately behind you is clear of obstructions or holes, and small children. Use extra caution when machine is equipped with grass catcher. · Keep bystanders, especially children, and animals away from the mowing area. · Clear the work area of objects which might be picked up and thrown by the blades. · Do not direct the opening of the discharge deflector at bystanders or animals. Discharged objects may cause injury. Plan your mowing carefully before starting operation. · Keep bystanders especially children and animals away from the mowing area.
34
ZD1211,ZD1221
OPERATING THE FOLDABLE ROPS
· Be sure to disengage the PTO and sit on the operator's seat before starting the engine.
OPERATING THE FOLDABLE ROPS
WARNING
To avoid serious injury or death: · Always use the seat belt when the ROPS is
installed. · Do not use the seat belt if a foldable ROPS is
down or if there is no ROPS.
1. Folding the ROPS
1. Loosen the knob bolts 1 to 2 turns. 2. Remove both lock pins.
OPERATING THE MACHINE
(1) ROPS
4. Align the lock pin holes and insert both lock pins and secure them with the snap pins.
CAUTION
To avoid personal injury: · Make sure that both lock pins are properly
installed and secured with the snap pins.
(1) Lock pin (2) Snap pin (3) Knob bolt
3. Fold the ROPS.
CAUTION
To avoid personal injury: · Hold the ROPS tightly with both hands and
fold the ROPS slowly and carefully.
(1) Lock pin (2) Snap pin
ZD1211,ZD1221
35
OPERATING THE MACHINE
2. Raising the ROPS to the upright position
1. Remove both snap pins and lock pins.
OPERATING THE FOLDABLE ROPS
3. Adjusting the foldable ROPS
1. Adjust the free fall of the ROPS upper frame regularly.
2. If you feel less friction when folding the ROPS, tighten the nut (1) until you feel the right friction when moving it. Then replace the snap pin.
(1) Lock pin (2) Snap pin
2. Raise the ROPS to the upright position.
CAUTION
To avoid personal injury: · Hold the ROPS tightly with both hands and
raise the ROPS slowly and carefully. 3. Align the lock pin holes, insert both lock pins and
secure them with the snap pins. Do not use your fingers to align the holes. 4. Tighten the knob bolts slightly.
CAUTION
To avoid personal injury: · Make sure that both lock pins are properly
installed as soon as the ROPS is in the upright position and secured with the snap pins.
(1) Lock pin (2) Snap pin (3) Knob bolt
(1) Nut
STARTING THE MACHINE
WARNING
To avoid serious injury or death: · Read and understand the safe operation
section. · Read and understand the safety labels located
on the machine. · To avoid the danger of exhaust fume poisoning,
do not operate the engine indoors without proper ventilation. · Never start the engine while standing on the ground. Start the engine only from the operator's seat.
1. Adjust the operator's position and apply the seat belt. · Operator's seat on page 37 · Seat belt on page 37
2. Start the engine. See OPERATING THE ENGINE on page 27.
3. Raise the implement. · Hydraulic lift control pedal on page 38
4. Accelerate the engine. · Throttle lever on page 38
5. Unlock the parking brake. · Parking brake pedal on page 38
36
ZD1211,ZD1221
STARTING THE MACHINE 6. Operate the machine.
· Motion control lever on page 39 · Stop position of the motion control lever on
page 39 · Operating position of the motion control lever on
page 39 · Re-start on slopes on page 41
1. Operator's seat
WARNING
To avoid serious injury or death: · Make adjustments to the seat only while the
machine is stopped. · Make sure that the seat is completely secured
after each adjustment. · Do not allow anyone other than the driver to
ride on the machine.
(1) Travel adjust lever (2) Suspension adjust knob (3) Lumbar support adjust lever (4) Arm rest (5) Arm rest angle adjuster (6) Bypass pipe
ZD1211,ZD1221
OPERATING THE MACHINE
(1) Backrest tilt adjust knob
WARNING
To avoid serious injury or death: · Use extra caution when unlocking the travel
adjust lever because the seat might slide forward by itself. Travel adjustment Unlock the travel adjust lever and slide the seat backward or forward, as required. The seat will lock in position when the lever is released. Suspension adjustment Turn the suspension adjust knob to achieve the optimum suspension setting. Lumbar support adjustment Turn the lumbar support adjust lever to the desired position. Arm rest Arm rest may be set at upright position if desired. Arm rest angle adjustment Turn the arm rest angle adjuster to the desired angle. Backrest tilt adjustment Turn the backrest tilt adjust knob to the desired angle. IMPORTANT : · After adjusting the operator's seat, be sure to check to see that the seat is properly locked.
NOTE : · Depending on the seat adjustment level, the
seat may contact the bypass pipe during operating. In case of contact, readjust the travel adjust lever, the suspension adjust knob, the backrest tilt adjust knob or the lumbar support adjust lever.
2. Seat belt
WARNING
To avoid serious injury or death:
37
OPERATING THE MACHINE
· Always use the seat belt when the ROPS is installed.
· Do not use the seat belt if a foldable ROPS is down or if there is no ROPS.
Adjust the seat belt for proper fit and connect to the buckle. The seat belt is an auto-locking retractable type.
STARTING THE MACHINE
adjusted properly. Contact your local KUBOTA Dealer for adjustment. · Do not depress the hydraulic lift control pedal. When the engine is off, depressing the hydraulic lift control pedal (UP or DOWN) will lower the implement.
4. Throttle lever
· Move the throttle lever backward to decrease the engine speed.
· Move it forward to increase the engine speed.
(1) Seat belt
3. Hydraulic lift control pedal
The hydraulic lift control pedal is used to raise and lower the implement used with the machine (mower). To lower the implement, depress the hydraulic lift control pedal (DOWN). To raise it, depress the hydraulic lift control pedal (UP).
(1) Throttle lever
(A) "INCREASE" (B) "DECREASE"
5. Parking brake pedal
To apply the parking brake: 1. Depress the parking brake pedal firmly with your
right foot and the parking brake lock pedal simultaneously with your left foot. 2. Then release the parking brake pedal while holding the parking brake lock pedal down.
To release the parking brake: Depress the parking brake pedal and release it slowly with your right foot, without pressing the parking brake lock pedal.
(1) Hydraulic lift control pedal (UP)
(2) Hydraulic lift control pedal (DOWN)
(A) "DEPRESS" (B) "DOWN" (C) "UP"
IMPORTANT : · Do not operate until the engine is warmed up. If
operation is attempted when the engine is still cold, the hydraulic system may be damaged. · Do not operate at slow engine rpm. Move the throttle lever above 1/2. · If noises are heard when implement is lifting after the hydraulic lift control pedal has been activated, the hydraulic mechanism is not
(1) Parking brake pedal (2) Parking brake lock pedal
(A) "DEPRESS"
38
ZD1211,ZD1221
STARTING THE MACHINE
6. Motion control lever
WARNING
To avoid serious injury or death: · Understand how to use the motion control
levers and practice in an unrestricted area at slightly more than idle speed without the mower engaged until becoming proficient in the operation of the machine. · Do not move motion control levers from the "FORWARD" to "REARWARD" or from the "REARWARD" to "FORWARD" position rapidly. Sudden direction changes could cause the loss of control or damage to the machine or property. · Do not make sharp turns at high speed. Fast and sharp turns could cause the loss of control. · Motion control levers must be in the "NEUTRAL LOCK" position to safely enter and exit the operator's seat or to carry out maintenance and safety checks. · This machine can make sharp turns. Always make sure your intended path is clear of obstructions or people.
6.1 Stop position of the motion control lever
Neutral lock position Forward and rearward movements of the motion control levers are locked when these levers are in the "NEUTRAL LOCK" position (the engine can only be started with levers in this position).
(1) Motion control levers
(A) "NEUTRAL LOCK" position (B) "NEUTRAL" position
OPERATING THE MACHINE
6.2 Operating position of the motion control lever
Machine speed and steering is controlled by the motion control levers, when the engine is running and the parking brake is released.
WARNING
To avoid serious injury or death: · No control is provided by the motion control
levers when the engine is off.
Neutral position Grasp the motion control levers and move them inward from the "NEUTRAL LOCK" position so that the machine is in "NEUTRAL" (the engine cannot be restarted).
(1) Motion control levers
(A) "NEUTRAL" position (B) "NEUTRAL LOCK" position
Forward and rearward motion: 1. Move the throttle lever to the "FAST" position. 2. Release the parking brake. 3. Move both motion control levers from the
"NEUTRAL LOCK" position inward to the "NEUTRAL" position. 4. To move your machine, see the following figures.
To stop: Move and hold both motion control levers to the "NEUTRAL" position until the machine comes to a stop.
Forward: For forward travel in a straight line, push both motion control levers slowly and forward equally at the same time.
ZD1211,ZD1221
39
OPERATING THE MACHINE
STARTING THE MACHINE
Rearward: For rearward travel in a straight line, pull both motion control levers past center rearward slowly and equally at the same time.
Sharp (zero) left turn: Push the right motion control lever forward and pull the left motion control lever rearward at the same time.
General left turn: For forward travel to the left, push the right motion control lever further forward than the left motion control lever.
Sharp (zero) right turn: Push the left motion control lever forward and pull the right motion control lever rearward at the same time.
General right turn: For forward travel to the right, push the left motion control lever further forward than the right motion control lever.
Adjustment
WARNING
To avoid serious injury or death: · The motion control lever adjustment is
important to ensure the machine operates properly.
40
ZD1211,ZD1221
STARTING THE MACHINE
NOTE : · The motion control linkages are adjustable.
(If adjustment is required, see ADJUSTMENT on page 87.) We recommend you to contact your local KUBOTA Dealer.
6.3 Re-start on slopes
WARNING
To avoid serious injury or death: · Do not stop or change directions on slopes.
These operations could cause loss of the machine traction or control. · Starting procedure on slopes is different from the usual start mode on a flat surface, understand how to re-start on slopes and use extra caution.
If a situation occurs where it is necessary to stop and restart on a slope, refer to the following operational steps.
(1) Motion control lever (2) Parking brake pedal
How to re-start on the slopes: 1. Firmly apply parking brake (enough to prevent
movement). 2. Start the engine. 3. Set the throttle lever to the middle position. 4. Place the control levers inward to the "NEUTRAL"
position gradually. 5. Release the parking brake within about 3 seconds.
If you take more time, the engine will suddenly stop because of a safety device. (This is to prevent the machine from being operated with the parking brake applied.) When the engine stops, start over by firmly reapplying the parking brake, and repeat steps 2 through 5 and then 6. 6. Move the machine slowly and carefully.
OPERATING THE MACHINE
STOPPING THE MACHINE
WARNING
To avoid serious injury or death: · Park the machine on level ground.
If necessary to park on an incline, stop the machine, apply the parking brake, and then stop the engine. · If you stop the engine on an incline without applying the parking brake, the machine could move and run away.
IMPORTANT : · The parking brake pedal is for parking and
emergency use only. If the parking brake is applied when the motion control levers are not in the "NEUTRAL LOCK" position, the engine will stop within approximately 3 seconds. This feature is to prevent brake and transmission damage during operation. · If on a slope and the engine quits, use the parking brake as the emergency brake and immediately stop the unit.
1. Move both motion control levers to the "NEUTRAL" position to stop the machine.
2. Apply the parking brake. 3. Move both motion control levers to the "NEUTRAL
LOCK" position. 4. Throttle lever in slow position and shift PTO lever to
the "DISENGAGE" (OFF) position. 5. Lower all implements to the ground. 6. Turn off the engine and remove the key.
USING THE FRONT AXLE
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Stop the engine, remove the key and engage the
parking brake.
1. Fixing the front axle
A rigid front axle is recommended for a more even cut under mowing the rough terrain.
1. Open the front cover. 2. Remove the 2 L-pins from their original position.
ZD1211,ZD1221
41
OPERATING THE MACHINE
3. Insert L-pins into the holes on the front axle as shown below.
USING THE FRONT AXLE
To lock: 1. Depress the parking brake pedal firmly with your
right foot, and the parking brake lock pedal simultaneously with your left foot. 2. Then release the parking brake pedal while holding the parking brake lock pedal down.
To unlock: Depress the parking brake pedal and release it slowly with your right foot without pressing the parking brake lock pedal.
If necessary to park on an incline, be sure to chock the wheels on the downhill side to prevent accidental rolling of the machine.
(1) L-pin
4. Install the snap pins between the axle mount frame and the front axle.
(1) Chock
(1) L-pin (2) Snap pin
2. Oscillating the front axle
The oscillating front axle oscillates with the terrain and provides a smoother ride than the rigid front axle. 1. For oscillating the front axle, reverse the above
procedures.
PARKING THE MACHINE
WARNING
To avoid serious injury or death: Before leaving the operator's position: · Apply the parking brake. · Lower all implements to the ground. · Shut off the engine. · Remove the key. · Place the motion control levers in the
"NEUTRAL LOCK" position.
42
ZD1211,ZD1221
TRANSPORTING THE MACHINE
TRANSPORTING THE MACHINE
1. Transport the machine on a suitable trailer. · Shut off the fuel valves below the fuel tanks while transporting. · To prevent the hood from opening by wind while in transit, it is necessary to either load the machine backward or use a suitable tie down for the hood. · Apply the parking brake and lower the mower deck to the lowest position. · Remove the key. · Secure the portions of the machine, which are shown in the figure below, by using heavy duty straps. · For a long distance transit, lower the mower deck to the lowest position.
Front
OPERATING THE MACHINE
OPTIONAL EQUIPMENT
For the operation and precautions of option kit, obey the instructions of the manuals attached in the option kit.
(1) Heavy-duty strap
Rear
(1) Heavy-duty strap (2) Rear frame
2. When you drive the machine, for a long distance transit, set the mower deck to the highest position.
3. Do not attempt to tow this machine, or damage to the transmission may result.
4. Follow all federal and local regulations for securement.
ZD1211,ZD1221
43
OPERATING THE MOWER
MOWING TIPS
OPERATING THE MOWER
MOWING TIPS
WARNING
To avoid serious injury or death: · Clear the work area of objects which might be
picked up and thrown by the blades. · Keep bystanders and animals away from the
mowing area. · Be sure to disengage the PTO and sit on the
operator's seat before starting the engine.
1. When using the mower for the first time, choose a smooth level area and cut in straight and slightly overlapping strips.
2. The size and type of the area to be mowed will determine the proper mowing pattern. Take into account obstructions, such as trees, fences and buildings. To keep grass clippings off fences, sidewalks and so on, it is advisable to go over the outside of the area to be mowed several times in a clockwise direction. To mow the area remaining, work in a counterclockwise direction so that the clippings are dispersed onto the previously cut area.
3. Always keep the left side of the mower toward trees, posts or other obstacles on the first trip around the obstacle.
4. Most lawns must be mowed to keep the grass approximately 50 to 80 mm (2 to 3 in.) high. Best results are obtained by cutting often and not too short. For a healthy lawn, only 1/3 of the grass plant should be removed in 1 mowing. For example, tall grass with the height of 75 mm (3 in.) can be cut to a minimum of 50 mm (2 in.).
For extremely tall grass, set the cutting height at maximum cutting height for the first mowing, then reset to the desired height and mow again. Allow the grass to grow to 80 mm (3 in.), then cut off only the top 25 mm (1 in.). 5. Clippings may be left on the lawn unless they form clumps or rows.
(A) H/G>2/3 (G) Before mowing (H) Best cut grass height: 50 to 80 mm
6. For best appearance, grass must be cut in the afternoon or evening when it is free of moisture.
ADJUSTING THE CUTTING HEIGHT
DANGER
To avoid serious injury or death: · Do not engage the mower in the "TRANSPORT"
position. The cutting height control dial can adjust the cutting height from 25 mm (1 in.) to 122 mm (5 in.) with 6 mm (0.25 in.) step. 1. Before adjusting the cutting height, check that all
tire pressures are correct. If necessary, adjust to the correct tire pressure. 2. To set the cutting height, start engine and depress the hydraulic lift control pedal (UP) to raise mower deck to the top position. Adjust the cutting height control dial to desired height. Lower the mower deck by depressing the hydraulic lift control pedal (DOWN). Then the mower deck will be set to the cutting height.
44
ZD1211,ZD1221
ADJUSTING THE CUTTING HEIGHT
3. Use the higher settings for mowing in a rough area or when mowing tall grass. Lower settings must be used only for smooth lawns where short grass is desired.
RCK60P
OPERATING THE MOWER
(1) Cutting height control dial (2) Hydraulic lift control pedal
4. Lower the mower deck by depressing the hydraulic lift control pedal (DOWN). This lowers the mower deck from the "TRANSPORT" position to the "OPERATING" position.
5. Adjust the anti-scalp rollers' height as recommended below for normal operating condition. To minimize gouging and roller damage or wear, the anti-scalp rollers will maintain the ground clearance of 19 mm (0.75 in.).
IMPORTANT : · Never allow the rollers to contact the ground
continuously as premature roller wear may develop if set incorrectly. · Anti-scalp rollers must maintain a minimum clearance of 6 mm (0.24 in.) to the ground.
Bolt setting
(1) Anti-scalp roller (front, swivel type) (2) Anti-scalp roller (rear, bolt shift type)
RCK72P
(1) Anti-scalp roller (front, swivel type) (2) Anti-scalp roller (rear, bolt shift type)
RCK60R, RCK72R
ZD1211,ZD1221
(1) Anti-scalp roller (front, swivel type) (2) Anti-scalp roller (rear, bolt shift type) (3) Gear box
45
OPERATING THE MOWER
ADJUSTING THE CUTTING HEIGHT
1. Cutting height reference chart
· Set position for recommended ground clearance 19 mm (0.75 in.).
The number of collars under the boss
Position of bolts
Ground clearance mm (Ref.) Rear anti-scalp roller
Cutting height inch (mm)
(a) Plain washer (b) Boss (c) Collar
1.00" (25)
0
1.25" (32)
0
1
1.50" (38)
0
1.75" (44)
1
2.00" (50)
1
2
2.25" (58)
2
2.50" (64)
2
2.75" (70)
3
3.00" (76)
3
3.25" (83)
4
3.50" (89)
4
3.75" (95)
4
3
4.00" (102)
4
4.25" (108)
4
4.50" (114)
4
4.75" (121)
4
5.00" (127)
4
*1 For cutting heights above 3.0". The anti-scalp rollers will still be effective against scalping. *2 Use it if necessary. *3 For cutting heights above 3.5". The anti-scalp rollers will still be effective against scalping.
Pin shift type Bolt shift type
6 13 19 13 19 13 19 13 19 13 19*3 13*2 19*2 13*2 19*2 25*2 31*2
6 12 19 25 19 25 19 25 (31)*1 (38)*2 (44)*2 (51)*2 (57)*2 (63)*2 (70)*2 (76)*2 (83)*2
46
ZD1211,ZD1221
OPERATING THE MOWER
OPERATING THE MOWER
DANGER
To avoid serious injury or death: · Do not operate the mower without the discharge
deflector being in place properly.
WARNING
To avoid serious injury or death: · Clear the work area of objects which might be
picked up and thrown. · Do not direct the opening of the deflector at
bystanders, especially children, or animals. Discharged objects may cause injury. Plan your mowing carefully before starting the operation. · Keep bystanders and animals away from the mowing area. · Be sure to disengage the PTO clutch of the mower before attempting to start the engine.
1. PTO lever
To engage the PTO, move the PTO lever to the "ENGAGED" (ON) position.
(1) PTO lever (2) PTO clutch indicator
(A) "ENGAGED" (ON) (B) "DISENGAGED" (OFF)
1. If you get off the seat while the PTO is running, the engine will stop automatically. (Operator presence control)
2. Before starting the engine, pull the PTO lever to the "DISENGAGED" (OFF) position. If it is at the "ENGAGED" (ON) position, the engine will not start.
NOTE : · These safety features are built-in.
ZD1211,ZD1221
OPERATING THE MOWER
2. Starting the machine
WARNING
To avoid serious injury or death: · Engine components can get extremely hot from
operation. To prevent severe burns, do not touch these areas while the engine is running, or immediately after it is turned off. · Never operate the engine without heat shields or guards.
1. Sit on the operator's seat. Put on the seat belt. Make sure that the parking brake is engaged.
2. Start the engine. 3. Engage the PTO lever. 4. Disengage the parking brake. 5. Speed up the engine by moving the throttle lever
forward. 6. Push or pull the motion control levers to move
forward or rearward.
IMPORTANT : · Never attempt to move the machine with the
parking brake "ON".
NOTE : · Keep the engine running at full throttle for
best results. Control the travel speed with the motion control levers. · During heavy duty use, operate the machine at a slower ground speed or go over the area twice. · Keep the mower deck in the raised position when the mower is disengaged. · The mower will not cut cleanly if the ground speed is too high or if the blade speed drops due to an overload. · To prevent the engine from overheating, keep the radiator and radiator screen clean. Check the radiator and radiator screen as often as needed.
TREATMENT OF MOWER DECK INSIDE SKID
RCK60R, RCK72R
NOTE : · If you wish to avoid the streaking of grass
clippings which remain behind after the grass is cut, removing the skids will help prevent streaks of grass clippings from forming.
IMPORTANT : · Mowing without the skids on a surface that is
not properly flat may result in damage to the
47
OPERATING THE MOWER
mower deck. Use caution whenever mowing without the skids attached. · Mowing without the skids must be done only in locations that are completely flat.
1. Removing the skid
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Apply the parking brake. · Stop the engine and remove the key.
1. Dismount the mower deck. (See DISMOUNTING THE MOWER DECK on page 25.)
2. Stand up the mower deck. 3. Remove 4 bolts as shown in the figure and remove
2 skids. 4. Mount the mower deck.
(See MOUNTING THE MOWER DECK on page 24.)
TREATMENT OF MOWER DECK INSIDE SKID
Even when the rubber plates are installed, clean the areas around the hood and the transmission at a minimum once every 5 hours. (See Checking and cleaning radiator screen and hood screen on page 60.) · Be aware that when mowing with the rubber plates installed onto the rear of the mower deck, the cut grass will be left in even clearer lines than usual.
1. Rubber plates installation
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Apply the parking brake. · Stop the engine and remove the key.
1. Dismount the mower deck. (See DISMOUNTING THE MOWER DECK on page 25.)
2. As shown in the figure, use 3 short square neck bolts and 3 flange nuts to install the rubber plate 2 and upper plate 2 onto the rear center of the mower deck. Tighten the bolts securely.
3. As shown in the figure, use 6 short square neck bolts and 6 flange nuts to install the 2 rubber plates 1 and the 2 upper plates 1 onto both sides of the mower deck. Tighten the bolts securely.
(1) Skid (2) Bolt (3) Nut (4) Spring washer
(A) Mower deck
PREVENTING GRASS CLIPPINGS AND DUST FROM SCATTERING
RCK60R, RCK72R
NOTE : · Never remove the rubber plates off the mower
deck. Grass clippings will scatter and pile up to the hood and surrounding area during mowing. Continuous mowing under these conditions may result in overheating. This machine is equipped with an overheat warning buzzer as standard.
48
ZD1211,ZD1221
PREVENTING GRASS CLIPPINGS AND DUST FROM SCATTERING
4. Mount the mower deck. (See MOUNTING THE MOWER DECK on page 24.)
OPERATING THE MOWER
(1) Rubber plate 1 (both sides) (2) Rubber plate 2 (center) (3) Upper plate 1 (both sides) (4) Upper plate 2 (center) (5) Short square neck bolt (6) Flange nut
(A) Mower deck (B) Hole for installing upper
plate 1 (C) Hole for installing upper
plate 2
ZD1211,ZD1221
49
TIRES AND WHEELS
TIRES
TIRES AND WHEELS
TIRES
WARNING
To avoid serious injury or death: · Do not attempt to mount a tire. This should be
done by a qualified person with the proper equipment. · Always maintain the correct tire pressure. Do not inflate tires above the recommended pressure shown in the operator's manual. · The inflation pressure in the front tires rises quickly when using compressed air. · Never operate the machine with a loose rim, wheel, or axle. · Whenever bolts are loosened, retighten to the specified torque. · Check all the bolts frequently and keep them tightened.
1. Inflation pressure
Even though the inflation pressure is factory-set to the prescribed level, it naturally drops slowly in the course of time. Therefore, check it everyday and inflate as necessary.
Front Rear
Tire sizes
15 × 6.5 to 8, Smooth semipneumatic low profile tire
26 × 12.0 to 16, 4PR turf low profile tire
Recommended inflation pressure
83 kPa 0.84 kgf/cm2
12 psi
WHEELS
IMPORTANT : · When refitting a wheel, tighten the wheel bolts
and nuts to the following torques then recheck after traveling 200 m (200 yards), changing directions several times. Rear
(1) 108.5 to 130.2 Nm 80 to 96 lbfft 11.1 to 13.3 kgfm
When using wheels with beveled or tapered holes, use tapered wheel bolts and nuts.
1. Removing the front caster wheels
(1) Ground
50
(A) "INSUFFICIENT" (B) "NORMAL" (C) "EXCESSIVE"
(1) Lock nut (2) Wheel bolt (3) Yoke
1. Park the machine on a firm and level surface. 2. Stop the engine and apply parking brake. 3. Lift the front of machine with a safe lifting device.
ZD1211,ZD1221
WHEELS
4. Remove the lock nut and the wheel bolt. Then remove the nylon sleeve.
5. Remove the wheel from assembly yoke.
2. Installing the front caster wheels
(1) Lock nut (2) Wheel bolt (3) Yoke
1. Install the replacement wheel. 2. Install the nylon sleeve with the wheel bolt and the
lock nut. 3. Tighten the nut.
IMPORTANT : · Insert the wheel bolt from the outside of the
yoke. · Tighten the nut gradually until the wheel
bearing play is eliminated and the wheel turns freely by hand.
Tightening torque
4. Lower the machine.
20 to 25 Nm (14.8 to 18.4 lbfft)
(2 to 2.5 kgfm)
TIRES AND WHEELS
ZD1211,ZD1221
51
PERIODIC SERVICE
OPENING THE HOOD, FRONT COVER AND STEP
PERIODIC SERVICE
OPENING THE HOOD, FRONT COVER AND STEP
WARNING
To avoid serious injury or death from contact with moving parts: · Never open the hood while the engine is
running. · Never open the step while the engine is
running. · Do not touch muffler or exhaust pipes while
they are hot; severe burns could result.
1. Hood
1. To open the hood, pull the latch lever frontward. Lift the grip.
2. Front cover
1. To open the front cover, pull the bottom edge of the front cover.
(1) Front cover
3. Step
1. To open the step, pull the grip.
(1) Latch lever (2) Hood (3) Grip
(A) "RELEASE"
(1) Hood
52
(1) Step (2) Grip
(A) "PULL"
RAISING AND LOWERING THE OPERATOR'S SEAT
Raising
WARNING
To avoid serious injury or death: · Fully raise the operator's seat.
(To the locked position) Do not keep the seat halfway.
ZD1211,ZD1221
TILTING UP THE MACHINE
1. Seat must be all the way back before raising. 2. Pull the latch lever on the seat panel frontward.
PERIODIC SERVICE
· Be sure to chock the wheels. · Lock the raised axle with an L-pin and snap pin
before working under the machine.
1. Lower the forward right anti-scalp roller to the lowest position.
2. Fully open the front cover. 3. Unfold the tilt lever. 4. Keep the front cover opened. 5. Remove 2 L-pins. 6. Insert L-pins to both sides of the front axle to
position the front wheels. As shown below.
(1) Latch lever
(A) "PULL"
3. Raise the operator's seat to the "LOCK" position.
(1) Operator's seat (2) Seat support
Lowering
WARNING
To avoid serious injury or death: · Do not drop the seat to close it. · Watch your hands. Do not place your hands
under the seat, when closing.
1. Pull up the seat support rod and release the "LOCK".
2. Lower the seat slowly to lock. 3. Slide the seat to proper position.
TILTING UP THE MACHINE
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Set the mower deck height to 5 inch. · Stop the engine, remove the key and engage the
parking brake.
(1) Front cover (2) Tilt lever (3) L-pin
7. Turn the tilt lever clockwise to raise the axle to the stop.
8. Remove the L-pin of the raised wheel and insert it to the outside hole of the frame.
ZD1211,ZD1221
53
PERIODIC SERVICE 9. Insert the snap pin.
OPENING THE LEVER GUIDE
How to install the lever guide. 1. Install the lever guide. 2. Tighten the screw.
IMPORTANT : · If the lever guide is out of alignment with the
motion control lever, move the lever guide to align it with the motion control lever.
(1) L-pin (2) Snap pin
Return to the normal position. Reverse to the above procedure.
IMPORTANT : · To ensure equal oscillation of the axle and
prevent loss of parts. Be sure the clevis pin returns to the center position of the front axle arm slot. And be sure to install removed parts.
(1) Lever guide (2) Screw (3) Screw
LIFT-UP POINT
WARNING
To avoid serious injury, death or machine damage: · Do not work under the machine unless it is
secured by safe stands or suitable blocking.
IMPORTANT : · When you lift the unit, do not lift the bypass
pipe between the fuel tanks LH and RH.
(1) Clevis pin (2) Slot (3) Tilt lever
OPENING THE LEVER GUIDE
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Stop the engine, remove the key and apply the
parking brake.
1. Remove the screw of the lever guide. 2. Pull up the lever guide.
(1) Bypass pipe
54
ZD1211,ZD1221
LIFT-UP POINT
1. Front side:
1. Lift the front axle with nylon slings. Or jack up the front axle. Never lift up the mower deck. IMPORTANT : · When you use nylon slings or a jack, make sure to block rear wheels with chocks.
(1) Nylon sling (2) Front axle (3) Chock
2. Rear side:
1. Lift the rear frame with a nylon sling. Or jack up the bottom plate. Never lift up the engine oil pan or battery support. IMPORTANT : · When you use a nylon sling or a jack, make sure to block front wheels with chocks.
(1) Nylon sling (2) Jack (3) Bottom plate
PERIODIC SERVICE
DAILY CHECK
To prevent trouble from occurring, it is important to know the condition of the machine. Check it before starting.
WARNING
To avoid serious injury or death: · Be sure to check and service the machine on a
level surface with the engine shut off, the key removed and the parking brake securely set or the rear wheels chocked.
Walking around the machine
Mower
No.
Check item
Ref. page
1
Tire pressure, wear and damage
50, 61
2 Oil and water leak
3 Fuel level
59
4 Engine oil level
59
5 Transmission fluid level
60
6
Coolant level in the radiator and the recovery tank
60
Damage of machine body,
7 tightness of all bolts and
nuts
8 Machine body cleaning
9 Radiator screen
60
10 Hood screen
60
11 Brake play
71
12 Oiling
69
13 Air cleaner primary element
69
14
Clean around the mower belt.
Clean the hot surface.
15 For example, exhaust mani-
fold or muffler.
1 Oil leak
67
2
Make sure blade bolts are tight.
84
3
Belt and blades wear or damage
84
4 Check all hardware.
5
Make sure all pins are properly in place.
24
6 Mower deck cleaning
84 (Continued)
ZD1211,ZD1221
55
PERIODIC SERVICE
Mower
While sitting in the operator's seat Turning the key switch "ON" Starting the engine
Others
No.
Check item
Greasing
· Universal joint
· 3 spindle shafts
7
· Belt tension pulley · Belt tension pivot
· Front anti-scalp roller
pivot boss
· Front anti-scalp roller
1 Motion control lever
2 Parking brake
1
Performance of the Easy checkerTM light
1 Color of the exhaust fumes
Engine start system/OPC system. If either of these do 2 not operate properly, contact your local KUBOTA Dealer immediately.
3
Check for abnormal noise and vibration.
Check the areas where pre1 vious trouble was experi-
enced.
Ref. page
62
87 71 29 29 66, 66
29
56
ZD1211,ZD1221
LUBRICANTS, FUEL AND COOLANT
PERIODIC SERVICE
LUBRICANTS, FUEL AND COOLANT
Place
ZD1211-AU
Capacities ZD1221R-AU ZD1221L-AU ZD1221RL-AU
Lubricants
· No.2-D diesel fuel
Fuel
49 L (12.9 U.S.gals.)
· No.1-D diesel fuel if temperature is below -10
(14 )
Coolant Recovery tank
3.5 L (3.70 U.S.qts.) 0.25 L (0.26 U.S.qts.)
Fresh clean water with anti-freeze
Engine crankcase
3.9 L (4.1 U.S.qts.) *1
5.7 L (6.0 U.S.qts.) *1
· Engine oil: API service Classification CF, CF-4, CG-4, CH-4 or CI-4
Above 25 (77 )...SAE30, SAE10W-30 or 15W-40 0 to 25 (32 to 77 ).........SAE20, SAE10W-30 or 15W-40 Below 0 (32 )........SAE10W, SAE10W-30 or 15W-40
Transmission case with filter and hose Rear axle gear case (RH and LH)
12.1 L (12.8 U.S.qts.)
· KUBOTA SUPER UDT-2 fluid *2
Mower gear box
0.4 L (0.42 U.S.qts.) *3
0.4 L (0.42 U.S.qts.) *3
Gasoline engine oil: API Service Category: SH or higher, SAE 10W-30
Gear oil: API Service Category: more than GL-3, SAE 90
Greasing
No. of greasing points
Capacity
Type of grease
King pin Center pin Front wheel
2
Until grease overflows
· Multipurpose EP2
1
Grease (NLGI Grade No.2)
2
Rear mower link bushing
4
Front mower link bushing
2
Tilt lever
1
Universal joint
3
Seat adjuster
2
Parking brake lock pedal
1
Cable (throttle)
2
Moderate amount
· Oil
MOWER
Universal joint 3 spindle shafts Belt tension pulley
3
Until grease overflows
· Multipurpose EP2
3
Grease (NLGI Grade No.2)
1
Belt tension pivot
1
Front anti scalp roller pivot boss
2
Front anti scalp roller
2
*1 Oil amount when the oil level is at the upper level of the oil level gauge.
*2 The product name of KUBOTA genuine UDT fluid may be different from that in the operator's manual depending on countries or territories. Consult your local KUBOTA Dealer for further detail.
*3 Check a label on the mower gear box to know which oil you must use in it. (See Checking gear box oil level on page 67 or Changing gear box oil on page 74.)
IMPORTANT : · To prevent serious damage to gears, bearings and oil seals, do not mix different kinds of oil.
ZD1211,ZD1221
57
PERIODIC SERVICE
LUBRICANTS, FUEL AND COOLANT
· To prevent serious damage to hydraulic systems, use only KUBOTA genuine fluid or its equivalent.
Fuel: · Cetane number of 45 is minimum. Cetane number greater than 50 is preferred, especially for temperatures below
-20 (-4 ) or elevations above 1500 m (5000 ft). · Diesel fuels specified to EN 590 or ASTM D975 are recommended. · No.2-D is a distillate fuel of lower volatility for engines in industrial and heavy mobile service (SAE J313 JUN87).
Engine oil: · Oil used in the engine should have an American Petroleum Institute (API) service classification and proper SAE
Engine oil according to the ambient temperatures as shown in the previous table. · Refer to the following table for the suitable API classification engine oil according to the engine type (with internal
EGR, external EGR or non-EGR) and the fuel.
Fuel used
Engine oil classification (API classification)
Oil class of engines except external EGR *
Oil class of engines with external EGR *
Ultra low sulfur fuel <0.0015% (15 ppm)
CF, CF-4, CG-4, CH-4 or CI-4
CF or CI-4 (Class CF-4, CG-4 and CH-4 engine oils cannot be used on EGR type engines)
* EGR: Exhaust gas re-circulation
· The CJ-4 engine oil is intended for diesel particulate filter (DPF) type engines, and cannot be used on this machine.
Model
except external EGR ZD1211-AU, ZD1221R-AU, ZD1221L-AU, ZD1221RL-AU
with external EGR
Transmission oil: · KUBOTA Super UDT-2: For an enhanced ownership experience, we recommend Super UDT-2 to be used
instead of standard hydraulic/transmission fluid. Super UDT-2 is a proprietary KUBOTA formulation that deliveries superior performance and protection in all operating conditions. Regular UDT is also permitted for use in this machine. · Indicated capacities of water and oil are manufacturer's estimate.
58
ZD1211,ZD1221
LUBRICANTS, FUEL AND COOLANT
1. Checking the engine oil level
WARNING
To avoid serious injury or death: · Always stop the engine and remove the key
before checking the oil.
1. Check the engine oil before starting and 5 minutes or more after the engine has stopped.
2. Wipe the dipstick area clean. 3. To check the oil level, remove the dipstick, wipe it
clean, replace it, and draw it out again. Check to see that the oil level is between the 2 notches. 4. Add new oil to the prescribed level at the oil port if necessary.
(1) Engine oil port (2) Oil level dipstick
(A) "UPPER LEVEL" (B) "LOWER LEVEL"
IMPORTANT : · When using a different brand or viscosity oil
from the previous one, remove all of the old oil and the oil filter. Never mix 2 different types of oil. · Use the proper SAE engine oil according to the ambient temperature. (See LUBRICANTS, FUEL AND COOLANT on page 57.)
2. Checking the amount of fuel and refueling
WARNING
To avoid serious injury or death: · Handle the fuel carefully. If the engine is
running, do not fill the fuel tank. If the engine is hot, let the engine cool down several minutes before adding fuel. · Do not smoke while filling the fuel tank or servicing the fuel system. Fill the fuel tank only to the bottom of the filler neck.
PERIODIC SERVICE
Check the fuel level. Take care that the fuel tank does not become empty.
Fuel tank capacity
49 L (12.9 U.S.gals.)
IMPORTANT : · Use diesel fuel only
1. Use No.2 diesel fuel. 2. Use No.1 diesel fuel if the temperature is below
-10 (14 ). 3. Always use a strainer when refueling to prevent fuel
injection pump contamination.
IMPORTANT : · Do not permit dirt or trash or water to get into
the fuel system. · Be careful not to empty the fuel tank otherwise
air will enter the fuel system, necessitating bleeding before next engine start. · Be careful not to spill fuel during refueling. If a spill should occur, wipe it off at once, or it may cause a fire. · To prevent condensation (water accumulation) in the fuel tank, fill the tank before parking overnight. · When refueling, basically fill both fuel tanks full. · In the case you have a small amount of fuel, if fuel is still in the fuel tank RH, fill the fuel tank LH first. · The fuel gauge shows the fuel level of fuel tank RH. When the fuel gauge flashes, fill fuel as soon as possible. · When the fuel gauge flashes, do not fill fuel on a slope. Fuel can absorb air and the engine can stall. · If the engine stalled with some remaining in the fuel tank RH, close the fuel valve of fuel tank LH and you can operate.
ZD1211,ZD1221
59
PERIODIC SERVICE
3. Checking transmission fluid level
WARNING
To avoid serious injury or death: · Allow the transmission case to cool down
sufficiently when cleaning its surface.
1. Park the machine on a flat surface, lower the implement to the ground and shut off the engine and remove the key. Allow the machine to idle for 1 to 3 minutes, and then check fluid.
2. Raise and lock the operator's seat. 3. To check the oil level, draw out the dipstick, wipe it
clean, replace it, and draw it out again. Check to see that the oil level lies between the 2 notches. If the level is too low, add the new oil to the prescribed level at the oil inlet. (See LUBRICANTS, FUEL AND COOLANT on page 57.)
LUBRICANTS, FUEL AND COOLANT
3. When the coolant level drops due to evaporation, add water only up to just below the fill port of the radiator and the full level of the recovery tank. In case of leakage, add antifreeze and water in the specified mixing ratio up to the full level. (See Flushing cooling system and changing coolant on page 80.)
4. Check radiator hoses for wear, cracks, bubbles or leaks. If any such are found, repair immediately. (See Replacing radiator hose on page 83.)
5. Set the direction of the recovery tank cap outlet at left front (45°). Set the bottom tip of the hose between front side of radiator hose and inner side of the frame. (This will prevent the hose from pulling down and open the recovery tank cap.)
(1) Oil level dipstick (2) Oil plug and breather cup
(A) Oil level is acceptable within this range.
NOTE : · If oil level is low, do not run engine.
4. Checking coolant level
WARNING
To avoid serious injury or death: · Do not remove the radiator cap when the engine
is hot. Then loosen cap slightly to the stop to relieve any excess pressure before removing cap completely.
Check the coolant level daily for both the radiator and the recovery tank before starting engine.
1. Remove the radiator cap and check to see that the coolant level is just below the fill port.
2. Check to see that the coolant level is between the [FULL] and [LOW] marks of recovery tank.
60
(1) Recovery tank (2) Radiator cap (3) Drain plug (4) Recovery tank cap (5) Radiator hose (6) Frame
(A) [FULL] (B) [LOW] (C) 45°
IMPORTANT : · Start engine with the hood closed. · If the radiator cap has to be removed, follow
the caution above and securely retighten the cap. · Use clean, distilled water and antifreeze to fill the radiator and the recovery tank. · If water should leak, consult your local KUBOTA Dealer.
5. Checking and cleaning radiator screen and hood screen
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before checking and cleaning. · Engine components can get extremely hot from
operation. To prevent severe burns, do not touch these areas while the engine is running, or immediately after it is turned off.
ZD1211,ZD1221
LUBRICANTS, FUEL AND COOLANT
· Never operate the engine without heat shields or guards.
IMPORTANT : · The air intake area must be clear of debris to
prevent the engine from overheating.
Daily or after every 5 hours of operation, check to be sure the radiator screen and the hood screen are clean. Dirt or chaff on the radiator screen, hood screen or radiator decrease cooling performance.
1. Remove the radiator screen and the hood screen, and remove all foreign material.
2. Remove the dust from between the fins and the tube.
3. Tighten the fan drive belt as necessary. Details regarding this procedure can be found in a different section. (See Adjusting fan drive belt tension on page 71.)
4. If the scale forms in the tube, clean with the scale inhibitor or its equivalent.
5. Each time the hood screen is covered with grass during operation, rub it off the screen with the hand. Check the radiator screen from time to time if grass accumulates.
6. If the dust or chaff has accumulated inside of the hood, remove the radiator screen and clean inside completely. After cleaning, replace the radiator screens properly.
7. Check the radiator for dust or chaff build up. If the dust or chaff has accumulated in the radiator, clear with air pressure (not to exceed 30 psi) or a hose.
PERIODIC SERVICE
(1) Hood screen
6. Checking the tire pressure
WARNING
To avoid serious injury or death: · Do not attempt to mount a tire on a rim. This
should be done by a qualified person with the proper equipment. · Always maintain the correct tire pressure. The inflation pressure in the front tires rises quickly when using compressed air. Do not inflate the tires above the recommended pressure shown in the operator's manual.
IMPORTANT : · Do not use tires larger than specified.
6.1 Inflation pressure
Even though the inflation pressure is factory-set to the prescribed level, it naturally drops slowly in the course of time. Therefore, check it everyday and inflate as necessary.
Tire sizes
Front
15 × 6.5 to 8, Smooth semipneumatic low profile tire
Rear
26 × 12.0 to 16, 4PR turf low profile tire
Recommended inflation pressure
83 kPa 0.84 kgf/cm2
12 psi
(1) Radiator screen
ZD1211,ZD1221
61
PERIODIC SERVICE
LUBRICANTS, FUEL AND COOLANT RCK60R, RCK72R
(1) Ground
(A) "INSUFFICIENT" (B) "NORMAL" (C) "EXCESSIVE"
7. Lubricating all grease fittings
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before greasing.
Grease the following location.
(1) Spindle shaft (2) Belt tension pulley (3) Belt tension pivot (4) Front anti-scalp roller pivot boss (5) Front anti-scalp roller
(1) Mower universal joint
RCK60P, RCK72P
62
ZD1211,ZD1221
SERVICE INTERVALS
MAINTENANCE
MAINTENANCE
SERVICE INTERVALS
The following servicing tasks should be carried out on the machine at the stated running-time intervals.
No. Items
Indication hour meter (Hr)
Ref.
50 100 150 200 250 300 350 400 450 500 550 600 After since page
1 Engine start system
Check
every 50Hr 66
2 OPC system
Check
every 50Hr 66
3 Mower gear box oil
Check Change
every 50Hr 67
every 150Hr 74
4
Except mower and mower link bushings
Grease
every 50Hr 68
5 Throttle cable
Oil
every 50Hr 69
6 Mower link bushings, pivot Grease
every 100Hr 72
Clean
every 100Hr 69 *1
Air cleaner primary element Replace
7
every
1000Hr or 1 79 *2
year
@
Secondary element
Replace
every 1000Hr or 1 79 *2
year
8 Fuel filter element
Check
every 100Hr 70
Replace
every 400Hr 79 *3
@
9 Fan belt
Adjust
every 100Hr 71
10 Parking brake
Adjust
every 100Hr 71 *4
11 Battery condition
Check
every 100Hr 73 *5
12 Engine oil
Change
every 200Hr 76 *6
13 Engine oil filter
Replace
every 200Hr 76 *6
14 Transmission oil filter (HST) Replace
every 200Hr 76 *6
15 Front axle pivot
Adjust
every 200Hr 77 *7
Transmission fluid and rear 16 axle gear case (RH and LH) Change
fluid
every 400Hr 77
17 Hydraulic oil filter
Replace
every 400Hr 78
18 Engine valve clearance
Adjust
every 800Hr 79 *3
19
Fuel injection nozzle injection pressure
Check
every 1500Hr
80 *3
@
20 Radiator
Clean
every 2000Hr or 2 80 *8
years
21 Coolant
Change
every 2000Hr or 2 80 *8
years
22 Injection pump
Check
every 3000Hr
82 *3
@
(Continued)
ZD1211,ZD1221
63
MAINTENANCE
No. Items
Indication hour meter (Hr)
Ref.
50 100 150 200 250 300 350 400 450 500 550 600 After since page
23 Fuel line
Check Replace
*4
every 1 year 82 *9
@
every 4 years
83 *3
24 Radiator hose and clamp
Check Replace
*4
every 1 year 82 *9
every 4 years
83 *4
25 Hydraulic hose
Check Replace
*4
every 1 year 82 *9
every 4 years
83 *3
26 Intake air line
Check Replace
*4
every 1 year 83 *9
@
every 4 years
83 *4
27 Engine breather hose
Check Replace
*3
every 1 year 83 *9
every 4 years
83 *3
28 Mower gear box oil seal
Check Replace
*3
every 1 year 83 *9
every 4 years
83 *3
29 Fuel system
Bleed
84
30 Fuse 31 Blade 32 Mower belt
Replace Replace Replace
Service as 84 required 84
86
*1 Air cleaner must be cleaned more often in dusty conditions than in normal conditions. *2 Every 1000 hours or every 1 year whichever comes faster. *3 Consult your local KUBOTA Dealer for this service. *4 If you feel you are unable to make this service correctly and safely, contact your local KUBOTA Dealer. *5 When the battery is used for less than 100 hours per year, check the battery condition by reading the indicator annually. *6 The initial 50 hours should not be a replacement (change) cycle. *7 The initial 100 hours should not be an adjustment cycle. *8 Every 2000 hours or every 2 years whichever comes faster. *9 Replace if any deterioration (crack, hardening, scar, or deformation) or damage occurred.
IMPORTANT : · The jobs indicated by must be done initially.
· The items listed above (@ marked) are registered as emission related critical parts by KUBOTA in the U.S.EPA non-road emission regulation. As the engine owner, you are responsible for the performance of the required maintenance on the engine according to the above instruction. Please see the Warranty Statement in detail.
· When using biodiesel, be sure to check the maintenance requirements of biodiesel fuel as the intervals will change in some of the items.
64
ZD1211,ZD1221
PERIODIC SERVICE CHART LABEL
MAINTENANCE
PERIODIC SERVICE CHART LABEL
This label is for your quick reference. The label shows the recommended services from daily to every 4 years, including fluid capacities, tire pressure and so on. For detail, refer to operator's manual.
ZD1211,ZD1221
65
MAINTENANCE
EVERY 50 HOURS
1. Checking the engine start system
The engine start system in your machine is designed to protect you while operating. Check the engine start system periodically (daily is best) to test the function of the engine start system before operation.
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Do not allow anyone near the machine while
testing. · If the machine does not pass one of the
following tests, do not operate the machine. See your local KUBOTA Dealer. · Sit on the operator's seat for all tests except for test 1.
IMPORTANT : · Test the following before operating the
machine:
(1) Parking brake lock pedal (2) Motion control lever (3) Key switch (4) PTO lever
Test 1 (operator not on the seat) 1. Securely set the parking brake. 2. Set the PTO lever to the "DISENGAGE" (OFF)
position. 3. Set the motion control levers to the "NEUTRAL
LOCK" position. 4. Turn the key switch to the "START" position. 5. The engine must not crank. Test 2 (operator on the seat) 1. Do not set the parking brake (release it from test 1). 2. Set the PTO lever to the "DISENGAGE" (OFF)
position. 3. Set the motion control levers to the "NEUTRAL
LOCK" position. 4. Turn the key switch to the "START" position. 5. The engine must not crank.
EVERY 50 HOURS
Test 3 (operator on the seat) 1. Securely set the parking brake. 2. Shift the PTO lever to the "DISENGAGE" (OFF)
position. 3. Grasp the motion control levers and move them
inward from the "NEUTRAL LOCK" position to the "NEUTRAL" position and then release the levers. 4. Turn the key switch to the "START" position. 5. The engine must not crank.
Test 4 (operator on the seat) 1. Securely set the parking brake. 2. Shift the PTO lever to the "ENGAGE" (ON) position. 3. Set the motion control levers to the "NEUTRAL
LOCK" position. 4. Turn the key switch to the "START" position. 5. The engine must not crank.
NOTE : · If the engine cranks in tests 1 through 4,
consult your local KUBOTA Dealer to have the unit checked before operation.
Test 5 (operator on the seat) 1. Start the engine. 2. Keep the parking brake securely set. 3. Shift the PTO lever to the "DISENGAGE" (OFF)
position. 4. Grasp the motion control levers and move them
inward from the "NEUTRAL LOCK" position to the "NEUTRAL" position and then release the levers. 5. The engine must shut off after a short time delay.
IMPORTANT : · For this test only, the engine will shut off in a
few seconds.
NOTE : · If the engine keeps running in test 5, consult
your local KUBOTA Dealer to have the unit checked before operation.
2. Checking the OPC system
The operator presence control (OPC) system in your machine is designed to protect you while operating. Check the OPC system periodically (daily is best) to test function of the OPC system before operation.
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Do not allow anyone near the machine while
testing. · If the machine does not pass one of the
following tests, do not operate the machine. See your local KUBOTA Dealer.
66
ZD1211,ZD1221
EVERY 50 HOURS
MAINTENANCE
(See LUBRICANTS, FUEL AND COOLANT on page 57.) 3. For (RCK60P, RCK72P), use gasoline engine oil: 0.4 L (0.42 U.S.qts.). (API Service Category: SH or higher, SAE 10W-30)
RCK60P, RCK72P
(1) Parking brake lock pedal (2) Motion control lever (3) Key switch (4) PTO lever
Test 1 (operator on the seat) 1. Start the engine. 2. Do not set the parking brake. 3. Shift the PTO lever to the "DISENGAGE" (OFF)
position. 4. Grasp the motion control levers and move them
inward from the "NEUTRAL LOCK" position to the "NEUTRAL" position and then release the levers. 5. Stand up. Do not get off the machine. 6. The engine must shut off.
Test 2 (operator on the seat) 1. Start the engine. 2. Do not set the parking brake. 3. Shift the PTO lever to the "ENGAGE" (ON) position. 4. Stand up. Do not get off the machine. 5. The engine must shut off.
NOTE : · If the engine keeps running in tests 1 through 2,
consult your local KUBOTA Dealer to have the unit checked before operation.
3. Checking gear box oil level
WARNING
To avoid serious injury or death: · Always stop the engine and remove the key
before checking oil.
1. Park the machine on a flat surface and lower the mower to the ground.
2. To check the oil level, loosen the oil inlet plug with gauge, wipe it clean, reinstall it and loosen it again. (See the following figures.) Check to see if the oil level is between the notch and tip. If the level is too low, add new oil to the prescribed level at the oil inlet.
(1) Drain plug (2) Oil inlet plug with gauge (3) Seal washer (4) Gear box (5) Octagonal label
(A) Oil level is acceptable within this range.
(B) Oil level
ZD1211,ZD1221
67
MAINTENANCE
4. For (RCK60R, RCK72R), check the label on the gear box before adding new oil.
Label Oil type Capacity
SAE API Service Cat-
egory
(6)
(7)
Gear oil
Gasoline engine oil
0.4 L (0.42 U.S.qts.)
SAE 90
SAE 10W-30
More than GL-3
SH or higher
IMPORTANT : · To prevent serious damage to gears,
bearings and oil seals, do not mix different kinds of oil.
RCK60R, RCK72R
4. Greasing
EVERY 50 HOURS
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before greasing.
Grease the following locations.
IMPORTANT : · Put grease into front wheel until grease
overflows from both ends of the front wheel.
(1) King pin (LH, RH) (2) Center pin (3) Front wheel (LH, RH)
(1) Drain plug (2) Check plug (3) Oil inlet plug (4) Gear box (5) Check plug port (6) Rectangular label (7) Octagonal label
(A) Oil level is acceptable within this range.
(B) Oil level
5. After checking, reinstall the oil inlet plug with gauge securely.
(1) Tilt lever
68
ZD1211,ZD1221
EVERY 50 HOURS
MAINTENANCE
(1) Seat adjuster rails
5. Oiling
(1) Machine universal joint (2) Engine (3) Radiator
(1) Parking brake lock pedal ZD1211,ZD1221
(1) Throttle cable (oil)
EVERY 100 HOURS
1. Cleaning air cleaner primary element
WARNING
To avoid serious injury or death: · Be sure to stop engine and remove the key
before cleaning air cleaner element. 1. Remove the air cleaner cover and primary element. 2. Clean the primary element:
· When dry dust adheres to the element, blow compressed air from the inside, turning the element. Pressure of compressed air must be under 205 kPa (2.1 kgf/cm2, 30 psi).
69
MAINTENANCE
3. Replace air cleaner primary element: Once yearly or every 1000 hours whichever comes first.
NOTE : · Check to see if the evacuator valve is
blocked with dust.
EVERY 100 HOURS
1. Open the step and hood. 2. Close the fuel valves below the fuel tanks LH and
RH.
(1) Secondary element (2) Primary element (3) Cover (4) Evacuator valve
NOTE : · The air cleaner uses a dry element, never
apply oil. · Do not run the engine with filter element
removed. · Operating in dusty conditions requires more
frequent maintenance. · Align the arrow marks when reinstalling the
air cleaner cover. · Do not touch the secondary element except
in cases where replacing is required. (See Replacing air cleaner primary element and secondary element on page 79.)
Evacuator valve Open the evacuator valve once a week under ordinary conditions - or daily when used in a dusty place - to get rid of large particles of dust and dirt.
2. Checking the fuel filter
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
when attempting to make the following checks and changes. · Never fail to check the fuel lines periodically. The fuel lines are subject to wear and aging. Fuel may leak out onto the running engine, causing a fire.
(1) Fuel valve
3. The fuel line is made of rubber and ages regardless of service period.
4. If the fuel line and clamps are found damaged or deteriorated, replace them.
70
ZD1211,ZD1221
EVERY 100 HOURS
5. Check fuel filter, if it is clogged by debris or contaminated with water, replace it.
IMPORTANT : · When the fuel line is disconnected for
maintenance or repairs, close both ends of the fuel line with a piece of clean cloth or paper to prevent dust and dirt from entering. · Particular care must be taken not to allow dust and dirt to enter into the fuel pump. Entrance of even a small amount dust or dirt cause premature wear and malfunction of the fuel pump and injector components.
MAINTENANCE
If the fan drive belt becomes loose, the engine may overheat.
1. To adjust, loosen bolts and move the alternator outward to tighten the belt. After adjustment, securely tighten the bolts. Moderate belt tension: The belt must deflect approx. 10 mm (0.4 in.) when the center of the belt is depressed with finger pressure of 98 N (10 kgf, 22 lbs.).
(1) Pipe clamps (2) Fuel line (3) Fuel filter (4) Seat
(1) Pipe clamps (2) Fuel line (3) Fuel filter
3. Adjusting fan drive belt tension
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before checking belt tension.
(1) Tension bolt (2) Alternator (3) Adjusting bolt
(A) 10 mm (0.4 in.)
4. Adjusting parking brake
If you feel you are unable to make the following service correctly and safely, contact your local KUBOTA Dealer.
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Stop the engine and chock the wheels before
checking or adjusting.
IMPORTANT : · Wrong adjustment may cause machine damage.
4.1 Check brake spring
1. Place the motion control levers to the "NEUTRAL LOCK" position.
2. Be sure to chock the rear wheels. 3. Apply the parking brake to the lock position. 4. Check the length of the brake springs on both
sides.
(A): Proper brake spring length with the brake applied to the lock position
115 to 117 mm (4.53 to 4.61 in.)
ZD1211,ZD1221
71
MAINTENANCE When the parking brake is locked.
(1) Brake rod (2) Brake spring (3) Lock nut
(A) "Parking brake spring length"
5. If the length of the brake spring is not correct, adjust it. (See "Adjustment of brake spring length" as follows.)
6. Release the parking brake completely. 7. Hold the brake rod lightly. 8. Check the brake spring play.
(B): Proper brake spring play
Reference:
0.5 to 1.0 mm (0.02 to 0.04 in.)
When the parking brake is released.
EVERY 100 HOURS
If there is no play, adjust the brake spring play again. (See "Adjustment of brake spring play" as follows.) 7. Adjust the other side spring to the same dimension.
Adjustment of brake spring play 1. Place the motion control lever to the "NEUTRAL
LOCK" position. 2. Be sure to chock the rear wheels. 3. Release the parking brake completely. 4. Loosen the lock nuts. 5. Hold the brake rod by hand. 6. Tighten the nut to the correct space between the
end of the spring and the nut. 7. Lock the nuts. 8. Adjust the other side spring to the same dimension.
4.2 Check on the slope
1. Place the machine on a 17° ramp. 2. Apply the parking brake. 3. Place the motion control levers in "NEUTRAL
LOCK" position and shut off the engine. 4. Check that the machine does not move.
(1) Brake rod (2) Brake spring (3) Lock nut
(A) "Hold the brake rod" (B) "Parking brake spring play"
9. If the brake spring play is not correct, adjust it. (See "Adjustment of brake spring play" as follows.)
Adjustment of brake spring length 1. Place the motion control lever to the "NEUTRAL
LOCK" position. 2. Apply the parking brake to the lock position. 3. Loosen the lock nuts. 4. Adjust the spring length to the recommendation. 5. Lock the nuts. 6. Check the brake spring play to the
recommendation.
(A) 17° ramp
NOTE : · For parking brake test purposes, only use 17°
ramp.
5. Greasing
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before greasing.
Grease the following location. If you operated the machine in extremely wet and muddy conditions, lubricate grease fittings more often.
72
ZD1211,ZD1221
EVERY 100 HOURS
(1) Front mower link bushing (2 places) (2) Rear mower link bushing (4 places) (3) Front mower link (4) Rear mower link
6. Checking the battery condition
DANGER
To avoid the possibility of battery explosion: For the refillable type battery, follow these instructions: · Do not use or charge the refillable type battery
if the fluid level is below the [LOWER] (lower limit level) mark. Otherwise, the battery component parts may prematurely deteriorate, which may shorten the battery's service life or cause an explosion. · Check the fluid level regularly and add distilled water as required so that the fluid level is between the [UPPER] and [LOWER] levels. · When the battery is being activated, hydrogen and oxygen gases in the battery are extremely explosive. Keep open sparks and flames away from the battery at all times, especially when charging the battery.
WARNING
To avoid serious injury or death: · Batteries, battery posts, terminals and related
accessories contain lead, lead compounds and other chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. · Never remove the battery cap while the engine is running. · Keep electrolyte away from eyes, hands and clothes. If you are spattered with electrolyte, wash it away completely with water immediately and get medical attention. · Wear eye protection and rubber gloves when working around the battery.
MAINTENANCE
NOTE : · The factory-installed battery is a non-refillable
type. If the battery is weak, charge the battery or replace it with a new one.
IMPORTANT : · Mishandling the battery shortens the service life
and adds to maintenance costs. The original battery is maintenance free, but needs some servicing. If the battery is weak, the engine will be difficult to start and the lights will be dim. It is important to check the battery periodically. · When exchanging an old battery with a new one, use a battery of equal specifications (as described in the following table).
Battery type
51R
Volts (V) 12
Reserve capacity
(min)
80
Cold cranking
amps
430
Normal charging rate (A)
4.5
Regarding non-accessible maintenance-free type batteries: Maintenance-free, non-accessible batteries are designed to eliminate the need to add water. Yet the volume of electrolyte above the plates may eventually become depleted due to abnormal conditions such as high heat or improper regulator settings. Use LCD monitor or a voltmeter to check the state of charge. (See the following reference chart to determine if charging is necessary.)
Battery voltage 12.6 12.4 12.2 12.0 11.8
Reference state of charge 100% (full charge) 75% 50% 25% 0%
6.1 How to read indicator
Check the battery condition by reading the indicator.
Green Black White
Specific gravity of electrolyte and quality of electrolyte are both in good condition.
Battery needs charging.
Battery needs replacing.
ZD1211,ZD1221
73
MAINTENANCE
6.2 Charging the battery
DANGER
To avoid serious injury or death: · When the battery is being activated, hydrogen
and oxygen gases in the battery are extremely explosive. Keep open sparks and flames away from the battery at all times, especially when charging the battery.
WARNING
To avoid serious injury or death: · When disconnecting the cable from the battery,
start with the negative terminal first. When connecting the cable to the battery, start with the positive terminal first. · Never check the battery charge by placing a metal object across the posts. Use a voltmeter or hydrometer.
EVERY 100 HOURS
the proper level and store in a dry place out of direct sunlight. 2. The battery self-discharges while it is stored. Recharge it once every 3 months in hot seasons and once every 6 months in cold seasons. When connecting the cables to the battery, start with the positive terminal first. The orientation of the negative cable is parallel to the long side (A) of the base battery.
EVERY 150 HOURS
1. Changing gear box oil
WARNING
To avoid serious injury or death: · Always stop the engine and remove the key
before checking oil.
1. To drain the used oil, remove the drain plug and filler plug at the gear box and drain the oil completely into the oil pan.
2. After draining, reinstall the drain plug. 3. Remove the oil level check plug. [Only R models] 4. Fill with the new oil within range (A).
(See LUBRICANTS, FUEL AND COOLANT on page 57.)
(1) Battery (2) Ground cable (3) Indicator (4) Base battery
(+) Positive terminal (-) Negative terminal (A) Long side
1. To slow charge the battery, connect the battery positive terminal to the charger positive terminal and the negative to the negative. Then, charge for at least 1 hour at 4.5 amperes.
2. A boost charge is only for emergencies. It will partially charge the battery at a high rate and in a short time. When using a boost-charged battery, it is necessary to recharge the battery as early as possible. Failure to do this will shorten the battery's service life.
3. When the specific gravity of electrolyte is between 1.27 and 1.29, the charging is completed.
6.3 Storing the battery
1. When storing the machine for a long period, remove the battery from machine, adjust the electrolyte to
74
ZD1211,ZD1221
EVERY 150 HOURS
5. For (RCK60P, RCK72P), use gasoline engine oil: 0.4 L (0.42 U.S.qts.) (API Service Category: SH or higher, SAE 10W-30)
RCK60P, RCK72P
RCK60R, RCK72R
MAINTENANCE
(1) Drain plug (2) Oil inlet plug with gauge (3) Seal washer (4) Gear box (5) Octagonal label
(A) Oil level is acceptable within this range.
(B) Oil level
(1) Drain plug (bolt) (2) Check plug (3) Oil inlet plug (4) Gear box (5) Check plug port (6) Rectangular label (7) Octagonal label
(A) Oil level is acceptable within this range.
(B) Oil level
For rear discharge mower decks (RCK60R, RCK72R), check the label on the gear box to know the oil kind before adding new oil.
Label Oil type Capacity
SAE API Service Cat-
egory
(6)
(7)
Gear oil
Gasoline engine oil
0.4 L (0.42 U.S.qts.)
SAE 90
SAE 10W-30
More than GL-3
SH or higher
IMPORTANT : · Do not fill oil over the level to reach the
check plug. · To prevent serious damage to gears,
bearings and oil seals, do not mix different kinds of oil.
6. After filling, reinstall the oil inlet plug with gauge.
ZD1211,ZD1221
75
MAINTENANCE
EVERY 200 HOURS
1. Changing engine oil
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before changing the oil. · Allow the engine to cool down sufficiently. Oil
can be hot and may cause burns.
1. To change the used oil, remove the drain plug at the bottom of the engine and drain the oil completely. The used oil can be drained out more easily if the engine is warm.
2. Fill with the new oil up to the upper notch on the dipstick.
EVERY 200 HOURS NOTE : · To prevent serious damage to the engine,
replacement element of the recommended type must be used. Use only a genuine KUBOTA filter or its equivalent.
(1) Engine oil filter
(1) Drain plug
3. To check the oil level. Remove the dipstick, wipe it clean, insert it and draw it out again. Check to see that the oil level is between the 2 marks.
2. Replacing the engine oil filter
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before changing the oil and the oil filter. · Allow the engine to cool down sufficiently. Oil
can be hot and may cause burns.
The oil filter must be changed every 200 service hours.
1. Apply a slight coat of oil onto the rubber gasket of new filter.
2. Tighten the filter quickly until it contacts the mounting surface. Tighten filter by hand an additional 1/2 turn only.
3. After the new filter has been replaced, the engine oil level normally lowers a little. Add engine oil to proper level. Check for oil leaks around filter gasket.
3. Replacing transmission oil filter (HST)
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before changing the oil filter. · Allow the transmission case to cool down
sufficiently, as oil can be hot and may cause burns. The oil filter must be changed every 200 service hours.
(1) Transmission oil filter (HST)
76
ZD1211,ZD1221
EVERY 200 HOURS
MAINTENANCE
(1) Transmission oil filter (HST)
1. Place an oil pan underneath the oil filter. (Do not drain oil.)
2. Remove the oil filter by using the filter wrench. 3. Apply a slight coat of oil onto the filter gasket. 4. Tighten the filter quickly until it contacts the
mounting surface. Tighten filter by hand an additional 1/2 turn only. 5. After the new filter has been replaced, the transmission fluid level normally lowers a little. Add fluid to proper level. Check for oil leaks around filter gasket.
IMPORTANT : · To prevent serious damage or premature
failure to the hydraulic system, use only a KUBOTA genuine filter.
4. Adjusting front axle pivot
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before adjusting front axle pivot.
If the front axle pivot pin adjustment is not correct, vibration in the front wheel can occur.
Check and adjustment of the front axle end play 1. Lift up and securely block the front of the machine. 2. Measure the clearance (L) between the front axle
(4) and front axle support (3). 3. If the measurement exceeds the allowable limit,
adjust the nut (1).
(1) Nut (2) Center pin (3) Front axle support (4) Front axle (5) Plain washer
(L) Front axle end play
NOTE : · When fastening the center pin (2), tighten
the nut so that the front axle can oscillate smoothly by hand.
Front axle end play (L)
Factory spec. Allowable limit
0 to 0.2 mm (0 to 0.008 in.)
0.5 mm (0.02 in.)
EVERY 400 HOURS
1. Changing transmission fluid and rear axle gear case oil (RH and LH)
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before changing or checking the oil. · Allow the transmission case to cool down
sufficiently, as oil can be hot and may cause burns.
ZD1211,ZD1221
77
MAINTENANCE
The fluid in the transmission case is also used for the hydrostatic drive system. 1. To drain the transmission oil, place oil pan
underneath the transmission case and the rear axle gear case (RH and LH) and remove the drain plug at the bottom of the transmission case and the rear axle gear case (RH and LH). 2. After draining, reinstall the drain plugs. 3. Fill with UDT or SUPER UDT hydrostatic transmission fluid or its equivalent up to the upper line of the gauge. IMPORTANT : · It takes time to send the oil from the
transmission case to the rear axle case (RH and LH). Pour the regulated amount of oil slowly. 4. After running the engine for a few minutes, stop it and check the oil level again; add oil to the prescribed level. IMPORTANT : · Operate only at low rpms immediately after changing the transmission fluid and filter. · Keep the engine at medium speed for a few minutes to insure proper lubrication of all parts so there is no damage to transmission.
(1) Drain plug (2) Hydraulic oil filter
EVERY 400 HOURS
(1) Drain plug (2) Rear axle gear case LH
(1) Oil level dipstick (2) Oil plug and breather cup
(A) Oil level is acceptable within this range.
2. Replacing hydraulic oil filter
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before changing the oil filter. · Allow the transmission case to cool down
sufficiently, as oil can be hot and may cause burns.
The oil filter must be changed every 400 service hours.
78
ZD1211,ZD1221
EVERY 400 HOURS
(1) Hydraulic oil filter
(1) Hydraulic oil filter
1. To drain the transmission oil, place oil pan underneath the transmission case and the rear axle gear case (RH and LH) and remove the drain plug at the bottom of the transmission case and the rear axle gear case (RH and LH).
2. After draining, reinstall the drain plugs. 3. Remove the oil filter by using the filter wrench. 4. Apply a slight coat of oil onto the filter gasket. 5. Tighten the filter quickly until it contacts the
mounting surface. Tighten filter by hand an additional 1/2 turn only. 6. After the new filter has been replaced, the transmission fluid level normally lowers a little. Add fluid to proper level. Check for oil leaks around filter gasket. IMPORTANT : · To prevent serious damage or premature
failure to the hydraulic system, use only a KUBOTA genuine filter.
3. Replacing fuel filter
Consult your local KUBOTA Dealer for this service.
MAINTENANCE
EVERY 800 HOURS
1. Adjusting engine valve clearance
Consult your local KUBOTA Dealer for this service.
EVERY 1000 HOURS OR EVERY 1 YEAR
Replace every 1000 hours or every 1 year whichever comes faster.
1. Replacing air cleaner primary element and secondary element
(See Cleaning air cleaner primary element on page 69.) IMPORTANT : · To prevent serious damage to the engine, use
only a KUBOTA genuine filter. How to remove the secondary element 1. Pull out the 2 tabs of the secondary element using a
suitable tool (e.g. Flat-blade screwdriver) as shown in the figure. IMPORTANT : · Pull out the tabs only when replacing the
secondary element.
(1) Tab (2) Flat-blade screwdriver
ZD1211,ZD1221
79
MAINTENANCE 2. While turning slightly, pull out the secondary
element.
(1) Secondary element
EVERY 1500 HOURS
1. Checking fuel injection nozzle (injection pressure)
Consult your local KUBOTA Dealer for this service.
EVERY 2000 HOURS OR EVERY 2 YEARS
Be sure to do the following service once every 2000 hours or every 2 years whichever comes faster.
1. Flushing cooling system and changing coolant
WARNING
To avoid serious injury or death: · Do not remove the radiator cap when the engine
is hot. When cool, loosen cap slightly to the stop to relieve any excess pressure before removing cap completely.
EVERY 1500 HOURS
2. To drain the coolant, open the radiator drain valve and remove the radiator drain plug and remove radiator cap. See the figure. The radiator cap must be removed to completely drain the coolant.
3. After all coolant is drained, close the drain valve and install the drain plug.
4. Fill with clean water and cooling system cleaner. 5. Follow directions of the cleaner instruction. 6. After flushing, fill with clean water and antifreeze
until the coolant level is just below the fill port on the radiator. Install the radiator cap securely. 7. Fill with coolant up to the [FULL] mark on the recovery tank. Set the direction of the recovery tank cap outlet at left front (45°). Set the bottom tip of the hose between front side of radiator hose and inner side of the frame. (This will prevent the hose from pulling down and open the recovery tank cap.) 8. Start and operate the engine for a few minutes. 9. Stop the engine and let cool.
1. Stop the engine and let cool down. 80
ZD1211,ZD1221
EVERY 2000 HOURS OR EVERY 2 YEARS
10. Check coolant level of recovery tank, add coolant if necessary, and install the drain plug.
(1) Recovery tank (2) Radiator cap (3) Drain plug (4) Recovery tank cap (5) Radiator hose (6) Frame
(A) [FULL] (B) [LOW] (C) 45°
MAINTENANCE
· If someone drank antifreeze, seek immediate medical help. Do not make the person throw up unless you are told to do so by poison control or a health care professional. Use standard first aid and CPR for signs of shock or cardiac arrest. Call your local poison control center or your local emergency number for further assistance.
· When antifreeze comes in contact with the skin or clothing, wash it off immediately.
· Do not mix different types of antifreeze. The mixture can produce chemical reaction causing harmful substances.
· Antifreeze is extremely flammable and explosive under certain conditions. Keep fire and children away from antifreeze.
· When draining fluids from the engine, place some container underneath the engine body.
· Do not pour waste onto the ground, down a drain, or into any water source.
(1) Drain valve
IMPORTANT : · Do not start engine without coolant. · Start engine with the hood closed. · Use clean, distilled water and antifreeze to
fill the radiator and recovery tank. · When the antifreeze is mixed with water, the
antifreeze mixing ratio must be less than 50%. · Securely tighten radiator cap. If the cap is loose or improperly fitted, water may leak out and the engine could overheat.
2. Antifreeze
WARNING
To avoid serious injury or death: · When using antifreeze, put on some protection
such as rubber gloves. (Antifreeze contains poison.)
ZD1211,ZD1221
· Also, observe the relevant environmental protection regulations when disposing of antifreeze.
Always use a 50/50 mix of long-life coolant and clean soft water in KUBOTA engines. Consult your local KUBOTA dealer concerning coolant for extreme conditions. 1. Long-life coolant (hereafter LLC) comes in several
types. Use ethylene glycol (EG) type for this engine. 2. Before employing LLC-mixed cooling water, fill the
radiator with fresh water and empty it again. Repeat this procedure 2 or 3 times to clean up the inside. 3. Mixing the LLC Premix 50% LLC with 50% clean soft water. When mixing, stir it up well, and then fill into the radiator.
81
MAINTENANCE
4. The procedure for the mixing of water and antifreeze differs according to the make of the antifreeze and the ambient temperature. Refer to SAE J1034 standard, more specifically also to SAE J814c.
IMPORTANT : · When mixing the antifreeze with water, the
antifreeze mixing ratio is 50%.
Vol% Antifreeze
Freezing point
Boiling point *
50
-37
-34
108
226
* At 1.013 x 105 Pa (760 mmHg) pressure (atmospheric).
A higher boiling point is obtained by using a radiator pressure cap which permits the development of pressure within the cooling system.
5. Adding the LLC a. Add only water if the coolant level reduces in the cooling system by evaporation. b. If there is a mixture leak, add the LLC of the same manufacturer and type in the mixing ratio 50%.
IMPORTANT : · Never add any long-life coolant of
different manufacturer. (Different brands may have different additive components, and the engine may fail to perform as specified.)
6. When the LLC is mixed, do not employ any radiator cleaning agent. The LLC contains anti-corrosive agent. If mixed with the cleaning agent, sludge may build up, adversely affecting the engine parts.
7. Kubota's genuine long-life coolant has a service life of 2 years. Be sure to change the coolant every 2000 hours or every 2 years whichever comes faster.
NOTE : · The above data represent industry
standards that necessitate a minimum glycol content in the concentrated antifreeze.
EVERY 3000 HOURS
1. Checking injection pump
Consult your local KUBOTA Dealer for this service.
EVERY 3000 HOURS
EVERY 1 YEAR
1. Checking fuel lines
If you feel you are unable to make the following service correctly and safely, contact your local KUBOTA Dealer. (See Checking the fuel filter on page 70.)
2. Checking radiator hose and clamp
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before checking radiator hose and clamps. If you feel you are unable to make the following service correctly and safely, contact your local KUBOTA Dealer. 1. If hose clamps are loose or water leaks, tighten
clamps securely. 2. Replace hoses and tighten hose clamps securely. If
radiator hoses are swollen, hardened or cracked, replace them immediately.
(1) Radiator core (2) Radiator hose
3. Checking hydraulic hoses
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before checking and replacing the hydraulic hose. · Allow the transmission case to cool down sufficiently as oil can be hot and may cause burns. · Escaping hydraulic fluid under pressure has sufficient force to penetrate the skin causing serious personal injury. Before disconnecting lines, be sure to relieve all pressure.
82
ZD1211,ZD1221
EVERY 1 YEAR
· Before applying pressure to the system, make sure all connections are tight and that lines, pipes, and hoses are not damaged.
If you feel you are unable to make the following service correctly and safely, contact your local KUBOTA Dealer.
MAINTENANCE
1. Check to see that all lines and hose clamps are tight and not damaged.
2. If hoses and clamps are found worn or damaged, replace or repair them at once.
(1) Mower lift cylinder hose
4. Checking intake air line
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key
before checking intake air line. If you feel you are unable to make the following service correctly and safely, contact your local KUBOTA Dealer. 1. Check to see that hoses and hose clamps are tight
and not damaged. 2. If hoses and clamps are found worn or damaged,
replace or repair them at once.
(1) Hose (2) Clamp
5. Checking engine breather hose
Consult your local KUBOTA Dealer for this service.
6. Checking mower gear box oil seal
Consult your local KUBOTA Dealer for this service.
EVERY 4 YEARS
1. Replacing hydraulic hoses
Consult your local KUBOTA Dealer for this service.
2. Replacing fuel lines
Consult your local KUBOTA Dealer for this service.
3. Replacing engine breather hose
Consult your local KUBOTA Dealer for this service.
4. Replacing radiator hose
If you feel you are unable to make the following service correctly and safely, contact your local KUBOTA Dealer. (See Checking radiator hose and clamp on page 82.)
5. Replacing mower gear box oil seal
Consult your local KUBOTA Dealer for this service.
6. Replacing intake air line
If you feel you are unable to make the following service correctly and safely, contact your local KUBOTA Dealer. (See Checking intake air line on page 83.)
ZD1211,ZD1221
83
MAINTENANCE
SERVICE AS REQUIRED
1. Replacing fuses
1. Raise the operator's seat. 2. Remove the blown fuse. 3. Place a new fuse of the same capacity in position.
SERVICE AS REQUIRED
Protected circuit
Fuse No.
Capacity (A)
Protected circuit
20 A
Engine stop
15 A
Charge system
15 A
Main system
(1)
15 A
Aux. outlet
10 A (20 A)
Control system * (Work light)
(2)
Slow blow fuse 40 A
Check circuit against wrong battery connection
* Option: The fuse must be in only when the work light is attached.
(1) Fuse location
(2) Slow blow fuse
IMPORTANT : · If the new fuse happens to blow out within a
short time, contact your dealer for inspection and repair. Never "jump" the fuse with wire or foil, nor install a larger capacity fuse than is recommended.
2. Bleeding fuel system
Air must be removed: 1. When the fuel filter or lines are removed. 2. When tank is completely empty. 3. After the machine has not been used for a long
period of time.
Bleeding procedure is as follows: 1. Fill the fuel tank with fuel. 2. Start the engine and run for about 30 seconds, and
then stop the engine.
3. Checking and replacing blades
WARNING
To avoid serious injury or death: · Be sure to stop the engine and remove the key. · Blades may be sharp. When you handle blades,
wear heavy gloves or wrap the end of the blades with a rag.
NOTE : · Before checking or replacing the blades, wipe
grass and mud off the top and inside of the mower. Especially, clean up inside the belt cover, because otherwise the belt life will be reduced.
Checking The blade cutting edges should be kept sharp at all times. Sharpen the cutting edges if they look like blade (B). Replace the blades if they appear similar to blade (C).
84
ZD1211,ZD1221
SERVICE AS REQUIRED
RCK60R, RCK72R
MAINTENANCE
(A) New blade (B) Worn blade (C) Cracked blade
Replacing
IMPORTANT : · Use the proper metric size box or socket
wrench to tighten or loosen the blade mounting bolt.
1. Tilt up the mower deck. (See TILTING UP THE MACHINE on page 53.)
2. RCK60P, RCK72P Wedge a block of wood between the blade and the mower housing or use a box wrench over the pulley nut to prevent the spindle from rotating while removing the blade bolts. Then, loosen the blade bolt as illustrated. RCK60R, RCK72R Set the pipe between the blade and the next blade or use a box wrench over the pulley nut to prevent the spindle from rotating while removing the blade bolts; loosen the blade bolt as illustrated.
RCK60P, RCK72P
(1) Pipe
(A) "LOOSEN"
3. To sharpen the blades yourself, clamp the blade securely in a vise. Use a large mill file and file along the original bevel until sharp.
4. To check the blade for balance, place a small rod through the center hole. If the blade is not balanced, file the heavy side of the blade until balance is achieved.
5. Pass the spline boss through the blade and 2 cup washers, and tighten the bolt.
NOTE : · Make sure that the cup washer is not
flattened out or worn; this will cause blade to slip excessively. Replace the 2 cup washers if either is damaged.
(1) Block
(A) "LOOSEN"
ZD1211,ZD1221
(1) Spindle holder (2) Blade (3) 2-Cup washers (4) Lock washer (5) Bolt (6) Spindle guard
(A) 30 mm
IMPORTANT : · Tighten the 3 blade bolts to 102.9 to
117.6 Nm (10.5 to 12 kgfm, 75.9 to 87 lbfft) of torque.
85
MAINTENANCE
· The blade bolts have right hand threads. Turn them counterclockwise to loosen.
· To prolong the service life of the blades, reposition them as shown in the following figure periodically.
SERVICE AS REQUIRED
(1) Tension pulley (2) Bracket (RH) (3) Belt
(1) LH blade (2) Center blade (3) RH blade
4. Replacing the mower belt
WARNING
To avoid serious injury or death: · Be sure to reinstall the removed cover after
replacing the belt.
1. Remove the mower deck from the machine. (See DISMOUNTING THE MOWER DECK on page 25.)
2. Remove the left and right hand shield from the mower deck.
3. Clean around the gear box. 4. Remove the belt from the tension pulley. 5. Remove the right hand bracket which mounts the
gear box to the mower deck and slip the belt over the top of the gear box. 6. To install a new belt, reverse the previous procedure.
NOTE : · Tighten bracket bolts securely 77.5 to
90.2 Nm (8.0 to 9.2 kgfm, 57.1 to 66.5 lbfft).
86
ZD1211,ZD1221
MOTION CONTROL LEVER
ADJUSTMENT
ADJUSTMENT
MOTION CONTROL LEVER
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · If it is necessary to run the engine indoors, use
a gas tight exhaust pipe extension to remove the fumes. · Always try to work in a well-ventilated area. · Lift up and secure with jack stands or by blocking the rear of the machine. Do not run the machine while adjusting. Remove the rear wheels. · Do not make only one of the following adjustments (except "MOTION CONTROL LEVER ALIGNMENT"). They are interlinked. · If you feel you are unable to make the following adjustments correctly and safely, contact your local KUBOTA Dealer.
Details regarding motion control lever alignment can be found in a different section. (See Motion control lever alignment on page 88.)
IMPORTANT : · Right and left motion control levers can be
adjusted independently.
1. HST neutral
1. Lift up and secure with jack stands or by blocking the rear of the machine frame.
2. Remove both rear wheels. 3. Set the engine speed to maximum. 4. Place the motion control lever in the "NEUTRAL
LOCK" position. 5. After forward and backward operation, tighten the
guide control at the position when wheel axis stops. 6. Adjust the rod length (L) of the damper 28 to 32 mm
(1.1 to 1.3 in.) and tighten.
(1) Guide control (2) Motion control lever
(1) Damper
(L) 28 to 32 mm (1.1 to 1.3 in.)
2. Maximum speed (forward)
Consult your local KUBOTA Dealer for this service.
3. Adjusting the motion control lever operating strength
The strength required to move the motion control levers can be adjusted to 3 levels depending on operator preference.
NOTE : · Adjust the dampers after adjusting HST neutral. · Adjusting the motion control lever strength will
affect the maneuverability. · For adjustment of LH and RH, use the same
hole location.
ZD1211,ZD1221
87
ADJUSTMENT
1. Change the rear side of the damper to the desired hole location. Tighten the rear side damper nut.
MOTION CONTROL LEVER
Lever position (high or low) 1. Remove the nut and select the motion control lever
position, high or low. 2. Tighten the nut.
(1) Damper (2) Damper nut
(F) Front (H1) Hole for lighter setting (H2) Hole for heavier setting
4. Motion control lever alignment
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Stop the engine, remove the key and apply the
parking brake.
4.1 Checking the alignment
1. Check the gap and space between the levers at the maximum forward position.
Recommended gap:
0 to 4 mm (0 to 0.16 in.)
If the positions of the motion control levers are unequal, adjustment is necessary.
(A) "GAP"
4.2 Aligning the motion control levers
1. Stop the engine and apply the parking brake.
88
(1) Motion control lever (2) Bolt (3) Nut, washer
Lever alignment (right and left) 1. Loosen the nut. 2. Slide both levers forward or rearward to the desired
position within tab slots until the levers are aligned. 3. Tighten the nut.
NOTE : · If the ends of the levers strike against each
other while in the "NEUTRAL" position, move the levers outward to the "NEUTRAL LOCK" position and carefully bend them outward. Move them back to the "NEUTRAL" position and check for the recommended space.
MOWER DECK LEVEL
1. Anti-scalp rollers
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Apply the parking brake. · Stop the engine and remove the key. · Wait for all moving parts to stop.
NOTE : · The flattest cut can be achieved by having the
anti-scalp rollers adjusted off the ground. Check the anti-scalp roller adjustments each time the mower deck cutting height is changed. It is recommended that all the anti-scalp rollers be kept off the ground to minimize scuffing.
1. Check the machine tire pressure. Inflate tires to the correct pressure. (See TIRES AND WHEELS on page 50.)
ZD1211,ZD1221
MOWER DECK LEVEL
2. Start the engine. 3. Raise up the mower deck to the top position. 4. Turn the cutting height control dial to adjust the
height. 5. Lower the mower deck. 6. Adjust height of the anti-scalp roller.
a. Front side anti-scalp roller Adjust height of the front side anti-scalp roller by replacing the collar (collar is raised and lowered) or shifting the pin to approximately 19 mm (0.75 in.) between rollers and ground. Adjust both side rollers to the same height.
(1) Collar (2) Washer (3) Set pin
(H) 19 mm (0.75 in.)
b. Rear side anti-scalp roller Adjust height of the rear side anti-scalp roller by shifting the pin or the bolt to approximately 19 mm (0.75 in.) between rollers and ground. Adjust both side rollers to the same height.
ADJUSTMENT
· Apply the parking brake. · Disengage the PTO (OFF). · Stop the engine, remove the key and remove
the mower universal joint while checking or adjusting the level of the mower deck.
IMPORTANT : · Check the machine tire pressure.
Inflate the tires to the correct pressure. (See TIRES AND WHEELS on page 50.)
Checking the level (side-to-side)
NOTE : · The mower deck anti-scalp rollers should not
contact the ground.
RCK60P, RCK72P 1. Raise the mower deck to the top position. 2. Turn the cutting height set dial to the 3 in. cutting
height position. 3. Lower the mower deck. 4. Position the right mower blade in the side-to-side
position. 5. Measure from outside the blade tip to the level
surface with a short ruler or leveling gauge.
Reference
Height of the blade at the flat surface
76 mm (3 in.)
NOTE : · There is a difference of blade height
between flat surface and ground measurements.
6. Check that the left side blade has the same height. The difference between both measurements is less than 3 mm (0.12 in.).
7. If the side-to-side adjustment is not within the given tolerance, adjustment is necessary.
RCK60P, RCK72P
(1) Bolt
(H) 19 mm (0.75 in.)
2. Leveling the mower deck (side-toside)
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface.
(S) Side
RCK60R, RCK72P 1. Raise the mower deck to the top position.
ZD1211,ZD1221
89
ADJUSTMENT
2. Turn the cutting height set dial to the 3 in. cutting height position.
3. Lower the mower deck. 4. Turn left blade by hand parallel to machine and turn
right blade parallel to machine to measure from the outside blade tip at (L) and (R) to the level surface. The difference between measurements should be less than 3 mm (0.12 in.).
MOWER DECK LEVEL
6. Loosen the lock nuts of the right side of the machine.
7. Adjust the cutting height fine tuning bolts to set 76 mm (3 in.) blade height. Front and rear side bolts must be adjusted.
8. Lock the nuts. 9. Adjust the left side equally. 10. Check the side-to-side level. If it is not level,
adjustment is necessary.
(1) Blade
RCK60R, RCK72R
Reference
Height of the blade at the concrete surface
76 mm (3 in.)
NOTE : · There is a difference of the blade height
between on the concrete and ground.
5. If the side-to-side adjustment is not within the given tolerance, adjustment is necessary.
Adjusting the level (side-to-side) 1. Raise up the mower deck to the top position. 2. Turn the cutting height set dial to the 3 in. cutting
height position. 3. Place 51 mm (2 in.) height wood blocks under each
side of the mower deck. Anti-scalp rollers must not rest on the wood block. 4. Lower the mower deck. 5. Position the mower blade in the side-to-side position.
90
(1) Cutting height fine tuning bolt (2) Lock nut
3. Leveling the mower deck (front-torear)
WARNING
To avoid serious injury or death: · Park the machine on a firm and level surface. · Engage the parking brake. · Disengage the PTO. · Stop the engine, remove the key and remove
the mower universal joint while checking or adjusting the level of the mower deck.
IMPORTANT : · Check the machine tire pressure.
Inflate the tires to the correct pressure. (See TIRES AND WHEELS on page 50.)
Checking level (front-to-rear)
NOTE : · The mower deck anti-scalp rollers should not
contact the ground.
1. Raise the mower deck to the top position. 2. Turn the cutting height set dial to the 3 in. cutting
height position. 3. Lower the mower deck. 4. Position the right mower blade in the front-to-rear
position. 5. Measure from the right front blade tip to the level
surface with a short ruler or leveling gauge.
ZD1211,ZD1221
MOWER DECK LEVEL
6. Turn the blade 180° and measure from the right rear blade tip to the level surface.
7. Check that the left side blade has the same dimensions. The difference between both measurements should be less than 6 mm (0.24 in.). The front side must be lower than the rear side.
8. If the front-to-rear adjustment is not within the given tolerance, adjustment is necessary.
RCK60P, RCK72P
ADJUSTMENT
IMPORTANT : · The difference between both measurements
should be less than 6 mm (0.24 in.). The front side must be lower than the rear side.
9. Check the front-to-rear level. If it is not level, adjustment is necessary.
(A) Front (B) Rear
RCK60R, RCK72R
(1) Cutting height fine tuning bolt (2) Lock nut
(A) Front (B) Rear
Adjusting the level (front-to-rear) 1. Raise up the mower deck to the top position. 2. Turn the cutting height set dial to the 3 in. cutting
height position. 3. Place 51 mm (2 in.) height wood blocks under each
side of the mower deck. Anti-scalp rollers must not rest on the wood block. 4. Lower the mower deck. 5. Loosen the lock nuts of the front side of the machine. 6. Adjust the cutting height fine tuning bolts to set 76 mm (3 in.) blade height. Both front side bolts must be adjusted. 7. Lock the nuts. 8. Adjust the other side equally.
ZD1211,ZD1221
91
ADJUSTMENT
GENERAL TORQUE SPECIFICATION
GENERAL TORQUE SPECIFICATION
American standard cap screws with UNC or UNF threads
SAE grade no.
GR.5
GR.8
Property class
Metric cap screws Class 8.8
Class 10.9
(lbfft)
8-9.6
12-14.4
(lbfft)
7.2-8.3
1/4
(Nm)
10.7-12.9
16.1-19.3
M6
(Nm)
9.81-11.3
(kgfm)
1.11-1.33
1.66-1.99
(kgfm)
1.0-1.15
(lbfft)
17-20.5
5/16
(Nm)
23.1-27.8
(kgfm)
2.35-2.84
24-29
32.5-39.3
M8
3.31-4.01
(lbfft) (Nm) (kgfm)
17.4-20.2 23.6-27.4
2.4-2.8
(lbfft)
35-42
45-54
(lbfft)
35.5-41.2
3/8
(Nm)
47.5-57.0
61.0-73.2
M10
(Nm)
48.1-55.8
(kgfm)
4.84-5.82
6.22-7.47
(kgfm)
4.9-5.7
(lbfft)
80-96
110-132
(lbfft)
57.2-66.5
1/2
(Nm)
108.5-130.2
149.2-179.0
M12
(Nm)
77.5-90.1
(kgfm)
11.07-13.29
15.22-18.27
(kgfm)
7.9-9.2
(lbfft)
110-132
160-192
(lbfft)
91.2-108
9/16
(Nm)
149.2-179.0
217.0-260.4
M14
(Nm)
124-147
(kgfm)
15.22-18.27
22.14-26.57
(kgfm)
12.6-15.0
(lbfft)
150-180
220-264
(lbfft)
145-166
5/8
(Nm)
203.4-244.1
298.3-358.0
M16
(Nm)
196-225
(kgfm)
20.75-24.91
30.44-36.53
(kgfm)
20.0-23.0
21.7-25.3 29.4-34.3
3.0-3.5
44.9-52.1 60.8-70.5
6.2-7.2
76.0-86.8 103-117 10.5-12.0
123-144 167-196 17.0-20.0
192-224 260-303 26.5-31.0
92
ZD1211,ZD1221
TIGHTENING TORQUE CHART
ADJUSTMENT
TIGHTENING TORQUE CHART
Thread size d Hex. bolt head
(mm)
size B (mm)
M8
12 or 13
M10
14 or 17
M12
17 or 19
M14
19 or 22
lbfft
13.0-15.2 (14.1 ± 1.1)
28.9-33.3 (31.1 ± 2.2)
46.3-53.5 (49.9 ± 3.6)
79.6-92.6 (86.1 ± 6.5)
No mark
Nm
17.8-20.6 (19.2 ± 1.4)
39.3-45.1 (42.2 ± 2.9)
62.8-72.6 (67.7 ± 4.9)
107.9-125.5 (116.7 ± 8.8)
kgfm
1.9-2.1 (2.0 ± 0.1)
4.0-4.6 (4.3 ± 0.3)
6.4-7.4 (6.9 ± 0.5)
11.0-12.8 (11.9 ± 0.9)
lbfft
17.5-20.3 (18.9 ± 1.4)
35.4-41.2 (38.3 ± 2.9)
57.1-66.5 (61.8 ± 4.7)
91.1-108.5 (99.8 ± 8.7)
7T
Nm
23.5-27.5 (25.5 ± 2.0)
48.1-55.9 (52.0 ± 3.9)
77.6-90.2 (83.9 ± 6.3)
123.6-147.0 (135.3 ± 11.7)
NOTE : · Figure [7] on the top of the bolt indicates that the bolt is made of special material. · Before tightening, check the figure on top of the bolt.
kgfm
2.4-2.8 (2.6 ± 0.2)
4.9-5.7 (5.3 ± 0.4)
8.0-9.2 (8.6 ± 0.6)
12.6-15.0 (13.8 ± 1.2)
(1) Scale
ZD1211,ZD1221
93
STORAGE
STORAGE
STORING THE MACHINE
WARNING
To avoid serious injury or death: · Do not clean the machine with the engine
running. · To avoid the danger of exhaust fume poisoning,
do not operate the engine in a closed building without proper ventilation. · When storing, remove the key to avoid unauthorized persons from operating the machine and getting injured.
STORING THE MACHINE
If you intend to store your machine for an extended period of time, follow the procedures outlined below. These procedures will insure that the machine is ready to operate with minimum preparation when it is removed from storage,
1. Check for loose bolts and nuts, and tighten if necessary.
2. Apply grease to machine areas where bare metal will rust also to pivot areas.
3. Inflate the tires to a pressure a little higher than usual.
4. Change the engine oil and run the engine to circulate oil throughout the engine block and internal moving parts for about 5 minutes.
5. Shut off the fuel valves below the fuel tanks while storing.
6. With all implements lowered to the ground, coat any exposed hydraulic cylinder piston rods with grease.
7. Remove the battery from the machine. When disconnecting the cables from the battery, start with the negative terminal first. When connecting the cables to the battery, start with the positive terminal first. (See Storing the battery on page 74.)
8. Keep the machine in a dry place where the machine is sheltered from rain. Cover the machine.
9. Store the machine indoors in a dry area that is protected from sunlight and excessive heat. If the machine must be stored outdoors, cover it with a waterproof tarpaulin.
10. Jack the machine up and place blocks under the front and rear axles so that all 4 tires are off the ground. Keep the tires out of direct sunlight and extreme heat.
IMPORTANT : · When washing the machine, be sure to stop
the engine. Allow sufficient time for the engine to cool before washing. · Cover the machine after the muffler and the engine have cooled down.
REMOVING THE MACHINE FROM STORAGE
1. Check the tire air pressure and inflate the tires if they are low.
2. Jack the machine up and remove the support blocks.
3. Install the battery. Before installing the battery, make sure it is fully charged.
4. Check the fan belt tension. 5. Check all fluid levels (engine oil, transmission/
hydraulic oil, engine coolant and any attached implements). 6. Check all coolant, hydraulic and fuel hoses for cracks, hardening, bubbles and leaks. 7. Check all control levers and the brake for proper function, repair or lubricate as necessary.
94
ZD1211,ZD1221
8. Start the engine. Observe all gauges. If all gauges are functioning properly and reading normal, move the machine outside.
9. Once outside, park the machine securely set the parking brake, place the control levers in the neutral lock position and let the engine idle for at least 5 minutes.
10. Shut the engine off and walk around machine and make a visual inspection looking for evidence of oil or water leaks.
11. With the engine fully warmed up, release the parking brake and test the brakes for proper adjustment as you move forward. Adjust the brakes as necessary.
STORAGE
ZD1211,ZD1221
95
TROUBLESHOOTING
TROUBLESHOOTING
ENGINE TROUBLESHOOTING
ENGINE TROUBLESHOOTING
If something is wrong with the engine, refer to the following table for the cause and its corrective measure.
Symptom (if)
Cause
Remedy
The engine is difficult to start or will not start.
· No fuel flow.
· Check the fuel tank and the fuel filter. Replace filter if necessary.
· Check the fuel valve position.
· Air or water is in the fuel system.
· Check to see if the fuel line coupler bolt and nut are tight.
· Bleed the fuel system. (See SERVICE AS REQUIRED on page 84.)
· In winter, oil viscosity increases, and en- · Use oils of different viscosities, depend-
gine revolution is slow.
ing on ambient temperatures.
· The battery becomes weak and the engine does not turn over quick enough.
· Clean battery cables and terminals. · Charge the battery. · In cold weather, always remove the bat-
tery from the engine, charge and store it indoors. Install it on the machine only when the machine is going to be used.
Insufficient engine power.
· Insufficient or dirty fuel.
· Check the fuel valve position. · Check the fuel system.
· Air cleaner clogged.
· Clean the element.
The engine stops suddenly.
· Insufficient fuel.
· Check the fuel valve position. · Refuel. · Bleed the fuel system if necessary.
Exhaust fumes are colored.
Black
· Fuel quality is poor. · Too much oil. · Engine is overloaded.
· Change the fuel and fuel filter. · Check the proper amount of oil. · Reduce engine load.
Blue white
· The inside of exhaust muffler is damp from fuel.
· Injection nozzle trouble. · Fuel quality is poor.
· Heat the muffler by applying load to the engine.
· Check the injection nozzle. · Change the fuel and fuel filter.
Engine overheats.
· Engine overloaded.
· Lower speed or reduce load.
· Low coolant level.
· Fill cooling system to the correct level; check radiator and hoses for loose connections or leaks.
· Loose or damaged fan belt.
· Adjust or replace fan belt.
· Dirty radiator core or grille screens.
· Remove all trash.
· Coolant flow route corroded.
· Flush cooling system.
Engine does not stop when key switch is turned "OFF".
· Fuse blown (20 A)
If you have any questions, contact your local KUBOTA dealer.
· Replace the fuse.
96
ZD1211,ZD1221
POWER TRAIN TROUBLE SHOOTING
POWER TRAIN TROUBLE SHOOTING
If something is wrong with the power train, the master system warning indicator starts blinking and the error code shown in the following table is displayed on the LCD. The error code indicates the location of the trouble. If an error code appears, immediately contact your local KUBOTA Dealer for repairs.
TROUBLESHOOTING
Displayed error code [Err 1] [Err 2] [Err 3]
Trouble Water temperature sensor trouble Fuel sensor trouble Meter panel memory reading trouble
(1) Master system warning indicator (2) Error code
Operator's action
Contact your local KUBOTA Dealer.
ZD1211,ZD1221
97
TROUBLESHOOTING
BATTERY TROUBLESHOOTING
BATTERY TROUBLESHOOTING
Symptom (if) The starter does not function.
Cause
· Battery overuse, dim lights.
· The battery has not been recharged.
· Poor terminal connection.
The starter does not function from the beginning, and lights soon become dim. When viewed from the top, the top of the plates look whitish.
Recharging is impossible.
Terminals are severely corroded and heated up.
· The battery life has expired.
· Insufficient charging.
· The battery was used with an insufficient amount of electrolyte.
· The battery was used too much without recharging.
· The battery life has expired.
· Poor terminal connection.
The battery electrolyte level drops rapidly.
· There is a crack or pin holes in the electrolytic cells.
· Charging trouble.
system
If you have any questions, contact your local KUBOTA dealer.
Remedy · Charge the battery
sufficiently. · Adjust the fan belt.
· Clean the terminal and tighten securely.
· Replace the battery.
· Charge the battery sufficiently.
· Add distilled water and charge the battery.
· Charge the battery sufficiently.
· Replace the battery.
· Clean the terminal and tighten securely.
· Replace the battery.
· Contact your local KUBOTA Dealer.
Preventive measure · Charge the battery properly.
· Keep the terminal clean and tight. Apply grease and treat with anti-corrosives.
· The battery must be serviced properly before initial use.
· Regularly check the electrolyte level.
· Charge the battery properly.
· Keep the terminal clean and tight. Apply grease and treat with anti-corrosives.
98
ZD1211,ZD1221
MACHINE TROUBLESHOOTING
TROUBLESHOOTING
MACHINE TROUBLESHOOTING
Symptom (if)
Cause
The machine operation is not smooth.
· The hydrostatic transmission fluid is insufficient.
· The filter is clogged.
The machine does not move while the engine is running.
· The parking brake is on. · The transmission fluid level is insufficient.
The machine moves when the motion control levers are in the "NEUTRAL LOCK" position (operating the engine).
· The hydrostatic lever linkage is not correctly adjusted.
· The control linkage pivots are sticking.
Fuel decreases uneven in LH and RH tanks.
· Fuel filter is clogged. · Fuel valve is closed.
· Check valve is clogged.
· Bypass hose kink in the pipe between LH and RH tanks.
Master system warning indicator flashes.
· Fuel sensor is disconnected. · Coolant temperature sensor is disconnected.
· LCD monitor malfunction.
All electrical equipment do not operate.
· Slow blow fuse blown.
If you have any questions, contact your local KUBOTA dealer.
· Fill with oil.
Remedy
· Replace the filter. · Release the parking brake. · Fill with oil. · Consult your dealer for hydrostatic lever link-
age adjustment or pressure adjustment. · Pull up and lubricate linkage.
· Replace fuel filter. · Open the fuel valve. · Replace check valve. · Remove the kink or replace the pipe.
· Check wire harness. · Check wire harness. · Replace LCD monitor. · Replace the slow blow fuse.
ZD1211,ZD1221
99
TROUBLESHOOTING
MOWER TROUBLESHOOTING
Symptom (if) Discharge deflector plugged.
Streaking of grass uncut.
Cause · Grass too wet. · Grass too long. · Cutting too low. · Engine rpm too low. · Ground speed too fast. · Ground speed too fast. · Engine rpm too low.
Uneven cut.
· Grass too long. · Blades dull or damaged. · Debris in mower deck. · Mower deck not level. · Ground speed too fast. · Blades dull. · Blades worn or damaged. · Low tire inflation. · Anti-scalp rollers not adjusted correctly. · Wheels pressure not adjusted correctly.
Blades scalping grass.
Mower belt slipping. Excessive vibration. Mower loads down machine.
· Cutting height too low. · Turning speed too fast. · Ridges in terrain. · Rough or uneven terrain. · Anti-scalp rollers not adjusted correctly. · Bent blade(s). · Mower deck plugged. · Debris in pulleys. · Worn mower belt. · Debris on mower deck or in pulleys. · Damaged mower belt. · Damaged pulleys. · Pulleys out of alignment. · Blades out of balance. · Engine rpm too low.
· Ground speed too fast. · Debris wrapped around mower spindles. · Front of deck too low.
If you have any questions, contact your local KUBOTA dealer.
100
MOWER TROUBLESHOOTING
Remedy · Wait for grass to dry. · Raise the cutting height and cut grass twice. · Raise the cutting height. · Mow at full throttle. · Slow down. · Slow down. · Mow at full throttle, check and reset the engine
rpm. · Cut grass twice. · Replace blades or have blades sharpened. · Clean the mower deck. · Level the mower deck. · Slow down. · Have blades sharpened. · Replace the blades. · Add air to correct pressure. · Adjust the anti-scalp rollers. · Set both tire pressure to the correct pressure.
(See TIRES on page 50.) · Raise the cutting height. · Reduce speed on turns. · Change the mowing pattern. · Adjust wheels pressure and anti-scalp rollers. · Adjust wheels pressure and anti-scalp rollers. · Replace blade(s). · Unplug and clean the mower deck. · Clean pulleys. · Replace belt. · Clean the mower deck and pulleys. · Replace the mower belt. · Replace pulleys. · Consult your local KUBOTA Dealer. · Have blades balanced. · Mow at full throttle, check and reset the engine
rpm. · Slow down. · Clean the mower. · Adjust the mower deck.
(See MOWER DECK LEVEL on page 88.)
ZD1211,ZD1221
INDEX
A
air cleaner primary element cleaning.................................................................69 replacing................................................................79
air cleaner secondary element replacing................................................................79
anti-scalp rollers adjusting................................................................88
antifreeze.................................................................... 81
B
battery charging................................................................ 74 checking condition.................................................73 checking condition by reading indicator................ 73 jump starting..........................................................33 storing................................................................... 74 troubleshooting......................................................98
battery voltage meter.................................................. 31 blade
checking................................................................ 84 replacing................................................................84 bolt (adjuster) installation............................................................. 26 brake spring checking................................................................ 71
C
cold weather starting engine.......................................................32
coolant.........................................................................57 changing................................................................80
coolant level checking................................................................ 60
coolant temperature gauge......................................... 31 cooling system
flushing..................................................................80 cutting height
adjusting................................................................44 cutting height reference chart......................................46
D
daily check checking fuel level ................................................59 checking the engine oil level................................. 59 checking the tire pressure................................ 50,61 checking the tire pressure (warning information).. 61 refueling................................................................ 59
daily check list............................................................. 55 dust
preventing from scattering.....................................48
E
Easy CheckerTM indicators..........................................29 engine
jump starting..........................................................33 operating (warning information)............................ 27 starting.................................................................. 27 starting in cold weather......................................... 32 starting information................................................29 stopping.................................................................29 stopping immediately............................................ 29 troubleshooting......................................................96 warming up.......................................................32,33 engine break-in........................................................... 34 engine breather hose checking................................................................ 83 replacing................................................................83 engine oil changing................................................................76 engine oil filter replacing................................................................76 engine start system checking................................................................ 66 engine stop lever (inside the hood)............................. 29 engine valve clearance adjusting................................................................79
F
fan drive belt tension adjusting................................................................71
front axle fixing......................................................................41 oscillating.............................................................. 42
front axle pivot adjusting................................................................77
front caster wheels installing................................................................ 51 removing............................................................... 50
front cover................................................................... 52 front side..................................................................... 55 fuel.............................................................................. 57 fuel filter
checking................................................................ 70 replacing................................................................79 fuel gauge.............................................................. 30,32 fuel injection nozzle (injection pressure) checking................................................................ 80 fuel lines checking........................................................... 70,82 replacing................................................................83 fuel system bleeding.................................................................84 fuel valve..................................................................... 32
ZD1211,ZD1221
101
fuses replacing................................................................84
G
gauge wheel installation............................................................. 25
gear box oil changing................................................................74
gear box oil level checking................................................................ 67
general torque specification........................................ 92 grass clipping
preventing from scattering.....................................48 grease fittings
lubricating.........................................................62,68 greasing...................................................................... 72
H
hand controls...............................................................22 hood............................................................................ 52 hood screen
checking................................................................ 60 cleaning.................................................................60 hour meter...................................................................31 hydraulic hoses checking................................................................ 82 replacing................................................................83 hydraulic lift control pedal............................................38 hydraulic oil filter replacing................................................................78
I
implement limitations...................................................21 injection pump
checking................................................................ 82 instrument panel..........................................................22 intake air line
checking................................................................ 83 replacing................................................................83
K
key switch....................................................................29
L
LCD monitor................................................................ 30 lever guide
opening................................................................. 54 lift-up point...................................................................54 lubricants..................................................................... 57
M
machine before operating...................................................... 5 getting off.............................................................. 27
102
getting on.............................................................. 27 operating on slopes.................................................7 parking.................................................................. 42 removing from storage.......................................... 94 scrapping procedure............................................. 18 servicing............................................................. 8,17 specification table..................................................19 starting............................................................. 36,47 starting to operate................................................... 6 stopping..............................................................8,41 storing...............................................................11,94 tilting up.................................................................53 transporting........................................................ 8,43 troubleshooting......................................................99 warranty................................................................ 18 working....................................................................6 machine (new) changing engine oil............................................... 34 changing lubricating oil..........................................34 changing oil filter cartridge.................................... 34 changing transaxle fluid........................................ 34 operating............................................................... 34 operating warning..................................................34 motion control lever.....................................................39 adjusting (warning information)............................. 87 adjusting HST neutral............................................87 adjusting maximum speed (forward)..................... 87 adjusting the operating strength............................87 aligning..................................................................88 alignment...............................................................88 checking the alignment......................................... 88 operating position..................................................39 stop position.......................................................... 39 mower adjusting................................................................25 operating............................................................... 47 troubleshooting....................................................100 type....................................................................... 23 mower belt replacing................................................................86 mower deck dismounting...........................................................25 front-to-rear leveling.............................................. 90 mounting............................................................... 24 side-to-side leveling.............................................. 89 mower gear box oil seal checking................................................................ 83 mower gear box oil-seal replacing................................................................83 mowing tips................................................................. 44
O
oiling............................................................................ 69 OPC system
checking................................................................ 66 operator's seat.............................................................37
lowering.................................................................52
ZD1211,ZD1221
raising....................................................................52 optional equipment......................................................43 overheat alarm............................................................ 32
P
parking brake adjusting................................................................71 applying.................................................................27 releasing................................................................27
parking brake pedal.....................................................38 periodic service chart label..........................................65 power train
troubleshooting......................................................97 PTO
using........................................................................8 PTO lever.................................................................... 47
R
radiator clamp checking................................................................ 82
radiator hose checking................................................................ 82 replacing................................................................83
radiator screen checking................................................................ 60 cleaning.................................................................60
rear axle gear case oil (RH and LH) changing................................................................77
rear side...................................................................... 55 ROPS (foldable type)
adjusting................................................................36 folding....................................................................35 operating............................................................... 35 raising to the upright position................................ 36 rubber plate installation............................................................. 48
S
safety before operating the machine................................. 5 general information................................................. 5 operating on slopes.................................................7 ROPS...................................................................... 6 servicing the machine............................................. 8 starting to operate the machine...............................6 stopping the machine.............................................. 8 storing the machine............................................... 11 transporting the machine.........................................8 using the lift link.......................................................8 working the machine............................................... 6
safety for children..........................................................7 safety for operators (age 60 years and older)............... 7 safety labels................................................................ 12
care....................................................................... 16 seat belt.......................................................................37 service code display....................................................31
ZD1211,ZD1221
service intervals.......................................................... 63 skid
installation............................................................. 25 removing............................................................... 48 slope checking................................................................ 72 restarting............................................................... 41 step opening................................................................. 52 switches...................................................................... 22
T
throttle lever................................................................ 38 tightening torque chart................................................ 93 transmission fluid
changing................................................................77 transmission fluid level
checking................................................................ 60 transmission oil
warming up in the low temperature range.............33 transmission oil filter (HST)
replacing................................................................76
W
warning lamp...............................................................32 warranty...................................................................... 18 wheels......................................................................... 50
103
Antenna House PDF Output Library 6.6.1437 (Windows (x64))
