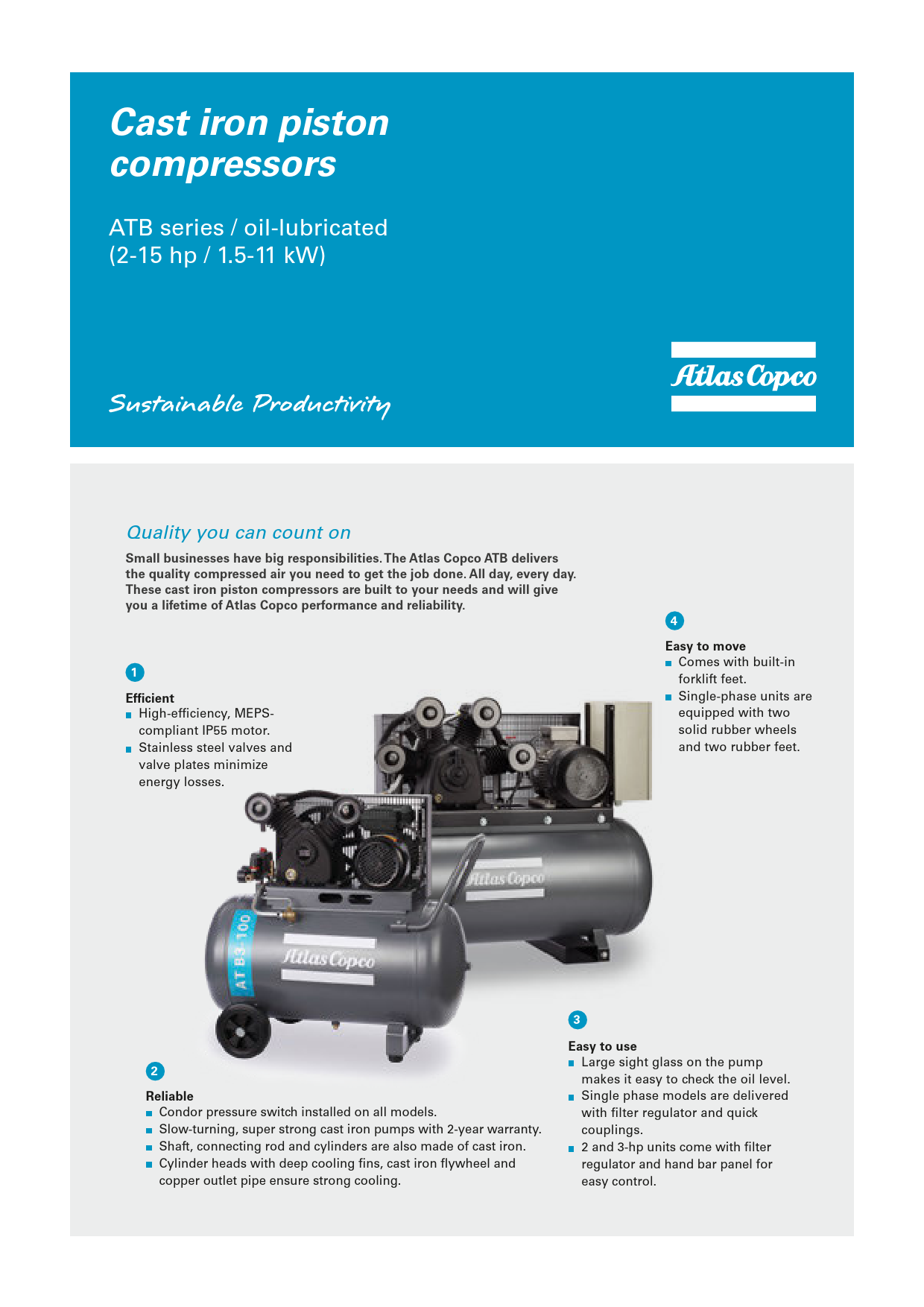

Cast iron piston compressors ATB series / oil-lubricated (2-15 hp / 1.5-11 kW) Quality you can count on Small businesses have big responsibilities. The Atlas Copco ATB delivers the quality compressed air you need to get the job done. All day, every day. These cast iron piston compressors are built to your needs and will give you a lifetime of Atlas Copco performance and reliability. 1 Efficient High-efficiency, MEPScompliant IP55 motor. Stainless steel valves and valve plates minimize energy losses. 4 Easy to move Comes with built-in forklift feet. Single-phase units are equipped with two solid rubber wheels and two rubber feet. 2 Reliable Condor pressure switch installed on all models. Slow-turning, super strong cast iron pumps with 2-year warranty. Shaft, connecting rod and cylinders are also made of cast iron. Cylinder heads with deep cooling fins, cast iron flywheel and copper outlet pipe ensure strong cooling. 3 Easy to use Large sight glass on the pump makes it easy to check the oil level. Single phase models are delivered with filter regulator and quick couplings. 2 and 3-hp units come with filter regulator and hand bar panel for easy control. BUILT TO WORK FOR YOU � Condor pressure switch Installed on all models to maximize reliability and performance. � Metal belt guard Protects both operator and compressor belts. � AS & EN286-certified tanks Capacities ranging from 100 to 500 liters to meet your needs. � Electrical cubicle box On all 15-hp units for optimal installation. TECHNICAL SPECIFICATIONS Model ATB 2-100 Displacement Free air delivery Max. pressure Speed Noise l/min cfm l/min cfm kPa psi rpm dB(a) hp 295 10.4 190 6.7 1000 10 1200 71 2 Motor Tank Pump Dimensions L xW x H Weight kW V/Ph/Hz Amps L Cyl/St mm kg 1.5 240/1/50 10 100 2/1 920 x 510 x 840 83 ATB 3-100 400 14.1 290 10.2 1000 10 1000 73 3 2.2 240/1/50 15 100 2/1 920 x 510 x 840 93 ATB 5-150 718 25.4 508 17.9 1000 10 850 75 5.5 4 400/3/50 8.8 150 2/1 1360 x 440 x 1040 171 ATB 7-270 1030 36.4 770 27.2 1000 10 800 77 7.5 5.5 400/3/50 13.6 270 3/1 1560 x 540 x 1240 250 ATB 10-270 1470 51.9 1020 36.0 1000 10 810 77 10 7.5 400/3/50 15.4 270 3/1 1560 x 610 x 1280 290 ATB 15-500 2082 73.5 1470 51.9 1000 10 870 78 15 11 400/3/50 23.7 500 4/1 2000 x 710 x 1370 465 SERVICE KITS AND SPARE PARTS The Atlas Copco ATB is supported by a full range of service kits that come complete with all necessary parts and oils: DIMENSIONS Genuine parts guarantee extended compressor service life and reliability. Cost-effective service solution based on optimum service intervals. Save time and administration � no need to determine individual service parts. H Off-the-shelf availability. Atlas Copco's Piston Oil was specifically developed to offer sustainable lubricant properties even under demanding operating conditions. W L 2935 0821 40 �2018, Atlas Copco Airpower NV, Belgium. All rights reserved. Designs and specifications are subject to change without notice or obligation. Read all safety instructions in the manual before usage.
