Parameter Conditions Min. Typ. Max. Units PowerSupply - 24 40 - VDC IdlePower SDFloating,FANON - 10 14 W SDFloating,FANOFF - 9.2 12 W StandbyPower SDConnectedtoGND,FANOFF - 0.8 2 W
Wondom Aa-Ab31242 1X600w Class D Audio Amplifier Board (T-Amp Technology)

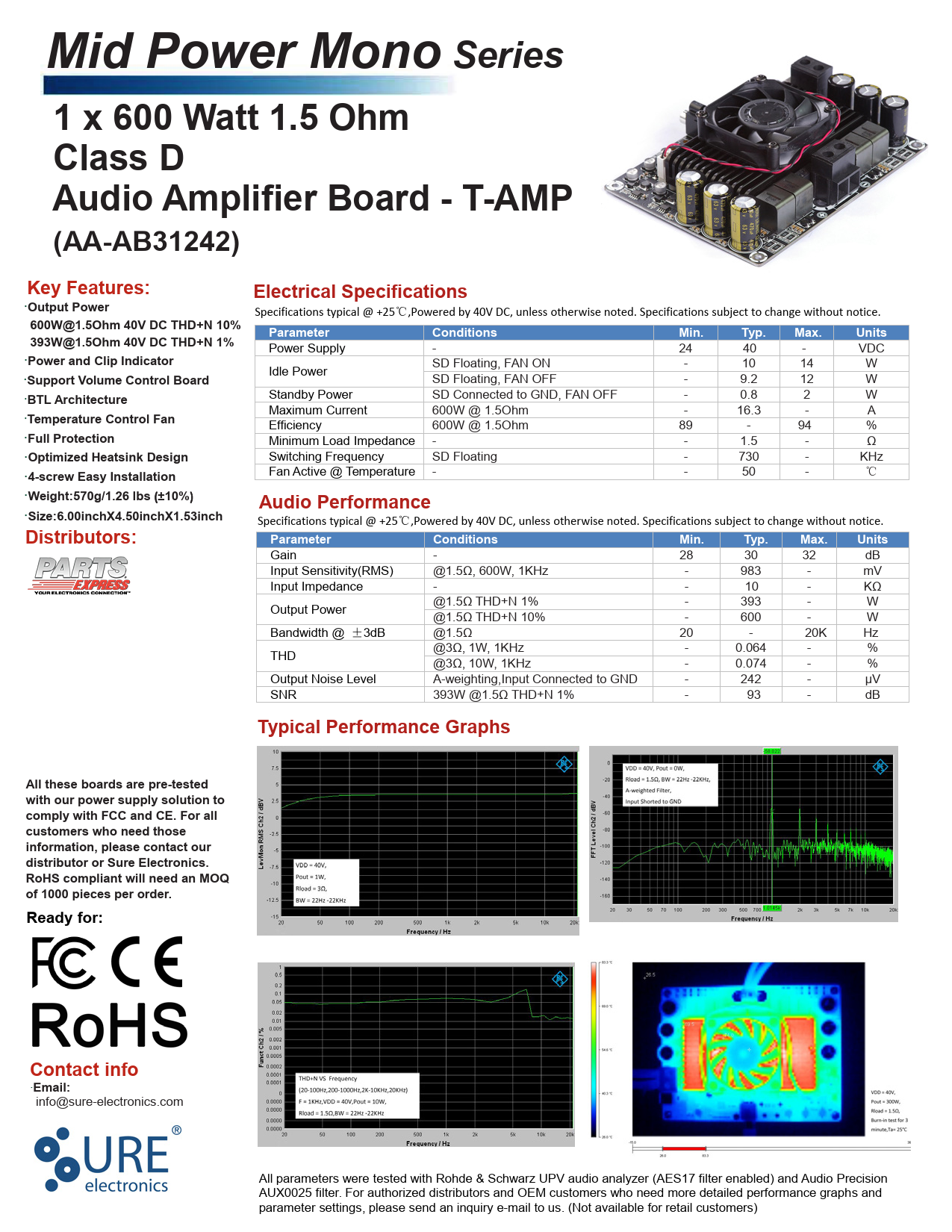

Mid Power Mono Series 1 x 600 Watt 1.5 Ohm Class D Audio Amplifier Board - T-AMP (AA-AB31242) Key Features: ·Output Power 600W@1.5Ohm 40V DC THD+N 10% 393W@· 1.5Ohm 40V DC THD+N 1% ·Power and Clip Indicator ·Support Volume Control Board ·BTL Architecture ·Temperature Control Fan ·Full Protection ·Optimized Heatsink Design ·4-screw Easy Installation ·Weight:570g/1.26 lbs (±10%) ·Size:6.00inchX4.50inchX1.53inch Distributors: Electrical Specifications Specifications typical @ +25,Powered by 40V DC, unless otherwise noted. Specifications subject to change without notice. Parameter Power Supply Idle Power Standby Power Maximum Current Efficiency Minimum Load Impedance Switching Frequency Fan Active @ Temperature Conditions SD Floating, FAN ON SD Floating, FAN OFF SD Connected to GND, FAN OFF 600W @ 1.5Ohm 600W @ 1.5Ohm SD Floating - Min. 24 89 - Typ. 40 10 9.2 0.8 16.3 1.5 730 50 Max. 14 12 2 94 - Units VDC W W W A % KHz Audio Performance Specifications typical @ +25,Powered by 40V DC, unless otherwise noted. Specifications subject to change without notice. Parameter Gain Input Sensitivity(RMS) Input Impedance Conditions @1.5, 600W, 1KHz - Min. 28 - Typ. 30 983 10 Max. 32 - Units dB mV K Output Power Bandwidth @ ±3dB @1.5 THD+N 1% @1.5 THD+N 10% @1.5 - 393 - W - 600 - W 20 - 20K Hz THD Output Noise Level SNR @3, 1W, 1KHz - 0.064 - % @3, 10W, 1KHz - 0.074 - % A-weighting,Input Connected to GND - 242 - µV 393W @1.5 THD+N 1% - 93 - dB Typical Performance Graphs All these boards are pre-tested with our power supply solution to comply with FCC and CE. For all customers who need those information, please contact our distributor or Sure Electronics. RoHS compliant will need an MOQ of 1000 pieces per order. Ready for: Contact info ·Email: info@sure-electronics.com All parameters were tested with Rohde & Schwarz UPV audio analyzer (AES17 filter enabled) and Audio Precision AUX0025 filter. For authorized distributors and OEM customers who need more detailed performance graphs and parameter settings, please send an inquiry e-mail to us. (Not available for retail customers) Model Selection Guide Model Number AA-AB31184 Output Power Power Supply Typical Range Load Amplifier IC 1 x 100Watt DC 10-24V 2 TPA3116 Dimensions 3.6"X2.7"#1 AA-AB31371 1 x 220Watt DC 15-36V 4 TDA7498E 4.8"X3.6"#2 AA-AB31282*1 1 x 200Watt DC 15-36V 3 T-AMP 4.8"X3.6" AA-AB31194*1 1 x 300Watt DC 15-40V 3 T-AMP 4.8"X3.6" AA-AB31315*1 1 x 400Watt DC 15-44V 3 T-AMP 4.8"X3.6" AA-AB31511*1 1 x 500Watt DC 15-50V 3 T-AMP 4.8"X3.6" AA-AB31243 1 x 600Watt DC 25-48V 2 TAS5630B 4.8"X3.6" AA-AB31191 1 x 300Watt DC 20-36V 2 TAS5613 6"X4.5"#3 AA-AB31241 1 x 600Watt DC 25-48V 2 TAS5630B 6"X4.5" AA-AB31316*2 1 x 400Watt DC 15-36V 1.5 T-AMP 6"X4.5" AA-AB31513*2 1 x 500Watt DC 15-40V 1.5 T-AMP 6"X4.5" AA-AB31242*2 1 x 600Watt DC 15-40V 1.5 T-AMP 6"X4.5" AA-AB31321*2 1 x 800Watt DC 15-46V 1.5 T-AMP 6"X4.5" AA-AB31512 1 x 500Watt DC ±55-±65V 4 IRS2092 6"X4.5" AA-AB31431 1 x 750Watt DC ±55-±75V 4 IRS2092 6"X4.5" Mechanical Dimensions Notes: 1. The output power is rated at the condition THD+N 10%,1kHz sine wave. 2. All amplifier boards don't employ power supply reverse polarity protection. Stresses beyond the power supply range maximum ratings may cause permanent damage. 3. None typical load may cause rating power reduction. 4. Dimensions mean length and width of PCB only, excluding excessive part out of the PCB outline. 5. If any model within product series is out of stock, another model with compatible size and function, featuring more rating output power will be sent as the substitute without notice. For example, *1 AA-AB31282's alternative model is AA-AB31194. *2 AA-AB31316's alternative model is AA-AB31513. 6. All parameters were tested with Rohde & Schwarz UPV audio analyzer (AES17 filter enabled) and AP AUX0025 filter. Linear Power Supply units were used for testing. 7. Sure Electronics promise all standard products life cycle more than 5 years. Sure Electronics reserve the right to update the version without notice. All the products sent to retail customers are the latest version. We will provide back-to-order service (100 Pieces MOQ needed) for our distributors in 5 years. 8. Suggested power supply solution: Mean Well MW 48V 12.5A 600W AC/DC Switching Power Supply SE-600-48 (PS-SP11142) If you have other power supply requirements, please feel free to contact us. Connections Dimensions A (inch/mm) A1 (inch/mm) B (inch/mm) B1 (inch/mm) D (inch/mm) #1 3.60/91.44 3.30/83.82 2.70/68.58 2.40/60.96 0.14/3.56 #2 4.80/121.92 4.40/111.76 3.60/91.44 3.20/81.28 0.14/3.56 #3 6.00/152.40 5.60/142.24 4.50/114.30 4.10/104.14 0.14/3.56 Notes: · All dimensions are typical in inches/mm · Tolerance x.xx = ±0.02(±0.50) · Height: AA-AB31184:0.93inch/23.6mm AA-AB31282,AA-AB31316: 0.95inch/24.2mm AA-AB31512,AA-AB31431: 2.50inch/61.3mm Others: 1.53inch/37.5mm Power Supply Connector: · J1 DC Jack 5.5mm/2.5mm · J2 Terminal Block RJ128 (optional) Pin Function 1 GND 2 VCC Shutdown Control Connector: · J13 2Pin 2510 Socket Pin Function 1 SD 2 GND Audio Input Connector: · J9 RCA Jack · J10 Molex Connector (optional) Pin Function 1 SIG 2 GND 3,4 NC Speaker Output Connector: · J11 Terminal Block RJ128 Pin Function 1 OUT+ 2 OUT- Volume Control Board Socket(Volume module bypassed when SW1 ON ) · J12(Pin5,7,9,10 not defined, connected to GND) Sure Electronics Pin Function Pin Function 1,7 2,4,6,8,10,12 +5V GND 3,5 Vin1,Vin2 9,11 Vout1,Vout2 Make Your Audio Application Simple! NO.9, Weidi Road, Xianlin University City, Qixia District,· Nanjing, Jiangsu Province, P.R.C www.sure-electronics.com
