QuickSpecs

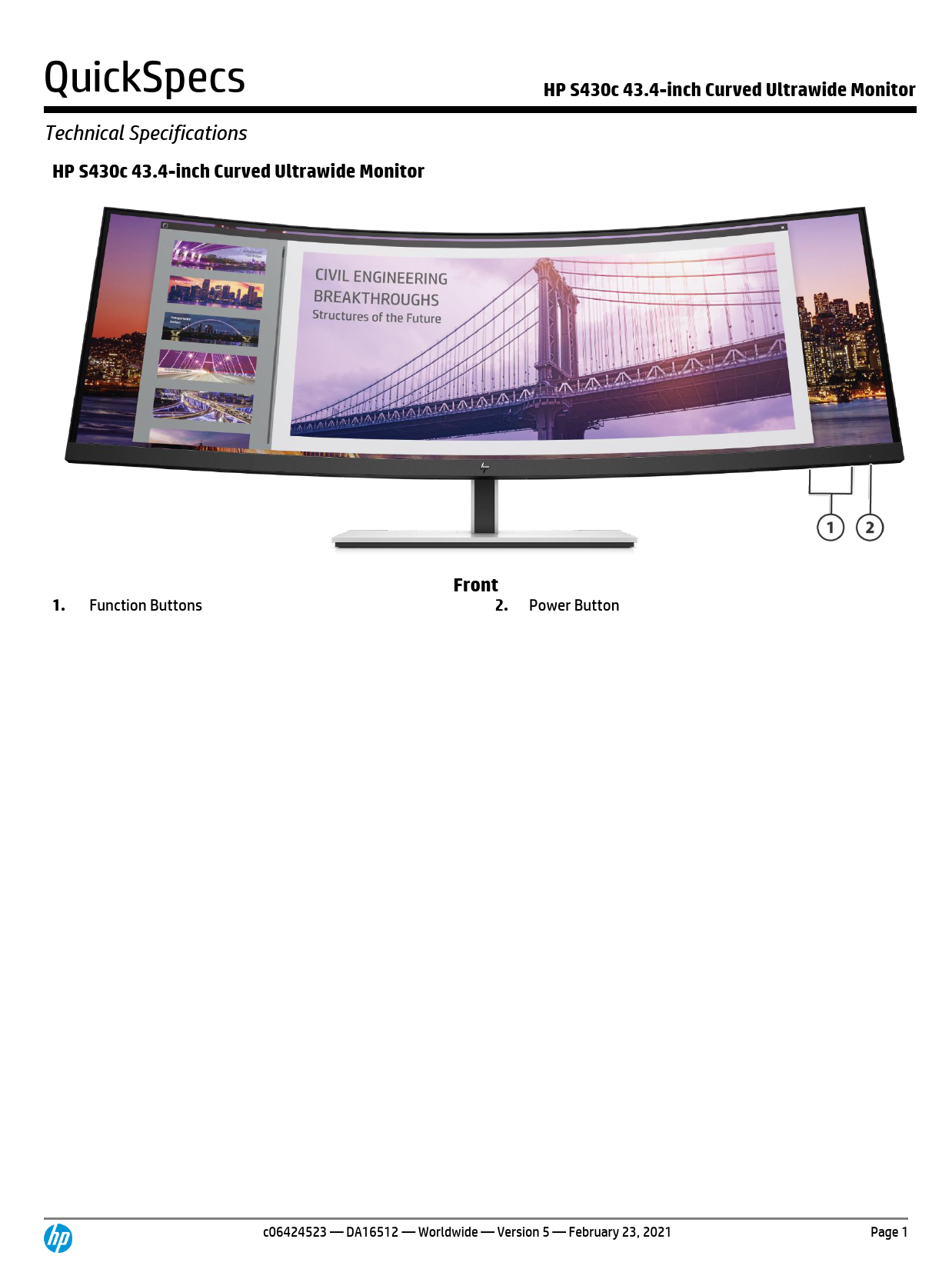

Technical Specifications HP S430c 43.4-inch Curved Ultrawide Monitor
HP S430c 43.4-inch Curved Ultrawide Monitor
1. Function Buttons
Front
2. Power Button
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 1
QuickSpecs
Technical Specifications HP S430c 43.4-inch Curved Ultrawide Monitor
HP S430c 43.4-inch Curved Ultrawide Monitor
1. Security Cable Slot 2. Audio Out (Headphone) Jack
3. HDMI 2.0 Port
4. DisplayPortTM 1.2 Input
Back
5. 6.
7.
8.
Power Connector
USB Type-CTM Port 1 (DP Alt mode, USB 3.1 data, Power Delivery up to 65 W) USB Type-CTM Port 2 (DP Alt mode, USB 3.1 data, Power Delivery up to 65 W) USB Type-A Port 3.0 (Downstream)
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 2
QuickSpecs
Technical Specifications
HP S430c 43.4-inch Curved Ultrawide Monitor
Model: 5FW74AA/5FW74A8/5FW74A4/5FW74AT
Panel Specifications
Display Size (Diagonal) Display Panel Type Micro-Edge Bezel Curved Panel Native Resolution/Timing Native Resolution Note
Panel Bit Depth Aspect Ratio Brightness - Typical Static Contrast Ratio - Typical Static Contrast Ratio - Minimum Dynamic Contrast Ratio (DCR) Flicker Free Pixel Pitch Pixels Per Inch (PPI) Backlight Lamp Life (to half brightness - in hours) Anti-Glare Panel Response Time - Typical Horizontal Viewing Angle (typical CR>10) Vertical Viewing Angle (typical CR>10) Panel Active Area (w x h) Preset Graphic Modes/Supported Resolutions
Maximum Resolution Recommended Resolution Vertical Scan Range Horizontal Scan Range Default Color Temperature Maximum Pixel Clock Speed
43.4 in SVA w/LED backlight Yes, 3-sided Yes, 1800R 3840 x 1200 @60 Hz The video card of the connected PC must be capable of supporting 3840 x 1200 at 60 Hz and include 1 HDMI or 1 DisplayPortTM or USB-C Alt Mode to drive the monitor at the Preferred Mode. 8 Bit 32:10 350 nits 3000:1 2100:1 5,000,000:1 Yes 0.27405 x 0.27405 mm 92.6 30k minimum
Yes 5ms (GTG) 178°
178° 1052.3 (H) ×328.8 (V) 640×480 @59.940Hz 720×400 @70.087Hz 800×600 @60.317Hz 1024×768 @60.004Hz 1280×720 @60Hz 1280×800 @59.810Hz 1280×1024 @60.020Hz 1440×900 @59.887Hz 1600×900 @60Hz 1680×1050 @59.954Hz 1920×1080 @60Hz 1920x1200 @59.95Hz 3840x1200 @60Hz 3840 x1200 @60Hz 3840 x1200 @60Hz 50 - 60 Hz 30 - 80 kHz Neutral (6500 K) 300 Mhz
Color Gamut Coverage NTSC sRGB
85% >99% sRGB
Color Management
Color Space / Subsampling Support Default Color Temperature Low Blue Light Modes
RGB 4:4:4, YCBCR 4:4:4, YCBCR 4:2:2 Neutral (6500K) Yes
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 3
QuickSpecs
HP S430c 43.4-inch Curved Ultrawide Monitor
Technical Specifications
RGB Channel Adjust
Monitor Specifications
Exterior Color of Monitor Bezel and Stand Plug & Play Tilt Swivel Height Adjustment Range VESA Mounting
Security Lock Ready Detachable Base Warranty
Yes, Gain
Sparkling Black in bezel and Jack black in display frame and rear cover and pike silver in stand Yes -5 TO +20 degrees Yes, 10° Yes,100 mm Yes, 100 mm with integrated mount or with included bracket Yes Yes, ships attached 3-3-3
Multimedia
Webcam Infra-Red Sensors Windows Hello Compatible Microphone
Yes, 1080p Yes, Qty = 1 Yes Yes, 2
On Screen Display (OSD)
On Screen Display User Controls
User Programmable Modes Monitor Control Buttons or Switches
User-Assignable Function Buttons Languages
Brightness, Color, Image, Input, PbP, USB Host, Power, Menu, Management, Information, Exit Yes, 10 Menu, Minus ("-")/PIP, Plus ("+")/Viewing Modes, Back/Next Active Input, Power Yes, 3 (8 options) 10 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese, T-Chinese and S-Chinese).
Connector Types
USB Port Specifications
USB-Type CTM Port Specifications
DisplayPortTM HDMI USB Type-CTM HDCP support Audio Output
USB Version
USB Hub Downstream Ports Upstream Ports Power Output Maximum
USB-Type CTM Version Upstream USB-Type CTM Ports Video Support Power Output Power Output Maximum
Special Features
Power and Operating Specs
Picture-by-Picture KVM Switch User Presets
Power Supply
Power Source Power Consumption - Maximum
1, DisplayPortTM 1.2 1, HDMI 2.0 2 USB 3.1 Type-CTM upstream ports Yes, (USB-C Video and HDMI, DisplayPortTM) 1, Analog
3.1
Yes 4 Ports 2 Ports (Type-C) minimum 45 W Standard 4.5 W
USB 3.1 Gen1 / 5G bps 2 Port USB-C Alt mode DisplayPortTM 1.2 5V/ 9V/ 10V/ 12V/ 15V/ 20V 65 W Max on single USB-C port. 110 W combined USB-C ports
Yes Device Bridge Yes
External
100240 VAC 50/60 Hz 220 W
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 4
QuickSpecs
HP S430c 43.4-inch Curved Ultrawide Monitor
Technical Specifications
Energy Saving/Standby Mode Power Consumption - Typical Power cable length
0.5 W 80 W 1830 mm: 398062-001,150304-008, 130627-008,121565-001, 285052-001,100613-008, 286496-001,109197-008, 653326-001,438723-001, 393312-001 2500 mm: 187487-001,100661-001, 401328-001 1800 mm: 100614-009 2000 mm: 403440-001
EU Energy Efficiency Class (ERP lot-5)
Energy Efficiency Class Visible Screen Size
G 43.4"/110, 24 cm
Operating Conditions
Environmental Features and Certifications
Contains Recycled Plastics
Operating Temperature - Celsius Operating Temperature - Fahrenheit Non-operating Temperature - Celsius Non-operating Temperature Fahrenheit Operating Humidity Non-operating Humidity Operating Altitude Non-operating Altitude
Mercury-free LED display backlighting
Arsenic-Free Display Glass Low Halogen
Agency Approvals and Certifications
Microsoft WHQL Certification China Energy Label TCO Certified SmartWay Transport Partnership - NA only Contains Recycled Plastics in Back Cover Contains Recycled Plastics in Base/Stand Contains Recycled Plastics in Other Parts Recyclable Plastics Recyclable Packaging (Box, packing materials)
5° - 35°C 41° - 95°F -20° - 60°C -4° - 140°F
20% - 80% (non-condensing) 5% - 95% 0 - 5,000 m (16,400 ft.) 0 - 12.192 m (40,000 ft.)
Yes, Mercury-free LED backlighting
Yes Yes GSE HP-00011-01B, table 2 defines low-halogen (BFR, CFR, PVC) WW application CE, CB, KCC/KES/PSB/ICE/TUV-S/ISO 9241307/EAC/UL/cTUVus/PSB/ISC/CCC/CEL/ISC/VCCI/FCC/BSMI/ WEEE/EPA/TCO Win 10, Win 8.1, Win 7 CEL Grade 1 Yes Yes (NA SKU)
0.85
0.85
85% (Deco, Middle Frame)
All All
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 5
QuickSpecs
HP S430c 43.4-inch Curved Ultrawide Monitor
Technical Specifications
1. All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
*DisplayPort 1.2 or HDMI 2.0 required to drive panel at its native resolution
Unit Product/Package Specifications
Product Dimensions
(Unpacked with stand) (W x D x H)
Product Dimensions
(Packed) (W x D x H)
Display Head Dimensions
(Unpacked without stand) (W x D x H)
Product Weight
(Unpacked with stand) (W x D x H)
Product Weight
(Packaged) (W x D x H)
Product Weight
(Head only) (W x D x H)
Metric 105.7 x 25.6 x 49.1 cm
125.5 x 37.0 x 55.6 cm 105.7 x 14.08x 36.19 cm
14.4 kg 24.2 kg 9.7 kg
Imperial 41.61 x 10.08 x 19.33 in
49.41 x 14.57 x 21.89 in 41.61 x 5.54 x 14.25 in
31.68 lbs 53.35 lbs 21.38 lbs
Pallet Information
Pallet Layers
Pallet Product per Layer Container Load, 20-Foot Container Load, 40-Foot Container Load, 40-Foot HighQ
20'/40'Wooden: Vertical*3 layers
40'HQ-Wooden: Vertical*4 layers
9 sets for 20"/40" Wooden 12 sets for 40" High Q 72 units (Pallet) 96 units (Slip sheet) 162 units (Pallet) 216 units (Slip sheet) 216 units (Pallet or Ship sheet)
Software Support
Monitor INF/ICM Software HP Display Assistant HP Device Bridge (Windows, macOS, Ubuntu® Linux®, Android 10) HP S430c Microsoft Windows Hello Webcam Driver
What's in the box?
AC power cord (1.83 m) 6.0 ft 2*USB C-C cable (1.8 m) 5.9 ft USB C to A Cable (1.8 m) 5.9 ft HDMI Cable (1.8 m) 5.9 ft External power supplier (280 W) QSP Warranty card VESA mount adapter
Other
User Guide Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 6
QuickSpecs
HP S430c 43.4-inch Curved Ultrawide Monitor
Technical Specifications
Warranty Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish.
Dynamic Contrast Ratios* during video playback only, depending on series of frames or time duration. All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
Environmental Data
Eco-Label Certifications & declarations
This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:
· IT ECO declaration · US ENERGY STAR® · TCO · EPEAT® Silver registered in the United States. See http://www.epeat.net
for registration status in your country.
Energy Consumption (in accordance with US ENERGY STAR® test method) Normal Operation Sleep Off
115VAC, 60Hz 37.28 W 0.33 W 0.24 W
230VAC, 50Hz 37.39 W 0.34 W 0.24 W
100VAC, 50Hz 37.26 W 0.33 W 0.24 W
Heat Dissipation* Normal Operation Sleep Off
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
127 BTU/hr
128 BTU/hr
127 BTU/hr
1 BTU/hr
1 BTU/hr
1 BTU/hr
1 BTU/hr
1 BTU/hr
1 BTU/hr
*NOTE: Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Additional Information
· This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC.
· This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC.
· This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
· Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.
· This product contains 14% post-consumer recycled plastic (by wt.) according to IEEE 1680.1-2018 standard, criterion 4.2.1.1.
· This product is 97.6% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated PAPER/Paperboard
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
4159 g 20 g
Page 7
QuickSpecs
Technical Specifications
RoHS Compliance
Material Usage
HP S430c 43.4-inch Curved Ultrawide Monitor
PAPER/Paper
20 g
Internal: PLASTIC/Other
1 g
PLASTIC/Polyethylene low density - LDPE
25 g
PLASTIC/Polyethylene Expanded - EPE
1931 g
HP Inc. complies fully with materials regulations. We were among the first companies to extend the restrictions in the European Union (EU) Restriction of Hazardous Substances (RoHS) Directive to our products worldwide through the HP GSE. HP has contributed to the development of related legislation in Europe, as well as China, India, and Vietnam.
We believe the RoHS directive and similar laws play an important role in promoting industry-wide elimination of substances of concern. We have supported the inclusion of additional substances--including PVC, BFRs, and certain phthalates--in future RoHS legislation that pertains to electrical and electronics products.
We met our voluntary objective to achieve worldwide compliance with the new EU RoHS requirements for virtually all relevant products by July 2013, and we will continue to extend the scope of the commitment to include further restricted substances as regulations continue to evolve.
To obtain a copy of the HP RoHS Compliance Statement, see HP RoHS position statement.
This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_spe cifications.html):
· Asbestos · Certain Azo Colorants · Certain Brominated Flame Retardants may not be used as flame
retardants in plastics · Cadmium · Chlorinated Hydrocarbons · Chlorinated Paraffins · Bis(2-Ethylhexyl) phthalate (DEHP) · Benzyl butyl phthalate (BBP) · Dibutyl phthalate (DBP) · Diisobutyl phthalate (DIBP) · Formaldehyde · Halogenated Diphenyl Methanes · Lead carbonates and sulfates · Lead and Lead compounds · Mercuric Oxide Batteries · Nickel finishes must not be used on the external surface designed to
be frequently handled or carried by the user. · Ozone Depleting Substances · Polybrominated Biphenyls (PBBs) · Polybrominated Biphenyl Ethers (PBBEs) · Polybrominated Biphenyl Oxides (PBBOs) · Polychlorinated Biphenyl (PCB)
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 8
QuickSpecs
Technical Specifications
HP S430c 43.4-inch Curved Ultrawide Monitor
· Polychlorinated Terphenyls (PCT) · Polyvinyl Chloride (PVC) except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications. · Radioactive Substances · Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging
HP follows these guidelines to decrease the environmental impact of product packaging:
· Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
· Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
· Design packaging materials for ease of disassembly. · Maximize the use of post-consumer recycled content materials in
packaging materials.
· Use readily recyclable packaging materials such as paper and corrugated materials.
· Reduce size and weight of packages to improve transportation fuel efficiency.
· Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
HP, Inc. Corporate Environmental Information
For more information about HP's commitment to the environment:
Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications http://www.hp.com/hpinfo/globalcitizenship/environment/productdesi gn/ecolabels.html
ISO 14001 certificates: http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755 842 and http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 9
QuickSpecs
HP S430c 43.4-inch Curved Ultrawide Monitor
Technical Specifications
© Copyright 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency. DisplayPortTM and the DisplayPortTM logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
c06424523 -- DA16512 -- Worldwide -- Version 5 -- February 23, 2021
Page 10
QuickSpecs
Technical Specifications
HP S430c 43.4-inch Curved Ultrawide Monitor
Change Log
November 6, 2019 November 11, 2019 January 13, 2020 February 23, 2021
V1 to V2 V2 to V3 V3 to V4 V4 to V5
Added Removed Updated Update
Environmental Section USB Memory Stick Environmental Section Environmental Section
