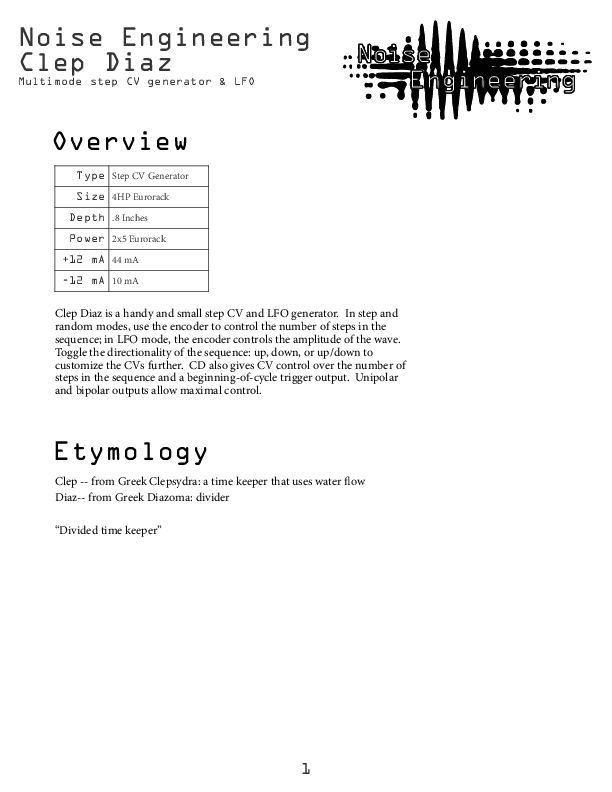

Noise Engineering Clep Diaz Multimode step CV generator & LFO Overview Type Step CV Generator Size 4HP Eurorack Depth .8 Inches Power 2x5 Eurorack +12 mA 44 mA -12 mA 10 mA Clep Diaz is a handy and small step CV and LFO generator. In step and random modes, use the encoder to control the number of steps in the sequence; in LFO mode, the encoder controls the amplitude of the wave. Toggle the directionality of the sequence: up, down, or up/down to customize the CVs further. CD also gives CV control over the number of steps in the sequence and a beginning-of-cycle trigger output. Unipolar and bipolar outputs allow maximal control. Etymology Clep -- from Greek Clepsydra: a time keeper that uses water ow Diaz-- from Greek Diazoma: divider "Divided time keeper" 1 Power To power your Noise Engineering module, turn off your case. Plug one end of your ribbon cable into your power board so that the red stripe on the ribbon cable is aligned to the side that says -12v and each pin on the power header is plugged into the connector on the ribbon. Make sure no pins are overhanging the connector. Line up the red stripe on the ribbon cable so that it matches the white stripe and/or -12v indication on the board and plug in the connector. Screw your module into your case BEFORE powering on the module. You risk bumping the module's PCB against something metallic and damaging it if it's not properly secured when powered on. You should be good to go if you followed these instructions. Now go make some noise! A final note. Some modules have other headers -- they may have a different number of pins or may say NOT POWER. In general, unless a manual tells you otherwise, DO NOT CONNECT THOSE TO POWER. Warranty Noise Engineering backs all our products with a product warranty: we guarantee our products to be free from manufacturing defects (materials or workmanship) for one year from the date of the original retail purchase (receipt or invoice required). The cost of shipping to Noise Engineering is paid by the user. Modules requiring warranty repair will either be repaired or replaced at Noise Engineering's discretion. If you believe you have a product that has a defect that is out of warranty, please contact us. This warranty does not cover damage due to improper handling, storage, use, or abuse, modifications, or improper power or other voltage application. 2 Noise Engineering Clep Diaz Multimode step CV generator & LFO Interface step/rand/lfo: Mode switch to move between Step, Random, and LFO modes. In Step and Random modes, CD outputs a sequence of a controllable number of steps; use the Count encoder (below) to set. In Step mode, steps will move only in the chosen direction (resetting at the end of the cycle). In Random mode, CD randomizes the values of the steps in the sequence to create variation. In LFO mode, CD outputs a smooth noise LFO based on the timing of the input clock. As the Count knob is turned CW, the amplitude is increased. If the number of steps in the sequence is divisible by three, the top LED will glow dimly; if it is divisible by four, it will glow brightly. up/updn/dn: In Step and Random modes, this determines the directionality of the steps. In LFO mode, this controls the symmetry of the wave: Up subtly decreases the slope of the rise of the wave, updn makes the LFO wave symmetrical, and dn subtly decreases the slope of the decay of the LFO wave. The max number of steps in up and down modes is 32. In updn mode, the max is 63 steps. Count: An encoder. If no lights are lit on the LED counter, the CV is muted. Turn CW to increase the number of steps in the CV sequence. Tap the encoder to mute the sequence. A second tap will unmute CD, or return it to the state it was in before it was muted. LEDs illuminate to serve as a guide for the number of steps in the current sequence. Clk: Clock input. Advances the current step. Rst: Optional clock input to reset CD at the beginning of the pattern. CV: CV input control over the number of steps in the cycle BOC: Outputs a single trigger pulse at the beginning of each cycle. In LFO mode, this is random. Bi/Uni: Bipolar and Unipolar CV outputs. Outputs are not quantized. 3 Noise Engineering Clep Diaz Multimode step CV generator & LFO Patch Tutorial Move the mode switch to Step. Patch a clock into the CLK input. Patch Uni or Bi outs (or both) to the CV inputs of a module of your choice. Increase the number of steps by turning the encoder CW. Play with modes, directions, and number of steps. CD was not designed for use with pitch CV and does not provide a quantized output. Input and output voltages CD responds to clock/reset signals of at least 2.2v and responds to CV from 0v to 5v. The CV input does not respond to negative CV. Unipolar voltage outputs 0 to 5V and bipolar outputs -5 to +5v. Design Notes CD was another one of our problem children. It went through a hoard of revisions while we tried to agree on a core set of features. At different times, CD was 4hp, 6hp, and even 8hp before we settled on the final size. Once we agreed on 4hp, we knew that we could fit 3 modes into the module, and that was yet another challenge, which went through multiple revisions before we settled on the final feature set. Special Thanks Shawn Jimmerson Patrick O'Brien 4
