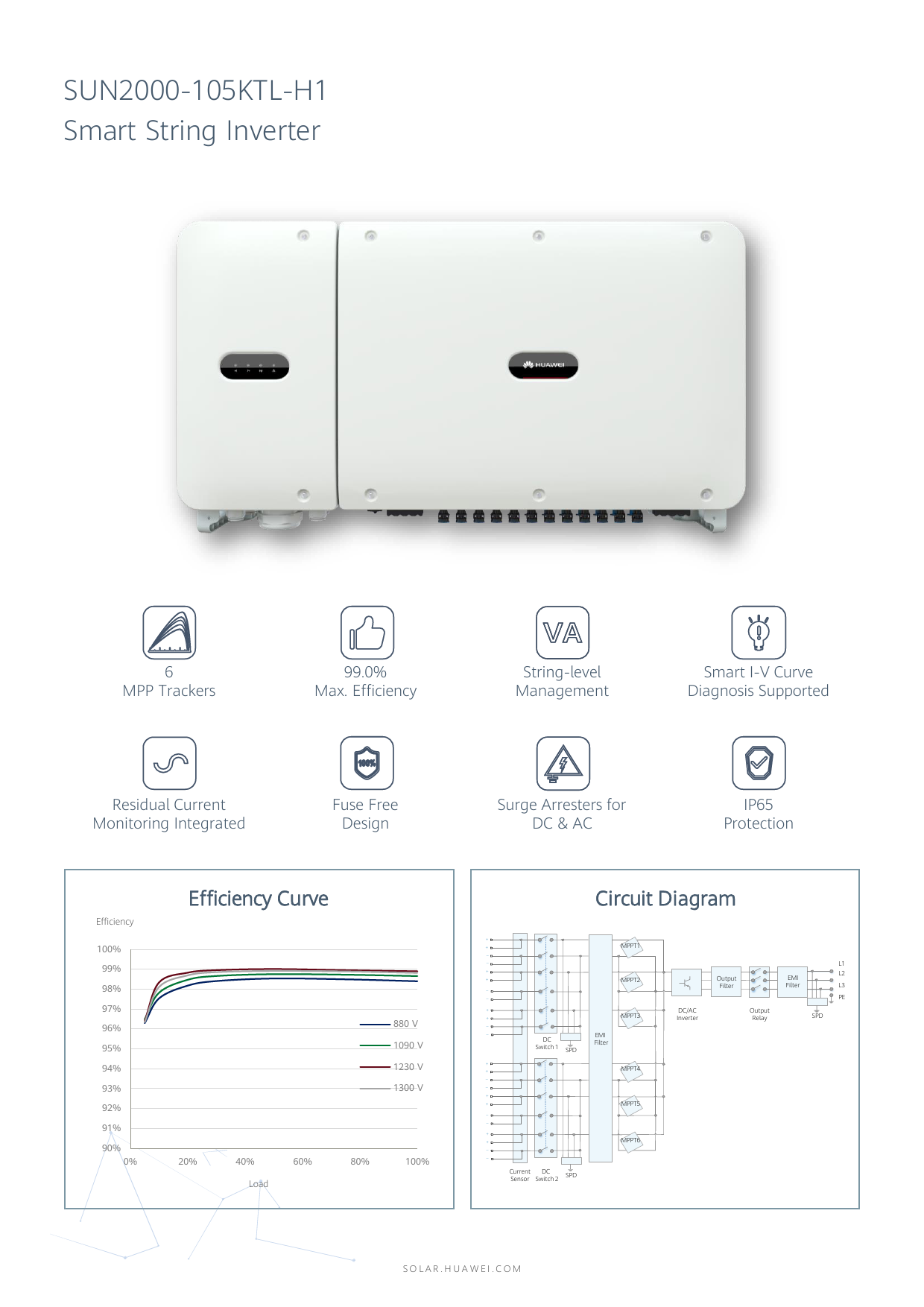

SUN2000-105KTL-H1 Smart String Inverter 6 MPP Trackers 99.0% Max. Efficiency String-level Management Smart I-V Curve Diagnosis Supported Residual Current Monitoring Integrated Fuse Free Design Surge Arresters for DC & AC IP65 Protection Efficiency 100% 99% 98% 97% 96% 95% 94% 93% 92% 91% 90% 0% Efficiency Curve 880 V 1090 V 1230 V 1300 V 20% 40% Load 60% 80% 100% Circuit Diagram + + MPPT1 - - + + MPPT2 - + + MPPT3 - - DC Switch 1 SPD EMI Filter + + MPPT4 - - + + MPPT5 - + + MPPT6 - - Current DC Sensor Switch 2 SPD DC/AC Inverter Output Filter L1 EMI L2 Filter L3 PE Output Relay SPD SOLAR.HUAWEI.COM SUN2000-105KTL-H1 Technical Specifications Efficiency Max. Efficiency 99.0% European Efficiency 98.8% Input Max. Input Voltage 1,500 V Max. Current per MPPT 25 A Max. Short Circuit Current per MPPT 33 A Start Voltage 650 V MPPT Operating Voltage Range 600 V ~ 1,500 V Rated Input Voltage 1,080 V Number of Inputs 12 Number of MPP Trackers 6 Output Rated AC Active Power 105,000 W @40�C Max. AC Apparent Power 116,000 VA @25�C Max. AC Active Power (cos=1) 116,000 W @25�C Rated Output Voltage 800 V, 3W + PE Rated AC Grid Frequency 50 Hz / 60 Hz Rated Output Current 75.8 A Max. Output Current 84.6 A Adjustable Power Factor Range 0.8 LG ... 0.8 LD Max. Total Harmonic Distortion <3% Protection Input-side Disconnection Device Yes Anti-islanding Protection Yes AC Overcurrent Protection Yes DC Reverse-polarity Protection Yes PV-array String Fault Monitoring Yes DC Surge Arrester Type II AC Surge Arrester Type II DC Insulation Resistance Detection Yes Residual Current Monitoring Unit Yes Communication Display LED Indicators, Bluetooth/WLAN + APP USB Yes RS485 Yes MBUS Yes General Dimensions (W x H x D) 1,075 x 605 x 310 mm (42.3 x 23.8 x 12.2 inch) Weight (with mounting plate) 79 kg (174.2 lb.) Operating Temperature Range -25�C ~ 60�C (-13�F ~ 140�F) Cooling Method Natural Convection Max. Operating Altitude 4,000 m (13,123 ft.) Relative Humidity 0 ~ 100% DC Connector Amphenol UTX AC Connector Cable Gland + OT Terminal Protection Degree IP65 Topology Transformerless Certificates Standard Compliance (more available upon request) EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, EN 50530, IEC 60068, IEC 61683, IEC 61727, G59/3, G99/1, PEA, MEA, Philippine Resolution No. 07, IEEE 1547, ABNT NBR 16149, ABNT NBR 16150, UNE 206006 IN, P.O. 12.3, UTE C15-712-1, CEI 0-16 SOLAR.HUAWEI.COM
