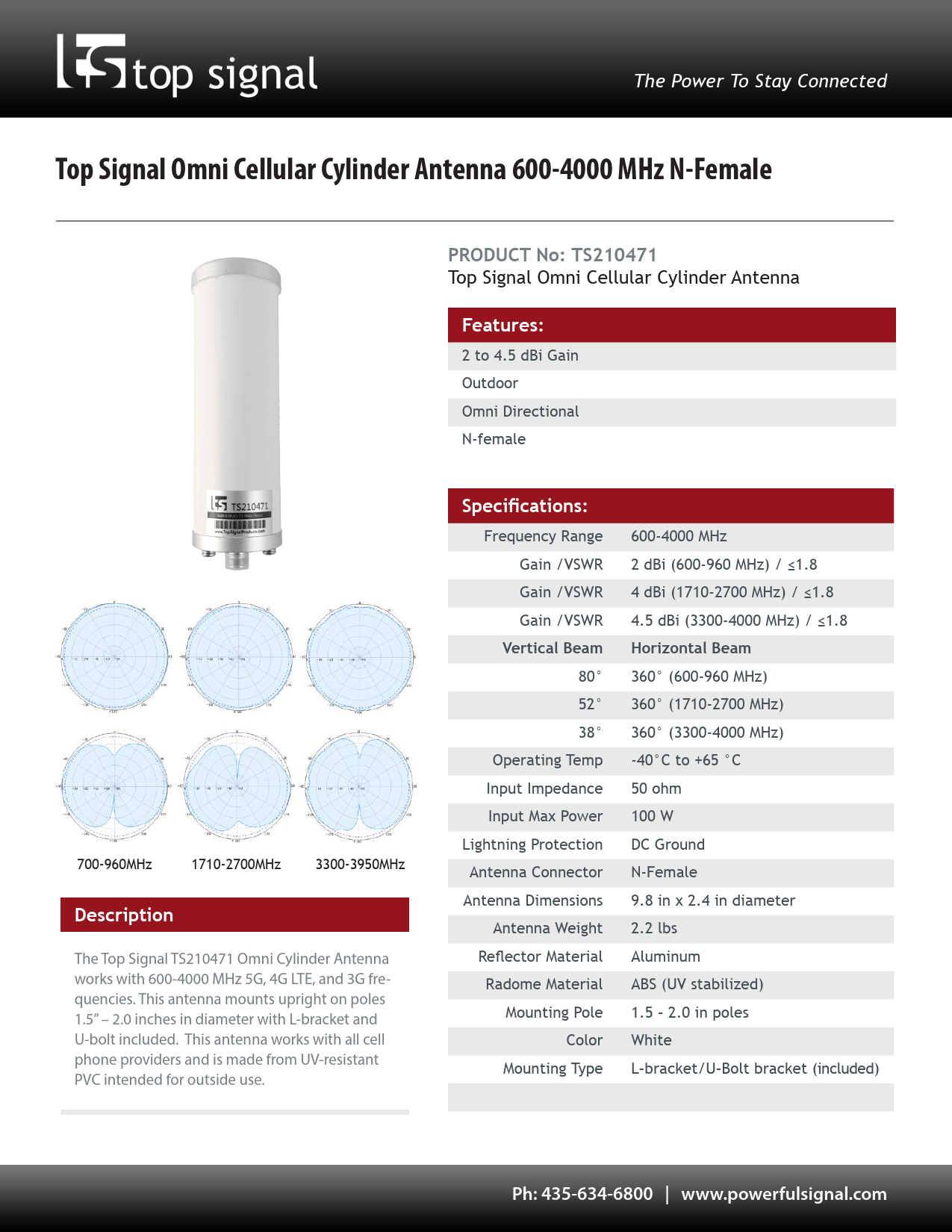

Top Signal Omni Cellular Cylinder Antenna 600-4000 MHz N-Female

PRODUCT No: TS210471 Top Signal Omni Cellular Cylinder Antenna
Features:
2 to 4.5 dBi Gain Outdoor Omni Directional N-female

700-960MHz

1710-2700MHz 3300-3950MHz

Description
The Top Signal TS210471 Omni Cylinder Antenna works with 600-4000 MHz 5G, 4G LTE, and 3G frequencies. This antenna mounts upright on poles 1.5" � 2.0 inches in diameter with L-bracket and U-bolt included. This antenna works with all cell phone providers and is made from UV-resistant PVC intended for outside use.

Specifications:
Frequency Range Gain /VSWR Gain /VSWR Gain /VSWR
Vertical Beam 80� 52� 38�
Operating Temp Input Impedance Input Max Power Lightning Protection Antenna Connector Antenna Dimensions Antenna Weight Reflector Material Radome Material
Mounting Pole Color
Mounting Type

600-4000 MHz 2 dBi (600-960 MHz) / 1.8 4 dBi (1710-2700 MHz) / 1.8 4.5 dBi (3300-4000 MHz) / 1.8 Horizontal Beam 360� (600-960 MHz) 360� (1710-2700 MHz) 360� (3300-4000 MHz) -40�C to +65 �C 50 ohm 100 W DC Ground N-Female 9.8 in x 2.4 in diameter 2.2 lbs Aluminum ABS (UV stabilized) 1.5 � 2.0 in poles White L�bracket/U�Bolt bracket (included)

Ph: 435-634-6800 | www.powerfulsignal.com
