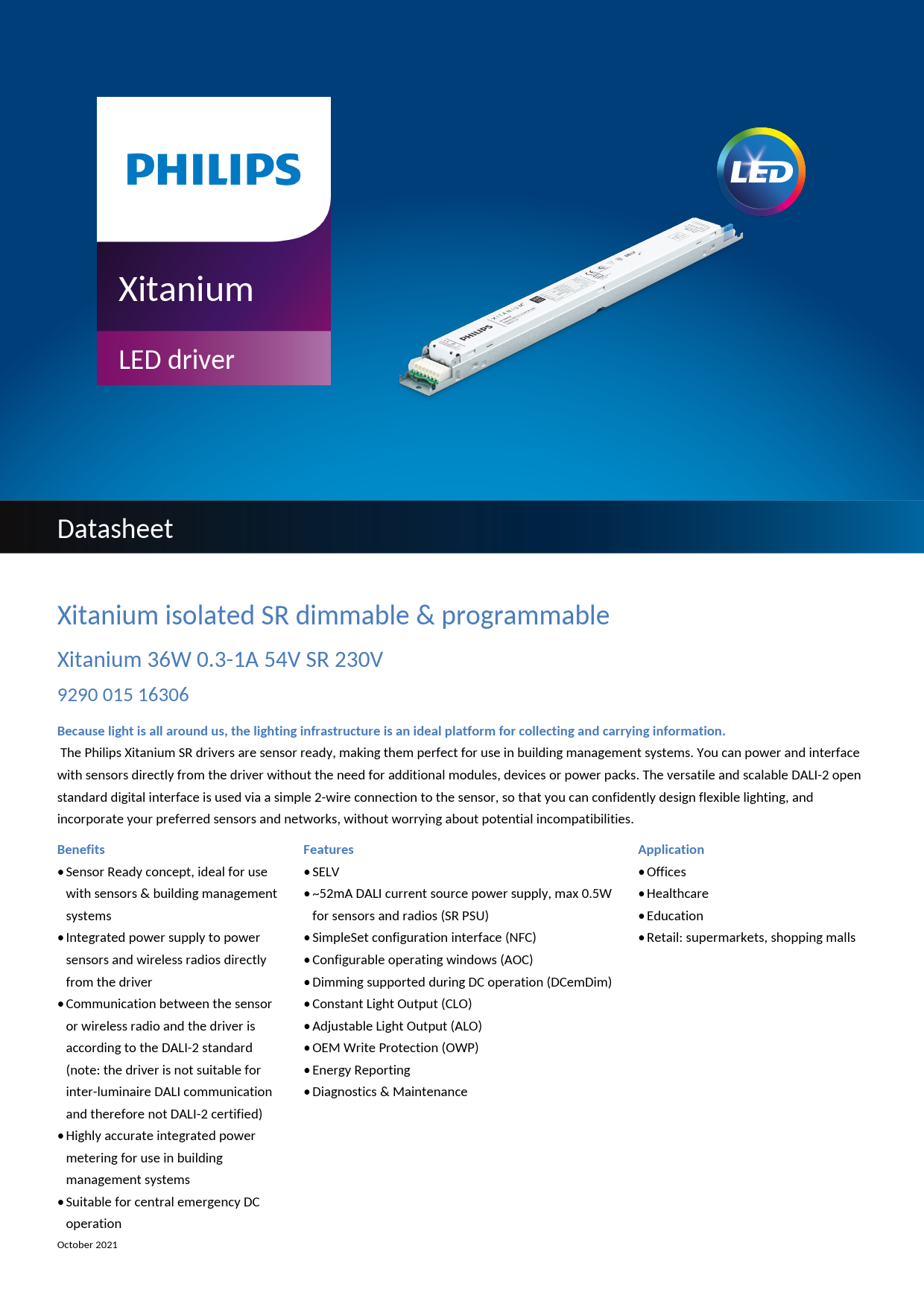

Xitanium LED driver Datasheet Xitanium isolated SR dimmable & programmable Xitanium 36W 0.3-1A 54V SR 230V 9290 015 16306 Because light is all around us, the lighting infrastructure is an ideal platform for collecting and carrying information.
Xitanium LED driver Datasheet Xitanium isolated SR dimmable & programmable Xitanium 36W 0.3-1A 54V SR 230V 9290 015 16306 Because light is all around us, the lighting infrastructure is an ideal platform for collecting and carrying information. The Philips Xitanium SR drivers are sensor ready, making them perfect for use in building management systems. You can power and interface with sensors directly from the driver without the need for additional modules, devices or power packs. The versatile and scalable DALI-2 open standard digital interface is used via a simple 2-wire connection to the sensor, so that you can confidently design flexible lighting, and incorporate your preferred sensors and networks, without worrying about potential incompatibilities. Benefits · Sensor Ready concept, ideal for use with sensors & building management systems · Integrated power supply to power sensors and wireless radios directly from the driver · Communication between the sensor or wireless radio and the driver is according to the DALI-2 standard (note: the driver is not suitable for inter-luminaire DALI communication and therefore not DALI-2 certified) · Highly accurate integrated power metering for use in building management systems · Suitable for central emergency DC operation October 2021 Features · SELV · ~52mA DALI current source power supply, max 0.5W for sensors and radios (SR PSU) · SimpleSet configuration interface (NFC) · Configurable operating windows (AOC) · Dimming supported during DC operation (DCemDim) · Constant Light Output (CLO) · Adjustable Light Output (ALO) · OEM Write Protection (OWP) · Energy Reporting · Diagnostics & Maintenance Application · Offices · Healthcare · Education · Retail: supermarkets, shopping malls Electrical input data Specification item Rated input voltage range Rated input voltage Rated input frequency range Rated input current Rated input power Power factor Total harmonic distortion Efficiency Rated input voltage DC range Input voltage AC range Input frequency AC range Input voltage DC range Standby Power Isolation input to output Value 220...240 230 50...60 0.2 42 0.98 8.6 86 186...250 198...264 45...66 168...275 0.36 SELV Electrical output data Specification item Regulation method Output voltage Output voltage max. Output current Output current min programmable Output current min dimming Output current tolerance ± Output current ripple LF Output current ripple HF Output PstLM Output SVM Output power Value Constant Current 27...54 60 0.3...1 300 7 5 4 4 1 0.4 10...36 Electrical data controls input Specification item Control method Dimming range Isolation controls input to output SR output voltage max. SR guaranteed current SR maximum current Value SR 1...100 SELV 22.5 52 60 Unit Vac Vac Hz A W % % Vdc Vac Hz Vdc W Unit Vdc V A mA mA % % % W Unit % V mA mA Condition Performance range Performance range @ full output power @ rated input voltage @ rated output power @ rated input voltage @ rated output power @ rated input voltage @ rated output power @ rated input voltage @ full output power @ rated input voltage @ max. Iout Performance range Operational range Operational range Operational range Condition Maximum output voltage (rms) Ripple = peak / average, < 3kHz Condition See design-in guide at www.philips.com/oem for more details. Absolute minimum dimming current: 7mA acc. IEC61347-1 2 / 8 Xitanium 36W 0.3-1A 54V SR 230V October 2021 Wiring and Connections Specification item Input wire cross-section Input wire strip length Output wire cross-section Output wire strip length Control wire cross-section Control wire strip length Maximum cable length Value 0.5...1.5 / 20...16 8...9 0.5...1.5 / 20...16 8...9 0.5...1.5 / 20...16 8...9 2 Unit mm2 / AWG mm mm2 / AWG mm mm2 / AWG mm m Type WAGO744, solid wire WAGO744, solid wire WAGO744, solid wire Total length of wiring including LED module, one way Insulation Insulation per IEC61347-1 Input Output+LEDset SR-interface Housing Input SELV SELV Basic Output+LEDset SELV SELV Basic SR-interface SELV SELV Basic Housing Basic Basic Basic 3 / 8 Xitanium 36W 0.3-1A 54V SR 230V October 2021 Dimensions and weight Specification item Length (A1) Mounting hole distance (A2) Width (B1) Height (C1) Mounting hole diameter (D1) Weight Value 360 350 30 21 4.1 260 Unit Tolerance (mm) mm mm mm mm mm gram Logistical data Specification item Product name EOC Logistic code 12NC EAN1 (GTIN) EAN3 (box) Pieces per box Value Xitanium 36W 0.3-1A 54V SR 230V 871869656771500 9290 015 16306 8718696567715 8718696567722 12 Operational temperatures and humidity Specification item Value Unit Ambient temperature -25...+50 ºC Tcase-max 75 ºC Tcase-life 65 ºC Maximum housing temperature 110 ºC Relative humidity 10...90 % Condition Higher ambient temperature allowed as long as Tcase-max is not exceeded Maximum temperature measured at Tcase-point Measured at Tcase-point In case of a failure, inherent by design Non-condensing 4 / 8 Xitanium 36W 0.3-1A 54V SR 230V October 2021 Lifetime Specification item Driver lifetime Value 100,000 Unit hours Condition Measured temperature at Tcase-point is Tcase-life. Maximum failures = 10% Storage temperature and humidity Specification item Ambient temperature Relative humidity Value -25...+85 5...95 Unit ºC % Programmable features Specification item Set Adjustable Output Current (AOC) Adjustable Light Output (ALO) Constant Light Output (CLO) Min Dim Level DC emergency (DCemDim) DALI control supported at DC operation OEM Write Protection (OWP) SR PSU (DALI part 250) Available LEDset, Programmable, SimpleSet Yes Yes Yes Yes Yes Yes Yes Default setting 300 mA OFF OFF 1 % ON OFF OFF ON Features Specification item Open load protection Short circuit protection Over power protection Hot wiring Suitable for fixtures with protection class Energy metering (DALI part 252) Diagnostics Value Yes Yes Yes No I and II Yes Yes Condition Non-condensing Condition Default 15%, EOFx range = 1 .. 100% (EOFx = DCemDIM level) Condition Automatic recovering Automatic recovering Automatic recovering per IEC60598 Accuracy 4% 5 / 8 Xitanium 36W 0.3-1A 54V SR 230V October 2021 Inrush current Specification item Inrush current Inrush peak width Drivers / MCB 16A type B Value 26 140 24 Unit A µs pcs Condition Input voltage 230V Input voltage 230 V, measured at 50% height Indicative value Please refer to the driver design in guide if you use other MCB-types. Driver touch current / protective conductor current Specification item Value Typical Protective Conductor Current (ins. Class I) 0.4 Unit mA rms Condition Acc. IEC60598-1. LED module contribution not included Surge immunity Specification item Mains surge immunity (diff. mode) Mains surge immunity (comm. mode) Control surge immunity (diff. mode) Control surge immunity (comm. mode) Value 1 2 1 2 Unit kV kV kV kV Condition Acc. IEC61000-4-5. 2 Ohm, 1.2/50us, 8/20us Acc. IEC61000-4-5. 12 Ohm, 1.2/50us, 8/20us Acc. IEC61000-4-5. 2 Ohm, 1.2/50us, 8/20us Acc. IEC61000-4-5. 12 Ohm, 1.2/50us, 8/20us Application Info Specification item Approval marks Ingress Protection classification (IP) Application Mounting Type Value CCC / CE / EAC / EL / ENEC / RCM / SELV / SR / UA / WEEE 20 Indoor Linear Built-in 6 / 8 Xitanium 36W 0.3-1A 54V SR 230V October 2021 Graphs Operating window Power factor versus output power Efficiency versus output power 7 / 8 Xitanium 36W 0.3-1A 54V SR 230V October 2021 THD versus output power Notes This product includes software licensed under terms that require Philips Lighting Holding B.V. to display the following notice: ASF: Release ASF-3.32 The Atmel® Software Framework (ASF, www.atmel.com/asf) is a compilation of embedded software for Atmel flash MCUs: megaAVR®, AVR XMEGA®, AVR UC3 and SAM devices. It has been designed to help develop and glue together the different components of a software design. It can easily integrate into an operating system (OS) or run as a stand-alone product. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. The name of Atmel may not be used to endorse or promote products derived from this software without specific prior written permission. 4. This software may only be redistributed and used in connection with an Atmel microcontroller product. THIS SOFTWARE IS PROVIDED BY ATMEL "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT ARE EXPRESSLY AND SPECIFICALLY DISCLAIMED. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ©2021 Signify Holding, IBRS 10461, 5600 VB, NL. All rights reserved. UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG. The information provided herein is subject to change without notice. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. All other trademarks are owned by Signify Holding or their respective owners. Date of release: October 28, 2021 v5 www.philips.com/oemtFPDF 1.24
