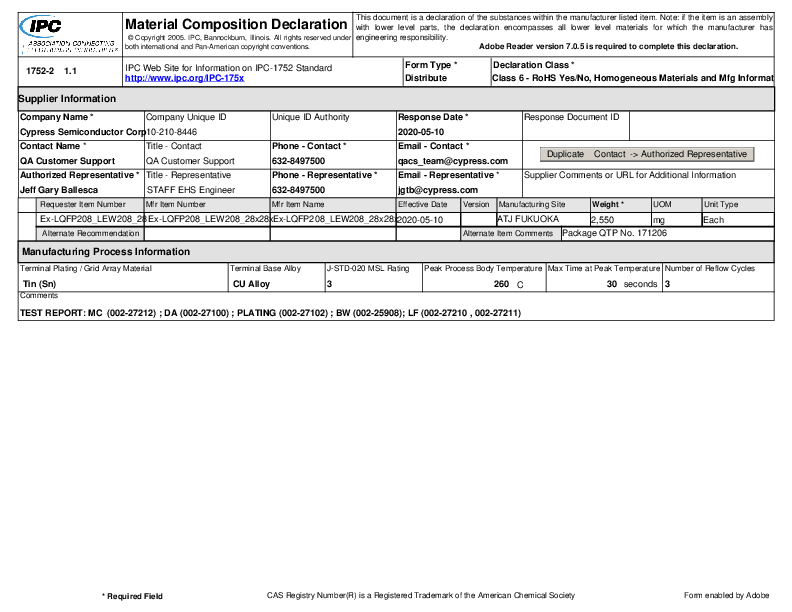

Material Composition Declaration This document is a declaration of the substances within the manufacturer listed item. Note: if the item is an assembly with lower level parts, the declaration encompasses all lower level materials for which the manufacturer has

© Copyright 2005. IPC, Bannockburn, Illinois. All rights reserved under engineering responsibility.

both international and Pan-American copyright conventions.

Adobe Reader version 7.0.5 is required to complete this declaration.

1752-2 1.1

IPC Web Site for Information on IPC-1752 Standard http://www.ipc.org/IPC-175x

Form Type * Distribute

Declaration Class * Class 6 - RoHS Yes/No, Homogeneous Materials and Mfg Informat

Supplier Information

Company Name *

Company Unique ID

Unique ID Authority

Response Date *

Response Document ID

Cypress Semiconductor Corp10-210-8446

Contact Name *

Title - Contact

QA Customer Support

QA Customer Support

Authorized Representative * Title - Representative

Phone - Contact * 632-8497500 Phone - Representative *

2020-05-10 Email - Contact * qacs_team@cypress.com Email - Representative *

Duplicate Contact -> Authorized Representative Supplier Comments or URL for Additional Information

Jeff Gary Ballesca

STAFF EHS Engineer

632-8497500

jgtb@cypress.com

Requester Item Number Mfr Item Number

Mfr Item Name

Effective Date Version Manufacturing Site

Weight *

UOM

Unit Type

Ex-LQFP208_LEW208_28 Ex-LQFP208_LEW208_28x28xEx-LQFP208_LEW208_28x28x2020-05-10 Alternate Recommendation

ATJ FUKUOKA

2,550

mg

Alternate Item Comments Package QTP No. 171206

Each

Manufacturing Process Information

Terminal Plating / Grid Array Material

Terminal Base Alloy

J-STD-020 MSL Rating Peak Process Body Temperature Max Time at Peak Temperature Number of Reflow Cycles

Tin (Sn) Comments

CU Alloy

3

260 C

30 seconds 3

TEST REPORT: MC (002-27212) ; DA (002-27100) ; PLATING (002-27102) ; BW (002-25908); LF (002-27210 , 002-27211)

* Required Field

CAS Registry Number(R) is a Registered Trademark of the American Chemical Society

Form enabled by Adobe

Save the fields in this form to a file

Export Data

Import fields from a file into this form

Import Data

Clear all of the fields on this form

Reset Form

Lock the fields on this form to prevent changes Lock Supplier Fields

RoHS Material Composition Declaration

Declaration Type *

Detailed

RoHS Directive RoHS Definition: Quantity limit of 0.1% by mass (1000 PPM) in homogeneous material for: Lead (Pb), Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB), 2002/95/EC Polybrominated Diphenyl Ethers (PBDE) and quantity limit of 0.01% by mass (100 PPM) of homogeneous material for Cadmium
Please indicate whether any homogeneous material (as defined by the RoHS Directive, EU 2002/95/EC and implemented by the laws of the European Union member states) of the part identified on this form contains lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls and/or polybrominated diphenyl ethers (each a "RoHS restricted substance") in excess of the applicable quantity limit identified above. If a homogeneous material within the part contains a RoHS restricted substance in excess of an applicable quantity limit, please indicate below which, if any, RoHS exemption you believe may apply. If the part is an assembly with lower level components, the declaration shall encompass all such components. Supplier certifies that it gathered the information it provides in this form using appropriate methods to ensure its accuracy and that such information is true and correct to the best of its knowledge and belief, as of the date that Supplier completes this form. Supplier acknowledges that Company will rely on this certification in determining the compliance of its products with European Union member state laws that implement the RoHS Directive. Company acknowledges that Supplier may have relied on information provided by others in completing this form, and that Supplier may not have independently verified such information. However, in situations where Supplier has not independently verified information provided by others, Supplier agrees that, at a minimum, its suppliers have provided certifications regarding their contributions to the part, and those certifications are at least as comprehensive as the certification in this paragraph. If the Company and the Supplier enter into a written agreement with respect to the identified part,the terms and conditions of that agreement, including any warranty rights and/or remedies provided as part of that agreement, will be the sole and exclusive source of the Supplier's liability and the Company's remedies for issues that arise regarding information the Supplier provides in this form. In the absence of such written agreement, the warranty rights and/or remedies of Supplier's Standard Terms and Conditions of Sale applicable to such part shall apply.

RoHS Declaration * 1 - Item(s) does not contain RoHS restricted substances per the definition above

Supplier Acceptance * Accepted

Exemptions: If the declared item does not contain RoHS restricted substances per the definition above except for defined RoHS exemptions, then select the corresponding response in the RoHS Declaration above and choose all applicable exemptions.

Declaration Signature

Instructions: Complete all of the required fields on all pages of this form. Select the "Accepted" on the Supplier Acceptance drop-down. This will display the signature area. Digitally sign the declaration (if required by the Requester) and click on Submit Form to have the form returned to the Requester.

Jeff Gary Ballesca Supplier Digital Signature

Digitally signed by Jeff Gary Ballesca Date: 2020.05.10 15:44:09 +08'00'

* Required Field

CAS Registry Number(R) is a Registered Trademark of the American Chemical Society

Form enabled by Adobe

Homogeneous Material Composition Declaration for Electronic Products

SubItem Instructions: The presence of any JIG Level A or B substances must be declared. [1] indicate the subpart in which the substance is located, [2] provide a description of the homogeneous material [3], enter the weight of the homogeneous material.

Substance Instructions: [A] select the Level (JIG A, JIG B, Requester or Supplier) [B] select the substance category (JIG or Requester) or enter a value (Supplier). [C] select the substance (JIG) or enter the substance and CAS (Other). [D] select a RoHS exemption, if applicable [E] enter the weight of the substance or the PPM concentration [F] Optionally enter the positive (+) and negative (-) tolerance in percent (Note: percent tolerance values are expected to cover a 3 sigma range of distribution unless otherwise noted).

Line Functions: +I Inserts a New Item /SubItem +M Inserts a new Material +C Inserts a new Substance Category +S Inserts a new Substance - Deletes the element line

Item/SubItem Name

Homogeneous Material

Weight

Unit of Measure

Level Substance Category

Substance

+I -I Ex-LQFP - LEW208 +M -M Silicon Die +M -M Lead Frame

39.4 mg 501.2 mg

+C -C Supplier NonMetal +C -C Supplier Metal

+S -S Silicon +S -S Copper +S -S Silver

+S -S Polyimide tape

+M -M Die Attach

2.8

mg

+C -C Supplier NonMetal

+S -S Silver +S -S Epoxy Resin

+S -S Phenolic Resin

+M -M Bonding Wire 6.2

mg

+C -C Supplier Metal

+S -S Copper +S -S Palladium

+S -S Gold

+M -M Molding Compou1,983.06 mg

+C -C Supplier NonMetal

+S -S Phenol Resin +S -S Silica

+S -S Carbon Black

+S -S Epoxy Resin

+M -M External Plating 17.34 mg

+C -C Supplier Metal

+S -S Tin

CAS

Exempt

Weight

Unit of Tolerance Measure - +

PPM

7440-21-3

39.4 mg

15,451

7440-50-8

493.73 mg

193,62

7440-22-4

0.85 mg

334

Trade Secre

6.62 mg

2,596

7440-22-4

2.12 mg

832

Trade Secre

0.38 mg

149

Trade Secre

0.3

mg

116

7440-50-8

6.08 mg

2,382

7440-5-3

0.12 mg

49

7440-57-5

0.00062 mg

1

Trade Secre

77.21 mg

30,278

60676-86-0

1,763.65 mg

691,62

1333-86-4

10.19 mg

3,996

Trade Secre

132.01 mg

51,769

7440-31-5

17.34 mg

6,800
