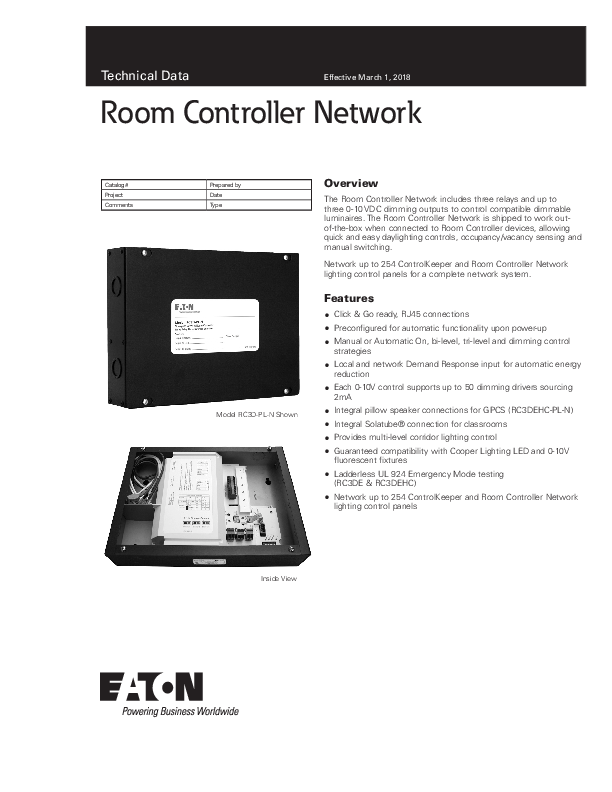

Technical Data Effective March 1, 2018 Room Controller Network Catalog# Project Comments Prepared by Date Type Model RC3D-PL-N Shown Overview The Room Controller Network includes three relays and up to three 0-10 VDC dimming outputs to control compatible dimmable luminaires. The Room Controller Network is shipped to work outof-the-box when connected to Room Controller devices, allowing quick and easy daylighting controls, occupancy/vacancy sensing and manual switching. Network up to 254 ControlKeeper and Room Controller Network lighting control panels for a complete network system. Features Click & Go ready, RJ45 connections Preconfigured for automatic functionality upon power-up Manual or Automatic On, bi-level, tri-level and dimming control strategies Local and network Demand Response input for automatic energy reduction Each 0-10V control supports up to 50 dimming drivers sourcing 2mA Integral pillow speaker connections for GPCS (RC3DEHC-PL-N) Integral Solatube� connection for classrooms Provides multi-level corridor lighting control Guaranteed compatibility with Cooper Lighting LED and 0-10V fluorescent fixtures Ladderless UL 924 Emergency Mode testing (RC3DE & RC3DEHC) Network up to 254 ControlKeeper and Room Controller Network lighting control panels Inside View March 2018 Specifications Size Input/Output Voltage Emergency Output (RC3DE/ RC3DEHC only) UL 924 Class 2 Dimming Output LED Drivers Operating Environment Standards 11 1/2"H x 7 1/2"W x 2 1/4"D 120/277 VAC, 60Hz Maximum 20A combined load per Room Controller Ballast load: 20A @ 120/277 VAC (LED) Incandescent load: 15A @ 120 VAC Motor load: 1HP @ 120 VAC LED, Ballast or Incandescent load: 3A 0-10 VDC, sinks up to 100mA per (40 �A max per circuit leakage to line) Each 0-10V output supports up to 50 ballasts/ drivers that draw the standard 2mA each Requires isolated LED drivers for optimal performance Temperature: 32�F to 104�F (0�C to 40�C) For indoor use UL Approved UL 508 Listed UL 924 Listed System Includes UL listed - UL 508 standard, UL 924 Optional NEMA 1 enclosure 12 Zone or Scene Wallstations Programmable Scene control Open loop three zone daylight sensor Time clock input Occupancy/Vacancy Sensor Connection Occupancy based receptacle control Occupancy based HVAC output RS-485 network standard Software programmable Accessories (sold separately) Keeper Enterprise Software CEPC-1-D (UL 924 0-10V Accessory) Ethernet Interface Module EISSBox OpenADR device Receptacle Rated Switchpack Zone Wallstations Scene Wallstations Dimming Slider Daylight Sensor Occupancy Sensors Input/Output Device Personal Remote QuickConnect Cable Network Repeater (RPTR) BACnet interface (BMSPro) Dimming Zone 1 Dimming Zone 2 Dimming Zone 3 Room Controller Network Description/Operation The Room Controller products can be networked together to expand their out of the box capabilities. Perfect for projects that have multiple rooms that have similar requirements. The Room Controllers can be installed and provide control capabilities on day one without requiring network programming. As the project schedule allows network programming can be completed to provide centralized control and user training. Installation The line voltage section of the Room Controller provides the installing contractor space to make all line voltage connections and direct conduit access, reducing the need for additional junction boxes, while providing easy access to line voltage circuits. Low voltage devices are connected using Cat5 cables (ordered separately). UL 924 relay is provided on some units for automatic emergency lighting control. The UL 924 relay automatically tracks with output 1 and can be connected to any of the three 0-10V dimmers. The UL 924 relay automatically closes and disconnects the 0-10V control open loss of normal power providing adequate egress lighting control. Ladderless maintenance testing of the UL 924 relay can be acheived by pressing the ALL OFF button four times. ControlKeeper and Room Controller Network lighting control panels are joined together using a RS-485 network cable sold separately (GG9841, GG9842, GG89841P, GG89842P). Include the Network Repeater to provide the ability to extend the lighting control network beyond the specified 4,000 feet or more than 32 panels. Sample Room Layout Load 3 Load 2 Dimmer 1 Load 1 Dimmer 1 Load 2 Dimmer 2 Load 1 Dimmer 2 Load 2 Dimmer 3 Load 1 Dimmer 3 Load 1 Dimmer 1 Load 1 Dimmer 1 Load 1 Dimmer 2 Load 1 Dimmer 2 Load 1 Dimmer 3 Load 1 Dimmer 3 2 www.eaton.com/lightingsystems Room Controller Network Sample Wiring Diagram March 2018 Room Connections EIM 120V Power Receptacle Required The Ethernet Interface Module (EIM) and Wireless Ethernet Interface Module (WEIM) may be connected to any Lighting Control Panel in the system using the RS-232 cable included. (Part #:52-018703-00) ControlKeeper TouchScreen Red - Load 2 Out Purple - Load 3 Out CAUTION: Bonding between conduit connections is not automatic and must be provided as part of the installation. Blue - Load In Yellow - Load 1 Out White Red Black Green A/V Mode +- Demand - + Response Alert - Mode + Time Clock +- Integration Controls Adjustable Skylights Switchpack Receptacle BMS/Out Sensors Sensors Slider Station Wallstations Energy Options DIP Switch Demand Response Occupancy 12 Default 10% 20% 30% 40% 3 Occ Vac (default) Not Used 4 0-10V Dimming Outputs +- +- +- Dimmer 3 Dimmer 2 Dimmer 1 QuickConnect Cables Low End High End Integration Controls 6 5 4 3 2 1 Energy Options Reset - Dimmer 3 + - Dimmer 2 + 0-10V Dimming - Dimmer 1 + Adjustable Skylights Status 0-10V Gain Adjustment QuickConnect Coupler (GGRC-COUPLER) SPRC-R-20-120 20A Receptacle Control Daylight sensor (DSRC-FMOIR) Model: OCC-RJ45 Occupancy Sensor Coupler Blue Red Black Brown OCC-RJ45 (Occupancy Coupler) Occupancy/ Vacancy Sensor (OAWC-DT-120W) Half Lights Full Lights All Off Wallstation Black - Line In White/Black - 120V N White/Orange - 277V N Blue - EM Line In Blue - EM Loads Out Blue - EM Line In Blue - EM Loads Out Black - Line In White/Black - 120V N White/Orange - 277V N Blue - Load In Yellow - Load 1 Out Red - Load 2 Out Purple - Load 3 Out Blue - EM Line In Blue - EM Loads Out Black - Line In White/Black - 120V N White/Orange - 277V N Blue - Load In Yellow - Load 1 Out Red - Load 2 Out Purple - Load 3 Out CAUTION: Bonding between conduit connections is not automatic and must be provided as part of the installation. CAUTION: Bonding between conduit connections is not automatic and must be provided as part of the installation. White Red Black Green A/V Mode +- Demand - + Response Alert - Mode + Time Clock +- Integration Controls Adjustable Skylights Switchpack Receptacle BMS/Out Sensors Sensors Slider Station Wallstations Energy Options DIP Switch Demand Response Occupancy 12 Default 10% 20% 30% 40% 3 Occ Vac (default) Not Used 4 0-10V Dimming Outputs +- +- +- Dimmer 3 Dimmer 2 Dimmer 1 QuickConnect Cables Low End High End Integration Controls 6 5 4 3 2 1 Energy Options Reset - Dimmer 3 + - Dimmer 2 + 0-10V Dimming - Dimmer 1 + Adjustable Skylights White Red Black Green A/V Mode +- Demand - + Response Alert - Mode + Time Clock +- Integration Controls Adjustable Skylights Switchpack Receptacle BMS/Out Sensors Sensors Slider Station Wallstations Energy Options DIP Switch Demand Response Occupancy 12 Default 10% 20% 30% 40% 3 Occ Vac (default) Not Used 4 0-10V Dimming Outputs +- +- +- Dimmer 3 Dimmer 2 Dimmer 1 QuickConnect Cables Low End High End Integration Controls 6 5 4 3 2 1 Energy Options Reset - Dimmer 3 + - Dimmer 2 + 0-10V Dimming - Dimmer 1 + Adjustable Skylights Status 0-10V Gain Adjustment Status 0-10V Gain Adjustment QuickConnect Coupler (GGRC-COUPLER) SPRC-R-20-120 20A Receptacle Control Blue Red Black Brown Daylight sensor (DSRC-FMOIR) Model: OCC-RJ45 Occupancy Sensor Coupler OCC-RJ45 (Occupancy Coupler) Occupancy/ Vacancy Sensor (OAWC-DT-120W) Half Lights Full Lights All Off Wallstation QuickConnect Coupler (GGRC-COUPLER) SPRC-R-20-120 20A Receptacle Control Blue Red Black Brown Daylight sensor (DSRC-FMOIR) Model: OCC-RJ45 Occupancy Sensor Coupler OCC-RJ45 (Occupancy Coupler) Occupancy/ Vacancy Sensor (OAWC-DT-120W) Half Lights Full Lights All Off Wallstation www.eaton.com/lightingsystems 3 March 2018 Ordering Catalog # RC3-PL-N Desctiption 3 relays, Plenum, Network Room Controller Voltage 120/277 VAC, 60 Hz RC3D-PL-N RC3DE-PL-N RC3DEHC-PL-N RC3D-PL-N-CP RC3DE-PL-N-CP RC3DEHC-PL-N-CP 3 relays, 3 0-10V dimming Plenum, Network Room Controller 3 relays, 3 0-10V dimming, UL924 Plenum, Network Room Controller 3 relays, 3 0-10V dimming UL924 for healthcare Plenum, Network Room Controller 3 relays, 3 0-10V dimming, Chicago Plenum Network Room Controller 3 relays, 3 0-10V dimming, UL924, Chicago Plenum Network Room Controller 3 relays, 3 0-10V dimming, UL924 for healthcare, Chicago Plenum Network Room Controller 120/277 VAC, 60 Hz 120/277 VAC, 60 Hz 120/277 VAC, 60 Hz 120/277 VAC, 60 Hz 120/277 VAC, 60 Hz 120/277 VAC, 60 Hz Room Controller Network Ballast/Incandescent Maximum Combined Load 20A Maximum Combined Load 20A Maximum Combined Load 20A Maximum Combined Load 20A Maximum Combined Load 20A Maximum Combined Load 20A Maximum Combined Load 20A Room Controller Upgrade Ordering Option Catalog # RCNN RPTR Desctiption Room Controller Network Node, upgrades stand alone Room Controller to the network option. Network Repeater is needed every 32 network panels and/or to extend the lighting network beyond 4000' Additional Options (Sold Separately) Catalog # GGRC-COUPLER GGRC-SPLITTER GGRJ45-006-G GGRJ45-03-G GGRJ45-10-G GGRJ45-25-G GGRJ45-50-G GGRJ45-100-G GGRJ45-10P-G GGRJ45-25P-G GGRJ45-50P-G GGRJ45-100P-G Desctiption RJ45 Coupler RJ45 Splitter RJ45 cables 6 inches RJ45 cables 3 feet RJ45 cables 10 feet RJ45 cables 25 feet RJ45 cables 50 feet RJ45 cables 100 feet RJ45 cables 10 feet plenum rated RJ45 cables 25 feet plenum rated RJ45 cables 50 feet plenum rated RJ45 cables 100 feet plenum rated NNote: Please refer to the Room Controller page on our website for more information Eaton 1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lightingsystems For service or technical assistance: 1-800-553-3879 � 2018 Eaton All Rights Reserved Printed in USA Publication No. TD503122EN March 1, 2018 Specifications and dimensions subject to change without notice.
