N9042B UXA Signal Analyzer
File info: application/pdf · 13 pages · 1.01MB
N9042B UXA Signal Analyzer
N9042B, N9042B UXA
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

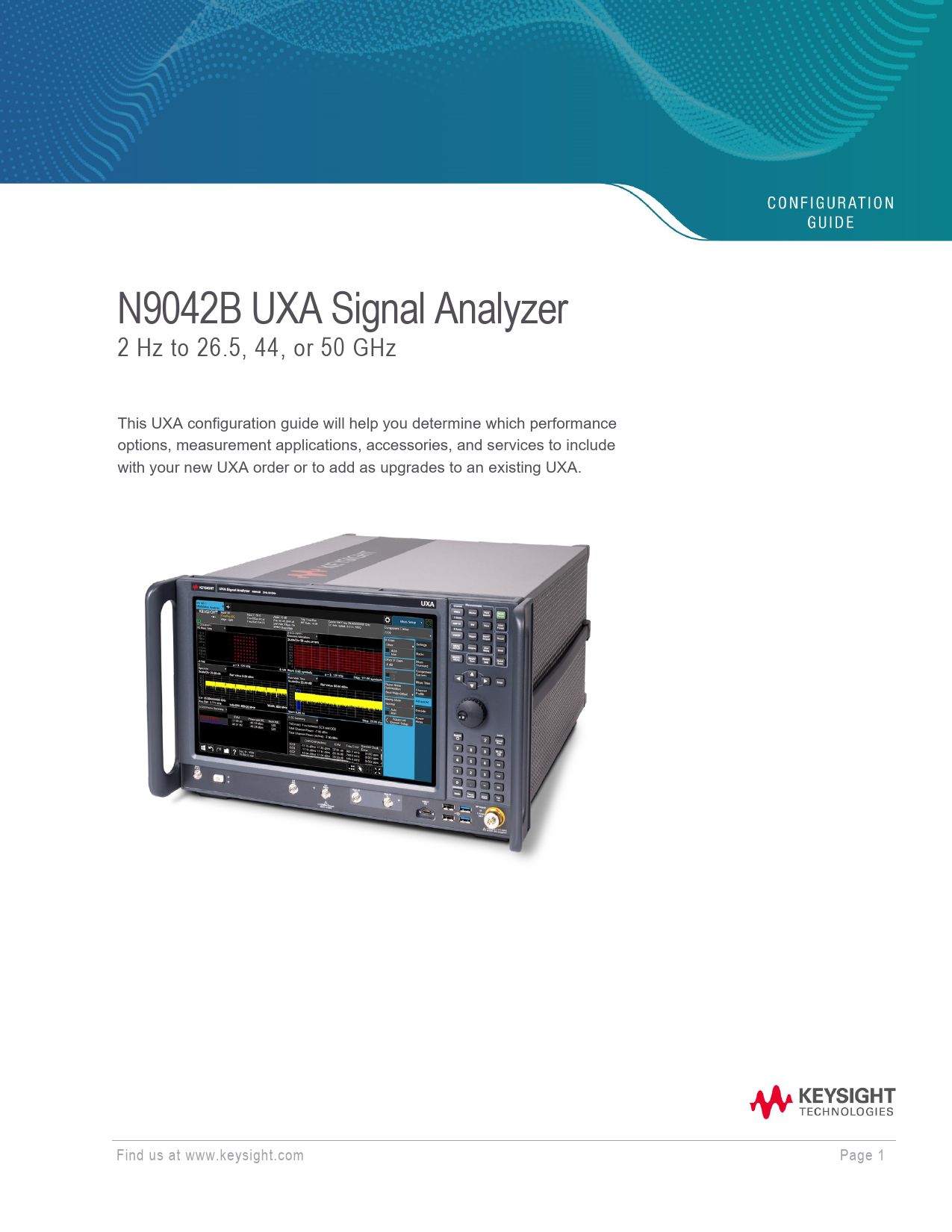

N9042B UXA Signal Analyzer 2 Hz to 26.5, 44, or 50 GHz This UXA configuration guide will help you determine which performance options, measurement applications, accessories, and services to include with your new UXA order or to add as upgrades to an existing UXA. Find us at www.keysight.com Page 1 Included in the Base Product The options and accessories are included as standard on the N9042B UXA X-Series Signal Analyzer base instrument at no additional charge and do not need to be ordered separately. They include: � Spectrum analyzer software application � KeysightCare Assured First Year Support (includes Return to Keysight Warranty � 1 year) � Getting Started and Troubleshooting Guide � Enhanced phase noise � Fast sweep capability � Enhanced fast sweep speed � Full bypass path for frequencies above 3.6 GHz � Microwave preselector bypass for frequencies above 3.6 GHz � Low noise path for improved sensitivity above 3.6 GHz � Wideband digital IF � Enhanced display package � External mixing for frequency coverage extension up to 1.1 THz � Low frequency enabled � 2 dB step mechanical attenuator � LO/IM nulling � Noise floor extension; instrument alignment � Precision frequency reference � Real-time data link for real-time IQ data streaming up to 40 MHz � Hex-core, high-performance processor, 32 GB RAM, with flash calibration file memory � Digital processor with 16 GB capture memory � Removable solid-state drive � Microsoft Windows 10 operating system � Multi-language user interface � Multi-touch user interface � Receiver calibrator (RCal) control license � Country-specific power cord � Front and rear panel covers for protection during transit � Fast power Find us at www.keysight.com Page 2 Configure your N9042B UXA signal analyzer This step-by-step process will help you to configure the N9042B UXA signal analyzer. Tailor the performance and features to meet your requirements. The N9042B UXA is a wideband millimeter-wave signal analyzer in the X-series signal analyzer portfolio. For detailed specifications, please refer to the N9042B UXA X-Series Signal Analyzer, Multi-touch - Data Sheet (3121-1037.EN). Step 1. Choose maximum frequency range Description Frequency range, 2 Hz to 26.5 GHz Frequency range, 2 Hz to 44 GHz Frequency range, 2 Hz to 50 GHz Option number N9042B-526 N9042B-544 N9042B-550 Step 2. Select analysis bandwidth Description Analysis Bandwidth, 1 GHz Analysis Bandwidth, 1.5 GHz Analysis Bandwidth, 2 GHz Analysis Bandwidth, 4 GHz Analysis Bandwidth, 11 GHz Option number N9042B-R10 N9042B-R15 N9042B-R20 N9042B-R40 Step 3. Choose an attenuator Description Mechanical attenuator Electronic attenuator up to 3.6 GHz Option number Standard N9040B-EA3 Additional information Additional information See N9042B-CRW in "Step 8 � Select connection options" Additional information 2 dB steps, 0 to 70 dB; licensed as N9042B-FSA Add in addition to the mechanical attenuator; 1 dB steps, 0 to 24 dB Find us at www.keysight.com Page 3 Step 4. Specify performance options Description Enhanced phase noise performance External mixing Fast sweep capability LO/IM nulling Low noise path Microwave preselector bypass Full bypass path Precision frequency reference Noise floor extension Enhanced display package Fast power Basic EMI precompliance External digitizer control External mixing, wide bandwidth Option number Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard N90EMEMCB N9042B-EDC N9042B-EXW Additional information DDS-based LO assembly; licensed as N9042B-EP0 Provides external mixing with Keysight and third-party mixers; single port 1 for LO out and IF in (SMA female); licensed as N9042B-EXM Improves sweep speed at swept mode; licensed as N9042B-FS1 and FS2 Minimizes the LO feed-thru and the intermodulation distortion; licensed as N9042B-NUL Improves sensitivity (DANL) in frequency bands above 3.6 GHz without degrading dynamic range; licensed as N9042B-LNP Bypass the microwave preselector for wider bandwidth IF; licensed as N9042B-MPB Bypass the microwave preselector and enable the low noise path for improved sensitivity above 3.6 GHz; licensed as N9042B-FBP Aging rate: � 3 x 10-8/year; licensed as N9042B-PFR Improves analyzer's DANL performance; licensed as N9042B-NF2 Includes spectrogram, trace zoom, and zone span in SA mode; licensed as N90E1EDPB Accelerate power measurements such as ACPR; up to 40 MHz bandwidth; licensed as N90E1FP2B Perform basic EMI precompliance measurements with CISPR 16-1-1 detectors and bandwidths; tune and listen, and measure at marker are also available Requires N9042B-CRW Enables use of the V3050A signal analyzer frequency extender 1. When used with Keysight 11970 Series external mixers, an external diplexer is required. Recommended diplexer can be purchased from Keysight as N9029AE13, or from OML Inc. as DPL313B. Find us at www.keysight.com Page 4 Step 5. Add a preamplifier Description Preamplifier, 26.5 GHz Preamplifier, 44 GHz Preamplifier, 44 GHz, basic Preamplifier, 50 GHz Preamplifier, 50 GHz, basic Low noise amplifier Option number N9042B-P26 N9042B-P44 N9042B-P4L N9042B-P50 N9042B-P5L Standard Additional information Compatible with N9042B-526 only Compatible with N9042B-544 only Compatible with N9042B-544 only; non-IVL, no export control Compatible with N9042B-550 only Compatible with N9042B-550 only: non-IVL, no export control Licensed as N9042B-LNA Step 6. Specify PC security Description Security features, exclude launching programs Security features, prohibit saving results Option number N9042B-SF1 N9042B-SF2 Additional removable solidstate drive, Win10 N9042B-SS1 Additional information Prevents the launching of Windows programs from the instrument application Prevents instrument application from saving/recall of measurement results or user configurations to/from instrument's data storage Provides a fully-imaged, removable SSD in addition to the one installed in instruments, with Windows 10 operating system Step 7. Choose source connectivity Description Option number External source control N9042B-ESC Additional information External source control for selected Keysight EXG, MXG, and PSG signal generators; supports external mixing; includes 3 BNC cables and 1 cross-over LAN cable Step 8. Select connection options Description Option number Auxiliary log video output N9042B-ALV Y-axis video output Connector rear, programmable IF output N9042B-YAV N9042B-CRP Connector, IF out, wide N9042B-CRW Additional information Fast rise time video out; output on Aux IF connector Screen video (0-1 volt open circuit); log video and linear video IF out 10 to 75 MHz (in 500 kHz steps); output on Aux IF connector at rear panel Enables Wide IF Out connector that provides 11 GHz BW IF signal from the internal wideband signal paths for center frequencies above 18 GHz. Is required for N9042B-EDC, External Digitizer Control Find us at www.keysight.com Page 5 Step 9. Choose measurement applications and license type Note: Keysight offers flexible license types and terms for the measurement applications, refer to page 11 of X-Series Measurement Applications - Brochure (5989-8019EN). Description General purpose Spectrum analyzer EMI Measurement Application Vector Modulation Analysis Digital Demodulation Measurement Application Vector Modulation Analysis Custom OFDM Application Power Amplifier Measurement Application Remote Language Compatibility Measurement Application SCPI Language Compatibility Measurement Application Analog Demodulation Measurement Application Phase Noise Measurement Application Cellular communications GSM/EDGE/Evo Measurement Application W-CDMA/HSPA+ Measurement Application LTE and LTE-Advanced FDD Measurement Application NB-IoT and eMTC FDD Measurement Application LTE V2X Measurement Application Option number Additional information Standard N6141EM0E N9054EM0E N9054EM1E N9055EM0E N9061EM0E N9062EM0E N9063EM0E N9068EM0E Traditional spectrum analysis plus many new and enhanced functions; power measurements based on industry specifications; licensed as N9060EM1E Performs pre-compliance conducted and radiated emission measurements Performs one-button flexible modulation analysis measurements with FSK, PSK, QAM, MSK, ASK, APSK, VSB etc. and popular format preset Performs one-button custom OFDM modulation analysis measurement with user-defined settings or recalling 89600 VSA or Signal Studio output files Perform power amplifier measurements with connection to the signal source Adds capability to emulate HP/Agilent 8566/68 and 856xE/EC spectrum analyzers Adds capability to emulate the R&S FSP/FSU/FSL/FSV/FSW spectrum analyzers or ESU EMI receiver Adds one-button measurement for AM/FM/PM demodulation with metrics, tune and listen, and AF spectrum; supports audio output (output voltage proportional to frequency deviation). FM Stereo and RDS are included. Adds one-button measurements for analyzing phase noise in frequency domain (log plot) and time domain (spot frequency), supports external mixing N9071EM0E N9073EM0E N9080EM0E N9080EM3E N9080EM4E Standard-based, one-button GSM/EDGE/EDGE Evolution measurements Standard-based, one-button W-CDMA, HSPA and HSPA+ measurements Standard-based, one-button LTE/LTE-Advanced FDD measurements Standard-based, one-button NB-IoT/eMTC measurements Standard-based, one-button LTE-V2X transmitter measurements Find us at www.keysight.com Page 6 LTE and LTE-Advanced TDD Measurement Application 5G NR Measurement Application Wireless connectivity WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application WLAN 802.11ac/ax Measurement Application WLAN 802.11be Measurement Application Bluetooth� Measurement Application Short Range Communications and IoT Measurement Application N9082EM0E N9085EM0E Standard-based, one-button LTE/LTE-Advanced TDD measurements Standard-based, one-button 5G NR (New Radio) downlink and uplink measurements N9077EM0E N9077EM1E N9077EM2E N9081EM0E N9084EM0E Standard-based, one-button 802.11a/b/g/j/p/n/af/ah measurement Standard-based, one-button 802.11ac/ax measurement Standard-based, one-button WLAN 802.11be measurements Standard-based, one-button Bluetooth (BR/EDR, Low Energy 4.0/4.2 and Bluetooth 5) measurements Standard-based, one-button LoRa CSS measurement, 802.15.4 for ZigBee measurement and G.9959 for Z-Wave measurement Step 10. Choose 89600 VSA software licenses Description Basic vector signal analysis and hardware connectivity General purpose Digital demodulation analysis Custom OFDM modulation analysis Cellular communication LTE/LTE-A FDD modulation analysis 3G modulation analysis LTE/LTE-A TDD modulation analysis 5G NR modulation analysis Option number 89601200C (required core option) 89601AYAC 89601BHFC 89601BHGC 89601B7NC 89601BHHC 89601BHNC Additional information Provides the tools and user interface that make up the 89600 VSA software including time and frequency domain measurement, hardware connectivity, recordings and playback Analysis of >40 modulation formats, including custom APSK and presets for communication formats like GSM/EDGE, ZigBee FSK, Bluetooth� BR, APCO25 and SOQPSK Proprietary and pre-standard, customized IQ constellation signals Proprietary and pre-standard OFDM formats such as WLAN, DAB, DVBT/H, DVB-SH, ISDB-T and more LTE FDD, LTE-Advanced FDD W-CDMA/HSPA+, TD-SCDMA/HSPA, cdma2000, 1xEV-DO and 1xEV-DV LTE FDD, LTE-Advanced FDD modulation analysis 5G NR, Pre-5G Find us at www.keysight.com Page 7 Wireless connectivity Wireless connectivity modulation analysis High throughput WLAN modulation analysis IoT modulation analysis Radar analysis FMCW radar analysis Pulse analysis Other standard formats DOCSIS modulation analysis 89601B7RC 89601BHXC 89601BHTC WLAN 802.11a/b/g/j/p, WiMax modulation analysis WLAN 802.11n/ac, WLAN 802.11ax, WLAN 802.11be NB-IoT, RFID, HRP UWB (802.15.4/4z) 89601BHPC 89601BHQC For multi-chirp linear FM modulated signals or automotive radar Pulsed modulated radar signal analysis and frequency hopping signal analysis 89601BHMC DOCSIS3.1 downstream and upstream modulation analysis Step 11. Select accessories Description Signal analyzer frequency extender Receiver calibration (RCal) module Power cord ROM/CD-R/RW drive USB Mouse Minimum Loss Pad, 50 to 75 (type-N to BNC) Rack mount flange kit 265.9 mm H (6U) - two flange brackets, two standard rails Rack mount flange and handle kit 265.9mm H (6U) - two brackets, handles, rails Front panel cover V-band waveguide harmonic mixer, 50 to 75 GHz Extended V-band waveguide harmonic mixer, 50 to 80 GHz E-band waveguide harmonic mixer, 60 to 90 GHz W-band waveguide harmonic mixer, 75 to 110 GHz Option number V3050A U9361C/F/G/M Standard 1DVR001A 1MSE001A MLP001A N9042B-2CM N9042B-2CP Standard M1970V-001 M1970V-002 M1970E M1970W Additional information Requires N9042B-EXW; extends frequency from 50 GHz to 67, 90 or 110 GHz Enables magnitude and complex corrections Dependent upon the region of use Enhances the usability of the Windows OS Enhances the usability of the 89600 VSA software 50 type-N male to 75 BNC female adapter, Frequency range: 9 MHz to 2 GHz, Input/output return loss: 20/11 dB, Insertion loss: 5.7 dB Adds rack mount flanges and rails to the UXA Adds rack mount flanges, rails and handles to the UXA Protective cover for front panel Requires Option EXM; USB mixer with smart features Requires Option EXM; USB mixer with smart features Requires Option EXM; USB mixer with smart features Requires Option EXM; USB mixer with smart features Find us at www.keysight.com Page 8 Description E-band waveguide harmonic mixer, 60 to 90 GHz E-band waveguide harmonic mixer, 55 to 90 GHz E-band waveguide harmonic mixer, 50 to 75 GHz E-band waveguide harmonic mixer, 75 to 110 GHz 26 to 40 GHz waveguide harmonic mixer 33 to 50 GHz waveguide harmonic mixer 40 to 60 GHz waveguide harmonic mixer 50 to 75 GHz waveguide harmonic mixer 75 to 110 GHz waveguide harmonic mixer Option number M1971E-001 M1971E-003 M1971V M1971W 11970A 11970Q 11970U 11970V 11970W LO/IF diplexer N9029AE13 USB external preamplifier, 10 MHz to 4 GHz USB external preamplifier, 0.1 to 26.5 GHz U7227A U7227C Additional information Requires Option EXM; USB mixer with smart features and 3 signal paths Requires Option EXM; USB mixer with smart features and 3 signal paths Requires Option EXM; USB mixer with smart features and 3 signal paths Requires Option EXM; USB mixer with smart features and 3 signal paths Requires Option EXM and N9029AE13 diplexer Requires Option EXM and N9029AE13 diplexer Requires Option EXM and N9029AE13 diplexer Requires Option EXM and N9029AE13 diplexer Requires Option EXM and N9029AE13 diplexer Ordering convenience; required for 11970 Series external mixers For more information on accessories, please go to: www.keysight.com/find/accessories Find us at www.keysight.com Page 9 Step 12. Order service and support Description Option number KeysightCare Assured First Year Support Standard KeysightCare upgrades � warranty and calibration KeysightCare Assured - Extend to 2 years KeysightCare Assured - Extend to 3 years KeysightCare Assured - Extend to 5 years KeysightCare Enhanced - Upgrade 1 year KeysightCare Enhanced - Extend to 2 years KeysightCare Enhanced - Extend to 3 years KeysightCare Enhanced - Extend to 5 years Calibration services Calibration Plan -Return to Keysight � 3 years Calibration Plan -Return to Keysight � 3 years Product assistance Remote scheduled productivity assistance. Select 1 to 999 hours Startup assistance, daily Custom services R-55A-001-2 R-55A-001-3 R-55A-001-5 R-55B-001-1 R-55B-001-2 R-55B-001-3 R-55B-001-5 R-50C-011-3 R-50C-011-3 PS-S10 PS-S20 PS-X10 Additional information Includes Return to Keysight Extended Warranty Includes Return to Keysight Extended Warranty Includes KeysightCare Assured Services (Return to Keysight Warranty) plus Return to Keysight Calibration Other calibration options may be available; for more information on calibration go to: www.keysight.com/find/calibration Find us at www.keysight.com Page 10 Instrument Upgrades Fast license-key upgrades for options that do not require additional hardware: 1. Place an order for the upgrade with Keysight and request to receive the option upgrade entitlement certificate and a onetime software upgrade license through email 2. Redeem the certificate through the Web by following the instructions on the certificate 3. Install the license file and latest software in the UXA 4. Begin using the new capability 1, 2 Installation, calibration, and verification information is available at: www.keysight.com/find/uxa_upgrades 1 At the time of manufacture, the hardware related to many of these options was fully adjusted and the option performance was verified to be within its warranted specifications. Within one year of the initial calibration date of the analyzer, this option is fully calibrated with no further adjustment or verification testing. 2 If this analyzer has been adjusted as part of a repair or calibration during its first year, or if the analyzer is more than one year old, additional adjustment and performance verification tests are required to ensure that some newly installed options are functioning properly. However, the completion of these tests does not guarantee that the analyzer meets all warranted specifications Find us at www.keysight.com Page 11 Description Analysis Bandwidth Increase analysis bandwidth from 1 GHz to 1.5 GHz Increase analysis bandwidth from 1 GHz to 2 GHz Increase analysis bandwidth from 1 GHz to 4 GHz Increase analysis bandwidth from 1.5 GHz to 2 GHz Increase analysis bandwidth from 1.5 GHz to 4 GHz Increase analysis bandwidth from 2 GHz to 4 GHz Frequency Increase frequency from 26.5 to 44 GHz Upgrade number N9042BU-B12 N9042BU-B13 N9042BU-B14 N9042BU-B15 N9042BU-B16 N9042BU-B17 N9042BU-F13 Increase frequency from 26.5 to N9042BU-F14 50 GHz Increase frequency from 44 to 50 GHz N9042BU-F15 Preamplifiers Add preamplifier, 26.5 GHz Add preamplifier, 44 GHz Add preamplifier, 44 GHz, basic Add preamplifier, 50 GHz Add preamplifier, 50 GHz, basic N9042BU-P26 N9042BU-P44 N9042BU-P4L N9042BU-P50 N9042BU-P5L Requirements (UXA must already include opt) Additional information R10 License key only R10 License key only R10 Includes additional hardware; return to Keysight factory R15 License key only R15 Includes additional hardware; return to Keysight factory R20 Includes additional hardware; return to Keysight factory 526 Return to Keysight factory; does not include a preamp upgrade to 44 GHz. If N9042B already has P26 (preamplifier, 26.5 GHz) installed then N9042BU-P44 or N9042BU-P4L must also be ordered. 526 Return to Keysight factory; does not include a preamp upgrade to 50 GHz. If N9042B already has P26 (preamplifier, 26.5 GHz) installed then N9042BU-P44 or N9042BU-P4L must also be ordered. 544 Return to Keysight factory; includes preamp upgrade to 50 GHz. 526 License key only 544 License key only 544 License key only 550 License key only 550 License key only Find us at www.keysight.com Page 12 Additional Upgrades Add auxiliary log video output Add connector Rear, Programmable IF output Add connector, IF out, wide Add electronic attenuator, 3.6 GHz Add external digitizer control Add external source control Add security features, exclude launching programs Add security features, prohibit saving results Add screen video, log video and linear video N9042BU-ALV N9042BU-CRP N9042BU-CRW N9042BU-EA3 N9042BU-EDC N9042BU-ESC N9042BU-SF1 N9042BU-SF2 N9042BU-YAV None None None None CRW None None None None License key only License key only License key only License key only License key only License key only License key only License key only License key only Related resources � N9042B UXA X-Series Signal Analyzer, Multi-touch - Data Sheet, 3121-1037.EN Learn more at: www.keysight.com For more information on Keysight Technologies' products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus Find us at www.keysight.com This information is subject to change without notice. � Keysight Technologies, 2021, Published in USA, September 3, 2021, 3121-1036.EN Page 13
