Title: 2-channel analog input terminal 4…20 mA, differential input, 12 bit Author: Beckhoff Automation | www.beckhoff.de Subject: New Automation Technology

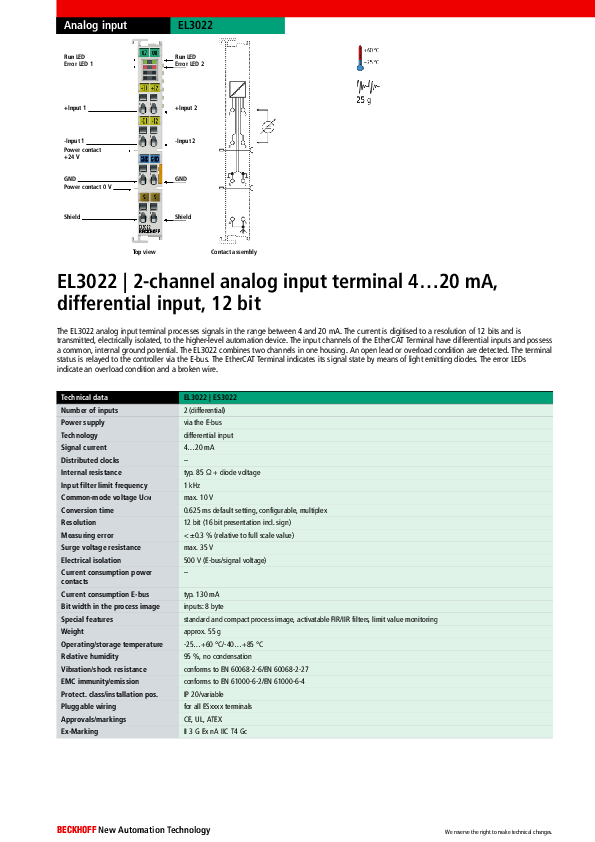

Analog input Run LED Error LED 1 EL3022 Run LED Error LED 2 +Input 1 -Input 1 Power contact +24 V GND Power contact 0 V Shield +Input 2 -Input 2 GND Shield Top view Contact assembly EL3022 | 2-channel analog input terminal 4...20 mA, differential input, 12 bit The EL3022 analog input terminal processes signals in the range between 4 and 20 mA. The current is digitised to a resolution of 12 bits and is transmitted, electrically isolated, to the higher-level automation device. The input channels of the EtherCAT Terminal have differential inputs and possess a common, internal ground potential. The EL3022 combines two channels in one housing. An open lead or overload condition are detected. The terminal status is relayed to the controller via the E-bus. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The error LEDs indicate an overload condition and a broken wire. Technical data Number of inputs Power supply Technology Signal current Distributed clocks Internal resistance Input filter limit frequency Common-mode voltage UCM Conversion time Resolution Measuring error Surge voltage resistance Electrical isolation Current consumption power contacts Current consumption E-bus Bit width in the process image Special features Weight Operating/storage temperature Relative humidity Vibration/shock resistance EMC immunity/emission Protect. class/installation pos. Pluggable wiring Approvals/markings Ex-Marking EL3022 | ES3022 2 (differential) via the E-bus differential input 4...20 mA typ. 85 + diode voltage 1 kHz max. 10 V 0.625 ms default setting, configurable, multiplex 12 bit (16 bit presentation incl. sign) < ±0.3 % (relative to full scale value) max. 35 V 500 V (E-bus/signal voltage) typ. 130 mA inputs: 8 byte standard and compact process image, activatable FIR/IIR filters, limit value monitoring approx. 55 g -25...+60 °C/-40...+85 °C 95 %, no condensation conforms to EN 60068-2-6/EN 60068-2-27 conforms to EN 61000-6-2/EN 61000-6-4 IP 20/variable for all ESxxxx terminals CE, UL, ATEX II 3 G Ex nA IIC T4 Gc BECKHOFF New Automation Technology We reserve the right to make technical changes.html2ps (PHP version) PDFlib 8.0.2 (PHP5/Win32)
