P R O D U C T D A T A S H E E T 803Gv2 GigaPoint The 803Gv2 GigaPoint is designed for the industry-leading Calix E-Series fiber access GPON optical line terminals (OLTs).

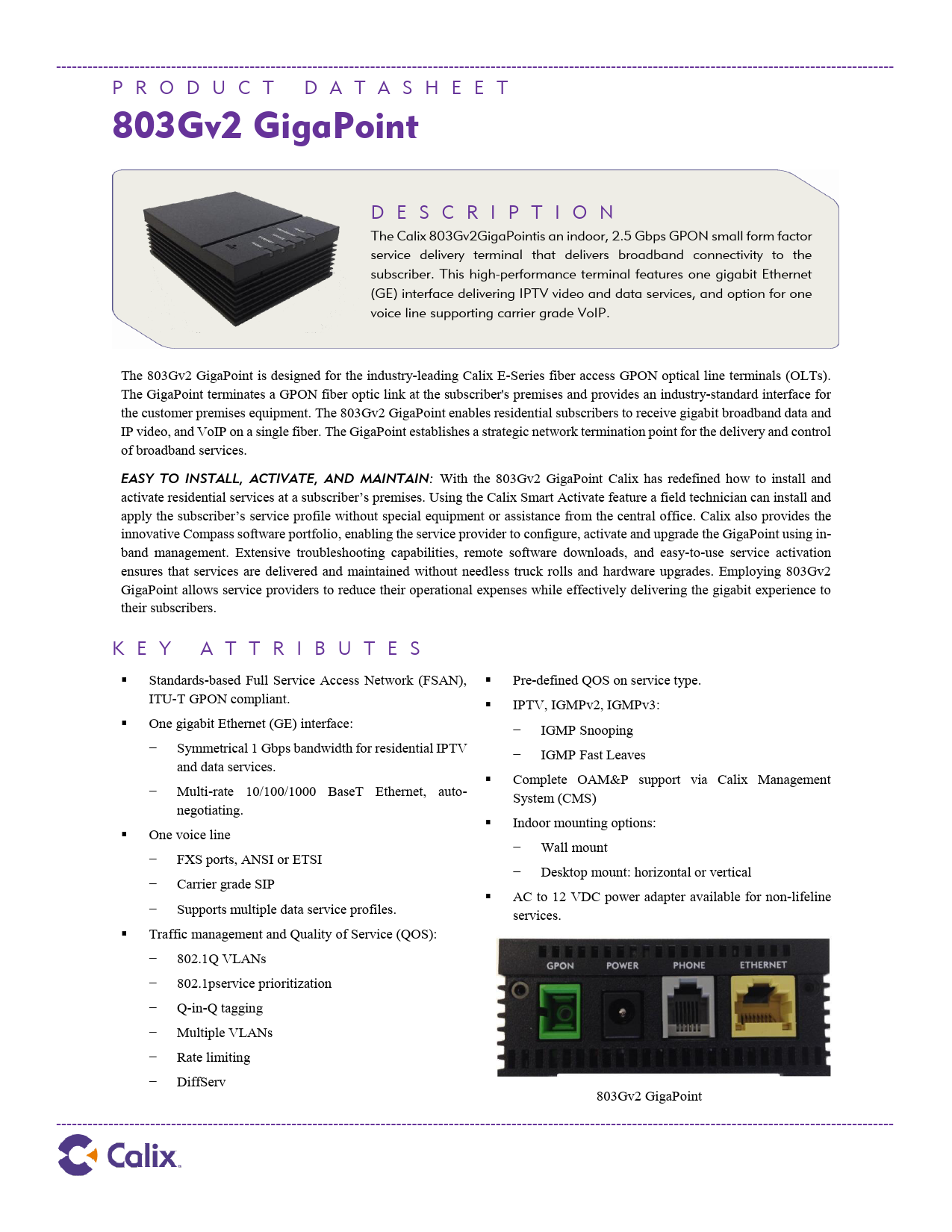

---------------------------------------------------------------------------------------------------------------------------------------------------------------PRODUCT DATASHEET 803Gv2 GigaPoint DESCRIPTION The Calix 803Gv2GigaPointis an indoor, 2.5 Gbps GPON small form factor service delivery terminal that delivers broadband connectivity to the subscriber. This high-performance terminal features one gigabit Ethernet (GE) interface delivering IPTV video and data services, and option for one voice line supporting carrier grade VoIP. The 803Gv2 GigaPoint is designed for the industry-leading Calix E-Series fiber access GPON optical line terminals (OLTs). The GigaPoint terminates a GPON fiber optic link at the subscriber's premises and provides an industry-standard interface for the customer premises equipment. The 803Gv2 GigaPoint enables residential subscribers to receive gigabit broadband data and IP video, and VoIP on a single fiber. The GigaPoint establishes a strategic network termination point for the delivery and control of broadband services. EASY TO INSTALL, ACTIVATE, AND MAINTAIN: With the 803Gv2 GigaPoint Calix has redefined how to install and activate residential services at a subscriber's premises. Using the Calix Smart Activate feature a field technician can install and apply the subscriber's service profile without special equipment or assistance from the central office. Calix also provides the innovative Compass software portfolio, enabling the service provider to configure, activate and upgrade the GigaPoint using inband management. Extensive troubleshooting capabilities, remote software downloads, and easy-to-use service activation ensures that services are delivered and maintained without needless truck rolls and hardware upgrades. Employing 803Gv2 GigaPoint allows service providers to reduce their operational expenses while effectively delivering the gigabit experience to their subscribers. KEY ATTRIBUTES Standards-based Full Service Access Network (FSAN), Pre-defined QOS on service type. ITU-T GPON compliant. IPTV, IGMPv2, IGMPv3: One gigabit Ethernet (GE) interface: - IGMP Snooping - Symmetrical 1 Gbps bandwidth for residential IPTV - IGMP Fast Leaves and data services. Complete OAM&P support via Calix Management - Multi-rate 10/100/1000 BaseT Ethernet, auto- System (CMS) negotiating. Indoor mounting options: One voice line - Wall mount - FXS ports, ANSI or ETSI - Desktop mount: horizontal or vertical - Carrier grade SIP AC to 12 VDC power adapter available for non-lifeline - Supports multiple data service profiles. services. Traffic management and Quality of Service (QOS): - 802.1Q VLANs - 802.1pservice prioritization - Q-in-Q tagging - Multiple VLANs - Rate limiting - DiffServ 803Gv2 GigaPoint ---------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------------------------------------------------SPECIFICATIONS 803Gv2 GigaPoint DIMENSIONS Width:3.0 in (7.6 cm) Height:4.0 in (10.2 cm) Depth:1.25in (3.2 cm) Weight:4oz. (.1kg) PON CHARACTERISTICS Max. split: 64 GPON Max. reach: 58 km (36 miles) with C+/FEC Maximum Optical Distribution Network (ODN) Attenuation: GPON Class B+, 28 dB 1490 ± 10 nm optical receiver: 27.0 to 8.0 dBm 1310 ± 20 nm optical transmitter: 0.5 to 5.0 dBm INTERFACES Data/IPTV: One 10/100/1000 BaseT Ethernet port, RJ-45 connector Telephony (803Gv2): One RJ-11 connector PON: Single 9/125 µm (single mode) fiber, SC/APC connector, minimum 50 dB return loss Power: 2-pin connector TELEPHONY General: SIP Number of lines:1 RENs:5 maximum Drop length: Maximum 500 feet (152.4 m) DS0 Output: 25 mA Ring Voltage:4555 VAC ENVIRONMENTAL Operating temperature: Indoor ambient temperature, 0° to 40°C (32° to 104°F) Operating/storage relative humidity: 10 to 95 % non-condensing Altitude: 0 to 10,000 feet (0 to 3,048 m) above sea level DATA Drop length:328 feet (100 m) maximum using CAT5 cable Auto MDI/MDIX crossover for 1000BASE-TX, 100BASE-TX, and 10BASE-T ports Traffic Management and QOS: 802.1Q VLAN; 802.1pVoice, Video, Data and Management Priorities; Q-in-Q tagging; Per-Port Rate Shaping; Rate Limiting CERTIFICATION AND COMPLIANCE Emissions: FCC Part 15 Class B IC ICES-003 Class B CISPR-32 Safety: UL 60950 and UL 1697 approved IEEE:802.3, 802.3AB, 802.3U, 802.11p, 802.11Q POWERING AND ALARMS 2-pin connector Input voltage: 12 VDC (nominal), 10 VDC (min.), 15 VDC (max) External Power Adapter: 12 VDC, 1A Typical Power: 5 W, Peak Power: 7 W 2-pin power cable for UPS support Dying Gasp ORDERING INFORMATION Calix 803Gv2 GigaPoint 100-04797......................... 803Gv2 GigaPoint, 1 GE, 1 POTS ---------------------------------------------------------------------------------------------------------------------------------------------------------------- 1035 N. McDowell Blvd., Petaluma CA 94954 TEL: 877.766.3500 WWW.CALIX.COM © Calix. All Rights Reserved. 250-00367 Rev.10 Page 2Microsoft Word 2016
