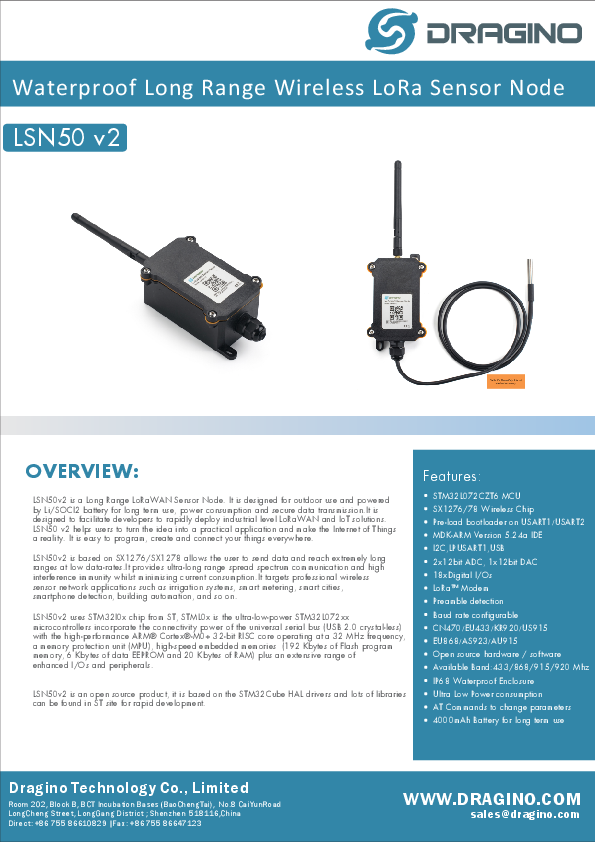

Waterproof Long Range Wireless LoRa Sensor Node LSN50 v2

OVERVIEW:
LSN50v2 is a Long Range LoRaWAN Sensor Node. It is designed for outdoor use and powered by Li/SOCl2 battery for long term use, power consumption and secure data transmission.It is designed to facilitate developers to rapidly deploy industrial level LoRaWAN and IoT solutions. LSN50 v2 helps users to turn the idea into a practical application and make the Internet of Things a reality. It is easy to program, create and connect your things everywhere.
LSN50v2 is based on SX1276/SX1278 allows the user to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.
LSN50v2 uses STM32l0x chip from ST, STML0x is the ultra-low-power STM32L072xx microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance ARM� Cortex�-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.
LSN50v2 is an open source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found in ST site for rapid development.

Features:
STM32L072CZT6 MCU SX1276/78 Wireless Chip Pre-load bootloader on USART1USART2 MDK-ARM Version 5.24a IDE I2C,LPUSART1,USB 2x12bit ADC, 1x12bit DAC 18xDigital I/Os LoRaTM Modem Preamble detection Baud rate configurable CN470EU433KR920US915 EU868AS923AU915 Open source hardware / software Available Band:433/868/915/920 Mhz IP68 Waterproof Enclosure Ultra Low Power consumption AT Commands to change parameters 4000mAh Battery for long term use

Dragino Technology Co., Limited
Room 202, Block B, BCT Incubation Bases (BaoChengTai), No.8 CaiYunRoad LongCheng Street, LongGang District ; Shenzhen 518116,China Direct: +86 755 86610829 |Fax: +86 755 86647123

WWW.DRAGINO.COM
sales@dragino.com

Waterproof Long Range Wireless LoRa Sensor Node
LSN50 v2
Pin Definition

LED

BOOT MODE

28

27

VDD PA0 PA1 PA2 PA3 PB6 PB7 PB3 PB4 PA9 PA10 GND VDD

1 2 3 4 5 6 7 8
RESET 9
10 11 12 13

14

+5V

15

GND

16

PA8

17

PA13

18

PB14

19

PB15

20

PB12

21

PB13

22

PA14

23

PA11

24

PA12

25

NRST

26

PA4

Specifications:
MCU Side:
MCU: STM32L072CZT6 Flash:192KB RAM:20KB EEPROM:6KB Clock Speed: 32Mhz
LoRa Side:
LoRa Chip: sx1276/sx1278 68 dB maximum link budget. +20 dBm - 100 mW constant RF output vs. +14 dBm high efficiency PA. Programmable bit rate up to 300 kbps. High sensitivity: down to -148 dBm. Bullet-proof front end: IIP3 = -12.5 dBm. 127 dB Dynamic Range RSSI. LoRaWAN 1.0.3 Specification

Absolute Maximum Ratings
I/O pins: 0.5v ~ VCC+0.5V
Common DC Characteristics
Supply Voltage: 2.1v ~ 3.6v Operating Tempature: -40 ~ 85�C I/O pins: Refer to STM32L072 datasheet
Power Consumption:
STOP Mode: 2.7uA @ 3.3v LoRa Transmit Mode: 125mA @ 20dBm 44mA @ 14dBm
Battery:
Li/SOCI2 unchargable battery Capacity: 4000mAh Self Discharge: <1% / Year @ 25�C Max continuously current: 130mA Max boost current: 2A, 1 second

Applications:
Wireless Alarm and Security Systems Home and Building Automation Automated Meter Reading Industrial Monitoring and Control Long range Irrigation Systems
FUD
Dimensions:
Size: 101 x 40 x 42mm Net Weight: 140g
Order Info- LSN50v2-XX-YY
XX:
XX: Frequency Bands, options: EU433,CN470,EU868,IN865,KR920 AS923,AU915,US915
YY:
12: With M12 waterproof cable hole 16: With M16 waterproof cable hole NH: No Hole
