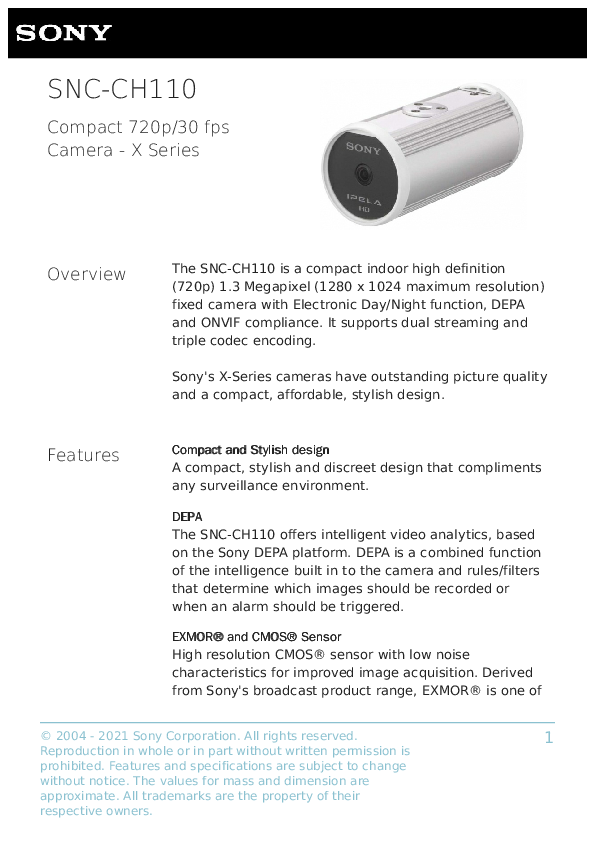

SNC-CH110 Compact 720p/30 fps Camera - X Series Overview The SNC-CH110 is a compact indoor high definition (720p) 1.3 Megapixel (1280 x 1024 maximum resolution) fixed camera with Electronic Day/Night function, DEPA and ONVIF compliance. It supports dual streaming and triple codec encoding. Sony's X-Series cameras have outstanding picture quality and a compact, affordable, stylish design. Features Compact and Stylish design A compact, stylish and discreet design that compliments any surveillance environment. DEPA The SNC-CH110 offers intelligent video analytics, based on the Sony DEPA platform. DEPA is a combined function of the intelligence built in to the camera and rules/filters that determine which images should be recorded or when an alarm should be triggered. EXMOR® and CMOS® Sensor High resolution CMOS® sensor with low noise characteristics for improved image acquisition. Derived from Sony's broadcast product range, EXMOR® is one of © 2004 - 2021 Sony Corporation. All rights reserved. 1 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. the highest quality image sensors available. Power over Ethernet (PoE) capability Supporting Power over Ethernet (PoE), the camera can be powered using the same Ethernet cable it uses for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment. ONVIF (Open Network Video Interface Forum) compliance The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices including automatic device discovery and video streaming. Allows interoperability between network video devices. HD (720p) resolution Detailed 720p HD progressive images. Progressive acquisition (as opposed to interlace) means that images are more stable to view, contain more information and compress more efficiently - without "interlace artefacts". Supports multiple industry standard codecs: H264, MPEG-4 and JPEG with dual streaming capability This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still images Stream Squared Function An incredibly useful function that allows simultaneous streaming of two 4:3 aspect ratio videos in userselectable SD resolutions. You can select the entire image or a portion of the image from the original view and resize to SD resolution. With this feature the SNCCH110 can replace two SD cameras installed in the same line of view. Electronic Day/Night Ensures that the camera is operating with the optimum © 2004 - 2021 Sony Corporation. All rights reserved. 2 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. sensitivity for both day and night conditions Analogue Monitor Output This allows an analogue video monitor to be connected directly to the camera. Specifications Camera Image Sensor Number of Effective Pixels Signal System Sync System Minimum Illumination (50 IRE) Minimum Illumination (30 IRE) Gain Shutter Speed Exposure Control White Balance Lens Zoom Ratio 1/3.8-type CMOS sensor Approx. 1.3 Megapixels NTSC/PAL (switchable) Internal synchronization Color: 5.0 lx (F2.8, AGC (Max.), 1/30 s) Color: 2.7 lx (F2.8, AGC (Max.), 1/30 s) Auto 1/2 s to 1/10,000 s Auto, EV Compensation, Auto Slow Shutter Auto(ATW, ATW-PRO) , Preset, One-push WB, Manual Fixed lens Digital zoom 3x © 2004 - 2021 Sony Corporation. All rights reserved. 3 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. Total zoom 3x Horizontal Viewing Angle 80.7° Vertical Viewing Angle 60.5° Focal Length f = 2.34 mm F-Number F2.8 Minimum Object Distance 500 mm Camera Features Day/Night Electronic D/N Noise Reduction NR Superimpose Number 2 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark Superimpose Language English Menu Language English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese Smartphone viewer Yes © 2004 - 2021 Sony Corporation. All rights reserved. 4 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. Video Resolution Compression Format Maximum Frame Rate Range of Bit Rate Setting Solid PTZ Adaptive Rate Control Bandwidth Control Multi streaming Capability Number of Clients 1280x960, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480, 720x480, 640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144 H.264, MPEG-4, JPEG H.264: 30 fps (1280x960, 1280x720) MPEG-4: 30 fps (1280x960, 1280x720) JPEG: 30 fps (1280x960, 1280x720) 64 Kbps to 8 Mbps Yes H.264 JPEG Dual streaming *1 5 Intelligent Video/Audio Analytics Analytics Architecture DEPA © 2004 - 2021 Sony Corporation. All rights reserved. 5 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. Intelligent Motion Detection Yes Tamper Alarm Yes Audio Compression Format No System Requirements Operating System Microsoft Windows XP Windows Vista (32 bit) Windows 7 (32 bit, 64 bit) Processor Intel Core2 Duo 2 GHz or higher Memory 1 GB or more Web Browser Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0 Firefox Ver. 3.5 (plug-in free viewer only) Safari Ver. 4.0 (plug-in free viewer only) Google Chrome Ver.4.0 (plugin free viewer only) SNC toolbox Yes SNC toolbox mobile Yes Network © 2004 - 2021 Sony Corporation. All rights reserved. 6 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2) Number of IP Address/Mac 1 ADDRESS QoS DSCP Multicast Streaming Support Yes ONVIF Conformance Profile S Authentication IEEE802.1X Interface Analog Monitor Output for Setup Network Port Alarm Input (Sensor Input) AV MiniJack 10BASE-T/100BASE-TX (RJ-45) x1 General Power Requirements Power Consumption IEEE 802.3af compliant (PoE) Class 1 2.4 W © 2004 - 2021 Sony Corporation. All rights reserved. 7 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. Operating Temperature 0 to +50 +32°F to +122°F Storage Temperature -20 to + 60 -4 °F to + 140 °F Operating Humidity 20 % to 80 % Storage Humidity 20 % to 95 % Dimensions *2 44 x 93 mm 1 3/4 x 3 3/4 inches Mass 100 g External Material Front Cover: ABS+PC Rear Cover: ABS+PC Case: Aluminum External Color Front & Rear Cover: Munsell 5.2PB 1.9/0.2 for Black Model Front & Rear Cover: Munsell 2.3G 8.4/0.2 for Silver Model Case: Black for Black model Case: Silver for Silver model Safety Regulations JATE Technical Standard (LAN) UL2044, IEC60950-1CB) VCCI Class B, FCC Class B, IC Class B Emission: EN55022 (Class B) + EN50130-4 Immunity: EN55022 (Class B) + EN55024 Emission: AS/NZS CISPR22 (Class B) Installation Manual (1) B&P warranty booklet (1) © 2004 - 2021 Sony Corporation. All rights reserved. 8 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. Supplied Accessories Notes *1 *2 Related products UNIXBS1/T Silver bracket for SNC-CH110S and SNC-CH210S Front sheet (with logo) (1) Front sheet (without logo) (1) Sensor input cable (1) Dual streaming (Any combination with JPEG/MPEG4/H.264, including multiple streams of the same format) The values for dimensions are approximate. © 2004 - 2021 Sony Corporation. All rights reserved. 9 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. Gallery © 2004 - 2021 Sony Corporation. All rights reserved. 10 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. © 2004 - 2021 Sony Corporation. All rights reserved. 11 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. © 2004 - 2021 Sony Corporation. All rights reserved. 12 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. © 2004 - 2021 Sony Corporation. All rights reserved. 13 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners. © 2004 - 2021 Sony Corporation. All rights reserved. 14 Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change without notice. The values for mass and dimension are approximate. All trademarks are the property of their respective owners.Qt 5.5.1
