iiyama PROLITE TE7502MIS-B1AG 75 inch Interactive 4K UHD LCD Touchscreen Datasheet
File info: application/pdf · 4 pages · 795.43KB
PROLITE TE7502MIS-B1AG
Guides quick start guide, safety guide Other Mounting bracket for NUC, Mounting bracket for webcam Remote control yes (batteries included) Power supply unit internal Power supply AC 180 - 240V, 50/60Hz Power usage 240W…
PROLITE TE7502MIS-B1AG - Iiyama
15 dic 2021 — Inspire infinite possibilities with the ProLite TE7502MIS-B1AG, a perfect hybrid interactive solution for any room. This 75" 20-.
iiyama ProLite TE7502MIS-B1AG 75" LED-backlit LCD display - 4K Brochure
Интерактивен дисплей IIYAMA TE7502MIS-B1AG 75 | JAR Computers
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

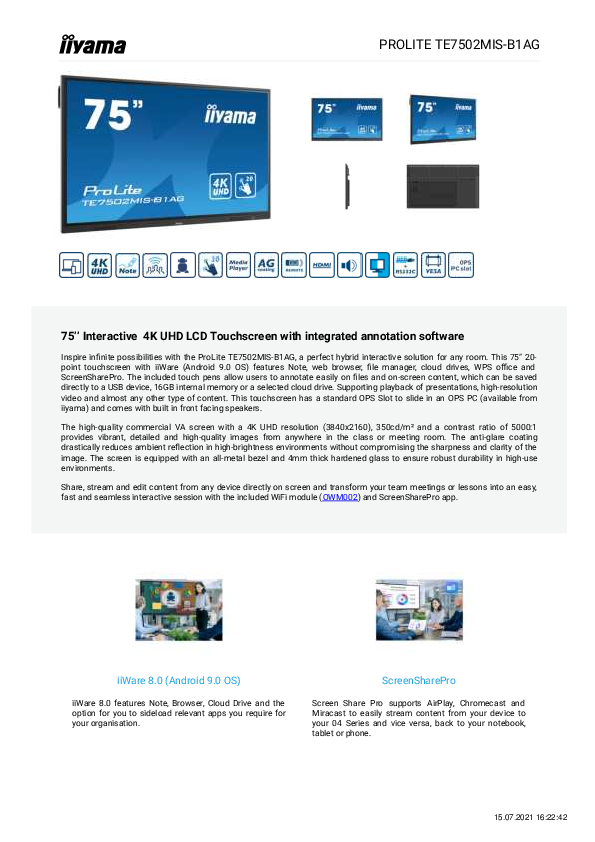

PROLITE TE7502MIS-B1AG 75'' Interactive 4K UHD LCD Touchscreen with integrated annotation software Inspire infinite possibilities with the ProLite TE7502MIS-B1AG, a perfect hybrid interactive solution for any room. This 75" 20point touchscreen with iiWare (Android 9.0 OS) features Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. The included touch pens allow users to annotate easily on files and on-screen content, which can be saved directly to a USB device, 16GB internal memory or a selected cloud drive. Supporting playback of presentations, high-resolution video and almost any other type of content. This touchscreen has a standard OPS Slot to slide in an OPS PC (available from iiyama) and comes with built in front facing speakers. The high-quality commercial VA screen with a 4K UHD resolution (3840x2160), 350cd/m� and a contrast ratio of 5000:1 provides vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen is equipped with an all-metal bezel and 4mm thick hardened glass to ensure robust durability in high-use environments. Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002) and ScreenSharePro app. iiWare 8.0 (Android 9.0 OS) iiWare 8.0 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation. ScreenSharePro Screen Share Pro supports AirPlay, Chromecast and Miracast to easily stream content from your device to your 04 Series and vice versa, back to your notebook, tablet or phone. 15.07.2021 16:22:42 01 DISPLAY CHARACTERISTICS Design Diagonal Panel Native resolution Aspect ratio Panel brightness Light transmittance Static contrast Dynamic contrast Response time (GTG) Viewing zone Colour support Horizontal Sync Viewable area W x H Bezel width (sides, top, bottom) Pixel pitch Bezel colour and finish Thin bezel 75", 189.3cm VA, AG coated glass, haze 25% 3840 x 2160 (8.3 megapixel 4K UHD) 16:9 400 cd/m� 88% 5000:1 15000:1 8.5ms horizontal/vertical: 178�/178�, right/left: 89�/89�, up/down: 89�/89� 1.07B 10bit 30 - 80kHz 1650 x 928mm, 65 x 36.5" 16mm, 16mm, 44mm 0.430mm black, matte 02 TOUCH Touch technology Touch points Touch accuracy Touch method Touch interface Supported operating systems infrared 20 (HID, only with supported OS) +- 2mm stylus, finger, glove USB All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. 03 INTERFACES / CONNECTORS / CONTROLS Analog signal input Digital signal input Audio input Monitor control input Audio output HDCP USB ports RJ45 (LAN) VGA x1 (max. 1920x1080 @60Hz) HDMI x2 (2.0 - max. 3840x2160 @60Hz, RGB444/420) Mini jack x1 RS-232c x1 (DSUB 9pin) RJ45 (LAN) x1 (LAN Control) Mini jack x1 Speakers 2 x 10W yes x4 (media playback / peripherals / storage � front side: 2x v.2.0, right side: 2x v.2.0) x2 (Auto switch for PC & Android, 1000MB) 04 FEATURES Integrated software iiWare 8.0 (Android 9.0 OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows/iOS/Android devices 15.07.2021 16:22:42 WiFi Hardware Extra Kiosk mode Media playback Glass thickness Glass hardness Housing (bezel) OSD key lock 05 GENERAL OSD languages Control buttons User controls Plug&Play Warranty 06 MECHANICAL Orientation Fanless design VESA mounting Operation temperature range Storage temperature range MTBF 07 ACCESSORIES INCLUDED Cables Touch pen Guides Other Remote control 08 POWER MANAGEMENT Power supply unit Power supply Power usage 09 SUSTAINABILITY Regulations Other yes (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0) Quad core A54 CPU, Mali G31 MP2 GPU, 2GB RAM, 16GB internal memory Slot for OPS PC, Ambient light sensor yes yes 4mm 7H metal yes EN, DE, FR, ES, IT, RU, CZ, NL, PL Power, Light Sensor, USB Connector (2.0) common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift, eye care, auto light, ECO, ECR), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) DDC2B 5 years (for details and eligible countries please check the Warranty section of our website) landscape yes 800 x 400mm 0�C - 40�C - 20�C - 60�C 50.000 hours (excluding backlight) power, USB, HDMI x2 (Dual function tips) quick start guide, safety guide Mounting bracket for NUC, Mounting bracket for webcam yes (batteries included) internal AC 180 - 240V, 50/60Hz 240W typical, 0.5W stand by, 0.3W off mode CB, CE, T�V-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS, Iot5) REACH SVHC above 0.1%: Lead 15.07.2021 16:22:42 10 DIMENSIONS / WEIGHT Product dimensions W x H x D Box dimensions W x H x D Weight (without box) Weight (with box) EAN code 1710 x 1020 x 87mm 1930 x 280 x 1140mm 51.9kg 69kg 4948570118847 All trademarks and registered trademarks acknowledged. E & O E. Specification subject to change without notice. All LCD's comply with ISO-9241307:2008 in connection with pixel defects. � IIYAMA CORPORATION. ALL RIGHTS RESERVED 15.07.2021 16:22:42
