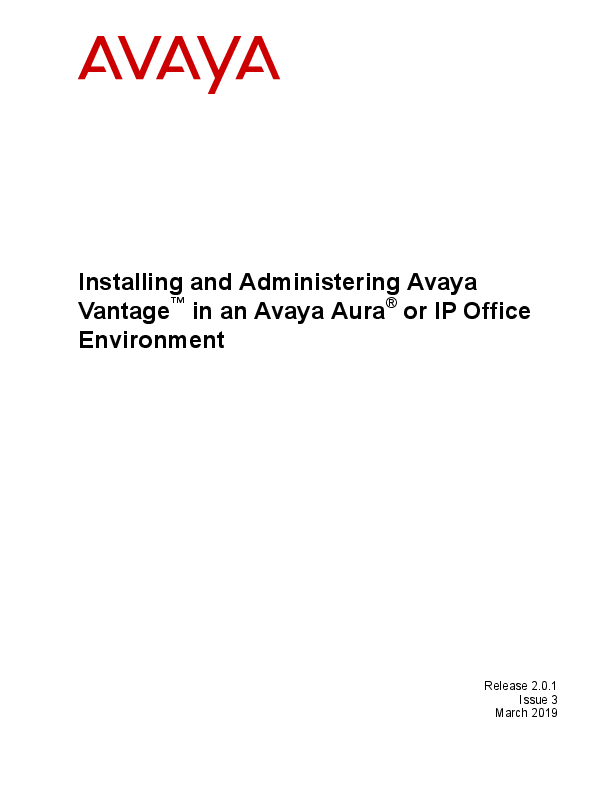

Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office Environment
Release 2.0.1 Issue 3
March 2019
� 2017-2019, Avaya Inc. All Rights Reserved. Note Using a cell, mobile, or GSM phone, or a two-way radio in close proximity to an Avaya IP telephone might cause interference. Documentation disclaimer "Documentation" means information published in varying mediums which may include product information, operating instructions and performance specifications that are generally made available to users of products. Documentation does not include marketing materials. Avaya shall not be responsible for any modifications, additions, or deletions to the original published version of Documentation unless such modifications, additions, or deletions were performed by or on the express behalf of Avaya. End User agrees to indemnify and hold harmless Avaya, Avaya's agents, servants and employees against all claims, lawsuits, demands and judgments arising out of, or in connection with, subsequent modifications, additions or deletions to this documentation, to the extent made by End User. Link disclaimer Avaya is not responsible for the contents or reliability of any linked websites referenced within this site or Documentation provided by Avaya. Avaya is not responsible for the accuracy of any information, statement or content provided on these sites and does not necessarily endorse the products, services, or information described or offered within them. Avaya does not guarantee that these links will work all the time and has no control over the availability of the linked pages. Warranty Avaya provides a limited warranty on Avaya hardware and software. Refer to your sales agreement to establish the terms of the limited warranty. In addition, Avaya's standard warranty language, as well as information regarding support for this product while under warranty is available to Avaya customers and other parties through the Avaya Support website: https://support.avaya.com/helpcenter/ getGenericDetails?detailId=C20091120112456651010 under the link "Warranty & Product Lifecycle" or such successor site as designated by Avaya. Please note that if You acquired the product(s) from an authorized Avaya Channel Partner outside of the United States and Canada, the warranty is provided to You by said Avaya Channel Partner and not by Avaya. "Hosted Service" means an Avaya hosted service subscription that You acquire from either Avaya or an authorized Avaya Channel Partner (as applicable) and which is described further in Hosted SAS or other service description documentation regarding the applicable hosted service. If You purchase a Hosted Service subscription, the foregoing limited warranty may not apply but You may be entitled to support services in connection with the Hosted Service as described further in your service description documents for the applicable Hosted Service. Contact Avaya or Avaya Channel Partner (as applicable) for more information. Hosted Service THE FOLLOWING APPLIES ONLY IF YOU PURCHASE AN AVAYA HOSTED SERVICE SUBSCRIPTION FROM AVAYA OR AN AVAYA CHANNEL PARTNER (AS APPLICABLE), THE TERMS OF USE FOR HOSTED SERVICES ARE AVAILABLE ON THE AVAYA WEBSITE, HTTPS://SUPPORT.AVAYA.COM/LICENSEINFO UNDER THE LINK "Avaya Terms of Use for Hosted Services" OR SUCH SUCCESSOR SITE AS DESIGNATED BY AVAYA, AND ARE APPLICABLE TO ANYONE WHO ACCESSES OR USES THE HOSTED SERVICE. BY ACCESSING OR USING THE HOSTED SERVICE, OR AUTHORIZING OTHERS TO DO SO, YOU, ON BEHALF OF YOURSELF AND THE ENTITY FOR WHOM YOU ARE DOING SO (HEREINAFTER REFERRED TO INTERCHANGEABLY AS "YOU" AND "END USER"), AGREE TO THE TERMS OF USE. IF YOU ARE ACCEPTING THE TERMS OF USE ON BEHALF A COMPANY OR OTHER LEGAL ENTITY, YOU REPRESENT THAT YOU HAVE THE AUTHORITY TO BIND SUCH ENTITY TO THESE TERMS OF USE. IF YOU DO NOT HAVE SUCH AUTHORITY, OR IF YOU DO NOT WISH TO ACCEPT THESE TERMS OF USE, YOU MUST NOT ACCESS OR USE THE HOSTED SERVICE OR AUTHORIZE ANYONE TO ACCESS OR USE THE HOSTED SERVICE.
Licenses THE SOFTWARE LICENSE TERMS AVAILABLE ON THE AVAYA WEBSITE, HTTPS://SUPPORT.AVAYA.COM/LICENSEINFO, UNDER THE LINK "AVAYA SOFTWARE LICENSE TERMS (Avaya Products)" OR SUCH SUCCESSOR SITE AS DESIGNATED BY AVAYA, ARE APPLICABLE TO ANYONE WHO DOWNLOADS, USES AND/OR INSTALLS AVAYA SOFTWARE, PURCHASED FROM AVAYA INC., ANY AVAYA AFFILIATE, OR AN AVAYA CHANNEL PARTNER (AS APPLICABLE) UNDER A COMMERCIAL AGREEMENT WITH AVAYA OR AN AVAYA CHANNEL PARTNER. UNLESS OTHERWISE AGREED TO BY AVAYA IN WRITING, AVAYA DOES NOT EXTEND THIS LICENSE IF THE SOFTWARE WAS OBTAINED FROM ANYONE OTHER THAN AVAYA, AN AVAYA AFFILIATE OR AN AVAYA CHANNEL PARTNER; AVAYA RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST YOU AND ANYONE ELSE USING OR SELLING THE SOFTWARE WITHOUT A LICENSE. BY INSTALLING, DOWNLOADING OR USING THE SOFTWARE, OR AUTHORIZING OTHERS TO DO SO, YOU, ON BEHALF OF YOURSELF AND THE ENTITY FOR WHOM YOU ARE INSTALLING, DOWNLOADING OR USING THE SOFTWARE (HEREINAFTER REFERRED TO INTERCHANGEABLY AS "YOU" AND "END USER"), AGREE TO THESE TERMS AND CONDITIONS AND CREATE A BINDING CONTRACT BETWEEN YOU AND AVAYA INC. OR THE APPLICABLE AVAYA AFFILIATE ("AVAYA"). Avaya grants You a license within the scope of the license types described below, with the exception of Heritage Nortel Software, for which the scope of the license is detailed below. Where the order documentation does not expressly identify a license type, the applicable license will be a Designated System License as set forth below in the Designated System(s) License (DS) section as applicable. The applicable number of licenses and units of capacity for which the license is granted will be one (1), unless a different number of licenses or units of capacity is specified in the documentation or other materials available to You. "Software" means computer programs in object code, provided by Avaya or an Avaya Channel Partner, whether as stand-alone products, pre-installed on hardware products, and any upgrades, updates, patches, bug fixes, or modified versions thereto. "Designated Processor" means a single stand-alone computing device. "Server" means a set of Designated Processors that hosts (physically or virtually) a software application to be accessed by multiple users. "Instance" means a single copy of the Software executing at a particular time: (i) on one physical machine; or (ii) on one deployed software virtual machine ("VM") or similar deployment. License types Designated System(s) License (DS). End User may install and use each copy or an Instance of the Software only: 1) on a number of Designated Processors up to the number indicated in the order; or 2) up to the number of Instances of the Software as indicated in the order, Documentation, or as authorized by Avaya in writing. Avaya may require the Designated Processor(s) to be identified in the order by type, serial number, feature key, Instance, location or other specific designation, or to be provided by End User to Avaya through electronic means established by Avaya specifically for this purpose. Shrinkwrap License (SR). You may install and use the Software in accordance with the terms and conditions of the applicable license agreements, such as "shrinkwrap" or "clickthrough" license accompanying or applicable to the Software ("Shrinkwrap License"). Heritage Nortel Software "Heritage Nortel Software" means the software that was acquired by Avaya as part of its purchase of the Nortel Enterprise Solutions Business in December 2009. The Heritage Nortel Software is the software contained within the list of Heritage Nortel Products located at https://support.avaya.com/LicenseInfo under the link "Heritage Nortel Products" or such successor site as designated by Avaya. For Heritage Nortel Software, Avaya grants Customer a license to use Heritage Nortel Software provided hereunder solely to the extent of the authorized activation or authorized usage level, solely for the purpose specified in the Documentation, and solely as embedded in, for execution on, or for communication with Avaya equipment. Charges for Heritage Nortel Software may be based on extent of activation or use authorized as specified in an order or invoice.
Copyright Except where expressly stated otherwise, no use should be made of materials on this site, the Documentation, Software, Hosted Service, or hardware provided by Avaya. All content on this site, the documentation, Hosted Service, and the product provided by Avaya including the selection, arrangement and design of the content is owned either by Avaya or its licensors and is protected by copyright and other intellectual property laws including the sui generis rights relating to the protection of databases. You may not modify, copy, reproduce, republish, upload, post, transmit or distribute in any way any content, in whole or in part, including any code and software unless expressly authorized by Avaya. Unauthorized reproduction, transmission, dissemination, storage, and or use without the express written consent of Avaya can be a criminal, as well as a civil offense under the applicable law. Virtualization The following applies if the product is deployed on a virtual machine. Each product has its own ordering code and license types. Unless otherwise stated, each Instance of a product must be separately licensed and ordered. For example, if the end user customer or Avaya Channel Partner would like to install two Instances of the same type of products, then two products of that type must be ordered. Third Party Components "Third Party Components" mean certain software programs or portions thereof included in the Software or Hosted Service may contain software (including open source software) distributed under third party agreements ("Third Party Components"), which contain terms regarding the rights to use certain portions of the Software ("Third Party Terms"). As required, information regarding distributed Linux OS source code (for those products that have distributed Linux OS source code) and identifying the copyright holders of the Third Party Components and the Third Party Terms that apply is available in the products, Documentation or on Avaya's website at: https:// support.avaya.com/Copyright or such successor site as designated by Avaya. The open source software license terms provided as Third Party Terms are consistent with the license rights granted in these Software License Terms, and may contain additional rights benefiting You, such as modification and distribution of the open source software. The Third Party Terms shall take precedence over these Software License Terms, solely with respect to the applicable Third Party Components to the extent that these Software License Terms impose greater restrictions on You than the applicable Third Party Terms. The following applies only if the H.264 (AVC) codec is distributed with the product. THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM. Service Provider THE FOLLOWING APPLIES TO AVAYA CHANNEL PARTNER'S HOSTING OF AVAYA PRODUCTS OR SERVICES. THE PRODUCT OR HOSTED SERVICE MAY USE THIRD PARTY COMPONENTS SUBJECT TO THIRD PARTY TERMS AND REQUIRE A SERVICE PROVIDER TO BE INDEPENDENTLY LICENSED DIRECTLY FROM THE THIRD PARTY SUPPLIER. AN AVAYA CHANNEL PARTNER'S HOSTING OF AVAYA PRODUCTS MUST BE AUTHORIZED IN WRITING BY AVAYA AND IF THOSE HOSTED PRODUCTS USE OR EMBED CERTAIN THIRD PARTY SOFTWARE, INCLUDING BUT NOT LIMITED TO MICROSOFT SOFTWARE OR CODECS, THE AVAYA CHANNEL PARTNER IS REQUIRED TO INDEPENDENTLY OBTAIN ANY APPLICABLE LICENSE AGREEMENTS, AT THE AVAYA CHANNEL PARTNER'S EXPENSE, DIRECTLY FROM THE APPLICABLE THIRD PARTY SUPPLIER. WITH RESPECT TO CODECS, IF THE AVAYA CHANNEL PARTNER IS HOSTING ANY PRODUCTS THAT USE OR EMBED THE H.264 CODEC OR H.265 CODEC, THE AVAYA CHANNEL
PARTNER ACKNOWLEDGES AND AGREES THE AVAYA CHANNEL PARTNER IS RESPONSIBLE FOR ANY AND ALL RELATED FEES AND/OR ROYALTIES. THE H.264 (AVC) CODEC IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO: (I) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (II) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION FOR H.264 (AVC) AND H.265 (HEVC) CODECS MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP:// WWW.MPEGLA.COM. Compliance with Laws You acknowledge and agree that it is Your responsibility for complying with any applicable laws and regulations, including, but not limited to laws and regulations related to call recording, data privacy, intellectual property, trade secret, fraud, and music performance rights, in the country or territory where the Avaya product is used. Preventing Toll Fraud "Toll Fraud" is the unauthorized use of your telecommunications system by an unauthorized party (for example, a person who is not a corporate employee, agent, subcontractor, or is not working on your company's behalf). Be aware that there can be a risk of Toll Fraud associated with your system and that, if Toll Fraud occurs, it can result in substantial additional charges for your telecommunications services. Avaya Toll Fraud intervention If You suspect that You are being victimized by Toll Fraud and You need technical assistance or support, call Technical Service Center Toll Fraud Intervention Hotline at +1-800-643-2353 for the United States and Canada. For additional support telephone numbers, see the Avaya Support website: https://support.avaya.com or such successor site as designated by Avaya. Security Vulnerabilities Information about Avaya's security support policies can be found in the Security Policies and Support section of https:// support.avaya.com/security. Suspected Avaya product security vulnerabilities are handled per the Avaya Product Security Support Flow (https:// support.avaya.com/css/P8/documents/100161515). Downloading Documentation For the most current versions of Documentation, see the Avaya Support website: https://support.avaya.com, or such successor site as designated by Avaya. Contact Avaya Support See the Avaya Support website: https://support.avaya.com for product or Hosted Service notices and articles, or to report a problem with your Avaya product or Hosted Service. For a list of support telephone numbers and contact addresses, go to the Avaya Support website: https://support.avaya.com (or such successor site as designated by Avaya), scroll to the bottom of the page, and select Contact Avaya Support. Regulatory Statements Australia Statements Handset Magnets Statement:
Danger: The handset receiver contains magnetic devices that can attract small metallic objects. Care should be taken to avoid personal injury. Industry Canada (IC) Statements RSS Standards Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
1. This device may not cause interference, and 2. This device must accept any interference, including
interference that may cause undesired operation of the device. Le pr�sent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autoris�e aux deux conditions suivantes: 1. L'appareil ne doit pas produire de brouillage, et 2. L'utilisateur de l'appareil doit accepter tout brouillage radio�lectrique subi, m�me si le brouillage est susceptible d'en compromettre le fonctionnement. Radio Transmitter Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that necessary for successful communication. Conform�ment � la r�glementation d'Industrie Canada, le pr�sent �metteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inf�rieur) approuv� pour l'�metteur par Industrie Canada. Dans le but de r�duire les risques de brouillage radio�lectrique � l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonn�e �quivalente ne d�passe pas l'intensit� n�cessaire � l'�tablissement d'une communication satisfaisante. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil num�rique de la classe B est conforme � la norme NMB-003 du Canada. Radiation Exposure Statement This equipment complies with FCC & IC RSS102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. Cet �quipement est conforme aux limites d'exposition aux rayonnements ISED�tablies pour un environnement non contr�l�. Cet �quipement doit �tre install� et utilis� avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Japan Statements Class B Statement This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
Denan Power Cord Statement Danger: Please be careful of the following while installing the equipment: � Please only use the connecting cables, power cord, and AC adapters shipped with the equipment or specified by Avaya to be used with the equipment. If you use any other equipment, it may cause failures, malfunctioning, or fire. � Power cords shipped with this equipment must not be used with any other equipment. In case the above
guidelines are not followed, it may lead to death or severe injury.
� AC �
M�xico Statement The operation of this equipment is subject to the following two conditions:
1. It is possible that this equipment or device may not cause harmful interference, and
2. This equipment or device must accept any interference, including interference that may cause undesired operation.
La operaci�n de este equipo est� sujeta a las siguientes dos condiciones:
1. Es posible que este equipo o dispositivo no cause interferencia perjudicial y
2. Este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operaci�n no deseada.
Power over Ethernet (PoE) Statement This equipment must be connected to PoE networks without routing to the outside plant. U.S. Federal Communications Commission (FCC) Statements Compliance Statement The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and 2. This device must accept any interference received,
including interferences that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designated to provide reasonable protection against harmful interferences in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferences to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: � Reorient or relocate the receiving antenna. � Increase the separation between the equipment and receiver. � Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. � Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This equipment should be installed and operated with minimum distance of 8 in or 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. EU Countries This device when installed complies with the essential requirements and other relevant provisions of the EMC Directive 2014/30/EU, Safety LV Directive 2014/35/EU, and Radio Equipment Directive 2014/53/EU. A copy of the Declaration may be obtained from http:// support.avaya.com or Avaya Inc., 4655 Great America Parkway, Santa Clara, CA 95054�1233 USA. WiFi and BT transmitter
� Frequencies for 2412-2472 MHz, transmit power: 19.84 dBm � Frequencies for 5180-5240 MHz, transmit power: 22.5 dBm General Safety Warning � Use only the Avaya approved Limited Power Source power
supplies specified for this product. � Ensure that you:
- Do not operate the device near water. - Do not use the device during a lightning storm. - Do not report a gas leak while in the vicinity of the leak. - For Accessory Power Supply - Use Only Limited Power
Supply Delta Electronics Inc. model:ADP-30HR B ,output: 48Vdc, 0.66A. Trademarks The trademarks, logos and service marks ("Marks") displayed in this site, the Documentation, Hosted Service(s), and product(s) provided by Avaya are the registered or unregistered Marks of Avaya, its affiliates, its licensors, its suppliers, or other third parties. Users are not permitted to use such Marks without prior written consent from Avaya or such third party which may own the Mark. Nothing contained in this site, the Documentation, Hosted Service(s) and product(s) should be construed as granting, by implication, estoppel, or otherwise, any license or right in and to the Marks without the express written permission of Avaya or the applicable third party. Avaya is a registered trademark of Avaya Inc. All non-Avaya trademarks are the property of their respective owners. Linux� is the registered trademark of Linus Torvalds in the U.S. and other countries. Android, Google and Google Play are trademarks of Google Inc. Device Usage Consent By using the Avaya device you agree that Avaya, from time to time,may collect network and device data from your device and may use suchdata in order to validate your eligibility to use the device.
Contents
Chapter 1: Introduction.......................................................................................................... 11 Purpose................................................................................................................................ 11 Change history...................................................................................................................... 12
Chapter 2: Avaya VantageTM overview................................................................................... 16 Specifications........................................................................................................................ 16 Wireless handset specifications........................................................................................ 19 Camera specifications..................................................................................................... 22 Environmental specifications............................................................................................ 23 Optional components for the Avaya VantageTM device............................................................... 23 New in this release................................................................................................................ 24 New in Android 8.1 ......................................................................................................... 25
Chapter 3: Initial setup and connectivity.............................................................................. 26 Initial setup checklist.............................................................................................................. 26 Software and hardware requirements...................................................................................... 27 Avaya Aura� configuration for Avaya VantageTM.................................................................. 29 IP Office configuration for Avaya VantageTM........................................................................ 30 Deployment comparison between Avaya Aura� and IP Office.............................................. 31 Avaya Session Border Controller for Enterprise configuration.............................................. 33 Device deployment through Device Enrollment Services........................................................... 34 Preinstallation data................................................................................................................ 35 System Manager user profile worksheet............................................................................ 35 IP Office SIP user and extension settings.......................................................................... 36 DHCP settings worksheet................................................................................................ 36 Settings file worksheet..................................................................................................... 37 DHCP server setup................................................................................................................ 39 Setting up a DHCP server................................................................................................ 39 File server setup.................................................................................................................... 40 Setting up a file server..................................................................................................... 41 Software distribution package size.................................................................................... 42 Downloading device firmware........................................................................................... 42 Configuring parameters in the settings file......................................................................... 43 SNTP server setup................................................................................................................ 43 Power and network connectivity.............................................................................................. 44 Power management........................................................................................................ 44 Connecting the Avaya VantageTM device to the network....................................................... 45 Installation wizard considerations...................................................................................... 46 Setting up K165 or K175 using the Android installation wizard............................................ 46 Installing the K155 wireless module........................................................................................ 48 Configuring Wi-Fi from the Settings menu............................................................................... 50
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
6
Comments on this document? infodev@avaya.com
Contents
Connecting a handset to Avaya VantageTM............................................................................... 50 Connecting the handset cradle to Avaya VantageTM............................................................ 50 Connecting a wired handset............................................................................................. 51 Connecting a wireless handset......................................................................................... 52
Chapter 4: Security configuration......................................................................................... 54 Access control and user privacy............................................................................................. 55 Password security policies..................................................................................................... 56 Administrator password configuration...................................................................................... 57 Certificate management......................................................................................................... 58 Certificate usage by applications...................................................................................... 60 Generating a PKCS12 file with a friendly name.................................................................. 61 Adding a friendly name to an existing PKCS12 file............................................................. 62 Use of Avaya product certificates............................................................................................ 63 Obtaining the Avaya SIP Product CA certificate................................................................. 63 Obtaining the Avaya Aura� System Manager CA certificate................................................ 64 Device Enrollment Services for secure redirection to the file server........................................... 64 Time synchronization............................................................................................................. 65 SSH access control............................................................................................................... 65 Android Debug Bridge configuration........................................................................................ 66 Enabling or disabling ADB through the Settings menu........................................................ 66 VLAN separation................................................................................................................... 66 VLAN configuration parameters........................................................................................ 67 Parameter configuration for secure installation......................................................................... 68
Chapter 5: Device configuration............................................................................................ 72 Configuration priority for the CSDK-based telephony application............................................... 73 Device configuration using LLDP............................................................................................ 73 Initial values of parameters transmitting in LLDP frames .................................................... 74 TLV impact on system parameter values........................................................................... 75 Device configuration using DHCP options............................................................................... 77 Configurable DHCP options............................................................................................. 77 DHCP site-specific options............................................................................................... 80 Device configuration using a 46xxsettings.txt settings file......................................................... 82 Customization of the settings file...................................................................................... 82 User group configuration in the settings file....................................................................... 84 Configuring parameters in the settings file......................................................................... 85 Device configuration using Avaya Aura� Device Services......................................................... 85 Device configuration using the Settings menu on the device..................................................... 86 Device configuration checklist.......................................................................................... 86 Enabling administrator settings on the device.................................................................... 88 Setting up a file server address........................................................................................ 89 Setting the DNS name and address.................................................................................. 89 Setting the Avaya Aura� Device Services server address................................................... 90 Setting a user group for a specific configuration................................................................. 91
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
7
Comments on this document? infodev@avaya.com
Contents
Setting up an HTTP proxy and exception........................................................................... 91 Configuring SIP server settings........................................................................................ 92 Setting up a DHCP site-specific option number.................................................................. 93 Additional network configuration....................................................................................... 93 Verifying device configuration................................................................................................. 94
Chapter 6: Application setup................................................................................................. 96 Pushing applications onto the Avaya VantageTM device............................................................. 97 Push command examples................................................................................................ 98 Uninstalling a pushed application...................................................................................... 98 Avaya telephony applications supported on Avaya VantageTM.................................................... 99 Setting up an Avaya Breeze� Client SDK application as the active telephony application............ 99 ACTIVE_CSDK_BASED_PHONE_APP parameter usage................................................ 100 Package names of CSDK-based applications.................................................................. 101 Access to Google Play applications for K165 and K175.......................................................... 101 Access to applications from unknown sources....................................................................... 102 Application download control through an XML-based configuration file..................................... 102 Editing a black or white list............................................................................................. 103
Chapter 7: Emergency call configuration........................................................................... 105 Parameters for emergency numbers..................................................................................... 105
Chapter 8: Directory search configuration......................................................................... 107 Directory search and contact functionality comparison............................................................ 107 Avaya Aura� contact management........................................................................................ 107 IP Office contact search options........................................................................................... 108 LDAP directory search......................................................................................................... 108
Chapter 9: Kiosk mode configuration................................................................................. 109 Kiosk mode configuration checklist....................................................................................... 109 Applications to be pinned in the Kiosk mode.......................................................................... 110 Unpinning applications in Kiosk mode.............................................................................. 111 Starting Kiosk mode for the first time..................................................................................... 111 Exiting the Kiosk mode......................................................................................................... 111
Chapter 10: Maintenance...................................................................................................... 112 Restoring factory settings from the Settings menu.................................................................. 112 Rebooting Avaya VantageTM from the Settings menu............................................................... 113 Failover and survivability...................................................................................................... 113 Debugging and monitoring options........................................................................................ 113 Enabling verbose logging............................................................................................... 114 Generating a debug report.............................................................................................. 114 Generating an audio report............................................................................................. 116 Copying debug report from internal flash memory............................................................. 118 Opening a debug or audio report..................................................................................... 118 Configuring the SSH server settings................................................................................ 119 Enabling port mirroring................................................................................................... 119 Pinging a device on the network..................................................................................... 120
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
8
Comments on this document? infodev@avaya.com
Contents
Chapter 11: Device upgrade................................................................................................. 121 Device upgrade process...................................................................................................... 121 Firmware upgrade prerequisites........................................................................................... 122 Parameters for defining upgrade policy........................................................................... 122 Automatic upgrades............................................................................................................. 125 Scenario: Performing a scheduled upgrade..................................................................... 126 Upgrading Avaya VantageTM using the Update option.............................................................. 127 Upgrading Avaya VantageTM using System Manager............................................................... 127 Upgrading Avaya VantageTM using IP Office........................................................................... 127 CSDK-based application upgrades....................................................................................... 128
Chapter 12: Troubleshooting............................................................................................... 129 Firmware is corrupted.......................................................................................................... 129 Video is not available........................................................................................................... 130 Video remains stuck after it is resumed................................................................................. 130 Screen lock is enabled but the swipe to unlock action does not prompt for the password.......... 131 Software distribution packages cannot be uploaded using the Utility Server............................. 131 Some applications do not support Android 8.1....................................................................... 132 Some applications are not downgrading on K175 with Android 8.1.......................................... 132
Chapter 13: Resources......................................................................................................... 134 Documentation.................................................................................................................... 134 Finding documents on the Avaya Support website........................................................... 135 Avaya Documentation Portal navigation.......................................................................... 136 Viewing Avaya Mentor videos............................................................................................... 137 Support.............................................................................................................................. 137 Using the Avaya InSite Knowledge Base......................................................................... 138
Appendix A: Supported configuration parameters........................................................... 139 Parameters for controlling configuration parameter downloads................................................ 139 Phone parameters............................................................................................................... 140 General phone functionality.................................................................................................. 141 Phone UI related settings..................................................................................................... 144 Server addresses and ports................................................................................................. 154 Server environment settings................................................................................................. 164 Network settings.................................................................................................................. 164 General settings............................................................................................................ 165 Ethernet interface settings.............................................................................................. 170 VLAN settings............................................................................................................... 172 IEEE 802.1X settings..................................................................................................... 175 Other operational parameters and settings............................................................................ 176 Active phone application................................................................................................ 177 Application settings........................................................................................................ 178 Emergency call settings................................................................................................. 180 Protocol-specific parameters.......................................................................................... 182 Logging and debugging parameters................................................................................ 191
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
9
Comments on this document? infodev@avaya.com
Contents
USB parameters............................................................................................................ 198 Upgrade-related parameters........................................................................................... 198 Security parameters...................................................................................................... 203 General account IDs & passwords.................................................................................. 204 Phone lock and idle time parameters.............................................................................. 206 Avaya Breeze� Client SDK application parameters................................................................. 209 Avaya VantageTM Connect parameters................................................................................... 218 IP Office parameters............................................................................................................ 224 LDAP directory service settings............................................................................................ 226 Appendix B: Parameter configuration examples in the settings file............................... 229 Parameter configuration example for Avaya Aura� with SIP credentials................................... 229 Parameter configuration example for Avaya Aura� with user enterprise credentials................... 230 Parameter configuration example for IP Office with SIP credentials......................................... 230
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
10
Comments on this document? infodev@avaya.com
Chapter 1: Introduction
Purpose
This document provides checklists and procedures for installing, configuring, administering, and troubleshooting Avaya VantageTM in an Avaya Aura� or IP Office environment. This document is primarily intended for implementation engineers and administrators. This document does not cover third-party call control environments. For information about deploying Avaya VantageTM in a third-party call control environment, see Installing and Administering Avaya VantageTM in a Third Party Call Control Environment.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
11
Comments on this document? infodev@avaya.com
Introduction
Change history
Issue
Date
Release 2.0, Issue July 2018 1
Summary of changes
� Added the wired and wireless handset model names in Optional components for the Avaya Vantage device on page 23.
� Removed references to the Kensington lock slot in Specifications on page 16.
� Added the SNTP server configuration requirement in Initial setup checklist on page 26.
� Updated Software and hardware requirements on page 27.
� Added a new section Device deployment through Device Enrollment Services on page 34.
� Added information about Device Enrollment Services support.
� Added information about using Avaya Aura� Utility Services as a file server in File server setup on page 40.
� Updated Parameter configuration for secure installation on page 68.
� Updated the information about DNS server data configuration in Device configuration checklist on page 86.
� Updated "About this task" in Setting up a file server address on page 89.
� Added information about logging in as an administrator in Setting the Avaya Aura Device Services server address on page 90, Setting up an HTTP proxy and exception on page 91, and Configuring SIP server settings on page 92.
� Updated Package names of CSDK-based applications on page 101.
� Added a new chapter: Kiosk mode configuration on page 109.
� Updated Restoring factory settings from the Settings menu on page 112.
� Updated information about the local log level in Enabling verbose logging on page 114.
� Mentioned the Gmail sharing limitation in Generating a debug report on page 114.
� Updated Device upgrade process on page 121.
� Updated the cause information in Firmware is corrupted on page 129.
� Updated parameter descriptions throughout the appendix. Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
12
Comments on this document? infodev@avaya.com
Change history
Issue
Date
Release 2.0, Issue September
2
2018
Summary of changes � Removed information about unsupported configuration
parameters. � Added information about the Avaya VantageTM K155 device.
� Added Installing the K155 wireless module on page 48.
� Updated Device deployment through Device Enrollment Services on page 34.
� Updated the sections under Application setup on page 96. This chapter also includes information about installing applications from unknown sources.
� Updated the sections under Device upgrade on page 121.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
13
Comments on this document? infodev@avaya.com
Introduction
Issue
Release 2.0.1, Issue 3
Date March 2019
Summary of changes � Updated Specifications on page 16.
� Added New in this release on page 24.
� Updated Initial setup checklist on page 26.
� Removed the "Server configuration" chapter. The information from that chapter is now in the "Initial setup and connectivity" chapter.
� Added Deployment comparison between Avaya Aura and IP Office on page 31.
� Updated Settings file worksheet on page 37.
� Updated Connecting the Avaya Vantage device to the network on page 45.
� Added Installation wizard considerations on page 46 and Setting up K165 or K175 using the Android installation wizard on page 46.
� Added and updated information about security features in Chapter 4, "Security configuration".
� Updated Certificate management on page 58 and Certificate usage by applications on page 60.
� Added Configuration priority for the CSDK-based telephony application on page 73.
� Added Device configuration using Avaya Aura Device Services on page 85.
� Added ACTIVE_CSDK_BASED_PHONE_APP parameter usage on page 100.
� Added a new "Emergency call configuration" chapter.
� Added a new "Directory search configuration" chapter.
� Updated Debugging and monitoring options on page 113.
� Updated Generating a debug report on page 114.
� Updated Generating an audio report on page 116.
� Added Copying debug report from internal flash memory on page 118.
� Indicated that only TLS is supported in an Avaya Aura� environment.
� Updated Automatic upgrades on page 125.
� Added Scenario: Performing a scheduled upgrade on page 126.
� Added Video is not available on page 130.
� Added Screen lock is enabled but the swipe to unlock action does not prompt for the password on page 131. Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
14
Comments on this document? infodev@avaya.com
Issue
Date
Change history
Summary of changes � Added Some applications do not support Android 8.1 on
page 132. � Added Software distribution packages cannot be uploaded using
the Utility Server on page 131. � Updated Documentation on page 134. � Updated parameter descriptions throughout Appendix A. � Added Appendix B, "Parameter configuration examples in the
settings file". � Minor rephrasing throughout the document.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
15
Comments on this document? infodev@avaya.com
Chapter 2: Avaya VantageTM overview
Avaya VantageTM is an AndroidTM device that combines the advantages of a customizable unified communications solution and a fully functional Android device. You can use the Avaya Breeze� Client SDK and custom applications to integrate communications into business processes using your Avaya VantageTM device. According to your business needs, you can choose from the following Avaya VantageTM device variants:
� Avaya VantageTM K175: Standard device with an 8-inch screen and an integrated camera for full access to video calls and conferences. You can cover the camera using a mechanical camera shutter.
� Avaya VantageTM K165: Standard device with an 8-inch screen that does not include an integrated camera. You can still receive video from other users.
� Avaya VantageTM K155: Device with a small 5-inch screen. The device also includes a physical keypad and an integrated camera, but it does not include a mechanical camera shutter.
Avaya VantageTM works with Avaya Aura�, IP Office, and third-party call control environments. Avaya VantageTM supports the following Avaya Breeze� Client SDK-based telephony applications:
� Avaya VantageTM Connect � Avaya Equinox�
Avaya Equinox� on Avaya VantageTM only supports Avaya Aura�. IP Office and third-party call control deployments are not supported. Related links Specifications on page 16 Optional components for the Avaya Vantage device on page 23 New in this release on page 24
Specifications
The following table provides Avaya VantageTM device specifications. Differences between device models are mentioned as applicable.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
16
Comments on this document? infodev@avaya.com
Specifications
Feature Screen
Internal storage Memory Operating system Ethernet Bluetooth Supported Bluetooth profiles
Wi-Fi
Power
Specifications Avaya VantageTM K165 and K175:
� Capacitive 8-inch touch screen.
� Resolution: 800�1280 px.
� 24-bits color depth. Avaya VantageTM K155:
� Capacitive 5-inch touch screen.
� Resolution: 1280�720 px.
� 24-bits color depth. 16 GB flash memory. 2 GB of RAM. Android 8.1. � RJ45 primary Gigabit Ethernet (10/100/1000 Mbps) PoE LAN port.
� RJ45 secondary Gigabit Ethernet (10/100/1000 Mbps) port for a computer. Bluetooth 4.1 supporting High Speed (HS), Low Energy (LE), and Enhanced Data Rate (EDR) functionality. � Headset Profile (HSP) in the Audio Gateway role.
� Hands Free Profile (HFP) in the Audio Gateway role.
� Human Interface Device Profile (HID) as the Bluetooth HID host for Bluetooth keyboards and mice.
� Phone Book Access Profile (PBAP) in the Phone Book Server Equipment (PSE) and Phone Book Client Equipment (PCE) roles.
� Advanced Audio Distribution Profile (A2DP) in the Source (SRC) role.
� Object Push Profile (OPP) in the Push server and Push client roles. � Wireless access point mode
� Wi-Fi 802.11a/b/g/n
� Wi-Fi 802.11ac on the 5 GHz band
� Hotspot � Power over Ethernet EEE 802.3af (Class 3) or 802.3at (Class 4). The
following is related to the power allocated from the single USB port on Avaya VantageTM:
- Up to 100mA if using PoE 802.3af.
- Up to 500mA if using PoE 802.3at.
� Dedicated 48V AC power supply. Use Delta Electronics Inc. model ADP-30HR B, output 48V DC, 0.66A. Power allocation for the device USB port is up to 500mA. Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
17
Comments on this document? infodev@avaya.com
Avaya VantageTM overview
Feature Headphone connectors USB port
Supported USB accessories
Audio
Specifications � 3.5 mm headset connector.
Warning: Avoid listening at a high volume on devices that are connected to the 3.5 mm connector to prevent hearing damage. � RJ9 headset connector for a high-quality wired headset. USB 2.0 general purpose port. Avaya VantageTM K165 and K175 have a Type-C USB port. Avaya VantageTM K155 has a Type-A USB port. The maximum USB port power is 500mA when the device is connected to an AC adapter or a Class 4 PoE switch. When connected to a Class 3 PoE switch, the maximum power supply is 100mA. USB devices that require more power than 500mA are not supported. � USB flash drive for data transfer to and from the device. Support is limited to USB flash drives with up to 32 GB of storage. � Multi-port USB hub. � USB headset. � Mouse. � Keyboard. � Android devices. Support is only limited to charging the Android device. Data transfer is not supported. � USB camera. Wideband audio available on all transducers, handset, headset, and handsfree. Supported codecs: � G.722 � G.711 � G.729 � G.726 � Opus
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
18
Comments on this document? infodev@avaya.com
Specifications
Feature Supported headsets
Physical keys
Physical security Stand
Specifications � Wideband Bluetooth headset. � 3.5 mm headset. � RJ9 headset. � USB headset.
Warning: To prevent hearing damage, avoid using a high volume setting. Avaya VantageTM K155 includes the following physical keys: � Android keys � Audio mute � Video mute � Headset � Speaker � Volume control � Keypad with the numbers 0 to 9, the asterisk (*), and the pound (#) key K165 and K175 include volume control keys. Security lock slot. Adjustable stand for K165 and K175 that you can use either as a desk stand or a wall-mounted stand. Fixed-angle, detachable stand for K155.
Wireless handset specifications
A wired or wireless handset can optionally be used with Avaya VantageTM. The following are the supported specifications for the wireless handset:
Specification System Bluetooth profiles
Battery Battery charger Charging system
Avaya VantageTM wireless handset Bluetooth 4.1 � Hands-free Profile 1.6 � Headset Profile 0.56 W, 3.7 V Li-Ion battery. Li-Ion battery management system. Contactless charging system: inductive coupling to the cradle.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
19
Comments on this document? infodev@avaya.com
Avaya VantageTM overview
Specification Controls
Indicators Operating environment temperature Battery charging environment temperature
Avaya VantageTM wireless handset � Volume controls. � Power button. � Mute button. Blue LED indicator. 0 to 49 �C (32 to 120 �F).
0 to 40 �C (32 to 104 �F).
Wireless handset features
Range The handset uses Bluetooth technology. As a Class 2 device, the handset nominal range is 10 meters. In practical use this range might vary depending on the environment. If the handset was out of range, the connection is reestablished automatically when the handset is back in range. When the handset is not in range for more than 22 minutes, it turns off to prevent battery discharge. If the handset was turned off, the connection is reestablished automatically when the handset is turned on and back in range. Battery service life If used carefully, the expected service life of the battery is several years. Although the battery capacity is diminished over time, in general it does not affect normal handset use. Battery talk time When fully charged, the new battery provides approximately 12 hours of talk time. You might need to charge the battery before the first use to achieve the full talk time. To prevent damage to the battery, the protection system does not allow the battery to discharge below a certain point. Avaya VantageTM displays the battery charge level on the Notifications panel. Battery standby time When fully charged, the new battery provides approximately 60 hours of standby time. When the handset is not in range or Avaya VantageTM is turned off for approximately 22 minutes, the handset is turned off automatically to save battery. To turn on the handset again, press the Power button for approximately 2 seconds. The handset is not turned on automatically even if it is returned to the cradle. Battery charging The handset supports a contactless charging system. To charge the handset, place it in its cradle. If the battery charge is low, the handset will notify you with warning tones. When you hear the warning tones, return the handset to its cradle to charge the battery. The handset uses a Lithium-Ion battery with the battery management and protection system. The protection system allows to prevent the following situations:
� Overcharging. � Over-discharging.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
20
Comments on this document? infodev@avaya.com
Specifications
� Charging if the ambient temperature is higher than 40 �C (102 �F).
Note: During an active call using the speaker, the device does not charge the handset to avoid audio disruption from the speaker. Battery recharge time The battery fully recharges in less than 3 hours. You do not need to fully discharge the battery before charging. Battery disposal At the end of the service life, remove the battery and deliver it to a battery recycling depot. Do not dispose of the battery in the normal waste stream. Wireless handset LED indicator
The blue LED indicator shows the current state of the handset and is also used to indicate user actions.
Wireless handset state Wireless handset is in the Pairing mode. Pairing completed successfully.
Wireless handset is used in a call
Wireless handset is turned on and is connected to its base (Connected mode). Wireless handset is trying to establish connection to its base (Linkback mode). Wireless handset is out of range and is not trying to establish connection to its base (Standby mode). Incoming call.
Mute.
Wireless handset has been turned on. Wireless handset has been turned off.
LED indication LED flashes every 0.5 seconds.
LED flashes 10 times at 0.1 seconds rate. LED flashes 3 times every 3 seconds LED flashes 2 times every 5 seconds.
LED flashes every 0.5 seconds.
LED flashes every 5 seconds.
LED flashes 3 times every 7 seconds. LED is on and flashes 3 times every 4 seconds. LED flashes 4 times.
LED flashes 3 times.
Notes Wireless handset exits the Pairing mode in 150 seconds. None None None
None
Wireless handset is turned off after 22 minutes.
None None None None
Power button
The Power button provides the following functionality:
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
21
Comments on this document? infodev@avaya.com
Avaya VantageTM overview
Action Turn on the handset Turn off the handset Enable pairing mode
How to use
Press and hold the button for 2.4 seconds
Press and hold the button for 3.2 seconds
Press and hold the button for 10 seconds
Handset LED confirmation LED flashes 4 times
LED flashes 3 times
LED flashes at 0.5 seconds rate
Camera specifications
The following Avaya VantageTM devices include an integrated camera: � K175 � K155
The Avaya VantageTM K165 device does not include an integrated camera, but you can use an external USB camera. Regardless of whether you connect an external camera, you can still receive video from other devices. Camera specifications for Avaya VantageTM devices with an integrated camera
� Native full HD resolution of 2.1 megapixels (1920 x 1080 p). However, Avaya VantageTM Connect and Avaya Equinox� do not utilize the full HD resolution.
� Fixed focus of 50 cm. � Focus range of 28 cm to infinity. � Field of view of 77.5 degrees. � Anti-flicker filter of 50 or 60 Hz. � Auto exposure. � Auto white balance. � Camera activity LED indicator.
Avaya VantageTM notifies users that the integrated camera is active by using the green LED indicator. The built-in LED indicator only works for the integrated camera, but not when you use an external camera. � Mechanical privacy shutter for the K175 device. External, third-party cameras You can use an external USB camera with Avaya VantageTM. If you connect a USB camera to a K155 or K175 device, then the external camera is prioritized over the integrated camera. You cannot choose or switch between cameras. For a list of supported cameras and other third-party components, see the Compatibility Matrix.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
22
Comments on this document? infodev@avaya.com
Optional components for the Avaya VantageTM device
Note: When Avaya VantageTM is connected to an AC adapter or an 802.3at PoE (Class 4) switch, the maximum power allocated to the USB port is 500mA. When connected to an 802.3af PoE (Class 3) switch, the maximum power allocated to the USB port is 100mA. If the USB camera requires more power than 100mA and an 802.3at PoE switch is not available, connect the device to an external AC adapter.
Camera state configuration
A user can enable or disable the integrated camera and the external third-party USB camera, if connected to Avaya VantageTM, through the Settings menu. You can control whether users can have this capability by defining the CAMERASTAT parameter. For more information about the CAMERASTAT parameter, see General phone functionality on page 141.
Environmental specifications
The following are the permissible environmental specification ranges for operating and storing the Avaya VantageTM device:
Operating temperature of device
0 �C to 45 �C (32 �F to 113 �F)
Relative humidity
10% to 95% non-condensing
Storage temperature
-10 �C to 50 �C (14 �F to 122 �F)
Optional components for the Avaya VantageTM device
You can use the following optional components with the Avaya VantageTM device: � J1B1 wired handset and cradle kit � J2B1 wireless handset and cradle kit � Replacement handset cord � AC power adapter (international) � AC power cord for regions � Wireless module for K155
You must order these optional components separately.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
23
Comments on this document? infodev@avaya.com
Avaya VantageTM overview
New in this release
Avaya VantageTM Release 2.0.1 introduces the following: Application rebranding The Avaya VantageTM Basic application has been renamed to Avaya VantageTM Connect. Avaya VantageTM Connect Release 2.0.1 is only supported with Avaya VantageTM Release 2.0.1 firmware. Earlier Avaya VantageTM firmware versions are not supported. You can only install Avaya VantageTM Connect 2.0.1 on an Avaya VantageTM device with Android 8.1. Third-party call control deployments Avaya VantageTM and Avaya VantageTM Connect now support third-party call control deployments. The third-party call control environment interoperates with the BroadSoft SIP management server. For more information about third-party call control deployments, see Installing and Administering Avaya VantageTM in a Third Party Call Control Environment. You can deploy Avaya Equinox� in an Avaya Aura� environment. It is not supported in IP Office or third-party call control environments. Operating system support Avaya VantageTM now supports the Android 8.1 operating system (OS). This OS introduces lookand-feel changes to the UI and to some icons, including the applications icon on the Home screen. Avaya Equinox� support on K155 You can use Avaya VantageTM Connect or Avaya Equinox� on a K155 device. LDAP directory support Avaya VantageTM now supports LDAP directory search. You can use Avaya VantageTM Connect, Avaya Equinox�, or the standard Android Contacts area available on Avaya VantageTM to search for LDAP directory contacts. Configuration Verifier A new option is available to verify that the device is properly configured. From the Settings menu, navigate to Debugging options > Configuration verifier. Camera status You can now enable or disable the camera from the Settings menu by navigating to Sound & Audio & Camera > Camera settings > Camera status. Headset and camera support Third-party USB cameras and USB headsets are supported. For more information about supported cameras and headsets, see the Compatibility Matrix. Other installation and administration enhancements Other enhancements in this release include:
� An installation wizard for K165 and K175 devices. � Debug report enhancements. � Identity certificate support for Avaya Breeze� Client SDK applications.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
24
Comments on this document? infodev@avaya.com
New in this release
New in Android 8.1
Android 8.1 introduces a number of visual changes to the UI. The following is a summary of key changes for Avaya VantageTM:
� The Settings menu has been reorganized and the navigation has changed.
� The icon that is used to access all installed applications has changed from application icons have also changed slightly.
to . Other
� On K165 and K175, the Android navigation buttons grow dim if they are not in use for more than two seconds.
� The theme automatically changes to light or dark depending on the wallpaper colors.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
25
Comments on this document? infodev@avaya.com
Chapter 3: Initial setup and connectivity
Initial setup checklist
The following checklist describes tasks that you must perform to set up your Avaya VantageTM device.
No. Task
Notes
1 Determine whether you are setting up You can install Avaya VantageTM in the
the device in an environment with
following ways:
Device Enrollment Services.
� With the Device Enrollment Services
discovery process: The installation process
begins after the phone is connected to a
network. This is an automated process.
For more information about installation with Device Enrollment Services, see Device deployment through Device Enrollment Services on page 34.
� Without the Device Enrollment Services discovery process: The installation process includes a series of manual preconfiguration tasks as mentioned in this checklist.
2 Review prerequisite information.
If you do not have all required software and hardware, Avaya VantageTM might not function as expected.
See Software and hardware requirements on page 27.
3 Gather preinstallation data.
Preinstallation data is required to perform initial parameter setup and to create user accounts for Avaya VantageTM.
4 Set up a DHCP server.
See DHCP server setup on page 39.
This task is also applicable in a Device Enrollment Services environment.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
26
Comments on this document? infodev@avaya.com
Software and hardware requirements
No. Task
Notes
5 Set up a file server.
See File server setup on page 40.
This task does not apply in a Device Enrollment Services environment.
6 Obtain the device firmware and 46xxsettings.txt file, and save them on the file server.
See Downloading device firmware on page 42. For information about configuring parameters in the settings file, see Configuring parameters in the settings file on page 43.
This task does not apply in a Device Enrollment Services environment. However, you need a settings file if the provisioning URL in Device Enrollment Services is set to https://des.avaya.com. For more information, see "Profile management" in Using Avaya Device Enrollment Services to Manage Endpoints.
7 Configure SNTP servers.
Ensure that an SNTP server is reachable from the network where you are installing Avaya VantageTM and the SNTPSRVR value is set with the SNTP server address.
See SNTP server setup on page 43.
8 Connect Avaya VantageTM to your network and, if required, to a power supply.
This task is also applicable in a Device Enrollment Services environment.
Connection to a power adapter is only required in certain conditions.
For more information, see Power and network connectivity on page 44.
9 (Optional) Install the wireless module on For Wi-Fi and Bluetooth connectivity on the
the K155 device.
K155 device, install the wireless module on
the device. On K165 and K175, the wireless
capability is built-in.
See Installing the K155 wireless module on page 48.
10 (Optional) Connect a handset.
This step is required only if you want to use a handset with Avaya VantageTM.
See Connecting a handset to Avaya Vantage on page 50.
Software and hardware requirements
Ensure that you have the following before you install Avaya VantageTM.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
27
Comments on this document? infodev@avaya.com
Initial setup and connectivity
Components and other software requirements The following components must be installed and configured on your network. For more information about supported product releases, see Avaya Compatibility Matrix.
� Avaya Aura� or IP Office server components. You can deploy Avaya VantageTM with one of the following: - The latest Avaya Aura� Release 6.3 Service Pack or a higher release. - IP Office Release 11.0. IP Office only supports Avaya VantageTM Connect. Other clients are not currently supported in the IP Office environment.
� A DHCP server for providing dynamic IP addresses. In an environment without Device Enrollment Services, the DHCP server also provides the address details of the file server that the device uses.
� A file server for downloading software distribution packages and the settings files that contain the device configuration. You can use an external HTTP or HTTPS file server. In the Avaya Aura� environment, you can use the Utility Server, which is embedded in Avaya Aura� Device Services, as a file server. In the IP Office environment, the IP Office system can act as a file server for most phones. However, you must use an external HTTP or HTTPS file server for hosting and downloading software distribution packages for Avaya VantageTM due to the size and number of files.
� Avaya Session Border Controller for Enterprise. This is an optional component.
Tip: You must ensure that Avaya Session Border Controller for Enterprise is configured to accept the new SIP user agent for Avaya VantageTM Connect. For more information, see Avaya Session Border Controller for Enterprise configuration on page 33. � One of the following conference servers for audio and video conference: In Avaya Aura�: Avaya Aura� Conferencing or Scopia Elite MCU In IP Office: Avaya Scopia� XT Series Hardware requirements Ensure that the LAN: � Uses Ethernet Category 5e or Ethernet Category 6 cabling. � Has the 802.3at or 802.3af PoE specification. If your network does not support the 802.3at or 802.3af PoE specification, you can use an AC power adapter, which you can order separately. Related links Avaya Aura configuration for Avaya Vantage on page 29 IP Office configuration for Avaya Vantage on page 30 Deployment comparison between Avaya Aura and IP Office on page 31 Avaya Session Border Controller for Enterprise configuration on page 33
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
28
Comments on this document? infodev@avaya.com
Software and hardware requirements
Avaya Aura� configuration for Avaya VantageTM
When Avaya VantageTM is deployed in an Avaya Aura� environment, you can configure the following servers:
� Avaya Aura� System Manager: To create users for Avaya telephony applications, such as Avaya Equinox� and Avaya VantageTM Connect and to use Personal Profile Management (PPM).
� Avaya Aura� Device Services: To use Unified Login to log in to Avaya VantageTM and to manage contacts.
This does not apply if your deployment uses IP Office.
Avaya Aura� System Manager configuration
Configure the Avaya Aura� System Manager server to: � Create users for telephony applications installed on Avaya VantageTM, such as Avaya Equinox� and Avaya VantageTM Connect. � Manage public contacts and shared addresses. � Use Personal Profile Management (PPM).
For video calls, you must also ensure that video is enabled in the System Manager user configuration. For information about Avaya Aura� System Manager installation and administration, see:
� Deploying Avaya Aura� System Manager on System Platform � Administering Avaya Aura� System Manager
PPM configuration
Personal Profile Management (PPM) is a service provided by Avaya Aura� System Manager. PPM is not supported if you do not use Avaya Aura� environment.
Avaya VantageTM uses PPM to:
� Obtain emergency numbers. � Obtain configuration parameters that impact the Avaya VantageTM platform.
� Back up and restore specific user configuration settings, such as language or time format settings. When the user logs in to any registered device, PPM restores user data on the device.
CSDK-based applications, such as Avaya VantageTM Connect, use PPM for the following purposes:
� For contact management, such as retrieving and updating of PPM or Avaya Aura� contacts.
� To obtain emergency numbers and Differentiated Service Code Point (DSCP) values.
� To obtain application configuration parameters.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
29
Comments on this document? infodev@avaya.com
Initial setup and connectivity
Until SIP registration succeeds, Avaya VantageTM uses IP addresses specified in SIP_CONTROLLER_LIST for the getInitialEndpointConfiguration request. If the PPM server is unreachable, Avaya VantageTM tries the next IP address from SIP_CONTROLLER_LIST. Similarly, after SIP registration is complete, Avaya VantageTM uses IP addresses from SIP_CONTROLLER_LIST to perform all other PPM requests. If the PPM server is unreachable, Avaya VantageTM tries the next IP address from SIP_CONTROLLER_LIST.
PPM is disabled if the value of ACTIVE_CSDK_BASED_PHONE_APP is "" (null string), or if the application specified in ACTIVE_CSDK_BASED_PHONE_APP is not installed.
Avaya Aura� Device Services configuration
Configure the Avaya Aura� Device Services server to: � Use Unified Login credentials for logging in to Avaya VantageTM. � Manage contacts.
For information about Avaya Aura� Device Services installation and administration, see: � Deploying Avaya Aura� Device Services � Administering Avaya Aura� Device Services
You can also use the Utility Server, which is embedded in Avaya Aura� Device Services, as a file server. For information about migrating from Avaya Aura� Utility Services to the new Utility Server, see "Migrating Utility Server data" in Administering Avaya Aura� Device Services.
IP Office configuration for Avaya VantageTM
To deploy Avaya VantageTM in an IP Office environment, the following requirements apply:
� IP Office Server Edition, IP Office Select, or IP500 V2 system running IP Office Release 11.0. � A separate HTTP or HTTPS file server to host the Avaya VantageTM firmware and APKs.
For more information, see the following documents: � Avaya IP OfficeTM Platform Solution Description and Avaya IP OfficeTM Platform Feature Description for general information about IP Office. � Avaya IP OfficeTM Platform SIP Telephone Installation Notes for information about configuring the IP Office system for Avaya VantageTM. � Administering Avaya IP OfficeTM Platform with Manager and Administering Avaya IP OfficeTM Platform with Web Manager for information about administering IP Office using IP Office Manager or IP Office Web Manager.
This information does not apply to Avaya Aura� deployments.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
30
Comments on this document? infodev@avaya.com
Software and hardware requirements
Deployment comparison between Avaya Aura� and IP Office
Deployment option or feature
File server functionality
Options with Avaya Aura�
Options with IP Office
You can use:
You can use:
� An external HTTP or HTTPS file � An external HTTP or HTTPS file
server.
server.
� Utility Server, which is embedded in Avaya Aura� Device Services, as a file server.
For information about:
- The Utility Server web interface, see "Working with the Utility Server" in Administering Avaya Aura� Device Services.
- Migrating from Avaya Aura� Utility Services to the Utility Server in Avaya Aura� Device Services, see "Migrating Utility Server data" in Administering Avaya Aura� Device Services.
� The IP Office system as the file server for the settings files and an external HTTP or HTTPS file server to host the Avaya VantageTM software distribution packages.
An external HTTP or HTTPS file server is required because the size of the Avaya VantageTM software distribution packages exceeds the maximum file capacity of IP Office.
In the IP Office cloud environment, Google bucket is also supported for hosting firmware packages.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
31
Comments on this document? infodev@avaya.com
Initial setup and connectivity Deployment option or feature Settings file for device configuration
Avaya CSDK telephony applications 1
Options with Avaya Aura�
Options with IP Office
You can manually define configuration parameters in the 46xxsettings.txt file. Automatic configuration is also available through Avaya Aura� Device Services.
Both Avaya VantageTM Connect and Avaya Equinox� are supported.
When using IP Office as a file server along with an external HTTP or HTTPs server, you can use the automatically generated 46xxsettings.txt. Avaya recommends that you do not modify the automatically generated settings file. To define additional configuration parameters or to override the configuration settings from the automatically generated settings file, you can use the 46xxspecials.txt file.
If the 46xxspecials.txt file is added to the IP Office system SD card, IP Office then automatically adds the GET 46xxspecials.txt line at the end of the 46xxsettings.txt file. The query directs the device to read the settings in the 46xxspecials.txt file. Alternatively, you can enable querying of the 46xxspecials.txt file using the NoUser Source Number (NUSN) ENABLE_46XXSPECIALS_TXT.
Only Avaya VantageTM Connect is supported.
Table continues...
1 A feature matrix for Avaya VantageTM Connect is available in Using Avaya VantageTM Connect.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
32
Comments on this document? infodev@avaya.com
Software and hardware requirements
Deployment option or feature
Contact management
Options with Avaya Aura�
Options with IP Office
You can use Personal Profile Management (PPM) or Avaya Aura� Device Services for managing enterprise contacts.
Avaya VantageTM Connect and Avaya Equinox� support search for enterprise contacts.
You can manage enterprise contacts as IP Office system contacts and hunt group contacts across small community network (SCN). You can also manage external contacts in LDAP and HTTP directories configured on IP Office. You must define the USER_STORE_URI parameter for retrieving IP Office contacts.
Avaya VantageTM Connect and the Android Contacts area support contact search through the centralized IP Office system directory for enterprise contacts, and the personal directory for the user's personal contact.
Tip:
IP Office directory contacts are only available when the device has connectivity to IP Office on a public network.
For more information about deploying Avaya VantageTM in the IP Office environment, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes.
Avaya Session Border Controller for Enterprise configuration
The Avaya Session Border Controller for Enterprise (Avaya SBCE) is a network device that controls real-time session traffic between networks. Avaya SBCE manages the endpoints or user agents that are authorized to use a network. If you plan to use Avaya VantageTM Connect in networks controlled by Avaya SBCE, you must configure the Avaya VantageTM Connect SIP user agent on Avaya SBCE. An Avaya VantageTM Connect SIP user agent uses the Avaya Vantage Connect/ <Application Version> (<Build number>;ro.avaya.product.model;<CSDK version>) format, where:
� <Application Version> is the version of the Avaya VantageTM Connect application. � <Build number> is the build number of the Avaya VantageTM Connect application. For
example: 0302 � ro.avaya.product.model is the MODEL4 value. � <CSDK version> is the Avaya Breeze� Client SDK version.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
33
Comments on this document? infodev@avaya.com
Initial setup and connectivity
The following is an example of the configured Avaya VantageTM Connect SIP user agent: Avaya Vantage Connect/2.0.1.0 (0302;K175D02A;261.0.20). In an existing deployment, if you are upgrading the firmware from release 2.0.0.1 or earlier to release 2.0.1 with Avaya VantageTM Connect, you might need to modify the existing user agent rules to authorize the use of Avaya VantageTM Connect. If an existing rule is defined in a generic manner that can authorize the Avaya VantageTM Connect user agent, for example a partial string match to Avaya Vantage, then you need not modify the rule. For more information about configuring user agents on Avaya SBCE, see Administering Avaya Session Border Controller for Enterprise. In the IP Office environment, with Avaya SBCE resiliency, remote workers are not supported if networks are controlled by Avaya SBCE and the SIP controller is defined in an IP address format instead of an FQDN format.
Device deployment through Device Enrollment Services
Device Enrollment Services Device Enrollment Services provides a mechanism for Avaya endpoints to be securely authenticated and redirected to the provisioning server. The DNS address of Device Enrollment Services is hard coded to the device firmware. After you connect the out-of-the-box device to the network, Device Enrollment Services redirects the device to the provisioning server and then the installation procedure begins automatically. For the Device Enrollment Services environment to work, the service provider or enterprise administrator must configure a provisioning server in Device Enrollment Services for the device's MAC address. Alternatively, you can use a numeric enrollment code. For more information about Device Enrollment Services, see Using Avaya Device Enrollment Services to Manage Endpoints. Avaya VantageTM deployment through Device Enrollment Services For the Avaya VantageTM device to attempt Device Enrollment Services discovery, ensure that:
� DES_STAT is set to 2 in the DHCP site-specific option number (SSON), which is 242 by default.
� FILE_SERVER_URL, HTTPSRVR, and TLSSRVR are not provided by DHCP or LLDP. � The file server address is not configured manually in the Settings menu. When these conditions are met, the device attempts to communicate with Device Enrollment Services during startup to obtain the provisioning server address. If the device was not associated with a customer site and activated in Device Enrollment Services, then Avaya VantageTM prompts for a numeric enrollment code when it is started for the first time. This code is generated through Device Enrollment Services. After the startup process is completed successfully through Device Enrollment Services, the Avaya VantageTM device does not attempt Device Enrollment Services discovery on subsequent reboots. The Avaya VantageTM device reattempts Device Enrollment Services discovery only if the administrator performs one of the following while DES_STAT is set to 2: � Resets the device to its factory defaults.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
34
Comments on this document? infodev@avaya.com
Preinstallation data
� Activates the service from Settings > Network & Internet > More > Auto Provisioning. The administrator can disable the Device Enrollment Services discovery for Avaya VantageTM by setting DES_STAT to 0 or 1 in DHCP SSON.
Preinstallation data
System Manager user profile worksheet
To create a user profile on System Manager for Avaya VantageTM Connect or Avaya Equinox� in the Avaya Aura� environment, you must have the following information: Identity tab
� First Name � Last Name � Login Name � Password � Localized Display Name � Endpoint Display Name � Language Preference � Time Zone
For video calls, you must also ensure that video is enabled in the System Manager user configuration. Communication Profile tab
Section Communication Profile section
Field Communication Profile Password Handle Types are for:
Communication Address section
� Avaya SIP � Avaya E.164
Session Manager Profile section
� Avaya Presence/IM if Presence is used Handle Fully Qualified Address Primary Session Manager Secondary Session Manager Origination Application Sequence Termination Application Sequence
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
35
Comments on this document? infodev@avaya.com
Initial setup and connectivity Section CM Endpoint Profile section
Messaging Profile section
Field Survivability Server Home Location System Profile Type Extension Use Existing Endpoints Endpoint Template Voice Mail Number System Mailbox Number Template Password Delete Subscriber on Unassign of Subscriber from User or on Delete User
IP Office SIP user and extension settings
Use IP Office Manager or IP Office Web Manager to configure a SIP user and then configure the extension settings for the user. For information about the key settings to be configured, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes for Release 11.0.
DHCP settings worksheet
You need the following information for dynamically assigning IP addresses to Avaya VantageTM devices and for the initial configuration that is performed through DHCP options. In the following table, populate the values for your deployment:
Option or parameter Range of IP addresses DHCP options FILE_SERVER_URL HTTPSRVR TLSSRVR
Your value
Important: � If you are installing the device in a Device Enrollment Services environment, where Device Enrollment Services redirects the device to the file server, do not define the parameters FILE_SERVER_URL, HTTPSRVR, or TLSSRVR.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
36
Comments on this document? infodev@avaya.com
Preinstallation data
� If the FILE_SERVER_URL parameter is defined, Avaya VantageTM ignores HTTPSRVR and TLSSRVR.
Settings file worksheet
In the following tables, populate the parameter values suitable for your deployment. These system-wide parameters that you must configure in the 46xxsettings.txt file are generally required for each Avaya VantageTM device.
Note: In the IP Office environment with IP Office as the file server, most of the following parameters are generated automatically. However, TIMEZONE and ACTIVE_CSDK_BASED_PHONE_APP are not part of the automatically generated 46xxsettings.txt file. ACTIVE_CSDK_BASED_PHONE_APP is part of the automatically generated upgrade file. You can configure additional parameters and override parameters in the automatically generated configuration files using the 46xxspecials.txt. For detailed description of the parameters, see Appendix A, "Supported configuration parameters". For some parameter configuration examples, see Appendix B, "Parameter configuration examples in the settings file". System settings
Parameter FILE_SERVER_URL TRUSTCERTS ADMIN_PASSWORD or PROCPSWD ISO_SYSTEM_LANGUAGE ADMINTIMEFORMAT TIMEZONE COUNTRY PUSH_APPLICATION ACTIVE_CSDK_BASED_PHONE_APP USER_INSTALL_APPS_GOOGLE_PLAY_S TORE
Your value
The ACTIVE_CSDK_BASED_PHONE_APP parameter is for environments with Avaya VantageTM Connect or Avaya Equinox� as the Avaya Breeze� Client SDK-based application. Do not set the PUSH_APPLICATION and ACTIVE_CSDK_BASED_PHONE_APP parameters through Avaya Aura� Device Services.
Note: � IP Office only supports Avaya VantageTM Connect on Avaya VantageTM. The current IP Office release does not support Avaya Equinox� on Avaya VantageTM.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
37
Comments on this document? infodev@avaya.com
Initial setup and connectivity
� In Release 2.0, the K155 device only supports Avaya VantageTM Connect. In Release 2.0.1, K155 supports Avaya Equinox�.
Network settings
Parameter DNSSRVR DOMAIN SNTPSRVR
Your value
Important:
You must configure SNTPSRVR if the default Avaya and NIST SNTP servers are not accessible over the internet. Specifying an SNTPSRVR value that is reachable from your network is essential for SIP registration and initial device setup when you start up Avaya VantageTM.
SIP interface settings
Parameter SIPDOMAIN SIP_CONTROLLER_LIST SIMULTANEOUS_REGISTRATIONS
Your value
Notes
For the IP Office environment, set this parameter to 1.
Server environment settings
Parameter ENABLE_AVAYA_ENVIRONMENT
Your value
ENABLE_IPOFFICE
DISCOVER_AVAYA_ENVIRONMENT USER_STORE_URI
Notes
For the IP Office and third-party call control environments, set this parameter to 0.
For the Avaya Aura� environment, accept the default value, 1.
For the IP Office environment, set this parameter to 1.
For the Avaya Aura� and third-party call control environments, accept the default value, 0.
For the IP Office and third-party call control environments, set this parameter to 0.
For the Avaya Aura� environment, accept the default value, 1.
Required parameter for the IP Office environment only.
Specify the URI to be used for backup and retrieval of IP Office contacts.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
38
Comments on this document? infodev@avaya.com
Related links Device configuration using a 46xxsettings.txt settings file on page 82
DHCP server setup
DHCP server setup
Set up a DHCP server to: � Dynamically assign IP addresses to Avaya VantageTM devices. � Provision device and site-specific configuration parameters through various DHCP options.
In a Device Enrollment Services environment, the DHCP server is mainly used to assign IP addresses to the devices. The device receives the file server address from Device Enrollment Services.
Setting up a DHCP server
About this task Use this procedure to set up a third-party DHCP server. Avaya VantageTM supports any DHCP server software as long as the software is correctly configured. In the IP Office environment, you can use either the IP Office system as the DHCP server or a third-party DHCP server. For more information, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes. Before you begin Get the following from your server software vendor:
� All required licenses for the server software. � Instructions for server software installation and configuration. Procedure 1. Install the DHCP server software according to the server software vendor's instructions. 2. Create a DHCP scope to define the range of IP addresses to use.
You can define different scopes from different types of devices. 3. Configure the required DHCP options.
The DHCP site-specific option that you configure must match the Site Specific Option Number (SSON) that Avaya VantageTM uses. The default SSON that Avaya VantageTM uses is 242.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
39
Comments on this document? infodev@avaya.com
Initial setup and connectivity
File server setup
A file server is an HTTP or HTTPS server that is used for downloading and storing software distribution packages, K1xxSupgrade.txt and 46xxsettings.txt files that contain most of the device configuration, and other files required for Avaya VantageTM devices. When Avaya VantageTM starts or restarts, it checks for software updates and settings files on the specified file servers. Therefore the file server address is the most important configuration for the device deployment.
Important: While setting up a file server for Avaya VantageTM, you must take into consideration the following:
� Memory space available on the file server. � Size of the extracted software distribution packages, that include the firmware and .apk
files.
The size of the software distribution package that is meant for K155, K165, and K175 combined is approximately 1 GB. � Size of additional application .apk files you want to install. � Size of other media files that you might use, such as ringtones and wallpapers. File server address configuration You can provide file server addresses using one of the following methods: � DHCP � LLDP � The Settings menu on the Avaya VantageTM device � Device Enrollment Services � 46xxsettings.txt settings file � Avaya Aura� Device Services for Avaya Aura� You can also provide this information using the installation wizard on K165 and K175 devices. In a Device Enrollment Services environment, Device Enrollment Services redirects the device to the file server to be used. The service provider or enterprise administrator configures the file server in Device Enrollment Services for the device. Device Enrollment Services supports a file server URL in either the FQDN or IP address format. While the file server can be an HTTP or HTTPS server, Avaya recommends that you use HTTPS with an FQDN. For more information about Device Enrollment Services, see Using Avaya Device Enrollment Services to Manage Endpoints. The FILE_SERVER_URL parameter is used to assign the file server address. For LLDP, you can specify the file server address in the file server TLV. You can also specify the file server address using the following parameters: � HTTPSRVR, HTTPDIR and HTTPPORT parameters for an HTTP server.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
40
Comments on this document? infodev@avaya.com
File server setup
� TLSSRVR, TLSDIR and TLSPORT parameters for an HTTPS server. If the FILE_SERVER_URL parameter is defined, Avaya VantageTM ignores all other parameters. Utility Server as the file server In the Avaya Aura� environment, you can use the Utility Server as a file server. The Utility Server is now embedded in Avaya Aura� Device Services. For information about migrating from the legacy Avaya Aura� Utility Services to the new Utility Server, see "Migrating Utility Server data" in Administering Avaya Aura� Device Services. You must include the root CA certificate of the Utility Server identity certificate in TRUSTCERTS. The Utility Server web interface does not support upload of zip files larger than 800 MB. If you have problems uploading the Avaya VantageTM software distribution package file, see Software distribution packages cannot be uploaded using the Utility Server on page 131. IP Office system as the file server In the IP Office environment, Avaya VantageTM can accept settings files, including K1xxSupgrade.txt and 46xxsettings.txt, from the IP Office system as a file server. However, Avaya VantageTM requires an external HTTP or HTTPS file server for hosting and downloading software distribution packages due to the size and number of files. The address of the IP Office system is used as the file server address for the device. The IP Office system then redirects the request for firmware files to the configured HTTP or HTTPS server IP address on the IP Office system. In this dual server configuration mode, you get the option of using the autogenerated 46xxsettings.txt file. For more information about setting up the file server in the IP Office environment, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes.
Setting up a file server
About this task Use this procedure to configure an HTTP or HTTPS file server. The file server is used to download and store distribution packages and settings files for Avaya VantageTM. Avaya VantageTM supports any HTTP or HTTPS server software as long as the software is correctly configured. Before you begin Get the following from your server software vendor:
� All required licenses for the server software. � Instructions for server software installation and configuration. Procedure 1. Install the HTTP or HTTPS server software according to the server software vendor's
instructions. For HTTPS connections, ensure that TRUSTCERTS includes the root CA certificate of the HTTPS file server identity certificate.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
41
Comments on this document? infodev@avaya.com
Initial setup and connectivity
After trusted certificates are downloaded, then the HTTPS file server identity certificate is verified. You must use Device Enrollment Services for secure redirection or use staging to download trusted certificates in a secure environment first. 2. Download the software distribution package and the 46xxsettings.txt settings file. 3. Extract the distribution package and save the extracted files and the 46xxsettings.txt settings file on the file server.
Software distribution package size
Avaya provides three software distribution packages for Avaya VantageTM devices. The following table provides the distribution package details and their approximate sizes:
Software distribution package for K155, K165, and K175 combined K165 and K175 (This package is only meant for Utility Server) K155 (This package is only meant for Utility Server)
Approximate size 1 GB 785 MB
475 MB
Downloading device firmware
Before you begin Ensure that your file server is set up. Procedure
1. Go to the Avaya Support website. 2. In the Enter Product Name field, enter Avaya Vantage. 3. In the Choose Release field, click the required release number.
The site displays a list of the latest downloads. Do the following to download a firmware package: 4. In the Downloads section, click the entry with the required firmware version.
The site displays the Downloads page with the information about the selected firmware version and the list of package files available for downloading. 5. In the File field, click the zipped file and save the file on the file server. 6. Extract the zipped file and save it at an appropriate location on the file server. Do the following to download the 46xxsettings.txt file: 7. In the Downloads section, click the entry with the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
42
Comments on this document? infodev@avaya.com
SNTP server setup
The site displays the Downloads page with information about the settings file software version and the link for downloading the settings file. 8. In the File field, click the 46xxsettings.txt file link, and save the file at an appropriate location on the file server.
Configuring parameters in the settings file
About this task Use this procedure to modify the settings file with appropriate values to provision the device configuration parameters. Procedure
1. On the file server, go to the location where the 46xxsettings.txt file is downloaded. 2. Open the 46xxsettings.txt file in a text editor. 3. Set the required parameters as the following:
SET <parameter_name> <parameter_value>
For more information about the supported configuration parameters, see "Appendix A, Supported configuration parameters". 4. Save the 46xxsettings.txt file. Result On the next polling period, Avaya VantageTM downloads the file and applies the settings. Related links Customization of the settings file on page 82 User group configuration in the settings file on page 84
SNTP server setup
Access to an SNTP server for time synchronization is essential for SIP registration and initial device setup when you start Avaya VantageTM. Avaya VantageTM with an Avaya Breeze� Client SDK application must have time input through an SNTP server for successful SIP registration and login.
The SNTPSRVR parameter provides the SNTP server addresses to Avaya VantageTM. You can configure the SNTPSRVR parameter using one of the following options. The options are listed in order of precedence, from the lowest to highest priority:
� DHCP option 42.
� 46xxsettings.txt file.
� Avaya Aura� Device Services configuration or the Settings menu.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
43
Comments on this document? infodev@avaya.com
Initial setup and connectivity
The value of the SNTPSRVR parameter can be a comma-separated list of SNTP server addresses, which can be IP addresses or fully-qualified domain names. The parameter has the following default value: "0.avaya.pool.ntp.org,1.avaya.pool.ntp.org,2.avaya.pool.ntp.org, 3.avaya.pool.ntp.org,129.6.15.28,132.163.97.1" If you cannot reach the default SNTP servers, you must update the SNTPSRVR value to point to one or more SNTP servers that are accessible from your network. If no SNTP server is available on your network, you can set up your own SNTP servers. Configure your SNTP servers according to the vendor's configuration instructions. You must ensure that the SNTP server is reachable from the network where you are installing Avaya VantageTM.
Power and network connectivity
The following sections describe how to power up your Avaya VantageTM device and connect it to the network.
Power management
Avaya VantageTM can receive power from the following sources: � 802.3af PoE (Class 3) � 802.3at PoE (Class 4) � 48 Vdc power supply
If you use the 802.3at networking switch or the power adapter, Avaya VantageTM USB port delivers up to 500mA. If you use the 802.3af networking switch, Avaya VantageTM USB port delivers up to 100mA. You can use a 48-volt, 30-watt power adapter to power Avaya VantageTM in the following conditions:
� You are using Wi-Fi to connect to the network instead of using a PoE networking switch port. � The networking switch port does not support the 802.3af or 802.3at PoE specification. � The device requires more power than a 802.3af PoE networking switch port can provide, and
802.3at PoE port is unavailable. For example, a USB device that requires more than 0.5 watts is connected to Avaya VantageTM and only 802.3af PoE ports are available. In this case, you must connect Avaya VantageTM to a power adapter. You must purchase the power adapter separately.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
44
Comments on this document? infodev@avaya.com
Power and network connectivity
If Avaya VantageTM is connected to both a 48 Vdc power supply and a PoE networking switch port and you disconnect one of the power sources, then the following occurs:
� If you disconnect the power adapter, Avaya VantageTM reboots. If the networking switch supports the 802.3at or 802.3af specification, Avaya VantageTM continues to work after the reboot.
� If you disconnect the networking switch, Avaya VantageTM continues to work without a reboot. If Avaya VantageTM is already connected to a PoE networking switch and you connect the power adapter to the device, Avaya VantageTM continues to work without a reboot.
Connecting the Avaya VantageTM device to the network
About this task Use this procedure to install your Avaya VantageTM device on your network. The procedure also describes how to go through the Device Enrollment Services discovery process for automatic setup of the device. Before you begin Ensure that the required phone hardware is set up. If you are using Device Enrollment Services and Device Enrollment Services is configured to use a numeric enrollment code, get the numeric enrollment code. If installing without Device Enrollment Services discovery, ensure the following:
� Required phone hardware is set up. � File server is configured. � Firmware package is downloaded and extracted to the file server. � The settings file is configured for the deployment environment. Procedure 1. (Optional) Connect a power adapter to the 48-V DC power connector at the back of the
device and plug the power adapter into an electrical outlet if: � Your network does not support the 802.3at (PoE) or 802.3af (PoE) injector specification. � You want to use a Wi-Fi connection. 2. To use a wired Ethernet connection, plug one end of an Ethernet cable into the LAN port at the back of Avaya VantageTM and the other end into an available LAN port on your network. Avaya VantageTM powers up and starts to initialize. If configured, the device gets the file server address from DHCP or LLDP. Otherwise, it attempts Device Enrollment Services discovery and one of the following occurs: � Device Enrollment Services provides the file server address to the device automatically.
In this case, no further action is required from you.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
45
Comments on this document? infodev@avaya.com
Initial setup and connectivity
� You must enter a numeric enrollment code for Device Enrollment Services to redirect the device to the file server.
3. (Optional) If prompted, enter the 8-digit numeric enrollment code. The numeric enrollment code is generated on the Device Enrollment Services web interface. After you enter the code, Device Enrollment Services provides the file server address. If you do not enter the enrollment code and tap Cancel instead, the Device Enrollment Services process is cancelled and you must configure the device manually.
Result After the device receives the configuration file server address, it starts downloading the required configuration files and updated firmware files from the file server. When there is a software image upgrade, the process can take approximately 1 hour. If there is no software upgrade, the startup process typically takes between 4 to 20 minutes. After the configuration is complete, the device displays a background, which indicates that you can now log in and use the device. If the device does not receive the file server configuration from Device Enrollment Services, the Android installation wizard is displayed to help you set up your K165 and K175 devices. The wizard is not available on K155 devices.
Installation wizard considerations
When you start a new device for the first time or perform a factory reset, the K165 and K175 devices present an installation wizard to help you set up your device. If the key configuration for the device is already completed, then the installation wizard is not displayed. If the file server and ACTIVE_CSDK_BASED_PHONE_APP are configured and the Avaya Breeze� Client SDK application is installed, then the installation wizard is not displayed. In this case, you can log in to the device right away using your SIP or enterprise user credentials. If automatic redirection to the file server through Device Enrollment Services discovery is successful, the installation wizard is not displayed. If the file server is not configured using DHCP, LLDP, or Device Enrollment Services discovery, then the installation wizard can help you to complete the file server configuration.
Setting up K165 or K175 using the Android installation wizard
About this task When you power up a new K165 or K175 device for the first time or perform a factory reset, and the device configuration is not complete, the Android installation wizard is displayed to help you set up your K165 or K175 device. For more information about when the installation wizard is displayed, see Installation wizard considerations on page 46.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
46
Comments on this document? infodev@avaya.com
Power and network connectivity
Note: The installation wizard is not currently available on K155 devices. On K155, you can configure the file server manually from Settings > Network & Internet > More > File Server.
Procedure
1. On the Welcome screen, choose your preferred language and tap Start.
2. If prompted, on the Network Mode Selection screen, choose how you want to connect to the network.
3. (Optional) If you set the network mode to Wi-Fi, do the following to connect to a Wi-Fi network:
a. On the Connect to Wi-Fi screen, select the required network from the available Wi-Fi networks.
b. For a network that requires authentication, enter the network credentials and select the appropriate CA certificate option from the following:
� Use system certificates
� Do not validate
� List of trusted certificates installed on Wi-Fi certificate repository, if available
On a new device, no trusted certificates are installed in the repository, so you cannot select this option.
c. Tap Connect.
4. On the Copy apps & data screen, choose one of the following:
� Copy your data: Use this option to restore user-defined device configuration, such as language settings and application data, which is backed up using a personal account, such as a Google account.
� Set up as new: Use this option to set up the device as a new device.
5. Follow the prompts on the wizard screens to set up Google accounts and services.
6. On the Avaya Vantage Configuration screen, verify and update the following configuration information as needed:
� File Server: The configuration file server address. If you want the device to point to a different file server, modify the File Server value.
You can also configure the file server manually from Settings > Network & Internet > More > File Server.
� Credentials: User name and password that the device uses for file server authentication. Provide these credentials if the file server requires HTTP authentication.
� GROUP: The user group identifier for a specific configuration set for the device. Enter the required user group identifier from the configuration sets available in the settings file.
� File Server Configuration Source: The source through which the device receives the file server address. This field is ready-only.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
47
Comments on this document? infodev@avaya.com
Initial setup and connectivity
7. Tap Advanced to view additional configuration information. The device gets the following configuration information through DHCP and the values are auto-populated in these read-only fields: � DHCP Site Specific Option Number (SSON): The DHCP option to set site-specific configuration parameters. In most cases, DHCP option 242 is displayed. � DNS Server and DNS Domain: The DNS server address and domain used in your organization.
8. Tap Next. Result The device starts downloading the required configuration files and updated firmware files from the file server. The device might restart as it loads the updated firmware files. When there is a software image upgrade, the process can take approximately 1 hour. If there is no software upgrade, the startup process typically takes between 4 to 20 minutes. After the configuration is complete, the device displays a background, which indicates that you can now log in and use the device.
Installing the K155 wireless module
About this task Use this procedure to install the wireless module on the K155 device for Wi-Fi and Bluetooth connectivity. The wireless module is an optional component and you can order this module separately. This procedure is not applicable for the K165 and K175 devices. Before you begin Get a flat screwdriver that fits into the opening of the module panel. Ensure that the K155 device is not connected to a power source. Procedure
1. Insert the screwdriver into the opening of the module panel to release the latch. Do not pry open the panel.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
48
Comments on this document? infodev@avaya.com
Installing the K155 wireless module
2. To remove the module panel, slide the panel out in the direction of the arrow.
3. Insert the wireless module into the slot.
4. Slide the module panel inward to close it.
You do not need a screw to fasten the module. The inside of the module panel has a small protrusion that keeps the module in place.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
49
Comments on this document? infodev@avaya.com
Initial setup and connectivity
Configuring Wi-Fi from the Settings menu
About this task Use this procedure to configure a Wi-Fi network using the Settings menu on the device. Procedure
1. Tap Settings. 2. Tap Network & Internet > Network mode. 3. Select Wi-Fi. 4. On the Network & Internet screen, tap Wi-Fi, and choose the required network. 5. For a network that requires authentication, enter the network credentials and select the
appropriate CA certificate option from the following: � Use system certificates � Do not validate � List of trusted certificates installed on Wi-Fi certificate repository, if available
On a new device, no trusted certificates are installed in the repository, so you cannot select this option. 6. Tap Connect. If the credentials are authenticated successfully, the device connects to the Wi-Fi network.
Connecting a handset to Avaya VantageTM
Avaya VantageTM provides a built-in speaker and microphone, so a handset is not required to make and manage calls. You can purchase either wired or wireless handsets separately. To use a handset with Avaya VantageTM, you also need to connect a handset cradle.
Connecting the handset cradle to Avaya VantageTM
About this task Use this procedure to connect your handset cradle to the Avaya VantageTM device. The handset cradle is required for both wired and wireless handsets.
Warning: When installing the cradle, be careful not to bend the Avaya VantageTM connector pins.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
50
Comments on this document? infodev@avaya.com
Connecting a handset to Avaya VantageTM
Before you begin � Ensure that you have the following equipment: - Avaya VantageTM device. - Handset cradle with a connection cable. - Handset cradle stand, which varies according to the device variant. For K165 or K175, use the adjustable cradle stand with the crossbar that comes with the handset kit. For K155, use the fixed-angle cradle stand that comes with the device. � Ensure that the Avaya VantageTM device is not connected to a power source.
Procedure 1. Place the device with the right side touching the table top so that the left side, which is where the handset cradle must be attached, is facing up. 2. On the left side of the Avaya VantageTM device, remove the rubber gasket that protects the cradle connector pins. One cradle connector pin is closed so that you can position the cradle in the correct direction. 3. Connect the handset cradle cable to the cradle connector of the Avaya VantageTM device.
Tip: Bend the cradle cable to make an arc so that you can join the cable with the cradle connector easily. 4. Connect the cradle to the Avaya VantageTM device while ensuring that the connection cable is not squeezed between the cradle and the device. 5. (Optional) For K165 or K175, connect the handset cradle stand crossbar to the slot in the Avaya VantageTM stand. 6. Connect the handset cradle to the cradle stand using the hinge on the rear panel of the cradle. Next steps Connect Avaya VantageTM to the power source.
Connecting a wired handset
About this task Use this procedure to connect a wired handset to your Avaya VantageTM. Before you begin Ensure that the handset cradle is connected to the Avaya VantageTM device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
51
Comments on this document? infodev@avaya.com
Initial setup and connectivity
Procedure 1. Plug the non-spiral end of the handset cord into the handset connector on the handset cradle. 2. Plug the other end into the connector on the handset.
Connecting a wireless handset
About this task Use this procedure to connect or pair a wireless handset with your Avaya VantageTM device. After pairing a wireless handset with your Avaya VantageTM device, you cannot use the wired handset. You can pair only one wireless handset with a device at a time. You need administrative privilege to remove the pairing with the wireless handset. Before you begin Ensure the following:
� The device startup process is complete and you are logged on to the device. � The handset cradle is connected to your Avaya VantageTM device. � The handset battery is charged by placing the handset in the cradle. � The wireless handset is turned off. Procedure 1. Lift the wireless handset from the cradle, and press and hold the top Power button for at
least 10 seconds to enter the pairing mode.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
52
Comments on this document? infodev@avaya.com
Connecting a handset to Avaya VantageTM
To indicate that the handset is in the pairing mode, the handset LED starts flashing. 2. On the Home screen, tap Applications. 3. Tap Settings > Connected devices > Bluetooth. 4. Turn Bluetooth on. 5. In the list of available devices, tap the entry that matches the ID on the handset label.
When pairing is successful, Avaya VantageTM displays the wireless handset in the list of paired devices as connected. Result You can now use your wireless handset for calls as long as the handset is turned on. When the handset is turned off, you cannot use it for calls, but it is still paired with Avaya VantageTM. When you turn on the handset the next time, you do not need to repeat the pairing procedure.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
53
Comments on this document? infodev@avaya.com
Chapter 4: Security configuration
The following are the key security features that are available for Avaya VantageTM:
� Device access control and user privacy through user account and device lock functionality. For more information, see Access control and user privacy on page 55.
� Complex administrator passwords to access administrator options from the Settings menu on the device. For more information, see Administrator password configuration on page 57.
� Certificate management for secure communication between devices, applications, and other network entities.
- Identity certificate and trusted certificate support. Avaya VantageTM supports up to 100 trusted certificates in either the PEM or DER format.
- Android built-in trusted certificates that all Android applications installed on Avaya VantageTM can use.
According to the value set for the ENABLE_PUBLIC_CA_CERTS parameter, Device Enrollment Services, HTTP or HTTPS file downloads, PPM, SCEP over HTTPS, and Avaya Aura� Device Services use these trusted certificates.
- No built-in Avaya product certificates including Avaya SIP Product Root CA certificate. Also, no Avaya product certificates are part of the software distribution package.
For more information about certificate usage on Avaya VantageTM, see Certificate management on page 58.
� Support for Device Enrollment Services, which provides secure redirection of a new device to the file server. For more information, see Device Enrollment Services for secure redirection to the file server on page 64.
� Support for synchronization of time with the configured SNTP servers. For more information, see Time synchronization on page 65.
� Support for the SSH protocol to provide a secure mechanism for Avaya personnel to log in to the device remotely and perform the required operations in a secure environment. For more information, see SSH access control on page 65.
� Support for SRTP on the Avaya Breeze� Client SDK applications. The supported Avaya Breeze� Client SDK applications are Avaya VantageTM Connect and Avaya Equinox�. SRTP provides confidentiality and message authentication to media traffic going over the LAN infrastructure. With SRTP, Avaya VantageTM can encrypt calls between two or more endpoints to prevent eavesdropping.
� Secure signaling support on the Avaya Breeze� Client SDK application through SIP-TLS.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
54
Comments on this document? infodev@avaya.com
Access control and user privacy
� TLS support for all services, such as HTTPS file downloads and SCEP over HTTPS.
� 802.1x EAP-TLS and EAP-MD5 authentication methods for Ethernet.
� Support for the following Wi-Fi security protocols: WEP, WPA, WPA2 PSK, and 802.1x, including EAP-PEAP, EAP-TLS, EAP-TTLS, and EAP-PWD with phase two authentication.
� No non-secure protocols and services, such as FTP, Telnet, TFTP, rlogin, and rsh, except for Android Debug Bridge (ADB), which is disabled by default. For more information, see Android Debug Bridge configuration on page 66.
� Support for VLAN separation mode using configuration parameters. For more information, see VLAN separation on page 66.
� Ability to disable Google Play. For more information, see Access to Google Play applications for K165 and K175 on page 101.
� Ability to disable the installation of applications from unknown sources. For more information, see Access to applications from unknown sources on page 102.
� Application download control using an XML-based configuration file. For more information, see Application download control through an XML-based configuration file on page 102.
� No root access allowed for applications. VPN tunnels for monitoring traffic are over the Wi-Fi interface only. There is no VPN support over Ethernet.
� Support for antivirus and antimalware applications.
� Android security features, such as disk encryption, remote wipe, and SELinux running in enforcing mode.
� Use of the latest Android security patches on each Avaya VantageTM release.
� Support for hardware-based random number generators.
� Ability to disable trust agents and Google Smart lock using the TRUST_AGENTS_STAT and TRUST_AGENTS_SMARTLOCK_STAT parameters.
� Ability to disable the USB port using the ENABLE_USB_GENERAL_PURPOSE parameter.
� Ability to disable wireless Bluetooth and Wi-Fi connections using the BLUETOOTHSTAT and WIFISTAT parameters.
� Ability to disable the wireless access point using the WIFIAPSTAT parameter.
Access control and user privacy
To access Avaya VantageTM telephony features, you have your own login credentials. When using Avaya VantageTM Connect or Avaya Equinox� on Avaya VantageTM as the telephony application, the device supports the following two login modes:
� SIP credentials for SIP controller authentication.
� User enterprise credentials for authentication through Avaya Aura� Device Services. This option is applicable only in the Avaya Aura� environment.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
55
Comments on this document? infodev@avaya.com
Security configuration
Avaya VantageTM provides lock and log out functions for user privacy. When you lock Avaya VantageTM, other users cannot unlock the device. When Avaya VantageTM is locked, you can receive calls or make emergency calls, but cannot access user data. If login is performed using SIP credentials, you must use the SIP password to unlock the device. If login is performed using Avaya Aura� Device Services enterprise credentials, you must use the enterprise user password to unlock the device.
You can control the locked state of the device using the following options:
� The Screen lock option in the Settings > Security & location menu.
� The ENABLE_PHONE_LOCK parameter.
To enable logout when the device is locked, you can set the ALLOW_LOGOUT_WHEN_LOCKED parameter. For more information, see Phone lock and idle time parameters on page 206.
Note:
With IP Office, you must configure the location-specific emergency numbers in the 46xxspecials.txt file to enable emergency calling from locked devices.
When you log out from Avaya VantageTM, the station is available for other users without access to the previous user's data. When a new user logs in, Avaya VantageTM clears the previous user's personal data and removes all applications installed by the previous user. Applications that are installed through the PUSH_APPLICATION parameter in the settings file are not affected. When the previous user logs in again, Avaya VantageTM restores the following information:
� The user-defined device configuration, such as language settings, which is stored on PPM or a backup server in the Avaya Aura� environment.
� The Android application data that is backed up in a personal account, such as a Google account.
Password security policies
In the SIP login password, you can use:
� Numbers: 0 � 9 � Capital letters: A � Z � Lowercase letters: a � z � Special characters: ~!@#$%^&*_-+=`|\(){}[]:;"'<>,.?/
In addition, the password length must be a minimum of 5 characters for the Screen lock feature on Avaya VantageTM to work properly. In the Avaya Aura� environment, you can configure password policies for Avaya VantageTM using System Manager.
With IP Office, the SIP user password is required when creating a new user. For more information, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
56
Comments on this document? infodev@avaya.com
Administrator password configuration
If you use an Exchange account on Avaya VantageTM, then security policies configured for Avaya VantageTM must comply with the security policies configured for the Microsoft Exchange server. If the device password does not comply with the Microsoft Exchange server policies, you might not be able to use your Exchange account. Microsoft Exchange server policies must allow the usage of numeric SIP passwords when using the SIP login method. Contact your Microsoft Exchange server vendor to obtain information about configuring password security policies.
Note:
If you use the Unified Login feature, there are no issues with the Microsoft Exchange server security policies. Avaya VantageTM uses the Unified Login credentials to access the Exchange account.
Administrator password configuration
You must set up an administrator password to enable device administrator settings on Avaya VantageTM. Avaya VantageTM uses the ADMIN_PASSWORD or PROCPSWD parameters to store the password and provide access to administrator options in the Settings menu.
� If ADMIN_PASSWORD is configured, Avaya VantageTM uses the ADMIN_PASSWORD value and ignores the PROCPSWD value.
� If ADMIN_PASSWORD is not configured and PROCPSWD has a value different from the default, Avaya VantageTM uses the PROCPSWD value.
� If ADMIN_PASSWORD is not configured and PROCPSWD uses the default value, you cannot access administrator options in the Settings menu on Avaya VantageTM.
In an IP Office environment, ADMIN_PASSWORD is added to the automatically-generated 46xxsettings.txt file if the NUSN is set for the administrator password in IP Office Manager.
You can change the value of ADMIN_PASSWORD and PROCPSWD using the SET command in the 46xxsettings.txt file. You can also change the value of PROCPSWD using:
� The name=value pair in a DHCPACK message sent by your DHCP server. � PPM service configuration. You cannot configure ADMIN_PASSWORD through PPM. For
more information about configuring the PROCPSWD value through PPM, see Administering Avaya Aura� Session Manager.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
57
Comments on this document? infodev@avaya.com
Security configuration
Certificate management
Digital certificates are electronic documents that are used to confirm the identity of the device or application to other network entities. A number of Avaya VantageTM applications use these certificates, which include built-in Android trusted certificates and downloaded trusted certificates.
� Avaya VantageTM platform applications: - Android: Wi-Fi 802.1x authentication, Exchange and Google accounts, and browsers using HTTPS. - Avaya: Configuration and firmware file downloads using HTTPS, SCEP over HTTPS, Avaya Aura� Device Services or authenticated file server, and PPM.
� Avaya Breeze� Client SDK-based applications: Avaya VantageTM Connect and Avaya Equinox�.
� Communication applications: Certificates for different activities, such as SIP connectivity using SIP over TLS, PPM over TLS, and connections to Avaya Aura� Device Services servers.
Avaya VantageTM supports installation of certificates using the following methods: � Downloading trusted certificates using the TRUSTCERTS configuration parameter. TRUSTCERTS can support a list of up to 100 PEM and DER format root and intermediate trusted certificates located on the file server. You can also add trusted certificates using Android trusted certificate installation methods. You can configure TRUSTCERTS using the 46xxsettings.txt file and Avaya Aura� Device Services. Configuration using Avaya Aura� Device Services gets a higher precedence than 46xxsettings.txt. � Downloading an identity certificate as the PKCS12 file. Avaya VantageTM downloads a PKCS12 file from a URL specified in the PKCS12URL configuration parameter. If the PKCS12PASSWORD configuration parameter does not contain a valid password for the PKCS12 file, Avaya VantageTM prompts you to enter the password. If the PKCS12 file contains a trusted certificate, Avaya VantageTM installs the PKCS12 file without the trusted certificate. You can specify the list of trusted certificates on Avaya VantageTM only through TRUSTCERTS. The PKCS12 file must include the friendly name and key usage fields. Otherwise, the PKCS12 file installation on Avaya VantageTM will not be successful. � Generating an identity certificate using SCEP. Avaya VantageTM generates and installs a new identity certificate using SCEP according to the MYCERTURL, MYCERTCN, MYCERTDN, and MYCERTCAID parameters. Avaya VantageTM gives preference to the PKCS12 file over SCEP. When both the PKCS12URL and SCEP parameters are configured, Avaya VantageTM uses the identity certificate installed using PKCS12URL.
You can review certificates installed on the Avaya VantageTM device from the Settings menu: � The USER tab in Settings > Security & location > Encryptions & credentials > Trusted credentials presents all downloaded trusted certificates. The tab also displays the identity certificate installed using SCEP or PKCS12URL.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
58
Comments on this document? infodev@avaya.com
Certificate management
� The SYSTEM tab in Settings > Security & location > Encryptions & credentials > Trusted credentials presents built-in Android trusted certificates.
Android built-in trusted certificates Avaya VantageTM supports the use of Android built-in trusted certificates by all Android applications installed on Avaya VantageTM. By default, Avaya Breeze� Client SDK applications use built-in Android trusted certificates. The use of Android built-in trusted certificates by some applications depends on the ENABLE_PUBLIC_CA_CERTS parameter setting. If ENABLE_PUBLIC_CA_CERTS is set to 1, then Avaya VantageTM can use the Android built-in trusted certificates for application services such as Avaya Aura� Device Services, PPM, configuration and image file downloads, and 802.1x EAPTLS. Downloaded trusted certificates To store trusted certificates downloaded using TRUSTCERTS, Avaya VantageTM uses the Android "VPN and APPS" and "Wi-Fi" repositories. These certificates are available to all Android applications. The "Wi-Fi" repository contains only the downloaded trusted certificates. The "VPN and APPS" repository contains the Android built-in trusted certificates and the downloaded trusted certificates according to TRUSTCERTS. The Avaya Breeze� Client SDK application uses the trusted certificate in the Android "VPN and APPS" repository. When user enterprise credentials are used for login, you must configure the root CA of the Avaya Aura� Device Services server identity certificate in TRUSTCERTS even if it is part of Android builtin trusted certificates. Unlike other downloaded trusted certificates, the USER tab in Settings > Security & location > Encryptions & credentials > Trusted credentials does not display the root CA of the Avaya Aura� Device Services server identity certificate. Identity certificates generated using SCEP or downloaded using PKCS12 file Identity certificates generated using SCEP or downloaded using PKCS12 file are stored in the Android "VPN and APPS" and "Wi-Fi" repositories. Avaya VantageTM platform applications, the Avaya Breeze� Client SDK application, and all Android applications can access the repositories to use identity certificates. Avaya Breeze� Client SDK applications use identity certificates for services, such as SIP connectivity, PPM, and Avaya Aura� Device Services, in the Avaya Aura� environment only. IP Office does not support client certificate validation. Consideration while deploying Avaya VantageTM at remote location For a new Avaya VantageTM device, the trusted certificate repository is initially empty. As long as the trusted certificate repository remains empty, Avaya VantageTM trusts any HTTPS file server. No initial validation of the HTTPS file server certificate occurs until trusted certificates are downloaded to the device. Therefore, Device Enrollment Services is the recommended method for new device deployments for remote users. If you do not use Device Enrollment Services, then staging is recommended to download trusted certificates to the device before sending the device to the end user.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
59
Comments on this document? infodev@avaya.com
Security configuration
Certificate usage by applications
The following table shows certificates that are used by different applications on Avaya VantageTM. The use of built-in Android trusted certificates by some applications depends on the ENABLE_PUBLIC_CA_CERTS parameter setting.
Application
Built-in Android trusted certificates
Wi-Fi 802.1x with EAPTLS, EAP-TTLS Ethernet 802.1x with EAP-TLS
HTTPS configuration and image files download
PPM
SCEP over HTTPS
Avaya Aura� Device Services or authentication file server
Device Enrollment Services
Y
Y
Only when ENABLE_PUBLIC_CA_ CERTS is set to 1.
Y
Only when ENABLE_PUBLIC_CA_ CERTS is set to 1.
Y
Only when ENABLE_PUBLIC_CA_ CERTS is set to 1.
Y
Only when ENABLE_PUBLIC_CA_ CERTS is set to 1.
Y
Only when ENABLE_PUBLIC_CA_ CERTS is set to 1.
Y
Downloaded trusted certificates according to the TRUSTCERTS parameter 2 Y Y
Y
Y
Y
Y
Identity certificate generated using SCEP or PKCS12 file 3 Y Y
Y
Y
Y
Y
Table continues...
2 Device users can install trusted certificates using Android certificate installation methods, such as through Chrome.
These certificates are available to all Android applications. 3 Device users can install identity certificates using Android certificate installation methods, such as through Chrome.
These certificates are available to all Android applications except Avaya Breeze� Client SDK applications.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
60
Comments on this document? infodev@avaya.com
Certificate management
Application
Built-in Android trusted certificates
Redirected file server
Y4
from Device Enrollment
Services
Avaya Breeze� Client
Y
SDK applications
Browser
Y
Exchange account
Y
Google account
Y
Approved third-party
Y
applications (included in
ID_CERT_APPLICATIO
N_LIST)
Non-approved third-party Y applications (not included in ID_CERT_APPLICATIO N_LIST)
Downloaded trusted certificates according to the TRUSTCERTS parameter 2
Identity certificate generated using SCEP or PKCS12 file 3
Y
Y
Y
N
Y
Y
Y
N
Y
Y
Y
N
Note: For information about IP Office security certificates, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes for Release 11.0.
Generating a PKCS12 file with a friendly name
About this task Use this procedure to generate a self-signed PKCS12 certificate file with a friendly name embedded. Before you begin Ensure that the openssl commands are available on the server console that you want to use for generating the certificate. If no OpenSSL package is found, install the latest OpenSSL package on the system.
2 Device users can install trusted certificates using Android certificate installation methods, such as through Chrome.
These certificates are available to all Android applications. 3 Device users can install identity certificates using Android certificate installation methods, such as through Chrome.
These certificates are available to all Android applications except Avaya Breeze� Client SDK applications. 4 If Device Enrollment Services provides private CA certificates, then the private CA is used to validate the identity
certificate of the redirected file server. Otherwise, the built-in Android trusted certificates are used.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
61
Comments on this document? infodev@avaya.com
Security configuration
Procedure 1. Run the following command to generate a new private key and Certificate Signing Request (CSR): openssl req -out CSR.csr -new -newkey rsa:2048 -nodes -keyout privateKey.key The command generates a 2048-bit RSA private key and writes it to the privateKey.key file. The command also generates the CSR.csr file that is to be signed. 2. Run the following command to generate a self-signed certificate: openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout privateKey.key -out certificate.pem The command output is the certificate.pem file, which contains the signed certificate. 3. Run the following command to generate a CSR based on an existing certificate: openssl x509 -x509toreq -in certificate.pem -out CSR.csr -signkey privateKey.key The command generates the CSR.csr file which is the CSR based on the existing certificate.pem file. 4. Run the following command to generate the PKCS12 file with the friendly name: openssl pkcs12 -export -in certificate.pem -inkey privateKey.key name "friendlyName" -out cert.p12.new The command output is the cert.p12.new file, which is the new PKCS12 file with the friendly name. 5. Run the following command to read the certificate: openssl pkcs12 -info -nodes -in cert.p12.new
Adding a friendly name to an existing PKCS12 file
About this task Use this procedure to add a friendly name to an existing PKCS12 file. Procedure
1. Run the following command to extract the private key used in the certificate: openssl pkcs12 -in cert.p12.new -nocerts -out privateKey.key In this command, cert.p12.new is the PKCS12 file without the friendly name field. The command extracts the private key from the PKCS12 file to the privateKey.key file.
2. Run the following command to extract the identity certificate from the PKCS12 file:
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
62
Comments on this document? infodev@avaya.com
Use of Avaya product certificates
openssl pkcs12 -in cert.p12.new -clcerts -nokeys -out certificate.pem The command extracts the identity certificate from the PKCS12 file, cert.p12.new, to the certificate.pem file. 3. Run the following command to generate a new PKCS12 file with the friendly name: openssl pkcs12 -export -in certificate.pem -inkey privateKey.key name "friendlyName" -out cert2.p12.new The command output is the cert2.p12.new file, which is the new PKCS12 file with the friendly name.
Use of Avaya product certificates
Avaya VantageTM does not contain any built-in Avaya product certificates, such as the Avaya SIP Product CA certificate. These certificates are also not part of the software distribution package. You can extract and install the Avaya SIP Product CA certificate for various services that Avaya VantageTM and the Avaya Breeze� Client SDK application use. You can install such certificates on Avaya VantageTM using the TRUSTCERTS parameter.
Obtaining the Avaya SIP Product CA certificate
Procedure 1. On System Manager Web Console, in the Services area, click inventory > Manage Elements. The system displays the Manage Elements screen. 2. Choose the Session Manager instance from the list. 3. In the More Actions field, click Configure Trusted Certificates. The system displays the Trusted Certificates screen. 4. Choose an Avaya SIP Product CA certificate from the list. For example, trust-cert.pem. 5. Click Export. 6. Save the file to a location on your system. 7. Perform one of the following: � Upload the CA Certificate to a website and send your users the link. � Send the CA certificate through email as an attachment.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
63
Comments on this document? infodev@avaya.com
Security configuration
8. To download the CA certificate to Avaya VantageTM, do the following: a. Upload the CA certificate to the file server. b. In the 46xxsettings.txt file, modify the TRUSTCERTS parameter value to include the CA certificate file.
Obtaining the Avaya Aura� System Manager CA certificate
About this task If you have a server with a certificate issued by Avaya Aura� System Manager, you must distribute the Avaya Aura� System Manager CA certificate to the device of the users using this procedure. In an Avaya Aura� environment, Avaya VantageTMcan use the Avaya Aura� System Manager CA certificate for SIP, PPM, and Avaya Aura� Device Services. Procedure
1. On System Manager Web Console, in the Services area, click Security > Certificates > Authority.
2. Click Download pem file. 3. Save the file to a location on your system. 4. Perform one of the following:
� Upload the CA Certificate to a website and send your users the link. � Send the CA certificate through email as an attachment. 5. To download the CA certificate to Avaya VantageTM, do the following: a. Upload the CA certificate to the file server. b. In the 46xxsettings.txt file, modify the TRUSTCERTS parameter value to
include the CA certificate file.
Device Enrollment Services for secure redirection to the file server
Device Enrollment Services provides a mechanism for Avaya endpoints to be securely authenticated and redirected to a preconfigured provisioning server. The DNS address of Device Enrollment Services is hard-coded to the device firmware. After you connect the out-of-the-box device to the network, Device Enrollment Services redirects the device to the provisioning server and then the installation process begins automatically.
For a fresh Avaya VantageTM device, the trusted certificate repository is initially empty. With other methods of obtaining the file server address, such as DHCP, LLDP, and manual configuration using the Settings menu or the installation wizard, no initial validation of the HTTPS file server
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
64
Comments on this document? infodev@avaya.com
Time synchronization
certificate occurs until trusted certificates are downloaded to the device. Therefore, Device Enrollment Services is the recommended method for new device deployments for remote users. If you do not use Device Enrollment Services, you must consider staging to download trusted certificates to the fresh device before sending the device to the end user.
Time synchronization
Access to an SNTP server for time synchronization is essential for SIP registration and initial device setup when you start Avaya VantageTM. Avaya VantageTM with an Avaya Breeze� Client SDK application must have time input through an SNTP server for successful SIP registration and login. The SNTPSRVR parameter provides the SNTP server addresses to Avaya VantageTM. You can configure the SNTPSRVR parameter using one of the following options. The options are listed in order of precedence, from the lowest to highest priority:
� DHCP option 42. � 46xxsettings.txt file. � Avaya Aura� Device Services configuration or the Settings menu. The value of the SNTPSRVR parameter can be a comma-separated list of SNTP server addresses, which can be IP addresses or fully-qualified domain names. The parameter has the following default value: "0.avaya.pool.ntp.org,1.avaya.pool.ntp.org,2.avaya.pool.ntp.org, 3.avaya.pool.ntp.org,129.6.15.28,132.163.97.1" If you cannot reach the default SNTP servers, you must update the SNTPSRVR value to point to one or more SNTP servers that are accessible from your network.
SSH access control
Avaya VantageTM supports remote access through SSH for troubleshooting. SSH provides a secure mechanism for Avaya personnel to log in to the device remotely and perform the required operations in a secure environment. By default, SSH access is disabled. You can control SSH access through the following:
� The SSH_ALLOWED parameter. � The Settings menu on the device. By default, SSH remote users do not have root access or access to private user data, such as: � Private keys of digital certificates � Authentication credentials for SIP, HTTP, 802.1X, and Exchange
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
65
Comments on this document? infodev@avaya.com
Security configuration
� Contact and call log information � Personal browser information, such as bookmarks, URL history, and cookies
Android Debug Bridge configuration
Avaya VantageTM supports Android Debug Bridge (ADB). By default, ADB remains disabled on Avaya VantageTM. If ADB is required for Android application development, you can enable ADB through the Settings menu on the device. You can control ADB support using the ADBSTAT parameter. You can set the parameter value to one of the following:
� 0: To completely disable ADB support. When ADBSTAT is set to 0, you cannot enable ADB through the Settings menu.
� 1: To be able to enable ADB through the Settings menu on the device. Since ADB is a non-secure protocol, Avaya recommends that you enable ADB for Android application development purposes only. Otherwise, set ADBSTAT to 0.
Enabling or disabling ADB through the Settings menu
About this task Use this procedure to enable or disable ADB on the Avaya VantageTM device through the Settings menu. You can only enable ADB through Settings if ADBSTAT is set to 1. Procedure
1. Open the Settings menu. 2. Tap System > Developer options. 3. (Optional) If Developer options is not available, do the following to enable developer
mode: a. Tap About Avaya Vantage. b. Tap the Build number field seven times. c. If prompted, enter the device PIN.
4. On the Developer options screen, enable or disable ADB mode.
VLAN separation
VLANs provide a means to segregate your network into distinct groups or domains. VLANs also provide a means to prioritize the network traffic into each of these distinct domains. Therefore, it is
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
66
Comments on this document? infodev@avaya.com
VLAN separation
recommended to have separate VLANs for voice and data. Avaya VantageTM devices with dual Ethernet ports have an internal network switch that can use VLANs to segregate traffic between the LAN port, the computer port, and the internal port that goes to the CPU of the device. Avaya VantageTM supports a full VLAN separation between data and voice VLANs. You can configure the internal network switch for VLAN separation using configuration parameters through LLDP, DHCP, and the 46xxsettings.txt file. Full VLAN separation It is recommended to have a full VLAN separation between data and voice VLANs. For a full VLAN separation mode on Avaya VantageTM, the VLAN configuration must meet the following conditions:
� VLANSEP is 1 � L2Q is 0 or 1 � L2QVLAN is not equal to 0 � PHY2VLAN is not equal to 0 � L2QVLAN is not equal to PHY2VLAN � VLANTEST is 0 or the timer is less than VLANTEST The device tries to obtain an IP address from the DHCP server on the voice VLAN. If the device gets an IP address, it sends all the tagged packets on the voice VLAN. Set the PHY2VLAN parameter to the data VLAN so that untagged packets from the computer are assigned to the data VLAN. Tagged packets from VLAN computers other than the data VLAN are blocked. PHY2VLAN is important for a full VLAN separation between the computer and the device VLANs.
VLAN configuration parameters
Parameter L2Q
L2QVLAN VLANTEST VLANSEP
Set to Notes
0, 1, or Specifies 802.1Q VLAN tagging mode. Assign one of the following
2
values:
� Auto (0) or Tag (1): The device sends tagged packets on L2QVLAN until the VLANTEST time. If the DHCP server is unreachable, the device sends untagged packets. On Avaya VantageTM, the behavior is the same for both values.
� Untag (2): The device sends untagged packets.
Nonzero value
Specifies the 802.1Q VLAN identifier. This parameter must not have the same value as PHY2VLAN.
0 to 999 Specifies the number of seconds to wait for a DHCPOFFER message reception on a non-zero VLAN. The default value is 60 seconds.
1
Enables VLAN separation.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
67
Comments on this document? infodev@avaya.com
Security configuration Parameter PHY2TAGS
PHY2VLAN
Set to 0 or 1
Nonzero value
Notes
Specifies whether tags are stripped from frames forwarded to the secondary Ethernet interface.
� 0: VLAN tags are removed from frames forwarded to the secondary Ethernet interface.
� 1: VLAN tags are not removed from frames forwarded to the secondary Ethernet interface.
Specifies the value of the 802.1Q VLAN identifier for tagged frames through the secondary Ethernet interface. This parameter must not have the same value as L2QVLAN.
Parameter configuration for secure installation
For secure installation, configure the following parameters.
Parameter TRUSTCERTS
Set to
File names of required trusted certificates
Description
Provides the file names of certificates to be used for authentication. It supports both root and intermediate certificates and can contain up to 100 certificate files. Avaya VantageTM supports both PEM and DER file formats.
When you provide relative file paths in the value, Avaya VantageTM downloads the file from the HTTP or HTTPS file server defined in FILE_SERVER_URL, HTTPSRVR, or TLSSRVR if TRUSTCERTS is configured in the 46xxsettings.txt file. If TRUSTCERTS is defined on Avaya Aura� Device Services, the file is downloaded from Avaya Aura� Device Services according to USER_AUTH_FILE_SERVER_URL.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
68
Comments on this document? infodev@avaya.com
Parameter configuration for secure installation
Parameter TLSSRVRID
TLS_VERSION AUTH FILE_SERVER_URL SSH_ALLOWED
Set to 1
1 1 The address of your HTTPS file server 0
Description
Specifies that TLS server identification is required. Certificates installed on the servers must have a common name that matches the FQDN of the established connection. If it does not match, the connection is dropped.
When set to 1, the identity certificate of Avaya VantageTM services must have Subject Alternative name with the FQDN or IP address of the service or the FQDN or IP address of the service in the common name. If even one of the services used by Avaya VantageTM or the Avaya Breeze� Client SDK application has an identity certificate that does not meet the mentioned criteria, you must set TLSSRVRID to 0. Otherwise, there will be no TLS connection.
Some additional considerations:
� If the PPM identity certificate is signed by Avaya SIP product root CA, then TLSSRVRID must be explicitly set to 0.
� Avaya Breeze� Client SDK applications require the SIP domain in the Subject Alternative Name of the SIP controller identity certificate. If there is no such field, TLSSRVRID must be set to 0.
� TLSSRVRID for Avaya Equinox� running on any Android device has default value 0, however on Avaya VantageTM, the default is 1. For an environment where certificate validation is not required, you must configure TLSSRVRID as 0 for Avaya Equinox� on Avaya VantageTM.
Specifies the supported TLS version for all TLS connections used by Android and Avaya applications. Supported values:
� 0: TLS versions 1.0 and 1.2 are supported.
� 1: TLS version 1.2 only is permitted.
Ensures usage of HTTPS file servers for configuration and software file downloads. Once AUTH is set to 1 and the device downloads the trusted certificates, the device can only download files from the HTTPS server with certificates that can be validated using the trusted certificate repository.
Assigns HTTPS or TLSRVR file servers.
Keeps SSH disabled.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
69
Comments on this document? infodev@avaya.com
Security configuration
Parameter
Set to
ADBSTAT
0
ADMIN_PASSWORD or PROCPSWD
A complex password other than the default value
USER_INSTALL_APPS_ 0 UNKNOWN_SOURCES
Description Keeps ADB disabled. Enables access to administrator options in the Settings menu on the device using the administrator password.
Keeps installation of third-party applications from unknown sources disabled. End users cannot change the permission through the Settings menu on the device
SCEP parameters
Parameter MYCERTURL MYCERTCN
MYCERTDN
MYCERTKEYLEN MYCERTREPLACE
Type String String
String
Numeric Numeric
Default value Null $SERIA LNO
Null
2048 90
Description
Specifies the URL to access the SCEP server. The device attempts to contact the server only if this parameter is set to something other than its default value.
Specifies the Common Name (CN) for SUBJECT in the SCEP certificate request. The values can either be $SERIALNO or $MACADDR.
If the value includes the string $SERIALNO, that string will be replaced by the serial number of the phone.
If the value includes the string $MACADDR, that string will be replaced by the MAC address of the phone.
Specifies the common part of SUBJECT in the SCEP certificate request. This value defines the part of SUBJECT in a certificate request including Organizational Unit, Organization, Location, State, and Country that is common for requests from different devices.
Specifies the private key length in bits to be created in the device for certificate enrollment. The supported value is 2048.
Specifies the period of the certificate's validity interval. This period is specified as a percentage. Avaya VantageTM uses this percentage to calculate the date of the certificate replacement before its expiration. The range is from 1 to 99.
When the configured period is over, Avaya VantageTM generates a new pair of private and public keys and requests to sign the new CSR using SCEP from the CA server.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
70
Comments on this document? infodev@avaya.com
Parameter configuration for secure installation
Parameter MYCERTCAID
Type String
CERT_INSTALL_APPLI CATION_LIST
ID_CERT_APPLICATIO N_LIST
SCEPPASSWORD
String String String
Default Description value
CAIdenti fier
Specifies the Certificate Authority Identifier. CA servers might require a specific CA Identifier string in order to accept GetCA requests. If the device works with such a CA, the CA identifier string can be set through this parameter.
all
Specifies applications that can install trusted and identity
certificates on Avaya VantageTM.
all
Specifies applications that can access identity certificates
stored on Avaya VantageTM.
$SERIA LNO
Specifies a challenge password to use with SCEP. The value of SCEPPASSWORD, if not null, is included in a challengePassword attribute in SCEP certificate signing requests.
If the value contains $SERIALNO, $SERIALNO is replaced by the value of SERIALNO. If the value contains $MACADDR, $MACADDR is replaced by the value of MACADDR without the colon separators.
PKCS12 parameters Configure the following parameters for a PKCS12 file download to Avaya VantageTM.
Parameter PKCS12URL PKCS12PASSWORD
Type String String
Default value Null
Null
Description
Specifies the URL where a PKCS12 file containing an identity certificate is stored. Specifies a PKCS12 password.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
71
Comments on this document? infodev@avaya.com
Chapter 5: Device configuration
The following list shows the methods you can use to configure Avaya VantageTM. The methods are listed in order of precedence, from the lowest to highest priority:
� LLDP. This is the lowest priority. � DHCP. This includes the following options:
- Standard - Option 43 - Option 242 � 46xxsettings.txt file. � Avaya Aura� Device Services for Avaya Aura�. � PPM for Avaya Aura�. � Settings menu on the device. This is the highest priority.
Note: The installation wizard on Avaya VantageTM K165 and K175 devices and Device Enrollment Services have the same priority as the Settings menu. Most parameters are configurable through multiple methods. When Avaya VantageTM receives a new parameter value, it checks precedence rules to determine whether the new value must be applied. Avaya VantageTM changes the parameter value only if the precedence level of the new value source is higher than the precedence level of the current value source. If a source precedence level is not defined for a parameter, Avaya VantageTM does not use the parameter values provided by that source. For parameter descriptions, see "Appendix A: Supported configuration parameters". Configuration verification To verify configuration and ensure that the device is ready to use, see Verifying device configuration on page 94.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
72
Comments on this document? infodev@avaya.com
Configuration priority for the CSDK-based telephony application
Configuration priority for the CSDK-based telephony application
On Avaya VantageTM, Avaya Equinox� does not support DNS service discovery through an email address followed by the retrieval of configuration data from the chosen location. Instead, Avaya VantageTM collects the configuration data and then shares it with Avaya VantageTM Connect or Avaya Equinox�.
The following is the order of precedence, from lowest to highest priority, in which information is shared with the CSDK-based telephony application:
� 46xxsettings.txt file. This is the lowest priority source. � Avaya Aura� Device Services configuration .
� DHCP, LLDP, and the Settings menu for certain parameters, such as SIPDOMAIN and SIP_CONTROLLER_LIST.
� Default values enforced on certain parameters to ensure that a specific action is performed. For example, the TRUSTCERTS value is sent to the application as "" because Avaya VantageTM downloads the trusted certificate. The CSDK-based telephony application does not need to do this.
You can use the new Utility Server, which is embedded in Avaya Aura� Device Services, as a file server. In an environment with the Avaya Aura� Device Services Utility Server, you can choose where to configure various parameters. For example, you can configure Avaya VantageTM platform or device parameters in the 46xxsettings.txt file and configure CSDK-based application parameters in Avaya Aura� Device Services. Remember the priority list above. Avaya Aura� Device Services takes priority over the 46xxsettings.txt file.
Important:
Do not define the PUSH_APPLICATION and ACTIVE_CSDK_BASED_PHONE_APP parameters through Avaya Aura� Device Services. Avaya VantageTM does not collect this configuration information from Avaya Aura� Device Services. In an environment with Avaya Aura� Utility Services as the file server, but without Avaya Aura� Device Services, all relevant parameters, including CSDK application parameters, must be configured in the 46xxsettings.txt file.
Device configuration using LLDP
LLDP is an open standards layer 2 protocol that IP deskphones use to advertise their identity and capabilities and to receive administration from an LLDP server. LAN equipment can use LLDP to manage power, administer VLANs, and provide some administration. The transmission and reception of LLDP is specified in IEEE Std 802.1AB-2009.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
73
Comments on this document? infodev@avaya.com
Device configuration
Avaya VantageTM supports transmission and reception of LLDP using Ethernet line interface. Avaya VantageTM uses the LLDP_ENABLED parameter to determine whether LLDP is enabled on the device. You can assign one of the following values:
� 0: The transmission and reception of LLDP is disabled.
� 1: The transmission and reception of LLDP is enabled. This is the default value.
� 2: The transmission and reception of LLDP is enabled. The transmission of LLDP is started only after Avaya VantageTM receives an LLDP frame. Avaya VantageTM transmits the first LLDP frame within 2 seconds after the first LLDP frame is received.
After transmission is started, LLDP Data Units (LLDPDU) are transmitted every 30 seconds.
When Wi-Fi is selected as the network mode, the Ethernet ports on Avaya VantageTM are disabled and Avaya VantageTMcannot transmit LLDP frames over Ethernet.
After receiving an LLDP frame, Avaya VantageTM encodes the frame and stores the value of the frame in the LLDP_RCV_CONTENT parameter. Avaya VantageTM uses the frame data only if the following conditions:
� The received frame has the destination MAC address set to the reserved group multicast address (01:80:C2:00:00:0E)
� The Ethernet protocol type is 88:CC Avaya VantageTM processes the value of LLDP_RCV_CONTENT every time the value of LLDP_RCV_CONTENT changes.
Initial values of parameters transmitting in LLDP frames
The following table shows the initial values of LLDP fields that are set by Avaya VantageTM before the first LLDP frame is transmitted.
LLDP field LLDP_TTL LLDP_SYSTEM_NAME
LLDP_BRIDGE SNMP_SYS_OID
Value
120
The host name sent to the DHCP server in DHCP option 12.
0
A string in the dotted-decimal character format that represents the value of the sysObjectID object in the MIB-II system group.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
74
Comments on this document? infodev@avaya.com
LLDP field LLDP_MAU
MANUFACTURER POE_USED POE_TYPICAL POE_MAX
Device configuration using LLDP
Value � 10 if the Ethernet line interface is operating at
10Mbps, half-duplex
� 11 if the Ethernet line interface is operating at 10Mbps, full-duplex
� 15 if the Ethernet line interface is operating at 100Mbps, half-duplex
� 16 if the Ethernet line interface is operating at 100Mbps, full-duplex
� 29 if the Ethernet line interface is operating at 1000Mbps, half-duplex
� 30 if the Ethernet line interface is operating at 1000Mbps, full-duplex
Avaya 1 Typical PoE power usage of the device with enabled backlight. The parameter is measured in watts. Maximum PoE power usage of the device with enabled backlight. The parameter is measured in watts. Avaya VantageTM uses 13 for this parameter.
TLV impact on system parameter values
Avaya VantageTM uses data transmitted in LLDP Type-Length-Value (TLV) elements to set configuration parameters. If a received LLDP frame contains a TIA LLDP-MED Capabilities TLV, then Avaya VantageTM processes other TLVs in the frame only if the TIA LLDP-MED Capabilities TLV contains a Device Type of 0 or 4. TLVs are processed in the order that they are received.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
75
Comments on this document? infodev@avaya.com
Device configuration
System parameter TLV name name
L2QVLAN and L2Q IEEE 802.1 VLAN Name
L2Q, L2QVLAN
TIA LLDP MED Network Policy (Voice) TLV
VLAN_IN_USE
TIA LLDP MED Network Policy (Voice Signaling)
SIP_CONTROLL ER_LIST
TLSSRVR and HTTPSRVR
Proprietary Call Server TLV
Proprietary File Server TLV
Impact
L2Q is set to 1 (ON).
L2QVLAN is set to the VLAN ID contained in the TLV.
A check is made as to whether a reset is necessary to obtain a new IP address due to a change in the values of the parameters L2Q or L2QVLAN.
VLAN Name TLV is ignored if:
� The value of USE_DHCP is 0 and the value of IPADD is not 0.0.0.0.
� The current value of L2QVLAN was set by a TIA LLDP MED Network Policy TLV.
� The VLAN name in the TLV does not contain the substring "voice" in lower-case, upper-case or mixed-case ASCII characters anywhere in the VLAN name.
L2Q is set to 2 (OFF) if the Tagged Flag T is set to 0
L2Q is set to 1 (ON) if the Tagged Flag T is set to 1.
L2QVLAN - Set to the VLAN ID in the TLV.
A check is made as to whether a reset is necessary to obtain a new IP address due to a change in the values of the parameters L2Q or L2QVLAN.
This TLV is ignored if:
� The value of USE_DHCP is 0 and the value of IPADD is not 0.0.0.0.
� The Application Type is not 1 (Voice) or 2 (Voice Signaling).
� The Unknown Policy Flag (U) is set to 1. VLAN_IN_USE - set to the VLAN ID in the TLV.
This TLV is ignored if:
� The value of USE_DHCP is 0 and the value of IPADD is not 0.0.0.0.
� The Application Type is not 1 (Voice) or 2 (Voice Signaling).
� The Unknown Policy Flag (U) is set to 1. SIP_CONTROLLER_LIST will be set to the IP addresses specified in the TLV. FILE_SERVER_URL will be set to the IP addresses specified in the TLV.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
76
Comments on this document? infodev@avaya.com
Device configuration using DHCP options
System parameter TLV name name
Impact
L2Q
Proprietary 802.1 Q If the TLV value is 1, L2Q is set to 1 (On).
Framing
If the TLV value is 2, L2Q is set to 2 (Off).
If the TLV value is 3, L2Q is set to 0 (Auto).
A check is made as to whether a reset is necessary to obtain a new IP address due to a change in the values of the parameters L2Q or L2QVLAN.
This TLV is ignored if:
� The value of USE_DHCP is 0 and the value of IPADD is not 0.0.0.0.
� The current L2QVLAN value was set by an IEEE 802.1 VLAN name.
� The current L2QVLAN value was set by a TIA LLDP MED Network Policy (Voice) TLV.
Device configuration using DHCP options
Avaya VantageTM connects to the DHCP server during the boot up. You can use the DHCP server to provide the following information to the device:
� IP address � Subnet mask � IP address of the HTTP or HTTPS file server � IP address of the DNS server � IP address of the SNTP server You can configure the DHCP server to provision additional device and site-specific configuration parameters through various DHCP options.
Configurable DHCP options
The following options can be configured on the DHCP server:
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
77
Comments on this document? infodev@avaya.com
Device configuration
Option Option 43 Option 55
Option 57 Option 60 Option 242
Description Specifies the encapsulated vendor-specific options that clients and servers use to exchange information. To use this option, Avaya VantageTM sends option 60 with the value ccp.avaya.com. Option 43 is processed only if the first code in the option is 1 with a value of 6889. All values are interpreted as strings of ASCII characters that are accepted with or without a null termination character. Any invalid value is ignored and the corresponding parameter value is not set. Specifies the parameter request list. Acceptable values are:
� 1 for subnet mask.
� 3 for router IP addresses.
� 6 for domain name server IP address or addresses.
� 7 for log server IP address or addresses.
� 15 for domain name.
� 26 for interface MTU.
� 42 for NTP servers.
� 43 for vendor-specific information.
� 120 for Session Initiation Protocol (SIP) servers.
� DHCP_SSON for DHCP site-specific option numbers. You can assign a value between 128 and 254.
Specifies the maximum DHCP message size. The maximum packet size can be up to 1500 bytes. The default value is 1000. Specifies the vendor class identifier. To use option 43, Avaya VantageTM sends option 60 with the value ccp.avaya.com. Specifies site-specific options. Option 242 is optional. If you do not configure this option, ensure that key parameters, such as the following, are configured elsewhere:
� FILE_SERVER_URL
� HTTPSRVR
� TLSSRVR
Avaya VantageTM sends options 55, 57, and 60 to the DHCP server to provide additional information required to configure the device. For more information about configurable DHCP options, see RFC 2132.
Codes for option 43
The codes supported by option 43 and the corresponding parameters are listed in the following table:
Code 1
Parameter Does not set any parameter. The value must be 6889.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
78
Comments on this document? infodev@avaya.com
Device configuration using DHCP options
Code 2 3 4 5 6 7 8 9 10 15 18
Parameter HTTPSRVR HTTPDIR HTTPPORT TLSSRVR TLSDIR TLSPORT TLSSRVRID L2Q L2QVLAN SIP_CONTROLLER_LIST FILE_SERVER_URL
Avaya VantageTM uses information from option 43 only if the first code of option 43 is 1 with a value of 6889. All values are interpreted as strings of ASCII characters. Avaya VantageTM ignores invalid values and does not set the corresponding parameters.
Parameter configuration through DHCPACK
Parameter Set to
DHCP lease The value of Option 51 if received. time
DHCP lease The value of Option 58 if received. renew time
DHCP lease The value of Option 59 if received. rebind time
DOMAIN
The value of Option 15 if received.
DNSSRVR The value of Option 6 if received, which might be a list of IP addresses.
HTTPSRVR The siaddr value if it is not zero. The parameter is not set if the siaddr value is zero.
IPADD
The yiaddr value.
LOGSRVR The value of Option 7 if received, which might be a list of IP addresses.
MTU_SIZE The value of Option 26 if received.
NETMASK The value of Option 1 if received.
ROUTER
The value of Option 3 if received, which might be a list of IP addresses.
ROUTER_IN_ The giaddr value if this value not equal to zero and the current value of
USE
ROUTER_IN_USE is 0.0.0.0. In other cases, the parameter is not set.
SIP_CONTR The value of Option 120 if received, which might be a list of IP addresses or DNS names. OLLER_LIST
SNTPSRVR The value of Option 42 if received, which might be a list of IP addresses.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
79
Comments on this document? infodev@avaya.com
Device configuration
DHCP site-specific options
You can specify configuration parameters for a certain Avaya VantageTM device and assign these parameters through DHCP using site-specific options.
DHCP site-specific options allow you to specify configuration parameters for a certain Avaya VantageTM device and assign these parameters through DHCP. A site-specific option is a sequence of comma-separated name=value pairs, where:
� name is the name of a configuration parameter. name is case-insensitive.
� value is the value that is assigned to a configuration parameter with the name matching to the value of name. The value of value is case-sensitive. To include spaces, tabs, or commas in value, you must use double quotes ("").
The following is an example of a site-specific option that specifies:
� Two HTTPSRVR addresses.
� The ID of the Voice Virtual Local Access Network that the device must connect to.
� The ICMPDU parameter, which defines that Destination Unreachable messages must not be transmitted.
HTTPSRVR="135.51.77.120,135.51.77.139",L2QVLAN=5,ICMPDU=0
The default DHCP option to set the site-specific configuration parameters is 242. You can also use any option ranging between 128 and 254.
Note:
When the device receives DHCP ACK contents options 43 and 242, the device uses option 242.
To use configuration parameters on Avaya VantageTM, you must specify the option in DHCP SiteSpecific Option Number (SSON) on the device interface.
Site-specific configuration parameters
The following table contains a list of site-specific configuration parameters that you can define for the device.
Parameter Description
CAPTIVE_PO Specifies the URL of a captive portal server. RTAL_SERV ER
FILE_SERVE Specifies the list of URL for downloading image and configuration files. This parameter
R_URL
has higher precedence over HTTPSRVR, HTTPPORT, HTTPDIR, TLSSRVR, TLSDIR,
and TLSPORT.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
80
Comments on this document? infodev@avaya.com
Device configuration using DHCP options
Parameter HTTPDIR
HTTPPORT HTTPSRVR
ICMPDU
ICMPRED L2Q L2QVLAN PROCPSWD SIP_CONTR OLLER_LIST
TIMEZONE TLSDIR TLSPORT TLSSRVR
USER_AUTH _FILE_SERV ER_URL
Description
Specifies the path to prepend to all configurations and data files the device might request when starting up, that is, the path, relative to the root of the HTTP file server, to the directory in which the device configuration and date files are stored. The path may contain no more than 127 characters and may contain no spaces. HTTPDIR is the path for all HTTP operations.
The command is SET HTTPDIR=<path>. In configurations where the upgrade and binary files are in the default directory on the HTTP server, do not use the HTTPDIR=<path>.
Destination port for HTTP requests. The default value is 80.
IP addresses or DNS names of HTTP file servers used for downloading settings and firmware files during startup.
Since the firmware files are digitally signed, TLS is not required for security. However, configuration files are not digitally signed, so it is recommended to use HTTPS servers for storing configuration and firmware files.
Controls the extent to which ICMP destination unreachable messages are sent in response to messages sent to closed ports so as not to reveal information to potential hackers.
The default value is 1. Use this value to send destination unreachable messages for closed ports used by the traceroute command.
Controls whether ICMP Redirect messages are processed. The default value is 0, which means that redirect messages are not processed.
802.1Q tagging mode. The default value is 0 for the automatic tagging mode.
VLAN ID of the voice VLAN. The default value is 0.
Security string used to access local procedures. The default value is 27238.
SIP proxy or registrar server IP or DNS addresses that can be 0 to 255 characters. Enter the IP address in the dot-decimal notation. For example: 127.0.0.1. You can provide several IP addresses separated by commas and without spaces between entries. The default is null, which means there are no controllers.
Time zone configuration in the Olson name format. For example, America/New_York or Europe/Isle_of_Man.
Used as a path name that is prepended to all file names used in HTTPS GET operations during initialization. The string length can be from 0 to 127.
Destination TCP port used for requests to an HTTPS server ranging from 0 to 65535. The default value is 443, which is the standard HTTPS port.
IP addresses or DNS names of Avaya file servers used to download configuration and firmware files. Transport Layer Security (TLS) is used to authenticate the server and to provide encrypted data exchange between Avaya VantageTM and the server.
Specifies the user authenticated file server URL. Enter the address using either the dotdecimal or domain name format. Add a port number, if required. In the current release, Avaya VantageTM supports Avaya Aura� Device Services user authentication servers only.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
81
Comments on this document? infodev@avaya.com
Device configuration
Parameter VLANTEST
Description
The number of seconds to wait for a DHCPOFFER on a non-zero VLAN. The default value is 60 seconds.
Device configuration using a 46xxsettings.txt settings file
You can administer Avaya VantageTM devices centrally using the 46xxsettings.txt settings file that Avaya provides with the devices. The settings file is a text file that resides on a file server and contains configuration parameters.
You can download the 46xxsettings.txt file from the Avaya Support website and edit it to add your own custom settings.
Important:
In an IP Office environment, Avaya strongly recommends that you allow the IP Office system to auto-generate the settings files for devices rather than using the uploaded file. This helps to automatically adjust the settings provided to devices to match changes made in the IP Office system configuration. For more information, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes.
Customization of the settings file
The 46xxsettings.txt settings file contains configuration parameters required to customize Avaya VantageTM for your enterprise. You can customize the settings file to provide different parameters to devices according to various conditions, such as the following:
� Subnet of the your organization's network. � IP address of the device. � User group. � Device model. You can use the following to add your own custom settings to the 46xxsettings.txt file:
Item Tag
Description
Specifies a string in the file. Avaya VantageTM navigates to that string when it interprets the corresponding Goto command.
Structure
A single # character followed by a single space character followed by a tag name. Tag name must not include spaces.
# <TAG_NAME>
Example # K175SETTINGS
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
82
Comments on this document? infodev@avaya.com
Device configuration using a 46xxsettings.txt settings file
Item
Goto command
Description
Allows Avaya VantageTM to directly navigate to the specified tag skipping all parameters between the Goto command and the tag mentioned in the command.
Structure
GOTO followed by a single space character and a tag name in the following format:
GOTO <TAG_NAME>
Conditional statement
Compares the value of a specified parameter to a some reference value. If the value of the parameter exactly matches the reference value, Avaya VantageTM directly navigates to the tag specified in the condition. If the parameter does not exist or values do not match, Avaya VantageTM ignores the conditional statement.
IF $<PARAMETER_NAME> SEQ <REFERENCE_VALUE> GOTO <TAG_NAME>
Avaya VantageTM supports the following parameters as testable parameters:
� GROUP
� MODEL
� MODEL4
� MACADDR
� IPADDR
� SUBNET
SET command
Assigns a value to the
specified parameter. If the
value is incorrect, Avaya VantageTM does not assign it
to the parameter. In this case, Avaya VantageTM
continues to use the default
or previously assigned value.
SET <PARAMETER_NAME> <PARAMETER_VALUE>
Example GOTO K175SETTINGS IF $MODEL4 SEQ K175 GOTO K175SETTINGS
SET FILE_SERVER_URL http:// 192.168.125.161
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
83
Comments on this document? infodev@avaya.com
Device configuration
Item GET command
Comment
Description
Avaya VantageTM tries to download the specified settings file from the file server. If the file exists, Avaya VantageTM downloads this file, stops to interpret the current settings file, and tries to interpret the downloaded settings file. If Avaya VantageTM cannot download the file, it continues to interpret the current settings file.
Provides additional information about the configuration process. Avaya VantageTM does not interpret comments.
Structure GET <FILE_NAME>
A string started with two pound characters (##). ## <COMMENT>
Example GET Settings.txt
## The following section contains upgrade-related parameters
The 46xxsettings.txt settings file must use UTF-8 encoding. All commands, parameter names, and tags are case insensitive and must use ASCII symbols.
Avaya VantageTM handles the lines of the settings file one by one. Avaya VantageTM interprets only one command per line. All arguments of the command must be placed on the same line as the command. To include spaces in an argument value, you must enclose the value using double quotes ("").
User group configuration in the settings file
Use the conditional statements with the GROUP parameter to assign specific parameters or parameter values to different user groups.
The following example shows a simple settings file configuration for two user groups with the numbers 20 and 35.
IF $GROUP SEQ 20 GOTO CALLCENTER IF $GROUP SEQ 35 GOTO MANAGERS GOTO END # CALLCENTER ## Section with parameters for Group 20 ## SET <parameter1> <value> SET <parameter2> <value> SET <parameter3> <value> GOTO END
# MANAGERS ## Section with parameters for Group 35 ## SET <parameter1> <value> SET <parameter2> <value> SET <parameter3> <value>
# END
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
84
Comments on this document? infodev@avaya.com
Device configuration using Avaya Aura� Device Services
You can also configure GROUP from the Settings menu under Network & Internet > More > Group. In addition, Device Enrollment Services enables the configuration of FILE_SERVER_URL and GROUP for a specific Mac address or per numeric enrollment code. After configuring user groups, you must assign a specific user group to the device. For more information, see Setting a user group for a specific configuration on page 91.
Configuring parameters in the settings file
About this task Use this procedure to modify the settings file with appropriate values to provision the device configuration parameters. Procedure
1. On the file server, go to the location where the 46xxsettings.txt file is downloaded. 2. Open the 46xxsettings.txt file in a text editor. 3. Set the required parameters as the following:
SET <parameter_name> <parameter_value>
For more information about the supported configuration parameters, see "Appendix A, Supported configuration parameters". 4. Save the 46xxsettings.txt file. Result On the next polling period, Avaya VantageTM downloads the file and applies the settings. Related links Customization of the settings file on page 82 User group configuration in the settings file on page 84
Device configuration using Avaya Aura� Device Services
Avaya Aura� Device Services is used for retrieving configuration data when the USER_AUTH_FILE_SERVER_URL parameter points to the Avaya Aura� Device Services server. The Avaya VantageTM device retrieves configuration data from acs/resources/ configurations in Avaya Aura� Device Services and shares it with the CSDK-based telephony application, which can either be Avaya VantageTM Connect or Avaya Equinox�.
Important: Avaya Aura� Device Services platform configuration for Android devices is not assigned to Avaya VantageTM because Avaya VantageTM devices are not detected as Android devices.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
85
Comments on this document? infodev@avaya.com
Device configuration
Therefore, configuration settings in Avaya Aura� Device Services for Android devices are not sent to Avaya VantageTM. If the SIP user credentials are configured in Avaya Aura� Device Services, then you do not need to enter your credentials when logging in to Avaya VantageTM. Otherwise, you must enter your credentials to log in. The device can also retrieve the contact picture from Avaya Aura� Device Services to present on the Lock screen.
Do not define the PUSH_APPLICATION and ACTIVE_CSDK_BASED_PHONE_APP parameters through Avaya Aura� Device Services. Avaya VantageTM does not collect this configuration information from Avaya Aura� Device Services.
Device configuration using the Settings menu on the device
Device configuration checklist
The following checklist describes task you must perform to configure Avaya VantageTM device settings.
No. Task
Notes
1. Configure your administration password. Avaya VantageTM does not provide access to Administrator mode if the default administrator password is used.
See Administrator password configuration on page 57.
2. Ensure that you are using the Administrator mode to configure the device.
Improper modification of some settings can lead to a device malfunction. Therefore, such settings are available to administrators only.
See Enabling administrator settings on the device on page 88.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
86
Comments on this document? infodev@avaya.com
Device configuration using the Settings menu on the device
No. Task
Notes
3. Configure the file server data.
You must provide an address of a file server that is used to store software distribution packages and settings files. If the file server address is configured through DHCP, LLDP, or Device Enrollment Services, you do not need to configure the file server address. The address can be either an IP address in dotteddecimal format or an FQDN.
See Setting up a file server address on page 89.
4. Configure the DNS server data.
You must provide the address of the DNS server used in your organization. In most cases, the DNS server address is provided through DHCP. You can also configure DNS server data statically or through the 46xxsettings.txt file.
Both the Wi-Fi and Ethernet interfaces use the configured DNS server and domain information. The option to configure DNS information specifically for each Wi-Fi network is unavailable. Therefore, if a user toggles between the Wi-Fi and Ethernet interfaces, then the configured DNS information is applicable for both interfaces.
5. Configure a user group.
See Setting the DNS name and address on page 89.
You must specify a user group number to provide configuration parameters according to the assigned user group.
See Setting a user group for a specific configuration on page 91.
6. Configure HTTP proxy server settings. You must provide an address of a server that acts as a gateway between your organization's local network and other networks. If required, specify addresses that can bypass the proxy server.
See Setting up an HTTP proxy and exception on page 91.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
87
Comments on this document? infodev@avaya.com
Device configuration
No. Task
Notes
7. Configure SIP server settings.
You must have a SIP server to make and handle calls. Additional SIP servers can be configured to provide system survivability. If the 46xxsettings.txt file cannot be downloaded, you can configure SIP settings through the Settings menu of the device
See Configuring SIP server settings on page 92.
8. Configure a DHCP site-specific option You must specify a DHCP site-specific option
number.
number to provide configuration parameters
according to the assigned site-specific option.
See Setting up a DHCP site-specific option number on page 93.
9. Configure access to third party applications.
Specify which applications an end user can install.
See Access to Google Play applications for K165 and K175 on page 101.
Enabling administrator settings on the device
About this task You can enable administrator settings on Avaya VantageTM. In the administrator mode, the device displays administrative Settings menu options that are unavailable to end users, such as the SIP proxy settings menu. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. In an IP Office environment, set ADMIN_PASSWORD using the SET_ADMIN_PASSWORD=x NUSN, where x is the password that is added to the autogenerated 46xxsettings.txt file. For example: SET_ADMIN_PASSWORD=Avaya@1234 Procedure
When you are logged in, do the following: 1. On the Home screen, tap Applications. 2. Tap Settings. 3. In the upper-right corner of the screen, tap Menu > Admin login. 4. Enter the administrator password, and tap OK. When you are logged out, do the following:
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
88
Comments on this document? infodev@avaya.com
Device configuration using the Settings menu on the device
5. On the Login screen, tap the Settings ( ) icon. 6. In the upper-right corner of the screen, tap Menu > Admin login. 7. Enter the administrator password, and tap OK.
Setting up a file server address
About this task Use this procedure to set up a file server address for downloading software distribution packages and settings files. If the file server address is configured through DHCP or LLDP, you do not need to configure the file server address in the Settings menu of Avaya VantageTM. If Device Enrollment Services is used, then the file server redirection URL information is configured in Device Enrollment Services. Procedure
1. On the Home screen, tap Applications. 2. Tap Settings. 3. Tap Network & Internet > More > File Server. 4. Enter the HTTP or HTTPS address of your file server.
A file server URL must have one of the following format: � http://hostname[:port][/path] � https://hostname[:port][/path] Where: � hostname is either an IP address in dotted-decimal format or an FQDN. � port is an optional port number. � path is an optional path to the directory where distribution packages and other files are
stored.
Setting the DNS name and address
About this task As an alternative to administering DNS using DHCP, you can specify DNS server data manually. Use this procedure to set the domain name and address of your DNS server. Procedure
1. On the Home screen, tap Applications. 2. Tap Settings.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
89
Comments on this document? infodev@avaya.com
Device configuration
3. Tap Network & Internet > More > DNS. 4. Tap DNS Server. 5. Enter the IP address of the primary DNS server in DNS Server 1. 6. (Optional) If required, enter the IP address of the secondary DNS server in DNS Server 2. 7. Tap OK. 8. Tap Domain. 9. Enter the domain name of the DNS server. 10. Tap OK.
Setting the Avaya Aura� Device Services server address
About this task Use this procedure as an alternative to administering the Avaya Aura� Device Services server address by using the 46xxsettings.txt file. You can set the server address of Avaya Aura� Device Services if you want to use the Unified Login feature. You must log in as an administrator to configure the Avaya Aura� Device Services information on the device through the Settings menu.
Note: Avaya Aura� Device Services is supported in the Avaya Aura� environment only. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. Procedure 1. On the Home screen, tap Applications. 2. Tap Settings. 3. In the upper-right corner of the screen, tap Menu > Admin login, and enter the
administrator password. 4. Tap Network & Internet > More > Avaya Aura Device Services (AADS). 5. Enter the address of the Avaya Aura� Device Services server, and tap OK. Related links Administrator password configuration on page 57 Enabling administrator settings on the device on page 88
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
90
Comments on this document? infodev@avaya.com
Device configuration using the Settings menu on the device
Setting a user group for a specific configuration
About this task You can create several configuration sets and upload a specific set to the Avaya VantageTM device according to a group identifier assigned to the device. Use this procedure to set a group identifier to the device. You can only set the group identifier using the Settings menu of Avaya VantageTM. Procedure
1. On the Home screen, tap Applications. 2. Tap Settings. 3. Tap Network & Internet > More > GROUP. 4. Enter the group identifier.
The group identifier must be an integer between 0 and 999 inclusively. 5. Tap OK.
Setting up an HTTP proxy and exception
About this task Use this procedure to specify the address of an HTTP proxy server. You can also enter exceptions to bypass the proxy server. You can configure the HTTP proxy through the Settings menu only as an administrator. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. Procedure
1. On the Home screen, tap Applications. 2. Tap Settings. 3. In the upper-right corner of the screen, tap Menu > Admin login, and enter the
administrator password. 4. Tap Network & Internet > More, and tap HTTP/S Proxy Settings. 5. Tap Proxy host name[:port]. 6. Enter the HTTP proxy host name with a port number. 7. Tap OK. 8. (Optional) To bypass the proxy server for some specific addresses, do the following:
a. Tap Bypass proxy for. b. Enter one or more server addresses to bypass the proxy server.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
91
Comments on this document? infodev@avaya.com
Device configuration
Use commas to separate addresses. c. Tap OK. Related links Administrator password configuration on page 57 Enabling administrator settings on the device on page 88
Configuring SIP server settings
About this task Use this procedure to register Avaya VantageTM to the SIP server. You can configure the SIP server and SIP domain through the Settings menu only as an administrator. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. Procedure
1. On the Home screen, tap Applications. 2. Tap Settings. 3. In the upper-right corner of the screen, tap Menu > Admin login, and enter the
administrator password. 4. Tap Network & Internet > More, and tap SIP Settings. 5. Tap SIP domain, enter the domain name for registration, and tap OK. 6. Do the following to add a SIP server to the SIP servers list:
a. Tap SIP proxy settings. b. In the upper right corner, tap Add. c. In the SIP proxy server field, enter the address of the SIP proxy server.
You can use either the dotted-decimal or DNS name format. d. In the Transport type field, select the appropriate transport protocol.
In the Avaya Aura� environment, select TLS. The Avaya CSDK-based applications, Avaya VantageTM Connect and Avaya Equinox�, do not support TCP in the Avaya Aura� environment. Avaya VantageTM does not support UDP. e. (Optional) In the SIP port field, enter a port number for the server to use. Avaya VantageTM uses the following default port numbers: � 5060 for TCP
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
92
Comments on this document? infodev@avaya.com
Device configuration using the Settings menu on the device
� 5061 for TLS Related links
Enabling administrator settings on the device on page 88 Administrator password configuration on page 57
Setting up a DHCP site-specific option number
About this task Use this procedure to assign a Site-Specific Option Number (SSON). Avaya VantageTM uses SSON to determine which set of site-specific parameters must be downloaded from the DHCP server. This number must match a similar number option set on the DHCP server. You can set the SSON using only the Settings menu of Avaya VantageTM. Procedure
1. On the Home screen, tap Applications. 2. Tap Settings. 3. Tap Network & Internet > More > DHCP Site-Specific Option Number (SSON). 4. Enter the required SSON.
The number must be in a range between 128 to 254.
Additional network configuration
Setting the Ethernet interface control
Procedure 1. Open the Settings menu. 2. Tap Network & Internet > Ethernet. 3. Tap Interfaces. 4. (Optional) If the interface options are disabled, enable the administrator mode. 5. To view the Ethernet mode, tap Ethernet. The Ethernet mode is set to auto negotiation and cannot be modified. 6. To configure the secondary Ethernet interface, tap PC Ethernet and select one of the following: � Disabled: To disable the PC Ethernet interface. � Auto: To enable and configure the PC Ethernet mode to auto negotiation.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
93
Comments on this document? infodev@avaya.com
Device configuration
Setting the 802.1x authentication mode
Procedure 1. Open the Settings menu. 2. Tap Network & Internet > Ethernet. 3. Tap IEEE 802.1x authentication. You might need to enter the administrator password. 4. (Optional) To change the setting for the Pass through mode, tap Pass through mode, and select one of the following options: � Multicast pass through: To enable multicast pass-through without proxy logoff. � Multicast pass through and proxy logoff: To enable multicast pass-through with proxy logoff. � Off: To disable multicast pass-through. 5. (Optional) To change the setting for the Supplicant mode, tap Supplicant mode, and select one of the following options: � Off: To disable the Supplicant operation. � On, unicast EAPOL only: To enable the Supplicant operation. The device responds only to received unicast Extensible Authentication Protocol over LAN (EAPOL) messages. � On, unicast and multicast EAPOL: To enable the Supplicant operation. The device responds to received unicast and multicast EAPOL messages. 6. (Optional) To change the Extensible Authentication Protocol (EAP) type to be used for IEEE 802.1x authentication, tap EAP Type, and select one of the following options: � EAP-MD5 � EAP-TLS
Verifying device configuration
About this task Use this procedure to verify that the Avaya VantageTM device is properly configured and ready to use. Procedure
1. Tap Settings > Debugging options. 2. Tap Configuration verifier.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
94
Comments on this document? infodev@avaya.com
Verifying device configuration
3. On the Configuration verifier screen, ensure that the status of the following validations are PASS:
� Network Status: Validates whether the IP address is defined and the device is connected to the network.
� DNS Status: Validates whether a DNS server is configured and reachable.
� SNTP Status: Validates whether an SNTP server is configured and reachable to synchronize the device clock.
� File Server Status: Validates whether the file server address is received from a configuration source and the file server is reachable.
� AADS Status: Validates whether Avaya Aura� Device Services is configured and reachable.
The Configuration verifier screen only displays this status if Avaya Aura� Device Services is configured for your setup. This field is applicable only for the Avaya Aura� environment.
� SIP Settings Status: Validates whether the SIP domain and SIP controllers are configured.
In the Avaya Aura� environment, connectivity to the PPM service is also validated.
Note:
SIP Settings Status does not validate SIP registration for the Avaya Breeze� Client SDK telephony application.
� Phone Application Status: Validates whether a telephony application is defined as the active application and installed successfully.
� Misc Status: Validates whether the administrator password is configured correctly. You can use the administrator password to access administrator options in the Settings menu on Avaya VantageTM.
� Camera Status: Validates whether the camera for the device is enabled.
4. To see the details for one of the configuration items, tap the appropriate item.
The configuration verifier displays the configuration details and status. If the status is NOTICE or FAIL, the verifier displays the possible reasons for the configuration failure. Sometimes the configuration might be correct, but verification might fail because of network connectivity issues.
If any required configuration is missing or incorrect, modify the appropriate configuration parameter definitions.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
95
Comments on this document? infodev@avaya.com
Chapter 6: Application setup
This chapter describes how to set up applications on Avaya VantageTM. Avaya VantageTM supports the installation of Avaya telephony applications and third-party applications.
The Avaya VantageTM Connect and Avaya Equinox� Android Package Kits (APK) are bundled with the Avaya VantageTM firmware package file and pushed automatically to the Avaya VantageTM device. If you want to use one of these Avaya Breeze� Client SDK applications as the active telephony application, you can set the ACTIVE_CSDK_BASED_PHONE_APP parameter in the settings file. The application you define in the parameter is installed automatically from the application APKs that are available on the device's local memory. Unless you define one of these bundled applications as the active telephony application, the application remains disabled and hidden. If a newer version of Avaya VantageTM Connect or Avaya Equinox� becomes available in Google Play, the Avaya VantageTM device displays an upgrade notification.
Install and update options
You can install or update applications on Avaya VantageTM through the following options:
� The "Push application" method. Using this method, you can initiate automatic installation, upgrade, or uninstallation of applications without end user intervention. To push an application on the device, you must upload the application APK file on the HTTP or HTTPS server and provide the path to the file in the 46xxsettings.txt file through the PUSH_APPLICATION parameter.
Important:
You must specify each application only once. If you specify an application more than once, Avaya VantageTM might not work as expected. � Google Play. You must enable access to Google Play by using the USER_INSTALL_APPS_GOOGLE_PLAY_STORE parameter. End users can download applications from Google Play for K165 and K175. You can restrict installation of certain applications by using a configuration file. � Third-party application stores or unknown sources. You must enable installation of applications from unknown sources by using the USER_INSTALL_APPS_UNKNOWN_SOURCES parameter. This option is disabled by default. When enabled, end users can download application APKs from common third-party application stores or other sources, such as emails or websites, to Avaya VantageTM.
With the Avaya telephony application APKs that are bundled with the Avaya VantageTM firmware package, you do not need to use the installation options listed above. However, if you choose to install or update using these options, they take priority over the bundled APKs. If you use one of these options, Avaya VantageTM Connect and Avaya Equinox� will still remain hidden and disabled until one of these applications is defined as the active telephony application using ACTIVE_CSDK_BASED_PHONE_APP.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
96
Comments on this document? infodev@avaya.com
Pushing applications onto the Avaya VantageTM device
The installation options, in order of priority, for the Avaya Breeze� Client SDK applications are: 1. Google Play store (for K165 and K175) 2. PUSH_APPLICATION parameter 3. Bundled APKs Note: IP Office only supports Avaya VantageTM Connect. Other applications, such as Avaya Equinox� on Avaya VantageTM, are not currently supported with IP Office.
Automatic update of embedded Android applcations Starting from Release 2.0.1, on K165 and K175, the embedded Android applications get updated automatically unless you disable the auto-update option in Google Play store. For Avaya VantageTM firmware releases earlier than 2.0.1, you must add these applications to the white list in an XML-based configuration file to enable automatic update.
Pushing applications onto the Avaya VantageTM device
About this task Use this procedure to push applications to Avaya VantageTM without end user intervention. Through the PUSH_APPLICATION parameter, you can initiate automatic installation, upgrade, or uninstallation of applications.
Important:
While setting the PUSH_APPLICATION parameter, you must specify each application only once. If you specify an application more than once, Avaya VantageTM might not work as expected. Do not set the PUSH_APPLICATION parameter through Avaya Aura� Device Services. Before you begin Ensure that you have uploaded the application APK file on the HTTP or HTTPS file server or a network endpoint.
Procedure
1. Open the 46xxsettings.txt settings file in a text editor.
2. To push a new application to the device, do one of the following depending on the scenario:
� The settings file contains the string SET PUSH_APPLICATION <a list of URLs> and the list of URLs contains at least one entry: Enter a comma after the last entry, followed by the URL where the new application package file is located.
� The settings file does not contain the string SET PUSH_APPLICATION <a list of URLs>: Add a new string with the text SET PUSH_APPLICATION, followed by a space and the URL where the application package file is located.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
97
Comments on this document? infodev@avaya.com
Application setup
If the application package file is stored in the root directory of the HTTP or HTTPS file server, you can provide the file name only. If the application package file is stored in a subdirectory of your HTTP or HTTPS file server, you must provide a relative path to the file. If the application package file is stored on a network endpoint, you must provide the full path to the package file. 3. To upgrade an application that was already pushed to the device, do the following:
a. In the string SET PUSH_APPLICATION <a list of URLs>, locate the URL of the previous version of the application package file.
b. Replace this URL with the URL where the latest version of the application package file is located.
4. Save the settings file. 5. Upload the settings file on the file server. Result In the next polling period, Avaya VantageTM downloads the settings file and the application package and installs the application on the device. Related links Uninstalling a pushed application on page 98
Push command examples
The following is a simple example of using the Push command when the application package file is stored in the root directory of your HTTP or HTTPS file server:
SET PUSH_APPLICATION "com.avaya.android.vantage.basic_release_2.0.0.0.apk"
The following is a simple example of using the Push command when the application package file is stored on a network endpoint:
SET PUSH_APPLICATION "http://www.avaya.com/applications/download/ com.avaya.android.vantage.basic_release_2.0.0.0.apk"
Uninstalling a pushed application
Procedure 1. Open the 46xxsettings.txt settings file in a text editor. 2. From the string containing the SET PUSH_APPLICATION command, delete the path to the application that must be uninstalled. 3. Save the settings file. 4. Upload the settings file on the file server.
Result On the next polling period, Avaya VantageTM uninstalls the application from the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
98
Comments on this document? infodev@avaya.com
Avaya telephony applications supported on Avaya VantageTM
Avaya telephony applications supported on Avaya VantageTM
Application Avaya VantageTM Connect Avaya Equinox� Avaya VantageTM Open
Avaya Breeze� Client SDK application? Yes Yes No
If you want to use an Avaya Breeze� Client SDK telephony application, you also need to set up the ACTIVE_CSDK_BASED_PHONE_APP parameter. For more information, see Setting up an Avaya Breeze Client SDK application as the active telephony application on page 99.
Note: Avaya VantageTM with IP Office Release 11.0 only supports the Avaya VantageTM Connect application. Avaya Equinox� and Avaya VantageTM Open are not supported.
Setting up an Avaya Breeze� Client SDK application as the active telephony application
About this task If you want to use an Avaya Breeze� Client SDK application as the active telephony application, you must set up the ACTIVE_CSDK_BASED_PHONE_APP parameter. The Avaya VantageTM Connect and Avaya Equinox� APKs are bundled in the Avaya VantageTM firmware package and pushed automatically to the Avaya VantageTM device. However, unless you define one of these bundled applications as the active telephony application, the application remains disabled and hidden. For more information about acceptable values for the ACTIVE_CSDK_BASED_PHONE_APP parameter, see Package names of CSDK-based applications on page 101.
Important: Only one Avaya Breeze� Client SDK application can be the active telephony application at a time. Therefore, ACTIVE_CSDK_BASED_PHONE_APP must contain only one package name. Do not set the ACTIVE_CSDK_BASED_PHONE_APP parameter through Avaya Aura� Device Services. Procedure 1. Open the 46xxsettings.txt settings file in a text editor.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
99
Comments on this document? infodev@avaya.com
Application setup
2. If the settings file contains the string SET ACTIVE_CSDK_BASED_PHONE_APP <"application package name">, replace the existing package name with the package name of the required application.
3. If the settings file does not contain the string SET ACTIVE_CSDK_BASED_PHONE_APP <"application package name">, do the following:
a. Create a new string in the file below the string SET PUSH_APPLICATION <a list of URLs>.
b. In the new string, enter the following:
SET ACTIVE_CSDK_BASED_PHONE_APP <"name of the application package">
For example:
SET PUSH_APPLICATION com.avaya.android.vantage.basic_playstore_2.0.0.0.0406_100718_120334e.apk SET ACTIVE_CSDK_BASED_PHONE_APP "com.avaya.android.vantage.basic"
4. Save and upload the settings file on the file server.
In the next polling period, Avaya VantageTM downloads the settings file and applies the settings accordingly.
If not already installed, the telephony application that you define in the ACTIVE_CSDK_BASED_PHONE_APP parameter is installed using the APK available on the device's local memory. Avaya VantageTM enables the application for the end user.
ACTIVE_CSDK_BASED_PHONE_APP parameter usage
Depending on the ACTIVE_CSDK_BASED_PHONE_APP value, Avaya VantageTM operates in the following modes:
� If the ACTIVE_CSDK_BASED_PHONE_APP value contains the name of an Avaya Breeze� Client SDK application, Avaya VantageTM operates in the CSDK-based application mode. When in this mode, Avaya VantageTM supports the Login screen and configuration sharing. For information about how to set the active CSDK-based application in this parameter, see Setting up an Avaya Breeze Client SDK application as the active telephony application on page 99.
� If ACTIVE_CSDK_BASED_PHONE_APP is set to the default value (""), Avaya VantageTM does not operate in the CSDK-based application mode. In this case, some configuration parameters are not supported and some options are not available on the Settings menu of Avaya VantageTM. You can still configure unsupported parameters, but Avaya VantageTM and its telephony applications will not use the configured values.
Outside of the CSDK-based application mode, user configuration backups on PPM are not supported. If a parameter supports backing up on PPM and is supported in the non CSDK application mode, then this parameter keeps the configured value unless you revert the device to its default factory settings.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
100
Comments on this document? infodev@avaya.com
Access to Google Play applications for K165 and K175
Package names of CSDK-based applications
The following table shows package names of the CSDK-based phone applications. If you want to use the CSDK-based phone application, you need to set the ACTIVE_CSDK_BASED_PHONE_APP parameter using the corresponding package name.
Application Avaya Equinox� Avaya VantageTM Connect
Package name "com.avaya.android.flare" "com.avaya.android.vantage.basic"
Parameter settings for IP Office environments With IP Office as the file server, the K1xxSupgrade.txt file is automatically-generated. This file defines the ACTIVE_CSDK_BASED_PHONE_APP and PUSH_APPLICATION parameters, as shown in the following example:
## IPOFFICE/11.0.0.0.0 build 830 10.133.134.138 AUTOGENERATED SET APPNAME K1xx_SIP-R1_1_0_1_3105.tar SET ACTIVE_CSDK_BASED_PHONE_APP "com.avaya.android.vantage.basic" SET PUSH_APPLICATION com.avaya.android.vantage.basic_playstore_1.1.0.1.0002_280318_8334068.apk
Note: If you include the line GET 46xxsettings.txt, then all lines after this line will be ignored. You must include such lines in the 46xxsettings.txt file.
Access to Google Play applications for K165 and K175
For K165 and K175, Google Play is the main source of Android applications. According to your company's policies, you can determine:
� Whether end users can install applications from Google Play. You can control access to Google Play by using the USER_INSTALL_APPS_GOOGLE_PLAY_STORE parameter in the 46xxsettings.txt file. By default, the parameter value is set to 1 to enable installation of applications from Google Play. To disable Google Play for device users, set USER_INSTALL_APPS_GOOGLE_PLAY_STORE to 0.
� Which applications end users can install from Google Play. You can restrict installation of certain applications by using an XML-based configuration file. See Application download control through an XML-based configuration file on page 102.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
101
Comments on this document? infodev@avaya.com
Application setup
Access to applications from unknown sources
On Avaya VantageTM, installation of third-party applications from unknown sources is disabled by default. End users can change the permission through the Settings menu. When you enable this option, end users can download application APKs from common third-party application stores and other sources, such as emails and websites, to Avaya VantageTM.
You can change this installation setting by using the USER_INSTALL_APPS_UNKNOWN_SOURCES parameter in the settings file. You can set the value of USER_INSTALL_APPS_UNKNOWN_SOURCES to one of the following:
� 0: Installation of third-party applications is disabled. End users cannot change the status through the Settings > Security & location menu on the device.
� 1: Installation of third-party applications is disabled by default. End users can change the status through the Settings > Security & location menu. This is the default setting.
� 2: Installation of third-party applications is enabled by default. End users can change the status through the Settings > Security & location menu.
When installation from unknown sources is enabled, on K155, Application Stores Links ( ) becomes available and provides links to common third-party application stores, such as F-Droid and GetJar.
Application download control through an XML-based configuration file
You can control the download of certain applications from Google Play or unknown sources by completing a black or white list section in an XML-based configuration file:
� White list: End users can install applications from the white list only. End users cannot install any applications that are not in the white list. If the white list section is configured and the list is empty, users cannot install applications from Google Play or any other sources.
� Black list: End users cannot install applications that are mentioned in the black list. If the black list is empty, users can install any third-party application from Google Play and unknown sources.
You can configure either a white list or a black list, but not both at a time.
The APPS_CONTROL_FILE parameter defines the location of the configuration file.
If the configuration file is not specified, users can install any application from Google Play and unknown sources.
Example: XML-based application control file with a white list
<?xml version="1.0" encoding="utf-8"?> <applicationControl xmlns="http://xml.avaya.com" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
102
Comments on this document? infodev@avaya.com
Application download control through an XML-based configuration file
xsi:schemaLocation="http://xml.avaya.com applicationControl.xsd"> <allowedUserInstalledAppsUsingGooglePlayStore type="whitelist"> <app packagename="com.avaya.android.flare" /> <app packagename="com.avaya.android.vantage.basic" /> </allowedUserInstalledAppsUsingGooglePlayStore>
</applicationControl>
Editing a black or white list
Before you begin If you do not already have one, create an XML-based configuration file for third-party application control. Procedure
1. Open the XML-based configuration file in a text editor. 2. To add or edit the black list, do the following:
a. (Optional) If the <allowedUserInstalledAppsUsingGooglePlayStore type="blacklist"> section is not already present in the configuration file, add the section:
<allowedUserInstallAppsUsingGooglePlayStore type="blacklist"> </allowedUserInstallAppsUsingGooglePlayStore>
b. In the <allowedUserInstalledAppsUsingGooglePlayStore type="blacklist"> section, list the applications you want to include. Use the following format to list the application: <app packagename="<Type the package name here>" /> Example:
<allowedUserInstallAppsUsingGooglePlayStore type="blacklist"> <app packagename="com.restricted.application" /> <app packagename="com.hacker.software" />
</allowedUserInstallAppsUsingGooglePlayStore>
3. To add or edit the white list, do the following: a. (Optional) If the <allowedUserInstalledAppsUsingGooglePlayStore type="whitelist"> section is not already present in the configuration file, add the section:
<allowedUserInstalledAppsUsingGooglePlayStore type="whitelist"> </allowedUserInstallAppsUsingGooglePlayStore>
b. In the <allowedUserInstalledAppsUsingGooglePlayStore type="whitelist"> section, list the applications you want to include. Use the following format: <app packagename="<Type the package name here>" />
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
103
Comments on this document? infodev@avaya.com
Application setup
Example:
<allowedUserInstallAppsUsingGooglePlayStore type="whitelist"> <app packagename="com.avaya.communicator" /> <app packagename="com.avaya.android.vantage.basic" />
</allowedUserInstallAppsUsingGooglePlayStore>
4. Save the configuration file. 5. Upload the file on the file server. 6. In the settings file, set the APPS_CONTROL_FILE parameter to define the URL that
specifies the location of the XML-based configuration file. Result On the next polling period, Avaya VantageTM downloads the file and applies the settings.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
104
Comments on this document? infodev@avaya.com
Chapter 7: Emergency call configuration
To make emergency calls on Avaya VantageTM, you must configure location-specific emergency numbers.
In an Avaya Aura� environment, you can make an emergency call when you are logged out of Avaya VantageTM or when Avaya VantageTM is in the locked state.
In an IP Office environment, you can make an emergency call only when you are logged in to Avaya VantageTM. You can also make an emergency call from a locked device.
You can configure emergency numbers as follows:
� For Avaya Aura�: Through PPM.
� For IP Office: Through the 46xxspecials.txt file.
You can control Lock mode for the device using one of the following:
� The ENABLE_PHONE_LOCK parameter.
� The Screen lock option in the Settings > Security & location menu.
Parameters for emergency numbers
The following table lists the parameters you must configure to add emergency numbers in an IP Office environment. You must set these parameters in the IP Office 46xxspecials.txt file.
Parameter PHNEMERGNUM
Default value
Null string
PHNMOREEMERGNUM Null string S
Description
Specifies the emergency number with the highest priority. Avaya VantageTM dials this number when a user taps Auto - dial for an emergency call.
The parameter value can contain up to 30 characters. You can use 0�9, *, and # characters.
Specifies an additional list of emergency numbers.
The value of the parameter is a list of emergency numbers separated by commas without any spaces between entries. The parameter value can contain up to 100 numbers. Each number can contain up to 30 characters. You can use 0�9, *, and # characters.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
105
Comments on this document? infodev@avaya.com
Emergency call configuration
Note: In an Avaya Aura� environment, do not define these parameters in the 46xxsettings.txt file. Instead, configure emergency numbers in PPM through the System Manager web console. In addition, for emergency call support when you are logged out of the device, you must configure the SIP_CONTROLLER_LIST parameter using the 46xxsettings.txt file, DHCP, LLDP, or the Settings menu on the device. If you only configure SIP_CONTROLLER_LIST in Avaya Aura� Device Services, emergency calls do not work as expected.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
106
Comments on this document? infodev@avaya.com
Chapter 8: Directory search configuration
Directory search and contact functionality comparison
The following table summarizes contact management on Avaya VantageTM when deployed with different communication systems and telephony applications:
Active telephony application on Avaya VantageTM
Avaya VantageTM Connect
Avaya Aura� contacts
(PPM or Avaya Aura� Device Services)
Accessible through contact search: Yes
IP Office directory contacts
Accessible through contact search: Yes
BroadSoft directory contacts
Accessible through contact search: Yes
You can add, edit, and delete personal enterprise contacts.
You can add, edit, and delete contacts in the personal directory.
You can add, edit, and delete contacts in the personal directory.
Avaya Equinox�
Accessible from the standard Android Contacts area: No
Accessible through contact search: Yes
Accessible from the standard Android Contacts area: Yes
Not supported.
Accessible from the standard Android Contacts area: Yes
Not supported.
You can add, edit, and delete personal enterprise contacts.
Accessible from the standard Android Contacts area: No
This document is focused on Avaya Aura� and IP Office deployments. For information about BroadSoft, see Installing and Administering Avaya VantageTM in a Third Party Call Control
Environment.
Avaya Aura� contact management
In an Avaya Aura� environment, contact search and contact management functionality is provided through the following:
� PPM, which is a service provided by System Manager � Avaya Aura� Device Services
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
107
Comments on this document? infodev@avaya.com
Directory search configuration
Related links PPM configuration on page 29 Avaya Aura Device Services configuration on page 30
IP Office contact search options
In the IP Office environment, Avaya VantageTM Connect and the standard Contacts area ( ) on the Avaya VantageTM device support a centralized IP Office directory contact search, which includes the following:
� IP Office system contacts and hunt group contacts across a small community network (SCN) � External contacts in the LDAP, system, and HTTP directories configured on IP Office
LDAP directory search
Avaya VantageTM supports LDAP directory search. If your enterprise contacts are maintained using an LDAP directory service, you can configure Avaya VantageTM to connect to the directory server and enable LDAP directory search. Avaya VantageTM supports any directory server that supports LDAPv3. Every application that uses the standard Android directory provider can perform an LDAP directory search. You can use Avaya VantageTM Connect and the standard Android Contacts area available on Avaya VantageTM to search for LDAP directory contacts. LDAP directory search configuration To enable or disable LDAP directory search on Avaya VantageTM, you must set the DIRENABLED_PLATFORM parameter to 1 in the 46xxsettings.txt file. By default, this parameter is set to 0 (Disabled). You must also define some additional parameters for Avaya VantageTM to be able to use the LDAP directory service. For a complete list of parameters, see LDAP directory service settings on page 226.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
108
Comments on this document? infodev@avaya.com
Chapter 9: Kiosk mode configuration
You can configure Avaya VantageTM and supported applications to work in Kiosk mode. With this mode, you can limit the applications that end users can access. Therefore, end users will only be able to access specific applications for a predetermined purpose and will not be able to access the underlying system.
For the device to work as a kiosk, you must pin the Avaya Kiosk application as a special Home screen launcher, where only predefined applications are available to the end user. To avoid getting a scroll bar, Avaya recommends that you define up to six applications to be pinned on the Home screen of the launcher.
When Avaya VantageTM is in Kiosk mode:
� The end user cannot change the location of the application icons presented on the Home screen of the launcher.
� The device does not display a notification bar.
� The Android Home button is unavailable.
� Users can only use the Back button to return to the Home screen.
Kiosk mode configuration checklist
No. Task
Notes
1 Push the Avaya Kiosk application to Use the PUSH_APPLICATION parameter to install the
the Avaya VantageTM device.
Kiosk application on the device.
The Avaya Kiosk application APK file is part of the Avaya VantageTM firmware distribution package.
For more information about pushing applications to the device, see Pushing applications onto the Avaya Vantage device on page 97.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
109
Comments on this document? infodev@avaya.com
Kiosk mode configuration
No. Task
Notes
2 Define the Android applications to be Use the PIN_APP parameter to pin the required
locked on the Home screen.
Android applications on the Home screen of the
launcher. To avoid getting a scroll bar, Avaya
recommends that you define up to six applications to
be pinned on the Home screen.
You must also include the Avaya Kiosk application package name in the PIN_APP parameter value. For a list of applications that can be pinned in Kiosk mode, see Applications to be pinned in the Kiosk mode on page 110.
To unpin, see Unpinning applications in Kiosk mode on page 111.
3 Customize the wallpaper.
Use the CURRENT_LOGO parameter to set a wallpaper of your choice for the Home screen.
Avoid using a white background image. The Lock icon used for exiting Kiosk mode is dimmed and difficult to see on a white background.
4 Reboot the device.
After you complete the necessary configuration, reboot the device to apply the settings.
5 Log on to the device and start the Kiosk mode.
This is a one-time activity. On subsequent reboots, the special Home screen for the Kiosk mode opens automatically.
See Starting Kiosk mode for the first time on page 111.
Applications to be pinned in the Kiosk mode
Use the PIN_APP parameter to pin the required applications to the Home screen of the launcher. The following is a list of application packages that must be part of the PIN_APP parameter value:
� "com.avaya.endpoint.avayakiosk": This is the Avaya Kiosk application that provides the special Home screen.
To provide telephony capabilities to end users in the Kiosk mode, you can pin one of the following Avaya CSDK-based telephony applications:
� "com.avaya.android.vantage.basic": Avaya VantageTM Connect. � "com.avaya.android.flare": Avaya Equinox�. Changes to the PIN_APP parameter setting only take effect after you reboot the Avaya VantageTM device. If you want the lock and logout options to be available in the Kiosk mode, specify the login package, "com.avaya.endpoint.login", in the PIN_APP parameter value.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
110
Comments on this document? infodev@avaya.com
Starting Kiosk mode for the first time
An example of the parameter setting:
SET PIN_APP "com.avaya.endpoint.avayakiosk,com.avaya.android.vantage.basic,com.android.chrome,com.av aya.endpoint.login,com.avaya.endpoint.avayavoiceassistant"
Unpinning applications in Kiosk mode
Procedure To unpin applications, log in using the administrator password defined in ADMIN_PASSWORD or PROCPSWD.
Starting Kiosk mode for the first time
Before you begin � Complete the configuration tasks. See Kiosk mode configuration checklist on page 109. � Reboot the Avaya VantageTM device.
Procedure 1. Log on to the device using the SIP user credentials. 2. On the Home screen, tap the Avaya Kiosk application icon. The device displays the special Home screen of the launcher and the icons for the pinned applications. On subsequent reboots, the special Home screen opens automatically.
Exiting the Kiosk mode
About this task Use this procedure to exit the Kiosk mode and access the device normally. Procedure
1. On the Home screen of the launcher, tap the Lock icon located at the bottom-right side of the screen.
2. Enter the administrator password that is configured in ADMIN_PASSWORD or PROCPSWD.
3. Tap OK.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
111
Comments on this document? infodev@avaya.com
Chapter 10: Maintenance
Restoring factory settings from the Settings menu
About this task Use this procedure to remove all user information stored on the device and to restore original manufacturer settings. This procedure describes how to perform a factory reset from the Settings menu on the device. You can also perform a factory reset from the boot recovery menus. Resetting a device removes the following information from the device:
� All administered values � User-specified data, including information about all accounts � Device settings � Application data and settings that were not loaded as part of the device firmware � Wi-Fi network configuration To be able to recover settings or data after a factory reset, you must back them up using a personal third-party account, such as GoogleTM account. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. In an IP Office environment, you must set the ADMIN_PASSWORD using the SET_ADMIN_PASSWORD=x NUSN, where x is the password that is added to the autogenerated 46xxsettings.txt file. For example: SET_ADMIN_PASSWORD=Avaya@1234 Procedure 1. On the Home screen, tap Applications. 2. Tap Settings. 3. In the upper-right corner of the screen, tap Menu > Admin login, and enter the
administrator password. 4. Tap System > Reset options > Factory data reset. 5. Tap Reset device. 6. Tap Erase everything.
The device restarts. The process takes approximately 20 minutes to complete.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
112
Comments on this document? infodev@avaya.com
Related links Firmware is corrupted on page 129
Rebooting Avaya VantageTM from the Settings menu
Rebooting Avaya VantageTM from the Settings menu
About this task Use this procedure to restart Avaya VantageTM manually. You can also reboot Avaya VantageTM to initiate an upgrade. Procedure
1. Go to the Settings menu. 2. Tap System > Reset options. 3. Tap Reboot and then tap Yes to confirm.
If the file server contains a new version of software, Avaya VantageTM downloads and installs updates according to the configured upgrade policy.
Failover and survivability
If the control server that is currently active fails, the exact behavior of a communication application is determined by the application's internal policies. The exact list of operations that can be performed during failover might be different for each application.
Debugging and monitoring options
Avaya VantageTM enables you to generate debug and audio debug reports that support personnel can use to diagnose audio and video issues on the device. The debug report contains various detailed logs. You can also generate a separate audio report that contains only audio logs. You can enable SSH remote access on the device for Avaya support personnel to access the device for remote troubleshooting. When you are using the Avaya Equinox� client as the active telephony application on Avaya VantageTM, you can also allow the client to collect detailed diagnostic logs and quality-related data. From the Avaya Equinox� client settings, navigate to the Support tab and turn on Enable Diagnostics. Additionally, you can view the audio and video statistics of an ongoing conference call by pressing and holding the call timer on Avaya Equinox�. For more information about collecting diagnostics and quality statistics, see:
� "Support, alerts, and log files" in Using Avaya Equinox� for Android, iOS, Mac, and Windows.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
113
Comments on this document? infodev@avaya.com
Maintenance
� "Network considerations and diagnostics" in Planning for and Administering Avaya Equinox� for Android, iOS, Mac, and Windows.
Enabling verbose logging
About this task Use this procedure to set the scope of log messages and the events to be included in log messages. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. Procedure
1. On the Home screen, tap Applications. 2. Tap Settings. 3. In the upper-right corner of the screen, tap Menu > Admin login, and enter the
administrator password. 4. Tap Debugging options. 5. Tap Log. 6. Tap Log Categories and select the log categories to be included in log messages. 7. Tap Remote Logging to configure parameters for system logging.
a. Select the Remote Logging check box to enable system logging. b. From the Remote Log Level list, select the events to be included in log messages.
By default, logs only include errors. c. In the Remote log server field, provide the address of the server where you want
logs to be stored. 8. Tap Local logging to configure parameters for local logging.
a. Select the Local Logging check box to enable local logging. b. From the Local Log Level list, select the events to be included in log messages.
The default setting is 4, which displays warnings. c. Tap Clear Local Log Files to delete local logging files and core dump files.
Generating a debug report
About this task Use this procedure to generate a debug report that captures detailed event and audio logs for use by support personnel. The debug option is also available when you are logged out of the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
114
Comments on this document? infodev@avaya.com
Debugging and monitoring options
You can save the report in the internal flash memory of Avaya VantageTM, on a USB mass storage device, or on an HTTP server. When you generate a debug report, Avaya VantageTM overwrites any existing report, if applicable. The report remains available in the internal flash memory for up to 14 days. Record the encryption password carefully because you cannot decrypt the report without the password. Before you begin To save the report on a USB mass storage device, connect it to the Avaya VantageTM device. Procedure
1. Tap Settings. 2. Tap Debugging options > Generate debug report. 3. (Optional) On the Debug report page, complete the following information as required:
� Select date that the problem was observed � Select time that the problem was observed � Select Problem � Problem Description 4. Enter the password for encryption and decryption of the report.
If the DEBUG_REPORT_PASSWORD parameter is configured, the password is populated automatically based on the parameter value. The password is masked in the field. You cannot modify the password that comes from the DEBUG_REPORT_PASSWORD parameter. 5. Select one of the following destinations to store the report: � Internal flash memory � HTTP/S file server � USB flash drive
The USB flash drive option is available only when a USB mass storage device is already connected to Avaya VantageTM.
On K155, you must scroll down to view and select an option.
To copy and share a report easily from K155, Avaya recommends that you choose the HTTP/S file server or USB flash drive option to store the report. If you store the report in the internal flash memory on K155, you need to follow a different procedure to retrieve the report from the internal memory. 6. (Optional) If you select the HTTP/S file server option, enter the HTTP server address and path, as well as the user name and password if server authentication is required.
If the BRURI parameter is configured, the HTTP server details are populated automatically in the respective fields based on the BRURI value. You cannot change these values.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
115
Comments on this document? infodev@avaya.com
Maintenance
If the BRURI parameter is not configured, the HTTP server detail entries are saved for the next debug or audio reports. You can modify these details. 7. Tap Generate. Avaya VantageTM generates a debug report, debugreport.tar.gz, and stores it in the internal flash memory at /mnt/sdcard/AvayaVantageLogs. If you select the USB flash drive or HTTP/S option, a copy of the report is saved in the selected destination. 8. (Optional) On K165 and K175, to share the report, click . You can share the report through most email systems, with the exception of Gmail, which does not support tar.gz files. Instead of Gmail, you can use Google Drive. The success of the sharing operation depends on the file size and the selected option. For example, while most email systems support an attachment that is up to 20 MB only, Google Drive can support up to 10 GB. The icon is not available if you are logged out of the device. Related links Copying debug report from internal flash memory on page 118
Generating an audio report
About this task Use this procedure to generate a separate audio debug report instead of a complete debug report. The audio debugging option is also available when you are logged out of the device. You can save the report in the internal flash memory of Avaya VantageTM, on a USB mass storage device, or on an HTTP server. When you generate an audio report, Avaya VantageTM overwrites any existing report, if applicable. The report remains available in the internal flash memory for up to 14 days. Ensure that you record the encryption password carefully because you cannot decrypt the report without the password. Before you begin
� To enable audio debug recording, ensure that ENABLE_RECORDING is set to 1. You can set this parameter in the settings file or through Avaya Aura� Device Services for Avaya Aura� deployments.
� To save the report on a USB mass storage device, connect it to the Avaya VantageTM device. Procedure
1. Tap Settings. 2. Tap Debugging options > Generate audio report. 3. (Optional) On the Audio report page, complete the following information as required:
� Select date that the problem was observed
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
116
Comments on this document? infodev@avaya.com
Debugging and monitoring options
� Select time that the problem was observed
� Select Problem
� Problem Description
4. Enter the password for encryption and decryption of the report.
If the DEBUG_REPORT_PASSWORD parameter is configured, the password is populated automatically based on the parameter value. The password is masked in the field. You cannot modify the password that comes from the DEBUG_REPORT_PASSWORD parameter.
5. Select one of the following destinations to store the report:
� Internal flash memory
� HTTP/S file server
� USB flash drive
The USB flash drive option is available only when a USB mass storage device is already connected to Avaya VantageTM.
On K155, you must scroll down to view and select an option.
To copy and share a report easily from K155, Avaya recommends that you choose the HTTP/S file server or USB flash drive option to store the report. If you store the report in the internal flash memory on K155, you need to follow a different procedure to retrieve the report from the internal memory.
6. (Optional) If you select the HTTP/S file server option, enter the HTTP server address and path, as well as the user name and password if server authentication is required.
If the BRURI parameter is configured, the HTTP server details are populated automatically in the respective fields based on the BRURI value. You cannot change these values.
If the BRURI parameter is not configured, the HTTP server detail entries are saved for the next debug or audio reports. You can modify these details.
7. Tap Generate.
Avaya VantageTM generates an audio report, media_report.tar.gz, and stores it in the internal flash memory at /mnt/sdcard/AvayaVantageLogs. If you select the USB flash drive or HTTP/S option, a copy of the report is saved in the selected destination.
8. (Optional) On K165 and K175, to share the report, click .
You can share the report through most email systems, with the exception of Gmail, which does not support tar.gz files. Instead of Gmail, you can use Google Drive.
The success of the sharing operation depends on the file size and the selected option. For example, while most email systems support an attachment that is up to 20 MB only, Google Drive can support up to 10 GB.
The icon is not available if you are logged out of the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
117
Comments on this document? infodev@avaya.com
Maintenance
Related links Copying debug report from internal flash memory on page 118
Copying debug report from internal flash memory
About this task Use this procedure to copy log reports from the internal flash memory of Avaya VantageTM to a USB flash drive. This procedure is useful to retrieve a debug report from the internal flash memory of a K155 device, which does not support the Android share option. Before you begin Connect the USB flash drive to the Avaya VantageTM device. Procedure
1. Tap Settings. 2. Tap Storage > Files > AvayaVantageLogs. 3. Long press the debug archive file to select it. 4. In the upper-right corner of the screen, tap More Menu > Move to. 5. On the new page, tap and then choose USB DRIVE. 6. Tap MOVE.
Opening a debug or audio report
About this task Use this procedure to decrypt a debug or audio report. To review log data, you must decrypt the reports. Procedure
1. Copy the report to a folder on your computer. 2. Open the command line interface and navigate to the folder where you copied the report. 3. Run one of the following commands:
� To decrypt the debug report: openssl aes-128-cbc -d -salt -k <password> -in debugreport.tar.gz -out debugreport.decrypted.tar.gz
� To decrypt the audio report: openssl aes-128-cbc -d -salt -k <password> -in media_report.tar.gz -out media_report.decrypted.tar.gz
Replace <password> with the password that you provided when generating the report.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
118
Comments on this document? infodev@avaya.com
Debugging and monitoring options
On Windows-based computers, you can install OpenSSL from binaries to run the openssl command. The decrypted reports are saved in the following archive files: � Debug report: debugreport.decrypted.tar.gz � Audio report: media_report.decrypted.tar.gz 4. To extract the decrypted archive file, do one of the following: � On Windows-based computers, use any program that can extract zip archives. � On Linux systems, run the following command:
tar �zxvf <archive_file_name>
Configuring the SSH server settings
About this task Use this procedure to enable challenge-response authentication on SSH. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. Procedure
1. Tap Settings. 2. In the upper-right corner of the screen, tap Menu > Admin login, and enter the
administrator password. 3. Tap Debugging options > SSH server settings. 4. (Optional) To enable SSH remote access to the device, enable SSH server mode. 5. (Optional) To enable sroot access to the device, enable SSH server root mode.
Enabling port mirroring
About this task Use this procedure to copy the Ethernet packets that are transmitted or received on the network to the secondary Ethernet port. This functionality is only available if you have an embedded Ethernet switch on Avaya VantageTM. Before you begin Get the administrator password that is set through ADMIN_PASSWORD or PROCPSWD. Procedure
1. Tap Settings.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
119
Comments on this document? infodev@avaya.com
Maintenance
2. In the upper-right corner of the screen, tap Menu > Admin login, and enter the administrator password.
3. Tap Debugging options > Port mirroring. 4. Select the Port mirroring check box.
Pinging a device on the network
About this task Use this procedure to ensure that Avaya VantageTM can reach a particular IP address or a host on the network. This option is also available when you are logged out of the device. Procedure
1. Tap Settings. 2. Tap Debugging options > Host to ping. 3. Enter the IP address or host name of the device. 4. Tap OK.
If Avaya VantageTM can resolve the IP address, it displays the ping statistics that include the number of packets transmitted and received, packet loss percentage, and time taken.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
120
Comments on this document? infodev@avaya.com
Chapter 11: Device upgrade
You must upgrade the Avaya VantageTM firmware to keep the device up-to-date, gain access to new features, and enhance stability and security. Avaya VantageTM downloads upgrade images and configuration files from a file server by using HTTP or HTTPS. Firmware upgrade options You can perform the device firmware upgrade in the following ways:
� Automatic: Configure the device to poll periodically for a newer version of the software in the file server and automatically download the upgraded software. In the IP Office environment, the IP Office system uses the push method for software upgrades. Therefore you must disable the automatic poll mechanism by setting the UPGRADE_POLICY parameter to 0.
� Manual: Upgrade the device manually without the device waiting for a polling interval by: - Using the Update now option in the Settings > System > About Avaya Vantage > Software information menu on the device. With this option, the device immediately downloads and installs the software if an updated software version is available. - Rebooting the device from the Settings > System > Reset options menu on the device, System Manager, IP Office System Status Application, or IP Office System Monitor. If an updated version of software is available, then the device upgrades immediately after the reboot or later according to the upgrade policy configured for the device.
Device upgrade process
Avaya VantageTM upgrade images consist of packages. During the upgrade process, Avaya VantageTM downloads and installs only new or changed packages from the upgrade image. To perform an upgrade, Avaya VantageTM does the following:
1. Receives the file server address from DHCP, LLDP, Device Enrollment Services, or the device interface.
2. Connects to the file server and searches for the K1xxSupgrade.txt file. If IP Office is the file server, it auto-generates an appropriate file unless one has been uploaded to its file storage.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
121
Comments on this document? infodev@avaya.com
Device upgrade
3. Compares its software version with the version specified in the K1xxSupgrade.txt file. 4. If a newer version of a software distribution package is available, downloads the required
package. 5. Applies the new software. 6. Locates and downloads the 46xxsettings.txt settings file that is specified in the
K1xxSupgrade.txt file. You must ensure that the 46xxsettings.txt file is available on the file server. Otherwise Avaya VantageTM does not apply the software updates. If IP Office is the file server, it auto-generates an appropriate file and adjusts various settings in that auto-generated file to match the settings in the IP Office system configuration.
Firmware upgrade prerequisites
Before upgrading the device firmware, you must perform the following actions: � Provide a path to the file server in the FILE_SERVER_URL parameter. The device can receive the file server address from DHCP, LLDP, Device Enrollment Services, or the device interface. Note: If FILE_SERVER_URL is not defined, Avaya VantageTM uses HTTPSRVR, HTTPPORT, and HTTPDIR for an HTTP file server, or TLSSRVR, TLSPORT, and TLSSIR for an HTTPS file server. � Ensure that the upgrade-related parameters, such as UPGRADE_POLICY and UPGRADE_POLLING_PERIOD, that control the upgrade policy are set correctly in the 46xxsettings.txt file according to your requirement. � Save the updated 46xxsettings.txt settings file on the file server. If you change the parameter configuration for the upgrade policy, Avaya VantageTM implements these changes after a reboot or the next polling. � Download the newest firmware distribution package on the file server.
Parameters for defining upgrade policy
To define the upgrade policy for Avaya VantageTM devices, you can set the following parameters:
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
122
Comments on this document? infodev@avaya.com
Firmware upgrade prerequisites
Parameter
Default value
UPGRADE_POLLING_P 60 ERIOD
UPGRADE_POLICY
0
Description
Specifies the interval between two consecutive attempts of polling the upgrade files and the settings files. The polling interval is measured in minutes. Assign one of the following values:
� 0: Polling is disabled.
� 5 to 10080: Polling is enabled. The minimum polling interval you can define is 5 minutes.
The parameter value range supported by Avaya VantageTM is 0, 5-10080. If you define a value from 1 to 4, Avaya VantageTM considers it as invalid and takes the default value of 60 minutes.
In each polling, the upgrade files and the settings files are downloaded if modified. If any change is identified to the settings file, then the device applies the new settings. The device checks whether a newer version of the firmware is available on the file server. If a newer version is detected, then it is downloaded and installed according to the upgrade rules defined by the parameters UPGRADE_POLICY, UPGRADE_DLOAD_START, UPGRADE_DLOAD_END, UPGRADE_INSTALL_DATE_TIME, DLOAD_RND_AFTER_RESET, and DLOAD_RND.
If the UPGRADE_POLICY value is 0, then UPGRADE_POLLING_PERIOD is ignored. The upgrade and settings files are downloaded only after a reboot. For upgrades to take place immediately after a polling, you must set UPGRADE_POLICY to 2.
Specifies the upgrade policy. Assign one of the following values:
� 0: Avaya VantageTM downloads and installs the firmware files after a reboot only. The device does not automatically poll the server for upgrade and configuration files at intervals.
For IP Office deployments, use this value.
� 1: Avaya VantageTM downloads and installs the firmware files according to upgrade policy rules and management application settings. Avaya VantageTM does not perform the upgrade after a reboot.
� 2: Avaya VantageTM downloads and installs the firmware files after any reboot and according to upgrade policy rules and management application settings.
Note:
If you want to enforce an immediate upgrade at a device reboot instead of waiting for a scheduled upgrade, set the UPGRADE_POLICY value to 2.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
123
Comments on this document? infodev@avaya.com
Device upgrade
Parameter
UPGRADE_DLOAD_ST ART
Default value
00
Description
Specifies a time when Avaya VantageTM starts trying to download new upgrade image files.
The value of parameter is a string in the [Ddd]hh format, where:
� [Ddd] is a day of the week. The valid values are Sun, Mon, Tue, Wed, Thu, Fri, or Sat. This component is optional. If the component is omitted, Avaya VantageTMperforms polling every day.
� hh is one or two numeric digits representing the hour of the day. The range is from 0 to 23.
UPGRADE_DLOAD_EN 00 D
If the value of UPGRADE_DLOAD_START is equal to the value of UPGRADE_DLOAD_END, then no polling period is specified and Avaya VantageTM can download upgrade files at any time. UPGRADE_DLOAD_START and UPGRADE_DLOAD_END are ignored if UPGRADE_POLICY is set to 0. These parameters are applicable only when UPGRADE_INSTALL_DATE_TIME is configured to a future date.
Specifies a time when Avaya VantageTM stops trying to download new upgrade image files. Even after the specific time is up, any ongoing file downloads are taken to completion. However, new file downloads are scheduled for the next download timeframe.
UPGRADE_INSTALL_D ATE_TIME
1970-01-01 T00:00
The parameter value is in the format similar to UPGRADE_DLOAD_START.
Specifies the date and time when Avaya VantageTM starts to install the downloaded upgrade files.
The value of the parameter uses the YYYY-MM-DDThh:mm format, where:
� YYYY is four numeric digits representing the year
� MM is two numeric digits representing the month.
� dd is two numeric digits representing the day of the month.
� T is the time separator.
� hh is two numeric digits representing a hour of the day. The range is from 0 to 23.
� mm is two numeric digits representing minutes of the hour. The range is from 0 to 59.
If the default value is used or the value is set to a past date and UPGRADE_POLICY is set to 2, Avaya VantageTM installs upgrade files immediately after downloading irrespective of other parameter definitions.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
124
Comments on this document? infodev@avaya.com
Automatic upgrades
Parameter
DLOAD_RND_AFTER_ RESET
Default value
0
DLOAD_RND
3600
Description
Specifies the maximum length of the interval Avaya VantageTM waits after reboot before attempting to download the upgrade files. The interval is measured in seconds. Assign one of the following values:
� 0: The interval is not specified. Avaya VantageTM starts the download immediately after reboot.
� 1 � 32767: After reboot, Avaya VantageTM delays the download. The exact delay interval is determined as a random number in a range between 0 and the DLOAD_RND_AFTER_RESET value.
Avaya recommends that you configure randomized download time in an environment where multiple devices access the file server at the same time.
Specifies the maximum length of an interval between two consecutive attempts of background downloading. The interval is measured in seconds. Assign one of the following values:
� 0: The interval is not specified. Avaya VantageTM performs background download attempts without delay.
� 1 � 32767: Avaya VantageTM inserts a delay between two background download attempts. The exact delay interval is determined as a random number in a range between 0 and the DLOAD_RND value.
Automatic upgrades
You can configure the settings file to allow Avaya VantageTM to periodically check for a newer version of software on the file server. If the file server contains new software, Avaya VantageTM automatically downloads and installs upgrade files. Avaya VantageTM downloads upgrade files in the background so the download does not affect the user experience.
Automatic upgrades do not interrupt active calls. Avaya VantageTM starts the upgrade after all calls are completed.
You can specify the following upgrade policies in the settings file:
� Schedule the download for a specific time and day of the week. � Schedule installation for a specific date and time. � Set the polling interval for a new image file.
For Avaya VantageTM to automatically download and install upgrade files, set the UPGRADE_POLICY parameter value to 1 or 2.
Related links Parameters for defining upgrade policy on page 122
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
125
Comments on this document? infodev@avaya.com
Device upgrade
Scenario: Performing a scheduled upgrade
About this task This scenario describes how to perform a scheduled upgrade for multiple Avaya VantageTM devices together on January 25, 2019. Procedure
1. Ensure that the devices to be upgraded point to the correct file server address. 2. In the settings file, set the following parameters for the scheduled upgrade:
SET UPGRADE_DLOAD_START 22 SET UPGRADE_DLOAD_END 23 SET UPGRADE_POLICY 1 SET UPGRADE_INSTALL_DATE_TIME 2019-01-25T22:00
Important: Defining UPGRADE_INSTALL_DATE_TIME correctly is very important. If the value is set to a past date or left at the default setting, the installation date is considered to be missed and Avaya VantageTM starts downloading and installing upgrade files immediately irrespective of other parameter definitions. 3. Save the updated file on the file server. 4. Wait for the next polling period to occur so that the device downloads the settings file and applies the new upgrade schedule. Avaya VantageTM downloads the settings file and applies the configuration based on the polling interval that you define in UPGRADE_POLLING_PERIOD. Do not download the firmware distribution package to the file server before the polling occurs. Otherwise, the device will download the package and start upgrading according to the earlier upgrade rules instead of the new upgrade schedule. 5. Download the latest firmware distribution package to the file server. Result Every night from 10 PM to 11 PM until January 25, 2019, Avaya VantageTM tries to download the new image files from the file server. At 10 PM on 2019-01-25, all devices pointing to the file server are upgraded together. The UPGRADE_POLICY value of 1 ensures that the devices do not upgrade during a reboot before the scheduled date and time. If you want devices to upgrade at a reboot as well as at the scheduled time, set the UPGRADE_POLICY value to 2.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
126
Comments on this document? infodev@avaya.com
Upgrading Avaya VantageTM using the Update option
Upgrading Avaya VantageTM using the Update option
About this task Use this procedure to manually check for upgrade files and to download and install upgrade files immediately if updated software is available. Procedure
1. Go to the Settings menu of the device. 2. Tap System > About Avaya Vantage > Software information. 3. Tap Update now.
If the file server contains new software, Avaya VantageTM starts the upgrade. If Avaya VantageTM has the latest software, the Your phone is up to date message is displayed on the screen.
Upgrading Avaya VantageTM using System Manager
About this task Use this procedure to perform a bulk upgrade of Avaya VantageTM in the Avaya Aura� environment. The actual procedure might differ depending on the System Manager version you are using. For more information, see Administering Avaya Aura� System Manager. Procedure
1. Log in to System Manager. 2. In the System Manager interface, provide the range of Avaya VantageTM IP addresses that
require an upgrade. 3. Click Reboot.
After reboot, Avaya VantageTM downloads the upgrade file from the file server. Avaya VantageTM compares the current version of the software with the version specified in the upgrade file. If the file server contains the newer version of software, Avaya VantageTM performs the upgrade.
Upgrading Avaya VantageTM using IP Office
About this task Use this procedure to perform an upgrade of Avaya VantageTM in the IP Office environment.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
127
Comments on this document? infodev@avaya.com
Device upgrade
Procedure To upgrade a specific Avaya VantageTM device, do the following: 1. Restart the device using one of the following IP Office applications:
� System Status Application � System Monitor For more information, see Using Avaya IP OfficeTM Platform System Monitor and Using Avaya IP OfficeTM Platform System Status Application. If an updated version of software is available for Avaya VantageTM, then the device upgrades immediately after the reboot. To upgrade all Avaya VantageTM devices, do the following: 2. Upgrade the IP Office system using the Upgrade Wizard of IP Office Manager. 3. Select the check box to restart all SIP devices in the environment after the system upgrade.
For more information about upgrading through IP Office Manager, see Administering Avaya IP OfficeTM Platform with Manager.
The upgrade process updates any SIP phone firmware files held on the system. If an updated version of software become available for Avaya VantageTM, then the device upgrades immediately after the reboot.
CSDK-based application upgrades
Avaya VantageTM Connect or Avaya Equinox� can be configured as the active CSDK-based telephony application on Avaya VantageTM. You can update the CSDK-based application on Avaya VantageTM through the following options:
� The "Push application" method. Through the PUSH_APPLICATION parameter, you can initiate automatic installation of the latest version of the application without any intervention from the end user.
� Google Play. If a newer version of Avaya VantageTM Connect or Avaya Equinox� becomes available in Google Play, Avaya VantageTM displays an upgrade notification. End users can update the application from Google Play for K165 and K175.
� Android Package Kits (APKs). These APKs of the CSDK-based applications are bundled in the Avaya VantageTM firmware package file and pushed automatically to the Avaya VantageTM device. If installation of applications from unknown sources is enabled, then end users can also download application APKs from other sources, such as emails or websites.
For more information about installing and updating applications on Avaya VantageTM, see the sections under Application setup on page 96.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
128
Comments on this document? infodev@avaya.com
Chapter 12: Troubleshooting
This chapter describes known troubleshooting issues that customers might encounter while performing installation, configuration, and maintenance.
Firmware is corrupted
Condition Firmware is corrupted so you must restore firmware to its original state. Cause Firmware corruption can occur because of a power outage when the device is upgraded, or because of a corrupt system file or an invalid checksum file. Solution
Use the boot recovery procedure to clear the device and restore Avaya VantageTM to its factory settings. Use the boot recovery menu options only when the device does not boot up properly for some reason. The boot recovery menu provides you options to delete all stored data or swap the boot banks on the device and try to bring up the Android operating system again. 1. Connect an external USB keyboard to the device.
If the keyboard is USB Type-A, then you require a USB Type-A to Type-C adapter to connect to the USB Type-C port on the K165 or K175 device. 2. Reboot the device. 3. Press and hold Volume Up. After the boot, Avaya VantageTM displays the Recovery menu.
Note: You can navigate within the Recovery menu using the following buttons: � To navigate between menu options, press Volume Up or Volume Down. � To select the menu option, press and hold Volume Up or Volume Down. 4. Tap Enter BRM to navigate to Avaya VantageTM boot recovery options. 5. Enter the administrator password using the external USB keyboard connected to the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
129
Comments on this document? infodev@avaya.com
Troubleshooting
Avaya VantageTM starts the boot recovery procedure and displays a list of options. 6. Select one of the following options:
� Reboot: Stops the boot recovery procedure and reboots the device. � Clear phone : Resets the device to its factory settings. � Erase /cache only: Erases the cache partition of the device that is primarily used to
store recovery logs and temporary files. � Erase /data only: Erases the data stored on the device. � Swap memory banks: Swaps the boot banks on the device so the primary boot bank
becomes the secondary boot bank. Avaya VantageTM always has 2 copies of firmware: - Current firmware. Avaya VantageTM uses this firmware to boot up. - Previously installed firmware. This firmware is updated every time the firmware on the
device is upgraded. � Force SELinux Permissive mode: Starts the system with SELinux in Permissive mode.
When Permissive mode is enabled, the SELinux security policy is disabled, but the system still logs all events related to the security policy.
Video is not available
Condition Video is not visible during calls. Solution
1. Do one of the following: � If your deployment uses Avaya Aura�, ensure that the endpoint is configured with video enabled in System Manager and Communication Manager. From the list of features, enable IP Softphone and IP Video Softphone. � If your deployment uses IP Office, ensure that the IP Office server is configured to support video.
2. In the settings file, set ENABLE_VIDEO to 1. In an IP Office deployment, if this parameter is not in the automatically generated settings file, configure it in the 46xxspecials.txt file.
Video remains stuck after it is resumed
Condition In an Avaya Aura� environment, video is paused and then resumed. The video remains stuck for one or two minutes even after it is resumed.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
130
Comments on this document? infodev@avaya.com
Screen lock is enabled but the swipe to unlock action does not prompt for the password
Solution In Communication Manager, on the system-parameters feature form, set Long Hold Call Timer (seconds) to 0.
Screen lock is enabled but the swipe to unlock action does not prompt for the password
Condition Screen lock is enabled on Avaya VantageTM. However, when you swipe up on the Lock screen, the device is unlocked without any prompt for the password. Solution
� In the settings file, set ENABLE_PHONE_LOCK to 1. � Ensure that the password for the SIP extension that you use to log on to the device contains
a minimum of 5 characters. If the SIP extension password length is less than 5 characters, the device does not get locked. � To activate the Lock screen in the Kiosk mode, add the "com.android.systemui" package to the application list in the PIN_APP value. Example:
SET PIN_APP "com.avaya.endpoint.avayakiosk,com.avaya.android.vantage.basic,com.avaya.endpoint.lo gin,com.android.systemui"
Software distribution packages cannot be uploaded using the Utility Server
Condition You might experience issues uploading the Avaya VantageTM software distribution zip file to the Utility Server, which is embedded in Avaya Aura� Device Services. The Utility Server web interface has a file upload limit of 800 MB. The size of the software distribution package that is meant for K155, K165, and K175 combined is approximately 1 GB. Solution Use the SCP command to copy the zip file to the Utility Server. Then use the Utility Server web interface to activate the Avaya VantageTM software package. For more information about working with the Utility Server web interface, see Administering Avaya Aura� Device Services.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
131
Comments on this document? infodev@avaya.com
Troubleshooting
Some applications do not support Android 8.1
Condition Some Android applications do not function as expected after the Avaya VantageTM firmware is upgraded to Release 2.0.1. These applications do not support Android 8.1 and can only run on Android 6.x.
Important: Avaya VantageTM Connect Release 2.0.1 is only supported with Avaya VantageTM Release 2.0.1 firmware. Earlier Avaya VantageTM firmware versions are not supported. You can only install Avaya VantageTM Connect 2.0.1 on an Avaya VantageTM device with Android 8.1. Solution Downgrade the Avaya VantageTM firmware to Release 2.0 so that the Android OS is also downgraded to 6.0.1. 1. Ensure that upgrade parameters, such as UPGRADE_POLICY and
UPGRADE_POLLING_PERIOD, are set correctly in the settings file. 2. Save the updated settings file on the file server. 3. Ensure that the Avaya VantageTM device is pointing to the correct file server. 4. Download the Release 2.0 firmware distribution package to the file server.
Avaya VantageTM automatically performs a factory data reset. This is a software-triggered factory reset, which cannot be avoided. At the next polling period, Avaya VantageTM downloads the Release 2.0 upgrade files and installs the files according to the configured upgrade policy. 5. Re-configure the Avaya VantageTM device as required. If it is not done automatically, you must set up the file server. You must also add any required accounts, such as your Google account.
Some applications are not downgrading on K175 with Android 8.1
Condition On the Avaya VantageTM K175 device with Android 8.1, some applications, such as Avaya Equinox�, do not downgrade to an earlier release through the PUSH_APPLICATION method. Instead, the current release of the application remains on the device. Solution
1. Uninstall the existing application version: a. In the 46xxsettings.txt file, from the SET PUSH_APPLICATION command string, delete the path to the application.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
132
Comments on this document? infodev@avaya.com
Some applications are not downgrading on K175 with Android 8.1
b. Save the file. On the next polling period, the application is uninstalled from the device. If you want to implement this change immediately, you can reboot the device. Warning: Uninstalling results in the loss of application data.
2. After the application is uninstalled, push the earlier release of the application to the device: a. In the 46xxsettings.txt file, in the SET PUSH_APPLICATION command string, add the path to the application APK file that you want to install. b. Save the file. On the next polling period, Avaya VantageTM downloads the settings file and the application package, and installs the application on the device. If you want to implement this change immediately, you can reboot the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
133
Comments on this document? infodev@avaya.com
Chapter 13: Resources
Documentation
See the following related documents at http://support.avaya.com. Many of these documents are also available at http://documentation.avaya.com/.
Title Overview Avaya Aura� Session Manager Overview and Specification
Deploying Installing and Administering Avaya VantageTM in a Third Party Call Control Environment
Deploying Avaya Aura� Session Manager
Deploying Avaya Aura� System Manager on System Platform
Deploying Avaya Aura� Conferencing: Basic Installation
Avaya IP OfficeTM Platform SIP Telephone Installation Notes
Administering
Use this document to:
Audience
Understand characteristics and capabilities,
including feature descriptions,
interoperability, performance specifications,
security, and licensing requirements of Avaya Aura� Session Manager.
� Customers
� Sales, services, and support personnel
Install, configure, and maintain Avaya VantageTM in a third-party call control environment.
Note: Deploy Avaya Aura� Session Manager.
Deploy Avaya Aura� System Manager.
Deploy Avaya Aura� Conferencing.
Deploy SIP endpoints on IP Office.
Implementation personnel and administrators
Implementation personnel and service administrators
Implementation personnel and service administrators
Implementation personnel and service administrators
Implementation personnel and service administrators
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
134
Comments on this document? infodev@avaya.com
Documentation
Title
Administering Avaya Aura� Session Manager
Upgrading Avaya Aura� Session Manager
Administering Avaya Aura� Conferencing
Use this document to: Administer and maintain Avaya Aura� Session Manager. Upgrade Avaya Aura� Session Manager.
Administer Avaya Aura� Conferencing.
Audience
System administrators
System administrators
System administrators
Administering Avaya Session Border Controller for Enterprise
Administering Avaya IP OfficeTM Platform with Manager
Administer Avaya Session Border Controller for Enterprise.
Perform administration tasks using IP Office Manager.
System administrators
System administrators
Maintaining Maintaining Avaya Aura� Session Manager
Troubleshooting Avaya Aura� Session Manager
Maintain Avaya Aura� Session Manager.
Troubleshoot known issues for Avaya Aura� Session Manager.
System administrators and IT personnel
System administrators and IT personnel
Using Using the Avaya VantageTM Device
Use the Avaya VantageTMdevice.
� End users
Using Avaya VantageTM Connect
Using Avaya Equinox� for Android, iOS, Mac, and Windows
Use the Avaya VantageTM Connect application.
Use Avaya Equinox�.
� Support personnel End users
� End users � Support personnel
Using Avaya Device Enrollment Services to Manage Endpoints
Use Device Enrollment Services to manage endpoints or devices.
Non-Avaya users, including service providers and resellers
Finding documents on the Avaya Support website
Procedure
1. Go to https://support.avaya.com. 2. At the top of the screen, type your username and password and click Login. 3. Click Support by Product > Documents. 4. In Enter your Product Here, type the product name and then select the product from the
list. 5. In Choose Release, select an appropriate release number.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
135
Comments on this document? infodev@avaya.com
Resources
6. In the Content Type filter, click a document type, or click Select All to see a list of all available documents. For example, for user guides, click User Guides in the Content Type filter. The list displays the documents only from the selected category.
7. Click Enter.
Avaya Documentation Portal navigation
Customer documentation for some programs is now available on the Avaya Documentation Portal at https://documentation.avaya.com.
Important: For documents that are not available on the Avaya Documentation Portal, click Support on the top menu to open https://support.avaya.com. Using the Avaya Documentation Portal, you can: � Search for content in one of the following ways:
- Type a keyword in the Search field. - Type a keyword in Search, and click Filters to search for content by product, release, and
document type. - Select a product or solution and then select the appropriate document from the list. � Find a document from the Publications menu. � Publish a PDF of the current section in a document, the section and its subsections, or the entire document. � Add content to your collection by using My Docs ( ). Navigate to the My Content > My Docs menu, and do any of the following: - Create, rename, and delete a collection. - Add content from various documents to a collection. - Save a PDF of selected content in a collection and download it to your computer. - Share content in a collection with others through email. - Receive content that others have shared with you. � Add yourself as a watcher by using the Watch icon ( ). Navigate to the My Content > Watch list menu, and do the following: - Set how frequently you want to be notified, starting from every day to every 60 days. - Unwatch selected content, all content in a document, or all content on the Watch list page. As a watcher, you are notified when content is updated or deleted from a document, or the document is removed from the portal.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
136
Comments on this document? infodev@avaya.com
Viewing Avaya Mentor videos
� Share a section on social media platforms, such as Facebook, LinkedIn, Twitter, and Google +.
� Send feedback on a section and rate the content. Note: Some functionality is only available when you log in to the portal. The available functionality depends on the role with which you are logged in.
Viewing Avaya Mentor videos
Avaya Mentor videos provide technical content on how to install, configure, and troubleshoot Avaya products.
About this task Videos are available on the Avaya Support website, listed under the video document type, and on the Avaya-run channel on YouTube.
Procedure
� To find videos on the Avaya Support website, go to https://support.avaya.com/ and do one of the following:
- In Search, type Avaya Mentor Videos to see a list of the available videos. - In Search, type the product name. On the Search Results page, select Video in the
Content Type column on the left. � To find the Avaya Mentor videos on YouTube, go to www.youtube.com/AvayaMentor and do
one of the following:
- Enter a key word or key words in the Search Channel to search for a specific product or topic.
- Scroll down Playlists, and click the name of a topic to see the available list of videos posted on the website.
Note:
Videos are not available for all products.
Support
Go to the Avaya Support website at https://support.avaya.com for the most up-to-date documentation, product notices, and knowledge articles. You can also search for release notes, downloads, and resolutions to issues. Use the online service request system to create a service request. Chat with live agents to get answers to questions, or request an agent to connect you to a support team if an issue requires additional expertise.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
137
Comments on this document? infodev@avaya.com
Resources
Using the Avaya InSite Knowledge Base
The Avaya InSite Knowledge Base is a web-based search engine that provides: � Up-to-date troubleshooting procedures and technical tips � Information about service packs � Access to customer and technical documentation � Information about training and certification programs � Links to other pertinent information
If you are an authorized Avaya Partner or a current Avaya customer with a support contract, you can access the Knowledge Base without extra cost. You must have a login account and a valid Sold-To number. Use the Avaya InSite Knowledge Base for any potential solutions to problems.
1. Go to http://www.avaya.com/support. 2. Log on to the Avaya website with a valid Avaya user ID and password.
The system displays the Avaya Support page. 3. Click Support by Product > Product Specific Support. 4. In Enter Product Name, enter the product, and press Enter. 5. Select the product from the list, and select a release. 6. Click the Technical Solutions tab to see articles. 7. Select relevant articles.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
138
Comments on this document? infodev@avaya.com
Appendix A: Supported configuration parameters
Parameters for controlling configuration parameter downloads
Parameter GROUP
AUTH
Type
Default value
Numeric 0
Numeric 0
Is set to Description default on reset
Yes
Group identifier to download a specific configuration
set for a dedicated user group during startup.
The range is from 0 to 999.
The parameter can be used in conditional statements in the 46xxsettings.txt settings file.
For provisioning, use the Settings > Network & Internet > More > Group menu on the device.
No
Authentication flag for all file downloads, including
configuration and image files, and Avaya Aura�
Device Services configuration retrieval.
Assign one of the following values:
� 0: Secure file downloading is not required. Avaya VantageTM downloads firmware and configuration files from HTTP or HTTPS servers.
� 1: Secure file downloading is required. Avaya VantageTM downloads firmware and configuration files from HTTPS servers only.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
139
Comments on this document? infodev@avaya.com
Supported configuration parameters
Phone parameters
Parameter MODEL MODEL4
MACADDR
Type String String
String
Default value Factory settings
Factory settings
Factory settings
Is set to Description default on reset
No
Model identifier of the telephone, which includes the
first 8 characters of the telephone's apparatus code.
The length is from 8 to 10 ASCII characters.
This parameter can be used in conditional statements in the 46xxsettings.txt file.
This parameter cannot be modified.
No
Name of the telephone model or the truncated
model identifier.
This parameter can have one of the following values:
� K175 for the standard Avaya VantageTM device with a camera.
� K165 for the standard Avaya VantageTM device without a camera.
� K155 for the Avaya VantageTM device with a small screen and a physical keypad.
This parameter can be used in conditional statements in the 46xxsettings.txt file.
This parameter cannot be modified.
No
Media Access Control (MAC) address of the device.
MACADDR always refers to the Ethernet MAC
address.
MACADDR contains six pairs of ASCII hexadecimal characters separated by colons.
This parameter can be used in conditional statements in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
140
Comments on this document? infodev@avaya.com
General phone functionality
General phone functionality
Audio parameters
Parameter
Type
Default value
BRANDING_VOLU Numeric 5 ME
Is set to Description default on reset
Yes
Specifies the level of the Avaya audio brand. Assign
one of the following values:
� 8: 9 db above nominal
� 7: 6 db above nominal
� 6: 3 db above nominal
� 5: nominal
� 4: 3 db below nominal
� 3: 6 db below nominal
� 2: 9 db below nominal
� 1: 12 db below nominal
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
141
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter RINGTONES
Type String
Default value
Null
Is set to Description default on reset
Specifies a list of audio files to be downloaded as ring tones and offered to users for selection.
The list can contain 0 to 1023 octets of UTF-8 characters.
Values are separated by commas without any intervening spaces. If the audio files are stored in the same directory configured in FILE_SERVER_URL, you can list the file names in the following format: ring1.wav,ring2.wav,ring3.mp3,rin4.ogg. If the file is stored in a different location, then use the tuple format: <Filename with sufix>=<path>/<filename>. For example: name.ogg=URI.
If you are using .mp3 or .ogg files that include the ID3 metadata container with a non-empty title field, the title field is displayed by Android in the list of ringtones. If the .mp3 or .ogg file includes a metadata container with an empty title field, the file name is displayed. If a .wav file is used, the filename is always presented.
When using the tuple format, the file name must include the audio file suffix. Changing the file suffix only with the same file name will not trigger a new download.
For provisioning, use the SET command in the 46xxsettings.txt file.
For example:
SET RINGTONES "swhistle.wav,chorn.wav,ring4.mp3"
SET RINGTONES "swhistle.wav=tones/ swhistle.wav,ring4.mp3=mp3files/ ring4.mp3"
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
142
Comments on this document? infodev@avaya.com
General phone functionality
Parameter
Type
Default value
RINGTONESTYLE Numeric 0
Is set to Description default on reset
Specifies the style of ring tones.
Assign one of the following values:
� 0: North American ring tones are available (default).
� 1: European ring tones are available.
For provisioning, use the SET command in the 46xxsettings.txt file.
Video parameters
Parameter
Type
Default value
CAMERASTAT
Numeric 1
Is set to Description default on reset
Controls whether the device user can enable or disable the integrated camera and the external third-party USB camera, if connected to the device, through the Settings menu.
Assign one of the following values:
� 0: Camera is disabled. The device user has no option to enable or disable the camera through the Settings menu.
� 1: Camera is enabled. The device user has no option to enable or disable the camera through the Settings menu.
� 2: The device user can enable or disable the camera through the Settings menu.
When the camera is disabled, you can still see video from other users, but Android applications cannot transmit video from your camera. You also cannot take photos or video clips.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
143
Comments on this document? infodev@avaya.com
Supported configuration parameters
Phone UI related settings
Specific audio settings
Parameter
Type
Default value
HEADSETBIDIR Numeric 0
Is set to Description default on reset
Yes
Specifies whether bidirectional signaling is
supported on the headset interface. Bidirectional
signalling allows you to forward off-hook events and
incoming call alerts from Avaya VantageTM to a
headset when a headset base station is connected
to the headset connector.
Assign one of the following values:
� 0: Disabled.
� 1: Switch hook and alert signaling are both enabled.
� 2: Only switch hook signaling is enabled.
Important:
This parameter must only be used when using a wireless headset if the base station is connected to the headset connector of the device. In other cases, such as when using a wired headset, the value must be set to 0.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Sound & Audio & Camera > Audio settings > Headset signaling menu on the device.
This parameter can be stored on the PPM or backup server.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
144
Comments on this document? infodev@avaya.com
Parameter AGCHAND
AGCHEAD
AGCSPKR
Phone UI related settings
Type
Default value
Numeric 0
Numeric 0
Numeric 0
Is set to Description default on reset
No
Specifies Automatic Gain Control (AGC) for the
handset. The options are:
� 0: AGC is disabled.
� 1: AGC is enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Sound & Audio & Camera > Audio settings > Auto gain control (AGC) > Handset Auto Gain Control menu on the device.
This parameter can be stored on the PPM or backup server.
No
Specifies Automatic Gain Control (AGC) for the
headset. The options are:
� 0: AGC is disabled.
� 1: AGC is enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Sound & Audio & Camera > Audio settings > Auto gain control (AGC) > Headset Auto Gain Control menu on the device.
This parameter can be stored on the PPM or backup server.
No
Specifies Automatic Gain Control (AGC) for the
speaker. The options are:
� 0: AGC is disabled.
� 1: AGC is enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Sound & Audio & Camera > Audio settings > Auto gain control (AGC) > Speaker Auto Gain Control menu on the device.
This parameter can be stored on the PPM or backup server.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
145
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter AUDIOSTHD
AUDIOSTHS
Type
Default value
Numeric 0
Numeric 0
Is set to Description default on reset
Yes
Specifies headset sidetone settings. The options
are:
� 0: Normal level.
� 1: Three levels softer than normal.
� 2: Off (inaudible).
� 3: One level softer than normal.
� 4: Two levels softer than normal.
� 5: Four levels softer than normal.
� 6: Five levels softer than normal.
� 7: Six levels softer than normal.
� 8: One level louder than normal.
� 9: Two levels louder than normal.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies handset sidetone settings. The options
are:
� 0: Normal level.
� 1: Three levels softer than normal.
� 2: Off (inaudible).
� 3: One level softer than normal.
� 4: Two levels softer than normal.
� 5: Four levels softer than normal.
� 6: Five levels softer than normal.
� 7: Six levels softer than normal.
� 8: One level louder than normal.
� 9: Two levels louder than normal.
This parameter is supported by wired handsets only.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
146
Comments on this document? infodev@avaya.com
Phone UI related settings
Parameter HEADSET_PROFI LE
HEADSET_PROFI LE_DEFAULT
HEADSET_PROFI LE_NAMES
Type
Default value
Numeric 0
Numeric 1 String Null
Is set to Description default on reset
Yes
Specifies the headset audio profile selected by the
user.
The range is from 0 to 20. If the value of HEADSET_PROFILE is 0, the headset audio profile is not selected.
For provisioning, use the Settings > Sound & Audio & Camera > Audio settings > Headset profile menu on the device.
This parameter can be stored on the PPM or backup server.
Yes
Specifies the number of the default headset audio
profile.
The range is from 1 to 20.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies names to be displayed for headset audio
profile selection.
The value of the parameter is a list of profile names separated by commas without any spaces between entries. If profile names include spaces, the list must use quotations. Names must not contain commas or double quote characters. To retain the default name of a specific profile, do not provide a new name for the profile.
The parameter can contain up to 0 to 255 octets of UTF-8 characters.
For provisioning, use the SET command in the 46xxsettings.txt file.
For example, to rename the first and third profiles and to retain the default name of the second profile, enter the following: SET HEADSET_PROFILE_NAMES "Profile 1,,Profile 3"
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
147
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
Default value
HANDSET_PROFI Numeric 0 LE
HANDSET_PROFI Numeric 1 LE_DEFAULT
HANDSET_PROFI String LE_NAMES
null string
Is set to Description default on reset
Yes
Specifies the handset audio profile selected by the
user.
The range is from 0 to 20. If the value of HANDSET_PROFILE is 0, the handset audio profile is not selected.
For provisioning, use the Settings > Sound & Audio & Camera > Audio settings > Handset profile menu on the device.
This parameter can be stored on the PPM or backup server.
Yes
Specifies the number of the default handset audio
profile.
The range is from 1 to 20.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies names to be displayed for handset audio
profile selection.
The value of the parameter is a list of profile names separated by commas without any spaces between entries. If profile names include spaces, the list must use quotations. Names must not contain commas or double quote characters. To retain the default name of a specific profile, do not provide a new name for the profile.
The parameter can contain up to 0 to 255 octets of UTF-8 characters.
For provisioning, use the SET command in the 46xxsettings.txt file.
For example, to rename the first and third profiles and to retain the default name of the second profile, enter the following: SET HANDSET_PROFILE_NAMES "Profile 1,,Profile 3"
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
148
Comments on this document? infodev@avaya.com
Phone UI related settings
Specific display settings
Parameter
Type
Default value
LOGOS
String Null
Is set to Description default on reset
Yes
Specifies a list of custom logo definitions or
wallpapers that can be used as a background on
the display.
Each entry in the list is a logo label followed by an equal sign (=) followed by a logo file name or URL. Entries are separated by commas without any intervening spaces. The logo URL can be specified using either absolute or relative format. If the relative format is used, the origin is the directory specified by FILE_SERVER_URL.
Avaya VantageTM supports the following file types: PNG, JPG (JPEG), GIF, and BMP. GIF is presented without animation.
The screen of the K165 and K175 devices is 8 inches with a resolution of 800x1280 (width x height) pixels. Therefore, Avaya recommends that you use the image size of 800x1280 pixels, which fits the entire screen and appears on all pages. The image size of 600x1280, 2400x1280, or 3200x1280 provides scrolling on all pages.
The screen of the K155 device is 5 inches with a resolution of 1280x720 (width x height) pixels. Use an image size that fits the entire screen and appears on all pages.
For provisioning, use the SET command in the 46xxsettings.txt file.
For example:
SET LOGOS "Red Balloon=redballoon.jpg,Blue Balloon=https://123.456.7.8./ blueballoon.jpg,Purple=../purple.jpg"
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
149
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
CURRENT_LOGO String
Default value
Null
Is set to Description default on reset
Yes
Specifies the background image to display on
Avaya VantageTM.
The value of the parameter is one of the logo labels specified in the LOGOS parameter.
When the value is null, the default logo or wallpaper is displayed.
For provisioning, use the SET command in the 46xxsettings.txt file.
For example:
If LOGOS is defined as "Red Balloon=redballoon.jpg,Blue Balloon=blueballoon.jpg", then you can set CURRENT_LOGO as one of the following:
� SET CURRENT_LOGO "Red Balloon"
� SET CURRENT_LOGO "Blue Balloon"
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
150
Comments on this document? infodev@avaya.com
Phone UI related settings
Parameter
Type
ADMIN_INITIAL_S String CREEN
Default value
PHONE
Is set to Description default on reset
Yes
This parameter specifies whether the Home screen
or Telephony screen is presented as the initial
screen after the user logs in to Avaya VantageTM or
ends all calls.
Avaya VantageTM uses this parameter only when the Settings > Display > Screen presented after login field is configured as Admin default, which is the default setting. If the Screen presented after login field is not default, the ADMIN_INITIAL_SCREEN parameter value is not enforced.
Assign one of the following values:
� HOMESCREEN: The Home screen is presented as the initial screen after the user logs in or ends all calls.
� PHONE: The Telephony screen is presented as the initial screen after the user logs in or ends all calls.
If the user navigates to some other application screen during an active call, then the Telephony screen is not presented after the call ends.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
151
Comments on this document? infodev@avaya.com
Supported configuration parameters
Language and country settings
Parameter
Type
Default value
ISO_SYSTEM_LA String NGUAGE
en_US
COUNTRY
String USA
Is set to Description default on reset
Yes
Specifies the device system language.
ISO_SYSTEM_LANGUAGE uses the LL[_CC] format where:
� LL is a language code. The language code is represented by two lowercase letters. For example: en. For more information about codes, see ISO 639-1.
� CC is an optional country code. The country code is represented by two uppercase letters. For example: GB. For more information about codes, see ISO 3166-1.
If you use an optional country code, then the language code and the country code must be separated by the underscore symbol.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies a country where Avaya VantageTM is used.
This parameter is used for country-specific Wi-Fi
and anti-flickering frequency settings. If Avaya
VantageTM cannot identify the country specified in
the parameter, it applies default settings.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
152
Comments on this document? infodev@avaya.com
Phone UI related settings
Date and time settings
Parameter
Type
TIMEZONE
String
ADMINTIMEFORM Integer AT
Default value Etc/GM T
0
Is set to Description default on reset
Yes
Specifies the time zone in the Olson name format.
For example: America/New_York.
For more information about the name format and for a list of time zones, see the Time Zone Database.
For provisioning, use:
� DHCP option 242.
� The SET command in the 46xxsettings.txt file.
With IP Office, set this parameter in the 46xxspecials.txt file.
Yes
Specifies whether Avaya VantageTM uses the 12-
hour or 24-hour time format. The options are:
� 0: Use the 12-hour time format.
� 1: Use the 24-hour time format.
Avaya VantageTM uses the selected time format in all areas that displays time, including the top bar, call log, and calendar.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
� The settings file received from Avaya Aura� Device Services.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
153
Comments on this document? infodev@avaya.com
Supported configuration parameters
Server addresses and ports
Parameter DES_STAT
Type
Default value
Numeric 2
Is set to Description default on reset
Specifies whether to attempt Device Enrollment Services discovery if there is no configuration file server provisioned on the device. Discovery is attempted when the device is starting.
You can assign one of the following values:
� 0: Device Enrollment Services discovery is disabled and can only be enabled by resetting the device to its default settings.
� 1: Device Enrollment Services discovery is disabled and can be enabled by changing the value of DES_STAT to 2.
� 2: Device Enrollment Services discovery is enabled.
When DES_STAT is set to 2 and FILE_SERVER_URL is not retrieved from DHCP or LLDP, the device attempts to communicate with Device Enrollment Services during startup to obtain the provisioning or file server address. In addition, if the file server is configured through Settings, Device Enrollment Services discovery will not be triggered.
For provisioning, use:
� DHCP option 242. The precedence is 3.
� The SET command in the 46xxsettings.txt file. The precedence is 5.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
154
Comments on this document? infodev@avaya.com
Parameter DNSSRVR
DOMAIN
Server addresses and ports
Type String
String
Default value 0.0.0.0
Null
Is set to Description default on reset
Yes
Specifies up to three IP addresses of DNS servers
in the dotted decimal format.
The value of the parameter is a list of IP addresses separated by commas without any spaces between entries. Avaya VantageTM tries to connect to the DNS servers in the order specified in the parameter.
Both the Wi-Fi and Ethernet interfaces use the configured DNS server and domain information. An option to configure DNS information specifically for each Wi-Fi network is unavailable. Therefore, if a user toggles between the Wi-Fi and Ethernet interfaces, then the configured DNS information is applicable for both interfaces.
For provisioning, use:
� The Option 6 value in a DHCPACK message.
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Yes
Specifies a domain name.
Avaya VantageTM uses domain names when DNS names in configuration parameter values are resolved to IP addresses. If DOMAIN is null, all DNS names must be fully qualified. If servers in a network are in more than one sub-domain, server DNS names must include the sub-domain name and DOMAIN must be set to the lowest level common domain.
For provisioning, use:
� The Option 15 value in a DHCPACK message.
� The SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
155
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
FILE_SERVER_U String RL
Default value
Null
Is set to Description default on reset
Yes
Specifies the configured file server URLs for
downloading firmware and configuration files. Avaya
VantageTM tries to connect to file servers in the order
specified in the parameter.
The value of the parameter is a list of file server addresses separated by commas without any spaces between entries. A file server URL must use one of the following formats:
� http://hostname[:port][/path]
� https://hostname[:port][/path]
In the URL:
� hostname is either an IP address in the dotted decimal format or a domain name.
� port is an optional port number.
� path is an optional path to a directory where distribution packages and other files are stored.
Users can provide URLs of HTTP servers without the leading http://. Users must explicitly specify https:// for HTTPS servers. The default port for HTTP is 80. The default port for HTTPS is 443.
If this parameter is set, Avaya VantageTM ignores the HTTPSRVR, HTTPPORT, HTTPDIR, TLSSRVR, TLSSRVRDIR, and TLSPORT parameters.
For provisioning, use:
� LLDP Avaya/Extreme Proprietary File Server TLV. The precedence is 1.
� DHCP option 43. The precedence is 2.
� A name=value pair in a DHCPACK message. The precedence is 2.
� The siaddr field value in the DHCPACK message. The precedence is 2. Only the dotted decimal format is supported. Avaya VantageTM considers addresses received using this method as HTTP server addresses.
� The SET command in the 46xxsettings.txt file. The precedence is 3.
� The Settings menu on the device. The precedence is 5.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
156
Comments on this document? infodev@avaya.com
Server addresses and ports
Parameter HTTPPROXY
Type String
HTTPEXCEPTION String DOMAINS
Default value Null
Null
Is set to Description default on reset
Yes
Specifies an address of an HTTP proxy server. A
proxy server address uses the hostname[:port]
format, where:
� hostname is either an IP address in the dotted decimal format or a domain name.
� port is an optional port number.
This parameter is not a URL. Therefore, you must not begin the value with http://.
The range is the default string length.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Yes
Specifies domains that are excluded for use of the
HTTP proxy server.
The value of the parameter is a list of domains separated by commas without any spaces between entries. The range is the default string length.
A HTTP connection for SCEP is set up through HTTPPROXY only if the rightmost part of the domain specified in MYCERTURL does not match any domain specified in this parameter.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
157
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter HTTPSRVR
TLSSRVR
Type String
String
Default value 0.0.0.0
0.0.0.0
Is set to Description default on reset
Yes
Specifies a list of IP or DNS addresses of HTTP file
servers for downloading firmware and configuration
files.
Avaya VantageTM uses this parameter only if FILE_SERVER_URL and TLSSRVR are not set. The value of the parameter is a list of HTTP file server addresses separated by commas without any spaces between entries. The value can contain up to 255 ASCII characters.
For provisioning, use:
� LLDP Avaya/Extreme Proprietary File Server TLV. The precedence is 1.
� DHCP option 43. The precedence is 2.
� A name=value pair in a DHCPACK message. The precedence is 2.
� The siaddr field value in the DHCPACK message. The precedence is 2. Only the dotted decimal format is supported.
� The SET command in the 46xxsettings.txt file. The precedence is 3.
Yes
Specifies a list of IP or DNS addresses of HTTPS
file servers for downloading firmware and
configuration files.
Avaya VantageTM uses this parameter only if FILE_SERVER_URL is not set. The value of the parameter is a list of HTTPS file server addresses separated by commas without any spaces between entries. The value can contain up to 255 ASCII characters.
For provisioning, use:
� LLDP Avaya/Extreme Proprietary File Server TLV. The precedence is 1.
� DHCP option 43. The precedence is 2.
� A name=value pair in a DHCPACK message. The precedence is 2.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
158
Comments on this document? infodev@avaya.com
Parameter HTTPDIR
TLSDIR
Server addresses and ports
Type String
String
Default value Null
Null
Is set to Description default on reset
Yes
Specifies a path to the directory of the HTTP file
server where configuration files and software
images are stored.
The path is relative to the root of the HTTP file server. Avaya VantageTM prepends the parameter value to all file names used in HTTP GET operations. Avaya VantageTM uses this parameter only if FILE_SERVER_URL is not set.
The parameter value can contain up to 127 characters.
Do not use this parameter in configurations where files are stored in the default directory of the HTTP server.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� DHCP option 43.
� The SET command in the 46xxsettings.txt file.
Yes
Specifies a path to the directory of the HTTPS file
server where configuration files and software
images are stored.
The path is relative to the root of the HTTPS file server. Avaya VantageTM prepends the parameter value to all file names used in HTTPS GET operations. Avaya VantageTM uses this parameter only if FILE_SERVER_URL is not set.
The parameter value can contain up to 127 characters.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� DHCP option 43.
� The SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
159
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter HTTPPORT
TLSPORT
Type
Default value
Numeric 80
Numeric 443
Is set to Description default on reset
Yes
Specifies the destination TCP port for HTTP
requests. The range is from 0 to 65535.
Avaya VantageTM uses this parameter only if FILE_SERVER_URL is not set.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� DHCP option 43.
� The SET command in the 46xxsettings.txt file.
Yes
Specifies the destination TCP port for HTTPS
requests. The range is from 0 to 65535.
Avaya VantageTM uses this parameter only if FILE_SERVER_URL is not set.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� DHCP option 43.
� The SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
160
Comments on this document? infodev@avaya.com
Server addresses and ports
Parameter
Type
SIP_CONTROLLE String R_LIST
Default value
Null
Is set to Description default on reset
Yes
Specifies a list of IP addresses of SIP proxy or
registrar servers.
The entries in the list are separated by commas without any spaces between entries. Each entry in the list has the following format:
host[:port][;transport=xxx], where:
� host is an IP address in the dotted decimal or DNS format.
� port is the optional port number. If the port number is not specified, Avaya VantageTM uses the following default values:
- 5060 for TCP
- 5061 for TLS
� transport is the optional transport type. The supported options are TLS or TCP. If the transport type is not specified, Avaya VantageTM uses TLS as the default transport type.
In the Avaya Aura� environment, set the transport protocol as TLS. Avaya Breeze� Client SDK applications do not support TCP with Avaya Aura�.
The parameter value can have up to 255 characters.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use:
� LLDP Avaya/Extreme Proprietary Call Server TLV. The precedence is 1.
� DHCP option 43. The precedence is 3.
� A name=value pair in a DHCPACK message. The precedence is 3.
� The SET command in the 46xxsettings.txt file. The precedence is 4.
� The value stored on the PPM or backup server. The precedence is 5.
� The Settings menu on the device. The precedence is 5.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
161
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter SIPDOMAIN SNTPSRVR
Type String String
Default value
Is set to Description default on reset
Important:
For emergency call support when you are logged out of the device, you must configure the SIP_CONTROLLER_LIST parameter using the 46xxsettings.txt file, DHCP, LLDP, or the Settings menu on the device. If you only configure SIP_CONTROLLER_LIST in Avaya Aura� Device Services, emergency calls do not work as expected.
Null
Yes
Specifies the SIP domain name used for SIP
registration. The value of the parameter can have
up to 255 characters.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The value stored on the PPM server.
� The Settings menu on the device.
0.avaya. Yes pool.ntp. org, 1.avaya. pool.ntp. org, 2.avaya. pool.ntp. org, 3.avaya. pool.ntp. org, 129.6.15 . 28,132.1 63.97.1
Specifies a list of Simple Network Time Protocol (SNTP) server FQDNs or IP addresses.
Avaya VantageTM uses this parameter to retrieve date and time information from SNTP servers. The value of the parameter is a list of SNTP server FQDNs or IP addresses using either the dotted decimal or DNS format. Entries in the list are separated by commas without any spaces between entries. The parameter value can contain up to 255 characters.
For provisioning, use:
� DHCP option 42.
� The SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
162
Comments on this document? infodev@avaya.com
Server addresses and ports
Parameter
Type
USER_AUTH_FILE String _SERVER_URL
Default value
Null
Is set to Description default on reset
Yes
Specifies a list of user authenticated file server
URLs.
� If this parameter is configured, Avaya VantageTM displays the Unified Login screen. In the current release, Avaya VantageTM supports Avaya Aura� Device Services user authentication servers only. If you did not provide the user's SIP extension and password in Avaya Aura� Device Services, Avaya VantageTM will also prompt the user to enter the SIP extension and password.
� If this parameter is not configured, Avaya VantageTM displays the SIP Login screen. In this case, the user only needs to enter the SIP extension and password to log in to Avaya VantageTM.
The value of the parameter is a list of file server addresses separated by commas without any spaces between entries. A file server URL must use one of the following formats:
� http://hostname[:port]
� https://hostname[:port]
In the URL:
� hostname is either an IP address in the dotted decimal format or a domain name.
� port is an optional port number.
Users can provide URLs of HTTP servers without the leading http://. Users must explicitly specify https:// for HTTPS servers. The default port for HTTP is 80. The default port for HTTPS is 443.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
163
Comments on this document? infodev@avaya.com
Supported configuration parameters
Server environment settings
Define the following parameters to identify the deployment environment:
Parameter
Type
Default value
ENABLE_AVAYA_ Numeric 1 ENVIRONMENT
DISCOVER_AVAY Numeric 1 A_ENVIRONMENT
ENABLE_IPOFFIC Numeric 0 E
Is set to Description default on reset
Yes
Specifies whether the device is configured for use in
an Avaya or a third-party call control environment.
You can assign one of the following values:
� 0: The device operates in a mode to comply with a third-party SIP proxy provisioning with SIPPING-19. For the IP Office and third-party call control environments, use this value.
� 1: The device operates in the Avaya environment with advanced SIP telephony features and PPM.
Yes
Specifies whether the device should discover and
verify if the SIP controller supports Advanced SIP
Telephony (AST) feature set.
You can assign one of the following values:
� 0: The device operates in a mode where AST features are not available. For IP Office and thirdparty call control environments, use this value.
� 1: The device determines whether the SIP controller supports AST features in the Avaya environment. If the device receives a positive response, then it synchronizes with PPM. If the device does not receive a response, it operates in a mode where AST features are not available.
Yes
Specifies whether the deployment environment is IP
Office.
You can assign one of the following values according to the deployment environment:
� 0: Deployment environment other than IP Office.
� 1: IP Office environment.
Network settings
The following sections describe network configuration settings, such as Ethernet, VLAN, QoS, and IEEE 802.1X.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
164
Comments on this document? infodev@avaya.com
Network settings
General settings
Parameter
Type
IPADD
String
ROUTER
String
NETMASK
String
SUBNET
String
Default value 0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
Is set to default on reset
Yes
Description
Specifies the IP address of the Avaya VantageTM device. The range is from 7 to 15 ASCII characters. This is a testable parameter.
The parameter can be used in conditional statements in the 46xxsettings.txt file.
For provisioning, use:
� The yiaddr field value in the DHCPACK message.
� For provisioning, use the Settings > Network & Internet > Ethernet > IP interface > Static IP settings menu on the device.
Yes
Specifies an IP address or a list of addresses of
default routers or gateways in the IP network.
Entries in the list are separated by commas without any spaces between entries. The parameter can contain up to 127 characters.
For provisioning, use:
� The Option 3 value in a DHCPACK message.
� For provisioning, use the Settings > Network & Internet > Ethernet > IP interface > Static IP settings menu on the device.
Yes
Specifies an IP subnet mask.
This parameter specifies one IP address in the dotted decimal format. The range is from 7 to 15 ASCII characters.
For provisioning, use:
� The Option 1 value in a DHCPACK message.
� For provisioning, use the Settings > Network & Internet > Ethernet > IP interface > Static IP settings menu on the device.
Yes
Specifies the subnet of the telephone. A value of
SUBNET is a value of a bitwise AND operation
performed on values of IPADD and NETMASK.
The parameter can be used in conditional statements in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
165
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter USE_DHCP
DHCP_SSON DHCPSTD
ICMPDU
Type
Default value
Numeric 1
Numeric 242 Integer 0
Integer 1
Is set to default on reset
Yes
Description
Specifies whether Avaya VantageTM uses a static IP address or receives the IP address through DHCP. The options are:
� 0: Use a static IP address configured on the device.
� 1: Obtain the IP address automatically through DHCP.
For provisioning, use the Settings > Network & Internet > Ethernet > IP interface > Use DHCP menu on the device.
Yes
Specifies the site-specific option number for DHCP.
The range is from 128 to 254.
For provisioning, use the Settings > Network & Internet > More > DHCP Site Specific Option Number (SSON) menu on the device.
Yes
Specifies the DHCP lease violation flag. Assign one
of the following values:
� 1: To comply with the DHCP standard. When the DHCP lease expires, Avaya VantageTM immediately releases an IP address.
� 0: To enter the proprietary state. When the DHCP lease expires, Avaya VantageTM continues to use the IP address.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether Avaya VantageTM generates
Internet Control Message Protocol (ICMP)
Destination Unreachable (DU) messages to inform
the source host that a port is unreachable. Assign
one of the following values:
� 0: DU messages are not transmitted.
� 1: DU messages are only transmitted for a UDP port that ranges from 33,434 to 33,523.
� 2: DU messages are transmitted.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� The SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
166
Comments on this document? infodev@avaya.com
Network settings
Parameter ICMPRED
Type
Default value
Integer 0
MTU_SIZE
Integer 1500
NETWORK_MODE Numeric 1
Is set to default on reset
Yes
Description
Specifies whether Avaya VantageTM processes ICMP redirect messages. Assign one of the following values:
� 0: Avaya VantageTM does not process received redirect messages.
� 1: Avaya VantageTM processes received redirect messages according to RFC 1122.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� The SET command in the 46xxsettings.txt file.
Yes
Specifies the Maximum Transmission Unit (MTU)
size. Assign one of the following values:
� 1496
� 1500
This parameter is applicable for wired Ethernet connections only and is not used for Wi-Fi. Avaya VantageTM uses MTU_SIZE to provide compatibility with Ethernet switches that do not support the longest maximum frame length possible with tagged frames.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� The Option 26 value in the DHCPACK message.
� The SET command in the 46xxsettings.txt file.
Yes
Specifies the active network interface. The available
options are:
� 1: Wired Ethernet connection is active.
� 2: Wi-Fi connection is active.
For provisioning, use the Settings > Network & Internet > Network mode menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
167
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter IPV6STAT
Type
Default value
Numeric 1
BLUETOOTHSTAT Integer 1
BLUETOOTH_FEA Integer 0 TURES_SHARED_ VIA_STAT
TRUST_AGENTS_ Integer 1 STAT
Is set to default on reset
Description
Controls whether Avaya VantageTM blocks all incoming and outgoing IPv6 traffic.
For Avaya VantageTM, set this parameter to 0 to block IPv6 traffic because Avaya VantageTM does not support IPv6.
This parameter is applicable for both wired Ethernet and wireless connections.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether Bluetooth is allowed for user
configuration. Assign one of the following values:
� 0: Bluetooth and the Bluetooth menu are disabled in the Settings menu on the device. The user cannot enable Bluetooth.
� 1: Bluetooth and the Bleutooth menu are enabled in the Settings menu on the device. The user can enable or disable Bluetooth.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether users have access to Shared via
Bluetooth options in the Setting menu on the
device.
� 0: Users cannot use Shared via Bluetooth.
� 1: Users can use Shared via Bluetooth.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether users can configure trust agents.
� 0: Users cannot access Trust agents in the Settings menu. All trust agents are disabled.
� 1: Users can access Trust agents in the Settings menu. Users can enable or disable the available trust agents
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
168
Comments on this document? infodev@avaya.com
Network settings
Parameter
Type
Default value
TRUST_AGENTS_ Integer 1 SMARTLOCK_STA T
TRUST_AGENTS_ Integer 1 AVAYA_SMARTLO CK_STAT
WIFISTAT
Integer 1
WIFIAPSTAT
Numeric 0
Is set to Description default on reset
Yes
Specifies whether users can configure the Google
Smart Lock feature.
� 0: Users cannot access Smart Lock in the Settings menu. Smart Lock (Google) is disabled.
� 1: Users can access Smart Lock in the Settings menu. Users can enable or disable the Smart Lock (Google) feature.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether users can configure the Avaya
Smart Lock feature.
� 0: Users cannot access Avaya Smart Lock in the Settings menu. The Avaya Smart Lock feature is disabled.
� 1: Users can access Avaya Smart Lock in the Settings menu. Users can enable or disable the Avaya Smart Lock feature.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether users can configure Wi-Fi.
� 0: Wi-Fi is disabled. Users cannot enable Wi-Fi.
� 1: Wi-Fi is enabled. Users can configure Wi-Fi settings from the Settings menu on the device.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether users can configure the WI-FI
access point.
� 0: WI-FI access point is disabled. Users cannot enable the access point.
� 1: Users can enable and configure the access point.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
169
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
Default value
WIFI_CON_STATU Numeric 1 S_ON_LOGOUT
GRATARP
Integer 0
Is set to default on reset
Yes
Description
Specifies whether Avaya VantageTM keeps information about wireless connections after logout.
� 0: Avaya VantageTM deletes information about WiFi connections, such as Wi-Fi passwords.
� 1: Avaya VantageTM keeps information about Wi-Fi connections and the active wireless connection, such as Wi-Fi passwords.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether an existing Address Resolution
Protocol (ARP) cache entry is updated with a MAC
address received in a gratuitous ARP message.
Assign one of the following values:
� 0: Avaya VantageTM ignores gratuitous ARP messages.
� 1: Avaya VantageTM uses gratuitous ARP messages to update the existing ARP cache entry.
For provisioning, use the SET command in the 46xxsettings.txt file.
Ethernet interface settings
Parameter PHY1STAT
Type
Default value
Numeric 1
Is set to Description default on reset
Yes
Specifies the speed and duplex mode of Ethernet
line interface.
The accepted value of this parameter is 1, which specifies auto negotiation of speed and duplex.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
170
Comments on this document? infodev@avaya.com
Network settings
Parameter PHY2STAT
Type
Default value
Numeric 1
PHY2_AUTOMDIX Numeric 1 _ENABLED
PORT_MIRRORIN Numeric 0 G
Is set to Description default on reset
Yes
Disables the secondary Ethernet line interface or
specifies its speed and duplex mode.
Assign one of the following values:
� 0: The secondary Ethernet interface is disabled.
� 1: Speed and duplex mode of the secondary Ethernet interface are auto negotiated.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� DHCP option 43.
� The SET command in the 46xxsettings.txt file.
� The Settings > Network & Internet > Ethernet > Interfaces > PC Ethernet menu on the device.
Specifies whether auto-MDIX is enabled on the secondary Ethernet port.
Assign one of the following values:
� 0: Auto-MDIX is disabled.
� 1: Auto-MDIX is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Specifies whether Ethernet packets transmitted or received on the primary Ethernet port are copied to the secondary Ethernet port.
Assign one of the following values:
� 0: Disabled.
� 1: Enabled.
For provisioning, use the Settings > Debugging options > Port mirroring menu on the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
171
Comments on this document? infodev@avaya.com
Supported configuration parameters
VLAN settings
Parameter L2Q
Type
Default value
Numeric 0
Is set to Description default on reset
Yes
Specifies 802.1Q tagging mode. Assign one of the
following values:
� 0: Auto
� 1: On
� 2: Off
For provisioning, use:
� A name=value pair in a DHCPACK message. The precedence is 1.
� DHCP option 43. The precedence is 1.
� The SET command in the 46xxsettings.txt file. The precedence is 3.
� LLDP. The precedence is 4.
- The Avaya/Extreme Proprietary 802.1Q Framing TLV.
- The parameter is set indirectly by receiving a VLAN name with the "voice" prefix in the IEEE 802.1 VLAN Name TLV.
- The T flag in the TIA LLDP MED Network policy TLV.
� The Settings > Network & Internet > Ethernet > VLAN > VLAN tagging (802.1Q) menu on the device. The precedence is 5.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
172
Comments on this document? infodev@avaya.com
Parameter L2QVLAN
VLANTEST
Network settings
Type
Default value
Numeric 0
Numeric 60
Is set to Description default on reset
Yes
Specifies the 802.1Q VLAN identifier.
The range is from 0 to 4094.
This parameter is initialized from L2QVLAN_INIT after turning the device on. The parameter is not initialized from L2QVLAN_INIT after reset.
For provisioning, use:
� A name=value pair in a DHCPACK message. The precedence is 1.
� DHCP option 43. The precedence is 1.
� The SET command in the 46xxsettings.txt file. The precedence is 3.
� LLDP. The precedence is 4.
- The parameter is set indirectly by receiving a VLAN name with the "voice" prefix in the IEEE 802.1 VLAN Name TLV.
- The TIA LLDP MED Network policy TLV.
The Settings > Network & Internet > Ethernet > VLAN > VLAN menu on the device. The precedence is 5.
Yes
Specifies the number of seconds that Avaya
VantageTM waits for DHCPOFFER message
reception on a non-zero VLAN. The range is from 0
to 999.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� The SET command in the 46xxsettings.txt file.
� The Settings > Network & Internet > Ethernet > VLAN > VLAN test timer menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
173
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter PHY2TAGS
PHY2VLAN VLANSEP
Type
Default value
Numeric 0
Numeric 0 Numeric 1
Is set to Description default on reset
Controls whether VLAN tags are stripped from frames forwarded to the secondary Ethernet interface.
Assign one of the following values:
� 0: VLAN tags are removed from frames forwarded to the secondary Ethernet interface.
1: VLAN tags are not removed from frames forwarded to the secondary Ethernet interface.
For provisioning, use the SET command in the 46xxsettings.txt file.
Specifies the value of the 802.1Q VLAN identifier that is used to identify tagged frames through the secondary Ethernet interface.
Valid values are 0 through 4094.
For provisioning, use:
� The SET command in the 46xxsettings.txt file. The precedence is 3.
� LLDP. The precedence is 4.
Specifies whether the VLAN separation is enabled or disabled.
Assign one of the following values:
� 0: Disabled.
� 1: Enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Note: The parameters VLANSEP, PHY2TAGS, PHY2VLAN, DOT1X, PHY2_AUTOMDIX_ENABLED, and PHY2STAT are supported by K165 and K175 devices that have an embedded Ethernet switch. All K155 devices have an embedded Ethernet switch.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
174
Comments on this document? infodev@avaya.com
Network settings
IEEE 802.1X settings
Parameter DOT1X
DOT1XSTAT
Type
Default value
Numeric 0
Numeric 0
Is set to Description default on reset
Yes
Specifies whether the IEEE 802.1X Pass through
operating mode is enabled on Avaya VantageTM.
Pass through is the forwarding of Extensible Authentication Protocol over LAN (EAPOL) frames between the device's Ethernet line interface and its secondary (PC) Ethernet interface.
The options are:
� 0: EAPOL multicast pass-through is enabled without proxy logoff.
� 1: EAPOL multicast pass-through is enabled with proxy logoff.
� 2: EAPOL multicast pass-through is disabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Network & Internet > Ethernet > IEEE 802.1x authentication > Pass through mode menu on the device.
Yes
Specifies whether the IEEE 802.1X supplicant
operating mode for Ethernet is enabled on Avaya
VantageTM. The options are:
� 0: Supplicant operation is disabled.
� 1: Supplicant operation is enabled. Avaya VantageTM responds only to received unicast Extensible Authentication Protocol over LAN (EAPOL) messages.
� 2: Supplicant operation is enabled. Avaya VantageTM responds to received unicast and multicast EAPOL messages.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Network & Internet > Ethernet > IEEE 802.1x authentication > Supplicant mode menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
175
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter DOT1XEAPS
DOT1XID DOT1XPSWD
Type String
String String
Default value
MD5
Is set to Description default on reset
Yes
Specifies a list of Extensible Authentication Protocol
(EAP) methods for IEEE 802.1x authentication.
Assign one of the following values:
� TLS
� MD5
The range is a default string length.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
Ethernet Yes MAC Address of the device ($MACA DDR) without the colon separato rs
� The Settings > Network & Internet > Ethernet > IEEE 802.1x authentication > EAP Type menu on the device.
Specifies the IEEE 802.1X Supplicant identifier for the Ethernet option.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Network & Internet > Ethernet > IEEE 802.1x authentication > 802.1x credentials menu on the device.
Null
Yes
Specifies the IEEE 802.1X password for the
Ethernet option.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings > Network & Internet > Ethernet > IEEE 802.1x authentication > 802.1x credentials menu on the device.
Other operational parameters and settings
The following sections describe configuration parameters that control Avaya VantageTM behavior, but do not relate to network operations or UI appearance.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
176
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Active phone application
Parameter
Type
ACTIVE_CSDK_B String ASED_PHONE_AP P
Default value
null string
Is set to Description default on reset
Yes
The package name of an active CSDK-based
phone application.
Only one CSDK-based application can be active at a time.
When the parameter is set to the default value, Avaya VantageTM operates in the non Avaya Breeze� Client SDK application based mode. In this case, the Login screen and configuration sharing are not supported. Some configuration parameters are also not supported.
Important:
The ACTIVE_CSDK_BASED_PHONE_APP must only be used when the active phone application is an Avaya Breeze� Client SDK application. Otherwise, this parameter must use the default value.
For provisioning, use the SET command in the 46xxsettings.txt file.
With IP Office, this parameter is automaticallygenerated and is present in the K1xxSupgrade.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
177
Comments on this document? infodev@avaya.com
Supported configuration parameters
Application settings
Parameter
Type
PUSH_APPLICATI String ON
APPS_CONTROL_ String FILE
Default value null string
null string
Is set to Description default on reset
Yes
Specifies a list of applications that administrators
define for installation on Avaya VantageTM. Each
entry in the list represents a URL of the application.
The URL can be specified using:
� The relative path format. The origin is the directory specified by the FILE_SERVER_URL or HTTPDIR and TLSDIR parameters depending on whether the download uses HTTP or HTTPS.
� The absolute path format. In this case, the URL must begin with http:// or https://.
Each entry of the list must be separated by commas without any spaces between entries. Each entry consists of an application's display name followed by an equal sign (=) and a file name or URL. If display names contain space characters, you must enclose the list using double quotes.
For provisioning, use the SET command in the 46xxsettings.txt file.
With IP Office, this parameter is automaticallygenerated and is present in the K1xxSupgrade.txt file.
Yes
Specifies a path to a file containing third-party
applications installation rules for end users (black
and white lists). The path is represented by a URL.
The URL can be specified using:
� Relative path format. Origin is the directory specified by the FILE_SERVER_URL or HTTPDIR and TLSDIR parameters depending on whether the download uses HTTP or HTTPS
� Absolute path format. In this case, the URL must begin with http:// or https://
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
178
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
Default value
USER_INSTALL_A Numeric 1 PPS_GOOGLE_PL AY_STORE
PIN_APP
String
null string
Is set to Description default on reset
Yes
Specifies whether end users can install applications
from Google Play.
Assign one of the following values:
� 0: End users cannot install applications.
� 1: End users can install applications.
For provisioning, use the SET command in the 46xxsettings.txt file.
With IP Office, configure this parameter in the 46xxspecials.txt file.
Yes
Specifies the package name of the application that
must be pinned after a device restart. If this
parameter is configured and the specified
application is installed, Avaya VantageTM shows this
application after login. Users cannot switch to
another application or navigate to the Home screen.
You can also specify a comma-separated list of package names for applications to be pinned using an Avaya Launcher. You must push the launcher onto the device using the PUSH_APPLICATION parameter. PIN_APP can include a list of application, login, and upgrade package names.
For provisioning, use the SET command in the 46xxsettings.txt file.
Examples:
SET PIN_APP "com.avaya.android.vantage.basic"
SET PIN_APP "com.avaya.android.vantage.basic,com.a vaya.endpoint.avayakiosk,com.avaya.end point.login,com.avaya.endpoint.upgrade "
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
179
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
Default value
USER_INSTALL_A Numeric 1 PPS_UNKNOWN_ SOURCES
Is set to Description default on reset
Yes
Specifies whether third-party applications from
unknown, non-Google Play sources can be installed
on Avaya VantageTM.
Assign one of the following values:
� 0: Installation of third-party applications from unknown sources is disabled. End users cannot change the status through the Settings menu on the device.
� 1: Installation of third-party applications from unknown sources is disabled by default. End users can change the status through the Settings menu.
� 2: Installation of third-party applications from unknown sources is enabled by default. End users can change the status through the Settings menu.
When installation of applications from unknown sources is enabled, end users can download application APKs from non-Google Play sources, such as common third-party application stores, emails, and websites.
For provisioning, use the SET command in the 46xxsettings.txt file.
Emergency call settings
The following table describes which parameters to configure for location-specific emergency numbers.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
180
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
PHNEMERGNUM String
PHNMOREEMER String
GNUMS
list
Default value Null string
Null string
Is set to Description default on reset
Yes
Specifies the emergency number with the highest
priority. Avaya VantageTM dials this number when a
user taps Auto - dial for an emergency call.
The parameter value can contain up to 30 characters. You can use 0�9, *, and # characters.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
With IP Office, set this parameter in the 46xxspecials.txt file.
In an Avaya Aura� deployment, configure emergency numbers in the PPM server. Do not use this parameter.
Yes
Specifies an additional list of emergency numbers.
The value of the parameter is a list of emergency numbers separated by commas without any spaces between entries. The parameter value can contain up to 100 numbers. Each number can contain up to 30 characters. You can use 0�9, *, and # characters.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
With IP Office, set this parameter in the 46xxspecials.txt file.
In an Avaya Aura� deployment, configure emergency numbers in the PPM server. Do not use this parameter.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
181
Comments on this document? infodev@avaya.com
Supported configuration parameters
Protocol-specific parameters
Certificates configuration parameters
Parameter TRUSTCERTS
MYCERTURL MYCERTCN
Type String
String String
Default value null string
null string
$SERIA LNO
Is set to Description default on reset
Yes
Specifies file names of trusted certificates, which
are used for authentication.
If you are providing several file names, use commas to separate them. You can upload up to 100 trusted certificates on Avaya VantageTM. The maximum length of the parameter value is 1024 symbols. Avaya VantageTM supports both the PEM and DER file formats.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies the URL for the Simple Certificate
Enrollment Protocol (SCEP) server. Avaya
VantageTM attempts to contact the server if the
parameter value is not the default.
A valid URL must start with http://.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies the Common Name (CN) for SUBJECT in
a SCEP certificate request.
If the parameter value contains the $SERIALNO string, Avaya VantageTM replaces this string with the device serial number.
If the parameter value contains the $MACADDR string, Avaya VantageTM replaces that string with the device MAC address.
Note:
The parameter value must not contain the * symbol. If the parameter value contains this symbol, Avaya VantageTM considers the value to be invalid.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
182
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter MYCERTDN
Type String
MYCERTKEYLEN Integer
MYCERTCAID
String
Default value
Null
Is set to Description default on reset
Yes
Specifies the common part of SUBJECT in a SCEP
certificate request. This value defines the part of
SUBJECT that is common for requests from
different devices, such as Organizational Unit,
Organization, Location, State, and Country.
The parameter value must start with the slash (/) symbol.
2048
Yes
CAIdenti Yes fier
Note:
Do no use the asterisk (*) symbol. If the value contains this symbol, Avaya VantageTM considers the value to be invalid.
For example: /C=US/ST=CA/L=MILPITAS/ O=Avaya
For provisioning, use the SET command in the 46xxsettings.txt file.
Specifies the RSA private key length in bits. The private key is used on the device for certificate enrollment. Avaya VantageTM only supports keys with a length of 2048 bits.
For provisioning, use the SET command in the 46xxsettings.txt file.
Specifies the Certificate Authority Identifier (CAI).
Certificate Authority servers might require a specific CAI string in order to accept GetCA requests. If Avaya VantageTM works with such a Certificate Authority, the CA identifier string must be set through this parameter.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
183
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter SCEPPASSWORD
MYCERTREPLAC E
Type String
Numeric
Default value $SERIA LNO
90
Is set to Description default on reset
Yes
Specifies a password to use with SCEP.
The non-null value of SCEPPASSWORD is included in a challengePassword attribute in SCEP certificate signing requests.
If the value contains $SERIALNO, $SERIALNO is replaced with the value of SERIALNO. If the value contains $MACADDR, $MACADDR is replaced with the value of MACADDR without the colon separators.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Yes
Specifies the period of the certificate's validity
interval. This period is specified as a percentage.
Avaya VantageTM uses this percentage to calculate
the date of the certificate replacement before its
expiration. When the configured period is over,
Avaya VantageTM tries to download the newest
version of the certificate from the SCEP server.
The range is from 1 to 99.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
184
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
Default value
ENABLE_PUBLIC_ Numeric 0 CA_CERTS
CA_CERT_BLACK String Null LIST
Is set to Description default on reset
Yes
Specifies whether embedded Android trusted
certificates are used by application services, such
as Avaya Aura� Device Services, PPM, 802.1x
EAP-TLS, SCEP, and file downloads using HTTPS.
You can assign one of the following values:
� 0: The services do not use embedded Android trusted certificates.
� 1: The services use embedded Android trusted certificates.
In the following cases, this parameter is enforced to 1 even if it was configured as 0:
� When Avaya VantageTM is installed in a Device Enrollment Services environment.
� When Avaya VantageTM obtains the provisioning server address from a redirect from Device Enrollment Services.
� When Device Enrollment Services was used before and no private CA is retrieved from Device Enrollment Services.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies a list of comma-separated SHA-1
signatures of Android embedded trusted
certificates, which must be blocked.
Use this parameter to disable specific trusted certificates due to certificate revocation or if you do not trust the certificate. Only add certificates that are not already disabled in Android. You can find the list of these certificates in the /data/misc/ keychain/pubkey_blacklist.txt file.
This parameter can contain up to 1024 characters.
For provisioning, use the SET command in the 46xxsettings.txt file.
For example: SET CA_CERT_BLACKLIST 410f36363258f30b347d12ce4863e433437806 a8,c4f9663716cd5e71d6950b5f33ce041c95b 435d1
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
185
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter PKCS12URL
Type String
PKCS12PASSWO String RD
PKCS12_PASSWD String _RETRY
Default value Null
Null 3
Is set to Description default on reset
Yes
Specifies the URL to be used to download a PKCS
#12 file. This file contains an identity certificate and
its private key.
The parameter value can contain up to 255 ASCII characters.
The address can contain the following options:
� $SERIALNO: This options is replaced with the Avaya VantageTM serial number
� MACADDR: This option is replaced with the Avaya VantageTM MAC address without colons
For example: An Avaya VantageTMdevice has the 00-24-D7-E4-2E-98 MAC address. The URL of the PKCS file is specified as http:// <path_to_the_file>/pkc12file_ $MACADDR.cer. In this case, the PKCS file for the device must have the pkc12file_0024D7E42E98 name.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies a PKCS #12 file password.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Yes
Specifies the number of failed attempts to enter the
password for the PKCS#12 file. If the user fails to
enter the correct password, Avaya VantageTM will not
install the PKCS#12 file.
The range is from 0 to 100, where 0 means that the user cannot retry to enter the password.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
186
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
CERT_INSTALL_A String PPLICATION_LIST
ID_CERT_APPLIC String ATION_LIST
Default value all
all
Is set to Description default on reset
Yes
Specifies which applications can install trusted and
identity certificates on Avaya VantageTM. Assign one
of the following values:
� all: All applications can install certificates.
� Null string: No application can install certificates.
� A list of comma-separated application package names: Only the specified applications can install certificates. List entries are separated by commas. For example: SET CERT_INSTALL_APPLICATION_LIST flare.avaya.com,vantage.basic.avaya.c om
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies which applications can access the identity
certificate stored on Avaya VantageTM. Assign one of
the following values:
� all: All applications can access certificates.
� Null string: No application can access certificates. The exception is an active phone application defined in ACTIVE_CSDK_BASED_PHONE_APP.
� A list of comma-separated application package names: Only the specified applications can access certificates. For example: SET CERT_INSTALL_APPLICATION_LIST flare.avaya.com,vantage.basic.avaya.c om
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
187
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
Default value
DELETE_MY_CER String 0 T
CERT_WARNING_ Numeric 60 DAYS
EASG_SITE_CER String TS
null string
Is set to default on reset
Yes
Description
Specifies whether Avaya VantageTM should delete the installed identity certificate. Assign one of the following values:
� 0: The installed identity certificate remains on the system.
� 1: The installed identity certificate will be deleted from the system.
For provisioning, use:
� DHCP option 242.
� The SET command in the 46xxsettings.txt file.
Yes
Specifies the number of days before the certificate
expiry date when Avaya VantageTMstarts to display
certificate expiration warning messages. Avaya
VantageTM displays the warning message every
seven days. This parameter relates to trusted
certificates, OSCP certificates, EASG certificates,
and the identity certificate.
The range is from 0 to 99. If the value set to 0, Avaya VantageTM does not display certificate expiration warning messages.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies EASG site certificate file names. These
certificates are used by technicians when they do
not have access to the Avaya network to generate
EASG responses for SSH login.
The value of the parameter is a list of file names separated by commas without any spaces between entries. The value can contain up to 255 ASCII characters.
To delete the EASG trusted certificate from the device, remove the corresponding file name from EASG_SITE_CERTS.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
188
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
EASG_SITE_AUT String H_FACTOR
Captive Portal
Parameter
Type
CAPTIVE_PORTA String L_SERVER
Default value
null string
Is set to Description default on reset
Yes
Specifies the EASG site authentication factor code
associated with the EASG site certificate. The value
of the parameter can contain from 10 to 20
alphanumeric characters.
For provisioning, use the SET command in the 46xxsettings.txt file.
Default value
connecti vitychec k.gstatic .com
Is set to default on reset
Yes
Description
Specifies the URL of the captive portal server for HTTP authentication to use the Internet. Use the [http://]hostname[:port][/path] format, where:
� hostname is either an IP address in the dotted decimal format or a domain name.
� port is an optional port number.
� path is an optional path to the server.
If you want to disable the detection mechanism, use the null string as the parameter value.
For provisioning, use:
� DHCP option 242.
� The SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
189
Comments on this document? infodev@avaya.com
Supported configuration parameters
TLS
Parameter TLSSRVRID
TLS_VERSION
Type
Default value
Integer 1
Numeric 1
Is set to Description default on reset
Yes
Specifies whether the TLS server identification is
required. Assign one of the following values:
� 0: Certificate validation is not required. TLS connection is established in all cases.
� 1: Certificate match required. TLS connection is established only if the server identity matches the servers certificate.
For provisioning, use:
� DHCP option 43.
� The SET command in the 46xxsettings.txt file.
Yes
Specifies which TLS versions are supported with all
TLS connections used by Android and Avaya
applications. Assign one of the following values:
� 0: TLS versions 1.0 and 1.2 are supported.
� 1: TLS version 1.2 only is permitted.
Note:
Before upgrading to Release 1.1 or 2.0, you must verify that the TLS version 1.2 is enabled on the HTTP/S file server if HTTP/S is used. Otherwise, the device cannot download configuration and image files from the HTTP/S file server.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
190
Comments on this document? infodev@avaya.com
Other operational parameters and settings
LLDP
Parameter
LLDP_ENABLED
Type Integer
Default value
1
Is set to Description default on reset
Yes
Specifies whether LLDP is enabled. Assign one of
the following values:
� 0: Disabled.
� 1: Enabled.
� 2: Enabled. Avaya VantageTM starts to transmit LLDP frames only after receiving of an LLDP frame.
For provisioning, use the SET command in the 46xxsettings.txt file.
Logging and debugging parameters
Event log settings
Parameter LOGSRVR
Type String
SYSLOG_ENABLE Integer D
Default value Null
0
Is set to Description default on reset
Yes
Specifies an address of a server where syslog
messages are stored.
For Avaya VantageTM, you can define the IP address of the syslog server in the dotted decimal or DNS format. The parameter value can have up to 255 characters.
For provisioning, use:
� DHCP option 7 in a DHCPACK message.
� The Settings menu on the device.
Yes
Specifies whether Avaya VantageTM generates
syslog messages. Assign one of the following
values:
� 0: Syslog messages are disabled.
� 1: Syslog messages are enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
191
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
SYSLOG_LEVEL Integer
LOCAL_LOGS_EN Integer ABLED
Default value 3
1
Is set to Description default on reset
Yes
Specifies the severity level of syslog messages.
Avaya VantageTM sends a syslog message if a
severity level of an event is equal or less than the
value specified in this parameter. Assign one of the
following values:
� 3: Error
� 4: Warning
� 5: Notice
� 6: Informational
� 7: Debug
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Yes
Specifies whether Avaya VantageTM stores log
messages. Assign one of the following values:
� 0: Local log storage is disabled.
� 1: Local log is storage is enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
192
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
LOCAL_LOG_LEV Integer EL
Default value
4
Is set to Description default on reset
Yes
Specifies the severity level for local log messages.
Avaya VantageTM stores a log message if a severity
level of an event is equal or less than the value
specified in this parameter. Assign one of the
following values:
� 3: Error
� 4: Warning
� 5: Notice
� 6: Informational
� 7: Debug
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
193
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
LOG_CATEGORY String
Default value
ALL
Is set to Description default on reset
Yes
Specifies a list of logging categories.
The parameter value is a list of comma-separated keywords representing logging categories.
Logging implementation blocks all traces at the Warning or lower severity levels unless the category corresponding to a given trace is enabled. The device filters all ANDROID and KERNEL syslog or log categories in the following cases:
� You do not configure this parameter for these categories.
� The parameter value is not set to ALL.
If the log level is set to Warning or a lower level, this parameter enables low-level traces from adaptors or managers. This parameter applies to both syslog and local logging mechanisms.
The supported categories are: ALL, ANDROID, 8021X, ADAPMGR, CERTMGMT, CONFIG, CONFIG_MULTI, CORE, DATETIME, DAVDATA, DEVICE, DHCP, EEPROMDATA, ENCRYPT, EXTAPP, FAILOVER, FAVORITE, HISTORY, HTTP, KERNEL, LLDP, LOCALDATA, MSGMGR, MSG_ROUTING, NETADAP, NETMGR, ONEXPAUCDATA, PERSLABELS, PLATFORM_COMP, PPMDATA, PPMMESSAGE, POWER, QOS, SCRIPT, SCRIPTDATA, SECURITY, SSHDADAP, THREADWDOG, UI, UPGRADE, VMM, and WEB.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
For additional event log parameters that are supported by the CSDK-based applications, see Avaya Breeze Client SDK application parameters on page 209.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
194
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Debug report settings
Parameter
Type
BRURI
String
DEBUG_REPORT String _PASSWORD
Default value Null
Null
Is set to Description default on reset
Specifies the URI of the HTTP server where the debug and audio debug reports can be saved. You can specify the server URL in the following format:
http:// [username:password]hostname[:port][/ path]
� username:password are optional HTTP server authentication credentials.
� hostname is either an IP address in the dotted decimal format or an FQDN.
� port is an optional port number.
� path is an optional path to the directory where the reports are to be stored on the server.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
Specifies the encryption password for debug and audio debug reports that you can generate on Avaya VantageTM. When defined, the debug report and audio report encryption password is populated automatically. The device user cannot change this password when generating a debug report.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
For security reasons, Avaya recommends that you configure this parameter in the 46xxsettings.txt file only when the configuration file is downloaded from the HTTP or HTTPS file server or redirected through Device Enrollment Services and there is mutual certificate authentication.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
195
Comments on this document? infodev@avaya.com
Supported configuration parameters
Audio debug recording settings
Parameter
Type
Default value
ENABLE_RECOR Integer 0 DING
Is set to Description default on reset
Yes
Specifies whether audio debug recording is enabled
for users. On Avaya VantageTM, this parameter
controls whether audio recording is enabled as part
of the audio report.
Assign one of the following values:
� 0: Audio debug recording is disabled.
� 1: Audio debug recording is enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
SSH settings
Note: The SSH server settings on the endpoints are used by Avaya Services for debugging purposes only.
Parameter
Type
SSH_ALLOWED Integer
SSH_BANNER_FI String LE
Default value 0
Null
Is set to Description default on reset
Yes
Specifies whether the Secure Shell (SSH) is
enabled. Assign one of the following values:
� 0: Disabled.
� 1: Enabled, with challenge and response authentication.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Yes
Specifies a file name or URL of a file containing a
warning message. This message is displayed on a
SSH client before authentication.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
196
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
Default value
SSH_IDLE_TIMEO Integer 10 UT
SSH_ROOT_ALLO Numeric 0 WED
Is set to Description default on reset
Yes
Specifies the number of minutes of inactivity after
which an SSH connection is terminated. The range
is from 0 to 32767. Assign one of the following
values:
� 0: No timeout.
� 1 �32767: Number of minutes of inactivity after which SSH is disabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether sroot access is allowed. Assign
one of the following values:
� 0: sroot access is disabled.
� 1: sroot access is enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
ADB settings
Parameter
ADBSTAT
Type
Default value
Numeric 1
Is set to Description default on reset
Yes
Specifies whether Android Debug Bridge (ADB) is
enabled for application development purpose on
Avaya VantageTM.
� 0: ADB is disabled and the option to enable ADB from the Settings menu of the device is disabled.
� 1: ADB is disabled, but you can enable it from the Settings > Developer options > Debugging menu.
Since ADB is a non-secure protocol, Avaya recommends that you enable ADB for Android application development only. Otherwise, set ADBSTAT to 0.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
197
Comments on this document? infodev@avaya.com
Supported configuration parameters
USB parameters
Parameter
Type
Default value
ENABLE_USB_GE Numeric 1 NERAL_PURPOS E
Is set to Description default on reset
Yes
Specifies whether the USB general purpose port is
enabled.
Assign one of the following values:
� 0: USB port is disabled.
� 1: USB port is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
In Avaya Aura�, PPM does not back up or restore the parameter.
Upgrade-related parameters
If the upgrade policy parameters are changed, Avaya VantageTM implements these changes after a reboot or the next polling.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
198
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
UPGRADE_POLLI Integer NG_PERIOD
Default value
60
Is set to Description default on reset
Yes
Specifies the interval between two consecutive
attempts of polling the upgrade files and the
settings files. The polling interval is measured in
minutes. Assign one of the following values:
� 0: Polling is disabled.
� 5 to 10080: Polling is enabled. The minimum polling interval you can define is 5 minutes.
The parameter value range supported by Avaya VantageTM is 0, 5-10080. If you define a value from 1 to 4, Avaya VantageTM considers it as invalid and takes the default value of 60 minutes.
In each polling, the upgrade files and the settings files are downloaded if modified. If any change is identified to the settings file, then the device applies the new settings. The device checks whether a newer version of the firmware is available on the file server. If a newer version is detected, then it is downloaded and installed according to the upgrade rules defined by the parameters UPGRADE_POLICY, UPGRADE_DLOAD_START, UPGRADE_DLOAD_END, UPGRADE_INSTALL_DATE_TIME, DLOAD_RND_AFTER_RESET, and DLOAD_RND.
If the UPGRADE_POLICY value is 0, then UPGRADE_POLLING_PERIOD is ignored. The upgrade and settings files are downloaded only after a reboot. For upgrades to take place immediately after a polling, you must set UPGRADE_POLICY to 2.
UPGRADE_POLLING_PERIOD is not affected by UPGRADE_DLOAD_START and UPGRADE_DLOAD_END parameters.
Also, this parameter has no effect on any ad hoc upgrade command that is triggered by the management application or through the device UI.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
199
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
UPGRADE_POLIC Integer Y
Default value
0
Is set to Description default on reset
Yes
Specifies the upgrade policy. Assign one of the
following values:
� 0: Avaya VantageTM downloads and installs the firmware files after a reboot only. The device does not automatically poll the server for upgrade and configuration files at intervals.
For IP Office deployments, use this value.
� 1: Avaya VantageTM downloads and installs the firmware files according to upgrade policy rules and management application settings. Avaya VantageTM does not perform the upgrade after a reboot.
� 2: Avaya VantageTM downloads and installs the firmware files after any reboot and according to upgrade policy rules and management application settings.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
200
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
UPGRADE_DLOA String D_START
UPGRADE_DLOA String D_END
Default value 00
00
Is set to default on reset
Yes
Description
Specifies a time when Avaya VantageTM starts trying to download new upgrade image files.
The value of parameter is a string in the [Ddd]hh format, where:
� [Ddd] is a day of the week. The valid values are Sun, Mon, Tue, Wed, Thu, Fri, or Sat. This component is optional. If the component is omitted, Avaya VantageTMperforms polling every day.
� hh is one or two numeric digits representing the hour of the day. The range is from 0 to 23.
If the value of UPGRADE_DLOAD_START is equal to the value of UPGRADE_DLOAD_END, then no polling period is specified and Avaya VantageTM can download upgrade files at any time. UPGRADE_DLOAD_START and UPGRADE_DLOAD_END are ignored if UPGRADE_POLICY is set to 0. These parameters are applicable only when UPGRADE_INSTALL_DATE_TIME is configured to a future date.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies a time when Avaya VantageTM stops trying
to download new upgrade image files. Even after
the specific time is up, any ongoing file downloads
are taken to completion. However, new file
downloads are scheduled for the next download
timeframe.
The value of the parameter uses the [Ddd]hh format, where:
� [Ddd] is a day of the week. The valid values are Sun, Mon, Tue, Wed, Thu, Fri, or Sat. This component is optional. If the component is omitted, Avaya VantageTMperforms polling every day.
� hh is one or two numeric digits representing a hour of the day. The range is from 0 to 23.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
201
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
UPGRADE_INSTA String LL_DATE_TIME
DLOAD_RND_AFT Integer ER_RESET
Default value 1970-01 -01T00: 00
0
Is set to default on reset
Yes
Description
Specifies the date and time when Avaya VantageTM starts to install the downloaded upgrade files.
The value of the parameter uses the YYYY-MMDDThh:mm format, where:
� YYYY is four numeric digits representing the year
� MM is two numeric digits representing the month.
� dd is two numeric digits representing the day of the month.
� T is the time separator.
� hh is two numeric digits representing a hour of the day. The range is from 0 to 23.
� mm is two numeric digits representing minutes of the hour. The range is from 0 to 59.
If the default value is used or the value is set to a past date and UPGRADE_POLICY is set to 2, Avaya VantageTM installs upgrade files immediately after downloading irrespective of other parameter definitions.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies the maximum length of the interval Avaya
VantageTM waits after reboot before attempting to
download the upgrade files. The interval is
measured in seconds. Assign one of the following
values:
� 0: The interval is not specified. Avaya VantageTM starts the download immediately after reboot.
� 1 � 32767: After reboot, Avaya VantageTM delays the download. The exact delay interval is determined as a random number in a range between 0 and the DLOAD_RND_AFTER_RESET value.
Avaya recommends that you configure randomized download time in an environment where multiple devices access the file server at the same time.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
202
Comments on this document? infodev@avaya.com
Parameter DLOAD_RND
Other operational parameters and settings
Type Integer
Default value
3600
Is set to Description default on reset
Yes
Specifies the maximum length of an interval
between two consecutive attempts of background
downloading. The interval is measured in seconds.
Assign one of the following values:
� 0: The interval is not specified. Avaya VantageTM performs background download attempts without delay.
� 1 � 32767: Avaya VantageTM inserts a delay between two background download attempts. The exact delay interval is determined as a random number in a range between 0 and the DLOAD_RND value.
For provisioning, use the SET command in the 46xxsettings.txt file.
Security parameters
Parameter SELINUX_MODE
Type
Default value
Numeric 1
Is set to Description default on reset
N/A
Specifies the SELinux mode.
� 0: Sets the permissive mode.
� 1: Sets the enforcing mode.
Setting the SELinux mode triggers a device reset. End users get the options to reset immediately or later.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
203
Comments on this document? infodev@avaya.com
Supported configuration parameters
General account IDs & passwords
Parameter SIPUSERNAME SIPPASSWORD
SIPHA1
Type String String
String
Default value Null
Null
Null
Is set to Description default on reset
Yes
Specifies the user's account to register on a SIP
server.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use:
� Enter the user account name on the Login screen.
� Use the SET command in the settings file from Avaya Aura� Device Services. The 46xxsettings.txt file from the HTTP or HTTPS server is not supported.
Yes
Specifies the user's password used to register on a
SIP server.
The parameter value can contain up to 255 alphanumerical characters.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning:
� Enter the user account name on the Login screen.
� Use the SET command in the settings file from Avaya Aura� Device Services. The 46xxsettings.txt file from the HTTP or HTTPS server is not supported.
Yes
Specifies the HA1 hash value of the user's
password used to register on a SIP server. HA1 is
calculated as MD5 (username:domain:password).
The parameter value can contain up to 255 alphanumerical characters.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
This parameter is only configurable from Avaya Aura� Device Services. The 46xxsettings.txt file from the HTTP or HTTPS server is not supported.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
204
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter PROCPSWD
Type String
ADMIN_PASSWO String RD
Default value 27238
Null
Is set to Description default on reset
Yes
Specifies the password required to access local
administrator menu options in the Settings menu on
Avaya VantageTM.
The parameter value can contain from 4 to 7 numeric characters.
If both PROCPSWD and ADMIN_PASSWORD have default values, you cannot access administrator options in the Settings menu.
For provisioning, use:
� A name=value pair in a DHCPACK message.
� The SET command in the 46xxsettings.txt file.
� The value stored on the PPM server.
Yes
Specifies the complex password required to access
local administrator options in the Settings menu on
Avaya VantageTM.
The range is the default string length.
� If ADMIN_PASSWORD is configured, Avaya VantageTM ignores PROCPSWD.
� If ADMIN_PASSWORD has the default value, Avaya VantageTM uses PROCPSWD to provide access to administrator options in the Settings menu. If PROCPSWD has the default value, you cannot access administrator menu options.
For provisioning, use the SET command in the 46xxsettings.txt file.
This parameter is supported in the Tablet mode.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
205
Comments on this document? infodev@avaya.com
Supported configuration parameters
Phone lock and idle time parameters
Parameter
Type
Default value
ENABLE_PHONE_ Numeric 0 LOCK
Is set to Description default on reset
No
Specifies whether the Lock screen is enabled on
the device.
� 0: The Lock screen is disabled.
� 1: The Lock screen is enabled.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
206
Comments on this document? infodev@avaya.com
Other operational parameters and settings
Parameter
Type
Default value
PHONE_LOCK_ID Numeric 60 LETIME
PHONE_LOCK_PA Numeric 8 SSWORD_FAILED _ATTEMPTS
Is set to Description default on reset
No
Specifies the maximum interval of idle time in
minutes after which Avaya VantageTM is locked
automatically.
The range is from 1 to 10080.
Avaya VantageTM ignores this parameter if ENABLE_PHONE_LOCK is 0.
The user can choose a smaller idle time than this parameter value in the Settings > Security & location > Automatically lock menu. Avaya VantageTM uses this parameter value to determine the number of options it shows to the user in the Settings > Security & location > Automatically lock and Settings > Display > Sleep menus. By default, the Automatically lock and Sleep fields have the following options: 1, 2, 5, 10, 30 minutes, 1 hour, 2 hours, 5 hours, 10 hours, 1 day, 2 days, and 1 week. The minimum value is 1 minute. The maximum value is the minimum value between the PHONE_LOCK_IDLETIME value and the value specified by the Exchange policy.
For example, if the PHONE_LOCK_IDLETIME value is 145 and the value specified by the Exchange policy is 123 minutes, then the Automatically lock field provides options from 1 minute to 2 hours inclusively.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies the number of failed login attempts before
Avaya VantageTM becomes locked.
The range is from 8 to 20. If the parameter set to 0, then the number of failed attempts is unlimited.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
207
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
Default value
LOCK_SCREEN_L Numeric 5 OCK_AFTER_TIM EOUT
ALLOW_LOGOUT Numeric 1 _WHEN_LOCKED
BAKLIGHTOFF
Numeric 10
Is set to Description default on reset
Yes
Specifies the Lock screen inactivity timeout in
minutes. The range is from 1 to 10080.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use the Settings menu on the device.
Yes
Specifies whether users can log out from the Lock
screen. Assign one of the following values:
� 0: A user cannot perform logout when the device is locked.
� 1: A user can perform logout from the Lock screen.
� 2: When device is locked, an administrator can perform logout through the Settings menu only. In addition, the logout option is available only for administrator when the device is unlocked and logged in.
This parameter is not supported in the non Avaya Breeze� Client SDK application based mode.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
Yes
Specifies the idle time in minutes after which the
display backlight on the device is turned off.
The range is from 0 to 999.
For K155, the range is from 1 to 60.
A value of 0 means that the display backlight is not turned off automatically when the phone is idle.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The Settings menu on the device.
This parameter can be stored on the PPM or backup server.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
208
Comments on this document? infodev@avaya.com
Avaya Breeze� Client SDK application parameters
Avaya Breeze� Client SDK application parameters
The following parameters are supported by Avaya Breeze� Client SDK applications, including Avaya VantageTM Connect and Avaya Equinox�, on Avaya VantageTM.
For additional parameters specific to Avaya VantageTM Connect, see Avaya Vantage Connect parameters on page 218.
For a detailed list of parameters supported by Avaya Equinox� on Avaya VantageTM, see Planning for and Administering Avaya Equinox� for Android, iOS, Mac, and Windows.
Avaya Aura� Device Services parameters
Parameter ACSENABLED
Type
Default value
Numeric 0
Is set to Description default on reset
Yes
Specifies whether Avaya VantageTM Connect uses
contacts stored on Avaya Aura� Device Services.
You can assign one of the following values:
� 0: Avaya VantageTM Connect does not use contacts from Avaya Aura� Device Services. Instead, Avaya VantageTM Connect uses PPM contacts.
� 1: Avaya VantageTM Connect uses contacts from Avaya Aura� Device Services. Avaya VantageTM Connect does not use PPM contacts.
ACSSRVR
String Null
Yes
string
For provisioning, use the SET command in the 46xxsettings.txt file.
Specifies the address of Avaya Aura� Device Services contact services. The address is either an IP address in the dotted decimal format or a domain name.
ACSPORT
For provisioning, use the SET command in the 46xxsettings.txt file.
Numeric 443
Yes
Specifies the port number Avaya VantageTM Connect
uses to connect to Avaya Aura� Device Services
contact services.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
209
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter ACSSECURE
Type
Default value
Numeric 1
Is set to Description default on reset
Yes
Specifies whether a secure connection is used.
Assign one of the following values:
� 0: Secure connection is not used. Avaya VantageTM Connect uses HTTP over TCP.
� 1: Secure connection is used. Avaya VantageTM Connect uses HTTPS over TLS.
For provisioning, use the SET command in the 46xxsettings.txt file.
RTP parameters
Parameter
Type
Default value
RTP_PORT_LOW Numeric 5004
RTP_PORT_RAN Numeric 40 GE
Is set to Description default on reset
Yes
Specifies the minimum UDP port range value to be
used by RTP/RTCP or SRTP/SRTCP connections.
You can assign a value between 1024 and 65503.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies the UDP port range that Avaya VantageTM
Connect uses for RTP/RTCP or SRTP/SRTCP
connections.
You can assign a value between 32 and 64511.
The maximum value of the range is calculated as a sum of the RTP_PORT_LOW and RTP_PORT_RANGE values.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
210
Comments on this document? infodev@avaya.com
Avaya Breeze� Client SDK application parameters
SRTP parameters
Parameter
Type
Default value
MEDIAENCRYPTI String ON
1,2,9
ENCRYPT_SRTCP Numeric 0
Is set to Description default on reset
Yes
Specifies which media encryption options are
supported.
The value of the parameter is a list of up to 3 options, which must be separated by commas. The following options are available:
� 1: aescm128�hmac80
� 2: aescm128�hmac32
� 9: none
� 10: aescm256�hmac80
� 11: aescm256�hmac32
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether RTCP packets are encrypted.
SRTCP is only used if encryption is enabled using
MEDIAENCRYPTION.
Assign one of the following values:
� 0: SRTCP is disabled.
� 1: SRTCP is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
211
Comments on this document? infodev@avaya.com
Supported configuration parameters
Audio codec parameters
Parameter
Type
Default value
ENABLE_OPUS Numeric 1
OPUS_PAYLOAD_ Numeric 116 TYPE
Is set to Description default on reset
Yes
Specifies whether the OPUS codec is enabled.
Assign one of the following values:
� 0: Disabled.
� 1: Enabled WIDEBAND_20K.
� 2: Enabled NARROWBAND_16K.
� 3: Enabled NARRWOBAND_12K.
For Avaya VantageTM Connect, this parameter is supported in both the Avaya Aura� and IP Office environments.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies the RTP payload type that is used for the
OPUS codec. The range is from 96 to 127.
This parameter is used when media offer is sent to the far end in INVITE or 200 OK when INVITE with no SDP is received.
Avaya VantageTM Connect does not support this parameter.
For provisioning, use the SET command in the 46xxsettings.txt file.
Video parameters
Parameter
Type
Default value
VIDEO_MAX_BAN Numeric 1280 DWIDTH_ANY_NE TWORK
Is set to Description default on reset
Yes
Specifies the maximum bandwidth for video calls.
The bandwidth is measured in kilobits per second
(kbps).
You can assign one of the following values:
� 0: Video is blocked.
� 1 to 10000: Maximum allowed bandwidth.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
212
Comments on this document? infodev@avaya.com
Avaya Breeze� Client SDK application parameters
Parameter ENABLE_VIDEO
Type
Default value
Numeric 1
Is set to Description default on reset
Yes
Specifies whether video is enabled or disabled.
You can assign one of the following values:
� 0: Video is disabled.
� 1: Video is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Logging parameters
Parameter
Type
Default value
LOG_VERBOSITY Numeric 0
ANALYTICSENAB Integer 1 LED
Is set to Description default on reset
Yes
Specifies whether verbose logging is enabled.
Assign one of the following values:
� 0: Only Info log messages are collected.
� 1: Debug and Info log messages are collected. Use this value to collect logs for debugging purposes.
If the parameter value is changed, changes will be applied after reboot.
Note:
To collect application logs, you must also enable logging and set up the local and remote logging level on Avaya VantageTM. Assign one of the following values to the SYSLOG_LEVEL and LOCAL_LOG_LEVEL parameters:
� Debug: To collect Debug log messages.
� Notice: To collect Info log messages.
Yes
Defines whether to allow Avaya to collect data using
Google Analytics on behalf of the administrator's
user community. Assign one of the following values:
� 0: Data collection is disabled.
� 1: Data collection is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
213
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
SUPPORTEMAIL String
Default value
Null
Is set to Description default on reset
Yes
Defines the default email address for sending
diagnostic logs.
The parameter value is used when you try to send the debug or audio report to an email application.
For provisioning, use the SET command in the 46xxsettings.txt file.
Contact parameters
Parameter
Type
NAME_SORT_OR String DER
Default value
last,first
NAME_DISPLAY_ Numeric 0 ORDER
Is set to Description default on reset
Yes
Specifies how contact names are sorted by the
active Avaya Breeze� Client SDK application.
You can assign one of the following values:
� last,first: The active Client SDK application sorts contacts according to the last name and then the first name.
� first,last: The active Client SDK application sorts contacts according to the first name and then the last name.
For example: SET NAME_SORT_ORDER "first,last".
For provisioning, use the SET command in the 46xxsettings.txt file.
You can also set this parameter value using the settings menu option on the Client SDK application.
Yes
Specifies how contact names are displayed by the
active Avaya Breeze� Client SDK application.
You can assign one of the following values:
� 0: The active Client SDK application displays the last name followed by the first name.
� 1: The active Client SDK application displays the first name followed by the last name.
For provisioning, use the SET command in the 46xxsettings.txt file.
You can also set this parameter value using the settings menu option on the Client SDK application.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
214
Comments on this document? infodev@avaya.com
Avaya Breeze� Client SDK application parameters
Dialing rule parameters
Parameter ENHDIALSTAT
Type Numeric
Default value 1
Is set to default on reset
Yes
PHNCC PHNIC
String Null string
Yes
String Null string
Yes
PHNLD
String Null string
Yes
PHNDPLENGTH String Null string
Yes
PHNLDLENGTH String Null string
Yes
PHNOL
String Null string
Yes
Description
Specifies whether the dialing rules are used during certain dialing activities. Assign one of the following values:
� 0: To disable the dialing algorithm.
� 1: To enable the dialing algorithm for all outgoing calls.
Specifies the country code. Valid values are from 1 to 999.
Specifies the access code that you dial to make international calls.
The value can be of 0 to 4 characters in length. The allowed characters are 0-9, *, and #.
Specifies the access code that you dial to make long distance calls.
Valid values are from 0 to 9, and null string (""). If long distance access code is not required, set the value to ""
Specifies the length of internal extension numbers. The value must match the extension length set on the call server.
The valid range is from 3 to 13.
Specifies the length of national phone numbers of the country that is considered in the dial plan.
Valid values are from 5 to 15.
Specifies the outside line access code, which is the number you press to access an external line.
The value can be of 0 to 2 characters in length. The allowed characters are 0-9, *, and #.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
215
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
APPLY_DIALINGR ULES_TO_PLUS_ NUMBERS
Type Numeric
Default value 0
Is set to default on reset
Yes
AUTOAPPLY_ARS Numeric 1
Yes
_TO_SHORTNUM
BERS
PHNREMOVEARE String 0
Yes
ACODE
Description
Specifies whether to apply dialing rules on phone numbers with the plus sign (+) at the beginning.
Assign one of the following values:
� 0: To ignore the dialing rules for phone numbers that begin with the plus sign (+).
� 1: To replace the plus sign (+) with dial plan digits.
In Avaya Aura�, whenever possible, configure the plus (+) dialing option in Session Manager instead of enabling this parameter.
Specifies whether to disable the dialing rules logic that automatically appends the outside line access code (PHNOL) to numbers that are shorter than the shortest extension length.
Assign one of the following values:
� 0: To disable the logic. The PHNOL code is not appended to numbers that are shorter than the shortest extension length.
� 1: To enable the logic. The PHNOL code is appended to numbers that are shorter than the shortest extension length.
Specifies whether the area code must be removed for local calls.
This parameter is obsolete. While it is still supported for backward compatibility, Avaya recommends that you use the newer parameter, DIALPLANLOCALCALLPREFIX.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
216
Comments on this document? infodev@avaya.com
Avaya Breeze� Client SDK application parameters
Parameter
Type
DIALPLANLOCAL String CALLPREFIX
DIALPLANNATION String ALPHONENUMLE NGTHLIST
DIALPLANEXTEN String SIONLENGTHLIST
DIALPLANPBXPR String EFIX PHNPBXMAINPRE String FIX
DIALPLANAREAC String ODE
Default value 0
Is set to default on reset
Yes
Null string
Yes
Null string
Yes
Null string
Yes
Description
Indicates whether the area code must be removed for local calls. Assign one of the following values:
� 0: To disable the removal of the area code for local calls.
� 1: To enable the removal of the area code for local calls.
Note:
The area code is configured using DIALPLANAREACODE. Specifies a list of national phone number length (PHNLDLENGTH) values separated by commas.
This parameter takes precedence over PHNLDLENGTH.
Example:
SET DIALPLANNATIONALPHONENUMLENGTHLI ST 10,11 Specifies a list of internal extension length (PHNDPLENGTH) values separated by commas.
This parameter takes precedence over PHNDPLENGTH.
Example:
SET DIALPLANEXTENSIONLENGTHLIST 7,8 Specifies the PBX main prefix.
Null string
Yes
Null string
Yes
Specifies the PBX main prefix.
This parameter is obsolete. While it is still supported for backward compatibility, Avaya recommends that you use the newer parameter, DIALPLANPBXPREFIX.
Specifies the area or city code.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
217
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter SP_AC
Type String
Default value Null string
Is set to default on reset
Yes
Description
Specifies the area or city code. This parameter is obsolete. While it is still supported for backward compatibility, Avaya recommends that you use the newer parameter, DIALPLANAREACODE.
Conferencing parameters
Parameter
Type
CONFERENCE_F String ACTORY_URI
Default value Null string
Is set to default on reset
Description
Specifies the URI for network conferencing in an IP Office deployment. The URI consists of a dial string followed by @, followed by a domain. Example: SET CONFERENCE_FACTORY_URI "93375000@avaya.com" With IP Office, this parameter is automatically generated.
Avaya VantageTM Connect parameters
Layer 3 QoS parameters Important: The following layer 3 QoS parameters are only used in the IP Office environment. In the Avaya Aura� environment, the value is taken from PPM and configured through System Manager.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
218
Comments on this document? infodev@avaya.com
Parameter DSCPAUD
DSCPSIG
DSCPVID
Avaya VantageTM Connect parameters
Type
Default value
Numeric 46
Numeric 34 Numeric 34
Is set to Description default on reset
Yes
Specifies the decimal presentation of Differentiated
Services Code Point (DSCP) for audio frames
generated by the device.
You can assign a value between 0 and 63.
For provisioning, use:
� The SET command in the 46xxsettings.txt file. The precedence is 3.
� The TIA LLDP MED Network policy TLV. The precedence is 4.
Yes
Specifies the decimal presentation of DSCP for
signaling frames generated by the device.
You can assign a value between 0 and 63.
For provisioning, use:
� The SET command in the 46xxsettings.txt file. The precedence is 3.
� The TIA LLDP MED Network policy TLV. The precedence is 4.
Yes
Specifies the decimal presentation of DSCP for
video frames generated by the device.
You can assign a value between 0 and 63.
For provisioning, use:
� The SET command in the 46xxsettings.txt file. The precedence is 3.
� The TIA LLDP MED Network policy TLV. The precedence is 4.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
219
Comments on this document? infodev@avaya.com
Supported configuration parameters
Call option parameters
Parameter
Type
Default value
ENABLE_REDIAL Numeric 1
CCBTNSTAT
Numeric 1
HOLDSTAT
Numeric 1
Is set to Description default on reset
Yes
Specifies whether the Redial button is available to
users.
Assign one of the following values:
� 0: The Redial button is unavailable.
� 1: The Redial button is available.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether you can enable or disable the
conferencing, call transfer, call hold, and mute
features separately using the corresponding
parameters.
Assign one of the following values:
� 0: Avaya VantageTM Connect uses the values of parameters related to these features. You can configure the availability of each feature separately.
� 1: Avaya VantageTM Connect ignores the values of parameters related to these features. All features are available to users.
When CCBTNSTAT is set to 0, use the following parameters to configure feature availability:
� CONFSTAT: For conferencing
� HOLDSTAT: For call hold
� MUTESTAT: For mute
� XFERSTAT: For call transfer
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether the Hold button is available to
users. Avaya VantageTM Connect ignores this
parameter if CCBTNSTAT is set to 1.
Assign one of the following values:
� 0: The Hold button is disabled.
� 1: The Hold button is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
220
Comments on this document? infodev@avaya.com
Avaya VantageTM Connect parameters
Parameter MUTESTAT
Type
Default value
Numeric 1
CONFSTAT
Numeric 1
XFERSTAT
Numeric 1
POUND_KEY_AS_ Numeric 1 CALL_TRIGGER
Is set to Description default on reset
Yes
Specifies whether the Mute button is available to
users. This option controls muting for both audio
and video. Avaya VantageTM Connect ignores this
parameter if CCBTNSTAT is set to 1.
Assign one of the following values:
� 0: The Mute button is disabled.
� 1: The Mute button is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether the Conference button is
available to users. Avaya VantageTM Connect
ignores this parameter if CCBTNSTAT is set to 1.
Assign one of the following values:
� 0: The Conference button is disabled.
� 1: The Conference button is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether the Call transfer button is
available to users. Avaya VantageTM Connect
ignores this parameter if CCBTNSTAT is set to 1.
Assign one of the following values:
� 0: The Call transfer button is disabled.
� 1: The Call transfer button is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
In off-hook dialing, specifies whether:
� Pressing the pound key (#) triggers a call.
� The pound key is considered a dialed digit.
Assign one of the following values:
� 0: The pound key is considered a dialed digit.
� 1: The pound key triggers a call.
In the IP Office environment, set POUND_KEY_AS_CALL_TRIGGER to 0.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
221
Comments on this document? infodev@avaya.com
Supported configuration parameters
Audio codec parameters
Parameter
Type
Default value
ENABLE_G711A Numeric 1
ENABLE_G711U Numeric 1
ENABLE_G722
Numeric 1
ENABLE_G726
Numeric 1
ENABLE_G729
Numeric 1
Is set to Description default on reset
Yes
Specifies whether the G.711 a-law codec is
enabled. Assign one of the following values:
� 0: Disabled.
� 1: Enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether the G.711 mu-law codec is
enabled. Assign one of the following values:
� 0: Disabled.
� 1: Enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether the G.722 codec is enabled.
Assign one of the following values:
� 0: Disabled.
� 1: Enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether the G.726 codec is enabled.
Assign one of the following values:
� 0: Disabled.
� 1: Enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies whether the G.729A codec is enabled.
Assign one of the following values:
� 0: Disabled.
� 1: Enabled without Annex B support.
� 2: Enabled with Annex B support.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
222
Comments on this document? infodev@avaya.com
Avaya VantageTM Connect parameters
Audio parameters
Parameter
Type
ADMIN_CHOICE_ String RINGTONE
Default value
Default
Is set to default on reset
Yes
Description
Specifies the ring tone that Avaya VantageTM Connect uses for incoming calls.
When the parameter is set to "Default", the Avaya built-in ringtone is used for incoming calls.
Otherwise, you can specify the name of one of the ringtones available on the device.
For provisioning, use the SET command in the 46xxsettings.txt file.
Contact parameters
Parameter
Type
Default value
ENABLE_MODIFY Numeric 1 _CONTACTS
Is set to Description default on reset
Yes
Specifies whether users can modify contacts.
Assign one of the following values:
� 0: Users cannot modify contacts.
� 1: Users can modify contacts.
For provisioning, use the SET command in the 46xxsettings.txt file.
Display parameters
Parameter
Type
BRANDING_FILE String
Default value
null string
Is set to Description default on reset
Yes
Specifies the URL of a branding image. Avaya
VantageTM Connect displays this image on the top
left corner of all screens instead of the Avaya logo.
Specify the URL using the absolute path format, where the URL must start with either http:// or https://.
The image must use the following settings:
� Resolution: 142x56.
� File format: PNG, JPG, JPEG, GIF, or BMP.
For provisioning, use the SET command in the 46xxsettings.txt file.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
223
Comments on this document? infodev@avaya.com
Supported configuration parameters
IP Office parameters
When used as a file server, the IP Office system automatically generates the 46xxsettings.txt file with the parameters that specify the settings of the Avaya VantageTM device. The automatically generated 46xxsettings.txt file includes parameter settings that are required for IP Office operation, including those that are automatically adjusted to match the configuration of the IP Office system. Avaya recommends that you do not modify the automatically generated settings file. The automatically generated settings file does not include all the settings for Avaya VantageTM; for example, the emergency numbers. If the Lock mode is enabled, for the device user to be able to make an emergency call from a locked device, you must configure the location-specific emergency numbers in the 46xxspecials.txt file. When enabled, you can use the 46xxspecials.txt file for additional device settings or override selected settings in the automatically generated file. For more information about using a 46xxspecials.txt file, see Avaya IP OfficeTM Platform SIP Telephone Installation Notes. The following table lists a subset of IP Office core settings parameters that are supported on Avaya VantageTM.
Parameter ENABLE_IPOFFICE
Type Numeric
Default value
0
ENABLE_AVAYA_EN Numeric 1 VIRONMENT
Description
Specifies whether the deployment environment is IP Office.
The parameter takes one of the following values according to the deployment environment:
� 0: Non IP Office environment.
� 1: IP Office environment.
For provisioning, use the SET command in the settings file. Specifies whether the device is configured for use in an Avaya or a third-party proxy environment.
You can assign one of the following values:
� 0: Operates in a mode to comply with third-party SIP proxy provisioning with SIPPING-19. For IP Office and third-party call control environments, use this value.
� 1: Operates in the Avaya environment with advanced SIP telephony features and PPM. Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
224
Comments on this document? infodev@avaya.com
IP Office parameters
Parameter
Type
DISCOVER_AVAYA_ Numeric ENVIRONMENT
Default value
1
SIMULTANEOUS_RE Numeric 3 GISTRATIONS
REGISTERWAIT
Numeric 900
USER_STORE_URI String
Null
PSTN_VM_NUM
String
Null
Description
Specifies whether the device should discover and verify if the SIP controller supports Advanced SIP Telephony (AST) feature set.
You can assign one of the following values:
� 0: The device operates in a mode where AST features are not available. For IP Office and third-party call control environments, use this value.
� 1: The device determines whether the SIP controller supports AST features in the Avaya environment. If the device receives a positive response, then it synchronizes with PPM. If synchronization. If the device does not receive a response, it operates in a mode where AST features are not available.
Specifies the number of Session Manager instances with which the device can simultaneously register. The range is from 1 to 3.
In an IP Office environment, the value of the parameter is set to 1.
Specifies the number of seconds between re-registrations with the current server. Valid values are from 30 to 86400.
Specifies the URI to be used for backup and retrieval of IP Office contacts. The parameter specifies the IP Office directory path to the backup file, but does not specify the backup file name.
With IP Office, set this parameter to the IP address or FQDN of IP Office so that Avaya VantageTM can fetch IP Office contacts.
For provisioning, use he SET command in the settings file.
Specifies the telephone number to be dialed automatically when the telephony user presses the Messaging button. The specified number is used to connect to the user's voice mail system.
PSTN_VM_NUM is used with IP Office and third-party SIP call control environments instead of MSGNUM.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
225
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter
Type
SUBSCRIBE_LIST_N String ON_AVAYA
Default value
Description
reg, messagesummary, avayaccsprofile
Specifies a comma-separated list of event packages to subscribe to after registration.
Possible values: reg, dialog, mwi, ccs, messagesummary, and avaya-ccs-profile.
The values are not case sensitive.
For IP Office, the recommended value is "reg, messagesummary, avaya-ccs-profile".
For a third-party SIP call control environment, the value can be set to "message-summary".
LDAP directory service settings
To enable or disable LDAP directory search on Avaya VantageTM and to connect Avaya VantageTM to the directory server, you must define the following parameters:
Parameter DIRENABLED_PL ATFORM
DIRSRVR
Type
Default value
Numeric 0
String Null
Is set to Description default on reset
Yes
Specifies whether the LDAP directory search
feature is enabled on Avaya VantageTM.
You can assign one of the following values:
� 0: LDAP directory search is disabled.
� 1: LDAP directory search is enabled.
For provisioning, use the SET command in the 46xxsettings.txt file.
Yes
Specifies the IP address or fully qualified domain
name (FQDN) of the LDAP directory server.
Valid values are zero or more addresses separated by commas without intervening spaces.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
226
Comments on this document? infodev@avaya.com
LDAP directory service settings
Parameter DIRSRVRPRT DIRTOPDN
DIRSECURE
Type
Default value
Numeric 636
String Null
Boolean 1
Is set to Description default on reset
Yes
Specifies the port number for the LDAP directory
server.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
Yes
Specifies the LDAP search base.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
Example: SET DIRTOPDN "dc=global,dc=avaya,dc=com"
Yes
Specifies whether to use TLS of TCP for LDAP.
You can assign one of the following values:
� 0: Use TCP.
� 1: Use TLS.
When you set to use TLS for LDAP, Avaya VantageTM supports secure LDAP, that is, LDAPS. LDAPS supports both client and server authentication. For server authentication, you must add the trusted certificate to an HTTP or HTTPS server and include certificate in the TRUSTCERTS parameter value. Client authentication is based on the Avaya VantageTM identity certificates installed using SCEP or PKCS12.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
Table continues...
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
227
Comments on this document? infodev@avaya.com
Supported configuration parameters
Parameter DIRREFERRALS
Type
Default value
Numeric 1
Is set to default on reset
Yes
Description
Specifies whether Avaya VantageTM supports LDAP referrals.
You can assign one of the following values:
� 0: LDAP referrals are disabled.
� 1: LDAP referrals are enabled.
For provisioning, use:
� The SET command in the 46xxsettings.txt file.
� The settings file received from Avaya Aura� Device Services.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
228
Comments on this document? infodev@avaya.com
Appendix B: Parameter configuration examples in the settings file
Parameter configuration example for Avaya Aura� with SIP credentials
The following is a configuration example of mandatory parameters in the 46xxsettings.txt file when the deployment environment is Avaya Aura� with SIP credentials:
SET TIMEZONE "America/New_York" SET SNTPSRVR "149.12.34.567" SET ACTIVE_CSDK_BASED_PHONE_APP "com.avaya.android.vantage.basic" SET TRUSTCERTS "prod-sip-ca.crt" SET SIP_CONTROLLER_LIST "135.12.345.670:5061;transport=tls" SET SIPDOMAIN "avaya.com" SET TLSSRVRID 0 SET USER_AUTH_FILE_SERVER_URL ""
The double quotes ("") are optional for the above configuration parameter examples. However, to include spaces in a parameter value, you must enclose the value using double quotes ("") Some considerations while configuring parameters:
� When you are using SIP credentials, USER_AUTH_FILE_SERVER_URL must remain with the default value, which is null ("").
� You must configure SNTPSRVR if the default Avaya and NIST SNTP servers are not accessible from the customer network. Specifying an SNTPSRVR value that is reachable from your network is essential for SIP registration and initial device setup when you start up Avaya VantageTM.
� You must set TLSSRVRID to 0 if: - Avaya default SIP Root CA certificates are used. - The identity certificate of Avaya VantageTM services does not include Subject Alternative name with the FQDN or IP address of the services. - The SIP controller identity certificate does not include the correct SIP domain in Subject Alternative Name. - The identity certificate does not include a common name for other services.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
229
Comments on this document? infodev@avaya.com
Parameter configuration examples in the settings file
Parameter configuration example for Avaya Aura� with user enterprise credentials
The following is a configuration example of mandatory parameters in the 46xxsettings.txt file when the deployment environment is Avaya Aura� with user enterprise credentials:
SET TIMEZONE "America/New_York" SET SNTPSRVR "149.12.34.567" SET ACTIVE_CSDK_BASED_PHONE_APP "com.avaya.android.flare" SET TRUSTCERTS "prod-sip-ca.crt,digi-intermed.txt" SET SIP_CONTROLLER_LIST "135.12.345.670:5061;transport=tls" SET SIPDOMAIN "avaya.com" SET USER_AUTH_FILE_SERVER_URL "https://aads.service.com:8443" SET TLSSRVRID 0
The double quotes ("") are optional for the above configuration parameter examples. However, to include spaces in a parameter value, you must enclose the value using double quotes ("") Some considerations while configuring parameters:
� When you are using user enterprise credentials for authentication through Avaya Aura� Device Services, you must configure USER_AUTH_FILE_SERVER_URL.
� Although Avaya Aura� Device Services identity certificate root CA is available in the Android "VPN and APPS" trusted certificate repository, you must include it in the downloaded trusted certificates defined in TRUSTCERTS.
� You must configure SNTPSRVR if the default Avaya and NIST SNTP servers are not accessible from the customer network. Specifying an SNTPSRVR value that is reachable from your network is essential for SIP registration and initial device setup when you start up Avaya VantageTM.
Parameter configuration example for IP Office with SIP credentials
The following is an example of mandatory parameters included in the automatically generated settings file for an IP Office deployment with SIP credentials:
SET SNTPSRVR "149.12.34.567" SET TRUSTCERTS "prod-sip-ca.crt" SET SIP_CONTROLLER_LIST "135.12.345.670:5061;transport=tls" SET SIPDOMAIN "avaya.com" SET TLSSRVRID 1 SET ENABLE_IPOFFICE 1 SET SUBSCRIBE_LIST_NON_AVAYA "reg, message-summary, avaya-ccs-profile" SET UPGRADE_POLICY 0 SET USER_STORE_URI "http://135.12.345.670:80" SET SIMULTANEOUS_REGISTRATIONS 1 SET POUND_KEY_AS_CALL_TRIGGER 0
The double quotes ("") are optional for the above configuration parameter examples. However, to include spaces in a parameter value, you must enclose the value using double quotes ("")
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
230
Comments on this document? infodev@avaya.com
Parameter configuration example for IP Office with SIP credentials
Some points to consider for device configuration in the IP Office environment: � The TIMEZONE and ACTIVE_CSDK_BASED_PHONE_APP parameters are not part of the automatically generated configuration file. ACTIVE_CSDK_BASED_PHONE_APP is part of the automatically generated upgrade file. You can configure TIMEZONE and additional parameters separately in the 46xxspecials.txt file. You can also override parameters in the automatically generated configuration file using the 46xxspecials.txt file. � USER_AUTH_FILE_SERVER_URL must remain with the default value, which is null (""). � TLSSRVRID is set to 0 if: - The identity certificate of Avaya VantageTM services does not include Subject Alternative name with the FQDN or IP address of the services. - The SIP controller identity certificate does not include the correct SIP domain in Subject Alternative Name. - The identity certificate does not include a common name field for other services. � UPGRADE_POLICY is set to 0 because IP Office uses the push method for software upgrades instead of automatic polling for upgrade files by the device.
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
231
Comments on this document? infodev@avaya.com
Index
Numerics
C
802.1X pass through .................................................................94 supplicant ..................................................................... 94
A
AADS server configuration .................................................. 30 access to Google Play ....................................................... 101 activating administrator settings .......................................... 88 active CSDK application setting .........................................100 ADB ..................................................................................... 66
enabling or disabling through the Settings menu ......... 66 administering device
802.1X .......................................................................... 94 Ethernet interface control ............................................. 93 administration methods ........................................................72 administrator mode .............................................................. 88 administrator password ........................................................57 Android 8.1 what's new .................................................................... 25 Android Debug Bridge ......................................................... 66 Android installation wizard ................................................... 46 application download control XML file .......................................................................102 application installation ..........................................................96 CSDK-based application package names .................. 101 push application ............................................................97 setting up active telephony application .........................99 application installation policy ............................................. 103 applications parameters ................................................................. 178 uninstalling pushed applications ...................................98 audio parameters for client SDK application ......................209 audio report decrypting ................................................................... 118 generating ................................................................... 116 automatic upgrade ............................................................. 125 Avaya Aura configuration .....................................................29 Avaya Aura Device Services for device configuration ......... 85 Avaya Breeze Client SDK parameters ...............................209 Avaya product certificate ......................................................63 Avaya SIP Product CA certificate ........................................ 63 Avaya support website support ..........................................137 Avaya telephony applications .............................................. 99 Avaya Vantage connecting to the network .............................................45 Avaya Vantage overview ......................................................16
B
black list ..................................................................... 102, 103
camera .................................................................................22 enable or disable .......................................................... 23
certificates ............................................................................60 management .................................................................58
checklist device configuration ......................................................86 installation .....................................................................26 kiosk mode configuration ............................................109
Client SDK parameters audio ...........................................................................209 conferencing ............................................................... 209 contact management .................................................. 209 dial plan ...................................................................... 209 logging ........................................................................ 209 RTP .............................................................................209 SRTP .......................................................................... 209 video ........................................................................... 209
codec parameters .............................................................. 209 collection
delete ..........................................................................136 edit name ....................................................................136 generating PDF .......................................................... 136 sharing content ........................................................... 136 comparison Avaya Aura vs IP Office ................................................31 conditional statements in the settings file ............................ 82 conferencing parameter for client SDK application ............209 configuration emergency call ........................................................... 105 configuration data Avaya Aura Device Services ........................................ 85 configuration priority CSDK-based telephony application ..............................73 configuration verifier ............................................................ 94 configure the log settings ................................................... 114 configuring device using DHCP ..................................................................77 using LLDP ................................................................... 73 configuring parameters .................................................. 43, 85 configuring SSH server settings .........................................119 configuring Wi-Fi ..................................................................50 connecting handset cradle .............................................................. 50 wired handset ............................................................... 51 wireless handset ...........................................................52 connecting Avaya Vantage to the network ...........................45 connectivity .......................................................................... 44 considerations installation wizard ......................................................... 46 contact comparison ............................................................107 contact functionality ........................................................... 107
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
232
Comments on this document? infodev@avaya.com
Index
contact parameters for client SDK application ...................209 contacts
Avaya Aura Device Services ...................................... 107 PPM ............................................................................107 contact search IP Office ...................................................................... 108 content publishing PDF output ................................................ 136 searching .................................................................... 136 sharing ........................................................................136 watching for updates .................................................. 136 control camera state ............................................................ 23 copying log from internal flash memory ............................. 118 corrupt firmware .................................................................129 corrupt system file ..............................................................129 CSDK application upgrades ...............................................128 CSDK-based applications package names .......................................................... 101 customization of settings file ................................................82
D
debugging options ..............................................................113 debug report
copying from internal flash memory ............................ 118 generating ................................................................... 114 opening ....................................................................... 118 decrypting debug report ................................................................118 deployment comparison .......................................................31 DES discovery ..................................................................... 45 device configuration .............................................................72 verifying ........................................................................ 94 device configuration checklist .............................................. 86 device connectivity ...............................................................44 Device Enrollment Services ...........................................34, 64 device settings file server ...................................................................... 89 device setup using installation wizard ..................................46 device upgrade .................................................................. 121 DHCP option 43 codes ............................................................ 78 options configuration .................................................... 77 parameter configuration ................................................79 setting up a DHCP server .............................................39 site-specific parameters ................................................80 DHCP server setup ..............................................................39 DHCP settings worksheet ....................................................36 DHCP site-specific option number .......................................93 diagnostics ......................................................................... 113 dial plan parameters for client SDK application ................. 209 directory search ................................................................. 107 LDAP .......................................................................... 108 DNS configuration ................................................................89 documentation portal ......................................................... 136 finding content ............................................................ 136 navigation ................................................................... 136
document changes .............................................................. 12 downloading the firmware ....................................................42
E
editing black or white list ....................................................103 emergency call configuration ............................................. 105
parameters ................................................................. 105 emergency call settings
parameters ................................................................. 180 enabling administrator settings ............................................ 88 enabling port mirroring ....................................................... 119 environmental specifications ................................................23 Ethernet interface control
Ethernet setting ............................................................ 93 PC Ethernet setting ...................................................... 93 Ethernet settings ................................................................170 example parameter configuration for Avaya Aura with SIP credentials .................................................................. 229 parameter configuration for Avaya Aura with user enterprise credentials ................................................. 230 parameter configuration for IP Office with SIP credentials .....................................................................................230 exiting the kiosk mode ........................................................111 extracting Avaya SIP Product CA certificate ................................. 63 System Manager CA certificate .................................... 64
F
Failover and survivability ....................................................113 features ................................................................................16 file server
setting up ...................................................................... 41 setting up address ........................................................ 89 file server configuration ........................................................40 finding content on documentation portal ............................136 firmware downloading ................................................................. 42 firmware got corrupted .......................................................129 firmware upgrade ...............................................................121 firmware upgrade prerequisites ......................................... 122 full VLAN separation ............................................................ 66
G
generating PKCS12 file ....................................................... 61 generating report
audio ........................................................................... 116 debug .......................................................................... 114 Google Play Store access control .............................................................101 editing black or white list .............................................103 Goto command in the settings file ....................................... 82
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
233
Comments on this document? infodev@avaya.com
Index
H
M
handset connecting .............................................................. 50, 51 wireless .........................................................................52
handset cradle connecting to the device ...............................................50
hardware requirements ........................................................27 hardware specifications ....................................................... 16 host pinging ....................................................................... 120 HTTP proxy settings ............................................................ 91
I
idle time parameters .......................................................... 206 IEEE 802.1.x settings ........................................................ 175 InSite Knowledge Base ......................................................138 install applications ................................................................96
CSDK-based application package names .................. 101 installation checklist ............................................................. 26 installation wizard ................................................................ 46 installing a wireless module ................................................. 48 IP Office
user settings ................................................................. 36 IP Office configuration ..........................................................30 IP Office contact search .....................................................108
K
K155 wireless module ..........................................................48 K165
setting up using installation wizard ............................... 46 K175
setting up using installation wizard ............................... 46 kiosk mode .........................................................................109
application pinning ...................................................... 110 configuration checklist ................................................ 109 existing ........................................................................ 111 starting ........................................................................ 111 Kiosk mode unpinning applications .................................................111
L
LDAP directory search .......................................................108 LDAP directory service
parameters ................................................................. 226 legal notices ............................................................................. LLDP
content transmitting in LLDP frames ............................ 74 overview ....................................................................... 73 TLV impact on system parameter values ......................75 logging parameters for client SDK application ...................209 log reports .......................................................................... 113 log settings configuring settings ..................................................... 114
monitoring options ..............................................................113 My Docs .............................................................................136
N
network connection ........................................................44, 45 network parameters ........................................................... 164
Ethernet settings .........................................................170 general settings .......................................................... 165 IEEE 802.1.x settings ................................................. 175 VLAN settings .............................................................172 new in Android 8.1 ............................................................... 25 new in this release ............................................................... 24 non UI related operational parameters active phone application ............................................. 177 LDAP directory service ............................................... 226 server addresses and ports ........................................ 154 server environment .....................................................164 NTP configuration ................................................................ 43 numeric enrollment code ..................................................... 45
O
opening debug report ................................................................118
operating system features ................................................... 25 optional components ............................................................23
P
pairing wireless handset ...................................................... 52 parameter configuration .................................................43, 85 parameters
application settings ..................................................... 178 Avaya Breeze Client SDK ...........................................209 Avaya Vantage Connect parameters .......................... 218 emergency numbers ...........................................105, 180 general accounts IDs & passwords ............................ 204 general phone functionality .........................................141 IP Office parameters ...................................................224 logging and debugging ............................................... 191 network parameters ....................................................164 non UI related operational parameters ....................... 176 parameters for controlling configuration parameter download .................................................................... 139 phone lock .................................................................. 206 phone specific parameters ......................................... 140 phone UI related settings ............................................144 protocol-specific parameters ...................................... 182 security ....................................................................... 203 upgrade-related parameters ............................... 122, 198 VLAN configuration .......................................................67 password security policies ................................................... 56 performing a scheduled upgrade ....................................... 126
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
234
Comments on this document? infodev@avaya.com
Index
phone lock parameters ...................................................... 206 pinging a device on the network ........................................ 120 PKCS12 file
adding friendly name .................................................... 62 certificate with friendly name ........................................ 61 port mirroring enabling ...................................................................... 119 power ................................................................................... 44 power outage during upgrade ............................................129 power sources ..................................................................... 44 PPM ..................................................................................... 29 prerequisites ........................................................................ 27 firmware upgrade ........................................................122 priority CSDK-based telephony application ..............................73 push applications ................................................................. 96 push applications onto device ..............................................97 examples ...................................................................... 98
R
reboot ................................................................................. 113 recovery procedure ............................................................129 related documentation ....................................................... 134 requirements
hardware .......................................................................27 software ........................................................................ 27 reset a device to factory settings ........................................112 RTP parameters for Client SDK application .......................209
S
scenario automatic upgrade ......................................................126 scheduled upgrade ..................................................... 126
scheduled upgrade ............................................................ 125 searching for content ......................................................... 136 secure installation
parameters ................................................................... 68 secure redirection through DES ...........................................64 security
secure redirection through DES ................................... 64 SSH access control ...................................................... 65 time synchronization .....................................................65 user privacy .................................................................. 55 security configuration ...........................................................54 security features .................................................................. 54 server setting up a DHCP server .............................................39 server configuration AADS ............................................................................30 parameters ................................................................. 154 System Manager .......................................................... 29 server environment parameters ................................................................. 164 server setup DHCP ........................................................................... 39
server setup (continued) file server ...................................................................... 40
Session Border Controller configuring .................................................................... 33
settings file ...........................................................................82 conditional statement ....................................................82 configuring parameters ...........................................43, 85 customization ................................................................82 Goto command ............................................................. 82 user group .................................................................... 82 worksheet ..................................................................... 37
settings file structure ............................................................82 Settings menu
administrator mode .......................................................88 Settings screen
AADS configuration ...................................................... 90 DNS configuration ........................................................ 89 HTTP proxy and exception ........................................... 91 SIP server .....................................................................92 setting up active telephony application ................................ 99 setting up a DHCP server .................................................... 39 sharing content .................................................................. 136 SIP Product CA certificate ................................................... 63 SIP server settings ...............................................................92 SIP user settings IP Office ........................................................................ 36 site-specific options list of parameters .......................................................... 80 SNTP server ........................................................................ 65 SNTP server setup .............................................................. 43 software distribution packages size ............................................................................... 42 software download ...............................................................42 software requirements ......................................................... 27 software specifications .........................................................16 specifications ....................................................................... 16 camera ..........................................................................22 environmental ............................................................... 23 wireless handset ...........................................................19 SSH access control ............................................................. 65 SSH server configuring settings ..................................................... 119 starting Avaya Vantage ........................................................ 45 starting kiosk mode ............................................................ 111 support ...............................................................................137 supported accessories .........................................................16 System Manager CA certificate ........................................... 64 System Manager configuration ............................................ 29 System Manager user profile worksheet ............................. 35
T
telephony application configuration priority ..................................................... 73
third-party applications .......................................................102 third-party application stores ..............................................102 time synchronization ...................................................... 43, 65
March 2019
Installing and Administering Avaya VantageTM in an Avaya Aura� or IP Office
Environment
235
Comments on this document? infodev@avaya.com
Index
TLV impact on system parameter values .............................75 troubleshooting .................................................................. 129
applications not downgrading on K175 .......................132 applications not supported on Android 8.1 ................. 132 Avaya Equinox not downgrading ................................ 132 downgrade from Android 8.1 to Android 6.x ............... 132 no prompt for password to unlock .............................. 131 no video ...................................................................... 130 software packages cannot be uploaded using Utility Server ......................................................................... 131 software zip files too large .......................................... 131 swipe to unlock does not prompt for password .......... 131 Utility Server file size .................................................. 131 video is not enabled ....................................................130 video remains stuck ....................................................130 video setting in Communication Manager .................. 130
wireless handset (continued) LED indication .............................................................. 21 multifunction button functionality .................................. 21 pairing ...........................................................................52 specifications ................................................................ 19
wireless module ................................................................... 48 worksheets
DHCP settings worksheet .............................................36 settings file worksheet .................................................. 37 System Manager user profile worksheet ...................... 35
X
XML file for application control ...........................................102
U
uninstall pushed applications ...............................................98 unknown sources ...............................................................102 unpin ...................................................................................111 updates
CSDK applications ......................................................128 upgrade ..............................................................................121
automatic .................................................................... 125 procedure ................................................................... 121 using Update Now option ........................................... 127 upgrade policy parameters ................................................ 122 upgrade prerequisites ........................................................ 122 upgrading through IP Office .........................................................127 through System Manager ........................................... 127 USB parameters ................................................................ 198 user group ......................................................................82, 91 configure using settings file .......................................... 84
V
verifying configuration ..........................................................94 video parameters for client SDK application ......................209 videos ................................................................................ 137 video specifications ..............................................................22 VLAN configuration parameters ...........................................67 VLAN separation ..................................................................66 VLAN settings .................................................................... 172
W
watch list ............................................................................ 136 white list ..................................................................... 102, 103 Wi-Fi network configuration ................................................. 50 wired handset
connecting .................................................................... 51 wireless handset
features .........................................................................20
