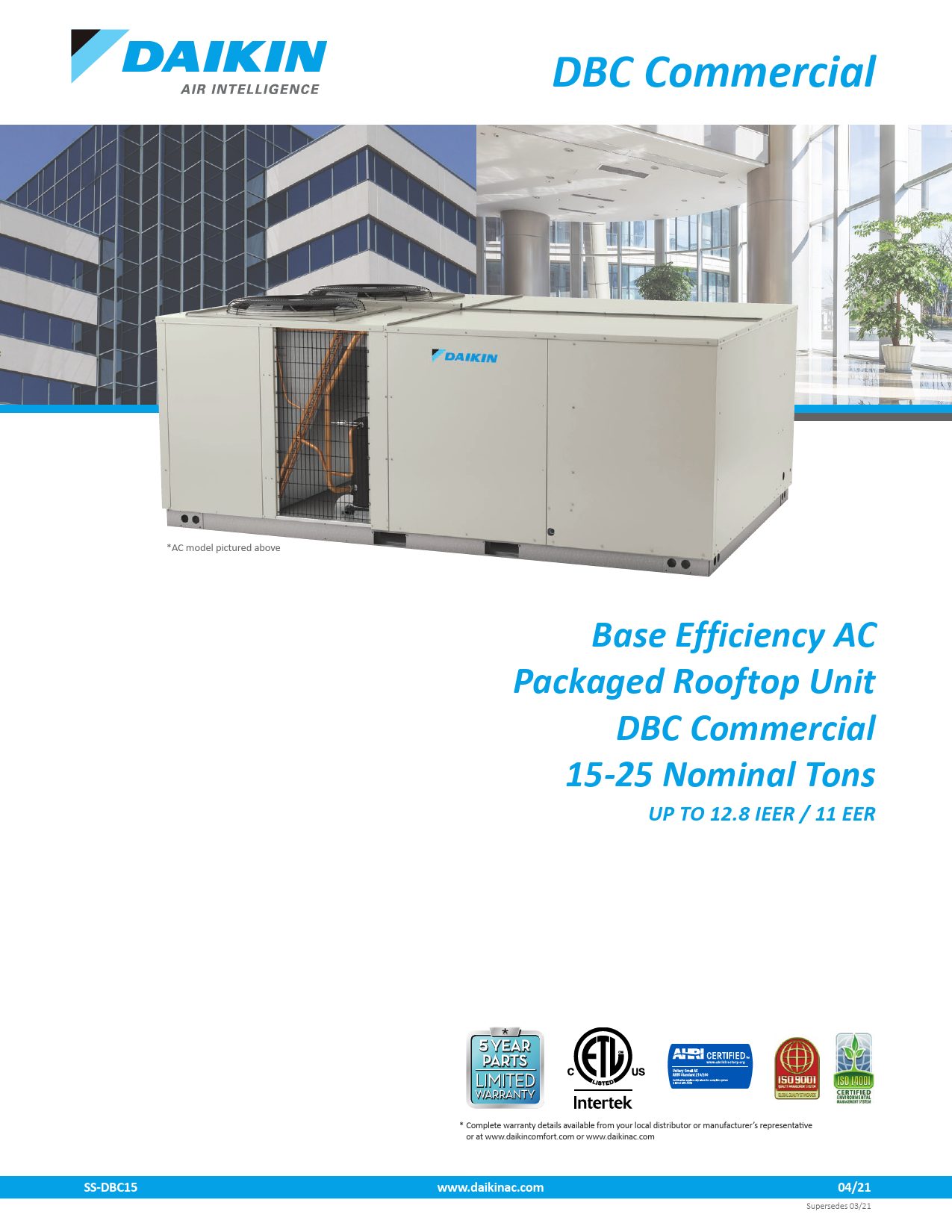

Base Efficiency AC Packaged Rooftop Unit
DBC Commercial 15-25 Nominal Tons
UP TO 12.8 IEER / 11 EER
SS-DBC15
* Complete warranty details available from your local distributor or manufacturer's representative or at www.daikincomfort.com or www.daikinac.com
www.daikinac.com
04/21
Supersedes 03/21
Our Perfect Package:
Harnessing energy-efficient performance, proven technology, and enhanced comfort for life.
Since becoming the first company in Japan to manufacture packaged air conditioning systems, in 1951, Daikin has supported comfortable indoor living based on the strengths and technologies that have led to the growth of the company becoming one of the world's largest manufacturers of HVAC products, systems and refrigerants.
Today, as a comprehensive global manufacturer of HVAC products and systems, the Daikin brand is committed to being recognized as a truly global and excellent company capable of continually creating new value for its customers. The company plans to pursue sustainable growth and foster business operations that consistently harmonize with the goals of improving indoor comfort.
The group philosophy of the company includes: » Creating new value continuously for customers » Developing world leading energy-saving technology » Being a flexible and dynamic organization » Allowing employees to be the driving force
for the success of the company » Fostering an atmosphere of best practices,
boldness, and innovation » Thinking and acting globally
Contents
2 Introduction
2
4 Nomenclature
4
5 Features and Benefits
5
Applications
8
Serviceability
8
9 Product Specifications
9
Coil Dimensions
11
12 Expanded Cooling Data
12
18 Air Flow Data
18
20 Electrical Data
20
23 Electric Heat
23
24 Wiring Diagrams
24
31 Dimensional Data
31
33 Unit Clearances
33
34 Installation
34
Weights
34
35 Accessories
35
38 Factory Installed Options
38
38 Field Installed Options
38
39 Factory or Field Installed Options
39
3
Nomenclature
D
B
G 300 3 V 400 C S A X X X X X X X
X
A*
1
2
3 4,5,6 7 8 9,10,11 12 13 14 15 16 17 18 19 20 21 22 23 24
Brand D Daikin
Configuration B New Base Efficiency (3- 25 Ton)
Revision Levels Major & Minor
Application C Cooling G Gas Heat
Nominal Cooling Capacity 180 15 Tons 240 20 Tons 300 25 Tons
Voltage 3 208-230/3/60 4 460/3/60
7 575/3/60
Supply Fan/Drive Type/Motor V 2-speed Belt-Drive- Standard Static S 2-speed Belt-Drive- High-Static
Nominal Heating Capacity Gas/Electric 350 350,000 BTU/h 400 400,000 BTU/h
A/C Factory-Installed Electric Heat
XXX No Heat 031 30 kW 046 45 kW 060 60 kW 075 75kW
X No Options
X No Options
X No Options
Service Options
X No Option A Powered convenience outlet B Non-powered convenience outlet C Hinge Panels D Hinged Panels and Powered convenience outlet E Hinged Panels and non-powered convenience outlet
X No Option
A Non-Fused Disconnect B Phase Monitor E Non-Fused Disconnect and Phase Monitor
Electrical
See product specifications for heat size(s) available for each capacity.
Refrigeration Systems C Two-stage cooling modes H Two-stage cooling mode with Low-ambient controller
Heat Exchanger
X No options A Standard Aluminized Exchanger S Stainless Steel Exchanger
Controls A Electromechanical controls B DDC w/ BACnetTM interface
AC Stocking Models
New Daikin 15 25 Ton
Model Number
Code String
DBC1803V000001S
DBC1803VXXXCXAXXXXXXXX
DBC1804V000001S
DBC1804VXXXCXAXXXXXXXX
DBC1807V000001S
DBC1807VXXXCXAXXXXXXXX
DBC2403V000001S
DBC2403VXXXCXAXXXXXXXX
DBC2404V000001S
DBC2404VXXXCXAXXXXXXXX
DBC2407V000001S
DBC2407VXXXCXAXXXXXXXX
DBC3003V000001S
DBC3003VXXXCXAXXXXXXXX
DBC3004V000001S
DBC3004VXXXCXAXXXXXXXX
DBC3007V000001S
DBC3007VXXXCXAXXXXXXXX
4
Economizer
X No Options B Low-Leak Downflow Economizer w/ Enthalpy Sensor N Low-Leak Downflow Economizer for DDC controls w/ Enthalpy Sensor P Low-Leak Downflow Economizer for DDC controls w/ Dry Bulb Sensor
X No Options
X No Options A RA Smoke Detector B SA Smoke Detector C RA & SA Smoke Detector
www.daikinac.com
Sensors
SS-DBC15
Features and Benefits
Daikin Packaged Rooftop Units (RTUs) are built to perform, with features and options that help provide low installation and operation costs, superior indoor air quality, efficient operation, and longevity.
Installation
Daikin Packaged units are designed with fast and easy installation in mind and are ideal for both new construction and retrofit projects. Our packaged rooftop units are built to be a direct replacement for most rooftop units on the field without the need of a curb adapter, to be able to replace the unit in a shorter time and at a lower cost (compared to the previous design).
Cabinet Construction
Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance.
» The interior surface in the indoor air section is fully insulated to prevent sweating and thermal losses, using our foil face fiberglass insulation which also omits exposed filter fibers into the airstream.
» The full perimeter base rail is built using heavy gauge galvanized steel for a stronger structural installation. The base rails are a minimum of 3 ½" tall and include holes to allow for overhead rigging and lifting with forklifts.
» Condenser hail guards are factory installed as a standard.
Compressor
High performance, low noise scroll compressors with stage control to match the required total load for efficient part load control.
» Resiliently factory-mounted on rubber grommets for vibration isolation.
» Refrigeration circuit includes both a low- and high-pressure transducer, high pressure safety switch and temperature sensors for the suction and discharge lines.
» Unit is factory charged with environmental friendly and sustainable R-410A refrigerant.
» Dual single-stage scroll compressors.
» Compressor location outside the condenser section to avoid air bypass.
» Internal overload protection included with compressor.
» Crankcase heaters and external thermal overload protection are also provided for compressor durability.
Supply Fan
Indoor fan motors are belt-drive as standard to provide easy in the field belt and pulley adjustment for airflow control.
» Slide out forward curb fan for easy maintenance and replacement.
» High-static drive options for applications with high airflow/ static requirements.
» Each fan assembly is dynamically trim balanced at the factory before shipment for quick start-up and efficient operation.
» Motor with thermal overload and phase failure protection is provided for long lasting operation.
Coils
All units use large face area outdoor coils. These coils are constructed with seamless copper tubes, mechanically bonded into aluminum plate-type fins with full drawn collars to completely cover the tubes for high operating efficiencies.
The indoor coil section is installed in a draw through configuration to provide better dehumidification.
» Coils are factory pressure tested to ensure pressure and leak integrity.
» Coils include a Thermal Expansion Valve per circuit, high- and low pressure switches, service ports and high capacity filter drier.
» Aluminum micro-channel indoor coil on 25-ton units
SS-DBC15
www.daikinac.com
5
Features and Benefits
» Low Ambient cooling operation down to 35°F outside air temp as standard, with option to perform down to 0°F when selected with low ambient kit.
» 5mm Smart Coil Technology on all condenser coils for improved performance and reduced refrigerant load.
Controls and Wiring
Packaged rooftop units come equipped with a well-organized, large, easy to use, weatherproof internal control box with easy access, for a better user experience.
» Units are factory-wired with labeled color-coded wires and complete 24-volt Electromechanical controls package.
» Units include single-point power entry as standard and also available with electric heat kits if selected.
» Terminal blocks are provided as standard for easy installation and field power wiring.
» The Daikin iLINQ Controller is a factory-installed solution to provide intelligent control for Daikin Light Commercial rooftop units* (RTUs). iLINQ provides physical inputs and outputs to control and monitor the RTU and features a graphic web interface for remote access (via a computer or tablet). Equipped with built-in BACnetTM IP and MS/TP interface or it can be used with an optional LonWorks® card that is available to integrate the Daikin RTU with building automation systems (BMS).
Filtration
Unit provides a draw-through filter section as standard for better air quality and long lasting component maintenance.
» Filters installed on the units are standard off the shelf sizes for easy replacement.
» One size filter per unit for low maintenance cost and easy replacement.
» 2" deep filters standard on all units with option for up to 4" on large chassis (15 tons and over).
» Easy and fast filter service access.
Heating Section
Wide range of electric heat selections effectively handle most comfort heating demand from morning warm-up control to full heat.
Electric Heat
ETL approved electric heat is factory assembled, installed and tested.
» Heating control is fully integrated into the unit's control system for quick start-up and reliable control.
» Multi-stage capability for application flexibility.
» Durable low watt density, nickel chromium elements provide longer life (compared to units without)..
» Fuses are provided in each branch circuit to a maximum of 48 Amps per NEC requirements.
» Single-point power connection reduces installation cost.
» For operational safeties electric heat includes automatic reset, and high temperature limit safety protection and an airflow safety switch to prevent electric heat operation in the event of no airflow.
Electrical
Units are completely wired and tested at the factory to provide faster commissioning and start-up.
» Wiring complies with NEC requirements and all applicable UL standards.
» For ease of use, wiring and electrical components are number coded and labeled according to the electrical diagram.
» A 115 V GFI convenience outlet requiring independent power supply for the receptacle is optional.
» An optional unit powered 20 amp 115 V convenience outlet, complete with factory mounted transformer, disconnect switch, and primary and secondary overload protection, eliminates the need to pull a separate 115 V power source.
» Supply air fan, compressor, and condenser fan motor branch circuits have individual short circuit protection. Unit includes knockouts in the bottom of the main control panels for field wiring entrance.
» A single-point power connection with power block is standard and a terminal board is provided for connecting low voltage control wiring.
» For better serviceability an optional non-fused disconnect switch is mounted inside the control panel and operated by an externally mounted handle to disconnect the electrical power at the unit.
» For operational safety, electric heat includes automatic reset, high temperature limit safety protection, and an airflow safety switch to prevent electric heat operation in the event of no airflow.
6
www.daikinac.com
SS-DBC15
*AC model pictured above
Applications & Serviceability
Applications
Daikin Rooftop units are intended for comfort cooling applications in normal heating, ventilating, and air conditioning. Consult your local Daikin sales representative for applications involving operations at high ambient temperatures, high altitudes, noncataloged voltages, or for job-specific unit selections that fall outside of the range of the catalog tables.
For proper operation, units should be rigged in accordance with instructions stated on the installation manual. Fire dampers, if required, must be installed in the ductwork according to local and/ or state codes. No space is allowed for these dampers in the unit.
Follow factory check, test and start procedures explicitly to achieve satisfactory start-up and operation.
Most rooftop applications take advantage of the significant energy savings provided with economizer operation. When an economizer system is used, mechanical refrigeration is typically not required below an ambient temperature of 50°F on most cases.
Serviceability
Daikin packaged rooftop units are built with serviceability in mind, designed to make future maintenance and service on the unit easy and accessible.
» Our packaged rooftop units offer a slide out blower to facilitate the access and removal of the fan.
» Independent compressor outside of the air bypass to eliminate component blockage and provide easy access.
» Color coded and continuously marked wire to identify point-to-point component connections.
» Condenser clean out from inside-out. » Easy access to control panel.
8
www.daikinac.com
SS-DBC15
Product Specifications
PHYSICAL DATA COOLING
Model
DBC1803V000001S DBC1804V000001S DBC1807V000001S
REFRIGERATION SYSTEM Total, BTU/h
180,000
180,000
180,000
Sensible BTU/h
134,600
134,600
134,600
EER / IEER
11 / 12.8
11 / 12.8
11 / 12.8
Decibels
88
88
88
AHRI Reference #s EVAPORATOR MOTOR COIL Motor Type (Belt-Drive)
6502018 2-Speed Belt
6502018 2-Speed Belt
6502018 2-Speed Belt
Indoor Nominal CFM
6,000
6,000
6,000
Indoor Motor FLA (Cooling)
9.1
4.3
3.5
Horsepower - RPM (Speed: Full / Low)
3.0 - 1,760/1,165
3.0 - 1,760/1,165
3.0 - 1,760/1,165
Metering Device
TXV
TXV
TXV
Filter Size (#)
20 x 25 x 2 (6)
20 x 25 x 2 (6)
20 x 25 x 2 (6)
Drain Size (NPT)
1"
1"
1"
R-410A Refrigerant Charge Cir #1 (oz)
186.2
186.2
186.2
R-410A Refrigerant Charge Cir #2 (oz)
170.8
170.8
170.8
Evaporator Coil Face Area (ft²)
20
20
20
Rows Deep / Fins per Inch BELT-DRIVE EVAP FAN DATA # of Wheels (D x W)
4 / 16 2 (15" x 12")
4 / 16 2 (15" x 12")
4 / 16 2 (15" x 12")
Motor Sheave
1VP50 x 1"
1VP50 x 1"
1VP50 x 1"
Blower Sheave
BK100 x 1³/"
BK100 x 1³/"
BK100 x 1³/"
Belt
BX44
BX44
BX44
CONDENSER FAN/COIL
Quantity of Condenser Fan Motors
3
3
3
Horsepower - RPM
- 1,075
- 1,075
- 1,075
Fan Diameter / # Fan Blades
22 / 3
22 / 3
22 / 3
Outdoor Nominal CFM
9,000
9,000
9,000
Face Area (ft²)
53.3
53.3
53.3
Rows Deep / Fins per Inch COMPRESSOR Quantity / Type
2 / 27 2 / Scroll
2 / 27 2 / Scroll
2 / 27 2 / Scroll
Compressor RLA / LRA CIR. #1
25 / 164
12.2 / 100
9.0 / 78
Compressor RLA / LRA CIR. #2 ELECTRICAL DATA Voltage / Phase / Frequency Standard Max Static Outdoor Fan FLA / LRA Total Unit Amps Min. Circuit Ampacity¹ Max. Overcurrent Protection (amps)² Entrance Power Supply Entrance Control Voltage OPERATING WEIGHT (LBS.)
SHIPPING WEIGHT (LBS.) Ship Weight (lbs)
25 / 164
208/230-3-60 1.2
2.0/4.4 65.1
71.4 / 71.4 90 / 90 2" "
1965
2080
12.2 / 100
460-3-60 1.2
0.85 / 2.2 31.3 34.3 45 2" "
1965
2080
9.0 / 78
575-3-60 1.2
0.67/1.8 23.5 25.7 30 2" "
1965
2080
¹ Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes. ² May use fuses or HACR-type circuit breakers of the same size as noted. Note: Always check the S&R plate for electrical data on the unit being installed.
15-Tons
SS-DBC15
www.daikinac.com
9
Product Specifications
PHYSICAL DATA COOLING
Model
DBC2403V000001S DBC2404V000001S DBC2407V000001S
REFRIGERATION SYSTEM Total, BTU/h
240,000
240,000
240,000
Sensible BTU/h
181,000
181,000
181,000
EER / IEER
10.0 / 11.6
10.0 / 11.6
10.0 / 11.6
Decibels
88
88
88
AHRI Reference #s EVAPORATOR MOTOR COIL Motor Type (Belt-Drive)
8813880 2-Speed Belt
8813880 2-Speed Belt
8813880 2-Speed Belt
Indoor Nominal CFM
7,000
7,000
7,000
Indoor Motor FLA (Cooling)
14
6.6
5.2
Horsepower - RPM (Speed: Full / Low)
5.0 - 1,775/1,185
5.0 - 1,775/1,185
5.0 - 1,775/1,185
Metering Device
TXV
TXV
TXV
Filter Size (#)
20 x 25 x 2 (6)
20 x 25 x 2 (6)
20 x 25 x 2 (6)
Drain Size (NPT)
1"
1"
1"
R-410A Refrigerant Charge Cir #s 1 & 2 (oz)
177 & 195 ozs.
177 & 195 ozs.
177 & 195 ozs.
Face Area (ft²)
20
20
20
Rows Deep / Fins per Inch BELT-DRIVE EVAP FAN DATA # of Wheels (D x W)
4 / 16 2 (15" x 15")
4 / 16 2 (15" x 15")
4 / 16 2 (15" x 15")
Motor Sheave
1VP60 x 1"
1VP60 x 1"
1VP60 x 1"
Blower Sheave
BK100 x 1/"
BK100 x 1/"
BK100 x 1/"
Belt
BX45
BX45
BX45
CONDENSER FAN/COIL
Quantity of Condenser Fan Motors
3
3
3
Horsepower - RPM
- 1,075
- 1,075
- 1,075
Fan Diameter / # Fan Blades
22 / 3
22 / 3
22 / 3
Outdoor Nominal CFM
9,000
9,000
9,000
Face Area (ft²)
53.3
53.3
53.3
Rows Deep / Fins per Inch COMPRESSOR Quantity / Type
2 / 27 2 / Scroll
2 / 27 2 / Scroll
2 / 27 2 / Scroll
Compressor RLA / LRA CIR. #1
34.0 / 240.0
16.0 / 140.0
12.9 / 107.6
Compressor RLA / LRA CIR. #2 ELECTRICAL DATA Voltage / Phase / Frequency Outdoor Fan FLA / LRA Total Unit Amps Min. Circuit Ampacity¹ Max. Overcurrent Protection (amps)² Entrance Power Supply Entrance Control Voltage OPERATING WEIGHT (LBS.)
SHIPPING WEIGHT (LBS.) Ship Weight (lbs)
34.0 / 240.0
208/230-3-60 2.0 /4.4 88
96.4 / 96.4 125 / 125
2" "
2085
2202
16.0 / 140.0
460-3-60 0.85 / 2.2
41.2 43.5 50 2" "
2085
2202
12.9 / 107.6
575-3-60 0.67 / 1.8
33.0 35.0 45 2" "
2085
2202
¹ Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes. ² May use fuses or HACR-type circuit breakers of the same size as noted. Note: Always check the S&R plate for electrical data on the unit being installed.
20-Tons
10
www.daikinac.com
SS-DBC15
Product Specifications
PHYSICAL DATA COOLING
Model
DBC3003V000001S DBC3004V000001S DBC3007V000001S
REFRIGERATION SYSTEM Total, BTU/h
290,000
290,000
290,000
Sensible BTU/h
196,000
196,000
196,000
EER / IEER
10.2 / 11.8
10.2 / 11.8
10.2 / 11.8
Decibels
92
92
92
AHRI Reference #s EVAPORATOR MOTOR COIL Motor Type (Belt-Drive)
8582013 2-speed Belt-Drive
8582013 2-speed Belt-Drive
8582013 2-speed Belt-Drive
Indoor Nominal CFM
8,200
8,200
8,200
Indoor Motor FLA (Cooling)
21
10.1
8.2
Horsepower - RPM (Speed: Full / Low)
7.5 - 1770/1175
7.5 - 1770/1175
7.5 - 1770/1175
Metering Device
TXV
TXV
TXV
Filter Size (#)
20 x 20 x 2 (8)
20 x 20 x 2 (8)
20 x 20 x 2 (8)
Drain Size (NPT)
1"
1"
1"
R-410A Refrigerant Charge Cir #s 1 & 2 (oz)
215 & 198 ozs.
215 & 198 ozs.
215 & 198 ozs.
Face Area (ft²)
17.2
17.2
17.2
Rows Deep / Fins per Inch BELT-DRIVE EVAP FAN DATA # of Wheels (D x W)
2 / 15 2 (15" x 15")
2 / 15 2 (15" x 15")
2 / 15 2 (15" x 15")
Motor Sheave
1VP60 x 1"
1VP60 x 1"
1VP60 x 1"
Blower Sheave
BK110 x 1/"
BK110 x 1/"
BK110 x 1/"
Belt
BX46
BX46
BX46
CONDENSER FAN/COIL
Quantity of Condenser Fan Motors
2
2
2
Horsepower - RPM
1 - 1145
1 - 1145
1 - 1145
Fan Diameter / # Fan Blades
30 / 2
30 / 2
30 / 2
Outdoor Nominal CFM
15,000
15,000
15,000
Face Area (ft²)
53.3
53.3
53.3
Rows Deep / Fins per Inch COMPRESSOR Quantity / Type
2 / 27 2 / Scroll
2 / 27 2 / Scroll
2 / 27 2 / Scroll
Compressor RLA / LRA CIR. #1
48.1 / 245
18.6 / 125
14.7 / 100
Compressor RLA / LRA CIR. #2 ELECTRICAL DATA Voltage / Phase / Frequency Outdoor Fan FLA / LRA Total Unit Amps Min. Circuit Ampacity¹ Max. Overcurrent Protection (amps)² Entrance Power Supply Entrance Control Voltage OPERATING WEIGHT (LBS.)
SHIPPING WEIGHT (LBS.) Ship Weight (lbs)
48.1 / 245
208/230-3-60 3.7 / 16.9 125 133 / 133 175 / 175 2" "
2119
2387
18.6 / 125
460-3-60 1.85 / 8.5
51.0 53.8 70 2" "
2119
2387
14.7 / 100
575-3-60 1.5 / 6.82
40.6 42.9 50 2" "
2119
2387
¹ Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes. ² May use fuses or HACR-type circuit breakers of the same size as noted. Note: Always check the S&R plate for electrical data on the unit being installed.
Coil Dimensions
Model DBC
Size 15 (top) 15 (bottom) 20 (top) 20 (bottom) 25 (Micro1) 25 (Micro2)
Fin height in. 20 20 20 20 38 38
Fin length in. 72 72 72 72
32.64 32.64
SS-DBC15
www.daikinac.com
25-Tons
11
Expanded Cooling Data
12
Outdoor Ambient Temperature
65
75
85
95
105
115
Entering Indoor Wet Bulb Temperature
IDB
Airflow
59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 176.4 182.8 200.3 - 172.3 178.6 195.6 - 168.2 174.3 191.0 - 164.1 170.1 186.3 - 155.9 161.6 177.0 - 144.4 149.7 164.0 S/T 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.82 0.69 0.48 - 0.86 0.71 0.49 - 0.86 0.72 0.50 -
6750 T 18 16 12
-
18 16 12
-
18 16 12
-
18 16 12
-
18 16 12
-
17 15 11
-
HI PR 236 253 268 - 264 284 300 - 301 323 342 - 342 368 389 - 385 414 438 - 425 458 484 LO PR 103 110 120 - 109 116 127 - 114 121 132 - 119 127 139 - 125 133 145 - 129 138 150 -
MBh 171.2 177.5 194.5 - 167.3 173.4 189.9 - 163.3 169.2 185.4 - 159.3 165.1 180.9 - 151.3 156.9 171.9 - 140.2 145.3 159.2 -
S/T 0.72 0.60 0.41 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.45 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
70 6000 T 19 16 12
-
19 16 13
-
19 16 13
-
19 17 13
-
19 16 12
-
18 15 12
-
HI PR 233 251 265 -
262 282 297
-
298 320 338 -
339 365 385
-
381 410 433 -
421 453 479
-
LO PR 102 109 119 -
108 115 126
-
112 120 131 -
118 126 137
-
124 132 144 -
128 136 149
-
MBh 158.1 163.8 179.5 - 154.4 160.0 175.3 - 150.7 156.2 171.1 - 147.0 152.4 167.0 - 139.7 144.8 158.6 - 129.4 134.1 146.9 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.79 0.66 0.46 -
4800 T 21 18 14
-
21 18 14
-
21 18 14
-
21 18 14
-
21 18 14
-
20 17 13
-
HI PR 226 243 257
-
254 273 288 -
289 311 328
-
329 354 374 -
370 398 420
-
409 440 464
-
LO PR 99 106 115
-
105 112 122 -
109 116 127
-
115 122 133
-
120 128 139 -
124 132 144
-
15-Ton AC (Standard Motor and Two-Speed Motor at High Speed)
www.daikinac.com
MBh 179.4 184.7 199.9 214.5 175.2 180.4 195.3 209.6 171.0 176.1 190.6 204.6 166.9 171.8 186.0 199.6 158.5 163.2 176.7 189.6 146.8 151.2 163.6 175.6 S/T 0.85 0.76 0.58 0.37 0.89 0.79 0.60 0.39 0.91 0.81 0.61 0.40 0.94 0.84 0.63 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.66 0.43 6750 T 21 19 16 11 21 19 16 11 21 19 16 11 21 20 16 11 21 19 16 11 20 18 15 10 HI PR 238 256 270 282 267 287 303 316 304 327 345 360 346 372 393 410 389 419 442 461 430 463 488 509 LO PR 104 111 121 129 110 117 128 137 115 122 133 142 121 128 140 149 126 134 147 156 131 139 152 162 MBh 174.2 179.3 194.1 208.3 170.1 175.1 189.6 203.5 166.1 171.0 185.1 198.6 162.0 166.8 180.5 193.8 153.9 158.5 171.5 184.1 142.6 146.8 158.9 170.5 S/T 0.81 0.73 0.55 0.35 0.84 0.76 0.57 0.37 0.87 0.77 0.59 0.38 0.89 0.80 0.60 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41 75 6000 T 22 20 16 11 22 20 17 11 22 20 17 11 22 20 17 12 22 20 16 11 20 19 15 11 HI PR 236 253 268 279 264 284 300 313 301 323 342 356 342 368 389 406 385 415 438 457 426 458 484 504 LO PR 103 110 120 128 109 116 127 135 114 121 132 141 119 127 139 148 125 133 145 155 129 138 150 160 MBh 160.7 165.5 179.1 192.3 157.0 161.6 175.0 187.8 153.3 157.8 170.8 183.3 149.5 154.0 166.6 178.8 142.0 146.3 158.3 169.9 131.6 135.5 146.6 157.4 S/T 0.79 0.70 0.53 0.34 0.81 0.73 0.55 0.35 0.83 0.75 0.56 0.36 0.86 0.77 0.58 0.38 0.89 0.80 0.61 0.39 0.90 0.81 0.61 0.39 4800 T 24 22 18 13 24 23 18 13 25 23 18 13 25 23 19 13 24 22 18 13 23 21 17 12 HI PR 228 246 260 271 256 276 291 304 292 314 331 346 332 357 377 394 374 402 425 443 413 444 469 489 LO PR 100 107 117 124 106 113 123 131 110 117 128 136 116 123 134 143 121 129 141 150 125 133 146 155
IDB: Entering Indoor Dry Bulb Temperature
Shaded area reflects ACCA (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.
SS-DBC15
Expanded Cooling Data
SS-DBC15
Outdoor Ambient Temperature
65
75
85
95
105
115
Entering Indoor Wet Bulb Temperature
IDB
Airflow
59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67
71
MBh 182.6 186.5 199.3 213.1 178.3 182.2 194.7 208.1 174.1 177.9 190.0 203.1 169.8 173.5 185.4 198.2 161.3 164.9 176.1 188.3 149.4 152.7 163.2 S/T 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 1.00 0.93 0.76 0.57 1.00 0.96 0.78 0.59 1.00 1.00 0.81 0.61 1.00 1.00 0.82 6750 T 23 22 19 16 24 23 20 16 24 23 20 16 23 23 20 16 22 22 20 16 20 21 18 HI PR 240 259 273 285 270 290 306 320 307 330 349 363 349 376 397 414 393 423 447 466 434 467 493 LO PR 106 112 123 131 112 119 130 138 116 123 135 143 122 130 141 151 128 136 148 158 132 140 153
174.4 0.61 15 515 163
MBh 177.2 180.1 193.5 206.9 173.1 176.9 189.0 202.0 169.0 172.7 184.5 197.2 164.9 168.5 180.0 192.4 156.6 160.1 171.0 182.8 145.1 148.3 158.4 169.3
S/T 0.89 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 0.96 0.78 0.59
80 6000 T 24 23 20 16 25 24 20 16 25 24 20 16 25 24 21 16 24 23 20 16 22 22 19
15
HI PR 238 256 270 282 267 287 303 316 304 327 345 360 346 372 393 410 389 419 442 461 430 463 488 510
LO PR 105 111 121 129 110 117 128 137 115 122 133 142 121 128 140 149 126 134 147 156 131 139 152 162
MBh 163.6 167.2 178.6 190.9 159.8 163.3 174.4 186.5 156.0 159.4 170.3 182.0 152.2 155.5 166.1 177.6 144.6 147.7 157.8 168.7 133.9 136.8 146.2 S/T 0.86 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.92 0.86 0.70 0.52 0.94 0.89 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.75 4800 T 27 26 22 18 27 26 23 18 27 26 23 18 28 26 23 18 27 26 23 18 25 24 21 HI PR 231 248 262 274 259 279 294 307 295 317 335 349 335 361 381 398 377 406 429 447 417 449 474 LO PR 101 108 118 125 107 114 124 132 111 118 129 138 117 124 136 145 123 130 142 152 127 135 147
156.3 0.56 17 494 157
www.daikinac.com
15-Ton AC (Two-Speed Motor at High Speed)
MBh 185.8 189.3 198.3 211.6 180.4 184.9 193.7 206.6 177.1 180.5 189.1 201.7 172.8 176.1 184.5 196.8 164.2 167.3 175.2 187.0 152.1 155.0 162.3 173.2
S/T 0.98 0.95 0.86 0.69 1.00 0.98 0.89 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.97 0.79 1.00 1.00 0.98 0.80
6750 T 25 24 23 20 25 25 23 20 24 25 23 20 24 24 24 20 22 23 23 20 21 21 22
19
HI PR 243 261 276 288 272 293 309 323 310 333 352 367 353 380 401 418 397 427 451 470 439 472 498 520
LO PR 107 113 124 132 113 120 131 139 117 125 136 145 123 131 143 152 129 137 150 159 133 142 155 165
MBh 180.3 183.8 192.5 205.4 176.1 179.6 188.1 200.6 172.0 175.3 183.6 195.8 167.8 171.0 179.1 191.1 159.4 162.5 170.1 180.5 147.6 150.5 157.6 168.1
S/T 0.94 0.90 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.96 0.87 0.70 1.00 0.99 0.89 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.94 0.76
85 6000 T 26 25 24 21 26 26 24 21 26 26 24 21 26 26 25 21 24 25 24 21 23 23 23
20
HI PR 240 259 273 285 270 290 306 320 307 330 349 363 349 376 397 414 393 423 447 466 434 467 493 515
LO PR 106 112 123 131 112 119 130 138 116 123 135 143 122 130 141 151 128 136 148 158 132 140 153 163
MBh 166.5 169.7 177.7 189.6 162.6 165.7 173.6 185.2 158.7 161.8 169.4 180.8 154.8 157.8 165.3 176.4 147.1 149.9 157.0 167.5 136.3 138.9 145.5 155.2
S/T 0.90 0.87 0.79 0.64 0.94 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.96 0.86 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.90 0.73
4800 T 29 28 27 23 29 29 27 23 29 29 27 23 29 29 27 24 28 28 27 23 26 27 25
22
HI PR 233 251 265 276 262 281 297 310 297 320 338 353 339 365 385 402 381 410 433 452 421 453 479 499
LO PR 102 109 119 127 108 115 126 134 112 120 131 139 118 126 137 146 124 132 144 153 128 136 149 158
IDB: Entering Indoor Dry Bulb Temperature
Shaded area reflects AHRI (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.
13
Expanded Cooling Data
14
Outdoor Ambient Temperature
65
75
85
95
105
115
Entering Indoor Wet Bulb Temperature
IDB
Airflow
59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 235.2 243.8 267.1 - 229.7 238.1 260.9 - 224.2 232.4 254.6 - 218.8 226.8 248.4 - 207.8 215.4 236.0 - 192.5 199.5 218.6 -
S/T 0.76 0.63 0.44 - 0.78 0.66 0.45 - 0.80 0.67 0.47 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.87 0.73 0.50 -
7875 T 21 18 14
-
21 18 14
-
21 18 14
-
21 18 14
-
21 18 14
-
20 17 13
-
HI PR 259 279 294 - 290 313 330 - 330 356 375 - 376 405 428 - 423 456 481 - 468 503 531 LO PR 100 106 116 - 105 112 122 - 110 117 127 - 115 122 134 - 121 128 140 - 125 133 145 -
MBh 228.3 236.7 259.3 - 223.0 231.2 253.3 - 217.7 225.7 247.2 - 212.4 220.1 241.2 - 201.8 209.1 229.1 - 186.9 193.7 212.3 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
70 7000 T 22 19 14
-
22 19 14
-
22 19 14
-
22 19 15
-
22 19 14
-
20 18 13
-
HI PR 256 276 291 - 288 310 327 - 327 352 372 - 373 401 423 - 419 451 476 - 463 498 526 -
LO PR 99 105 115 - 104 111 121 - 108 115 126 - 114 121 132 - 119 127 139 - 123 131 143 -
MBh 210.7 218.4 239.3 - 205.8 213.4 233.8 - 200.9 208.3 228.2 - 196.0 203.2 222.6 - 186.2 193.0 211.5 - 172.5 178.8 195.9 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
5600 T 24 21 16
-
24 21 16
-
24 21 16
-
25 21 16
-
24 21 16
-
23 20 15
-
HI PR 249 268 283 - 279 300 317 - 317 341 361 - 361 389 411 - 407 438 462 - 449 483 510 -
LO PR 96 102 111 - 101 108 118 - 105 112 122 - 110 118 128 - 116 123 134 - 120 127 139 -
www.daikinac.com
20-Ton AC (Two-Speed Motor at High Speed)
MBh 239.2 246.2 266.5 286.1 233.6 240.5 260.3 279.4 228.0 234.8 254.1 272.8 222.5 229.1 247.9 266.1 211.4 217.6 235.5 252.8 195.8 201.6 218.2 234.2 S/T 0.86 0.77 0.58 0.37 0.89 0.80 0.60 0.39 0.91 0.82 0.62 0.40 0.94 0.84 0.64 0.41 0.98 0.88 0.66 0.43 0.99 0.88 0.67 0.43 7875 T 24 22 18 13 24 22 18 13 24 22 18 13 25 23 19 13 24 22 18 13 23 21 17 12 HI PR 262 281 297 310 293 316 333 348 334 359 379 396 380 409 432 451 428 460 486 507 472 508 537 560 LO PR 101 107 117 125 106 113 124 132 111 118 129 137 116 124 135 144 122 130 141 151 126 134 146 156 MBh 232.2 239.1 258.8 277.7 226.8 233.5 252.8 271.3 221.4 228.0 246.7 264.8 216.0 222.4 240.7 258.4 205.2 211.3 228.7 245.4 190.1 195.7 211.8 227.4 S/T 0.82 0.73 0.56 0.36 0.85 0.76 0.58 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.93 0.84 0.63 0.41 0.94 0.84 0.64 0.41 75 7000 T 25 23 19 13 25 23 19 13 25 23 19 13 26 24 19 13 25 23 19 13 24 22 18 12 HI PR 259 279 294 307 291 313 330 344 330 356 376 392 376 405 428 446 423 456 481 502 468 503 532 554 LO PR 100 106 116 123 105 112 122 130 110 117 127 136 115 122 134 142 121 128 140 149 125 133 145 154 MBh 214.3 220.7 238.8 256.3 209.3 215.5 233.3 250.4 204.4 210.4 227.7 244.4 199.4 205.3 222.2 238.5 189.4 195.0 211.1 226.5 175.4 180.6 195.5 209.8 S/T 0.79 0.71 0.54 0.34 0.82 0.73 0.56 0.36 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.91 0.81 0.62 0.40 5600 T 28 26 21 15 28 26 21 15 28 26 21 15 28 26 21 15 28 26 21 15 26 24 20 14 HI PR 251 270 285 298 282 303 320 334 321 345 364 380 365 393 415 433 411 442 467 487 454 488 516 538 LO PR 97 103 112 120 102 109 119 126 106 113 123 131 112 119 130 138 117 124 136 145 121 129 141 150
IDB: Entering Indoor Dry Bulb Temperature
Shaded area reflects ACCA (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.
SS-DBC15
Expanded Cooling Data
SS-DBC15
Outdoor Ambient Temperature
65
75
85
95
105
115
Entering Indoor Wet Bulb Temperature
IDB
Airflow
59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 243.4 248.7 265.7 284.1 237.8 242.9 259.6 277.5 232.1 237.2 253.4 270.9 226.4 231.4 247.2 264.3 215.1 219.8 234.8 251.0 199.3 203.6 217.5 232.5 S/T 0.94 0.89 0.72 0.54 1.00 0.92 0.75 0.56 1.00 0.94 0.77 0.57 1.00 1.00 0.79 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.83 0.62 7875 T 27 26 22 18 28 26 23 18 27 26 23 18 26 27 23 18 25 26 22 18 23 24 21 17
HI PR 264 284 300 313 296 319 337 351 337 363 383 400 384 413 436 455 432 465 491 512 477 514 542 566 LO PR 102 108 118 126 108 114 125 133 112 119 130 138 117 125 136 145 123 131 143 152 127 135 148 157
MBh 236.3 241.5 258.0 275.8 230.8 235.9 252.0 269.4 225.3 230.3 246.0 263.0 219.8 224.6 240.0 256.6 208.8 213.4 228.0 243.7 193.5 197.7 211.2 225.8 S/T 0.90 0.84 0.69 0.51 0.93 0.88 0.71 0.53 0.96 0.90 0.73 0.55 0.99 0.93 0.75 0.56 1.00 0.96 0.78 0.58 1.00 0.97 0.79 0.59 80 7000 T 28 27 23 19 28 27 24 19 28 27 24 19 29 27 24 19 27 27 23 19 25 25 22 17
HI PR 262 281 297 310 293 316 334 348 334 359 379 396 380 409 432 451 428 460 486 507 473 509 537 560 LO PR 101 107 117 125 106 113 124 132 111 118 129 137 116 124 135 144 122 130 141 151 126 134 146 156
MBh 218.1 222.9 238.1 254.6 213.1 217.7 232.6 248.6 208.0 212.5 227.1 242.7 202.9 207.3 221.5 236.8 192.8 197.0 210.4 225.0 178.6 182.5 194.9 208.4 S/T 0.87 0.81 0.66 0.50 0.90 0.84 0.69 0.51 0.92 0.87 0.70 0.53 0.95 0.89 0.73 0.54 0.99 0.93 0.75 0.56 1.00 0.93 0.76 0.57 5600 T 31 30 26 21 31 30 26 21 32 30 26 21 32 30 26 21 31 30 26 21 29 28 24 19 HI PR 254 273 288 301 285 306 323 337 324 348 368 384 369 397 419 437 415 446 471 492 458 493 521 543 LO PR 98 104 114 121 103 110 120 128 107 114 125 133 113 120 131 139 118 126 137 146 122 130 142 151
www.daikinac.com
20-Ton AC (Two-Speed Motor at High Speed)
MBh 247.7 252.5 264.4 282.1 241.9 246.6 258.3 275.5 236.2 240.7 252.1 269.0 230.4 234.8 246.0 262.4 218.9 223.1 233.7 249.3 202.7 206.7 216.4 230.9 S/T 0.99 0.96 0.86 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.92 0.74 1.00 1.00 0.95 0.77 1.00 1.00 0.98 0.80 1.00 1.00 0.99 0.80 7875 T 29 28 27 23 28 28 27 23 28 28 27 23 27 27 27 24 26 26 27 23 24 24 25 22 HI PR 267 287 303 316 299 322 340 355 340 366 387 404 388 417 441 460 436 469 496 517 482 519 548 571 LO PR 103 109 119 127 109 116 126 134 113 120 131 140 119 126 138 147 124 132 144 154 129 137 149 159 MBh 240.5 245.1 256.7 273.9 234.9 239.4 250.7 267.5 229.3 233.7 244.8 261.1 223.7 228.0 238.8 254.8 212.5 216.6 226.9 242.0 196.8 200.6 210.1 224.2 S/T 0.94 0.91 0.82 0.67 0.98 0.94 0.85 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.94 0.77 85 7000 T 30 29 28 24 30 30 28 24 30 30 28 24 29 30 28 24 28 28 28 24 26 26 26 23 HI PR 264 284 300 313 296 319 337 351 337 363 383 400 384 413 436 455 432 465 491 512 477 514 542 566 LO PR 102 108 118 126 108 114 125 133 112 119 130 138 117 125 136 145 123 131 143 152 127 135 148 157 MBh 221.9 226.2 236.9 252.8 216.8 221.0 231.4 246.9 211.6 215.7 225.9 241.0 206.5 210.5 220.4 235.1 196.1 199.9 209.4 223.4 180.7 185.2 194.0 206.9 S/T 0.91 0.88 0.79 0.64 0.94 0.91 0.82 0.67 0.97 0.93 0.84 0.68 1.00 0.96 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.91 0.74 5600 T 33 33 31 27 34 33 31 27 34 33 31 27 34 33 31 27 32 33 31 27 30 30 29 25 HI PR 256 276 291 304 288 309 327 341 327 352 372 388 372 401 423 441 419 451 476 497 463 498 526 549 LO PR 99 105 115 122 104 111 121 129 108 115 126 134 114 121 132 141 119 127 139 148 123 131 143 153
IDB: Entering Indoor Dry Bulb Temperature
Shaded area reflects AHRI (TVA) conditions
High and low pressures are measured at the liquid and suction access fittings.
15
Expanded Cooling Data
16
Outdoor Ambient Temperature
65
75
85
95
105
115
Entering Indoor Wet Bulb Temperature
IDB
Airflow
59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 284.2 294.5 322.7 - 277.6 287.7 315.2 - 271.0 280.8 307.7 - 264.3 274.0 300.2 - 251.1 260.3 285.2 - 232.6 241.1 264.2 -
S/T 0.67 0.56 0.39 - 0.70 0.58 0.40 - 0.72 0.60 0.41 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.77 0.65 0.45 -
T 19 17 13
-
19 17 13
-
19 17 13
-
19 17 13
-
19 17 13
-
18 16 12
-
9202
kW 22.18 22.65 23.36 - 23.88 24.39 25.17 - 25.38 25.93 26.77 - 26.70 27.29 28.19 - 27.83 28.45 29.39 - 28.80 29.44 30.43 -
HI PR 270 290 306 - 303 326 344 - 344 370 391 - 392 422 445 - 441 475 501 - 487 524 554 -
LO PR 102 108 118 - 108 115 125 - 112 119 130 - 118 125 137 - 123 131 143 - 127 136 148 -
MBh 275.9 286.0 313.3 - 269.5 279.3 306.0 - 263.1 272.7 298.7 - 256.7 266.0 291.5 - 243.8 252.7 276.9 - 225.9 234.1 256.5 -
S/T 0.64 0.54 0.37 - 0.67 0.56 0.38 - 0.68 0.57 0.39 - 0.70 0.59 0.41 - 0.73 0.61 0.42 - 0.74 0.62 0.43 -
T 20 17 13
-
20 17 13
-
20 17 13
-
20 18 13
-
20 17 13
-
19 16 12
-
70 8200
kW 22.00 22.47 23.17 - 23.69 24.20 24.97 - 25.17 25.72 26.55 - 26.48 27.07 27.95 - 27.60 28.21 29.14 - 28.56 29.20 30.17 -
HI PR 267 287 303 - 300 322 340 - 341 367 387 - 388 418 441 - 437 470 496 - 482 519 548 -
LO PR 101 107 117 - 107 113 124 - 111 118 129 - 116 124 135 - 122 130 142 - 126 134 147 -
MBh 262.1 271.7 297.6 - 256.0 265.3 290.7 - 249.9 259.0 283.8 - 243.8 252.7 276.9 - 231.6 240.1 263.0 - 214.6 222.4 243.7 -
S/T 0.61 0.51 0.36 - 0.64 0.53 0.37 - 0.65 0.55 0.38 - 0.67 0.56 0.39 - 0.70 0.58 0.40 - 0.71 0.59 0.41 -
T 20 18 13
-
21 18 14
-
21 18 14
-
21 18 14
-
21 18 13
-
19 17 13
-
7257
kW 21.66 22.11 22.80 - 23.31 23.80 24.56 - 24.76 25.30 26.12 - 26.05 26.62 27.49 - 27.14 27.74 28.65 - 28.08 28.71 29.66 -
HI PR 262 282 297 - 294 316 334 - 334 359 379 - 380 409 432 - 428 460 486 - 473 509 537 -
LO PR 99 105 115 - 105 111 121 - 109 116 126 - 114 121 133 - 120 127 139 - 124 132 144 -
www.daikinac.com
25-Ton AC (Two-Speed Motor at High Speed)
MBh 289.0 297.5 322.1 345.7 282.3 290.6 314.6 337.6 275.6 283.7 307.1 329.6 268.8 276.8 299.6 321.5 255.4 262.9 284.6 305.5 236.6 243.6 263.6 283.0
S/T 0.76 0.68 0.52 0.3 0.79 0.71 0.54 0.3 0.81 0.73 0.55 0.4 0.84 0.75 0.57 0.4 0.87 0.78 0.59 0.4 0.88 0.79 0.59 0.4
T 22 20 17 12 22 21 17 12 22 21 17 12 23 21 17 12 22 20 17 12 21 19 16 10.8 9202
kW 22.36 22.83 23.55 24.3 24.07 24.59 25.38 26.2 25.59 26.15 27.00 27.9 26.93 27.52 28.43 29.4 28.07 28.69 29.64 30.6 29.05 29.70 30.69 31.7
HI PR 272 293 310 322.9 306 329 347 362.3 348 374 395 412.0 396 426 450 469.3 445 479 506 528.0 492 530 559 583.3
LO PR 103 110 120 127.4 109 116 126 134.6 113 120 131 139.9 119 126 138 147.0 125 132 145 154.0 129 137 150 159.3
MBh 280.6 288.9 312.7 335.6 274.1 282.2 305.4 327.8 267.5 275.4 298.1 320.0 261.0 268.7 290.9 312.2 248.0 255.3 276.3 296.6 229.7 236.5 256.0 274.7
S/T 0.73 0.65 0.49 0.3 0.76 0.68 0.51 0.3 0.78 0.69 0.52 0.3 0.80 0.72 0.54 0.3 0.83 0.74 0.56 0.4 0.84 0.75 0.57 0.4
T 23 21 17 12 23 21 18 12 23 21 18 12 23 22 18 12 23 21 17 12 22 20 16 11.2 75 8200
kW 22.18 22.65 23.36 24.1 23.88 24.40 25.18 26.0 25.38 25.94 26.78 27.7 26.71 27.30 28.19 29.1 27.83 28.45 29.39 30.4 28.80 29.45 30.43 31.5
HI PR 270 290 307 319.7 303 326 344 358.7 344 370 391 408.0 392 422 446 464.7 441 475 501 522.7 487 524 554 577.6
LO PR 102 108 118 126.1 108 115 125 133.3 112 119 130 138.5 118 125 137 145.5 123 131 143 152.5 128 136 148 157.7
MBh 266.5 274.4 297.1 318.8 260.3 268.1 290.1 311.4 254.1 261.7 283.2 304.0 248.0 255.3 276.3 296.6 235.6 242.5 262.5 281.7 218.2 224.7 243.2 261.0
S/T 0.70 0.63 0.47 0.3 0.72 0.65 0.49 0.3 0.74 0.66 0.50 0.3 0.77 0.69 0.52 0.3 0.80 0.71 0.54 0.3 0.80 0.72 0.54 0.3
T 24 22 18 12 24 22 18 12 24 22 18 12 24 22 18 13 24 22 18 12 22 20 17 11.6 7257
kW 21.83 22.29 22.99 23.7 23.50 24.00 24.77 25.6 24.97 25.51 26.34 27.2 26.27 26.84 27.72 28.6 27.37 27.98 28.90 29.9 28.32 28.95 29.91 30.9
HI PR 264 284 300 313.3 297 319 337 351.5 337 363 383 399.8 384 413 437 455.4 432 465 491 512.3 478 514 543 566.0
LO PR 100 106 116 123.6 106 112 123 130.6 110 117 127 135.7 115 123 134 142.6 121 129 140 149.4 125 133 145 154.6
IDB: Entering Indoor Dry Bulb Temperature
Shaded area reflects ACCA (TVA) Rating Conditions.
kW = Total system power
High and low pressures are measured at the liquid and suction access fittings.
Amps: Unit amps (comp.+ evaporator + condenser fan motors)
Design Subcooling, 16 - 19 °F @ the liquid access fitting connection ARI 95 test conditions. Design Superheat 8 - 12°F @ the compressor suction access fitting connection.
SS-DBC15
Expanded Cooling Data
SS-DBC15
Outdoor Ambient Temperature
65
75
85
95
105
115
Entering Indoor Wet Bulb Temperature
IDB
Airflow
59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 294.1 300.6 321.1 343.3 287.3 293.6 313.6 335.3 280.4 286.6 306.2 327.3 273.6 279.6 298.7 319.3 259.9 265.6 283.8 303.3 240.8 246.0 262.9 281.0
S/T 0.84 0.79 0.64 0.5 0.87 0.82 0.66 0.5 0.89 0.84 0.68 0.5 0.92 0.86 0.70 0.5 0.96 0.90 0.73 0.5 0.96 0.90 0.74 0.5
T 25 24 21 16 25 24 21 17 25 24 21 17 25 24 21 17 25 24 21 17 23 22 19 15.4 9202
kW 22.54 23.01 23.74 24.5 24.27 24.79 25.59 26.4 25.80 26.37 27.23 28.1 27.15 27.75 28.67 29.6 28.30 28.93 29.89 30.9 29.29 29.95 30.95 32.0
HI PR 275 296 313 326.1 309 332 351 366.0 351 378 399 416.2 400 430 455 474.0 450 484 511 533.3 497 535 565 589.2
LO PR 104 111 121 128.7 110 117 128 136.0 114 122 133 141.3 120 128 139 148.4 126 134 146 155.6 130 138 151 160.9
MBh 285.6 291.8 311.8 333.3 278.9 285.0 304.5 325.5 272.3 278.2 297.3 317.8 265.6 271.4 290.0 310.0 252.4 257.9 275.5 294.5 233.8 238.9 255.2 272.8
S/T 0.80 0.75 0.61 0.5 0.83 0.78 0.63 0.5 0.85 0.80 0.65 0.5 0.88 0.82 0.67 0.5 0.91 0.85 0.70 0.5 0.92 0.86 0.70 0.5
T 26 25 21 17 26 25 22 17 26 25 22 17 26 25 22 17 26 25 21 17 24 23 20 16.0 80 8200
kW 22.36 22.83 23.55 24.3 24.08 24.59 25.38 26.2 25.59 26.15 27.00 27.9 26.93 27.53 28.43 29.4 28.07 28.69 29.64 30.6 29.05 29.70 30.69 31.7
HI PR 272 293 310 322.9 306 329 347 362.3 348 374 395 412.1 396 426 450 469.4 446 479 506 528.0 492 530 559 583.4
LO PR 103 110 120 127.4 109 116 126 134.6 113 120 131 139.9 119 126 138 147.0 125 132 145 154.0 129 137 150 159.3
MBh 271.3 277.2 296.2 316.6 265.0 270.8 289.3 309.2 258.7 264.3 282.4 301.9 252.4 257.9 275.5 294.5 239.7 245.0 261.7 279.8 222.1 226.9 242.4 259.2
S/T 0.77 0.72 0.59 0.4 0.79 0.74 0.61 0.5 0.81 0.76 0.62 0.5 0.84 0.79 0.64 0.5 0.87 0.82 0.67 0.5 0.88 0.83 0.67 0.5
T 26 25 22 18 27 26 22 18 27 26 22 18 27 26 22 18 27 25 22 18 25 24 21 16.5 7257
kW 22.00 22.47 23.17 23.9 23.69 24.20 24.97 25.8 25.17 25.72 26.55 27.4 26.48 27.07 27.95 28.9 27.60 28.21 29.14 30.1 28.56 29.20 30.17 31.2
HI PR 267 287 303 316.5 300 322 340 355.1 341 367 387 403.8 388 418 441 460.0 437 470 496 517.5 482 519 548 571.7
LO PR 101 107 117 124.9 107 113 124 131.9 111 118 129 137.1 116 124 135 144.0 122 130 142 150.9 126 134 147 156.1
www.daikinac.com
25-Ton AC (Two-Speed Motor at High Speed)
MBh 299.3 305.1 319.5 340.9 292.3 298.0 312.1 332.9 285.3 290.9 304.6 325.0 278.4 283.8 297.2 317.1 264.5 269.6 282.3 301.2 245.0 249.7 261.5 279.0
S/T 0.88 0.85 0.77 0.6 0.91 0.88 0.79 0.6 0.93 0.90 0.81 0.7 0.96 0.93 0.84 0.7 1.00 0.97 0.87 0.7 1.00 0.97 0.88 0.7
T 26 26 24 21 27 26 25 21 27 26 25 21 27 26 25 22 26 26 25 21 24 24 23 19.9 9202
kW 22.72 23.20 23.93 24.7 24.47 25.00 25.80 26.6 26.01 26.58 27.45 28.4 27.38 27.99 28.91 29.9 28.54 29.18 30.15 31.2 29.54 30.20 31.21 32.3
HI PR 278 299 316 329.4 312 336 354 369.6 355 382 403 420.4 404 435 459 478.8 454 489 516 538.6 502 540 571 595.1
LO PR 105 112 122 130.0 111 118 129 137.3 115 123 134 142.7 121 129 141 149.9 127 135 148 157.1 131 140 153 162.5
MBh 290.6 296.2 310.2 330.9 283.8 289.3 303.0 323.2 277.0 282.4 295.8 315.5 270.3 275.5 288.6 307.8 256.8 261.7 274.1 292.4 237.8 242.5 253.9 270.9
S/T 0.84 0.81 0.73 0.6 0.87 0.84 0.76 0.6 0.89 0.86 0.78 0.6 0.92 0.89 0.80 0.7 0.96 0.92 0.83 0.7 0.96 0.93 0.84 0.7
T 27 27 25 22 28 27 26 22 28 27 26 22 28 27 26 22 27 27 26 22 26 25 24 20.7 85 8200
kW 22.54 23.01 23.74 24.5 24.27 24.79 25.59 26.4 25.80 26.37 27.23 28.1 27.15 27.75 28.67 29.6 28.30 28.93 29.89 30.9 29.29 29.95 30.95 32.0
HI PR 275 296 313 326.1 309 332 351 366.0 351 378 399 416.2 400 430 455 474.0 450 484 511 533.3 497 535 565 589.2
LO PR 104 111 121 128.7 110 117 128 136.0 114 122 133 141.3 120 128 139 148.4 126 134 146 155.6 130 138 151 160.9
MBh 276.0 281.4 294.7 314.4 269.6 274.8 287.8 307.1 263.2 268.3 281.0 299.8 256.8 261.7 274.1 292.4 243.9 248.6 260.4 277.8 226.0 230.3 241.2 257.4
S/T 0.80 0.78 0.70 0.6 0.83 0.80 0.73 0.6 0.85 0.82 0.74 0.6 0.88 0.85 0.77 0.6 0.91 0.88 0.80 0.6 0.92 0.89 0.80 0.7
T 28 28 26 23 28 28 26 23 28 28 26 23 29 28 27 23 28 28 26 23 26 26 25 21.3 7257
kW 22.18 22.65 23.36 24.1 23.88 24.39 25.17 26.0 25.38 25.93 26.77 27.7 26.70 27.29 28.19 29.1 27.83 28.45 29.39 30.4 28.80 29.44 30.43 31.5
HI PR 270 290 306 319.6 303 326 344 358.6 344 370 391 407.9 392 422 445 464.6 441 475 501 522.6 487 524 554 577.5
LO PR 102 108 118 126.1 108 115 125 133.3 112 119 130 138.5 118 125 137 145.5 123 131 143 152.5 127 136 148 157.7
IDB: Entering Indoor Dry Bulb Temperature
Shaded area reflects AHRI) Rating Conditions.
kW = Total system power
High and low pressures are measured at the liquid and suction access fittings.
Amps: Unit amps (comp.+ evaporator + condenser fan motors)
Design Subcooling, 16 - 19 °F @ the liquid access fitting connection ARI 95 test conditions. Design Superheat 8 - 12°F @ the compressor suction access fitting connection.
17
Airflow Data 15
ESP (" HO)
0.2 0.4 0.6 0.8 1.0 1.2
ESP (" HO)
0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2
0
CFM BHP
---
---
---
---
---
---
7112 2.96
5983 2.38
4426 1.71
0
CFM BHP
---
---
---
---
---
---
---
---
6685 6.06
6248 5.75
5664 5.31
5053 4.81
Standard Two-Speed Belt-Drive at High Speed -- Down Shot
Turns Open
1
2
3
4
CFM BHP CFM BHP CFM BHP CFM BHP
---
---
---
---
---
---
---
---
---
---
---
--- 7306 2.54 6777 2.14
7477 2.97 6899 2.51 6323 2.10 5716 1.72
6467 2.46 5795 2.01 5101 1.61 ---
---
5190 1.89 ---
---
---
---
---
---
---
---
---
---
---
---
---
---
Two-Speed High-Static Belt-Drive at High Speed -- Down Shot
Turns Open
1
2
3
4
CFM BHP CFM BHP CFM BHP CFM BHP
---
---
---
---
---
---
---
---
---
---
---
--- 6930 5.14 6432 4.53
---
--- 6866 5.52 6382 4.80 5916 4.24
6779 5.80 6417 5.22 5914 4.52 5307 3.89
6391 5.52 5954 4.90 5288 4.18 ---
---
5782 5.09 5261 4.50 ---
---
---
---
5111 4.71 ---
---
---
---
---
---
---
---
---
---
---
---
---
---
5
CFM BHP
7203 2.18
6257 1.80
5103 1.39
---
---
---
---
---
---
5
CFM BHP
6580 4.30
5908 3.98
5370 3.68
---
---
---
---
---
---
---
---
---
---
6
CFM BHP
6718 1.84
5711 1.48
---
---
---
---
---
---
---
---
Airflow Data -- 20 Tons
Standard Two-Speed Belt-Drive at High Speed -- Down Shot
ESP (" HO)
0 CFM BHP
1 CFM BHP
2 CFM BHP
Turns Open 3
CFM BHP
4 CFM BHP
0.2
---
---
---
---
---
---
---
---
---
---
0.4
---
---
---
---
---
---
---
--- 9570 4.08
0.6
---
---
---
---
---
--- 9038 3.82 8460 3.46
0.8
---
--- 8171 2.93 7630 3.70 7068 2.79 ---
---
1.0
---
--- 7901 2.85 7203 3.42 ---
---
---
---
1.2
7344 4.35 ---
---
---
---
---
---
---
---
5
CFM BHP
---
---
9197 3.82
7949 3.14
---
---
---
---
---
---
6
CFM BHP
9664 4.05
8702 3.51
---
---
---
---
---
---
---
---
Two-Speed High-Static Belt-Drive at High Speed -- Down Shot
ESP (" HO)
0 CFM BHP
1 CFM BHP
Turns Open
2
3
CFM BHP CFM BHP
4 CFM BHP
5 CFM BHP
0.8
---
---
---
---
---
---
---
--- 8765 6.05 8225 5.38
1.0
---
---
---
---
---
--- 8663 6.43 8040 5.67 7385 4.97
1.2
---
--- 8978 7.61 8583 6.90 7978 6.00 7395 5.30 6713 4.60
1.4
8845 7.87 8474 7.26 8021 6.52 7393 5.65 6634 4.86 ---
---
1.6
8356 7.58 7989 6.89 7442 6.13 6610 5.22 ---
---
---
---
1.8
7810 7.18 7227 6.37 6576 5.62 ---
---
---
---
---
---
2.0
7080 6.64 6389 5.89 ---
---
---
---
---
---
---
---
2.2
6316 6.02 ---
---
---
---
---
---
---
---
---
---
Notes · Airflow table represent dry coil with filters installed; SCFM correction factor for wet coil is 4%.
· Any adjustment made to the blower should not cause the motor to draw more than the motor rated RLA. Minimum rated SCFM is 350 per ton. · Unit factory shipped with the sheave set at 2.5 turns open.
18
www.daikinac.com
SS-DBC15
Airflow Data 25
Turns Open RPM ESP 0.2 0.4 0.6 0.8 1 1.2
0 972 SCFM BHP --- ----- --10,519 6.20 9,482 5.60 8,446 5.01 7,409 4.41
Standard Two-Speed Belt-Drive at High Speed - Down Shot
1
2
3
4
941
910
877
845
SCFM BHP SCFM BHP SCFM BHP SCFM BHP
--- --- --- --- 10,369 5.07 9,748 4.41
10,802 6.00 10,125 5.30 9,484 4.62 8,905 4.01
9,821 5.47 9,193 4.81 8,599 4.18 8,062 3.61
8,839 4.93 8,261 4.32 7,714 3.74 7,220 3.21
7,857 4.39 7,329 3.83 6,829 3.30 --- ---
6,876 3.85 --- --- --- --- --- ---
5 813 SCFM BHP 9,191 3.82 8,386 3.46 7,582 3.10 6,777 2.74 --- ----- ---
6 781 SCFM BHP 8,683 3.28 7,913 2.95 7,143 2.63 --- ----- ----- ---
Two-Speed High-Static Belt-Drive at High Speed - Down Shot
Turns Open
0
1
2
3
4
5
6
RPM
1254
1208
1163
1124
1085
1046
1007
ESP
SCFM BHP SCFM BHP SCFM BHP SCFM BHP SCFM BHP SCFM BHP SCFM BHP
0.6
--- --- --- --- --- --- --- --- --- --- --- --- 11,409 7.12
0.8
--- --- --- --- --- --- --- --- --- --- --- --- 10,302 6.46
1
--- --- --- --- --- --- --- --- --- --- 10,159 6.79 9,195 5.79
1.2
--- --- --- --- --- --- --- --- 9,990 7.11 8,961 6.04 8,087 5.13
1.4
--- --- --- --- --- --- 9,789 7.39 8,686 6.25 7,763 5.29 6,980 4.46
1.6
--- --- --- --- 9,543 7.63 8,357 6.40 7,382 5.39 6,566 4.53 --- ---
1.8
--- --- --- --- 7,957 6.48 6,925 5.41 6,077 4.53 --- --- --- ---
2
--- --- 7,667 6.68 6,370 5.34 --- --- --- --- --- --- --- ---
2.2
7,280 6.78 --- --- --- --- --- --- --- --- --- --- --- ---
· Airflow table represent dry coil with filters installed; SCFM correction factor for wet coil is 4%. · Any adjustment made to the blower should not cause the motor to draw more than the motor rated RLA. Minimum rated SCFM is 350 per ton. · Unit factory shipped with the sheave set at 2.5 turns open.
Airflow Pressure Drop of Downflow Economizer for 15- to 25-Ton Rooftop Units (100% Return Air)
CFM
4000 6000 8000 10000
(In. WG)
0.16 0.18 0.27 0.47
Resistance (in. w.g.)
High-Efficiency MERV 13 Air Filter Option
Flanders Pre Pleat M13 Air Velocity vs Resistance (Test Size: 24" x 24" x 2" High Capacity)
0.50
0.45
2" Deep 0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00 0
100
200
300
400
500
600
700
Air Velocity (FPM)
Tonnage: 15, 20 25
Filter Nominal Size: 20 x 25 x 2 20 X 20 X 2
Part Number: 0160L00202 0160L00201
Order QTY: 6 8
Crankcase Heater Selection Table
ZP/ZPS...
Compressor Diameter
Compressor Voltage
230V
460V
575V
Crankcase Heater Watts
16-31
5.5" 0163R00002S 0163R00031S 0163R00032S
40
39-83 6.58/7.3" 0130L00017S 0130L00018S 0130L00019S
70
103-137
9.14" 0130L00020S 0130L00021S 0130L00022S
90
DB* Tonnage
Compressor Voltage
230V
460V
575V
Crankcase Heater Watts
15-20 Ton** 0130L00017S 0130L00018S 0130L00019S
70
25 Ton 0130L00020S 0130L00021S 0130L00022S
90
*Includes C,G&H models. **If Compressor Diameter is 9.14" then use 25 Ton Crankcase heaters.
SS-DBC15
www.daikinac.com
19
Electrical Data 15 Ton
MODEL NUMBER
ELECTRICAL RATING
COMPRESSOR CIRCUIT 1
COMPRESSOR CIRCUIT 2
OUTDOOR FAN MOTOR
INDOOR FAN MOTOR
OPTIONAL ELECTRIC HEAT
OPTIONAL POWERED CONVENIENCE
OUTLET
UNIT POWER SUPPLY
RLA DBC1803S 208/230-3-60 25.0 DBC1803V 208/230-3-60 25.0 DBC1804S 460-3-60 12.2 DBC1804V 460-3-60 12.2 DBC1807S 575-3-60 9.0 DBC1807V 575-3-60 9.0
LRA
164.0 164.0 100.0 100.0 78.0 78.0
RLA
25.0 25.0 12.2 12.2 9.0 9.0
LRA
164.0 164.0 100.0 100.0 78.0 78.0
QTY HP
3 0.33 3 0.33 3 0.33 3 0.33 3 0.33 3 0.33
FLA TYPE HP
2-speed 2.0 High-Static 7.50
Belt-Drive
2.0
2-speed BeltDrive
3.00
2-speed 0.9 High-Static 7.50
Belt-Drive
0.9
2-speed Belt-Drive
3.00
2-speed 0.7 High-Static 7.50
Belt-Drive
0.7
2-speed Belt-Drive
3.00
FLA MODEL
-
EHK3-31
EHK3-46
EHK3-60
20.3
-
EHK3-31
EHK3-46
EHK3-60
-
EHK3-31
EHK3-46
EHK3-60
9.1
-
EHK3-31
EHK3-46
EHK3-60
-
EHK4-31
EHK4-46
EHK4-60 9.5
-
EHK4-31
EHK4-46
EHK4-60
-
EHK4-31
EHK4-46
4.3 EHK4-60 -
EHK4-31
EHK4-46
EHK4-60
-
EHK7-31
EHK7-46
EHK7-60 7.5
-
EHK7-31
EHK7-46
EHK7-60
-
EHK7-31
EHK7-46
3.5 EHK7-60 -
EHK7-31
EHK7-46
EHK7-60
KW*
21.6 / 28.8 32.4 / 43.2 43.3 / 57.6
21.6 / 28.8 32.4 / 43.2 43.3 / 57.6
21.6 / 28.8 32.4 / 43.2 43.3 / 57.6
21.6 / 28.8 32.4 / 43.2 43.3 / 57.6
28.8 43.2 57.6
28.8 43.2 57.6
28.8 43.2 57.6
28.8 43.2 57.6
28.8 43.2 57.6
28.8 43.2 57.6
28.8 43.2 57.6
28.8 43.2 57.6
FLA
60.0 / 69.3 90.1 / 104 120 / 139
60.0 / 69.3 90.1 / 104 120 / 139
60.0 / 69.3 90.1 / 104 120 / 139
60.0 / 69.3 90.1 / 104 120 / 139
34.6 52.0 69.3
34.6 52.0 69.3
34.6 52.0 69.3
34.6 52.0 69.3
28.9 43.4 57.8
28.9 43.4 57.8
28.9 43.4 57.8
28.9 43.4 57.8
FLA
7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
MCA MOP
82.6 / 82.6 100 / 100
100 / 112 100 / 125
138 / 155 150 / 175
175 / 164 175 / 175
89.8 / 89.1 110 / 110
109 / 120 110 / 125
147 / 163 150 / 175
184 / 172 200 / 175
71.4 / 71.4 90 / 90
86.4 / 98.0 90 / 100
124 / 141 125 / 150
161 / 150 175 / 175
78.6 / 77.9 100 / 100
95.4 / 106 100 / 110
133 / 149 150 / 150
170 / 158 175 / 175
39.5
50
55.2
60
76.8
80
81.2
90
42.8
50
59.3
60
81.0
90
85.3
90
34.3
45
48.7
50
70.3
80
74.7
80
37.6
45
52.8
60
74.5
80
78.8
90
29.8
35
45.5
50
63.6
70
67.2
80
32.4
40
48.8
50
66.8
70
70.5
80
25.8
30
40.5
45
58.6
60
62.2
70
28.4
35
43.8
45
61.8
70
65.5
70
20
www.daikinac.com
SS-DBC15
Electrical Data 20 Ton
MODEL NUMBER
ELECTRICAL RATING
COMPRESSOR CIRCUIT 1
COMPRESSOR CIRCUIT 2
OUTDOOR FAN MOTOR
INDOOR FAN MOTOR
OPTIONAL ELECTRIC HEAT
OPTIONAL POWERED UNIT POWER CONVENIENCE SUPPLY
OUTLET
RLA DBC2403S 208/230-3-60 34.0 DBC2403V 208/230-3-60 34.0 DBC2404S 460-3-60 16.0 DBC2404V 460-3-60 16.0 DBC2407S 575-3-60 12.9 DBC2407V 575-3-60 12.9
LRA
240.0 240.0 140.0 140.0 107.6 107.6
RLA
34.0 34.0 16.0 16.0 12.9 12.9
LRA
240.0 240.0 140.0 140.0 107.6 107.6
QTY HP FLA TYPE HP FLA MODEL KW* FLA
-
-
-
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
EHK3-60 43.3 / 57.6 120 / 139
2-speed
EHK3-75 54.1 / 72.0 150 / 173
3 0.33 2.0 High-Static 7.50 20.3
Belt-Drive
-
-
-
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
EHK3-60 43.3 / 57.6 120 / 139
EHK3-75 54.1 / 72.0 150 / 173
-
-
-
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
EHK3-60 43.3 / 57.6 120 / 139
3
0.33
2.0
2-speed Belt-Drive
EHK3-75 54.1 / 72.0
5.00 14.0
-
-
150 / 173 -
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
EHK3-60 43.3 / 57.6 120 / 139
EHK3-75 54.1 / 72.0 150 / 173
-
-
-
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
2-speed
EHK4-75 72.0
86.6
3 0.33 0.9 High-Static 7.50 9.5
Belt-Drive
-
-
-
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
EHK4-75 72.0
86.6
-
-
-
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
3
0.33 0.9
2-speed Belt-Drive
5.00
6.6
EHK4-75 -
72.0 -
86.6 -
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
EHK4-75 72.0
86.6
-
-
-
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
2-speed
EHK7-75 72.0
72.3
3 0.33 0.7 High-Static 7.50 7.5
Belt-Drive
-
-
-
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
EHK7-75 72.0
72.3
-
-
-
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
3
0.33
0.7
2-speed Belt-Drive
5.00
5.2
EHK7-75 -
72.0 -
72.3 -
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
EHK7-75 72.0
72.3
FLA
7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
MCA MOP
103 / 103 125 / 125
103 / 112 125 / 125
138 / 155 150 / 175
175 / 164 175 / 175
175 / 199 200 / 225
110 / 109 125 / 125
110 / 120 125 / 125
147 / 163 150 / 175
184 / 172 200 / 175
184 / 207 200 / 225
96.4 / 96.4 125 / 125
96.4 / 104 125 / 125
130 / 147 150 / 150
168 / 156 175 / 175
168 / 191 200 / 225
104 / 103 125 / 125
104 / 112 125 / 125
139 / 156 150 / 175
177 / 164 200 / 175
177 / 199 200 / 225
48.1
60
55.2
60
76.8
80
81.2
90
98.5
110
51.4
60
59.3
60
81.0
90
85.3
90
103
110
45.2
60
51.6
60
73.2
80
77.5
90
94.9
110
48.5
60
55.7
60
77.3
80
81.7
90
99.0
110
38.7
50
45.5
50
63.6
70
67.2
80
81.7
90
41.3
50
48.8
50
66.8
70
70.5
80
84.9
100
36.4
45
42.6
45
60.7
70
64.3
70
78.8
90
39.0
50
45.9
50
64.0
70
67.6
80
82.0
90
SS-DBC15
www.daikinac.com
21
Electrical Data 25 Ton
MODEL NUMBER
ELECTRICAL RATING
COMPRESSOR CIRCUIT 1
COMPRESSOR CIRCUIT 2
OUTDOOR FAN MOTOR
INDOOR FAN MOTOR
OPTIONAL ELECTRIC HEAT
OPTIONAL POWERED UNIT POWER CONVENIENCE SUPPLY
OUTLET
RLA DBC3003S 208/230-3-60 48.1 DBC3003V 208/230-3-60 48.1 DBC3004S 460-3-60 18.6 DBC3004V 460-3-60 18.6 DBC3007S 575-3-60 14.7 DBC3007V 575-3-60 14.7
LRA
245.0 245.0 125.0 125.0 100.0 100.0
RLA
48.1 48.1 18.6 18.6 14.7 14.7
LRA QTY HP FLA TYPE HP FLA MODEL KW* FLA
-
-
-
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
245.0
EHK3-60 43.3 / 57.6 120 / 139
2-speed
EHK3-75 54.1 / 72.0 150 / 173
2 1.00 4.2 High-Static 7.50 21.0
Belt-Drive
-
-
-
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
EHK3-60 43.3 / 57.6 120 / 139
EHK3-75 54.1 / 72.0 150 / 173
-
-
-
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
EHK3-60 43.3 / 57.6 120 / 139
245.0
2
1.00 4.2
2-speed Belt-Drive
EHK3-75 54.1 / 72.0
7.50 21.0
-
-
150 / 173 -
EHK3-31 21.6 / 28.8 60.0 / 69.3
EHK3-46 32.4 / 43.2 90.1 / 104
EHK3-60 43.3 / 57.6 120 / 139
EHK3-75 54.1 / 72.0 150 / 173
-
-
-
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
2-speed
EHK4-75 72.0
86.6
125.0 2 1.00 2.1 High-Static 7.50 10.1
Belt-Drive
-
-
-
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
EHK4-75 72.0
86.6
-
-
-
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
125.0
2
1.00 2.1
2-speed Belt-Drive
EHK4-75 7.50 10.1
-
72.0 -
86.6 -
EHK4-31 28.8
34.6
EHK4-46 43.2
52.0
EHK4-60 57.6
69.3
EHK4-75 72.0
86.6
-
-
-
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
2-speed
EHK7-75 72.0
72.3
100.0 2 1.00 1.6 High-Static 7.50 8.2
Belt-Drive
-
-
-
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
EHK7-75 72.0
72.3
-
-
-
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
100.0
2
1.00 1.6
2-speed Belt-Drive
7.50
8.2
EHK7-75 -
72.0 -
72.3 -
EHK7-31 28.8
28.9
EHK7-46 43.2
43.4
EHK7-60 57.6
57.8
EHK7-75 72.0
72.3
FLA
7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 7.2 / 6.5 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
MCA MOP
138 / 138 175 / 175
138 / 138 175 / 175
139 / 156 175 / 175
176 / 165 200 / 175
176 / 199 200 / 225
145 / 144 175 / 175
145 / 144 175 / 175
148 / 164 175 / 175
185 / 173 200 / 175
185 / 208 200 / 225
138 / 138 175 / 175
138 / 138 175 / 175
139 / 156 175 / 175
176 / 165 200 / 175
176 / 199 200 / 225
145 / 144 175 / 175
145 / 144 175 / 175
148 / 164 175 / 175
185 / 173 200 / 175
185 / 208 200 / 225
56.1
70
56.1
70
77.6
80
81.9
90
99.2
110
59.4
70
60.1
70
81.7
90
86.0
90
103
110
56.1
70
56.1
70
77.6
80
81.9
90
99.2
110
59.4
70
60.1
70
81.7
90
86.0
90
103
110
44.6
50
46.4
50
64.5
70
68.1
80
82.5
100
47.2
60
49.6
60
67.7
70
71.3
80
85.8
100
44.6
50
46.4
50
64.5
70
68.1
80
82.5
100
47.2
60
49.6
60
67.7
70
71.3
80
85.8
100
22
www.daikinac.com
SS-DBC15
Electrical Heat
Heat Kit Electrical Data (Blower Only, Heat Mode)
DBC1803 @ 208 / 240V 15 Tons
Model
EHK3-31 EHK3-46 EHK3-60
Recommended Airflow Range 5250 - 6750 CFM 5250 - 6750 CFM 5250 - 6750 CFM
DBC1804 @ 480V 15 Tons
Model
EHK4-31 EHK4-46 EHK4-60
Recommended Airflow Range 5250 - 6750 CFM 5250 - 6750 CFM 5250 - 6750 CFM
DBC1807 @575V 15 Tons
Model
EHK7-31 EHK7-46 EHK7-60
Recommended Airflow Range 5250 - 6750 CFM 5250 - 6750 CFM 5250 - 6750 CFM
DBC3003 @ 240 / 240V 25 Tons
Model
EHK3-31 EHK3-46 EHK3-60 EHK3-75
Airflow Range
7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM
DBC3004@ 480V 25 Tons
Model
EHK4-31 EHK4-46 EHK4-60 EHK4-75
airflow range
7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM
DBC2403 @ 208 / 240V 20 Tons
Model
EHK3-31 EHK3-46 EHK3-60 EHK3-75
Recommended Airflow Range 7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM
DBC2404 @ 480V 20 Tons
Model
EHK4-31 EHK4-46 EHK4-60 EHK4-75
Recommended Airflow Range 7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM
DBC2407 @575V 20 Tons
Model
Recommended Airflow Range
EHK7-31
7200 - 8500 CFM
EHK7-46
7200 - 8500 CFM
EHK7-60
7200 - 8500 CFM
EHK7-75
7200 - 8500 CFM
Note: When using electric heat kit, the single-point kit installed in the unit is needed to meet UL requirements.
kW Correction Factors
kW Correction Factor (for 208/230V Units) Supply Voltage 240 230 220 210 208 Correction Factor 1 0.92 0.84 0.77 0.75
kW Correction Factor (for 460V Units)
Supply Voltage
460 440 430
Correction Factor 0.92 0.84 0.8
DBC3007@ 575V 25 Tons
Model
EHK7-31 EHK7-46 EHK7-60 EHK7-75
airflow range
7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM 7200 - 8500 CFM
kW Correction Factor (for 575V Units)
Supply Voltage
560 550 540
Correction Factor
0.95 0.91 0.88
SS-DBC15
www.daikinac.com
23
Wire Diagram
DBC 15 & 20 Tons (230V/460V/575V, Two-Speed Belt-Drive)
CCHR1
1
6
OR
2
4
BK BK
BK
CCHR2
1
6
BL BL
PU YL
2
4
BK
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sourcesmaybepresent.Failuretodosomaycausepropertydamage,personalinjury,ordeath.
RD
OR
BK
BL RD RD
YL
CCH1
T3
COMP
T2
1 T1
CCH2
T3
COMP
T2
2 T1
12
YL
13
YL
11
YL
HIGH EM
LOW
BK
BK BK
2
3
1
YL RD BK
T3
L3
T2
L2
CC1
T1
L1
YL RD BK
T3
L3
T2
L2
CC2
T1
L1
BL
L3 L2 L1 T3 T2 T1 PU
OR RD BK
GY BL YL
L3 L2 L1 T3 T2 T1
CB1 HIGH SPEED
OR RD
BK
CB2 LOW SPEED
GY BL
YL
BL
T3
L3
T2
L2
BC1
T1
L1
T3
L3
T2
L2
BC2
T1
L1
OR BL
BK RD
BK
BL
TR
1
2
3
C
208 460
240 575
24V
GR
PK
BL
YL
BL PU
23
41
BL
HPS2
BL CCR1
YL BL
CCR2
YL
3 NC 5
4
2 NO
1
BL
BR2
BL
GR
SEE NOTE 5 PK
OR BK
OR
BK BK
RD BK
OR RD
BK
OR OR
OR RD
5
GR
3 NC
4
YL
GR
2 NO
1
GR
GR
BR1
GR
BK RD
BK
PB
RD
OR OR
POWER SUPPLY SEE NOTE 4
208V-240V-460V-575V 3 ph - 60Hz
GRND
BK
RD
PU
C
FC1
BR
F
RD
PU
C
FC2
BR
F
PU BR
C FC3
F
RD BK
BR PU BR PU
PU BR
TB2
BK BK
BK BK
CM3
BR PU
CM2
SEE NOTE 3
YL RD
PU
BL
PK
PLF 2
WH 3 6 9
258 BL
147
WH
HPS1
YL
YL
WH PU
23 41
YL LPS2
YL LPS1
RD GR
RD
PU YL
Warning
0140L03208-A
24
PK PU PU
WH
PLF 1
123
456
789
RD
PU BR RD
BL WH
RD GR
PU
RD
BR
RD RD RD BL
GR BL GR
BL
WH
YL YL
YL
PU
WH BR
PU PU
TB1
S1
S2
R
C
G
W1 W2 Y1
Y2
O
RD
WH
SEE NOTE 4
REPLACE JUMPER WITH SMOKE/FIRE DETECTOR
TO THERMOSTAT BR
RD
GR
G
RD BR
R XFMR-R XFMR-C
EBTDR NOTE #2
BL C
BL
SPEED UP
K1 K1 M1
BR PU
www.daikinac.com
BR PU
CM1
RD
NO COM NC
M2
GR PU
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
SS-DBC15
Wire Diagram
DBC 15 & 20 Tons (230V/460V/575V, Two-Speed Belt-Drive cont.)
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sourcesmaybepresent.Failuretodosomaycausepropertydamage,personalinjury,ordeath.
L1
SUPPLY VOLTAGE 208-240/460/575/3/60
CC1
T1
T2 T1 COMP1
T3
C CF1
F
CM1
T2
CC1
CC1 T3
C
CF2
F
C CF3
F
CM3
CC2
T2 T1
T1 COMP2
T3
T2
CC2
T3
CC2
CM2
L2
L3
COMPONENT LEGEND
BC BR CC CCH
CCHR CCR CM CMR
COMP ECON EBTD EMR
R EM FC GND HPS LPS PB PLF TB1 TB2 TR
BLOWER CONTACTOR BLOWER RELAY
COMPRESSOR CONTACTOR CRANK CASE HEATER CRANK CASE HEATER RELAY COMPRESSOR CONTACTOR RELAY CONDENSER MOTOR CONDENSER MOTOR RELAY
COMPRESSOR ECONOMIZER ELECTRONIC BLOWER TIME DELAY EVAPORATOR MOTOR RELAY RELAY EVAPORATOR MOTOR FAN CAPACITOR EQUPIMENT GROUND HIGH PRESSURE SWITCH LOW PRESSURE SWITCH POWER DISTRUBTION BLOCK FEMALE PLUG / CONNECTOR TERMINAL BLOCK (24V SIGNAL) TERMINAL BLOCK (L1) TRANSFORMER
BC2 BC1
CB2 CB1
HIGH SPEED
CCH1 CCH2
R
PLF1
7
4
8
5
9
6
LOW SPEED EM
CB2 CB2 CB1 CB1
BC2 BC2
BC1 BC1
CCHR1
2
1
EBTDR
2
1
208-240V 2
NOTE 5
CCHR2
3
1
TR 24V
R
G
C
EBTDR EBTDR
HPS1
BR1 2
4
5
BC1 BC2
1 BR1 3 1 BR2 3
BR2 2
4
5
LPS1
LPS2
HPS2
1
3
4
2
CCR1
CC1
CC2 4
1
2 3 CCR2
9
6
8
5
7
4
PLF2 3 2 1
6
4
CCHR2
6
4
CCHR1
SEE NOTE 3
TB1
S1
S2
R
C
G
W1 W2 Y1
Y2
O
RD
WH
THERMOSTAT ++
NOTES:
1. REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE INSULATION AS ORIGINAL (AT LEAST 105°C) USE COPPER CONDUCTOR ONLY.
2. USE COPPER CONDUCTORS ONLY ++ USE N.E.C. CLASS 2 WIRE
3. ECONOMIZER PLUG LOCATED IN THE RETURN AIR COMPARTMENT, REMOVE MALE PLUG, ATTACH FEMALE PLUG TO THE ECONOMIZER ACCESSORY.
4. FOR TWO STAGE OPERATION REMOVE W1 TO W2 WIRE JUMPER.
5. FOR 208V OPERATION MOVE BLACK WIRE FROM TERMINAL 3 TO TERMINAL 2 ON 240V TRANSFORMER
FACTORY WIRING LINE VOLTAGE LOW VOLTAGE
OPTIONAL HIGH VOLTAGE
FIELD WIRING HIGH VOLATGE LOW VOLATGE
WIRE CODE
BK BLACK
BL
BLUE
BR BROWN
GR GREEN
OR ORANGE
PK PINK
PU PURPLE
RD RED
WH WHITE
YL YELLOW
YL/PK YELLOW WITH PINK STRIP
BL/PK BLUE WITH PINK STRIP
THERMOSTAT
++
FIELD WIRING
2 STAGE COOLING
W1 G R Y1 Y2 C O W2 TB1
WH GR RD YL PK BL OR BR
W1 G R Y1 Y2 C O W2 STAT
SEE NOTE 4
REPLACE JUMPER WITH SMOKE/FIRE DETECTOR
SEE UNIT RATING PLATE FOR TYPE AND SIZE OF OVER CURRENT PROTECTION
0140L02915-A
SS-DBC15
www.daikinac.com
25
Warning
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Wire Diagram
DBC 25 Tons (230V/460V/575V, Two-Speed Belt-Drive - Controls Diagram)
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sourcesmaybepresent.Failuretodosomaycausepropertydamage,personalinjury,ordeath.
CLASS 2
FIELD CONTROL
WIRING
W1 W2
G
R
WH
Y2 YI
S2 S1 RD
TB1
C
4
5
WH WH
YL BR GR RD PU YL BK RD BL
BL RD
BK 3
TB3
RD RD
RD
YL YL
THERMOSTAT WIRING 2 STAGE COOLING
W
WH
W
G
GR
G
R
RD
R
Y1
YL
Y1
Y2
PK
Y2
C O TB1
BL
C
OR
O
STAT
CCR1
RD
2
4
BK
OR
5
6
YL
BL
1
3
BL
OR BK
CCR2
OR
2
4
BR
5
6
PU
BL
PU
1
3
BL
SMOKE DETECTOR
24V AC/DC
BL
10
PK
9
Y Y SENSOR 1 R
RD
16 AUX A
B
BR
6
Y
17
SENSOR 2 Y
R
8 AUX B
B
18
7
Y
Y R
SEN1
B
Y
Y R
SEN2
B
SMK DET OPTION
5
SUPPLY (LINE) VOLTAGE
TR1 RD
24 VAC
HPS1
LPS1
YL
YL
YL
YL
GR BL
YL
TB3 3
BL
BL CC1
BL
YL
BL BL
BK
BL
BL
FM1 1 2 3
PU
PLF PLM
RD
1
1
RD
RD
2
2
RD
WH WH
-t°
HPS2
LPS2
PU
PU
CC2
PU
BL
PU
BL
PU
BL BR
FM2
1 2 3
PLF PLM
OR
1
1
OR
OR
2
2
OR
WH WH
-t°
BL YL
BL
BL
YL
PU
CMC1
GY
GY
BL
CMR
PU
2
4
GY
RD
YL
5
6
GY
PU
RD
BL
BL
1
3
GY
WH WH BR GR
YL RD PU YL
RD RD PU YL
PU WH
YL
BR2
2
4
5
6
1
3
WH BR GR
RD PU YL
PU YL GR 3 21
PLM 3
3 2 1 PLF 3 RD RD PU YL GR
WH WH
YL
BL BL
BL GR
GR
BK
BK BR YL
BR
BR1
2
4
5
6
1
3
ECON ECON SHRT
PLF PLM
2
YL
1
PU
2
PU
3
YL 1
PU 2
PU 3
YL
4
YL 4
BL
5
5
GR
6
6
7
7
WH
8
8
RD
9
9
LAM1
1 2 3
PU
PLF PLM
BK
1
BK
2
1
BK
2
BK
WH WH
-t°
GR
BL
BL
BL
BR
BL
BL
CMC2
PU
BL
BL
BL
BL
BC2 LOW SPEED
BR
BL
BC1 HIGH SPEED BK
BL BL
BK BL
2
ECON PLM
1 2 3 4 5
6 7 8 9
GRD LUG
ECON MODULE
1
2 3 4
AUX2-I OCC E-GND
1 EXH1
MAT 1 MAT 2 OAT 1 OAT 2
2 AUX1-O
S-BUS 1
1 Y2-I
S-BUS 2
2 Y2-O 3 Y1-I 4 Y1-O
IAQ 2-10 IAQ COM
IAQ 24V
1 2 3
1C 2R
ACT COM 1 ACT 24V 2 3 4
MAS OD ENTH ECON
ACT
ECON OPTION
BL
BL
BL
RD YL
BK
OR
LAR
2
4
5
6
1
3
OR BK YL
RD
GY
BL BL
WH WH BR GR RD
RD
GR
GR
WH BL BR WH
PU RD
1 23 4 5678 9
HEAT PLF
RD RD RD
GR GR PU
RD
GR BL
EBTDR
XFMR-R 3A
R
G
XFMR-C C
SPEEDUP M1
(NC) COM
6
M2
(NO)
NOTES: 1. REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE OF
INSULATION AS ORIGINAL (USE COPPER CONDUCTORS ONLY). 2. IF OPTIONAL ECONOMIZER IS INSTALLED, REMOVE ECON SHRT
PLM AND CONNECT ECON PLM TO ECON PLF. 3. TB3 LOW VOLTAGE TERMINAL BLOCK.4 TERMINALS FOR 24VAC
PWR (RD,BK,BR WIRE) AND 6 TERMINALS FOR 24VAC COM (BL WIRE). 4. CONNECTIONS SHOWN ARE FOR 1-STAGE HEAT OPERATION.
WHEN 2-STAGE OPERATION IS REQUIRED REMOVE WH JUMPER WIRE CONNECTING W2 TO W1 ON TB1. 5. IF OPTIONAL SMOKE DETECTOR IS INSTALLED, REMOVE RD JUMPER WIRE CONNECTING S1 TO S2 ON TB1 AND MAKE THE FOLLOWING WIRE CONNECTIONS: RD WIRE TO S1,BR WIRE TO TB3 (24V/PWR),BL WIRE TO TB3 (24V/COM).
OR BL
BL
GY
8
LAM2 1 2 3
WH WH
PLF 1 2
PLM 1 2
WH WH
LAT
BK
T1 T6
BL
8
YL
T2
9
RD BL
WH WH
-t°
BL
7 BL
LOW AMB OPTION
LA CMC
RD
BL
BL
BL
6. EBTDR RELAY ENERGIZES 7 SEC AFTER 24VAC IS APPLIED TO "G". THE RELAY DE-ENERGIZES 65 SEC AFTER 24VAC IS REMOVED FROM "G".
7. EBDTR RELAY DELAYS WILL DECREASE TO APPROX 3-5 SEC WHEN "SPEEDUP" IS SHORTED TO "C".
8. IF LOW AMBIENT KIT IS INSTALLED, CONNECT GY WIRE FROM LAM2-3 TO CMR-4. ALSO CONNECT BL COM WIRES FROM LAT-T6 AND LAM2 -2 TO TB3 (24V COM).
9. LAT ON/OFF TIME SETTINGS : ON -TIME (LEFT COLUMN) : 2,8 = ON OFF -TIME (RIGHT COLUMN) : 8 = ON ALL OTHER DIP SWITCHES = OFF
CONTROLS DIAGRAM DCC300***(3,4,7) V 2SPD EM
0140L04764-A
Warning
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
26
www.daikinac.com
SS-DBC15
Wire Diagram
SS-DBC15
www.daikinac.com
BK
BK
OR
OR
TR2 2
3
TR1 2
3
PB L1 L2 L3
LINE VOLTAGE
BK RD OR BK RD OR
GND
BK RD OR
BK RD OR
BK RD OR
BM 3~ GR
BK(1) BK(3) BK(2)
YL(11) YL(13) YL(12)
CB
BK RD OR
LOW SPEED
BC1
YL
T1 L1
YL T1 L1 BK
BL
T2 L2
BL T2 L2 RD
GY
T3 L3
GY T3 L3 OR
BC2
BK
T1 L1
BK T1 L1 BK
RD
T2 L2
RD T2 L2 RD
OR
T3 L3
OR T3 L3 OR
CB HIGH SPEED
CCAS1
OR
L1 T1
GY
BK
CC1
BK
L1 T1
BK
RD
L2 T2
RD
OR
L3 T3
YL
CCAS2 RD
OR
L1 T1
BR
BK
CC2
BK
BK
L1 T1
BK
RD
L2 T2
RD
OR
L3 T3
YL
RD
BK CCH1
BK
GR
L1 L2
M 3~
COMP 1
L3
GR
BK CCH2
BK
GR
L1 L2
M 3~
COMP 2
L3
GR
CF HVTB BK
BK FC1
RD
BR
PU
BK L1 BR CAP PU L3
M 1~
CM1
GR
BK FC2
RD
BR
PU
BK L1 BR CAP PU L3
M 1~
CM2
GR
FC3
RD
BR
PU
BK L1 BR CAP PU L3
M 1~
CM3
GR
NOTES 1 REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE OF INSULATION
AS ORIGINAL (AT LEAST 105° C). USE COPPER CONDUCTORS ONLY. USE N.E.C. CLASS 2 WIRE FOR ALL LOW VOLTAGE FIELD CONNECTIONS. 2 TR1 & TR2 PRIMARY (HIGH VOLTAGE) CONNECTIONS: ORANGE WIRES CONNECTED TO 240/460/575V TAP AT THE FACTORY AND BLACK WIRES TO COM TERMINAL. FOR 208V SUPPLY POWER, MOVE ORANGE WIRES FROM 240V TAP TO THE 208V TAP ON BOTH TRANSFORMERS. 3 SEE CONTROL DIAGRAM FOR CONTROL TRANSFORMER LOW VOLTAGE CONNECTIONS 4 USE COPPER CONDUCTORS ONLY. UNIT TERMINALS ARE NOT DESIGNED FOR OTHER CONDUCTORS. THE USE OF OTHER TYPE CONDUCTORS MAY CAUSE DAMAGE TO THE UNIT
COMPONENT LEGEND
BC
BLOWER CONTACTOR
BM
BLOWER MOTOR
CB
CIRCUIT BREAKER
CC
COMPRESSOR CONTACTOR
CCAS COMPRESSOR CONTACTOR AUXILIARY SWITCH
CCH
CRANKCASE HEATER
CF HVTB CONDENSER FAN HIGH VOLTAGE TERMINAL
BOARD
CM
CONDENSER MOTOR
CMC
CONDENSER MOTOR CONTACTOR
COMP COMPRESSOR
FC GND PB PLF PLM TR
FAN CAPACITOR EQUIPMENT GROUND POWER DISTRIBUTION BLOCK FEMALE PLUG/CONNECTOR MALE PLUG/CONNECTOR TRANSFORMER
WIRE CODE
BK BL BL/PK BR GR GY OR PK PU RD TN WH YL YL/PK
BLACK BLUE BLUE WITH PINK STRIPE BROWN GREEN GRAY ORANGE PINK PURPLE RED TAN WHITE YELLOW YELLOW WITH PINK STRIPE
FACTORY WIRING HIGH VOLTAGE OPTIONAL HIGH VOLTAGE LOW VOLTAGE OPTIONAL LOW VOLTAGE CHASSIS GROUND
FIELD WIRING
HIGH VOLTAGE LOW VOLTAGE EARTH GROUND
POWER WIRING DIAGRAM DBC (180-240) ***V LINE VOLTAGE:
208-230/460/575V/3PH/60HZ
0140L07099-A
DDC Power Wiring Diagram DBC 180-240
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Warning
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death.
27
Wire Diagram
28
www.daikinac.com
YL
YL
PK
PU
PU
G G0 U1 U2 U3 GND +VDC U4 GND U5 GND VG VG0 Y1 Y2 Y3 Y4 ID1 ID2 ID3 ID4 ID5 ID6 ID7 ID8 IDC1 U6 U7 U8 GND ID9 ID10 ID11 ID12 IDC9 ID13H ID13 IDC13 ID14 ID14H
3 EPHLFK 1
2
3
4 BL
5 BR
BR
6 WH WH
7
8
9
2
ECON PLF
1 WH
2 GR
3 BR
4 RD
5
6
WH
BR 2 4 RD ESR
PK
PK WH BR TN PK BK
YL YL
PU PU
4
+ C1 NO1 NO2 NO3 C1 C4 NO4 NO5 NO6 C4 C7 NO7 C7 NO8 C8 NC8 C9 NO9 NO10 NO11 C9 NO12 C12 NC12 NO13 C13 NC13
J25
J12
J1
J2
J3
J13
J14
DDC CONTROLLER J4
J15 J5
J16
J17
J18
J6
J7
J8
GR WH BR RD
RD GR PU BK TN
U1 U3
RD
U2
GY BR U4
RD GRWH
PU PK BK YL PU Y4
BL OR YL WH
U6 U8
U7
BR OR GR GY
ID9 ID11
ID10
BR
WH
GR
YL A1 CC1 A2 BL PU A1 CC2 A2 BL
TN A1 BC1 A2 BL BK A1 BC2 A2 BL PK 1 ESR 0 BL
BL
YL PU
BL
LPS1
YL/PK
YL/PK
YL
YL
HPS1PK
PK
BL/PK
BL/PK
LPS2
YL/PK
YL/PK
PU
PU
HPS2 PK
PK
BL/PK
BL/PK
BCS
BK
BK
BK
RD
5a PLMES PLF
5b RD
1 1 RD 2 2 PK
3 3 RD
4 4 BL
BK
BK
YL
YL
PU
PU
BL
PK
PK
RD
PK
BL
TB1 XS XS ES ES ES ES ES ES ES C C C C C C C
RD RD GR GR
U1 U2 U3 U4 Y4 U6 U7 U8 ID9 ID10 ID11 PU BK TN GY PU OR WH YL BR GY OR
TB2 XS2 XS2 AG AG AG DAT OAT OAH CO2 ALM SPT SPA IAH RSS LDS CFS
COM
RD
TR1
NOTES 1 REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE OF INSULATION AS ORIGINAL (AT LEAST
105° C). USE COPPER CONDUCTORS ONLY. USE N.E.C. CLASS 2 WIRE FOR ALL LOW VOLTAGE FIELD CONNECTIONS.
2 IF OPTIONAL ECONOMIZER IS INSTALLED INSERT PLM PLUG PROVIDED BY THE ECONOMIZER KIT
3 IF ELECTRIC HEAT IS INSTALLED, CONNECT EHK PLF TO ACCESSORY HEAT PLUG IN HEAT COMPARTMENT
4 FIELD WIRE BACNET MS/TP TO J25. SEE IO MANUAL FOR ADDITIONAL INFORMATION.
5a
IF OPTIONAL OEM SAFETY EQUIPMENT SUCH AS PHASE MONITOR, FLOAT SWITCH OR SMOKE DETECTOR ARE INSTALLED, UNPLUG JUMPER PLUG AND PLUG IN SAFETY DEVICE.
IF MULTIPLE SAFETIES ARE INSTALLED, PLUG IN THE ADDITIONAL DEVICES IN SERIES. PLUG IN
JUMPER PLUG AT THE LAST SAFETY DEVICE INSTALLED.
5b IF A THIRD PARTY SAFETY DEVICE IS FIELD INSTALLED, CUT THE RED WIRE ON THE JUMPER PLUG AND WIRE A NORMALLY CLOSED DRY CONTACT IN SERIES WITH THE CUT WIRE
6 OPTIONAL FACTORY INSTALLED EQUIPMENT
GR RD BL
COMPONENT LEGEND
ALM ALS BC BCS BM CB CC CFS CO2 CM CMC COMP DAT ECON EHK
ALARM AUXILIARY LIMIT SWITCH BLOWER CONTACTOR BLOWER CURRENT SWITCH BLOWER MOTOR CIRCUIT BREAKER COMPRESSOR CONTACTOR CLOGGED FILTER SWITCH CARBON DIOXIDE SENSOR CONDENSER MOTOR CONDENSER MOTOR CONTACTOR COMPRESSOR DISCHARGE AIR TEMPERATURE ECONOMIZER ELECTRIC HEATER KIT
BL
COM
TR2
GR RD GR
ES
EMERGENCY SHUTDOWN
RS
ROLLOUT SWITCH
ESR
EMERGENCY SHUTDOWN RELAY RSS
REMOTE START/STOP
FPS
FREEZE PROTECTION SWITCH
SPA
SETPOINT ADJUST
FS
FLAME SENSOR
SPT
SPACE TEMPERATURE
GND EQUIPMENT GROUND
TB
TERMINAL BLOCK
GV
GAS VALVE
TR
TRANSFORMER
HPS
HIGH PRESSURE SWITCH
VMC VENT MOTOR CONTACTOR
IAH
INDOOR AIR HUMIDITY
XS
TRANSFORMER POWER
LDS
LOAD SHEDDING
LPS
LOW PRESSURE SWITCH
LS
LIMIT SWITCH
OAT
OUTDOOR AIR TEMPERATURE
OAH OUTDOOR AIR HUMIDITY
PLF
FEMALE PLUG/CONNECTOR
PLM
MALE PLUG/CONNECTOR
PS
PRESSURE SWITCH
RD GR GR GR PU BK TN
OR WH
OAH
DAT
RD
VIN
OR
-t°
GR COM
GR
GR
OAT
TN VOUT
6
WH
WIRE CODE
-t°
BK
BLACK
BL
BLUE
BL/PK BLUE WITH PINK STRIPE
BR
BROWN
GR
GREEN
GY
GRAY
OR
ORANGE
PK
PINK
PU
PURPLE
RD
RED
TN
TAN
WH
WHITE
YL
YELLOW
YL/PK YELLOW WITH PINK STRIPE
FACTORY WIRING FIELD WIRING
HIGH VOLTAGE LOW VOLTAGE EARTH GROUND
SPT SEN + SEN - / SET SET +
OPTIONAL LOW VOLTAGE FIELD WIRING
ALM
RSS
V1 V2 TB2 - ALM
TB2 - AG
CO2
VIN
TB2 - XS2
COM
TB2 - AG
VOUT
TB2 - CO2
TB2 - RSS TB2 - XS2
IAH VIN COM VOUT
LDS
TB2 - LDS TB2 - XS2
CFS TB2 - CFS TB2 - XS2
TB2 - XS2 TB2 - AG TB2 - IAH
CONTROLS WIRING DIAGRAM DBC (180-240) ***V LINE VOLTAGE:
208-230/460/575V/3PH/60HZ 0140L07100-A
DDC Controls Wiring Diagram DBC 180-240
SS-DBC15
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Warning
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death.
Wire Diagram
SS-DBC15
BK CCH1
BK GR
BK CCH2
BK GR
CCAS1
GY
T1 L1 BK
OR
CCAS2
BR
T1 L1
BK
OR
CM1
M 3~
L1 L2
L3 GR
CM1 PLM PLF BK 1 1 BR 2 2
PU 3 3
CMC1 BK T1 L1 BK BR T2 L2 RD YL T3 L3 OR
CM1 PLF
CMC1
12 3
T1 T2 T3
LACMC
4
BK T1 L1 BK BR T2 L2 BR
YL T3 L3 YL
CM2
M 3~
L1 L2
L3 GR
BK 1 1 BR 2 2 PU 3 3
PLM PLF CM2
BK T1 L1 BK BR T2 L2 RD PU T3 L3 OR
CMC2
PB L1 L2 L3
LINE VOLTAGE
BK RD OR
GND
OR
BK
BK
FB2
BK
RD
FB2
RD
OR
FB2
OR
BK RD OR
FB1 FB1 FB1
BK RD OR
BK
RD
OR BK RD
RD
BK
RD
BK
TR1
RD
BK
TR2
2
2
3
3
CC1
BK
L1 T1
BK
RD
L2 T2
RD
OR
L3 T3
YL
CC2
BK
L1 T1
BK
RD
L2 T2
RD
OR
L3 T3
PU
BC1 BK L1 T1 YL
CB LOW SPEED
L1 T1
YL
RD L2 T2 BL
L2 T2
BL
OR L3 T3 GY
L3 T3
GY
BC2 BK L1 T1 BK RD L2 T2 RD OR L3 T3 OR
L1 T1
BK
L2 T2
RD
L3 T3
OR
CB HIGH SPEED
L1
L2
M 3~
COMP 1
L3
GR
L1 L2
M 3~
COMP 2
L3
GR
BK (1) BK (3) BK (2)
YL(11) YL(13) YL(12)
BM 3~ GR
www.daikinac.com
DDC Power Wiring Diagram DBC 300
NOTES 1 REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE OF INSULATION
AS ORIGINAL (AT LEAST 105° C). USE COPPER CONDUCTORS ONLY. USE N.E.C. CLASS 2 WIRE FOR ALL LOW VOLTAGE FIELD CONNECTIONS. 2 TR1 & TR2 PRIMARY (HIGH VOLTAGE) CONNECTIONS: RED WIRES CONNECTED TO 240/460/575V TAP AT THE FACTORY AND BLACK WIRES TO COM TERMINAL. FOR 208V SUPPLY POWER, MOVE RED WIRES FROM 240V TAP TO THE 208V TAP ON BOTH TRANSFORMERS. 3 SEE CONTROL DIAGRAM FOR CONTROL TRANSFORMER LOW VOLTAGE CONNECTIONS 4 IF LOW AMBIENT KIT IS INSTALLED, DISCONNECT CONDENSER MOTOR WIRES FROM CMC1(T1, T2, T3) AND CONNECT TO CORRESPONDING (BK, BR, YL) WIRES WITH QUICK CONNECT TERMINALS FROM LACMC (T1, T2, T3). CONNECT (BK, BR, YL) FROM LACMC (L1, L2, L3) TO CMC1 (T1, T2, T3). 5 USE COPPER CONDUCTORS ONLY. UNIT TERMINALS ARE NOT DESIGNED FOR OTHER CONDUCTORS. THE USE OF OTHER TYPE CONDUCTORS MAY CAUSE DAMAGE TO THE UNIT
COMPONENT LEGEND
BC BM CB CC CCAS CCH CCX CM CMC COMP FB
BLOWER CONTACTOR BLOWER MOTOR CIRCUIT BREAKER COMPRESSOR CONTACTOR COMPRESS CONTACTOR AUXILIARY SWITCH CRANKCASE HEATER COMPRESSOR CONTACTOR AUXILIARY CONDENSER MOTOR CONDENSER MOTOR CONTACTOR COMPRESSOR FUSE BLOCK
FC GND LACMC PB PLF PLM TR
FAN CAPACITOR EQUIPMENT GROUND LOW AMBIENT CONDENSER MOTOR CONTACTOR POWER DISTRIBUTION BLOCK FEMALE PLUG/CONNECTOR MALE PLUG/CONNECTOR TRANSFORMER
WIRE CODE
BK BL BL/PK BR GR GY OR PK PU RD TN WH YL YL/PK
BLACK BLUE BLUE WITH PINK STRIPE BROWN GREEN GRAY ORANGE PINK PURPLE RED TAN WHITE YELLOW YELLOW WITH PINK STRIPE
FACTORY WIRING HIGH VOLTAGE OPTIONAL HIGH VOLTAGE LOW VOLTAGE OPTIONAL LOW VOLTAGE CHASSIS GROUND
FIELD WIRING
HIGH VOLTAGE LOW VOLTAGE EARTH GROUND
POWER WIRING DIAGRAM DBC (300) ***V LINE VOLTAGE:
208-230/460/575V/3PH/60HZ
0140L07101-A
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Warning
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death.
29
Wire Diagram
30
www.daikinac.com
LAM1 PLM PLF BK 1 1
BK 2 2
BK BK
WH
-t°WH
LAM1 1 2 3 GY
BL PU
3 EPHLFK 1
2
3
4 BL
BL
5 BR
BR
6 WH WH
7
8
9
-t° 3 21
LOW AMBIENT OPTION
LAM
PLM PLF 1 1 WH
2 2 WH
OR BL
WH
WH
LAM
WH
WH
LAR 4 2 RD
YL 4 5 BK
2
ECON PLF
1 WH
2 GR
3 BR
4 RD
5
6
WH GR
BR RD 2 4
ESR
OR 1 LAR 3 BL RD A1LACMCA2 BL
4 LAT YL T2 BK T1 T6 BL
GY GY
CMR 4 2 PU 4 5 YL
PK WH BR TN PK BK
YL YL
PU
5
+ C1 NO1 NO2 NO3 C1 C4 NO4 NO5 NO6 C4 C7 NO7 C7 NO8 C8 NC8 C9 NO9 NO10 NO11 C9 NO12 C12 NC12 NO13 C13 NC13
J25
J12
J1
J2
J3
J13
J14
DDC CONTROLLER J4
J15 J5
J16
J17
J18
J6
J7
J8
PK
BL GR WH BR RD
RD GR PU BK TN
U1 U3
RD
U2
GY BR U4
RD GRWH
PU PK BK YL PU Y4
BL OR YL WH
U6 U8
U7
BR OR GR GY
ID9 ID11
ID10
BL
BR
WH
GR
G G0 U1 U2 U3 GND +VDC U4 GND U5 GND VG VG0 Y1 Y2 Y3 Y4 ID1 ID2 ID3 ID4 ID5 ID6 ID7 ID8 IDC1 U6 U7 U8 GND ID9 ID10 ID11 ID12 IDC9 ID13H ID13 IDC13 ID14 ID14H
YL PK PU
YL A1 CC1 A2 BL PU A1 CC2 A2 BL PK 1 ESR 0 BL TN A1 BC1 A2 BL BK A1 BC2 A2 BL PU 1 CMR 3 BL GY A1 CMC1A2 BL PU A1CMC2 A2 BL
BL
YL PU
FM1
FM1
YL 1 BL 2 YL 3
PLF PLM RD 1 1 RD
RD 2 2 RD
WH WH -t°
LPS1
YL/PK
YL/PK
YL
YL
HPS1PK
PK
BL/PK
BL/PK
FM2
FM2
PU 1 BL 2 PU 3
PLF PLM OR 1 1 OR OR 2 2 OR
WH WH -t°
LPS2
YL/PK
YL/PK
PU
PU
HPS2 PK
PK
BL/PK
BL/PK
BL
BL GY BCS
BK
BK
BK
RD
6a PLMES PLF
6b RD
1 1 RD 2 2 PK
3 3 RD
4 4 BL
BL
BK
YL
PU
BL
PK
PK
RD
PK
BL
TB1 XS XS ES ES ES ES ES ES ES C C C C C C C
RD RD GR GR
U1 U2 U3 U4 Y4 U6 U7 U8 ID9 ID10 ID11 PU BK TN GY PU OR WH YL BR GY OR
TB2 XS2 XS2 AG AG AG DAT OAT OAH CO2 ALM SPT SPA IAH RSS LDS CFS
COM
RD
NOTES
TR1
1 REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE OF INSULATION AS ORIGINAL (AT LEAST
105° C). USE COPPER CONDUCTORS ONLY. USE N.E.C. CLASS 2 WIRE FOR ALL LOW VOLTAGE FIELD CONNECTIONS.
CB
GR
2 IF OPTIONAL ECONOMIZER IS INSTALLED INSERT PLM PLUG PROVIDED BY THE ECONOMIZER KIT
RD BL
3
IF ELECTRIC HEAT IS INSTALLED, CONNECT EHK PLF TO ACCESSORY HEAT PLUG IN HEAT COMPARTMENT
4 LAT ON/OFF TIME SETTINGS: ON-TIME (LEFT COLUMN): 2,8 = ON OFF-TIME (RIGHT COLUMN): 8 = ON ALL OTHER DIP SWITCHES OFF
5 FIELD WIRE BACNET MS/TP TO J25. SEE IO MANUAL FOR ADDITIONAL INFORMATION.
6a IF OPTIONAL OEM SAFETY EQUIPMENT SUCH AS PHASE MONITOR, FLOAT SWITCH OR SMOKE DETECTOR ARE INSTALLED, UNPLUG JUMPER PLUG AND PLUG IN SAFETY DEVICE. IF MULTIPLE SAFETIES ARE INSTALLED, PLUG IN THE ADDITIONAL DEVICES IN SERIES. PLUG IN JUMPER PLUG AT THE LAST SAFETY DEVICE INSTALLED.
6b IF A THIRD PARTY SAFETY DEVICE IS FIELD INSTALLED, CUT THE RED WIRE ON THE JUMPER PLUG AND WIRE A NORMALLY CLOSED DRY CONTACT IN SERIES WITH THE CUT WIRE
7 OPTIONAL FACTORY INSTALLED EQUIPMENT
COMPONENT LEGEND
ALM ALS BC BCS BM CB CC CFS CO2 CM CMC CMR COMP DAT ECON EHK
ALARM AUXILIARY LIMIT SWITCH BLOWER CONTACTOR BLOWER CURRENT SWITCH BLOWER MOTOR CIRCUIT BREAKER COMPRESSOR CONTACTOR CLOGGED FILTER SWITCH CARBON DIOXIDE SENSOR CONDENSER MOTOR CONDENSER MOTOR CONTACTOR CONDENSER MOTOR RELAY COMPRESSOR DISCHARGE AIR TEMPERATURE ECONOMIZER ELECTRIC HEATER KIT
BL
ES ESR FM FPS FS GND GV HPS HTR IAH LAM LAR LAT LACMC LDS
EMERGENCY SHUTDOWN
LPS
EMERGENCY SHUTDOWN RELAY LS
FREEZE STAT MODULE
OAT
FREEZE PROTECTION SWITCH
OAH
FLAME SENSOR
PLF
EQUIPMENT GROUND
PLM
GAS VALVE
PS
HIGH PRESSURE SWITCH
RS
HEATER
RSS
INDOOR AIR HUMIDITY
SPA
LOW AMBIENT
SPT
LOW AMBIENT RELAY
TB
LOW AMBIENT TIMER
TR
LOW AMBIENT CONDENSER MOTOR VMC
CONTACTOR
XS
LOAD SHEDDING
COM
CB RD
TR2
GR GR
LOW PRESSURE SWITCH LIMIT SWITCH OUTDOOR AIR TEMPERATURE OUTDOOR AIR HUMIDITY FEMALE PLUG/CONNECTOR MALE PLUG/CONNECTOR PRESSURE SWITCH ROLLOUT SWITCH REMOTE START/STOP SETPOINT ADJUST SPACE TEMPERATURE TERMINAL BLOCK TRANSFORMER VENT MOTOR CONTACTOR TRANSFORMER POWER
RD GR
GR PU BK TN
OR WH
DAT
-t°
GR
OAT
OAH
RD
VIN
GR COM
TN VOUT
7
SPT OR SEN + GR SEN - / SET WH SET +
WIRE CODE
-t°
BK
BLACK
BL
BLUE
BL/PK BLUE WITH PINK STRIPE
BR
BROWN
GR
GREEN
GY
GRAY
OR
ORANGE
PK
PINK
PU
PURPLE
RD
RED
TN
TAN
WH
WHITE
YL
YELLOW
YL/PK YELLOW WITH PINK STRIPE
FACTORY WIRING FIELD WIRING
OPTIONAL LOW VOLTAGE FIELD WIRING
HIGH VOLTAGE OPTIONAL HIGH VOLTAGE LOW VOLTAGE OPTIONAL LOW VOLTAGE CHASSIS GROUND
ALM V1 V2 TB1 - ALM
TB1 - AG CO2
RSS TB1 - RSS TB1 - XS2
IAH
VIN
TB1 - XS2
VIN
COM
TB1 - AG
COM
HIGH VOLTAGE LOW VOLTAGE
VOUT
TB1 - CO2
VOUT
EARTH GROUND
LDS
TB1 - LDS TB1 - XS2
CFS TB1 - CFS TB1 - XS2
TB1 - XS2 TB1 - AG TB1 - IAH
CONTROLS WIRING DIAGRAM DBC (300) ***V LINE VOLTAGE:
208-230/460/575V/3PH/60HZ 0140L07102-A
DDC Controls Wiring Diagram DBC 300
SS-DBC15
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Warning
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death.
31
www.daikinac.com
SS-DBC15
TOP VIEW
50.750
FORK HOLES BOTH SIDES AND CONDENSER END
LIFT SHACKLE HOLES BOTH SIDES AND ENDS
CONDENSATE DRAIN OUTLET THIS SIDE ONLY
133.354
BACK VIEW
35.551
7.017
ALL DIMENSIONS ARE GIVEN IN INCHES ALL DIMENSIONS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION
LINE WIRE ENTRANCE
88.116 LEFT END VIEW
DB* 180/240***
15 AND 20 TON COMERCIAL
DISCONNECT SWITCH LOCATION (if applicable)
TSTAT WIRE ENTRANCE
18.579 8.204
3.058 8.949 12.137
Dimensional Data
SS-DBC15
www.daikinac.com
32
TOP VIEW
53.212
FORK HOLES BOTH SIDES AND CONDENSER END
LEFT SHACKLE HOLES BOTH SIDES AND ENDS
CONDENSATE DRAN OUTLET THIS SIDE ONLY
133.354
BACK VIEW
ALL DIMENSION GIVEN ARE IN INCHES ALL DIMENSIONS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
50.750
35.551
7.017
88.116 LEFT END VIEW
LINE WIRE ENTRANCE
TSTAT WIRE ENTRANCE
12.125
8.204 3.058
DB *300*** 25-TON COMMERCIAL
Dimensional Data
Unit Clearances
Electrical Entrance Locations
12"
2 x 21" 7"
22" 48"
2 x 60"
Return
3"
High-Voltage
22"
Entrance
Low-Voltage
Entrance
3"
Supply
Service Clearance
Allow for recommended service clearances as shown in the image below. In situations that have multiple units, a 36" minimum clearance is required between the condenser coils. A clearance of 48" is recommended on all sides of the unit to allow service access and to ensure proper ventilation and condenser airflow. The top of the unit should be unobstructed. Provide a roof walkway along the sides of the unit for service and access to controls and components. Contact your Daikin sales representative for service requirements less than those recommended.
75" 6"
48"
3366""MMINIIMNUIMMUM
48"
RROOOOFFOOVEVREHARNHGANG
SS-DBC15
www.daikinac.com
33
Installation
Unit Location
The structural engineer must verify that the roof has adequate support and ability to minimize deflection. Take extreme caution when using on a wooden roof structure. Unit condenser coils should be in a location that avoids any heated exhaust air.
Allow sufficient space around the unit for maintenance/service clearance. Consult your Daikin sales representative if available clearances do not meet minimum recommendations.
Where code considerations, such as the NEC, require extended
clearances, these take precedence.
Provisions for forks have been included in the unit A
C
base frame. No other fork locations are approved.
» Unit must be lifted by the four lifting holes located at the base frame corners.
40Y"
CCOoMmPpRrEeSssSoOrR1 1
Supply EVEAvPapOoRrAaTtOorR CCoiOlILS
Return
» Lifting cables should be attached to the unit
with shackles.
CG
» The distance between the crane hook and the top of
the unit must not be less than 60".
» Two spreader bars must span over the unit to prevent
damage to the cabinet by the lift cables. Spreader
bars must be of sufficient length so that cables do
not come in contact with the unit during transport.
CCOomMpPrReEsSsoSrO2R 2
Remove wood struts mounted beneath unit base
frame before setting unit on roof curb. These struts are intended to protect unit base frame from forklift
B
6X0"
D
damage. To remove the struts, extract the sheet
Corner & Center-of-Gravity Locations
metal retainers and pull the struts through the base of the unit.
Refer to rigging label on the unit.
Important: If using bottom discharge with roof curb, duct-work should be attached to the curb prior to installing the unit. Refer to the Roof Curb Installation Instructions for proper curb installation. Curbing must be installed in compliance with the National Roofing Contractors Association Manual. Lower unit carefully onto roof mounting curb. While rigging the unit, the center of gravity will cause the condenser end to be lower than the supply air end. Bring condenser end of unit into alignment with the curb. With condenser end of the unit resting on curb member and using curb as a fulcrum, lower opposite end of the unit until entire unit is seated on the curb. When a rectangular cantilever curb is used, take care to center the unit. Check for proper alignment and orientation of supply and return openings with duct. For further and more detailed information please refer to our Daikin Light Commercial Packaged unit IOD.
Roof Curb Installation
The roof curb is field-assembled and must be installed level (within 1/16" per foot side to side). A sub-base must be constructed by the contractor in applications involving pitched roofs. Gaskets are furnished and must be installed between the unit and curb. For proper installation, follow NRCA guidelines. In appCliocrantieorn&s Creeqnuteirri-nogf-pGorsatviatyndLorcaaitlioinnsstallation, an I-beam securely mounted on multiple posts should support the unit on each side. In addition, the insulation on the underside of the unit should be protected from the elements. Applications in geographic areas subjected to seismic or hurricane conditions must meet code requirements for fastening the unit to the curb and the curb to the building structure.
Weights
15-Ton Units Weight A Weight B Weight C Weight D Shipping Weight Operating Weight
Weights (lbs.) 590 482 492 401 2080 1965
20-Ton Units Weight A Weight B Weight C Weight D Shipping Weight Operating Weight
Weights (lbs.) 644 525 504 412 2202 2085
Note: These weights are calculated without installed accessories.
25-Ton Units Weight A Weight B Weight C Weight D Shipping Weight Operating Weight
Weights (lbs.) 626 464 501 518 2377 2109
34
www.daikinac.com
SS-DBC15
Accessories
Daikin Master Item #
Description
Curb
14CURB180300
14" Roof Curb
18CURB180300
18" Roof Curb
24CURB180300
24" Roof Curb
GHRC-180300
Hurricane Restraint Clips Downflow Economizer & Power Exhaust1
0270L02330
Low-Leak (Title 24) Downflow Economizer w/ Enthalpy Sensor
0270L02333
Low-Leak (Title 24) Downflow Economizer w/ Enthalpy Sensor, Hood for 0270L02330
SPE1803002
Downflow Power Exhaust 208/230v
SPE1803004
Downflow Power Exhaust 460v
SPE1803007
Downflow Power Exhaust 575v Horizontal Economizer & Power Exhaust1
SHZECNJ180300B Low-Leak (Title 24) Internal Horizontal Economizer w/ Enthalpy Sensor
SHPE1803002
Horizontal Power Exhaust 208/230v
SHPE1803004
Horizontal Power Exhaust 460v
SHPE1803007
Horizontal Power Exhaust 575v
Downflow Accessories
S25FD180300
25% Manual Fresh Air Damper
S25MFD180300
25% Motorized Fresh Air Damper
S50MFD180300
50% Motorized Fresh Air Damper
DNBBS180300
Burglar Bar Sleeves with Supply and Return
Horizontal Accessories
SBRD180300
Barometric Relief
HZCURB180300EDR Horizontal Curb End Discharge Roofed In
HZCURB180300NSR Horizontal Curb Non-Service Side Discharge Roofed In
HZCURB180300SSR Horizontal Curb Service Side Discharge Roofed In
HZCURB180300EDS Horizontal Curb End Discharge Slab Mount
HZCURB180300NSS Horizontal Curb Non-Service Side Discharge Slab Mount
HZCURB180300SSS Horizontal Curb Service Side Discharge Slab Mount
SHZE25FD180300 Horizontal Fresh Air Damper 25%
SHZRETPNL180300 Horizontal Return Panel
Concentrics
CDK300-530
Concentric Duct Kit Step-Down Diffuser
CDK180
Concentric Duct Kit
CDK240
Concentric Duct Kit
CDK300
Concentric Duct Kit Flush Mount Diffuser
High-Static Kits
High-Static, factory-installed, 230V
High-Static, factory-installed, 460V
High-Static, factory-installed, 575V
High-Static, factory-installed, 230V
High-Static, factory-installed, 460V
High-Static, factory-installed, 575V
High-Static, factory-installed, 25 ton, all voltages
Accessories availability may vary.
Fits Model Sizes
FieldInstalled
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-25 tons
25 tons
15 tons
20 tons
25 tons
15 ton 15 ton 15 ton 20 ton 20 ton 20 ton 25 ton
Factory- Operating Installed Weight (lbs)
285 315 360 2
281
98 98 98
416 200 200 200
34 42 42 60
30 950 950 950 850 850 850 75 50
244 158 197 244
50
50
50
50
50
50
8
SS-DBC15
www.daikinac.com
35
Accessories
Daikin Master Item #
EHK3-31 EHK3-46 EHK3-60 EHK3-75 EHK4-31 EHK4-46 EHK4-60 EHK4-75 EHK7-31 EHK7-46 EHK7-60 EHK7-75
0160L00202 0160L00201
LAKT23 LAKT24 LAKT25 LAKT05 3PMNDK01
FSKT02A DT4272C DT4273C PSPAC-WS 250803400
Description
3-Phase 208-230V Electric Heat Kits 30kw 208-230v 3ph Electric Heat Kit 40kw 208-230v 3ph Electric Heat Kit 60kw 208-230v 3ph Electric Heat Kit 75kw 208-230v 3ph Electric Heat Kit 3-Phase 460V Electric Heat Kits 30kw 460v 3ph Electric Heat Kit 40kw 460v 3ph Electric Heat Kit 60kw 460v 3ph Electric Heat Kit 75kw 460v 3ph Electric Heat Kit 3-Phase 575V Electric Heat Kits 30kw 575v 3ph Electric Heat Kit 40kw 575v 3ph Electric Heat Kit 60kw 575v 3ph Electric Heat Kit 75kw 575v 3ph Electric Heat Kit High-Static Kits High-Static, factory-installed, 230V High-Static, factory-installed, 460V High-Static, factory-installed, 575V High-Static, factory-installed, 230V High-Static, factory-installed, 460V High-Static, factory-installed, 575V High-Static, factory-installed, 25 ton, all voltages High-Efficiency Filters High-Efficiency MERV 13 Air Filter Nom. Size: 20x25x2; (Order Qty 6) High-Efficiency MERV 13 Air Filter Nom. Size: 20x20x2; (Order Qty 8) Misc Accessories Convenience Outlet: Powered 208/230v, 460v Convenience Outlet: Powered 575v Convenience Outlet: Non Powered Disconnect Switch (non-fused) Low-Ambient Kit, 208-230V- non-DDC Low-Ambient Kit, 460V- non-DDC Low-Ambient Kit, 575V- non-DDC Low-Ambient Kit (all voltages)- non-DDC Phase Monitor- Non DDC Smoke Detector (supply and/or return air) Hinged Panels Freeze Stat Kit2 Controls, Thermostats and Sensors Comm Touch Digital Stat w/ WiFi 4h/2c Comm Touch Digital Stat w/ WiFi & Humidity Control 4h/2cc Remote indoor sensor AppStatTM RTU 2H/2C Econ
Fits Model Sizes
FieldInstalled
Factory- Operating Installed Weight (lbs)
15-25 tons
15-25 tons
15-25 tons
20- 25 tons
21
21
21
21
15-25 tons
15-25 tons
15-25 tons
20- 25 tons
21
21
21
21
15-25 tons
15-25 tons
15-25 tons
20- 25 tons
21
21
21
21
15 ton 15 ton 15 ton 20 ton 20 ton 20 ton 25 ton
80
80
80
50
50
50
8
15, 20 tons
9
25 tons
11
15-25 tons
15-25 tons
15-25 tons
15-25 tons
15-20 tons
15-20 tons
15-20 tons
25 tons
15-25 tons
15-25 tons
15-25 tons
25 tons
42
42
2
5
32
32
32
2
2
11
34
1
3-25 ton
1
3-25 ton
1
3-25 ton
1
3-25 ton
1
36
www.daikinac.com
SS-DBC15
Accessories
Daikin Master Item #
Description
D4271C
4h/2c Commercial 7day Programmable Wi-Fi Capable thermostat
D4272C
4h/2c Commercial 7day Programmable Wi-Fi Capable Hum/dehum thermostat
C7232A1024
CO2 Sensor (Wall Mtd)
C7232B1022
CO2 Sensor (Duct Mtd)
D2270C
Mini Wi-Fi Thermostat
TSTATD2152-2
Value Series 2h/1c 5+2 prgm (Heat Pump)
TSTATD2100-2
Value Series 2h/1c No prgm (Heat Pump)
TSTATD1100-2
Value Series 1h/1c No prgm
TSTATD1152-2
Value Series 1h/1c 5+2 prgm
PSPAC-AW
Add-A-Wire
PSPAC-2W
2-Wire Kit
PSPAC-OS
Wired Indoor / Outdoor Remote Sensor
PSPAC-DS
Wired Duct Sensor
PSPAC-WFMS
Wireless Wi-Fi Mini Sensor
PSPAC-LR
Lock Ring for Premium Commercial Thermostats
PSPAC-PWF
Wi-Fi Module
PSPAC-WP
Wall Plate- Premium & Value Series
PSPAC-WPT
Wall Plate Color Touch Screen
PSPAC-WPM-S
Wall Plate Premium Mini- Small
PSPAC-WPM-M
Wall Plate Premium Mini- Medium
PSPAC-WPM-L
Wall Plate Premium Mini- Large
C7400S1000
Differential Enthalpy Sensor
D4120
Smoke Detector- Duct Mounted
D4120W
Smoke Detector- Watertight
DDC Accessories
0130M00584
DDC LonWorks® comm card
0130L00220
DDC Space CO2 Sensor Duct Mounted
0130L00221
DDC Space Enthalpy Sensor Duct Mounted
0130L00222
DDC Space dry-bulb Sensor 4" Duct Mounted
0130L00223
DDC OD Enthalpy Sensor
0130L00224
DDC Space Enthalpy Sensor Wall-mounted
0130L00225
DDC Space CO2 Sensor Wall-Mounted
0130L00226
DDC Space dry-bulb Sensor Wall-Mounted
0130L00228
DDC Space dry-bulb Sensor 8" Wall-Mounted
0270L02252
DDC Low-Leak (Title 24) Downflow Economizer w/ dry-bulb Sensor
DLAKT23
DDC Low Ambient Kit 230V
DLAKT24
DDC Low Ambient Kit 460V
DLAKT25
DDC Low Ambient Kit 575V
LAKT300DDC
DDC Low Ambient Kit
3PMNDK03
Phase Monitor DDC ASSY
1 Use Economizer & Power Exhaust listed within Low-Leak section 2 FSK02A is standard on 2-Speed, V, models. Note: Where multiple variations are available, the heaviest combination is listed.
Accessories availability may vary.
Fits Model Sizes
3-25 ton
3-25 ton
3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton 3-25 ton
FieldInstalled
Factory- Operating Installed Weight (lbs)
1
1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
15-25 ton
1
15-25 ton
1
15-25 ton
1
15-25 ton
1
15-25 ton
1
15-25 ton
1
15-25 ton
1
15-25 ton
1
15-25 ton
1
15-25 ton
281
15-20 ton
32
15-20 ton
32
15-20 ton
32
25 ton
32
15-25 ton
2
SS-DBC15
www.daikinac.com
37
Factory and Field Installed Options
Factory Installed Options
» High-Static Kit: Allows for operation in higher static applications.
» Non-Powered Convenience Outlet: A 120V, 15A, GFCI outlet can be installed in the unit making it easier for technicians to service other units once an electrician runs power to the outlet. Outlet shall be factory-installed and internally mounted with easily accessible 115-v female receptacle. Transformer not included for this option. Outlet shall include a field-installed "While-in-use" cover.
» Powered Convenience Outlet: A 120V, 15A, GFCI outlet can be powered with a step-transformer built into the unit. For use when the unit is not running. When a factory-installed powered convenience outlet is installed in the equipment, the unit MCA (Min. Circuit Ampacity) will increase by 7.5A for 208/230V units; increase by 3.75A for 460V units; and by 3A for 575V units. The MOP (Max. Overcurrent Protection) device must be sized accordingly. Outlet shall be powered from main line power to the rooftop unit. Outlet shall include a fieldinstalled "While-in-use" cover.
» Return Air and/or Supply Air Smoke Detectors: Return air and/or supply air smoke detectors can be installed in the unit. To safely identify the presence of smoke inside the air conditioning system and shutdown the blower to prevent the smoke to disperse into different zones.
» Disconnect Switch (non-fused): A disconnect switch can be installed in the unit with factory wiring complete from the switch to the unit. Please note that for air conditioner and heat pump units, the appropriate electric heat kit must be ordered along with the disconnect switch (non-fused) to be factoryinstalled. For models with a powered convenience outlet option and a disconnect switch (non-fused) option, the power to the powered convenience outlet will be shut off when the disconnect switch (non-fused) is in the off position. National Electric Code (NEC) and UL approved non-fused switch shall provide unit power shutoff. The switch shall be accessible from outside of the unit and provide local shutdown and lockout capability.
» Hinged Access Panels: Allows access to unit's major components. Combined with latches for easy access to control box, compressor, filters and blower motor.
» Electromechanical Controls: Basic controls that include terminal block for unit connectivity to T-Stat.
» iLINQ DDC Controls: Equipped with built-in BACnetTM IP and MS/TP interface or it can be used with an optional LonWorks® card that is available to integrate the Daikin RTU with building automation systems (BMS).
Field Installed Options
» Power Exhaust: Power exhaust shall be used in conjunction with an integrated economizer. This accessory exhausts return air and may be used in either downflow or horizontal (duct-mounted) applications. Horizontal power exhaust is mounted in return ductwork. Power exhaust shall be controlled by economizer controller operation. Exhaust fans shall be energized when dampers open past the 0-100% adjustable setpoint on the economizer control. (Damper to be field installed, all wiring and accessory set up is factory installed)
» Manual Fresh Air Damper: Manual damper package shall consist of damper, air inlet screen, and rain hood which can be preset to admit up to 25% outdoor air for year round ventilation.
» Motorized Fresh Air Damper: A two-position damper with rain hood and screen provides 50% outside air when the indoor fan starts and closes when the indoor fan shuts down. Consist of actuator, damper, air inlet screen, and rain hood. Damper shall close upon indoor (evaporator) fan shutoff and/or loss of power. The damper actuator shall plug into the rooftop unit's wiring harness plug. No hard wiring shall be required.
» Horizontal Economizer: Fully modulating between 0 and 100%, contain seals that meet ASHRAE 90.1 requirements. Includes motor and dampers, minimum position settings, preset linkage, wiring harness with plug, mixed air temperature sensor, and enthalpy control. An optional duct-mounted barometric relief damper is available. An optional return enthalpy sensor is available to provide comparative or differential enthalpy control. Damper blades shall be galvanized steel with composite gears. Plastic or composite blades on intake or return shall not be acceptable. Standard leak rate shall be equipped with dampers not to exceed 2% leakage at 1 in. wg pressure differential. Low Leak design meets California Title 24 section 140.4 and ASHRAE 90.1 requirements for 4 cfm per sq. ft. on the outside air dampers and 10 cfm per sq. ft. on the return dampers. Shall be designed to close damper(s) during loss-of-power situations with spring return built into motor. Economizer controller shall accept a 2-10 Vdc CO2 sensor input for IAQ/DCV control. In this mode, dampers shall modulate the outdoor air damper to provide ventilation based on the sensor input.
» Economizer controller shall be Honeywell® JADE® W7220 that provides:
- 2-line LCD interface screen for setup, configuration and troubleshooting.
- On-board Fault Detection and Diagnostics (FDD) that senses and alerts when the economizer is not operating properly, per California Title 24.
- Sensor failure loss of communication identification
- Automatic sensor detection
- Capabilities for use with multiple-speed indoor fan systems
- Utilize digital sensors: Dry bulb and Enthalpy
- Economizer controller shall provide indications when in free cooling mode, in the DCV mode, or the exhaust fan contact is closed.
38
www.daikinac.com
SS-DBC15
Factory or Field Installed Options
» Barometric relief (only when economizer is installed): Allows air pressure relief inside the building to maintain a constant interior pressure.
» Roof curbs: Full perimeter roof curb with exhaust capability providing separate air streams for energy recovery from the exhaust air without supply air contamination. Two different heights 14" and 24", allows proper installation and structure stability. Formed galvanized steel with wood nailer strip and shall be capable of supporting entire unit weight.
» Concentric duct kits: designed to provide a single-point air distribution system with the added benefit of having directional air control.
» Restraint mounting clips: Allows for installation reinforcement for Hurricane and/or seismic events.
» Burglar Bar Sleeves: Designed to prevent the access thru the return or supply ducting inside the unit.
» Downflow square to round adapter 18": Installed into a recessed portion of the roof curb, the concentric duct adaptor changes the orientation of the ductwork from square to round for applications utilizing that type of ducting system.
» Side discharge concentric diffuser system: The Concentric diffuser system is an all in one supply and return duct free arrangement for RTU systems. This system comes with two separate duct connections, one for a supply and another for a return.
» Remote indoor sensor: Remote sensor to monitor the temperature on zones away from the main thermostat.
» Drain pan overflow switch: Allows the controls to detect and send an alarm when there is an overflow on the drain pan.
» Filtration: MERV13 filters available for high air filtration requirements.
» Freeze stat: Temperature sensing device that monitors the heat exchange to prevent the coil from freezing.
Factory and Field Installed Options
» Downflow Economizer: Fully modulating between 0 and 100%, contain seals that meet ASHRAE 90.1 requirements. Includes motor and dampers, minimum position settings, a preset linkage, a wiring harness with plug, a mixed air temperature sensor, enthalpy control, and a barometric relief damper. An optional return enthalpy sensor is available to provide comparative or differential enthalpy control. Damper blades shall be galvanized steel with composite gears. Plastic or composite blades on intake or return shall not be acceptable. Standard leak rate shall be equipped with dampers not to exceed 2% leakage at 1 in. wg pressure differential. Low Leak design meets California Title 24 section 140.4 and ASHRAE 90.1 requirements for 4 cfm per sq. ft. on the outside air dampers and 10 cfm per sq. ft. on the return dampers. Shall be designed to close damper(s) during loss-of-power situations with spring return built into motor. Economizer controller shall accept a 2-10 Vdc CO2 sensor input for IAQ/DCV control. In this mode, dampers shall modulate the outdoor air damper to provide ventilation based on the sensor input.
» Economizer controller shall be Honeywell® W7220 that provides:
- 2-line LCD interface screen for setup, configuration and troubleshooting.
- On-board Fault Detection and Diagnostics (FDD) that senses and alerts when the economizer is not operating properly, per California Title 24.
- Sensor failure loss of communication identification
- Automatic sensor detection
- Capabilities for use with multiple-speed indoor fan systems
- Utilize digital sensors: Dry bulb and Enthalpy
- Economizer controller shall provide indications when in free cooling mode, in the DCV mode, or the exhaust fan contact is closed.
» Low Ambient Control: Allows cooling operation to 0°F outdoor ambient temperature for 7½-20 ton units and to 35°F outdoor ambient temperature for 3-6 ton units. For 25 ton units, cooling operation is extended from 24°F ambient temperature to 0°F outside air temperature.
» Electric Heat Kits (AC units): Heater elements are constructed of rust-resistant nickel chromium and are available in 240V-1-phase-60Hz, 240V-3-phase-60Hz, 480V-3-phase-60Hz and 575V-3-phase-60Hz. All heaters have overcurrent protection and high-temperature limit control. A single-point wiring connection is provided through a terminal block. Electric heaters are provided with staged heating as standard.
» Phase Monitor: Phase monitor shall provide protection for motors and compressors against problems caused by phase loss, phase reversal and phase unbalance. Phase monitor is equipped with an LED that provides an ON or FAULT indicator.
SS-DBC15
www.daikinac.com
39
Notes
Our continuing commitment to quality products may mean a change in specifications without notice.
© 2021
· Houston, Texas · Printed in the USA.
40
www.daikinac.com
SS-DBC15
Adobe InDesign 14.0 (Macintosh) Adobe PDF Library 15.0
