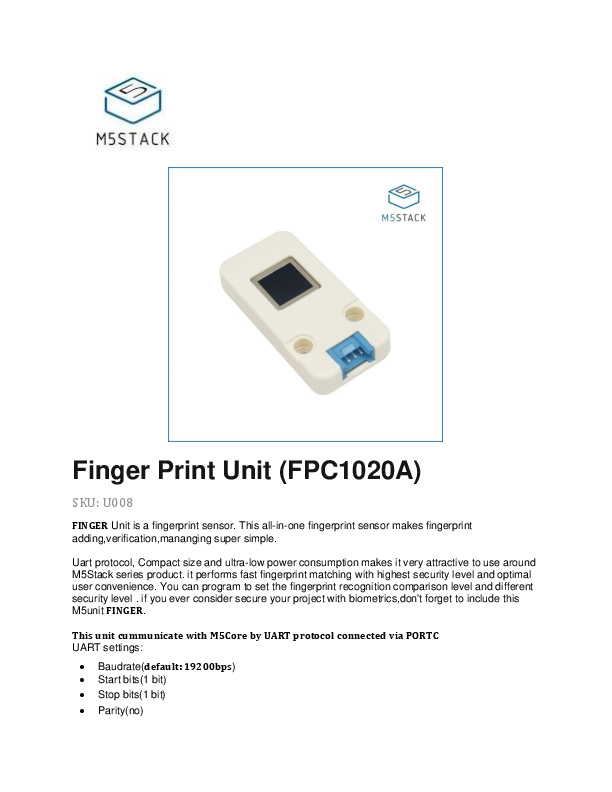

Finger Print Unit (FPC1020A)
SKU: U008
FINGER Unit is a fingerprint sensor. This all-in-one fingerprint sensor makes fingerprint adding,verification,mananging super simple.
Uart protocol, Compact size and ultra-low power consumption makes it very attractive to use around M5Stack series product. it performs fast fingerprint matching with highest security level and optimal user convenience. You can program to set the fingerprint recognition comparison level and different security level . if you ever consider secure your project with biometrics,don't forget to include this M5unit FINGER.
This unit cummunicate with M5Core by UART protocol connected via PORTC UART settings:
· Baudrate(default: 19200bps) · Start bits(1 bit) · Stop bits(1 bit) · Parity(no)

Product Features
· Fingerprint capacity: 1000/1700/2000/3000(Default:1700) · False Acceptance Rate: <0.001%(Security level 3) · False Rejection Rate: <0.1%(Security level 3) · Security Level: 1-5Default: 3 · Output Format: User name, finger image, feature value · Characteriatics value size: 193 Byte · Communication Interface: UART · Response Time: Fingerprint processing < 0.45 · Communication Baudrate: 9600-115200 (default: 19200) · Operating Temperature: -10C - 60C · Operating Humility: 20%-80%
Kit includes
· 1x FINGER Unit · 1x Grove Cable
Application
· Fingerprint Attendance Machine · Fingerprint Locker

Example

Arduino IDE
The code below is incomplete(just for usage). To get the complete code, please click here.

/* Connect to GRVOE C on M5Core
*/ #include <M5Stack.h> #include "finger.h"

uint8_t userNum; //User number uint8_t res1;

// result for "res1"

#define ACK_SUCCESS 0x00

#define ACK_FAIL

0x01

#define ACK_FULL

0x04

#define ACK_NOUSER

0x05

#define ACK_USER_EXIST 0x07

#define ACK_TIMEOUT 0x08

// initialization M5.begin(); Serial2.begin(19200, SERIAL_8N1, 16, 17); userNum = fpm_getUserNum(); M5.Lcd.print("userNum:"); M5.Lcd.println(userNum);

// add a new user res1 = fpm_addUser(userNum,1); //get function result

// compare your finger res1 = fpm_compareFinger();

// delete all user res1 = fpm_deleteAllUser();

Schematic

PinMap
M5Core(GROVE C) FINGER Unit

U2RXD TXD

U2TXD RXD

5V

GND

5V

GND

https://m5stack.com/products/finger-sensor-unit/12-6-19
