manual, RUN/STOP, and alarms) and the PV or SV. Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0) Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter. Model available with position-proportional control Main I/O Functions
E5 N-H / E5 N-HT |OMRON, Polska

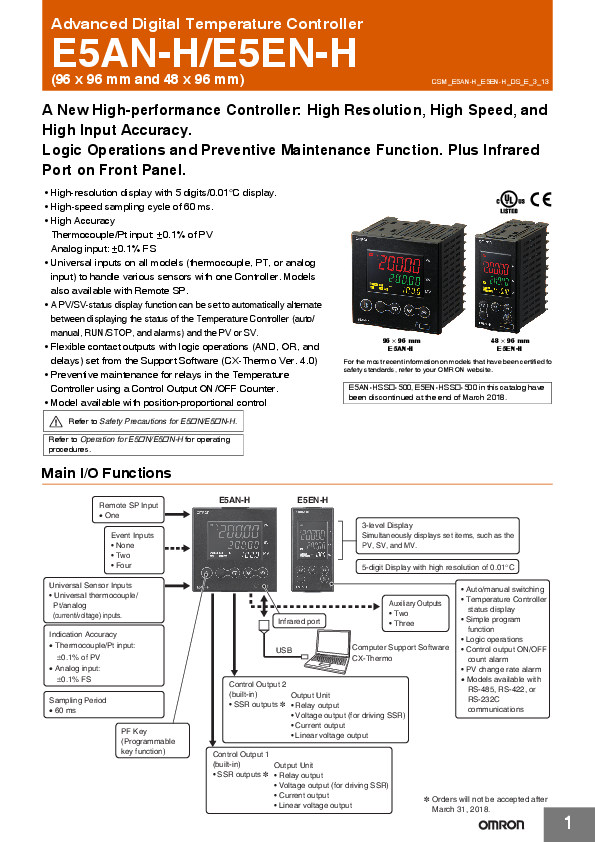

Advanced Digital Temperature Controller E5AN-H/E5EN-H (96 x 96 mm and 48 x 96 mm) CSM_E5AN-H_E5EN-H_DS_E_3_13 A New High-performance Controller: High Resolution, High Speed, and High Input Accuracy. Logic Operations and Preventive Maintenance Function. Plus Infrared Port on Front Panel. · High-resolution display with 5 digits/0.01°C display. · High-speed sampling cycle of 60 ms. · High Accuracy Thermocouple/Pt input: ±0.1% of PV Analog input: ±0.1% FS · Universal inputs on all models (thermocouple, PT, or analog input) to handle various sensors with one Controller. Models also available with Remote SP. · A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/ manual, RUN/STOP, and alarms) and the PV or SV. · Flexible contact outputs with logic operations (AND, OR, and delays) set from the Support Software (CX-Thermo Ver. 4.0) · Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter. · Model available with position-proportional control 96 × 96 mm E5AN-H 48 × 96 mm E5EN-H For the most recent information on models that have been certified fo safety standards, refer to your OMRON website. E5AN-HSS@-500, E5EN-HSS@-500 in this catalog have been discontinued at the end of March 2018. Refer to Safety Precautions for E5@N/E5@N-H. Refer to Operation for E5@N/E5@N-H for operating procedures. Main I/O Functions Remote SP Input · One Event Inputs · None · Two · Four Universal Sensor Inputs · Universal thermocouple/ Pt/analog (current/voltage) inputs. Indication Accuracy · Thermocouple/Pt input: ±0.1% of PV · Analog input: ±0.1% FS Sampling Period · 60 ms PF Key (Programmable key function) E5AN-H E5EN-H 3-level Display Simultaneously displays set items, such as the PV, SV, and MV. 5-digit Display with high resolution of 0.01°C Infrared port USB Auxiliary Outputs · Two · Three Computer Support Software CX-Thermo Control Output 2 (built-in) Output Unit · SSR outputs * · Relay output · Voltage output (for driving SSR) · Current output · Linear voltage output · Auto/manual switching · Temperature Controller status display · Simple program function · Logic operations · Control output ON/OFF count alarm · PV change rate alarm · Models available with RS-485, RS-422, or RS-232C communications Control Output 1 (built-in) Output Unit · SSR outputs * · Relay output · Voltage output (for driving SSR) · Current output · Linear voltage output * Orders will not be accepted after March 31, 2018. 1 Lineup E5AN-H/E5EN-H E5AN-H/E5EN-H Advanced Type Terminal block Fully universal input 1 control output 2 auxiliary outputs 2 control outputs 2 auxiliary outputs Note: The Controller can be used for heating/cooling control even if only 1 control output is used. Model Number Structure Model Number Legend Controllers E5AN/E5EN-@@@@@@@M@-@-500 1 2 3 4 5 6 7 8 9 10 11 1. Type H: Advanced 2. Control Mode Blank: Standard or heating/cooling control P: Position-proportional control 3. Control Output 1 A: Control Output Unit R: Relay output S: SSR output * 4. Control Output 2 A: Control Output Unit R: Relay output S: SSR output * 5. Auxiliary Outputs 2: Two outputs 3: Three outputs 6. Option 1 Blank: None H: Heater burnout/SSR failure/Heater overcurrent detection (CT1) HH: Heater burnout/SSR failure/Heater overcurrent detection (CT2) 7. Option 2 B: Two event inputs BF: Event input + Transfer output 8. Option 3 M: Option Unit can be mounted. 9. Power Supply Voltage Blank: 100 to 240 VAC D: 24 VAC/VDC 10.Case Color Blank: Black W: Silver 11.Terminal Cover -500: With Terminal Cover Option Units E53-@ 1 1. Function EN01: RS-232C communications EN02: RS-422 communications EN03: RS-485 communications AKB: Event input Output Units E53-@@ 12 1. Control Output R: Relay output Q: Voltage output (for driving SSR) Q3: Voltage output (for driving SSR) + 24 VDC (NPN) Q4: Voltage output (for driving SSR) + 24 VDC (PNP) C3: Current output + 4 to 20 mA DC C3D: Current output + 0 to 20 mA DC V34: Linear voltage output + 0 to 10 VDC V35: Linear voltage output + 0 to 5 VDC 2. Version Blank: Available for E5AN-E5EN-H. N: Available only for E5AN-H/E5EN-H. * Orders will not be accepted after March 31, 2018. This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions and other information required for operation before attempting to use the product. E5CN-H/E5AN-H/E5EN-H Digital Controllers User's Manual Advanced Type (Cat. No. H157) E5CN-H/E5AN-H/E5EN-H Digital Controllers Communications Manual Advanced Type (Cat. No. H159) 2 Ordering Information E5AN-H Size Case color Power supply voltage Control Auxiliary method output Control output 1/2 Control Output Unit × 2 2 Basic 100 to 240 VAC 3 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Black Valve 2 1/4 DIN 96 × 96 × 78 (W × H × D) 2 Basic 24 VAC/ VDC 3 Relay outputs × 2 Relay outputs × 2 Control Output Unit × 2 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Valve 2 Relay outputs × 2 Relay outputs × 2 100 to 240 VAC Silver Basic 2 Control Output Unit × 2 Control Output Unit × 2 24 VAC/ VDC Control Output Unit × 2 * Orders will not be accepted after March 31, 2018. E5AN-H/E5EN-H Heater burnout 1 1 2 2 1 1 2 2 1 2 1 Optional functions Event Transfer inputs output RSP 2 4 to 20-mA input 2 4 to 20-mA input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA input 2 4 to 20-mA input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA input Model E5AN-HAA2HBM-500 E5AN-HSS2HBM-500 * E5AN-HAA2HHBFM-500 E5AN-HSS2HHBFM-500 * E5AN-HAA3BFM-500 E5AN-HSS3BFM-500 * E5AN-HPRR2BM-500 E5AN-HPRR2BFM-500 E5AN-HAA2HBMD-500 E5AN-HSS2HBMD-500 * E5AN-HAA2HHBFMD-500 E5AN-HSS2HHBFMD-500 * E5AN-HAA3BFMD-500 E5AN-HSS3BFMD-500 * E5AN-HPRR2BMD-500 E5AN-HPRR2BFMD-500 E5AN-HAA2HBM-W-500 E5AN-HAA2HHBFM-W-500 E5AN-HAA2HBMD-W-500 3 E5AN-H/E5EN-H E5EN-H Size Case color Power supply voltage Control method Auxiliary output Control output 1/2 Control Output Unit × 2 100 to 240 VAC 2 Basic 3 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Black 1/8 DIN 48 × 96 × 78 (W × H × D) 24 VAC/VDC Valve 2 2 Basic 3 Relay outputs × 2 Relay outputs × 2 Control Output Unit × 2 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Control Output Unit × 2 SSR outputs × 2 Valve 2 Relay outputs × 2 Relay outputs × 2 100 to 240 VAC Silver Basic 2 Control Output Unit × 2 Control Output Unit × 2 24 VAC/VDC * Orders will not be accepted after March 31, 2018. Control Output Unit × 2 Heater Optional Functions burn- Event Transfer out inputs output RSP 1 2 4 to 20-mA input 1 2 4 to 20-mA input 2 2 4 to 20-mA 4 to 20-mA output input 2 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA input 2 4 to 20-mA 4 to 20-mA output input 1 2 4 to 20-mA input 1 2 4 to 20-mA input 2 2 4 to 20-mA 4 to 20-mA output input 2 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA 4 to 20-mA output input 2 4 to 20-mA input 2 4 to 20-mA 4 to 20-mA output input 1 2 4 to 20-mA input 2 2 4 to 20-mA 4 to 20-mA output input 1 2 4 to 20-mA input Model E5EN-HAA2HBM-500 E5EN-HSS2HBM-500 * E5EN-HAA2HHBFM-500 E5EN-HSS2HHBFM-500 * E5EN-HAA3BFM-500 E5EN-HSS3BFM-500 * E5EN-HPRR2BM-500 E5EN-HPRR2BFM-500 E5EN-HAA2HBMD-500 E5EN-HSS2HBMD-500 * E5EN-HAA2HHBFMD-500 E5EN-HSS2HHBFMD-500 * E5EN-HAA3BFMD-500 E5EN-HSS3BFMD-500 * E5EN-HPRR2BMD-500 E5EN-HPRR2BFMD-500 E5EN-HAA2HBM-W-500 E5EN-HAA2HHBFM-W-500 E5EN-HAA2HBMD-W-500 Accessories (Order Separately) Output unit Model Specifications Relay output E53-RN SPST-NO, 250 VAC, 5 A (resistive load), electrical life: 100,000 operations Voltage output (for driving SSR) E53-QN E53-Q3 E53-Q4 12 VDC (PNP), max. load current: 40-mA, with short-circuit protection 24 VDC (NPN), max. load current: 20-mA, with short-circuit protection 24 VDC (PNP), max. load current: 20-mA, with short-circuit protection Current output E53-C3N 4 to 20-mA DC, load: 600 max., resolution: approx. 10,000 E53-C3DN 0 to 20-mA DC, load: 600 max., resolution: approx. 10,000 Linear voltage output E53-V34N E53-V35N 0 to 10 VDC, load: 1 k min., resolution: approx. 10,000 0 to 5 VDC, load: 1 k min., resolution: approx. 10,000 USB-infrared Conversion Cable Model E58-CIFIR USB-Serial Conversion Cable Model E58-CIFQ1 Terminal Cover Connectable models Model E5AN-H E5EN-H E53-COV16 Note: The Terminal Cover comes with the E5CN-@@@-500 models. Mounting Brackets Model Y92H-9 Note: These Mounting Brackets are provided with the Digital Controller. Waterproof Packing Connectable models Model E5AN-H Y92S-P4 E5EN-H Y92S-P5 Note: The Waterproof Packing is included with the Controller. Current Transformers (CTs) Hole diameter 5.8 dia. 12.0 dia. Model E54-CT1 E54-CT3 CX-Thermo Support Software Model EST2-2C-MV4 4 E5AN-H/E5EN-H Specifications Ratings Power supply voltage Operating voltage range Power consumption Sensor input Input impedance Control method Relay output Voltage output (for driving SSR) Control output Current output Linear voltage output Relay output for position-proportional control Auxiliary output Number of outputs Output specifications Event input Number of outputs External contact input specifications Number of operations Logic Operations operations Output Work bit assignment Transfer outputs Number of outputs Output specifications Number of inputs Signal type RSP input Analog input scaling Accuracy Input sampling period Setting method Indication method Bank switching Other functions Ambient operating temperature Ambient operating humidity Storage temperature No D in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC 85% to 110% of rated supply voltage 100 to 240 VAC: 12 VA 24 VAC/VDC: 8.5 VA (24 VAC)/5.5 W (24 VDC) Any of the following can be selected. Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V Current input: 150 max., Voltage input: 1 M min. (Use a 1:1 connection when connecting the ES2-HB-N.) ON/OFF control or 2-PID control (with auto-tuning) Output Unit (Install the Output Unit (sold separately).) Relay output: Open and close: SPST-NO, 250 VAC, 1 A (including in-rush current), electrical life: 100,000 operations min. Potentiometer input: Must be between 100 and 2.5 k for maximum open position. 2 or 3 max. Relay output: SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10 mA 2 or 4 (with an E53-AKB) Contact input: ON: 1 k max., OFF: 100 k min. Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max. Current flow: Approx. 7 mA per contact 8 max. · Logic operation: Any of the following four patterns can be selected. The input status may be inverted. (A and B) or (C and D), (A or C) and (B or D), A or B or C or D, A and B and C and D (A, B, C, and D are four inputs.) · Delay: ON delay or OFF delay for the results of the logic operation given above. Setting time: 0 to 9999 s or 0 to 9999 min · Output inversion: Possible One work bit per operation Any of The following can be assigned to up to eight work bits (logic operation results): Event input operations, auxiliary outputs, or control outputs. 1 max. (Depends on model. Models with transfer output (F in model number) Current output: 4 to 20 mA DC, Load: 600 max., Resolution at 4 to 20 mA: Approx. 10,000 1 Current input: 4 to 20 mA (input impedance: 150 ±10%) Scaling of signal to engineering units (EU) -19,999 to 30,000 (display: 30,000 max.) (±0.2% of FS) ±1 digit max. 60 ms Set digitally using keys on the front panel or by using the RSP input. 11-segment digital display and individual indicators (7-segments displays also possible) Character height: E5AN-H: PV: 15.8 mm, SV: 9.5 mm, MV: 6.8 mm; E5EN-H: PV: 11.8 mm, SV: 8.1 mm, MV: 5.8 mm Content of 3-level display: PV/SV/MV, PV/SV/Bank No., or soak time remain Number of digits: 5 for PV and SV, 4 for MV Supported (number of banks: 8) Local SP, alarm settings, PID sets (PID constants, MV upper limit, MV lower limit, etc.) Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout detection, 40% AT, 100% AT, MV limiter, input digital filter, self-tuning, temperature input shift, run/stop, protection functions, control output ON/OFF counter, extraction of square root, MV change rate limit, PV/SV status display, logic operations, automatic cooling coefficient adjustment -10 to 55°C (with no condensation or icing), for 3-year warranty: -10 to 50°C 25% to 85% -25 to 65°C (with no condensation or icing) 5 E5AN-H/E5EN-H Input Ranges Thermocouple/Platinum Resistance Thermometer (Fully Universal Inputs) Temperature range (°C) Input type Platinum resistance thermometer Thermocouple Analog input Name Pt100 JPt100 K J T EL U N R S B W PL II 4 to 0 to 20 m 20 m A A 1 to 5V 0 to 5V 0 to 10 V 2300 1800 1700 2300.0 1800.0 1700.0 1700.0 1600 1500 1400 1300 1300.0 1300.0 1300.0 1200 1100 1000 850.0 900 800 700 600 500.0 500 400 500.0 850.0 850.0 500.0 400.0 400.0 400.0 600.0 400.0 400.0 Usable in the following ranges by scaling: -19999 to 32400, -1999.9 to 3240.0, -199.99 to 324.00, or -19.999 to 32.400 300 200.00 200.00 200.00 200.00 200 100.0 100.0 100 100.0 0 0.0 0.0 0.0 0.0 0.0 0.0 -100.0 -50.00 -20.0 -50.00-100.0 -20.0 -50.00 -50.00 -100.0 -200.0 -200.0 -199.9 -199.9 -200.0 -200.0-199.9 -200.0 -200.0 -199.9 -200.0 Setting number 0 1 2 24 3 4 5 6 21 7 8 22 9 10 23 11 12 13 14 15 16 17 18 19 20 25 26 27 28 29 Shaded settings are the default settings. The applicable standards for the input types are as follows: K, J, T, E, N, R, S, B: JIS C 1602-1995, IEC 584-1 L: Fe-CuNi, DIN 43710-1985 U: Cu-CuNi, DIN 43710-1985 W: W5Re/W26Re, ASTM E988-1990 JPt100: JIS C 1604-1989, JIS C 1606-1989 Pt100: JIS C 1604-1997, IEC 751 PL II: According to Platinel II electromotive force charts from BASF (previously Engelhard) 6 E5AN-H/E5EN-H Alarm Outputs Each alarm can be independently set to one of the following 13 alarm types. The default is 2: Upper limit. Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: For models with heater burnout, SSR failure, and heater overcurrent detection, alarm 1 will be an OR output of the alarm selected from the following alarm types and the alarms for heater burnout, SSR failure, and heater overcurrent. To output only a heater burnout alarm, SSR failure alarm, and heater overcurrent alarm for alarm 1, set the alarm type to 0 (i.e., no alarm function). Set value Alarm type Alarm output operation When alarm value When alarm value X is positive X is negative Description of function 0 Alarm function OFF Output OFF No alarm 1 Upper- and lower-limit *1 ON OFF LH *2 SP Set the deviation in the set point by setting the alarm upper limit (H) and alarm lower limit (L). 2 Upper-limit ON OFF X SP ON X OFF SP Set the upward deviation in the set point by setting the alarm value (X). 3 Lower-limit ON X OFF SP ON OFF X SP Set the downward deviation in the set point by setting the alarm value (X). 4 Upper- and lower-limit range *1 ON OFF LH *3 SP Set the deviation in the set point by setting the alarm upper limit (H) and alarm lower limit (L). 5 Upper- and lower-limit with standby sequence *1 ON LH OFF SP *4 *5 A standby sequence is added to the upper- and lower-limit alarm (1). *7 6 Upper-limit with standby sequence ON OFF X SP ON X OFF SP A standby sequence is added to the upper-limit alarm (2). *7 7 Lower-limit with standby sequence ON OFF X SP ON OFF X SP A standby sequence is added to the lower-limit alarm (3). *7 8 Absolute-value upper-limit ON OFF X 0 ON X The alarm will turn ON if the process value is larger OFF 0 than the alarm value (X) regardless of the set point. 9 Absolute-value lower-limit ON OFF X 0 ON X The alarm will turn ON if the process value is smaller OFF 0 than the alarm value (X) regardless of the set point. 10 Absolute-value upper-limit with standby sequence ON OFF X 0 ON X A standby sequence is added to the absolute-value OFF 0 upper-limit alarm (8). *7 11 Absolute-value lower-limit with standby sequence ON OFF X 0 ON X A standby sequence is added to the absolute-value OFF 0 lower-limit alarm (9). *7 12 LBA (alarm 1 type only) --- *8 13 PV change rate alarm --- *9 14 RSP absolute value upper limit *6 ON OFF X 0 ON X OFF The alarm turns ON when the remote SP (RSP) is larger than the alarm value (X). This alarm functions 0 in both Local SP and Remote SP Modes. 15 RSP absolute value lower limit *6 ON OFF X 0 ON X OFF The alarm turns ON when the remote SP (RSP) is smaller than the alarm value (X). This alarm 0 functions in both Local SP and Remote SP Modes. *1. With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are expressed as "L" and "H." *2. Set value: 1, Upper- and lower-limit alarm Case 1 Case 2 Case 3 (Always ON) L H SP H < 0, L > 0 H < L SP L H H > 0, L < 0 H > L H SP L H L SP SP H L *3. Set value: 4, Upper- and lower-limit range H < 0, L < 0 H < 0, L > 0 H L H > 0, L < 0 H L Case 1 Case 2 Case 3 (Always ON) H < 0, L < 0 L H SP SP L H H SP L H < 0, L > 0 H < L H > 0, L < 0 H > L H L SP H < 0, L > 0 H L H > 0, L < 0 SP H L H L *4. Set value: 5, Upper- and lower-limit with standby sequence For Upper- and Lower-Limit Alarm Described Above · Case 1 and 2 Always OFF when the upper-limit and lower-limit hysteresis overlaps. · Case 3: Always OFF *5. Set value: 5, Upper- and lower-limit with standby sequence Always OFF when the upper-limit and lower-limit hysteresis overlaps. *6. Displayed when there is a remote SP input. *7. Refer to the E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156) for information on the operation of the standby sequence. *8. Refer to the E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156) for information on the loop burnout alarm (LBA). *9. Refer to the E5CN/E5AN/E5EN/E5GN Digital Temperature Controllers User's Manual Basic Type (Cat. No. H156) for information on the PV change rate alarm. 7 E5AN-H/E5EN-H Characteristics Indication accuracy Thermocouple: (±0.1% of indicated value or ±1°C, whichever is greater) ±1 digit max. *1 Platinum resistance thermometer: (±0.1% of indicated value or ±0.5°C, whichever is greater) ±1 digit max. Analog input: ±0.1% FS ±1 digit max. CT input: ±5% FS ±1 digit max. Potentiometer input: ±5% FS ±1 digit max. Transfer output accuracy ±0.3% FS max. Influence of temperature *2 Influence of voltage *2 Influence of EMS. (at EN 61326-1) Thermocouple input (R, S, B, W, PL II): (±1% of PV or ±10°C, whichever is greater) ±1 digit max. Other thermocouple input: (±1% of PV or ±4°C, whichever is greater) ±1 digit max. *3 Platinum resistance thermometer: (±1% of PV or ±2°C, whichever is greater) ±1 digit max. Analog input: (±1%FS) ±1 digit max. Input sampling period 60 ms Hysteresis Temperature input: 0.1 to 3240.0°C or °F (in units of 0.1°C or °F) Analog input: 0.01% to 99.99% FS (in units of 0.01% FS) Proportional band (P) Temperature input: 0.1 to 3240.0°C or °F (in units of 0.1°C or °F) Analog input: 0.1% to 999.9% FS (in units of 0.1% FS) Integral time (I) 0.0 to 3240.0 s (in units of 0.1 s) Derivative time (D) 0.0 to 3240.0 s (in units of 0.1 s) Control period 0.5, 1 to 99 s (in units of 1 s) Manual reset value 0.0 to 100.0% (in units of 0.1%) Alarm setting range -19999 to 32400 (decimal point position depends on input type) Affect of signal source Thermocouple: 0.1°C/ max. (100 max.) resistance Platinum resistance thermometer: 0.1°C/ max. (10 max.) Insulation resistance 20 M min. (at 500 VDC) Dielectric strength 2,300 VAC, 50 or 60 Hz for 1 min (between terminals with different charge) Vibration Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions resistance Destruction 10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions Shock Malfunction 100 m/s2, 3 times each in X, Y, and Z directions resistance Destruction 300 m/s2, 3 times each in X, Y, and Z directions Weight E5AN-H E5EN-H Controller: Approx. 310 g, Mounting Bracket: Approx. 100 g Controller: Approx. 260 g, Mounting Bracket: Approx. 100 g Degree of protection Front panel: IP66, Rear case: IP20, Terminals: IP00 Memory protection Non-volatile memory (number of writes: 1,000,000 times) Setup Tool CX-Thermo version 4.0 or higher Setup Tool port Provided on the bottom of the E5AN-H and E5EN-H. An E58-CIFQ1 USB-Serial Conversion Cable is required to connect the computer to the E5AN-H and E5EN-H. Provided on the front of the E5AN-H and E5EN-H. An E58-CIFIR USB-infrared Conversion Cable is required to connect the computer to the E5AN-H or E5EN-H. *4 Standards Approved standards Conformed standards UL 61010-1, CSA C22.2 No. 1010-1 EN 61010-1 (IEC 61010-1): Pollution level 2, overcurrent category II, Lloyd's standards *5 EMC EMI: EN 61326-1 *6 Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A Noise Terminal Voltage: EN 55011 Group 1, class A EMS: EN 61326-1 *6 ESD Immunity: EN 61000-4-2 Electromagnetic Field Immunity: EN 61000-4-3 Burst Noise Immunity: EN 61000-4-4 Conducted Disturbance Immunity: EN 61000-4-6 Surge Immunity: EN 61000-4-5 Power Frequency Magnetic Field Immunity: EN 61000-4-8 Voltage Dip/Interrupting Immunity: EN 61000-4-11 *1. The indication accuracy of K thermocouples in the -200 to 1300°C range, T and N thermocouples at a temperature of -100°C max., and U and L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the B thermocouple at a temperature of 400°C max. is not specified. The indication accuracy of B thermocouples in the 400 to 800°C range is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature of 200°C max. is ±3°C ±1 digit max. The indication accuracy of W thermocouples is ±0.3% of PV or ±3°C, whichever is greater, ±1 digit max. The indication accuracy of PL II thermocouples is ±0.3% of PV or ±2°C, whichever is greater, ±1 digit max. *2. Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage *3. K thermocouple at -100°C max.: ±10°C max. *4. External communications (RS-232C, RS-485, or RS-422) and cable communications for the Setup Tool can be used at the same time. *5. Refer to information on maritime standards in Safety Precautions for E5@N/E5@N-H for compliance with Lloyd's Standards. *6. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2) 8 E5AN-H/E5EN-H USB-Serial Conversion Cable Applicable OS Windows XP/Vista/7/8 Applicable software CX-Thermo version 4 or higher Applicable models E5AN/E5EN/E5CN/E5CN-U/ E5AN-H/E5EN-H/E5CN-H USB interface standard Conforms to USB Specification 1.1. DTE speed 38400 bps Connector specifications Computer: USB (type A plug) Temperature Controller: Setup Tool port (on bottom of Controller) Power supply Bus power (Supplied from USB host controller.) Power supply voltage 5 VDC Current consumption 70 mA Ambient operating temperature 0 to 55°C (with no condensation or icing) Ambient operating humidity 10% to 80% Storage temperature -20 to 60°C (with no condensation or icing) Storage humidity 10% to 80% Altitude 2,000 m max. Weight Approx. 100 g Note: A driver must be installed in the personal computer. Refer to installation information in the operation manual for the Conversion Cable. Communications Specifications Transmission line RS-485, RS-422: Multipoint connection method RS-232C: Point-to-point Communications RS-485 (two-wire, half duplex) RS-422 (four-wire, half duplex) or RS-232C Synchronization method Start-stop synchronization Protocol CompoWay/F, SYSWAY, or Modbus Baud rate 1200, 2400, 4800, 9600, 19200, 38400, or 57600 bps Transmission code ASCII (CompoWay/F, SYSWAY) RTU (Modbus) Data bit length * 7 or 8 bits Stop bit length * 1 or 2 bits Error detection Vertical parity (none, even, odd) Frame check sequence (FCS) with SYSWAY Block check character (BCC) with CompoWay/F or CRC-16 Modbus Flow control None Interface RS-485, RS-422, or RS-232C Retry function None Communications buffer 217 bytes Communications 0 to 99 ms response wait time Default: 20 ms * The baud rate, data bit length, stop bit length, and vertical parity can be individually set using the Communications Setting Level. Current Transformer (Order Separately) Ratings Dielectric strength 1,000 VAC for 1 min Vibration resistance 50 Hz, 98 m/s2 Weight E54-CT1: Approx. 11.5 g, E54-CT3: Approx. 50 g Accessories (E54-CT3 only) Armatures (2) Plugs (2) USB-Infrared Conversion Cable Applicable OS Windows XP/Vista/7/8 Applicable software CX-Thermo version 4.0 or higher Applicable models E5AN-H/E5EN-H USB interface standard Conforms to USB Specification 1.1. DTE speed 38400 bps Connector specifications Computer: USB (type A plug) Temperature Controller: Infrared port (on front of Controller) Power supply Bus power (Supplied from USB host controller.) Power supply voltage 5 VDC Current consumption 80 mA Ambient operating temperature 0 to 55°C (with no condensation or icing) Ambient operating humidity 10% to 80% Storage temperature -20 to 60°C (with no condensation or icing) Storage humidity 10% to 80% Altitude 2,000 m max. Weight Approx. 130 g (with mounting adaptor) Note: A driver must be installed in the personal computer. Refer to installation information in the operation manual for the Conversion Cable. Heater Burnout Alarms, SSR Failure Alarms, and Heater Overcurrent Alarms CT input (for heater current detection) Models with detection for single-phase heaters: One input Models with detection for single-phase or three-phase heaters: Two inputs Maximum heater current 50 A AC Input current indication accuracy ±5% FS ±1 digit max. Heater burnout alarm setting range *1 0.1 to 49.9 A (in units of 0.1 A) Minimum detection ON time: 100 ms SSR failure alarm setting 0.1 to 49.9 A (in units of 0.1 A) range *2 Minimum detection OFF time: 100 ms Heater overcurrent alarm 0.1 to 49.9 A (in units of 0.1 A) setting range *3 Minimum detection ON time: 100 ms *1. For heater burnout alarms, the heater current will be measured when the control output is ON, and the output assigned to the alarm 1 function will turn ON if the heater current is lower than the set value (i.e., heater burnout detection current value). *2. For SSR failure alarms, the heater current will be measured when the control output is OFF, and the output assigned to the alarm 1 function will turn ON if the heater current is higher than the set value (i.e., SSR failure detection current value). *3. For heater overcurrent alarms, the heater current will be measured when the control output is ON, and the output assigned to the alarm 1 function will turn ON if the heater current is higher than the set value (i.e., heater overcurrent detection current value). 9 Electrical Life Expectancy Curve for Relays (Reference Values) Life (× 104 operations) 500 300 E5AN-H/E5EN-H 100 250 VAC, 30 VDC (resistive load) 50 cos = 1 30 10 5 3 1 0 1 2 3 4 5 6 Switching current (A) E5AN-H/E5EN-H 10 External Connections Control output 1 and control output 2 are functionally isolated from the internal circuits. Controllers Option Units E5AN-H/E5EN-H The Temperature Controller is set for a K-type thermocouple (input type = 5) by default. An input error (s.err) will occur if the input type setting does not agree with the temperature sensor. Check the input type. · 100 to 240 VAC · 24 VAC/VDC (no polarity) 1 Input power supply 2 21 11 22 12 3 Control output 1 4 23 13 24 14 5 Control output 2 6 25 15 26 16 7 Auxiliary output 2 8 27 17 28 18 9 29 19 Auxiliary output 1 10 30 20 Communications E53-EN01 RS-232C 11 SD E53-EN02 RS-422 11 RDB 12 RD 12 RDA 13 SG 13 SG 21 DO NOT USE 21 SDB 22 DO NOT USE 22 SDA E53-EN03 RS-485 11 B (+) 12 A (-) 13 DO NOT USE E53-AKB Event Inputs 11 12 EV2 EV1 13 21 B (+) 21 22 A (-) 22 Event Inputs *1 EV2 EV1 CT2 CT1 Potentiometer O 14 W 15 Auxiliary output 3 CT2 C 16 DO NOT DO NOT USE USE DO NOT A USE B DO NOT V USE DO NOT USE mA B DO NOT DO NOT USE USE Auxiliary output 3 Relay output SPDT, 250 VAC, 3 A (resistive load) A heater burnout alarm, SSR failure, heater overcurrent alarm, input alarm, or Remote SP Input Error is sent to the output to which the alarm 1 function is assigned. Control outputs 1, 2 Control Output Unit Control outputs 1, 2 Refer to page 4 SSR Outputs *3 75 to 250 VAC, 1 A (resistive load) Models with Positionproportional Control Relay output 250 VAC, 1 A (including inrush current) Auxiliary outputs 1, 2, 3 Relay output SPST-NO, 250 VAC, 3 A (resistive load) Control Output Unit 1 Input power supply 2 + 3 Output unit -4 + 5 Output unit -6 7 Auxiliary output 2 8 9 Auxiliary output 1 10 SSR Outputs *3 Models with Positionproportional Control 1 Input power supply 2 1 Input power supply 2 Event input *1/ Transfer output/ Remote SP *2 21 22 3 SSR 4 5 SSR 6 7 Auxiliary output 2 8 9 Auxiliary output 1 10 3 Open 4 5 Closed 6 7 Auxiliary output 2 8 9 Auxiliary output 1 10 23 EV3 24 EV4 25 DO NOT USE 26 + 27 4 to 20 mA DC Transfer output (Load: 600 max.) 28 - + 29 Remote SP input 4 to 20 mA DC - 30 Note: Wire all voltage input terminals correctly. The Controller may fail if voltage input terminals are wired incorrectly. *1. EV3 and EV4 are assigned to event inputs in controllers with two event inputs. *2. Terminals 21 to 30 exist only on the following models. · Models with four event inputs (E5@N-@BB@) · Models with a transfer output (E5@N-@F@) *3. Orders will not be accepted after March 31, 2018. 11 Isolation/Insulation Block Diagrams 1PXFS TVQQMZ 5FNQFSBUVSFJOQVU"OBMPHJOQVU$5JOQVU 1PUFOUJPNFUFSJOQVU3FNPUF41JOQVU $PNNVOJDBUJPOT&WFOUJOQVUT 7PMUBHFQVMTFPVUQVU-JOFBSDVSSFOUPVUQVU -JOFBSWPMUBHFPVUQVU5SBOTGFSPVUQVU 3FMBZPVUQVU "VYJMJBSZPVUQVU "VYJMJBSZPVUQVU 3FJOGPSDFEJOTVMBUJPO 'VODUJPOBMJOTVMBUJPO Nomenclature E5AN-H Temperature unit Operation indicators SUB1 SUB2 SUB3 HA OUT1 RSP STOP OUT2 CMW MANU PV No.1 display SV No.2 display MV No.3 display Programmable Function Key/ Auto/Manual Key PF A/M E5AN-H Level Key Ir Mode Key Up Key Down Key E5AN-H/E5EN-H E5EN-H Operation indicators Temperature unit SUB1 SUB2 HA SUB3 Operation indicators RSP OUT1 STOP OUT2 CMW MANU PV No.1 display SV No.2 display MV No.3 display Mode Key Level Key E5EN-H PF A/M Ir Up Key Programmable Function Key/ Auto/Manual Key Down Key 12 Dimensions E5AN-H Mounted Separately 92+00.8 E5AN-H/E5EN-H (Unit: mm) Group Mounted * (96 × number of units - 3.5)+01.0 92+00.8 96 × 96 6 79.2 2 112 120 min. 92+00.8 Group mounting does not allow waterproofing. · Recommended panel thickness is 1 to 8 mm. · Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.) · To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller. · When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications. * Group mounting is not possible if an SSR output is used for control output 1 or 2 and the E53-C3N or E53-C3DN Output Unit 91 is used. For these combinations, maintain the following mounting space between Controllers. 92+00.8 110 min. Waterproof Packing (Accessory, Y92S-P4 (also available for ordering separately)) Terminal Cover Mounting Bracket (E53-COV16) (Accessory, (Accessory) Y92H-9 (also available for Crimp terminal size: M3.5 ordering separately)) 120 min. 92+00.8 13 E5AN-H/E5EN-H E5EN-H Mounted Separately Group Mounted * 45+00.6 (48 × number of units - 2.5)+01.0 92+00.8 6 79.2 48 2 96 112 91 120 min. Group mounting does not allow waterproofing. 92+00.8 · Recommended panel thickness is 1 to 8 mm. · Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.) · When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications. * Group mounting is not possible if an SSR output is used for control output 1 or 2 and the E53-C3N or E53-C3DN Output Unit is used. For these combinations, maintain the following mounting space between Controllers. 60 min. 45+00.6 Waterproof Packing (Accessory, Y92S-P5 (also available for ordering separately)) Terminal Cover Mounting Bracket (E53-COV16) (Accessory, (Accessory) Y92H-9 (also available for Crimp terminal size: M3.5 ordering separately)) 120 min. 92+00.8 14 Accessories (Order Separately) USB-Infrared Conversion Cable E58-CIFIR USB-Infrared Conversion Cable USB connector (type A plug) (2,000) 4.6 dia. Mounting Adapter With Mounting Adapter Connected 39 16 18.5 Mounting Adapter (Accessory) 99.2 E5AN-H/E5EN-H 54 35.8 LED indicator: RD LED indicator: SD 17.8 21.8 23.1 (75) USB-Serial Conversion Cable E58-CIFQ1 (2,100) 250 LED indicator: SD 1,765 USB connector (type A plug) LED indicator: RD Serial connector Terminal Covers E53-COV16 (Six Covers provided.) 1.2 3.2 10 44.8 Mounting Brackets Y92H-9 (2pcs) 67 18.5 10 4.2 One set is packaged with the product. Order Mounting Brackets separately if yours are lost or damaged. 15 E5AN-H/E5EN-H Waterproof Packing Y92S-P4 (for DIN 96 × 96) Y92S-P5 (for DIN 48 × 96) Order the Waterproof Packing separately if it becomes lost or damaged. The Waterproof Packing can be used to achieve an IP66 degree of protection. (Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.) The Waterproof Packing does not need to be attached if a waterproof structure is not required. Current Transformers E54-CT1 25 3 10 E54-CT3 40 × 40 21 15 5.8 dia. 2.8 7.5 10.5 40 Two, 3.5 dia. 30 2.36 dia. 30 12 dia. 9 E54-CT3 Accessory · Armature Approx. 3 dia. · Plug Approx. 6 dia. 18 (22) Two, M3 (depth 4) 15 30 Connection Example Plug Armature Lead E54-CT1 Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) Maximum continuous heater current: 50 A (50/60 Hz) Number of windings: 400±2 Winding resistance: 18±2 100 V 50 Hz 10 1 100 mV 1 k Distortion factor 10% 3% 1% Output voltage (Eo) V (r.m.s.) 10 100 1 RL = 10 100 V 10 1 10 100 mA 1 10 100 1,000 A Thru-current (Io) A (r.m.s.) E54-CT3 Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) Maximum continuous heater current: 120 A (50/60 Hz) (Maximum continuous heater current for an OMRON Temperature Controller is 50 A.) Number of windings: 400±2 Winding resistance: 8±0.8 100 V 50 Hz 10 1 1 k 500 Distortion factor 10% 3% 1% Output voltage (Eo) V (r.m.s.) 100 mV 10 1 100 50 RL = 10 100 V 10 1 10 100 mA 1 10 100 1,000 A Thru-current (Io) A (r.m.s.) 16 Terms and Conditions Agreement Read and understand this catalog. Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or comments. Warranties. (a) Exclusive Warranty. Omron's exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied. (b) Limitations. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS. BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the Products or otherwise of any intellectual property right. (c) Buyer Remedy. Omron's sole obligation hereunder shall be, at Omron's election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or replacement thereof) the non-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or any other claims or expenses regarding the Products unless Omron's analysis confirms that the Products were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice, recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above warranty. See http://www.omron.com/global/ or contact your Omron representative for published information. Limitation on Liability; Etc. OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY. Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted. Suitability of Use. Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the Product in the Buyer's application or use of the Product. At Buyer's request, Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to Buyer's application, product or system. Buyer shall take application responsibility in all cases. NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY OR IN LARGE QUANTITIES WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM. Programmable Products. Omron Companies shall not be responsible for the user's programming of a programmable Product, or any consequence thereof. Performance Data. Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron's test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron's Warranty and Limitations of Liability. Change in Specifications. Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change part numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications for your application. Please consult with your Omron's representative at any time to confirm actual specifications of purchased Product. Errors and Omissions. Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions. OMRON Corporation Industrial Automation Company http://www.ia.omron.com/ 2019.1 In the interest of product improvement, specifications are subject to change without notice. (c)Copyright OMRON Corporation 2019 All Right Reserved.FrameMaker 7.0 PDFlib PDI 9.1.1 (JDK 1.8/Win64)
