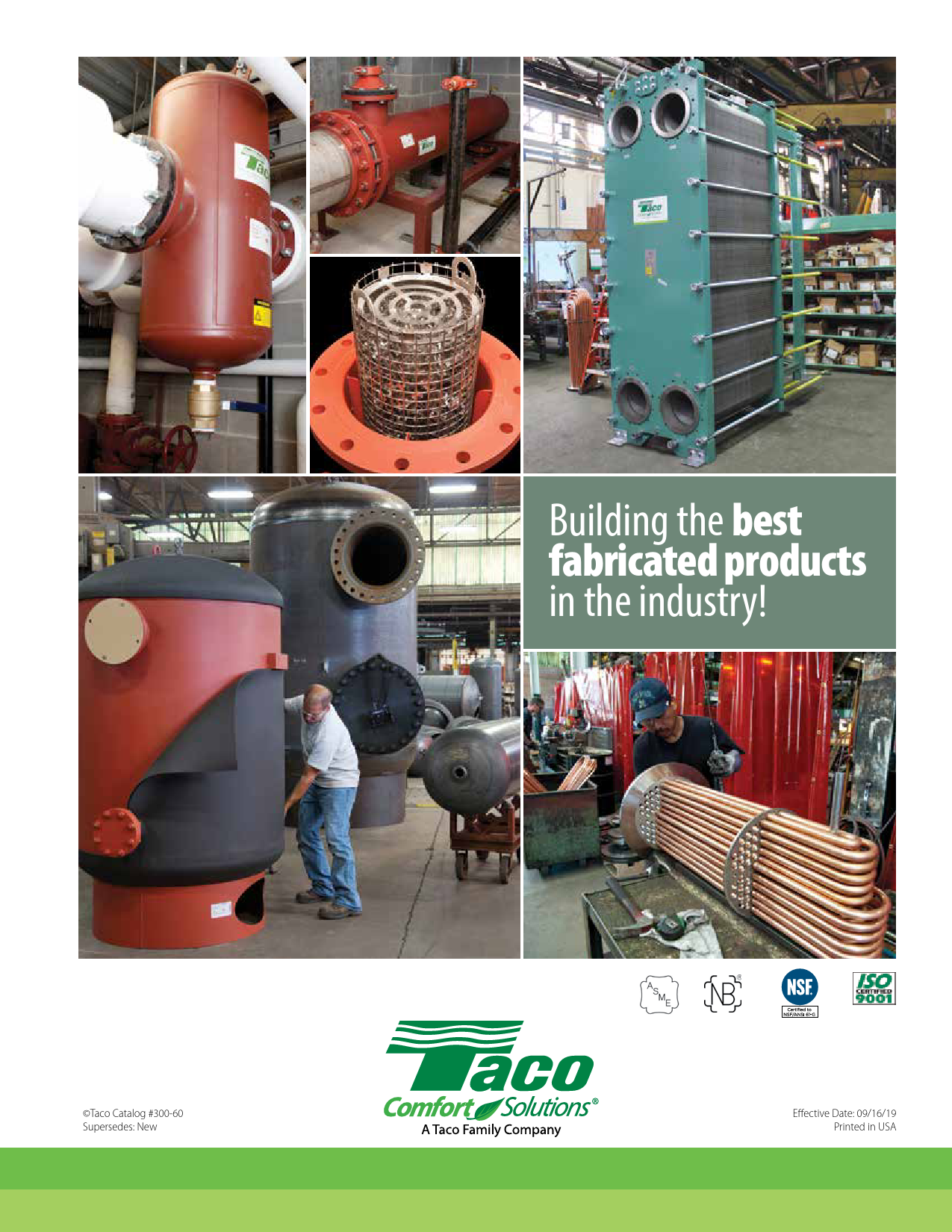

Building the best fabricated products in the industry! �Taco Catalog #300-60 Supersedes: New Effective Date: 09/16/19 Printed in USA A Culture of Pride For over 100 years Taco has been committed to designing and manufacturing innovative and dependable HVAC, plumbing and industrial solutions. Taco's 75,100 sq. ft. fabrication facility located in Fall River, Massachusetts - USA, manufactures ASME Section VIII Div. 1, ISO 9001 and NSF-61 certified products. We design, fabricate and test both custom and standard heat transfer units, expansion tanks, air & dirt separators, hydraulic balancers and other specialized pressure vessels. 20 Lifting TON 11/4" Plate Rolling 5" Steel Cutting 21/2" Stainless Steel Cutting Unmatched Welding Precision The award winning Taco Tags use wireless NFC technology to provide you with all relevant information, for a specific product, right on your phone. Detailed specifications, technical documents, instruction manuals, how-to videos and more, are all quickly and easily accessible. This digital library contains the most up-to-date information for that specific piece of equipment. By utilizing the power of Taco Tags, Taco is ensuring you have the resources you need to make fast, informed decisions in the field, increasing your productivity while saving you time. Taco Tags set a new standard for customer support and in 2019 they received the AHR Expo Innovation Award for the most inventive product and technology. Available on Android & Apple Devices Product Specifications CAD/REVIT Files Submittal Sheets Repair Parts Info Order Info Technical Support Taco Rep Info Catalog Sheets The engineering capabilities of our ASME dedicated design team extend even further, fulfilling custom requests to meet unique requirements. With equipment in-house, we are able to lift 20 tons, roll 1�" plate, cut 5" steel or 2�" stainless steel, and weld with flawless precision and consistency. These capabilities, with our streamlined manufacturing process, allow us to provide quality products and fast, flexible lead times � even emergency replacements. All phases of the fabrication process are handled by our team of experienced professionals. Their skill and expertise stem from a culture of pride and close attention to detail, resulting in industry leading quality and customer satisfaction. A Better Customer Experience Here at Taco, we provide opportunity, growth, and support to all members and partners of the Taco Family around the world. To that end, we have developed a number of innovative solutions designed to help you save money, time, and resources while maximizing your productivity. Our award winning Taco Tags help you make fast, informed decisions in the field. Through our web-site, www.TacoComfort.com, you have access to CAD drawings, Revit files, helpful videos, and a number of selection apps that can identify the right Taco products for your job. The powerful Taco Project Builder app enables you to create and save projects online. Intended to be your basis of design, you can select products, aggregate schedules, create budgets, coordinate quickly with electrical and structural contractors, and download everything into one comprehensive submittal package. Becoming part of the Taco Family opens the door to a vast network of support. Questions can be answered with a phone call to our knowledgeable support staff. System and product trainings are offered throughout the year to help advance your professional development. We believe in the shared success of all members of the Taco Family, and that includes you. To find the Taco REP nearest you go to www.TacoComfort.com. Rolling, Cutting & Welding Experts PF Series Heat Exchangers Connection sizes: 1" - 12" Working Pressure: 150, 300PSI Max Operating Temp: 230�F Taco PF Series Plate & Frame Heat Exchangers are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Our digital product selection app helps you choose the right plate & frame heat exchanger for the job. TB Series Brazed Plate Heat Exchangers Connection Sizes: �" - 4" Rugged, reliable Taco Brazed Plate Heat Exchangers represent the latest technology in high-performance heat transfer products. These compact units feature copper brazed, Stainless Steel plates that offer a highly-efficient, low fouling transfer service. Optional ASME Section VIII, Div. 1 certified models available. Shell & Tube Heat Exchangers Single Wall & Leak Guard Double Wall Steam to Liquid -- Liquid to Liquid Diameters: 4" - 30" Max. Standard Length: 10' Working Pressure: 150PSI * Max. Operating Temp: 375�F 4900 Series� Air & Air/Dirt Separators Connection Sizes: 2" - 36" Working Pressure:125,150PSI * Max. Operating Temp: 240�F Stainless Steel PALL Rings provide micro air bubble removal to 18 microns. Dirt and other particle removal below 5 microns. Optional removable Heads & PALL Ring baskets (recommended on open systems). Tank Heating Units Single Wall & Leak Guard Double Wall Diameters: 4" - 20" Max. Standard Length: 10' Working Pressure: 150PSI * Max. Operating Temp: 375�F Air Separators Connection Sizes: 2" - 36" Working Pressure: 125, 150, 250, 300PSI * Max. Operating Temp: 375�F Patent# 5, 123, 938 ACT Tangential Air Separators Connection Sizes: 2" - 36" Working Pressure: 125, 150PSI * Max. Operating Temp: 375�F Save money and extend the life of system pumps, piping and components with Taco ACT Series air removal units. Optional Stainless Steel removable strainer available. * Optional Higher Pressures Available Optional Higher Temperatures Available 5900 FlexBalance & 5900 FlexBalance~Plus Hydraulic Balancer Connection Sizes: 2" - 12" Working Pressure: 125, 150PSI * Max. Operating Temp: 240�F The patented 5900 FlexBalance & FlexBalance~Plus Separators act as a hydraulic bridge between the primary and secondary circuits in hydronic heating and cooling applications. The FlexBalance~Plus product line incorporates PALL Ring technology for deep micro-bubble and dirt removal. 5900 FlexBalance 5900 FlexBalance~Plus Buffer Tanks Capacity: 50 - 3,000 gal. (190 - 11,356 L) Connection Sizes: 2" - 12" Standard Working Pressure: 125PSI * Max. Operating Temp: 375�F Available with a wide range of standard insulation packages. CA Expansion Tanks Capacity: 23 - 3,962 gal. (90 - 15,000 L) Working Pressures: 125, 150, 175, 250, 300PSI* Max. Operating Temp: 240�F Field replaceable, heavy duty, full-acceptance buCtAyl Sbtlyaldeder removes easily for inspection. ExApvaanilsaibolneTwanitkh NSF/ ANSI 61-G Certification. PAX Expansion Tanks Capacity: 8 - 132 gal. (30 - 500 L) Working Pressures: 150PSI * Max. Operating Temp: 240�F Heavy duty partial acceptance butyl bladder design for potable water systems. Available with NSF/ ANSI 61-G Certification. CBX Expansion Tanks Capacity: 4 - 212 gal. (15 - 802 L) Working Pressures: 125, 150PSI Max. Operating Temp: 240�F Molded butyl membrane allows permanent separation of air and hydronic system fluid. Field removable partial acceptance membrane design specifically developed for smaller heating and chilled water systems. Multi-Purpose Tanks (MPT) Capacity: 50 - 3,000 gal. (190 - 11,356 L) Connection Sizes: 2" - 12" Diameter: 20" - 84" Height: 43" - 145" Working Pressure: 125, 150PSI Max. Operating Temp: 240�F These chilled water & hot water tanks are built to last. Available with a wide range of standard insulation packages. CX Expansion Tanks Capacity: 8 - 92 gal. (29 - 171 L) Working Pressures: 125PSI Max. Operating Temp: 240�F Heavy duty butyl diaphragm allows permanent separation of air & water. PS Expansion Tanks Capacity: 15 - 515 gal. (57 - 1,950L) Working Pressures: 125, 150PSI* Max. Operating Temperature: 375�F Available in vertical or horizontal configurations. Most Taco Expansion Tanks are available with either bladders or diaphragms so that water and air are permanently separated. No absorption can take place at any point during the system cycle, and you avoid the problems of waterlogged tanks, air-bound terminal units, excessive corrosion, inefficient balancing and pump cavitations. Exterior red oxide primer finish comes standard on all models. All fabricated products are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. (Brazed Plate Heat Exchangers optional) World Class Custom Engineering Taco has grown to become a premier custom fabrication provider among global manufacturers. Our veteran team of leading Twin Tees engineers, welders, assemblers and customer support carry with them an extensive wealth of industry knowledge, design logic and technical experience. From start to finish, our focus is set on delivering a finished product that exceeds expectations. Customized variations of all standard designs are available. Some other examples of custom projects include, but are not limited to: � Flash Tanks � Thermal Storage Tanks � De-Aerator Tanks � Clean Steam Generation � Instantaneous Water Heaters � Domestic Water Storage Tanks Horizontal Insulated & Jacketed Buffer Tank Stainless Steel 4900 Series Air & Dirt Separator Stainless Steel PF Series Epoxy Coated Expansion Tanks Vertical Flash Tank Polished Stainless Steel MPT Flexible Lead Times With ASME certified welders, certified testers and a National Board Authorized Inspector in-house, Taco has the team and equipment needed to offer you fast, flexible lead times and accommodate quick-turnaround, emergency requests. ssArea: ................................ 75,100 sq. ft. Manufacturing floor ssDoor Sizes:.................. (5) 14' x 14' Cranes: .......................... 20 Ton bridge crane with (2) 10 ton hoists ss.................................................(2) 10 Ton bridge .................................................(3) 5 Ton bridge .................................................(3) 2 Ton bridge .................................................(10) 1 Ton bridge .................................................(3) 1/2 Ton bridge .................................................(10) 1 Ton jib ssFork Lifts: .................... 6,000 lb. .............................................. 5,000 lb. .............................................. 4,500 lb. .............................................. 4,000 lb. .............................................. 400 lb. Plate Rollers: ............ 1�" x 10' .............................................. 5/16" x 6' .............................................. 10 ga x 5' Plate Burning: ......... 10' x 25' CNC burn table .................................................8' x 25' CNC burn table up to 5" thick Fabricating Machinery: ................. 30" x 20 Ton press brake .................................................18" Automatic band saw .................................................30" dia. Pipe cutting pantograph .................................................6 ft.3 Tumble blaster .................................................6' dia. Shot blaster - table type .................................................Stamping & assembly presses .................................................48" x 120" Tank assembly press .................................................24" x 96" Tank assembly press .................................................24" x 72" Tank assembly press Positioners & Manipulators: .......... 12' x 12' Manipulator .............................................. 6' x 6' Manipulator .............................................. 4' x 4' Manipulator .............................................. 54,000 lb. Positioner .............................................. 6,000 lb. Positioner ssTank Rollers: ............. 45,000 lb. - Multiple Welding Machinery: ......................(16) Manual FCAW welders ....................................................(3) Automatic FCAW welders ....................................................(10) Manual plasma cutters ....................................................(2) SAW longitudinal seam welders ....................................................(2) SAW girth welders ....................................................(3) SAW girth welding lathes ....................................................(12) Pulse MIG welders ....................................................(3) GTAW welders ....................................................SMAW welder ....................................................Genesis CRZ cutting & welding cell .....................................................Genesis CM-3X dual robot cutting & welding cell ....................................................Horn style A/C spot welder, 36" throat depth Tube Bending: ...........(3) Pines rotary draw tube benders ................................................... Manual tube bender for 3/4" and larger Tube Cutting: .............14" dia. Cold saw ...................................................T-Drill automatic tube straightener & cutoff Hydrostatic ssTesting: ...........................Up to 2,000 PSI with 21,000 gal. capacity CNC Machining ssCenters:............................122" x 47" Bridge mill ...................................................21" x 40" C-Frame VMC ...................................................80" x 42" Bridge mill ss...................................................Twin spindle, four-axis, vertical turret lathe ...................................................20" x 20", 3 axis, Vertical machining center Conventional Machinery:....................54"Vertical boring mill ss...................................................4' Radial drill ...................................................10" Engine lathes Painting:.........................(2) Spray booths Taco Inc., 1160 Cranston Street, Cranston, RI 02920 / (401) 942-8000 / Fax (401) 942-2360 Taco (Canada) Ltd., 8450 Lawson Road, Unit #3, Milton, Ontario L9T 0J8 / (905) 564-9422 / Fax (905) 564-9436 www.TacoComfort.com
