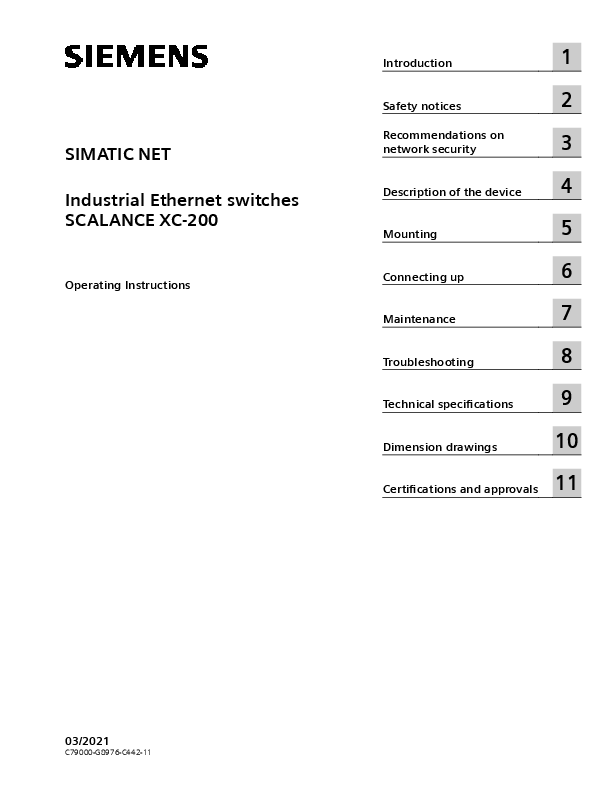

SIMATIC NET Industrial Ethernet switches SCALANCE XC-200
Operating Instructions

Introduction

Safety notices

Recommendations on network security

Description of the device

Mounting

Connecting up

Maintenance

Troubleshooting

Technical specifications

Dimension drawings

11 Certifications and approvals

03/2021
C79000-G8976-C442-11

Legal information
Warning notice system This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are graded according to the degree of danger.
DANGER indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION indicates that minor personal injury can result if proper precautions are not taken.
NOTICE indicates that property damage can result if proper precautions are not taken. If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property damage.
Qualified Personnel The product/system described in this documentation may be operated only by personnel qualified for the specific task in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.
Proper use of Siemens products Note the following:
WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. The permissible ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks All names identified by � are registered trademarks of Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability We have reviewed the contents of this publication to ensure consistency with the hardware and software described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions.

Siemens AG Digital Industries Postfach 48 48 90026 N�RNBERG GERMANY

C79000-G8976-C442-11 04/2021 Subject to change

Table of contents

1 Introduction ........................................................................................................................................... 7

2 Safety notices ...................................................................................................................................... 13

3 Recommendations on network security .............................................................................................. 15

4 Description of the device ..................................................................................................................... 21

4.1

Product overview ............................................................................................................... 21

4.2 4.2.1 4.2.2 4.2.3 4.2.4 4.2.5 4.2.6 4.2.7 4.2.8 4.2.9 4.2.10 4.2.11

Device views ...................................................................................................................... 27 SCALANCE XC206-2 (ST/BFOC) ........................................................................................... 27 SCALANCE XC206-2 (SC).................................................................................................... 28 SCALANCE XC206-2G PoE .................................................................................................. 29 SCALANCE XC206-2SFP...................................................................................................... 30 SCALANCE XC208 .............................................................................................................. 30 SCALANCE XC208G PoE ..................................................................................................... 32 SCALANCE XC216 .............................................................................................................. 33 SCALANCE XC216-3G PoE .................................................................................................. 34 SCALANCE XC216-4C ......................................................................................................... 34 SCALANCE XC224 .............................................................................................................. 36 SCALANCE XC224-4C ......................................................................................................... 37

4.3

Accessories ........................................................................................................................ 37

4.4

SELECT / SET button ........................................................................................................... 42

4.5 4.5.1 4.5.2 4.5.3 4.5.4 4.5.5 4.5.6 4.5.7

LED display ........................................................................................................................ 44 Overview ........................................................................................................................... 44 "RM" LED............................................................................................................................ 45 "SB" LED............................................................................................................................. 45 "F" LED............................................................................................................................... 45 LEDs "DM1" and "DM2"....................................................................................................... 45 LEDs "L1" and "L2" .............................................................................................................. 46 Port LEDs ........................................................................................................................... 47

4.6 4.6.1 4.6.2

C-PLUG .............................................................................................................................. 48 Function of the C-PLUG ...................................................................................................... 48 Replacing the C-PLUG......................................................................................................... 50

4.7

Combo ports...................................................................................................................... 51

4.8 4.8.1 4.8.2 4.8.3 4.8.4 4.8.5

Power over Ethernet (PoE).................................................................................................. 52 Power and voltage range according to the standard............................................................ 52 PoE properties of the devices ............................................................................................. 52 Power transfer and pin assignment (30 W) ......................................................................... 54 Power transfer and pin assignment (60 W) ......................................................................... 54 Configuration..................................................................................................................... 55

5 Mounting ............................................................................................................................................. 57

5.1

Safety notices for installation ............................................................................................. 57

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Table of contents

5.2

General notes for SFP transceivers...................................................................................... 60

5.3

Types of installation ........................................................................................................... 60

5.4 5.4.1 5.4.2

Installation on a DIN rail..................................................................................................... 61 Top-hat rail mounting with fastening plate ......................................................................... 61 Top-hat rail mounting without fastening plate .................................................................... 62

5.5 5.5.1 5.5.2

Installation on a standard S7-300 rail ................................................................................. 64 Installation on a standard rail S7-300 with fastening plate .................................................. 64 Installation on a standard rail S7-300 without fastening plate ............................................. 65

5.6 5.6.1 5.6.2

Installation on a standard rail S7-1500 ............................................................................... 66 Installation on a standard rail S7-1500 with fastening plate ................................................ 66 Installation on a standard rail S7-1500 without fastening plate ........................................... 67

5.7

Wall mounting with fastening plate.................................................................................... 68

5.8

Changing the position of the securing bar .......................................................................... 69

6 Connecting up ..................................................................................................................................... 71

6.1

Wiring rules ....................................................................................................................... 75

6.2

24 V DC power supply ........................................................................................................ 76

6.3

54 V DC power supply ........................................................................................................ 77

6.4

Signaling contact ............................................................................................................... 79

6.5

Functional ground ............................................................................................................. 80

6.6 6.6.1 6.6.2

Industrial Ethernet ............................................................................................................. 82 Electrical............................................................................................................................ 82 Optical............................................................................................................................... 84

6.7

Serial interface................................................................................................................... 85

7 Maintenance........................................................................................................................................ 87

8 Troubleshooting................................................................................................................................... 89

8.1

Downloading new firmware using TFTP without WBM and CLI............................................. 89

8.2

Restoring the factory settings............................................................................................. 90

9 Technical specifications ....................................................................................................................... 91

9.1

Technical specifications SCALANCE XC206-2 (ST/BFOC)....................................................... 91

9.2

Technical specifications SCALANCE XC206-2 (SC)................................................................ 93

9.3

Technical specifications of SCALANCE XC206-2G PoE .......................................................... 96

9.4

Technical specifications of SCALANCE XC206-2G PoE (54 V)................................................ 98

9.5

Technical specifications of SCALANCE XC206-2G PoE EEC (54 V) ....................................... 100

9.6

Technical specifications SCALANCE XC206-2SFP ............................................................... 103

9.7

Technical specifications of SCALANCE XC206-2SFP G ........................................................ 105

9.8

Technical specifications of SCALANCE XC206-2SFP EEC ..................................................... 107

9.9

Technical specifications of SCALANCE XC206-2SFP G EEC.................................................. 110

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Table of contents

9.10

Technical specifications of the SCALANCE XC208 .............................................................. 113

9.11

Technical specifications of SCALANCE XC208G.................................................................. 115

9.12

Technical specifications of SCALANCE XC208G PoE ........................................................... 117

9.13

Technical specifications of SCALANCE XC208G PoE (54 V) ................................................. 119

9.14

Technical specifications of SCALANCE XC208EEC .............................................................. 121

9.15

Technical specifications of SCALANCE XC208G EEC ........................................................... 123

9.16

Technical specifications of the SCALANCE XC216 .............................................................. 125

9.17

Technical specifications of SCALANCE XC216EEC .............................................................. 127

9.18

Technical specifications of SCALANCE XC216-3G PoE ........................................................ 128

9.19

Technical specifications of SCALANCE XC216-3G PoE (54 V).............................................. 130

9.20

Technical specifications of SCALANCE XC216-4C............................................................... 133

9.21

Technical specifications of SCALANCE XC216-4C G............................................................ 135

9.22

Technical specifications of SCALANCE XC216-4C G EEC ..................................................... 137

9.23

Technical specifications of the SCALANCE XC224 .............................................................. 140

9.24

Technical specifications of SCALANCE XC224-4C G............................................................ 142

9.25

Technical specifications of SCALANCE XC224-4C G EEC ..................................................... 144

9.26

Mechanical stability (in operation) ................................................................................... 147

9.27

RF radiation according to NAMUR NE21............................................................................ 147

9.28

Cable lengths................................................................................................................... 147

9.29

Switching properties ........................................................................................................ 148

10 Dimension drawings .......................................................................................................................... 149

11 Certifications and approvals .............................................................................................................. 157

Index .................................................................................................................................................. 165

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Table of contents

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Introduction

Purpose of the Operating Instructions These operating instructions support you when installing and connecting up devices of the SCALANCE XC-200 product group. The configuration and the integration of the devices in a network are not described in these operating instructions.
Validity of the Operating Instructions These operating instructions apply to the following devices: � SCALANCE XC206-2 (ST/BFOC) � SCALANCE XC206-2 (SC) � SCALANCE XC206-2G PoE � SCALANCE XC206-2G PoE (54 V) � SCALANCE XC206-2G PoE EEC (54 V) � SCALANCE XC206-2SFP � SCALANCE XC206-2SFP G � SCALANCE XC206-2SFP EEC � SCALANCE XC206-2SFP G EEC � SCALANCE XC208 � SCALANCE XC208G � SCALANCE XC208G PoE � SCALANCE XC208G PoE (54 V) � SCALANCE XC208EEC � SCALANCE XC208G EEC � SCALANCE XC216 � SCALANCE XC216EEC � SCALANCE XC216-3G PoE � SCALANCE XC216-3G PoE (54 V) � SCALANCE XC216-4C � SCALANCE XC216-4C G � SCALANCE XC216-4C G EEC � SCALANCE XC224

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Introduction

� SCALANCE XC224-4C G
� SCALANCE XC224-4C G EEC
Unless mentioned otherwise, the descriptions in these operating instructions refer to all devices of the SCALANCE XC-200 product group named above in the section on validity.

Designations used

Table 1-1 Explanation of designations used

Classification Product line
Product group Device Device group

Description

Terms used

The product line includes all devices and variants of all product groups. SCALANCE X-200

If information applies to all product groups within the product line, the term SCALANCE X-200 is used.

If information applies to all devices and variants of a product group, the term SCALANCE XC-200 SCALANCE XC-200 is used.

If information relates to a specific device, the device name is used.

e.g. SCALANCE XC206-2SFP

If information applies to a specific group of devices, a corresponding abbre- viation is used.

If information applies to all gigabit variants of SCALANCE XC-200, the fol- SCALANCE XC-200G,

lowing terms are used.

gigabit variants

You can recognize the gigabit variants by the suffix "G" in the type designa-

tion.

Devices that only support gigabit via SFPs are not considered gigabit variants (e.g. SCALANCE XC206-2SFP).

If information applies to all SCALANCE XC-200 with coated circuit boards, the following terms are used.
You can recognize the EEC variants by the suffix "EEC" in the type designa- tion.

SCALANCE XC-200EEC, EEC variants

If information applies to all SCALANCE XC-200 with combo ports, the fol- Devices with combo ports lowing term is used.

You recognize devices with combo ports by the suffix "C" in the type desig- nation.

If information applies to all SCALANCE XC-200 with Power over Ethernet, the SCALANCE XC-200PoE,

following terms are used.

PoE variants

You can recognize the PoE variants by the suffix "PoE" in the type designation.

Additional documentation In addition, note the Operating Instructions of the pluggable transceivers. You will find the supplementary documentation here: � On the data medium that ships with some products: � Product CD / product DVD � SIMATIC NET Manual Collection � On the Internet pages of Siemens Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/ps/15247)

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Introduction
Documentation on configuration You will find detailed information on configuring the devices in the following configuration manuals: � SCALANCE XB-200/XC-200/XF-200BA/XP-200/XR-300WG Web Based Management � SCALANCE XB-200/XC-200/XF-200BA/XP-200/XR-300WG Command Line Interface You will find the configuration manuals here: � on the data medium that ships with some products: � Product CD / product DVD � SIMATIC NET Manual Collection � On the Internet pages of Siemens Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/ps/24185/man).
Further documentation In the system manuals "Industrial Ethernet / PROFINET Industrial Ethernet" and "Industrial Ethernet / PROFINET passive network components", you will find information on other SIMATIC NET products that you can operate along with the devices of this product line in an Industrial Ethernet network. There, you will find among other things optical performance data of the communications partner that you require for the installation. You will find the system manuals here: � On the data medium that ships with some products: � Product CD / product DVD � SIMATIC NET Manual Collection � On the Internet pages of Siemens Industry Online Support: � Industrial Ethernet / PROFINET Industrial Ethernet System Manual (https:// support.industry.siemens.com/cs/ww/en/view/27069465) � Industrial Ethernet / PROFINET Passive Network Components System Manual (https:// support.industry.siemens.com/cs/ww/en/view/84922825)
SIMATIC NET manuals You will find the SIMATIC NET manuals here: � On the data medium that ships with some products: � Product CD / product DVD � SIMATIC NET Manual Collection � On the Internet pages of Siemens Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/ps/15247).

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Introduction

SIMATIC NET glossary
Explanations of many of the specialist terms used in this documentation can be found in the SIMATIC NET glossary.
You will find the SIMATIC NET glossary here:
� SIMATIC NET Manual Collection or product DVD The DVD ships with certain SIMATIC NET products.
� On the Internet under the following address: 50305045 (https://support.industry.siemens.com/cs/ww/en/view/50305045)

Security information
Siemens provides products and solutions with industrial security functions that support the secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement � and continuously maintain � a holistic, state-of-the-art industrial security concept. Siemens' products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place.
For additional information on industrial security measures that may be implemented, please visit http://www.siemens.com/industrialsecurity (https://www.siemens.com/industrialsecurity)
Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers' exposure to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS Feed under http://www.siemens.com/industrialsecurity (https://www.siemens.com/industrialsecurity)

Catalogs

You will find the article numbers for the Siemens products of relevance here in the following catalogs:
� SIMATIC NET Industrial Communication / Industrial Identification, catalog IK PI
� SIMATIC Products for Totally Integrated Automation and Micro Automation, catalog ST 70
� Industry Mall - catalog and ordering system for automation and drive technology, Online catalog (https://mall.industry.siemens.com/goos/WelcomePage.aspx?regionUrl=/ de&language=en)
You can request the catalogs and additional information from your Siemens representative.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Introduction

Device defective
If a fault develops, send the device to your SIEMENS representative for repair. Repairs on-site are not possible.

Decommissioning Shut down the device properly to prevent unauthorized persons from accessing confidential data in the device memory.
To do this, restore the factory settings on the device.
Also restore the factory settings on the storage medium.

Recycling and disposal
The products are low in pollutants, can be recycled and meet the requirements of the WEEE directive 2012/19/EU for the disposal of electrical and electronic equipment.
Do not dispose of the products at public disposal sites.
For environmentally friendly recycling and the disposal of your old device contact a certified disposal company for electronic scrap or your Siemens contact (Product return (https:// support.industry.siemens.com/cs/ww/en/view/109479891)).
Note the different national regulations.

Trademarks

The following and possibly other names not identified by the registered trademark sign � are registered trademarks of Siemens AG:
SIMATIC NET, SCALANCE, C-PLUG, OLM

Electrostatic discharge
NOTICE
Electrostatic sensitive devices (ESD)
Electronic modules contain electrostatic sensitive components
These components can easily be destroyed if handled incorrectly.
Note the following instructions to avoid damage. � Touch electronic modules only when you absolutely need to work on them. � If electronic modules need to be touched, the body of the person involved must first be
electrostatically discharged and grounded. � Do not bring electronic modules in contact with electrically isolating materials such as
plastic film, isolating table top pads or clothing made of synthetic fibers. � Place the modules only on conductive surfaces. � Pack, store and transport electronic modules and components only in conductive packaging
such as metalized plastic or metal containers, conductive foam or household aluminum foil.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Introduction

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Safety notices

Read the safety notices Note the following safety notices. These relate to the entire working life of the device. You should also read the safety notices relating to handling in the individual sections, particularly in the sections "Installation" and "Connecting up".
CAUTION To prevent injury, read the manual before use.
Safety notices on use in hazardous areas General safety notices relating to protection against explosion
WARNING EXPLOSION HAZARD Do not open the device when the supply voltage is turned on.
Safety instructions for use in hazardous locations according to UL/FM HazLoc If you use the device under UL or FM HazLoc conditions, you must also adhere to the following safety instructions in addition to the general safety instructions for protection against explosion: This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or non-hazardous locations only. This equipment is suitable for use in Class I, Zone 2, Group IIC or non-hazardous locations only.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Safety notices

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Recommendations on network security

NOTICE Information security Connect to the device and change the standard password for the user set in the factory "admin" and "" before you operate the device.
To prevent unauthorized access, note the following security recommendations.

General

� You should make regular checks to make sure that the device meets these recommendations and/or other security guidelines.
� Evaluate your plant as a whole in terms of security. Use a cell protection concept with suitable products (https://www.industry.siemens.com/topics/global/en/industrial-security/pages/ default.aspx).
� When the internal and external network are disconnected, an attacker cannot access internal data from the outside. Therefore operate the device only within a protected network area.
� For communication via non-secure networks use additional devices with VPN functionality to encrypt and authenticate the communication.
� No product liability will be accepted for operation in a non-secure infrastructure.
� Terminate management connections correctly (WBM. Telnet, SSH etc.).

Physical access
� Restrict physical access to the device to qualified personnel because the plug-in data medium can contain sensitive data.
� Lock unused physical interfaces on the device. Unused interfaces can be used to gain access to the plant without permission.

Software (security functions)
� Keep the firmware up to date. Check regularly for security updates for the device. You can find information on this at the Industrial Security (https://www.siemens.com/ industrialsecurity) website.
� Inform yourself regularly about security recommendations published by Siemens ProductCERT (https://www.siemens.com/cert/en/cert-security-advisories.htm).
� Only activate protocols that you require to use the device.
� Restrict access to the management of the device with rules in an access control list (ACL).

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Recommendations on network security

� The option of VLAN structuring provides protection against DoS attacks and unauthorized access. Check whether this is practical or useful in your environment.
� Use a central logging server to log changes and accesses. Operate your logging server within the protected network area and check the logging information regularly.

Passwords

� Define rules for the assignment of passwords. � Regularly change your passwords to increase security. � Use passwords with a high password strength. � Make sure that all passwords are protected and inaccessible to unauthorized persons. � A password must be changed if it is known or suspected to be known by unauthorized
persons. � Do not use the same password for different users and systems.

Certificates and keys
� The device contains a pre-installed certificate with key. Replace this certificate with a selfmade certificate with key. We recommend that you use a certificate signed either by a reliable external or by an internal certification authority. You can install the certificate via the WBM (System > Load and Save).
� Use the certification authority including key revocation and management to sign the certificates.
� Make sure that user-defined private keys are protected and inaccessible to unauthorized persons.
� Verify certificates and fingerprints on the server and client to prevent "man in the middle" attacks.
� It is recommended that you use password-protected certificates in the PKCS#12 format.
� It is recommended that you use certificates with a key length of at least 2048 bits.
� Change keys and certificates immediately if there is a suspicion of compromise.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Recommendations on network security

Secure/non-secure protocols and services � Avoid or disable non-secure protocols and services, for example HTTP, Telnet and TFTP. For historical reasons, these protocols are available, however not intended for secure applications. Use non-secure protocols on the device with caution. � Check whether use of the following protocols and services is necessary: � Non authenticated and unencrypted ports � MRP, HRP � IGMP snooping � LLDP � Syslog � RADIUS � DHCP Options 66/67 � TFTP � GMRP and GVRP � The following protocols provide secure alternatives: � HTTP HTTPS � Telnet SSH � SNMPv1/v2c SNMPv3 Check whether use of SNMPv1/v2c. is necessary. SNMPv1/v2c is classified as non-secure. Use the option of preventing write access. The device provides you with suitable setting options. If SNMP is enabled, change the community names. If no unrestricted access is necessary, restrict access with SNMP. Use the authentication and encryption mechanisms of SNMPv3. � Use secure protocols when access to the device is not prevented by physical protection measures. � If you require non-secure protocols and services, operate the device only within a protected network area. � Restrict the services and protocols available to the outside to a minimum. � For the DCP function, enable the "Read Only" mode after commissioning. � If you use RADIUS for management access to the device, activate secure protocols and services.
Interfaces security � Disable unused interfaces. � Use IEEE 802.1X for interface authentication. � Use the function "Locked Ports" to block interfaces for unknown nodes. � Use the configuration options of the interfaces, e.g. the "Edge Type". � Configure the receive ports so that they discard all untagged frames ("Tagged Frames Only").

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Recommendations on network security

Available protocols The following list provides you with an overview of the open protocol ports.
The table includes the following columns:
� Protocol
� Port
� Default port status
� Open The factory setting of the port is "Open".
� Closed The factory setting of the port is "Closed".
� Configurable port
� The port status can be changed.
� -The port status cannot be changed.
� Authentication Specifies whether the communication partner is authenticated.
� Encryption Specifies whether or not the transfer is encrypted.

List of available protocols (local access via a local network)
The following is a list of all available protocols and their ports through which the device can be accessed.

Protocol DHCPv4 Server

Protocol/ Port number
UDP/67

Default port sta- Configurable

tus

port

Closed

Authentication Encryption

DHCPv4 Client Discard Echo IP EtherNet/IP
HTTP HTTPS Kerberos NTP SNTP NTP (secure)

UDP/68 TCP/9 UPD/TCP/9 TCP/44818 UDP/2222 UDP/44818
TCP/80 TCP/443 TCP/464 UDP/123
UDP/123

Open

Open, filtered --

Open

Closed

(Open with

EtherNetIP var-

iants)

Open

Open, filtered --

Closed

Yes

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Recommendations on network security

Protocol PROFINET
RADIUS SMTP SNMP

Protocol/ Port number
UDP/34964 UDP/49151 ... 49159 1) UPD/1812,1813 TCP/25 TCP/465 UDP/161

Default port sta- Configurable

tus

port

Open

Closed

Open

SSH Syslog
TELNET TFTP

TCP/22 UPD/514 TCP/6514 TCP/23 UDP/69

Open

Closed

Open

1) Port number can be configured via the WBM.

Authentication Encryption

Yes

Yes (when con-

figured)

Yes

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Recommendations on network security

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device

4.1

Product overview

Article numbers
There are two variants of some devices with different article numbers. The two variants differ only in their factory settings. All other properties are identical.

Description

Article number

� 6 x 10/100 Mbps RJ45 ports � 2 x 100 Mbps ST/BFOC ports, multimode fiber-optic cable

PROFINET: 6GK5 206-2BB00-2AC2

� 6 x 10/100 Mbps RJ45 ports � 2 x 100 Mbps SC ports, multimode fiber-optic cable

PROFINET: 6GK5 206-2BD00-2AC2

� 6 x 10/100/1000 Mbps RJ45 ports

PROFINET:

� 2 x pluggable transceiver slots with 1000/10000 Mbps (SFP+) 6GK5 206-2RS00-2AC2

� Power over Ethernet at 6 ports

� Rated voltage 24 V DC

� 6 x 10/100/1000 Mbps RJ45 ports

PROFINET:

� 2 x pluggable transceiver slots with 1000/10000 Mbps (SFP+) 6GK5 206-2RS00-5AC2

� Power over Ethernet at 6 ports

� Rated voltage 54 V DC

� 6 x 10/100/1000 Mbps RJ45 ports

PROFINET:

� 2 x pluggable transceiver slots with 1000/10000 Mbps (SFP+) 6GK5 206-2RS00-5FC2

� Power over Ethernet at 6 ports

� Rated voltage 54 V DC

� Coated printed circuit board

� 6 x 10/100 Mbps RJ45 ports � 2 x pluggable transceiver slots with 100/1000 Mbps

PROFINET: 6GK5 206-2BS00-2AC2

� 6 x 10/100/1000 Mbps RJ45 ports � 2 x pluggable transceiver slots with 1000 Mbps

PROFINET: 6GK5 206-2GS00-2AC2 EtherNet/IP:

6GK5 206-2GS00-2TC2

� 6 x 10/100 Mbps RJ45 ports � 2 x pluggable transceiver slots with 100/1000 Mbps

PROFINET: 6GK5 206-2BS00-2FC2

� Coated printed circuit board

� 6 x 10/100/1000 Mbps RJ45 ports � 2 x pluggable transceiver slots with 1000 Mbps

PROFINET: 6GK5 206-2GS00-2FC2

� Coated printed circuit board

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.1 Product overview

Device

Description

Article number

SCALANCE XC208

� 8 x 10/100 Mbps RJ45 ports

PROFINET: 6GK5 208-0BA00-2AC2

SCALANCE XC208G

� 8 x 10/100/1000 Mbps RJ45 ports

PROFINET: 6GK5 208-0GA00-2AC2

EtherNet/IP:

6GK5 208-0GA00-2TC2

SCALANCE XC208G PoE

� 8 x 10/100/1000 Mbps RJ45 ports � Power over Ethernet at 6 ports

PROFINET: 6GK5 208-0RA00-2AC2

� Rated voltage 24 V DC

SCALANCE XC208G PoE (54 V)

� 8 x 10/100/1000 Mbps RJ45 ports � Power over Ethernet at 6 ports

PROFINET: 6GK5 208-0RA00-5AC2

� Rated voltage 54 V DC

SCALANCE XC208EEC

� 8 x 10/100 Mbps RJ45 ports � Coated printed circuit board

PROFINET: 6GK5 208-0BA00-2FC2

SCALANCE XC208G EEC

� 8 x 10/100/1000 Mbps RJ45 ports � Coated printed circuit board

PROFINET: 6GK5 208-0GA00-2FC2

SCALANCE XC216

� 16 x 10/100 Mbps RJ45 ports

PROFINET: 6GK5 216-0BA00-2AC2

SCALANCE XC216EEC

� 16 x 10/100 Mbps RJ45 ports � Coated printed circuit board

PROFINET: 6GK5 216-0BA00-2FC2

SCALANCE XC216-3G PoE � 16 x 10/100/1000 Mbps RJ45 ports � 1 x pluggable transceiver slots with 1000 Mbps

PROFINET: 6GK5 216-3RS00-2AC2

� 2 x pluggable transceiver slots with 1000/10000 Mbps

� Power over Ethernet at 14 ports

� Rated voltage 24 V DC

SCALANCE XC216-3G PoE � 16 x 10/100/1000 Mbps RJ45 ports

(54 V)

� 1 x pluggable transceiver slots with 1000 Mbps

PROFINET: 6GK5 216-3RS00-5AC2

� 2 x pluggable transceiver slots with 1000/10000 Mbps

� Power over Ethernet at 14 ports

� Rated voltage 54 V DC

SCALANCE XC216-4C

� 12 x 10/100 Mbps RJ45 ports

PROFINET:

� 4 x combo ports (4 x 10/100 Mbps RJ45 ports/4 x pluggable 6GK5 216-4BS00-2AC2

transceiver slots with 1000 Mbps)

SCALANCE XC216-4C G

� 12 x 10/100/1000 Mbps RJ45 ports

PROFINET:

� 4 x combo ports (4 x 10/100/1000 Mbps RJ45 ports/4 x plug- 6GK5 216-4GS00-2AC2

gable transceiver slots with 1000 Mbps)

EtherNet/IP:

6GK5 216-4GS00-2TC2

SCALANCE XC216-4C G EEC � �

12 x 10/100/1000 Mbps RJ45 ports

PROFINET:

4 x combo ports (4 x 10/100/1000 Mbps RJ45 ports/4 x plug- 6GK5 216-4GS00-2FC2

gable transceiver slots with 1000 Mbps)

� Coated printed circuit board

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.1 Product overview

Device

Description

Article number

SCALANCE XC224

� 24 x 10/100 Mbps RJ45 ports

PROFINET: 6GK5 224-0BA00-2AC2

SCALANCE XC224-4C G

� 20 x 10/100/1000 Mbps RJ45 ports

PROFINET:

� 4 x combo ports (4 x 10/100/1000 Mbps RJ45 ports/4 x plug- 6GK5 224-4GS00-2AC2

gable transceiver slots with 1000 Mbps)

EtherNet/IP:

6GK5 224-4GS00-2TC2

SCALANCE XC224-4C G EEC � �

20 x 10/100/1000 Mbps RJ45 ports

PROFINET:

4 x combo ports (4 x 10/100/1000 Mbps RJ45 ports/4 x plug- 6GK5 224-4GS00-2FC2 gable transceiver slots with 1000 Mbps)

� Coated printed circuit board

Factory settings
EtherNet/IP variants � Industrial Ethernet protocol: EtherNet/IP � Base Bridge Mode: 802.1Q VLAN Bridge � Redundancy mode: RSTP � Trust mode: Trust CoS-DSCP � IGMP Snooping/IGMP Querier: On � IPv4 Address Collision Detection: Attempt to defend
PROFINET variants � Industrial Ethernet protocol: PROFINET � Base Bridge Mode: 802.1D transparent bridge

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.1 Product overview

� Redundancy mode: Ring redundancy

Device � XC206-2 (ST/BFOC) � XC206-2 (SC) � XC206-2G PoE � XC206-2G PoE (54 V) � XC206-2G PoE EEC (54 V) � XC206-2SFP � XC206-2SFP G � XC206-2SFP EEC � XC206-2SFP G EEC � XC208 � XC208G � XC208EEC � XC208G EEC � XC208G PoE � XC208G PoE (54 V) � XC216-3G PoE � XC216-3G PoE (54 V)

� XC216 � XC216EEC � XC216-4C � XC216-4C G � XC216-4C G EEC � XC224 � XC224-4C G � XC224-4C G EEC

� Trust mode: Trust CoS

� IGMP Snooping/IGMP Querier: Off

� IPv4 Address Collision Detection: Never give up

Factory setting ring ports P0.7 and P0.8 P0.1 and P0.2
P0.4 and P0.5

Type designation The type designation of a SCALANCE XC-200 is made up of several parts that have the following meaning:
XC2 -

[ - ] C EEC G PoE SFP Number of optical connectors
Number of electrical connectors

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Interfaces of devices with optical connectors:

Interface C EEC G PoE SFP

Property Combo port Enhanced Environment Conditions (coated PCB) Gigabit Power over Ethernet Pluggable transceiver slot

Description of the device 4.1 Product overview

Unpacking and checking
WARNING Do not use any parts that show evidence of damage If you use damaged parts, there is no guarantee that the device will function according to the specification. If you use damaged parts, this can lead to the following problems: � Injury to persons � Loss of the approvals � Violation of the EMC regulations � Damage to the device and other components Use only undamaged parts.
1. Make sure that the package is complete. 2. Check all the parts for transport damage.

Components of the product The following components are supplied with a SCALANCE XC-200: � One IE switch � A 4-pin terminal block for the power supply � A 2-pin terminal block for the signaling contact � One product DVD with documentation and software The following components are also included in the product package of a SCALANCE XC-200 with plug-in transceiver slots (SFPs): � One cover for each plug-in transceiver slot The following components are also supplied with a SCALANCE XC206-2: � 2 covers for optical ports

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.1 Product overview

Spare parts

The following spare parts are available for SCALANCE XC-200:

Component Spring-loaded terminal block, 4 terminals
Spring-loaded terminal block, 2 terminals

Description
4-terminal spring-loaded terminal block to con- nect the power supply (24 VDC), for SCALANCE X/W/S/M, pack of 5 2-terminal spring-loaded terminal block to con- nect the signaling contact (24 VDC), for SCALANCE X/W/S/M, pack of 5

Article number 6GK5 980-1DB10-0AA5
6GK5 980-0BB10-0AA5

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

4.2
4.2.1

Device views

Description of the device 4.2 Device views

SCALANCE XC206-2 (ST/BFOC)
The following figure shows an overview of the components of the SCALANCE XC206-2 (ST/ BFOC).

Electrical ports Optical ports Grounding screw Knurled screw Securing bar Levering aid for moving the securing bar with a
screwdriver

Power supply Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.2 Device views

4.2.2

SCALANCE XC206-2 (SC)
The following figure shows an overview of the components of the SCALANCE XC206-2 (SC).

Electrical ports Optical ports Grounding screw Knurled screw Securing bar Levering aid for moving the securing bar with a
screwdriver

Power supply Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

4.2.3

Description of the device 4.2 Device views

SCALANCE XC206-2G PoE
The following figure shows an overview of the components of the SCALANCE XC206-2G PoE depending on the rated voltage.

SCALANCE XC206-2G PoE (24 V)

SCALANCE XC206-2G PoE (54 V) and SCALANCE XC206-2G PoE EEC (54 V)

Electrical ports with PoE

Power supply

Pluggable transceiver slots

Signaling contact

Cooling element (cooling fin)

Serial interface

Grounding screw

"SELECT / SET" button

Knurled screw

LED display

Securing bar

C-PLUG slot

Levering aid for moving the securing bar with a

screwdriver

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.2 Device views

4.2.4

SCALANCE XC206-2SFP
The following figure provides an overview of the components of SCALANCE XC206-2SFP and the following devices: � SCALANCE XC206-2SFP G � SCALANCE XC206-2SFP EEC � SCALANCE XC206-2SFP G EEC

Electrical ports Pluggable transceiver slots Grounding screw Knurled screw Securing bar Levering aid for moving the securing bar with a
screwdriver

Power supply Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

4.2.5
30

SCALANCE XC208
The following figure provides an overview of the components of SCALANCE XC208 and the following devices: � SCALANCE XC208G � SCALANCE XC208EEC � SCALANCE XC208G EEC
SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.2 Device views

Electrical ports Grounding screw Knurled screw Securing bar Levering aid for moving the securing bar with a
screwdriver
Power supply

Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.2 Device views

4.2.6

SCALANCE XC208G PoE
The following figure shows an overview of the components of the SCALANCE XC208G PoE depending on the rated voltage.

SCALANCE XC208G PoE (24 V)

SCALANCE XC208G PoE (54 V)

a Electrical ports
b Electrical ports with PoE
Cooling element (cooling fin) Grounding screw Knurled screw Securing bar Levering aid for moving the securing bar with a
screwdriver

Power supply Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

4.2.7

Description of the device 4.2 Device views
SCALANCE XC216
The following figure provides an overview of the components of SCALANCE XC216 and SCALANCE XC216EEC.

Electrical ports Grounding screw Knurled screw Securing bar Levering aid for moving the securing bar with a
screwdriver
Power supply

Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.2 Device views

4.2.8

SCALANCE XC216-3G PoE
The following figure shows an overview of the components of the SCALANCE XC216-3G PoE depending on the rated voltage.

SCALANCE XC216-3G PoE (24 V)

SCALANCE XC216-3G PoE (54 V)

Pluggable transceiver slots a Electrical ports
b Electrical ports with PoE
Cooling element (cooling fin) Unlocking the top-hat rail latch Location for mounting to an S7 standard rail
(on bottom of the device, not in picture)
Grounding screw

Power supply Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

4.2.9

SCALANCE XC216-4C
The following figure provides an overview of the components of SCALANCE XC216-4C and the following devices: � SCALANCE XC216-4C G � SCALANCE XC216-4C G EEC

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.2 Device views

Pluggable transceiver slots Combo ports Electrical ports Unlocking the top-hat rail latch Location for mounting to an S7 standard rail
(on bottom of the device, not in picture)
Grounding screw

Power supply Signaling contact Serial interface "SELECT / SET" button LED display
C-PLUG slot

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.2 Device views

4.2.10

SCALANCE XC224
The following figure shows an overview of the components of the SCALANCE XC224.

Electrical ports Grounding screw Knurled screw Securing bar Levering aid for moving the securing bar with a
screwdriver
Power supply

Signaling contact Serial interface "SELECT / SET" button LED display C-PLUG slot

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

4.2.11

Description of the device 4.3 Accessories

SCALANCE XC224-4C
The following figure provides an overview of the components of SCALANCE XC224-4C G and SCALANCE XC224-4C G EEC

4.3

Pluggable transceiver slots Combo ports Electrical ports Unlocking the top-hat rail latch Location for mounting to an S7 standard rail
(on bottom of the device, not in picture)
Grounding screw

Power supply Signaling contact Serial interface "SELECT / SET" button LED display
C-PLUG slot

Accessories
The following accessories are available for SCALANCE XC-200:

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.3 Accessories

C-PLUG

Component C-PLUG

Description
Configuration plug, exchangeable storage medium for saving configuration data, 32 MB
Configuration plug, exchangeable storage medium for saving configuration data, 32 MB, coated (conformal coating)
Configuration plug, exchangeable storage medium for saving configuration data, 256 MB

Article number 6GK1 900-0AB00 6GK1 900-0AQ00
6GK1 900-0AB10

Cable

Component
Connecting ca- ble (RJ-11/RS-232)

Description Preassembled, serial cable with RJ-11 and RS-232 plug, Length: 3 m pack of 1

Article number 6GK5 980-3BB00-0AA5

Pluggable transceiver SFP (100 Mbps)

Type SFP991-1
SFP991-1 (C) SFP991-1LD
SFP991-1LD (C) SFP991-1LH+ SFP991-1ELH200

Property

Article number

1 x 100 Mbps, LC port optical for glass FO cable (multimode), up to max. 5 km

6GK5 991-1AD00-8AA0

10 packing unit (VPE 10)

6GK5 991-1AD00-8AC0

1 x 100 Mbps, SC port optical, for glass FO cable (multimode), up to max. 5 km, varnished

6GK5 991-1AD00-8FA0

1 x 100 Mbps LC port optical for glass FO cable (sin- 6GK5 991-1AF00-8AA0 gle mode) up to max. 26 km

10 packing unit (VPE 10)

6GK5 991-1AF00-8AC0

1 x 100 Mbps LC port optical for glass FO cable (sin- 6GK5 991-1AF00-8FA0 gle mode) up to max. 26 km, varnished
1 x 100 Mbps LC port optical for glass FO cable (sin- 6GK5 991-1AE00-8AA0 gle mode) up to max. 70 km

1 x 100 Mbps LC port optical for glass FO cable (sin- 6GK5 991-1AE30-8AA0 gle mode) up to max. 200 km

The SFP plug-in transceiver (100 Mbps) cannot be operated in SFP+ slots.
Pluggable transceivers with the supplement (C) in the type name have varnished printed circuit boards (conformal coating).

Note Restriction for pluggable transceivers
The maximum ambient temperature changes if you use pluggable transceivers.
You can find the corresponding values for the ambient temperature in the section "Technical specifications (Page 91)".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.3 Accessories
Note You cannot use the pluggable transceiver SFP (100 Mbps) with the following devices: � Gigabit versions (suffix "G" in the type designation) � Devices with combo ports (suffix "C" in the type designation) Use active pluggable transceivers to connect these devices via optical 100 Mbps connections.

Active plug-in transceiver SFP (100 Mbps) With active plug-in transceivers, Gigabit slots can be used as Fast Ethernet interfaces.

Type SFP991-1A
SFP991-1LD A

Property

Article number

1 x 100 Mbps, LC port optical for glass FO cable (multimode), up to max. 5 km

6GK5 991-1AD00-8GA0

1 x 100 Mbps LC port optical for glass FO cable (sin- 6GK5 991-1AF00-8GA0 gle mode) up to max. 26 km

Note
Active plug-in transceivers can be used with the following devices: � SCALANCE XC206-2G PoE � SCALANCE XC206-2G PoE (54 V) � SCALANCE XC206-2G PoE EEC (54 V) � SCALANCE XC-206-2SFP G � SCALANCE XC-206-2SFP G EEC � SCALANCE XC208G PoE � SCALANCE XC208G PoE (54 V) � SCALANCE XC216-3G PoE � SCALANCE XC216-3G PoE (54 V) � SCALANCE XC-216-4C � SCALANCE XC-216-4C G � SCALANCE XC-216-4C G EEC � SCALANCE XC-224-4C G � SCALANCE XC-224-4C G EEC

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.3 Accessories

Pluggable transceiver SFP (1000 Mbps)

Type SFP992-1
SFP992-1 (C) SFP992-1+ SFP992-1LD
SFP992-1LD (C) SFP992-1LD+ SFP992-1LH SFP992-1LH+ SFP992-1ELH

Property
1 x 1000 Mbps, LC port optical for glass FO cable (multimode), up to max. 750 m
10 packing unit (VPE 10)
1 x 1000 Mbps, LC port optical, for glass FO cable (multimode), up to max. 750 m, varnished
1 x 1000 Mbps, LC port optical for glass FO cable (multimode), up to max. 2 km
1 x 1000 Mbps LC port optical for glass FO cable (single mode) up to max. 10 km
10 packing unit (VPE 10)
1 x 1000 Mbps LC port optical for glass FO cable (single mode) up to max. 10 km, varnished
1 x 1000 Mbps LC port optical for glass FO cable (single mode) up to max. 30 km
1 x 1000 Mbps LC port optical for glass FO cable (single mode) up to max. 40 km
1 x 1000 Mbps LC port optical for glass FO cable (single mode) up to max. 70 km
1 x 1000 Mbps LC port optical for glass FO cable (single mode) up to max. 120 km

Article number 6GK5 992-1AL00-8AA0 6GK5 992-1AL00-8AC0 6GK5 992-1AL00-8FA0 6GK5 992-1AG00-8AA0 6GK5 992-1AM00-8AA0 6GK5 992-1AM00-8AC0 6GK5 992-1AM00-8FA0 6GK5 992-1AM30-8AA0 6GK5 992-1AN00-8AA0 6GK5 992-1AP00-8AA0 6GK5 992-1AQ00-8AA0

Pluggable transceivers with the supplement (C) in the type name have varnished printed circuit boards (conformal coating).

Bidirectional plug-in transceiver SFP
Bidirectional plug-in transceivers feature only one fiber connection. They transmit and receive on two different wavelengths. To establish a connection, you need two matching bidirectional SFPs. The connected SFPs must respectively transmit on the wavelength at which the connection partner receives.

Type SFP992-1BXMT
SFP992-1BXMR

Properties

Article number

1 x 1000 Mbps LC port optical for glass FO (multi- 6GK5 992-1AL00-8TA0 mode) with max. 500 m, transmits at 1550 nm, receives at 1310 nm

1 x 1000 Mbps LC port optical for glass FO (multi- 6GK5 992-1AL00-8RA0 mode) with max. 500 m, transmits at 1310 nm, receives at 1550 nm

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.3 Accessories

Type SFP992-1BX10T
SFP992-1BX10R

Properties

Article number

1 x 1000 Mbps LC port optical for glass FO (single 6GK5 992-1AM00-8TA0 mode) with max. 10 km, transmits at 1550 nm, receives at 1310 nm

1 x 1000 Mbps LC port optical for glass FO (single 6GK5 992-1AM00-8RA0 mode) with max. 10 km, transmits at 1310 nm, receives at 1550 nm

SFP+ transceiver

Type SFP993-1
SFP993-1LD

Properties
1 x 10 Gbps, LC port optical for glass FO cable (multimode), up to max. 550 m
1 x 10 Gbps, LC port optical for glass FO cable (single mode), up to max. 10 km

Can only be operated in SFP+ slots.

Article number 6GK5 993-1AT00-8AA0
6GK5 993-1AU00-8AA0

Preassembled IE cable with SFP+ plugs

Component IE Cable SFP+/SFP+

Description
Preassembled IE cable with two permanently mounted SFP+ plugs, electrical, 10 Gbps, pack of 1

Length 1 m Length 2 m Length 7 m

Article number 6GK5 980-3CB00-0AA1 6GK5 980-3CB00-0AA2 6GK5 980-3CB00-0AA7

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.4 SELECT / SET button

4.4

SELECT / SET button

Position

The "SELECT/SET" button is located on the front of the device.

6(/(&7 6(7
Figure 4-1 Position of the "SELECT/SET" button, for example on the SCALANCE XC-200 with 8 ports
Setting the display mode To set the required display mode, press the "SELECT/SET" button. For more detailed information on the display modes, refer to the section "LEDs "DM1" and "DM2" (Page 45)".
Resetting the device to factory defaults NOTICE Previous settings If you reset, all the settings you have made will be overwritten by factory defaults.
NOTICE Inadvertent reset An inadvertent reset can cause disturbances and failures in the configured network.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.4 SELECT / SET button
Requirement � The device is in operation. � The function "Reset to Factory Defaults" is enabled for the "SELECT / SET" button.
Note Reset despite disabled "SELECT/SET" button If you have disabled the "Restore Factory Defaults" function for the "SELECT/SET" button in the configuration, this does not apply during the startup phase, see section "Restoring the factory settings (Page 90)". If the function has been disabled in the configuration, it is only disabled on completion of the startup phase.
Procedure To reset the device to the factory defaults during operation, follow the steps below: 1. Switch to display mode A.
Display mode A is active if the LEDS "DM1" and "DM2" are unlit. If the "DM1" and "DM2" LEDs are lit or flashing, you will need to press the "SET/SELECT" repeatedly until the "DM1" and "DM2" LEDs go off. If you do not press the "SELECT/SET" button for longer than 1 minute, the device automatically changes to display mode A. 2. Hold down the "SELECT/SET" button for 12 seconds. After 9 seconds,the "DM1" and "DM2" LEDs start to flash for 3 seconds. At the same time, the port LEDs go on one after the other. After you have held down the button for 12 seconds, the device restarts and the factory defaults are restored. If you release the button before the 12 seconds have elapsed, the reset is canceled.
Enabling and disabling the functions of the button In the configuration, you can enable or disable the functions of the button.
Defining the fault mask Using the fault mask, you specify an individual "good status" for the connected ports and the power supply. Deviations from this status are displayed as errors/faults. You configure newly plugged-in connections in the configuration.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device
4.5 LED display
To define the fault mask, follow the steps below:
1. Switch to display mode D. Display mode D is active if the "DM1" and "DM2" LEDs are lit green.. If another display mode is active, you will need to press the "SET/SELECT" button repeatedly until the "DM1" and "DM2" LEDs are lit green.
2. Hold down the "SELECT/SET" button for 5 seconds. After 2 seconds,the "DM1" and "DM2" LEDs start to flash for 3 seconds. At the same time, the port LEDs go on one after the other. After you have held down the button for 5 seconds, the current settings are stored as the "good status". If you release the button before the 5 seconds have elapsed, the previous fault mask will be retained.

4.5

LED display

4.5.1

Overview
The following figure shows the arrangement of the LEDs based on the example of a SCALANCE XC-200 with 8 ports.

)

50 3

6% 3

'0 3

F RM SB DM1/DM2 L1/L2 P COMBO

LED for displaying the fault/error status LED for displaying the "redundancy manager" function LED for displaying the "standby" function LEDs for displaying the display mode LEDs for displaying the power supply LEDs for displaying the port status *) Indicates that the LEDs belong to combo ports

*) The number of port LEDs depends on the device.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

4.5.2

Description of the device 4.5 LED display

"RM" LED
The "RM" LED indicates whether or not the device is a redundancy manager and whether or not the ring is operating free of error.

LED color Green
Green

LED status Off On
Flashing

Meaning
The device is not a redundancy manager. The device is a redundancy manager. The ring is working without problems, monitoring is activated. The device is a redundancy manager. An interruption has been detected on the ring and the device has switched through.

4.5.3

"SB" LED
The "SB" LED shows the status of the standby function.

LED color Green Green

LED status Off On Flashing

Meaning The standby function is disabled. The standby function is enabled. The standby section is passive. The standby function is enabled. The standby section is active.

4.5.4

"F" LED
The "F" LED shows the fault/error status of the device.

Meaning during device startup

LED color Red Red

LED status Off On Flashing

Meaning during device startup Device startup was completed successfully. Device startup is not yet completed or errors have occurred. There are errors in the firmware.

Meaning during operation

LED color -
Red

LED status Off
On

Meaning during operation
The device is operating free of errors. The signaling contact is closed.
The device has detected a problem. The signaling contact has opened.

4.5.5

LEDs "DM1" and "DM2"
The "DM1" and "DM2" LEDs indicate which display mode is set.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.5 LED display

There are 5 display modes (A, B, C, D, and E). Display mode A is the default mode.
Depending on the set display mode, the "L1", "L2" LEDs and the port LEDs show different information.

LED color
Green Green Green Green

LED status

DM1 LED

DM2 LED

Off

Flashing

Off

Meaning
Display mode A Display mode B Display mode C Display mode D Display mode E

Setting the display mode
To set the required display mode, press the "SELECT/SET" button.
If you do not press the "SELECT/SET" button for longer than 1 minute, the device automatically changes to display mode A.

Pressing SELECT/SET button starting at display mode A
Press once Press twice Press three times Press four times

LED status

DM1

DM2

Off

Flashing

Off

Display mode
Display mode A Display mode B Display mode C Display mode D Display mode E

4.5.6

LEDs "L1" and "L2"
The "L1" and "L2" LEDs indicate the current range of the power supply at connectors L1 and L2.
The meaning of the "L1" and "L2" LEDs depends on the set display mode, see section "LEDs "DM1" and "DM2" (Page 45)".

Meaning in display modes A, B, C and E
In the display modes A, B, C and E, you can determine whether the power supply is connected by observing LEDs "L1" and "L2" .

L1/L2 LED

LED color

LED status

Off

Green

L1/L2 connector
No external power supply connected Power supply connected to L1/L2

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.5 LED display

Meaning in display mode D In display mode D, the "L1" and "L2" LEDs indicate whether the power supply is monitored.

L1/L2 LED

LED color

LED status

Off

Green

L1/L2 connector
Power supply is not monitored. The signal contact does not respond if neither L1 nor L2 is connected to an adequate power supply. Power supply is monitored. The signal contact responds if neither L1 nor L2 is connected to an adequate power supply.

4.5.7

Port LEDs
The port LEDs "P1", "P2" etc. show information about the corresponding ports. The meaning of the Port LEDs depends on the set display mode, see section "LEDs "DM1" and "DM2" (Page 45)".
Meaning in display mode A In display mode A, the port LEDs indicate whether a valid link exists.

LED color Green
Yellow

LED status

Meaning

Off

No valid link to the port (for example communications part-

ner turned off or cable not connected).

Link exists and port in normal status. In this status, the port

can receive and send data.

Flashes once per period* Link exists and port in "Blocking" status. In this status, the port only receives management data (no user data).

Flashes three times per pe- Link exists and port turned off by management. In this sta-

riod*

tus, no data is sent or received via the port.

Flashes four times per pe- Link exists and is in the "Monitor Port" status. In this status,

riod*

the data traffic of another port is mirrored to this port.

Flashing / lit

Receiving data at port

* 1 period 2.5 seconds

Meaning in display mode B In display mode B, the port LEDs indicate the transmission speed.

LED color Green Orange Green

LED status Off On On Flashing

Meaning Port operating at 10 Mbps Port operating at 100 Mbps Port operating at 1000 Mbps Port operating at 10 Gbps

If there is a connection problem and the type of transmission is fixed (auto negotiation off), the desired status, in other words the set transmission speed (10 Gbps, 1000 Mbps, 100 Mbps, 10

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.6 C-PLUG

Mbps) continues to be displayed. If there is a connection problem and auto negotiation is active, the port LED goes off.
Meaning in display mode C In display mode C, the port LEDs indicate the mode.

LED color Green

LED status Off On

Meaning Port operating in half duplex mode Port operating in full duplex mode

Meaning in display mode D In display mode D, the port LEDs indicate whether the port is monitored.

LED color -

LED status Off

Green

Meaning
Port is not monitored. If no link was established at the port the signaling contact does not indicate an error. Port is monitored. If no link was established at the port the signaling contact indicates an error.

Meaning in display mode E In display mode E, the port LEDs indicate whether the connected device is supplied using PoE.

LED color Green

LED status Off On

Meaning The connected device is not supplied using PoE. The connected device is supplied via PoE.

4.6

C-PLUG

4.6.1

Function of the C-PLUG
NOTICE Do not remove or insert a C-PLUG during operation A C-PLUG may only be removed or inserted when the device is turned off.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.6 C-PLUG
Saving the configuration data A C-PLUG is an exchangeable storage medium for storing the configuration data of the device. This allows fast and uncomplicated replacement of a device. The C-PLUG is taken from the previous device and inserted in the new device. The first time it is started up, the replacement device has the same configuration as the previous device except for the device-specific MAC address set by the vendor. A C-PLUG stores the current information about the configuration of a device.
Note The device can also be operated without a C-PLUG.

How it works

Operating mode
In terms of the C-PLUG, there are three modes for the device:
� Without C-PLUG The device stores the configuration in internal memory. This mode is active if no C-PLUG is inserted.
� With unwritten C-PLUG If an unwritten C-PLUG (factory status or deleted with Clean function) is used, the local configuration already existing on the device is automatically stored on the inserted C-PLUG during startup. This mode is active as soon as an unwritten C-PLUG is inserted.
� With written C-PLUG A device with a written and accepted C-PLUG uses the configuration data of the C-PLUG automatically when it starts up. The requirement for acceptance is that the data was written by a compatible device type. If there is configuration data in the internal memory of the device this is overwritten. This mode is active as soon as a written C-PLUG is inserted.
Operation with C-PLUG
The configuration stored on the C-PLUG is displayed over the user interfaces.
If changes are made to the configuration, the device stores the configuration directly on the CPLUG, if this is in the "ACCEPTED" status and in internal memory.

Response to errors
Inserting a C-PLUG that does not contain the configuration of a compatible device type and inadvertently removing the C-PLUG, or general malfunctions of the C-PLUG are indicated by the diagnostic mechanisms of the device.
� Fault LED
� Web Based Management (WBM)
� SNMP

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.6 C-PLUG
� Command Line Interface (CLI) � PROFINET diagnostics The user then has the choice of either removing the C-PLUG again or selecting the option to reformat the C-PLUG.

4.6.2

Replacing the C-PLUG

Position of the C-PLUG NOTICE Do not remove or insert a C-PLUG during operation The C-PLUG may only be removed or inserted when the device is turned off.
The C-PLUG slot is on the top of the device housing.

Replacing a C-PLUG. Removing a C-PLUG

A
1. Turn off the power to the device. 2. Insert a screwdriver between the front edge of the C-PLUG (A) and the slot and release the C-
PLUG. 3. Remove the C-PLUG.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Inserting a C-PLUG

Description of the device 4.7 Combo ports

B
1. Turn off the power to the device. 2. The housing of the C-PLUG has a protruding ridge on the long side (B). The slot has a groove
at this position. Insert the C-PLUG correctly oriented into the slot.

4.7

Combo ports

Characteristics Combo port is the name for two communication ports. A combo port has the two following jacks:
� a fixed RJ-45 port
� an SFP transceiver slot that can be equipped individually
Of these two ports, only one can ever be active. Using the mode, you can decide how the ports are prioritized.
The port name is the same on both jacks of the combo port, for example "PxC".
There is an LED for each combo port. The LEDs for the combo ports can be identified by a vertical line and the word "COMBO". The labeling of the combo port LEDs does not differ from that of the other LEDs, e.g. "P3".

Setting the mode
The following modes can be configured for a combo port:
� Mode 1: auto The SFP transceiver port has priority. As soon as an SFP transceiver is plugged in, an existing connection at the fixed RJ-45 port is terminated. If no SFC transceiver is plugged in, a connection can be established via the fixed RJ-45 port.
� Mode 2: rj45 The fixed RJ-45 port is independent of the SFP transceiver port.
� Mode 3: sfp The pluggable transceiver port is used independent of the fixed RJ-45 port.
The factory setting for the combo ports is mode 1: auto
You configure the mode with Web Based Management or the Command Line Interface.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.8 Power over Ethernet (PoE)

4.8

Power over Ethernet (PoE)

Function

The "Power over Ethernet" function supplies connected devices with power via the Ethernet cable. Devices supplied with power via an Ethernet cable do not require a separate voltage source.
PoE-compliant devices can be divided into the following groups:
� Power source (PSE - Power Sourcing Equipment) These inject power onto the Ethernet cable.
� Power consumer (PD - Powered Device) These are supplied with power via the Ethernet cable.

4.8.1

Power and voltage range according to the standard
Note the values specified for the power of the power source, so that the power supply is ensured at the power consumers according to the standard.

PoE class
0 1 2 3 4 5 6 7 8

Power supplied by the pow- er source 15.4 W 4 7 15.4 W 30 45 60 75 90

Available power at the pow- Type er source

12.95 W

3.84 W

6.49 W

12.95 W

25.5 W

40 W

51 W

62 W

73 W

Standard IEEE802.3af
IEEE802.3at IEEE802.3bt

Designation PoE
PoE+ 4-pair PoE

4.8.2

PoE properties of the devices
Note Turn off the power source before you disconnect the PoE cable of a power consumer.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.8 Power over Ethernet (PoE)

Power source � The device can supply energy consumers of the standards IEEE802.af Type 1, IEEE802.at
Type 2 or IEEE802.3bt Type 3.
� In total, a power source can make the following PoE power available (incl. line losses):
� PoE variants with 24 V DC: 120 W
� SCALANCE XC206-2G PoE with 54 V DC: 240 W
� SCALANCE XC216-3G PoE with 54 V DC: 300 W
The power can be distributed to the ports as desired. Note that the PoE power is reduced for installation positions other than horizontal; see sections "Technical specifications (Page 91)" and "Types of installation (Page 60)".
PoE ports � The PoE ports are not isolated from each other. This means that they meet the conditions
named in Environment A (IEEE 802.3): Power supply over Ethernet within a power supply system.
� The electrical isolation of the ports from functional grounding is designed for 1500 Vrms (1 minute) (according to Section 5.2.2 of IEC 60950-1:2001).
� The following ports support PoE classes 0 to 4:

Device

Port

SCALANCE XC206-2G PoE

Port 1 to port 4

SCALANCE XC206-2G PoE (54 V)

SCALANCE XC206-2G PoE EEC (54 V)

SCALANCE XC208G PoE

Port 3 to port 6

SCALANCE XC208G PoE (54 V)

SCALANCE XC216-3G PoE

Port 8 to port 19

SCALANCE XC216-3G PoE (54 V)
The ports supply connected devices with up to 30 W per port (according to IEEE802.3af and IEEE802.3at).

� The following ports support PoE classes 0 to 6:

Device

Port

SCALANCE XC206-2G PoE

Port 5 and port 6

SCALANCE XC206-2G PoE (54 V)

SCALANCE XC206-2G PoE EEC (54 V)

SCALANCE XC208G PoE

Port 7 and port 8

SCALANCE XC208G PoE (54 V)

SCALANCE XC216-3G PoE

Port 6 and port 7

SCALANCE XC216-3G PoE (54 V)
They supply connected devices with up to 60 W per port (according to IEEE802.3af, IEEE802.3at and IEEE802.3bt).

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.8 Power over Ethernet (PoE)

4.8.3

Power transfer and pin assignment (30 W)
The table below shows the most important power transfer and pin assignment of the following ports:

Device SCALANCE XC206-2G PoE SCALANCE XC206-2G PoE (54 V) SCALANCE XC206-2G PoE EEC (54 V) SCALANCE XC208G PoE SCALANCE XC208G PoE (54 V) SCALANCE XC216-3G PoE SCALANCE XC216-3G PoE (54 V)

Port Port 1 to port 4
Port 3 to port 6 Port 8 to port 19

Pin number Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8

Assignment Positive power supply Positive power supply Negative power supply Negative power supply -

4.8.4
54

Power transfer and pin assignment (60 W)
The table below shows the most important power transfer and pin assignment of the following ports:

Device SCALANCE XC206-2G PoE SCALANCE XC206-2G PoE (54 V) SCALANCE XC206-2G PoE EEC (54 V) SCALANCE XC208G PoE SCALANCE XC208G PoE (54 V) SCALANCE XC216-3G PoE SCALANCE XC216-3G PoE (54 V)

Port Port 5 and port 6
Port 7 and port 8 Port 6 and port 7

Pin number Pin 1 Pin 2 Pin 3 Pin 4

Assignment Positive power supply Positive power supply Negative power supply Positive power supply

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Pin 5 Pin 6 Pin 7 Pin 8

Positive power supply Negative power supply Negative power supply Negative power supply

Description of the device 4.8 Power over Ethernet (PoE)

4.8.5

Configuration
How you activate and configure PoE is described in the configuration manuals, see section "Introduction", section "Documentation on configuration".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Description of the device 4.8 Power over Ethernet (PoE)

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting

5.1

Safety notices for installation

Safety notices When installing the device, keep to the safety notices listed below.
WARNING If a device is operated in an ambient temperature of more than 55 �C, the temperature of the device enclosure may be higher than 70 �C. The device must therefore be installed so that it is only accessible to service personnel or users that are aware of the reason for restricted access and of the required safety measures at an ambient temperature higher than 55 to 70 �C.

WARNING
If the device is installed in a cabinet, the inner temperature of the cabinet corresponds to the ambient temperature of the device.

WARNING
If the cable or conduit entry point exceeds 70 �C or the branching point of conductors exceeds 80 �C, special precautions must be taken. If the equipment is operated in an air ambient in excess of 60 , only use cables with admitted maximum operating temperature of at least 80 .

Safety notices on use in hazardous areas General safety notices relating to protection against explosion WARNING EXPLOSION HAZARD Replacing components may impair suitability for Class 1, Division 2 or Zone 2.
WARNING The device is intended for indoor use only.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.1 Safety notices for installation
WARNING The device may only be operated in an environment of contamination class 1 or 2 (see EN/IEC 60664-1, GB/T 16935.1).
WARNING When used in hazardous environments corresponding to Class I, Division 2 or Class I, Zone 2, the device must be installed in a cabinet or a suitable enclosure.
Notes for use in hazardous locations according to ATEX, IECEx, UKEX and CCC Ex If you use the device under ATEX, IECEx, UKEX or CCC Ex conditions you must also keep to the following safety instructions in addition to the general safety instructions for protection against explosion:
WARNING To comply with EC Directive 2014/34/EU (ATEX 114) or the conditions of IECEx, this enclosure or cabinet must meet the requirements of at least IP 54 (according to EN/IEC 60529, GB/T 4208) in compliance with EN IEC/IEC 600797, GB 3836.3.
WARNING The equipment shall only be used in an area of not more than pollution degree 2, as defined in EN/IEC 60664-1, GB/T 16935.1.
Safety notices when using according to FM If you use the device under FM conditions you must also keep to the following safety notices in addition to the general safety notices for protection against explosion:
WARNING EXPLOSION HAZARD For operation the device is intended to be installed within an enclosure/control cabinet. The inner temperature of the enclosure/control cabinet corresponds to the ambient temperature of the device. Use installation wiring connections with admitted maximum operating temperature of at least 30 �C higher than maximum ambient temperature.
WARNING Wall mounting outside of the control cabinet or housing does not fulfill the requirements of the FM approval.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.1 Safety notices for installation
WARNING Wall mounting is only permitted if the requirements for the housing, the installation regulations, the clearance and separating regulations for the control cabinets or housings are adhered to. The control cabinet cover or housing must be secured so that it can only be opened with a tool. An appropriate strain-relief assembly for the cable must be used.
Safety notices when using the device as industrial control equipment according to UL 61010-2-201 If you use the device under UL 61010-2-201 conditions you must also keep to the following safety notices in addition to the general safety notices for protection against explosion:
WARNING Open equipment The devices are "open equipment" according to the standard IEC 61010-2-201 or UL 61010-2-201 / CSA C22.2 No. 61010-2-201. To fulfill requirements for safe operation with regard to mechanical stability, flame retardation, stability, and protection against contact, the following alternative types of installation are specified: � Installation in a suitable cabinet. � Installation in a suitable enclosure. � Installation in a suitably equipped, enclosed control room.
WARNING If the cable or housing socket exceeds 70 �C or the branching point of the cables exceeds 60 �C, special precautions must be taken. If the equipment is operated in an air ambient in excess of 40 �C, only use cables with admitted maximum operating temperature of at least 80 .
Further notes
NOTICE Warming and premature aging of the network component due to direct sunlight Direct sunlight can heat up the device and can lead to premature aging of the network component and its cabling. Provide suitable shade to protect the network component against direct sunlight.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.3 Types of installation

5.2

General notes for SFP transceivers

WARNING Use only approved SFP transceivers If you use SFP transceivers that have not been approved by Siemens AG, there is no guarantee that the device will function according to its specifications. If you use unapproved SFP transceivers, this can lead to the following problems: � Damage to the device � Loss of the approvals � Violation of the EMC regulations Use only approved pluggable transceivers.
Note Plugging and pulling during operation You can plug and pull pluggable transceivers with the device in operation.

Documentation for SFP transceivers
You will find detailed information in the operating instructions of the pluggable transceivers, see the chapter "Introduction (Page 7)" section "Additional documentation".

5.3

Types of installation
Note Devices with or without fastening plate During installation, check whether the device has a fastening plate or not. Refer to section "Device views (Page 27)" to learn which devices have a fastening plate.
All SCALANCE XC-200 devices allow the following mounting methods: � DIN rail � S7-300 standard rail � S7-1500 standard rail Only devices with a fastening plate additionally permit the following mounting type: � Wall mounting

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.4 Installation on a DIN rail
Installation clearance Keep to the minimum clearances so that the convection ventilation of the device is not blocked. � Below at least 10 cm � Above at least 10 cm
Installation position The following installation position is recommended:
Horizontal Horizontal installation of the rack (DIN rail)

Note that different values for temperature and PoE power may apply to installation positions other than horizontal; see section "Technical specifications (Page 91)".

5.4

Installation on a DIN rail

5.4.1

Top-hat rail mounting with fastening plate

Installation

Note
Note the position of the securing bar, see also section "Dimension drawings (Page 149)".
When supplied, the securing bar is in the wall mounting position. To change the position of the securing bar, refer to the section "Changing the position of the securing bar (Page 69)".

Figure 5-1 DIN rail mounting with securing bar in the wall mounting position.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.4 Installation on a DIN rail
Securing bar in the wall mounting position (as supplied). To install the device on a 35 mm DIN rail complying with DIN EN 60715, follow the steps below: 1. Loosen the knurled screw with your hand or a screwdriver. 2. Place the third housing guide of the device on the top edge of the DIN rail. 3. Press the device down against the DIN rail until the spring securing bar locks in place. 4. When you tighten the knurled screw. you cannot release the securing bar (torque 0.5 Nm).
The device is additionally fixed. 5. Connect the electrical connecting cables, refer to the section "Connecting up (Page 71)".

Removal

To remove the device from a DIN rail, follow the steps below: 1. Disconnect all connected cables. 2. If necessary, loosen the knurled screw with your hand or a screwdriver. 3. Lever the securing bar down using a screwdriver as far as it will go. 4. Pull the device away from the bottom of the DIN rail with the bar pulled.

5.4.2

Top-hat rail mounting without fastening plate

Installation

WARNING
Danger of injury by falling objects
The 35 mm DIN rail does not provide adequate support in shipping or when there is severe vibration (> 10 g). When used under these conditions, the device can detach itself and may cause injury to persons. When used in shipbuilding or when extreme vibration can be expected, mount the device on a S7 standard rail.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.4 Installation on a DIN rail

Removal

Figure 5-2 DIN rail mounting To install the device on a 35 mm DIN rail complying with DIN EN 60715, follow the steps below:
1. Place the third housing guide of the device on the top edge of the DIN rail . 2. Press the device down against the DIN rail until the spring catch locks in place .
3. Connect the electrical connecting cables; refer to the section "Connecting up (Page 71)".
To remove the device from a DIN rail, follow the steps below: 1. Disconnect all connected cables. 2. Release the DIN rail catch on the bottom of the device using a screwdriver. 3. Pull lower part of the device away from the DIN rail.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.5 Installation on a standard S7-300 rail

5.5

Installation on a standard S7-300 rail

5.5.1

Installation on a standard rail S7-300 with fastening plate

Installing on an S7-300 standard rail
Note Note the position of the securing bar, see also section "Dimension drawings (Page 149)". When supplied, the securing bar is in the wall mounting position. To change the position of the securing bar, refer to the section "Changing the position of the securing bar (Page 69)".

Figure 5-3 S7-300 mounting rail installation with the securing bar in the wall mounting position.

Securing bar in the wall mounting position (as supplied). To install the device on an S7-300 standard rail, follow the steps below:
1. Place the second housing guide of the device on the top edge of the standard rail.
2. Swing the device down towards the back against the mounting rail.
3. Loosen the knurled screw with your hand or a screwdriver. The spring mounted securing bar locks in place.
4. When you tighten the knurled screw. you cannot release the securing bar (torque 0.5 Nm). The device is additionally fixed.
5. Connect the electrical connecting cables, refer to the section "Connecting up (Page 71)".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Removal

Mounting 5.5 Installation on a standard S7-300 rail
To remove the device from a standard rail, follow the steps below: 1. Disconnect all connected cables. 2. If necessary, loosen the knurled screw with your hand or a screwdriver. 3. Lever the securing bar down using a screwdriver as far as it will go. 4. Remove the device from the mounting rail with the bar pulled.

5.5.2

Installation on a standard rail S7-300 without fastening plate

Installing on an S7-300 standard rail

Figure 5-4 S7-300 standard rail mounting To screw the device to an S7-300 standard rail, you require a securing screw with the following properties: � Self-tapping screw 4 x 45 mm � Screw head diameter: max. 7 mm To install the device on an S7-300 standard rail, follow the steps below:
1. Place the second housing guide of the device on the top edge of the standard rail . 2. Screw the device to the lower part of the standard rail with the supplied securing screw
(tightening torque 1.5 Nm), see also "Device views (Page 27)". 3. Connect the electrical connecting cables; refer to the section "Connecting up (Page 71)".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.6 Installation on a standard rail S7-1500

Removal

To remove the device from a standard rail, follow the steps below: 1. Disconnect all connected cables. 2. Release the screw on the underside of the standard rail. 3. Remove the device from the standard rail.

5.6

Installation on a standard rail S7-1500

5.6.1

Installation on a standard rail S7-1500 with fastening plate

Installing on an S7-1500 standard rail
Note Note the position of the securing bar, see also section "Dimension drawings (Page 149)". When supplied, the securing bar is in the wall mounting position. To change the position of the securing bar, refer to the section "Changing the position of the securing bar (Page 69)".

Figure 5-5 S7-1500 mounting rail installation with the securing bar in the wall mounting position.

Securing bar in the wall mounting position (as supplied). To install the device on an S7-1500 standard rail, follow the steps below: 1. Place the first housing guide of the device on the top edge of the standard rail. 2. Swing the device down towards the back against the mounting rail. 3. Loosen the knurled screw with your hand or a screwdriver. The spring mounted securing bar
locks in place.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Removal

Mounting 5.6 Installation on a standard rail S7-1500
4. When you tighten the knurled screw. you cannot release the securing bar (torque 0.5 Nm). The device is additionally fixed.
5. Connect the electrical connecting cables, refer to the section "Connecting up (Page 71)".
To remove the device from a standard rail, follow the steps below: 1. Disconnect all connected cables. 2. If necessary, loosen the knurled screw with your hand or a screwdriver. 3. Lever the securing bar down using a screwdriver as far as it will go. 4. Remove the device from the mounting rail with the bar pulled.

5.6.2

Installation on a standard rail S7-1500 without fastening plate

Installing on an S7-1500 standard rail

Figure 5-6 S7-1500 standard rail mounting To screw the device to an S7-1500 standard rail, you require a securing screw with the following properties: � Self-tapping screw 4 x 45 mm � Screw head diameter: max. 7 mm

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.7 Wall mounting with fastening plate
To install the device on an S7-1500 standard rail, follow the steps below:
1. Place the first housing guide of the device on the top edge of the standard rail . 2. Screw the device to the lower part of the standard rail with the supplied securing screw
(tightening torque 1.5 Nm), see also "Device views (Page 27)". 3. Connect the electrical connecting cables; refer to the section "Connecting up (Page 71)".

Removal

5.7

Wall mounting with fastening plate

Preparation

Note the position of the securing bar, see also section "Dimension drawings (Page 149)".
When supplied, the securing bar is in the wall mounting position. You do not need to prepare the device any further.
If the securing bar is in the rail mounting position, note the section "Changing the position of the securing bar (Page 69)".

Tools

To mount the device on a wall, you require the following: � 2 wall plugs � 2 fillister head screws
Note Depending on the mounting surface, use suitable fittings.

Assembly

Note The wall mounting must be capable of supporting at least four times the weight of the device.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.8 Changing the position of the securing bar
To mount the device on a wall, follow the steps below: 1. Prepare the wall mounting with drilled holes and plugs. For the precise dimensions, refer to
the section "Dimension drawings (Page 149)". 2. Turn the upper screw in to the wall so that 10 mm remains jutting out. 3. Hang the device with the keyhole hanging mechanism on the rear on the screw. 4. Fix the device to the wall with the lower screw. 5. Connect the electrical connecting cables, refer to the section "Connecting up (Page 71)".

5.8

Changing the position of the securing bar

Rail mounting position - wall mounting position

To change the securing bar from the rail mounting position to the wall mounting position follow the steps below: 1. If necessary, loosen the knurled screw with your hand or a screwdriver. 2. Move the securing bar down as far as it will go.
� Use the levering aid and level the securing bar down using a screwdriver into this position. � Push the securing bar down using your hand. 3. Hold the securing bar in this position. � Hold the securing bar with the screwdriver. � Use the gap on the rear of the device and fix the securing bar briefly with a pin. 4. Tighten the knurled screw (torque 0.5 Nm). The securing bar is fixed in the wall mounting position. 5. Remove the pin.
Wall mounting position - rail mounting position To move the securing bar from the wall mounting position to the rail mounting position, loosen the knurled screw.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Mounting 5.8 Changing the position of the securing bar

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up

The following table shows which requirements apply to the power supply of the respective devices. Observe the corresponding safety instructions.

Power supply 24 V DC 24 V DC 54 V DC

PoE ports No Yes Yes

Power < 100 W > 100 W > 100 W

Requirements for the power supply NEC Class 2/Limited Energy (Page 71) SELV (Page 72) SELV (Page 72)

Safety notices for operation with a power supply according to NEC Class 2
Operate the device with a power supply according to NEC Class 2. When connecting up the device, keep to the safety notices listed below.
For devices that must be operated with a NEC Class 2 power supply, you can also connect a fuse in front of the power supply that meets the following requirements. The power supply must then meet the requirements for operation with SELV, see "Safety instructions for operation with a power supply according to SELV (Page 72)".
WARNING
The equipment is designed for operation with Safety Extra-Low Voltage (SELV) by a Limited Power Source (LPS).
This means that only SELV / LPS complying with IEC 60950-1 / EN 60950-1 / VDE 0805-1 must be connected to the power supply terminals, or the power supply unit for the equipment power supply must comply with NEC Class 2, as described by the National Electrical Code (r) (ANSI / NFPA 70).
If the equipment is connected to a redundant power supply (two separate power supplies), both must meet these requirements.

WARNING
Safety extra low voltage
The device is designed for operation with a directly connectable safety extra-low voltage (SELV) according to UL/IEC 61010-1 and UL/IEC 61010-2-201 whose output power corresponds to "Limited Energy" according to UL/IEC 61010-1.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up
NOTICE Suitable fuse for the power supply cables (corresponds to "Limited Energy") The current on the terminal may not exceed 3 A. Use a fuse for the power supply that is suitable for protection of AC/DC power supply circuits *) and protects against currents > 3 A. � In areas subject to the NEC or CEC, the fuse must meet the following requirements:
� Suitable for AC/DC *) (min. 60 V / 3 A) � Breaking current at least 10 kA � Approval according to ANSI/UL 248-14 (suppl. fuses), ANSI/UL 248-4 (Class CC), ANSI/UL
248-8 (J), ANSI/UL 248-15 (T), or CSA C22.2-4 No. 248.14 (suppl. fuses), No. 248-4 (Class CC), No. 248-8 (J), No. 248-15 (T) � In other areas, the fuse must meet the following requirements: � Suitable for AC/DC *) (min. 60 V / 3 A) � Breaking current at least 10 kA � Approval according to IEC/EN 609471/2/3 or IEC/EN 60898-1/2 for circuit breakers � Breaking characteristics: B or C � Approval according to IEC/EN 60127-1 for fuses � Breaking characteristics: max. 120 s at 2 x In (corresponds to melting integral I2t < 4320) If the properties of the supplying current source are known, the following fuse is also possible: � In areas subject to the NEC or CEC, the fuse must meet the following requirements: � Suitable for AC/DC *) (min. 60 V / 3 A) � Breaking current > highest possible current of the current source (incl. short circuit current and fault) � Approval according to UL 1077 or CSA C22.2 No. 235 � In other areas, the fuse must meet the following requirements: � Suitable for AC/DC *) (min. 60 V / 3 A) � Breaking current > highest possible current of the current source (incl. short circuit current and fault) � Approval according to IEC/EN 60934 � Breaking characteristics: max. 120s at 2 x In *) AC or DC depending on availability
Safety instructions for operation with a power supply according to SELV
Operate the device with a power supply according to SELV. When connecting up the device, keep to the safety notices listed below.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up

WARNING
Power supply
The device is designed for operation with a directly connectable safety extra-low voltage (Safety Extra Low Voltage, SELV) according to UL/IEC 610101 and UL/IEC 610102201.

Further notes
WARNING Insulation of external power supplies Ext. circuits intended to be connected to this device shall be galv. separated from hazardous live voltage by reinforced or double insulation.

WARNING
Safety notice for connecting with a LAN ID (Local Area Network)
A LAN or LAN segment with all the interconnected devices should be contained completely in a single low voltage power distribution in a building. The LAN is designed either for "Environment A" according to IEEE802.3 or "Environment 0" according to IEC TR 62102.
Do not connect any electrical connectors directly to the telephone network (telephone network voltage) or a WAN (Wide Area Network).

The following table shows which ports fulfill the conditions of Environment A or B:

Galvanically isolated environ- ment
Environment A (IEEE 802.3) Environment B (IEEE 802.3)

Ethernet ports
Yes Yes

Ethernet ports with PoE
Yes No

Note Protective ground
A PELV circuit contains a connection to protective ground. Without a connection to protective ground, or in case there is a fault in the connection to the protective ground, the voltage for the circuit is not stabilized.

Note Minimum temperature rating of the cable to be connected to the field wiring terminals, 90 �C.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up
Safety notices on use in hazardous areas General safety notices relating to protection against explosion
WARNING EXPLOSION HAZARD Do not connect or disconnect cables to or from the device when a flammable or combustible atmosphere is present.
WARNING EXPLOSION HAZARD Do not press the SELECT/SET button when there is an explosive atmosphere.
Notes for use in hazardous locations according to ATEX, IECEx, UKEX and CCC Ex If you use the device under ATEX, IECEx, UKEX or CCC Ex conditions you must also keep to the following safety instructions in addition to the general safety instructions for protection against explosion:
WARNING Take measures to prevent transient voltage surges of more than 40% of the rated voltage. This is the case if you only operate devices with SELV (safety extra-low voltage).
WARNING Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 119 V.
WARNING At an ambient temperature of more than 60 �C, use heat-resistant cables designed for an ambient temperature at least 20 �C higher. The cable entries used on the enclosure must comply with the IP degree of protection required by EN IEC / IEC 60079-0, GB 3836.1.
Safety instructions for use in hazardous locations according to UL/FM HazLoc If you use the device under UL or FM HazLoc conditions, you must also adhere to the following safety instructions in addition to the general safety instructions for protection against explosion:

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.1 Wiring rules
WARNING EXPLOSION HAZARD You may only connect or disconnect cables carrying electricity when the power supply is switched off or when the device is in an area without inflammable gas concentrations.
Safety notices when using according to FM If you use the device under FM conditions you must also keep to the following safety notices in addition to the general safety notices for protection against explosion:
WARNING EXPLOSION HAZARD Do not disconnect while circuit is live unless area is known to be non-hazardous.

6.1

Wiring rules
When wiring use cables with the following AWG categories or cross sections.

Wiring rules for ...
connectable cable cross sec- tions for flexible cables ...

without wire end ferrule
with wire end ferrule with plastic fer- rule** with wire end ferrule without plastic ferrule** with TWIN wire end ferrule**

Stripped length of the cable Wire end ferrule according to DIN 46228 with plastic ferrule**
* AWG: American Wire Gauge ** See note "Wire end ferrules"

Screw/spring-loaded ter- minals 0.25 - 2.5 mm2 AWG: 24 - 13 0.25 - 2.5 mm2 AWG: 24 - 13 0.25 - 2.5 mm2 AWG: 24 - 13 0.5 - 1 mm2 AWG: 20 - 17 8 - 10 mm 8 - 10 mm

Note Wire end ferrules
Use crimp shapes with smooth surfaces, such as provided by square and trapeze shaped crimp cross sections.
Crimp shapes with wave-shaped profile are unsuitable.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.2 24 V DC power supply
Note Wiring with PoE variants PoE variants have a high current consumption. Design the cable cross-section based on the maximum current consumption.

6.2

24 V DC power supply

Notes on the power supply
WARNING Incorrect power supply When the device is connected to a redundant power supply (two separate power supplies), both must meet these requirements. Never operate the device with AC voltage or DC voltage higher than 32 V DC.
CAUTION Damage to the device due to overvoltage The connector of the external power supply is not protected against strong electromagnetic pulses that can, for example, result from lightning strikes or switching large loads. One of the tests used to attest the immunity of devices of the IE switches SCALANCE XC-200 to electromagnetic interference was the "surge immunity test" according to EN61000-4-5. This test requires overvoltage protection for the power supply lines. A suitable device is, for example, the Dehn Blitzductor BVT AVD 24, article number 918 422 or a comparable protective element. Manufacturer: DEHN+SOEHNE GmbH+Co. KG, Hans-Dehn-Str.1, Postfach 1640, D92306 Neumarkt, Germany Operate the SCALANCE XC-200 with suitable overvoltage protection.
Note The device can be disconnected from the power supply by pulling off the terminal block.

Information on the power supply
� The "L1" and "L2" LEDs indicate the current range of the power supply, see the section "LEDs "L1" and "L2" (Page 46)".
� The power supply is connected using a 4-pin plug-in terminal block (spring-loaded terminal). The terminal block ships with the device and can also be ordered as a spare part, see section "Product overview (Page 21)".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.3 54 V DC power supply
� The power supply can be connected redundantly. Both inputs are isolated. There is no distribution of load. When a redundant power supply is used, the power supply unit with the higher output voltage supplies the device alone.
� The power supply is connected over a high resistance with the enclosure to allow an ungrounded set up. The two power inputs are non-floating.
� Note the wiring rules (Page 75).
Position and assignment

/ 0 0 /

Figure 6-1 Position of the power supply based, for example on the SCALANCE XC-200 with 8 ports and assignment of the terminal block

Contact L1+ M1 M2 L2+

Assignment 24 VDC Ground Ground 24 VDC

6.3

54 V DC power supply

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.3 54 V DC power supply
CAUTION Damage to the device due to overvoltage The connector of the external power supply is not protected against strong electromagnetic pulses that can, for example, result from lightning strikes or switching large loads. One of the tests used to attest the immunity of devices of the IE switches SCALANCE XC-200 to electromagnetic interference was the "surge immunity test" according to EN61000-4-5.
Note The device can be disconnected from the power supply by pulling off the terminal block.
Information on the power supply � Make sure that among other things the external power supply unit meets the following basic requirements: � The output voltage (PoE voltage) is a safety extra-low voltage (SELV). � The output voltage (PoE voltage) meets the isolation requirements according to IEEE 802.3at (in other words 1500 VAC or 2250 VDC) to ground, to touchable conductive parts and (if they exist) other secondary voltages. � Fuse the output voltage (PoE voltage) externally, see the section "Connecting up (Page 71)". � Select a suitable power of the external power supply unit, so that the power supply to the power consumers is ensured, see the section "Power over Ethernet (PoE) (Page 52)". � For the cable supplying the power supply, use a cable with a length of max. 3 m. � The power supply is connected using a 4-pin plug-in terminal block (spring-loaded terminal). The terminal block ships with the device and can also be ordered as a spare part, see section "Product overview (Page 21)". � The power supply can be connected redundantly. Both inputs are isolated. There is no distribution of load. The power supply unit with the higher output voltage supplies the device alone. � The power supply is connected over a high resistance with the enclosure to allow an ungrounded set up. The two power inputs are non-floating. � The "L1" and "L2" LEDs indicate the current range of the power supply, see the section "LEDs "L1" and "L2" (Page 46)". � Note the wiring rules (Page 75).

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Position and assignment

Connecting up 6.4 Signaling contact

/ 0 0 /

Figure 6-2 Position of the power supply based, for example on the SCALANCE XC-200 with 8 ports and assignment of the terminal block

Contact L1+ M1 M2 L2+

Assignment 54 V DC Ground Ground 54 V DC

Connecting multiple to a 54 V DC power supply unit
If you connect multiple devices with a 54 V DC power supply (e.g. XC-200G PoE) to a 54 V DC power supply, note the following for the communication connection between these devices:
� Use ports that do not support PoE for the communication connection, if possible.
� If you connect the devices via PoE ports, the PoE ports must be galvanically isolated (e.g. via a network disconnector).

6.4

Signaling contact

Information on the signaling contact
� The signaling contact is a floating switch that signals error statuses by opening the contact. The signaling contact must be operated within the range of the operating voltage. If an error/fault occurs, the signaling contact opens. In normal operation, the signaling contact is closed.
� The signaling contact is connected using a 2-pin plug-in terminal block (spring-loaded terminal). The terminal block ships with the device and can also be ordered as a spare part, see section "Product overview (Page 21)".
� Note the wiring rules (Page 75).

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.5 Functional ground
NOTICE Damage due to voltage being too high You can load the signaling contact with the operating voltage of the device and a maximum of 100 mA. Higher voltages or currents can damage the device.
Position and assignment

) )

Figure 6-3 Position of the signaling contact based, for example on the SCALANCE XC-200 with 8 ports and assignment of the terminal block

Contact F1 F2

Assignment Fault contact 1 Fault contact 2

Signaling faults
� The signaling of errors by the signaling contact is synchronized with the fault LED "F", see section ""F" LED (Page 45)". All errors that the fault LED "F" indicates (freely configurable) are also signaled by the signaling contact.
� If an internal fault occurs, the fault LED "F" lights up and the signaling contact opens.
� If you connect a communications node to an unmonitored port or disconnect it, this does not cause an error message.
� The signaling contact remains open until one of the following events occurs:
� The problem is eliminated.
� The current status is entered in the fault mask as the new desired status.

6.5
80

Functional ground
EMC disturbances are diverted to ground via the functional ground. This ensures the immunity of the data transmission.
SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.5 Functional ground
The functional ground must be implemented with low impedance. The connection of the functional ground must be established directly on the mounting plate or the DIN rail terminal. The IE switch has a grounding screw (fillister head screw with clamping washer und disk) for functional ground, refer to the section "Device views (Page 27)". The grounding screw is identified by the following symbol for the functional ground . Follow the steps below to connect the functional ground:
1
2
Grounding terminal with cable Fillister head screw with spring washer and washer
1. Loosen the grounding screw). 2. Put the grounding terminal and grounding screw together. 3. Tighten the grounding screw with a maximum torque of 0.75 Nm.
Protective/functional ground
The connection of the reference potential surface with the protective ground system is normally in the cabinet close to the power feed-in. This ground conducts fault currents to ground safely and according DIN/VDE 0100 is a protective ground to protect people, animals and property from too high contact voltages. Apart from the protective ground, there is functional grounding in the cabinet. According to EN60204-1 (DIN/VDE 0113 T1) electrical circuits must be grounded. The chassis (0 V) is grounded at one defined point. Here, once again the grounding is implemented with the lowest leakage resistance to ground in the vicinity of the power feed-in. With automation components, functional ground also ensures interference-free operation of a controller. Via the functional ground, interference currents coupled in via the connecting cables are discharged to ground.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.6 Industrial Ethernet

6.6

Industrial Ethernet

6.6.1

Electrical
Note Strain relief for the Ethernet cables In order to avoid mechanical stress on the Ethernet cables and resulting interruption of the contact, fasten the cables at a short distance from the connector using a cable guide or busbar.
Note Unlocking the plug with a screwdriver If installation space is limited, you can unlock the connectors using a screwdriver, see also "SIMATIC NET: IE FC RJ45 Plug 4x2 CAT 6A (https://support.industry.siemens.com/cs/ww/en/ view/102047916)".

R-45 connector technology The attachment to Industrial Ethernet uses RJ-45 connected technology with MDI-X assignment.

Pin assignment The following table shows the pin assignment of the R-45 connectors.

Pin number
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8

Assignment

10/100 Mbps

10/100/1000 Mbps

RD+

D1+

RD-

D1-

TD+

D2+

n. c. (Not connected)

D3+

n. c. (Not connected)

D3-

TD-

D2-

n. c. (Not connected)

D4+

n. c. (Not connected)

D4-

R-45 connector

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.6 Industrial Ethernet
MDI / MDI-X autocrossover With the MPI/MDI-X autocrossover function, the send and receive contacts of an Ethernet port are assigned automatically. The assignment depends on the cable with which the communications partner is connected. This means that it does not matter whether the port is connected using a patch cable or crossover cable. This prevents malfunctions resulting from mismatching send and receive wires. This makes installation much easier for the user.
Note Formation of loops Please note that the direct connection of two ports on the IE switch or accidental connection over several IE switches causes an illegal loop. Such a loop can lead to network overload and network failures.
Autonegotiation Autonegotiation means the automatic detection/negotiation of the transmission rate and the operating mode of ports at the opposite end. This makes it possible to configure different devices automatically. Two components connected to a link segment can exchange information about the transfer and can adapt their settings to each other. The mode with the highest possible speed is set.
Note � If a port is set permanently to full duplex, the connected partner port must also be set to full
duplex. � If a port operating in the "Auto negotiation" mode is connected to a partner port that is not
operating in the"Auto negotiation" mode, the partner port setting must be fixed at 100 Mbps or 10 Mbps half duplex mode. � If you disable the "Auto negotiation" function, the "MDI/MDI-X autocrossover" function is also turned off. Then use a crossover cable.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.6 Industrial Ethernet

6.6.2

Optical

NOTICE Failure of the data traffic due to contamination of optical plug-in connections Optical sockets and plugs are sensitive to contamination of the end face. Contamination can lead to the failure of the optical transmission network. Take the following precautions to avoid functional impairments: � Clean the end face of field-assembled connectors carefully before connecting. No residues
of processing may remain on the connector. � Only remove the dust caps of optical transceivers and pre-configured cables shortly before
connecting the cables. � Close unused optical sockets and plugs as well as pluggable transceivers and slots with the
supplied protective caps.
Note No light power measurement (PROFINET diagnostics) The devices do not support diagnostics with light power measurement.
SC connectors
The attachment to Industrial Ethernet uses SC connector technology (Subscriber Connector).

ST/BFOC connectors
The attachment to Industrial Ethernet uses ST/BFOC connec- tor technology (Straight Tip/Bayonet Fiber Optic Connector).

LC connector technology
The attachment to Industrial Ethernet uses LC connector technology (Lucent Connector).

Pluggable transceiver slot/ plugged in transceiver

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

6.7

Serial interface

Connecting up 6.7 Serial interface

Information on the serial interface
� Via the serial interface on the device (RJ-11 jack), you can access the Command Line Interface of the device directly via an RS-232 (115200 8N1) connection without assigning an IP address.
� Access to the device is possible independent of the Ethernet ports.
� To connect the serial interface to a PC, you require a cable with an RJ-11 plug and 9-pin D-sub female connector. The connecting cable for the serial interface can be ordered as an accessory, see section "Accessories (Page 37)".

Position and assignment

&2162/(

54321
6 5 4 3 2 1
9876

Figure 6-4 Position and pin assignment of the serial interface (RJ-11 jack), based for example on the XC-200 with 8 ports as well as the pin assignment of the D-sub socket.

Assignment of the terminal block The connecting cable has the following assignment:

Contact Pin assignment of the RJ-11 plug

TD (Transmit Data)

SG (Signal Ground)

RD (Receive Data)

Pin assignment of the D-sub female con- nector TD (Transmit Data) RD (Receive Data) SG (Signal Ground) -

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Connecting up 6.7 Serial interface
Note Pin assignment of the RJ-11 jack on the device The RJ-11 jack on the device has a pinout to match the RJ-11 plug of the connecting cable.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Maintenance
NOTICE Cleaning the housing Only clean the outer parts of the housing with a dry cloth. Do not use any liquids or solvents.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Maintenance

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Troubleshooting

8.1

Downloading new firmware using TFTP without WBM and CLI

Firmware

The firmware is signed and encrypted. This ensures that only firmware created by Siemens can be downloaded to the device.

Procedure with Microsoft Windows
You can download new firmware to the device using TFTP. To do this, the device does not need to be reachable either using Web Based Management (WBM) or using the Command Line Interface (CLI). This can be the case if there was a power failure during a firmware update.
When pressing the button, observe the information in the section "AUTOHOTSPOT".
Follow the steps below to load new firmware using TFTP:
1. Turn off the power to the device.
2. Press the "SELECT/SET" button and reconnect the power supply to the device while holding down the button.
3. Hold down the button until the red fault LED "F" starts to flash.
4. Release the button as long as the red error LED is still flashing.. This time only lasts a few seconds. The bootloader of the device waits in this status for a new firmware file that you can download by TFTP.
5. Connect a PC to an Ethernet port of the device with an Ethernet cable.
6. Assign an IP address to the device using DHCP or SINEC PNI.
7. Open a Windows command prompt and change to the directory where the file with the new firmware is located and then execute the following command : tftp -i <IP address> put <firmware file>
Note
You can enable TFTP in Microsoft Windows as follows:
"Control Panel" > "Programs and Features" > "Turn Windows features on or off" > "TFTP Client".
Once the firmware has been transferred completely to the device and validated, the device restarts. This may take a few minutes.

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Troubleshooting 8.2 Restoring the factory settings

8.2

Restoring the factory settings

NOTICE Previous settings If you reset, all the settings you have made will be overwritten by factory defaults.
NOTICE Inadvertent reset An inadvertent reset can cause disturbances and failures in the configured network.

Restoring the factory settings during the startup phase
NOTICE Reset despite disabled "SELECT/SET" button Using the "SELECT/SET" button, you can always reset the device parameters to the factory defaults during the startup phase of the device. This applies also if the "Reset to Factory Defaults" function was disabled in the configuration. This allows you to reset the device to the factory defaults in an emergency. If the function has been disabled in the configuration, it is only disabled on completion of the startup phase.
To reset the device to the factory defaults during the startup phase, follow the steps below: 1. Turn off the power to the device. 2. Now press the "SELECT/SET" button and reconnect the power to the device while holding
down the button. 3. Hold down the button until the red error LED "F" stops flashing and is permanently lit. 4. Now release the button and wait until the fault LED "F" goes off again. 5. The device starts automatically with the factory defaults.
Restoring the factory defaults during operation You can also reset the device to the factory defaults during operation, see section "SELECT / SET button (Page 42)".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications

9.1

Technical specifications SCALANCE XC206-2 (ST/BFOC)

The following technical specifications apply to the SCALANCE XC206-2 (ST/BFOC).

Technical specifications Diagnostics interface Serial interface Electrical data Power supply 1)
Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions Ambient temperature
Relative humidity Housing, dimensions and weight Design Housing material Degree of protection

Quantity Connector

1 RJ-11 jack

Rated voltage Voltage range (incl. tolerance) Design Properties
12 VDC 24 VDC
Quantity Design Permitted voltage range Load capability

12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 500 mA 250 mA 6 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA

With operation up to 2000 m above sea level
During storage During transportation During operation at 25

During operation in horizontal installation po- sition: -40 �C to +70 �C During operation in a different installation po- sition: -40 �C to +60 �C
-40 �C to +85 �C
-40 �C to +85 �C
95% without condensation

compact Basic housing Front cover IP20

Die cast aluminum, powder coated Polycarbonate (PC-GF10)

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.1 Technical specifications SCALANCE XC206-2 (ST/BFOC)

Technical specifications

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

540 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 46 years

1) Note the wiring rules (Page 75).

Connection to Industrial Ethernet
Electrical connectors
Properties Quantity Connector Properties Transmission speed
Optical connectors
Optical connectors Quantity Connectors

6 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps
2

Properties Transmission mode Transmission rate Transmission medium Light source Wavelength Cable length (max.) *)

The attachment to Industrial Ethernet uses ST/ BFOC connector technology (Straight Tip/Bayonet Fiber Optic Connector).

100Base-FX complying with IEEE 802.3 100 Mbps (Fast Ethernet) Multimode fiber-optic cable LED/Class1-LASER "Eye safe" 1300 nm At 50 �m fiber core diameter At 62.5 �m fiber core diameter

3 km 3 km

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.2 Technical specifications SCALANCE XC206-2 (SC)

Properties Transmitter output (optical)
Receiver input

Minimum At 50 m At 62.5 m
Maximum Sensitivity min. Input power max.

-24 dBm -20 dBm -14 dBm -31 dBm -12 dBm

*) Depending on the cable used:

� If you are using at least OM1 fibers (attenuation 1.5 dB/km, bandwidth length product 500 MHz*km), you can reach a cable length of up to 3 km.
� When are using fibers with attenuation values 1 dB/km, you can reach a cable length of up to 5 km.

You can find additional information in the "Industrial Ethernet / PROFINET Passive network components" System Manual, see also section "Introduction", paragraph "Additional documentation".

9.2

Technical specifications SCALANCE XC206-2 (SC)

The following technical specifications apply to the SCALANCE XC206-2 (SC).

Technical specifications Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

12 VDC 24 VDC
Quantity Design Permitted voltage range Load capability

1 RJ-11 jack
12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 500 mA 250 mA 6 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.2 Technical specifications SCALANCE XC206-2 (SC)

Technical specifications

Ambient temperature

With operation up to 2000 m above sea level

During operation in horizontal installation po- sition:
-40 �C to +70 �C
During operation in a different installation po- sition:
-40 �C to +60 �C

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

540 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 46 years

1) Note the wiring rules (Page 75).

Connection to Industrial Ethernet
Electrical connectors
Properties Quantity Connector Properties Transmission speed

6 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Optical connectors
Optical connectors Quantity Connectors

Technical specifications 9.2 Technical specifications SCALANCE XC206-2 (SC)
2

The attachment to Industrial Ethernet uses SC connector tech- nology (Subscriber Connector).

Properties Transmission mode Transmission rate Transmission medium Light source Wavelength Cable length (max.) *)
Transmitter output (optical)
Receiver input

100Base-FX complying with IEEE 802.3 100 Mbps (Fast Ethernet) Multimode fiber-optic cable LED/Class1-LASER "Eye safe" 1300 nm At 50 �m fiber core diameter At 62.5 �m fiber core diameter Minimum At 50 m
At 62.5 m Maximum Sensitivity min. Input power max.

3 km 3 km -24 dBm -20 dBm -14 dBm -31 dBm -12 dBm

*) Depending on the cable used:

� If you are using at least OM1 fibers (attenuation 1.5 dB/km, bandwidth length product 500 MHz*km), you can reach a cable length of up to 3 km.

� When are using fibers with attenuation values 1 dB/km, you can reach a cable length of up to 5 km.

You can find additional information in the "Industrial Ethernet / PROFINET Passive network components" System Manual, see also section "Introduction", paragraph "Additional documentation".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.3 Technical specifications of SCALANCE XC206-2G PoE

9.3

Technical specifications of SCALANCE XC206-2G PoE

The following technical specifications apply to the SCALANCE XC206-2G PoE.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)
Current consumption Effective Power Thermal Design Power Overvoltage category Fusing
PoE power per device

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties At 19.2 V DC At max PoE load
Basic device PoE consumers At 24 V DC

Signaling contact 1) Permitted ambient conditions

Quantity Design Permitted voltage range Load capability

6 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps 2 SFP transceivers (LC port) 1000 / 10000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
24 V DC 19.2 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly Max. 7.5 A Max. 144 W Max. 18 W CAT II 2.5 A / 125 V 15 A / 125 V With horizontal mounting position and opera- tion without pluggable transceiver: � 120 W In other installation position: � 90 W 1 Terminal block, 2 terminals 24 V DC Max. 100 mA

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.3 Technical specifications of SCALANCE XC206-2G PoE

Technical specifications

Ambient temperature 2)

During LAN operation with RJ45 con- During operation in horizontal installation po-

nector with max. PoE load up to

sition:

2000 m above sea level

� -40 �C to +60 �C

During operation in a different installation po- sition:

� -40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version

� -40 �C to +60 �C

� LD

� Max. PoE power: 90 W

Up to 2000 m above sea level

During operation in a different installation po- sition:

� -40 �C to +50 �C

� Max. PoE power: 60 W

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH

� -40 �C to +55 �C

� LH+

� Max. PoE power: 90 W

� ELH

Other mounting positions are not permitted.

� SFP992-1+

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

Compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

100 x 147 x 125 mm

Weight

955 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 37 years

1) Note the wiring rules (Page 75).

2) Depending on which pluggable transceiver you use, the maximum ambient temperature can change, see section "Accessories", "SFP transceiver (Page 37)".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.4 Technical specifications of SCALANCE XC206-2G PoE (54 V)

9.4

Technical specifications of SCALANCE XC206-2G PoE (54 V)

The following technical specifications apply to the SCALANCE XC206-2G PoE (54 V).

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

Diagnostics interface Serial interface Electrical data Power supply 1)
Current consumption Effective Power Thermal Design Power Overvoltage category Fusing PoE power per device Signaling contact 1)
Permitted ambient conditions

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties At 52 V DC At max PoE load
Basic device PoE consumers At 54 V Quantity Design Permitted voltage range Load capability

6 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps 2 SFP transceivers (LC port) 1000 / 10000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
54 V DC 52 to 57 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly Max. 5 A Max. 260 W Max. 10 W CAT II 2.5 A / 125 V 15 A / 125 V 240 W 1 Terminal block, 2 terminals 54 V DC max. 100 mA

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.4 Technical specifications of SCALANCE XC206-2G PoE (54 V)

Technical specifications

Ambient temperature 2)

During LAN operation with RJ45 con- During operation in horizontal installation po-

nector with max. PoE load up to

sition:

2000 m above sea level

-40 �C to +60 �C

During operation in a different installation po- sition:

-40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +60 �C During operation in a different installation po- sition: -40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH � LH+ � ELH � SFP992-1+

-40 �C to +55 �C During operation in a different installation po- sition: -40 �C to +50 �C

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

540 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 42.8 years

1) Note the wiring rules (Page 75).

2) Depending on which pluggable transceiver you use, the maximum ambient temperature can change, see section "Accessories", "SFP transceiver (Page 37)".

SCALANCE XC-200

Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.5 Technical specifications of SCALANCE XC206-2G PoE EEC (54 V)

9.5

Technical specifications of SCALANCE XC206-2G PoE EEC (54 V)

The following technical specifications apply to the SCALANCE XC206-2G PoE EEC (54 V).

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

100

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.5 Technical specifications of SCALANCE XC206-2G PoE EEC (54 V)

Technical specifications

Ambient temperature 2)

During LAN operation with RJ45 con- During operation in horizontal installation po-

nector with max. PoE load up to

sition:

2000 m above sea level

-40 �C to +60 �C

During operation in a different installation po- sition:

-40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +60 �C During operation in a different installation po- sition: -40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH � LH+ � ELH � SFP992-1+

-40 �C to +55 �C During operation in a different installation po- sition: -40 �C to +50 �C

Up to 2000 m above sea level

With operation between 2000 m and The maximum ambient temperature is re-

3000 m above sea level

duced by 5 �C 3)

With operation between 3000 m and The maximum ambient temperature is re-

4000 m above sea level

duced by 10 �C 3)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Properties

Coated printed circuit board (conformal coating)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

540 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 42.8 years

1) Wiring rules Observe the wiring rules (Page 75).

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

101

Technical specifications 9.5 Technical specifications of SCALANCE XC206-2G PoE EEC (54 V)
2) Ambient temperature with SFP The maximum ambient temperature during operation depends on the operating elevation and the installed pluggable transceivers, see also the section "SFP transceiver (Page 37)" in the "Accessories" section.
3) Derating The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

102

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.6 Technical specifications SCALANCE XC206-2SFP

9.6

Technical specifications SCALANCE XC206-2SFP

The following technical specifications apply to the SCALANCE XC206-2SFP.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers
Diagnostics interface Serial interface Electrical data Power supply 1)

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed
Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption
Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

12 VDC 24 VDC

Without SFP With SFP 2) Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

6 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps 2 SFP transceivers (LC port) 100 / 1000 Mbps
1 RJ-11 jack
12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 400 mA 500 mA 200 mA 250 mA 4.8 W 6 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

103

Technical specifications 9.6 Technical specifications SCALANCE XC206-2SFP

Technical specifications

Ambient temperature 3)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +70 �C During operation in a different installation po- sition: -40 �C to +60 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH � LH+ � ELH � ELH200

-40 �C to +65 �C During operation in a different installation po- sition: -40 �C to +60 �C

� SFP992-1+

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 47 years

1) Note the wiring rules (Page 75).

2) Detected with the SFP992-1ELH. You will find the precise values in the operating instructions of the pluggable transceivers, see the section "Introduction", Additional documentation (Page 7).
3) Depending on which pluggable transceiver you use, the maximum ambient temperature can change, see section "Accessories", "SFP transceiver (Page 37)".

104

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.7 Technical specifications of SCALANCE XC206-2SFP G

9.7

Technical specifications of SCALANCE XC206-2SFP G

The following technical specifications apply to SCALANCE XC206-2SFP G.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption
Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

12 VDC 24 V DC

Without SFP With SFP 2) Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

6 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps 2 SFP transceivers (LC port) 1000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 400 mA 500 mA 200 mA 250 mA 4.8 W 6 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 V DC max. 100 mA

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

105

Technical specifications 9.7 Technical specifications of SCALANCE XC206-2SFP G

Technical specifications

Ambient temperature 3)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +65 �C During operation in a different installation po- sition: -40 �C to +60 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH � LH+ � ELH � SFP992-1+

-40 �C to +60 �C During operation in a different installation po- sition: -40 �C to +60 �C

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 55 years

1) Note the wiring rules (Page 75).

2) Detected with the SFP992-1ELH. You will find the precise values in the operating instructions of the pluggable transceivers, see the section "Introduction", Additional documentation (Page 7).

3) Depending on which pluggable transceiver you use, the maximum ambient temperature can change, see section "Accessories", "SFP transceiver (Page 37)".

106

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.8 Technical specifications of SCALANCE XC206-2SFP EEC

9.8

Technical specifications of SCALANCE XC206-2SFP EEC

The following technical specifications apply to SCALANCE XC206-2SFP EEC.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers
Diagnostics interface Serial interface Electrical data Power supply 1)

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed
Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption
Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

12 VDC 24 VDC

Without SFP With SFP 2) Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

107

Technical specifications 9.8 Technical specifications of SCALANCE XC206-2SFP EEC

Technical specifications

Ambient temperature 3)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +70 �C During operation in a different installation po- sition: -40 �C to +60 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH � LH+ � ELH � ELH200

-40 �C to +65 �C During operation in a different installation po- sition: -40 �C to +60 �C

� SFP992-1+

Up to 2000 m above sea level

With operation between 2000 m and The maximum ambient temperature is re-

3000 m above sea level

duced by 5 �C 4)

With operation between 3000 m and The maximum ambient temperature is re-

4000 m above sea level

duced by 10 �C 4)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Properties

Coated printed circuit board (conformal coating)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 47 years

108

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.8 Technical specifications of SCALANCE XC206-2SFP EEC
1) Wiring rules Observe the wiring rules (Page 75).
2) Pluggable transceiver Detected with the SFP992-1ELH. You will find the precise values in the operating instructions of the pluggable transceivers, see the section "Introduction", Additional documentation (Page 7).
3) Ambient temperature with SFP The maximum ambient temperature during operation depends on the operating elevation and the installed pluggable transceivers, see also the section "SFP transceiver (Page 37)" in the "Accessories" section.
4) Derating The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

109

Technical specifications 9.9 Technical specifications of SCALANCE XC206-2SFP G EEC

9.9

Technical specifications of SCALANCE XC206-2SFP G EEC

The following technical specifications apply to SCALANCE XC206-2SFP G EEC.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption
Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

12 VDC 24 V DC

Without SFP With SFP 2) Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

110

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.9 Technical specifications of SCALANCE XC206-2SFP G EEC

Technical specifications

Ambient temperature 3)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +65 �C During operation in a different installation po- sition: -40 �C to +60 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH � LH+ � ELH � SFP992-1+

-40 �C to +60 �C During operation in a different installation po- sition: -40 �C to +60 �C

Up to 2000 m above sea level

With operation between 2000 m and The maximum ambient temperature is re-

3000 m above sea level

duced by 5 �C 4)

With operation between 3000 m and The maximum ambient temperature is re-

4000 m above sea level

duced by 10 �C 4)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Properties

Coated printed circuit board (conformal coating)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 55 years

1) Wiring rules Observe the wiring rules (Page 75).

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

111

Technical specifications 9.9 Technical specifications of SCALANCE XC206-2SFP G EEC
2) Pluggable transceiver Detected with the SFP992-1ELH. You will find the precise values in the operating instructions of the pluggable transceivers, see the section "Introduction", Additional documentation (Page 7).
3) Ambient temperature with SFP The maximum ambient temperature during operation depends on the operating elevation and the installed pluggable transceivers, see also the section "SFP transceiver (Page 37)" in the "Accessories" section.
4) Derating The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

112

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.10 Technical specifications of the SCALANCE XC208

9.10

Technical specifications of the SCALANCE XC208
The following technical specifications apply to the SCALANCE XC208.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Diagnostics interface Serial interface Electrical data Power supply 1)
Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions Ambient temperature
Relative humidity Housing, dimensions and weight Design Housing material Degree of protection

Quantity Connector Properties Transmission speed
Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Property
12 VDC 24 VDC
Quantity Design Permitted voltage range Load capability
With operation up to 2000 m above sea level
During storage During transportation During operation at 25
compact Basic housing Front cover IP20

8 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps
1 RJ-11 jack
12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 350 mA 175 mA 4.2 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA
During operation in horizontal installation po- sition: -40 �C to +70 �C During operation in a different installation po- sition: -40 �C to +70 �C -40 �C to +85 �C -40 �C to +85 �C 95% without condensation
Die cast aluminum, powder coated Polycarbonate (PC-GF10)

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

113

Technical specifications 9.10 Technical specifications of the SCALANCE XC208

Technical specifications

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 48 years

1) Note the wiring rules (Page 75).

114

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.11 Technical specifications of SCALANCE XC208G

9.11

Technical specifications of SCALANCE XC208G
The following technical specifications apply to SCALANCE XC208G.

8 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps
1 RJ-11 jack
12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 400 mA 200 mA 4.3 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA
During operation in horizontal installation po- sition: -40 �C to +70 �C During operation in a different installation po- sition: -40 �C to +70 �C -40 �C to +85 �C -40 �C to +85 �C 95% without condensation
Die cast aluminum, powder coated Polycarbonate (PC-GF10)

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

115

Technical specifications 9.11 Technical specifications of SCALANCE XC208G

Technical specifications

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 54 years

1) Note the wiring rules (Page 75).

116

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.12 Technical specifications of SCALANCE XC208G PoE

9.12

Technical specifications of SCALANCE XC208G PoE
The following technical specifications apply to SCALANCE XC208G PoE.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Diagnostics interface Serial interface Electrical data Power supply 1)
Current consumption Effective Power Thermal Design Power Overvoltage category Fusing PoE power per device
Signaling contact 1)
Permitted ambient conditions Ambient temperature
Relative humidity Housing, dimensions and weight Design

Quantity Connector Properties Transmission speed

8 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps

Quantity Connector

1 RJ-11 jack

Rated voltage Voltage range (incl. tolerance) Design Property At 19.2 V DC At max PoE load
Basic device PoE consumers At 24 V DC
Quantity Design Permitted voltage range Load capability

24 V DC 19.2 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly Max. 7.5 A Max. 144 W Max. 18 W CAT II 2.5 A / 125 V 15 A / 125 V In horizontal installation position: 120 W In other installation position: 90 W 1 Terminal block, 2 terminals 24 VDC Max. 100 mA

With operation with max. PoE load up During operation in horizontal installation po-

to 2000 m above sea level

sition:

-40 �C to +60 �C

During operation in a different installation po- sition:

-40 �C to +50 �C

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

Compact

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

117

Technical specifications 9.12 Technical specifications of SCALANCE XC208G PoE

Technical specifications

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

100 x 147 x 125 mm

Weight

955 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 37.3 years

1) Note the wiring rules (Page 75).

118

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.13 Technical specifications of SCALANCE XC208G PoE (54 V)

9.13

Technical specifications of SCALANCE XC208G PoE (54 V)
The following technical specifications apply to SCALANCE XC208G PoE (54 V).

Technical specifications Connection to Industrial Ethernet Electrical connectors
Diagnostics interface Serial interface Electrical data Power supply 1)
Current consumption Effective Power Thermal Design Power Overvoltage category Fusing PoE power per device Signaling contact 1)
Permitted ambient conditions Ambient temperature
Relative humidity Housing, dimensions and weight Design Housing material Degree of protection

Quantity Connector Properties Transmission speed

8 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps

Quantity Connector

1 RJ-11 jack

Rated voltage Voltage range (incl. tolerance) Design Property At 52 V DC At max PoE load
Basic device PoE consumers At 54 V Quantity Design Permitted voltage range Load capability

54 V DC 52 to 57 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly Max. 5 A Max. 260 W Max. 10 W CAT II 2.5 A / 125 V 15 A / 125 V 240 W 1 Terminal block, 2 terminals 54 V DC max. 100 mA

With operation with max. PoE load up During operation in horizontal installation po-

to 2000 m above sea level

sition:

-40 �C to +60 �C

During operation in a different installation po- sition:

-40 �C to +50 �C

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

compact Basic housing Front cover IP20

Die cast aluminum, powder coated Polycarbonate (PC-GF10)

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

119

Technical specifications 9.13 Technical specifications of SCALANCE XC208G PoE (54 V)

Technical specifications

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

540 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 42.6 years

1) Note the wiring rules (Page 75).

120

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.14 Technical specifications of SCALANCE XC208EEC

9.14

Technical specifications of SCALANCE XC208EEC
The following technical specifications apply to SCALANCE XC208EEC.

Quantity Connector Properties Transmission speed

8 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps

Quantity Connector

1 RJ-11 jack

Rated voltage Voltage range (incl. tolerance) Design Property
12 VDC 24 VDC
Quantity Design Permitted voltage range Load capability

12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 350 mA 175 mA 4.2 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA

With operation up to 2000 m above During operation in horizontal installation po-

sea level

sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

With operation between 2000 m and The maximum ambient temperature is re-

3000 m above sea level

duced by 5 �C 2)

With operation between 3000 m and The maximum ambient temperature is re-

4000 m above sea level

duced by 10 �C 2)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

compact

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

121

Technical specifications 9.14 Technical specifications of SCALANCE XC208EEC

Technical specifications

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Properties

Coated printed circuit board (conformal coating)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 48 years

1) Note the wiring rules (Page 75).

2) The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

122

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.15 Technical specifications of SCALANCE XC208G EEC

9.15

Technical specifications of SCALANCE XC208G EEC
The following technical specifications apply to SCALANCE XC208G EEC.

Quantity Connector Properties Transmission speed

8 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps

Quantity Connector

1 RJ-11 jack

Rated voltage Voltage range (incl. tolerance) Design Property
12 VDC 24 VDC
Quantity Design Permitted voltage range Load capability

12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 400 mA 200 mA 4.3 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA

With operation up to 2000 m above During operation in horizontal installation po-

sea level

sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

With operation between 2000 m and The maximum ambient temperature is re-

3000 m above sea level

duced by 5 �C 2)

With operation between 3000 m and The maximum ambient temperature is re-

4000 m above sea level

duced by 10 �C 2)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

compact

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

123

Technical specifications 9.15 Technical specifications of SCALANCE XC208G EEC

Technical specifications

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Properties

Coated printed circuit board (conformal coating)

Degree of protection

IP20

Dimensions (W x H x D)

60 x 147 x 125 mm

Weight

520 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 54 years

1) Note the wiring rules (Page 75).

2) The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

124

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.16 Technical specifications of the SCALANCE XC216

9.16

Technical specifications of the SCALANCE XC216
The following technical specifications apply to the SCALANCE XC216.

Quantity Connector Properties Transmission speed
Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties
12 VDC 24 VDC
Quantity Design Permitted voltage range Load capability
With operation up to 2000 m above sea level
During storage During transportation During operation at 25
compact Basic housing Front cover IP20

16 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps
1 RJ-11 jack
12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 550 mA 275 mA 6.6 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA
During operation in horizontal installation po- sition: -40 �C to +70 �C During operation in a different installation po- sition: -40 �C to +70 �C -40 �C to +85 �C -40 �C to +85 �C 95% without condensation
Die cast aluminum, powder coated Polycarbonate (PC-GF10)

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

125

Technical specifications 9.16 Technical specifications of the SCALANCE XC216

Technical specifications

Dimensions (W x H x D)

120 x 147 x 125 mm

Weight

800 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 48 years

1) Note the wiring rules (Page 75).

126

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.17 Technical specifications of SCALANCE XC216EEC

9.17

Technical specifications of SCALANCE XC216EEC
The following technical specifications apply to SCALANCE XC216EEC.

Quantity Connector Properties Transmission speed

16 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps

Quantity Connector

1 RJ-11 jack

Rated voltage Voltage range (incl. tolerance) Design Properties
12 VDC 24 VDC
Quantity Design Permitted voltage range Load capability

12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 550 mA 275 mA 6.6 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA

With operation up to 2000 m above During operation in horizontal installation po-

sea level

sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

With operation between 2000 m and The maximum ambient temperature is re-

3000 m above sea level

duced by 5 �C 2)

With operation between 3000 m and The maximum ambient temperature is re-

4000 m above sea level

duced by 10 �C 2)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

compact

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

127

Technical specifications 9.18 Technical specifications of SCALANCE XC216-3G PoE

Technical specifications

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Properties

Coated printed circuit board (conformal coating)

Degree of protection

IP20

Dimensions (W x H x D)

120 x 147 x 125 mm

Weight

800 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 48 years

1) Note the wiring rules (Page 75).

2) The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

9.18

Technical specifications of SCALANCE XC216-3G PoE
The following technical specifications apply to SCALANCE XC216-3G PoE.

Technical specifications Connection to Industrial Ethernet Electrical connectors
Slots for pluggable transceivers
Diagnostics interface Serial interface Electrical data Power supply 1)
Current consumption

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

Port P1

Port P2 and P2

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties At 19.2 V DC

16 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps 3 SFP transceivers (LC port) 1000 Mbps 100 Mbps also possible via active SFPs 1000 / 10000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
24 V DC 19.2 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly Max. 7.8 A

128

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.18 Technical specifications of SCALANCE XC216-3G PoE

Technical specifications Effective Power Thermal Design Power Overvoltage category Fusing PoE power per device
Signaling contact 1) Permitted ambient conditions Ambient temperature 2)
Relative humidity Housing, dimensions and weight Design Housing material

At max PoE load
Basic device PoE consumers At 24 V DC
Quantity Design Permitted voltage range Load capability

Max. 150 W Max. 28 W CAT II 2.5 A / 125 V 15 A / 125 V With horizontal mounting position and opera- tion without pluggable transceiver: � 120 W In other installation position: � 90 W 1 Terminal block, 2 terminals 24 V DC Max. 100 mA

During LAN operation with RJ45 con- During operation in horizontal installation po-

nector with max. PoE load up to

sition:

2000 m above sea level

� -40 �C to +60 �C

During operation in a different installation po- sition:

� -40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version

� -40 �C to +60 �C

� LD

� Max. PoE power: 90 W

Up to 2000 m above sea level

During operation in a different installation po- sition:

� -40 �C to +50 �C

� Max. PoE power: 60 W

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH

� -40 �C to +55 �C

� LH+

� Max. PoE power: 90 W

� ELH

Other mounting positions are not permitted.

� SFP992-1+

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

Compact Basic housing Front cover

Die cast aluminum, powder coated Polycarbonate (PC-GF10)

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

129

Technical specifications 9.19 Technical specifications of SCALANCE XC216-3G PoE (54 V)

Technical specifications

Degree of protection

IP20

Dimensions (W x H x D)

180 x 147 x 125 mm

Weight

1560 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 24.6 years

1) Note the wiring rules (Page 75).

2) Depending on which pluggable transceiver you use, the maximum ambient temperature can change, see section "Accessories", "SFP transceiver (Page 37)".

9.19

Technical specifications of SCALANCE XC216-3G PoE (54 V)
The following technical specifications apply to SCALANCE XC216-3G PoE (54 V).

Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

Port P1

Port P2 and P2

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties At 52 V DC At max PoE load

16 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps 3 SFP transceivers (LC port) 1000 Mbps 100 Mbps also possible via active SFPs 1000 / 10000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
54 V DC 52 to 57 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly Max. 6.5 A Max. 338 W Max. 28 W CAT II

130

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.19 Technical specifications of SCALANCE XC216-3G PoE (54 V)

Technical specifications

Fusing

Basic device

2.5 A / 125 V

PoE consumers

15 A / 125 V

PoE power per device

At 54 V

300 W

Signaling contact 1)

Quantity

Design

Terminal block, 2 terminals

Permitted voltage range

54 V DC

Load capability

max. 100 mA

Permitted ambient conditions

Ambient temperature 2)

During LAN operation with RJ45 con- During operation in horizontal installation po-

nector with max. PoE load up to

sition:

2000 m above sea level

-40 �C to +60 �C

During operation in a different installation po- sition:

-40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� [-] Standard version

-40 �C to +60 �C

� LD Up to 2000 m above sea level

During operation in a different installation po- sition:
-40 �C to +50 �C

When operating with pluggable trans- During operation in horizontal installation po-

ceivers of the types:

sition:

� LH

-40 �C to +55 �C

� LH+ � ELH � SFP992-1+

During operation in a different installation po- sition:
-40 �C to +50 �C

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

140 x 147 x 125 mm

Weight

1140 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 23 years

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

131

Technical specifications 9.19 Technical specifications of SCALANCE XC216-3G PoE (54 V)
1) Note the wiring rules (Page 75). 2) Depending on which pluggable transceiver you use, the maximum ambient temperature can change, see section "Accessories", "SFP transceiver (Page 37)".

132

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.20 Technical specifications of SCALANCE XC216-4C

9.20

Technical specifications of SCALANCE XC216-4C
The following technical specifications apply to SCALANCE XC216-4C.

Technical specifications

Connection to Industrial Ethernet

Electrical connectors

Quantity

Connector

Properties

Transmission speed

Combo ports Quantity

Electrical connec- Quantity

tors

Connector

Properties

Transmission speed

Slots for pluggable Quantity

transceivers

Connector

Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

24 V DC

Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

12 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps 4 4 RJ45 jack Half/full duplex, MDI-X pinning 10 / 100 / 1000 Mbps 4 SFP transceivers (LC port) 1000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
24 V DC 19.2 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 450 mA 550 mA 10.8 W 13.2 W CAT II 3.15 A / 125 V 1 Terminal block, 2 terminals 24 V DC max. 100 mA

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

133

Technical specifications 9.20 Technical specifications of SCALANCE XC216-4C

Technical specifications

Ambient temperature 3)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +65 �C During operation in a different installation po- sition: -40 �C to +60 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� LH � LH+ � ELH � SFP992-1+

-40 �C to +60 �C During operation in a different installation po- sition: -40 �C to +60 �C

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

140 x 147 x 125 mm

Weight

1200 g

Installation options

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 46 years

1) Note the wiring rules (Page 75).

134

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.21 Technical specifications of SCALANCE XC216-4C G

9.21

Technical specifications of SCALANCE XC216-4C G
The following technical specifications apply to SCALANCE XC216-4C G.

Technical specifications Connection to Industrial Ethernet Electrical connectors

Combo ports

Quantity
Electrical connec- tors

Slots for pluggable transceivers

Quantity Connector Properties Transmission speed
Quantity Connector Properties Transmission speed Quantity Connector Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

24 V DC

Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

12 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps 4 4 RJ45 jack Half/full duplex, MDI-X pinning 10 / 100 / 1000 Mbps 4 SFP transceivers (LC port) 1000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
24 V DC 19.2 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 450 mA 550 mA 10.8 W 13.2 W CAT II 3.15 A / 125 V 1 Terminal block, 2 terminals 24 V DC max. 100 mA

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

135

Technical specifications 9.21 Technical specifications of SCALANCE XC216-4C G

Technical specifications Ambient temperature 3)
Relative humidity Housing, dimensions and weight Design Housing material Degree of protection Dimensions (W x H x D) Weight Installation options Mean time between failure (MTBF) MTBF (EN/IEC 61709; 40 �C)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� [-] Standard version

-40 �C to +65 �C

� LD Up to 2000 m above sea level

During operation in a different installation po- sition:
-40 �C to +60 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� LH

-40 �C to +60 �C

� LH+ � ELH � SFP992-1+

During operation in a different installation po- sition:
-40 �C to +60 �C

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

compact

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

IP20

140 x 147 x 125 mm

1200 g

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

> 46 years

1) Note the wiring rules (Page 75).

136

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.22 Technical specifications of SCALANCE XC216-4C G EEC

9.22

Technical specifications of SCALANCE XC216-4C G EEC
The following technical specifications apply to SCALANCE XC216-4C G EEC.

Technical specifications

Connection to Industrial Ethernet

Electrical connectors

Quantity

Connector

Properties

Transmission speed

Combo ports Quantity

Electrical connec- Quantity

tors

Connector

Properties

Transmission speed

Slots for pluggable Quantity

transceivers

Connector

Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

24 V DC

Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

137

Technical specifications 9.22 Technical specifications of SCALANCE XC216-4C G EEC

Technical specifications Ambient temperature 3)
Relative humidity Housing, dimensions and weight Design Housing material Properties Degree of protection Dimensions (W x H x D) Weight Installation options Mean time between failure (MTBF) MTBF (EN/IEC 61709; 40 �C)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� [-] Standard version

-40 �C to +65 �C

� LD Up to 2000 m above sea level

During operation in a different installation po- sition:
-40 �C to +60 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� LH

-40 �C to +60 �C

� LH+ � ELH � SFP992-1+

During operation in a different installation po- sition:
-40 �C to +60 �C

Up to 2000 m above sea level

With operation between 2000 m and The maximum ambient temperature is re-

3000 m above sea level

duced by 5 �C 4)

With operation between 3000 m and The maximum ambient temperature is re-

4000 m above sea level

duced by 10 �C 4)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

compact

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Coated printed circuit board (conformal coating)

IP20

140 x 147 x 125 mm

1200 g

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

> 46 years

1) Wiring rules Observe the wiring rules (Page 75).

138

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.22 Technical specifications of SCALANCE XC216-4C G EEC
2) Pluggable transceiver Detected with the SFP992-1ELH. You will find the precise values in the operating instructions of the pluggable transceivers, see the section "Introduction", Additional documentation (Page 7).
3) Ambient temperature with SFP The maximum ambient temperature during operation depends on the operating elevation and the installed pluggable transceivers, see also the section "SFP transceiver (Page 37)" in the "Accessories" section.
4) Derating The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

139

Technical specifications 9.23 Technical specifications of the SCALANCE XC224

9.23

Technical specifications of the SCALANCE XC224
The following technical specifications apply to the SCALANCE XC224.

24 RJ-45 jack Half/full duplex, MDIX pinning 10 / 100 Mbps
1 RJ-11 jack
12 to 24 V DC 9.6 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 750 mA 375 mA 9 W CAT II 2.5 A / 125 V 1 Terminal block, 2 terminals 24 VDC max. 100 mA
During operation in horizontal installation po- sition: -40 �C to +70 �C During operation in a different installation po- sition: -40 �C to +70 �C -40 �C to +85 �C -40 �C to +85 �C 95% without condensation
Die cast aluminum, powder coated Polycarbonate (PC-GF10)

140

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.23 Technical specifications of the SCALANCE XC224

Technical specifications

Dimensions (W x H x D)

120 x 147 x 125 mm

Weight

880 g

Installation options

� Wall mounting

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 41 years

1) Note the wiring rules (Page 75).

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

141

Technical specifications 9.24 Technical specifications of SCALANCE XC224-4C G

9.24

Technical specifications of SCALANCE XC224-4C G
The following technical specifications apply to SCALANCE XC224-4C G.

Technical specifications

Connection to Industrial Ethernet

Electrical connectors

Quantity

Connector

Properties

Transmission speed

Combo ports Quantity

Electrical connec- Quantity

tors

Connector

Properties

Transmission speed

Slots for pluggable Quantity

transceivers

Connector

Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

24 V DC

Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

20 RJ45 jack Half/full duplex, MDIX pinning 10 / 100 / 1000 Mbps 4 4 RJ45 jack Half/full duplex, MDI-X pinning 10 / 100 / 1000 Mbps 4 SFP transceivers (LC port) 1000 Mbps 100 Mbps also possible via active SFPs
1 RJ-11 jack
24 V DC 19.2 to 31.2 V DC Safe Extra Low Voltage (SELV) Terminal block, 4 terminals Implemented redundantly; The connected power supply must meet the requirements of NEC Class 2. 600 mA 700 mA 14.4 W 16.8 W CAT II 3.15 A / 125 V 1 Terminal block, 2 terminals 24 V DC max. 100 mA

142

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.24 Technical specifications of SCALANCE XC224-4C G

Technical specifications

Ambient temperature 3)

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� [-] Standard version � LD Up to 2000 m above sea level

-40 �C to +65 �C During operation in a different installation po- sition: -40 �C to +60 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� LH � LH+ � ELH � SFP992-1+

-40 �C to +60 �C During operation in a different installation po- sition: -40 �C to +60 �C

Up to 2000 m above sea level

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

Relative humidity

During operation at 25

95% without condensation

Housing, dimensions and weight

Design

compact

Housing material

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Degree of protection

IP20

Dimensions (W x H x D)

140 x 147 x 125 mm

Weight

1300 g

Installation options

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

Mean time between failure (MTBF)

MTBF (EN/IEC 61709; 40 �C)

> 20 years

1) Note the wiring rules (Page 75).

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

143

Technical specifications 9.25 Technical specifications of SCALANCE XC224-4C G EEC

9.25

Technical specifications of SCALANCE XC224-4C G EEC
The following technical specifications apply to SCALANCE XC224-4C G EEC.

Technical specifications

Connection to Industrial Ethernet

Electrical connectors

Quantity

Connector

Properties

Transmission speed

Combo ports Quantity

Electrical connec- Quantity

tors

Connector

Properties

Transmission speed

Slots for pluggable Quantity

transceivers

Connector

Transmission speed

Diagnostics interface Serial interface
Electrical data Power supply 1)

Quantity Connector
Rated voltage Voltage range (incl. tolerance) Design Properties

Current consumption Effective power loss Overvoltage category Fusing Signaling contact 1)
Permitted ambient conditions

24 V DC

Without SFP With SFP 2) Without SFP With SFP 2)

Quantity Design Permitted voltage range Load capability

144

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Technical specifications 9.25 Technical specifications of SCALANCE XC224-4C G EEC

During LAN operation with RJ45 con- During operation in horizontal installation po- nector up to 2000 m above sea level sition:

-40 �C to +70 �C

During operation in a different installation po- sition:

-40 �C to +70 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� [-] Standard version

-40 �C to +65 �C

� LD Up to 2000 m above sea level

During operation in a different installation po- sition:
-40 �C to +60 �C

When operating with pluggable transceivers of the types:

During operation in horizontal installation po- sition:

� LH

-40 �C to +60 �C

� LH+ � ELH � SFP992-1+

During operation in a different installation po- sition:
-40 �C to +60 �C

Up to 2000 m above sea level

With operation between 2000 m and The maximum ambient temperature is reduced

3000 m above sea level

by 5 �C 4)

With operation between 3000 m and The maximum ambient temperature is reduced

4000 m above sea level

by 10 �C 4)

During storage

-40 �C to +85 �C

During transportation

-40 �C to +85 �C

During operation at 25

95% without condensation

compact

Basic housing

Die cast aluminum, powder coated

Front cover

Polycarbonate (PC-GF10)

Coated printed circuit board (conformal coating)

IP20

140 x 147 x 125 mm

1300 g

� Installation on a DIN rail

� Mounting on an S7-300 standard rail

� Mounting on an S7-1500 standard rail

> 20 years

1) Wiring rules Observe the wiring rules (Page 75).

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

145

Technical specifications 9.25 Technical specifications of SCALANCE XC224-4C G EEC
2) Pluggable transceiver Detected with the SFP992-1ELH. You will find the precise values in the operating instructions of the pluggable transceivers, see the section "Introduction", Additional documentation (Page 7).
3) Ambient temperature with SFP The maximum ambient temperature during operation depends on the operating elevation and the installed pluggable transceivers, see also the section "SFP transceiver (Page 37)" in the "Accessories" section.
4) Derating The derating values depend on the maximum ambient temperatures during operation up to 2000 m.

146

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

9.26

Technical specifications 9.28 Cable lengths
Mechanical stability (in operation)
SCALANCE XC-200 meets the following requirement relating to mechanical stability in operation: � IEC 60068-2-27 shock
� 15 g, 11 ms duration � 6 shocks per axis � IEC 60068-2-6 vibration � 10 - 58 Hz: 0.075 mm � 85 - 150 Hz: 1 g � 1 octave/min, 20 sweeps

9.27

RF radiation according to NAMUR NE21
SCALANCE XC-200 fulfills the following requirement regarding RF radiation.

RF radiation according to IEC 61000-4-3/NAMUR NE21

80 MHz - 2.0 GHz

2.0 GHz - 2.7 GHz

10 V/m

3 V/m

80% AM (1kHz)

9.28

Cable lengths
The cable lengths listed below apply to the SCALANCE XC-200.

Cable IE TP torsion cable with IE FC Outlet RJ-45 + 10 m TP cord IE TP torsion cable with IE FC RJ-45 Plug 180 IE FC TP Marine / Trailing / Flexible cable with IE FC Outlet RJ-45 + 10 m TP cord IE FC TP Marine / Trailing / Flexible cable with IE FC RJ-45 Plug 180 IE FC TP standard cable with IE FC Outlet RJ-45 + 10 m TP cord IE FC TP standard cable with IE FC RJ-45 Plug 180

Permitted cable length 0 to 45 m + 10 m TP cord 0 to 55 m
0 to 75 m + 10 m TP cord 0 to 85 m
0 to 90 m + 10 m TP cord 0 to 100 m

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

147

Technical specifications 9.29 Switching properties

9.29

Switching properties
The switching properties listed below apply to the SCALANCE XC-200. The following device versions differ from the other SCALANCE XC-200 devices in some switching properties: � Gigabit versions (Page 7) (suffix "G" in the type designation) � Devices with combo ports (Page 7) (suffix "C" in the type designation) You will find additional information on the devices in the section "Product overview (Page 21)".

Switching properties
Aging time Maximum frame size Max. number of learnable ad- dresses Response to LLDP frames Response to spanning tree BPDU frames CoS acc. to IEEE 802.1Q QoS priority queues Switching technique Latency

SCALANCE XC-200

Gigabit versions/ Devices with combo ports

Can be configured (default value: 30 seconds)

1632

10240

8192

16000

Blocking Forwarding

Yes

Store and forward

10 microseconds

Full wire speed switching Frame length (bytes)
64 128 256 512 1024 1280 1518

At 100 Mbps 148810 84459 45290 23496 11973 9615 8127

Number of frames per second At 1000 Mbps 1488095 844594 452898 234962 119731 96153 81274

At 10000 Mbps 14880952 8445946 4528986 2349664 1197318 961538 811688

Note
The number of SCALANCE XC-200 modules connected in a line influences the entire frame delay. When a frame passes through the IE switch, this is delayed by the store-and-forward function of the SCALANCE XC-200 by 10-130 microseconds (at 100 Mbps).

148

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Dimension drawings

Note Dimensions are specified in mm.

Front view

This front view applies to the following devices: � SCALANCE XC206-2 (ST/BFOC) � SCALANCE XC206-2 (SC) � SCALANCE XC206-2G PoE (54 V) � SCALANCE XC206-2G PoE EEC (54 V) � SCALANCE XC206-2SFP � SCALANCE XC206-2SFP G � SCALANCE XC206-2SFP EEC � SCALANCE XC206-2SFP G EEC � SCALANCE XC208 � SCALANCE XC208G � SCALANCE XC208G PoE (54 V) � SCALANCE XC208EEC � SCALANCE XC208G EEC

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

149

Dimension drawings

Front view

Securing bar in the rail mounting position Securing bar in the wall mounting position (as supplied).
Figure 10-1 Width and height
This front view applies to the following devices: � SCALANCE XC206-2G PoE � SCALANCE XC208G PoE

150

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Dimension drawings

Front view

Securing bar in the rail mounting position Securing bar in the wall mounting position (as supplied).
Figure 10-2 Width and height
This front view applies to the following devices: � SCALANCE XC216 � SCALANCE XC216EEC � SCALANCE XC224

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

151

Dimension drawings

Front view

Securing bar in the rail mounting position Securing bar in the wall mounting position (as supplied).
Figure 10-3 Width and height
This front view applies to the following devices: � SCALANCE XC216-3G PoE (54 V) � SCALANCE XC216-4C � SCALANCE XC216-4C G � SCALANCE XC216-4C G EEC � SCALANCE XC224-4C G � SCALANCE XC224-4C G EEC

152

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Dimension drawings
140

147

Front view

Figure 10-4 Width and height
This front view applies to the following devices: � SCALANCE XC216-3G PoE

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

153

Dimension drawings
180 140

147

Figure 10-5 Width and height

154

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Dimension drawings Side view of the SCALANCE XC-200
This side view applies to all SCALANCE XC-200. Devices without fastening plate have the same dimensions in relation to depth.

Securing bar in the rail mounting position Securing bar in the wall mounting position (as supplied).
Figure 10-6 Depth

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

155

Dimension drawings
Drilling template for wall mounting The drilling pattern applies to all devices with a fastening plate.

Figure 10-7 Drilling template with securing bar in the wall mounting position (as supplied)

156

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Certifications and approvals

The SIMATIC NET products described in these Operating Instructions have the approvals listed below.
Note Issued approvals on the type plate of the device The specified approvals apply only when the corresponding mark is printed on the product. You can check which of the following approvals have been granted for your product by the markings on the type plate.
Current approvals on the Internet You will find the current approvals for the product on the Internet pages of Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/ps/15273/cert).
Notes for the manufacturers of machines The devices are not machines in the sense of the EC Machinery Directive. There is therefore no declaration of conformity relating to the EC Machinery Directive 2006/42/EC for these devices. If the devices are part of the equipment of a machine, they must be included into the EU declaration of conformity procedure by the manufacturer of the machine.
EC declaration of conformity The SIMATIC NET products described in these operating instructions meet the requirements and safety objectives of the following EC directives and comply with the harmonized European standards (EN) which are published in the official documentation of the European Union and here. � 2014/34/EU (ATEX explosion protection directive) Directive of the European Parliament and the Council of 26 February 2014 on the approximation of the laws of the member states concerning equipment and protective systems intended for use in potentially explosive atmospheres, official journal of the EU L96, 29/03/2014, pages. 309-356 � 2014/30/EU (EMC) EMC directive of the European Parliament and of the Council of February 26, 2014 on the approximation of the laws of the member states relating to electromagnetic compatibility; official journal of the EU L96, 29/03/2014, pages. 79-106 � 2011/65/EU (RoHS) Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment, official journal of the EC L174, 01/07/2011, pages 88-110

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

157

Certifications and approvals
You will find the EC declaration of conformity for these products on the Internet pages of Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/ps/15273/ cert). The EC Declaration of Conformity is available for all responsible authorities at: Siemens Aktiengesellschaft Digital Industries DE-76181 Karlsruhe Germany
UK Declaration of Conformity The UK declaration of conformity is available to all responsible authorities at: Siemens Aktiengesellschaft Process Industries and Drives,
Process Automation DE-76181 Karlsruhe Federal Republic of Germany UK Importer: Siemens PLC, Manchester M20 2UR, UK You can find the current UK Declaration of Conformity for these products on the Internet pages under Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/ps/ 15273/cert) The SIMATIC NET products described in this document meet the requirements of the following directives: � Equipment and Protective Systems Intended for use in Potentially Explosive Atmospheres
Regulations 2016 � Electromagnetic Compatibility Regulations 2016 � The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations 2012

158

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Certifications and approvals
ATEX, IECEx, UKEX and CCC Ex certification
WARNING Risk of explosion in hazardous areas When using SIMATIC NET products in hazardous area zone 2, make absolutely sure that the associated conditions in the following document are adhered to: "SIMATIC NET Product Information Use of subassemblies/modules in a Zone 2 Hazardous Area". You will find this document � on the data medium that ships with some devices. � on the Internet pages under Siemens Industry Online Support (https://
support.industry.siemens.com/cs/ww/en/view/78381013). Enter the document identification number C234 as the search term.
The markings of the electrical devices are:
II 3G Ex ec IIC T4 Gc DEKRA 18ATEX0025X DEK 18.0017X Ex ec IIC T4 Gc DEKRA 21UKEX00xx X UK Importer: Siemens plc, Manchester M20 2UR, UK
(Ex na IIC T4 Gc, not on the nameplate)
The products meet the requirements of the following standards: � EN/IEC 60079-7, GB 3836.3 � EN IEC/IEC 60079-0, GB 3836.1 You will find the current versions of the standards in the currently valid certificates.

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

159

Certifications and approvals

Note for devices with CLASS 1 LASER
Important note on products certified according to Type Examination Certificate KEMA 07ATEX0145 X as of Issue 95 / DEKRA 18ATEX0025 X and IECEx Certificate of Conformity DEK 14.0025X as of Issue 43 / DEK 18.0017X and containing Class 1 optical radiation sources.
Note CLASS 1 LASER
The device contains optical radiation sources which comply with the limits of Class 1 according to IEC 60825-1. Fiber-optic cables connected to these optical radiation sources may therefore be routed either to or through hazardous areas requiring Category 2G, 3G, 2D or 3D equipment.

EMC directive (electromagnetic compatibility)
The SIMATIC NET products described in these operating instructions meet the requirements of EU directive 2014/30/EU "Electromagnetic Compatibility" (EMC Directive).
Applied standards:
� EN 6100062 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments
� EN 6100064 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
You will find the current versions of the standards in the currently valid EC declaration of conformity.

EMC directive (railway application)
The device versions EEC also meet the requirements of the EU Directive 2014/30/EU "Electromagnetic Compatibility" (EMC Directive).
Applied standards:
� EN 50121-3-2 Railway applications - Electromagnetic compatibility - part 3-2: Rolling stock Devices
� EN 501214 Railway applications - Electromagnetic compatibility - part 4: Interference emissions and immunity of signal telecommunications equipment
You will find the current versions of the standards in the currently valid EC declaration of conformity.

RoHS

The SIMATIC NET products described in these operating instructions meet the requirements of the EC directive 2011/65/EC for the restriction of the use of certain hazardous substances in electrical and electronic equipment:
Applied standard:
� EN 50581

160

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Certifications and approvals
FM The product meets the requirements of the standards: � Factory Mutual Approval Standard Class Number 3611 � FM Hazardous (Classified) Location Electrical Equipment: Non Incendive / Class I / Division 2 / Groups A,B,C,D / T4 and Non Incendive / Class I / Zone 2 / Group IIC / T4
cULus approval for industrial control equipment cULus Listed IND. CONT. EQ. Underwriters Laboratories Inc. complying with � UL 61010-2-201 � CAN/CSA-IEC 61010-2-201 Report no. E85972
cULus Approval for Information Technology Equipment cULus Listed I. T. E. Underwriters Laboratories Inc. complying with � UL 60950-1 (Information Technology Equipment) � CSA C22.2 No. 60950-1-03 Report no. E115352
cULus Approval Hazardous Location cULus Listed I. T. E. FOR HAZ. LOC. Underwriters Laboratories Inc. complying with � UL 60950-1 (Information Technology Equipment) � ANSI/ISA 12.12.01-2007 � CSA C22.2 No. 213-M1987 Approved for use in Cl. 1, Div. 2, GP A, B, C, D T4 Cl. 1, Zone 2, GP IIC T4 Report no. E240480
Note for Australia - RCM The product meets the requirements of the RCM standard.

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

161

Certifications and approvals

Applied standards:
� AS/NZS CISPR11 (Industrial, scientific and medical equipment - Radio-frequency disturbance characteristics - Limits and methods of measurement).
� EN 61000-6-4 Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for industrial environments
You will find the current versions of the standards in the currently valid RCM SDoCs (SelfDeclaration of Conformity).

MSIP For Korea only
A ( )
(A) , .

Marking for the customs union EAC (Eurasian Conformity) Eurasian Economic Union of Russia, Belarus, Armenia, Kazakhstan and Kyrgyzstan Declaration of conformity according to the technical regulations of the customs union (TR ZU)

FDA and IEC marking The following devices meet the FDA and IEC requirements listed below:

Device SCALANCE XC206-2 (ST/BFOC) SCALANCE XC206-2 (SC) SCALANCE XC206-2G PoE SCALANCE XC206-2G PoE (54 V) SCALANCE XC206-2G PoE EEC (54 V) SCALANCE XC206-2SFP SCALANCE XC206-2SFP G SCALANCE XC206-2SFP EEC SCALANCE XC206-2SFP G EEC SCALANCE XC208 SCALANCE XC208G SCALANCE XC208G PoE SCALANCE XC208G PoE (54 V) SCALANCE XC208EEC SCALANCE XC208G EEC SCALANCE XC216 SCALANCE XC216EEC SCALANCE XC216-3G PoE SCALANCE XC216-3G PoE (54 V)

CLASS 1 LASER PRODUCT (*) (*) (*) (*) (*) (*) (*) (*) (*)

162

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Certifications and approvals

Device SCALANCE XC216-4C SCALANCE XC216-4C G SCALANCE XC216-4C G EEC SCALANCE XC224 SCALANCE XC224-4C G SCALANCE XC224-4C G EEC

CLASS 1 LASER PRODUCT (*) (*) (*) (*) (*)

* In modular devices, you can find the marking on the pluggable transceiver used or in the relevant operating instructions.

FDA

IEC

Complies with 21 CFR 1040.10 and 1040.11

CLASS 1 LASER PRODUCT

Figure 11-1 FDA and IEC approvals
CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Installation guidelines The devices meet the requirements if you adhere to the installation and safety instructions contained in this documentation and in the following documentation when installing and operating the devices.
� "Industrial Ethernet / PROFINET Industrial Ethernet" System Manual (https:// support.industry.siemens.com/cs/ww/en/view/27069465)
� "Industrial Ethernet / PROFINET - Passive Network Components" System Manual (https:// support.industry.siemens.com/cs/ww/en/view/84922825)
� "EMC Installation Guidelines" configuration manual (https:// support.industry.siemens.com/cs/ww/en/view/60612658)
WARNING
Personal injury and property damage can occur
The installation of expansions that are not approved for SIMATIC NET products or their target systems may violate the requirements and regulations for safety and electromagnetic compatibility.
Only use expansions that are approved for the system.

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

163

Certifications and approvals
Note The test was performed with a device and a connected communications partner that also meets the requirements of the standards listed above. When operating the device with a communications partner that does not comply with these standards, adherence to the corresponding values cannot be guaranteed.

164

SCALANCE XC-200 Operating Instructions, 03/2021, C79000-G8976-C442-11

Index
A
Approvals, 157 Article numbers, 21 Autonegotiation, 83
C
CE mark, 157 Combo port, 51 Command Line Interface (CLI), 50, 85, 89 Components of the product, 25 Configuration, 43 Connecting cable, 85 Connecting up
Grounding, 81 Connection to Industrial Ethernet, 96, 98, 100, 103, 105, 107, 110, 113, 115, 117, 119, 121, 123, 125, 127, 128, 130, 133, 135, 137, 140, 142, 144 C-PLUG
Configuration, 49
D
Dimensions, 91, 94, 97, 99, 101, 104, 106, 108, 111, 113, 115, 117, 119, 121, 123, 125, 127, 129, 131, 134, 136, 138, 140, 143, 145 Display mode, 42, 45
E
Electrical data, 91, 93, 96, 98, 100, 103, 105, 107, 110, 113, 115, 117, 119, 121, 123, 125, 127, 128, 130, 133, 135, 137, 140, 142, 144 Environmental conditions, 38, 39, 40, 41, 91, 93, 96, 98, 100, 103, 105, 107, 110, 113, 115, 117, 119, 121, 123, 125, 127, 129, 131, 133, 135, 137, 140, 142, 144 ESD directives, 11
F
Factory defaults, 42, 90 Factory setting, 90 Factory settings, 42, 90 Fault mask, 43

Fault/error status, 45 Firmware, 45
G
