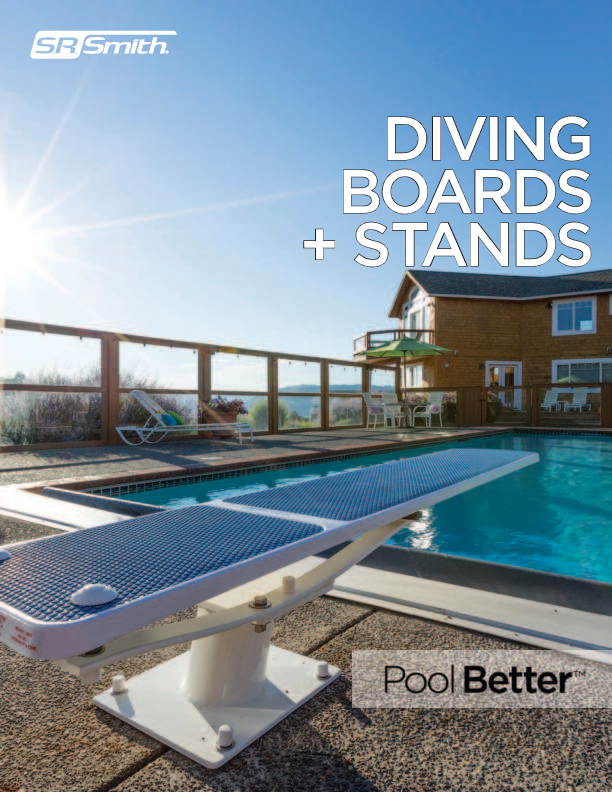

DIVING BOARDS + STANDS

Boards + Stands

CONTENTS Overview .............................................. 4 TrueTread ............................................. 6 Stands.................................................... 8 Specialty Jump Systems .............15 Boards ..................................................18

88+ Years of Diving Experience
Quality, safety and selection are the hallmarks of S.R.Smith residential diving boards and stands. Available in a wide range of shapes, styles, and colors, our boards and stands are designed with varying degrees of flex and spring. Rigid stands or those that have a spring mechanism can be paired with a variety of boards with varying flex to create unique performance characteristics. Diving board and stand combinations are defined in two ways, according to their level of flex:
Jump Boards � a flexible board on a base that utilizes a spring mechanism. Diving Boards � a flexible board on a rigid base.
New or Replacement?
While all of our diving boards can be installed on new pool decks, providing they meet safety standards, we also have replacement diving board options. A wide variety of our stands utilize the same jig, so upgrading your stand is simple. Refer to our jig identification guide on page 63. If a new jig is required for the new stand, you can drill holes in the deck and secure a new jig with one of our epoxy kits.
Salt Pool Friendly
All S.R.Smith diving boards are salt pool friendly. Select stands also perform well in salt pool environments.

2

srsmith.com | 800.824.4387

3

Boards
Whether it's placing a brand new diving board and stand on a pool deck, or updating a well-loved diving board, S.R.Smith has an option that will delight builders and pool owners alike. The diving experience is at the very heart of backyard pools, and S.R.Smith is creating new, exciting options to help ensure diving boards continue to be a centerpiece of swimming pool fun and memories.

TrueTread �
This patent pending diving board features a durable, marine-grade composite surface. Available in blue, red, gray and tan.

Fibre-Dive Board
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread.

Frontier II Board
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread.

Frontier III Board
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread
* Frontier IV boards require a special stand

Frontier IV Board*
Fiberglass reinforced core, acrylic shell with flexible outer edge, matte backside, non-slip sanded tread

Glas-Hide
Fiberglass wrapped core with flow-coat, smooth backside non-slip sand tread

SPECIALTY JUMP SYSTEMS
T7 Jump Board Systems
Manufactured from composite materials and the only 7' board on the market. Available in unique colors and visual textures to match our Destination Series In-Pool Furniture and Custom Slides.

Edge Jump Board Systems
Manufactured out of composite materials with a wood core to resist rust. Designed for new construction projects or retrofit applications.

Boards TrueTread� Fibre-Dive Frontier II Frontier III Frontier IV Glas-Hide T7 Edge

Bolt Pattern 2-hole, 12" O.C. 2-hole, 12" O.C. 3-hole 2-hole, 12" O.C. 2-hole, 11" O.C. 2-hole, 12" O.C. 2-hole, 12" O.C. 2-hole, 12" O.C.

Available Lengths 6', 8'
6', 8' & 10' 6' & 8'
6', 8' & 10' 8'
6', 8' & 10' 7'
6' & 8'

Weight Limit 250 lbs 250 lbs 250 lbs 250 lbs 400 lbs 250 lbs 300 lbs 300 lbs

4

DIVING BOARDS + STANDS

Stands

JUMP BOARD SYSTEMS: a flexible board on a base that utilizes a spring mechanism

DIVING BOARD SYSTEMS: a flexible board on a rigid base

BOARD & STAND SELECTOR

STANDS

TYPE

SALT FRIENDLY

JUMP BOARD SYSTEMS

DIVING BOARD

COMPATIBLE BOARDS & PERFORMANCE CATEGORY

Cantilever

Jump Stand: Powder-coated Steel

TrueTread�, Frontier III, Glas-Hide,

MOST FLEXIBLE

Supreme

Jump Stand: Acrylic Reinforced Fiberglass

Salt Pool

Jump Stand:

Jump System Acrylic Reinforced Fiberglass

P

TrueTread�, Frontier III, Glas-Hide
TrueTread�, Frontier III

Edge Jump

Jump Stand:

System

Acrylic Reinforced Fiberglass

P

Edge (optional board fall ordered separately)

Frontier II

Jump Stand: Powder-coated Steel

Frontier II

T7 Jump System

Jump Stand: Acrylic Reinforced Fiberglass

T7 (optional board fall ordered separately)

LEAST FLEXIBLE

U-Frame

Dive Stand: Stainless Steel Tubing

P

Flyte-Deck II

Dive Stand: Acrylic Reinforced Fiberglass

P

*Frontier IV boards require a special stand, see page 18 for additional information.

TrueTread�, Fibre-Dive, Frontier III, Frontier IV*
TrueTread�, Frontier III, Fibre-Dive

Fulcrum Settings for Diving Boards

A Board

6' 8' 10' 12' 14' 16'

B Fulcrum

30" 40" 52" 62" 74" 86"

C Tolerance �3" �4" �5" �6" �6" �6"

Diving Boards must be installed with rubber fulcrum pads*. Fulcrum settings beyond the stated tolerance void the warranty. Diving boards must be installed level across fulcrum and heel supports. Rubber mounting pads (washers) must be installed. Tightening Schedule can be found in the product's instruction manual.
* Except Frontier II

srsmith.com | 800.824.4387

5

S.R.Smith has reinvented the diving board category with a unique, patent pending design: the TrueTread� Diving Board Series. These stylish diving boards make an old favorite new again with a modern, sporty look that provides an exceptional launching grip. TrueTread is a durable, marine grade composite material that stands up to salt, sun and hours of fun. Compatible with multiple S.R.Smith stands, TrueTread Diving Boards are an ideal upgrade that makes the diving board experience new again.
For more information, visit srsmith.com/truetread

6

DIVING BOARDS + STANDS

TrueTread� Diving Board Series
� Ideal replacement board, provides fresh, custom look � Available in 6' and 8' lengths � Modern, sporty look � Salt Pool Friendly � Long-lasting, durable anti-slip surface � U.S. Patent No. 10,556,141

COLOR OPTIONS

BLUE

RED

GRAY

TAN

Due to printing technology actual color may differ.
All TrueTread� colors are available on white stands, with gray and tan available on complementary earth tone stand colors.
COMPATIBLE WITH:
� Cantilever � Flyte-Deck II � Salt Pool Jump System � Supreme � U-Frame

Flyte-Deck II Stand With TrueTread� Board

Part No.

Description

SHIPPING W/ 6' BOARD

Box 1 - 55 lbs - 80"L x 20"W x 3"H CLASS 70 Box 2 - 27 lbs - 37"L x 19"W x 13"H

68-207-7362B White Stand & 6' Board w/ Blue TrueTread

68-207-7362G White Stand & 6' Board w/ Gray TrueTread

68-207-7362R White Stand & 6' Board w/ Red TrueTread

68-207-7362T White Stand & 6' Board w/ Tan TrueTread

68-207-73610T Taupe Stand & 6' Board w/ Tan TrueTread

68-207-73620G Gray Stand & 6' Board w/ Gray TrueTread

SHIPPING W/ 8' BOARD

Box 1 - 72 lbs - 105"L x 20W x 3"H CLASS 70
Box 2 - 32 lbs - 48"L x 19"W x 13"H

68-207-7382B White Stand & 8' Board w/ Blue TrueTread

68-207-7382G White Stand & 8' Board w/ Gray TrueTread

68-207-7382R White Stand & 8' Board w/ Red TrueTread

68-207-7382T White Stand & 8' Board w/ Tan TrueTread

68-207-73810T Taupe Stand & 8' Board w/ Tan TrueTread

68-207-73820G Gray Stand & 8' Board w/ Gray TrueTread

Replacement Boards

Part No.

Description

SHIPPING - 6' BOARDS: 55 lbs - 80"L x 20"W x 3"H | CLASS 70

66-209-576S2B

6' White Board w/ Blue TrueTread

66-209-576S2G

6' White Board w/ Gray TrueTread

66-209-576S2R

6' White Board w/ Red TrueTread

66-209-576S2T

6' White Board w/ Tan TrueTread

66-209-576S10T

6' Taupe Board w/ Tan TrueTread

66-209-576S20G

6' Gray Board w/ Gray TrueTread

SHIPPING - 8' BOARDS: 72 lbs - 105"L x 20"W x 3"H | CLASS 70

66-209-578S2B

8' White Board w/ Blue TrueTread

66-209-578S2G

8' White Board w/ Gray TrueTread

66-209-578S2R

8' White Board w/ Red TrueTread

66-209-578S2T

8' White Board w/ Tan TrueTread

66-209-578S10T

8' Taupe Board w/ Tan TrueTread

66-209-578S20G

8' Gray Board w/ Gray TrueTread

Salt Pool Jump System With TrueTread� Board

Part No.

Description

SHIPPING 6' BOARD & STAND

Box 1 - 26 lbs - 25"L x 20"W x 11"H Box 2 - 11 lbs - 41"L x 5"W x 3"H Box 3 - 55 lbs - 80"L x 19"W x 3"H

CLASS 70

68-207-5762B

White Stand & 6' Board w/ Blue TrueTread

68-207-5762G

White Stand & 6' Board w/ Gray TrueTread

68-207-5762R

White Stand & 6' Board w/ Red TrueTread

68- 207-5762T

White Stand & 6' Board w/ Tan TrueTread

68-207-57610T

Taupe Stand & 6' Board w/ Tan TrueTread

68-207-57620G Gray Stand & 6' Board w/ Gray TrueTread

SHIPPING 8' BOARD & STAND

Box 1 - 26 lbs - 25"L x 20"W x 11"H Box 2 - 15 lbs - 49"L x 5"W x 3"H Box 3 - 72 lbs - 98"L x 20W x 3"H

CLASS 70

68-207-5782B

White Stand & 8' Board w/ Blue TrueTread

68-207-5782G

White Stand & 8' Board w/ Gray TrueTread

68-207-5782R

White Stand & 8' Board w/ Red TrueTread

68-207-5782T

White Stand & 8' Board w/ Tan TrueTread

68-207-57810T

Taupe Stand & 8' Board w/ Tan TrueTread

68-207-57820G Gray Stand & 8' Board w/ Gray TrueTread

7

Salt Pool Jump System
Resist corrosion with this new low-profile fiberglass-backed stand and composite spring assembly designed to perform well even in harsh pool environments.
� 6' or 8' lengths � Available in three designer colors to match your backyard d�cor � Stainless steel hardware for added corrosion resistance � Can be retrofitted onto existing 606/608 Cantilever jigs

Flyte-Deck II Stand
The Flyte-Deck II stand's sleek appearance and sturdy construction make it one of our best selling models.
� Made of durable, scratch-resistant acrylic reinforced with fiberglass
� 6', 8' or 10' lengths � find the right size for your diving pool � Available in a variety of colors to match your poolscape and
backyard d�cor! � Stainless steel hardware for added corrosion resistance � Board has a matching, non-slip sanded tread, white.

Stand & Spring Colors
WHITE
TAUPE
GRAY
Due to printing technology actual color may differ. All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.
Compatible with:

SALT FRIENDLY JUMP STAND WITH FRONTIER III BOARD

Part No. 68-211-5962

Size Color

6'

White Stand and Board

68-211-59610 6'

Taupe Stand and Board

68-211-59620 6'

Gray Stand and Board

68-211-5982

8'

White Stand and Board

68-211-59810 8'

Taupe Stand and Board

68-211-59820 8'

Gray Stand and Board

Shipping (3 boxes, Class 70) Weight Length Width Height

27 lbs 12kg

25" 64cm

20" 51cm

11" 28cm

10 lbs 4kg

40

5"

102cm 13cm

3" 8cm

52 lbs 24kg

74" 188cm

20" 51cm

3" 8cm

27 lbs 12kg

25" 64cm

20" 51cm

11" 28cm

14 lbs 6kg
70 lbs 32kg

48 122cm
98" 246cm

5" 13cm
20" 51cm

3" 8cm
3" 8cm

Note: Salt Pool Jump System springs and bases cannot be interchanged with other S.R.Smith springs and bases

TrueTread� Board

Frontier III Board
See page 18-19 for diving board part numbers.

8

DIVING BOARDS + STANDS

Board + Stand Colors

WHITE

PEBBLE

TAUPE

GRAY GRANITE

GRAY

SILVER GRAY

Due to printing technology actual color may differ.
Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.
All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.
Compatible with:

FLYTE-DECK II STAND WITH FIBRE-DIVE BOARD
FOR MATCHING TREAD, ADD "T" BEHIND PART NUMBER

Part No. 68-209-7362 68-210-73610 68-210-73620 68-210-73623 68-210-73621 68-210-73624

Size 6' 6' 6' 6' 6' 6'

Color White Taupe Gray Pebble Silver Gray Gray Granite

Shipping (2 boxes, Class 70)

Weight

Length Width Height

36 lbs 16kg
27 lbs 12kg

74" 188cm
37" 94cm

20" 51cm
18" 46cm

3" 8cm
12" 30cm

68-209-7382

8'

68-210-73810

8'

68-210-73820

8'

68-210-73823

8'

68-210-73824

8'

White Taupe Gray Pebble
Gray Granite

59 lbs 27kg
32 lbs 14kg

98" 249cm
47" 119cm

20" 51cm
19" 48cm

3" 8cm
12" 30cm

68-209-7402

10'

68-210-74020

10'

White Gray

Note: Board, and stand are matching in color

75 lbs 34kg
36 lbs 16kg

122" 310cm
57" 145cm

20" 51cm
19" 48cm

3" 8cm
12" 30cm

TrueTread� Board

Fibre-Dive Board Frontier III Board

See page 18-19 for diving board part numbers.

srsmith.com | 800.824.4387

9

Supreme (656/658) Stand
The Supreme stand is a high-end stand that offers users extreme diving fun! � Made of durable, scratch resistant acrylic reinforced with
fiberglass � 6' or 8' lengths � Available in a variety of colors � match your pool slide and
backyard d�cor � Stainless steel hardware for added corrosion resistance � Board has a matching, non-slip sanded tread

Board + Stand Colors

SUPREME JUMP STAND WITH FRONTIER III BOARD FOR MATCHING TREAD, ADD "T" BEHIND PART NUMBER

WHITE

PEBBLE

TAUPE

GRAY GRANITE

GRAY

SILVER GRAY

BLUE
Due to printing technology actual color may differ. Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details. All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Part No. 68-209-6162 68-209-61610 68-209-61620 68-209-61621 68-209-6163 68-209-61623 68-209-61624 68-209-6182 68-209-61810 68-209-61820 68-209-61821 68-209-6183 68-209-61823 68-209-61824

Size 6' 6' 6' 6' 6' 6' 6' 8' 8' 8' 8' 8' 8' 8'

Color White Taupe Gray Silver Gray Blue Pebble* Gray Granite* White Taupe Gray Silver Gray Marine Blue Pebble* Gray Granite*

Shipping (3 boxes, Class 70) Weight Length Width Height

52 lbs 24kg
22 lbs 10kg
20 lbs 10kg

74" 188cm
18" 46cm
33" 84cm

20" 51cm
18" 46cm
18" 46cm

3" 8cm
10" 25cm
4" 10cm

70 lbs 32kg
22 lbs 10kg
33 lbs 15kg

98" 249cm
18" 46cm
41" 104cm

20" 51cm
18" 46cm
18" 46cm

3" 8cm
10" 25cm
4" 10cm

*Pebble kits come with Taupe springs. Gray Granite kits come with Rock Gray springs.

Compatible with: TrueTread� Board Frontier III Board

SUPREME JUMP STAND WITH GLAS-HIDE BOARD*

Part No.
68-209-2362 68-209-2363

Size Color
6' White 6' Blue w/ White Stand

Shipping (3 boxes, Class 70)

Weight
57 lbs 26kg

Length Width

74" 188cm

20" 51cm

Height
3" 8cm

22 lbs 10kg

18" 46cm

18" 46cm

10" 25cm

20 lbs 10kg

33" 84cm

18" 46cm

4" 10cm

68-209-2382 68-209-2383

8' White 8' Blue w/ White Stand

70 lbs 32kg
22 lbs 10kg
33 lbs 15kg

98" 249cm
18" 46cm
41" 104cm

20" 51cm
18" 46cm
18" 46cm

3" 8cm
10" 25cm
4" 10cm

Glas-Hide Board

*Not recommended for salt pools.

See page 18-19 for diving board part numbers.

10

DIVING BOARDS + STANDS

Cantilever (606/608) Stand
� Powder-coated for increased corrosion resistance � 6' or 8' lengths � Available in designer colors to match your pool slide and backyard
d�cor � Stainless steel hardware for added corrosion resistance � Board has a matching non-slip sanded tread � Salt Pool Jump System can be retrofitted on a Cantilever jig

Stand Colors
WHITE TAUPE
Board Colors
WHITE TAUPE BLUE

SILVER GRAY ROCK GRAY
PEBBLE GRAY GRANITE

CANTILEVER JUMP STAND WITH FRONTIER III BOARD

Part No. 68-210-59610

Size 6'

68-209-5962

6'

68-210-59623

6'

68-210-59624

6'

68-210-596-SG 6'

68-210-59810

8'

68-209-5982

8'

68-210-59823

8'

68-210-59824

8'

68-210-598-SG 8'

* Clear tread

Color Taupe White Pebble* Gray Granite* Silver Gray Taupe White Pebble* Gray Granite* Silver Gray

Shipping (3 boxes, Class 70)

Weight

Length Width Height

52 lbs 24kg
60 lbs 27kg
20 lbs 10kg

74" 188cm
16" 41cm
33" 84cm

20" 51cm
14" 36cm
18" 46cm

3" 8cm
12" 30cm
4" 10cm

70 lbs 32kg
60 lbs 27kg
33 lbs 15kg

98" 249cm
16" 41cm
41" 104cm

20" 51cm
14" 36cm
18" 46cm

3" 8cm
12" 30cm
4" 10cm

Due to printing technology actual color may differ. Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details. All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.
Compatible with:
TrueTread� Board

CANTILEVER JUMP STAND WITH GLAS-HIDE BOARD

Part No.

Size

Color

68-209-2062

6'

68-209-2063

6'

White Blue

Shipping (3 boxes, Class 70)

Weight
57 lbs 26kg

Length
74" 188cm

Width
20" 51cm

Height
3" 8cm

60 lbs 27kg

16" 41cm

14" 36cm

12" 30cm

20 lbs 10kg

33" 84cm

18" 46cm

4" 10cm

68-209-2082

8'

68-209-2083

8'

White Blue

57 lbs 26kg
60 lbs 27kg
20 lbs 10kg

98" 249cm
16" 41cm
41" 104cm

20" 51cm
14" 36cm
18" 46cm

3" 8cm
12" 30cm
4" 10cm

Frontier III Board Glas-Hide Board

See page 18-19 for diving board part numbers.

srsmith.com | 800.824.4387

11

Frontier II Stand

Stand Color

The Frontier II is a high-value stand and board ideal for pricesensitive customers. � Made of strong steel and powder-coated white for increased
corrosion resistance
� 6' or 8' lengths
� Stand comes in white, with your choice of board color to match your pool slide and backyard d�cor
� Stainless steel hardware for added corrosion resistance
� Board has a matching non-slip sanded tread

WHITE

FRONTIER II JUMP STAND WITH FRONTIER II BOARD* FOR MATCHING TREAD, ADD "T" BEHIND PART NUMBER

Board Colors
WHITE TAUPE
GRAY

PEBBLE GRAY GRANITE BLUE

Due to printing technology actual color may differ.
Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.
All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

Part No. 68-209-586610 68-209-58662 68-209-586620 68-209-586621 68-209-58663 68-209-586623 68-209-586624

Size 6' 6' 6' 6' 6' 6' 6'

Color Taupe White Gray Silver Gray Blue Pebble** Gray Granite**

68-209-586810

8'

68-209-58682

8'

68-209-586820

8'

68-209-586821

8'

68-209-58683

8'

68-209-586823

8'

68-209-586824

8'

Taupe White Gray Silver Gray Blue Pebble** Gray Granite**

* Not recommended for salt pools or decks with pavers. ** Clear tread

Shipping (2 boxes, Class 70)

Weight

Length Width Height

52 lbs 24kg
27 lbs 12kg

74" 188cm
34" 86cm

20" 51cm
8" 20cm

3" 8cm
8" 20cm

70 lbs 32kg
34 lbs 15kg

98" 249cm
41" 104cm

20" 51cm
9" 23cm

3" 8cm
7" 18cm

Compatible with:

Frontier II Board
See page 18-19 for diving board part numbers.

12

DIVING BOARDS + STANDS

Frontier II Bases & Jig

Part No. 69-209-5866 69-209-5888 69-209-227-SS

Size 6'

Color Spring Base only

8'

Spring Base only

Jig only (included with base)

Shipping (Class 70) Weight Length Width

26.5 lbs 12kg

34" 86cm

8" 20cm

34 lbs 15kg

41" 104cm

9" 23cm

3 lbs 1kg

7" 18cm

7" 18cm

Height
8" 20cm
7" 18cm
7" 18cm

U-Frame Stand

The U-Frame stand is a great entry-level stand, ideal for pricesensitive users.
� Made of 1.90" OD, .049" or .065" wall, 304 or 316L stainless steel tubing, and includes a slip-on rubber fulcrum
� Choose from a variety of board colors to match your pool slide and backyard d�cor
� Pair with 6', 8', 10' or 12' boards

Stand Color

Stand Part No. UF-12-100

Description 12" U-Frame (.049)

UF-14-101 14" U-Frame (.049)

Board Size 6' or 8'
6' or 8'

POLISHED STEEL
Due to printing technology actual color may differ. All installations must comply with all applicable local and national codes and installation must be completed in accordance with S.R.Smith installation instructions.

UF-18-101 18" U-Frame (.049) UF-18-102 18" U-Frame (.065) UF-24-103 24" U-Frame (.049) UF-24-102 24" U-Frame (.065)

6' or 8' 6' or 8' 10' or 12' 10' or 12'

Compatible with:

� For Marine Grade (316L), add -MG to part number � Boards are sold separately * Not recommended for salt pools

Shipping (Class 85)

Weight Length Width

14 lbs 6kg

33" 84cm

25" 64cm

16 lbs 7.2kg

33" 84cm

25" 64cm

16 lbs 7.2kg

33" 84cm

25" 64cm

18 lbs 8.1kg

34" 86cm

31" 79cm

16 lbs 7.2kg

34" 86cm

31" 79cm

19 lbs 8.6kg

34" 86cm

31" 79cm

Height
2" 5cm
2" 5cm
2" 5cm
2" 5cm
2" 5cm
2" 5cm

TrueTread� Board
Fibre-Dive Board
Frontier III Board
Frontier IV Board* (8' only) See page 18-19 for diving board part numbers.

U-Frame with 8' Frontier IV Board*
The special U-Frame Stand, designed specifically for our Frontier IV board, is a great alternative to consider for pools with heavy diving traffic and more athletic pool users.
� The Frontier IV board comes in an 8' length
� Mounting bolts are on 11" centers
� Frontier IV comes in white, with a matching non-slip sanded tread for maximum safety
� Made of 1.90"OD, .109 wall tubing, 304 or 316L stainless steel tubing
� 400 lb. weight limit

Stand Part No.
UF-15-200

Description

Board Size

15" U-Frame only (.109) 8'

68-209-1582 U-Frame with

8'

8' Frontier IV Board

66-209-4082 8' Frontier IV Board (board only)

2 boxes

Shipping (Class 85) Weight Length Width Height

21 lbs 9kg
98" 201 lbs
91kg

33" 84cm
20" 249cm
45" 114cm

25" 64cm
3" 51cm
17" 43cm

2" 5cm
8cm 14" 36cm

Notes: Weight limit 400 lbs. *The Frontier IV board has 11" bolt centers and requires this SPECIAL U-Frame that will only work with this board

FC-100A (18") FC-200A (20")

U-Frame Fulcrum Pad
� Heavy-duty rubber � 18" or 20" long � Accommodates 1.90" OD tubing

srsmith.com | 800.824.4387

13

Edge Jump System

� Available in 6' or 8' board lengths � Comes in several colors to match your outdoor decor � Active base - spring feature is derived from
Both base & board � Durable & long lasting acrylic & fiberglass construction
with advanced composite springs
� Optional board fall compatible with board & base � Weight limit: 300 lbs � Can be used for retrofit applications with existing 12"
on center techni-spring steel jigs or 606/608 12" jig bolt pattern

Edge Base Colors

White - WW (standard)

Taupe - 7 (upgrade)

Board Colors

Silver Gray - 9
(upgrade)

White with white tread (standard)

Taupe with tan tread (upgrade)

Silver Gray w/ gray tread
(upgrade)

OPTIONAL WATERFALL ASSEMBLY KIT

Part No.

Description

SHIPPING

5 lbs | 13" L x 12" W x 6" H

BOARD FALL

Includes: Board Fall, Mounting Hardware (4 Screws), 8' & 4" Of 1/2" Flex Pvc Pipe, 1-Union

EDGE SPRINGS WITH MOUNTING HARDWARE COMPATIBLE WITH 6' OR 8' BOARDS

Part No.

Description

SHIPPING

27 lbs | 26" L x 18" W x 8" H

EDGE-SPRING

Spring Assembly - White

EDGE-SPRING-3 Spring Assembly - Taupe

EDGE-SPRING-9 Spring Assembly - Silver Gray

Spring assembly with spring to base and spring to board stainless steel hardware

EDGE BOARD WITH MOUNTING HARDWARE

Part No.

Description

SHIPPING

6' Board: 49 Lbs | 76" L X 19" W X 3" H 8' Board: 79 Lbs | 98" L X 19" W X 3" H

EDGE6WW

6' Edge Board - White

EDGE6BW

6' Edge Board - Blue

EDGE6-7

6' Edge Board - Taupe

EDGE6-9

6' Edge Board - Silver Gray

EDGE8WW

8' Edge Board - White

EDGE8BW

8' Edge Board - Blue

EDGE8-7

8' Edge Board - Taupe

EDGE8-9

8' Edge Board - Silver Gray

Includes aquaboard with matching top tread and stainless steel hardware

EDGE BASE AND JIG COMPATIBLE WITH 6' OR 8' BOARDS

Part No.

Description

SHIPPING

27 lbs | 26" L x 18" W x 8" H

EDGE-BASE

Base And Jig - White

EDGE-BASE-7

Base And Jig - Taupe

EDGE-BASE-9

Base And Jig - Silver Gray

Edge Base and Jig Includes Stainless Steel Jig to Base Mounting Hardware

EDGE BASE ONLY COMPATIBLE WITH 6' OR 8' BOARDS

Part No.

Description

SHIPPING

19 lbs | 26" L x 18" W x 8" H

EDGE-BASE-NJ

BASE ONLY - White

EDGE-BASE-NJ-7 BASE ONLY - Taupe

EDGE-BASE-NJ-9 BASE ONLY - Silver Gray

Edge Base and Jig Includes Stainless Steel Jig to Base Mounting Hardware

14

srsmith.com | 800.824.4387

15

T7 Jump System
� Unique 7' diving board can be installed on type I � type V pools
� Durable, long lasting fiberglass construction with advanced composite springs
� Advanced high-tech RTM manufacturing � Optional board fall compatible base � Weight limit = 300 lbs � Variety of earth tones & granite colors available � Suitable for use with salt systems � Matching products: designed to match the landscape
slide products or destination series in-pool furniture perfectly for a complete designer pool look

COLOR OPTIONS

TAN -51

GRAY -52

MONT BLANC
-54

PEBBLE -55

FASHION GRAY -56

CAPPUCCINO -57

AUTUMN SUN -58

STARRY NIGHT
-60

SEASHELL -61

16

DIVING BOARDS + STANDS

T7 DIVING SYSTEM - COMPLETE BASIC SETUP
Complete system comes with Board, Spring, Base, Jig and all Stainless Steel Mounting Hardware.

Part No.

Description

SHIPPING

Contact customercare@srsmith.com

T7-N51-C T7-N52-C T7-N54-C T7-N55-C T7-N56-C T7-N57-C T7-N58-C T7-N60-C T7-N61-C

Complete Basic Setup - Tan Complete Basic Setup - Gray Complete Basic Setup - Mont Blanc Complete Basic Setup - Pebble Complete Basic Setup - Fashion Gray Complete Basic Setup - Cappuccino Complete Basic Setup - Autumn Sun Complete Basic Setup - Starry Night Complete Basic Setup - Seashell

T7 BASE AND JIG WITH MOUNTING HARDWARE
T7 Base and Jig with Jig to Base Stainless Steel Hardware

Part No.

Description

SHIPPING

Contact customercare@srsmith.com

T7-NBASE-51 T7 Base And Jig - Tan

T7-NBASE-52 T7 Base And Jig - Gray

T7-NBASE-54 T7 Base And Jig - Mont Blanc

T7-NBASE-55 T7 Base And Jig - Pebble

T7-NBASE-56 T7 Base And Jig - Fashion Gray

T7-NBASE-57 T7 Base And Jig - Cappuccino

T7-NBASE-58 T7 Base And Jig - Autumn Sun

T7-NBASE-60 T7 Base And Jig - Starry Night

T7-NBASE-61 T7 Base And Jig - Seashell

T7 DIVING SYSTEM - COMPLETE WITH WATERFALL
Complete system comes with Board, Spring, Base, Jig, Waterfall Feature and all Stainless Steel Mounting Hardware.

Part No.

Description

SHIPPING

Contact customercare@srsmith.com

T7-NWBFAL-51-C Complete With Waterfall - Tan

T7-NWBFAL-52-C Complete With Waterfall - Gray

T7-NWBFAL-54-C Complete With Waterfall - Mont Blanc

T7-NWBFAL-55-C Complete With Waterfall - Pebble

T7-NWBFAL-56-C Complete With Waterfall - Fashion Gray

T7-NWBFAL-57-C Complete With Waterfall - Cappuccino

T7-NWBFAL-58-C Complete With Waterfall - Autumn Sun

T7-NWBFAL-60-C Complete With Waterfall - Starry Night

T7-NWBFAL-61-C Complete With Waterfall - Seashell

T7 BASE WITH MOUNTING HARDWARE - NO JIG T7 Base with Stainless Steel Mounting Hardware without Jig

Part No.

Description

SHIPPING

Contact customercare@srsmith.com

T7-NBASE-51-NJ T7 BASE - TAN

T7-NBASE-52-NJ T7 BASE - GRAY

T7-NBASE-54-NJ T7 BASE - MONT BLANC

T7-NBASE-55-NJ T7 BASE - PEBBLE

T7-NBASE-56-NJ T7 BASE - FASHION GRAY

T7-NBASE-57-NJ T7 BASE - CAPPUCCINO

T7-NBASE-58-NJ T7 BASE - AUTUMN SUN

T7-NBASE-60-NJ T7 BASE - STARRY NIGHT

T7-NBASE-61

T7 BASE - SEASHELL

T7 SAND TREAD BOARD W/ MOUNTING HARDWARE Comes with 7' Sand Tread Surface Board Only and Stainless Steel Hardware.

Part No.

Description

SHIPPING

Contact customercare@srsmith.com

T7 DB-51

Sand Tread Board And Springs - Tan

T7 DB-52

Sand Tread Board And Springs - Gray

T7 DB-54

Sand Tread Board And Springs - Mont Blanc

T7 DB-55

Sand Tread Board And Springs - Pebble

T7 DB-56

Sand Tread Board And Springs - Fashion Gray

T7 DB-57

Sand Tread Board And Springs - Cappuccino

T7 DB-58

Sand Tread Board And Springs - Autumn Sun

T7 DB-60

Sand Tread Board And Springs - Starry Night

T7 DB-61

Sand Tread Board And Springs - Seashell

T7 SPRINGS (PAIR) WITH MOUNTING HARDWARE
T7 Springs (pair) with Spring to Base Stainless Steel Hardware

Part No.

Description

SHIPPING

27 lbs | 47" L x 7" W x 8" H

T7-NSPRING-3 Taupe (For Colors -51, -55, -57, -58 & -61)

T7-NSPRING-9 Gray (For Colors -52, -54, -56 & -60)

OPTIONAL WATERFALL ASSEMBLY KIT

Part No.

Description

SHIPPING

5 lbs | 13" L x 12" W x 6" H

BOARD FALL

Includes: Board Fall, Mounting Hardware (4 Screws), 8' & 4" Of 1/2" Flex Pvc Pipe, 1-Union

srsmith.com | 800.824.4387

17

Residential Board Part Numbers
All part numbers shown are for a diving board with a white tread, unless noted. TO ORDER A DIVING BOARD WITH A MATCHING TREAD, ADD A "T" AT THE END OF THE PART NUMBER.

Fibre-Dive Boards (2-hole) Weight Limit = 250 lbs.

Part Number

Board Size

66-209-266S2-1 6'

Color White

66-209-266S3-1 6'

Blue

66-209-266S10 6'

Taupe

66-209-266S20 6'

Gray

66-209-266S21 6'

Silver Gray

66-209-266S23 6' 66-209-266S24 6' 66-209-268S2-1 8'

Pebble w/clear tread
Gray Granite w/clear tread
White

66-209-268S3-1 8'

Blue

66-209-268S10 8'

Taupe

66-209-268S20 8'

Gray

66-209-268S21 8'

Silver Gray

66-209-268S23 8' 66-209-268S24 8' 66-209-270S2-1 10'

Pebble w/clear tread
Gray Granite w/clear tread
White

66-209-270S3-1 10'

Blue

66-209-270S10 10'

Taupe

66-209-270S20 10'

Gray

Frontier II Boards (3-hole) Weight Limit = 250 lbs.

Shipping: (Class 70) Weight Length Width Height
36 lbs 74" 20" 3" 16kg 188cm 51cm 8cm
36 lbs 74" 20" 3" 16kg 188cm 51cm 8cm
36 lbs 74" 20" 3" 16kg 188cm 51cm 8cm
36 lbs 74" 20" 3" 16kg 188cm 51cm 8cm
36 lbs 74" 20" 3" 16kg 188cm 51cm 8cm
36 lbs 74" 20" 3" 16kg 188cm 51cm 8cm
36 lbs 74" 20" 3" 16kg 188cm 51cm 8cm
59 lbs 98" 20" 3" 27kg 249cm 51cm 8cm
59 lbs 98" 20" 3" 27kg 249cm 51cm 8cm
59 lbs 98" 20" 3" 27kg 249cm 51cm 8cm
59 lbs 98" 20" 3" 27kg 249cm 51cm 8cm
59 lbs 98" 20" 3" 27kg 249cm 51cm 8cm
59 lbs 98" 20" 3" 27kg 249cm 51cm 8cm
59 lbs 98" 20" 3" 27kg 249cm 51cm 8cm
75 lbs 122" 20" 3" 34kg 310cm 51cm 8cm
75 lbs 122" 20" 3" 34kg 310cm 51cm 8cm
75 lbs 122" 20" 3" 34kg 310cm 51cm 8cm
75 lbs 122" 20" 3" 34kg 310cm 51cm 8cm

Part Number
66-209-586S2

Board Size
6'

66-209-586S3 6'

66-209-586S10 6'

66-209-586S20 6'

66-209-586S23 6'

66-209-586S24 6'

66-209-588S2 8'

66-209-588S3 8'

66-209-588S10 8'

66-209-588S20 8'

66-209-588S23 8'

66-209-588S24 8'

Color White
Blue
Taupe
Gray
Pebble w/clear tread Gray Granite w/clear tread White
Blue
Taupe
Gray
Pebble w/clea w/clear tread Gray Granite w/clear tread

Shipping: (Class 70) Weight Length Width Height
52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm
70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm

* Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.
NOTE: If replacing a board you must replace the fulcrum pad. Failure to do so will void warranty.

18

DIVING BOARDS + STANDS

Frontier III Boards (2-hole) Weight Limit = 250 lbs.

Part Number
66-209-596S2

Board Size
6'

Color White

66-209-596S3 6'

Blue

66-209-596S10 6'

Taupe

66-209-596S20 6'

Gray

66-209-596S21 6'

Silver Gray

66-209-596S23 6' 66-209-596S24 6' 66-209-598S2 8'

Pebble w/clear tread Gray Granite w/clear tread White

66-209-598S3 8'

Blue

66-209-598S10 8'

Taupe

66-209-598S20 8'

Gray

66-209-598S21 8'

Silver Gray

66-209-598S23 8' 66-209-598S24 8' 66-209-600S2 10'

Pebble w/clear tread Gray Granite w/clear tread White

66-209-600S3 10'

Blue

66-209-600S10 10'

Taupe

66-209-600S20 10'

Gray

66-209-600S21 10'

Silver Gray

Shipping: (Class 70) Weight Length Width Height
52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 52 lbs 74" 20" 3" 24kg 188cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 70 lbs 98" 20" 3" 32kg 249cm 51cm 8cm 85 lbs 122" 20" 3" 38kg 310cm 51cm 8cm 85 lbs 122" 20" 3" 38kg 310cm 51cm 8cm 85 lbs 122" 20" 3" 38kg 310cm 51cm 8cm 85 lbs 122" 20" 3" 38kg 310cm 51cm 8cm
85 lbs 122" 20" 3" 38kg 310cm 51cm 8cm

* Due to differences in material and textures, Gray Granite Diving Boards and Stands are not an exact color match to Gray Granite Slides. Please consult your S.R.Smith sales representative for more details.

Frontier IV Boards* (2-hole) Weight Limit = 400 lbs.

Part Number
66-209-4082

Board Size
8'

Color White

*Frontier IV board requires a special stand

Shipping: (Class 70) Weight Length Width Height
83 lbs 98" 20" 3" 38kg 249cm 51cm 8cm

Glas-Hide Boards (2-hole) Weight Limit = 250 lbs.

Part Number

Board Size

66-209-206S2-1 6'

Color White

66-209-206S3-1 6'

Blue

66-209-208S2-1 8'

White

66-209-208S3-1 8'

Blue

66-209-210S2-1 10' White

66-209-210S3-1 10' Blue

Shipping: (Class 70) Weight Length Width Height
57 lbs 74" 20" 3" 26kg 188cm 51cm 8cm 57 lbs 74" 20" 3" 26kg 188cm 51cm 8cm 75 lbs 98" 20" 3" 34kg 249cm 51cm 8cm 75 lbs 98" 20" 3" 34kg 249cm 51cm 8cm 95 lbs 122" 20" 3" 43kg 310cm 51cm 8cm
95 lbs 122" 20" 3" 43kg 310cm 51cm 8cm

Mounting Kits
� 67-209-911-SS � 67-209-911-SS-PG � 67-209-911-SS-TP � 69-209-032-SS � 67-209-913-SS � 67-209-909-SS � 67-209-910-SS

Residential Board - White Residential Board - Gray Residential Board - Taupe Frontier II Board Frontier IV Board Bolt Kit, residential with (5) 5.5" bolts Bolt Kit, residential with (5) 5" bolts

NOTE: If replacing a board you must replace the fulcrum pad. Failure to do so will void warranty.

srsmith.com | 800.824.4387

19

800.824.4387 srsmith.com
No part of this may be copied or reproduced without the expressed written consent of S.R.Smith, LLC �Copyright 2021 S.R.Smith, LLC. All rights reserved. | M-E-BRO-320 10M 0421
