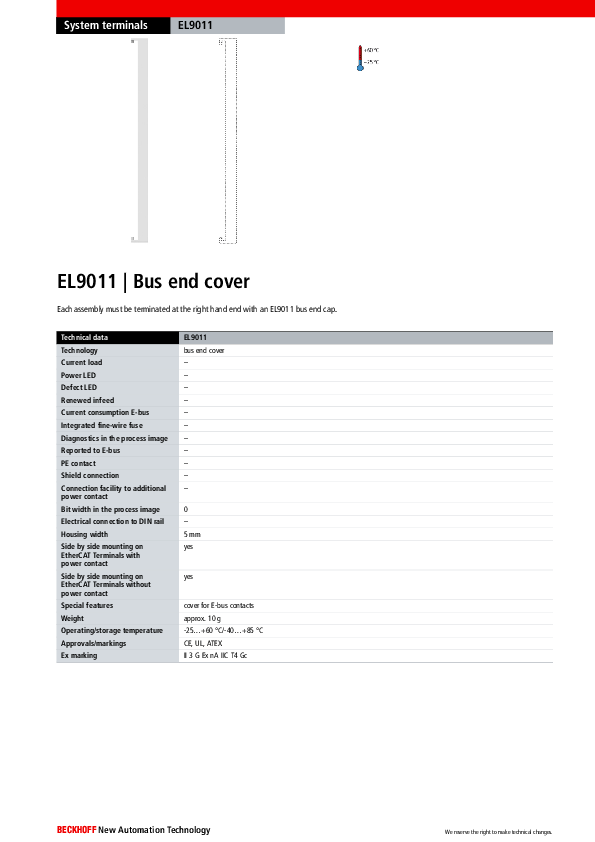

System terminals

EL9011

EL9011 | Bus end cover
Each assembly must be terminated at the right hand end with an EL9011 bus end cap.

Technical data Technology Current load Power LED Defect LED Renewed infeed Current consumption E-bus Integrated fine-wire fuse Diagnostics in the process image Reported to E-bus PE contact Shield connection Connection facility to additional power contact Bit width in the process image Electrical connection to DIN rail Housing width Side by side mounting on EtherCAT Terminals with power contact Side by side mounting on EtherCAT Terminals without power contact Special features Weight Operating/storage temperature Approvals/markings Ex marking

EL9011 bus end cover � � � � � � � � � � �
0 � 5 mm yes
yes
cover for E-bus contacts approx. 10 g -25...+60 �C/-40...+85 �C CE, UL, ATEX II 3 G Ex nA IIC T4 Gc

BECKHOFF New Automation Technology

We reserve the right to make technical changes.
