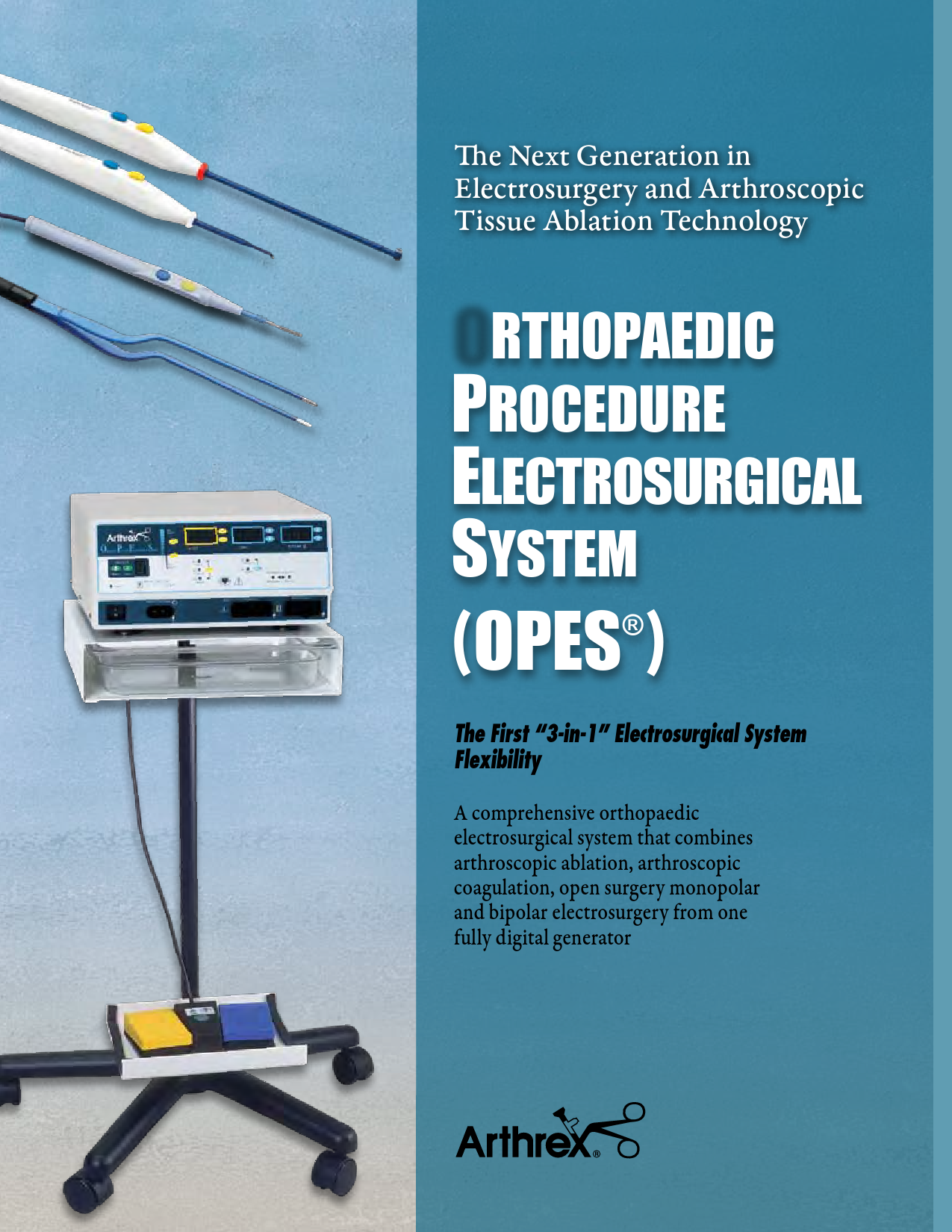

The Next Generation in Electrosurgery and Arthroscopic Tissue Ablation Technology
ORTHOPAEDIC PROCEDURE ELECTROSURGICAL SYSTEM
(OPES�)
The First "3-in-1" Electrosurgical System Flexibility
A comprehensive orthopaedic electrosurgical system that combines arthroscopic ablation, arthroscopic coagulation, open surgery monopolar and bipolar electrosurgery from one fully digital generator

The Arthrex Advantage
The Arthrex Orthopaedic Procedure Electrosurgical System (OPES) is the first of its kind completely digital platform designed to provide the surgeon and O.R. staff with greater flexibility and performance for arthroscopic as well as open surgical procedures.
Digital Technology and Patient Safety
The OPES generator was designed with patient safety as its highest priority. The completely digital generator provides efficient tissue cutting, coagulation and ablation at significantly reduced power settings. The Digital Error Detection (DED) and
Neutral Electrode Monitoring (NEM) ensure the highest level of patient safety.
Monopolar Ablation and Coagulation Probes
The OPES monopolar all-in-one disposable ablation probes provide greater ablation speed and efficiency while lowering the per procedure cost. For convenience, all probes are hand or foot controlled.
3-in-1 Electrosurgical System
With "3-in-1" system flexibility, the OPES Electrosurgical Generator is also capable of controlling a host of different instruments, including disposable monopolar arthroscopic electrodes, reusable and disposable monopolar open procedure pencils and tips, and reusable bipolar forceps. The need for three separate, costly and space-occupying electrosurgical generators is eliminated.
Electrosurgical Generator Compatibility
All OPES arthroscopic probes and electrodes can be used in conjunction with standard electrosurgical generators utilizing a 3-pin monopolar connection port. Another great option to eliminate multiple arthroscopic ablation boxes in the O.R.

OPES Electrosurgical Generator

The OPES Electrosurgical Generator utilizes Fast Digital Feedback System technology (FDFS). The generator can track changes in tissue impedance on a real time level 5000T/S. As tissue impedance varies, the power is automatically adjusted to deliver a constant clinical effect. The result is more efficient tissue cutting, coagulation and ablation at significantly lower power levels. Lower power levels produce lower heat to the tissue. The digital OPES generator raises the standard in electrosurgery and patient safety.
The OPES generator is equipped with ten blended cutting modes, allowing the user to select the most effective setting for their particular needs. During ablation, for instance, the blend settings provide higher voltage peaks for the most aggressive and consistent ablation with significantly less power than the pure cut waveform that is used in bipolar systems. The result is cleaner, cooler and safer tissue removal.
The OPES generator comes preprogrammed with ten power levels. These convenient, preset levels can be used in conjunction with recommended ablation probe power settings, or can be reprogrammed to levels to suit individual preferences. Cut, blend, coag and bipolar levels can be programmed.

OPES Electrosurgical Generator

AR-9600

Digital Hardware
� Rapid (5000T/S) tissue impedance tracking � Reduced power output � No calibration

Convenience and Ease of Use
� Ten probe-specific factory power level presets

Performance

� Ten distinct blend mode settings

� Separate coag and ablate

function

for ablation

probes

Built-In Safety Features
� Neutral electrode monitoring (NEM) � Digital error detection

10 Blend Mode Settings Cut Mode

Coag Mode

Bipolar Mode

Ten Factory Power Level Presets

Cut I, Cut II & Blend Mode Selector
Patient Return Electrode Port

Pinpoint or Spray Coag Selector Monopolar & Bipolar Footswitch Indicator
Bipolar Instrument Connection Port
3-Pin Monopolar Instrument Connection Port

AR-9602M-45 AR-9602M-90 AR-9608 AR-9608-45 AR-9603-30 AR-9603-60 AR-9603-90 AR-9604-90 AR-9703-60 AR-9703-90 AR-9704-60 AR-9704-90 AR-9705-60 AR-9705-90 AR-9703A-60 AR-9703A-90 AR-9704A-60 AR-9704A-90 AR-9705A-60 AR-9705A-90 AR-9601SJ-45 AR-9601SJ-90 AR-9608SJ AR-9608SJ-45

Arthroscopic Tissue AR-9604A-90 Ablation and Coagulation

AR-9601SJ-90

Monopolar Ablation Probes and Ball Electrodes
With the comprehensive line of tissue ablation probes, the possibilities are endless. The raised ribbed geometry of the ablation probe tips provide the most efficient design for effective ablating while providing the tactile feel required by surgeons. The high quality ceramic and insulation, as well as a stiffer shaft, make these probes extremely durable and reliable.
The all-in-one handle, probe and cord design is an effective way to control "replacement costs" associated with other expensive, reusable components. The OPES assortment includes a number of tissue ablation/coagulation probes in aspirating and nonaspirating configurations.
The line of low profile probes is designed to fit through smaller diameter cannulas typically used in shoulder procedures. The suction port is positioned through the active electrode face for optimum visualization and ablation efficiency as tissue is drawn toward the active electrode.
The varying angled tips, electrode sizes and 130 mm shaft lengths offer the greatest number of choices resulting in optimal ablation control for procedure-specific use. All ablation probes may be used with hand or foot control, based on surgeon preference. With the foot control engaged, the hand control buttons become inactive for patient safety.

Non-Aspirating Ablation Probes OPES Ablator, Meniscectomy, 45� OPES Ablator, Meniscectomy, 90� OPES Ball Electrode, Arthroscopic OPES Ablator, 3 mm, 30� OPES Ablator, 3 mm, 60� OPES Ablator, 3 mm, 90� OPES Ablator, 4 mm, 90� OPES Ablator, 3 mm, 60�, low profile OPES Ablator, 3 mm, 90�, low profile OPES Ablator, 4 mm, 60�, low profile OPES Ablator, 4 mm, 90�, low profile OPES Ablator, Toothbrush, 60�, low profile OPES Ablator, Toothbrush, 90�, low profile

AR-9602M-45 AR-9602M-90 AR-9608 AR-9603-30 AR-9603-60 AR-9603-90 AR-9604-90 AR-9703-60 AR-9703-90 AR-9704-60 AR-9704-90 AR-9705-60 AR-9705-90

Aspirating Ablation Probes OPES Aspirating Ablator, 3 mm, 60�, low profile OPES Aspirating Ablator, 3 mm, 90�, low profile OPES Aspirating Ablator, 4 mm, 60�, low profile OPES Aspirating Ablator, 4 mm, 90�, low profile OPES Aspirating Ablator, Toothbrush, 60�, low profile OPES Aspirating Ablator, Toothbrush, 90�, low profile

AR-9703A-60 AR-9703A-90 AR-9704A-60 AR-9704A-90 AR-9705A-60 AR-9705A-90

Monopolar Small Joint Ablation Probes and Ball Electrode
The OPES Small Joint Ablation Probes and Ball Electrode provide controlled ablation, coagulation and tissue modification during arthroscopic procedures of the elbow, wrist and ankle. The 6.25 cm length probes have a 1.5 mm diameter active electrode in both 45 and 90 degree tip angles. The optimal size provides superior visualization, manipulation and access to smaller joint spaces. The Ball Electrode tip is 2 mm and is malleable for intraoperative adjustments to assist in reaching tight areas. The small joint probes also function with hand or foot control.

Small Joint Ablation Probes and Ball Probe OPES Ablator, Small Joint, 45� OPES Ablator, Small Joint, 90� OPES Ball Electrode, Small Joint

AR-9601SJ-45 AR-9601SJ-90 AR-9608SJ

Open & Arthroscopic Hemostasis & Cutting

Arthroscopic Electrodes
The OPES arthroscopic electrodes are available for use during arthroscopic procedures for hemostasis and tissue cutting, including lateral release or subacromial decompression. Each Arthroscopy Electrode is strengthened with an inner steel shaft to achieve optimal stiffness and control. Electrodes feature safety grip insulators combining patient and user safety with easy insertion and removal from the surgical pencil.

Arthroscopic Electrodes Arthroscopy Electrode, Hook, 45� Arthroscopy Electrode, Hook, 90� Arthroscopy Electrode, Blade, insulated Arthroscopy Electrode, Blade, uninsulated

AR-9606H-45 AR-9606H-90 AR-9606A AR-9606M

Monopolar Electrosurgical Instruments
The Monopolar pencils and electrodes are available in single use and reusable models. All electrodes use the standard 3/32" inner steel shaft and safety grip insulator, for optimal performance and safety. Electrodes are available in blade and needle tip with standard or extended length.
The reuseable pencils are validated for 40 autoclave cycles, ensuring quality and performance. They are supplied unsterile. The reusable electrodes are validated for 25 autoclave cycles.All pencils are compatible with current generators with standard 3-pin connection ports.

Disposable Pencil Pencil, Hand Control

AR-9610

Reusable Pencil and Electrodes Electrode, Blade, Reusable Electrode, Extended Blade, Reusable Electrode, Needle, Reusable Electrode, Extended Needle, Reusable Pencil, Hand Control, Reusable

AR-9609BR AR-9609EBR AR-9609NR AR-9609ENR AR-9610R

AR-9606H-45 AR-9606H-90 AR-9606A AR-9606M

AR-9606H-90

AR-9610 AR-9610R

AR-9611BMR AR-9611BFR AR-9611SFR AR-9611CFR AR-9612CFR AR-9612SMR AR-9612SFR

Bipolar Hemostasis & Accessories

Bipolar Forceps
A complete line of bipolar forceps are available in seven different sizes for specific surgical situations. All are foot pedal controlled, reusable and available in micro, 1 mm and 2 mm tip size and in lengths ranging from 4.5" to 8". A reusable bipolar cord is also available with quality silicone construction. All bipolar forceps are validated to 20 autoclave cycles.

Bipolar Forceps Bipolar Forceps, Bayonet, medium, 8" Bipolar Forceps, Bayonet, fine, 7.25" Bipolar Forceps, straight, fine, 7" Bipolar Forceps, curved, fine, 7" Bipolar Forceps, curved, fine, 4.5" Bipolar Forceps, straight, medium, 4.75" Bipolar Forceps, straight, fine, 4.5" Bipolar Forceps Cable

AR-9611BMR AR-9611BFR AR-9611SFR AR-9611CFR AR-9612CFR AR-9612SMR AR-9612SFR AR-9611CR

Reusable and Disposable Accessories
Arthrex carries a complete line of monopolar and bipolar accessories to complement the Orthopaedic Procedure Electrosurgical System as well as to maximize performance and safety with other standard generators.

Reusable Accessories OPES Electrosurgical Generator Stand OPES Electrosurgical Generator Monopolar Footswitch OPES Electrosurgical Generator Bipolar Footswitch ERBE Pencil Plug Adapter Footswitch Pencil Plug Adapter

AR-9600D AR-9600FM AR-9600FB AR-9600EA AR-9600A

Disposable Accessories Pencil Holster Scratch Pad Split Adult Return Electrode

AR-9610H AR-9610SP AR-9610SGP

AR-9600FM AR-9600FB

AR-9610H
AR-9610SGP AR-9610SP

Arthrex OPES Recommended Power Settings

Detach and Hang

Part Number Probe Name

AR-9601SJ-45
2 mm, 45� Small Joint

AR-9601SJ-90
2 mm, 90� Small Joint

AR-9602M-45
2 mm, 45� Meniscec-
tomy

AR-9602M-90
2 mm, 45� Meniscec-
tomy

AR-9603-30
3 mm, 30�

AR-9603-60
3 mm, 60�

AR-9603-90
3 mm, 90�

Recommended Preset Setting

0

0

2

2

4

4

4

OPES Power Setting (Waveform)

Cut I

Cut I

Cut I

Cut I

Cut II

Cut II

Cut II

OPES Power Setting (Cut)

20 W

20 W

30 W

30 W

90 W

90 W

90 W

OPES Power Setting (Pinpoint COAG)

10 W

10 W

15 W

15 W

40 W

40 W

40 W

Indications

Shoulder Subacromial Decompression/
Acromioplasty Bursectomy

I

I

I

I

Synovectomy

I

I

I

I

Capsular/Ligament/Tendon Coagulation

I

I

Labral Tear Resection

I

R

I

I

Adhesive Capsulitis Release

I

I

I

I

Capsular Release

R

R

I

Hemostasis

I

I

Chondroplasty

R

Wrist/Elbow

TFCC Debridement

R

R

Tendon Debridement

R

R

Ligament/Tendon Coagulation

I

I

Fracture Debridement

R

R

Synovectomy

R

R

Chondroplasty

R

R

Knee

Meniscectomy (anterior and posterior)

R

R

Meniscal Cystectomy

R

R

Lateral Release

R

Synovectomy

R

R

I

I

I

Plica Removal

R

R

Chondroplasty

I

R

I

ACL Debridement

Hemostasis

I

I

I

I

I

Notchplasty

I

I

I

Ligament/Tendon Coagulation

Foot/Ankle

Tendon Debridement

R

R

Fracture Debridement

R

R

Scar Tissue Excision

R

R

Synovectomy

R

R

Chondroplasty Ligament/Tendon Coagulation

R

R

I

I

NOTE: The information on this chart is intended as a guideline and suggestion. Surgeons should use their best medical judgment when selecting an Arthrex Ablation Probe for a patient and procedure.

AR-9604-90
3 mm, 90�

AR-9703-60
3 mm, 60� Low Profile

AR-9703-90
3 mm, 90� Low Profile

AR-9704-60
4 mm, 60� Low Profile

AR-9704-90
4 mm, 90� Low Profile

AR-9705-60
Toothbrush, 60�
Low Profile

AR-9705-90
Toothbrush, 90�
Low Profile

AR-9703A-60
3 mm, 60� Aspirating

AR-9703A-90
3 mm, 90� Aspirating

AR-9704A-60
4 mm, 60� Aspirating

AR-9704A-90
4 mm, 90� Aspirating

AR-9705A-60 A
Toothbrush, To 60�
Aspirating A

6

4

4

6

6

6

6

7

7

7

8

9

Cut II

Cut II

Cut II

Cut II

Cut II

Cut II

Cut II

Blend 30%

Blend 30%

Blend 30%

Blend 30%

Blend 30%

110 W

90 W

90 W

110 W

110 W

110 W

110 W

120 W

120 W

120 W

140 W

160 W

50 W

40 W

40 W

50 W

50 W

50 W

50 W

50 W

50 W

50 W

50 W

50 W

R

I

I

R

R

I

I

I

I

R

R

R

R

I

I

R

R

I

I

I

I

R

R

R

I

I

I

I

I

I

I

I

I

R

R

R

I

I

I

I

I

R

I

R

R

I

I

I

R

R

R

R

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

R

R

R

R

R

R

R

R

R

AR-9705A-90
Toothbrush, 90�
Aspirating

AR-9606H-45
Hook, 45� Insulated

AR-9606H-90
Hook, 90� Insulated

9

2

2

Blend 30%

Cut I

Cut I

160 W

30 W

30 W

50 W

15 W

15 W

AR-9606A
Blade, Insulated
2 Cut I 30 W 15 W

AR-9606M

AR-9608

AR-9608-45

AR-9608SJ

Blade,

Ball Elec- Ball Elec-

Uninsulated trode,

trode

Arthroscop-

45�,

ic

Arthroscop-

ic

2

3

3

Ball Electrode,
Small Joint
1

Cut I

Cut II

Cut II

Cut II

30 W

30 W

30 W

20 W

15 W

40 W

40 W

15 W

AR-9608SJ-45
Ball Electrode 45�,
Small Joint
1 Cut II 20 W 15 W

R

I

I

I

I

R R

R

R

I

I

R

I

I

R

R

I

R

R

I

I

I

I

I

R

R

I

I

I

I

R

I

I

R

I

R

R

R

R

I

I

I

I

I

I

R

R

Detachable OPES Reference Chart Content
Part Numbers and Instrument Tips
� Easy identification of probe tips with part numbers
Recommended Preset and Power Settings
� Separate coag and ablate function for ablation probes, ball electrodes and arthroscopic electrodes
� Ten convenient preset power levels for probe specific use
Indications for Use
� Probe specific surgical indications
For assistance in using the products in this brochure, please call the Arthrex Tech Support Hotline 1-888-420-9393 Monday-Friday, 9 am to 5 pm EST
For more information, call Arthrex at 800-933-7001 or contact your local Arthrex representative to schedule a trial.

� Copyright Arthrex Inc., 2008. All rights reserved. LB0675G
