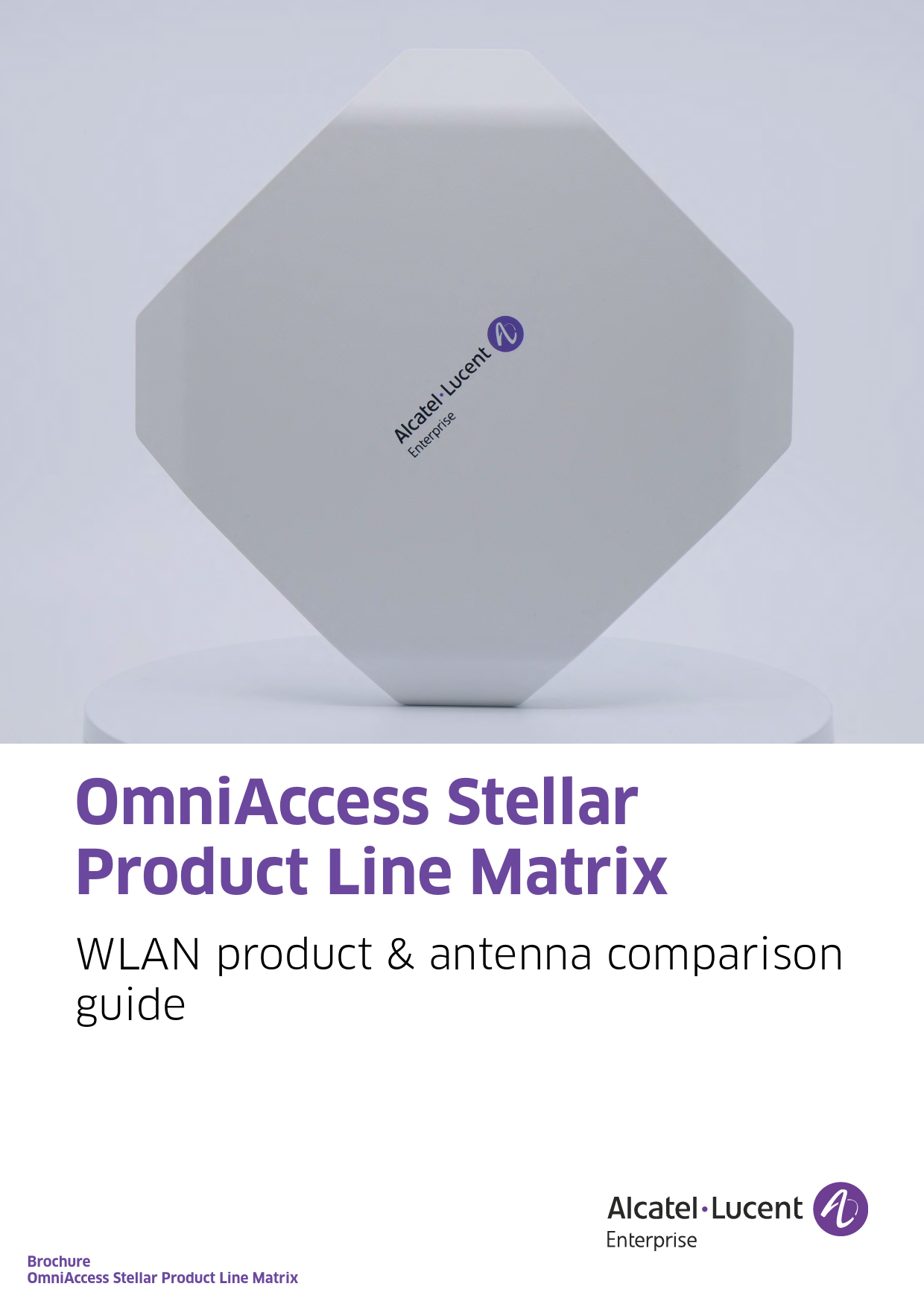

OmniAccess Stellar Product Line Matrix WLAN product & antenna comparison guide Brochure OmniAccess Stellar Product Line Matrix WI-FI STANDARD TYPE OF USE MAX THROUGHPUT NB OF RADIOS SUPPORT BANDS RADIO MIMO TYPE OFDMA / OFDM MAX NB OF SSIDs (per AP) MAX NB OF ASSOCIATED CLIENTS (per AP) MAX TRANSMIT POWER (per radio chain, MCSO, 2.4GHz/5GHz) INTEGRATED ANTENNAS ANTENNA PEAK GAIN (2.4 GHz / 5GHz) RF CONNECTORS (RF-SMA) TPM MODULE NETWORK INTERFACES USB HOST INTERFACE BLE or ZIGBEE PoE POWERED PoE PSE DC POWER SUPPORT OPERATING TEMP RANGE ENCLOSURE VOLUME (excluding packing box & accessories) WEIGHT (excluding packing box & acccessories) RATING DEEP PACKET INSPECTION MAX POWER CONSUMPTION (excluding USB, PoE PSE) SHIPPED WITH MOUNTING KIT AP1362 AP1361D AP1361 802.11ax - Wi-Fi 6 Retro-compatible Outdoor 3 Gbps 4 (incl. 1 for dedicated scanning & 1 BLE/Zigbee radio) 2.4GHz & 5GHz x4 Downlink & Uplink MU-MIMO simultaneous spatial streams OFDMA 32 1024 20dBm/20dBm Directional Omni 7.5/7.4 dBI 4.85/6.48 dBI 6 N-Type 2.5GE + 1 SFP port + 1GE (IoT) USB2.0 TypeC BLE 5.1/Zigbee Integrated 802.3bt/at 15.4W/30W -40�C to +65�C 243mm (W) X 243mm (D) X 85mm (H) 2230 g IP67 70W To be ordered separately AP1351 802.11ax - Wi-Fi 6 Retro-compatible Indoor 10 Gbps 5 (incl. 1 for dedicated scanning & 1 BLE/Zigbee radio) x8 Downlink & Uplink MU-MIMO simultaneous spatial streams OFDMA 24 1536 18dBm/18dBm Omni 3.9/3.9 dBI 2 X 1/2.5/5/10GE USB3.0 TypeA BLE 5.1/Zigbee Integrated 802.3bt 48V DC (nominal) 0 to 45�C 260mm (W) X 260mm (D) X 60mm (H) 1200 g UL2043 (plenum rated) : Under testing 50 W To be ordered separately AP1322 AP1321 802.11ax - Wi-Fi 6 Retro-compatible Indoor 3 Gbps 4 (incl. 1 for dedicated scanning & 1 BLE/Zigbee radio) 2.4GHz & 5GHz x4 Downlink & Uplink MU-MIMO simultaneous spatial streams OFDMA 32 1024 18dBm/18dBm 4 RP-SMA 1GE + 2.5GE Omni 3.61dBi/ 4.45dBi USB2.0 TypeA BLE 5.1/Zigbee Integrated 802.3at (max 18W) 48V DC 0 to 50�C 180 mm (W) x 180 mm (D) x 36 mm (H) 700 g UL2043 (plenum rated) 24.8 W To be ordered separately AP1311 AP1301 802.11ax - Wi-Fi 6 Retro-compatible Indoor 1,77 Gbps 4 (incl. 1 for dedicated scanning & 1 BLE/Zigbee radio) 2.4GHz & 5GHz x2 Downlink & Uplink MU-MIMO simultaneous spatial streams OFDMA 16 802.11ax - Wi-Fi 6 Retro-compatible Indoor 1,77 Gbps 2 2.4GHz & 5GHz x2 Downlink & Uplink MU-MIMO simultaneous spatial streams OFDMA 16 512 512 18dBm/18dBm Omni 3.3dBi/ 3.3dBi 2x1GE + 1GE (IoT) USB2.0 TypeC BLE 5.1 /Zigbee Integrated 802.3af/at 48V DC (nominal) 0 to 45�C 180 mm (W) x 180 mm (D) x 36 mm (H) 582 g UL2043 (plenum rated) : Under testing 18dBm/18dBm Omni 3.3dBi/ 3.3dBi 2x1GE USB2.0 TypeC 802.3af 48V DC (nominal) 0 to 45�C 180 mm (W) x 180 mm (D) x 36 mm (H) 574 g UL2043 (plenum rated) 19.1 W 13.1 W To be ordered separately To be ordered separately WI-FI STANDARD TYPE OF USE MAX THROUGHPUT NB OF RADIOS SUPPORT BANDS RADIO MIMO TYPE OFDMA / OFDM MAX NB OF SSIDs (per AP) MAX NB OF ASSOCIATED CLIENTS (per AP) MAX TRANSMIT POWER (per radio chain, MCSO, 2.54GHz/5GHz) INTEGRATED ANTENNAS ANTENNA PEAK GAIN (2.4 GHz / 5GHz) RF CONNECTORS (RF-SMA) TPM MODULE NETWORK INTERFACES USB HOST INTERFACE BLE or ZIGBEE PoE POWERED PoE PSE DC POWER SUPPORT OPERATING TEMP RANGE ENCLOSURE VOLUME (excluding packing box & accessories) WEIGHT (excluding packing box & acccessories) RATING DEEP PACKET INSPECTION MAX POWER CONSUMPTION (excluding USB, PoE PSE) SHIPPED WITH MOUNTING KIT AP1251 802.11ac - Wi-Fi 5 Retro-compatible Outdoor 1.3 Gbps 2 2.4GHz & 5GHz x2 Downlink MU-MIMO simultaneous spatial streams OFDM 16 512 20dBm/20dBm 8.46dBi/6.62dBi 1GE + 1GE (IoT) 802.3af (max 15W) -40�C to +65�C 243mm (W) X 243mm (D) X 85mm (H) 2230 g IP67 11.8 W AP1232 AP1231 802.11ac - Wi-Fi 5 Retro-compatible Indoor 4.2 Gbps 4 (incl. 1 BLE radio) 2.4GHz & 5GHz x4 Downlink MU-MIMO simultaneous spatial streams OFDM 24 768 18dBm/18dBm 4.38dBi/ 4.47dBi 8 1GE + 2.5GE USB2.0 TypeA BLE 802.3at (max 60W) 48V DC (nominal) 0 to 45�C 230 mm (W) x 230 mm (D) x 47 mm (H) 1400 g UL2043 (plenum rated) 27.6 W AP1222 AP1221 802.11ac - Wi-Fi 5 Retro-compatible Indoor 2.1 Gbps 2 2.4GHz & 5GHz x4 Downlink MU-MIMO simultaneous spatial streams OFDM 16 512 18dBm/18dBm 3.61dBi/ 4.45dBi 4 1GE USB2.0 TypeA 802.3af (max 15W) 48V DC (nominal) 0 to 45�C 180 mm (W) x 180 mm (D) x 36 mm (H) 700 g UL2043 (plenum rated) 15.6 W AP1201H AP1201 802.11ac - Wi-Fi 5 Retro-compatible Hospitality/ Remote access Indoor 1.2 Gbps 1.3 Gbps 2 3 (incl. BLE/Zigbee radio) 2.4GHz & 5GHz x2 Downlink MU-MIMO simultaneous spatial streams OFDM 16 32 256 512 14dBm/18dBm 18dBm/18dBm 4dBi/6.3dBi 4.7dBi/4.6dBi 1GE uplink + 3GE downlink + 1pair RJ45 passthrough USB2.0 TypeA 1GE BLE via USB dongle BLE / Zigbee 802.3af (max 15W) 48V DC (nominal) 0 to 45�C 95mm (W) x 34.45mm (D) x 161.5mm (H) 155 mm (W) x 155 mm (D) x 28 mm (H) 239 g 310 g UL2043 (plenum rated) 12 W 11 W AP1101 802.11ac - Wi-Fi 5 Retro-compatible Indoor 1.2 Gbps 2 2.4GHz & 5GHz SU-MIMO OFDM 16 256 17dBm/20dBm 3.43dBi/2.56dBi 1GE 802.3af (max 15W) 48V DC (nominal) 0 to 45�C 155 mm (W) x 155 mm (D) x 28 mm (H) 270 g UL2043 (plenum rated) 10 W OmniAccess Stellar Access Point External Antennas Matrix Indoor ANTENNA MODEL ANT-O-6 CONFIGURATION Omni Dual Band Indoor ANT-O-M4-5 Omni Dual Band Indoor ANT-S-M4-60 Sector Dual Band Indoor ANT-S-M4-120 Indoor ANT-S-M4-30 Outdoor Outdoor Outdoor Outdoor ANT-O-M2-5 ANT-O-M4-9 ANT-S-M6-60-9 ANT-O-M6-6 Sector Dual Band Sector 5GHz Band (37�) Omni Dual Band Omni Dual Band Sector Dual Band (60�) Omni Dual Band GAIN 3DB BEAM-WIDTH 4dBi@2.4GHz 6dBi@5GHz H-Plane:360� 3.3dBi@2.4GHz 5.5dBi@5GHz H-Plane:360� 4.5dBi@2.4GHz 6dBi@5GHz H-Plane 60�, E-Plane 60� 5dBi@2.4GHz 5dBi@5GHz H-Plane 120�, E-Plane 70� 13dBi@5GHz H-Plane 37�, E-Plane 37� 5dBi@2.4GHz 8dBi@5GHz 7.5dBi@2.4GHz, 9dBi@5GHz 9dBi�1dBi@2.4GHz, 9dBi�1dBi@5GHz Azimuth (Omni), Azimuth (Omni), Elavation (35�/25�) Elavation (22�/11�) H-Plane: 65�10�, V-Plane: 35�10� 6dBi@2.4GHz, 8dBi@5GHz H-Plane: 360� POLARIZATION Linear & Vertical Linear, Vertical & Horizontal Linear, Vertical & Horizontal Double dual Slant �45� Vertical, Horizontal & Dual Slant (�45�) Vertical & Horizontal Vertical & Horizontal Vertical & Horizontal Linear, Vertical & Horizontal CONNECTOR RPSMA-J RPSMA-J RPSMA-J RPSMA-J RPSMA-J 2*N-Type Female 4*N-Type Female 6*N-Type Female 6*N-Type Female CABLE OPERATING TEMPERATURE WORKING WITH AP1222 Direct Attach RPSMA-J+086 SMA-J/RPSMA-J+086 SMA-J/RPSMA-J SMA-J/RPSMA-J -10�C to 60�C -40�C to 70�C -40�C to 70�C -40�C to 70�C -40�C to 65�C Direct mount Typically used in indoor ceiling mount, Omni Wi-Fi coverage. Typically used in indoor wall mount, 60� directional Wi-Fi coverage. Typically used in indoor wall mount, 120� directional Wi-Fi coverage. Typically used in indoor wall mount, 13� directional high-gain coverage. -40�C to 65�C -40�C to 65�C -40�C to 65�C -40�C to 65�C WORKING WITH AP1232 Direct mount Typically 1*AP1232+ 2*ANT-O-M4-5, used in indoor ceiling Typically 1*AP1232+ 2*ANT-S-M4-60, used in indoor wall Typically 1*AP1232+ 2*ANT-S-M4-60, used in indoor wall Typically 1*AP1232+ 2*ANT-S-M4-60, used in indoor wall mount, Omni Wi-Fi mount, 60� directional mount, 120� directional mount, 13� directional coverage. Wi-Fi coverage. Wi-Fi coverage. high-gain. WORKING WITH AP1322 Direct mount Typically used in indoor ceiling mount, Omni Wi-Fi coverage. Typically used in indoor wall mount, 60� directional Wi-Fi coverage. Typically used in indoor wall mount, 120� directional Wi-Fi coverage. Typically used in indoor wall mount, 13� directional high-gain coverage. WORKING WITH AP1362 AP1362 - 2.4GHz 2*2 MIMO Wi-Fi Coverage. AP1362 - 5GHz 4*4 MIMO Wi-Fi Coverage. AP1362 - 2.4GHz 2*2 MIMO + 5GHz 4*4 MIMO Wi-Fi Coverage. AP1362 - 2.4GHz 2*2 MIMO + 5GHz 4*4 MIMO Wi-Fi Coverage. Interactive file - Click on products pictures to get more information OmniAccess Stellar Based on Alcatel-Lucent Enterprise distributed WLAN control architecture Alcatel-Lucent Enterprise OmniAccess Stellar products embed WLAN control in all access points (APs) eliminating the need for physical centralised controllers. ALE smart and advanced APs are managed as a single system or cluster, in a distributed and coordinated manner. Distributed architecture from ALE delivers the best performance and scalability, and ensures high availability, with operational simplicity and low Total Cost of Ownership (TCO). Enterprise grade Wi-Fi. Operational simplicity. www.al-enterprise.com The Alcatel-Lucent name and logo are trademarks of Nokia used under license by ALE. To view other trademarks used by affiliated companies of ALE Holding, visit: www.al-enterprise.com/en/legal/ trademarks-copyright. All other trademarks are the property of their respective owners. The information presented is subject to change without notice. Neither ALE Holding nor any of its affiliates assumes any responsibility for inaccuracies contained herein. � Copyright 2021 ALE International, ALE USA Inc. All rights reserved in all countries. DID20021901en (June 2021)
