Save Over $750 Per Year on Energy Costs
The Jandy VS FloPro™ 1.65 HP Variable-Speed Pump is designed with an innovative adjustable base, allowing for simple installation on new construction or quick and easy replacement of existing pumps. It is well-suited for applications with 1.5" or 2" plumbing and is engineered to operate at energy-saving lower speeds for maximum efficiency.

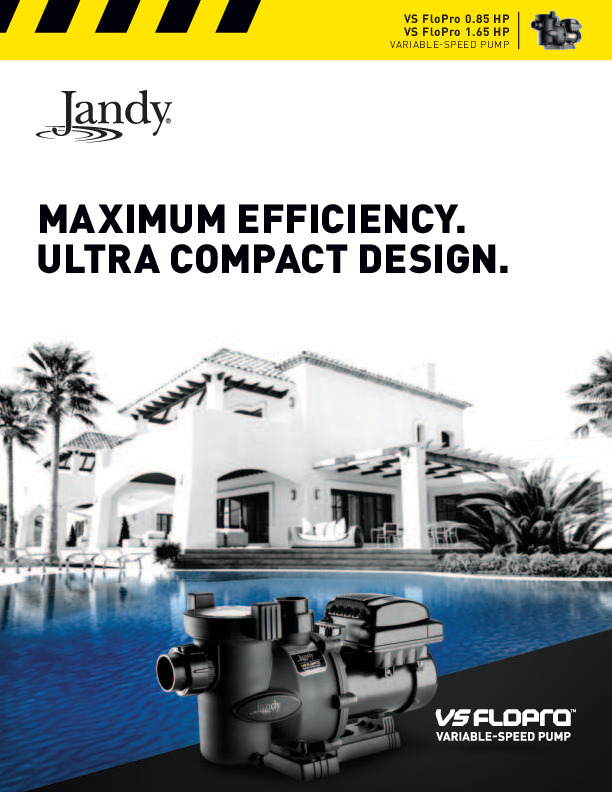

A luxurious swimming pool in front of a modern house with palm trees. A Jandy VS FloPro variable-speed pump is prominently displayed in the foreground.
Key Features
- 115v and 230v Models Available: Provides installation flexibility and avoids time-consuming and costly rewiring expenses.
- Ultra High-Efficiency Motor: Features a totally enclosed fan-cooled (TEFC) permanent magnet brushless DC motor for cooler operation and extended motor life.
- Multiple Control System Options Available²:
- The AUT model is completely programmable and customizable with the Jandy AquaLink® line of automation systems, and can be paired with iQPUMP01 for iAquaLink® anytime, anywhere app control.
- The JEP model features an onboard JEP-R controller with two timed speeds/8 speeds total. It can be rotated 180° or removed for remote mounting. Reliable battery backup ensures time and settings are stored during power outages.
- Compact: High-performance pump in an ultra-compact body that easily fits in small equipment areas.
- Additional Features:
- Adjustable base included with all FloPro models³.
- Includes 2" unions or utilizes 2" internal threads.
- Ergonomic easy-transport handle.
- High profile easy-grip lid handles with large capacity basket.
- Compliance: Complies with Appliance Efficiency Standards (CEC Title 20, ANSI/APSP-15, & DOE 10 CFR Part 431) and qualifies for power rebates, where offered.
Technical Specifications
Adjustable Base Configurations³
| Base | Fits | 'A' Dimension | 'B' Dimension |
|---|---|---|---|
| No Base | Hayward® Super Pump®, Pentair® SuperFlo®, Sta-Rite® SuperMax® | 7 3/4" | 12.3/4" |
| Small Base | Hayward Super II™, Jandy PlusHP and MaxHP Pumps | 8 7/8" | 13 7/8" |
| Small Base w/ Spacers | Pentair WhisperFlo®, Sta-Rite Dyna-Glas™ | 9 1/8" | 14 1/8" |
| Small Base & Large Base | Sta-Rite Max-E Pro®, Sta-Rite Dura-Glas®, Sta-Rite Dura-Glas II, Sta-Rite Max-E Glas | 10 3/4" | 15 3/4" |
Dimensions
Diagram illustrating the physical dimensions of the Jandy VS FloPro pump. Key measurements include a width of 10 inches, a height of 24 inches, and a depth of 9.5 inches. It also shows the placement of bolt holes for mounting, with a center-to-center distance of 6.5 inches and the front edge of the pump to the center of the bolt holes at 9.1 inches. An attached JEP-R enclosure is noted for JEP models.
Specifications
| Model No. | THP | WEF⁵ | Voltage | Max Watts | Amps | Union Size | Rec. Pipe Size⁴ | Carton Weight | Overall Length |
|---|---|---|---|---|---|---|---|---|---|
| VSFHP165JEP | 1.65 | 9.1 | 230VAC | 1,600 W | 10.5 | 2" x 2" | 1 1/2 - 2 1/2" | 46 lbs | 24" |
| VSFHP165AUT | 1.65 | 9.1 | 230VAC | 1,600 W | 10.5 | 2" x 2" | 1 1/2 - 2 1/2" | 46 lbs | 24" |
| VSFHP085JEP | 0.85 | 11.9 | 115VAC | 975 W | 10.0 | 2" x 2" | 1 1/2 - 2" | 46 lbs | 24" |
| VSFHP085AUT | 0.85 | 11.9 | 115VAC | 975 W | 10.0 | 2" x 2" | 1 1/2 - 2" | 46 lbs | 24" |
Performance
VS FloPro 0.85 HP and 1.65 HP Performance Curves
A performance curve graph comparing the Jandy VS FloPro 0.85 HP (115v) and 1.65 HP (230v) models. The X-axis represents Flow Rate in Gallons Per Minute (GPM), ranging from 0 to 140. The Y-axis represents Total Dynamic Head in Feet of Water, ranging from 0 to 80. Multiple performance curves are plotted for different motor speeds (600 RPM, 1200 RPM, 1730 RPM, 2400 RPM, 3450 RPM) for both pump models.
Jandy.com
