Kearney fuse links catalog
This catalog provides features and ordering information for Eaton's Cooper Power series Kearney fuse links which can be applied to a variety of applications requiring overcurrent protection of distribution systems and equipment.
Kearney fuse links catalog - Eaton
Table 3. Trip-O-Link™ Fuse Link Ordering Information Current Rating Type X Type KS Type 200 Type QA Type K Type T.33 42033 — — — — —.50 42050 — — — — —
Extracted Text

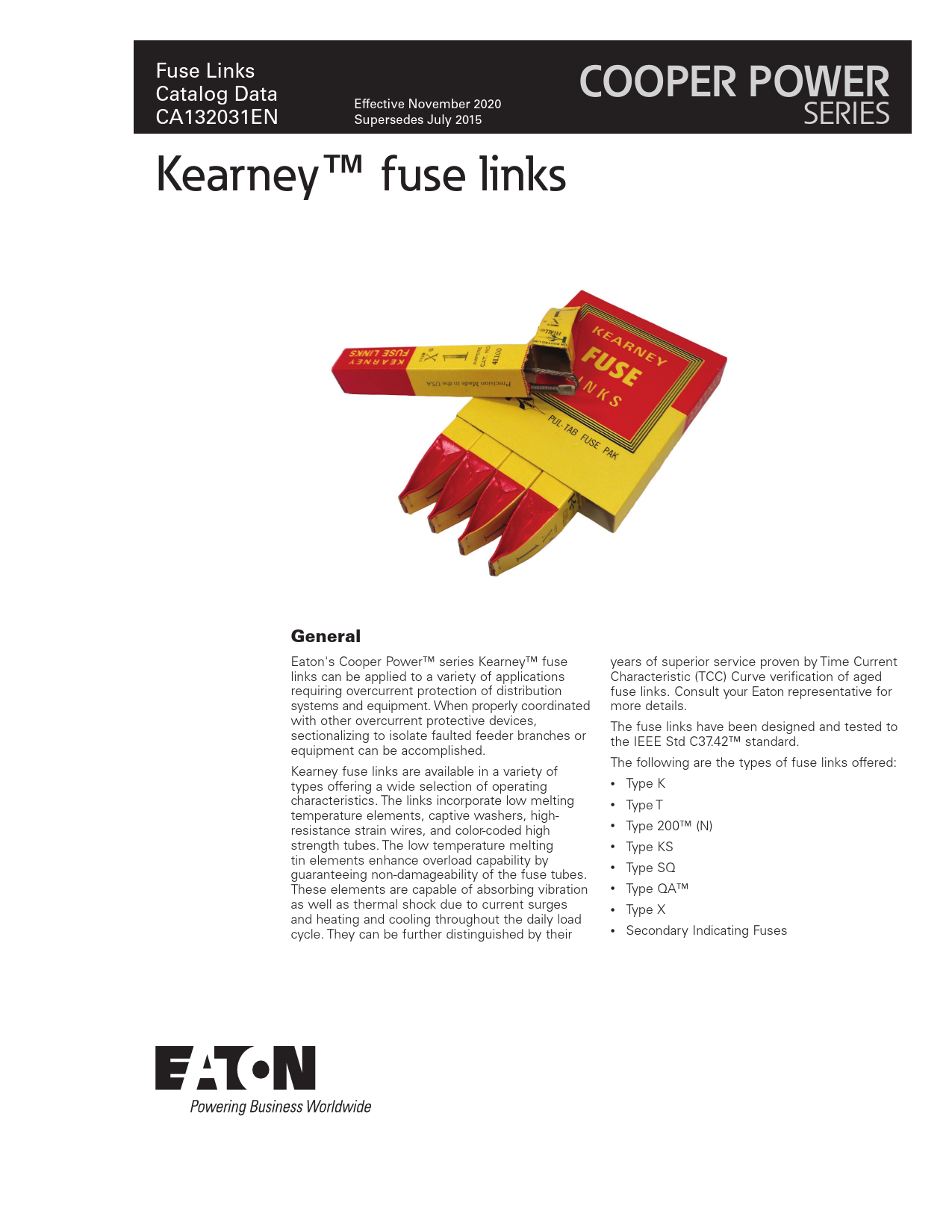

Fuse Links Catalog Data CA132031EN Effective November 2020 Supersedes July 2015 COOPER POWER SERIES KearneyTM fuse links General Eaton's Cooper PowerTM series KearneyTM fuse links can be applied to a variety of applications requiring overcurrent protection of distribution systems and equipment. When properly coordinated with other overcurrent protective devices, sectionalizing to isolate faulted feeder branches or equipment can be accomplished. Kearney fuse links are available in a variety of types offering a wide selection of operating characteristics. The links incorporate low melting temperature elements, captive washers, highresistance strain wires, and color-coded high strength tubes. The low temperature melting tin elements enhance overload capability by guaranteeing non-damageability of the fuse tubes. These elements are capable of absorbing vibration as well as thermal shock due to current surges and heating and cooling throughout the daily load cycle. They can be further distinguished by their years of superior service proven by Time Current Characteristic (TCC) Curve verification of aged fuse links. Consult your Eaton representative for more details. The fuse links have been designed and tested to the IEEE Std C37.42TM standard. The following are the types of fuse links offered: � Type K � Type T � Type 200TM (N) � Type KS � Type SQ � Type QATM � Type X � Secondary Indicating Fuses Catalog Data CA132031EN Effective November 2020 Kearney fuse links Internal construction All Kearney fuse links are designed with low melting temperature element components of either tin or solder filled dual element construction. Each element material shipment from our supplier is accompanied with a certification of quality and composition. The diameter is verified in incoming inspection. Low melting temperature fuse links Types K, T, 200, X and KS have exceptional overload capability. They are designed to carry 150% of their continuous current rating continuously without damage to the fuse link itself or to the cutout fuseholder in which they are installed. (Care should be exercised so that the current rating of the cutout is not exceeded.) Tin element Links using pure tin elements have a precision gauged strain wire crimped in parallel to provide tension loading properties. The tin element is soldered into position providing the industry's best possible electrical connection between the element and its terminals. The low melting temperature of the tin allows all of the fuse link components to operate at a lower temperature while providing long term reliable TCC. REMOVABLE BUTTONS Allow fuse links to be used in all open and enclosed cutouts, including cutouts with arcshortening rods. CAPTIVE WASHER Will not fall off prior to or during installation. (Can be removed for use where 1/2" button or no button is required.) AMPERE SIZE Marked on top of screw terminal, so that it can be seen after the fuse link is installed in a fuseholder. IDENTIFICATION Fuse link type, ampere size and date of manufacture marked on periphery of screw terminal. SWAGED FERRULE Extends around fuse link tube to ensure single end expulsion on low fault currents. Dual element There are two dual element designs. The dual element design for 1 and 2 A K, KS, X, T, 200 (N), QA, and SQ 0.2 A - 1.45 A link assemblies is composed of a heater coil mounted around a solder pot that is soldered to a fuse element. Types KS and X links above 2 A and SQ links above 1.4 A have two wire elements in series which are axially inserted into a soldered coil. Dual element links which use solder coils are mechanically crimped to the body and screw terminals. The elements are inserted into the coil and meticulously gauged to assure that active element lengths are maintained. The soldering process then permanently sets the active elements to the proper TCC curve and guarantees positive electrical continuity. Dual elements allow the fuse to respond as low temperature single element fuses for long time overloads, yet have superior lightning surge withstand capability. Both types of links have up to 26 times more surge withstand capability than single element fuse links. FUSE LINK TYPE Marked on length of tube to aid in identification of fuse type. COLOR CODE High bust strength tube color coded for each fuse link to minimize the potential of installing wrong fuse link type. SPRING On all fuse links through 25 A to aid in clearance of low level faults by ejecting the fuse cable and creating a positive element separation. Final construction After passing in-process QA checks, high strength color coded tubes are swaged to both the single and dual element fuse links. A unique self locking washer and button is attached to the screw terminal. Every fuse link is axial pull tested to verify mechanical strength before packaging in the Kearney unique "lineman friendly" pull-tab fuse packs. Fuse link selection Type K (tube color brown) Kearney Type K fuse links have been tested to the IEEE Std C37.42TM standard requirements for a "fast" fuse. The nominal speed ratio of Type K fuse links is 7. Type K fuse links are well suited where "fast" time-current characteristics are desired such as for capacitor protection. Type 200 (N) (tube color green) Kearney Type 200 fuse links are classified as "medium" speed fuses, with a nominal speed ratio of 10. Type 200 fuse links provide more surge withstand capability than Type K links, and provide good coordination possibilities with relays and reclosers. Figure 1. Fuse link features. Type QA (tube color yellow) Kearney Type QA fuse links are classified as "medium" speed fuse links with a nominal speed ratio of 10. Type QA fuse links will carry 100% of the rated current continuously without damage, and provide good coordination possibilities with relays and reclosers. 2 www.eaton.com/cooperpowerseries Kearney fuse links Catalog Data CA132031EN Effective November 2020 Type T (tube color white) 1000 Kearney Type T fuse links have been tested to the IEEE Std C37.42TM standard requirements for a "slow" fuse link. The nominal speed ratio of Type T fuse links is 12. Type T fuse links provide slower timecurrent characteristics than Types K, 200, and QA, and coordinate well with relays and reclosers. Type KS (tube color light-blue) 100 1 Minute Kearney Type KS fuse links employ dual element construction which gives the Type KS high surge withstand capability, and a nominal speed ratio of 20. Classified as "very slow" fuse links, the Type KS has greater surge current withstand capability than the Type T, and is a good choice for line fusing and transformer protection. 10 Time in Seconds Type X (tube color orange) and Type SQ (tube color brown) Kearney Type X and SQ fuse links are specially designed for trans- former protection. Type X and SQ fuse links employ dual element construction, which allows the time- current characteristic to be care- fully shaped to closely match the IEEE Std C57.91TM standard loading 1 curve for transformers while providing excellent surge withstand to avoid nuisance blowing from lightning and switching surges. The nominal speed ratio of the Type X and SQ fuse links is 32. Current in Amperes: x 1 at 25 kV. 3.5 A 50 A Packaging All fuse links are packed in individual cartons for the maximum protection and ease of use. Cartons are perforated for easy opening. Fuse links can be removed with gloves on. Fuse Link Type and Ampere Ratings are clearly marked on the carton. The print will not smear or run. Five Pack Sleeves: Fuse Link Type and Ampere Rating are clearly marked on box front and end of cartons. Individual cartons are tabbed so that remaining fuses stay securely in the carton as others are removed. Overcartons: All fuse links 100 A and below are packed in protective overcartons 25 per box. Catalog Number, Fuse Link Type, Ampere Rating, and Date of Manufacture are marked on the label for ease of selection. Note: SQ links are individually packaged in transparent plastic bags. Bagged fuses are packed in an overcarton for protection and ease of handling. The catalog number, fuse type and amp rating are clearly marked on each bag and on all cartons. Comparative melting speed ratio chart Electrical equipment such as transformers, switches, relays, and conductors are exposed to various levels of current during normal operation. Generally, electrical devices can withstand high currents for a short period of time and low current for longer periods of time without thermal or mechanical damage. The ability to withstand various levels of current for various periods of time is referred to as time-current characteristics. Coordination of power systems involves the selection of fuse links to protect equipment with various time-current characteristics while coordinating with reclosers, circuit breakers, sectionalizers, relays, and other fuses. Kearney offers six types of fuse links with a wide range of time-current characteristics (refer to Table 1). The speed ratio of all fuse link sizes 100 A and below is the ratio between the current that melts the fuse in 0.1 seconds to the current that melts the fuse in 300 seconds. The higher the ratio, the slower the speed of melting. For fuses rated above 100 A, the speed ratio is between the melting currents at 0.1 second and 600 seconds. 0.1 0.01 0.5 1 K X SQ QA 200 T KS 10 100 1000 10000 Figure 2. This chart compares the six speed ratios available with standard fuse link types which are fully adaptable to various coordination needs. Table 1. Speed Ratio Tin Element(s) Slow T Designation Fast Medium Type K 200, QA Speed Ratio 6-8 7-11 Slow T 10-13 Dual Element Very Slow Extra Slow KS X, SQ 20 32 www.eaton.com/cooperpowerseries 3 Catalog Data CA132031EN Effective November 2020 Kearney fuse links Ordering information Table 2. Fit-AllTM Fuse Link Ordering Information Current Rating Type X Type SQ Type KS Type 200 Type QA Type K Type T 0.2 -- 02SQ-60 -- -- -- -- -- 0.3 -- 03SQ-60 -- -- -- -- -- 0.33 41033CPS -- -- -- -- -- -- -- 0.4 -- 04SQ-60 -- -- -- -- -- 0.5 41050CPS -- -- -- -- -- -- 0.6 -- 06SQ-60 -- -- -- -- -- 0.7 -- 07SQ-60 -- -- -- -- -- 0.75 41075 -- -- -- -- ---- -- 1 41100CPS 10SQ-60 21001 11001 6413-2T 31001 51001CPS 1.25 41125 -- -- -- -- -- -- 1.3 -- 13SQ-60 -- -- -- -- -- 1.4 -- 14SQ-60 -- -- -- -- -- 1.5 41150CPS -- -- -- -- -- -- 1.6 -- 16SQ-60 -- -- -- -- -- 2 41200 -- 21002 11002 6414-2T 31002CPS 51002 2.1 -- 21SQ-60 -- -- -- -- -- 2.5 41250CPS -- -- -- -- -- -- 2.75 41275CPS -- -- -- -- -- -- 3 -- -- 21003 11003 6415-2T 31003CPS 51003 3.1 -- 31SQ-60 -- -- -- -- -- 3.5 41350 35SQ-60 -- -- -- -- -- 4 41400 -- -- -- -- -- -- 4.2 -- 42SQ-60 -- -- -- -- -- 5 -- -- 21005 11005 6416-2T 31005 51005CPS 5.2 -- 52SQ-60 -- -- -- -- -- 5.5 41550 -- -- -- -- -- -- 6 -- -- 21006 -- -- 31006 51006 6.3 -- 63SQ-60 -- -- -- -- -- 7 41007CPS 70SQ-60 21007 11007 6417-2T 31007 51007 7.8 -- 78SQ-60 -- -- -- -- -- 8 -- -- -- 11008 6417-8-2T 31008 51008CPS 10 41010CPS -- 21010CPS 11010 6418-2T 31010 51010CPS 10.4 -- 104SQ-60 -- -- -- -- -- 12 -- -- -- -- -- 31012 51012 14 -- 140SQ-60 -- -- -- -- -- 15 41015CPS -- 21015 11015 6419-2T 31015 51015 20 -- -- 21020 11020 6420-2T 31020CPS 51020CPS 21 -- 210SQ-60 -- -- -- -- -- 25 -- -- 21025 11025 6421-2T 31025CPS 51025 30 -- -- 21030 11030 6422-2T 31030CPS 51030CPS 32 -- 320SQ-60 -- -- -- -- -- 40 -- -- 21040 11040CPS 6423-2T 31040CPS 51040CPS 46 -- 460SQ-60 -- -- -- -- -- 50 -- -- 21050CPS 11050 6424-2T 31050CPS 51050CPS 60 -- -- -- -- 6425-2T -- -- 65 -- -- 21065 11065 -- 31065CPS 51065CPS 75 -- -- -- 11075 6426-2T -- -- 80 -- -- 21080CPS 11080 -- 31080CPS 51080CPS 85 -- -- -- 11085 -- -- -- 100 -- -- 21100CPS 11100 6427-2T 31100CPS 51100 125 -- -- 21125 11125 6428-2T -- -- 140 -- -- -- -- -- 31140 51140 150 -- -- 21150CPS 11150 6429-2T -- -- 175 -- -- -- 11175 6724-2T -- -- 200 -- -- 21200CPS 11200 6725-2T 31200 51200 Notes: 1. Fit-All fuse links listed above have removable button heads. For non-removable button heads add "A" in front of the part number. Exceptions: Non-removable button heads are not available for Types X, SQ, QA links or 125 A, 150 A and 200 A Type 200 links. 2. Fit-All fuse links listed above are all 23" (584 mm) long. For 26" (660 mm) long fuses links add -29, except the SQ links. For SQ links replace -60 with -26. Table 3.Trip-O-LinkTM Fuse Link Ordering Information Current Type Rating Type X KS Type 200 Type QA Type K Type T .33 42033 -- -- -- -- -- .50 42050 -- -- -- -- -- .75 42075 -- -- -- -- -- 1.00 42100 22001 12001 6813 32001 52001 1.25 42125 -- -- -- -- -- 1.50 42150 -- -- -- -- -- 2 42200 22002 12002 6814 32002 52002 2.50 42250 -- -- -- -- -- 2.75 42275 -- -- -- -- -- 3 -- 22003 12003 6815 32003 52003 3.50 42350 -- -- -- -- -- 4 42400 -- -- -- -- -- 5 -- 22005 12005 6816 -- -- 5.50 42550 -- -- -- -- -- 6 -- -- -- -- 32006 52006 7 42007 22007 12007 6817 -- -- 8 -- -- -- -- 32008 52008 10 42010 22010 12010 6818 32010 52010 12 -- -- -- -- 32012 52012 15 42015 22015 12015 6819 32015 52015 20 -- 22020 12020 6820 32020 52020 25 -- 22025 12025 6821 32025 52025 30 -- 22030 12030 7482 32030 52030 40 -- 22040 12040 7483 32040 52040 50 -- 22050 12050 7484 32050 52050 4 www.eaton.com/cooperpowerseries Kearney fuse links Table 4. Fit-All Fuse Link Dimensions Current Rating (A) .50 to 2 Fuse Link Types X, KS, T, K, 200, QA 2.50 to 15 X 3 to 20 K 3 to 25 200, QA, KS, T .2 to 1.4 SQ 1.6 to 42 SQ 25 to 50 K 30 to 50 T, KS, 200 30 to 60 QA 65 to 100 K, T, KS, 200 A* Inches (mm) .50 (13) .50 (13) .50 (13) .50 (13) .50 (13) .50 (13) .50 (13) .50 (13) .50 (13) -- 75 to 150 QA -- 125 to 200 KS, 200 -- 140 to 200 K,T -- 175 to 200 QA -- *See Figure 4 B* Inches (mm) .75 (19) .75 (19) .75 (19) .75 (19) .75 (19) .75 (19) .75 (19) .75 (19) .75 (19) .75 (19) .75 (19) 1 (25) 1 (25) 1 (25) C* Inches (mm) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 5.38 (137) 6.38 (162) 6.38 (162) 6.38 (162) D* Inches (mm) .27 (6.8) .31 (7.7) .31 (7.7) .31 (7.7) .27 (6.8) .31 (7.7) .31 (7.7) .31 (7.7) .31 (7.7) .40 (10) .40 (10) .50 (13) .50 (13) .50 (13) F* Inches (mm) 1.13 (29) 1.13 (29) 1.13 (29) 1.13 (29) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A L* Inches (mm) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) 23.00 (584) Catalog Data CA132031EN Effective November 2020 B A C L* D F 8.5" (216 mm) Figure 4. Fit-All fuse links. * "L" dimension extends to the end of the fuse leader. Figure 3. Trip-O-Link fuse links. www.eaton.com/cooperpowerseries 5 Catalog Data CA132031EN Effective November 2020 Kearney fuse links Indicating type tubular secondary fuses Indicating type tubular secondary fuses protect transformers and capacitors from secondary overloads and faults. Each secondary fuse has a spring locked red plastic flag which springs out from the cartridge when the fuse link melts, indicating an outage. Fuses are available with insulated or non-insulated leads. Universal adapter assemblies This universal adapter assembly will adapt Fit-AllTM fuse links for use in the cutouts that have bolt-type cable connections to connect the upper as well as the lower cable. Note from the table that only five sizes are required to adapt to any type fuse. � Flag in operated position � Flag in operational position Figure 5. Tubular secondary fuses. Table 5. Ordering Information for Indicating Type Tubular Secondary Fuses Current Rating (A) Tinned Leads Insulated Leads 10 8316 8316-5 15 8317 8317-5 20 8318 8318-5 25 8319 8319-5 30 8320 8320-5 40 8321 8321-5 50 8322 8322-5 60 8323 8323-5 75 8324 8324-5 100 8325 8325-5 125 8326 8326-5 150 8327 -- 175 8328 -- 200 8329 -- 300 11405 -- Figure 6. Universal Adapter assemblies. Table 6. U-Adapter Assemblies* For Types KS, X, K, T and 200 Fuses Current Rating (A) Catalog Number 0.33-25 14036 30-50 14036-1 65-100 14036-2 125-150 14036-3 175-200 14036-4 * 10" length for all ampere ratings Table 7. U-Adapter Assemblies* For Type QA Fuse Current Rating (A) Catalog Number 1-25 14037 30-50 14037-1 60-100 14037-2 125-150 14037-3 175-200 14037-4 * 10" length for all ampere ratings 6 www.eaton.com/cooperpowerseries Kearney fuse links Additional Information Refer to the following literature for more information. K-11000 AB K-21000 AB K-31000 AB K-41000 AB K-51000 AB K-6010-32 AB K-SQ AB TD132007EN R327-40-3 R327-40-4 R327-40-5 R327-40-6 R327-40-7 R327-40-8 R327-40-9 R327-40-10 R327-40-11 R327-40-12 Kearney Type N (200) Time Current Characteristic Curves Kearney Type KS Time Current Characteristic Curves Kearney Type K Time Current Characteristic Curves Kearney Type X Time Current Characteristic Curves Kearney Type T Time Current Characteristic Curves Kearney Type QA Time Current Characteristic Curves Kearney Type SQ Time Current Characteristic Curves Tin vs. Silver Links (PD Update No. 5) Kearney Fuse Links-Coordination Chart for Type 200 Fuse Links Kearney Fuse Links-Coordination Chart for Type KS Fuse Links Kearney Fuse Links-Coordination Chart for Type QA Fuse Links Kearney Fuse Links-Coordination Chart for Type T Fuse Links Kearney Fuse Links-Coordination Chart for Type T with Type X Fuse Links Kearney Fuse Links-Coordination Chart for Type N (200) with Type X Fuse Links Kearney Fuse Links-Coordination Chart for Type KS with Type X Fuse Links Kearney Fuse Links-Coordination Chart for Type K with Type X Fuse Links Kearney Fuse Links-Coordination Chart for Type QA with Type X Fuse Links Kearney Fuse Links-Coordination Chart for Type K Fuse Links Catalog Data CA132031EN Effective November 2020 www.eaton.com/cooperpowerseries 7 Catalog Data CA132031EN Effective November 2020 Kearney fuse links Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com Eaton's Power Systems Division 2300 Badger Drive Waukesha, WI 53188 United States Eaton.com/cooperpowerseries � 2020 Eaton All Rights Reserved Printed in USA Publication No. CA132031EN November 2020 Eaton is a registered trademark. All other trademarks are property of their respective owners. For Eaton's Cooper Power series Kearney fuse link product information, call 1-877-277-47636 or visit: www.eaton.com/cooperpowerseries.
