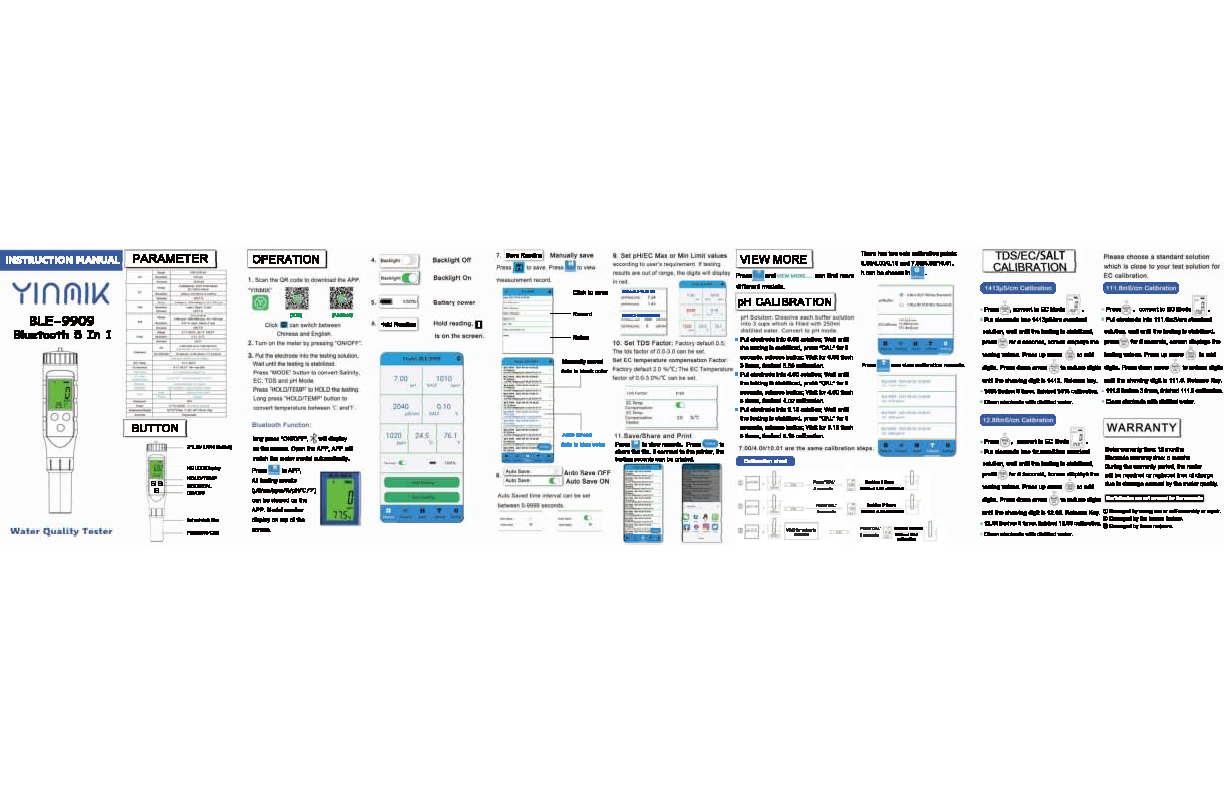

YINNIK BLE-9909 Bluetooth 5-in-1 Water Quality Tester

Product Overview

The YINNIK BLE-9909 is a versatile water quality tester that measures pH, EC (Electrical Conductivity), TDS (Total Dissolved Solids), Salt content, and Temperature. It features Bluetooth connectivity for data transfer to a mobile app and an HD LCD display with backlight.

Key Features:

• Measures: pH, EC, TDS, Salt, Temperature
• Bluetooth 5.2 connectivity
• Replaceable electrode
• IP67 Waterproof rating
• HD LCD Display with backlight
• Powered by 3*1.5V (LR44) batteries
• Dimensions: 187x37x37mm, Weight: 95g

Operation Instructions

1. Download APP: Scan the QR code to download the "YINMIK" APP.
2. Power On: Press the "ON/OFF" button to turn on the meter.
3. Testing: Immerse the electrode into the testing solution. Wait for the reading to stabilize.
4. Hold Reading: Press "HOLD/TEMP" to hold the current reading. The "H" icon will appear on the screen.
5. Temperature Conversion: Long press "HOLD/TEMP" to convert temperature between °C and °F.
6. Mode Switching: Press the "MODE" button to switch between Salinity (%), EC (µS/cm), TDS (ppm), and pH modes.
7. Save Reading: Press the "Save" button to manually save the current reading. Saved data is displayed in black.
8. Auto Save: Auto Save can be enabled in the settings, with a configurable time interval (0-9999 seconds). Manually saved data is black, auto-saved data is blue.
9. Set Limits: Set pH/EC Max or Min Limit values in Settings. If testing results are out of range, the digits will display in red.
10. Save/Share/Print: Press "Share" to save or share testing records. If connected to a printer, records can be printed.

Note: All testing results can be viewed on the YINMIK APP. The model number is displayed on the top of the screen.

Parameters

TDS Factor: Factory default 0.5; settable range 0.0-3.0.

EC Temperature Compensation: Factory default 2.0%/°C; settable range 0.0-3.0%/°C.

Calibration

The meter supports two sets of pH calibration points: 6.86/4.00/9.18 (Asia Standard) and 7.00/4.00/10.01 (EU Standard). EC/TDS/Salt calibration uses standard solutions.

pH Calibration Steps:

1. Prepare buffer solutions (6.86, 4.00, 9.18 or 7.00, 4.00, 10.01) by dissolving each in 250ml of distilled water.
2. Convert to pH mode.
3. Calibrate pH 6.86: Place electrode in 6.86 solution. Wait for stabilization, press "CAL" for 5 seconds. Wait for "6.86" to flash 3 times.
4. Calibrate pH 4.00: Place electrode in 4.00 solution. Wait for stabilization, press "CAL" for 5 seconds. Wait for "4.00" to flash 3 times.
5. Calibrate pH 9.18: Place electrode in 9.18 solution. Wait for stabilization, press "CAL" for 5 seconds. Wait for "9.18" to flash 3 times.
6. Calibration for 7.00/4.00/10.01 follows the same steps.

EC/TDS/Salt Calibration Steps:

1. Convert to EC Mode.
2. Calibrate 1413µS/cm: Place electrode in 1413µS/cm standard solution. Wait for stabilization, press "MODE" for 5 seconds. Use the up arrow (Δ) to increase digits and down arrow (▽) to decrease digits until "1413" is displayed. Release key. "1413" flashes 3 times, indicating calibration is complete.
3. Calibrate 12.88mS/cm: Place electrode in 12.88mS/cm standard solution. Wait for stabilization, press "MODE" for 5 seconds. Adjust digits using up (Δ) and down (▽) arrows until "12.88" is displayed. Release key. "12.88" flashes 3 times, indicating calibration is complete.
4. Calibrate 111.8mS/cm: Place electrode in 111.8mS/cm standard solution. Wait for stabilization, press "MODE" for 5 seconds. Adjust digits using up (Δ) and down (▽) arrows until "111.8" is displayed. Release key. "111.8" flashes 3 times, indicating calibration is complete.
5. Clean the electrode with distilled water after each calibration step.

Calibration records can be viewed by pressing the "CAL" button.

Technical Specifications

• Model: BLE-9909
• Bluetooth Version: 5.2
• Waterproof Rating: IP67
• Power: 3*1.5V (LR44) batteries
• Dimensions/Weight: 187x37x37mm / 95g
• Operating Environment: 0.1℃-80.0℃, RH: max 90%

Warranty Information

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement and can be used in portable exposure condition without restriction.

FCC ID: 2A4L3-BLE-C600
