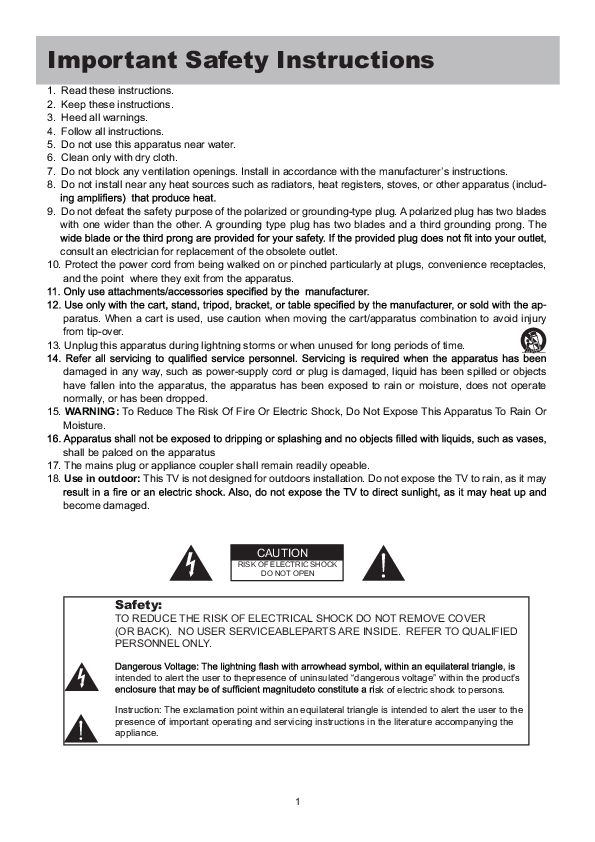

1 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water.
3 or 4 on the TV and select a channel. For greater performance, if possible, use component or an HDMI installation(shown). Refer to your set top box user manual ...
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ- 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. paratus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture. shall be palced on the apparatus 17. The mains plug or appliance coupler shall remain readily opeable. 18. Use in outdoor: This TV is not designed for outdoors installation. Do not expose the TV to rain, as it may become damaged. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Safety: TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLEPARTS ARE INSIDE. REFER TO QUALIFIED PERSONNEL ONLY. intended to alert the user to thepresence of uninsulated "dangerous voltage" within the product's sk of electric shock to persons. Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. 1 Safety Instructions Important safeguards for you and your new TV Observing the simple precautions discussed in this booklet will provide you with many years of enjoyment and safe operation. This product complies with all applicable US Federal safety requirements, and those of the Canadian Standards Association. 1. Read & Follow Instructions All safety and operating instructions should be read and followed before the TV is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Heed Warnings All warnings on the TV and in the operating instructions should be adhered to. 4. Cleaning Unplug the TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft and slightly damp cloth for cleaning. 5. Water and Moisture Do not use this TV near water, for example, near a bathtub,wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. 6. Accessories Carts and Stands Do not place this TV on a slippery or tilted surface, or on an unstable cart, stand, or table. The TV may slide or fall, causing serious injury to a child or adult, and serious damage to the TV. 7. Transporting the Television A TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the TV and cart combination to overturn. 8. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. The TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. 9. Power Sources This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your electronics retailer or local power company. 10. Power-Cord Polarization This TV is equipped with a three-wire grounding type plug,a plug with a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, the contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug. 11. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs,convenience receptacles, and the point where they exit from the TV. 12. Lightning For added protection for the TV during a lightning storm, or when it is left unattended and unused for long periods of time,unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning and power-line surges. 2 Safety Instructions 13. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI / NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connect on to grounding electrodes, and requirements for the grounding electrode. Example of Grounding According to National Electrical Code Instructions Ground Clamp Antenna Lead in Wire Electric Service Equipment Antenna Discharge Unit (NEC Section 810-20) Grounding Conductor (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC Art 250, Part H) NEC - National Electrical Code 14. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall on to power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 15. Overloading Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 16. Object and Liquid Entry Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on or inside the TV. 17. Servicing Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 18. Damage Requiring Service Unplug from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. If the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e. If the TV has been dropped or the cabinet has been damaged. f. If the TV exhibits a distinct change in performance. 3 Safety Instructions 19. Replacement Parts When replacement parts are required, be sure that only an authorized service technician has used replacement parts specified by Apex Digital or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards and void any warranty. 20. Safety Check Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine whether the product is in proper operating condition. 21. Wall Mounting The TV should be mounted to a wall only by a professional. The TV may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Warranty shall be voided. 22. Heat The TV should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including) amplifiers) that produce heat. NOTE TO CABLE / TV INSTALLER: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of the cable entry as practical. FCC REGULATORY INFORMATION: This television has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This television generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this television does cause interference to other electronic equipment, which can be determined by turning the television off and on, then the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.- Increase the separation between the equipment and television. - Connect the equipment into an outlet on a circuit different from that to which the television is connected. - Consult your dealer or an experienced radio / TV technician for assistance. Any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate the equipment. 4 Table of Contents Important Safety Instructions.........................................................................................................................................1 Table of Contents ..........................................................................................................................................................5 Introduction....................................................................................................................................................................6 Remote Control Battery Install.................................................................................................................................................................7 Overview .......................................................................................................................................................................8 TV Overview Front Panel ................................................................................................................................................................10 Rear Panel & Pedestal Removal................................................................................................................................. 11 Installation Connection to Antenna & Cable / Satellite Box ...........................................................................................................12 Connection to HDMI Input ...........................................................................................................................................13 Connection to Component YPbPr Input ......................................................................................................................14 Connection to Composite Input ...................................................................................................................................15 Connection to a Personal Computer ...........................................................................................................................16 Connection to a Home Theater System ......................................................................................................................17 TV Setup Initial Setup Wizard .....................................................................................................................................................18 TV Provider Setup & Channel Auto Scan....................................................................................................................19 Picture Setting Brightness ...................................................................................................................................................................20 Contrast ......................................................................................................................................................................20 Color ............................................................................................................................................................................ 20 Tint...............................................................................................................................................................................20 Sharpness ...................................................................................................................................................................20 Color Temperature.......................................................................................................................................................20 Audio Settings Sound Mode ................................................................................................................................................................21 Bass ............................................................................................................................................................................. 21 Treble ..........................................................................................................................................................................21 Balance .......................................................................................................................................................................21 Surround sound...........................................................................................................................................................21 SPDIF Type................................................................................................................ ...................................................21 Audio Language...........................................................................................................................................................21 Date & Time Settings...................................................................................................................................................22 Setup Settings Menu Languages.........................................................................................................................................................23 Transparency...............................................................................................................................................................23 Restore Default............................................................................................................................................................23 HDMI CEC ..................................................................................................................................................................23 CEC ............................................................................................................................................................................24 Closed Captions ..........................................................................................................................................................25 Parental Control ..........................................................................................................................................................26 TV Settings Favorite .......................................................................................................................................................................28 Show / Hide .................................................................................................................................................................28 Channel Label .............................................................................................................................................................28 USB Modes .................................................................................................................................................................29 MHL Setting ................................................................................................................................................................30 .............................................31 Troubleshooting ..........................................................................................................................................................32 5 Introduction What's In The Box Thank you for purchasing the energy efficient LE5037 television. It has been designed to enjoy today's high definition television experience. With a display resolution of 50"1920X1080 you are assured of one of the finest quality televisions available today. Your television provides both analog and digital inputs including one (1) High Definition Multimedia Interface (HDMI) interconnects for the purest audio and video digital signal when connected to compatible HD sources (ie: HD set-top box, high definition DVD player or gaming console). We recommend that you read the user manual thoroughly before use to familiarize yourself with the installation and adjustment options available to you; thereby, enjoying all the features of the LE5037 for many years to come. The LE5037 package includes the following items. Save the carton & packing for future shipping · Pedestal Base / Hardware · Remote Control · AAA Batteries (2) · Quick Start Guide · User Manual · Warranty Card · AV Cable · Remote Control · AAA Batteries x 2 LED LE5037 SUMMIT 1-866-965-3436 24 hours a Day/ 7 Days a week. · User manual · Quick Start Guide · Audio / Video Cable · Pedestal Base · Screws for Pedestal Base 6 Remote Control Battery Install Your remote control handset is powered by two (2) AAA type batteries remote control over and remove the battery over. in the battery compartment. Cable / Satellite Remote Control Codes: NOTE: The remote control from your Cable/Satellite provider can be programmed to operate most of the major functions of this TV model which include: POWER, INPUT / SOURCE, VOLUME +, VOLUME - , CHANNEL +, CHANNEL - , SELECT/OK/ENTER (based on your remote), and NUMBER buttons. For non-major TV functions not listed, use the remote control included with this TV. To program your Cable / Satellite remote to operate this Summit TV, follow the programming instructions included with your providers' remote and use the following codes. Comcast or Direct TV : 10030 AT & T (U-verse) : 1043 Dish Network : 506 RCA Universal : 0030 7 Remote Control Overview Notes: 1. If direct sunlight shine directly on the remote sensor, the remote control's operation may be unstable, and the effective range will be reduced. 2. Do not hit or violently shake the remote control. 3. Never expose the remote control to high temperature or humidity. 4. If the remote is not used for an extended period of time, remove the batteries to prevent damage or injury from possible battery leakage. 8 Remote Control Overview User > Standard > Music > Movie Sports Dynamic > Standard > Soft > Power Saving > User. 29. NUMBER KEYS Press number keys to enter channel numbers. 9 TV Overview Front Panel IR Receiver A soft light illuminates when the television power is on. 1. POWER - Press the POWER button to turn the TV ON/ OFF (standby). The screen image will appear within a few seconds, and the LED will turn on. 2. INPUT - After connecting your DVD, cable box, etc. select the appropriate input source to view. Press the INPUT button to display the input options. Press the CH+ / CH- buttons to highlight the input source and press the VOL+ button to select. 3. MENU - Press the MENU button to display. Press VOL+ to select from the 6 menu options available. Press the CH+ / CH- buttons to select a feature from the selected menu then press the VOL+/VOL- buttons to adjust the volume settings. 4. Channel (-CH+) - Press the CH- / CH+ buttons to select a channel in the TV mode. 5. Volume (-VOL+) - Press the VOL- / VOL+ buttons to adjust the volume up or down. 10 TV Overview Rear Panel & Pedestal Removal 9 Wall Mounting It is recommended that you consult a professional before mounting this TV a wall. Use VESA 400 x 200 wall mount hardware. NOTE: You must remove the pedestal before wall mounting. 1. Audio Out - Connect to audio receiver. 2. Headphone Jack - Connect a stereo headphone (not included) for private listening. 3. SPDIF - Connect an optional coaxial digital cable (not included) through a compatible amp / receiver to enjoy superior audio sound. 4. AV Input - Connect an external device to the composite VIDEO(Y) and AUDIO (L / R) out jacks found on most video equipment. 5. Component Y Pb Pr Input - Connect to an AV device that features component (Y Pb Pr) video and audio output jacks. 6. HDMI Input - Connects to digital AV equipment that feature HDMI connectivity. HDMI supports enhanced high cable not included. 7. PC IN - VGA Input - Connect an optional VGA cable (not included) from your personal computer. PC Audio Input - Audio cable (not included) for sound. 8. RF Input - Connect an antenna or cable connection for television reception. Note: Use an outdoor antenna, cable or satellite for best reception. 9. USB Input Port , supports MP3 and JPEG. 11 Installation Connection to Antenna & Cable / Satellite Box It is strongly recommended that the installation of a high quality roof top antenna, digital cable, or satellite set top box be used in conjunction with your television for best broadcast reception. For indoor use, we recommend an Apex Digital amplified HDTV antenna. Note: reception is determined by your regional location, geographical terrain, distance from the local broadcast transmitter and strength of antenna. Roof Antenna / Cable Outlet Installation How to connect with an indoor or rooftop antenna · Connect the RF coaxial (75 ohm) cable from your existing roof top / in door antenna, or wall outlet. Finger tighten the Coaxial / RF Cable end to the TV input on the panel. · Tune to TV programming directly from the television tuner. Ant. / Cable Wall Outlet Coaxial / RF Cable (not included) 12 Installation Connection to HDMI Input Digital Cable / Satellite Set Top Box HDMI cable ( not included ) Cable / Satellite set top box How to connect with Digital Cable / Satellite Set Top Box Coaxial / RF Cable (not included) Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / Satellite box to the RF input on the TV's panel. Select Ch. 3 or 4 on the TV and select a channel. For greater performance, if possible, use component or an HDMI installation(shown). Refer to your set top box user manual. Using HDMI Digital set top box, gaming console,or Blu-ray w / HDMI interface HDMI HDMI cable ( not included ) For BEST video performance Connect to external equipment that offers HDMI, an uncompressed, all digital video / audio interface found on today's HD digital set top boxes and Blu-ray players. Use of this pure digital technology offers enhanced There are three (3) HDMI inputs available for use with HD set top boxes, gaming consoles and HD DVD / Blu-ray players. How to Connect HDMI From your external digital equipment, connect an HDMI cable from the HDMI output to the HDMI input on the TV's panel. How To Use Press the INPUT button on the remote control. Use arrow buttons to highlight the input to view (HDMI1,2,3 ) then press ENTER . 13 Installation Connection to Component YPbPr Input Connecting External Equipment to Component Video IN (Y Pb Pr) Component cables (not included) Digital set top box, gaming console or DVD For BETTER video performance Connect to external equipment that features component video output jacks for better performance. Use the Component Y Pb Pr video and audio inputs with a set top box, gaming console or DVD player. How to Connect Component When connecting external equipment to your television, match the colors of the connecting jacks (Video: Blue, Green, Red; Audio: White / Red ). Connect the optional component video cables (blue, green, red) (not included) from the video output jacks (Y, Pb, Pr) on your external equipment to the Component Y Pb Pr input on the TV's panel. Connect white / red audio cables for sound from the audio (L / R) output jacks on your external equipment to the AV L / R input jacks on the TV's panel. How to Use Press the INPUT button on the TV remote control. Use arrow buttons to highlight the input to view(Component) then press ENTER. 14 Installation Connection to Composite Input Connecting External Equipment to AV Composite IN on your television Audio Video Cable (included) Digital set top box, gaming console or DVD For GOOD video performance Connect to external equipment using optional video and audio cables. Composite output jacks are available on most set top cable / satellite boxes and DVD players. (HDMI and Component connections are recommended for the best performance.) How to Connect Composite AV When connecting external equipment to your television, match the colors of the connecting jacks (Video: Yellow Audio: White & Red). Connect the yellow video cable from the video output jack on your external A / V equipment (i.e.: DVD player, set top box) to AV input on the TV's panel. Connect the white / red audio cables for sound from the audio (L / R) output jacks on your external equipment ( i.e.: DVD Player, set top box) to the AV (L / R) jacks on the TV's panel. How to Use Press the INPUT button on the remote control. Use arrow buttons to highlight the input to view (AV) then press ENTER. 15 Installation Connection to a Personal Computer Connecting a Personal Computer with VGA to your television VGA & Audio Cable (not included) Recommended computer display resolution:1920x1080@60 Hz How to Connect a PC Connect using an optional male to male VGA cable (not included) from your PC to the VGA input on the TV's panel. How to Connect Audio sound Connect an audio cable (not included) from the computer's mini audio output jack to the audio input on the TV's panel. How to Use Press the INPUT button on the remote control. Use the to highlight the VGA input and press the ENTER button. buttons NOTE: If your PC uses a standard signal mode, the screen will adjust automatically . Connecting to an amplifer or home theater system Audio Cable (not included) How to Connect a AUDIO OUT using an audio patch cable with RCA cable ends (not included). NOTE: The speakers of this TV still will output audio at this time. 16 Installation Connection to a Home Theater System Connection to a Home Theater Audio System How to Use (Video) Press the appropriate INPUT How to Use (Audio) v ENTER. Optional cables Front Left Dolby Prologic Front Right Center Channel Dolby Surround Connection Illustration 17 TV Setup Initial Setup Wizard Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. The quick setup wizard will display on-screen. Select your preferred Picture setting followed by antenna options and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory. The wizard will direct you to the TV menu to select antenna options and perform Channel Auto Scan. Channels found will be stored into the TV tuner memory. How to Navigate: Press the arrow button to highlight AIR / CABLE based on your antenna connection. Highlight Start to Scan and press ENTER. Channel Auto Scan may take several minutes to complete. 18 TV Settings TV Provider Setup & Channel Auto Scan After the Setup Wizard has been completed, please skip this page as your Cable/Antenna is already set up. The following instructions on this page are provided if you need to make changes at a later time. NOTE: For Cable or Satellite users WITH a set-top box, there is no need to run Channel Auto Scan. Connect your cable or satellite set top box to one of the available inputs on the TV for viewing. To enter the Channel Menu: · Press the MENU button · Using the arrow buttons; scroll to highlight Channel · Press the down arrow buttons to highlight Air / Cable Select Cable if you subscribe to a pay television service WITHOUT a set top box. · Press the arrow buttons to highlight Cable. · Press the arrow button to highlight Auto Scan and press ENTER. Press ENTER to begin Auto Scan. NOTE: Channel Auto Scan may take several minutes to complete. Cable Mode Select Air when TV is connected to an indoor / outdoor antenna. · Press the arrow button to highlight Air. · Press the arrow button to highlight Auto Scan and press ENTER. Press ENTER to begin Auto Scan. NOTE: Channel Auto Scan may take several minutes to complete. Air Mode 19 Menu Adjustments Picture Setting The Picture menu offers options to enhance and refine the picture displayed on your TV based on ambient room light and personal preferences. Adjustment options include contrast, brightness, color, sharpness and color temperature. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Picture. Press the down arrow button to highlight Picture Mode, then press the arrow button to select your viewing preference from 5 factory options: Standard > Dynamic > Mild > User > EnergySaving. The Standard setting is recommended for most brightly lit viewing environments. Depending on the ambient light level in the room, you may find one of the other Picture settings more pleasing. To make more critical adjustments based on your own preferences in User. · Brightness Press down arrow button to highlight Brightness. Navigate using the arrow buttons to increase or decrease overall brightness. · Contrast Press down arrow button to highlight Contrast. Navigate using the arrow buttons to increase or decrease contrast intensity. · Color Press down arrow button to highlight Color. Navigate using the arrow buttons to increase or decrease color intensity. · Tint Press down arrow button to highlight Tint. Navigate using the arrow buttons to adjust colors toward green or reddish tint. · Sharpness Press down arrow button to highlight Sharpness. Navigate using the arrow buttons to soften or view crisper edges in the picture. · Color Temperature. Press down arrow button to highlight your Color Temperature. preference. Navigate using the ar- row buttons to select Cool, Medium or Warm setting. *The Energy Saving feature adjusts the brightness of the TV in order to save energy and reduce power consumption. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 20 Menu Adjustments Audio Settings The Audio menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Sound. Press the arrow button to highlight Sound Mode, then press the arrow button to select your sound preference from 4 factory options: Music > Movie > User > Standard . To make more critical adjustments based on your own preferences in User · Sound Mode Press down arrow button to highlight Sound Mode. Press button to select Music > Movie > User > Standard . Music Movie User Standard Preserves the original sound. Good for musical programs. Enhances treble and bass for a rich sound experience . Select to customize audio settings. Produces a balanced sound in all environments. · Bass Press down arrow button to highlight Bass. Press buttons to increase or decrease low frequency intensity. · Treble Press down arrow button to highlight Treble. Press buttons to increase or decrease high frequency intensity. · Balance Press down arrow button to highlight Balance. Press speaker. buttons to adjust sound towards the left or right · Surround Sound Press MENU to enter the main menu, press to select Sound. button Press button to select among Surround Sound. Press button to select(Off / On) · Auto Volume Press MENU to enter the main menu, press button to select Audio. Press button to select among Auto Volume. Press button to select(Off / On). · Audio Languages(only Digital TV mode) Press MENU to enter the main menu, press button to select Audio. Press button to select among Audio Languages. Press button to select different Audio Languages. · MTS(only Analog TV mode) Press MENU to enter the main menu, press button to select Audio. Press button to select among MTS. Press button to select(Stereo / SAP / Mono). · SPDIF Type Press MENU to enter the main menu, press button to select Sound. Press button to select among SPDIF Type. Press button to select(RAW / Off / PCM). · Accessibility Press down arrow button to highlight Accessibility. Press buttons to Enter. · VoiceGuide · VideoDescription Note: When adjustments are completed, you may select another menu by pressing the Menu button. 21 Menu Adjustments Date & Time Settings The Time menu includes adjustment of settings for your local time zone and daylight savings time. The clock will adjust automatically after the initial Channel Auto Scan of available broadcast channels in your area (see page 19 for TV Setup). How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Time. · Press down arrow button to highlight Sleep Timer then press the arrow button to select time to view before the television timer turns the set off: 5 Min > 10 Min > 15 Min > 30 Min > 45 Min > 60 Min > 90 Min > 120Min > 180 Min > 240 Min > Off. · Press down arrow button to highlight Time Zone then press the arrow button to select between: Eastern > Central > Mountain > Pacific > Alaska > Hawaii > Atlantic. · Press down arrow button to highlight Daylight Savings Time. Navigate using the arrow buttons to turn this feature on or off. · Press down arrow button to highlight Time Format. Navigate using the arrow buttons to turn this feature 12-hour or 24-hour. · Press down arrow button to highlight Auto Clock. Navigate using the arrow buttons to turn this feature on or off. · Clock and Date are automatically set the first time the tuner receives a broadcast channel. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 22 Menu Adjustments Setup Settings In the Setup menu you may change the initial set up of preferences that include settings for language, menu display, computer monitoring,closed captions, enhancement of black detail in the picture and resetting your TV back to its factory default status. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Setup. Gain access to display options by pressing the down arrow button to highlight Menu Language or other options, then press arrow button on your remote to select. · Menu Languages Other languages include English, Français, Español. · Transparency Navigate using the tons to turn ON/OFF · Zoom Mode arrow but- Adjust the duration of the Zoom Mode menu. Press button to select. · Restore Default Press the arrow button to automatically reset all adjustments back to their original factory settings. · HDMI CEC Press the arrow button to enter. 30Sec. NOTE: Closed Caption and Advanced are features described on the following pages. 23 Menu Adjustments CEC The CEC menu includes HDMI CEC \ Auto Standby \ Auto TV on \ HDMI ARC \ Device control \ Device List. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Setup · The switch turn on or off the CEC function,it always work when connected the CEC device outside. · Turn on it.User can control the TV enter standby state when the CEC device enter standby. · Turn on it.User can control the TV enter power on state when the CEC device power on work. · Turn on it.User can enable the speaker sound from TV after connected an CEC device machine. · Turn on it .User can control the · Turn on it.will show the CEC CEC device operation form the TV. device name in the menu OSD. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 24 Menu Adjustments Closed Captions The Setup menu includes adjustments for activating the Closed Caption text feature for display on-screen and customizing CC display types and font styles. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Setup. · Press the down arrow button to highlight Closed Caption then press the arrow button to highlight CC Mode. · Navigate using the arrow buttons to select Off > On > CC On Mute. · Press down arrow button to highlight Basic Sdection. Navigate using the arrow buttons to select CC1-4, TEXT1-4. · Press down arrow button to highlight Advanced. Navigate using the arrow buttons to select, Service 1-6. · Press down arrow button to highlight Option. Press the arrow button to enter a menu with options to customize text fonts, colors and opacities. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 25 Menu Adjustments Parental Control In the Lock menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Lock. Gain access to parental rating options by pressing the down arrow button to highlight Enter Password. Enter your 4 digit code (factory default code is "0000") unless previously changed. · To change the password, press arrow button to display a screen to enter your new password, then confirm again. (not illustrated) · To make changes to parental controls, highlight System Lock then press the arrow button · To set parental controls for television programming or DVD movies, press the arrow buttons to highlight US Rating. Navigate using the buttons to highlight TV / MPAA menu. · Highlight TV, then press the arrow button to enter the TV Ratings menu and select your preference. TV-Y Appropriate for all children TV-Y7 Appropriate for all children over 7 TV-G General Audience TV-PG Parental Guidance Suggested TV-14 Parents Strongly Cautioned TV-MA Mature Audience Only · Highlight MPAA, then press the arrow button repeatedly to select your movie rating preference. G PG PG-13 R NC-17 X General Audience Parental Guidance Suggested Parents Strongly Cautioned Restricted No One Under 17 Permitted Adults Only NOTE: RRT Setting and Reset RRT are not user adjustable settings. 26 Menu Adjustments Parental Control In the Lock menu, you may block television and movie programming based on Canadian TV and movie rating guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control. Navigate using arrow buttons to select Lock. Gain access to rating options by pressing the down arrow button to highlight Enter Password. Enter your 4 digit code (factory default code is "0000") unless previously changed. See page 26 for information on how to change your password. Then press the arrow buttons to highlight Canada. Navigate using the buttons to highlight Canada English. · Navigate using down arrow button to highlight Canada English then press the arrow button repeatedly to select your ratings preference. E C C8+ G PG 14+ 18+ Turn off Appropriate for all children Appropriate for everyone 8 years old and up General Audience Parental Guidance Appropriate for Children over 14 years old Mature Audience Only · Navigate using down arrow button to highlight Canada French then press the arrow button repeatedly to select your ratings preference. E G 8 ans+ 13 ans+ 16 ans+ 18 ans+ Turn off General Audience Appropriate for Children 8 years old and up Appropriate for Children 13 years old and up Appropriate for Children 16 years old and up Mature Audience Only Note: When adjustments are completed, you may select another menu by pressing the Menu button. 27 Menu Adjustments TV Settings The Channel provides the setup / changes of your television to receive broadcast channels, store your favorite channels, add or skip channels in memory and label or name channels.(For antenna and Auto Channel Scan setup, please refer to page 19.) How to Navigate: Press the MENU button on the remote control. Navigate using arrow down button to highlight your preferences. buttons to select Channel. Press the · Favorite · Highlight Favorite to add channels to your Favorites List. Navigate using the arrow buttons to select channels to be added or deleted from your list. Press ENTER to add or delete a channel. A checkmark indicates a channel has been added. You may also display your list of Favorite channels by pressing the FAV button on the remote control · Show / Hide · Highlight Show / Hide to select or skip channels already in memory. Navigate using the arrow buttons to access the list of available channels. Press ENTER to change the channels status. A checkmark indicates a channel has been added. · Channel Label · Highlight Channel Label to name or rename a broadcast channel. Navigate using the arrow button to enter the screen menu to relabel a channel. Use the arrow buttons to spell out each letter, number or character. Use arrow buttons to advance to the next space. 28 USB Modes 1. Press the INPUT button on the remote control to display the Input Menu. 2. Press the buttons to select Media in the Source menu, and then press the ENTER button. To view Photos on the TV: Press the buttons to select Photo. Press the or button to highlight the photo you want to view. Press ENTER to view the photo. Press the button to repeat none, repeat one, repeat all. Press the EXIT button and select or to highlight the photo you want to view. To Listen to Music on the TV: Press the buttons to select Music. Press the or button to highlight the song you want to hear. Press ENTER to start playing the song. Press the button down to turn the page. Press the button to repeat none, repeat one, repeat all. 29 MHL Setting Connecting an MHL-enabled device You can connect an MHL-enabled device, such as a cell phone, and view your device's screen on your TV. To connect an MHL-enabled device: 1 Press INPUT to open the Input Source list. 2 Press or to select HDMI3,then press ENTER. 3 Connect an MHL cable (not provided) to the micro USB port on the device, then connect the other end of the cable to the HDMI /MHL jack on the side of your TV. MHL-enabled devi ce HDMI-TO-MHL Cable 4 Your device's menu will vary depending on the device and the apps you have loaded on the device. 30 Specifications Display LED Size (inch) 50 Aspect Ratio 16:9 Digital Compatibility 480i / 480p / 720p /1080i /1080p Resolution 1920x1080 Brightness (cd / m2) 200 Dynamic Contrast Ratio 3000:1 Vertical Viewing Angle (degrees) 160° Horizontal Viewing Angle (degrees) 170° Maximum Colors (millions) 16.7M Power Consumption 120Watts Audio Power 2 X 10 W Dimension without Pedestal Installed 44.6" (W) x 26.1" (H) x 3.8" (D) Weight without Pedestal 21 lbs Composite Video (1) Y Pb Pr (1) HDMI (3) RF (1) Input Connections SPDIF Digital Audio Output (1) PC / VGA (1) PC Audio IN (1) Headphone Jack (1) USB (1) Audio Out (1) 31 Troubleshooting Check for a possible solution to a symptom before contacting a customer service representative. Symptom Cannot receive certain channels through the antenna No color Video noise or choppy picture TV blocked on certain channels Cannot use certain functions No sound Black box on screen No power No picture Remote control does not function Possible Solutions · Perform Channel Scan to add channels into the TV tuner memory. See page 18. · Readjust your antenna and retry Auto Channel Scan. · Signal from the TV station may be weak in your area. · Check the video installation of your external A / V equipment. See pages 15 · Readjust antenna. Keep TV away from noise sources, neon lights, and microwave appliances. · Perform Channel Scan to add channels into the TV tuner memory. See page 18. · Check whether the channel was deleted. See page 28. · Check parental control settings. See pages 26, 27. · Restore default settings. See page 23. · If the item chosen in a menu is shown in gray text, that item cannot be selected in the current input. · Check that connected audio cables are completely inserted. · Verify you have selected the correct audio source from your amplifier. See page 16. · Mute function may be enabled, press mute on the remote. · The "Text" option is enabled and no text is available. · Press the CCD button on the remote control to turn off. · Batteries in the remote control may need replacing. · Re-attach AC plug to wall outlet. · Digital TV channel signal maybe weak, try another channel. · Press INPUT button to verify the desired input selected. · Re-connect the antenna or cable wiring. · Restore default settings. See page 23. · Replace batteries with new ones. · Check that battery polarity is correct. · Point remote directly at the TV's IR receiver. See page 7. 32GPL Ghostscript 9.14
