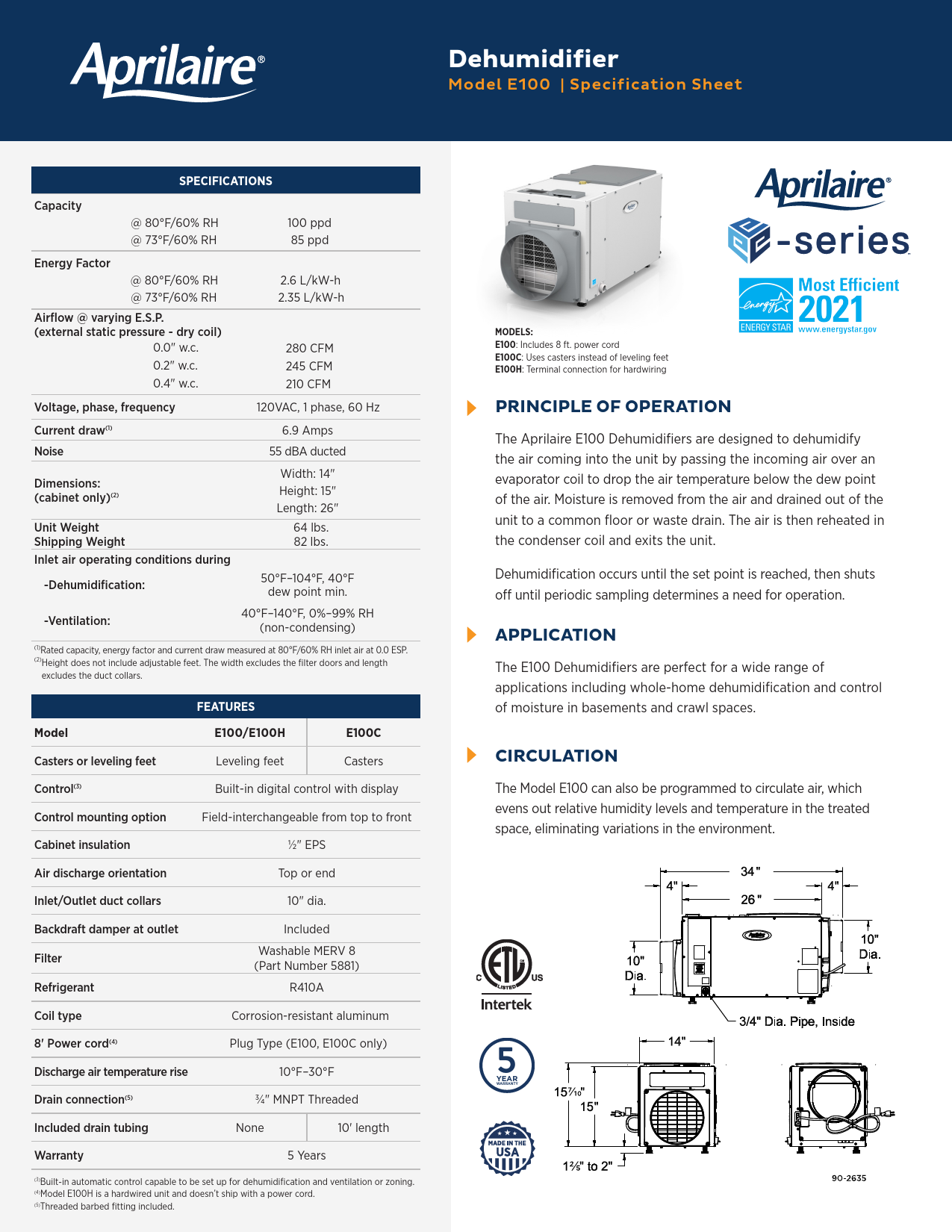

Dehumidifier
Model E100 | Specification Sheet

SPECIFICATIONS

Capacity

@ 80�F/60% RH @ 73�F/60% RH

100 ppd 85 ppd

Energy Factor

@ 80�F/60% RH @ 73�F/60% RH

Airflow @ varying E.S.P. (external static pressure - dry coil)
0.0" w.c.

0.2" w.c.

0.4" w.c.

2.6 L/kW-h 2.35 L/kW-h
280 CFM 245 CFM 210 CFM

Voltage, phase, frequency

120VAC, 1 phase, 60 Hz

Current draw(1)

6.9 Amps

Noise

55 dBA ducted

Dimensions: (cabinet only)(2)
Unit Weight Shipping Weight Inlet air operating conditions during
-Dehumidification:

Width: 14" Height: 15" Length: 26"
64 lbs. 82 lbs.
50�F�104�F, 40�F dew point min.

-Ventilation:

40�F�140�F, 0%�99% RH (non-condensing)

(1)Rated capacity, energy factor and current draw measured at 80�F/60% RH inlet air at 0.0 ESP. (2)H eight does not include adjustable feet. The width excludes the filter doors and length
excludes the duct collars.

FEATURES

Model

E100/E100H

E100C

Casters or leveling feet

Leveling feet

Casters

Control(3)

Built-in digital control with display

Control mounting option

Field-interchangeable from top to front

Cabinet insulation

�" EPS

Air discharge orientation

Top or end

Inlet/Outlet duct collars

10" dia.

Backdraft damper at outlet Filter Refrigerant

Included
Washable MERV 8 (Part Number 5881)
R410A

Coil type

Corrosion-resistant aluminum

8' Power cord(4)

Plug Type (E100, E100C only)

Discharge air temperature rise

10�F�30�F

Drain connection(5)

3/4" MNPT Threaded

Included drain tubing

None

10' length

Warranty

5 Years

(3)Built-in automatic control capable to be set up for dehumidification and ventilation or zoning. (4)Model E100H is a hardwired unit and doesn't ship with a power cord. (5)Threaded barbed fitting included.

MODELS: E100: Includes 8 ft. power cord E100C: Uses casters instead of leveling feet E100H: Terminal connection for hardwiring
PRINCIPLE OF OPERATION
The Aprilaire E100 Dehumidifiers are designed to dehumidify the air coming into the unit by passing the incoming air over an evaporator coil to drop the air temperature below the dew point of the air. Moisture is removed from the air and drained out of the unit to a common floor or waste drain. The air is then reheated in the condenser coil and exits the unit. Dehumidification occurs until the set point is reached, then shuts off until periodic sampling determines a need for operation.
APPLICATION
The E100 Dehumidifiers are perfect for a wide range of applications including whole-home dehumidification and control of moisture in basements and crawl spaces.
CIRCULATION
The Model E100 can also be programmed to circulate air, which evens out relative humidity levels and temperature in the treated space, eliminating variations in the environment.
5
YEAR
WARRANTY

INSTALLATION OPTIONS FOR THE APRILAIRE E100 DEHUMIDIFIERS
Shown in horizontal applications, can be installed in vertical applications as well.

Main Return to Main Return - RECOMMENDED
� This application can be used when a supply duct is not available. � A ir is pulled from the return duct, dehumidified, and returned to the return duct. � A ssures that the dehumidified air is mixed with rest of the air in the duct before it re-enters the house. � This application is for whole-home dehumidification.

SUPPLY

AIR

HANDLER

RETURN

Dedicated Return to Main Supply or Dedicated Return to A/C Return
� This application can be used when a return or supply duct is not available. � A ir is pulled through a dedicated return grille, dehumidified, and returned to the supply plenum or return. � This application is for whole-home dehumidification.

SUPPLY

AIR HANDLER

RETURN

SUPPLY AIR HANDLER

Inlet and Outlet ducted to dedicated grilles
� For homes without duct work. Use of the Model 5546 Living Space Duct Kit recommended. � Dries a specific area that has a moisture issue (basements, crawl spaces, sealed attics, etc.). � D ehumidifier can be located in a closet, mechanical room or unfinished area and ducted into a finished room.

Main Return to Main Supply
� A ir is pulled from the return duct, dehumidified, and returned to the supply plenum. � This application is for whole-home dehumidification.

SUPPLY

AIR HANDLER

RETURN

RETURN

Optional Accessories
Model 5822 Hanging Kit
27" W x 3" H x 38" L Weight: 18 lbs. Working Load: 400 lbs.

Model 5546 Living Space Duct Kit
See dedicated grilles installation example above.

Optional Wall-Mount Controls

Model 8620/8620W with IAQ Control
� Universal 2H/2C or 4H/2C HP � Event-BasedTM Air Cleaning � Humidity or Ventilation � Touch screen � Wi-Fi (8620W only)
Model 8910/8910W with IAQ Control
� Universal 3H/3C or 4H/2C HP � Event-BasedTM Air Cleaning � Humidity and Ventilation � 2-Part 3-Wire design � Touch screen � Wi-Fi (8910W only)
Model 8920W with IAQ Control
� Universal 3H/3C or 4H/2C HP � Event-BasedTM Air Cleaning � Humidity and Ventilation � 2-Part 3-Wire design � Full-color touch screen � Wi-Fi

Electrical Input voltage and current
Output Control Control range Accuracy Differential Low limit
High limit

Model 76 Wall Mount Dehumidifier Control
� On, Off buttons
� Wall-mounted living space control
� Displays RH and controls to an RH value
� Remote control for crawl space applications and sealed attics

MODEL 76 SPECIFICATIONS

External

Remote

Voltage: 24VAC +/20% Current: 25mA (nominal), 50mA (max.) at 24VAC

Voltage: 35VDC (supplied by dehumidifier control board)

Dry contact, normally open Communication (RS485)

External 40%
80% RH
+/-5% RH
3% RH
40�F dew point
99�F dry bulb

Remote 1 (less dry)�7 (more dry) 65�F�40�F dew point
See dehumidifier specifications
50�F dry bulb, 40�F dew point min. 105�F dry bulb

AprilairePartners.com Form No. 962 � 307823 5.21 �2021 Aprilaire � Division of Research Products Corporation
APRILAIRE RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.

P.O. Box 1467 Madison, WI 53701-1467 800.334.6011 F: 608.257.4357
