KENNY WAYNE SHEPHERD STRATOCASTER (0117510811)
kenny wayne shepherd stratocaster (0117510811) page 2 of 6 mar 30, 2020 - pr5230 - rev. a copyright - 2020 - fender musical instruments corporation
[PDF] KENNY WAYNE SHEPHERD STRATOCASTER (0117510811)
Mar 30, 2020 · REF#. DESCRIPTION. PART. NUMBER. 1. BODY HOLLOW KWS SIG STRAT TFSB. 7719086511. 2. NECK ASSY KWS SIG STRAT RW. 7713121000.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

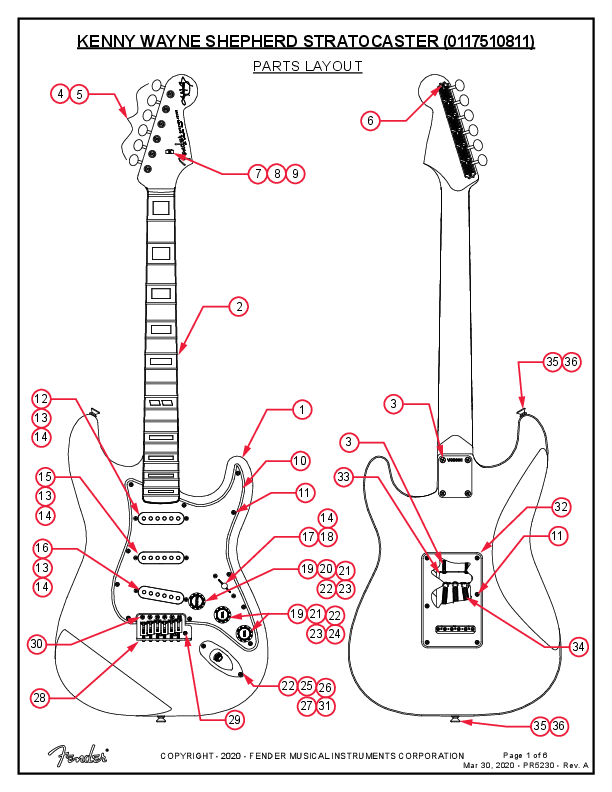

KENNY WAYNE SHEPHERD STRATOCASTER (0117510811) PARTS LAYOUT 45 6 789 12 13 14 15 13 14 16 13 14 30 28 2 35 36 1 3 3 10 33 11 14 17 18 19 20 21 22 23 19 21 22 23 24 32 11 34 22 25 26 27 31 29 35 36 COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION Page 1 of 6 Mar 30, 2020 - PR5230 - Rev. A KENNY WAYNE SHEPHERD STRATOCASTER (0117510811) PARTS LIST REF# DESCRIPTION 1 BODY HOLLOW KWS SIG STRAT TFSB 2 NECK ASSY KWS SIG STRAT RW 3 SCREW SMA 8 X 1-3/4 OHP NI 4 KEY SET GTR VINT DLX FENDER LOGO NI W/HDWR 5 BUSHING STRING POST VINT SET 6 SCREW SMAB 3 X 3/8 RHP NI 7 SCREW SMA 3 X 5/8 RHP NI 8 SPACER NYLON STRING TREE 9 STRING TREE VINT NI W/HDWR 10 PICKGUARD STRAT AS WHITE PEARL 11 SCREW SMAB 4 X 1/2 OHP NI 12 PICKUP ASSY KWS UPG NECK 13 TUBING LATEX CUT .300 X 1/8ID X 1/4OD 14 SCREW TF 6-32 X 3/4 RHP STL NI 15 PICKUP ASSY KWS UPG MIDDLE 16 PICKUP ASSY KWS UPG BRIDGE 17 SWITCH 5-WAY LEVER 18 KNOB PICKUP SWITCH WHT 19 KNOBS STRAT WHITE (1 VOL) (2 TONE) 20 PCB ASSY TREBLE BLEED AM PRO STRAT/TELE 21 WASHER LCK INTL 3/8 X .500 X .020 22 NUT HEX 3/8-32 X 3/32 TK NI 23 CONTROL 250K 10% TPR SPLIT 24 CAPACITOR CERAMIC DISC .01�F 25 FERRULE JACK CHROME 26 WASHER LOCK INTL 3/8 X .687 27 JACK PHONE OPEN CIRT 11 28 BRIDGE ASSY KWS STRAT UPG 28A BRIDGE PLATE STRAT AM VINT NARROW 28B BRIDGE BLOCK 86 STRAT 28C SCREW MACH 8-32 X 3/8 FHP NI 28D BRIDGE SECTION GRAPHTECH W/HDWR 29 SPRING 150 OD 1/2" LONG .039" 30 SCREW WOOD PH 6 X 1-1/8 NI 31 SCREW SMA 5 X 5/8 OHP NI *= NOT PICTURED IN DIAGRAM PART NUMBER 7719086511 7713121000 0015636049 0992074000 0994946000 0011357049 0011358049 0093999000 0992083000 0058677000 0015578049 7716925000 0994916000 0048631049 7716926000 7716927000 0991367000 0994940000 0992035000 7711092000 0022384049 0016352049 0990830000 0068989000 0991940100 0016436049 0021956049 7716962000 7714853000 0026098000 0019656049 7716515000 0994931000 0016170049 0015602049 COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION Page 2 of 6 Mar 30, 2020 - PR5230 - Rev. A KENNY WAYNE SHEPHERD STRATOCASTER (0117510811) REF# DESCRIPTION 32 PLATE BACK STRAT AS RH WHITE PEARL 33 CLAW SPRING TENSION ZINC 34 SPRING TREMOLO TENSION VINT 35 BUTTON STRAP NI .1 V56 36 SCREW WOOD 6 X 1 OHP NI * CASE STRAT/TELE BLACK * WRENCH .050HEX KEY * ARM TREMOLO VINT STRAT * KNOB TREMOLO ARM WHITE PART NUMBER 0080924000 0010272149 0031643049 0994915000 0016188049 0068102011 0018531049 0992039000 0994935000 *= NOT PICTURED IN DIAGRAM COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION Page 3 of 6 Mar 30, 2020 - PR5230 - Rev. A KENNY WAYNE SHEPHERD STRATOCASTER (0117510811) WIRING ASSEMBLY NECK PICKUP 5-WAY SWITCH CAPACITOR .01�F TONE 2 CONTROL TREBLE BLEED PCB TONE 1 CONTROL MIDDLE PICKUP BRIDGE PICKUP VOLUME CONTROL OUTPUT COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION Page 4 of 6 Mar 30, 2020 - PR5230 - Rev. A KENNY WAYNE SHEPHERD STRATOCASTER (0117510811) SWITCH AND CONTROL FUNCTION 5 WAY SWITCH POSITION 5 4 3 2 SWITCH POSITION 1 T1 T1 T2 T1 & T2 T2 TONE CONTROL NECK PICKUP MIDDLE PICKUP PICKUP IS ON PICKUP IS OFF BRIDGE PICKUP INDICATES POSITION OF 5 WAY SWITCH 1 NECK PICKUP MIDDLE PICKUP BRIDGE PICKUP 5 - WAY SWITCH MASTER VOLUME TONE 1 (T1) TONE 2 (T2) COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION Page 5 of 6 Mar 30, 2020 - PR5230 - Rev. A KENNY WAYNE SHEPHERD STRATOCASTER (0117510811) ADDITIONAL SPECIFICATION DETAIL FRET SIZE: JUMBO (FRET DIMENSIONS ARE BEFORE INSTALLATION) NECK PROFILE:KWS 2-7/16" .055" .110" PLEASE NOTE: AS EACH NECK IS SANDED & FINISHED BY HAND, THICKNESS DIMENSIONS MAY VARY SLIGHTLY FROM THOSE SHOWN. .785" 1ST FRET PROFILE .960" TUNING MACHINE SET W/HDWR P/N 0992074000 OUTER SHAFT DIAMETER .250" � .261" 12TH FRET PROFILE TUNING MACHINE THRU-HOLE INNER DIAMETER .261" � .250" SADDLE HEIGHT ADJUSMENT WRENCH: .050" HEX KEY P/N 0018531049 TRUSS ROD NUT P/N 0058171000 .050" HEX �.375" SADDLE W/HDWR: 7716515000 LOGO: VINTAGE STRATOCASTER APPLIED OVER THE FINISH 8-32 THREAD PICKUP SPECIFICATIONS POSITION MAGNETS DC RESISTANCE POLARITY NECK ALNICO 3 UNBEVELED 5.7 - 6.31K SOUTH MIDDLE ALNICO 3 UNBEVELED 6.8 - 7.4K NORTH BRIDGE ALNICO 3 UNBEVELED 6.4 - 7.0K SOUTH COPYRIGHT - 2020 - FENDER MUSICAL INSTRUMENTS CORPORATION Page 6 of 6 Mar 30, 2020 - PR5230 - Rev. A
