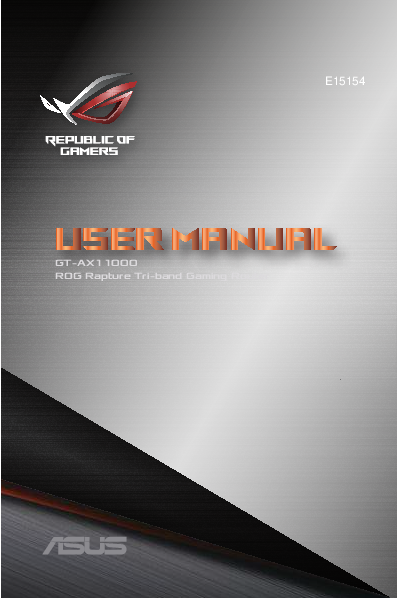

GT-AX11000 ROG Rapture Tri-band Gaming Router

E15154 First Edition January 2019
Copyright © 2019 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS"). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL "AS IS"WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
2

Table of contents
1 Getting to know your wireless router
1.1 Welcome! ........................................................................................7 1.2 Package contents.........................................................................7 1.3 Your wireless router.....................................................................8 1.4 Positioning your router........................................................... 10 1.5 Setup Requirements ................................................................ 11
2 Getting started
2.1 Router Setup............................................................................... 12 A. Wired connection..................................................................12 B. Wireless connection.............................................................13
2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15 2.3 Connecting to your wireless network................................ 18
3 Configuring the General Settings of ROG Gaming Center
3.1 Logging into the Web GUI ..................................................... 19 3.2 Dash Board ................................................................................. 21 3.3 Aiprotection Pro ....................................................................... 24
3.3.1 Configuring Aiprotection Pro ...........................................25 3.3.2 Blocking Malicious Sites .....................................................27 3.3.3 Two-Way IPS............................................................................28 3.3.4 Infected Device Prevention and Blocking....................29 3.3.5 Setting up Parental Control...............................................30 3.4 Game Boost................................................................................. 33 3.4.1 QoS.............................................................................................34 3.4.2 Web History.............................................................................35 3.5 Game Private Network ............................................................ 36 3.6 Game Profile................................................................................ 38 3.7 Game Radar................................................................................. 40 3.8 WiFi Radar .................................................................................... 42 3.8.1 WiFi Site Survey......................................................................43
3

Table of contents
3.8.2 Wireless Channel Statistics ................................................44 3.8.3 Advanced Troubleshooting...............................................44 3.9 VPN................................................................................................. 45 3.9.1 VPN Fusion...............................................................................46 3.10 Traffic Analyzer........................................................................... 48
4 Configuring the Advanced Settings
4.1 Using the Network Map ......................................................... 49 4.1.1 Setting up the wireless security settings......................50 4.1.2 Managing your network clients.......................................51 4.1.3 Monitoring your USB device .............................................53 4.1.4 ASUS AiMesh ..........................................................................55
4.2 Wireless......................................................................................... 61 4.2.1 General......................................................................................61 4.2.2 WPS ............................................................................................63 4.2.3 Bridge ........................................................................................65 4.2.4 Wireless MAC Filter ...............................................................67 4.2.5 RADIUS Setting ......................................................................68 4.2.6 Professional .............................................................................69
4.3 Creating a Guest Network...................................................... 73 4.4 LAN................................................................................................. 75
4.4.1 LAN IP ........................................................................................75 4.4.2 DHCP Server............................................................................76 4.4.3 Route .........................................................................................78 4.4.4 IPTV ............................................................................................79 4.5 WAN ............................................................................................... 80 4.5.1 Internet Connection.............................................................80 4.5.2 Dual WAN .................................................................................83 4.5.3 Port Trigger..............................................................................84 4.5.4 Virtual Server/Port Forwarding........................................86
4

Table of contents
4.5.5 DMZ............................................................................................89 4.5.6 DDNS .........................................................................................90 4.5.7 NAT Passthrough...................................................................91 4.6 Using the USB Application..................................................... 92 4.6.1 Using AiDisk ............................................................................93 4.6.2 Using Servers Center............................................................95 4.6.3 3G/4G ..................................................................................... 100 4.7 Using AiCloud 2.0....................................................................101 4.7.1 Cloud Disk............................................................................. 102 4.7.2 Smart Access........................................................................ 104 4.7.3 Smart Sync............................................................................ 105 4.8 IPv6...............................................................................................106 4.9 Firewall........................................................................................107 4.9.1 General................................................................................... 107 4.9.2 URL Filter ............................................................................... 107 4.9.3 Keyword filter ...................................................................... 108 4.9.4 Network Services Filter .................................................... 109 4.9.5 IPv6 Firewall ......................................................................... 110 4.10 Administration .........................................................................111 4.10.1 Operation Mode ................................................................. 111 4.10.2 System.................................................................................... 112 4.10.3 Firmware Upgrade............................................................. 113 4.10.4 Restore/Save/Upload Setting ........................................ 113 4.11 System Log ................................................................................114 4.12 Smart Connect .........................................................................115 4.12.1 Setting up Smart Connect .............................................. 115 4.12.2 Smart Connect Rule .......................................................... 116
5

5 Utilities
5.1 Device Discovery.....................................................................119 5.2 Firmware Restoration ............................................................120 5.3 Setting up your printer server ............................................121
5.3.1 ASUS EZ Printer Sharing .................................................. 121 5.3.2 Using LPR to Share Printer .............................................. 125 5.4 Download Master....................................................................130 5.4.1 Configuring Bit Torrent download settings.............. 131 5.4.2 NZB settings......................................................................... 132
6 Troubleshooting
6.1 Basic Troubleshooting...........................................................133 6.2 Frequently Asked Questions (FAQs) ................................135
Appendices
Notices .....................................................................................................144 ASUS Contact information..................................................................154 Networks Global Hotline Information.............................................155
6

1 Getting to know your wireless router
1.1 Welcome!
Thank you for purchasing ROG Rapture Wireless Router! The stylish router features 2.4GHz, 5GHz-1 and 5 GHz-2 triple bands for an unmatched concurrent wireless HD streaming; SMB server, UPnP AV server, and FTP server for 24/7 file sharing; a capability to handle 300,000 sessions; and the ASUS Green Network Technology, which provides up to 70% power-saving solution.
1.2 Package contents

ROG Rapture gaming router Network cable (RJ-45)

AC adapter Quick Start Guide

NOTES:
· If any of the items is damaged or missing, contact ASUS for technical inquiries and support, Refer to the ASUS Support Hotline list at the back of this user manual.
· Keep the original packaging material in case you would need future warranty services such as repair or replacement.

1.3 Your wireless router
Wi-Fi On/Off button Press this button to turn on /off the Wi-Fi connection. WPS button This button launches the WPS Wizard. Boost Key Press this button to turn on/off LED, DFS channel, Aura RGB and Game Boost. Power button Press this button to power on or off the system. Power (DC-IN) port Insert the bundled AC adapter into this port and connect your router to a power source. USB 3.0 port Insert USB 3.0 devices such as USB hard disks or USB flash drives into this port. 2.5G Gaming port Connect network cables into these ports to prioritize the packets.
8

WAN (Internet) port Connect a network cable into this port to establish WAN connection.
LAN ports Connect network cables into these ports to establish LAN connection.
Reset button This button resets or restores the system to its factory default settings.
Power LED Off: No power. On: Device is ready. Flashing slow: Rescue mode.
2.4GHz / 5GHz Wi-Fi LED Off: No 2.4GHz / 5GHz signal. On: Wireless system is ready. Flashing: Transmitting or receiving data via wireless connection.
WAN (Internet) LED Red: No IP or no physical connection. On: Has physical connection to a wide area network (WAN).
LAN LED Off: No power or no physical connection. On: Has physical connection to a local area network (LAN).
2.5G Gaming port LED Off: No 2.5G gaming port connection. On: Has physical connection to 2.5G gaming port.
WPS LED Off: WPS verification process is off or completed. Flashing: WPS verification process is activated.

NOTES:
· Use only the adapter that came with your package. Using other adapters may damage the device.
· Specifications:

DC Power adapter Operating Temperature Operating Humidity

DC Output: +19V with max 3.42A current

0~40oC

Storage

0~70oC

50~90%

Storage

20~90%

1.4 Positioning your router
For the best wireless signal transmission between the wireless router and the network devices connected to it, ensure that you: · Place the wireless router in a centralized area for a maximum
wireless coverage for the network devices. · Keep the device away from metal obstructions and away from
direct sunlight. · Keep the device away from 802.11g or 20MHz only Wi-Fi
devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. · Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates. · To ensure the best wireless signal, orient the four detachable antennas as shown in the drawing below.
10

1.5 Setup Requirements
To set up your wireless network, you need a computer that meets the following system requirements:
· Ethernet RJ-45 (LAN) port (10Base-T/100BaseTX/1000BaseTX)
· IEEE 802.11a/b/g/n/ac/ax wireless capability · An installed TCP/IP service · Web browser such as Internet Explorer, Firefox, Safari, or
Google Chrome
NOTES:
· If your computer does not have built-in wireless capabilities, you may install an IEEE 802.11a/b/g/n/ac/ax WLAN adapter to your computer to connect to the network.
· With its triple band technology, your wireless router supports 2.4GHz, 5GHz-1 and 5GHz-2 wireless signals simultaneously. This allows you to do Internet-related activities such as Internet surfing or reading/writing e-mail messages using the 2.4GHz band while simultaneously streaming high-definition audio/video files such as movies or music using the 5GHz band.
· Some IEEE 802.11n devices that you want to connect to your network may or may not support 5GHz band. Refer to the device's manual for specifications.
· The Ethernet RJ-45 cables that will be used to connect the network devices should not exceed 100 meters.
IMPORTANT!
· Some wireless adapters might have connectivity issues to 802.11ax WiFi APs.
· If you're experiencing such issue, please ensure you update the driver to the latest version. Check your manufacturer's official support site where software drivers, updates, and other related information can be obtained. · Realtek: https://www.realtek.com/en/downloads · Mediatek: https://www.mediatek.com/products/connectivityand-networking/broadband-wifi · Intel: https://downloadcenter.intel.com/
11

2 Getting started
2.1 Router Setup
IMPORTANT! · Use a wired connection when setting up your wireless router to
avoid possible setup problems. · Before setting up your ASUS wireless router, do the following: · If you are replacing an existing router, disconnect it from your
network.
· Disconnect the cables/wires from your existing modem setup. If your modem has a backup battery, remove it as well.
· Reboot your cable modem and computer (recommended).
A. Wired connection
NOTE: You can use either a straight-through cable or a crossover cable for wired connection.
To set up your wireless router via wired connection: 1. Plug your router into a power outlet and power it on. Connect
the network cable from your computer to a LAN port on your router.

1
Modem

WAN LAN
2

4 3
Internet
12

2. The web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com
3. Set up a password for your router to prevent unauthorized access.

B. Wireless connection
To set up your wireless router via wireless connection: 1. Plug your router into a power outlet and power it on.

Smart phone

Modem

WAN

Tablet

3 2
Internet

Laptop

2. Connect to the network name(SSID) shown on the product label on the back side of the router. For better network security, change to a unique SSID and assign a password.

ASUS router

2.4G Wi-Fi Name (SSID): ASUS_XX_2G 5G-1 Wi-Fi Name (SSID): ASUS_XX_5G 5G-2 Wi-Fi Name (SSID): ASUS_XX_5G_Gaming
* XX refers to the last two digits of 2.4GHz MAC address. You can find it on the label on the back of your ROG router.

3. Once connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.
4. Set up a password for your router to prevent unauthorized access.
NOTES:
· For details on connecting to a wireless network, refer to the WLAN adapter's user manual.
· To set up the security settings for your network, refer to the section Setting up the wireless security settings in Chapter 3 of this user manual.

2.2 Quick Internet Setup (QIS) with Autodetection
The Quick Internet Setup (QIS) function guides you in quickly setting up your Internet connection.
NOTE: When setting the Internet connection for the first time, press the Reset button on your wireless router to reset it to its factory default settings. To use QIS with auto-detection: 1. Launch a web browser. You will be redirected to the ASUS Setup Wizard (Quick Internet Setup). If not, key in http://router.asus.com manually.
2. The wireless router automatically detects if your ISP connection type is Dynamic IP, PPPoE, PPTP and L2TP. Key in the necessary information for your ISP connection type. IMPORTANT! Obtain the necessary information from your ISP about the Internet connection type.
15

NOTES: · The auto-detection of your ISP connection type takes place when
you configure the wireless router for the first time or when your wireless router is reset to its default settings. · If QIS failed to detect your Internet connection type, click Skip to manual setting and manually configure your connection settings.
3. Assign the wireless network name (SSID) and security key for your 2.4GHz and 5 GHz wireless connection. Click Apply when done.
16

4. On the Login Information Setup page, change the router's login password to prevent unauthorized access to your wireless router.
NOTE: The wireless router's login username and password is different from the 2.4GHz/5GHz network name (SSID) and security key. The wireless router's login username and password allows you to log into your wireless router's Web GUI to configure your wireless router's settings. The 2.4GHz/5GHz network name (SSID) and security key allows Wi-Fi devices to log in and connect to your 2.4GHz/5GHz network.
17

2.3 Connecting to your wireless network
After setting up your wireless router via QIS, you can connect your computer or other smart devices to your wireless network. To connect to your network: 1. On your computer, click the network icon in the notification
area to display the available wireless networks. 2. Select the wireless network that you want to connect to, then
click Connect. 3. You may need to key in the network security key for a secured
wireless network, then click OK. 4. Wait while your computer establishes connection to the
wireless network successfully. The connection status is displayed and the network icon displays the connected status. NOTES: · Refer to the next chapters for more details on configuring your
wireless network's settings. · Refer to your device's user manual for more details on connecting
it to your wireless network.
18

3 Configuring the General Settings of ROG Gaming Center
3.1 Logging into the Web GUI
Your ROG Rapture gaming router comes with an intuitive web graphical user interface (GUI) - ROG Gaming Center, which gives you total network control, with need-to-know information such as connected device status and worldwide game-server ping values, and instant access to all the amazing gaming features.
NOTE: The features may vary with different firmware versions. To log into the web GUI: 1. On your web browser, manually key in the wireless router's
default IP address: http://router.asus.com. 2. On the login page, key in the default user name (admin) and
the password that you have set in 2.2 Quick Internet Setup (QIS) with Auto-dection.
3. You can now use the Web GUI to configure various settings of your ASUS Wireless Router.
19

QIS - Smart Connect Wizard
Navigation panel

Top command buttons Information banner

NOTE: If you are logging into the Web GUI for the first time, you will be directed to the Quick Internet Setup (QIS) page automatically.

3.2 Dash Board
Dash Board allows you to monitor the real-time traffic for your networking environment and analyze the real-time network ping and ping deviation.
Network ping refers to online game experiences. Higher ping means higher latency for real-time games. For most online games, network ping that is less than 99 ms is considered good quality. If network ping is less than 150 ms, the quality is acceptable. Generally, if network ping is more than 150 ms, it is hard to play game smoothly. Ping deviation is also highly related with online game experiences. With higher ping deviation, it is much easier causing possible toggle when playing online game. There is no baseline for ping deviation. However, lower ping deviation is better.
21

· Game Radar: Game Radar from Dashboard could give you a quick look about ping time for specific game server.
22

· Aura RGB: Allows users to define or turn on/off the Aura RGB from Dashboard. You can setup any color and choose either of the five lighting patterns.
· Boost Key: ROG Rapture gaming router supports Boost Key and allows users to define the functions of Boost Key from Dashboard. · LED on/off · DFS channel on/off · Aura RGB on/off · Game Boost: enable/disable prioritizing the gaming packet.
23

3.3 Aiprotection Pro
Aiprotection Pro provides real-time monitoring that detects malware, spyware, and unwanted access. It also filters unwanted websites and apps and allows you to schedule Internet access time for a connected device.
24

3.3.1 Configuring Aiprotection Pro Aiprotection Pro prevents network exploits and secures your network from unwanted access.
To Configure Aiprotection Pro: 1. From the navigation panel, go to General > Aiprotection Pro. 2. From the Aiprotection Pro main page, click Network
Protection. 3. From the Network Protection tab, click Scan. The search results are displayed on the Router Security Assessment page.
25

IMPORTANT! Items marked with Yes on the Router Security Assessment page are considered to be safe. 4. (Optional) From the Router Security Assessment page, manually configure the items marked as No, Weak, or Very Weak. To do this: a. Click an item to go to the item's setting page. b. From the item's security settings page, configure and
make the necessary changes and click Apply when done. c. Go back to the Router Security Assessment page and
click Close to exit the page. 5. Click OK on the confirmation message.
26

3.3.2 Blocking Malicious Sites This feature restricts access to known malicious websites in the cloud database for an always-up-to-date protection.
NOTE: This function is automatically enabled if you run the Router Weakness Scan. To enable Malicious Sites Blocking: 1. From the navigation panel, go to General > Aiprotection Pro. 2. From the Aiprotection Pro main page, click Network Protection. 3. From the Malicious Sites Blocking pane, click ON.
27

3.3.3 Two-Way IPS This feature resolves common exploits within the router configuration.
NOTE: This function is automatically enabled if you run the Router Weakness Scan. To enable Two-Way IPS: 1. From the navigation panel, go to General > Aiprotection Pro. 2. From the Aiprotection Pro main page, click Network Protection. 3. From the Two-Way IPS pane, click ON.
28

3.3.4 Infected Device Prevention and Blocking This feature prevents infected devices from communicating personal information or infected status to external parties.
NOTE: This function is automatically enabled if you run the Router Weakness Scan. To enable infected device prevention and blocking: 1. From the navigation panel, go to General > Aiprotection Pro. 2. From the Aiprotection Pro main page, click Network Protection. 3. From the Infected Device Prevention and Blocking pane, click ON. To configure Alert Preference: 1. From the Infected Device Prevention and Blocking pane, click Alert Preference. 2. Select or key in the e-mail provider, e-mail account, and password then click Apply.
29

3.3.5 Setting up Parental Control Parental Control allows you to control the Internet access time or set the time limit for a client's network usage. To enable Two-Way IPS: 1. From the navigation panel, go to General > Aiprotection Pro. 2. From the Aiprotection Pro main page, click Parental Controls
tab.
30

Web & Apps Filters Web & Apps Filters is a feature of Parental Controls that allows you to block access to unwanted web sites or applications. To configure Web & Apps Filters: 1. From the navigation panel, go to General > Aiprotection Pro. 2. From the Aiprotection Pro main page, click Parental Controls
icon to go to the Parental Controls tab. 3. From the Enable Web & Apps Filters pane, click ON. 4 When the End Users License Agreement (EULA) message
prompt appears, click I agree to continue. 5. From the Client List column, select or key in the client's name
from the dropdown list box. 6. From the Content Category column, select the filters from
the four main categories: Adult, Instant Message and Communication, P2P and File Transfer, and Streaming and Entertainment. 7. Click to add the client's profile. 8. Click Apply to save the settings.
31

Time Scheduling Time Scheduling allows you to set the time limit for a client's network usage.
NOTE: Ensure that your system time is synchronized with the NTP server.
To configure Time Scheduling: 1. From the navigation panel, go to General >Aiprotection Pro
> Parental Controls > Time Scheduling. 2. From the Enable Time Scheduling pane, click ON. 3. From the Clients Name column, select or key in the client's
name from the dropdown list box. NOTE: You may also key in the client's MAC address in the Client MAC Address column. Ensure that the client name does not contain special characters or spaces as these may cause the router to function abnormally. 4. Click to add the client's profile. 5. Click Apply to save the settings.
32

3.4 Game Boost
This feature allows you to enable Game Boost with one click. When Game Boost is enabled, ROG Rapture gaming router puts the gaming packet as the top priority to provide you with the best gaming experience.
Apps analysis To enable Apps analysis: From the Game Boost tab, go to the Apps Analysis pane, and click ON.
33

3.4.1 QoS This feature ensures bandwidth for prioritized tasks and apps.
To enable the QoS function: 1. From the navigation panel, go to General > Game Boost>
QoS tab. 2. From the Enable QoS pane, click ON. 3. Fill in the upload and download bandwidth fields.
NOTE: Get the bandwidth information from your ISP. You can also go to http://speedtest.net to check and get your bandwidth. 4. Select the QoS Type (Adaptive, Traditional or Bandwidth limiter) for your configuration. NOTE: Refer to the QoS tab for the definition of the QoS Type. 5. Click Apply.
34

3.4.2 Web History This feature displays the history and details of the sites or URLs that the client visited.
To view the Web History: 1. From the navigation panel, go to General > Game Boost>
Web History tab. 2. (Optional) Click Refresh to clear the list.
35

3.5 Game Private Network
The WTFast-powered Gamers Private Network (GPNTM) reduces your average game latency and helps reduce flux spikes and packet losses with your connection. You can enjoy a faster, smoother, and more responsive connection with virtually all MMO games.
To update the firmware: 1. Launch the web browser and key in
http://router.asus.com, enter the router's default login name and password (admin/admin) to enter ASUSWRT GUI. 2. Go to Administration > Firmware Upgrade and click Check and follow the onscreen instructions to upgrade the firmware. You can also download the latest firmware from http://support.asus.com/ServiceHome.aspx to upgrade the firmware manually.
36

To use WTFast: 1. From the navigation panel, go to General > Game Boost. 2. Create a free WTFast account via https://www.wtfast.com/. 3. Log into the WTFast account. 4. From the WTFast Rules list, create the profile for the device
that you want to use WTFast GPN on. 5. Select a GPN server according to your location or select "Auto"
and "Apply" settings. 6. Enable GPN profile BEFORE you launch the game.
NOTE: Free account supports one device, if you would like to upgrade to multiple devices, click Upgrade to make subscription.
37

3.6 Game Profile
When playing PC or console games, there may be some connection issues due to the ISP or router settings in your environment such as NAT and port blocks. Game Profile helps ensure that ROG Rapture gaming router is not blocking the game connection.
To use Game Profile: 1. From the navigation panel, go to General > Game Profile and
tick Yes to enable port forwarding. 2. Choose a game from Famous Game List, which will be
updated from time to time.
38

3. Click to add the game. 4. Click Apply to apply all the profiles.
39

3.7 Game Radar
Game Radar is a diagnostic tool that helps you identify the connection quality of servers for specific games.
To use Game Radar: 1. From the navigation panel, go to General > Game Radar and
select a game from the game list.
40

2. Check the Ping Status of each server. 3. For a smooth online gaming experience, select a game server
with low ping status.
41

3.8 WiFi Radar
Wi-Fi Radar, an advanced analysis tool for your wireless network, delves deep into the channels and packet data for troubleshooting.
NOTE: Enabling WiFi Radar may result to a drop wireless performance. Only enable Wi-Fi Radar when needed.
To use WiFi Radar: 1. Go to Settings and configure all the WiFi Radar parameters, 1. From the navigation panel, go to General > WiFi Radar and
set the schedule for data recording.
42

2. Click Start Data Collection. 3. Click Submit after you set all the parameters.
3.8.1 WiFi Site Survey WiFi Site Survey allows you to search for wireless networks in your environment.
43

3.8.2 Wireless Channel Statistics This feature shows channel usage of all bands and channel distribution statistics in your environment. 3.8.3 Advanced Troubleshooting This feature shows WiFi glitch statistics in your environment.
44

3.9 VPN
A virtual private network (VPN) provides a secure communication with a remote computer or network over a public network such as the Internet.
NOTE: Before setting up a VPN connection, you would need the IP address or domain name of the VPN server.
To set up access to a VPN server: 1. From the navigation panel, go to General > VPN. 2. On the Enable PPTP VPN Server field, select ON. 3. On the VPN Details dropdown list, select Advanced Settings
to configure the advanced VPN settings such as broadcast support, authentication, MPPE Encryption, and Client IP address range. 4. On the Network Place (Samba) Support field, select Yes. 5. Enter the user name and password for accessing the VPN server. Click . 6. Click Apply.
45

3.9.1 VPN Fusion VPN Fusion allows you to connect to multiple VPN servers simultaneously and assign your client devices to connect to different VPN tunnels. Some devices like set-top boxes, smart TVs and Blu-ray players do not support VPN software. This feature provides VPN access to such devices in a home network without having to install VPN software, while your smartphone remains connected to Internet not VPN. For Gamer, VPN connection counteracts DDoS attacks to prevent your PC game or your stream from disconnecting with game servers. Building a VPN connection also can simply change your IP address to the region where the game server is located, to improve your ping time to game servers.
To start, please follow the steps below: 1. Click the "+" button beside Server List to add a new VPN
tunnel. 2. Activate the VPN connection you created in Server List. 3. Click the "+" button beside Exception List and select the online
client you want to configure. 4. Assign a VPN connection to the client device, and click OK. 5. Activate the VPN policy in Exception List, and click Apply at
the bottom of the page.
46

3.10 Traffic Analyzer
Traffic Analyzer gives you an at-a-glance view of what's happening on your network on a daily, weekly, or monthly basis. It lets you to quickly see each user's bandwidth usage or the device or app used, helping you reduce the bottlenecks in your Internet connection. It's also a great way to monitor the users' Internet usage or activities.
To configure the Traffic analyzer: 1. From the navigation panel, go to General > Traffic Analyzer. 2. From the Traffic Analyzer main page, turn on traffic analyzer
statistic. 3. Select the date whose chart you want to display. 4. On the Display for field, select Router or Apps to display the
traffic information. 5. On the Show by field, select how you want to display the traffic
information.
48

4 Configuring the Advanced Settings
4.1 Using the Network Map
Network Map allows you to configure your network's security settings, manage your network clients, and monitor your USB device.
49

4.1.1 Setting up the wireless security settings To protect your wireless network from unauthorized access, you need to configure its security settings. To set up the wireless security settings: 1. From the navigation panel, go to Advanced Settings >
Network Map. 2. On the Network Map screen and under System status, you can
configure the wireless security settings such as SSID, security level, and encryption settings. NOTE: You can set up different wireless security settings for 2.4GHz and 5GHz bands. 2.4GHz security settings 5GHz-1 security settings
5GHz-2 security settings
50

3. On the Wireless name (SSID) field, key in a unique name for your wireless network.
4. From the Authentication Method dropdown list, select the authentication method for your wireless network. If you select WPA-Personal or WPA-2 Personal as the authentication method, key in the WPA-PSK key or security passkey. IMPORTANT! The IEEE 802.11n/ac standard prohibits using High Throughput with WEP or WPA-TKIP as the unicast cipher. If you use these encryption methods, your data rate will drop to IEEE 802.11g 54Mbps connection.
5 Click Apply when done. 4.1.2 Managing your network clients
51

To manage your network clients: 1. From the navigation panel, go to Advanced Settings >
Network Map tab. 2. On the Network Map screen, select the Clients icon to display
your network client's information. 3. Click View List below the Clients icon to display all the clients. 4. To block a client's access to your network, select the client and
click the open lock icon.
52

4.1.3 Monitoring your USB device The ASUS wireless router provides two USB ports for connecting USB devices or USB printer to allow you to share files and printer with clients in your network.
NOTES: · To use this feature, you need to plug a USB storage device, such
as a USB hard disk or USB flash drive, to the USB 3.0/2.0 ports on the rear panel of your wireless router. Ensure that the USB storage device is formatted and partitioned properly. Refer to the Plugn-Share Disk Support List at http://event.asus.com/networks/ disksupport · The USB ports support two USB drives or one printer and one USB drive at the same time. IMPORTANT! You first need to create a share account and its permission /access rights to allow other network clients to access the USB device via an FTP site/third-party FTP client utility, Servers Center, Samba, or AiCloud. For more details, refer to the section 4.6 Using the USB Application and 4.7 Using AiCloud 2.0 in this user manual.
53

To monitor your USB device: 1. From the navigation panel, go to Advanced Settings >
Network Map. 2. On the Network Map screen, select the USB Disk Status icon
to display your USB device's information. 3. On the AiDisk Wizard field, click GO to set up an FTP server for
Internet file sharing. NOTES: · For more details, refer to the section 4.6.2 Using Servers Center
in this user manual. · The wireless router works with most USB HDDs/Flash disks (up to
4TB size) and supports read-write access for FAT16, FAT32, NTFS, and HFS+.
Safely removing the USB disk IMPORTANT: Incorrect removal of the USB disk may cause data corruption.
To safely remove the USB disk: 1. From the navigation panel, go to Advanced Settings >
Network Map. 2. In the upper right corner, click > Eject USB disk. When
the USB disk is ejected successfully, the USB status shows Unmounted.
54

4.1.4 ASUS AiMesh
4.1.4.1 Before setting Preparing to setup an AiMesh Wi-Fi system 1. Two (2) ASUS routers (models supporting AiMesh:
https://www.asus.com/AiMesh/). 2. Assign one as AiMesh router, and another one as AiMesh node.
NOTE: If you have multiple AiMesh routers, we recommend using the router with the highest specifications as your AiMesh router and the others as AiMesh nodes.

AiMesh node

AiMesh router

4.1.4.2 AiMesh Setup steps Prepare
Place your AiMesh router and node within 1-3 meters of each other during the setup process. AiMesh node
Factory default status. Keep power on and standby for AiMesh system settings.

within 1-3 meters

AiMesh node

AiMesh router

AiMesh router 1) Refer to the other router Quick Start Guide to connect
your AiMesh router to your PC and modem, and then log in into the web GUI.

Modem

AiMesh router

AiMesh node

Logout/Reboot AiMesh Router
2) Go to Network Map page, click AiMesh icon and then Search for your extending AiMesh node. NOTE: If you cannot find the AiMesh icon here, click on firmware version and update the firmware.

3) Click Search, it will automatically search for your AiMesh node. When the AiMesh node shows on this page, click it to add it into the AiMesh system. NOTE: If you cannot find any AiMesh node, please go to TROUBLE SHOOTING.
4) A message is displayed when synchronization is completed.
Successfully added RT-ABCDE to your AiMesh system, it will take awhile to show up as connected in the AiMesh router list.
OK
5) Congratulations! You will find the pages below show up when an AiMesh node has been successfully added to the AiMesh network.
57

4.1.4.3 Troubleshooting If your AiMesh router cannot find any AiMesh node nearby or synchronization fails, please check followings and try again. 1) Move your AiMesh node closer to the AiMesh router ideally.
Ensure it is within 1-3 meters. 2) Your AiMesh node is powered on. 3) Your AiMesh node is upgraded to AiMesh supported
firmware. i. Download AiMesh - supported fireware at:
https://www.asus.com/AiMesh/ ii. Power on your AiMesh node and connect it to your PC via a
network cable. iii. Launch a web GUI. You will be redirected to the ASUS Setup
Wizard. If not, navigate to http://router.asus.com iv. Go to Administration > Firmware Upgrade. Click on
Choose File, and upload the AiMesh-supported firmware. v. After firmware uploaded, please go to Network Map page to
confirm whether AiMesh icon showed up.
vi. Press the reset button on your AiMesh node for at least 5 seconds. Release the reset button when the power LED is flashing slowly.
58

4.1.4.4 Relocation The best performance: Locate your AiMesh node and router at the best place.
NOTES: · To minimize interference, keep the routers away from devices
like cordless phones, Bluetooth devices and microwave ovens. · We recommend that you place the routers in an open or
spacious location.
4.1.4.5 FAQ (Frequently Asked Questions) Q1: Does the AiMesh router support Access Point mode? A: Yes. You can choose to set the AiMesh router as router mode
or access point mode. Please go to web GUI (http://router.asus. com), and go to the page Administration > Operation Mode. Q2: Could I setup wired connection between AiMesh routers (Ethernet backhaul)? A: Yes. AiMesh system supports both wireless and wired connection between AiMesh router and node to maximize throughput and stability. AiMesh analyzes the wireless signal strength for each frequency band available, and then determines automatically whether a wireless or wired connection is best to serve as the inter-router connection backbone.
59

1) Follow the setup steps to establish a connection between the AiMesh router and node via Wi-Fi first.
2) Place the node in the ideal locations for best coverage. Run an Ethernet cable from the LAN port of the AiMesh router to the WAN port of AiMesh node.
3) AiMesh system will auto-select the best path for data transmission, whether wired or wireless.
60

4.2 Wireless
4.2.1 General The General tab allows you to configure the basic wireless settings.
To configure the basic wireless settings: 1. From the navigation panel, go to Advanced Settings >
Wireless > General tab. 2. Select 2.4GHz or 5GHz as the frequency band for your wireless
network. 3. If you want to use the Smart Connect function, move the
slider to ON in the Enable Smart Connect field. This function automatically connect the clients in your network to the appropriate band 2.4GHz or 5GHz for optimal speed.
61

4. Assign a unique name containing up to 32 characters for your SSID (Service Set Identifier) or network name to identify your wireless network. Wi-Fi devices can identify and connect to the wireless network via your assigned SSID. The SSIDs on the information banner are updated once new SSIDs are saved to the settings. NOTE: You can assign unique SSIDs for the 2.4 GHz and 5GHz frequency bands.
5. In the Hide SSID field, select Yes to prevent wireless devices from detecting your SSID. When this function is enabled, you would need to enter the SSID manually on the wireless device to access the wireless network.
6. Select any of these wireless mode options to determine the types of wireless devices that can connect to your wireless router: · Auto: Select Auto to allow 802.11ac, 802.11n, 802.11g, and 802.11b devices to connect to the wireless router. · N only: Select N only to maximize wireless N performance. This setting prevents 802.11g and 802.11b devices from connecting to the wireless router. · Legacy: Select Legacy to allow 802.11b/g/n devices to connect to the wireless router. Hardware that supports 802.11n natively, however, will only run at a maximum speed of 54Mbps.
7. Select the operating/control channel for your wireless router. Select Auto to allow the wireless router to automatically select the channel that has the least amount of interference.
8. Select the channel bandwidth to accommodate higher transmission speeds.
9. Select the authentication method. 10.When done, click Apply.
62

4.2.2 WPS WPS (Wi-Fi Protected Setup) is a wireless security standard that allows you to easily connect devices to a wireless network. You can configure the WPS function via the PIN code or WPS button.
NOTE: Ensure that the devices support WPS.
To enable WPS on your wireless network: 1. From the navigation panel, go to Advanced Settings >
Wireless > WPS tab. 2. In the Enable WPS field, move the slider to ON. 3. WPS uses 2.4GHz by default. If you want to change the
frequency to 5GHz, turn OFF the WPS function, click Switch Frequency in the Current Frequency field, and turn WPS ON again.
63

NOTE: WPS supports authentication using Open System, WPAPersonal, and WPA2-Personal. WPS does not support a wireless network that uses a Shared Key, WPA-Enterprise, WPA2-Enterprise, and RADIUS encryption method. 4. In the WPS Method field, select Push Button or Client PIN code. If you select Push Button, go to step 4. If you select Client PIN code, go to step 5. 5. To set up WPS using the router's WPS button, follow these steps: a. Click Start or press the WPS button found at the rear of the
wireless router. b. Press the WPS button on your wireless device. This is
normally identified by the WPS logo. NOTE: Check your wireless device or its user manual for the location of the WPS button. c. The wireless router will scan for any available WPS devices.
If the wireless router does not find any WPS devices, it will switch to standby mode. 6. To set up WPS using the Client's PIN code, follow these steps: a. Locate the WPS PIN code on your wireless device's user manual or on the device itself. b.Key in the Client PIN code on the text box. c. Click Start to put your wireless router into WPS survey mode. The router's LED indicators quickly flash three times until the WPS setup is completed.
64

4.2.3 Bridge Bridge or WDS (Wireless Distribution System) allows your ASUS wireless router to connect to another wireless access point exclusively, preventing other wireless devices or stations to access your ASUS wireless router. It can also be considered as a wireless repeater where your ASUS wireless router communicates with another access point and other wireless devices.
To set up the wireless bridge: 1. From the navigation panel, go to Advanced Settings >
Wireless > WDS tab. 2. Select the frequency band for the wireless bridge.
65

3. In the AP Mode field, select any of these options: · AP Only: Disables the Wireless Bridge function. · WDS Only: Enables the Wireless Bridge feature but prevents other wireless devices/stations from connecting to the router. · HYBRID: Enables the Wireless Bridge feature and allows other wireless devices/stations to connect to the router. NOTE: In Hybrid mode, wireless devices connected to the ASUS wireless router will only receive half the connection speed of the Access Point.
4. In the Connect to APs in list field, click Yes if you want to connect to an Access Point listed in the Remote AP List.
5. By default, the operating/control channel for the wireless bridge is set to Auto to allow the router to automatically select the channel with the least amount of interference. You can modify the Control Channel from Advanced Settings > Wireless > General tab. NOTE: Channel availability varies per country or region.
6. On the Remote AP List, key in a MAC address and click the Add button to enter the MAC address of other available Access Points. NOTE: Any Access Point added to the list should be on the same Control Channel as the ASUS wireless router.
7. Click Apply.
66

4.2.4 Wireless MAC Filter Wireless MAC filter provides control over packets transmitted to a specified MAC (Media Access Control) address on your wireless network.
To set up the Wireless MAC filter: 1. From the navigation panel, go to Advanced Settings >
Wireless > Wireless MAC Filter tab. 2. Tick Yes in the Enable Mac Filter field. 3. In the MAC Filter Mode dropdown list, select either Accept or
Reject. · Select Accept to allow devices in the MAC filter list to access
to the wireless network. · Select Reject to prevent devices in the MAC filter list to
access to the wireless network. 4. On the MAC filter list, click the Add button and key in the
MAC address of the wireless device. 5. Click Apply.
67

4.2.5 RADIUS Setting RADIUS (Remote Authentication Dial In User Service) Setting provides an extra layer of security when you choose WPAEnterprise, WPA2-Enterprise, or Radius with 802.1x as your Authentication Mode.
To set up wireless RADIUS settings: 1. Ensure that the wireless router's authentication mode is set to
WPA-Enterprise or WPA2-Enterprise. NOTE: Please refer to section 4.2.1 General for configuring your wireless router's Authentication Mode. 2. From the navigation panel, go to Advanced Settings > Wireless > RADIUS Setting. 3. Select the frequency band. 4. In the Server IP Address field, key in your RADIUS server's IP Address. 5. In the Server Port field, key in the server port. 6. In the Connection Secret field, assign the password to access your RADIUS server. 7. Click Apply.
68

4.2.6 Professional The Professional screen provides advanced configuration options.
NOTE: We recommend that you use the default values on this page.
In the Professional Settings screen, you can configure the following:
· Frequency: Select the frequency band that the professional settings will be applied to.
· Enable Radio: Select Yes to enable wireless networking. Select No to disable wireless networking.
· Date to Enable Radio (weekdays): You can specify which days of the week wireless networking is enabled.
· Time of Day to Enable Radio: You can specify a time range when wireless networking is enabled during the week.
69

· Date to Enable Radio (weekend): You can specify which days of the weekend wireless networking is enabled.
· Time of Day to Enable Radio: You can specify a time range when wireless networking is enabled during the weekend.
· Set AP isolated: The Set AP isolated item prevents wireless devices on your network from communicating with each other. This feature is useful if many guests frequently join or leave your network. Select Yes to enable this feature or select No to disable.
· Roaming Assistant: In network configurations that involve multiple Access, Points or wireless repeater, wireless clients sometimes cannot connect automatically to thefts available AP because they are still connected to the main wireless router. Enable this setting so that the client will disconnect from the main wireless router if the signal strength is under a specific threshold and connect to a stronger signal.
· Enable IGMP Snooping: Enable this function allows the IGMP ( Internet Group Management Protocol ) to be monitored among devices and optimizes wireless multicast traffic.
· Multicast rate (Mbps): Select the multicast transmission rate or click Disable to switch off simultaneous single transmission.
· Preamble Type: Preamble Type defines the length of time that the router spent for CRC (Cyclic Redundancy Check). CRC is a method of detecting errors during data transmission. Select Short for a busy wireless network with high network traffic. Select Long if your wireless network is composed of older or legacy wireless devices.
· AMPDU RTS: Enable this function allows to build a group of frames before they are transmitted and use RTS for every AMPDU for communication among 802.11g and 802.11b devices.
· RTS Threshold: Select a lower value for RTS (Request to Send) Threshold to improve wireless communication in a busy or noisy wireless network with high network traffic and numerous wireless devices.
70

· DTIM Interval: DTIM (Delivery Traffic Indication Message) Interval or Data Beacon Rate is the time interval before a signal is sent to a wireless device in sleep mode indicating that a data packet is awaiting delivery. The default value is three milliseconds.
· Beacon Interval: Beacon Interval is the time between one DTIM and the next. The default value is 100 milliseconds. Lower the Beacon Interval value for an unstable wireless connection or for roaming devices.
· Enable TX Bursting: Enable TX Bursting improves transmission speed between the wireless router and 802.11g devices.
· Enable WMM APSD: Enable WMM APSD (Wi-Fi Multimedia Automatic Power Save Delivery) to improve power management between wireless devices. Select Disable to switch off WMM APSD.
· Reducing USB 3.0 interference: Enable this function ensures the best wireless performance on the 2.4 GHz band. Disabling this feature increase USB 3.0 port's transmission speed and may affect the 2.4 GHz wireless range.
· Optimize AMPDU aggregation: Optimize the max number of MPDUs in an AMPDU and avoid packets get lost or corrupted during transmission in error-prone wireless channels
· Optimize ack suppression: Optimize the max number of ack to suppress in a raw.
· Turbo QAM: Enable this function allows to support 256-QAM (MCS 8/9) on the 2.4GHz band to achieve better range and throughput on that frequency.
· Airtime Fairness: With airtime fairness, the speed of the network is not determined by the slowest traffic. By allocating time equally among clients, Airtime Fairness allows every transmission to move at its highest potential speed.
71

· Explicit Beamforming: The client's WLAN adapter and router both support beam forming technology. This technology allows these device to communicate the channel estimation and steering direction to each other to improve download and uplink speed.
· Universal Beamforming: For legacy wireless network adapter that do not support beam forming, the router estimates the channel and determines the steering direction to improve the downlink speed.
· TX Power adjustment: TX Power adjustment refers to the milliWatts (mW) needed to power the radio signal output of the wireless router. Enter a value between 0 to 100.
NOTE: Increasing the TX Power adjustment values may affect the stability of the wireless network.
72

4.3 Creating a Guest Network
The Guest Network provides temporary visitors with Internet connectivity via access to separate SSIDs or networks without providing access to your private network.
NOTE: GT-AX11000 supports up to nine SSIDs (three 2.4GHz, three 5GHz-1 and three 5GHz-2). To create a guest network: 1. From the navigation panel, go to Advanced Settings > Guest Network. 2. On the Guest Network screen, select 2.4Ghz or 5Ghz frequency band for the guest network that you want to create. 3. Click Enable.
73

4. To change a guest's settings, click the guest settings you want to modify. Click Remove to delete the guest's settings.
5. Assign a wireless name for your temporary network on the Network Name (SSID) field.
6. Select an Authentication Method. 7. If you select a WPA authentication method, select a WPA
Encryption. 8. Specify the Access time or choose Limitless. 9. Select Disable or Enable on the Access Intranet item. 10.When done, click Apply.
74

4.4 LAN
4.4.1 LAN IP The LAN IP screen allows you to modify the LAN IP settings of your wireless router.
NOTE: Any changes to the LAN IP address will be reflected on your DHCP settings.
To modify the LAN IP settings: 1. From the navigation panel, go to Advanced Settings > LAN >
LAN IP tab. 2. Modify the IP address and Subnet Mask. 3. When done, click Apply.
75

4.4.2 DHCP Server Your wireless router uses DHCP to assign IP addresses automatically on your network. You can specify the IP address range and lease time for the clients on your network.
To configure the DHCP server: 1. From the navigation panel, go to Advanced Settings > LAN >
DHCP Server tab. 2. In the Enable the DHCP Server field, tick Yes. 3. In the Domain Name text box, enter a domain name for the
wireless router. 4. In the IP Pool Starting Address field, key in the starting IP
address.
76

5. In the IP Pool Ending Address field, key in the ending IP address.
6. In the Lease Time field, specify in seconds when an assigned IP address will expire. Once it reaches this time limit, the DHCP server will then assign a new IP address. NOTES: · We recommend that you use an IP address format of 192.168.1.xxx (where xxx can be any number between 2 and 254) when specifying an IP address range. · An IP Pool Starting Address should not be greater than the IP Pool Ending Address.
7. In the DNS and Server Settings section, key in your DNS Server and WINS Server IP address if needed.
8. Your wireless router can also manually assign IP addresses to devices on the network. On the Enable Manual Assignment field, choose Yes to assign an IP address to specific MAC addresses on the network. Up to 32 MAC Addresses can be added to the DHCP list for manual assignment.
77

4.4.3 Route If your network makes use of more than one wireless router, you can configure a routing table to share the same Internet service.
NOTE: We recommend that you do not change the default route settings unless you have advanced knowledge of routing tables.
To configure the LAN Routing table: 1. From the navigation panel, go to Advanced Settings > LAN >
Route tab. 2. On the Enable static routes field, choose Yes. 3. On the Static Route List, enter the network information of
other access points or nodes. Click the Add or Delete button to add or remove a device on the list. 4. Click Apply.
78

4.4.4 IPTV The wireless router supports connection to IPTV services through an ISP or a LAN. The IPTV tab provides the configuration settings needed to set up IPTV, VoIP, multicasting, and UDP for your service. Contact your ISP for specific information regarding your service.
79

4.5 WAN
4.5.1 Internet Connection The Internet Connection screen allows you to configure the settings of various WAN connection types.
To configure the WAN connection settings: 1. From the navigation panel, go to Advanced Settings > WAN >
Internet Connection tab. 2. Configure the following settings below. When done, click
Apply. · WAN Connection Type: Choose your Internet Service
Provider type. The choices are Automatic IP, PPPoE, PPTP, L2TP or static IP. Consult your ISP if the router is unable to obtain a valid IP address or if you are unsure the WAN connection type.
80

· Enable WAN: Select Yes to allow the router Internet access. Select No to disable Internet access.
· Enable NAT: NAT (Network Address Translation) is a system where one public IP (WAN IP) is used to provide Internet access to network clients with a private IP address in a LAN. The private IP address of each network client is saved in a NAT table and is used to route incoming data packets.
· Enable UPnP: UPnP (Universal Plug and Play) allows several devices (such as routers, televisions, stereo systems, game consoles, and cellular phone), to be controlled via an IP-based network with or without a central control through a gateway. UPnP connects PCs of all form factors, providing a seamless network for remote configuration and data transfer. Using UPnP, a new network device is discovered automatically. Once connected to the network, devices can be remotely configured to support P2P applications, interactive gaming, video conferencing, and web or proxy servers. Unlike Port forwarding, which involves manually configuring port settings, UPnP automatically configures the router to accept incoming connections and direct requests to a specific PC on the local network.
· Connect to DNS Server automatically: Allows this router to get the DNS IP address from the ISP automatically. A DNS is a host on the Internet that translates Internet names to numeric IP addresses.
· Authentication: This item may be specified by some ISPs. Check with your ISP and fill them in if required.
· Host Name: This field allows you to provide a host name for your router. It is usually a special requirement from your ISP. If your ISP assigned a host name to your computer, enter the host name here.
81

· MAC Address: MAC (Media Access Control) address is a unique identifier for your networking device. Some ISPs monitor the MAC address of networking devices that connect to their service and reject any unrecognized device that attempt to connect. To avoid connection issues due to an unregistered MAC address, you can: · Contact your ISP and update the MAC address associated with your ISP service. · Clone or change the MAC address of the ASUS wireless router to match the MAC address of the previous networking device recognized by the ISP.
· DHCP query frequency: Changes the DHCP Discovery interval settings to avoid overloading the DHCP server.
82

4.5.2 Dual WAN Your ASUS wireless router provides dual WAN support. You can set the dual WAN feature to any of these two modes: · Failover Mode: Select this mode to use the secondary WAN as
the backup network access. · Load Balance Mode: Select this mode to optimize bandwidth,
minimize response time and prevent data overload for both primary and secondary WAN connections.
83

4.5.3 Port Trigger Port range triggering opens a predetermined incoming port for a limited period of time whenever a client on the local area network makes an outgoing connection to a specified port. Port triggering is used in the following scenarios: · More than one local client needs port forwarding for the
same application at a different time. · An application requires specific incoming ports that are
different from the outgoing ports.
To set up Port Trigger: 1. From the navigation panel, go to Advanced Settings > WAN >
Port Trigger tab. 2. On the Enable Port Trigger field, tick Yes. 3. On the Well-Known Applications field, select the popular
games and web services to add to the Port Trigger List.
84

4. On the Trigger Port List table, key in the following information: · Description: Enter a short name or description for the service. · Trigger Port: Specify a trigger port to open the incoming port. · Protocol: Select the protocol, TCP, or UDP. · Incoming Port: Specify an incoming port to receive inbound data from the Internet. · Protocol: Select the protocol, TCP, or UDP.
5. Click the Add to enter the port trigger information to the list. Click the Delete button to remove a port trigger entry from the list.
6. When done, click Apply.
NOTES: · When connecting to an IRC server, a client PC makes an outgoing
connection using the trigger port range 66660-7000. The IRC server responds by verifying the username and creating a new connection to the client PC using an incoming port. · If Port Trigger is disabled, the router drops the connection because it is unable to determine which PC is requesting for IRC access. When Port Trigger is enabled, the router assigns an incoming port to receive the inbound data. This incoming port closes once a specific time period has elapsed because the router is unsure when the application has been terminated. · Port triggering only allows one client in the network to use a particular service and a specific incoming port at the same time. · You cannot use the same application to trigger a port in more than one PC at the same time. The router will only forward the port back to the last computer to send the router a request/ trigger.
85

4.5.4 Virtual Server/Port Forwarding Port forwarding is a method to direct network traffic from the Internet to a specific port or a specific range of ports to a device or number of devices on your local network. Setting up Port Forwarding on your router allows PCs outside the network to access specific services provided by a PC in your network.
To set up Port Forwarding: 1. From the navigation panel, go to Advanced Settings > WAN >
Virtual Server / Port Forwarding tab. 2. On the Enable Port Forwarding field, tick Yes.
86

3. On the Famous Server List field, select the type of service you want to access.
4. On the Famous Game List field, select the popular game that you want to access. This item lists the port required for your selected popular online game to work properly.
5. On the Port Forwarding List table, key in the following information: · Service Name: Enter a service name. · Port Range: If you want to specify a Port Range for clients on the same network, enter the Service Name, the Port Range (e.g. 10200:10300), the LAN IP address, and leave the Local Port empty. Port range accepts various formats such as Port Range (300:350), individual ports (566,789) or Mix (1015:1024,3021). NOTES: · When your network's firewall is disabled and you set 80 as the HTTP server's port range for your WAN setup, then your http server/web server would be in conflict with the router's web user interface. · A network makes use of ports in order to exchange data, with each port assigned a port number and a specific task. For example, port 80 is used for HTTP. A specific port can only be used by one application or service at a time. Hence, two PCs attempting to access data through the same port at the same time would fail. For example, you cannot set up Port Forwarding for port 100 for two PCs at the same time.
· Local IP: Key in the client's LAN IP address.
NOTE: Use a static IP address for the local client to make port forwarding work properly. Refer to section 4.4 LAN for information.
87

· Local Port: Enter a specific port to receive forwarded packets. Leave this field blank if you want the incoming packets to be redirected to the specified port range.
· Protocol: Select the protocol. If you are unsure, select BOTH. 6. Click the Add to enter the port trigger information to the
list. Click the Delete button to remove a port trigger entry from the list. 7. When done, click Apply.
To check if Port Forwarding has been configured successfully: · Ensure that your server or application is set up and running. · You will need a client outside your LAN but has Internet
access (referred to as "Internet client"). This client should not be connected to the ASUS router. · On the Internet client, use the router's WAN IP to access the server. If port forwarding has been successful, you should be able to access the files or applications. Differences between port trigger and port forwarding: · Port triggering will work even without setting up a specific LAN IP address. Unlike port forwarding, which requires a static LAN IP address, port triggering allows dynamic port forwarding using the router. Predetermined port ranges are configured to accept incoming connections for a limited period of time. Port triggering allows multiple computers to run applications that would normally require manually forwarding the same ports to each PC on the network. · Port triggering is more secure than port forwarding since the incoming ports are not open all the time. They are opened only when an application is making an outgoing connection through the trigger port.
88

4.5.5 DMZ Virtual DMZ exposes one client to the Internet, allowing this client to receive all inbound packets directed to your Local Area Network. Inbound traffic from the Internet is usually discarded and routed to a specific client only if port forwarding or a port trigger has been configured on the network. In a DMZ configuration, one network client receives all inbound packets. Setting up DMZ on a network is useful when you need incoming ports open or you want to host a domain, web, or e-mail server.
CAUTION: Opening all the ports on a client to the Internet makes the network vulnerable to outside attacks. Please be aware of the security risks involved in using DMZ.
To set up DMZ: 1. From the navigation panel, go to Advanced Settings > WAN >
DMZ tab. 2. Configure the setting below. When done, click Apply. · IP address of Exposed Station: Key in the client's LAN IP
address that will provide the DMZ service and be exposed on the Internet. Ensure that the server client has a static IP address.
To remove DMZ: 1. Delete the client's LAN IP address from the IP Address of
Exposed Station text box. 2. When done, click Apply.
89

4.5.6 DDNS Setting up DDNS (Dynamic DNS) allows you to access the router from outside your network through the provided ASUS DDNS Service or another DDNS service.
To set up DDNS: 1. From the navigation panel, go to Advanced Settings > WAN >
DDNS tab. 2. Configure the following settings below. When done, click
Apply. · Enable the DDNS Client: Enable DDNS to access the ASUS
router via the DNS name rather than WAN IP address. · Server and Host Name: Choose ASUS DDNS or other DDNS.
If you want to use ASUS DDNS, fill in the Host Name in the format of xxx.asuscomm.com (xxx is your host name). · If you want to use a different DDNS service, click FREE TRIAL and register online first. Fill in the User Name or E-mail Address and Password or DDNS Key fields. · Enable wildcard: Enable wildcard if your DDNS service requires one.
90

NOTES: DDNS service will not work under these conditions: · When the wireless router is using a private WAN IP address
(192.168.x.x, 10.x.x.x, or 172.16.x.x), as indicated by a yellow text. · The router may be on a network that uses multiple NAT tables.
4.5.7 NAT Passthrough NAT Passthrough allows a Virtual Private Network (VPN) connection to pass through the router to the network clients. PPTP Passthrough, L2TP Passthrough, IPsec Passthrough and RTSP Passthrough are enabled by default. To enable / disable the NAT Passthrough settings, go to the Advanced Settings > WAN > NAT Passthrough tab. When done, click Apply.
91

4.6 Using the USB Application
The USB Applications function provides AiDisk, Servers Center, Network Printer Server and Download Master submenus.
IMPORTANT! To use the server functions, you need to insert a USB storage device, such as a USB hard disk or USB flash drive, in the USB 2.0 port on the rear panel of your wireless router. Ensure that the USB storage device is formatted and partitioned properly. Refer to the ASUS website at http://event.asus.com/2009/networks/disksupport/ for the file system support table.
92

4.6.1 Using AiDisk AiDisk allows you to share files stored on a connected USB device through the Internet. AiDisk also assists you with setting up ASUS DDNS and an FTP server. To use AiDisk: 1. From the navigation panel, go to Advanced Settings > USB
application, then click the AiDisk icon. 2. From the Welcome to AiDisk wizard screen, click Go.
3. Select the access rights that you want to assign to the clients accessing your shared data.
93

4. Create your domain name via the ASUS DDNS services, read the Terms of Service and then select I will use the service and accept the Terms of service and key in your domain name. When done, click Next.
You can also select Skip ASUS DDNS settings then click Next to skip the DDNS setting. 5. Click Finish to complete the setting. 6. To access the FTP site that you created, launch a web browser or a third-party FTP client utility and key in the ftp link (ftp://<domain name>.asuscomm.com) you have previously created.
94

4.6.2 Using Servers Center Servers Center allows you to share the media files from the USB disk via a Media Server directory, Samba share service, or FTP share service. You can also configure other settings for the USB disk in the Servers Center. Using Media Server Your wireless router allows DLNA-supported devices to access multimedia files from the USB disk connected to your wireless router.
NOTE: Before using the DLNA Media Server function, connect your device to the router's network.
To launch the Media Server setting page, go to Advanced Settings > USB application > Media Services and Servers > Media Servers tab. Refer to the following for the descriptions of the fields:
95

· Enable iTunes Server?: Select ON/OFF to enable/disable the iTunes Server.
· Enable DLNA Media Server: Select ON/OFF to enable/ disable the DLNA Media Server.
· Media Server Status: Displays the status of the media server. · Media Server Path Setting: Select All Disks Shared or
Manual Media Server Path. Using Network Place (Samba) Share service Network Place (Samba) Share allows you to set up the accounts and permissions for the Samba service.
To use Samba share: 1. From the navigation panel, go to Advanced Settings > USB
application > Media Services and Servers > Network Place (Samba) Share / Cloud Disk tab. NOTE: Network Place (Samba) Share is enabled by default.
96

2. Follow the steps below to add, delete, or modify an account. To create a new account:
a) Click to add new account. b)In the Account and Password fields, key in the name and
password of your network client. Retype the password to confirm. Click Add to add the account to the list.
To delete an existing account: a) Select the account that you want to delete. b)Click . c) When prompted, click Delete to confirm the account deletion.
To add a folder: a) Click . b)Enter the folder name, and click Add. The folder that you created will be added to the folder list.
97

3. From the list of folders, select the type of access permission that you want to assign for specific folders: · R/W: Select this option to assign read/write access. · R: Select this option to assign read-only access. · No: Select this option if you do not want to share a specific file folder.
4. Click Apply to apply the changes. Using the FTP Share service FTP share enables an FTP server to share files from USB disk to other devices via your local area network or via the Internet.
IMPORTANT: · Ensure that you safely remove the USB disk. Incorrect removal of
the USB disk may cause data corruption. · To safely remove the USB disk, refer to the section Safely
removing the USB disk under 4.1.3 Monitoring your USB device.
98

To use FTP Share service: NOTE: Ensure that you have set up your FTP server through AiDisk. For more details, refer to the section 4.6.1 Using AiDisk.
1. From the navigation panel, click Advanced Settings > USB application > Media Services and Servers > FTP Share tab.
2. From the list of folders, select the type of access rights that you want to assign for specific folders: · R/W: Select to assign read/write access for a specific folder. · W: Select to assign write only access for a specific folder. · R: Select to assign read only access for a specific folder. · No: Select this option if you do not want to share a specific folder.
3. If you prefer, you can set the Allow anonymous login field to ON.
4. In the Maximum number of concurrent connections field, key in the number of devices that can simultaneously connect to the FTP share server.
5. Click Apply to confirm the changes. 6. To access the FTP server, key in the ftp link
ftp://<hostname>.asuscomm.com and your user name and password on a web browser or a third-party FTP utility.
99

4.6.3 3G/4G 3G/4G USB modems can be connected to the router to allow Internet access.
NOTE: For a list of verified USB modems, please visit: http://event.asus.com/2009/networks/3gsupport/ To set up 3G/4G internet access: 1. From the navigation panel, click Advanced Settings > USB application > 3G/4G. 2. In the Enable USB Modem field, select Yes. 3. Set up the following: · Location: Select your 3G/4G service provider's location from
the dropdown list. · ISP: Select your Internet Service Provider (ISP) from the
dropdown list. · APN (Access Point Name) service (optional): Contact your
3G/4G service provider for detailed information. · Dial Number and PIN code: The 3G/4G provider's access
number and PIN code for connection. NOTE: PIN code may vary from different providers. · Username / Password: The username and password will be
provided by the 3G/4G network carrier. · USB Adapter: Choose your USB 3G / 4G adapter from the
dropdown list. If you are not sure of your USB adapter's model or the model is not listed in the options, select Auto. 4. Click Apply. NOTE: The router will reboot for the settings to take effect.
100

4.7 Using AiCloud 2.0
AiCloud 2.0 is a cloud service application that allows you to save, sync, share, and access your files.
To use AiCloud: 1. From Google Play Store or Apple Store, download and install
the ASUS AiCloud app to your smart device. 2. Connect your smart device to your network. Follow the
instructions to complete the AiCloud setup process.
101

4.7.1 Cloud Disk To create a cloud disk: 1. Insert a USB storage device into the wireless router. 2. Turn on Cloud Disk.
3. Go to https://router.asus.com and enter the router login account and password. For better user experience, we recommend that you use Google Chrome or Firefox.
102

4. You can now start accessing Cloud Disk files on devices connected to the network. NOTE: When accessing the devices that are connected to the network, you need to enter the device's user name and password manually, which will not be saved by AiCloud for security reason.
103

4.7.2 Smart Access The Smart Access function allows you to easily access your home network via your router's domain name.
NOTES: · You can create a domain name for your router with ASUS DDNS.
For more details, refer to section 4.5.6 DDNS. · By default, AiCloud provides a secure HTTPS connection. Key in
https://[yourASUSDDNSname].asuscomm.com for a very secure Cloud Disk and Smart Access usage.
104

4.7.3 Smart Sync
To use Smart Sync: 1. Launch AiCloud, click Smart Sync > Go. 2. Select ON to enable Smart Sync. 3. Click Add new account. 4. Enter your ASUS WebStorage account password and select the
directory that you want to sync with WebStorage. 5. Click Apply.
105

4.8 IPv6
This wireless router supports IPv6 addressing, a system that supports more IP addresses. This standard is not yet widely available. Contact your ISP if your Internet service supports IPv6.
To set up IPv6: 1. From the navigation panel, go to Advanced Settings > IPv6. 2. Select your Connection Type. The configuration options vary
depending on your selected connection type. 3. Enter your IPv6 LAN and DNS settings. 4. Click Apply.
NOTE: Please refer to your ISP regarding specific IPv6 information for your Internet service.
106

4.9 Firewall
The wireless router can serve as a hardware firewall for your network.
NOTE: The Firewall feature is enabled by default.
4.9.1 General To set up basic Firewall settings: 1. From the navigation panel, go to Advanced Settings >
Firewall > General tab. 2. On the Enable Firewall field, select Yes. 3. On the Enable DoS protection, select Yes to protect your
network from DoS (Denial of Service) attacks though this may affect your router's performance. 4. You can also monitor packets exchanged between the LAN and WAN connection. On the Logged packets type, select Dropped, Accepted, or Both. 5. Click Apply. 4.9.2 URL Filter You can specify keywords or web addresses to prevent access to specific URLs. NOTE: The URL Filter is based on a DNS query. If a network client has already accessed a website such as http://www.abcxxx.com, then the website will not be blocked (a DNS cache in the system stores previously visited websites). To resolve this issue, clear the DNS cache before setting up the URL Filter.
107

To set up a URL filter: 1. From the navigation panel, go to Advanced Settings >
Firewall > URL Filter tab. 2. On the Enable URL Filter field, select Enabled. 3. Enter a URL and click the button. 4. Click Apply. 4.9.3 Keyword filter Keyword filter blocks access to webpages containing specified keywords.
To set up a keyword filter: 1. From the navigation panel, go to Advanced Settings >
Firewall > Keyword Filter tab. 2. On the Enable Keyword Filter field, select Enabled.
108

3. Enter a word or phrase and click the Add button. 4. Click Apply.
NOTES: · The Keyword Filter is based on a DNS query. If a network client
has already accessed a website such as http://www.abcxxx.com, then the website will not be blocked (a DNS cache in the system stores previously visited websites). To resolve this issue, clear the DNS cache before setting up the Keyword Filter. · Web pages compressed using HTTP compression cannot be filtered. HTTPS pages also cannot be blocked using a keyword filter.
4.9.4 Network Services Filter The Network Services Filter blocks LAN to WAN packet exchanges and restricts network clients from accessing specific web services such as Telnet or FTP.
109

To set up a Network Service filter: 1. From the navigation panel, go to Advanced Settings >
Firewall > Network Service Filter tab. 2. On the Enable Network Services Filter field, select Yes. 3. Select the Filter table type. Black List blocks the specified
network services. White List limits access to only the specified network services. 4. Specify the day and time when the filters will be active. 5. To specify a Network Service to filter, enter the Source IP, Destination IP, Port Range, and Protocol. Click the button. 6. Click Apply. 4.9.5 IPv6 Firewall By default, your ASUS wireless router blocks all unsolicited incoming traffic. The IPv6 Firewall function allows incoming traffic coming from specified services to go through your network.
110

4.10 Administration
4.10.1 Operation Mode The Operation Mode page allows you to select the appropriate mode for your network.
To set up the operating mode: 1. From the navigation panel, go to Advanced Settings >
Administration > Operation Mode tab. 2. Select any of these operation modes:
· Wireless router mode (default): In wireless router mode, the wireless router connects to the Internet and provides Internet access to available devices on its own local network.
· Access Point mode: In this mode, the router creates a new wireless network on an exising network.
· Media Bridge: This setup requires two wireless routers. The second router serves as a media bridge where multiple devices such as Smart TVs and gaming consoles can be connected via ethernet.
· Repeater mode: In Repeater mode, GT-AX11000 wirelessly connects to an existing wireless network to extend the wireless coverage. In this mode, the firewall, IP sharing, and NAT functions are disabled.
· AiMesh mode: This setup requires at least two ASUS routers which support AiMesh. Enable AiMesh node, and log in
111

AiMesh router web UI to search for available AiMesh nodes nearby to join your AiMesh system. AiMesh system provides whole-home coverage and centralized management. 3. Click Apply.
NOTE: The router will reboot when you change the modes.
4.10.2 System
The System page allows you to configure your wireless router settings.
To set up the System settings: 1. From the navigation panel, go to Advanced Settings >
Administration > System tab. 2. You can configure the following settings:
· Change router login password: You can change the password and login name for the wireless router by entering a new name and password.
· Time Zone: Select the time zone for your network. · NTP Server: The wireless router can access a NTP (Network
time Protocol) server in order to synchronize the time. · Enable Telnet: Click Yes to enable Telnet services on the
network. Click No to disable Telnet. · Authentication Method: You can select HTTP, HTTPS, or
both protocols to secure router access. · Enable Web Access from WAN: Select Yes to allow devices
outside the network to access the wireless router GUI settings. Select No to prevent access. · Allow only specified IP address: Click Yes if you want to specify the IP addresses of devices that are allowed access to the wireless router GUI settings from WAN. · Client List: Enter the WAN IP addresses of networking devices allowed to access the wireless router settings. This list will be used if you clicked Yes in the Only allow specific IP item. 3. Click Apply.
112

4.10.3 Firmware Upgrade
NOTE: Download the latest firmware from the ASUS website at http://www.asus.com
To upgrade the firmware: 1. From the navigation panel, go to Advanced Settings >
Administration > Firmware Upgrade tab. 2. In the New Firmware File field, click Browse to locate the
downloaded file. 3. Click Upload.
NOTES: · When the upgrade process is complete, wait for some time for the
system to reboot. · If the upgrade process fails, the wireless router automatically
enters rescue mode and the power LED indicator on the front panel starts flashing slowly. To recover or restore the system, refer to section 5.2 Firmware Restoration.
4.10.4 Restore/Save/Upload Setting To restore/save/upload wireless router settings: 1. From the navigation panel, go to Advanced Settings >
Administration > Restore/Save/Upload Setting tab. 2. Select the tasks that you want to do:
· To restore to the default factory settings, click Restore, and click OK in the confirmation message.
· To save the current system settings, click Save, navigate to the folder where you intend to save the file and click Save.
· To restore from a saved system settings file, click Browse to locate your file, then click Upload.
NOTE: If issues occur, upload the latest firmware version and configure new settings. Do not restore the router to its default settings.
113

4.11 System Log
System Log contains your recorded network activities. NOTE: System log resets when the router is rebooted or powered off.
To view your system log: 1. From the navigation panel, go to Advanced Settings >
System Log. 2. You can view your network activities in any of these tabs:
· General Log · DHCP Leases · Wireless Log · Port Forwarding · Routing Table
114

4.12 Smart Connect
Smart Connect is designed to automatically steer clients to one of three radios (one 2.4 GHz, one lowband 5 GHz, one high-band 5 GHz) to maximize total wireless throughput use. 4.12.1 Setting up Smart Connect You can enable Smart Connect from the Web GUI through the following two ways: · Via the Wireless screen 1. On your web browser, manually key in the wireless router's
default IP address: http://router.asus.com. 2. On the login page, key in the default user name (admin)
and password (admin) and click OK. The QIS page launches automatically. 3. From the navigation panel, go to Advanced Settings > Wireless > General tab. 4. Move the slider to ON in the Enable Smart Connect field. This function automatically connect the clients in your network to the appropriate band for optimal speed.
115

4.12.2 Smart Connect Rule ASUSWRT provides default condition settings to trigger switching mechanism. You can also change the trigger conditions according to your networking surroundings. To change the settings, go to the Smart Connect Rule tab on the Network Tools screen.
Smart Connect Rule controls are divided into four sections: · Steering Trigger Condition · STA Selection Policy · Interface Select and Qualify Procedures · Bounce Detect
116

Steering Trigger Condition This set of controls sets the criteria to initiate band steering.
· Bandwidth Utilization When bandwidth use exceeds this percentage, steering will be initiated.
· Enable Load Balance This controls load balancing.
· RSSI If the received signal level of any associated client meets this criteria, steering will be triggered.
· PHY Rate Less / PHY Rate Greater These controls determine STA link rates that trigger band steering.
· VHT This controls determines how 802.11ac and non-ac clients are handled. · ALL (default) means any type of client can trigger steering. · AC only means a client must support 802.11ac to trigger steering. · Not-allowed means only non-802.11ac clients will trigger steering, i.e. 802.11a/b/g/n.
117

STA Selection Policy Once steering has been triggered, ASUSWRT will follow the STA Selection Policy to select a client(STA) that is going to be steered to the most appropriate band.
Interface Select and Qualify Procedures These controls determine where the steered client will end up. The Target Band controls specify first and second choice of steering targets. Clients meeting the STA selection policy criteria for the radio will be steered to the first target if that radio's Bandwidth Utilization is less than the set value. Otherwise, the client will be sent to the second Target Band radio.
Bounce Detect This set of controls determines how often a client can be steered. This is intended to prevent clients from constantly moving around. It does not, however, prevent clients from disconnecting on their own, or counting them as bounces if they do. Each client can be steered N Counts within the Window Time. When the Count limit is hit, the client will not be steered again for Dwell Time.
118

5 Utilities
NOTES: · Download and install the wireless router's utilities from the ASUS
website: · Device Discovery v1.4.7.1 at http://dlcdnet.asus.com/pub/ASUS/
LiveUpdate/Release/Wireless/Discovery.zip · Firmware Restoration v1.9.0.4 at http://dlcdnet.asus.com/pub/
ASUS/LiveUpdate/Release/Wireless/Rescue.zip · Windows Printer Utility v1.0.5.5 at http://dlcdnet.asus.com/pub/
ASUS/LiveUpdate/Release/Wireless/Printer.zip · The utilities are not supported on MAC OS.
5.1 Device Discovery
Device Discovery is an ASUS WLAN utility that detects an ASUS wireless router device, and allows you to configure the wireless networking settings. To launch the Device Discovery utility: · From your computer's desktop, click
Start > All Programs > ASUS Utility > ASUS Wireless Router > Device Discovery. NOTE: When you set the router to Access Point mode, you need to use Device Discovery to get the router's IP address.
119

5.2 Firmware Restoration
Firmware Restoration is used on an ASUS Wireless Router that failed during its firmware upgrading process. It uploads the firmware that you specify. The process takes about three to four minutes.
IMPORTANT: Launch the rescue mode on the router before using the Firmware Restoration utility. NOTE: This feature is not supported on MAC OS. To launch the rescue mode and use the Firmware Restoration utility: 1. Unplug the wireless router from the power source. 2. Hold the Reset button at the rear panel and simultaneously replug the wireless router into the power source. Release the Reset button when the Power LED at the front panel flashes slowly, which indicates that the wireless router is in the rescue mode.
120

3. Set a static IP on your computer and use the following to set up your TCP/IP settings: IP address: 192.168.1.x Subnet mask: 255.255.255.0
4. From your computer's desktop, click Start > All Programs > ASUS Utility GT-AX11000 Wireless Router > Firmware Restoration.
5. Specify a firmware file, then click Upload. NOTE: This is not a firmware upgrade utility and cannot be used on a working ASUS Wireless Router. Normal firmware upgrades must be done through the web interface. Refer to Chapter 4: Configuring the Advanced Settings for more details.
5.3 Setting up your printer server
5.3.1 ASUS EZ Printer Sharing ASUS EZ Printing Sharing utility allows you to connect a USB printer to your wireless router's USB port and set up the print server. This allows your network clients to print and scan files wirelessly.
121

NOTE: The print server function is supported on Windows® 7/8/8.1/10. To set up the EZ Printer sharing mode: 1. From the navigation panel, go to Advanced Settings > USB Application > Network Printer Server. 2. Click Download Now! to download the network printer utility.
NOTE: Network printer utility is supported on Windows® 7/8/8.1/10. To install the utility on Mac OS, select Use LPR protocol for sharing printer. 3. Unzip the downloaded file and click the Printer icon to run the network printer setup program.
122

4. Follow the onscreen instructions to set up your hardware, then click Next.
5. Wait a few minutes for the initial setup to finish. Click Next. 6. Click Finish to complete the installation.
123

7. Follow the Windows® OS instructions to install the printer driver.
8. After the printer's driver installation is complete, network clients can now use the printer.
124

5.3.2 Using LPR to Share Printer You can share your printer with computers running on Windows® and MAC operating system using LPR/LPD (Line Printer Remote/ Line Printer Daemon). Sharing your LPR printer To share your LPR printer: 1. From the Windows® desktop, click Start > Devices and
Printers > Add a printer to run the Add Printer Wizard.
2. Select Add a local printer and then click Next.
125

3. Select Create a new port then set Type of Port to Standard TCP/IP Port. Click New Port.
4. In the Hostname or IP address field, key in the IP address of the wireless router then click Next.
126

5. Select Custom then click Settings. 6. Set Protocol to LPR. In the Queue Name field, key in
LPRServer then click OK to continue.
127

7. Click Next to finish setting up the standard TCP/IP port. 8. Install the printer driver from the vendor-model list. If your
printer is not in the list, click Have Disk to manually install the printer drivers from a CD-ROM or file.
128

9. Click Next to accept the default name for the printer. 10.Click Finish to complete the installation.
129

5.4 Download Master
Download Master is a utility that helps you download files even while your laptops or other devices are switched off.
NOTE: You need a USB device connected to the wireless router to use Download Master. To use Download Master: 1. Click Advanced Settings > USB application > Download Master to download and install the utility automatically. NOTE: If you have more than one USB drive, select the USB device you want to download the files to. 2. After the download process is finished, click the Download Master icon to start using the utility. 3. Click Add to add a download task.
4. Select a download type such as BitTorrent, HTTP, or FTP. Provide a torrent file or a URL to begin downloading. NOTE: For details on Bit Torrent, refer to section 5.4.1 Configuring the Bit Torrent download settings.
130

5. Use the navigation panel to configure the advanced settings.
5.4.1 Configuring Bit Torrent download settings
To configure BitTorrent download settings: 1. From Download Master's navigation panel, click Bit Torrent to
launch the Bit Torrent Setting page. 2. Select a specific port for your download task. 3. To prevent network congestion, you can limit the maximum
upload and download speeds under Speed Limits. 4. You can limit the maximum number of allowed peers and
enable or disable file encryption during downloads.
131

5.4.2 NZB settings You can set up a USENET server to download NZB files. After entering USENET settings, Apply.
132

6 Troubleshooting
This chapter provides solutions for issues you may encounter with your router. If you encounter problems that are not mentioned in this chapter, visit the ASUS support site at: https://www.asus.com/support for more product information and contact details of ASUS Technical Support.
6.1 Basic Troubleshooting
If you are having problems with your router, try these basic steps in this section before looking for further solutions. Upgrade Firmware to the latest version. 1. Launch the Web GUI. Go to Advanced Settings >
Administration > Firmware Upgrade tab. Click Check to verify if the latest firmware is available. 2. If the latest firmware is available, visit the ASUS global website at https://www.asus.com/Networking/ROG-Rapture-GTAX11000/HelpDesk_BIOS/ to download the latest firmware. 3. From the Firmware Upgrade page, click Browse to locate the firmware file. 4. Click Upload to upgrade the firmware. Restart your network in the following sequence: 1. Turn off the modem. 2. Unplug the modem. 3. Turn off the router and computers. 4. Plug in the modem. 5. Turn on the modem and then wait for 2 minutes. 6. Turn on the router and then wait for 2 minutes. 7. Turn on computers.
133

Check if your Ethernet cables are plugged properly. · When the Ethernet cable connecting the router with the
modem is plugged in properly, the WAN LED will be on. · When the Ethernet cable connecting your powered-
on computer with the router is plugged in properly, the corresponding LAN LED will be on. Check if the wireless setting on your computer matches that of your computer. · When you connect your computer to the router wirelessly, ensure that the SSID (wireless network name), encryption mehtod, and password are correct. Check if your network settings are correct. · Each client on the network should have a valid IP address. ASUS recommends that you use the wireless router's DHCP server to assign IP addresses to computers on your network. · Some cable modem service providers require you to use the MAC address of the computer initially registered on the account. You can view the MAC address in the web GUI, Network Map > Clients page, and hover the mouse pointer over your device in Client Status.
134

6.2 Frequently Asked Questions (FAQs)
I cannot access the router GUI using a web browser · If your computer is wired, check the Ethernet cable connection
and LED status as described in the previous section. · Ensure that you are using the correct login information. The
default factory login name and password is "admin/admin". Ensure that the Caps Lock key is disabled when you enter the login information. · Delete the cookies and files in your web browser. For Internet Explorer 8, follow these steps: 1. Launch Internet Explorer 8,
then click Tools > Internet Options. 2. In the General tab, under Browsing history, click Delete..., select Temporary Internet Files and Cookies then click Delete.
NOTES: · The commands for deleting cookies and files vary with web
browsers. · Disable proxy server settings, cancel the dial-up connection, and
set the TCP/IP settings to obtain IP addresses automatically. For more details, refer to Chapter 1 of this user manual. · Ensure that you use CAT5e or CAT6 ethernet cables.
135

The client cannot establish a wireless connection with the router.
NOTE: If you are having issues connecting to 5Ghz network, make sure that your wireless device supports 5Ghz or features dual band capabilities. · Out of Range: · Move the router closer to the wireless client. · Try to adjust antennas of the router to the best direction
as described in section 1.4 Positioning your router. · DHCP server has been disabled:
1. Launch the web GUI. Go to Advanced Settings > Network Map> Clients and search for the device that you want to connect to the router.
2. If you cannot find the device in the Network Map, go to Advanced Settings > LAN > DHCP Server, Basic Config list, select Yes on the Enable the DHCP Server.
136

· SSID has been hidden. If your device can find SSIDs from other routers but cannot find your router's SSID, go to Advanced Settings > Wireless > General, select No on Hide SSID, and select Auto on Control Channel.
· If you are using a wireless LAN adapter, check if the wireless channel in use conforms to the channels available in your country/area. If not, adjust the channel, channel bandwidth, and wireless mode.
· If you still cannot connect to the router wirelessly, you can reset your router to factory default settings. In the router GUI,click Administration > Restore/Save/Upload Setting and click Restore.
137

Internet is not accessible. · Check if your router can connect to your ISP's WAN IP address.
To do this, launch the web GUI and go to Advanced Settings> Network Map, and check the Internet Status. · If your router cannot connect to your ISP's WAN IP address, try restarting your network as described in the section Restart your network in following sequence under Basic Troubleshooting.
· The device has been blocked via the Parental Control function. Go to General > Aiprotection Pro > Parental Controls tab and see if the device is in the list. If the device is listed under Client Name, remove the device using the Delete button or adjust the Time Management Settings.
· If there is still no Internet access, try to reboot your computer and verify the network's IP address and gateway address.
· Check the status indicators on the ADSL modem and the wireless router. If the WAN LED on the wireless router is not ON, check if all cables are plugged properly.
You forgot the SSID (network name) or network password · Setup a new SSID and encryption key via a wired connection
(Ethernet cable). Launch the web GUI, go to Network Map, click the router icon, enter a new SSID and encryption key, and then click Apply. · Reset your router to the default settings. Launch the web GUI, go to Administration > Restore/Save/Upload Setting, and click Restore. The default login account and password are both "admin".
138

How to restore the system to its default settings?

· Go to Administration > Restore/Save/Upload Setting, and click Restore.

The following are the factory default settings:

User Name:

admin

Password:

admin

Enable DHCP: Yes (if WAN cable is plugged in)

IP address:

http://router.asus.com (or 192.168.1.1)

Domain Name: (Blank)

Subnet Mask: 255.255.255.0

DNS Server 1: 192.168.1.1

DNS Server 2: (Blank)

SSID (2.4GHz): ASUS

SSID (5GHz):

ASUS_5G

Firmware upgrade failed.

Launch the rescue mode and run the Firmware Restoration utility. Refer to section 5.2 Firmware Restoration on how to use the Firmware Restoration utility.

139

Cannot access Web GUI Before configuring your wireless router, do the steps described in this section for your host computer and network clients. A. Disable the proxy server, if enabled. Windows® 7 1. Click Start > Internet Explorer
to launch the browser. 2. Click Tools > Internet options
> Connections tab > LAN settings.
3. From the Local Area Network (LAN) Settings screen, untick Use a proxy server for your LAN.
4. Click OK when done.
140

MAC OS 1. From your Safari
browser, click Safari > Preferences > Advanced > Change Settings... 2. From the Network screen, deselect FTP Proxy and Web Proxy (HTTP). 3. Cllick Apply Now when done.
NOTE: Refer to your browser's help feature for details on disabling the proxy server.
B. Set the TCP/IP settings to automatically obtain an IP address.
Windows® 7 1. Click Start > Control Panel
> Network and Internet > Network and Sharing Center > Manage network connections. 2. Select Internet Protocol Version 4 (TCP/IPv4) or Internet Protocol Version 6 (TCP/IPv6), then click Properties.
141

3. To obtain the IPv4 IP settings automatically, tick Obtain an IP address automatically. To obtain the IPv6 IP settings automatically, tick Obtain an IPv6 address automatically.
4. Click OK when done.
MAC OS 1. Click the Apple icon
located on the top left of your screen. 2. Click System Preferences > Network > Configure... 3. From the TCP/IP tab, select Using DHCP in the Configure IPv4 dropdown list. 4. Cllick Apply Now when done. NOTE: Refer to your operating system's help and support feature for details on configuring your computer's TCP/IP settings.
142

C. Disable the dial-up connection, if enabled. Windows® 7 1. Click Start > Internet Explorer
to launch the browser. 2. Click Tools > Internet options
> Connections tab. 3. Tick Never dial a connection. 4. Click OK when done.
NOTE: Refer to your browser's help feature for details on disabling the dial-up connection.
143

Appendices
Notices
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: · This device may not cause harmful interference. · This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected. · Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
144

IMPORTANT NOTE:
Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please follow operation instruction as documented in this manual.
WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
Safety Notices
· Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F).
· Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
· DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
· DO NOT place or drop objects on top and do not shove any foreign objects into the product.
· DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
· DO NOT cover the vents on the product to prevent the system from getting overheated.
· DO NOT use damaged power cords, accessories, or other peripherals. · If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service
technician or your retailer. · To prevent electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
Safety Notices
· Utilisez ce produit dans un environnement dont la température ambiante est comprise entre 0°C (32°F) et 40°C (104°F).
· Référez-vous à l'étiquette située au dessous du produit pour vérifier que l'adaptateur secteur répond aux exigences de tension.
· NE PAS placer sur une surface irrégulière ou instable. Contactez le service aprèsvente si le châssis a été endommagé.
· NE PAS placer, faire tomber ou insérer d'objets sur/dans le produit. · NE PAS exposer l'appareil à la pluie ou à l'humidité, tenez-le à distance des liquides.
NE PAS utiliser le modem lors d'un orage. · NE PAS bloquer les ouvertures destinées à la ventilation du système pour éviter que
celui-ci ne surchauffe.
145

· NE PAS utiliser de cordons d'alimentation, d'accessoires ou autres périphériques endommagés.
· Si l'adaptateur est endommagé, n'essayez pas de le réparer vous-même. Contactez un technicien électrique qualifié ou votre revendeur.
· Pour éviter tout risque de choc électrique, débranchez le câble d'alimentation de la prise électrique avant de toucher au système.
Radiation Exposure Statement Déclaration d'exposition aux radiations
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 31cm between the radiator & your body. Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 31cm de distance entre la source de rayonnement et votre corps.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont conformes au (x) RSS (s) exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'opération est soumise aux deux conditions suivantes: (1) Cet appareil ne doit pas provoquer d'interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l'appareil.
This radio transmitter [IC: 3568A-RTHR00] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
Le présent émetteur radio (IC: 3568A-RTHR00) a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal d'antenne. Les types d'antennes non inclus dans cette liste qui ont un gain supérieur au gain maximal indiqué pour tout type listé sont strictement interdits pour une utilisation avec cet appareil.
146

Port

Gain (dBi)

Set Ant. 2.4 5GHz 5GHz 5GHz Brand

P/N

Type Connector 2.4 5GHz 5GHz 5GHz

GHz B1/B2 B3 B4

11-

4 4 WHA YU C660-510413-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

22-

3 3 WHA YU C660-510413-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

33-

2 2 WHA YU C660-510413-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

4 5

4 -

1 1 WHA YU C660-510413-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

- - WHA YU C660-510413-A Dipole Reverse SMA Plug - 2.3 - -

6 - 2 - - WHA YU C660-510413-A Dipole Reverse SMA Plug - 2.3 - -

7 - 3 - - WHA YU C660-510413-A Dipole Reverse SMA Plug - 2.3 - -

8 - 4 - - WHA YU C660-510413-A Dipole Reverse SMA Plug - 2.3 - -

11-

4 4 WHA YU C660-510431-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

22-

3 3 WHA YU C660-510431-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

33-

2 2 WHA YU C660-510431-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

4 5

4 -

1 1 WHA YU C660-510431-A Dipole Reverse SMA Plug 1.9 -

2.3 1.9

- - WHA YU C660-510431-A Dipole Reverse SMA Plug - 2.3 - -

6 - 2 - - WHA YU C660-510431-A Dipole Reverse SMA Plug - 2.3 - -

7 - 3 - - WHA YU C660-510431-A Dipole Reverse SMA Plug - 2.3 - -

8 - 4 - - WHA YU C660-510431-A Dipole Reverse SMA Plug - 2.3 - -

11-

4 4 PSA

RFDPA161000 SBLB801

Dipole Reverse SMA Plug 1.9

2.3 1.9

22-

3 PSA

RFDPA161000 SBLB801

Dipole Reverse SMA Plug 1.9

2.3 1.9

33-

2 2 PSA

RFDPA161000 SBLB801

Dipole Reverse SMA Plug 1.9

2.3 1.9

443
5- 1

1 1 PSA - - PSA

RFDPA161000 SBLB801

Dipole Reverse SMA Plug 1.9

RFDPA161000 SBLB801

Dipole Reverse SMA Plug -

2.3

2.3 1.9 --

6- 2

PSA

RFDPA161000 SBLB801

Dipole Reverse SMA Plug -

2.3

7- 3

PSA

RFDPA161000 SBLB801

Dipole Reverse SMA Plug -

2.3

8- 4

PSA

RFDPA161000 SBLB801

Dipole Reverse SMA Plug -

2.3

Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz, 5470-5600 MHz and 5650-5725 MHz.

Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les bandes 5250-5350 MHz, 5470-5600 MHz et 5650-5725 MHz.

The device for operation in the band 51505250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit. le gain maximal d'antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer à la limite de p.i.r.e.

The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate.
le gain maximal d'antenne permis (pour les dispositifs utilisant la bande 5725-5850 MHz)
doit se conformer à la limite de p.i.r.e. spécifiée pour l'exploitation point à point et non point à point, selon le cas.

For indoor use only. Pour une utilisation en intérieur uniquement.
147

IMPORTANT NOTE:
IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 31cm between the radiator & your body. Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 31 cm de distance entre la source de rayonnement et votre corps.
VCCI: Japan Compliance Statement
B
5.3GHz *W53 (5,250-5,350MHz)

KC: Korea Warning Statement

B ( )
Class B equipment (For Home Use Broadcasting & Communication Equipment)

(B) , . This equipment is home use (Class B) electromagnetic wave suitability and to be used mainly at home and it can be used in all areas.

148

NCC

(Pb) (Hg) (Cd) (Cr+6) PBB) PBDE)

/ /

1."" 2."-"

DFS 5.15~5.35/5.47~5.85GHz (802.11a/ac )
MPE (MPE) 1mW/cm2 XXXmW/ cm2 XXcm

- 0°C (32°F) 40°C (104°F)
-
-
-
-
-
-
-
-

149

(Pb)

(Hg)

(Cd)

(Cr(VI))

(PBB)

(PBDE)

SJ/T 11364 GB/T 26572 × GB/T 26572
2011/65/EU

- 0°C (32°F) 40°C (104°F)
-
-
-
-
-
-
-
-

UA.TR.028

150

Precautions for the use of the device
a. Pay particular attention to the personal safety when use this device in airports, hospitals, gas stations and professional garages.
b. Medical device interference: Maintain a minimum distance of at least 15 cm (6 inches) between implanted medical devices and ASUS products in order to reduce the risk of interference.
c. Kindly use ASUS products in good reception conditions in order to minimize the radiation's level.
d. Keep the device away from pregnant women and the lower abdomen of the teenager.
Précautions d'emploi de l'appareil
a. Soyez particulièrement vigilant quant à votre sécurité lors de l'utilisation de cet appareil dans certains lieux (les avions, les aéroports, les hôpitaux, les stationsservice et les garages professionnels).
b. Évitez d'utiliser cet appareil à proximité de dispositifs médicaux implantés. Si vous portez un implant électronique (stimulateurs cardiaques, pompes à insuline, neurostimulateurs...),veuillez impérativement respecter une distance minimale de 15 centimètres entre cet appareil et votre corps pour réduire les risques d'interférence.
c. Utilisez cet appareil dans de bonnes conditions de réception pour minimiser le niveau de rayonnement. Ce n'est pas toujours le cas dans certaines zones ou situations, notamment dans les parkings souterrains, dans les ascenseurs, en train ou en voiture ou tout simplement dans un secteur mal couvert par le réseau.
d. Tenez cet appareil à distance des femmes enceintes et du bas-ventre des adolescents.
:
- : 0-40 °C. .
- , , , .
- , .
- , .
- . .
- . .
- .
151

India RoHS
This product complies with the "India E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1 % by weight in homogenous materials and 0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
: "
. / · . ·
, , " · . ,
. · , / / , ·
. , / ·
. . , , · · . , , . / · · ·
: , ·
. . ·
152

AEEE Yönetmeliine Uygundur. IEEE Yönetmeliine Uygundur.
- Bu Cihaz Türkiye analog ebekelerde çaliabilecek ekilde tasarlanmitir. - Cihazin ayrintili kurulum rehberi kutu içeriinden çikan CD içerisindedir.
Cihazin kullanici arayüzü Türkçe'dir. - Cihazin kullanilmasi planlanan ülkelerde herhangi bir kisitlamasi yoktur.
Ülkeler simgeler halinde kutu üzerinde belirtilmitir.

Manufacturer
Authorised representative in Europe Authorised distributors in Turkey

ASUSTeK Computer Inc.
Tel: +886-2-2894-3447
Address: 4F, No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN
ASUS Computer GmbH
Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY
BOGAZICI BILGISAYAR TICARET VE SANAYI A.S.
Tel./FAX No.: +90 212 331 10 00 / +90 212 332 28 90
Address: ESENTEPE MAH. BUYUKDERE CAD. ERCAN HAN B BLOK NO.121 SISLI, ISTANBUL 34394
CIZGI Elektronik San. Tic. Ltd. Sti.
Tel./FAX No.: +90 212 356 70 70 / +90 212 356 70 69
Address: GURSEL MAH. AKMAN SK.47B 1 KAGITHANE/ISTANBUL
KOYUNCU ELEKTRONiK BiLGi iSLEM SiST. SAN. VE DIS TIC. A.S.
Tel. No.: +90 216 5288888
Address: EMEK MAH.ORDU CAD. NO:18, SARIGAZi, SANCAKTEPE ISTANBUL
ENDEKS BLM SAN VE DI TC LTD T
Tel./FAX No.: +90 216 523 35 70 / +90 216 523 35 71
Address: NECIP FAZIL BULVARI, KEYAP CARSI SITESI, G1 BLOK, NO:115 Y.DUDULLU, UMRANIYE, ISTANBUL
PENTA TEKNOLOJI URUNLERI DAGITIM TICARET A.S
Tel./FAX No.: +90 216 528 0000
Address: ORGANIZE SANAYI BOLGESI NATO YOLU 4.CADDE NO:1 UMRANIYE, ISTANBUL 34775

153

ASUS Contact information

ASUSTeK COMPUTER INC. (Asia Pacific)

Address

15 Li-Te Road, Peitou, Taipei, Taiwan

11259

Website

www.asus.com.tw

Technical Support
Telephone Support Fax Online support

+886228943447 +886228907698
https://www.asus.com/support

ASUS COMPUTER INTERNATIONAL (America)

Address

48720 Kato Rd., Fremont, CA 94538,

USA

Telephone

+15107393777

Fax

+15106084555

Website

usa.asus.com

Online support

https://www.asus.com/support

ASUS COMPUTER GmbH (Germany and Austria)

Address

Harkort Str. 21-23, D-40880 Ratingen,

Germany

Support Fax

+49-2102-959931

Website

asus.com/de

Online contact

eu-rma.asus.com/sales

Technical Support Telephone (Component) Telephone Germany (System/Notebook/Eee/LCD) Telephone Austria (System/Notebook/Eee/LCD) Support Fax Online support

+49-2102-5789555
+49-2102-5789557
+43-820-240513 +49-2102-959911 https://www.asus.com/support

154

Networks Global Hotline Information

Region

Country Cyprus France

Germany

Hungary Italy

Greece

Europe

Austria Netherlands/ Luxembourg Belgium Norway Sweden Finland Denmark Poland Spain Portugal Slovak Republic Czech Republic Switzerland-German Switzerland-French Switzerland-Italian United Kingdom Ireland Russia and CIS Ukraine

Hotline Number
800-92491
0033-170949400 0049-1805010920 0049-1805010923 (component support) 0049-2102959911 ( Fax ) 0036-15054561
199-400089
00800-44142044
0043-820240513
0031-591570290
0032-78150231 0047-2316-2682 0046-858769407 00358-969379690 0045-38322943 0048-225718040 0034-902889688 00351-707500310 00421-232162621 00420-596766888 0041-848111010 0041-848111014 0041-848111012 0044-1442265548 0035-31890719918 008-800-100-ASUS 0038-0445457727

Service Hours 09:00-13:00 ; 14:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri
09:00-18:00 Mon-Fri 10:00-17:00 Mon-Fri
09:00-17:30 Mon-Fri 09:00-13:00 ; 14:00-18:00 Mon-Fri 09:00-13:00 ; 14:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri
09:00-17:00 Mon-Fri
09:00-17:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 10:00-19:00 Mon-Fri 09:00-18:00 Mon-Fri 08:30-17:30 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 08:00-17:00 Mon-Fri 08:00-17:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-17:00 Mon-Fri 09:00-17:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri

155

Networks Global Hotline Information

Region

Country Australia New Zealand Japan

Korea Thailand
Singapore Asia-Pacific
Malaysia Philippine India India(WL/NW) Indonesia

Americas

Vietnam
Hong Kong USA Canada Mexico

Hotline Numbers 1300-278788 0800-278788 0800-1232787 0081-570783886 ( Non-Toll Free ) 0082-215666868 0066-24011717 1800-8525201 0065-64157917 0065-67203835 ( Repair Status Only ) 1300-88-3495 1800-18550163
1800-2090365
0062-2129495000 500128 (Local Only)
1900-555581
00852-35824770
1-812-282-2787
001-8008367847

Service Hours 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-19:00 Mon-Sun
09:00-19:00 Mon-Sun
09:30-17:00 Mon-Fri 09:00-18:00 Mon-Fri
11:00-19:00 Mon-Fri 11:00-19:00 Mon-Fri 11:00-13:00 Sat 9:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Sat 09:00-21:00 Mon-Sun 09:30-17:00 Mon-Fri 9:30 12:00 Sat 08:00-12:00 13:30-17:30 Mon-Sat 10:00-19:00 Mon-Sat 8:30-12:00 EST Mon-Fri 9:00-18:00 EST Sat-Sun 08:00-20:00 CST Mon-Fri 08:00-15:00 CST Sat

156

Networks Global Hotline Information

Region Middle East + Africa

Country Egypt Saudi Arabia UAE Turkey South Africa Israel

Romania
Bosnia Herzegovina
Bulgaria

Balkan Countries

Croatia Montenegro Serbia Slovenia

Baltic Countries

Estonia Latvia Lithuania-Kaunas Lithuania-Vilnius

Hotline Numbers 800-2787349 800-1212787 00971-42958941 0090-2165243000 0861-278772 *6557/00972-39142800 *9770/00972-35598555 0040-213301786
00387-33773163
00359-70014411 00359-29889170 00385-16401111 00382-20608251 00381-112070677 00368-59045400 00368-59045401 00372-6671796 00371-67408838 00370-37329000 00370-522101160

Service Hours 09:00-18:00 Sun-Thu 09:00-18:00 Sat-Wed 09:00-18:00 Sun-Thu 09:00-18:00 Mon-Fri 08:00-17:00 Mon-Fri 08:00-17:00 Sun-Thu 08:30-17:30 Sun-Thu 09:00-18:30 Mon-Fri
09:00-17:00 Mon-Fri
09:30-18:30 Mon-Fri 09:30-18:00 Mon-Fri 09:00-17:00 Mon-Fri 09:00-17:00 Mon-Fri 09:00-17:00 Mon-Fri
08:00-16:00 Mon-Fri
09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri 09:00-18:00 Mon-Fri

NOTE: For more information, visit the ASUS support site at: https://www.asus.com/support

Manufacturer:
Authorised representative in Europe:

ASUSTeK Computer Inc.

Tel:

+886-2-2894-3447

Address: 4F, No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN
ASUS Computer GmbH

Address: HARKORT STR. 21-23, 40880

RATINGEN, GERMANY

157

English
CE statement
Simplified EU Declaration of Conformity ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Declaration of Conformity for Ecodesign directive 2009/125/EC Testing for eco-design requirements according to (EC) No 1275/2008 and (EU) No 801/2013 has been conducted. When the device is in Networked Standby Mode, its I/O and network interface are in sleep mode and may not work properly. To wake up the device, press the Wi-Fi on/off, LED on/off, reset, or WPS button. This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. All operational modes: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) The frequency, mode and the maximum transmitted power in EU are listed below: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. The adapter shall be installed near the equipment and shall be easily accessible.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR

Safety Notices

Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F).

Refer to the rating label on the bottom of your product and ensure your power adapter complies

with this rating.

DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been

damaged.

DO NOT place or drop objects on top and do not shove any foreign objects into the product.

DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical

storms.

DO NOT cover the vents on the product to prevent the system from getting overheated.

DO NOT use damaged power cords, accessories, or other peripherals.

If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or

your retailer.

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before

relocating the system.

158

Bulgarian CE statement

ASUSTeK Computer Inc. , 2014/53/EC. https://www.asus.com/Networking/ ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. 2009/125/ () No. 1275/2008 () No. 801/2013. Networked Standby Mode ( ), I/O . , Wi-Fi on/off (Wi-Fi ./.), LED on/off (LED ./.), reset () WPS. , . 20 cm 20 cm . : 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40)
5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) - , . 2412-2472MHz (802.11g 6Mbps): 19.81 dBm
5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm
5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm
5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm
, 5150 5350 MHz. .
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

0°C (32°F) 40°C (104°F).

, .

159

Croatian CE statement
Pojednostavljena EU Izjava o sukladnosti ASUSTek Computer Inc. ovime izjavljuje da je ureaj sukladan s osnovnim zahtjevima i ostalim vaznim odredbama direktive 2014/53/EU. Cijeli tekst EU izjave o sukladnosti dostupan je na https://www.asus. com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Izjava o sukladnosti za direktivu o ekodizajnu 2009/125/EZ Provedeno je testiranje zahtjeva na ekodizajn u skladu s (EC) No 1275/2008 i (EU) No 801/2013. Kada je ureaj u umrezenom nacinu mirovanja, njegovi ulazi/izlazi i mrezno sucelje su takoer u nacinu mirovanja i mozda nee ispravno raditi. Za pokretanje ureaja pritisnite tipku za ukljucivanje/iskljucivanje Wi-Fi ureaja, ukljucivanje/iskljucivanje LED-a, ponovno postavljanje ili gumb za WPS. Ova oprema sukladna je EU ogranicenjima o izlozenosti zracenju u nekontroliranom okruzenju. Ovaj ureaj se mora postaviti i koristiti na minimalnoj udaljenosti od 20 cm izmeu radijatora i vaseg tijela. Svi nacini rada: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) U nastavku su navedeni frekvencija, nacin rada i maksimalna emitirana snaga u EU: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Ureaj je ogranicen na uporabu u zatvorenim prostorima samo pri radu u frekvencijskom rasponu od 5150 do 5350 MHz. Adapter se mora instalirati blizu ureaja i mora biti lako dostupan.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Ovaj proizvod koristite u okruzenjima s temperaturom okruzenja izmeu 0 °C (32 °F) i 40 °C

(104 °F).

Pogledajte nazivnu oznaku na donjem dijelu proizvoda kako biste provjerili je li adapter sukladan.

NE postavljajte ureaj na neravne i nestabilne radne povrsine. U slucaju osteenja kuista, zatrazite

pomo servisera.

NEMOJTE postavljati ili spustati predmete na gornji dio ureaja i nemojte umetati strane predmete u

proizvod.

NE izlazite i ne upotrebljavajte ureaj u blizini tekuina, kise ili vlage. NEMOJTE koristiti modem tijekom

elektricne oluje.

NEMOJTE prekrivati otvore na proizvodu kako ne biste uzrokovali pregrijavanje sustava.

Nemojte koristiti osteene kabele za napajanje, dodatnu opremu i ostale vanjske ureaje.

Ako je adapter osteen, nemojte ga popravljati sami. Obratite se kvalificiranom servisnom tehnicaru ili

dobavljacu.

Kako biste sprijecili opasnost od elektricnog udara, iskopcajte kabel iz elektricne uticnice prije

premjestanja sustava.

160

Czech CE statement
Zjednodusené prohlásení o shod s EU Spolecnost ASUSTek Computer Inc. tímto prohlasuje, ze toto zaízení spluje základní pozadavky a dalsí píslusná ustanovení smrnice 2014/53/EU. Plné znní prohlásení o shod EU je k dispozici na adrese https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Prohlásení o shod se smrnicí o ekodesignu 2009/125/ES Bylo provedeno testování pozadavk na ekodesign podle smrnic (ES) c. 1275/2008 a (EU) c. 801/2013. Kdyz se toto zaízení nachází v pohotovostním síovém rezimu, jeho vstupy/výstupy a síové rozhraní jsou v rezimu spánku a nemusí fungovat správn. Zaízení lze probudit vypínacem Wi-Fi, vypínacem LED, resetovacím tlacítkem nebo tlacítkem WPS. Toto zaízení vyhovuje limitm EU pro vystavení vyzaování stanoveným pro neízené prostedí. Toto zaízení musí být nainstalováno a provozováno v minimální vzdálenosti 20 cm mezi záicem a vasím tlem. Vsechny provozní rezimy: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Níze je uvedena frekvence, rezim a maximální vysílaný výkon v EU: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Pi provozu ve frekvencním rozsahu 5 150 az 5 350 MHz je pouzívání tohoto zaízení omezeno pouze na vnitní prostory. Pouzívaný adaptér se musí nacházet v blízkosti zaízení a musí být snadno pístupný.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Pocítac pouzívejte jen pi teplot okolí 0 °C (32 °F) az 40 °C (104 °F).

Informace naleznete na energetickém stítku na spodní stran vaseho produktu. Ujistte se, ze

napájecí adaptér je v souladu s hodnotou na nm uvedenou.

NEPOKLÁDEJTE na nerovné ani nestabilní pracovní povrchy. Pokud je skí pocítace poskozená,

vyhledejte opravnu.

NEDÁVEJTE ani neupoustjte pedmty na horní stranu produktu ani do nj nezastrkujte zádné

cizí objekty.

NEVYSTAVUJTE ani nepouzívejte blízko tekutin, dest nebo vlhkosti. NEPOUZÍVEJTE modem

bhem bouek.

NEZAKRÝVEJTE otvory na produktu, které mají zabránit pehátí systému.

NEPOUZÍVEJTE poskozené napájecí kabely, doplky ani jiné periférie.

Pokud je napájecí zdroj porouchaný, nepokousejte se jej opravovat. Kontaktujte kvalifikovaného

servisního technika nebo prodejce.

Aby nedoslo k zásahu elektrickým proudem, odpojte napájecí kabel z elektrické zásuvky ped

pemístním pocítace.

161

Estonian CE statement
Lihtsustatud ELi vastavusdeklaratsioon Käesolevaga kinnitab ASUSTek Computer Inc., et see seade on vastavuses direktiivi 2014/53/EL oluliste nõuete ja teiste asjakohaste sätetega. ELi vastavusdeklaratsiooni täielik tekst on saadaval aadressil https:// www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Vastavuse kinnitus ökodisaini direktiivile 2009/125/EÜ Ökodisaini erinõuetele vastavust testiti kooskõlas määruste (EÜ) nr 1275/2008 ja (EÜ) nr 801/2013 nõuetega. Kui seade on võrku ühendatud ootereziimis, on selle I/O ja võrguliides unereziimis ning seetõttu on võimalik, et seade ei toimi nõuetekohaselt. Seadme äratamiseks vajutage Wi-Fi on/off-nuppu, LED on/ off-nuppu, lähtestusnuppu või WPS nuppu. Käesolev seade vastab kontrollimata keskkonnale sätestatud ELi kiirgusnormidele. Antud seadme paigaldamisel ja kasutamisel tuleb arvestada, et see peab jääma radiaatorist ja teie kehast vähemalt 20 cm kaugusele. Kõik tööreziimid: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Teave sageduse, reziimi ja maksimaalse edastatava võimsuse kohta ELis on esitatud allpool: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Seadet tuleb kasutada ainult sisetingimustes sagedusvahemikus 5150 MHz kuni 5350 MHz. Adapter tuleb paigaldada seadme lähedusse, kus see on hõlpsalt kättesaadav.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR

Safety Notices

Seda seadet võib kasutada ümbritseva keskkonna temperatuuril 0 °C (32 °F) kuni 40 °C (104 °F).

Vaadake seadme põhjal asuvat silti ja veenduge, et teie toiteadapter vastab toitepingele.

ÄRGE asetage ebaühtlasele või ebastabiilsele pinnale. Kui aku ümbris on kahjustada saanud,

pöörduge teenindusse.

ÄRGE pange või laske kukkuda mingeid esemeid seadme peale ja ärge torgake midagi seadme

sisse.

ÄRGE kasutage seadet vihma käes ega vedelike ja niiskuse lähedal. ÄRGE kasutage modemit

äikese ajal.

ÄRGE katke kinni seadme õhutusavasid, et vältida selle ülekuumenemist.

ÄRGE kasutage kahjustunud toitejuhtmeid, lisa- ega välisseadmeid.

Kui toiteadapter on rikkis, siis ärge püüdke seda ise parandada. Võtke ühendust kvalifitseeritud

hooldustehnikuga või jaemüüjaga.

Elektrilöögi ohu vältimiseks ühendage toitekaabel pistikupesast lahti enne, kui süsteemi ümber

paigutate.

162

Hungarian CE statement

Egyszersített EU-megfelelségi nyilatkozat Az ASUSTek Computer Inc. ezennel kijelenti, hogy ez a készülék megfelel a 2014/53/EU irányelv alapvet követelményeinek és egyéb vonatkozó rendelkezéseinek. Az EU-megfelelségi nyilatkozat teljes szövegét a következ weboldalon tekintheti meg: https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/ HelpDesk_Declaration/. Megfelelségi nyilatkozat a környezettudatos tervezésrl szóló 2009/125/EK irányelvhez A környezettudatos tervezés követelményeit illeten tesztelést végeztünk az (EK) 1275/2008 és (EU) 801/2013 elírásai szerint. Ha a készülék hálózati készenléti üzemmódra van állítva, akkor az I/O és a hálózati csatoló alvó üzemmódba kerül, és elképzelhet, hogy nem mködik megfelelen. A készülék felébresztéséhez nyomja meg a Wi-Fi vagy a LED fkapcsolóját, a reset gombot vagy a WPS gombot. Ez a berendezés megfelel az Európai Unió rádiófrekvenciás sugárzásra vonatkozó, ellenrizetlen környezethez megállapított határértékeinek. A készülék telepítésekor és használata során legalább 20 cm távolságot kell hagyni a fttest és a teste között. Minden mködési üzemmód: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Az alábbiakban megtekintheti az Európai Unióban érvényes frekvenciát, üzemmódot és maximális átviteli teljesítményt: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Az 5150 és 5350 MHz közötti frekvenciatartományban a készülék beltéri használatra van korlátozva.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR

Safety Notices

A terméket 0°C (32°F) és 40°C (104°F) közötti hmérsékleten használja.

Tekintse meg a termék alján lév minsítési címkét, és ellenrizze, hogy a hálózati adapter

megfelel a minsítésnek.

NE tegye a számítógépet labilis, vagy egyenetlen felületre. A sérült burkolatot javíttassa meg.

NE helyezzen és NE ejtsen tárgyakat a készülék tetejére, és ne dugjon idegen tárgyakat a

belsejébe.

NE tegye ki folyadéknak, esnek vagy nedvességnek, vagy használja azok közelében. NE használja

a modemet villámlás közben.

NE fedje be a készüléken lév szellznyílásokat, nehogy túlmelegedjen a rendszer.

NE használjon sérült tápkábelt, kiegészítt vagy más perifériát.

Ha a tápegység elromlik, ne kísérelje meg saját maga megjavítani. Forduljon szakemberhez vagy a

termék viszonteladójához.

Az áramütés elkerülése érdekében húzza ki a berendezés tápkábelét a konnektorból, mieltt

áthelyezné a rendszert.

163

Latvian CE statement
Vienkrsots ES paziojums par atbilstbu Ar so ASUSTek Computer Inc. pazio, ka s ierce atbilst Direktvas Nr. 2014/53/ES btiskm prasbm un citiem attiecgiem noteikumiem. Pilns ES atbilstbas paziojuma teksts ir pieejams seit: https://www.asus. com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Atbilstbas paziojums ekodizaina Direktvai Nr. 2009/125/EK Veikta ekodizaina prasbu prbaude saska ar Komisijas Regulu (EK) Nr. 1275/2008 un Komisijas Regulu (ES) Nr. 801/2013. Ja ierce ir tkla gaidstves rezm, ts I/O (ievade/izvade) un tkla interfeiss ir miega rezm un var nedarboties pareizi. Lai aktiviztu ierci, nospiediet pogu Wi-Fi on/off (Wi-Fi ieslgts/izslgts), LED on/off (LED ieslgts/izslgts), reset (atiestatt) vai WPS. S ierce atbilst ES radicijas iedarbbas ierobezojumiem, kas noteikti videi, kur s iedarbba netiek kontrolta. S ierce ir juzstda un jdarbina, ievrojot minimlo attlumu 20 cm starp radiatoru un ermeni. Visi darbbas rezmi: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvence, rezms un maksiml prraidt jauda ES ir nordta tlk. 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm S ierce, darbojoties no 5150 MHz ldz 5350 MHz frekvences diapazon, paredzta tikai lietosanai iekstelps. Adapterim ir jbt novietotam ierces tuvum un viegli pieejamam.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Lietojiet so ierci tikai viets, kur apkrtj temperatra ir no 0°C (32°F) ldz 40°C (104°F).

Skatiet strvas parametru uzlmi ierces apaks un prliecinieties, lai strvas adapteris atbilstu

parametriem.

NENOVIETOT uz neldzenas un nestabilas darba virsmas. Vrsieties tehnisks paldzbas dienest,

ja ir bojts rjais ietvars.

NENOVIETOT vai nemest prieksmetus uz virsmas un neievietot ierc nekdus svesermeus.

NEPAKAUT sidrumu, lietus vai mitruma ietekmei vai nelietot to tuvum. NELIETOT modemu

negaisa laik.

NEAPKLT ierces ventilcijas atveres, lai sistma neprkarstu.

NELIETOT bojtus strvas vadus, papildierces vai citas rjs ierces.

Ja adapteris ir bojts, neveiciet t remontu pats. Sazinieties ar kvalifictu specilistu vai savu

prdevju.

Lai novrstu elektrisks strvas trieciena risku, atvienojiet strvas kabeli no strvas kontaktligzdas

pirms sistmas prvietosanas.

164

Lituanian CE statement

Supaprastinta ES atitikties deklaracija Siame dokumente bendrov ,,ASUSTek Computer Inc." pareiskia, kad sis prietaisas atitinka pagrindinius reikalavimus ir kitas susijusias Direktyvos 2014/53/EB nuostatas. Vis ES atitikties deklaracijos tekst rasite https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Ekologinio projektavimo direktyvos 2009/125/EB atitikties deklaracija Atliktas ekologinio projektavimo reikalavim pagal (EB) Nr. 1275/2008 ir (ES) Nr. 801/2013 atitikimo patikrinimas. Kai prietaisas yra prijungtas prie tinklo ir veikia budjimo rezimu, jo jungimo / isjungimo ir tinklo ssaja veikia miego rezimu ir negali tinkamai veikti. Nordami pazadinti prietais, paspauskite ,,WiFi" jungimo / isjungimo, sviesos diodo jungimo / isjungimo, nustatymo is naujo arba WPS mygtuk. Si ranga atitinka ES radiacijos poveikio ribas, nustatytas nekontroliuojamai aplinkai. S prietais reikia statyti ir naudoti ten, kur jis bt bent 20 cm atstumu nuo js kno. Visi operaciniai rezimai: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Daznis, rezimas ir maksimali signal siuntimo galia ES nurodyta toliau: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm S rengin galima naudoti tik patalpoje, kai jis veikia 51505350 MHz dazni diapazone. Adapteris privalo bti rengtas salia renginio ir jis turi bti lengvai pasiekiamas.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR

Safety Notices

Naudokits siuo gaminiu tik esant 0°C (32°F)40 °C (104°F) aplinkos oro temperatrai.

Zr. technini charakteristik etiket, esanci gaminio apacioje, ir sitikinkite, ar maitinimo

adapteris atitinka tas charakteristikas.

NESTATYKITE ant nelygi ar nestabili darbini pavirsi. Kreipkits pagalbos, jei pazeidte

korpus.

NEDKITE ant virsaus, neuzmeskite arba nekiskite gamin pasalini daikt.

NENAUDOKITE drgnoje vietoje, salia skysci, kur yra drgna, neleiskite aplyti. NENAUDOKITE

modemo per elektros audras.

NEUZDENKITE gaminio ventiliacijos ang, kad sistema neperkaist.

NENAUDOKITE pazeist maitinimo laid, pried ar kit periferini rengini.

Jei adapteris sugest, nebandykite jo remontuoti patys. Kreipkits kvalifikuot meistr arba

pardavj.

Nordami isvengti elektros smgio pavojaus, pries perkeldami sistem kit viet, atjunkite

maitinimo kabel nuo elektros lizdo.

165

Polish CE statement

Uproszczona deklaracja zgodnoci UE Firma ASUSTek Computer Inc. niniejszym owiadcza, e urzdzenie to jest zgodne z zasadniczymi wymogami i innymi wlaciwymi postanowieniami dyrektywy 2014/53/UE. Pelny tekst deklaracji zgodnoci UE jest dostpny pod adresem https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_ Declaration/. Deklaracja zgodnoci dotyczca dyrektywy w sprawie ekoprojektu 2009/125/WE Przeprowadzono testy pod ktem wymogów dotyczcych ekoprojektu zgodnie z rozporzdzeniem (WE) Nr 1275/2008 i (UE) Nr 801/2013. Gdy urzdzenie jest w sieciowym trybie czuwania, jego porty We/Wy oraz interfejs sieciowy równie znajduj si w trybie upienia i mog nie dziala prawidlowo. W celu wznowienia pracy urzdzenia naley nacisn przycisk wlczania/wylczania sieci Wi-Fi, przycisk wlczania/wylczania wskanika LED, przycisk resetowania lub WPS. To urzdzenie jest zgodne z limitami UE dotyczcymi ekspozycji na promieniowanie ustanowionymi dla niekontrolowanego rodowiska. Urzdzenie to powinno by zainstalowane i uywane przy zachowaniu minimalnej odlegloci 20 cm midzy radiatorem, a cialem. Wszystkie tryby dzialania: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Poniej wskazano czstotliwo, tryb i maksymaln moc nadawania w UE: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Dzialanie tego urzdzenia w zakresie czstotliwoci od 5150 do 5350 MHz jest ograniczone wylcznie do uytku wewntrz pomieszcze.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Ten produkt naley uywa w miejscach o temperaturze otoczenia w zakresie 0°C (32°F) do 40°C

(104°F).

Naley sprawdzi tabliczk znamionow na spodzie produktu i upewni si, e zasilacz jest

zgodny z podanymi wartociami.

NIE NALEY umieszcza urzdzenia na nierównych lub niestabilnych powierzchniach roboczych.

Po uszkodzeniu obudowy naley przekaza komputer do serwisu.

NIE NALEY umieszcza, upuszcza lub wpycha adnych obcych obiektów na produkt.

NEI NALEY wystawia na dzialanie lub uywa komputera w pobliu plynów, na deszczu lub

wilgoci. NIE NALEY uywa modemu podczas burz z wyladowaniami elektrycznymi.

Aby zapobiec przegrzaniu systemu NIE NALEY zakrywa szczelin produktu.

NIE NALEY przykrywa szczelin wentylacyjnych komputera desktop PC, aby zapobiec

przegrzaniu systemu.

Jeli uszkodzony zosatal zasilacz nie naley próbowa naprawia go samemu. Naley

skontaktowa si z wykwalifikowanym technikiem serwisu lub ze sprzedawc.

Aby zapobiec poraeniu prdem elektrycznym, przed przeniesieniem systemu naley odlczy

kabel zasilajcy od gniazdka elektrycznego.

166

Romanian CE statement

Declaraie de conformitate UE simplificat ASUSTek Computer Inc. declar c acest dispozitiv este în conformitate cu cerinele eseniale i cu alte prevederi relevante ale Directivei 2014/53/UE. Declaraia de conformitate UE complet este disponibil la adresa: https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Declaraia de conformitate pentru Directiva privind proiectarea ecologic 2009/125/CE Testarea pentru cerinele de proiectare ecologic în conformitate cu (CE) nr. 1275/2008 i (UE) nr. 801/2013 a fost efectuat. Când dispozitivul se afl în modul de standby în reea, I/E i interfaa de reea se afl în modul de repaus i pot s nu funcioneze corect. Pentru a reactiva dispozitivul, apsai butonul de pornire/oprire Wi-Fi, pornire/oprire LED, resetare sau butonul WPS. Acest dispozitiv se încadreaz în limitele de expunere la radiaii UE stabilite pentru un mediu necontrolat. Acest echipament trebuie instalat i operat cu distana minim de 20 cm între radiator i corpul dvs. Toate modurile de funcionare: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frecvena, modul i puterea maxim transmis în UE sunt enumerate mai jos: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Dispozitivul este restricionat doar la utilizarea în interior în cazul operrii în intervalul de frecven cuprins între 5.150 i 5.350 MHz. Adaptorul trebuie montat în apropierea echipamentului i trebuie s poat fi accesat uor.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Utilizai PC-ul desktop în medii cu temperatura ambiant cuprins între 0 °C (32 °F) i 40

°C (104 °F).

Consultai eticheta de pe partea de jos a produsului pentru a v asigura c adaptorul dvs. este

conform.

NU aezai produsul pe suprafee de lucru neregulate sau instabile. În cazul în care carcasa s-a

deteriorat, solicitai operaii de service.

NU plasai i nu scpai obiecte pe partea de sus a produsului i nu introducei obiecte externe în

produs.

NU expunei PC-ul desktop la lichide, la ploaie sau la umezeal. NU utilizai PC-ul desktop în

timpul furtunilor cu descrcri electrice.

NU acoperii orificiile de ventilare de pe produs. În caz contrar, este posibil ca sistemul s se

supraînclzeasc.

NU utilizai cabluri de alimentare, accesorii sau echipamente periferice deteriorate.

Dac sursa de alimentare se defecteaz, nu încercai s o reparai singur. Contactai un tehnician

de service calificat sau distribuitorul local.

Pentru a preveni pericolul de electrocutare, deconectai cablul de alimentare de la priza electric

înainte de reamplasarea sistemului.

167

Serbian CE statement

Pojednostavljena EU deklaracija o saglasnosti ASUSTek Computer Inc. ovim potvruje da je ovaj ureaj u saglasnosti sa kljucnim zahtevima i drugim relevantnim odredbama Direktive 2014/53/EU. Pun tekst EU deklaracije o saglasnosti je dostupan na adresi https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Deklaracija o saglasnosti za Ekodizajn direktivu 2009/125/EC Testiranje za eko-dizajn zahteve u skladu sa (EC) Br 1275/2008 i (EU) Br 801/2013 je obavljeno. Kada je ovaj ureaj u rezimu za stanje pripravnosti mreze, njegov I/O i mrezni interfejs su u rezimu za spavanje i mozda nee raditi ispravno. Da probudite ureaj, pritisnite Wi-Fi da ukljucite/iskljucite, ukljucite/iskljucite LED, resetujte ili WPS pritisnite taster. Ova oprema u saglasnosti je sa EU ogranicenjima za izlozenost radijaciji, odreenih za nekontrolisanu sredinu. Ova oprema treba da bude instalirana i da se njome upravlja sa minimalne udaljenosti od 20 cm izmeu radijatora i vaseg tela. Svi radni rezimi: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvencija, rezim i maksimalna snaga prenosenja u EU su navedeni ispod: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Ureaj je ogranicen za korisenje unutra samo kada radi u frekventnom opsegu od 5150 to 5350 MHz. Adapter treba da bude instaliran blizu opreme i lako dostupan.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Koristite ovaj proizvod u sredinama sa ambijentalnom temperaturom izmeu 0°C (32°F) and 40°C

(104°F).

Pogledajte etiketu sa oznakom na dnu svog proizvoda i proverite da se vas adapter za napajanje

slaze sa ovom oznakom.

NE stavljajte na neravnu ili nestabilnu radnu povrsinu. Potrazite servisiranje ukoliko je kuiste

osteeno.

NE postavljajte i ne ispustajte predmete na vrhu i ne gurajte strane predmete u proizvod.

NE izlazite tecnostima i ne koristite u blizini tecnosti, kise ili vlage. NE koristite modem tokom oluja

sa grmljavinom.

NE pokrivajte otvore na proizvodu da biste sprecili da se sistem pregreje.

NE koristite osteene kablove za struju, dodatke ili druge periferne ureaje.

Ukoliko se adapter polomi, ne pokusavajte da ga sami popravite. Pozovite kvalifikovanog

tehnicara za popravku ili svog prodavca.

Da sprecite rizik od elektricnog soka, iskljucite kabl za struju iz elektricne uticnice pre premestanja

sistema.

168

Slovanian CE statement

Poenostavljena izjava o skladnosti EU ASUSTek Computer Inc. izjavlja, da je ta naprava skladna s temeljnimi zahtevami in drugimi relevantnimi dolocili Direktive 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na spletnem mestu https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Izjava o skladnosti za Direktivo o okoljsko primerni zasnovi 2009/125/ES Testiranje glede zahtev za okoljsko primerno zasnovo v skladu z (ES) st. 1275/2008 in (EU) st. 801/2013 je bilo izvedeno. Ce je naprava v omreznem nacinu pripravljenosti, sta vhodno-izhodni in omrezni vmesnik v nacinu spanja in morda ne bosta delovala pravilno. Ce zelite napravo prebuditi, pritisnite gumb za vklop/ izklop Wi-Fi, vklop/izklop LED, ponastavitev ali WPS. Oprema je v skladu z omejitvami EU o izpostavljenosti sevanju za nenadzorovano okolje. Opremo namestite in z njo upravljajte na najmanjsi oddaljenosti 20 cm med radiatorjem in telesom. Vsi nacini delovanja: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvenca, nacin in maksimalna oddajna moc v EU so navedene v nadaljevanju: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Naprava se v notranjih prostorih lahko uporablja samo, ce deluje v frekvencnem obmocju od 5150 MHz do 5350 MHz. Napajalnik morate namestiti blizu opreme, kjer je preprosto dostopen.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Izdelek uporabljajte v okoljih s temperaturo med 0 °C in 40 °C.

Preberite oznake na nalepki na dnu vasega izdelka in se prepricajte, da je napajalnik skladen z

zahtevami, navedenimi na nalepki.

Naprave NE postavljajte na neravne ali nestabilne delovne povrsine. V primeru poskodbe ohisja

poiscite pomoc servisa.

Na napravo NE SMETE postavljati ali nanjo spuscati predmetov oz. vanjo potiskati kakrsnega koli

tujka.

Naprave NE izpostavljajte oz. uporabljajte v blizini tekocin, dezja ali vlage. Modema NE SMETE

uporabljati med nevihtami.

Prezracevalnih rez na izdelku NE SMETE pokriti zato, da se sistem ne pregreje.

NE uporabljajte poskodovanih napajalnih kablov, dodatkov ali drugih zunanjih naprav.

Ce je napajalnik poskodovan, ga ne poskusajte popraviti sami. Stopite v stik z usposobljenim

serviserjem ali prodajalcem.

Ce zelite prepreciti nevarnost elektricnega sunka, pred prestavljanjem sistema odklopite napajalni

kabel iz elektricne vticnice.

169

Slovakian CE statement

Zjednodusené vyhlásenie o zhode ES Spolocnos ASUSTek Computer Inc. týmto vyhlasuje, ze toto zariadenie je v zhode s hlavnými poziadavkami a ostatnými príslusnými ustanoveniami smernice 2014/53/EÚ. Celý text vyhlásenia o zhode ES nájdete na adrese https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_ Declaration/. Vyhlásenie o zhode poda smernice o ekodizajne c. 2009/125/ES Bolo vykonané testovanie na splnenie poziadaviek na ekodizajn poda smernice (ES) c. 1275/2008 a (EÚ) c. 801/2013. Ak je zariadenie v pohotovostnom rezime v rámci siete, jeho vstupné/výstupné a sieové rozhranie sú v rezime spánku a nemusia správne fungova. Ak chcete zariadenie zobudi, stlacte tlacidlo Zapnú/Vypnú Wi-Fi / Zapnú/Vypnú LED / Resetovanie alebo WPS. Toto zariadenie vyhovuje európskym (EÚ) limitným hodnotám pre vystavenie ziareniu stanoveným pre nekontrolované prostredie. Toto zariadenie sa má instalova a prevádzkova minimálne v 20 cm vzdialenosti medzi ziaricom a telom. Vsetky prevádzkové rezimy: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvencia, rezim a maximálny prenosový výkon v EÚ sú uvedené nizsie: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Pouzívanie tohto zariadenia je obmedzené na pouzívanie len v rámci frekvencného rozsahu 5 150 az 5 350 MHz.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Tento výrobok pouzívajte v prostrediach s okolitou teplotou od 0°C (32°F) do 40°C (104°F).

Pozrite si typový stítok na spodnej strane zariadenia a uistite sa, ze napájací adaptér vyhovuje

tomuto menovitému výkonu.

NEUMIESTUJTE na nerovné a nestabilné pracovné povrchy. V prípade poskodenia skrinky

vyhadajte pomoc servisného strediska.

Na hornú stranu zariadenia NEUMIESTUJTE ani NENECHÁVAJTE ziadne predmety a nevkladajte

do ziadne cudzie predmety.

NEVYSTAVUJTE ani nepouzívajte v blízkosti kvapalín, v dazdi alebo vlhkom prostredí.

NEPOUZÍVAJTE modem pocas búrky s výskytom bleskov.

Vetracie otvory na zariadení NEZAKRÝVAJTE, aby sa neprehrievalo.

NEPOUZÍVAJTE káble, príslusenstvo alebo periférne zariadenia, ktoré sú poskodené.

Ke je zdroj napájania poskodený, nepokúsajte sa ho sami opravova. Obráte sa na

kompetentného servisného technika alebo svojho predajca.

Pred premiestovaním zariadenia odpojte sieový kábel z elektrickej zásuvky, aby sa zabránilo

riziku úrazu elektrickým prúdom.

170

Turkish CE statement

Basitletirilmi AB Uygunluk Bildirimi ASUSTek Computer Inc., bu aygitin temel gereksinimlerle ve 2014/53/EU Yönergesinin dier ilgili koullariyla uyumlu olduunu bildirir. AB uygunluk bildiriminin tam metni https://www.asus.com/ Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/ adresinde bulunabilir. 2009/125/EC Çevreye Duyarli Tasarim yönergesi için Uygunluk Bildirimi (EC) No 1275/2008 ve (EU) No 801/2013 uyarinca çevreye duyarli tasarim gereksinimlerine yönelik test ilemi gerçekletirilmitir. Aygit Aa Bali Bekleme Modundayken, G/Ç ve a arabirimi uyku modundadir ve uygun biçimde çalimayabilir. Aygiti uyku durumundan çikarmak için Wi-Fi açik/kapali, LED açik/kapali, sifirla veya WPS dümesine basin. Bu donanim, kontrolsüz bir ortam için belirlenen AB radyasyona maruz kalma sinirlariyla uyumludur. Bu donanim, sinyal vericisi ve vücudunuz arasinda en az 20 cm mesafe olacak ekilde yerletirilmeli ve çalitirilmalidir. Tüm iletim modlari: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) AB içinde frekans, mod ve iletilen en fazla güç aaida listelenmektedir: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm 5150 - 5350 MHz frekans araliinda çalitirilirken aygitin kullanimi yalnizca iç mekânla sinirlidir. Adaptör, donanimin yakinina kurulmali ve kolayca eriilebilir olmalidir.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Bu ürünü ortam sicaklii 0°C (32°F) ve 35°C (95°F) arasindaki sicakliklarda kullanin.

Ürününüzün altindaki derecelendirme etiketine bavurun ve güç adaptörünüzün bununla uyumlu

olduundan emin olun.

Düzgün veya sabit olmayan çalima yüzeylerine YERLETRMEYN. Kasa hasar görmüse servise

bavurun.

Ürünün üzerine nesneler koymayin veya düürmeyin ve içine yabanci nesneler itmeyin.

Sivilara, yamura ya da neme maruz BIRAKMAYIN veya bunlarin yaninda KULLANMAYIN. imekli

firtinalarda modemi KULLANMAYIN.

Sistemin airi isinmasini önlemek için üründeki havalandirma deliklerinin üzerini kapatmayin.

Sistemin airi isinmasini önlemek için masaüstü PC'nin üzerindeki hava deliklerini KAPATMAYIN.

Güç kaynai bozulmusa, tek bainiza onarmaya çalimayin. Yetkili servis teknisyeniyle veya

saticinizla balanti kurun.

Elektrik çarpmasi riskini önlemek için, sistemin yerini deitirmeden önce güç kablosunun elektrik

prizi ile olan balantisini kesin.

171

Danish CE statement
Forenklet EU-overensstemmelseserklæringen ASUSTek Computer Inc. erklærer herved, at denne enhed er i overensstemmelse med hovedkravene og øvrige relevante bestemmelser i direktiv 2014/53/EU. Hele EU-overensstemmelseserklæringen kan findes på https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Overensstemmelseserklæring for miljøvenligt design i direktiv 2009/125/EC Vedrørende testkrav af øko-design i henhold til (EC) nr. 1275/2008 og (EU) nr. 801/2013 er blevet gennemført. Når enheden er på netværk-standby, er dens I/O og netværksgrænseflade i dvale, og vil muligvis ikke virke ordentligt. For at aktivere enheden, skal du trykke på trådløs til/fra, LED til/fra, nulstil eller WPS-knappen. Dette udstyr er i overensstemmelse med EU's grænser, der er gældende i et ukontrolleret miljø. Dette udstyr skal installeres og bruges mindst 20 cm mellem radiatoren og din krop. Alle driftsfunktioner: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvensen, indstillingen og den maksimale overførte effekt i EU er anført på listen nedenfor: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Denne enhed er begrænset til indendørs brug, hvis den bruges på frekvensområdet 5150-5350 MHz. Adapteren skal bruges i nærheden af udstyret, og skal være let tilgængelig.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR

Safety Notices

Anvend produktet i omgivelser med temperaturer på mellem 0°C(32°F) og 40°C(104°F).

Sørg for, at din strømadapter passer til strømoplysninger, der findes på bunden af dit produkt.

Anbring IKKE på ujævne eller ustabile arbejdsoverflader. Send til reparation, hvis kabinettet er

blevet beskadiget.

Der må IKKE placeres eller tabes genstande på produktet. Og der må IKKE stikkes

fremmedlegemer ind i produktet.

Udsæt og brug den IKKE i nærheden af væsker, regn eller fugt. Brug IKKE modemmet under uvejr.

Tildæk IKKE ventilationshullerne på produktet, da system ellers kan overophede.

Brug IKKE beskadigede el-ledninger, perifere enheder og beskadiget tilbehør.

Hvis strømforsyningen går i stykker, må du ikke prøve på selv at reparere den. Kontakt en

autoriseret servicetekniker eller forhandleren.

For at undgå faren for elektrisk stød, skal du fjerne netledningen fra stikkontakten, inden du flytter

systemet til et andet sted.

172

Dutch CE statement
Vereenvoudigde EU-conformiteitsverklaring ASUSTek Computer Inc. verklaart dat dit apparaat in overeenstemming is met de essentiële vereisten en andere relevante bepalingen van Richtlijn 2014/53/EU. Volledige tekst EU-conformiteitsverklaring is beschikbaar op https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Conformiteitsverklaring voor Ecodesign Richtlijn 2009/125/EG Testen van vereisten van ecodesign overeenkomstig (EG) nr. 1275/2008 en (EU) nr. 801/2013 zijn uitgevoerd. Wanneer het apparaat in de modus Stand-by in netwerk staat, staan de I/O en netwerkinterface in de slaapstand en werken wellicht niet goed. Om het apparaat uit de slaapstand te halen, drukt u op de knop Wi-Fi aan/uit, LED aan/uit, reset of WPS.
Deze apparatuur voldoet aan EU-limieten voor blootstelling aan straling als uiteengezet voor een onbeheerste omgeving. Deze apparatuur moet worden geïnstalleerd en bediend met een minimumafstand van 20 cm tussen de radiator en uw lichaam.
Alle bedrijfsmodi:
2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40)
5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80)
De frequentie, modus en het afgegeven maximumvermogen in de EU wordt hieronder vermeld:
2412-2472MHz (802.11g 6Mbps): 19.81 dBm
5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm
5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm
5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm
Het apparaat is beperkt tot alleen binnengebruik bij werking in het frequentiebereik van 5150 tot 5350 MHz.
De adapter moet zich in de buurt van het apparaat bevinden en moet gemakkelijk toegankelijk zijn.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Gebruik dit product in omgevingen met omgevingstemperaturen tussen 0°C (32°F) en 40°C

(104°F).

Raadpleeg het typeplaatje op de onderkant van uw product en controleer of uw voedingsadapter

voldoet aan dit type.

NIET op onegale of instabiele werkoppervlakken plaatsen. Als de behuizing beschadigd is geraakt,

dient u hulp bij onderhoud hulp te zoeken.

Plaats of laat GEEN objecten vallen bovenop het product en schuif geen vreemde objecten in het

product.

NIET in de buurt van vloeistoffen, regen of vocht blootstellen of gebruiken. NIET de modem

tijdens onweer gebruiken.

Dek de uitlaatopeningen van het product NIET AF zodat het systeem niet oververhit raakt.

NIET de ventilatieopeningen van de Desktop PC afdekken, om oververhitting van het systeem te

voorkomen.

Als de netvoeding is beschadigd, mag u niet proberen het zelf te repareren. Neem contact op met

een bevoegde servicemonteur of uw handelaar.

Verwijder, voordat u het systeem verplaatst, de stroomkabel uit de contactdoos om elektrische

schok te vermijden.

173

French CE statement

Déclaration simplifiée de conformité de l'UE ASUSTek Computer Inc. déclare par la présente que cet appareil est conforme aux critères essentiels et autres clauses pertinentes de la directive 2014/53/UE. La déclaration de conformité de l'UE peut être téléchargée à partir du site internet suivant: https://www.asus. com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Déclaration de conformité (Directive sur l'écoconception 2009/125/CE) Test de la conformité aux exigences d'écoconception selon [CE 1275/2008] et [UE 801/2013]. Lorsque l'appareil est en mode Networked Standby, son panneau d'E/S et son interface réseau sont en mode veille et peuvent ne pas fonctionner correctement. Pour sortir l'appareil du mode veille, appuyez sur le bouton Wi-Fi, LED, de réinitialisation ou WPS. Cet appareil a été testé et s'est avéré conforme aux limites établies par l'UE en terme d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Tous les modes de fonctionnement: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) La fréquence, le mode et la puissance maximale transmise de l'UE sont listés ci-dessous: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Cet appareil est restreint à une utilisation en intérieur lors d'un fonctionnement dans la plage de fréquence de 5150 à 5350 MHz. L'adaptateur doit être installé à proximité de l'équipement et être aisément accessible.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Utilisez ce produit dans un environnement dont la température ambiante est comprise entre

0°C (32°F) et 40°C (104°F).

Référez-vous à l'étiquette située au dessous du produit pour vérifier que l'adaptateur secteur

répond aux exigences de tension.

NE PAS placer sur une surface irrégulière ou instable. Contactez le service après-vente si le

châssis a été endommagé.

NE PAS placer, faire tomber ou insérer d'objets sur/dans le produit.

NE PAS exposer l'appareil à la pluie ou à l'humidité, tenez-le à distance des liquides. NE PAS

utiliser le modem lors d'un orage.

NE PAS bloquer les ouvertures destinées à la ventilation du système pour éviter que celui-ci

ne surchauffe.

NE PAS utiliser de cordons d'alimentation, d'accessoires ou autres périphériques

endommagés.

Si l'adaptateur est endommagé, n'essayez pas de le réparer vous-même. Contactez un

technicien électrique qualifié ou votre revendeur.

Pour éviter tout risque de choc électrique, débranchez le câble d'alimentation de la prise

électrique avant de toucher au système.

174

Finnish CE statement

Yksinkertaistettu EU-vaatimustenmukaisuusvakuutus ASUSTek Computer Inc. vakuuttaa täten, että tämä laite on 2014/53/EU-direktiivin olennaisten vaatimusten ja muiden asiaan kuuluvien lisäysten mukainen. Koko EU-vaatimustenmukaisuusvakuutuksen teksti on nähtävissä osoitteessa https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_ Declaration/. Ekologisen suunnittelun direktiivin 2009/125/EY-vaatimustenmukaisuusvakuutus Testaus (EY) N:o 1275/2008:n ja (EU) N:o 801/2013:n mukaisista ekologisista suunnitteluvaatimuksista on suoritettu. Kun laite on verkossa valmiustilassa, sen I/O- ja verkkoliittymä ovat lepotilassa eivätkä ne ehkä toimi oikein. Herättääksesi laitteen, paina Wi-Fi päälle/pois -, LED päälle/pois -, nollaa- tai WPS-painiketta. Tämä laite täyttää EU-säteilyrajoitukset, jotka on asetettu hallitsemattomaan ympäristöön. Tämä laitteisto tulee asentaa ja sitä tulee käyttää siten, että säteilijän ja kehosi välinen etäisyys on vähintään 20 cm. Kaikki käyttötilat: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Taajuus, tila maksimi lähetetty teho EU:ssa on listattu alla: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Tämän laitteen käyttö on rajoitettu sisätiloihin 5 150 - 5 350 MHz:in-taajuusalueella. Verkkolaite tulee liittää lähelle laitetta helposti tavoitettavissa olevaan paikkaan.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Käytä tätä tuotetta ympäristöissä, joissa ympäristölämpötila on välillä 0°C (32°F) ja 40°C (104°F).

Varmista tuotteen pohjassa sijaitsevasta arvokilvestä vastaako verkkolaite tätä nimellisarvoa.

ÄLÄ aseta epätasaisille tai epävakaille pinnoille. Ota yhteys huoltoon, jos kotelo on

vahingoittunut.

ÄLÄ aseta tai pudota esineitä laitteen päälle äläkä anna minkään vieraiden esineiden joutua

tuotteen sisään.

ÄLÄ altista nesteille, sateelle tai kosteudelle tai käytä niiden lähellä. ÄLÄ käytä modeemia

ukkosmyrskyn aikana.

ÄLÄ peitä tuotteen tuuletusaukkoja estääksesi tuotteen ylikuumenemisen.

ÄLÄ käytä vahingoittuneita virtajohtoja, lisävarusteita tai muita oheislaitteita.

Jos virtalähde on rikkoutunut, älä itse yritä sitä korjata. Ota yhteys ammattimaiseen

huoltohenkilöön tai jälleenmyyjääsi.

Estääksesi sähköiskun vaaran irrota virtakaapeli pistorasiasta ennen järjestelmän paikan

muuttamista.

175

German CE statement
Vereinfachte EU-Konformitätserklärung ASUSTeK Computer Inc. erklärt hiermit, dass dieses Gerät mit den grundlegenden Anforderungen und anderen relevanten Bestimmungen der Richtlinie 2014/53/EU übereinstimmt. Der gesamte Text der EU-Konformitätserklärung ist verfügbar unter: https://www.asus.com/Networking/ROGRapture-GT-AX11000/HelpDesk_Declaration/. Konformitätserklärung für Ökodesign-Richtlinie 2009/125/EC Die Überprüfung der Ökodesign-Anforderungen nach (EC) Nr. 1275/2008 und (EU) Nr. 801/2013 wurde durchgeführt. Wenn sich das Gerät im Netzwerkbereitschaftsmodus befindet, werden die E/A- und Netzwerkschnittstellen in den Ruhezustand versetzt und arbeiten nicht wie gewöhnlich. Um das Gerät aufzuwecken, drücken Sie die WLAN Ein/Aus-, LED Ein/Aus-, Reset- oder WPS-Taste. Dieses Gerät erfüllt die EU-Strahlenbelastungsgrenzwerte, die für ein unbeaufsichtigtes Umfeld festgelegt wurden. Dieses Gerät sollte mit einem Mindestabstand von 20 cm zwischen der Strahlungsquelle und Ihrem Körper installiert und betrieben werden. Alle Betriebsarten: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Die Frequenz, der Modus und die maximale Sendeleistung in der EU sind nachfolgend aufgeführt: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Das Gerät ist auf den Innenbereich beschränkt, wenn es im Frequenzbereich von 5150 MHz bis 5350 MHz betrieben wird. Das Netzteil muss sich in der Nähe des Geräts befinden und leicht zugänglich sein.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

· · · · ·
· · · ·
176

Benutzen Sie das Gerät nur in Umgebungen, die eine Temperatur von 0 °C (32 °F) bis 40 °C (104 °F) aufweisen. Prüfen Sie am Aufkleber an der Geräteunterseite, ob Ihr Netzteil den Stromversorgungsanforderungen entspricht. Stellen Sie das Gerät NICHT auf schräge oder instabile Arbeitsflächen. Wenden Sie sich an das Wartungspersonal, wenn das Gehäuse beschädigt wurde. Legen Sie KEINE Gegenstände auf das Gerät, lassen Sie keine Gegenstände darauf fallen und schieben Sie keine Fremdkörper in das Gerät. Setzen Sie das Gerät KEINESFALLS Flüssigkeiten, Regen oder Feuchtigkeit aus, verwenden Sie es nicht in der Nähe derartiger Gefahrenquellen. Verwenden Sie das Modem nicht während eines Gewitters. Decken Sie die Lüftungsöffnungen am Gerät NICHT ab, um eine Überhitzung des Systems zu vermeiden. Benutzen Sie KEINE beschädigten Netzkabel, Zubehörteile oder sonstigen Peripheriegeräte. Falls das Netzteil defekt ist, versuchen Sie nicht, es selbst zu reparieren. Wenden Sie sich an den qualifizierten Kundendienst oder Ihre Verkaufsstelle. Um die Gefahr eines Stromschlags zu verhindern, ziehen Sie das Netzkabel aus der Steckdose, bevor Sie das System an einem anderen Ort aufstellen.

Greek CE statement

, ASUSTek Computer Inc. 2014/53/. https://www.asus.com/Networking/ROG-RaptureGT-AX11000/HelpDesk_Declaration/. Ecodesign ( ) 2009/125/ () . 1275/2008 () . 801/2013. , I/O . , / Wi-Fi, / LED, WPS. . 20 . : 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40)
5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) , : 2412-2472MHz (802.11g 6Mbps): 19.81 dBm
5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm
5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm
5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm 5150 5350 MHz. .
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

0°C 40°C.

, , .

Desktop PC

. .

177

Italian CE statement
Dichiarazione di conformità UE semplificata ASUSTek Computer Inc. con la presente dichiara che questo dispositivo è conforme ai requisiti essenziali e alle altre disposizioni pertinenti con la direttiva 2014/53/EU. Il testo completo della dichiarazione di conformità UE è disponibile all'indirizzo https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/ HelpDesk_Declaration/. Dichiarazione di conformità con la direttiva Ecodesign 2009/125/EC I test per i requisiti eco-design (EC) N. 1275/2008 e (EU) N. 801/2013 sono stati eseguiti. Quando il dispositivo si trova nella modalità Standby di rete le sue interfacce di rete e I/O sono in sospensione e potrebbero non funzionare correttamente. Per riattivare il dispositivo premete uno tra i pulsanti Wi-Fi on/ off, LED on/off, reset o WPS. Questo apparecchio è conforme ai limiti UE, per l'esposizione a radiazioni, stabiliti per un ambiente non controllato. Questo apparecchio deve essere installato e utilizzato ad una distanza di almeno 20 cm dal corpo. Tutte le modalità operative: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) I valori di frequenza, modalità e massima potenza di trasmissione per l'UE sono elencati di seguito: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm L'utilizzo di questo dispositivo è limitato agli ambienti interni quando si sta utilizzando la banda di frequenze compresa tra i 5150 e i 5350 MHz.

AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Usa questo prodotto in ambienti la cui temperatura sia compresa tra 0°C(32°F) e 40°C(104°F).

Consulta l'etichetta indicante la potenza posta sul fondo del prodotto e assicurati che l'adattatore

di alimentazione sia compatibile con tali valori.

Non collocare il dispositivo su superfici irregolari o instabili. Contatta il servizio clienti se lo chassis

è stato danneggiato.

NON riporre oggetti sopra il dispositivo e non infilare alcun oggetto all'interno del dispositivo.

NON esporre a liquidi, pioggia o umidità. NON usare il modem durante i temporali.

NON coprire le prese d'aria del prodotto per evitare che il sistema si surriscaldi.

NON utilizzare cavi di alimentazione, accessori o periferiche danneggiate.

Se l'adattatore è danneggiato non provare a ripararlo. Contatta un tecnico qualificato o il

rivenditore.

Per prevenire il rischio di scosse elettriche scollega il cavo di alimentazione dalla presa di corrente

prima di spostare il sistema.

178

Norwegian CE statement

Forenklet EU-samsvarserklæring ASUSTek Computer Inc. erklærer herved at denne enheten er i samsvar med hovedsaklige krav og andre relevante forskrifter i direktivet 2014/53/EU. Fullstendig tekst for EU-samsvarserklæringen finnes på https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Samsvarserklæring for direktiv om miljøvennlig design 2009/125/EF Testing for miljøutformingskrav i henhold til (EF) nr. 1275/2008 og (EU) nr. 801/2013 er utført. Når enheten er i nettverksventemodus, er I/O- og nettverksgrensesnittet i hvilemodus og fungerer kanskje ikke som det skal. Trykk Wi-Fi på/av-, LED på/av-, tilbakestill- eller WPS-knappen for å vekke enheten. Dette utstyret samsvarer med FCC-grensene for strålingseksponering for et ukontrollert miljø. Dette utstyret bør installeres og brukes med en minimumsavstand på 20 cm mellom radiatoren og kroppen din. Alle operasjonsmoduser: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvens, modus og maksimal overføringskraft i EU er oppført nedenfor: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Enheten er begrenset til innendørs bruk når den brukes i frekvensområdet 5150 til 5350 MHz. Adapteren skal plasseres nært utstyret og være lett tilgjengelig.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR

Safety Notices

Bruk dette produktet i miljø med en romtemperatur mellom 0°C(32°F) og 40°C(104°F).

Se etiketten på undersiden av produktet, og sørg for strømforsyningen er i samsvar med denne

klassifiseringen.

Må IKKE plasseres på ujevne eller ustabile overflater. Oppsøk service dersom kassen har blitt

skadet.

IKKE plasser eller slipp gjenstander på, eller skyv gjenstander inn i, produktet.

Må IKKE eksponeres for eller brukes i nærheten av væsker, regn eller fuktighet. Modemet skal IKKE

brukes under elektrisk storm.

IKKE dekk til ventilene på produktet for å forhindre at systemet blir for varmt.

Skadede strømledninger, tilleggsutstyr eller annet periferiutstyr skal IKKE brukes.

Hvis strømforsyningen er ødelagt, må du ikke prøve å reparere det selv. Kontakt en kvalifisert

servicetekniker eller forhandleren.

For å forhindre elektrisk sjokk, koble strømkabelen fra det elektriske uttaket før du flytter

systemet.

179

Portuguese CE statement

Declaração de conformidade simplificada da UE A ASUSTek Computer Inc. declara que este dispositivo está em conformidade com os requisitos essenciais e outras disposições relevantes da Diretiva 2014/53/CE. O texto integral da declaração de conformidade da UE está disponível em https://www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_ Declaration/. Declaração de conformidade para a Diretiva Conceção Ecológica 2009/125/CE Foram realizados testes de requisitos de conceção ecológica de acordo com o Nº 1275/2008 (CE) e Nº 801/2013 (UE). Quando o dispositivo se encontra no modo de espera em rede, a interface de E/S e de rede encontram-se no modo de suspensão e poderão não funcionar corretamente. Para ativar o dispositivo, prima o botão para ativar/desativar Wi-Fi, ativar/desativar o LED, repor ou WPS. Este equipamento cumpre os limites de exposição à radiação estabelecidos pela UE para um ambiente não controlado. Este equipamento deve ser instalado e utilizado a uma distância mínima de 20 cm entre o transmissor e o seu corpo. Todos os modos operacionais: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) A frequência, o modo e a potência máxima na UE são apresentados abaixo: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Este dispositivo está restrito a utilização no interior quando utilizado na banda de frequências 5.150 a 5.350 MHz.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Utilize este equipamento em ambientes com temperaturas entre 0°C (32°F) e 40°C (104°F).

Verifique a etiqueta relativa à tensão na parte inferior do seu dispositivo e assegure-se de que o

seu transformador corresponde a essa tensão.

NÃO coloque o computador em superfícies irregulares ou instáveis. Envie para reparação se a

caixa se encontrar danificada.

NÃO coloque nem deixe cair objetos em cima do aparelho e não introduza quaisquer objetos

estranhos no produto.

NÃO exponha o equipamento nem o utilize próximo de líquidos, chuva ou humidade. NÃO utilize

o modem durante tempestades eléctricas.

NÃO tape os orifícios de ventilação do produto para impedir o sobreaquecimento do sistema.

NÃO utilize cabos de alimentação, acessórios ou outros periféricos danificados.

Se a fonte de alimentação estiver avariada, não tente repará-la por si próprio. Contacte um técnico

qualificado ou o seu revendedor.

Para evitar o risco de choque eléctrico, desligue o cabo de alimentação da tomada eléctrica antes

de deslocar o sistema.

180

Spanish CE statement

Declaración de conformidad simplificada para la UE Por el presente documento, ASUSTek Computer Inc. declara que este dispositivo cumple con los requisitos esenciales y otras disposiciones pertinentes de la Directiva 2014/53/UE. En https://www.asus.com/ Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/ está disponible el texto completo de la declaración de conformidad para la UE. Declaración de conformidad para la directiva de ecodiseño 2009/125/CE
Se han realizado pruebas para cumplir los requisitos de ecodiseño conforme a las directivas (CE) nº 1275/2008 y (UE) nº 801/2013. Cuando el dispositivo está en modo de espera y conectado en red, su interfaz de E/S y de red se encuentran en el modo de suspensión y pueden no funcionar correctamente. Para reactivar el dispositivo, presione el botón de activación y desactivación de la funcionalidad Wi-Fi, el botón de encendido y apagado de LED, el botón de restablecimiento o el botón WPS. El equipo cumple los límites de exposición de radiación de la UE fijados para un entorno no controlado. Este equipo se debe instalar y utilizar a una distancia mínima de 20 cm entre el dispositivo radiante y su cuerpo.
Todos los modos operativos:
2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40)
5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) A continuación figuran la frecuencia, el modo y la potencia máxima de transmisión en la UE: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm
5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm
5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm
5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm
El dispositivo solamente debe utilizarse en interiores cuando opera en el intervalo de frecuencias de 5150 a 5350 MHz.
El adaptador debe estar instalado cerca del equipo y debe disponer de un acceso fácil.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Use este producto en entornos sometidos a una temperatura ambiente comprendida entre 0 °C

(32 °F) y 40 °C (104 °F).

Consulte la etiqueta de valores nominales situada en la parte inferior del producto y asegúrese de

que su adaptador de alimentación cumple con dichos valores.

NO coloque el equipo sobre una superficie irregular o inestable. Solicite asistencia técnica si la

carcasa resulta dañada.

NO coloque ni deje caer objetos en la parte superior del producto y no introduzca objetos

extraños dentro de él.

NO exponga el equipo a líquidos, lluvia o humedad, ni lo use cerca de ninguno de tales

elementos. NO use el módem durante tormentas eléctricas.

Para evitar que el sistema se sobrecaliente, no cubra las ranuras de ventilación del producto.

NO cubra los orificios de ventilación del equipo de sobremesa para evitar que el sistema se

caliente en exceso.

No intente reparar la fuente de alimentación personalmente si se avería. Póngase en contacto con

un técnico de mantenimiento autorizado o con su distribuidor.

A fin de evitar posibles descargas eléctricas, desconecte el cable de alimentación de la toma de

suministro eléctrico antes de cambiar la posición del sistema.

181

Swedish CE statement

Förenklad EU-försäkran om överensstämmelse ASUSTek Computer Inc. deklarerar härmed att denna enhet uppfyller väsentliga krav och andra relevanta bestämmelser i direktiv 2014/53/EU. Hela texten i EU-försäkran om överensstämmelse finns på https:// www.asus.com/Networking/ROG-Rapture-GT-AX11000/HelpDesk_Declaration/. Försäkran om överensstämmelse för Ecodesign-direktivet 2009/125/EC Test för ekodesingkrav i enlighet med (EC) nr 1275/2008 och (EU) nr 801/2013 har utförts. När enheten är i standby-läge för nätverk, är gränssnitten för I/O och nätverk försatta i viloläge och fungerar kanske inte ordentligt. För att väcka enheten, tryck på knappen för att slå på/stänga av Wi-Fi , slå på/stänga av LED, återställa eller WPS-knappen. Denna utrustning uppfyller EU:s strålningexponeringsgräns för en okontrollerad miljö. Denna utrustning skall installeras och hanteras på minst 20 cm avstånd mellan strålkällan och din kropp. Alla funktionslägen: 2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40) 5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80) Frekvens, läge och maximalt överförd ström i EU anges nedan: 2412-2472MHz (802.11g 6Mbps): 19.81 dBm 5180-5240MHz (802.11ac VHT20 MCS0): 20.1 dBm 5260-5320MHz (802.11ac VHT40 MCS0): 21.31 dBm 5500-5700MHz (802.11ac VHT80 MCS0): 27.48 dBm Enheten är begränsad till användning inomhus enbart vid användning inom 5 150 till 5 350 MHz frekvensområdet. Adaptern ska installeras nära utrustningen och ska vara lätt att komma åt.
AT BE BG CZ DK EE FR DE IS IE IT EL ES CY LV LI LT LU HU MT NL NO PL PT RO SI SK TR FI SE CH UK HR
Safety Notices

Använd denna produkt i en miljö med en omgivande temperatur mellan 0°C(32°F) och

40°C(104°F).

Läs märketiketten på produktens undersida, och kontrollera att strömadaptern uppfyller dessa

märkdata.

Placera den INTE på en ojämn eller instabil arbetsyta. Sök service om höljet har skadats.

Placera och tappa INTE föremål ovanpå, och skjut inte in främmande föremål i produkten.

Utsätt den INTE för eller använd i närheten av vätskor, i regn eller fukt. ANVÄND INTE modemet

under åskväder.

Täck INTE över ventilationsöpningarna på produkten för att förhindra att systemet överhettas.

ANVÄND INTE skadade strömsladdar, tillbehör eller annan kringutrustning.

Om strömförsörjningen avbryts försök inte att laga det själv. Kontakta en kvalificerad

servicetekniker eller din återförsäljare.

För att förhindra elektriska stötar, koppla bort elkabeln från elnätet innan systemet flyttas.

182

References

Adobe InDesign CS6 (Windows) www.ilovepdf.com
