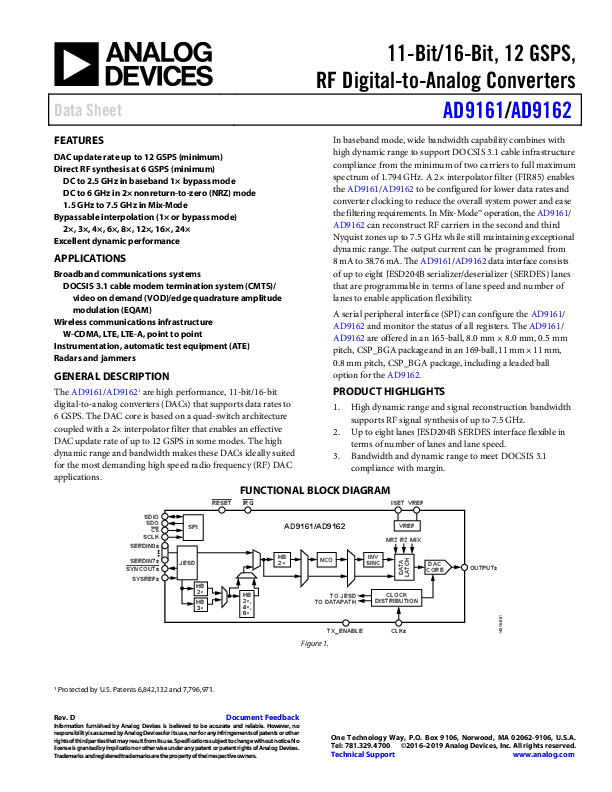

Data Sheet 11-Bit/16-Bit, 12 GSPS, RF Digital-to-Analog Converters AD9161/AD9162 FEATURES DAC update rate up to 12 GSPS (minimum) Direct RF synthesis at 6 GSPS (minimum) DC to 2.5 GHz in baseband 1× bypass mode DC to 6 GHz in 2× nonreturn-to-zero (NRZ) mode 1.5 GHz to 7.5 GHz in Mix-Mode Bypassable interpolation (1× or bypass mode) 2×, 3×, 4×, 6×, 8×, 12×, 16×, 24× Excellent dynamic performance APPLICATIONS Broadband communications systems DOCSIS 3.1 cable modem termination system (CMTS)/ video on demand (VOD)/edge quadrature amplitude modulation (EQAM) Wireless communications infrastructure W-CDMA, LTE, LTE-A, point to point Instrumentation, automatic test equipment (ATE) Radars and jammers GENERAL DESCRIPTION In baseband mode, wide bandwidth capability combines with high dynamic range to support DOCSIS 3.1 cable infrastructure compliance from the minimum of two carriers to full maximum spectrum of 1.794 GHz. A 2× interpolator filter (FIR85) enables the AD9161/AD9162 to be configured for lower data rates and converter clocking to reduce the overall system power and ease the filtering requirements. In Mix-ModeTM operation, the AD9161/ AD9162 can reconstruct RF carriers in the second and third Nyquist zones up to 7.5 GHz while still maintaining exceptional dynamic range. The output current can be programmed from 8 mA to 38.76 mA. The AD9161/AD9162 data interface consists of up to eight JESD204B serializer/deserializer (SERDES) lanes that are programmable in terms of lane speed and number of lanes to enable application flexibility. A serial peripheral interface (SPI) can configure the AD9161/ AD9162 and monitor the status of all registers. The AD9161/ AD9162 are offered in an 165-ball, 8.0 mm × 8.0 mm, 0.5 mm pitch, CSP_BGA package and in an 169-ball, 11 mm × 11 mm, 0.8 mm pitch, CSP_BGA package, including a leaded ball option for the AD9162. The AD9161/AD91621 are high performance, 11-bit/16-bit PRODUCT HIGHLIGHTS digital-to-analog converters (DACs) that supports data rates to 6 GSPS. The DAC core is based on a quad-switch architecture coupled with a 2× interpolator filter that enables an effective DAC update rate of up to 12 GSPS in some modes. The high dynamic range and bandwidth makes these DACs ideally suited for the most demanding high speed radio frequency (RF) DAC applications. 1. High dynamic range and signal reconstruction bandwidth supports RF signal synthesis of up to 7.5 GHz. 2. Up to eight lanes JESD204B SERDES interface flexible in terms of number of lanes and lane speed. 3. Bandwidth and dynamic range to meet DOCSIS 3.1 compliance with margin. FUNCTIONAL BLOCK DIAGRAM RESET IRQ ISET VREF SDIO SDO CS SCLK SERDIN0± SERDIN7± SYNCOUT± SYSREF± SPI JESD HB 2× HB 3× AD9161/AD9162 HB 2× NCO VREF NRZ RZ MIX INV SINC DAC CORE OUTPUT± HB TO JESD CLOCK 2×, TO DATAPATH DISTRIBUTION 4×, 8× DATA LATCH 14379-001 TX_ENABLE Figure 1. CLK± 1 Protected by U.S. Patents 6,842,132 and 7,796,971. Rev. D Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©20162019 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com AD9161/AD9162 TABLE OF CONTENTS Features .............................................................................................. 1 Applications....................................................................................... 1 General Description ......................................................................... 1 Product Highlights ........................................................................... 1 Functional Block Diagram .............................................................. 1 Revision History ............................................................................... 3 Specifications..................................................................................... 4 DC Specifications ......................................................................... 4 DAC Input Clock Overclocking Specifications........................ 5 Power Supply DC Specifications ................................................ 5 Serial Port and CMOS Pin Specifications ................................. 8 JESD204B Serial Interface Speed Specifications ...................... 9 SYSREF± to DAC Clock Timing Specifications....................... 9 Digital Input Data Timing Specifications ............................... 10 JESD204B Interface Electrical Specifications ......................... 10 AC Specifications........................................................................ 11 Absolute Maximum Ratings.......................................................... 13 Reflow Profile.............................................................................. 13 Thermal Management ............................................................... 13 Thermal Resistance .................................................................... 13 ESD Caution................................................................................ 13 Pin Configurations and Function Descriptions ......................... 14 Typical Performance Characteristics ........................................... 18 AD9161 ........................................................................................ 18 AD9162 ........................................................................................ 28 Terminology .................................................................................... 42 Theory of Operation ...................................................................... 43 Serial Port Operation ..................................................................... 44 Data Format ................................................................................ 44 Serial Port Pin Descriptions...................................................... 44 Serial Port Options ..................................................................... 44 JESD204B Serial Data Interface.................................................... 46 Data Sheet JESD204B Overview .................................................................. 46 Physical Layer ............................................................................. 47 Data Link Layer .......................................................................... 50 Transport Layer .......................................................................... 58 JESD204B Test Modes ............................................................... 60 JESD204B Error Monitoring..................................................... 62 Hardware Considerations ......................................................... 64 Main Digital Datapath ................................................................... 65 Data Format ................................................................................ 65 Interpolation Filters ................................................................... 65 Digital Modulation..................................................................... 68 Inverse Sinc ................................................................................. 70 Downstream Protection ............................................................ 70 Datapath PRBS ........................................................................... 71 Datapath PRBS IRQ ................................................................... 71 Interrupt Request Operation ........................................................ 73 Interrupt Service Routine.......................................................... 73 Applications Information .............................................................. 74 Hardware Considerations ......................................................... 74 Analog Interface Considerations.................................................. 77 Analog Modes of Operation ..................................................... 77 Clock Input.................................................................................. 78 Shuffle Mode............................................................................... 79 DLL............................................................................................... 79 Voltage Reference ....................................................................... 79 Temperature Sensor ................................................................... 80 Analog Outputs .......................................................................... 80 Start-Up Sequence .......................................................................... 82 Register Summary .......................................................................... 84 Register Details ............................................................................... 91 Outline Dimensions ..................................................................... 143 Ordering Guide ........................................................................ 144 Rev. D | Page 2 of 144 Data Sheet REVISION HISTORY 5/2019--Rev. C to Rev. D Changes to INPUTS (SDIO, SCLK, CS, RESET, TX_ENABLE) Parameters, Table 4 ...........................................................................8 Changes to Table 11 ........................................................................13 Change to Figure 30 Caption.........................................................22 Change to Transport Layer Testing Section.................................61 Changes to Data Format Section...................................................65 Deleted Table 38; Renumbered Sequentially ...............................70 Changes to Changing the Main NCO Frequency Section.........70 Changes to Peak DAC Output Power Capability Section..........80 Changes to Table 42 ........................................................................83 Change to Register 0x280 Value Column, Table 43....................84 Changes to Table 45 ........................................................................86 Changes to Table 46 ........................................................................93 Updated Outline Dimensions......................................................143 7/2017--Rev. B to Rev. C Changes to Thermal Management Section and Thermal Resistance Section ...........................................................................13 Changes to Table 46 ........................................................................89 Changes to Table 47 ......................................................................134 4/2017--Rev. A to Rev. B Change to OUTPUT ± to VNEG_NIP2 Parameter, Table 11........13 Changes to Figure 153 ....................................................................53 Changes to Link Delay Setup Examples, with Known Delays Section ..............................................................................................55 Changes to Link Delay Setup Examples, without Known Delays Section ..............................................................................................56 Changes to Table 31 ........................................................................61 Added Datapath PRBS Section......................................................71 Added Datapath PRBS IRQ Section .............................................72 Changes to Equivalent DAC Output and Transfer Function Section ..............................................................................................80 Changes to Output Stage Configuration Section........................81 Change to Register 0x230, Table 47 ............................................101 AD9161/AD9162 9/2016--Rev. 0 to Rev. A Changes to Table 1 ............................................................................ 3 Change to AC Specifications Section ...........................................10 Added Reflow Profile Section, Thermal Management Section, and Figure 3, Renumbered Sequentially ......................................12 Changes to Figure 80 ......................................................................30 Changes to Link Delay Setup Example, With Known Delays Section ..............................................................................................54 Changes to Table 25 ........................................................................57 Moved Figure 188............................................................................77 Added Temperature Sensor Section .............................................78 Changes to Table 46 ........................................................................87 Changes to Table 47 ........................................................................99 Changes to Ordering Guide.........................................................139 5/2016--Revision 0: Initial Version Rev. D | Page 3 of 144 AD9161/AD9162 Data Sheet SPECIFICATIONS DC SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, DAC output full-scale current (IOUTFS) = 40 mA, and TA = -40°C to +85°C, unless otherwise noted. Table 1. Parameter RESOLUTION AD9161 DAC Update Rate Minimum Maximum Maximum Adjusted4 AD9162 DAC Update Rate Minimum Maximum Maximum Adjusted4 ACCURACY Integral Nonlinearity (INL) Differential Nonlinearity (DNL) ANALOG OUTPUTS Gain Error (with Internal Reference) Full-Scale Output Current Minimum Maximum DAC CLOCK INPUT (CLK+, CLK-) Differential Input Power Common-Mode Voltage Input Impedance5 TEMPERATURE DRIFT Gain Reference Voltage TEMPERATURE SENSOR Accuracy REFERENCE Internal Reference Voltage ANALOG SUPPLY VOLTAGES VDD25_DAC VDD12A6 VDD12_CLK6 VNEG_N1P2 DIGITAL SUPPLY VOLTAGES DVDD IOVDD7 SERDES SUPPLY VOLTAGES VDD_1P2 VTT_1P2 Test Conditions/Comments Min 11 VDDx1 = 1.3 V ± 2%2 6 VDDx1 = 1.3 V ± 2%2, FIR853 2× interpolator enabled 12 VDDx1 = 1.3 V ± 2%2, minimum 2× interpolation 3 16 VDDx1 = 1.3 V ± 2%2 6 VDDx1 = 1.3 V ± 2%2, FIR853 2× interpolator enabled 12 VDDx1 = 1.3 V ± 2%2 6 RSET = 9.76 k 7.37 RSET = 9.76 k 35.8 RLOAD = 90 differential on-chip -20 AC-coupled 3 GSPS input clock After one-point calibration (see the Temperature Sensor section ) Includes VDD12_DCD/DLL Can connect to VDD_1P2 2.375 1.14 1.14 -1.26 1.14 1.71 1.14 1.14 Typ 6.4 12.8 3.2 6.4 12.8 6.4 ±2.7 ±1.7 -1.7 8 38.76 0 0.6 90 105 75 ±5 1.19 2.5 1.2 1.2 -1.2 1.2 2.5 1.2 1.2 Max Unit Bit 1.5 GSPS GSPS GSPS GSPS Bit 1.5 GSPS GSPS GSPS GSPS LSB LSB % 8.57 mA 41.3 mA +10 dBm V ppm/°C ppm/°C % V 2.625 V 1.326 V 1.326 V -1.14 V 1.326 V 3.465 V 1.326 V 1.326 V Rev. D | Page 4 of 144 Data Sheet AD9161/AD9162 Parameter DVDD_1P2 PLL_LDO_VDD12 PLL_CLK_VDD12 SYNC_VDD_3P3 BIAS_VDD_1P2 Test Conditions/Comments Can connect to PLL_LDO_VDD12 Can connect to VDD_1P2 Min Typ 1.14 1.2 1.14 1.2 1.14 1.2 3.135 3.3 1.14 1.2 Max Unit 1.326 V 1.326 V 1.326 V 3.465 V 1.326 V 1 VDDx is VDD12_CLK, DVDD, VDD_1P2, DVDD_1P2, and PLL_LDO_VDD12. Any clock speed over 5.1 GSPS requires a maximum junction temperature of 105°C to avoid damage to the device. See Table 11 for details on maximum junction temperature permitted for certain clock speeds. 2 See Table 2 for the complete details on the guaranteed speed performance. 3 FIR85 is the finite impulse response filter with 85 dB digital attenuation that implements 2× NRZ mode. 4 The adjusted DAC update rate is calculated as fDAC divided by the minimum required interpolation factor. For the AD9162, the minimum interpolation factor is 1. Therefore, with fDAC = 6 GSPS, fDAC adjusted = 6 GSPS. For the AD9161, the minimum interpolation is 2×. Therefore, with fDAC = 6 GSPS, fDAC adjusted = 3 GSPS. When FIR85 is enabled, which puts the device into 2× NRZ mode, fDAC = 2 × (DAC clock input frequency), and the minimum interpolation increases to 2× (interpolation value). Thus, for the AD9162, with FIR85 enabled and DAC clock = 6 GSPS, fDAC = 12 GSPS, minimum interpolation = 2×, and the adjusted DAC update rate = 6 GSPS. 5 See the Clock Input section for more details. 6 For the lowest noise performance, use a separate power supply filter network for the VDD12_CLK and the VDD12A pins. 7 IOVDD can range from 1.8 V to 3.3 V, with ±5% tolerance. DAC INPUT CLOCK OVERCLOCKING SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, IOUTFS = 40 mA, TA = -40°C to +85°C, unless otherwise noted. Maximum guaranteed speed using the temperatures and voltages conditions as shown in Table 2, where VDDx is VDD12_CLK, DVDD, VDD_1P2, DVDD_1P2, and PLL_LDO_VDD12. Any DAC clock speed over 5.1 GSPS requires a maximum junction temperature of 105°C to avoid damage to the device. See Table 11 for details on maximum junction temperature permitted for certain clock speeds. Table 2. Parameter1 MAXIMUM DAC UPDATE RATE VDDx = 1.2 V ± 5% VDDx = 1.2 V ± 2% VDDx = 1.3 V ± 2% Test Conditions/Comments TJMAX = 25°C TJMAX = 85°C TJMAX = 105°C TJMAX = 25°C TJMAX = 85°C TJMAX = 105°C TJMAX = 25°C TJMAX = 85°C TJMAX = 105°C Min Typ Max Unit 6.0 GSPS 5.6 GSPS 5.4 GSPS 6.1 GSPS 5.8 GSPS 5.6 GSPS 6.4 GSPS 6.2 GSPS 6.0 GSPS 1 TJMAX is the maximum junction temperature. POWER SUPPLY DC SPECIFICATIONS IOUTFS = 40 mA, TA = -40°C to +85°C, unless otherwise noted. FIR85 is the finite impulse response with 85 dB digital attenuation. Table 3. Parameter 8 LANES, 2× INTERPOLATION (80%), 3 GSPS Analog Supply Currents VDD25_DAC = 2.5 V VDD12A = 1.2 V VDD12_CLK = 1.2 V VNEG_N1P2 = -1.2 V Digital Supply Currents DVDD = 1.2 V IOVDD1 = 2.5 V Test Conditions/Comments Numerically controlled oscillator (NCO) on, FIR85 on Includes VDD12_DCD/DLL Min Typ Max Unit 93.8 100 mA 3.7 150 µA 229 279 mA -119 -112 mA 621.3 971 mA 2.5 2.7 mA Rev. D | Page 5 of 144 AD9161/AD9162 Parameter SERDES Supply Currents VDD_1P2 = 1.2 V DVDD_1P2 = 1.2 V PLL_LDO_VDD12 = 1.2 V SYNC_VDD_3P3 = 3.3 V 8 LANES, 6× INTERPOLATION (80%), 3 GSPS Analog Supply Currents VDD25_DAC = 2.5 V VDD12A = 1.2 V VDD12_CLK = 1.2 V VNEG_N1P2 = -1.2 V Digital Supply Currents DVDD = 1.2 V IOVDD1 = 2.5 V SERDES Supply Currents VDD_1P2 = 1.2 V DVDD_1P2 = 1.2 V PLL_LDO_VDD12 = 1.2 V SYNC_VDD_3P3 = 3.3 V NCO ONLY MODE, 5 GSPS Analog Supply Currents VDD25_DAC = 2.5 V VDD12A = 1.2 V VDD12_CLK = 1.2 V VNEG_N1P2 = -1.2 V Digital Supply Currents DVDD = 1.2 V IOVDD1 = 2.5 V SERDES Supply Currents VDD_1P2 = 1.2 V DVDD_1P2 = 1.2 V PLL_LDO_VDD12 = 1.2 V SYNC_VDD_3P3 = 3.3 V 8 LANES, 4× INTERPOLATION (80%), 5 GSPS Analog Supply Currents VDD25_DAC = 2.5 V VDD12A = 1.2 V VDD12_CLK = 1.2 V VNEG_N1P2 = -1.2 V Digital Supply Currents DVDD = 1.2 V (Includes VDD12_DCD/DLL) DVDD = 1.2 V IOVDD1 = 2.5 V SERDES Supply Currents VDD_1P2 = 1.2 V DVDD_1P2 = 1.2 V PLL_LDO_VDD12 = 1.2 V SYNC_VDD_3P3 = 3.3 V Test Conditions/Comments Includes VTT_1P2, BIAS_VDD_1P2 Connected to PLL_CLK_VDD12 NCO on, FIR85 on Includes VDD12_DCD/DLL Includes VTT_1P2, BIAS_VDD_1P2 Connected to PLL_CLK_VDD12 Data Sheet Min Typ Max Unit 425.5 550 mA 62 86 mA 84.4 106 mA 9.3 11 mA 93.8 mA 3.7 µA 228.7 mA -120.7 mA 598.4 mA 2.5 mA 443.4 mA 72.3 mA 81.8 mA 9.4 mA 93.7 100 mA 10 150 µA 340.6 432 mA -119 -112 mA Includes VDD12_DCD/DLL 425.5 753 mA 2.5 2.7 mA Includes VTT_1P2, BIAS_VDD_1P2 Connected to PLL_CLK_VDD12 NCO on, FIR85 off (unless otherwise noted) 1.4 34 mA 1.0 14.1 mA 0.13 1.5 mA 0.32 0.43 mA At 6 GSPS 102 108 mA 80 150 µA 340.5 432.4 mA 408 mA -127.4 -120.2 mA NCO on, FIR85 off NCO off, FIR85 on NCO on, FIR85 on NCO on, FIR85 on, at 6 GSPS 665.4 1033 mA 706.5 mA 894.6 mA 1090 mA 2.5 2.7 mA Includes VTT_1P2, BIAS_VDD_1P2 Connected to PLL_CLK_VDD12 411.2 550 mA 52.1 73 mA 85.8 105 mA 9.3 11 mA Rev. D | Page 6 of 144 Data Sheet AD9161/AD9162 Parameter Test Conditions/Comments Min 8 LANES, 3× INTERPOLATION (80%), 4.5 GSPS NCO on, FIR85 on Analog Supply Currents VDD25_DAC = 2.5 V VDD12A = 1.2 V VDD12_CLK = 1.2 V VNEG_N1P2 = -1.2 V Digital Supply Currents DVDD = 1.2 V Includes VDD12_DCD/DLL IOVDD1 = 2.5 V IOVDD = 2.5 V SERDES Supply Currents VDD_1P2 = 1.2 V Includes VTT_1P2, BIAS_VDD_1P2 DVDD_1P2 = 1.2 V PLL_LDO_VDD12 = 1.2 V Connected to PLL_CLK_VDD12 SYNC_VDD_3P3 = 3.3 V POWER DISSIPATION 3 GSPS NRZ Mode, 2×, FIR85 Enabled, NCO On Using 80%, 2× filter, eight-lane JESD204B 2× NRZ Mode, 6×, FIR85 Enabled, NCO On Using 80%, 3× filter, eight-lane JESD204B 2× NRZ Mode, 4×, FIR85 Enabled, NCO On Using 80%, 2× filter, eight-lane JESD204B 2× NRZ Mode, 1×, FIR85 Enabled, NCO On 1× bypass mode (AD9162 only), eight-lane JESD204B NRZ Mode, 24×, FIR85 Disabled, NCO On Using 80%, 2× filter, one-lane JESD204B 5 GSPS NCO Mode, FIR85 Disabled, NCO On NRZ Mode, 4×, FIR85 Disabled, NCO On Using 80%, 2× filter, eight-lane JESD204B 2× NRZ Mode, 4x, FIR85 Enabled, NCO Off Using 80%, 2× filter, eight-lane JESD204B 2× NRZ Mode, 4×, FIR85 Enabled, NCO On Using 80%, 2× filter, eight-lane JESD204B NRZ Mode, 8×, FIR85 Disabled, NCO On Using 80%, 2× filter, eight-lane JESD204B NRZ Mode, 16×, FIR85 Disabled, NCO On Using 80%, 2× filter, eight-lane JESD204B 2× NRZ Mode, 6×, FIR85 Enabled, NCO On Using 80%, 3× filter, eight-lane JESD204B NRZ Mode, 3×, FIR85 Disabled, NCO On (4.5 GSPS) Using 80%, 3× filter, six-lane JESD204B 1 IOVDD can range from 1.8 V to 3.3 V, with ±5% tolerance. Typ Max Unit 94 mA 85 175 µA 314.3 mA -112.1 mA 948.5 mA 2.5 mA 432.3 mA 62.3 mA 84.7 mA 9.2 mA 2.1 W 2.1 W 2.1 W 1.94 W 1.3 W 1.3 1.83 W 2.3 W 2.35 W 2.58 W 2.18 W 2.09 W 2.65 W 2.62 W Rev. D | Page 7 of 144 AD9161/AD9162 Data Sheet SERIAL PORT AND CMOS PIN SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, IOUTFS = 40 mA, TA = -40°C to +85°C, unless otherwise noted. Table 4. Parameter WRITE OPERATION Maximum SCLK Clock Rate SCLK Clock High SCLK Clock Low SDIO to SCLK Setup Time SCLK to SDIO Hold Time CS to SCLK Setup Time SCLK to CS Hold Time READ OPERATION SCLK Clock Rate SCLK Clock High SCLK Clock Low SDIO to SCLK Setup Time SCLK to SDIO Hold Time CS to SCLK Setup Time SCLK to SDIO (or SDO) Data Valid Time CS to SDIO (or SDO) Output Valid to High-Z INPUTS (SDIO, SCLK, CS, RESET, TX_ENABLE) Voltage Input High Low Current Input High Low OUTPUTS (SDIO, SDO) Voltage Output High Low Current Output High Low Symbol fSCLK, 1/tSCLK tPWH tPWL tDS tDH tS tH fSCLK, 1/tSCLK tPWH tPWL tDS tDH tS tDV VIH VIL IIH IIL VOH VOL IOH IOL Test Comments/Conditions See Figure 142 SCLK = 20 MHz SCLK = 20 MHz See Figure 141 and Figure 142 Not shown in Figure 141 or Figure 142 1.8 V IOVDD 3.3 V 1.8 V IOVDD 3.3 V 1.8 V IOVDD 3.3 V 1.8 V IOVDD 3.3 V Min Typ Max Unit 100 MHz 3.5 ns 4 ns 4 2 ns 1 0.5 ns 9 1 ns 9 0.5 ns 20 MHz 20 ns 20 ns 10 ns 5 ns 10 ns 17 ns 45 ns 0.7 × IOVDD -150 V 0.3 × IOVDD V 75 µA µA 0.8 × IOVDD 4 4 V 0.2 × IOVDD V mA mA Rev. D | Page 8 of 144 Data Sheet AD9161/AD9162 JESD204B SERIAL INTERFACE SPEED SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, IOUTFS = 40 mA, TA = -40°C to +85°C, unless otherwise noted. Table 5. Parameter SERIAL INTERFACE SPEED Half Rate Full Rate Oversampling 2× Oversampling Test Conditions/Comments Guaranteed operating range Min 6 3 1.5 0.750 Typ Max 12.5 6.25 3.125 1.5625 Unit Gbps Gbps Gbps Gbps SYSREF± TO DAC CLOCK TIMING SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, IOUTFS = 40 mA, TA = -40°C to +85°C, unless otherwise noted. Table 6. Parameter1 8 mm × 8 mm BGA Package (AD9162BBCZ) SYSREF± DIFFERENTIAL SWING = 0.4 V Minimum Setup Time, tSYSS Minimum Hold Time, tSYSH SYSREF± DIFFERENTIAL SWING = 0.8 V Minimum Setup Time, tSYSS Minimum Hold Time, tSYSH SYSREF± DIFFERENTIAL SWING = 1.0 V Minimum Setup Time, tSYSS Minimum Hold Time, tSYSH 11 mm × 11 mm BGA Package (AD9161BBCZ, AD9162BBCAZ, AD9162BBCA) SYSREF± DIFFERENTIAL SWING = 1.0 V Minimum Setup Time, tSYSS Minimum Hold Time, tSYSH Test Conditions/Comments DC-coupled, common-mode voltage = 1.2 V AC-coupled DC-coupled, common-mode voltage = 0 V DC-coupled, common-mode voltage = 1.25 V AC-coupled DC-coupled, common-mode voltage = 0 V DC-coupled, common-mode voltage = 1.25 V Min Typ Max Unit 163 424 ps 160 318 ps 162 412 ps 169 350 ps 163 376 ps 176 354 ps 65 117 ps 45 77 ps 68 129 ps 19 63 ps 5 37 ps 51 114 ps 1 The SYSREF± pulse must be at least four DAC clock edges wide plus the setup and hold times in Table 6. For more information, see the Sync Processing Modes Overview section. tSYSS tSYSH SYSREF+ 14379-002 CLK+ MIN 4 DAC CLOCK EDGES Figure 2. SYSREF± to DAC Clock Timing Diagram (Only SYSREF+ and CLK+ Shown) Rev. D | Page 9 of 144 AD9161/AD9162 Data Sheet DIGITAL INPUT DATA TIMING SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, IOUTFS = 40 mA, TA = -40°C to +85°C, unless otherwise noted. Table 7. Parameter LATENCY1 Interface Interpolation Power-Up Time DETERMINISTIC LATENCY Fixed Variable SYSREF± to LOCAL MULTIFRAME CLOCKS (LMFC) DELAY Test Conditions/Comments Min From DAC output off to enabled Typ Max 1 See Table 34 10 12 2 4 Unit PCLK2 cycle ns PCLK2 cycles PCLK2 cycles DAC clock cycles 1 Total latency (or pipeline delay) through the device is calculated as follows: Total Latency = Interface Latency + Fixed Latency + Variable Latency + Pipeline Delay See Table 34 for examples of the pipeline delay per block. 2 PCLK is the internal processing clock for the AD9161/AD9162 and equals the lane rate ÷ 40. JESD204B INTERFACE ELECTRICAL SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, IOUTFS = 40 mA, TA = -40°C to +85°C, unless otherwise noted. VTT is the termination voltage. Table 8. Parameter JESD204B DATA INPUTS Input Leakage Current Logic High Logic Low Unit Interval Common-Mode Voltage Differential Voltage VTT Source Impedance Differential Impedance Differential Return Loss Common-Mode Return Loss SYSREF± INPUT Differential Impedance DIFFERENTIAL OUTPUTS (SYNCOUT±)2 Output Differential Voltage Output Offset Voltage Symbol Test Conditions/Comments Min Typ Max Unit UI VRCM R_VDIFF ZTT ZRDIFF RLRDIF RLRCM TA = 25°C Input level = 1.2 V ± 0.25 V, VTT = 1.2 V Input level = 0 V AC-coupled, VTT = VDD_1P21 At dc At dc 10 µA -4 µA 80 1333 ps -0.05 +1.85 V 110 1050 mV 30 80 100 120 8 dB 6 dB 165-ball CSP_BGA (AD9162 only) 110 169-ball CSP_BGA 121 Driving 100 differential load VOD 350 420 450 mV VOS 1.15 1.2 1.27 V 1 As measured on the input side of the ac coupling capacitor. 2 IEEE Standard 1596.3 LVDS compatible. Rev. D | Page 10 of 144 Data Sheet AD9161/AD9162 AC SPECIFICATIONS VDD25_DAC = 2.5 V, VDD12A = VDD12_CLK = 1.2 V, VNEG_N1P2 = -1.2 V, DVDD = 1.2 V, IOVDD = 2.5 V, VDD_1P2 = DVDD_1P2 = PLL_LDO_VDD12 = 1.2 V, SYNC_VDD_3P3 = 3.3 V, IOUTFS = 40 mA, TA = +25°C. Table 9. AD9161 Specifications Parameter SPURIOUS-FREE DYNAMIC RANGE (SFDR)1 Single Tone, fDAC = 5000 MSPS fOUT = 70 MHz fOUT = 500 MHz fOUT = 1000 MHz fOUT = 2000 MHz fOUT = 4000 MHz Single Tone, fDAC = 5000 MSPS fOUT = 70 MHz fOUT = 500 MHz fOUT = 1000 MHz fOUT = 2000 MHz fOUT = 4000 MHz Data Over Cable Service Interface Specification (DOCSIS) fOUT = 70 MHz fOUT = 70 MHz fOUT = 70 MHz fOUT = 950 MHz fOUT = 950 MHz fOUT = 950 MHz ADJACENT CHANNEL POWER fOUT = 877 MHz fOUT = 877 MHz INTERMODULATION DISTORTION fOUT = 900 MHz fOUT = 900 MHz fOUT = 1800 MHz fOUT = 1800 MHz NOISE SPECTRAL DENSITY (NSD) Single Tone, fDAC = 5000 MSPS fOUT = 550 MHz fOUT = 960 MHz fOUT = 1990 MHz Test Conditions/Comments With Marki Microwave BAL-0006SMG2 FIR85 enabled -6 dBFS, shuffle enabled FIR85 enabled fDAC = 3076 MSPS Single carrier Four carriers Eight carriers Single carriers Four carriers Eight carriers fDAC = 5000 MSPS One carrier, first adjacent channel Two carriers, first adjacent channel fDAC = 5000 MSPS, two-tone test 0 dBFS -6 dBFS, shuffle enabled 0 dBFS -6 dBFS, shuffle enabled Min Typ Max Unit -82 dBc -75 dBc -65 dBc -70 dBc -55 dBc -75 dBc -75 dBc -70 dBc -75 dBc -50 dBc -70 dBc -68 dBc -65 dBc -70 dBc -68 dBc -64 dBc -76 dBc -75 dBc -75 dBc -80 dBc -71 dBc -75 dBc -157 -155 -155 dBm/Hz dBm/Hz dBm/Hz 1 See the Clock Input section for more details on optimizing SFDR and reducing the image of the fundamental with clock input tuning. 2 The Marki Microwave BAL-0006SMG is used on the AD9162-FMC-EBZ evaluation board. Rev. D | Page 11 of 144 AD9161/AD9162 Data Sheet Table 10. AD9162 Specifications Parameter SPURIOUS-FREE DYNAMIC RANGE (SFDR)1 Single Tone, fDAC = 5000 MSPS fOUT = 70 MHz fOUT = 500 MHz fOUT = 1000 MHz fOUT = 2000 MHz fOUT = 4000 MHz Single Tone, fDAC = 5000 MSPS fOUT = 70 MHz fOUT = 500 MHz fOUT = 1000 MHz fOUT = 2000 MHz fOUT = 4000 MHz DOCSIS fOUT = 70 MHz fOUT = 70 MHz fOUT = 70 MHz fOUT = 950 MHz fOUT = 950 MHz fOUT = 950 MHz Wireless Infrastructure fOUT = 960 MHz fOUT = 1990 MHz ADJACENT CHANNEL POWER fOUT = 877 MHz fOUT = 877 MHz fOUT = 1887 MHz fOUT = 1980 MHz INTERMODULATION DISTORTION fOUT = 900 MHz fOUT = 900 MHz fOUT = 1800 MHz fOUT = 1800 MHz NOISE SPECTRAL DENSITY (NSD) Single Tone, fDAC = 5000 MSPS fOUT = 550 MHz fOUT = 960 MHz fOUT = 1990 MHz SINGLE SIDEBAND (SSB) PHASE NOISE AT OFFSET 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz Test Conditions/Comments Min Typ Max With Marki Microwave BAL-0006SMG2 -82 -75 -65 -70 FIR85 enabled -60 -6 dBFS, shuffle enabled -75 -75 -70 -75 FIR85 enabled -65 fDAC = 3076 MSPS Single carrier -70 Four carriers -70 Eight carriers -67 Single carriers -70 Four carriers -68 Eight carriers -64 fDAC = 5000 MSPS Two-carrier GSM signal at -9 dBFS; -85 across 925 MHz to 960 MHz band Two-carrier GSM signal at -9 dBFS; -81 across 1930 MHz to 1990 MHz band fDAC = 5000 MSPS One carrier, first adjacent channel -79 Two carriers, first adjacent channel -76 One carriers, first adjacent channel -74 Four carriers, first adjacent channel -70 fDAC = 5000 MSPS, two-tone test 0 dBFS -80 -6 dBFS, shuffle enabled -80 0 dBFS -68 -6 dBFS, shuffle enabled -78 fOUT = 3800 MHz, fDAC = 4000 MSPS -168 -167 -164 -119 -125 -135 -144 -156 1 See the Clock Input section for more details on optimizing SFDR and reducing the image of the fundamental with clock input tuning. 2 The Marki Microwave BAL-0006SMG is used on the AD9162-FMC-EBZ evaluation board. Unit dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBm/Hz dBm/Hz dBm/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz Rev. D | Page 12 of 144 14379-700 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 11. Parameter ISET, VREF to VBG_NEG SERDINx±, VTT_1P2, SYNCOUT± OUTPUT± to VNEG_N1P2 SYSREF± CLK± to Ground RESET, IRQ, CS, SCLK, SDIO, SDO to Ground Junction Temperature1 fDAC = 6 GSPS fDAC 5.1 GSPS Ambient Operating Temperature Range (TA) Storage Temperature Range VDD12A, VDD12_CLK, DVDD, VDD_1P2, VTT_1P2, DVDD_1P2, PLL_LDO_VDD12, PLL_CLK_VDD12, BIAS_VDD_1P2 to Ground VDD25_DAC to Ground VNEG_N1P2 to Ground IOVDD, SYNC_VDD_3P3 to Ground Rating -0.3 V to VDD25_DAC + 0.3 V -0.3 V to SYNC_VDD_3P3 + 0.3 V -0.3 V to VDD25_DAC - (VNEG_N1P2) + 0.2 V GND - 0.5 V to +2.5 V -0.3 V to VDD12_CLK + 0.3 V -0.3 V to IOVDD + 0.3 V 105°C 110°C -40°C to +85°C -65°C to +150°C -0.3 V to +1.326 V -0.3V to +2.625 V +0.3V to -1.26 V -0.3 V to +3.465 V 1 Some operating modes of the device may cause the device to approach or exceed the maximum junction temperature during operation at supported ambient temperatures. Removal of heat from the device may require additional measures such as active airflow, heat sinks, or other measures. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. REFLOW PROFILE The AD9161/AD9162 reflow profile is in accordance with the JEDEC JESD204B criteria for Pb-free devices. The maximum reflow temperature is 260°C. THERMAL MANAGEMENT The AD9161/AD9162 is a high power device that can dissipate nearly 3 W depending on the user application and configuration. Because of the power dissipation, the AD9161/AD9162 uses an exposed die package to give the customer the most effective method of controlling the die temperature. The exposed die allows cooling of the die directly. AD9161/AD9162 Figure 3 shows the profile view of the device mounted to a user printed circuit board (PCB) and a heat sink (typically the aluminum case) to keep the junction (exposed die) below the maximum junction temperature in Table 11. CUSTOMER CASE (HEAT SINK) CUSTOMER THERMAL FILLER SILICON (DIE) PACKAGE SUBSTRATE IC PROFILE CUSTOMER PCB Figure 3. Typical Thermal Management Solution THERMAL RESISTANCE Typical JA and JC values are specified for a 4-layer JEDEC 2S2P high effective thermal conductivity test board for balled surface-mount packages. JA is obtained in still air conditions (JESD51-2). Airflow increases heat dissipation, effectively reducing JA. JC is obtained with the test case temperature monitored at the bottom of the package. JA = TJ -TA P JC = TJ -TC P where: JA is the natural convection junction-to-ambient air thermal resistance measured in a one-cubic foot sealed enclosure. TJ is the die junction temperature. TA is the ambient temperature in a still air environment. P is the total power (heat) dissipated in the chip. JC is the junction-to-case thermal resistance. (In the case of AD9161/AD9162, this is measured at the top of the package on the bare die.) TC is the package case temperature. (In the case of AD9161/ AD9162, the temperature is measured on the bare die.) Table 12. Thermal Resistance Package Type JA BC-165-1 15.4 BC-169-2 14.6 JC Unit 0.04 °C/W 0.02 °C/W ESD CAUTION Rev. D | Page 13 of 144 AD9161/AD9162 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 A VNEG_N1P2 VDD25_DAC VNEG_N1P2 VNEG_N1P2 VDD25_DAC VDD25_DAC OUTPUT OUTPUT+ VDD25_DAC VDD25_DAC VNEG_N1P2 VNEG_N1P2 VSS VSS ISET A B VSS VSS VDD25_DAC VNEG_N1P2 VNEG_N1P2 VDD25_DAC VDD25_DAC VDD25_DAC VDD25_DAC VNEG_N1P2 VNEG_N1P2 VDD25_DAC VDD12A VDD12A VREF B C CLK+ VSS VDD25_DAC VNEG_N1P2 VNEG_N1P2 VDD25_DAC VDD25_DAC VNEG_N1P2 VNEG_N1P2 VDD25_DAC VBG_NEG VNEG_N1P2 VDD25_DAC C D CLK VSS VSS VSS VSS VSS D E VSS VSS VSS VSS VSS VDD12_CLK E F VDD12_CLK VDD12_CLK VDD12_CLK G IRQ VSS VSS H VSS TX_ENABLE VSS VSS VSS VSS VDD12_DCD/ VDD12_DCD/ DLL DLL VSS VSS VSS VSS VSS VSS VDD12_ DCD/DLL VDD12_ DCD/DLL VSS VSS VDD12_CLK VDD12_CLK VDD12_CLK F VSS VSS CS G VSS SDO VSS H J SERDIN7+ VDD_1P2 RESET VSS VSS VSS VSS VSS SCLK VDD_1P2 SERDIN0+ J K SERDIN7 VDD_1P2 IOVDD DVDD DVDD DVDD DVDD DVDD SDIO VDD_1P2 SERDIN0 K L VSS VSS DVDD_1P2 DVDD_1P2 VSS VSS L M SERDIN6+ VDD_1P2 VTT_1P2 VTT_1P2 VDD_1P2 SERDIN1+ M N SERDIN6 VDD_1P2 SYSREF+ SYSREF VSS VSS PLL_CLK_ PLL_LDO_ VDD12 VDD12 VSS SYNCOUT SYNCOUT+ VDD_1P2 SERDIN1 N P VSS SYNC_ VDD_3P3 VDD_1P2 VDD_1P2 DNC VDD_1P2 VDD_1P2 PLL_LDO_ BYPASS VDD_1P2 VDD_1P2 DNC VDD_1P2 VDD_1P2 SYNC_ VDD_3P3 VSS P R BIAS_VDD_ 1P2 1 VSS 2 SERDIN5+ SERDIN5 3 4 VSS 5 SERDIN4+ SERDIN4 6 7 VSS 8 SERDIN3 SERDIN3+ 9 10 VSS 11 SERDIN2 SERDIN2+ 12 13 VSS 14 BIAS_ VDD_1P2 R 15 1.2V ANALOG SUPPLY V 2.5V ANALOG SUPPLY V 1.2V DAC SUPPLY V GROUND DNC = DO NOT CONNECT. 1.2V DAC CLK SUPPLY V SERDES INPUT SERDES 3.3V VCO SUPPLY V SERDES 1.2V SUPPLY V DAC RF SIGNALS SYSREF±/SYNCOUT± CMOS I/O IOVDD Figure 4. 165-Ball CSP_BGA Pin Configuration REFERENCE 14379-003 Table 13. 165-Ball CSP_BGA Pin Function Descriptions Pin No. Mnemonic A1, A3, A4, A11, A12, B4, B5, B10, B11, C5, C6, C9, C10, C14 VNEG_N1P2 A2, A5, A6, A9, A10, B3, B6, B7, B8, B9, B12, C4, C7, C8, C11, C15 VDD25_DAC A7 OUTPUT- A8 OUTPUT+ A13, A14, B1, B2, C2, D2, D3, D13, D14, D15, E1, E2, E3, E13, VSS E14, F6, F7, F8, F9, F10, G2, G3, G8, G13, G14, H1, H3, H6, H7, H8, H9, H10, H13, H15, J6, J7, J8, J9, J10, L1, L2, L14, L15, N6, N7, N10, P1, P15, R2, R5, R8, R11, R14 A15 ISET B13, B14 B15 VDD12A VREF C1, D1 C12 CLK+, CLK- VBG_NEG E15, F1, F2, F3, F13, F14, F15 G1 VDD12_CLK IRQ Description -1.2 V Analog Supply Voltage. 2.5 V Analog Supply Voltage. DAC Negative Current Output. DAC Positive Current Output. Supply Return. Connect these pins to ground. Reference Current. Connect this pin to VNEG_N1P2 with a 9.6 k resistor. 1.2 V Analog Supply Voltage. 1.2 V Reference Input/Output. Connect this pin to VSS with a 1 µF capacitor. Positive and Negative DAC Clock Inputs. -1.2 V Reference. Connect this pin to VNEG_N1P2 with a 0.1 µF capacitor. 1.2 V Clock Supply Voltage. Interrupt Request Output (Active Low, Open Drain). Rev. D | Page 14 of 144 Data Sheet AD9161/AD9162 Pin No. G6, G7, G9, G10 G15 H14 J13 K13 J3 H2 P5, P11 J2, J14, K2, K14, M2, M14, N2, N14, P3, P4, P6, P7, P9, P10, P12, P13 K3 K6, K7, K8, K9, K10 L3, L13 M3, M13 J1, K1 M1, N1 R3, R4 R6, R7 R9, R10 R12, R13 M15, N15 J15, K15 N4, N5 N8 N9 N11, N12 P2, P14 P8 R1, R15 Mnemonic VDD12_DCD/DLL CS SDO SCLK SDIO RESET TX_ENABLE DNC VDD_1P2 IOVDD DVDD DVDD_1P2 VTT_1P2 SERDIN7+, SERDIN7- SERDIN6+, SERDIN6- SERDIN5+, SERDIN5- SERDIN4+, SERDIN4SERDIN3-, SERDIN3+ SERDIN2-, SERDIN2+ SERDIN1+, SERDIN1- SERDIN0+, SERDIN0- SYSREF+, SYSREF- PLL_CLK_VDD12 PLL_LDO_VDD12 SYNCOUT-, SYNCOUT+ SYNC_VDD_3P3 PLL_LDO_BYPASS BIAS_VDD_1P2 Description 1.2 V Digital Supply Voltage. Serial Port Chip Select Bar (Active Low) Input. CMOS levels on this pin are determined with respect to IOVDD. Serial Port Data Output. CMOS levels on this pin are determined with respect to IOVDD. Serial Port Data Clock. CMOS levels on this pin are determined with respect to IOVDD. Serial Port Data Input/Output. CMOS levels on this pin are determined with respect to IOVDD. Reset Bar (Active Low) Input. CMOS levels on this pin are determined with respect to IOVDD. Transmit Enable Input. This pin can be used instead of the DAC output bias power down bits in Register 0x040, Bits [1:0] to enable the DAC output. CMOS levels are determined with respect to IOVDD. Do Not Connect. Do not connect to these pins. 1.2 V SERDES Digital Supply. Supply Voltage for CMOS Input/Output and SPI. Operational for 1.8 V to 3.3 V plus tolerance (see Table 1 for details). 1.2 V Digital Supply Voltage. 1.2 V SERDES Digital Supply Voltage. 1.2 V SERDES VTT Digital Supply Voltage. SERDES Lane 7 Positive and Negative Inputs. SERDES Lane 6 Positive and Negative Inputs. SERDES Lane 5 Positive and Negative Inputs. SERDES Lane 4 Positive and Negative Inputs. SERDES Lane 3 Negative and Positive Inputs. SERDES Lane 2 Negative and Positive Inputs. SERDES Lane 1 Positive and Negative Inputs. SERDES Lane 0 Positive and Negative Inputs. System Reference Positive and Negative Inputs. These pins are self biased for ac coupling. They can be ac-coupled or dc-coupled. 1.2 V SERDES Phase-Locked Loop (PLL) Clock Supply Voltage. 1.2 V SERDES PLL Supply. Negative and Positive LVDS Sync (Active Low) Output Signals. 3.3 V SERDES Sync Supply Voltage. 1.2 V SERDES PLL Supply Voltage Bypass. 1.2 V SERDES Supply Voltage. Rev. D | Page 15 of 144 AD9161/AD9162 Data Sheet 1 A VSS 2 3 4 5 6 7 8 9 10 VNEG_N1P2 VDD25_DAC VNEG_N1P2 VDD25_DAC OUTPUT OUTPUT+ VDD25_DAC VNEG_N1P2 VDD25_DAC 11 VSS 12 ISET 13 VREF A B CLK+ VSS VSS VDD25_DAC VNEG_N1P2 VDD25_DAC VDD25_DAC VNEG_N1P2 VDD25_DAC VDD12A VDD12A VDD25_DAC VNEG_N1P2 B C CLK VSS VSS VSS VDD25_DAC VNEG_N1P2 VNEG_N1P2 VDD25_DAC VBG_NEG VSS VSS VSS VSS C D VSS VDD12_CLK VDD12_CLK VDD12_CLK VDD12_CLK VSS VSS VDD12_CLK VDD12_CLK VDD12_CLK VDD12_CLK VDD12_CLK VDD12_CLK D E VDD12_CLK VSS VSS VSS DVDD DVDD VSS DVDD DVDD VSS VSS VSS VSS E F SYSREF+ SYSREF VSS VSS VSS VSS VSS VSS VSS VSS VSS CS VSS F G VSS VSS TX_ENABLE IRQ DVDD DVDD DVDD DVDD DVDD SDIO SDO VSS VSS G H SERDIN7+ SERDIN7 VDD_1P2 RESET IOVDD DVDD_1P2 VSS DVDD_1P2 IOVDD SCLK VDD_1P2 SERDIN0 SERDIN0+ H J VSS VSS VDD_1P2 DNC DNC VSS VSS VSS SYNCOUT SYNCOUT+ VDD_1P2 VSS VSS J K SERDIN6+ SERDIN6 VTT_1P2 SYNC_ VDD_3P3 DNC VSS PLL_CLK_ VDD12 PLL_LDO_ VDD12 DNC SYNC_ VDD_3P3 VTT_1P2 SERDIN1 SERDIN1+ K L VSS VSS VDD_1P2 VDD_1P2 VDD_1P2 VSS DNC VSS VDD_1P2 VDD_1P2 VDD_1P2 VSS VSS L M VSS VSS SERDIN5+ VSS SERDIN4+ VSS PLL_LDO_ BYPASS VSS SERDIN3+ VSS SERDIN2+ VSS VSS M N BIAS_VDD_1P2 VSS SERDIN5 1 2 3 1.2V ANALOG SUPPLY V 2.5V ANALOG SUPPLY V 1.2V DAC SUPPLY V GROUND DNC = DO NOT CONNECT. VSS SERDIN4 VSS VSS 4 5 6 7 1.2V DAC CLK SUPPLY V SERDES INPUT SERDES 3.3V VCO SUPPLY V SERDES 1.2V SUPPLY V VSS SERDIN3 VSS SERDIN2 VSS 8 9 10 11 12 DAC RF SIGNALS SYSREF±/SYNCOUT± CMOS I/O IOVDD REFERENCE Figure 5. 169-Ball CSP_BGA Pin Configuration BIAS_ VDD_1P2 N 13 14379-004 Table 14. 169-Ball CSP_BGA Pin Function Descriptions Pin No. A1, A11, B2, B3, C2, C3, C4, C10, C11, C12, C13, D1, D6, D7, E2, E3, E4, E7, E10, E11, E12, E13, F3, F4, F5, F6, F7, F8, F9, F10, F11, F13, G1, G2, G12, G13, H7, J1, J2, J6, J7, J8, J12, J13, K6, L1, L2, L6, L8, L12, L13, M1, M2, M4, M6, M8, M10, M12, M13, N2, N4, N6, N7, N8, N10, N12 A2, A4, A9, B5, B8, B13, C6, C7 A3, A5, A8, A10, B4, B6, B7, B9, B12, C5, C8 A6 A7 A12 A13 B1, C1 B10, B11 C9 D2, D3, D4, D5, D8, D9, D10, D11, D12, D13, E1 E5, E6, E8, E9, G5, G6, G7, G8, G9 F1, F2 Mnemonic VSS Description Supply Return. Connect these pins to ground. VNEG_N1P2 VDD25_DAC OUTPUT- OUTPUT+ ISET VREF CLK+, CLK- VDD12A VBG_NEG VDD12_CLK DVDD SYSREF+, SYSREF- -1.2 V Analog Supply Voltage. 2.5 V Analog Supply Voltage. DAC Negative Current Output. DAC Positive Current Output. Reference Current. Connect this pin to VNEG_N1P2 with a 9.6 k resistor. 1.2 V Reference Input/Output. Connect this pin to VSS with a 1 µF capacitor. Positive and Negative DAC Clock Inputs. 1.2 V Analog Supply Voltage. -1.2 V Reference. Connect this pin to VNEG_N1P2 with a 0.1 µF capacitor. 1.2 V Clock Supply Voltage. 1.2 V Digital Supply Voltage. System Reference Positive and Negative Inputs. These pins are self biased for ac coupling. They can be ac-coupled or dc-coupled. Rev. D | Page 16 of 144 Data Sheet Pin No. F12 G3 G4 G10 G11 H10 H3, H11, J3, J11, L3, L4, L5, L9, L10, L11 H4 H5, H9 H6, H8 H1, H2 K1, K2 M3, N3 M5, N5 M9, N9 M11, N11 K12, K13 H12, H13 J4, J5, K5, K9, L7 J9, J10 K3, K11 K4, K10 K7 K8 M7 N1, N13 AD9161/AD9162 Mnemonic CS TX_ENABLE IRQ SDIO SDO SCLK VDD_1P2 RESET IOVDD DVDD_1P2 SERDIN7+, SERDIN7- SERDIN6+, SERDIN6- SERDIN5+, SERDIN5- SERDIN4+, SERDIN4- SERDIN3+, SERDIN3- SERDIN2+, SERDIN2- SERDIN1-, SERDIN1+ SERDIN0-, SERDIN0+ DNC SYNCOUT-, SYNCOUT+ VTT_1P2 SYNC_VDD_3P3 PLL_CLK_VDD12 PLL_LDO_VDD12 PLL_LDO_BYPASS BIAS_VDD_1P2 Description Serial Port Chip Select Bar (Active Low) Input. CMOS levels on this pin are determined with respect to IOVDD. Transmit Enable Input. This pin can be used instead of the DAC output bias power down bits in Register 0x040, Bits [1:0] to enable the DAC output. CMOS levels are determined with respect to IOVDD. Interrupt Request Output (Active Low, Open Drain). Serial Port Data Input/Output. CMOS levels on this pin are determined with respect to IOVDD. Serial Port Data Output. CMOS levels on this pin are determined with respect to IOVDD. Serial Port Data Clock. CMOS levels on this pin are determined with respect to IOVDD. 1.2 V SERDES Digital Supply. Reset Bar (Active Low) Input. CMOS levels on this pin are determined with respect to IOVDD. Supply Voltage for CMOS Input/Output and SPI. Operational for 1.8 V to 3.3 V (see Table 1 for details). 1.2 V SERDES Digital Supply Voltage. SERDES Lane 7 Positive and Negative Inputs. SERDES Lane 6 Positive and Negative Inputs. SERDES Lane 5 Positive and Negative Inputs. SERDES Lane 4 Positive and Negative Inputs. SERDES Lane 3 Positive and Negative Inputs. SERDES Lane 2 Positive and Negative Inputs. SERDES Lane 1 Negative and Positive Inputs. SERDES Lane 0 Negative and Positive Inputs. Do Not Connect. Do not connect to these pins. Negative and Positive LVDS Sync (Active Low) Output Signals. 1.2 V SERDES VTT Digital Supply Voltage. 3.3 V SERDES Sync Supply Voltage. 1.2 V SERDES PLL Clock Supply Voltage. 1.2 V SERDES PLL Supply. 1.2 V SERDES PLL Supply Voltage Bypass. 1.2 V SERDES Supply Voltage. Rev. D | Page 17 of 144 AD9161/AD9162 TYPICAL PERFORMANCE CHARACTERISTICS AD9161 Static Linearity IOUTFS = 40 mA, nominal supplies, TA = 25°C, unless otherwise noted. 0.4 0.4 0.3 0.3 0.2 0.2 0.1 0.1 14379-505 DNL (LSB) INL (LSB) 0 0 0.1 0.1 0.2 0.2 0.3 0.3 0.4 0 500 1000 1500 2000 CODE Figure 6. INL, IOUTFS = 20 mA 0.4 0 INL (LSB) 0.4 0.3 0.2 0.1 0 0.1 0.2 0.3 0.4 0 500 1000 1500 2000 CODE Figure 7. INL, IOUTFS = 30 mA 14379-506 DNL (LSB) 0.4 0.3 0.2 0.1 0 0.1 0.2 0.3 0.4 0 INL (LSB) 0.4 0.3 0.2 0.1 0 0.1 0.2 0.3 0.4 0 500 1000 1500 2000 CODE Figure 8. INL, IOUTFS = 40 mA 14379-507 DNL (LSB) 0.4 0.3 0.2 0.1 0 0.1 0.2 0.3 0.4 0 Rev. D | Page 18 of 18 Data Sheet 14379-508 14379-509 500 1000 1500 2000 CODE Figure 9. DNL, IOUTFS = 20 mA 500 1000 1500 2000 CODE Figure 10. DNL, IOUTFS = 30 mA 500 1000 1500 2000 CODE Figure 11. DNL, IOUTFS = 40 mA 14379-510 Data Sheet AC Performance (NRZ Mode) IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 0 0 AD9161/AD9162 20 20 14379-311 MAGNITUDE (dBm) MAGNITUDE (dBm) 40 40 60 60 14379-314 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 12. Single-Tone Spectrum at fOUT = 70 MHz 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 15. Single-Tone Spectrum at fOUT = 2000 MHz 0 0 20 20 14379-312 MAGNITUDE (dBm) MAGNITUDE (dBm) 40 40 60 60 14379-315 SFDR (dBc) 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 13. Single-Tone Spectrum at fOUT = 70 MHz (FIR85 Enabled) 40 50 ffffDDDDAAAACCCC 2500MHz 3000MHz 5000MHz 6000MHz 60 70 80 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 14. SFDR vs. fOUT over fDAC 3000 14379-313 IMD (dBc) 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 16. Single-Tone Spectrum at fOUT = 2000 MHz (FIR85 Enabled) 40 50 ffffDDDDAAAACCCC 2500MHz 3000MHz 5000MHz 6000MHz 60 70 80 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 17. IMD vs. fOUT over fDAC 3000 14379-416 Rev. D | Page 19 of 19 AD9161/AD9162 Data Sheet 14379-322 IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 40 DIGITAL SCALE 0dB DIGITAL SCALE 6dB DIGITAL SCALE 12dB 50 DIGITAL SCALE 18dB 40 IIIOOOUUUTTTFFFSSS 20mA 30mA 40mA 50 SFDR (dBc) SFDR (dBc) 60 60 70 70 80 80 90 100 0 SHUFFLE FALSE SHUFFLE TRUE 500 1000 1500 fOUT (MHz) 2000 2500 Figure 18. SFDR vs. fOUT over Digital Full Scale 14379-317 90 100 0 500 1000 1500 2000 fOUT (MHz) Figure 21. SFDR vs. fOUT over DAC IOUTFS 40 DIGITAL SCALE 0dB DIGITAL SCALE 6dB DIGITAL SCALE 12dB 50 DIGITAL SCALE 18dB 40 50 IIIOOOUUUTTTFFFSSS 20mA 30mA 40mA 60 60 IMD (dBc) IMD (dBc) 70 70 80 80 90 100 0 SHUFFLE FALSE SHUFFLE TRUE 1000 2000 3000 fOUT (MHz) 4000 5000 Figure 19. IMD vs. fOUT over Digital Full Scale 14379-418 90 100 0 1000 2000 3000 fOUT (MHz) 4000 Figure 22. IMD vs. fOUT over DAC IOUTFS 150 2500 5000 14379-422 155 14379-619 SINGLE-TONE NSD (dBm/Hz) SINGLE-TONE NSD (dBm/Hz) 160 165 fDAC = 2500MHz fDAC = 3000MHz fDAC = 5000MHz fDAC = 6000MHz fOUT (MHz) Figure 20. Single-Tone NSD Measured at 70 MHz vs. fOUT over fDAC 170 175 0 fDAC 2500MHz fDAC 3000MHz fDAC 5000MHz fDAC 6000MHz 500 1000 1500 2000 fOUT (MHz) 14379-425 Figure 23. Single-Tone NSD Measured at 10% Offset from fOUT vs. fOUT over fDAC Rev. D | Page 20 of 144 Data Sheet AD9161/AD9162 IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 150 155 ffffDDDDAAAACCCC = = = = 2500MHz 3000MHz 5000MHz 6000MHz 150 155 ffffDDDDAAAACCCC = = = = 2500MHz 3000MHz 5000MHz 6000MHz 14379-532 W-CDMA NSD (dBm/Hz) W-CDMA NSD (dBm/Hz) 160 160 165 165 170 170 175 0 500 1000 1500 2000 2500 3000 fOUT (MHz) Figure 24. W-CDMA NSD Measured at 70 MHz vs. fOUT over fDAC 14379-225 175 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 26. W-CDMA NSD Measured at 10% Offset from fOUT vs. fOUT over fDAC 14379-336 14379-333 Figure 25. Single-Carrier W-CDMA at 877.5 MHz Figure 27. Two-Carrier W-CDMA at 875 MHz Rev. D | Page 21 of 21 AD9161/AD9162 AC (Mix-Mode) IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 0 0 Data Sheet 20 20 14379-439 MAGNITUDE (dBm) MAGNITUDE (dBm) 40 40 60 60 14379-344 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 28. Single-Tone Spectrum at fOUT = 2550 MHz 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 31. Single-Tone Spectrum at fOUT = 4000 MHz MAGNITUDE (dBm) 14379-444 0 20 40 60 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 29. Single-Tone Spectrum at fOUT = 2550 MHz (FIR85 Enabled) 140 145 150 155 160 165 170 175 2000 3000 4000 5000 6000 7000 fOUT (MHz) ffffDDDDAAAACCCC = = = = 2500MHz 3000MHz 5000MHz 6000MHz 8000 9000 10000 Figure 30. Single-Tone NSD Measured at 70 MHz vs. fOUT 14379-424 14379-440 MAGNITUDE (dBm) SFDR (dBc) 0 20 40 60 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 32. Single-Tone Spectrum at fOUT = 4000 MHz (FIR85 Enabled) 40 50 60 70 80 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB 90 DIGITAL SCALE = 12dB DIGITAL SCALE = 18dB SHUFFLE FALSE SHUFFLE TRUE 100 2000 3000 4000 5000 fOUT (MHz) 6000 7000 Figure 33. SFDR vs. fOUT over Digital Full Scale 8000 SINGLE-TONE NSD (dBm/Hz) 14379-445 Rev. D | Page 22 of 22 Data Sheet AD9161/AD9162 14379-449 IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 40 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB DIGITAL SCALE = 12dB 50 DIGITAL SCALE = 18dB 40 IIIOOOUUUTTTFFFSSS = = = 20mA 30mA 40mA 50 60 60 IMD (dBc) IMD (dBc) 70 70 80 80 90 SHUFFLE FALSE SHUFFLE TRUE 100 2000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 34. IMD vs. fOUT over Digital Full Scale 8000 14379-446 90 100 2000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 37. IMD vs. fOUT over DAC IOUTFS 8000 SFDR (dBc) 40 fDAC = 2500MHz fDAC = 3000MHz 50 fDAC = 5000MHz fDAC = 6000MHz 60 70 80 90 IMD (dBc) 40 fDAC = 2500MHz fDAC = 3000MHz 50 fDAC = 5000MHz fDAC = 6000MHz 60 70 80 90 100 1000 2000 3000 4000 5000 6000 fOUT (MHz) 7000 8000 9000 Figure 35. SFDR vs. fOUT over fDAC 14379-447 100 1000 2000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 38. IMD vs. fOUT over fDAC 8000 9000 40 IIIOOOUUUTTTFFFSSS = = = 20mA 30mA 40mA 50 60 SFDR (dBc) 70 80 90 14379-448 1020000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 36. SFDR vs. fOUT over DAC IOUTFS 8000 14379-450 Rev. D | Page 23 of 144 AD9161/AD9162 Data Sheet 14379-364 DOCSIS Performance (NRZ Mode) IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 0 0 10 10 20 20 14379-361 MAGNITUDE (dBc) MAGNITUDE (dBc) 30 30 40 40 50 50 60 60 70 70 80 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 39. Single Carrier at 70 MHz Output 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 42. Single Carrier at 950 MHz Output MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 40. Four Carriers at 70 MHz Output 14379-361 MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 43. Four Carriers at 950 MHz Output MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 41. Eight Carriers at 70 MHz Output 14379-363 MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 44. Eight Carriers at 950 MHz Output 14379-365 14379-366 Rev. D | Page 24 of 144 Data Sheet AD9161/AD9162 IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 40 40 IN-BAND THIRD HARMONIC (dBc) IN-BAND SECOND HARMONIC (dBc) 50 50 60 60 70 70 80 80 14379-367 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 45. In-Band Second Harmonic vs. fOUT Performance for One DOCSIS Carrier 40 14379-370 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 48. In-Band Third Harmonic vs. fOUT Performance for One DOCSIS Carrier 40 IN-BAND THIRD HARMONIC (dBc) IN-BAND SECOND HARMONIC (dBc) 50 50 60 60 70 70 80 80 14379-368 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 46. In-Band Second Harmonic vs. fOUT Performance for Four DOCSIS Carriers 40 14379-371 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 49. In-Band Third Harmonic vs. fOUT Performance for Four DOCSIS Carriers 40 IN-BAND THIRD HARMONIC (dBc) IN-BAND SECOND HARMONIC (dBc) 50 50 60 60 70 70 80 80 14379-369 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 47. In-Band Second Harmonic vs. fOUT Performance for Eight DOCSIS Carriers 14379-372 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 50. In-Band Third Harmonic vs. fOUT Performance for Eight DOCSIS Carriers Rev. D | Page 25 of 25 AD9161/AD9162 Data Sheet IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 40 Y-AXIS: FIRST ACP Y-AXIS: SECOND ACP Y-AXIS: THIRD ACP Y-AXIS: FOURTH ACP 50 Y-AXIS: FIFTH ACP 40 Y-AXIS: FIRST ACP Y-AXIS: SECOND ACP Y-AXIS: THIRD ACP Y-AXIS: FOURTH ACP 50 Y-AXIS: FIFTH ACP ACPR (dBc) ACPR (dBc) 60 60 70 70 80 80 14379-376 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 51. Single-Carrier Adjacent Channel Power Ratio (ACPR) vs. fOUT 40 Y-AXIS: FIRST ACP Y-AXIS: SECOND ACP Y-AXIS: THIRD ACP Y-AXIS: FOURTH ACP 50 Y-AXIS: FIFTH ACP 14379-373 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 54. 16-Carrier ACPR vs. fOUT 40 Y-AXIS: FIRST ACP Y-AXIS: SECOND ACP Y-AXIS: THIRD ACP Y-AXIS: FOURTH ACP 50 Y-AXIS: FIFTH ACP ACPR (dBc) ACPR (dBc) 60 60 70 70 80 80 14379-377 ACPR (dBc) 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 52. Four-Carrier ACPR vs. fOUT 40 Y-AXIS: FIRST ACP Y-AXIS: SECOND ACP Y-AXIS: THIRD ACP Y-AXIS: FOURTH ACP 50 Y-AXIS: FIFTH ACP 60 70 80 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 53. Eight-Carrier ACPR vs. fOUT 14379-375 MAGNITUDE (dBc) 14379-374 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 55. 32-Carrier ACPR vs. fOUT 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 56. 194-Carrier, Sinc On, FIR85 Enabled 14379-378 Rev. D | Page 26 of 144 Data Sheet IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 40 50 ACLR IN GAP CHANNEL (dBc) 14379-478 60 70 80 90 100 0 200 400 600 800 1000 1200 fGAP (fOUT = fGAP) (MHz) Figure 57. ACLR in Gap Channel vs. fGAP 1400 AD9161/AD9162 Rev. D | Page 27 of 144 AD9161/AD9162 AD9162 Static Linearity IOUTFS = 40 mA, nominal supplies, TA = 25°C, unless otherwise noted. 15 10 5 INL (LSB) 0 5 10 0 10000 20000 30000 40000 CODE 50000 Figure 58. INL, IOUTFS = 20 mA 60000 15 10 5 INL (LSB) 0 5 10 0 10000 20000 30000 40000 CODE 50000 Figure 59. INL, IOUTFS = 30 mA 60000 15 10 5 INL (LSB) 0 5 10 0 10000 20000 30000 40000 CODE 50000 Figure 60. INL, IOUTFS = 40 mA 60000 14379-007 DNL (LSB) 14379-006 DNL (LSB) 14379-005 DNL (LSB) Data Sheet 14379-008 4 2 0 2 4 6 8 10 12 0 10000 20000 30000 40000 CODE 50000 Figure 61. DNL, IOUTFS = 20 mA 60000 4 2 0 2 4 6 8 10 12 0 10000 20000 30000 40000 CODE 50000 Figure 62. DNL, IOUTFS = 30 mA 60000 4 2 0 2 4 6 8 10 12 0 10000 20000 30000 40000 CODE 50000 Figure 63. DNL, IOUTFS = 40 mA 60000 14379-009 14379-010 Rev. D | Page 28 of 28 Data Sheet AC Performance (NRZ Mode) IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 0 0 AD9161/AD9162 20 20 14379-011 MAGNITUDE (dBm) MAGNITUDE (dBm) 40 40 60 60 14379-014 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 64. Single-Tone Spectrum at fOUT = 70 MHz 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 67. Single-Tone Spectrum at fOUT = 2000 MHz 0 0 20 20 14379-012 MAGNITUDE (dBm) MAGNITUDE (dBm) 40 40 60 60 14379-015 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 65. Single-Tone Spectrum at fOUT = 70 MHz (FIR85 Enabled) 40 fDAC = 2500MHz fDAC = 3000MHz 50 fDAC = 5000MHz fDAC = 6000MHz 60 70 80 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 66. SFDR vs. fOUT over fDAC 3000 14379-013 IMD (dBc) 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 68. Single-Tone Spectrum at fOUT = 2000 MHz (FIR85 Enabled) 40 fDAC = 2500MHz fDAC = 3000MHz 50 fDAC = 5000MHz fDAC = 6000MHz 60 70 80 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 69. IMD vs. fOUT over fDAC 3000 SFDR (dBc) 14379-016 Rev. D | Page 29 of 144 AD9161/AD9162 Data Sheet 14379-020 IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 40 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB DIGITAL SCALE = 12dB 50 DIGITAL SCALE = 18dB SHUFFLE FALSE SHUFFLE TRUE 40 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB DIGITAL SCALE = 12dB 50 DIGITAL SCALE = 18dB SHUFFLE FALSE SHUFFLE TRUE SFDR (dBc) 60 70 80 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 70. SFDR vs. fOUT over Digital Scale 14379-017 IMD (dBc) 60 70 80 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 73. IMD vs. fOUT over Digital Scale 40 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB DIGITAL SCALE = 12dB 50 DIGITAL SCALE = 18dB SHUFFLE FALSE SHUFFLE TRUE IN-BAND SECOND HARMONICA (dBc) 60 70 80 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 71. SFDR for In-Band Second Harmonic vs. fOUT over Digital Scale 14379-018 SFDR (dBc) 40 IIIOOOUUUTTTFFFSSS = = = 20mA 30mA 40mA 50 60 70 80 90 100 0 500 1000 1500 2000 fOUT (MHz) Figure 74. SFDR vs. fOUT over DAC IOUTFS 2500 40 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB DIGITAL SCALE = 12dB 50 DIGITAL SCALE = 18dB SHUFFLE FALSE SHUFFLE TRUE 40 IIIOOOUUUTTTFFFSSS = = = 20mA 30mA 40mA 50 14379-019 IMD (dBc) IN-BAND THIRD HARMONIC (dBc) 60 60 70 70 80 80 90 90 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 72. SFDR for In-Band Third Harmonic vs. fOUT over Digital Scale 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 75. IMD vs. fOUT over DAC IOUTFS 14379-021 14379-022 Rev. D | Page 30 of 144 Data Sheet AD9161/AD9162 14379-023 W-CDMA NSD (dBm/Hz) IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 40 TEMPERATURE = 40°C TEMPERATURE = +25°C TEMPERATURE = +85°C 50 150 155 fDAC = 2500MHz fDAC = 3000MHz fDAC = 5000MHz fDAC = 6000MHz SFDR (dBc) 60 160 70 165 80 90 170 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 76. SFDR vs. fOUT over Temperature 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 79. W-CDMA NSD Measured at 70 MHz vs. fOUT over fDAC 150 155 fDAC = 2500MHz fDAC = 3000MHz fDAC = 5000MHz fDAC = 6000MHz 150 155 fDAC = 2500MHz fDAC = 3000MHz fDAC = 5000MHz fDAC = 6000MHz 14379-025 14379-024 W-CDMA NSD (dBm/Hz) SINGLE-TONE NSD (dBm/Hz) 160 160 165 170 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 77. Single-Tone NSD Measured at 70 MHz vs. fOUT over fDAC 150 155 fDAC fDAC fDAC fDAC SINGLE-TONE NSD (dBm/Hz) 160 165 170 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 78. Single-Tone NSD Measured at 10% Offset from fOUT vs. fOUT over fDAC 14379-224 IMD (dBc) 165 170 14379-225 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 80. W-CDMA NSD Measured at 10% Offset from fOUT vs. fOUT over fDAC 40 TEMPERATURE = 40°C TEMPERATURE = +25°C TEMPERATURE = +85°C 50 60 70 80 90 14379-026 100 0 500 1000 1500 2000 2500 fOUT (MHz) Figure 81. IMD vs. fOUT over Temperature Rev. D | Page 31 of 144 AD9161/AD9162 Data Sheet IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 150 155 TEMPERATURE = 40°C TEMPERATURE = +25°C TEMPERATURE = +90°C 150 155 TEMPERATURE = 40°C TEMPERATURE = +25°C TEMPERATURE = +90°C 14379-027 W-CDMA NSD (dBm/Hz) SINGLE-TONE NSD (dBm/Hz) 160 160 165 165 170 170 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 82. Single-Tone NSD Measured at 70 MHz vs. fOUT over Temperature 150 155 TEMPERATURE = 40°C TEMPERATURE = +25°C TEMPERATURE = +90°C 14379-028 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 85. W-CDMA NSD Measured at 70 MHz vs. fOUT over Temperature 150 155 TEMPERATURE = 40°C TEMPERATURE = +25°C TEMPERATURE = +90°C 14379-227 W-CDMA NSD (dBm/Hz) SINGLE-TONE NSD (dBm/Hz) 160 160 165 165 170 170 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 83. Single-Tone NSD Measured at 10% Offset from fOUT vs. fOUT over Temperature 175 400 600 800 1000 1200 1400 1600 1800 2000 fOUT (MHz) Figure 86. W-CDMA NSD Measured at 10% Offset from fOUT vs. fOUT over Temperature 14379-331 14379-032 14379-029 Figure 84. Single-Carrier W-CDMA at 877.5 MHz Figure 87. Two-Carrier W-CDMA at 875 MHz Rev. D | Page 32 of 32 Data Sheet AD9161/AD9162 IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 60 FIRST ACLR SECOND ACLR 65 60 FIRST ACLR SECOND ACLR 65 70 70 14379-030 ACLR (dBc) ACLR (dBc) 75 75 80 80 85 85 90 800 1000 1200 1400 1600 fOUT (MHz) 1800 2000 2200 Figure 88. Single-Carrier, W-CDMA ACLR vs. fOUT (First ACLR, Second ACLR) 14379-033 90 800 1000 1200 1400 1600 fOUT (MHz) 1800 2000 2200 Figure 91. Two-Carrier, W-CDMA ACLR vs. fOUT (First ACLR, Second ACLR) 60 THIRD ACLR FOURTH ACLR FIFTH ACLR 65 60 THIRD ACLR FOURTH ACLR FIFTH ACLR 65 70 70 14379-031 ACLR (dBc) ACLR (dBc) 75 75 80 80 85 85 90 800 1000 1200 1400 1600 fOUT (MHz) 1800 2000 2200 Figure 89. Single-Carrier, W-CDMA ACLR vs. fOUT (Third ACLR, Fourth ACLR, Fifth ACLR) 60 70MHz 900MHz 1800MHz 80 3900MHz CLOCK SOURCE 100 14379-034 90 800 1000 1200 1400 1600 fOUT (MHz) 1800 2000 2200 Figure 92. Two-Carrier, W-CDMA ACLR vs. fOUT (Third ACLR, Fourth ACLR, Fifth ACLR) 60 70MHz 900MHz 1800MHz 80 3900MHz CLOCK SOURCE 100 14379-035 SSB PHASE NOISE (dBc/Hz) SSB HASE NOISE (dBc/Hz) 120 120 140 140 160 160 14379-036 180 10 100 1k 10k 100k 1M 10M 100M OFFSET OVER fOUT (Hz) Figure 90. SSB Phase Noise vs. Offset over fOUT, fDAC = 4000 MSPS (Two Different DAC Clock Sources Used for Best Composite Curve) 180 10 100 1k 10k 100k 1M 10M 100M OFFSET OVER fOUT (Hz) Figure 93. SSB Phase Noise vs. Offset over fOUT, fDAC = 6000 MSPS Rev. D | Page 33 of 33 AD9161/AD9162 AC (Mix-Mode) IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 0 0 Data Sheet 20 20 14379-038 MAGNITUDE (dBm) MAGNITUDE (dBm) 40 40 60 60 14379-041 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 94. Single-Tone Spectrum at fOUT = 2350 MHz 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 97. Single-Tone Spectrum at fOUT = 4000 MHz 0 0 20 20 14379-039 MAGNITUDE (dBm) MAGNITUDE (dBm) 40 40 60 60 14379-042 SINGLE-TONE NSD (dBm/Hz) 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 95. Single-Tone Spectrum at fOUT = 2350 MHz (FIR85 Enabled) 150 155 160 165 170 175 3000 4000 5000 fOUT (MHz) 6000 7000 Figure 96. Single-Tone NSD vs. fOUT 14379-040 W-CDMA NSD (dBm/Hz) 80 0 1000 2000 3000 4000 5000 FREQUENCY (MHz) Figure 98. Single-Tone Spectrum at fOUT = 4000 MHz (FIR85 Enabled) 150 155 160 165 170 14379-599 175 3000 4000 5000 fOUT (MHz) 6000 7000 Figure 99. W-CDMA NSD vs. fOUT Rev. D | Page 34 of 144 Data Sheet AD9161/AD9162 14379-047 IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. 40 40 IIIOOOUUUTTTFFFSSS = = = 20mA 30mA 40mA 50 50 60 60 14379-044 SFDR (dBc) SFDR (dBc) 70 70 80 80 90 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB DIGITAL SCALE = 12dB DIGITAL SCALE = 18dB 100 2000 3000 4000 5000 fOUT (MHz) SHUFFLE FALSE SHUFFLE TRUE 6000 7000 8000 Figure 100. SFDR vs. fOUT over Digital Scale 90 100 2000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 103. SFDR vs. fOUT over DAC IOUTFS 8000 40 DIGITAL SCALE = 0dB DIGITAL SCALE = 6dB DIGITAL SCALE = 12dB 50 DIGITAL SCALE = 18dB SHUFFLE FALSE SHUFFLE TRUE 40 IIIOOOUUUTTTFFFSSS = = = 20mA 30mA 40mA 50 60 60 14379-045 IMD (dBc) IMD (dBc) 70 70 80 80 90 90 100 2000 3000 4000 5000 6000 fOUT (MHz) 7000 8000 Figure 101. IMD vs. fOUT over Digital Scale 100 2000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 104. IMD vs. fOUT over DAC IOUTFS 8000 40 fDAC = 2500MHz fDAC = 3000MHz 50 fDAC = 5000MHz fDAC = 6000MHz 60 40 fDAC = 2500MHz fDAC = 3000MHz 50 fDAC = 5000MHz fDAC = 6000MHz 60 14379-046 IMD (dBc) SFDR (dBc) 70 70 80 80 90 90 100 1000 2000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 102. SFDR vs. fOUT over fDAC 8000 9000 100 1000 2000 3000 4000 5000 6000 fOUT (MHz) 7000 Figure 105. IMD vs. fOUT over fDAC 8000 9000 14379-048 14379-049 Rev. D | Page 35 of 144 AD9161/AD9162 IOUTFS = 40 mA, fDAC = 5.0 GSPS, nominal supplies, TA = 25°C, unless otherwise noted. Data Sheet 14379-053 14379-051 Figure 106. Single-Carrier W-CDMA at 1887.5 MHz 60 FIRST ACLR SECOND ACLR 65 70 ACLR (dBc) 75 80 85 14379-054 90 2600 2800 3000 3200 3400 fOUT (MHz) 3600 3800 Figure 107. Single-Carrier, W-CDMA ACLR vs. fOUT (First ACLR, Second ACLR) 60 THIRD ACLR FOURTH ACLR FIFTH ACL 65 70 ACLR (dBc) 75 80 85 90 2600 2800 3000 3200 3400 fOUT (MHz) 3600 3800 Figure 108. Single-Carrier, W-CDMA ACLR vs. fOUT (Third ACLR, Fourth ACLR, Fifth ACLR) 14379-055 ACLR (dBc) Figure 109. Four-Carrier W-CDMA at 1980 MHz 60 FIRST ACLR SECOND ACLR 65 70 ACLR (dBc) 75 80 85 14379-056 90 2600 2800 3000 3200 3400 fOUT (MHz) 3600 3800 Figure 110. Four-Carrier, W-CDMA ACLR vs. fOUT (First ACLR, Second ACLR) 60 THIRD ACLR FOURTH ACLR FIFTH ACL 65 70 75 80 85 14379-057 90 2600 2800 3000 3200 3400 fOUT (MHz) 3600 3800 Figure 111. Four-Carrier, W-CDMA ACLR vs. fOUT (Third ACLR, Fourth ACLR, Fifth ACLR) Rev. D | Page 36 of 36 Data Sheet AD9161/AD9162 14379-361 DOCSIS Performance (NRZ Mode) IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 0 0 10 10 20 20 14379-058 MAGNITUDE (dBc) MAGNITUDE (dBc) 30 30 40 40 50 50 60 60 70 70 80 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 112. Single Carrier at 70 MHz Output 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 115. Single Carrier at 70 MHz Output (Shuffle On) MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 113. Four Carriers at 70 MHz Output 14379-059 MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 116. Four Carriers at 70 MHz Output (Shuffle On) MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 114. Eight Carriers at 70 MHz Output 14379-060 MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 117. Eight Carriers at 70 MHz Output (Shuffle On) 14379-362 14379-363 Rev. D | Page 37 of 144 AD9161/AD9162 Data Sheet 14379-365 IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 0 0 10 10 20 20 14379-061 MAGNITUDE (dBc) MAGNITUDE (dBc) 30 30 40 40 50 50 60 60 70 70 80 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 118. Single Carrier at 950 MHz Output 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 121. Four Carriers at 950 MHz Output (Shuffle On) MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 119. Single Carrier at 950 MHz Output (Shuffle On) 14379-364 MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 122. Eight Carriers at 950 MHz Output MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 120. Four Carriers at 950 MHz Output 14379-062 MAGNITUDE (dBc) 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 123. Eight Carriers at 950 MHz Output (Shuffle On) 14379-063 14379-366 Rev. D | Page 38 of 144 Data Sheet AD9161/AD9162 IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 40 40 IN-BAND THIRD HARMONIC (dBc) IN-BAND SECOND HARMONIC (dBc) 50 50 60 60 70 70 80 80 14379-064 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 124. In-Band Second Harmonic vs. fOUT Performance for One DOCSIS Carrier 40 14379-067 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 127. In-Band Third Harmonic vs. fOUT Performance for One DOCSIS Carrier 40 IN-BAND THIRD HARMONIC (dBc) IN-BAND SECOND HARMONIC (dBc) 50 50 60 60 70 70 80 80 14379-065 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 125. In-Band Second Harmonic vs. fOUT Performance for Four DOCSIS Carriers 40 14379-068 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 128. In-Band Third Harmonic vs. fOUT Performance for Four DOCSIS Carriers 40 IN-BAND THIRD HARMONIC (dBc) IN-BAND SECOND HARMONIC (dBc) 50 50 60 60 70 70 80 80 14379-066 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 126. In-Band Second Harmonic vs. fOUT Performance for Eight DOCSIS Carriers 14379-069 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 129. In-Band Third Harmonic vs. fOUT Performance for Eight DOCSIS Carriers Rev. D | Page 39 of 144 AD9161/AD9162 Data Sheet IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 40 Y-AXIS: FIRST ACPR Y-AXIS: SECOND ACPR Y-AXIS: THIRD ACPR Y-AXIS: FOURTH ACPR 50 Y-AXIS: FIFTH ACPR 40 Y-AXIS: FIRST ACPR Y-AXIS: SECOND ACPR Y-AXIS: THIRD ACPR Y-AXIS: FOURTH ACPR 50 Y-AXIS: FIFTH ACPR 14379-070 ACPR (dBc) ACPR (dBc) 60 60 70 70 80 80 14379-073 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 130. Single-Carrier Adjacent Channel Power Ratio (ACPR) vs. fOUT 40 Y-AXIS: FIRST ACPR Y-AXIS: SECOND ACPR Y-AXIS: THIRD ACPR Y-AXIS: FOURTH ACPR 50 Y-AXIS: FIFTH ACPR 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 133. 16-Carrier ACPR vs. fOUT 40 Y-AXIS: FIRST ACPR Y-AXIS: SECOND ACPR Y-AXIS: THIRD ACPR Y-AXIS: FOURTH ACPR 50 Y-AXIS: FIFTH ACPR 14379-071 ACPR (dBc) ACPR (dBc) 60 60 70 70 80 80 14379-074 ACPR (dBc) 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 131. Four-Carrier ACPR vs. fOUT 40 Y-AXIS: FIRST ACPR Y-AXIS: SECOND ACPR Y-AXIS: THIRD ACPR Y-AXIS: FOURTH ACPR 50 Y-AXIS: FIFTH ACPR 60 70 80 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 132. Eight-Carrier ACPR vs. fOUT 14379-072 MAGNITUDE (dBc) 90 0 200 400 600 800 1000 1200 1400 fOUT (MHz) Figure 134. 32-Carrier ACPR vs. fOUT 0 10 20 30 40 50 60 70 80 90 0 500 1000 1500 2000 2500 3000 FREQUENCY (MHz) Figure 135. 194-Carrier, Sinc Enabled, FIR85 Enabled 14379-075 Rev. D | Page 40 of 144 Data Sheet AD9161/AD9162 MAGNITUDE (dBm) 14379-076 ACLR IN GAP CHANNEL (dBc) 14379-077 IOUTFS = 40 mA, fDAC = 3.076 GSPS, nominal supplies, FIR85 enabled, TA = 25°C, unless otherwise noted. 25 40 35 45 50 55 60 65 75 70 85 95 80 105 90 115 125 CENTER 77MHz RES BW 10kHz VBW 1.kHz SPAN 60.0MHz SWEEP 6.041s (1001pts) Figure 136. Gap Channel ACLR at 77 MHz 100 0 200 400 600 800 1000 1200 1400 fGAP (fOUT = fGAP) (MHz) Figure 137. ACLR in Gap Channel vs. fGAP Rev. D | Page 41 of 144 AD9161/AD9162 TERMINOLOGY Integral Nonlinearity (INL) INL is the maximum deviation of the actual analog output from the ideal output, determined by a straight line drawn from zero scale to full scale. Differential Nonlinearity (DNL) DNL is the measure of the variation in analog value, normalized to full scale, associated with a 1 LSB change in digital input code. Offset Error Offset error is the deviation of the output current from the ideal of 0 mA. For OUTPUT+, 0 mA output is expected when all inputs are set to 0. For OUTPUT-, 0 mA output is expected when all inputs are set to 1. Gain Error Gain error is the difference between the actual and ideal output span. The actual span is determined by the difference between the output when the input is at its minimum code and the output when the input is at its maximum code. Temperature Drift Temperature drift is specified as the maximum change from the ambient (25°C) value to the value at either TMIN or TMAX. For offset and gain drift, the drift is reported in ppm of full-scale range (FSR) per degree Celsius. For reference drift, the drift is reported in ppm per degree Celsius. Settling Time Settling time is the time required for the output to reach and remain within a specified error band around its final value, measured from the start of the output transition. Spurious-Free Dynamic Range (SFDR) SFDR is the difference, in decibels, between the peak amplitude of the output signal and the peak spurious signal within the dc to Nyquist frequency of the DAC. Typically, energy in this band is rejected by the interpolation filters. This specification, therefore, defines how well the interpolation filters work and the effect of other parasitic coupling paths on the DAC output. Data Sheet Signal-to-Noise Ratio (SNR) SNR is the ratio of the rms value of the measured output signal to the rms sum of all other spectral components below the Nyquist frequency, excluding the first six harmonics and dc. The value for SNR is expressed in decibels. Interpolation Filter If the digital inputs to the DAC are sampled at a multiple rate of the interpolation rate (fDATA), a digital filter can be constructed that has a sharp transition band near fDATA/2. Images that typically appear around the output data rate (fDAC) can be greatly suppressed. Adjacent Channel Leakage Ratio (ACLR) ACLR is the ratio in decibels relative to the carrier (dBc) between the measured power within a channel relative to its adjacent channel. Adjusted DAC Update Rate The adjusted DAC update rate is the DAC update rate divided by the smallest interpolating factor. For clarity on DACs with multiple interpolating factors, the adjusted DAC update rate for each interpolating factor may be given. Physical Lane Physical Lane x refers to SERDINx±. Logical Lane Logical Lane x refers to physical lanes after optionally being remapped by the crossbar block (Register 0x308 to Register 0x30B). Link Lane Link Lane x refers to logical lanes considered in the link. Rev. D | Page 42 of 144 Data Sheet THEORY OF OPERATION The AD9161/AD9162 are 11-bit and 16-bit single RF DACs with a SERDES interface. Figure 1 shows a detailed functional block diagram of the AD9161/AD9162. Eight high speed serial lanes carry data at a maximum speed of 12.5 Gbps, and either a 5 GSPS real input or a 2.5 GSPS complex input data rate to the DAC. Compared to either LVDS or CMOS interfaces, the SERDES interface simplifies pin count, board layout, and input clock requirements to the device. The clock for the input data is derived from the DAC clock, or device clock (required by the JESD204B specification). This device clock is sourced with a high fidelity direct external DAC sampling clock. The performance of the DAC can be optimized by using on-chip adjustments to the clock input accessible through the SPI port. The device can be configured to operate in one-lane, twolane, three-lane, four-lane, six-lane, or eight-lane modes, depending on the required input data rate. The digital datapath of the AD9161/AD9162 offers a bypass (1×) mode (AD9162 only) and several interpolation modes (2×, 3×, 4×, 6×, 8×, 12×, 16×, and 24×) through either an initial halfband (2×) or third-band (3×) filter with programmable 80% or 90% bandwidth, and three subsequent half-band filters (all 90%) with a maximum DAC sample rate of 6 GSPS. An inverse sinc filter is provided to compensate for sinc related roll-off. An additional half-band filter, FIR85, takes advantage of the quadswitch architecture to interpolate on the falling edge of the clock, and effectively double the DAC update rate in 2× NRZ mode. A 48-bit programmable modulus NCO is provided to enable digital frequency shifts of signals with near infinite precision. The NCO can be operated alone in NCO only mode (AD9162 only) or with digital data from the SERDES interface and digital datapath. The 100 MHz speed of the SPI write interface enables rapid updating of the frequency tuning word of the NCO. The AD9161/AD9162 DAC core provides a fully differential current output with a nominal full-scale current of 38.76 mA. The full-scale output current, IOUTFS, is user adjustable from 8 mA to 38.76 mA, typically. AD9161/AD9162 The differential current outputs are complementary. The DAC uses the patented quad-switch architecture, which enables DAC decoder options to extend the output frequency range into the second and third Nyquist zones with Mix-Mode, return to zero (RZ) mode, and 2× NRZ mode (with FIR85 enabled). Operating as a real mode DAC in 1× bypass (AD9162 only) and NRZ mode, the output signal can range from 0 Hz to 2.5 GHz. MixMode can be used to access 1.5 GHz to around 7.5 GHz. In the interpolation modes, the output can range from 0 Hz to 6 GHz in 2× NRZ mode using the NCO to shift a signal of up to 1.8 GHz instantaneous bandwidth to the desired fOUT. The AD9161/AD9162 are capable of multichip synchronization that can both synchronize multiple DACs and establish a constant and deterministic latency (latency locking) path for the DACs. The latency for each of the DACs remains constant to within several DAC clock cycles from link establishment to link establishment. An external alignment (SYSREF±) signal makes the AD9161/AD9162 Subclass 1 compliant. Several modes of SYSREF± signal handling are available for use in the system. An SPI configures the various functional blocks and monitors their statuses. The various functional blocks and the data interface must be set up in a specific sequence for proper operation (see the Start-Up Sequence section). Simple SPI initialization routines set up the JESD204B link and are included in the evaluation board package. This data sheet describes the various blocks of the AD9161/AD9162 in greater detail. Descriptions of the JESD204B interface, control parameters, and various registers to set up and monitor the device are provided. The recommended start-up routine reliably sets up the data link. Rev. D | Page 43 of 144 AD9161/AD9162 Data Sheet SERIAL PORT OPERATION The serial port is a flexible, synchronous serial communications port that allows easy interfacing with many industry-standard microcontrollers and microprocessors. The serial input/output (I/O) is compatible with most synchronous transfer formats, including both the Motorola SPI and Intel® SSR protocols. The interface allows read/write access to all registers that configure the AD9161/AD9162. MSB first or LSB first transfer formats are supported. The serial port interface can be configured as a 4-wire interface or a 3-wire interface in which the input and output share a single-pin I/O (SDIO). A14 to A0, Bit I14 to Bit I0 of the instruction word, determine the register that is accessed during the data transfer portion of the communication cycle. For multibyte transfers, A[14:0] is the starting address. The remaining register addresses are generated by the device based on the address increment bit. If the address increment bits are set high (Register 0x000, Bit 5 and Bit 2), multibyte SPI writes start on A[14:0] and increment by 1 every eight bits sent/received. If the address increment bits are set to 0, the address decrements by 1 every eight bits. SERIAL PORT PIN DESCRIPTIONS SDO G11 Serial Clock (SCLK) SDIO G10 SPI SCLK H10 PORT CS F12 14379-078 Figure 138. Serial Port Interface Pins (11 mm × 11 mm CSP_BGA) There are two phases to a communication cycle with the AD9161/ AD9162. Phase 1 is the instruction cycle (the writing of an instruction byte into the device), coincident with the first 16 SCLK rising edges. The instruction word provides the serial port controller with information regarding the data transfer cycle, Phase 2 of the communication cycle. The Phase 1 instruction word defines whether the upcoming data transfer is a read or write, along with the starting register address for the following data transfer. A logic high on the CS pin followed by a logic low resets the serial port timing to the initial state of the instruction cycle. From this state, the next 16 rising SCLK edges represent the instruction bits of the current I/O operation. The remaining SCLK edges are for Phase 2 of the communication cycle. Phase 2 is the actual data transfer between the device and the system controller. Phase 2 of the communication cycle is a transfer of one or more data bytes. Eight × N SCLK cycles are needed to transfer N bytes during the transfer cycle. Registers change immediately upon writing to the last bit of each transfer byte, except for the frequency tuning word (FTW) and numerically controlled oscillator (NCO) phase offsets, which change only when the frequency tuning word FTW_LOAD_REQ bit is set. DATA FORMAT The instruction byte contains the information shown in Table 15. Table 15. Serial Port Instruction Word I15 (MSB) I[14:0] R/W A[14:0] R/W, Bit 15 of the instruction word, determines whether a read or a write data transfer occurs after the instruction word write. Logic 1 indicates a read operation, and Logic 0 indicates a write operation. The serial clock pin synchronizes data to and from the device and runs the internal state machines. The maximum frequency of SCLK is 100 MHz. All data input is registered on the rising edge of SCLK. All data is driven out on the falling edge of SCLK. Chip Select (CS) An active low input starts and gates a communication cycle. CS allows more than one device to be used on the same serial communications lines. The SDIO pin goes to a high impedance state when this input is high. During the communication cycle, the chip select must stay low. Serial Data I/O (SDIO) This pin is a bidirectional data line. In 4-wire mode, this pin acts as the data input and SDO acts as the data output. SERIAL PORT OPTIONS The serial port can support both MSB first and LSB first data formats. This functionality is controlled by the LSB first bit (Register 0x000, Bit 6 and Bit 1). The default is MSB first (LSB bit = 0). When the LSB first bits = 0 (MSB first), the instruction and data bits must be written from MSB to LSB. R/W is followed by A[14:0] as the instruction word, and D[7:0] is the data-word. When the LSB first bits = 1 (LSB first), the opposite is true. A[0:14] is followed by R/W, which is subsequently followed by D[0:7]. The serial port supports a 3-wire or 4-wire interface. When the SDO active bits = 1 (Register 0x000, Bit 4 and Bit 3), a 4-wire interface with a separate input pin (SDIO) and output pin (SDO) is used. When the SDO active bits = 0, the SDO pin is unused and the SDIO pin is used for both the input and the output. Multibyte data transfers can be performed as well by holding the CS pin low for multiple data transfer cycles (eight SCLKs) after the first data transfer word following the instruction cycle. The first eight SCLKs following the instruction cycle read from or write to the register provided in the instruction cycle. For each additional eight SCLK cycles, the address is either incremented or decremented and the read/write occurs on the new register. The direction of the address can be set using ADDRINC or ADDRINC_M (Register 0x000, Bit 5 and Bit 2). When ADDRINC Rev. D | Page 44 of 144 Data Sheet AD9161/AD9162 14379-080 14379-081 or ADDRINC_M is 1, the multicycle addresses are incremented. When ADDRINC or ADDRINC_M is 0, the addresses are decremented. A new write cycle can always be initiated by bringing CS high and then low again. To prevent confusion and to ensure consistency between devices, the chip tests the first nibble following the address phase, ignoring the second nibble. This test is completed independently from the LSB first bits and ensures that there are extra clock cycles following the soft reset bits (Register 0x000, Bit 0 and Bit 7). This test of the first nibble only applies when writing to Register 0x000. INSTRUCTION CYCLE DATA TRANSFER CYCLE CS SCLK 14379-079 SDIO R/W A14 A13 A3 A2 A1 A0 D7N D6N D5N D30 D20 D10 D00 Figure 139. Serial Register Interface Timing, MSB First, Register 0x000, Bit 5 and Bit 2 = 0 CS SCLK INSTRUCTION CYCLE DATA TRANSFER CYCLE SDIO A0 A1 A2 A12 A13 A14 R/W D00 D10 D20 D4N D5N D6N D7N Figure 140. Serial Register Interface Timing, LSB First, Register 0x000, Bit 5 and Bit 2 = 1 CS SCLK SDIO tDV DATA BIT n DATA BIT n 1 Figure 141. Timing Diagram for Serial Port Register Read CS SCLK SDIO tS tH tPWH tPWL tDS tDH INSTRUCTION BIT 15 INSTRUCTION BIT 14 INSTRUCTION BIT 0 Figure 142. Timing Diagram for Serial Port Register Write 14379-082 Rev. D | Page 45 of 45 AD9161/AD9162 Data Sheet JESD204B SERIAL DATA INTERFACE JESD204B OVERVIEW The AD9161/AD9162 have eight JESD204B data ports that receive data. The eight JESD204B ports can be configured as part of a single JESD204B link that uses a single system reference (SYSREF±) and device clock (CLK±). The JESD204B serial interface hardware consists of three layers: the physical layer, the data link layer, and the transport layer. These sections of the hardware are described in subsequent sections, including information for configuring every aspect of the interface. Figure 143 shows the communication layers implemented in the AD9161/AD9162 serial data interface to recover the clock and deserialize, descramble, and deframe the data before it is sent to the digital signal processing section of the device. The physical layer establishes a reliable channel between the transmitter (Tx) and the receiver (Rx); the data link layer is responsible for unpacking the data into octets and descrambling the data. The transport layer receives the descrambled JESD204B frames and converts them to DAC samples. A number of JESD204B parameters (L, F, K, M, N, NP, S, HD) define how the data is packed and tell the device how to turn the serial data into samples. These parameters are defined in detail in the Transport Layer section. The AD9161/AD9162 also have a descrambling option (see the Descrambler section for more information). SYNCOUT± SERDIN0± PHYSICAL LAYER DESERIALIZER DATA LINK LAYER SERDIN7± DESERIALIZER QBD/ DESCRAMBLER The various combinations of JESD204B parameters that are supported depend solely on the number of lanes. Thus, a unique set of parameters can be determined by selecting the lane count to be used. In addition, the interpolation rate and number of lanes can be used to define the rest of the configuration needed to set up the AD9161/AD9162. The interpolation rate and the number of lanes are selected in Register 0x110. The AD9161/AD9162 have a single DAC output; however, for the purposes of the complex signal processing on chip, the converter count is defined as M = 2 whenever interpolation is used. For a particular application, the number of converters to use (M) and the DataRate variable are known. The LaneRate variable and number of lanes (L) can be traded off as follows: DataRate = (DACRate)/(InterpolationFactor) LaneRate = (20 × DataRate × M)/L where LaneRate must be between 750 Mbps and 12.5 Gbps. Achieving and recovering synchronization of the lanes is very important. To simplify the interface to the transmitter, the AD9161/AD9162 designate a master synchronization signal for each JESD204B link. The SYNCOUT± pin is used as the master signal for all lanes. If any lane in a link loses synchronization, a resynchronization request is sent to the transmitter via the synchronization signal of the link. The transmitter stops sending data and instead sends synchronization characters to all lanes in that link until resynchronization is achieved. TRANSPORT LAYER I DATA[15:0] FRAME TO SAMPLES TO DAC DSP BLOCK Q DATA[15:0] 14379-083 SYSREF± Figure 143. Functional Block Diagram of Serial Link Receiver Table 16. Single-Link JESD204B Operating Modes Parameter L (Lane Count) M (Converter Count) F (Octets per Frame per Lane) S (Samples per Converter per Frame) Number of Lanes (L) 1 2 3 4 6 8 1 2 3 4 6 8 2 2 2 2 2 1 (real), 2 (complex) 4 2 4 1 2 1 1 1 3 1 3 4 (real), 2 (complex) Rev. D | Page 46 of 144 Data Sheet AD9161/AD9162 Table 17. Data Structure per Lane for JESD204B Operating Modes1 JESD204B Parameters Lane No. Frame 0 L = 8, M = 1, F = 1, S = 4 Lane 0 M0S0[15:8] Lane 1 M0S0[7:0] Lane 2 M0S1[15:8] Lane 3 M0S1[7:0] Lane 4 M0S2[15:8] Lane 5 M0S2[7:0] Lane 6 M0S3[15:8] Lane 7 M0S3[7:0] L = 8, M = 2, F = 1, S = 2 Lane 0 M0S0[15:8] Lane 1 M0S0[7:0] Lane 2 M0S1[15:8] Lane 3 M0S1[7:0] Lane 4 M1S0[15:8] Lane 5 M1S0[7:0] Lane 6 M1S1[15:8] Lane 7 M1S1[7:0] L = 6, M = 2, F = 2, S = 3 Lane 0 M0S0[15:8] Lane 1 M0S1[15:8] Lane 2 M0S2[15:8] Lane 3 M1S0[15:8] Lane 4 M1S1[15:8] Lane 5 M1S2[15:8] L = 4, M = 2, F = 1, S = 1 Lane 0 M0S0[15:8] Lane 1 M0S0[7:0] Lane 2 M1S0[15:8] Lane 3 M1S0[7:0] L = 3, M = 2, F = 4, S = 3 Lane 0 M0S0[15:8] Lane 1 M0S2[15:8] Lane 2 M1S1[15:8] L = 2, M = 2, F = 2, S = 1 Lane 0 M0S0[15:8] Lane 1 M1S0[15:8] L = 1, M = 2, F = 4, S = 1 Lane 0 M0S0[15:8] Frame 1 M0S0[7:0] M0S1[7:0] M0S2[7:0] M1S0[7:0] M1S1[7:0] M1S2[7:0] M0S0[7:0] M0S2[7:0] M1S1[7:0] M0S0[7:0] M1S0[7:0] M0S0[7:0] Frame 2 M0S1[15:8] M1S0[15:8] M1S2[15:8] M1S0[15:8] 1 Mx is the converter number and Sy is the sample number. For example, M0S0 means Converter 0, Sample 0. Blank cells are not applicable. Frame 3 M0S1[7:0] M1S0[7:0] M1S2[7:0] M1S0[7:0] PHYSICAL LAYER The physical layer of the JESD204B interface, hereafter referred to as the deserializer, has eight identical channels. Each channel consists of the terminators, an equalizer, a clock and data recovery (CDR) circuit, and the 1:40 demux function (see Figure 144). DESERIALIZER SERDINx± TERMINATION EQUALIZER CDR 1:40 SPI CONTROL FROM SERDES PLL Figure 144. Deserializer Block Diagram 14379-084 JESD204B data is input to the AD9161/AD9162 via the SERDINx± 1.2 V differential input pins as per the JESD204B specification. Interface Power-Up and Input Termination Before using the JESD204B interface, it must be powered up by setting Register 0x200, Bit 0 = 0. In addition, each physical lane (PHY) that is not being used (SERDINx±) must be powered down. To do so, set the corresponding Bit x for Physical Lane x in Register 0x201 to 0 if the physical lane is being used, and to 1 if it is not being used. The AD9161/AD9162 autocalibrate the input termination to 50 . Before running the termination calibration, Register 0x2A7 and Register 0x2AE must be written as described in Table 18 to guarantee proper calibration. The termination calibration begins when Register 0x2A7, Bit 0 and Register 0x2AE, Bit 0 transition from low to high. Register 0x2A7 controls autocalibration for Rev. D | Page 47 of 144 AD9161/AD9162 Data Sheet PHY 0, PHY 1, PHY 6, and PHY 7. Register 0x2AE controls autocalibration for PHY 2, PHY 3, PHY 4, and PHY 5. The PHY termination autocalibration routine is as shown in Table 18. Table 18. PHY Termination Autocalibration Routine Address Value Description 0x2A7 0x01 Autotune PHY 0, PHY 1, PHY 6, and PHY 7 terminations 0x2AE 0x01 Autotune PHY 2, PHY 3, PHY 4, and PHY 5 terminations The input termination voltage of the DAC is sourced externally via the VTT_1P2 pins (M3 and M 13 on the 8 mm × 8 mm BGA package, or K3 and K13 on the 11 mm × 11 mm BGA package). Set VTT, the termination voltage, by connecting it to VDD_1P2. It is recommended that the JESD204B inputs be accoupled to the JESD204B transmit device using 100 nF capacitors. The calibration code of the termination can be read from Bits[3:0] in Register 0x2AC (PHY 0, PHY 1, PHY 6, PHY 7) and Register 0x2B3 (PHY 2, PHY 3, PHY 4, PHY 5). If needed, the termination values can be adjusted or set using several registers. The TERM_BLKx_CTRLREG1 registers (Register 0x2A8 and Register 0x2AF), can override the autocalibrated value. When set to 0xXXX0XXXX, the termination block autocalibrates, which is the normal, default setting. When set to 0xXXX1XXXX, the autocalibration value is overwritten with the value in Bits[3:1] of Register 0x2A8 and Register 0x2AF. Individual offsets from the autocalibration value for each lane can be programmed in Bits[3:0] of Register 0x2BB to Register 0x2C2. The value is a signed magnitude, with Bit 3 as the sign bit. The total range of the termination resistor value is about 94 to 120 , with approximately 3.5% increments across the range (for example, smaller steps at the bottom of the range than at the top). Receiver Eye Mask The AD9161/AD9162 comply with the JESD204B specification regarding the receiver eye mask and is capable of capturing data that complies with this mask. Figure 145 shows the receiver eye mask normalized to the data rate interval with a 600 mV VTT swing. See the JESD204B specification for more information regarding the eye mask and permitted receiver eye opening. LV-OIF-11G-SR RECEIVER EYE MASK 525 55 0 55 525 Clock Relationships The following clocks rates are used throughout the rest of the JESD204B section. The relationship between any of the clocks can be derived from the following equations: DataRate = (DACRate)/(InterpolationFactor) LaneRate = (20 × DataRate × M)/L ByteRate = LaneRate/10 This relationship comes from 8-bit/10-bit encoding, where each byte is represented by 10 bits. PCLK Rate = ByteRate/4 The processing clock is used for a quad-byte decoder. FrameRate = ByteRate/F where F is defined as octets per frame per lane. PCLK Factor = FrameRate/PCLK Rate = 4/F where: M is the JESD204B parameter for converters per link. L is the JESD204B parameter for lanes per link. F is the JESD204B parameter for octets per frame per lane. SERDES PLL Functional Overview of the SERDES PLL The independent SERDES PLL uses integer N techniques to achieve clock synthesis. The entire SERDES PLL is integrated on chip, including the VCO and the loop filter. The SERDES PLL VCO operates over the range of 6 GHz to 12.5 GHz. In the SERDES PLL, a VCO divider block divides the VCO clock by 2 to generate a 3 GHz to 6.25 GHz quadrature clock for the deserializer cores. This clock is the input to the clock and data recovery block that is described in the Clock and Data Recovery section. The reference clock to the SERDES PLL is always running at a frequency, fREF, which is equal to 1/40 of the lane rate (PCLK Rate). This clock is divided by a DivFactor value (set by SERDES_PLL_ DIV_FACTOR) to deliver a clock to the phase frequency detector (PFD) block that is between 35 MHz and 80 MHz. Table 19 includes the respective SERDES_PLL_DIV_FACTOR register settings for each of the desired PLL_REF_CLK_RATE options available. Table 19. SERDES PLL Divider Settings Lane Rate (Gbps) PLL_REF_CLK_RATE, Register 0x084, Bits[5:4] SERDES_PLL_DIV_FAC TOR Register 0x289, Bits[1:0] 0.750 to 1.5625 0b01 = 2× 0b10 = ÷1 1.5 to 3.125 0b00 = 1× 0b10 = ÷1 3 to 6.25 0b00 = 1× 0b01 = ÷2 6 to 12.5 0b00 = 1× 0b00 = ÷4 AMPLITUDE (mV) 14379-085 0 0.35 0.5 0.65 1.00 TIME (UI) Figure 145. Receiver Eye Mask for 600 mV VTT Swing Rev. D | Page 48 of 144 Data Sheet AD9161/AD9162 Register 0x280 controls the synthesizer enable and recalibration. To enable the SERDES PLL, first set the PLL divider register (see Table 19). Then enable the SERDES PLL by writing Register 0x280, Bit 0 = 1. If a recalibration is needed, write Register 0x280, Bit 2 = 0b1 and then reset the bit to 0b0. The rising edge of the bit causes a recalibration to begin. Confirm that the SERDES PLL is working by reading Register 0x281. If Register 0x281, Bit 0 = 1, the SERDES PLL has locked. If Register 0x281, Bit 3 = 1, the SERDES PLL was successfully calibrated. If Register 0x281, Bit 4 or Bit 5 is high, the PLL reaches the lower or upper end of its calibration band and must be recalibrated by writing 0 and then 1 to Register 0x280, Bit 2. Clock and Data Recovery The deserializer is equipped with a CDR circuit. Instead of recovering the clock from the JESD204B serial lanes, the CDR recovers the clocks from the SERDES PLL. The 3 GHz to 6.25 GHz output from the SERDES PLL, shown in Figure 146, is the input to the CDR. A CDR sampling mode must be selected to generate the lane rate clock inside the device. If the desired lane rate is greater than 6.25 GHz, half rate CDR operation must be used. If the desired lane rate is less than 6.25 GHz, disable half rate operation. If the lane rate is less than 3 GHz, disable full rate and enable 2× oversampling to recover the appropriate lane rate clock. Table 20 gives a breakdown of CDR sampling settings that must be set depending on the LaneRate value. Table 20. CDR Operating Modes LaneRate (Gbps) 0.750 to 1.5625 1.5 to 3.125 3 to 6.25 6 to 12.5 SPI_ENHALFRATE Register 0x230, Bit 5 0 (full rate) 0 (full rate) 0 (full rate) 1 (half rate) SPI_DIVISION_RATE, Register 0x230, Bits[2:1] 10b (divide by 4) 01b (divide by 2) 00b (no divide) 00b (no divide) The CDR circuit synchronizes the phase used to sample the data on each serial lane independently. This independent phase adjustment per serial interface ensures accurate data sampling and eases the implementation of multiple serial interfaces on a PCB. After configuring the CDR circuit, reset it and then release the reset by writing 1 and then 0 to Register 0x206, Bit 0. Power-Down Unused PHYs Note that any unused and enabled lanes consume extra power unnecessarily. Each lane that is not being used (SERDINx±) must be powered off by writing a 1 to the corresponding bit of PHY_PD (Register 0x201). Equalization To compensate for signal integrity distortions for each PHY channel due to PCB trace length and impedance, the AD9161/AD9162 employ an easy to use, low power equalizer on each JESD204B channel. The AD9161/AD9162 equalizers can compensate for insertion losses far greater than required by the JESD204B specification. The equalizers have two modes of operation that are determined by the EQ_POWER_MODE register setting in Register 0x268, Bits[7:6]. In low power mode (Register 0x268, Bits[7:6] = 2b'01) and operating at the maximum lane rate of 12.5 GBPS, the equalizer can compensate for up to 11.5 dB of insertion loss. In normal mode (Register 0x268, Bits[7:6] = 2b'00), the equalizer can compensate for up to 17.2 dB of insertion loss. This performance is shown in Figure 147 as an overlay to the JESD204B specification for insertion loss. Figure 147 shows the equalization performance at 12.5 Gbps, near the maximum baud rate for the AD9161/AD9162. INTERPOLATION JESD LANES REG 0x110 DAC CLOCK (5GHz) ÷4 PCLK GENERATOR MODE HALF RATE FULL RATE, NO DIV FULL RATE, DIV 2 FULL RATE, DIV 4 DIVIDE (N) 20 40 80 160 ENABLE HALF RATE DIVISION RATE REG 0x230 CDR OVERSAMP REG 0x289 PLL REF CLOCK VALID RANGE ÷4, ÷2, 35MHz TO 80MHz OR ÷1 SAMPLE CLOCK I, Q TO CDR VALID RANGE 3GHz TO 6.25GHz CP LF ÷2 CDR ÷N ÷8 JESD LANE CLOCK (SAME RATE AS PCLK) 14379-086 PLL_REF_CLK_RATE 1×, 2×, 4× REG 0x084 ÷6 TO ÷127, DEFAULT: 10 Figure 146. SERDES PLL Synthesizer Block Diagram Including VCO Divider Block Rev. D | Page 49 of 144 AD9161/AD9162 Figure 148 and Figure 149 are provided as points of reference for hardware designers and show the insertion loss for various lengths of well laid out stripline and microstrip transmission lines, respectively. See the Hardware Considerations section for specific layout recommendations for the JESD204B channel. Low power mode is recommended if the insertion loss of the JESD204B PCB channels is less than that of the most lossy supported channel for low power mode (shown in Figure 147). If the insertion loss is greater than that, but still less than that of the most lossy supported channel for normal mode (shown in Figure 147), use normal mode. At 12.5 Gbps operation, the equalizer in normal mode consumes about 4 mW more power per lane used than in low power equalizer mode. Note that either mode can be used in conjunction with transmitter preemphasis to ensure functionality and/or optimize for power. 0 JESD204B SPEC ALLOWED 2 CHANNEL LOSS EXAMPLE OF JESD204B 4 COMPLIANT CHANNEL INSERTION LOSS (dB) 6 8 10 AD9161/AD9162 ALLOWED CHANNEL LOSS 12 (LOW POWER MODE) EXAMPLE OF AD9161/AD9162 COMPATIBLE CHANNEL (LOW POWER MODE) 14 AD9161/AD9162 ALLOWED CHANNEL LOSS 16 (NORMAL MODE) 18 EXAMPLE OF AD9161/AD9162 20 COMPATIBLE CHANNEL (NORMAL MODE) 22 14379-087 24 3.125 6.25 9.375 FREQUENCY (GHz) Figure 147. Insertion Loss Allowed 0 5 10 ATTENUATION (dB) 15 20 25 STRIPLINE = 6" 30 STRIPLINE = 10" STRIPLINE = 15" 35 STRIPLINE = 20" STRIPLINE = 25" STRIPLINE = 30" 40 0 1 2 3 4 5 6 7 8 9 10 FREQUENCY (GHz) Figure 148. Insertion Loss of 50 Striplines on FR4 14379-088 Data Sheet 0 5 10 ATTENUATION (dB) 15 20 25 30 6" MICROSTRIP 10" MICROSTRIP 15" MICROSTRIP 35 20" MICROSTRIP 25" MICROSTRIP 30" MICROSTRIP 40 0 1 2 3 4 5 6 7 8 9 10 FREQUENCY (GHz) Figure 149. Insertion Loss of 50 Microstrips on FR4 14379-089 DATA LINK LAYER The data link layer of the AD9161/AD9162 JESD204B interface accepts the deserialized data from the PHYs and deframes, and descrambles them so that data octets are presented to the transport layer to be put into DAC samples. The architecture of the data link layer is shown in Figure 150. The data link layer consists of a synchronization FIFO for each lane, a crossbar switch, a deframer, and a descrambler. The AD9161/AD9162 can operate as a single-link high speed JESD204B serial data interface. All eight lanes of the JESD204B interface handle link layer communications such as code group synchronization (CGS), frame alignment, and frame synchronization. The AD9161/AD9162 decode 8-bit/10-bit control characters, allowing marking of the start and end of the frame and alignment between serial lanes. Each AD9161/AD9162 serial interface link can issue a synchronization request by setting its SYNCOUT± signal low. The synchronization protocol follows Section 4.9 of the JESD204B standard. When a stream of four consecutive /K/ symbols is received, the AD9161/AD9162 deactivates the synchronization request by setting the SYNCOUT± signal high at the next internal LMFC rising edge. Then, AD9161/AD9162 wait for the transmitter to issue an initial lane alignment sequence (ILAS). During the ILAS, all lanes are aligned using the /A/ to /R/ character transition as described in the JESD204B Serial Link Establishment section. Elastic buffers hold early arriving lane data until the alignment character of the latest lane arrives. At this point, the buffers for all lanes are released and all lanes are aligned (see Figure 151). Rev. D | Page 50 of 144 Data Sheet SYNCOUTx± LANE 0 DESERIALIZED AND DESCRAMBLED DATA LANE 0 DATA CLOCK SERDIN0± FIFO LANE 7 DESERIALIZED AND DESCRAMBLED DATA LANE 7 DATA CLOCK SERDIN7± FIFO DATA LINK LAYER QUAD-BYTE DEFRAMER QBD CROSSBAR SWITCH AD9161/AD9162 LANE 0 OCTETS LANE 7 OCTETS 10-BIT/8-BIT DECODE DESCRAMBLE 14379-090 SYSREF± PCLK SPI CONTROL SYSTEM CLOCK PHASE DETECT Figure 150. Data Link Layer Block Diagram L RECEIVE LANES (EARLIEST ARRIVAL) K K K R D D DDARQC C DDARDD L RECEIVE LANES (LATEST ARRIVAL) K K K K K K K R D D DDARQC C DDARDD 0 CHARACTER ELASTIC BUFFER DELAY OF LATEST ARRIVAL 4 CHARACTER ELASTIC BUFFER DELAY OF EARLIEST ARRIVAL L ALIGNED RECEIVE LANES K K K K K K K R D D DDARQC C K = K28.5 CODE GROUP SYNCHRONIZATION COMMA CHARACTER A = K28.3 LANE ALIGNMENT SYMBOL F = K28.7 FRAME ALIGNMENT SYMBOL R = K28.0 START OF MULTIFRAME Q = K28.4 START OF LINK CONFIGURATION DATA C = JESD204x LINK CONFIGURATION PARAMETERS D = Dx.y DATA SYMBOL Figure 151. Lane Alignment During ILAS DDARDD 14379-091 JESD204B Serial Link Establishment A brief summary of the high speed serial link establishment process for Subclass 1 is provided. See Section 5.3.3 of the JESD204B specifications document for complete details. Step 1: Code Group Synchronization Each receiver must locate /K/ (K28.5) characters in its input data stream. After four consecutive /K/ characters are detected on all link lanes, the receiver block deasserts the SYNCOUT± signal to the transmitter block at the receiver LMFC edge. The transmitter captures the change in the SYNCOUT± signal and at a future transmitter LMFC rising edge starts the ILAS. Step 2: Initial Lane Alignment Sequence The main purposes of this phase are to align all the lanes of the link and to verify the parameters of the link. Before the link is established, write each of the link parameters to the receiver device to designate how data is sent to the receiver block. The ILAS consists of four or more multiframes. The last character of each multiframe is a multiframe alignment character, /A/. The first, third, and fourth multiframes are populated with predetermined data values. Note that Section 8.2 of the JESD204B specifications document describes the data ramp that is expected during ILAS. The AD9161/AD9162 do not require this ramp. The deframer uses the final /A/ of each lane to align the ends of the multiframes within the receiver. The second multiframe contains an /R/ (K.28.0), /Q/ (K.28.4), and then data corresponding to the link parameters. Additional multiframes can be added to the ILAS if needed by the receiver. By default, the AD9161/AD9162 use four multiframes in the ILAS (this can be changed in Register 0x478). If using Subclass 1, exactly four multiframes must be used. After the last /A/ character of the last ILAS, multiframe data begins streaming. The receiver adjusts the position of the /A/ character such that it aligns with the internal LMFC of the receiver at this point. Rev. D | Page 51 of 51 AD9161/AD9162 Step 3: Data Streaming In this phase, data is streamed from the transmitter block to the receiver block. Optionally, data can be scrambled. Scrambling does not start until the very first octet following the ILAS. The receiver block processes and monitors the data it receives for errors, including the following: · Bad running disparity (8-bit/10-bit error) · Not in table (8-bit/10-bit error) · Unexpected control character · Bad ILAS · Interlane skew error (through character replacement) If any of these errors exist, they are reported back to the transmitter in one of the following ways (see the JESD204B Error Monitoring section for details): · SYNCOUT± signal assertion: resynchronization (SYNCOUT± signal pulled low) is requested at each error for the last two errors. For the first three errors, an optional resynchronization request can be asserted when the error counter reaches a set error threshold. · For the first three errors, each multiframe with an error in it causes a small pulse on SYNCOUT±. · Errors can optionally trigger an interrupt request (IRQ) event, which can be sent to the transmitter. For more information about the various test modes for verifying the link integrity, see the JESD204B Test Modes section. Lane FIFO The FIFOs in front of the crossbar switch and deframer synchronize the samples sent on the high speed serial data interface with the deframer clock by adjusting the phase of the incoming data. The FIFO absorbs timing variations between the data source and the deframer; this allows up to two PCLK cycles of drift from the transmitter. The FIFO_STATUS_REG_0 register and FIFO_STATUS_REG_1 register (Register 0x30C and Register 0x30D, respectively) can be monitored to identify whether the FIFOs are full or empty. Lane FIFO IRQ An aggregate lane FIFO error bit is also available as an IRQ event. Use Register 0x020, Bit 2 to enable the FIFO error bit, and then use Register 0x024, Bit 2 to read back its status and reset the IRQ signal. See the Interrupt Request Operation section for more information. Crossbar Switch Register 0x308 to Register 0x30B allow arbitrary mapping of physical lanes (SERDINx±) to logical lanes used by the SERDES deframers. Data Sheet Table 21. Crossbar Registers Address Bits Logical Lane 0x308 [2:0] SRC_LANE0 0x308 [5:3] SRC_LANE1 0x309 [2:0] SRC_LANE2 0x309 [5:3] SRC_LANE3 0x30A [2:0] SRC_LANE4 0x30A [5:3] SRC_LANE5 0x30B [2:0] SRC_LANE6 0x30B [5:3] SRC_LANE7 Write each SRC_LANEy with the number (x) of the desired physical lane (SERDINx±) from which to obtain data. By default, all logical lanes use the corresponding physical lane as their data source. For example, by default, SRC_LANE0 = 0; therefore, Logical Lane 0 obtains data from Physical Lane 0 (SERDIN0±). To use SERDIN4± as the source for Logical Lane 0 instead, the user must write SRC_LANE0 = 4. Lane Inversion Register 0x334 allows inversion of desired logical lanes, which can be used to ease routing of the SERDINx± signals. For each Logical Lane x, set Bit x of Register 0x334 to 1 to invert it. Deframer The AD9161/AD9162 consist of one quad-byte deframer (QBD). The deframer accepts the 8-bit/10-bit encoded data from the deserializer (via the crossbar switch), decodes it, and descrambles it into JESD204B frames before passing it to the transport layer to be converted to DAC samples. The deframer processes four symbols (or octets) per processing clock (PCLK) cycle. The deframer uses the JESD204B parameters that the user has programmed into the register map to identify how the data is packed, and unpacks it. The JESD204B parameters are described in detail in the Transport Layer section; many of the parameters are also needed in the transport layer to convert JESD204B frames into samples. Descrambler The AD9161/AD9162 provide an optional descrambler block using a self synchronous descrambler with the following polynomial: 1 + x14 + x15. Enabling data scrambling reduces spectral peaks that are produced when the same data octets repeat from frame to frame. It also makes the spectrum data independent so that possible frequency selective effects on the electrical interface do not cause data dependent errors. Descrambling of the data is enabled by setting the SCR bit (Register 0x453, Bit 7) to 1. Rev. D | Page 52 of 144 Data Sheet Syncing LMFC Signals The first step in guaranteeing synchronization across links and devices begins with syncing the LMFC signals. In Subclass 0, the LMFC signal is synchronized to an internal processing clock. In Subclass 1, LMFC signals are synchronized to an external SYSREF± signal. SYSREF± Signal The SYSREF± signal is a differential source synchronous input that synchronizes the LMFC signals in both the transmitter and receiver in a JESD204B Subclass 1 system to achieve deterministic latency. The SYSREF± signal is a rising edge sensitive signal that is sampled by the device clock rising edge. It is best practice that the device clock and SYSREF± signals be generated by the same source, such as the HMC7044 clock generator, so that the phase alignment between the signals is fixed. When designing for optimum deterministic latency operation, consider the timing distribution skew of the SYSREF± signal in a multipoint link system (multichip). The AD9161/AD9162 support a periodic SYSREF± signal. The periodicity can be continuous, strobed, or gapped periodic. The SYSREF± signal can always be dc-coupled (with a commonmode voltage of 0 V to 1.25 V). When dc-coupled, a small amount of common-mode current (<500 µA) is drawn from the SYSREF± pins. See Figure 152 and Figure 153 for the SYSREF± internal circuit. To avoid this common-mode current draw, use a 50% duty cycle periodic SYSREF± signal with ac coupling capacitors. If ac-coupled, the ac coupling capacitors combine with the resistors shown in Figure 152 or Figure 153 to make a high-pass filter with an RC time constant of = RC. Select C such that > 4/SYSREF± frequency. In addition, the edge rate must be sufficiently fast to meet the SYSREF± vs. DAC clock keep out window (KOW) requirements. It is possible to use ac-coupled mode without meeting the frequency to time constant constraints ( = RC and > 4/SYSREF± frequency) by using SYSREF± hysteresis (Register 0x088 and Register 0x089). However, using hysteresis increases the DAC clock KOW (Table 6 does not apply) by an amount depending on the SYSREF± frequency, level of hysteresis, capacitor choice, and edge rate. SYSREF+ 200 100 SYSREF 200 14379-092 Figure 152. SYSREF± Input Circuit for the 8 mm × 8 mm 165-Ball BGA AD9161/AD9162 SYSREF+ 50 3k 19k 50 SYSREF 19k 3k 14379-147 Figure 153. SYSREF± Input Circuit for the 11 mm × 11 mm 169-Ball BGA Sync Processing Modes Overview The AD9161/AD9162 support several LMFC sync processing modes. These modes are one-shot, continuous, and monitor modes. All sync processing modes perform a phase check to confirm that the LMFC is phase aligned to an alignment edge. In Subclass 1, the SYSREF± rising edge acts as the alignment edge; in Subclass 0, an internal processing clock acts as the alignment edge. The SYSREF± signal is sampled by a divide by 4 version of the DAC clock. After SYSREF± is sampled, the phase of the (DAC clock) ÷4 used to sample SYSREF± is stored in Register 0x037, Bits[7:0] and Register 0x038, Bits[3:0] as a thermometer code. This offset can be used by the SERDES data transmitter (for example, FPGA) to align multiple DACs by accounting for this clock offset when transmitting data. The sync modes are described below. See the Sync Procedure section for details on the procedure for syncing the LMFC signals. One-Shot Sync Mode (SYNCMODE = Register 0x03A, Bits[1:0] = 0b10) In one-shot sync mode, a phase check occurs on only the first alignment edge that is received after the sync machine is armed. After the phase is aligned on the first edge, the AD9161/AD9162 transition to monitor mode. Though an LMFC synchronization occurs only once, the SYSREF± signal can still be continuous. In this case, the phase is monitored and reported, but no clock phase adjustment occurs. Continuous Sync Mode (SYNCMODE = Register 0x03A, Bits[1:0] = 0b01) Continuous mode must be used in Subclass 1 only with a periodic SYSREF± signal. In continuous mode, a phase check/alignment occurs on every alignment edge. Continuous mode differs from one-shot mode in two ways. First, no SPI cycle is required to arm the device; the alignment edge seen after continuous mode is enabled results in a phase check. Second, a phase check occurs on every alignment edge in continuous mode. Monitor Sync Mode (SYNCMODE = Register 0x03A, Bits[1:0]) = 0b00) In monitor mode, the user can monitor the phase error in real time. Use this sync mode with a periodic SYSREF± signal. The phase is monitored and reported, but no clock phase adjustment occurs. Rev. D | Page 53 of 144 AD9161/AD9162 Data Sheet When an alignment request (SYSREF± edge) occurs, snapshots of the last phase error are placed into readable registers for reference (Register 0x037 and Register 0x038, Bits[3:0]), and the IRQ_SYSREF_JITTER interrupt is set, if appropriate. Sync Procedure The procedure for enabling the sync is as follows: 1. Set up the DAC; the SERDES PLL locks it, and enables the CDR (see the Start-Up Sequence section). 2. Set Register 0x039 (SYSREF± jitter window). A minimum of 4 DAC clock cycles is recommended. See Table 23 for settings. 3. Optionally, read back the SYSREF± count to check whether the SYSREF± pulses are being received. a. Set Register 0x036 = 0. Writing anything to SYSREF_COUNT resets the count. b. Set Register 0x034 = 0. Writing anything to SYNC_LMFC_STAT0 saves the data for readback and registers the count. c. Read SYSREF_COUNT from the value from Register 0x036. 4. Perform a one-shot sync. a. Set Register 0x03A = 0x00. Clear one-shot mode if already enabled. b. Set Register 0x03A = 0x02. Enable one-shot sync mode. The state machine enters monitor mode after a sync occurs. 5. Optionally, read back the sync SYNC_LMFC_STATx registers to verify that sync completed correctly. a. Set Register 0x034 = 0. Register 0x034 must be written to read the value. b. Read Register 0x035 and Register 0x034 to find the value of SYNC_LMFC_STATx. It is recommended to set SYNC_LMFC_STATx to 0 but it can be set to 4, or a LMFC period in DAC clocks - 4, due to jitter. 6. Optionally, read back the sync SYSREF_PHASEx register to identify which phase of the divide by 4 was used to sample SYSREF±. Read Register 0x038 and Register 0x037 as thermometer code. The MSBs of Register 0x037, Bits[7:4], normally show the thermometer code value. 7. Turn the link on (Register 0x300, Bit 0 = 1). 8. Read back Register 0x302 (dynamic link latency). 9. Repeat the reestablishment of the link several times (Step 1 to Step 7) and note the dynamic link latency values. Based on the values, program the LMFC delay (Register 0x304) and the LMFC variable (Register 0x306), and then restart the link. Table 22. Sync Processing Modes Sync Processing Mode SYNC_MODE (Register 0x03A, Bits[1:0]) No synchronization 0b00 One shot 0b10 Continuous 0b01 Table 23. SYSREF± Jitter Window Tolerance SYSREF± Jitter Window SYSREF_JITTER_WINDOW Tolerance (DAC Clock Cycles) (Register 0x039, Bits[5:0])1 ±½ 0x00 ±4 0x04 ±8 0x08 ±12 0x0C ±16 0x10 ±20 0x14 +24 0x18 ±28 0x1C 1 The two least significant digits are ignored because the SYSREF± signal is sampled with a divide by 4 version of the DAC clock. As a result, the jitter window is set by this divide by 4 clock rather than the DAC clock. It is recommended that at least a four-DAC clock SYSREF± jitter window be chosen. Deterministic Latency JESD204B systems contain various clock domains distributed throughout its system. Data traversing from one clock domain to a different clock domain can lead to ambiguous delays in the JESD204B link. These ambiguities lead to nonrepeatable latencies across the link from power cycle to power cycle with each new link establishment. Section 6 of the JESD204B specification addresses the issue of deterministic latency with mechanisms defined as Subclass 1 and Subclass 2. The AD9161/AD9162 support JESD204B Subclass 0 and Subclass 1 operation, but not Subclass 2. Write the subclass to Register 0x458, Bits[7:5]. Subclass 0 This mode gives deterministic latency to within 32 DAC clock cycles. It does not require any signal on the SYSREF± pins, which can be left disconnected. Subclass 0 still requires that all lanes arrive within the same LMFC cycle and the dual DACs must be synchronized to each other. Subclass 1 This mode gives deterministic latency and allows the link to be synced to within four DAC clock periods. It requires an external SYSREF± signal that is accurately phase aligned to the DAC clock. Deterministic Latency Requirements Several key factors are required for achieving deterministic latency in a JESD204B Subclass 1 system. · SYSREF± signal distribution skew within the system must be less than the desired uncertainty. · SYSREF± setup and hold time requirements must be met for each device in the system. · The total latency variation across all lanes, links, and devices must be 10 PCLK periods, which includes both variable delays and the variation in fixed delays from lane to lane, link to link, and device to device in the system. Rev. D | Page 54 of 144 Data Sheet LINK DELAY = DELAYFIXED + DELAYVARIABLE AD9161/AD9162 LOGIC DEVICE (JESD204B Tx) CHANNEL JESD204B Rx DSP DAC LMFC POWER CYCLE VARIANCE DATA AT Tx INPUT ILAS DATA 14379-095 ALIGNED DATA AT Rx OUTPUT ILAS DATA FIXED DELAY VARIABLE DELAY Figure 154. JESD204B Link Delay = Fixed Delay + Variable Delay Link Delay The link delay of a JESD204B system is the sum of the fixed and variable delays from the transmitter, channel, and receiver as shown in Figure 154. For proper functioning, all lanes on a link must be read during the same LMFC period. Section 6.1 of the JESD204B specification states that the LMFC period must be larger than the maximum link delay. For the AD9161/AD9162, this is not necessarily the case; instead, the AD9161/AD9162 use a local LMFC for each link (LMFCRx) that can be delayed from the SYSREF± aligned LMFC. Because the LMFC is periodic, this delay can account for any amount of fixed delay. As a result, the LMFC period must only be larger than the variation in the link delays, and the AD9161/AD9162 can achieve proper performance with a smaller total latency. Figure 155 and Figure 156 show a case where the link delay is greater than an LMFC period. Note that it can be accommodated by delaying LMFCRx. POWER CYCLE VARIANCE LMFC 14379-093 ALIGNED DATA ILAS EARLY ARRIVING LMFC REFERENCE DATA LATE ARRIVING LMFC REFERENCE Figure 155. Link Delay > LMFC Period Example POWER CYCLE VARIANCE LMFC ALIGNED DATA ILAS DATA LMFCRX LMFC_DELAY LMFC REFERENCE FOR ALL POWER CYCLES FRAME CLOCK Figure 156. LMFC_DELAY_x to Compensate for Link Delay > LMFC The method to select the LMFCDel (Register 0x304) and LMFCVar (Register 0x306) variables is described in the Link Delay Setup Example, With Known Delays section. 14379-094 Setting LMFCDel appropriately ensures that all the corresponding data samples arrive in the same LMFC period. Then LMFCVar is written into the receive buffer delay (RBD) to absorb all link delay variation. This write ensures that all data samples have arrived before reading. By setting these to fixed values across runs and devices, deterministic latency is achieved. The RBD described in the JESD204B specification takes values from 1 frame clock cycle to K frame clock cycles, and the RBD of the AD9161/AD9162 takes values from 0 PCLK cycle to 10 PCLK cycles. As a result, up to 10 PCLK cycles of total delay variation can be absorbed. LMFCVar and LMFCDel are both in PCLK cycles. The PCLK factor, or number of frame clock cycles per PCLK cycle, is equal to 4/F. For more information on this relationship, see the Clock Relationships section. Two examples follow that show how to determine LMFCVar and LMFCDel. After they are calculated, write LMFCDel into Register 0x304 for all devices in the system, and write LMFCVar to Register 0x306 for all devices in the system. Link Delay Setup Example, With Known Delays All the known system delays can be used to calculate LMFCVar and LMFCDel. The example shown in Figure 157 is demonstrated in the following steps. Note that this example is in Subclass 1 to achieve deterministic latency, which has a PCLK factor (4/F) of 2 frame clock cycles per PCLK cycle, and uses K = 32 (frames/multiframe). Because PCBFixed << PCLK Period, PCB Fixed is negligible in this example and not included in the calculations. 1. Find the receiver delays using Table 7. RxFixed = 12 PCLK cycles RxVar = 2 PCLK cycles 2. Find the transmitter delays. The equivalent table in the example JESD204B core (implemented on a GTH or GTX gigabit transceiver on a Virtex-6 FPGA) states that the delay is 56 ± 2 byte clock cycles. Rev. D | Page 55 of 144 AD9161/AD9162 Data Sheet 3. Because the PCLK Rate = ByteRate/4 as described in the Clock Relationships section, the transmitter delays in PCLK cycles are calculated as follows: TxFixed = 54/4 = 13.5 PCLK cycles TxVar = 4/4 = 1 PCLK cycle 4. Calculate MinDelayLane as follows: MinDelayLane = floor(RxFixed + TxFixed + PCBFixed) = floor(12 + 13.5 + 0) = floor(25.5) MinDelayLane = 25 5. Calculate MaxDelayLane as follows: MaxDelayLane = ceiling(RxFixed + RxVar + TxFixed + TxVar + PCBFixed)) = ceiling(12 + 2 + 13.5 + 1 + 0) = ceiling(28.5) MaxDelayLane = 29 6. Calculate LMFCVar as follows: LMFCVar = (MaxDelay + 1) - (MinDelay - 1) = (29 + 1) - (25 - 1) = 30 - 24 LMFCVar = 6 PCLK cycles 7. Calculate LMFCDel as follows: LMFCDel = (MinDelay - 1) % (K/PClockFactor) = (30 - 1) % (32/2) = 29 % 16 LMFCDel = 13 PCLK cycles 8. Write LMFCDel to Register 0x304 for all devices in the system. Write LMFCVar to Register 0x306 for all devices in the system. LMFC PCLK FRAME CLOCK DATA AT Tx FRAMER ALIGNED LANE DATA AT Rx DEFRAMER OUTPUT LMFCRX ILAS ILAS Link Delay Setup Example, Without Known Delay If the system delays are not known, the AD9161/AD9162 can read back the link latency between LMFCRX for each link and the SYSREF± aligned LMFC. This information is then used to calculate LMFCVar and LMFCDel. Figure 159 shows how DYN_LINK_LATENCY_0 (Register 0x302) provides a readback showing the delay (in PCLK cycles) between LMFCRX and the transition from ILAS to the first data sample. By repeatedly power cycling and taking this measurement, the minimum and maximum delays across power cycles can be determined and used to calculate LMFCVar and LMFCDel. In Figure 159, for Link A, Link B, and Link C, the system containing the AD9161/AD9162 (including the transmitter) is power cycled and configured 20 times. The AD9161/AD9162 are configured as described in the Sync Procedure section. Because the purpose of this exercise is to determine LMFCDel and LMFCVar, the LMFCDel value is programmed to 0 and the DYN_LINK_LATENCY_0 value is read from Register 0x302. The variation in the link latency over the 20 runs is shown in Figure 159, described as follows: Link A gives readbacks of 6, 7, 0, and 1. Note that the set of recorded delay values rolls over the edge of a multiframe at the boundary of K/PCLK Factor = 8. Add the number of PCLK cycles per multiframe = 8 to the readback values of 0 and 1 because they rolled over the edge of the multiframe. Delay values range from 6 to 9. Link B gives delay values from 5 to 7. Link C gives delay values from 4 to 7. DATA Tx VAR Rx VAR DELAY DELAY PCB FIXED DELAY DATA 14379-096 LMFC DELAY = 26 FRAME CLOCK CYCLES TOTAL FIXED LATENCY = 30 PCLK CYCLES Figure 157. LMFC Delay Calculation Example TOTAL VARIABLE LATENCY = 4 PCLK CYCLES Rev. D | Page 56 of 56 Data Sheet The example shown in Figure 159 is demonstrated in the following steps. Note that this example is in Subclass 1 to achieve deterministic latency, which has a PCLK Factor (FrameRate ÷ PCLK Rate) of 2 and uses K = 16; therefore PCLKsPerMF = 8. This example is a hypothetical example used to illustrate the procedure, because K is always 32 on the AD9161/AD9162. 1. Calculate the minimum of all delay measurements across all power cycles, links, and devices as follows: MinDelay = min(all Delay values) = 4 2. Calculate the maximum of all delay measurements across all power cycles, links, and devices as follows: MaxDelay = max(all Delay values) = 9 3. Calculate the total delay variation (with guard band) across all power cycles, links, and devices as follows: LMFCVar = (MaxDelay + 1) - (MinDelay - 1) = (9 + 1) - (4 - 1) = 10 - 3 = 7 PCLK cycles AD9161/AD9162 4. Calculate the minimum delay in PCLK cycles (with guard band) across all power cycles, links, and devices as follows: LMFCDel = ((MinDelay - 1) × PCLK Factor) % K = ((4 - 1)) % 16 = (3) % 16 = 3 % 16 = 3 PCLK cycles 5. Write LMFCDel to Register 0x304 for all devices in the system. Write LMFCVar to Register 0x306 for all devices in the system. SYSREF± LMFCRX ALIGNED DATA ILAS DATA DYN_LINK_LATENCY Figure 158. DYN_LINK_LATENCY_x Illustration 14379-097 LMFC PCLK FRAME CLOCK DYN_LINK_LATENCY_CNT 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 ALIGNED DATA (LINK A) ILAS DATA ALIGNED DATA (LINK B) ILAS DATA ALIGNED DATA (LINK C) ILAS DATA LMFCRX DETERMINISTICALLY DELAYED DATA ILAS LMFC_DELAY = 6 (FRAME CLOCK CYCLES) LMFC_VAR = 7 (PCLK CYCLES) Figure 159. Multilink Synchronization Settings, Derived Method Example DATA 14379-098 Rev. D | Page 57 of 57 AD9161/AD9162 Data Sheet TRANSPORT LAYER LANE 0 OCTETS TRANSPORT LAYER (QBD) DAC A_I0[15:0] LANE 3 OCTETS DELAY BUFFER 0 F2S_0 DAC A_Q0[15:0] PCLK_0 SPI CONTROL LANE 4 OCTETS DAC B_I0[15:0] LANE 7 OCTETS PCLK_0 TO PCLK_1 FIFO DELAY BUFFER 1 F2S_1 DAC B_Q0[15:0] 14379-099 PCLK_1 SPI CONTROL Figure 160. Transport Layer Block Diagram The transport layer receives the descrambled JESD204B frames and converts them to DAC samples based on the programmed JESD204B parameters shown in Table 24. The device parameters are defined in Table 25. Table 24. JESD204B Transport Layer Parameters Parameter Description F Number of octets per frame per lane: 1, 2, or 4 K Number of frames per multiframe: K = 32 L Number of lanes per converter device (per link), as follows: 4, or 8 M Number of converters per device (per link), as follows: 1 or 2 (2 is used for complex data interface) S Number of samples per converter, per frame: 1 or 2 Table 25. JESD204B Device Parameters Parameter Description CF Number of control words per device clock per link. Not supported, must be 0. CS Number of control bits per conversion sample. Not supported, must be 0. HD High density user data format. Used when samples must be split across lanes. Set to 1 always, even when F does not equal 1. Otherwise, a link configuration error triggers and the IRQ_ILAS flag is set. N Converter resolution = 16. N' (or NP) Total number of bits per sample = 16. Certain combinations of these parameters are supported by the AD9161/AD9162. See Table 28 for a list of supported interpolation rates and the number of lanes that is supported for each rate. Table 28 lists the JESD204B parameters for each of the interpolation and number of lanes configuration and gives an example lane rate for a 5 GHz DAC clock. Table 27 lists JESD204B parameters that have fixed values. A value of yes in Table 26 means the interpolation rate is supported for the number of lanes. A blank cell means it is not supported. Table 26. Interpolation Rates and Number of Lanes Interpolation 8 6 4 3 2 1 1× Yes1 2× Yes Yes1 3× Yes Yes 4× Yes Yes Yes Yes1 6× Yes Yes Yes Yes 8× Yes Yes Yes Yes Yes 12× Yes Yes Yes Yes Yes 16× Yes Yes Yes Yes Yes Yes 24× Yes Yes Yes Yes Yes Yes 1 These modes restrict the maximum DAC clock rate to 5 GHz. Table 27. JESD204B Parameters with Fixed Values Parameter Value K 32 N 16 NP 16 CF 0 HD 1 CS 0 Rev. D | Page 58 of 58 Data Sheet Table 28. JESD204B Parameters for Interpolation Rate and Number of Lanes Interpolation No. of PCLK Period LMFC Period Rate Lanes M F S (DAC Clocks) (DAC Clocks) 1 8 1 1 4 16 128 2 6 2 2 3 12 192 2 8 2 1 2 16 128 3 6 2 2 3 18 288 3 8 2 1 2 24 192 4 3 2 4 3 12 384 4 4 2 1 1 16 128 4 6 2 2 3 24 384 4 8 2 1 2 32 256 6 3 2 4 3 18 576 6 4 2 1 1 24 192 6 6 2 2 3 36 576 6 8 2 1 2 48 384 8 2 2 2 1 16 256 8 3 2 4 3 24 768 8 4 2 1 1 32 256 8 6 2 2 3 48 768 8 8 2 1 2 64 512 12 2 2 2 1 24 384 12 3 2 4 3 36 1152 12 4 2 1 1 48 384 12 6 2 2 3 72 1152 12 8 2 1 2 96 768 16 1 2 4 1 16 512 16 2 2 2 1 32 512 16 3 2 4 3 48 1536 16 4 2 1 1 64 512 16 6 2 2 3 96 1536 16 8 2 1 2 128 1024 24 1 2 4 1 24 768 24 2 2 2 1 48 768 24 3 2 4 3 72 2304 24 4 2 1 1 96 768 24 6 2 2 3 144 2304 24 8 2 1 2 192 1536 1 Maximum lane rate is 12.5 GHz. These modes must be run with the DAC rate below 3.75 GHz. AD9161/AD9162 Lane Rate at 5 GHz DAC Clock (GHz) 12.5 16.661 12.5 11.11 8.33 16.661 12.5 8.33 6.25 11.11 8.33 5.55 4.16 12.5 8.33 6.25 4.16 3.12 8.33 5.55 4.16 2.77 2.08 12.5 6.25 4.16 3.12 2.08 1.56 8.33 4.16 2.77 2.08 1.38 1.04 Rev. D | Page 59 of 144 AD9161/AD9162 Data Sheet Configuration Parameters The AD9161/AD9162 modes refer to the link configuration parameters for L, K, M, N, NP, S, and F. Table 29 provides the description and addresses for these settings. Table 29. Configuration Parameters JESD204B Setting Description L - 1 Number of lanes - 1. F - 1 K - 1 M - 1 Number of ((octets per frame) per lane) - 1. Number of frames per multiframe - 1. Number of converters - 1. N - 1 Converter bit resolution - 1. NP - 1 Bit packing per sample - 1. S - 1 HD DID BID LID0 JESDV Number of ((samples per converter) per frame) - 1. High density format. Set to 1 always, even when F does not equal 1. Otherwise, a link configuration error triggers and the IRQ_ILAS flag is set. Device ID. Match the Device ID sent by the transmitter. Bank ID. Match the Bank ID sent by the transmitter. Lane ID for Lane 0. Match the Lane ID sent by the transmitter on Logical Lane 0. JESD204x version. Match the version sent by the transmitter (0x0 = JESD204A, 0x1 = JESD204B). Address Register 0x453, Bits[4:0] Register 0x454, Bits[7:0] Register 0x455, Bits[4:0] Register 0x456, Bits[7:0] Register 0x457, Bits[4:0] Register 0x458, Bits[4:0] Register 0x459, Bits[4:0] Register 0x45A, Bit 7 Register 0x450, Bits[7:0] Register 0x451, Bits[7:0] Register 0x452, Bits[4:0] Register 0x459, Bits[7:5] Data Flow Through the JESD204B Receiver The link configuration parameters determine how the serial bits on the JESD204B receiver interface are deframed and passed on to the DACs as data samples. Deskewing and Enabling Logical Lanes After proper configuration, the logical lanes are automatically deskewed. All logical lanes are enabled or not based on the lane number setting in Register 0x110, Bits[7:4]. The physical lanes are all powered up by default. can synchronize with a PRBS7, PRBS15, or PRBS31 data pattern. PRBS pattern verification can be done on multiple lanes at once. The error counts for failing lanes are reported for one JESD204B lane at a time. The process for performing PRBS testing on the AD9161/AD9162 is as follows: 1. Start sending a PRBS7, PRBS15, or PRBS31 pattern from the JESD204B transmitter. 2. Select and write the appropriate PRBS pattern to Register 0x316, Bits[3:2], as shown in Table 30. 3. Enable the PHY test for all lanes being tested by writing to PHY_TEST_EN (Register 0x315). Each bit of Register 0x315 enables the PRBS test for the corresponding lane. For example, writing a 1 to Bit 0 enables the PRBS test for Physical Lane 0. 4. Toggle PHY_TEST_RESET (Register 0x316, Bit 0) from 0 to 1 then back to 0. 5. Set PHY_PRBS_TEST_THRESHOLD_xBITS (Bits[23:0], Register 0x319 to Register 0x317) as desired. 6. Write a 0 and then a 1 to PHY_TEST_START (Register 0x316, Bit 1). The rising edge of PHY_TEST_START starts the test. a. (Optional) In some cases, it may be necessary to repeat Step 4 at this point. Toggle PHY_TEST_RESET (Register 0x316, Bit 0) from 0 to 1, then back to 0. 7. Wait 500 ms. 8. Stop the test by writing PHY_TEST_START (Register 0x316, Bit 1) = 0. 9. Read the PRBS test results. a. Each bit of PHY_PRBS_PASS (Register 0x31D) corresponds to one SERDES lane (0 = fail, 1 = pass). b. The number of PRBS errors seen on each failing lane can be read by writing the lane number to check (0 to 7) in PHY_SRC_ERR_CNT (Register 0x316, Bits[6:4]) and reading the PHY_PRBS_ERR_COUNT (Register 0x31C to Register 0x31A). The maximum error count is 224 - 1. If all bits of Register 0x31C to Register 0x31A are high, the maximum error count on the selected lane is exceeded. Table 30. PHY PRBS Pattern Selection PHY_PRBS_PAT_SEL Setting (Register 0x316, Bits[3:2]) PRBS Pattern 0b00 (default) PRBS7 0b01 PRBS15 0b10 PRBS31 To disable power to physical lanes that are not being used, set Bit x in Register 0x201 to 1 to disable Physical Lane x, and keep it at 0 to enable it. JESD204B TEST MODES PHY PRBS Testing The JESD204B receiver on the AD9161/AD9162 includes a PRBS pattern checker on the back end of its physical layer. This functionality enables bit error rate (BER) testing of each physical lane of the JESD204B link. The PHY PRBS pattern checker does not require that the JESD204B link be established. It Transport Layer Testing The JESD204B receiver in the AD9161/AD9162 supports the short transport layer (STPL) test as described in the JESD204B standard. This test can be used to verify the data mapping between the JESD204B transmitter and receiver. To perform this test, this function must be implemented in the logic device and enabled there. Before running the test on the receiver side, the link must be established and running without errors. Rev. D | Page 60 of 144 Data Sheet AD9161/AD9162 The STPL test ensures that each sample from each converter is mapped appropriately according to the number of converters (M) and the number of samples per converter (S). As specified in the JESD204B standard, the converter manufacturer specifies what test samples are transmitted. Each sample must have a unique value. For example, if M = 2 and S = 2, four unique samples are transmitted repeatedly until the test is stopped. The expected sample must be programmed into the device and the expected sample is compared to the received sample one sample at a time until all are tested. The process for performing this test on the AD9161/AD9162 is described as follows: 1. Synchronize the JESD204B link. 2. Enable the STPL test at the JESD204B Tx. 3. Depending on JESD204B case, there may be up to two DACs, and each frame may contain up to four DAC samples. Configure the SHORT_TPL_REF_SP_MSB bits (Register 0x32E) and SHORT_TPL_REF_SP_LSB bits (Register 0x32D) to match one of the samples for one converter within one frame. 4. Set SHORT_TPL_SP_SEL (Register 0x32C, Bits[7:4]) to select the sample within one frame for the selected converter according to Table 31. 5. Set SHORT_TPL_TEST_EN (Register 0x32C, Bit 0) to 1. 6. Set SHORT_TPL_TEST_RESET (Register 0x32C, Bit 1) to 1, then back to 0. 7. Wait for the desired time. The desired time is calculated as 1/(sample rate × BER). For example, given a bit error rate of BER = 1 × 10-10 and a sample rate = 1 GSPS, the desired time = 10 sec. 8. Read the test result at SHORT_TPL_FAIL (Register 0x32F, Bit 0). 9. Choose another sample for the same or another converter to continue with the test, until all samples for both converters from one frame are verified. (Note that the converter count is M = 2 for all interpolator modes on the AD9161/AD9162 to enable complex signal processing.) Consult Table 31 for a guide to the test sample alignment. Note that the sample order for 1×, eight-lane mode has Sample 1 and Sample 2 swapped. Also, the STPL test for the three-lane and six-lane options is not functional and always fails. Table 31. Short TPL Test Samples Assignment1 JESD204x Mode Required Samples from JESD204x Tx 1× Eight-Lane (L = 8, M = 1, F = 1, S = 4) Send four samples: M0S0, M0S1, M0S2, M0S3, and repeat 2× Eight-Lane (L = 8, M = 2, F = 1, S = 2) 3× Eight-Lane (L = 8, M = 2, F = 1, S = 2) 4× Eight-Lane (L = 8, M = 2, F = 1, S = 2) 6× Eight-Lane (L = 8, M = 2, F = 1, S = 2) 8× Eight-Lane (L = 8, M = 2, F = 1, S = 2) 12× Eight-Lane e (L = 8, M = 2, F = 1, S = 2) 16× Eight-Lane (L = 8, M = 2, F = 1, S = 2) 24× Eight-Lane (L = 8, M = 2, F = 1, S = 2) 2× Six-Lane (L = 6, M = 2, F = 2, S = 3) 3× Six-Lane (L = 6, M = 2, F = 2, S = 3) 4× Six-Lane (L = 6, M = 2, F = 2, S = 3) 6× Six-Lane (L = 6, M = 2, F = 2, S = 3) 8× Six-Lane (L = 6, M = 2, F = 2, S = 3) 12× Six-Lane (L = 6, M = 2, F = 2, S = 3) 16× Six-Lane (L = 6, M = 2, F = 2, S = 3) 24× Six-Lane (L = 6, M = 2, F = 2, S = 3) 4× Three-Lane (L = 3, M = 2, F = 4, S = 3) 6× Three-Lane (L = 3, M = 2, F = 4, S = 3) 8× Three-Lane (L = 3, M = 2, F = 4, S = 3) 12× Three-Lane (L = 3, M = 2, F = 4, S = 3) 16× Three-Lane (L = 3, M = 2, F = 4, S = 3) 24× Three-Lane (L = 3, M = 2, F = 4, S = 3) Send four samples: M0S0, M0S1, M1S0, M1S1, and repeat Send six samples: M0S0, M0S1, M0S2, M1S0, M1S1, M1S2, and repeat Samples Assignment SP0: M0S0, SP4: M0S0, SP8: M0S0, SP12: M0S0 SP1: M0S2, SP5: M0S2, SP9: M0S2, SP13: M0S2 SP2: M0S1, SP6: M0S1, SP10: M0S1, SP14: M0S1 SP3: M0S3, SP7: M0S3, SP11: M0S3, SP15: M0S3 SP0: M0S0, SP4: M0S0, SP8: M0S0, SP12: M0S0 SP1: M1S0, SP5: M1S0, SP9: M1S0, SP13: M1S0 SP2: M0S1, SP6: M0S1, SP10: M0S1, SP14: M0S1 SP3: M1S1, SP7: M1S1, SP11: M1S1, SP15: M1S1 Test hardware is not functional; STPL always fails Rev. D | Page 61 of 144 AD9161/AD9162 Data Sheet JESD204x Mode 4× Four-Lane (L = 4, M = 2, F = 1, S = 1) 6× Four-Lane (L = 4, M = 2, F = 1, S = 1) 8× Four-Lane (L = 4, M = 2, F = 1, S = 1) 12× Four-Lane (L = 4, M = 2, F = 1, S = 1) 16× Four-Lane (L = 4, M = 2, F = 1, S = 1) 24× Four-Lane (L = 4, M = 2, F = 1, S = 1) 8× Two-Lane (L = 2, M = 2, F = 2, S = 1) 12× Two-Lane (L = 2, M = 2, F = 2, S = 1) 16× Two-Lane (L = 2, M = 2, F = 2, S = 1) 24× Two-Lane (L = 2, M = 2, F = 2, S = 1) 16× One-Lane (L = 1, M = 2, F = 4, S = 1) 24× One-Lane (L = 1, M = 2, F = 4, S = 1) Required Samples from JESD204x Tx Send two samples: M0S0, M1S0, repeat Samples Assignment SP0: M0S0, SP4: M0S0, SP8: M0S0, SP12: M0S0 SP1: M1S0, SP5: M1S0, SP9: M1S0, SP13: M1S0 SP2: M0S0, SP6: M0S0, SP10: M0S0, SP14: M0S0 SP3: M1S0, SP7: M1S0, SP11: M1S0, SP15: M1S0 1 Mx is the converter number and Sy is the sample number. For example, M0S0 means Converter 0, Sample 0. SPx is the sample pattern word number. For example, SP0 means Sample Pattern Word 0. Repeated CGS and ILAS Test As per Section 5.3.3.8.2 of the JESD204B specification, the AD9161/AD9162 can check that a constant stream of /K28.5/ characters is being received, or that CGS followed by a constant stream of ILAS is being received. To run a repeated CGS test, send a constant stream of /K28.5/ characters to the AD9161/AD9162 SERDES inputs. Next, set up the device and enable the links. Ensure that the /K28.5/ characters are being received by verifying that SYNCOUT± is deasserted and that CGS has passed for all enabled link lanes by reading Register 0x470. To run the CGS followed by a repeated ILAS sequence test, follow the procedure to set up the links, but before performing the last write (enabling the links), enable the ILAS test mode by writing a 1 to Register 0x477, Bit 7. Then, enable the links. When the device recognizes four CGS characters on each lane, it deasserts the SYNCOUT±. At this point, the transmitter starts sending a repeated ILAS sequence. Reporting of disparity errors that occur at the same character position of an NIT error is disabled. No such disabling is performed for the disparity errors in the characters after an NIT error. Therefore, it is expected behavior that an NIT error may result in a BDE error. A resync is triggered when four NIT errors are injected with Register 0x476, Bit 4 = 1. When this bit is set, the error counter does not distinguish between a concurrent invalid symbol with the wrong running disparity but is in the 8-bit/10-bit decoding table, and a NIT error. Thus, a resync can be triggered when four NIT errors are injected because they are not distinguished from disparity errors. Checking Error Counts The error count can be checked for disparity errors, NIT errors, and unexpected control character errors. The error counts are on a per lane and per error type basis. Each error type and lane has a register dedicated to it. To check the error count, the following steps must be performed: Read Register 0x473 to verify that initial lane synchronization has passed for all enabled link lanes. JESD204B ERROR MONITORING Disparity, Not in Table, and Unexpected Control (K) Character Errors As per Section 7.6 of the JESD204B specification, the AD9161/ AD9162 can detect disparity errors, not in table (NIT) errors, and unexpected control character errors, and can optionally issue a sync request and reinitialize the link when errors occur. Note that the disparity error counter counts all characters with invalid disparity, regardless of whether they are in the 8-bit/10-bit decoding table. This is a minor deviation from the JESD204B specification, which only counts disparity errors when they are in the 8-bit/10-bit decoding table. Several other interpretations of the JESD204B specification are noted in this section. When three NIT errors are injected to one lane and QUAL_RDERR (Register 0x476, Bit 4) = 1, the readback values of the bad disparity error (BDE) count register is 1. 1. Choose and enable which errors to monitor by selecting them in Register 0x480, Bits[5:3] to Register 0x487, Bits[5:3]. Unexpected K (UEK) character, BDE, and NIT error monitoring can be selected for each lane by writing a 1 to the appropriate bit, as described in the register map. These bits are enabled by default. 2. The corresponding error counter reset bits are in Register 0x480, Bits[2:0] to Register 0x487, Bits[2:0]. Write a 0 to the corresponding bit to reset that error counter. 3. Registers 0x488, Bits[2:0] to Register 0x48F, Bits[2:0] have the terminal count hold indicator for each error counter. If this flag is enabled, when the terminal error count of 0xFF is reached, the counter ceases counting and holds that value until reset. Otherwise, it wraps to 0x00 and continues counting. Select the desired behavior and program the corresponding register bits per lane. Rev. D | Page 62 of 144 Data Sheet Check for Error Count Over Threshold To check for the error count over threshold, follow these steps: 1. Define the error counter threshold. The error counter threshold can be set to a user defined value in Register 0x47C, or left to the default value of 0xFF. When the error threshold is reached, an IRQ is generated or SYNCOUT± is asserted or both, depending on the mask register settings. This one error threshold is used for all three types of errors (UEK, NIT, and BDE). 2. Set the SYNC_ASSERT_MASK bits. The SYNCOUT± assertion behavior is set in Register 0x47D, Bits[2:0]. By default, when any error counter of any lane is equal to the threshold, it asserts SYNCOUT± (Register 0x47D, Bits[2:0] = 0b111). 3. Read the error count reached indicator. Each error counter has a terminal count reached indicator, per lane. This indicator is set to 1 when the terminal count of an error counter for a particular lane has been reached. These status bits are located in Register 0x490, Bits[2:0] to Register 0x497, Bits[2:0]. These registers also indicate whether a particular lane is active by setting Bit 3 = 0b1. Error Counter and IRQ Control For error counter and IRQ control, follow these steps: 1. Enable the interrupts. Enable the JESD204B interrupts. The interrupts for the UEK, NIT, and BDE error counters are in Register 0x4B8, Bits[7:5]. There are other interrupts to monitor when bringing up the link, such as lane deskewing, initial lane sync, good check sum, frame sync, code group sync (Register 0x4B8, Bits[4:0], and configuration mismatch (Register 0x4B9, Bit 0). These bits are off by default but can be enabled by writing 0b1 to the corresponding bit. a) Read the JESD204B interrupt status. The interrupt status bits are in Register 0x4BA, Bits[7:0] and Register 0x4BB, Bit 0, with the status bit position corresponding to the enable bit position. 2. It is recommended to enable all interrupts that are planned to be used prior to bringing up the JESD204B link. When the link is up, the interrupts can be reset and then used to monitor the link status. Monitoring Errors via SYNCOUT± When one or more disparity, NIT, or unexpected control character errors occur, the error is reported on the SYNCOUT± pin as per Section 7.6 of the JESD204B specification. The JESD204B specification states that the SYNCOUT± signal is asserted for exactly two frame periods when an error occurs. For the AD9161/AD9162, the width of theSYNCOUT± pulse can be programmed to ½, 1, or 2 PCLK cycles. The settings to achieve a SYNCOUT± pulse of two frame clock cycles are given in Table 32. AD9161/AD9162 Table 32. Setting SYNCOUT± Error Pulse Duration PCLK Factor F (Frames/PCLK) SYNC_ERR_DUR (Register 0x312, Bits[7:4]) Setting1 1 4 0 (default) 2 2 1 4 1 2 1 These register settings assert the SYNCOUT± signal for two frame clock cycle pulse widths. Unexpected Control Character, NIT, Disparity IRQs For UEK character, NIT, and disparity errors, error count over the threshold events are available as IRQ events. Enable these events by writing to Register 0x4B8, Bits[7:5]. The IRQ event status can be read at Register 0x4BA, Bits[7:5] after the IRQs are enabled. See the Error Counter and IRQ Control section for information on resetting the IRQ. See the Interrupt Request Operation section for more information on IRQs. Errors Requiring Reinitializing A link reinitialization automatically occurs when four invalid disparity characters are received as per Section 7.1 of the JESD204B specification. When a link reinitialization occurs, the resync request is five frames and nine octets long. The user can optionally reinitialize the link when the error count for disparity errors, NIT errors, or UEK character errors reaches a programmable error threshold. The process to enable the reinitialization feature for certain error types is as follows: 1. Choose and enable which errors to monitor by selecting them in Register 0x480, Bits[5:3] to Register 0x487, Bits[5:3]. UEK, BDE, and NIT error monitoring can be selected for each lane by writing a 1 to the appropriate bit, as described in Table 46. These are enabled by default. 2. Enable the sync assertion mask for each type of error by writing to SYNC_ASSERT_MASK (Register 0x47D, Bits[2:0]) according to Table 33. 3. Program the desired error counter threshold into ERRORTHRES (Register 0x47C). 4. For each error type enabled in the SYNC_ASSERT_MASK register, if the error counter on any lane reaches the programmed threshold, SYNCOUT± falls, issuing a sync request. Note that all error counts are reset when a link reinitialization occurs. The IRQ does not reset and must be reset manually. Rev. D | Page 63 of 144 AD9161/AD9162 Table 33. Sync Assertion Mask (SYNC_ASSERT_MASK) Addr. Bit No. Bit Name Description 0x47D 2 BDE Set to 1 to assert SYNCOUT± if the disparity error count reaches the threshold 1 NIT Set to 1 to assert SYNCOUT± if the NIT error count reaches the threshold 0 UEK Set to 1 to assert SYNCOUT± if the UEK character error count reaches the threshold CGS, Frame Sync, Checksum, and ILAS Monitoring Register 0x470 to Register 0x473 can be monitored to verify that each stage of the JESD204B link establishment has occurred. Bit x of CODE_GRP_SYNC (Register 0x470) is high if Link Lane x received at least four K28.5 characters and passed code group synchronization. Bit x of FRAME_SYNC (Register 0x471) is high if Link Lane x completed initial frame synchronization. Bit x of GOOD_CHECKSUM (Register 0x472) is high if the checksum sent over the lane matches the sum of the JESD204B parameters sent over the lane during ILAS for Link Lane x. The parameters can be added either by summing the individual fields in registers or summing the packed register. If Register 0x300, Bit 6 = 0 (default), the calculated checksums are the lower eight bits of the sum of the following fields: DID, BID, LID, SCR, L - 1, F - 1, K - 1, M - 1, N - 1, SUBCLASSV, NP - 1, JESDV, S - 1, and HD. If Register 0x300, Bit 6 = 1, the calculated checksums are the lower eight bits of the sum of Register 0x400 to Register 0x40C and LID. Bit x of INIT_LANE_SYNC (Register 0x473) is high if Link Lane x passed the initial lane alignment sequence. Data Sheet CGS, Frame Sync, Checksum, and ILAS IRQs Fail signals for CGS, frame sync, checksum, and ILAS are available as IRQ events. Enable them by writing to Register 0x4B8, Bits[3:0]. The IRQ event status can be read at Register 0x4BA, Bits[3:0] after the IRQs are enabled. Write a 1 to Register 0x4BA, Bit 0 to reset the CGS IRQ. Write a 1 to Register 0x4BA, Bit 1 to reset the frame sync IRQ. Write a 1 to Register 0x4BA, Bit 2 to reset the checksum IRQ. Write a 1 to Register 0x4BA, Bit 3 to reset the ILAS IRQ. See the Interrupt Request Operation section for more information. Configuration Mismatch IRQ The AD9161/AD9162 have a configuration mismatch flag that is available as an IRQ event. Use Register 0x4B9, Bit 0 to enable the mismatch flag (it is enabled by default), and then use Register 0x4BB, Bit 0 to read back its status and reset the IRQ signal. See the Interrupt Request Operation section for more information. The configuration mismatch event flag is high when the link configuration settings (in Register 0x450 to Register 0x45D) do not match the JESD204B transmitted settings (Register 0x400 to Register 0x40D). This function is different from the good checksum flags in Register 0x472. The good checksum flags ensure that the transmitted checksum matches a calculated checksum based on the transmitted settings. The configuration mismatch event ensures that the transmitted settings match the configured settings. HARDWARE CONSIDERATIONS See the Applications Information section for information on hardware considerations. Rev. D | Page 64 of 144 Data Sheet MAIN DIGITAL DATAPATH AD9161/AD9162 JESD HB 2× HB 2×, HB 4×, 3× 8× HB 2× NCO INV SINC 14379-104 Figure 161. Block Diagram of the Main Digital Datapath The block diagram in Figure 161 shows the functionality of the main digital datapath. The digital processing includes an input interpolation block with choice of bypass (1×), 2×, or 3× interpolation, three additional 2× half-band interpolation filters, a final 2× NRZ mode interpolator filter, FIR85, that can be bypassed, and a quadrature modulator that consists of a 48-bit NCO and an inverse sinc block. All of the interpolation filters accept in-phase (I) and quadrature (Q) data streams as a complex data stream. Similarly, the quadrature modulator and inverse sinc function also accept input data as a complex data stream. Thus, any use of the digital datapath functions requires the input data to be a complex data stream. In bypass mode (1× interpolation), the input data stream is expected to be real data. Table 34. Pipeline Delay (Latency) for Various DAC Blocks Mode FIR85 On Filter Inverse Bandwidth Sinc NCO Pipeline Delay1 (fDAC Clocks) NCO only No N/A2 No Yes 48 1× (Bypass) No N/A2 No No 113 1× (Bypass) No N/A2 Yes No 137 2× No 80% No No 155 2× No 90% No No 176 2× Yes 80% No No 202 2× No 80% Yes No 185 2× Yes 80% Yes No 239 2× Yes 80% Yes Yes 279 3× No 80% No No 168 3× No 90% No No 202 4× No 80% No No 308 6× No 80% No No 332 8× No 80% No No 602 12× No 80% No No 674 16× No 80% No No 1188 24× No 80% No No 1272 1 The pipeline delay given is a representative number and may vary by a cycle or two based on the internal handoff timing conditions at startup. 2 N/A means not applicable. The pipeline delay changes based on the digital datapath functions that are selected. See Table 34 for examples of the pipeline delay per block. These delays are in addition to the JESD204B latency. DATA FORMAT The input data format for all modes on the AD9161/AD9162 is 16-bit, twos complement. The digital datapath and the DAC decoder operate in twos complement format. To avoid the NCO frequency leakage, the digital codes fed into the DAC must be balanced around zero code (the number of positive codes must be equal to the number of negative codes). That is, input DC offset must be removed from the input digital code. If this offset is not removed from the input code, the leakage can become apparent when using the NCO to shift a signal that is above or below 0 Hz when synthesized. The NCO frequency is seen as a small spur at the NCO FTW. INTERPOLATION FILTERS The main digital path contains five half-band interpolation filters, plus a final half-band interpolation filter that is used in 2× NRZ mode. The filters are cascaded as shown in Figure 161. The first pair of filters is a 2× (HB2) or 3× (HB3) filter. Each of these filters has two options for bandwidth, 80% or 90%. The 80% filters are lower power than the 90%. The filters default to the lower power 80% bandwidth. To select the filter bandwidth as 90%, program the FILT_BW bit in the DATAPATH_CFG register to 1 (Register 0x111, Bit 4 = 0b1). Following the first pair of filters is a series of 2× half-band filters, each of which halves the usable bandwidth of the previous one. HB4 has 45%, HB5 has 22.5%, and HB6 has 11.25% of the fDATA bandwidth. The final half-band filter, FIR85, is used in the 2× NRZ mode. It is clocked at the 2 × fDAC rate and has a usable bandwidth of 45% of the fDAC rate. The FIR85 filter is a complex filter, and therefore the bandwidth is centered at 0 Hz. The FIR85 filter is used in conjunction with the complex interpolation modes to push the DAC update rate higher and move images further from the desired signal. Rev. D | Page 65 of 144 AD9161/AD9162 Data Sheet The FIR85 filter can be used with the 1× bypass mode, but in that mode, the signal is limited to the lower half of the Nyquist zone, that is, up to fDAC/4. If the NCO is used with FIR85 in 1× bypass mode, images of the NCO upconversion appears because the data interface in 1× bypass is real; therefore, an image reject upconversion cannot be accomplished by the NCO. To synthesize a signal and then upconvert it with the NCO, use the complex data interface and choose an appropriate interpolator prior to FIR85. Table 35 shows how to select each available interpolation mode, their usable bandwidths, and their maximum data rates. Calculate the available signal bandwidth as the interpolator filter bandwidth, BW, multiplied by fDAC/InterpolationFactor, as follows: BWSIGNAL = BWFILT × (fDAC/InterpolationFactor) Filter Performance The interpolation filters interpolate between existing data in such a way that they minimize changes in the incoming data while suppressing the creation of interpolation images. This datapath is shown for each filter in Figure 162. The usable bandwidth (as shown in Table 35) is defined as the frequency band over which the filters have a pass-band ripple of less than ±0.001 dB and an image rejection of greater than 85 dB. A conceptual drawing that shows the relative bandwidth of each of the filters is shown in Figure 162. The maximum pass band amplitude of all filters is the same; they are different in the illustration to improve understanding. 1× 8× 2× 12× 3× 16× 4× 24× 6× FIR85 FILTER RESPONSE 14379-105 1500 500 500 1500 FREQUENCY (MHz) 2500 Figure 162. All Band Responses of Interpolation Filters Filter Performance Beyond Specified Bandwidth Some of the interpolation filters are specified to 0.4 × fDATA (with a pass band). The filters can be used slightly beyond this ratio at the expense of increased pass-band ripple and decreased interpolation image rejection. Table 35. Interpolation Modes and Usable Bandwidth Interpolation Mode 1× (Bypass) 2× 3× 4× 6× 8× 12× 16× 24× 2× NRZ (Register 0x111, Bit 0 = 1) INTERP_MODE, Register 0x110, Bits[3:0] 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 Any combination3 Available Signal Bandwidth (BW)1 fDAC/2 BW × fDATA/2 BW × fDATA/2 BW × fDATA/2 BW × fDATA/2 BW × fDATA/2 BW × fDATA/2 BW × fDATA/2 BW × fDATA/2 0.45 × fDAC4 Maximum fDATA (MHz) fDAC2 fDAC/22 fDAC/3 fDAC/4 fDAC/6 fDAC/8 fDAC/12 fDAC/16 fDAC/24 fDAC (real) or fDAC/2(complex)2 1 The data rate (fDATA) for all interpolator modes is a complex data rate, meaning each of I data and Q data run at that rate. The data rate for the 1× bypass mode is a real data rate. Available signal bandwidth is the data rate multiplied by the bandwidth of the initial 2× or 3× interpolator filters, which can be set to BW = 80% or BW = 90%. This bandwidth is centered at 0 Hz. 2 The maximum speed for 1× and 2× interpolation is limited by the JESD204B interface, and is 5000 MHz (real) in 1× or 2500 MHz (complex) in 2× interpolation mode. 3 The 2× NRZ filter, FIR85, can be used with any of the interpolator combinations. When used in 1× bypass mode, the desired signal must be placed in the lower half of the first Nyquist zone, as in 0 to DAC clock ÷ 4 MHz. 4 The bandwidth of the FIR85 filter is centered at 0 Hz. Rev. D | Page 66 of 66 Data Sheet MINIMUM INTERPOLATION IMAGE REJECTION (dB) 90 0 MAXIMUM PASS-BAND RIPPLE (dB) 80 0.1 70 0.2 60 0.3 50 0.4 40 30 IMAGE REJECTION PASS-BAND RIPPLE 20 40 41 42 43 44 BANDWIDTH (% fDATA) 0.5 0.6 45 Figure 163. Interpolation Filter Performance Beyond Specified Bandwidth for the 80% Filters Figure 163 shows the performance of the interpolation filters beyond 0.4 × fDATA. The ripple increases much slower than the image rejection decreases. This means that if the application can tolerate degraded image rejection from the interpolation filters, more bandwidth can be used. Most of the filters are specified to 0.45 × fDATA (with pass band). Figure 164 to Figure 171 show the filter response for each of the interpolator filters on the AD9161/AD9162. 20 0 20 MAGNITUDE (dB) 40 60 80 100 120 140 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 164. First 2× Half-Band 80% Filter Response 14379-158 MAGNITUDE (dB) 14379-106 MAGNITUDE (dB) MAGNITUDE (dB) AD9161/AD9162 14379-159 20 0 20 40 60 80 100 120 140 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 165. First 2× Half-Band 90% Filter Response 20 0 20 40 60 80 100 120 140 160 0 20 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 166. 3× Third-Band 80% Filter Response 0 20 40 60 80 100 120 140 160 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 167. 3× Third-Band 90% Filter Response 14379-160 14379-161 Rev. D | Page 67 of 144 AD9161/AD9162 MAGNITUDE (dB) MAGNITUDE (dB) 20 0 20 40 60 80 100 120 140 160 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 168. Second 2× Half-Band 45% Filter Response 20 0 20 40 60 80 100 120 140 160 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 169. Third 2× Half-Band 22.5% Filter Response 20 0 20 40 60 80 100 120 140 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 170. Fourth 2× Half-Band 11.25% Filter Response MAGNITUDE (dB) 14379-164 14379-163 14379-162 MAGNITUDE (dB) Data Sheet 20 0 20 40 60 80 100 120 14379-165 140 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 NORMALIZED FREQUENCY (Rad/Sample) Figure 171. FIR85 2× Half-Band 45% Filter Response DIGITAL MODULATION The AD9161/AD9162 have digital modulation features to modulate the baseband quadrature signal to the desired DAC output frequency. The AD9161/AD9162 are equipped with several NCO modes. The default NCO is a 48-bit, integer NCO. The A/B ratio of the dual modulus NCO allows the output frequency to be synthesized with very fine precision. NCO mode is selected as shown in Table 36. Table 36. Modulation Mode Selection Modulation Type Modulation Mode Register 0x111, Register 0x111, Bit 6 Bit 2 None 0b0 0b0 48-Bit Integer NCO 0b1 0b0 48-Bit Dual Modulus NCO 0b1 0b1 48-Bit Dual Modulus NCO This modulation mode uses an NCO, a phase shifter, and a complex modulator to modulate the signal by a programmable carrier signal as shown in Figure 172. This configuration allows output signals to be placed anywhere in the output spectrum with very fine frequency resolution. The NCO produces a quadrature carrier to translate the input signal to a new center frequency. A quadrature carrier is a pair of sinusoidal waveforms of the same frequency, offset 90° from each other. The frequency of the quadrature carrier is set via a FTW. The quadrature carrier is mixed with the I and Q data and then summed into the I and Q datapaths, as shown in Figure 172. Rev. D | Page 68 of 144 Data Sheet Integer NCO Mode The main 48-bit NCO can be used as an integer NCO by using the following formula to create the frequency tuning word (FTW): -fDAC/2 fCARRIER < +fDAC/2 FTW = (fCARRIER/fDAC) × 248 where FTW is a 48-bit, twos complement number. When in 2× NRZ mode (FIR85 enabled with Register 0x111, Bit 0 = 1), the frequency tuning word is calculated as 0 fCARRIER < fDAC FTW = (fCARRIER/fDAC) × 248 where FTW is a 48-bit binary number. This method of calculation causes fCARRIER values in the second Nyquist zone to appear to move to fDAC - fCARRIER when flipping the FIR85 enable bit and not changing the FTW to account for the change in number format. The intended effect is that a sweep of the NCO from 0 Hz to fDAC - fDAC/248 appears seamless when the FIR85 enable bit is set to Register 0x111, Bit 0 = 0b1 prior to fCARRIER/fDAC = 0.5. As can be seen from examination, the FTWs from 0 to less than fDAC/2 mean the same in either case, but they mean different fCARRIER values from fDAC/2 to fDAC - fDAC/248. This effect must be considered when constructing FTW values and using the 2× NRZ mode. The frequency tuning word is set as shown in Table 37. Table 37. NCO FTW Registers Address Value Description 0x114 FTW[7:0] 8 LSBs of FTW 0x115 FTW[15:8] Next 8 bits of FTW 0x116 FTW[23:16] Next 8 bits of FTW 0x117 FTW[31:24] Next 8 bits of FTW 0x118 FTW[39:32] Next 8 bits of FTW 0x119 FTW[47:40] 8 MSBs of FTW Unlike other registers, the FTW registers are not updated immediately upon writing. Instead, the FTW registers update on the rising edge of FTW_LOAD_REQ (Register 0x113, Bit 0). After an update request, FTW_LOAD_ACK (Register 0x113, Bit 1) must be high to acknowledge that the FTW has updated. The SEL_SIDEBAND bit (Register 0x111, Bit 1 = 0b1) is a convenience bit that can be set to use the lower sideband modulation result, which is equivalent to flipping the sign of the FTW. AD9161/AD9162 I DATA INTERPOLATION FTW[47:0] NCO_PHASE_OFFSET [15:0] COS(n + ) NCO SIN(n + ) 1 SEL_SIDEBAND 01 + OUT_I OUT_Q 14379-108 Q DATA INTERPOLATION Figure 172. NCO Modulator Block Diagram Modulus NCO Mode The main 48-bit NCO can also be used in a dual modulus mode to create fractional frequencies beyond the 48-bit accuracy. The modulus mode is enabled by programming the MODULUS_EN bit in the DATAPATH_CFG register to 1 (Register 0x111, Bit 2 = 0b1). The frequency ratio for the programmable modulus direct digital synthesis (DDS) is very similar to that of the typical accumulator-based DDS. The only difference is that N is not required to be a power of two for the programmable modulus, but can be an arbitrary integer. In practice, hardware constraints place limits on the range of values for N. As a result, the modulus extends the use of the NCO to applications that require exact rational frequency synthesis. The underlying function of the programmable modulus technique is to alter the accumulator modulus. Implementation of the programmable modulus function within the AD9161/AD9162 is such that the fraction, M/N, is expressible per Equation 1. Note that the form of the equation implies a compound frequency tuning word with X representing the integer part and A/B representing the fractional part. fCARRIER f DAC = M N = X+ A B 248 (1) where: X is programmed in Register 0x114 to Register 0x119. A is programmed in Register 0x12A to Register 0x12F. B is programmed in Register 0x124 to Register 0x129. Rev. D | Page 69 of 144 AD9161/AD9162 Programmable Modulus Example Consider the case in which fDAC = 2500 MHz and the desired value of fCARRIER is 250 MHz. This scenario synthesizes an output frequency that is not a power of two submultiple of the sample rate, namely fCARRIER = (1/10) fDAC, which is not possible with a typical accumulator-based DDS. The frequency ratio, fCARRIER/fDAC, leads directly to M and N, which are determined by reducing the fraction (250,000,000/2,500,000,000) to its lowest terms, that is, M/N = 250,000,000/2,500,000,000 = 1/10 Therefore, M = 1 and N = 10. After calculation, X = 28147497671065, A = 3, and B = 5. Programming these values into the registers for X, A, and B (X is programmed in Register 0x114 to Register 0x119, B is programmed in Register 0x124 to Register 0x129, and A is programmed in Register 0x12A to Register 0x12F)) causes the NCO to produce an output frequency of exactly 250 MHz given a 2500 MHz sampling clock. For more details, refer to the AN-953 Application Note on the Analog Devices, Inc., website. NCO Reset Resetting the NCO can be useful when determining the start time and phase of the NCO. The NCO can be reset by several different methods, including a SPI write, using the TX_ENABLE pin, or by the SYSREF± signal. Due to internal timing variations from device to device, these methods achieve an accuracy of ±6 DAC clock cycles. Program Register 0x800, Bits[7:6] to 0b01 to set the NCO in phase discontinuous switching mode via a write to the SPI port. Then, any time the frequency tuning word is updated, the NCO phase accumulator resets and the NCO begins counting at the new FTW. Changing the Main NCO Frequency In the main 48-bit NCO, the mode of updating the frequency tuning word can be changed from requiring a write to the FTW_LOAD_REQ bit (Register 0x113, Bit 0) to an automatic update mode. In the automatic update mode, the FTW is updated as soon as the chosen FTW word is written. To set the automatic FTW update mode, write the appropriate word to the FTW_REQ_MODE bits (Register 0x113, Bits[6:4]), choosing the particular FTW word that causes the automatic update. For example, if relatively coarse frequency steps are needed, it may be sufficient to write a single word to the MSB byte of the FTW, and therefore the FTW_REQ_MODE bits can be programmed to 110 (Register 0x113, Bits[6:4] = 0b110). Then, each time the most significant byte, FTW5, is written, the NCO FTW is automatically updated. The FTW_REQ_MODE bits can be configured to use any of the FTW words as the automatic update trigger word. This configuration provides convenience when choosing the order in which to program the FTW registers. Data Sheet The speed of the SPI port write function is guaranteed and is a minimum of 100 MHz (see Table 4). Thus, the NCO FTW can be updated in as little as 240 ns with a one register write in automatic update mode. The NCO only supports phase noncontinuous mode. In this mode, the phase accumulator is reset by updating the frequency tuning word of the NCO, making an instantaneous jump to the new frequency. INVERSE SINC The AD9161/AD9162 provide a digital inverse sinc filter to compensate the DAC roll-off over frequency. The filter is enabled by setting the INVSINC_ENABLE bit (Register 0x111, Bit 7) and is disabled by default. The inverse sinc (sinc-1) filter is a seven-tap FIR filter. Figure 173 shows the frequency response of sin(x)/x roll-off, the inverse sinc filter, and the composite response. The composite response has less than ±0.05 dB pass-band ripple up to a frequency of 0.4 × fDACCLK. When 2× NRZ mode is enabled, the inverse sinc filter operates to 0.4 × f . 2×DACCLK To provide the necessary peaking at the upper end of the pass band, the inverse sinc filter shown has an intrinsic insertion loss of about 3.8 dB. 1 SIN(x)/x ROLL-OFF SINC1 FILTER RESPONSE 0 COMPOSITE RESPONSE MAGNITUDE (dB) 14379-109 1 2 3 4 5 0 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 FREQUENCY (× fDAC) Figure 173. Responses of Sin(x)/x Roll-Off, the Sinc-1 Filter, and the Composite of the Two DOWNSTREAM PROTECTION The AD9161/AD9162 have several features designed to protect the power amplifier (PA) of the system, as well as other downstream blocks. They consist of a control signal from the LMFC sync logic and a transmit enable function. The protection mechanism in each case is the blanking of data that is passed to the DAC decoder. The differences lie in the location in the datapath and slight variations of functionality. The JESD204B serial link has several flags and quality measures to indicate the serial link is up and running error free. If any of these measures flags an issue, a signal from the LMFC sync logic is sent to a mux that stops data from flowing to the DAC decoder and replaces it with 0s. Rev. D | Page 70 of 144 Data Sheet AD9161/AD9162 There are several transmit enable features, including a TX_ ENABLE register that can be used to squelch data at several points in the datapath or configure the TX_ENABLE pin to do likewise. Transmit Enable The transmit enable feature can be configured either as a SPI controlled function or a pin controlled function. It can be used for several different purposes. The SPI controlled function has less accurate timing due to its reliance on a microcontroller to program it; therefore, it is typically used as a preventative measure at power-up or when configuring the device. The SPI controlled TX_ENABLE function can be used to zero the input to the digital datapath or to zero the output from the digital datapath, as shown in Figure 174. If the input to the digital datapath is zeroed, any filtering that is selected filters the 0 signal, causing a gradual ramp-down of energy in the digital datapath. If the digital datapath is bypassed, as in 1÷ mode, the data at the input to the DAC immediately drops to zero. The TX_ENABLE pin can be used for more accurate timing when enabling or disabling the DAC output. The effect of the TX_ENABLE pin can be configured by the same TX_ENABLE register (Register 0x03F) as is used for the SPI controlled functions, and it can be made to have the same effects as the SPI controlled function, namely to zero the input to the digital datapath or to zero the output from the digital datapath. In addition, the TX_ENABLE pin can also be configured to ramp down (or up) the full-scale current of the DAC. The ramp down reduces the output power of the DAC by about 20 dB from full scale to the minimum output current. The TX_ENABLE pin can also be programmed to reset the NCO phase accumulator. See Table 38 for a description of the settings available for the TX_ENABLE function. DATAPATH PRBS The datapath PRBS can verify that the AD9161/AD9162 datapaths receive and correctly decode data. The datapath PRBS verifies that the JESD204B parameters of the transmitter and receiver match, the lanes of the receiver are mapped appropriately, the lanes are appropriately inverted, and, if necessary, the start-up routine is correctly implemented. To run the datapath PRBS test, complete the following steps: 1. Set up the device in the desired operating mode using the start-up sequence. 2. Send PRBS7 or PRBS15 data. 3. Write Register 0x14, Bit 2 = 0 for PRBS7 or 1 for PRBS15. 4. Write Register 0x14B, Bits[1:0] = 0b11 to enable and reset the PRBS test. 5. Write Register 0x14B, Bits[1:0] = 0b01 to enable the PRBS test and release reset. 6. Wait 500 ms. 7. Check the status of the PRBS by checking the IRQ for the I and Q path PRBS as described in the Datapath PRBS IRQ section. 8. Read Register 0x14B, Bits [7:6]. Bit 6 is 0 if the I channel has any errors. Bit 7 is 0 if the Q channel has any errors. 9. Read Register 0x14C to read the error count for the I channel. 10. Read Register 0x14D to read the error count for the Q channel. The PRBS processes 32 bits at a time and compares the 32 new bits to the previous set of 32 bits. It detects and reports only one error in every group of 32 bits; therefore, the error count partly depends on when the errors are seen. For example, see the following sequence: · Bits: 32 good, 31 good, 1 bad; 32 good [2 errors] · Bits: 32 good, 22 good, 10 bad; 32 good [2 errors] · Bits: 32 good, 31 good, 1 bad; 31 good, 1 bad; 32 good [3 errors] DATAPATH PRBS IRQ The PRBS fail signals for the I and Q path are available as IRQ events. Use Register 0x020, Bits [1:0] to enable the fail signals, and then use Register 0x024, Bits [1:0] to read back the status and reset the IRQ signals. See the Interrupt Request Operation section for more information. Table 38. TX_ENABLE Settings Register 0x03F Setting Bit 7 0 1 Bit 6 0 1 Bits[5:4] N/A1 Bit 3 0 1 Bit 2 0 1 Bit 1 0 1 Bit 0 0 1 Description SPI control: zero data to the DAC SPI control: allow data to pass to the DAC SPI control: zero data at input to the datapath SPI control: allow data to enter the datapath Reserved Use SPI writes to reset the NCO2 Use TX_ENABLE to reset the NCO Use SPI control to zero data to the DAC Use TX_ENABLE pin to zero data to the DAC Use SPI control to zero data at the input to the datapath Use TX_ENABLE pin to zero data at input to the datapath Use SPI registers to control the full-scale current Use TX_ENABLE pin to control the full-scale current Rev. D | Page 71 of 144 AD9161/AD9162 DATA FROM LMFC SYNC LOGIC 0 0 FROM REG 0x03F[6] TX_ENABLE MAIN DIGITAL PATH 0 FROM REG 0x03F[7] TX_ENABLE FROM REG 0x03F[1] Figure 174. Downstream Protection Block Diagram FROM REG 0x03F[2] 14379-110 Data Sheet TO DAC Rev. D | Page 72 of 144 Data Sheet AD9161/AD9162 INTERRUPT REQUEST OPERATION The AD9161/AD9162 provide an interrupt request output signal (IRQ) on Ball G1 (8 mm × 8 mm package) or Ball G4 (11 mm × 11 mm package) that can be used to notify an external host processor of significant device events. On assertion of the interrupt, query the device to determine the precise event that occurred. The IRQ pin is an open-drain, active low output. Pull the IRQ pin high, external to the device. This pin can be tied to the interrupt pins of other devices with open-drain outputs to wire; OR these pins together. Figure 175 shows a simplified block diagram of how the IRQ blocks works. If IRQ_EN is low, the INTERRUPT_SOURCE signal is set to 0. If IRQ_EN is high, any rising edge of EVENT causes the INTERRUPT_SOURCE signal to be set high. If any INTERRUPT_SOURCE signal is high, the IRQ pin is pulled low. INTERRUPT_SOURCE can be reset to 0 by either an IRQ_RESET signal or a DEVICE_RESET signal. Depending on the STATUS_MODE signal, the EVENT_STATUS bit reads back an event signal or INTERRUPT_SOURCE signal. The AD9161/AD9162 have several IRQ register blocks that can monitor up to 75 events (depending on device configuration). Certain details vary by IRQ register block as described in Table 39. Table 40 shows the source registers of the IRQ_EN, IRQ_RESET, and STATUS_MODE signals in Figure 175, as well as the address where EVENT_STATUS is read back. Table 39. IRQ Register Block Details Register Block Event Reported 0x020, 0x024 Per chip 0x4B8 to 0x4BB; 0x470 Per link and to 0x473 lane EVENT_STATUS INTERRUPT_SOURCE if IRQ is enabled; if not, it is the event signal INTERRUPT_SOURCE if IRQ is enabled; if not, 0 INTERRUPT SERVICE ROUTINE Interrupt request management starts by selecting the set of event flags that require host intervention or monitoring. Enable the events that require host action so that the host is notified when they occur. For events requiring host intervention upon IRQ activation, run the following routine to clear an interrupt request: 1. Read the status of the event flag bits that are being monitored. 2. Disable the interrupt by writing 0 to IRQ_EN. 3. Read the event source. 4. Perform any actions that may be required to clear the cause of the event. In many cases, no specific actions may be required. 5. Verify that the event source is functioning as expected. 6. Clear the interrupt by writing 1 to IRQ_RESET. 7. Enable the interrupt by writing 1 to IRQ_EN. IRQ_EN EVENT IRQ_RESET DEVICE_RESET 0 EVENT_STATUS 1 STATUS_MODE IRQ 0 1 IRQ_EN INTERRUPT_SOURCE OTHER INTERRUPT SOURCES 14379-111 Figure 175. Simplified Schematic of IRQ Circuitry Table 40. IRQ Register Block Address of IRQ Signal Details Address of IRQ Signals Register Block IRQ_EN IRQ_RESET STATUS_MODE1 0x020, 0x024 0x020; R/W per chip 0x024; W per chip STATUS_MODE = IRQ_EN 0x4B8 to 0x4BB 0x4B8, 0x4B9; W per error type 0x4BA, 0x4BB; W per error type N/A, STATUS_MODE = 1 0x470 to 0x473 0x470 to 0x473; W per error type 0x470 to 0x473; W per link N/A, STATUS_MODE = 1 EVENT_STATUS 0x024; R per chip 0x4BA, 0x4BB; R per chip 0x470 to 0x473; R per link 1 N/A means not applicable. Rev. D | Page 73 of 73 AD9161/AD9162 APPLICATIONS INFORMATION HARDWARE CONSIDERATIONS Power Supply Recommendations All the AD9161/AD9162 supply domains must remain as noise free as possible for the best operation. Power supply noise has a frequency component that affects performance, and is specified in volts rms terms. An LC filter on the output of the power supply is recommended to attenuate the noise, and must be placed as close to the AD9161/ AD9162 as possible. The VDD12_CLK supply is the most noise sensitive supply on the device, followed by the VDD25_DAC and VNEG_N1P2 supplies, which are the DAC output rails. It is highly recommended that the VDD12_CLK be supplied by itself with an ultralow noise regulator such as the ADM7154 or ADP1761 or better to achieve the best phase noise performance possible. Noisier regulators impose phase noise onto the DAC output. The VDD12A supply can be connected to the digital DVDD supply with a separate filter network. All of the SERDES 1.2 V supplies can be connected to one regulator with separate filter networks. The IOVDD supply can be connected to the VDD25_ DAC supply with a separate filter network, or can be powered from a system controller (for example, a microcontroller), 1.8 V to 3.3 V supply. The power supply sequencing requirement must be met; therefore, a switch or other solution must be used when connected to the IOVDD supply with VDD25_DAC. Take note of the maximum power consumption numbers given in Table 3 to ensure the power supply design can tolerate temperature and IC process variation extremes. The amount of current drawn is dependent on the chosen use cases, and specifications are provided for several use cases to illustrate examples and contributions from individual blocks, and to assist in calculating the maximum required current per supply. Another consideration for the power supply design is peak current handling capability. The AD9161/AD9162 draw more current in the main digital supply when synthesizing a signal with significant amplitude variations, such as a modulated signal, as compared to when in idle mode or synthesizing a dc signal. Therefore, the power supply must be able to supply current quickly to accommodate burst signals such as GSM, TDMA, or other signals that have an on/off time domain response. Because the amount of current variation depends on the signals used, it is best to perform lab testing first to establish ranges. A typical difference can be several hundred milliamperes. Data Sheet Power Sequencing The AD9161/AD9162 require power sequencing to avoid damage to the DAC. A board design with the AD9161/AD9162 must include a power sequencer chip, such as the ADM1184, to ensure that the domains power up in the correct order. The ADM1184 monitors the level of power domains upon power-up. It sends an enable signal to the next grouping of power domains. When all power domains are powered up, a power-good signal is sent to the system controller to indicate all power supplies are powered up. The IOVDD, VDD12A, VDD12_CLK, and DVDD domains must be powered up first. Then, the VNEG_N1P2, VDD_1P2, PLL_CLK_VDD12, DVDD_1P2, and SYNC_VDD_3P3 can be powered up. The VDD25_DAC domain must be powered up last. There is no requirement for a power-down sequence. Power and Ground Planes Solid ground planes are recommended to avoid ground loops and to provide a solid, uninterrupted ground reference for the high speed transmission lines that require controlled impedances. It is recommended that power planes be stacked between ground layers for high frequency filtering. Doing so adds extra filtering and isolation between power supply domains in addition to the decoupling capacitors. Do not use segmented power planes as a reference for controlled impedances unless the entire length of the controlled impedance trace traverses across only a single segmented plane. These and additional guidelines for the topology of high speed transmission lines are described in the JESD204B Serial Interface Inputs (SERDIN0± to SERDIN7±) section. For some applications, where highest performance and higher output frequencies are required, the choice of PCB materials significantly impacts results. For example, materials such as polyimide or materials from the Rogers Corporation can be used, for example, to improve tolerance to high temperatures and improve performance. Rogers 4350 material is used for the top three layers in some of the evaluation board designs: between the top signal layer and the ground layer below it, between the ground layer and an internal signal layer, and between that signal layer and another ground layer. JESD204B Serial Interface Inputs (SERDIN0± to SERDIN7±) When considering the layout of the JESD204B serial interface transmission lines, there are many factors to consider to maintain optimal link performance. Among these factors are insertion loss, return loss, signal skew, and the topology of the differential traces. Rev. D | Page 74 of 144 Data Sheet AD9161/AD9162 Insertion Loss The JESD204B specification limits the amount of insertion loss allowed in the transmission channel (see Figure 147). The AD9161/AD9162 equalization circuitry allows significantly more loss in the channel than is required by the JESD204B specification. It is still important that the designer of the PCB minimize the amount of insertion loss by adhering to the following guidelines: Keep the differential traces short by placing the AD9161/AD9162 as near the transmitting logic device as possible and routing the trace as directly as possible between the devices. Route the differential pairs on a single plane using a solid ground plane as a reference. It is recommended to route the SERDES lanes on the same layer as the AD9161/AD9162 to avoid vias being used in the SERDES lanes. Use a PCB material with a low dielectric constant (<4) to minimize loss, if possible. When choosing between the stripline and microstrip techniques, keep in mind the following considerations: stripline has less loss (see Figure 148 and Figure 149) and emits less EMI, but requires the use of vias that can add complexity to the task of controlling the impedance; whereas microstrip is easier to implement (if the component placement and density allow routing on the top layer) and eases the task of controlling the impedance. If using the top layer of the PCB is problematic or the advantages of stripline are desirable, follow these recommendations: Minimize the number of vias. If possible, use blind vias to eliminate via stub effects and use microvias to minimize via inductance. If using standard vias, use the maximum via length to minimize the stub size. For example, on an 8-layer board, use Layer 7 for the stripline pair (see Figure 176). For each via pair, place a pair of ground vias adjacent to them to minimize the impedance discontinuity (see Figure 176). LAYER 1 LAYER 2 LAYER 3 LAYER 4 LAYER 5 ADD GROUND VIAS DIFF STANDARD VIA DIFF+ GND y y y LAYER 6 LAYER 7 GND LAYER 8 MINIMIZE STUB EFFECT Figure 176. Minimizing Stub Effect and Adding Ground Vias for Differential Stripline Traces Return Loss sion line between the transmitting logic device and the AD9161/ AD9162. Minimizing the use of vias, or eliminating them all together, reduces one of the primary sources for impedance mismatches on a transmission line (see the Insertion Loss section). Maintain a solid reference beneath (for microstrip) or above and below (for stripline) the differential traces to ensure continuity in the impedance of the transmission line. If the stripline technique is used, follow the guidelines listed in the Insertion Loss section to minimize impedance mismatches and stub effects. Another primary source for impedance mismatch is at either end of the transmission line, where care must be taken to match the impedance of the termination to that of the transmission line. The AD9161/AD9162 handle this internally with a calibrated termination scheme for the receiving end of the line. See the Interface Power-Up and Input Termination section for details on this circuit and the calibration routine. Signal Skew There are many sources for signal skew, but the two sources to consider when laying out a PCB are interconnect skew within a single JESD204B link and skew between multiple JESD204B links. In each case, keeping the channel lengths matched to within 12.5 mm is adequate for operating the JESD204B link at speeds of up to 12.5 Gbps. This amount of channel length match is equivalent to about 85% UI on the AD9161/AD9162 evaluation board. Managing the interconnect skew within a single link is fairly straightforward. Managing multiple links across multiple devices is more complex. However, follow the 12.5 mm guideline for length matching. The AD9161/AD9162 can handle more skew than the 85% UI due to the 6 PCLK buffer in the JESD204B receiver, but matching the channel lengths as close as possible is still recommended. Topology Structure the differential SERDINx± pairs to achieve 50 to ground for each half of the pair. Stripline vs. microstrip tradeoffs are described in the Insertion Loss section. In either case, it is important to keep these transmission lines separated from potential noise sources such as high speed digital signals and noisy supplies. If using stripline differential traces, route them using a coplanar method, with both traces on the same layer. Although this method does not offer more noise immunity than the broadside routing method (traces routed on adjacent layers), it is easier to route and manufacture so that the impedance continuity is maintained. An illustration of broadside vs. coplanar is shown in Figure 177. Tx DIFF A Tx DIFF B Tx ACTIVE Tx Tx Tx DIFF A DIFF B ACTIVE The JESD204B specification limits the amount of return loss allowed in a converter device and a logic device, but does not specify return loss for the channel. However, every effort must be made to maintain a continuous impedance on the transmis- BROADSIDE DIFFERENTIAL Tx LINES COPLANAR DIFFERENTIAL Tx LINES Figure 177. Broadside vs. Coplanar Differential Stripline Routing Techniques Rev. D | Page 75 of 75 14379-100 14379-101 AD9161/AD9162 Data Sheet When considering the trace width vs. copper weight and thickness, the speed of the interface must be considered. At multigigabit speeds, the skin effect of the conducting material confines the current flow to the surface. Maximize the surface area of the conductor by making the trace width made wider to reduce the losses. Additionally, loosely couple differential traces to accommodate the wider trace widths. This coupling helps reduce the crosstalk and minimize the impedance mismatch when the traces must separate to accommodate components, vias, connectors, or other routing obstacles. Tightly coupled vs. loosely coupled differential traces are shown in Figure 178. Tx Tx DIFF A DIFF B Tx DIFF A Tx DIFF B TIGHTLY COUPLED DIFFERENTIAL Tx LINES LOOSELY COUPLED DIFFERENTIAL Tx LINES Figure 178. Tightly Coupled vs. Loosely Coupled Differential Traces AC Coupling Capacitors The AD9161/AD9162 require that the JESD204B input signals be ac-coupled to the source. These capacitors must be 100 nF 14379-102 and placed as close as possible to the transmitting logic device. To minimize the impedance mismatch at the pads, select the package size of the capacitor so that the pad size on the PCB matches the trace width as closely as possible. SYNCOUT±, SYSREF±, and CLK± Signals The SYNCOUT± and SYSREF± signals on the AD9161/AD9162 are low speed LVDS differential signals. Use controlled impedance traces routed with 100 differential impedance and 50 to ground when routing these signals. As with the SERDIN0± to SERDIN7± data pairs, it is important to keep these signals separated from potential noise sources such as high speed digital signals and noisy supplies. Separate the SYNCOUT± signal from other noisy signals, because noise on the SYNCOUT± might be interpreted as a request for /K/ characters. It is important to keep similar trace lengths for the CLK± and SYSREF± signals from the clock source to each of the devices on either end of the JESD204B links (see Figure 179). If using a clock chip that can tightly control the phase of CLK± and SYSREF±, the trace length matching requirements are greatly reduced. Tx DEVICE LANE 0 LANE 1 LANE N 1 LANE N Rx DEVICE SYSREF± SYSREF± CLOCK SOURCE (AD9516-1, ADCLK925) DEVICE CLOCK DEVICE CLOCK SYSREF± TRACE LENGTH DEVICE CLOCK TRACE LENGTH SYSREF± TRACE LENGTH DEVICE CLOCK TRACE LENGTH Figure 179. SYSREF± Signal and Device Clock Trace Length 14379-103 Rev. D | Page 76 of 76 Data Sheet AD9161/AD9162 ANALOG INTERFACE CONSIDERATIONS ANALOG MODES OF OPERATION The AD9161/AD9162 use the quad-switch architecture shown in Figure 180. Only one pair of switches is enabled during a half-clock cycle, thus requiring each pair to be clocked on alternative clock edges. A key benefit of the quad-switch architecture is that it masks the code dependent glitches that occur in the conventional twoswitch DAC architecture. CLK± CLK VG1 VG2 LATCHES VG3 DATA INPUT VG4 IOUTP IOUTN VG1 VG2 VG3 VG4 14379-112 VSSA Figure 180. Quad-Switch Architecture In two-switch architecture, when a switch transition occurs and D1 and D2 are in different states, a glitch occurs. However, if D1 and D2 happen to be at the same state, the switch transitions and no glitches occur. This code dependent glitching causes an increased amount of distortion in the DAC. In quad-switch architecture (no matter what the codes are), there are always two switches that are transitioning at each half-clock cycle, thus eliminating the code-dependent glitches but, in the process, creating a constant glitch at 2 × fDAC. For this reason, a significant clock spur at 2 × fDAC is evident in the DAC output spectrum. INPUT DATA D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 DACCLK_x TWO-SWITCH DAC OUTPUT D1 D2 D3 D4 D5 t D6 D7 D8 D9 D10 FOUR-SWITCH DAC OUTPUT (NORMAL MODE) D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 t Figure 181. Two-Switch and Quad-Switch DAC Waveforms As a consequence of the quad-switch architecture enabling updates on each half-clock cycle, it is possible to operate that DAC core at 2× the DAC clock rate if new data samples are latched into the DAC core on both the rising and falling edge of the DAC clock. This notion serves as the basis when operating the AD9161/AD9162 in either Mix-Mode or return to zero (RZ) mode. In each case, the DAC core is presented with new data samples on each clock edge: in RZ mode, the rising edge clocks data and the falling edge clocks zero, while in Mix-Mode; the falling edge sample is simply the complement of the rising edge sample value. 14379-113 AMPLITUDE (dBFS) When Mix-Mode is used, the output is effectively chopped at the DAC sample rate. This chopping has the effect of reducing the power of the fundamental signal while increasing the power of the images centered around the DAC sample rate, thus improving the dynamic range of these images. INPUT DATA D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 DACCLK_x FOUR-SWITCH DAC OUTPUT (fS MIX-MODE) D3 D2 D4 D1 D5 D8 D7 D9 D6 D10 t D1 D5 D6 D10 D2 D4 D7 D9 D3 D8 14379-114 Figure 182. Mix-Mode Waveform This ability to change modes provides the user the flexibility to place a carrier anywhere in the first three Nyquist zones, depending on the operating mode selected. Switching between baseband and Mix-Mode reshapes the sinc roll-off inherent at the DAC output. In baseband mode, the sinc null appears at fDACCLK because the same sample latched on the rising clock edge is also latched again on the falling clock edge, thus resulting in the same ubiquitous sinc response of a traditional DAC. In Mix-Mode, the complement sample of the rising edge is latched on the falling edge, therefore pushing the sinc null to 2 × fDACCLK. Figure 183 shows the ideal frequency response of the three modes with the sinc roll-off included. FIRST NYQUIST ZONE 0 SECOND NYQUIST ZONE MIX-MODE THIRD NYQUIST ZONE 5 RZ MODE 10 15 NORMAL MODE 20 25 30 14379-115 35 0FS 0.25FS 0.50FS 0.75FS 1.00FS FREQUENCY (Hz) 1.25FS 1.50FS Figure 183. Sinc Roll-Off for NRZ, RZ, and Mix-Mode Operation The quad-switch can be configured via SPI (Register 0x152, Bits[1:0]) to operate in either NRZ mode (0b00), RZ mode (0b10), or Mix-Mode (0b01). The AD9161/AD9162 have an additional frequency response characteristic due to the FIR85 filter. This filter samples data on both the rising and falling edges of the DAC clock, in essence doubling the input clock frequency. As a result, the NRZ (normal) mode roll-off in Figure 183 is extended to 2 × fDAC in Figure 183, and follows the Rev. D | Page 77 of 77 AD9161/AD9162 Mix-Mode roll-off due to the zero-order hold at 2 × DAC clock (see Figure 184). 0 NRZ MODE 3 2× NRZ MODE MIX-MODE 6 RZ MODE 9 12 POWER (dBc) 14379-193 15 18 21 24 27 30 33 36 0 1020 2040 3060 4080 5100 6120 7140 8160 9180 10200 FREQUENCY (MHz) Figure 184. Sinc Roll-Off with 2× NRZ Mode Added, fDAC = 5.1 GSPS CLOCK INPUT The AD9161/AD9162 contain a low jitter, differential clock receiver that is capable of interfacing directly to a differential or single-ended clock source. Because the input is self biased with a nominal impedance of 90 , it is recommended that the clock source be ac-coupled to the CLK± input pins. The nominal differential input is 1 V p-p, but the clock receiver can operate with a span that ranges from 250 mV p-p to 2.0 V p-p. Better phase noise performance is achieved with a higher clock input level. CLK+ CLK 5k 5k DUTY CYCLE RESTORER CROSS CONTROL 16µA TO DAC AND DLL 1.25V 40k Figure 185. Clock Input The quality of the clock source, as well as its interface to the AD9161/AD9162 clock input, directly impacts ac performance. Data Sheet Select the phase noise and spur characteristics of the clock source to meet the target application requirements. Phase noise and spurs at a given frequency offset on the clock source are directly translated to the output signal. It can be shown that the phase noise characteristics of a reconstructed output sine wave are related to the clock source by 20 × log10 (fOUT/fCLK) when the DAC clock path contribution is negligible. Figure 186 shows a clock source based on the ADF4355 low phase noise/jitter PLL. The ADF4355 can provide output frequencies from 54 MHz up to 6.8 GHz. The clock control registers exist at Address 0x082 through Address 0x084. CLK_DUTY (Register 0x082) can be used to enable duty cycle correction (Bit 7), enable duty cycle offset control (Bit 6), and set the duty cycle offset (Bits[4:0]). The duty cycle offset word is a signed magnitude word, with Bit 4 being the sign bit (1 is negative) and Bits[3:0] the magnitude. The duty cycle adjusts across a range of approximately ±3%. Recommended settings for this register are listed in the Start-Up Sequence section. The clock input has a register that adjusts the phase of the CLK+ and CLK- inputs. This register is located at Address 0x07F. The register has a signed magnitude (1 is negative) value that adds capacitance at 20 fF per step to either the CLK+ or the CLK- input, according to Table 41. The CLK_PHASE_TUNE register can be used to adjust the clock input phase for better DAC image rejection. Table 41. CLK± Phase Adjust Values Register 0x07F, Bits[5:0] Capacitance at CLK+ 000000 0 000001 1 × 20 fF 000010 2 × 20 fF ... ... 011111 31 × 20 fF 100000 0 100001 0 100010 0 ... ... 111111 0 Capacitance at CLK- 0 0 0 ... 0 0 1 × 20 fF 2 × 20 fF ... 31 × 20 fF 14379-116 14379-174 FREF ADF4355 PLL VCO OUTPUT STAGE VOUT 7.4nH 100pF 100pF 7.4nH AD9161/ AD9162 CLK+ CLK VOUT 2GHz TO 6GHz 0dBm Figure 186. Possible Signal Chain for CLK± Input Rev. D | Page 78 of 144 Data Sheet AD9161/AD9162 DAC OUTPUT IMAGE POWER (fS fOUT) (dBc) 14379-221 14379-119 The improvement in performance from making these adjustments depends on the accuracy of the balance of the clock input balun and varies from unit to unit. Thus, if a high level of image rejection is required, it is likely that a per unit calibration is necessary. Performing this calibration can yield significant improvements, as much as 20 dB additional rejection of the image due to imbalance. Figure 187 shows the results of tuning clock phase, duty cycle (left at default in this case), and cross control. The improvement to performance, particularly at higher frequencies, can be as much as 20 dB. 20 30 40 PHASE 0, CROSS 6 50 60 70 PHASE 28, 80 CROSS 10 90 0 1000 2000 3000 4000 fOUT (MHz) 5000 6000 Figure 187. Performance Improvement from Tuning the Clock Input SHUFFLE MODE The spurious performance of the AD9161/AD9162 can be improved with a feature called shuffle mode. Shuffle mode uses proprietary technology to spread the energy of spurious signals across the DAC output as random noise. Shuffle mode is enabled by programming Register 0x151, Bit 2 = 0b1. Because shuffle is implemented with the MSBs, it is more effective when the DAC is operated with a small amount of digital backoff. The amount of noise rise caused by shuffle mode is directly related to the power in the affected spurious signals. Because the AD9161/AD9162 have good spurious performance without shuffle active, the penalty of shuffle mode to the noise spectral density is typically about 1 dB to 3 dB. Shuffle mode reduces spurious performance related to clock and foldback spurs, but does not affect real harmonics of the DAC output. Examples of the effects of shuffle mode are given in the Typical Performance Characteristics section (see Figure 18, Figure 19, Figure 33, Figure 34, Figure 100, Figure 101, Figure 115, Figure 116, and Figure 117). DLL The CLK± input goes to a high frequency DLL to ensure robust locking of the DAC sample clock to the input clock. The DLL is configured and enabled as part of the recommended start-up sequence. The DLL control registers are located at Register 0x090 through Register 0x09B. The DLL settings are determined during product characterization and are given in the recommended start-up sequence (see the Start-Up Sequence section). It is not normally necessary to change these values, nor is the product characterization data valid on any settings other than the recommended ones. VOLTAGE REFERENCE The AD9161/AD9162 output current is set by a combination of digital control bits and the ISET reference current, as shown in Figure 188. AD9161/AD9162 VBG ANA_FULL_SCALE_CURRENT [9:0] 1.2V VREF 1µF ISET + 9.6k ISET CURRENT SCALING DAC IOUTFS VSS VNEG_N1P2 Figure 188. Voltage Reference Circuit The reference current is obtained by forcing the band gap voltage across an external 9.6 k resistor from ISET (Ball A15 on the 8 mm × 8 mm package and Ball A12 on the 11 mm × 11 mm package) to VNEG_N1P2. The 1.2 V nominal band gap voltage (VREF) generates a 125 µA reference current, ISET, in the 9.6 k resistor, RSET. The maximum full-scale current setting is related to the external resistor by the following equation: IOUTFS = 1.2 V/RSET (k) × 320 (mA) Note the following constraints when configuring the voltage reference circuit: · Both the 9.6 k resistor and 1 µF bypass capacitor are required for proper operation. · Adjusting the DAC output full-scale current, IOUTFS, from its default setting of 40 mA must be performed digitally. · The AD9161/AD9162 are not multiplying DACs. Modulation of the reference current, ISET, with an ac signal is not supported. · The band gap voltage appearing at the VREF pin must be buffered for use with an external circuitry because it has a high output impedance. · An external reference can be used to overdrive the internal reference by connecting it to the VREF pin. The IOUTFS value can be adjusted digitally over an 8 mA to 40 mA range by the ANA_FULL_SCALE_CURRENT[9:0] bits (Register 0x042, Bits[7:0] and Register 0x041, Bits[1:0]). The following equation relates IOUTFS to the ANA_FULL_SCALE_ CURRENT[9:0] bits, which can be set from 0 to 1023. IOUTFS = 32 mA × (ANA_FULL_SCALE_CURRENT[9:0]/1023) + 8 mA Note that the default value of 0x3FF generates 40 mA full scale, and this value is used for most of the characterization presented in this data sheet, unless noted otherwise. Rev. D | Page 79 of 144 AD9161/AD9162 Data Sheet TEMPERATURE SENSOR The AD9161/AD9162 has a band gap temperature sensor for monitoring the temperature changes of the AD9161/AD9162. The temperature must be calibrated against a known temperature to remove the device-to-device variation on the band gap circuit used to sense the temperature. To calibrate, the user must take a reading at a known ambient temperature for a single-point calibration of each AD9161/AD9162 device. The slope for the formula is then calculated as M = (TREF + 190)/((CODE_REF)/1000) where: TREF is the temperature at which the temp sensor is read, CODE_REF is the readback code at the measured temperature, TREF. To monitor temperature change, TX = TREF + M × (CODE_X - CODE_REF)/1000 where: CODE_X is the readback code at the unknown temperature, TX. CODE_REF is the readback code at the calibrated temperature, TREF. To use the temperature sensor, it must be enabled by setting Register 0x135 to 0xA1. The user must write a 1 to Register 0x134, Bit 0 before reading back the die temperature from Register 0x132 (LSB) and Register 0x133 (MSB). ANALOG OUTPUTS Equivalent DAC Output and Transfer Function The AD9161/AD9162 provide complementary current outputs, OUTPUT+ and OUTPUT-, that sink current from an external load that is referenced to the 2.5 V VDD25_DAC supply. Figure 189 shows an equivalent output circuit for the DAC. Compared to most current output DACs of this type, the outputs of the AD9161/AD9162 consist of a constant current (IFIXED), and a peak differential ac current, ICS (ICS = ICSP + ICSN). These two currents combine to form the IINTx currents shown in Figure 189. The internal currents, IINTP and IINTN, are sent to the output pin and to an input termination resistance equivalent to 100 pulled to the VDD25_DAC supply (RINT). This termination serves to divide the output current based on the external termination resistors that are pulled to VDD25_DAC. VDD25_DAC IOUTFS = 8mA 40mA ICSP IINTP 100 IFIXED ICSN IFIXED IINTN 100 VDD25_DAC OUTPUT+ OUTPUT 14379-120 Figure 189. Equivalent DAC Output Circuit The example shown in Figure 189 can be modeled as a pair of dc current sources that source a current of IOUT to each output. This differential ac current source is used to model the signal (that is, a digital code) dependent nature of the DAC output. The polarity and signal dependency of this ac current source are related to the digital code (F) by the following equation: F (code) = (DACCODE - 32,768)/32,768 (2) where: -1 F (code) < +1. DACCODE = 0 to 65,535 (decimal). The current that is measured at the OUTPUT+ and OUTPUT- outputs is as follows: OUTPUT+ = (IFIXED (mA) + (F × IOUTFS)/FMAX(mA)) × (RINT/(RINT + RLOAD)) (3) OUTPUT- = (IFIXED (mA) + ((FMAX - F) × IOUTFS)/FMAX(mA)) ×(RINT/(RINT + RLOAD)) The IFIXED value is about 3.8 mA. It is important to note that the AD9161/AD9162 output cannot support dc coupling to the external load, and thus must be ac-coupled through appropriately sized capacitors for the chosen operating frequencies. Figure 190 shows the OUTPUT+ vs. DAC code transfer function when IOUTFS is set to 40 mA. 45 40 35 OUTPUT CURRENT (mA) 30 25 20 15 10 5 14379-121 0 0 16384 32768 49152 65536 DAC CODE Figure 190. Gain Curve for ANA_FULL_SCALE_CURRENT[9:0] = 1023, DAC Offset = 3.8 mA Peak DAC Output Power Capability The maximum peak power capability of a differential current output DAC is dependent on its peak differential ac current, IPEAK, and the equivalent load resistance it sees. In the case of a 1:1 balun with 100 differential source termination, the equivalent load that is seen by the DAC ac current source is 50 . If the AD9161/AD9162 are programmed for an IOUTFS = 40 mA, its ideal peak ac current is 20 mA and its maximum power, delivered to the equivalent load, is 10 × (RINT/(RINT + RLOAD)) = 8 mW, that is, P = I2R. Because the source and load resistance seen by the 1:1 balun are equal, this power is shared equally. Therefore, the output load receives 4 mW or 6 dBm maximum power. To calculate the rms power delivered to the load, consider the following: Peak to rms of the digital waveform Any digital backoff from digital full scale DAC sinc response and nonideal losses in the external network Rev. D | Page 80 of 80 Data Sheet AD9161/AD9162 DAC analog roll-off due to switch parasitic capacitance and load impedance For example, a sine wave with no digital backoff ideally measures 6 dBm. If a typical balun loss of 1.2 dB is included, expect to measure 4.8 dBm of actual power in the region where the sinc response of the DAC has negligible influence and analog roll-off has not begun. Increasing the output power is best accomplished by increasing IOUTFS. An example of DAC output characteristics for several balun and board types is shown in Figure 192. Output Stage Configuration The AD9161/AD9162 are intended to serve high dynamic range applications that require wide signal reconstruction bandwidth (such as a DOCSIS cable modem termination system (CMTS)) and/or high IF/RF signal generation. Optimum ac performance can be realized only when the DAC output is configured for differential (that is, balanced) operation with its output commonmode voltage biased to a stable, low noise 2.5 V nominal analog supply (VDD25_DAC). The output network used to interface to the DAC provides a near 0 dc bias path to VDD25_DAC. Any imbalance in the output impedance over frequency between the OUTPUT+ and OUTPUT- pins degrades the distortion performance (mostly even order) and noise performance. Component selection and layout are critical in realizing the performance potential of the AD9161/AD9162. Most applications that require balanced to unbalanced conversion from 10 MHz to 3 GHz can take advantage of several available transformers that offer impedance ratios of both 2:1 and 1:1. Figure 191 shows the AD9161/AD9162 interfacing to the MiniCircuits TCM1-63AX+ and the TC1-1-43X+ transformers. OUTPUT+ MINI-CIRCUITS TCM1-63AX+ TC1-1-43X+ L 50 C VDD25_DAC L 50 C OUTPUT 14379-122 Figure 191. Recommended Transformer for Wideband Applications with Upper Bandwidths of up to 5 GHz 5 0 5 To assist in matching the AD9161/AD9162 output, an equiva- lent model of the output was developed, and is shown in Figure 193. This equivalent model includes all effects from the ideal 40 mA current source in the die to the ball of the CSP_ BGA package, including parasitic capacitance, trace inductance and resistance, contact resistance of solder bumps, via inductance, and other effects. 470pH 3.59 OUTPUT 40mA 179 1.14pF 248fF 14379-124 470pH 3.59 OUTPUT+ Figure 193. Equivalent Circuit Model of the DAC Output A Smith chart is provided in Figure 194 showing the simulated S11 of the DAC output, using the model in Figure 193. The plot was taken using the circuit in Figure 193, with a 100 differential load instead of the balun. For the measured response of the DAC output, see Figure 192. 1.0 0.5 2.0 S (1, 1) 0.2 0 0.2 m1 m6 m2 m5 m3 m4 5.0 0 5.0 0.5 2.0 1.0 FREQUENCY (10MHz TO 6GHz) m1 FREQUENCY = 10MHz S (1, 1) = 0.770/149.556 IMPEDANCE = Z0 × (0.140 + j0.267) m2 FREQUENCY = 100MHz S (1, 1) = 0.227/163.083 IMPEDANCE = Z0 × (0.638 + j0.089) m3 FREQUENCY = 1GHz S (1, 1) = 0.367/144.722 IMPEDANCE = Z0 × (0.499 j0.245) m4 FREQUENCY = 2GHz S (1, 1) = 0.583/148.777 IMPEDANCE = Z0 × (0.282 j0.259) m5 FREQUENCY = 4GHz S (1, 1) = 0.794/170.517 IMPEDANCE = Z0 × (0.116 j0.082) m6 FREQUENCY = 6GHz S (1, 1) = 0.779/168.448 IMPEDANCE = Z0 × (0.125 + j0.100) 14379-125 Figure 194. Simulated Smith Chart Showing the DAC Output Impedance (ZO = 100 ) OUTPUT POWER (dBm) 10 15 BAL-0006 TC1-1-43X+ TCM1-63AX+ 20 0 1 2 3 4 5 6 fOUT (GHz) Figure 192. Measured DAC Output Response; fDAC = 6 GSPS 14379-123 Rev. D | Page 81 of 81 AD9161/AD9162 Data Sheet START-UP SEQUENCE A number of steps is required to program the AD9161/AD9162 to the proper operating state after the device is powered up. This sequence is divided into several steps, and is listed in Table 42, Table 43, and Table 44, along with an explanation of the purpose of each step. Private registers are reserved but must be written for proper operation. Blank cells in Table 42 to Table 44 mean that the value depends on the result as described in the description column. The AD9161/AD9162 are calibrated at the factory as part of the automatic test program. The configure DAC start-up sequence loads the factory calibration coefficients, as well as configures some parameters that optimize the performance of the DAC and the DAC clock DLL (see Table 42). Run this sequence whenever the DAC is powered down or reset. The configure JESD204B sequence configures the SERDES block and then brings up the links (see Table 43). First, run the configure DAC start-up sequence, then run the configure JESD204B sequence. Follow the configure NCO sequence if using the NCO (see Table 44). Note that the NCO can be used in NCO only mode or in conjunction with synthesized data from the SERDES data interface. Only one mode can be used at a time and this mode is selected in the second step in Table 44. The configure DAC start-up sequence is run first, then the configure NCO sequence. Table 42. Configure DAC Start-Up Sequence After Power-Up R/W Register Value Description W 0x000 0x18 Configure the device for 4-wire serial port operation (optional: leave at the default of 3-wire SPI) W 0x0D2 0x52 Reset internal calibration registers (private) W 0x0D2 0xD2 Clear the reset bit for the internal calibration registers (private) W 0x606 0x02 Configure the nonvolatile random access memory (NVRAM) (private) W 0x607 0x00 Configure the NVRAM (private) W 0x604 0x01 Load the NVRAM. Loads factory calibration factors from the NVRAM. (private)1 R 0x003, 0x004, 0x005, N/A2 (Optional) read CHIP_TYPE, PROD_ID[15:0], PROD_GRADE, and DEV_REVISION from Register 0x003, 0x006 Register 0x004, Register 0x005, and Register 0x006 R 0x604, Bit 1 0b1 (Optional) read the boot loader pass bit in Register 0x604, Bit 1 = 0b1 to indicate a successful boot load W 0x058 0x03 Enable the band gap reference (private) W 0x090 0x1E Power up the DAC clock DLL W 0x080 0x00 Enable the clock receiver W 0x040 0x00 Enable the DAC bias circuits W 0x020 0x0F Optional. Enable the interrupts W 0x09E 0x85 Configure DAC analog parameters (private) W 0x091 0xE9 Enable the DAC clock DLL R 0x092, Bit 0 0b1 Check DLL_STATUS; set Register 0x092, Bit 0 = 1 to indicate the DAC clock DLL is locked to the DAC clock input W 0x0E8 0x20 Enable calibration factors (private) W 0x152, Bits[1:0] Configure the DAC decode mode (0b00 = NRZ, 0b01 = mix mode, or 0b10 = RZ) 1 After the NVRAM is loaded, the readback values of registers 0x004 and 0x005 change to 0x004 = 0x62 for the AD9162, 0x004 = 0x61 for the AD9161, 0x005 = 0x91. 2 N/A means not applicable. Table 43. Configure JESD204B Start-Up Sequence R/W Register Value Description W 0x300 0x00 Ensure the SERDES links are disabled before configuring them. W 0x4B8 0xFF Enable JESD204B interrupts. W 0x4B9 0x01 Enable JESD204B interrupts. W 0x480 0x38 Enable SERDES error counters. W 0x481 0x38 Enable SERDES error counters. W 0x482 0x38 Enable SERDES error counters. W 0x483 0x38 Enable SERDES error counters. W 0x484 0x38 Enable SERDES error counters. W 0x485 0x38 Enable SERDES error counters. W 0x486 0x38 Enable SERDES error counters. W 0x487 0x38 Enable SERDES error counters. W 0x110 Configure number of lanes (Bits[7:4]) and interpolation rate (Bits[3:0]). Rev. D | Page 82 of 82 Data Sheet AD9161/AD9162 R/W Register W 0x111 W 0x230 W 0x289, Bits[1:0] W 0x084, Bits[5:4] W 0x200 W 0x475 W 0x453, Bit 7 W 0x458, Bits[7:5] W 0x459, Bits[7:5] W 0x45D W 0x475 W 0x201, Bits[7:0] W 0x2A7 W 0x2AE W 0x29E W 0x206 W 0x206 W 0x280 R 0x281, Bit 0 W 0x300 R 0x470 R 0x471 R 0x472 R 0x473 W 0x024 W 0x4BA W 0x4BB Value Description Configure the datapath options for Bit 7 (INVSINC_EN), Bit 6 (NCO_EN), Bit 4 (FILT_BW), Bit 2 (MODULUS_EN), Bit 1 (SEL_SIDEBAND), and Bit 0 (FIR85_FILT_EN). See the Register Summary section for details on the options. Set the reserved bits (Bit 5 and Bit 3) to 0b0. Configure the CDR block according to Table 20 for both half rate enable and the divider. Set up the SERDES PLL divider based on the conditions shown in Table 19. Set up the PLL reference clock rate based on the conditions shown in Table 19. 0x00 0x09 0b1 Enable JESD204B block (disable master SERDES power-down). Soft reset the JESD204B quad-byte deframer. (Optional) Enable scrambling on SERDES lanes. Set the subclass type: 0b000 = Subclass 0, 0b001 = Subclass 1. 0b1 Set the JESD204x version to JESD204B. 0x01 Program the calculated checksum value for Lane 0 from values in Register 0x450 to Register 0x45C. Bring the JESD204B quad-byte deframer out of reset. Set any bits to 1 to power down the appropriate physical lane. 0x01 0x01 0x1F 0x00 0x01 0x01 0b1 0x01 0xFF 0xFF 0xFF 0xFF 0x1F 0xFF 0x01 (Optional) Calibrate SERDES PHY Termination Block 1 (PHY 0, PHY 1, PHY 6, PHY 7). (Optional) Calibrate SERDES PHY Termination Block 2 (PHY 2, PHY 3, PHY 4, PHY 5). Override defaults in the SERDES PLL settings (private). Reset the CDR. Enable the CDR. Enable the SERDES PLL. Read back Register 0x281 until Bit 0 = 1 to indicate the SERDES PLL is locked. Prior to enabling the links, be sure that the JESD204B transmitter is enabled and ready to begin bringing up the link. Enable SERDES links (begin bringing up the link). Read the CGS status for all lanes. Read the frame sync status for all lanes. Read the good checksum status for all lanes. Read the initial lane sync status for all lanes. Clear the interrupts. Clear the SERDES interrupts. Clear the SERDES interrupt. Table 44. Configure NCO Sequence R/W Register Value Description W 0x110 0x80 (Optional) Perform this write if NCO only mode is desired (AD9162 only). W 0x111, Bit 6 0b1 Configure NCO_EN (Bit 6) = 0b1. Configure other datapath options for Bit 7 (INVSINC_EN), Bit 4 (FILT_BW), Bit 2 (MODULUS_EN), Bit 1 (SEL_SIDEBAND), and Bit 0 (FIR85_FILT_EN). See the Register Summary section for details on the options. Set the reserved bits (Bit 5 and Bit 3) to 0b0. W 0x150, Bit 1 Configure the DC_TEST_EN bit: 0b0 = NCO operation with data interface; 0b1 = NCO only mode (AD9162 only). W 0x14E Write the amplitude value for tone amplitude in NCO only mode, Bits [15:8] (AD9162 only). W 0x14F Write the amplitude value for tone amplitude in NCO only mode, Bits [7:0] (AD9162 only). W 0x113 0x00 Ensure the frequency tuning word write request is low. W 0x119 Write FTW, Bits[47:40]. W 0x118 Write FTW, Bits[39:32]. W 0x117 Write FTW, Bits[31:24]. W 0x116 Write FTW, Bits[23:16]. W 0x115 Write FTW, Bits[15:8]. W 0x114 Write FTW, Bits[7:0]. W 0x113 0x01 Load the FTW to the NCO. Rev. D | Page 83 of 144 AD9161/AD9162 Data Sheet REGISTER SUMMARY Table 45. Register Summary Reg. Name Bits Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Reset RW 0x000 SPI_INTFCONFA [7:0] SOFTRESET_ LSBFIRST_M ADDRINC_M SDOACTIVE_ SDOACTIVE ADDRINC M M LSBFIRST SOFTRESET 0x00 R/W 0x001 SPI_INTFCONFB [7:0] SINGLEINS CSSTALL RESERVED SOFTRESET1 SOFTRESET0 RESERVED 0x00 R/W 0x003 SPI_CHIPTYPE [7:0] CHIP_TYPE 0x00 R 0x004 SPI_PRODIDL [7:0] PROD_ID[7:0] 0x00 R 0x005 SPI_PRODIDH [7:0] PROD_ID[15:8] 0x00 R 0x006 SPI_CHIPGRADE [7:0] PROD_GRADE DEV_REVISION 0x00 R 0x020 IRQ_ENABLE [7:0] RESERVED EN_SYSREF_ EN_DATA_ EN_LANE_FIFO EN_PRBSQ JITTER READY EN_PRBSI 0x00 R/W 0x024 IRQ_STATUS [7:0] RESERVED IRQ_SYSREF_ IRQ_DATA_ IRQ_LANE_ JITTER READY FIFO IRQ_PRBSQ IRQ_PRBSI 0x00 R/W 0x031 SYNC_LMFC_ [7:0] DELAY_FRAME RESERVED SYNC_LMFC_DELAY_SET_FRM 0x00 R/W 0x032 SYNC_LMFC_ [7:0] DELAY0 SYNC_LMFC_DELAY_SET[7:0] 0x00 R/W 0x033 SYNC_LMFC_ [7:0] DELAY1 RESERVED SYNC_LMFC_DELAY_SET[11:8] 0x00 R/W 0x034 SYNC_LMFC_ [7:0] STAT0 SYNC_LMFC_DELAY_STAT[7:0] 0x00 R/W 0x035 SYNC_LMFC_ [7:0] STAT1 RESERVED SYNC_LMFC_DELAY_STAT[11:8] 0x00 R/W 0x036 SYSREF_COUNT [7:0] SYSREF_COUNT 0x00 R/W 0x037 SYSREF_PHASE0 [7:0] SYSREF_PHASE[7:0] 0x00 R/W 0x038 SYSREF_PHASE1 [7:0] RESERVED SYSREF_PHASE[11:8] 0x00 R/W 0x039 SYSREF_JITTER_ [7:0] WINDOW RESERVED SYSREF_JITTER_WINDOW 0x00 R/W 0x03A SYNC_CTRL [7:0] RESERVED SYNC_MODE 0x00 R/W 0x03F TX_ENABLE [7:0] SPI_ SPI_ DATAPATH_ DATAPATH_ POST PRE RESERVED TXEN_NCO_ TXEN_ RESET DATAPATH_ POST TXEN_ TXEN_DAC_FSC 0xC0 R/W DATAPATH_ PRE 0x040 ANA_DAC_BIAS_ [7:0] PD RESERVED ANA_DAC_ BIAS_PD1 ANA_DAC_BIAS_ 0x03 R/W PD0 0x041 ANA_FSC0 [7:0] RESERVED ANA_FULL_SCALE_CURRENT[1:0] 0x03 R/W 0x042 ANA_FSC1 [7:0] ANA_FULL_SCALE_CURRENT[9:2] 0xFF R/W 0x07F CLK_PHASE_TUNE [7:0] RESERVED CLK_PHASE_TUNE 0x00 R/W 0x080 CLK_PD [7:0] RESERVED DACCLK_PD 0x01 R/W 0x082 CLK_DUTY [7:0] CLK_DUTY_ CLK_DUTY_ CLK_DUTY_ EN OFFSET_EN BOOST_EN CLK_DUTY_PRG 0x80 R/W 0x083 CLK_CRS_CTRL [7:0] CLK_CRS_EN RESERVED CLK_CRS_ADJ 0x80 R/W 0x084 PLL_REF_CLK_PD [7:0] RESERVED PLL_REF_CLK_RATE RESERVED PLL_REF_CLK_PD 0x00 R/W 0x088 SYSREF_CTRL0 [7:0] RESERVED HYS_ON SYSREF_RISE HYS_CNTRL[9:8] 0x00 R/W 0x089 SYSREF_CTRL1 [7:0] HYS_CNTRL[7:0] 0x00 R/W 0x090 DLL_PD [7:0] RESERVED DLL_FINE_ DLL_FINE_ DLL_COARSE_ DLL_COARSE_X DLL_CLK_PD DC_EN XC_EN DC_EN C_EN 0x1F R/W 0x091 DLL_CTRL [7:0] DLL_TRACK_ DLL_SEARCH_ DLL_SLOPE ERR ERR DLL_SEARCH DLL_MODE DLL_ENABLE 0xF0 R/W 0x092 DLL_STATUS [7:0] RESERVED DLL_FAIL DLL_LOST DLL_LOCKED 0x00 R/W 0x093 DLL_GB [7:0] RESERVED DLL_GUARD 0x00 R/W 0x094 DLL_COARSE [7:0] RESERVED DLL_COARSE 0x00 R/W 0x095 DLL_FINE [7:0] DLL_FINE 0x80 R/W 0x096 DLL_PHASE [7:0] RESERVED DLL_PHS 0x08 R/W 0x097 DLL_BW [7:0] RESERVED DLL_FILT_BW DLL_WEIGHT 0x00 R/W 0x098 DLL_READ [7:0] RESERVED DLL_READ 0x00 R/W Rev. D | Page 84 of 144 Data Sheet AD9161/AD9162 Reg. 0x099 0x09A 0x09B 0x09D 0x0A0 0x110 0x111 0x113 0x114 0x115 0x116 0x117 0x118 0x119 0x11C 0x11D 0x124 0x125 0x126 0x127 0x128 0x129 0x12A 0x12B 0x12C 0x12D 0x12E 0x12F 0x132 0x133 0x134 0x135 0x14B 0x14C 0x14D 0x14E 0x14F 0x150 0x151 0x152 0x1DF 0x200 0x201 0x203 0x206 0x230 Name Bits Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Reset RW DLL_COARSE_RB [7:0] RESERVED DLL_COARSE_RB 0x00 R DLL_FINE_RB [7:0] DLL_FINE_RB 0x00 R DLL_PHASE_RB [7:0] RESERVED DLL_PHS_RB 0x00 R DIG_CLK_INVERT [7:0] RESERVED INV_DIG_CLK DIG_CLK_DC_ DIG_CLK_XC_EN 0x03 R/W EN DLL_CLK_DEBUG [7:0] DLL_TEST_EN RESERVED DLL_TEST_DIV 0x00 R/W INTERP_MODE [7:0] JESD_LANES INTERP_MODE 0x81 R/W DATAPATH_CFG [7:0] INVSINC_EN NCO_EN RESERVED FILT_BW RESERVED MODULUS_EN SEL_SIDEBAND FIR85_FILT_EN 0x00 R/W FTW_UPDATE [7:0] RESERVED FTW_REQ_MODE RESERVED FTW_LOAD_ FTW_LOAD_ SYSREF ACK FTW_LOAD_REQ 0x00 R/W FTW0 [7:0] FTW[7:0] 0x00 R/W FTW1 [7:0] FTW[15:8] 0x00 R/W FTW2 [7:0] FTW[23:16] 0x00 R/W FTW3 [7:0] FTW[31:24] 0x00 R/W FTW4 [7:0] FTW[39:32] 0x00 R/W FTW5 [7:0] FTW[47:40] 0x00 R/W PHASE_OFFSET0 [7:0] NCO_PHASE_OFFSET[7:0] 0x00 R/W PHASE_OFFSET1 [7:0] NCO_PHASE_OFFSET[15:8] 0x00 R/W ACC_MODULUS0 [7:0] ACC_MODULUS[7:0] 0x00 R/W ACC_MODULUS1 [7:0] ACC_MODULUS[15:8] 0x00 R/W ACC_MODULUS2 [7:0] ACC_MODULUS[23:16] 0x00 R/W ACC_MODULUS3 [7:0] ACC_MODULUS[31:24] 0x00 R/W ACC_MODULUS4 [7:0] ACC_MODULUS[39:32] 0x00 R/W ACC_MODULUS5 [7:0] ACC_MODULUS[47:40] 0x00 R/W ACC_DELTA0 [7:0] ACC_DELTA[7:0] 0x00 R/W ACC_DELTA1 [7:0] ACC_DELTA[15:8] 0x00 R/W ACC_DELTA2 [7:0] ACC_DELTA[23:16] 0x00 R/W ACC_DELTA3 [7:0] ACC_DELTA[31:24] 0x00 R/W ACC_DELTA4 [7:0] ACC_DELTA[39:32] 0x00 R/W ACC_DELTA5 [7:0] ACC_DELTA[47:40] 0x00 R/W TEMP_SENS_LSB [7:0] TEMP_SENS_OUT[7:0] 0x00 R TEMP_SENS_MSB [7:0] TEMP_SENS_OUT[15:8] 0x00 R TEMP_SENS_ [7:0] UPDATE RESERVED TEMP_SENS_ UPDATE 0x00 R/W TEMP_SENS_CTRL [7:0] TEMP_SENS_ FAST RESERVED TEMP_SENS_ ENABLE 0x20 R/W PRBS [7:0] PRBS_GOOD_ PRBS_GOOD_I RESERVED Q PRBS_INV_Q PRBS_INV_I PRBS_MODE PRBS_RESET PRBS_EN 0x10 R/W PRBS_ERROR_I [7:0] PRBS_COUNT_I 0x00 R PRBS_ERROR_Q [7:0] PRBS_COUNT_Q 0x00 R TEST_DC_DATA1 [7:0] DC_TEST_DATA[15:8] 0x00 R/W TEST_DC_DATA0 [7:0] DC_TEST_DATA[7:0] 0x00 R/W DIG_TEST [7:0] RESERVED DC_TEST_EN RESERVED 0x00 R/W DECODE_CTRL [7:0] RESERVED SHUFFLE_MSB SHUFFLE_ISB SHUFFLE_DDR 0x01 R/W DECODE_MODE [7:0] RESERVED DECODE_MODE 0x00 R/W SPI_STRENGTH [7:0] RESERVED SPIDRV 0x0F R/W MASTER_PD [7:0] RESERVED SPI_PD_MASTER 0x01 R/W PHY_PD [7:0] SPI_PD_PHY 0x00 R/W GENERIC_PD [7:0] RESERVED SPI_SYNC1_PD RESERVED 0x00 R/W CDR_RESET [7:0] RESERVED SPI_CDR_RESET 0x01 R/W CDR_OPERATING_ [7:0] MODE_REG_0 RESERVED SPI_ ENHALFRATE RESERVED SPI_DIVISION_RATE RESERVED 0x28 R/W Rev. D | Page 85 of 144 AD9161/AD9162 Data Sheet Reg. 0x250 0x251 0x252 0x253 0x268 0x280 0x281 0x289 0x2A7 0x2A8 0x2AC 0x2AE 0x2AF 0x2B3 0x2BB 0x2BC 0x2BD 0x2BE 0x2BF 0x2C0 0x2C1 0x2C2 0x300 0x302 0x304 0x306 0x308 0x309 0x30A 0x30B 0x30C 0x30D 0x311 0x312 0x313 0x315 0x316 Name Bits Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Reset RW EQ_CONFIG_PHY_ [7:0] 0_1 SPI_EQ_CONFIG1 SPI_EQ_CONFIG0 0x88 R/W EQ_CONFIG_PHY_ [7:0] 2_3 SPI_EQ_CONFIG3 SPI_EQ_CONFIG2 0x88 R/W EQ_CONFIG_PHY_ [7:0] 4_5 SPI_EQ_CONFIG5 SPI_EQ_CONFIG4 0x88 R/W EQ_CONFIG_PHY_ [7:0] 6_7 SPI_EQ_CONFIG7 SPI_EQ_CONFIG6 0x88 R/W EQ_BIAS_REG [7:0] EQ_POWER_MODE RESERVED 0x62 R/W SYNTH_ENABLE_ [7:0] CNTRL RESERVED SPI_RECAL_ SYNTH RESERVED SPI_ENABLE_ SYNTH 0x00 R/W PLL_STATUS [7:0] RESERVED SPI_CP_ OVER_ RANGE_ HIGH_RB SPI_CP_ OVER_ RANGE_ LOW_RB SPI_CP_ CAL_VALID_ RB RESERVED SPI_PLL_LOCK_RB 0x00 R REF_CLK_ [7:0] DIVIDER_LDO RESERVED SERDES_PLL_DIV_FACTOR 0x04 R/W TERM_BLK1_ [7:0] CTRLREG0 RESERVED SPI_I_TUNE_R_ 0x00 R/W CAL_TERMBLK1 TERM_BLK1_ [7:0] CTRLREG1 SPI_I_SERIALIZER_RTRIM_TERMBLK1 0x00 R/W TERM_BLK1_RD_ [7:0] REG0 RESERVED SPI_O_RCAL_CODE_TERMBLK1 0x00 R TERM_BLK2_ [7:0] CTRLREG0 RESERVED SPI_I_TUNE_R_ 0x00 R/W CAL_TERMBLK2 TERM_BLK2_ [7:0] CTRLREG1 SPI_I_SERIALIZER_RTRIM_TERMBLK2 0x00 R/W TERM_BLK2_RD_ [7:0] RESERVED REG0 SPI_O_RCAL_CODE_TERMBLK2 0x00 R TERM_OFFSET_0 [7:0] RESERVED TERM_OFFSET_0 0x00 R/W TERM_OFFSET_1 [7:0] RESERVED TERM_OFFSET_1 0x00 R/W TERM_OFFSET_2 [7:0] RESERVED TERM_OFFSET_2 0x00 R/W TERM_OFFSET_3 [7:0] RESERVED TERM_OFFSET_3 0x00 R/W TERM_OFFSET_4 [7:0] RESERVED TERM_OFFSET_4 0x00 R/W TERM_OFFSET_5 [7:0] RESERVED TERM_OFFSET_5 0x00 R/W TERM_OFFSET_6 [7:0] RESERVED TERM_OFFSET_6 0x00 R/W TERM_OFFSET_7 [7:0] RESERVED TERM_OFFSET_7 0x00 R/W GENERAL_JRX_ [7:0] RESERVED CTRL_0 CHECKSUM_ MODE RESERVED LINK_EN 0x00 R/W DYN_LINK_ [7:0] LATENCY_0 RESERVED DYN_LINK_LATENCY_0 0x00 R LMFC_DELAY_0 [7:0] RESERVED LMFC_DELAY_0 0x00 R/W LMFC_VAR_0 [7:0] RESERVED LMFC_VAR_0 0x1F R/W XBAR_LN_0_1 [7:0] RESERVED SRC_LANE1 SRC_LANE0 0x08 R/W XBAR_LN_2_3 [7:0] RESERVED SRC_LANE3 SRC_LANE2 0x1A R/W XBAR_LN_4_5 [7:0] RESERVED SRC_LANE5 SRC_LANE4 0x2C R/W XBAR_LN_6_7 [7:0] RESERVED SRC_LANE7 SRC_LANE6 0x3E R/W FIFO_STATUS_ [7:0] REG_0 LANE_FIFO_FULL 0x00 R FIFO_STATUS_ [7:0] REG_1 LANE_FIFO_EMPTY 0x00 R SYNC_GEN_0 [7:0] RESERVED EOMF_MASK_0 RESERVED EOF_MASK_0 0x00 R/W SYNC_GEN_1 [7:0] SYNC_ERR_DUR SYNC_SYNCREQ_DUR 0x00 R/W SYNC_GEN_3 [7:0] LMFC_PERIOD 0x00 R PHY_PRBS_TEST_ [7:0] EN PHY_TEST_EN 0x00 R/W PHY_PRBS_TEST_ [7:0] RESERVED CTRL PHY_SRC_ERR_CNT PHY_PRBS_PAT_SEL PHY_TEST_ START PHY_TEST_RESET 0x00 R/W Rev. D | Page 86 of 144 Data Sheet AD9161/AD9162 Reg. 0x317 0x318 0x319 0x31A 0x31B 0x31C 0x31D 0x31E 0x31F 0x320 0x321 0x322 0x323 0x32C 0x32D 0x32E 0x32F 0x334 0x400 0x401 0x402 0x403 0x404 0x405 0x406 0x407 0x408 0x409 0x40A 0x40B 0x40C 0x40D 0x40E 0x412 0x415 0x416 0x41A Name Bits Bit 7 Bit 6 Bit 5 PHY_PRBS_TEST_ [7:0] THRESHOLD_ LOBITS PHY_PRBS_TEST_ [7:0] THRESHOLD_ MIDBITS PHY_PRBS_TEST_ [7:0] THRESHOLD_ HIBITS PHY_PRBS_TEST_ [7:0] ERRCNT_LOBITS PHY_PRBS_TEST_ [7:0] ERRCNT_MIDBITS PHY_PRBS_TEST_ [7:0] ERRCNT_HIBITS PHY_PRBS_TEST_ [7:0] STATUS PHY_DATA_ [7:0] SNAPSHOT_CTRL RESERVED PHY_SNAPSHOT_ [7:0] DATA_BYTE0 PHY_SNAPSHOT_ [7:0] DATA_BYTE1 PHY_SNAPSHOT_ [7:0] DATA_BYTE2 PHY_SNAPSHOT_ [7:0] DATA_BYTE3 PHY_SNAPSHOT_ [7:0] DATA_BYTE4 SHORT_TPL_ [7:0] TEST_0 SHORT_TPL_SP_SEL SHORT_TPL_ [7:0] TEST_1 SHORT_TPL_ [7:0] TEST_2 SHORT_TPL_ [7:0] TEST_3 JESD_BIT_ [7:0] INVERSE_CTRL DID_REG [7:0] BID_REG [7:0] LID0_REG [7:0] RESERVED ADJDIR_RD PHADJ_RD SCR_L_REG [7:0] SCR_RD RESERVED F_REG [7:0] K_REG [7:0] RESERVED M_REG [7:0] CS_N_REG [7:0] CS_RD RESERVED NP_REG [7:0] SUBCLASSV_RD S_REG [7:0] JESDV_RD HD_CF_REG [7:0] HD_RD RESERVED RES1_REG [7:0] RES2_REG [7:0] CHECKSUM0_REG [7:0] COMPSUM0_REG [7:0] LID1_REG [7:0] RESERVED CHECKSUM1_REG [7:0] COMPSUM1_REG [7:0] LID2_REG [7:0] RESERVED Bit 4 Bit 3 Bit 2 PHY_PRBS_THRESHOLD_LOBITS Bit 1 PHY_PRBS_THRESHOLD_MIDBITS PHY_PRBS_THRESHOLD_HIBITS PHY_PRBS_ERR_CNT_LOBITS PHY_PRBS_ERR_CNT_MIDBITS PHY_PRBS_ERR_CNT_HIBITS PHY_PRBS_PASS PHY_GRAB_LANE_SEL PHY_SNAPSHOT_DATA_BYTE0 PHY_GRAB_ MODE PHY_SNAPSHOT_DATA_BYTE1 PHY_SNAPSHOT_DATA_BYTE2 PHY_SNAPSHOT_DATA_BYTE3 PHY_SNAPSHOT_DATA_BYTE4 SHORT_TPL_M_SEL SHORT_TPL_REF_SP_LSB SHORT_TPL_ TEST_RESET SHORT_TPL_REF_SP_MSB RESERVED JESD_BIT_INVERSE DID_RD BID_RD F_RD M_RD RES1_RD RES2_RD LL_FCHK0 LL_FCMP0 LL_FCHK1 LL_FCMP1 LL_LID0 L_RD K_RD N_RD NP_RD S_RD CF_RD LL_LID1 LL_LID2 Bit 0 Reset RW 0x00 R/W 0x00 R/W 0x00 R/W 0x00 R 0x00 R 0x00 R 0xFF R PHY_GRAB_DATA 0x00 R/W 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R SHORT_TPL_TEST 0x00 R/W _EN 0x00 R/W 0x00 R/W SHORT_TPL_FAIL 0x00 R 0x00 R/W 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R Rev. D | Page 87 of 144 AD9161/AD9162 Data Sheet Reg. 0x41D 0x41E 0x422 0x425 0x426 0x42A 0x42D 0x42E 0x432 0x435 0x436 0x43A 0x43D 0x43E 0x442 0x445 0x446 0x450 0x451 0x452 0x453 0x454 0x455 0x456 0x457 0x458 0x459 0x45A 0x45B 0x45C 0x45D 0x46C 0x46D 0x46E 0x46F 0x470 0x471 0x472 0x473 0x475 0x476 0x477 0x478 0x47C 0x47D 0x480 0x481 0x482 Name Bits Bit 7 CHECKSUM2_REG [7:0] Bit 6 Bit 5 Bit 4 Bit 3 LL_FCHK2 COMPSUM2_REG [7:0] LL_FCMP2 LID3_REG [7:0] RESERVED CHECKSUM3_REG [7:0] LL_FCHK3 COMPSUM3_REG [7:0] LID4_REG [7:0] RESERVED LL_FCMP3 CHECKSUM4_REG [7:0] LL_FCHK4 COMPSUM4_REG [7:0] LL_FCMP4 LID5_REG [7:0] RESERVED CHECKSUM5_REG [7:0] COMPSUM5_REG [7:0] LL_FCHK5 LL_FCMP5 LID6_REG [7:0] RESERVED CHECKSUM6_REG [7:0] LL_FCHK6 COMPSUM6_REG [7:0] LL_FCMP6 LID7_REG [7:0] CHECKSUM7_REG [7:0] RESERVED LL_FCHK7 COMPSUM7_REG [7:0] LL_FCMP7 ILS_DID [7:0] DID ILS_BID [7:0] BID ILS_LID0 ILS_SCR_L [7:0] RESERVED [7:0] SCR ADJDIR PHADJ RESERVED ILS_F [7:0] F ILS_K [7:0] RESERVED ILS_M [7:0] M ILS_CS_N [7:0] ILS_NP [7:0] CS RESERVED SUBCLASSV ILS_S [7:0] JESDV ILS_HD_CF [7:0] HD RESERVED ILS_RES1 [7:0] RES1 ILS_RES2 [7:0] ILS_CHECKSUM [7:0] RES2 FCHK0 LANE_DESKEW [7:0] ILD7 ILS6 ILD5 ILD4 ILD3 BAD_DISPARITY [7:0] BDE7 BDE6 BDE5 BDE4 BDE3 NOT_IN_TABLE [7:0] NIT7 NIT6 NIT5 NIT4 NIT3 UNEXPECTED_ KCHAR [7:0] UEK7 UEK6 UEK5 UEK4 UEK3 CODE_GRP_SYNC [7:0] CGS7 CGS6 CGS5 CGS4 CGS3 FRAME_SYNC [7:0] FS7 FS6 FS5 FS4 FS3 GOOD_ CHECKSUM [7:0] CKS7 CKS6 CKS5 CKS4 CKS3 INIT_LANE_SYNC [7:0] ILS7 ILS6 ILS5 ILS4 ILS3 CTRLREG0 [7:0] RX_DIS CHAR_REPL_ DIS RESERVED SOFTRST CTRLREG1 [7:0] RESERVED QUAL_RDERR DEL_SCR CTRLREG2 [7:0] ILS_MODE RESERVED REPDATATEST QUETESTERR AR_ECNTR KVAL [7:0] ERRORTHRES [7:0] KSYNC ETH SYNC_ASSERT_ [7:0] MASK RESERVED ECNT_CTRL0 [7:0] ECNT_CTRL1 [7:0] RESERVED RESERVED ECNT_ENA0 ECNT_ENA1 ECNT_CTRL2 [7:0] RESERVED ECNT_ENA2 Rev. D | Page 88 of 144 Bit 2 Bit 1 LL_LID3 LL_LID4 LL_LID5 LL_LID6 LL_LID7 Bit 0 LID0 L K N NP S CF ILD2 BDE2 NIT2 UEK2 ILD1 BDE1 NIT1 UEK1 ILD0 BDE0 NIT0 UEK0 CGS2 FS2 CKS2 CGS1 FS1 CKS1 CGS0 FS0 CKS0 ILS2 ILS1 FORCESYNCREQ RESERVED ILS0 REPL_FRM_ENA CGS_SEL NO_ILAS FCHK_N RESERVED SYNC_ASSERT_MASK ECNT_RST0 ECNT_RST1 ECNT_RST2 Reset RW 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R/W 0x00 R/W 0x00 R/W 0x87 R/W 0x00 R 0x1F R/W 0x01 R 0x0F R 0x0F R/W 0x01 R/W 0x80 R 0x00 R/W 0x00 R/W 0x00 R/W 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x01 R/W 0x14 R/W 0x00 R/W 0x01 R/W 0xFF R/W 0x07 R/W 0x3F R/W 0x3F R/W 0x3F R/W Data Sheet Reg. 0x483 0x484 0x485 0x486 0x487 0x488 0x489 0x48A 0x48B 0x48C 0x48D 0x48E 0x48F 0x490 0x491 0x492 0x493 0x494 0x495 0x496 0x497 0x498 0x499 0x49A 0x49B 0x49C 0x49D 0x49E 0x49F 0x4A0 0x4A1 0x4A2 0x4A3 0x4A4 0x4A5 0x4A6 0x4A7 0x4A8 0x4A9 0x4AA 0x4AB 0x4AC 0x4AD 0x4AE 0x4AF 0x4B0 0x4B1 0x4B2 0x4B3 0x4B4 Name ECNT_CTRL3 ECNT_CTRL4 ECNT_CTRL5 ECNT_CTRL6 ECNT_CTRL7 ECNT_TCH0 ECNT_TCH1 ECNT_TCH2 ECNT_TCH3 ECNT_TCH4 ECNT_TCH5 ECNT_TCH6 ECNT_TCH7 ECNT_STAT0 ECNT_STAT1 ECNT_STAT2 ECNT_STAT3 ECNT_STAT4 ECNT_STAT5 ECNT_STAT6 ECNT_STAT7 BD_CNT0 BD_CNT1 BD_CNT2 BD_CNT3 BD_CNT4 BD_CNT5 BD_CNT6 BD_CNT7 NIT_CNT0 NIT_CNT1 NIT_CNT2 NIT_CNT3 NIT_CNT4 NIT_CNT5 NIT_CNT6 NIT_CNT7 UEK_CNT0 UEK_CNT1 UEK_CNT2 UEK_CNT3 UEK_CNT4 UEK_CNT5 UEK_CNT6 UEK_CNT7 LINK_STATUS0 LINK_STATUS1 LINK_STATUS2 LINK_STATUS3 LINK_STATUS4 Bits Bit 7 [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] [7:0] BDE0 [7:0] BDE1 [7:0] BDE2 [7:0] BDE3 [7:0] BDE4 Bit 6 RESERVED RESERVED RESERVED RESERVED RESERVED NIT0 NIT1 NIT2 NIT3 NIT4 Bit 5 RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED UEK0 UEK1 UEK2 UEK3 UEK4 Bit 4 Bit 3 ECNT_ENA3 ECNT_ENA4 ECNT_ENA5 ECNT_ENA6 ECNT_ENA7 Bit 2 LANE_ENA0 LANE_ENA1 LANE_ENA2 LANE_ENA3 LANE_ENA4 LANE_ENA5 LANE_ENA6 LANE_ENA7 BD_CNT0 BD_CNT1 BD_CNT2 BD_CNT3 BD_CNT4 BD_CNT5 BD_CNT6 BD_CNT7 NIT_CNT0 NIT_CNT1 NIT_CNT2 NIT_CNT3 NIT_CNT4 NIT_CNT5 NIT_CNT6 NIT_CNT7 UEK_CNT0 UEK_CNT1 UEK_CNT2 UEK_CNT3 UEK_CNT4 UEK_CNT5 UEK_CNT6 UEK_CNT7 ILD0 ILS0 CKS0 ILD1 ILS1 CKS1 ILD2 ILS2 CKS2 ILD3 ILS3 CKS3 ILD4 ILS4 CKS4 Rev. D | Page 89 of 144 AD9161/AD9162 Bit 1 Bit 0 ECNT_RST3 ECNT_RST4 ECNT_RST5 ECNT_RST6 ECNT_RST7 ECNT_TCH0 ECNT_TCH1 ECNT_TCH2 ECNT_TCH3 ECNT_TCH4 ECNT_TCH5 ECNT_TCH6 ECNT_TCH7 ECNT_TCR0 ECNT_TCR1 ECNT_TCR2 ECNT_TCR3 ECNT_TCR4 ECNT_TCR5 ECNT_TCR6 ECNT_TCR7 FS0 CGS0 FS1 CGS1 FS2 CGS2 FS3 CGS3 FS4 CGS4 Reset RW 0x3F R/W 0x3F R/W 0x3F R/W 0x3F R/W 0x3F R/W 0x07 R/W 0x07 R/W 0x07 R/W 0x07 R/W 0x07 R/W 0x07 R/W 0x07 R/W 0x07 R/W 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R 0x00 R AD9161/AD9162 Reg. 0x4B5 0x4B6 0x4B7 0x4B8 0x4B9 0x4BA 0x4BB 0x800 Name LINK_STATUS5 LINK_STATUS6 LINK_STATUS7 JESD_IRQ_ ENABLEA JESD_IRQ_ ENABLEB JESD_IRQ_ STATUSA JESD_IRQ_ STATUSB HOPF_CTRL Bits Bit 7 [7:0] BDE5 [7:0] BDE6 [7:0] BDE7 [7:0] EN_BDE Bit 6 NIT5 NIT6 NIT7 EN_NIT [7:0] [7:0] IRQ_BDE IRQ_NIT [7:0] [7:0] HOPF_MODE Bit 5 UEK5 UEK6 UEK7 EN_UEK IRQ_UEK Bit 4 ILD5 ILD6 ILD7 EN_ILD Bit 3 ILS5 ILS6 ILS7 EN_ILS RESERVED IRQ_ILD IRQ_ILS RESERVED Bit 2 CKS5 CKS6 CKS7 EN_CKS IRQ_CKS RESERVED Bit 1 FS5 FS6 FS7 EN_FS IRQ_FS Data Sheet Bit 0 CGS5 CGS6 CGS7 EN_CGS EN_ILAS IRQ_CGS IRQ_ILAS Reset RW 0x00 R 0x00 R 0x00 R 0x00 R/W 0x00 R/W 0x00 R/W 0x00 R/W 0x00 R/W Rev. D | Page 90 of 144 Data Sheet REGISTER DETAILS Table 46. Register Details Hex. Addr. Name 0x000 SPI_INTFCONFA 0x001 SPI_INTFCONFB 0x003 SPI_CHIPTYPE 0x004 SPI_PRODIDL 0x005 SPI_PRODIDH AD9161/AD9162 Bits Bit Name 7 SOFTRESET_M 6 LSBFIRST_M 5 ADDRINC_M 4 SDOACTIVE_M 3 SDOACTIVE 2 ADDRINC 1 LSBFIRST 0 SOFTRESET 7 SINGLEINS 6 CSSTALL [5:3] RESERVED 2 SOFTRESET1 1 SOFTRESET0 0 RESERVED [7:0] CHIP_TYPE [7:0] PROD_ID[7:0] [7:0] PROD_ID[15:8] Settings Description Reset Soft reset (mirror). Set this to 0x0 mirror Bit 0. LSB first (mirror). Set this to 0x0 mirror Bit 1. Addr increment (mirror). Set 0x0 this to mirror Bit 2. SDO active (mirror). Set this to 0x0 mirror Bit 3. SDO active. Enables 4-wire SPI 0x0 bus mode. Address increment. When set, 0x0 causes incrementing streaming addresses; otherwise, descending addresses are generated. 1 Streaming addresses are incremented. 0 Streaming addresses are decremented. LSB first. When set, causes input 0x0 and output data to be oriented as LSB first. If this bit is clear, data is oriented as MSB first. 1 Shift LSB in first. 0 Shift MSB in first. Soft reset. This bit automatically 0x0 clears to 0 after performing a reset operation. Setting this bit initiates a reset. This bit is autoclearing after the soft reset is complete. 1 Pulse the soft reset line. 0 Reset the soft reset line. Single instruction. 0x0 1 Perform single transfers. 0 Perform multiple transfers. CS stalling. 0x0 0 Disable CS stalling. 1 Enable CS stalling. Reserved. 0x0 Soft Reset 1. This bit 0x0 automatically clears to 0 after performing a reset operation. 1 Pulse the Soft Reset 1 line. 0 Pulse the Soft Reset 1 line. Soft Reset 0. This bit 0x0 automatically clears to 0 after performing a reset operation. 1 Pulse the Soft Reset 0 line. 0 Pulse the Soft Reset 0 line. Reserved. 0x0 Chip type. 0x0 Product ID. 0x0 Product ID. 0x0 Access R R R R R/W R/W R/W R/W R/W R/W R/W R/W R/W R R R R Rev. D | Page 91 of 144 AD9161/AD9162 Hex. Addr. Name 0x006 SPI_CHIPGRADE 0x020 IRQ_ENABLE 0x024 IRQ_STATUS 0x031 SYNC_LMFC_DELAY_FRAME 0x032 SYNC_LMFC_DELAY0 0x033 SYNC_LMFC_DELAY1 Data Sheet Bits Bit Name [7:4] PROD_GRADE [3:0] DEV_REVISION [7:5] RESERVED 4 EN_SYSREF_JITTER 3 EN_DATA_READY 2 EN_LANE_FIFO 1 EN_PRBSQ 0 EN_PRBSI [7:5] RESERVED 4 IRQ_SYSREF_JITTER 3 IRQ_DATA_READY 2 IRQ_LANE_FIFO 1 IRQ_PRBSQ 0 IRQ_PRBSI [7:5] RESERVED [4:0] SYNC_LMFC_DELAY_SET_FRM [7:0] SYNC_LMFC_DELAY_SET[7:0] [7:4] RESERVED [3:0] SYNC_LMFC_DELAY_SET[11:8] Settings Description Reset Product grade. 0x0 Device revision. 0x0 Reserved. 0x0 Enable SYSREF± jitter interrupt. 0x0 0 Disable interrupt. 1 Enable interrupt. Enable JESD204x receiver ready 0x0 (JRX_DATA_READY) low interrupt 0 Disable interrupt. 1 Enable interrupt. Enable lane FIFO overflow/ 0x0 underflow interrupt. 0 Disable interrupt. 1 Enable interrupt. Enable PRBS imaginary error 0x0 interrupt. 0 Disable interrupt. 1 Enable interrupt. Enable PRBS real error interrupt 0x0 0 Disable interrupt. 1 Enable interrupt. Reserved. 0x0 SYSREF± jitter is too big. 0x0 Writing 1 clears the status. JRX_DATA_READY is low. 0x0 Writing 1 clears the status. 0 No warning. 1 Warning detected. Lane FIFO overflow/underflow. 0x0 Writing 1 clears the status. 0 No warning. 1 Warning detected. PRBS imaginary error. Writing 1 0x0 clears the status. 0 No warning. 1 Warning detected. PRBS real error. Writing 1 clears 0x0 the status. 0 No warning. 1 Warning detected. Reserved. 0x0 Desired delay from rising edge 0x0 of SYSREF± input to rising edge of LMFC in frames. Desired delay from rising edge 0x0 of SYSREF± input to rising edge of LMFC in DAC clock units. Reserved. 0x0 Desired delay from rising edge 0x0 of SYSREF± input to rising edge of LMFC in DAC clock units. Access R R R R/W R/W R/W R/W R/W R R/W R/W R/W R/W R/W R R/W R/W R R/W Rev. D | Page 92 of 144 Data Sheet Hex. Addr. Name 0x034 SYNC_LMFC_STAT0 0x035 SYNC_LMFC_STAT1 0x036 SYSREF_COUNT 0x037 SYSREF_PHASE0 0x038 SYSREF_PHASE1 0x039 SYSREF_JITTER_WINDOW 0x03A SYNC_CTRL 0x03F TX_ENABLE AD9161/AD9162 Bits Bit Name [7:0] SYNC_LMFC_DELAY_STAT[7:0] [7:4] RESERVED [3:0] SYNC_LMFC_DELAY_STAT[11:8] [7:0] SYSREF_COUNT [7:0] SYSREF_PHASE[7:0] [7:4] RESERVED [3:0] SYSREF_PHASE[11:8] [7:6] RESERVED [5:0] SYSREF_JITTER_WINDOW [7:2] RESERVED [1:0] SYNC_MODE 7 SPI_DATAPATH_POST Settings Description Measured delay from rising edge of SYSREF± input to rising edge of LMFC in DAC clock units (note: 2 LSBs are always zero). A write to SYNC_LMFC_STATx or SYSREF_PHASEx saves the data for readback. Reserved. Measured delay from rising edge of SYSREF± input to rising edge of LMFC in DAC clock units (note: 2 LSBs are always zero). A write to SYNC_LMFC_STATx or SYSREF_PHASEx saves the data for readback. Count of SYSREF± signals received. A write resets the count. A write to SYNC_LMFC_STATx or SYSREF_PHASEx saves the data for readback. Phase of measured SYSREF± event. Thermometer encoded. A write to SYNC_LMFC_STATx or SYSREF_PHASEx saves the data for readback. Reserved. Phase of measured SYSREF± event. Thermometer encoded. A write to SYNC_LMFC_STATx or SYSREF_PHASEx saves the data for readback. Reserved. Amount of jitter allowed on the SYSREF± input. SYSREF± jitter variations bigger than this triggers an interrupt. Units are in DAC clocks. The bottom two bits are ignored. Reserved. Synchronization mode. 00 Do not perform synchronization, monitor SYSREF± to LMFC delay only. 01 Perform continuous synchronization of LMFC on every SYSREF±. 10 Perform a single synchronization on the next SYSREF±, then switch to monitor mode. SPI control of the data at the output of the datapath. 0 Disable or zero the data from the datapath into the DAC. 1 Use the data from the datapath to drive the DAC. Reset 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x1 Access R/W R R/W R/W R/W R R/W R R/W R R/W R/W Rev. D | Page 93 of 144 AD9161/AD9162 Hex. Addr. Name 0x040 ANA_DAC_BIAS_PD 0x041 ANA_FSC0 0x042 ANA_FSC1 0x07F CLK_PHASE_TUNE Data Sheet Bits Bit Name 6 SPI_DATAPATH_PRE [5:4] RESERVED 3 TXEN_NCO_RESET 2 TXEN_DATAPATH_POST 1 TXEN_DATAPATH_PRE 0 TXEN_DAC_FSC [7:2] RESERVED 1 ANA_DAC_BIAS_PD1 0 ANA_DAC_BIAS_PD0 [7:2] RESERVED [1:0] ANA_FULL_SCALE_CURRENT[1:0] [7:0] ANA_FULL_SCALE_CURRENT[9:2] [7:6] RESERVED [5:0] CLK_PHASE_TUNE Settings Description Reset SPI control of the data at the 0x1 input of the datapath. 0 Disable or zero the data feeding into the datapath. 1 Use the data from the JESD204B lanes to drive into the datapath. Reserved. 0x0 Allows TX_ENABLE to control 0x0 the DDS NCO reset. 0 Use the SPI (HOPF_MODE SPI bits) to control the DDS NCO reset. 1 Use the TX_ENABLE pin to control the DDS NCO reset. Allows TX_ENABLE to control 0x0 the data at the output of the datapath. 0 Use the SPI (Bit SPI_DATAPATH_ POST) for control. 1 Use the TX_ENABLE pin for control. Allows TX_ENABLE to control 0x0 the data at the input of the datapath. 0 Use the SPI (Bit SPI_DATAPATH_ PRE) for control. 1 Use the TX_ENABLE pin for control. Allows TX_ENABLE to control 0x0 the DAC full-scale current. 0 Use the SPI register ANA_FSC0 and ANA_FSC1 for control. 1 Use the TX_ENABLE pin for control. Reserved. 0x0 Powers down the DAC core bias 0x1 circuits. A 1 powers down the DAC core bias circuits. Powers down the DAC core bias 0x1 circuits. A 1 powers down the DAC core bias circuits. Reserved. 0x0 DAC full-scale current. Analog 0x3 full-scale current adjustment. DAC full-scale current. Analog 0xFF full-scale current adjustment. Reserved. 0x0 Fine tuning of the clock input 0x0 phase balance. Adds small capacitors to the CLK+/CLK- inputs, ~ 20 fF per step, signed magnitude. Access R/W R R/W R/W R/W R/W R R/W R/W R R/W R/W R R/W Rev. D | Page 94 of 144 Data Sheet Hex. Addr. Name 0x080 CLK_PD 0x082 CLK_DUTY 0x083 CLK_CRS_CTRL 0x084 PLL_REF_CLK_PD 0x088 SYSREF_CTRL0 AD9161/AD9162 Bits Bit Name [7:1] RESERVED 0 DACCLK_PD 7 CLK_DUTY_EN 6 CLK_DUTY_OFFSET_EN 5 CLK_DUTY_BOOST_EN [4:0] CLK_DUTY_PRG 7 CLK_CRS_EN [6:4] RESERVED [3:0] CLK_CRS_ADJ [7:6] RESERVED [5:4] PLL_REF_CLK_RATE [3:1] RESERVED 0 PLL_REF_CLK_PD [7:4] RESERVED 3 HYS_ON 2 SYSREF_RISE Settings Description Reset Capacitance At Bits[5:0] CLK+ At CLK- 000000 0 0 000001 1 0 000010 2 0 ... ... ... 011111 31 0 100000 0 0 100001 0 1 100010 0 2 111111 0 31 Reserved. 0x0 DAC clock power-down. Powers 0x1 down the DAC clock circuitry. 0 Power up. 1 Power down. Enable duty cycle control. 0x1 Enable duty cycle offset. 0x0 Enable duty cycle range boost. 0x0 Extends range to ±5% at cost of 1 dB to 2 dB worse phase noise. Program the duty cycle offset. 0x0 5-bit signed magnitude field, with the MSB as the sign bit and the four LSBs as the magnitude from 0 to 15. A larger magnitude skews duty cycle to a greater amount. Range is ±3%. Enable clock cross control 0x1 adjustment. Reserved. 0x0 Program the clock crossing 0x0 point. Reserved. 0x0 PLL reference clock rate 0x0 multiplier. 00 Normal rate (1×) PLL reference clock. 01 Double rate (2×) PLL reference clock. 10 Quadruple rate (4×) PLL reference clock. 11 Disable the PLL reference clock. Reserved. 0x0 PLL reference clock power- 0x0 down. 0 Enable the PLL reference clock. 1 Power down the PLL reference clock. Reserved. 0x0 SYSREF± hysteresis enable. This 0x0 bit enables the programmable hysteresis control for the SYSREF± receiver. Use SYSREF± rising edge. 0x0 Access R R/W R/W R/W R/W R/W R/W R R/W R R/W R R/W R R/W R/W Rev. D | Page 95 of 144 AD9161/AD9162 Hex. Addr. Name 0x089 SYSREF_CTRL1 0x090 DLL_PD 0x091 DLL_CTRL 0x092 DLL_STATUS 0x093 DLL_GB 0x094 DLL_COARSE Data Sheet Bits Bit Name [1:0] HYS_CNTRL[9:8] [7:0] HYS_CNTRL[7:0] [7:5] RESERVED 4 DLL_FINE_DC_EN 3 DLL_FINE_XC_EN 2 DLL_COARSE_DC_EN 1 DLL_COARSE_XC_EN 0 DLL_CLK_PD 7 DLL_TRACK_ERR 6 DLL_SEARCH_ERR 5 DLL_SLOPE [4:3] DLL_SEARCH [2:1] DLL_MODE 0 DLL_ENABLE [7:3] RESERVED 2 DLL_FAIL 1 DLL_LOST 0 DLL_LOCKED [7:4] RESERVED [3:0] DLL_GUARD [7:6] RESERVED [5:0] DLL_COARSE Rev. D | Page 96 of 144 Settings Description Reset Controls the amount of 0x0 hysteresis in the SYSREF± receiver. Each of the 10 bits adds 10 mV of differential hysteresis to the receiver input. Controls the amount of 0x0 hysteresis in the SYSREF± receiver. Each of the 10 bits adds 10 mV of differential hysteresis to the receiver input. Reserved. 0x0 Fine delay line duty cycle 0x1 correction enable. Fine delay line cross control 0x1 enable. Coarse delay line duty cycle 0x1 correction enable. Coarse delay line cross control 0x1 enable. Power down DLL and digital 0x1 clock generator. 0 Power up DLL controller. 1 Power down DLL controller. Track error behavior. 0x1 0 Continue on error. 1 Restart on error. Search error behavior. 0x1 0 Stop on error. 1 Retry on error. Desired slope. 0x1 0 Negative slope. 1 Positive slope. Search direction. 0x2 00 Search down from initial point only. 01 Search up from initial point only. 10 Search up and down from initial point. Controller mode. 0x0 00 Search then track. 01 Track only. 10 Search only. Controller enable. 0x0 0 Disable DLL controller: use static SPI settings. 1 Enable DLL controller: use controller with feedback loop. Reserved. 0x0 The DAC clock DLL failed to 0x0 lock. The DAC clock DLL has lost lock. 0x0 The DAC clock DLL has 0x0 achieved lock. Reserved. 0x0 Search guard band. 0x0 Reserved. 0x0 Coarse delay line setpoint. 0x0 Access R/W R/W R R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R R R/W R R R/W R R/W Data Sheet Hex. Addr. 0x095 0x096 Name DLL_FINE DLL_PHASE 0x097 DLL_BW 0x098 DLL_READ 0x099 DLL_COARSE_RB 0x09A DLL_FINE_RB 0x09B DLL_PHASE_RB 0x09D DIG_CLK_INVERT 0x0A0 DLL_CLK_DEBUG 0x110 INTERP_MODE 0x111 DATAPATH_CFG AD9161/AD9162 Bits Bit Name [7:0] DLL_FINE [7:5] RESERVED [4:0] DLL_PHS [7:5] RESERVED [4:2] DLL_FILT_BW [1:0] DLL_WEIGHT [7:1] RESERVED 0 DLL_READ [7:6] RESERVED [5:0] DLL_COARSE_RB [7:0] DLL_FINE_RB [7:5] RESERVED [4:0] DLL_PHS_RB [7:3] RESERVED 2 INV_DIG_CLK 1 DIG_CLK_DC_EN 0 DIG_CLK_XC_EN 7 DLL_TEST_EN [6:2] RESERVED [1:0] DLL_TEST_DIV [7:4] JESD_LANES [3:0] INTERP_MODE 7 INVSINC_EN Rev. D | Page 97 of 144 Settings Description Reset Fine delay line setpoint. 0x80 Reserved. 0x0 Desired phase. 0x8 0 Minimum allowed phase. 16 Maximum allowed phase. Reserved. 0x0 Phase measurement filter 0x0 bandwidth. Tracking speed. 0x0 Reserved. 0x0 Read request: 0 to 1 transition 0x0 updates the coarse, fine, and phase readback values. Reserved. 0x0 Coarse delay line readback. 0x0 Fine delay line readback. 0x0 Reserved. 0x0 Phase readback. 0x0 Reserved. 0x0 Invert digital clock from DLL. 0x0 0 Normal polarity. 1 Inverted polarity. Digital clock duty cycle 0x1 correction enable. Digital clock cross control 0x1 enable. DLL clock output test enable. 0x0 Reserved. 0x0 DLL clock output divide. 0x0 Number of JESD204B lanes. For 0x8 proper operation of the JESD204B data link, this signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Interpolation mode. For proper 0x1 operation of the JESD204B data link, this signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 0000 1× (bypass) (this mode is not supported in the AD9161). 0001 2×. 0010 3×. 0011 4×. 0100 6×. 0101 8×. 0110 12×. 0111 16×. 1000 24×. Inverse sinc filter enable. 0x0 0 Disable inverse sinc filter. 1 Enable inverse sinc filter. Access R/W R R/W R R/W R/W R R/W R R R R R R R/W R/W R/W R/W R R/W R/W R/W R/W AD9161/AD9162 Hex. Addr. Name 0x113 FTW_UPDATE 0x114 FTW0 Bits Bit Name 6 NCO_EN 5 RESERVED 4 FILT_BW 3 RESERVED 2 MODULUS_EN 1 SEL_SIDEBAND 0 FIR85_FILT_EN 7 RESERVED [6:4] FTW_REQ_MODE 3 RESERVED 2 FTW_LOAD_SYSREF 1 FTW_LOAD_ACK 0 FTW_LOAD_REQ [7:0] FTW[7:0] Data Sheet Settings Description Reset Modulation enable. 0x0 0 Disable NCO. 1 Enable NCO. Reserved. 0x0 Datapath filter bandwidth. 0x0 0 Filter bandwidth is 80%. 1 Filter bandwidth is 90%. Reserved. 0x0 Modulus DDS enable 0x0 0 Disable modulus DDS. 1 Enable modulus DDS. Selects upper or lower sideband 0x0 from modulation result. 0 Use upper sideband. 1 Use lower sideband = spectral flip. FIR85 filter enable. 0x0 Reserved. 0x0 Frequency tuning word 0x0 automatic update mode. 000 No automatic requests are generated when the FTW registers are written. 001 Automatically generate FTW_LOAD_REQ after FTW0 is written. 010 Automatically generate FTW_LOAD_REQ after FTW1 is written. 011 Automatically generate FTW_LOAD_REQ after FTW2 is written. 100 Automatically generate FTW_LOAD_REQ after FTW3 is written. 101 Automatically generate FTW_LOAD_REQ after FTW4 is written. 110 Automatically generate FTW_LOAD_REQ after FTW5 is written. Reserved. 0x0 FTW load and reset from rising 0x0 edge of SYSREF±. Frequency tuning word update 0x0 acknowledge. 0 FTW is not loaded. 1 FTW is loaded. Frequency tuning word update 0x0 request from SPI. 0 Clear FTW_LOAD_ACK. 1 0 to 1 transition loads the FTW. NCO frequency tuning word. 0x0 This is X in the equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Access R/W R R/W R R/W R/W R/W R R/W R R/W R R/W R/W Rev. D | Page 98 of 144 Data Sheet Hex. Addr. Name 0x115 FTW1 0x116 FTW2 0x117 FTW3 0x118 FTW4 0x119 FTW5 0x11C PHASE_OFFSET0 0x11D PHASE_OFFSET1 0x124 ACC_MODULUS0 0x125 ACC_MODULUS1 0x126 ACC_MODULUS2 0x127 ACC_MODULUS3 0x128 ACC_MODULUS4 0x129 ACC_MODULUS5 0x12A ACC_DELTA0 0x12B ACC_DELTA1 AD9161/AD9162 Bits Bit Name [7:0] FTW[15:8] [7:0] FTW[23:16] [7:0] FTW[31:24] [7:0] FTW[39:32] [7:0] FTW[47:40] [7:0] NCO_PHASE_OFFSET[7:0] [7:0] NCO_PHASE_OFFSET[15:8] [7:0] ACC_MODULUS[7:0] [7:0] ACC_MODULUS[15:8] [7:0] ACC_MODULUS[23:16] [7:0] ACC_MODULUS[31:24] [7:0] ACC_MODULUS[39:32] [7:0] ACC_MODULUS[47:40] [7:0] ACC_DELTA[7:0] [7:0] ACC_DELTA[15:8] Settings Description Reset NCO frequency tuning word. 0x0 This is X in the equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). NCO frequency tuning word. 0x0 This is X in the equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). NCO frequency tuning word. 0x0 This is X in the equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). NCO frequency tuning word. 0x0 This is X in the equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). NCO frequency tuning word. 0x0 This is X in the equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). NCO phase offset. 0x0 NCO phase offset. 0x0 DDS Modulus. This is B in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. DDS Modulus. This is B in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. DDS Modulus. This is B in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248).Note this modulus value is used for all NCO FTWs. DDS Modulus. This is B in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. DDS Modulus. This is B in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. DDS Modulus. This is B in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. DDS Delta. This is A in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. Note this delta value is used for all NCO FTWs. DDS Delta. This is A in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. Note this delta value is used for all NCO FTWs. Access R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W Rev. D | Page 99 of 144 AD9161/AD9162 Hex. Addr. Name 0x12C ACC_DELTA2 0x12D ACC_DELTA3 0x12E ACC_DELTA4 0x12F ACC_DELTA5 0x132 TEMP_SENS_LSB 0x133 TEMP_SENS_MSB 0x134 TEMP_SENS_UPDATE 0x135 TEMP_SENS_CTRL 0x14B PRBS Data Sheet Bits Bit Name [7:0] ACC_DELTA[23:16] [7:0] ACC_DELTA[31:24] [7:0] ACC_DELTA[39:32] [7:0] ACC_DELTA[47:40] [7:0] TEMP_SENS_OUT[7:0] [7:0] TEMP_SENS_OUT[15:8] [7:1] RESERVED 0 TEMP_SENS_UPDATE 7 TEMP_SENS_FAST [6:1] RESERVED 0 TEMP_SENS_ENABLE 7 PRBS_GOOD_Q 6 PRBS_GOOD_I 5 RESERVED 4 PRBS_INV_Q 3 PRBS_INV_I 2 PRBS_MODE 1 PRBS_RESET Rev. D | Page 100 of 144 Settings Description Reset DDS Delta. This is A in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. Note this delta value is used for all NCO FTWs. DDS Delta. This is 'A' in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this Delta value will be used for all NCO FTWs. DDS Delta. This is A in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. Note this delta value is used for all NCO FTWs. DDS Delta. This is A in the 0x0 equation fOUT = fDAC × (M/N) = fDAC × ((X + A/B)/248). Note this modulus value is used for all NCO FTWs. Note this delta value is used for all NCO FTWs. Output of the temperature 0x0 sensor ADC. Output of the temperature 0x0 sensor ADC. Reserved. 0x0 Set to 1 to update the 0x0 temperature sensor reading with a new value. A 1 sets temperature sensor 0x0 digital filter BW wider for faster settling time. Reserved. 0x10 Set to 1 to enable temperature 0x0 sensor. Good data indicator imaginary 0x0 channel. 0 Incorrect sequence detected. 1 Correct PRBS sequence detected. Good data indicator real 0x0 channel. 0 Incorrect sequence detected. 1 Correct PRBS sequence detected. Reserved. 0x0 Data inversion imaginary 0x1 channel. 0 Expect normal data. 1 Expect inverted data. Data inversion real channel. 0x0 0 Expect normal data. 1 Expect inverted data. Polynomial select. 0x0 0 7-bit: x7 + x6 + 1. 1 15-bit: x15 + x14 + 1. Reset error counters. 0x0 0 Normal operation. 1 Reset counters. Access R/W R/W R/W R/W R R R R/W R/W R/W R/W R R R R/W R/W R/W R/W Data Sheet Hex. Addr. Name 0x14C PRBS_ERROR_I 0x14D PRBS_ERROR_Q 0x14E TEST_DC_DATA1 0x14F TEST_DC_DATA0 0x150 DIG_TEST 0x151 DECODE_CTRL 0x152 DECODE_MODE 0x1DF SPI_STRENGTH 0x200 MASTER_PD 0x201 PHY_PD AD9161/AD9162 Bits Bit Name 0 PRBS_EN [7:0] PRBS_COUNT_I [7:0] PRBS_COUNT_Q [7:0] DC_TEST_DATA[15:8] [7:0] DC_TEST_DATA[7:0] [7:2] RESERVED 1 DC_TEST_EN 0 RESERVED [7:3] RESERVED 2 SHUFFLE_MSB 1 SHUFFLE_ISB 0 SHUFFLE_DDR [7:2] RESERVED [1:0] DECODE_MODE [7:4] RESERVED [3:0] SPIDRV [7:1] RESERVED 0 SPI_PD_MASTER [7:0] SPI_PD_PHY Settings Description Reset Enable PRBS checker. 0x0 0 Disable. 1 Enable. Error count value real channel. 0x0 Error count value imaginary 0x0 channel. DC test data. DC test mode is 0x0 not supported on the AD9161. DC test data. DC test mode is 0x0 not supported on the AD9161. Reserved. 0x0 DC data test mode enable. DC 0x0 test mode is not supported on the AD9161. 1 DC test mode enable. 0 DC test mode disable. Reserved. 0x0 Reserved. 0x0 Shuffle mode. Enables shuffle 0x0 mode for better spurious performance. 0 Disable MSB shuffling (use thermometer encoding). 1 Enable MSB shuffling. Shuffle mode. Enables shuffle 0x0 mode for better spurious performance. 0 Disable ISB shuffling (use thermometer encoding). 1 Enable ISB shuffling. Shuffle mode. Enables shuffle 0x0 mode for better spurious performance. 0 Disable DDR shuffling (use thermometer encoding). 1 Enable DDR shuffling. Reserved. 0x0 Decode mode. 0x0 00 Nonreturn-to-zero mode (first Nyquist). 01 Mix-Mode (second Nyquist). 10 Return to zero. 11 Reserved. Reserved. 0x0 Slew and drive strength for 0xF CMOS SPI outputs. Slew = Bits[1:0], drive = Bits[3:2]. Reserved. 0x0 Power down the entire 0x1 JESD204B Rx analog (all eight channels and bias). SPI override to power down the 0x0 individual PHYs. Bit 0 controls the SERDIN0± PHY. Bit 1 controls the SERDIN1± PHY. Access R/W R R R/W R/W R R/W R/W R/W R/W R/W R/W R R/W R R/W R R/W R/W Rev. D | Page 101 of 144 AD9161/AD9162 Hex. Addr. Name 0x203 GENERIC_PD 0x206 CDR_RESET 0x230 CDR_OPERATING_MODE_REG_0 0x250 EQ_CONFIG_PHY_0_1 Data Sheet Bits Bit Name [7:2] RESERVED 1 SPI_SYNC1_PD 0 RESERVED [7:1] RESERVED 0 SPI_CDR_RESET [7:6] RESERVED 5 SPI_ENHALFRATE [4:3] RESERVED [2:1] SPI_DIVISION_RATE 0 RESERVED [7:4] SPI_EQ_CONFIG1 Settings Description Reset Bit 2 controls the SERDIN2± PHY. Bit 3 controls the SERDIN3± PHY. Bit 4 controls the SERDIN4± PHY. Bit 5 controls the SERDIN5± PHY. Bit 6 controls the SERDIN6± PHY. Bit 7 controls the SERDIN7± PHY. Reserved. 0x0 Power down LVDS buffer for the 0x0 sync request signal, SYNCOUT. Reserved. 0x0 Reserved. 0x0 Resets the digital control logic 0x1 for all PHYs. 0 CDR logic is reset. 1 CDR logic is operational. Reserved. 0x0 Enables half rate CDR 0x1 operation, must be enabled for data rates above 6 Gbps. 0 Disables CDR half rate operation, data rate 6 Gbps. 1 Enables CDR half rate operation, data rate > 6 Gbps. Reserved. 0x1 Enables oversampling of the 0x0 input data. 00 No division. Data rate > 3 Gbps. 01 Division by 2. 1.5 Gbps < data rate 3 Gbps. 10 Division by 4. 750 Mbps < data rate 1.5 Gbps. Reserved. 0x0 0x8 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost level = 13. 1110 Boost level = 14. 1111 Boost level = 15. Access R R/W R/W R R/W R/W R/W R/W R/W R/W R/W Rev. D | Page 102 of 144 Data Sheet Hex. Addr. Name 0x251 EQ_CONFIG_PHY_2_3 AD9161/AD9162 Bits Bit Name [3:0] SPI_EQ_CONFIG0 [7:4] SPI_EQ_CONFIG3 [3:0] SPI_EQ_CONFIG2 Rev. D | Page 103 of 144 Settings Description 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost level = 13. 1110 Boost level = 14. 1111 Boost level = 15. 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost level = 13. 1110 Boost level = 14. 1111 Boost level = 15. 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost Level = 13. 1110 Boost level = 14. 1111 Boost level = 15. Reset Access 0x8 R/W 0x8 R/W 0x8 R/W AD9161/AD9162 Hex. Addr. Name 0x252 EQ_CONFIG_PHY_4_5 0x253 EQ_CONFIG_PHY_6_7 Data Sheet Bits Bit Name [7:4] SPI_EQ_CONFIG5 [3:0] SPI_EQ_CONFIG4 [7:4] SPI_EQ_CONFIG7 Rev. D | Page 104 of 144 Settings Description 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost level = 13. 1110 Boost level = 14. 1111 Boost level = 15. 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost level = 13. 1110 Boost level = 14. 1111 Boost level = 15. 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost level = 13. 1110 Boost level = 14. 1111 Boost level = 15. Reset Access 0x8 R/W 0x8 R/W 0x8 R/W Data Sheet Hex. Addr. Name 0x268 EQ_BIAS_REG 0x280 SYNTH_ENABLE_CNTRL 0x281 PLL_STATUS AD9161/AD9162 Bits Bit Name [3:0] SPI_EQ_CONFIG6 [7:6] EQ_POWER_MODE [5:0] RESERVED [7:3] RESERVED 2 SPI_RECAL_SYNTH 1 RESERVED 0 SPI_ENABLE_SYNTH [7:6] RESERVED 5 SPI_CP_OVER_RANGE_HIGH_RB 4 SPI_CP_OVER_RANGE_LOW_RB 3 SPI_CP_CAL_VALID_RB [2:1] RESERVED Settings Description Reset 0x8 0000 Manual mode (SPI configured values used). 0001 Boost level = 1. 0010 Boost level = 2. 0011 Boost level = 3. 0100 Boost level = 4. 0101 Boost level = 5. 0110 Boost level = 6. 0111 Boost level = 7. 1000 Boost level = 8. 1001 Boost level = 9. 1010 Boost level = 10. 1011 Boost level = 11. 1100 Boost level = 12. 1101 Boost level = 13. 1110 Boost level = 14. 1111 Boost level = 15. Controls the equalizer power 0x1 mode/insertion loss capability. 00 Normal mode. 01 Low power mode. Reserved. 0x4 Reserved. 0x0 Set this bit high to rerun all of 0x0 the SERDES PLL calibration routines. Set this bit low again to allow additional recalibrations. Rising edge causes the calibration. Reserved. 0x0 Enable the SERDES PLL. Setting 0x0 this bit turns on all currents and proceeds to calibrate the PLL. Make sure reference clock and division ratios are correct before enabling this bit. Reserved. 0x0 If set, the SERDES PLL CP output 0x0 is above valid operating range. 0 Charge pump output is within operating range. 1 Charge pump output is above operating range. If set, the SERDES PLL CP output 0x0 is below valid operating range. 0 Charge pump output is within operating range. 1 Charge pump output is below operating range. This bit tells the user if the 0x0 charge pump calibration has completed and is valid. 0 Charge pump calibration is not valid. 1 Charge pump calibration is valid. Reserved. 0x0 Access R/W R/W R/W R R/W R/W R/W R R R R R Rev. D | Page 105 of 144 AD9161/AD9162 Hex. Addr. Name 0x289 REF_CLK_DIVIDER_LDO 0x2A7 TERM_BLK1_CTRLREG0 0x2A8 TERM_BLK1_CTRLREG1 0x2AC TERM_BLK1_RD_REG0 0x2AE TERM_BLK2_CTRLREG0 0x2AF TERM_BLK2_CTRLREG1 Data Sheet Bits Bit Name Settings Description Reset 0 SPI_PLL_LOCK_RB If set, the SERDES synthesizer 0x0 locked. 0 PLL is not locked. 1 PLL is locked. [7:2] RESERVED Reserved. 0x0 [1:0] SERDES_PLL_DIV_FACTOR SERDES PLL reference clock 0x0 division factor. This field controls the division of the SERDES PLL reference clock before it is fed into the SERDES PLL PFD. It must be set so that fREF/DivFactor is between 35 MHz and 80 MHz. 00 Divide by 4 for lane rate between 6 Gbps and 12.5 Gbps. 01 Divide by 2 for lane rate between 3 Gbps and 6 Gbps. 10 Divide by 1 for lane rate between 1.5 Gbps and 3 Gbps. [7:1] RESERVED Reserved. 0x0 0 SPI_I_TUNE_R_CAL_TERMBLK1 Rising edge of this bit starts a 0x0 termination calibration routine. [7:0] SPI_I_SERIALIZER_RTRIM_TERMBLK1 SPI override for termination 0x0 value for PHY 0, PHY 1, PHY 6, and PHY 7. Value options are as follows: XXX0XXXX Automatically calibrate termination value. XXX1000X Force 000 as termination value. XXX1001X Force 001 as termination value. XXX1010X Force 010 as termination value. XXX1011X Force 011 as termination value. XXX1100X Force 100 as termination value. XXX1101X Force 101 as termination value. XXX1110X Force 110 as termination value. XXX1111X Force 111 as termination value. XXX1000X Force 000 as termination value. [7:4] RESERVED Reserved. 0x0 [3:0] SPI_O_RCAL_CODE_TERMBLK1 Readback of calibration code 0x0 for PHY 0, PHY 1, PHY 6, and PHY 7. [7:1] RESERVED Reserved. 0x0 0 SPI_I_TUNE_R_CAL_TERMBLK2 Rising edge of this bit starts a 0x0 termination calibration routine. [7:0] SPI_I_SERIALIZER_RTRIM_TERMBLK2 SPI override for termination 0x0 value for PHY 2, PHY 3, PHY 4, and PHY 5. Value options are as follows: XXX0XXXX Automatically calibrate termination value. XXX1000X Force 000 as termination value. XXX1001X Force 001 as termination value. XXX1010X Force 010 as termination value. XXX1011X Force 011 as termination value. XXX1100X Force 100 as termination value. XXX1101X Force 101 as termination value. XXX1110X Force 110 as termination value. XXX1111X Force 111 as termination value. Access R R R/W R R/W R/W R R R R/W R/W Rev. D | Page 106 of 144 Data Sheet Hex. Addr. Name 0x2B3 TERM_BLK2_RD_REG0 0x2BB TERM_OFFSET_0 0x2BC TERM_OFFSET_1 0x2BD TERM_OFFSET_2 0x2BE TERM_OFFSET_3 0x2BF TERM_OFFSET_4 0x2C0 TERM_OFFSET_5 AD9161/AD9162 Bits Bit Name [7:4] RESERVED [3:0] SPI_O_RCAL_CODE_TERMBLK2 [7:4] RESERVED [3:0] TERM_OFFSET_0 [7:4] RESERVED [3:0] TERM_OFFSET_1 [7:4] RESERVED [3:0] TERM_OFFSET_2 [7:4] RESERVED [3:0] TERM_OFFSET_3 [7:4] RESERVED [3:0] TERM_OFFSET_4 [7:4] RESERVED [3:0] TERM_OFFSET_5 Settings Description Reset XXX1000X Force 000 as termination value. Reserved. 0x0 Readback of calibration code 0x0 for PHY 2, PHY 3, PHY 4, and PHY 5. Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 0. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 1. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 2. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 3. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 4. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 5. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Access R R R R/W R R/W R R/W R R/W R R/W R R/W Rev. D | Page 107 of 144 AD9161/AD9162 Hex. Addr. Name 0x2C1 TERM_OFFSET_6 0x2C2 TERM_OFFSET_7 0x300 GENERAL_JRX_CTRL_0 0x302 DYN_LINK_LATENCY_0 0x304 LMFC_DELAY_0 0x306 LMFC_VAR_0 0x308 XBAR_LN_0_1 Bits Bit Name [7:4] RESERVED [3:0] TERM_OFFSET_6 [7:4] RESERVED [3:0] TERM_OFFSET_7 7 RESERVED 6 CHECKSUM_MODE [5:1] RESERVED 0 LINK_EN [7:5] RESERVED [4:0] DYN_LINK_LATENCY_0 [7:5] RESERVED [4:0] LMFC_DELAY_0 [7:5] RESERVED [4:0] LMFC_VAR_0 [7:6] RESERVED [5:3] SRC_LANE1 Data Sheet Settings Description Reset Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 6. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Reserved. 0x0 Add or subtract from the 0x0 termination calibration value of Physical Lane 7. 4-bit signed magnitude value that adds to or subtracts from the termination value. Bit 3 is the sign bit, and Bits[2:0] are the magnitude bits. Reserved. 0x0 JESD204B link parameter 0x0 checksum calculation method. 0 Checksum is sum of fields. 1 Checksum is sum of octets. Reserved. 0x0 This bit brings up the JESD204B 0x0 receiver when all link parameters are programmed and all clocks are ready. Reserved. 0x0 Measurement of the JESD204B 0x0 link delay (in PCLK units). Link 0 dynamic link latency. Latency between current deframer LMFC and the global LMFC. Reserved. 0x0 Fixed part of the JESD204B link 0x0 delay (in PCLK units). Delay in frame clock cycles for global LMFC for Link 0. Reserved. 0x0 Variable part of the JESD204B link delay (in PCLK units). Location in Rx LMFC where JESD204B words are read out from buffer. This setting must not be more than 10 PCLKs. 0x1F Reserved. 0x0 Select data from SERDIN0±, 0x1 SERDIN1±, ..., or SERDIN7± for Logic Lane 1. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Access R R/W R R/W R R/W R R/W R R R R/W R R/W R R/W Rev. D | Page 108 of 144 Data Sheet Hex. Addr. Name 0x309 XBAR_LN_2_3 0x30A XBAR_LN_4_5 AD9161/AD9162 Bits Bit Name [2:0] SRC_LANE0 [7:6] RESERVED [5:3] SRC_LANE3 [2:0] SRC_LANE2 [7:6] RESERVED [5:3] SRC_LANE5 [2:0] SRC_LANE4 Settings Description Select data from SERDIN0±, SERDIN1±, ..., or SERDIN7± for Logic Lane 0. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Reserved. Select data from SERDIN0±, SERDIN1±, ..., or SERDIN7± for Logic Lane 3. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Select data from SERDIN0±, SERDIN1±, ..., or SERDIN7± for Logic Lane 2. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Reserved. Select data from SERDIN0±, SERDIN1±, ..., or SERDIN7± for Logic Lane 5. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Select data from SERDIN0±, SERDIN1±, ..., or SERDIN7± for Logic Lane 4. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. Reset 0x0 0x0 0x3 0x2 0x0 0x5 0x4 Access R/W R R/W R/W R R/W R/W Rev. D | Page 109 of 144 AD9161/AD9162 Hex. Addr. Name 0x30B XBAR_LN_6_7 0x30C FIFO_STATUS_REG_0 0x30D FIFO_STATUS_REG_1 Data Sheet Bits Bit Name [7:6] RESERVED [5:3] SRC_LANE7 [2:0] SRC_LANE6 [7:0] LANE_FIFO_FULL [7:0] LANE_FIFO_EMPTY Settings Description Reset 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Reserved. 0x0 Select data from SERDIN0±, 0x7 SERDIN1±, ..., or SERDIN7± for Logic Lane 7. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Select data from SERDIN0±, 0x6 SERDIN1±, ..., or SERDIN7± for Logic Lane 6. 000 Data is from SERDIN0±. 001 Data is from SERDIN1±. 010 Data is from SERDIN2±. 011 Data is from SERDIN3±. 100 Data is from SERDIN4±. 101 Data is from SERDIN5±. 110 Data is from SERDIN6±. 111 Data is from SERDIN7±. Bit 0 corresponds to FIFO full 0x0 flag for data from SERDIN0±. Bit 1 corresponds to FIFO full flag for data from SERDIN1±. Bit 2 corresponds to FIFO full flag for data from SERDIN2±. Bit 3 corresponds to FIFO full flag for data from SERDIN3±. Bit 4 corresponds to FIFO full flag for data from SERDIN4±. Bit 5 corresponds to FIFO full flag for data from SERDIN5±. Bit 6 corresponds to FIFO full flag for data from SERDIN6±. Bit 7 corresponds to FIFO full flag for data from SERDIN7±. Bit 0 corresponds to FIFO empty 0x0 flag for data from SERDIN0±. Bit 1 corresponds to FIFO empty flag for data from SERDIN1±. Bit 2 corresponds to FIFO empty flag for data from SERDIN2±. Bit 3 corresponds to FIFO empty flag for data from SERDIN3±. Bit 4 corresponds to FIFO empty flag for data from SERDIN4±. Bit 5 corresponds to FIFO empty flag for data from SERDIN5±. Bit 6 corresponds to FIFO empty flag for data from SERDIN6±. Bit 7 corresponds to FIFO empty flag for data from SERDIN7±. Access R R/W R/W R R Rev. D | Page 110 of 144 Data Sheet Hex. Addr. Name 0x311 SYNC_GEN_0 0x312 SYNC_GEN_1 0x313 SYNC_GEN_3 0x315 PHY_PRBS_TEST_EN 0x316 PHY_PRBS_TEST_CTRL AD9161/AD9162 Bits Bit Name [7:3] RESERVED 2 EOMF_MASK_0 1 RESERVED 0 EOF_MASK_0 [7:4] SYNC_ERR_DUR [3:0] SYNC_SYNCREQ_DUR [7:0] LMFC_PERIOD [7:0] PHY_TEST_EN 7 RESERVED [6:4] PHY_SRC_ERR_CNT [3:2] PHY_PRBS_PAT_SEL 1 PHY_TEST_START 0 PHY_TEST_RESET Rev. D | Page 111 of 144 Settings Description Reset Reserved. 0x0 Mask EOMF from QBD_0. Assert 0x0 SYNCOUT based on loss of multiframe sync. 0 Don not assert SYNCOUT on loss of multiframe. 1 Assert SYNCOUT on loss of multiframe. Reserved. 0x0 Mask EOF from QBD_0. Assert 0x0 SYNCOUT based on loss of frame sync. 0 Do not assert SYNCOUT on loss of frame. 1 Assert SYNCOUT on loss of frame. Duration of SYNCOUT signal 0x0 low for purpose of sync error report. 0 means half PCLK cycle. Add an additional PCLK = 4 octets for each increment of the value. Duration of SYNCOUT signal 0x0 low for purpose of sync request. 0 means 5 frame + 9 octets. Add an additional PCLK = 4 octets for each increment of the value. LMFC period in PCLK cycle. This 0x0 is to report the global LMFC period based on PCLK. Enable PHY BER by ungating 0x0 the clocks. 1 PHY test enable. 0 PHY test disable. Reserved. 0x0 0x0 000 Report Lane 0 error count. 001 Report Lane 1 error count. 010 Report Lane 2 error count. 011 Report Lane 3 error count. 100 Report Lane 4 error count. 101 Report Lane 5 error count. 110 Report Lane 6 error count. 111 Report Lane 7 error count. Select PRBS pattern for PHY BER 0x0 test. 00 PRBS7. 01 PRBS15. 10 PRBS31. 11 Not used. Start and stop the PHY PRBS 0x0 test. 0 Test not started. 1 Test started. Reset PHY PRBS test state 0x0 machine and error counters. 0 Not reset. 1 Reset. Access R R/W R/W R/W R/W R/W R R/W R R/W R/W R/W R/W AD9161/AD9162 Data Sheet Hex. Addr. Name 0x317 PHY_PRBS_TEST_THRESHOLD_LOBITS Bits Bit Name [7:0] PHY_PRBS_THRESHOLD_LOBITS 0x318 PHY_PRBS_TEST_THRESHOLD_MIDBITS [7:0] PHY_PRBS_THRESHOLD_MIDBITS 0x319 PHY_PRBS_TEST_THRESHOLD_HIBITS [7:0] PHY_PRBS_THRESHOLD_HIBITS 0x31A PHY_PRBS_TEST_ERRCNT_LOBITS [7:0] PHY_PRBS_ERR_CNT_LOBITS 0x31B PHY_PRBS_TEST_ERRCNT_MIDBITS [7:0] PHY_PRBS_ERR_CNT_MIDBITS 0x31C PHY_PRBS_TEST_ERRCNT_HIBITS [7:0] PHY_PRBS_ERR_CNT_HIBITS 0x31D PHY_PRBS_TEST_STATUS [7:0] PHY_PRBS_PASS 0x31E PHY_DATA_SNAPSHOT_CTRL [7:5] RESERVED [4:2] PHY_GRAB_LANE_SEL 1 PHY_GRAB_MODE 0x31F PHY_SNAPSHOT_DATA_BYTE0 0x320 PHY_SNAPSHOT_DATA_BYTE1 0x321 PHY_SNAPSHOT_DATA_BYTE2 0x322 PHY_SNAPSHOT_DATA_BYTE3 0x323 PHY_SNAPSHOT_DATA_BYTE4 0x32C SHORT_TPL_TEST_0 0 PHY_GRAB_DATA [7:0] PHY_SNAPSHOT_DATA_BYTE0 [7:0] PHY_SNAPSHOT_DATA_BYTE1 [7:0] PHY_SNAPSHOT_DATA_BYTE2 [7:0] PHY_SNAPSHOT_DATA_BYTE3 [7:0] PHY_SNAPSHOT_DATA_BYTE4 [7:4] SHORT_TPL_SP_SEL Rev. D | Page 112 of 144 Settings Description Reset Bits[7:0] of the 24-bit threshold 0x0 value set the error flag for PHY PRBS test. Bits[15:8] of the 24-bit 0x0 threshold value set the error flag for PHY PRBS test. Bits[23:16] of the 24-bit 0x0 threshold value set the error flag for PHY PRBS test. Bits[7:0] of the 24-bit reported 0x0 PHY BER test error count from selected lane. Bits[15:8] of the 24-bit reported 0x0 PHY BER test error count from selected lane. Bits[23:16] of the 24-bit 0x0 reported PHY BER test error count from selected lane. Each bit is for the 0xFF corresponding lane. Report PHY BER test pass/fail for each lane. Reserved. 0x0 Select which lane to grab data. 0x0 000 Grab data from Lane 0. 001 Grab data from Lane 1. 010 Grab data from Lane 2. 011 Grab data from Lane 3. 100 Grab data from Lane 4. 101 Grab data from Lane 5. 110 Grab data from Lane 6. 111 Grab data from Lane 7. Use error trigger to grab data. 0x0 0 Grab data when PHY_GRAB_DATA is set. 1 Grab data upon bit error. Transition from 0 to 1 causes 0x0 logic to store current receive data from one lane. Current data received 0x0 represents PHY_SNAPSHOT_DATA[7:0]. Current data received 0x0 represents PHY_SNAPSHOT_DATA[15:8]. Current data received 0x0 represents PHY_SNAPSHOT_DATA[23:16]. Current data received 0x0 represents PHY_SNAPSHOT_DATA[31:24]. Current data received 0x0 represents PHY_SNAPSHOT_DATA[39:32]. Short transport layer sample 0x0 selection. Select which sample to check from a specific DAC. 0000 Sample 0. 0001 Sample 1. 0010 Sample 2. 0011 Sample 3. Access R/W R/W R/W R R R R R R/W R/W R/W R R R R R R/W Data Sheet Hex. Addr. Name 0x32D SHORT_TPL_TEST_1 0x32E SHORT_TPL_TEST_2 0x32F SHORT_TPL_TEST_3 0x334 JESD_BIT_INVERSE_CTRL Bits Bit Name [3:2] SHORT_TPL_M_SEL 1 SHORT_TPL_TEST_RESET 0 SHORT_TPL_TEST_EN [7:0] SHORT_TPL_REF_SP_LSB [7:0] SHORT_TPL_REF_SP_MSB [7:1] RESERVED 0 SHORT_TPL_FAIL [7:0] JESD_BIT_INVERSE AD9161/AD9162 Settings Description Reset 0100 Sample 4. 0101 Sample 5. 0110 Sample 6. 0111 Sample 7. 1000 Sample 8. 1001 Sample 9. 1010 Sample 10. 1011 Sample 11. 1100 Sample 12. 1101 Sample 13. 1110 Sample 14. 1111 Sample 15. Short transport layer test DAC 0x0 selection. Select which DAC to check. 00 DAC 0. 01 DAC 1. 10 DAC 2. 11 DAC 3. Short transport layer test reset. 0x0 Resets the result of short transport layer test. 0 Not reset. 1 Reset. Short transport layer test 0x0 enable. Enable short transport layer test. 0 Disable. 1 Enable. Short transport layer reference 0x0 sample LSB. This is the lower eight bits of expected DAC sample. It is used to compare with the received DAC sample at the output of JESD204B Rx. Short transport layer test 0x0 reference sample MSB. This is the upper eight bits of expected DAC sample. It is used to compare with the received sample at JESD204B Rx output. Reserved. 0x0 Short transport layer test fail. 0x0 This bit shows if the selected DAC sample matches the reference sample. If they match, the test passes; otherwise, the test fails. 0 Test pass. 1 Test fail. Each bit of this byte inverses 0x0 the JESD204B deserialized data from one specific JESD204B Rx PHY. The bit order matches the logical lane order. For example, Bit 0 controls Lane 0, Bit 1 controls Lane 1. Access R/W R/W R/W R/W R/W R R R/W Rev. D | Page 113 of 144 AD9161/AD9162 Hex. Addr. Name 0x400 DID_REG 0x401 BID_REG 0x402 LID0_REG 0x403 SCR_L_REG 0x404 F_REG Bits Bit Name [7:0] DID_RD [7:0] BID_RD 7 RESERVED 6 ADJDIR_RD 5 PHADJ_RD [4:0] LL_LID0 7 SCR_RD [6:5] RESERVED [4:0] L_RD [7:0] F_RD Data Sheet Settings Description Reset Received ILAS configuration on 0x0 Lane 0. DID is the device ID number. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Received ILAS configuration on 0x0 Lane 0. BID is the bank ID, extension to DID. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Reserved. 0x0 Received ILAS configuration on 0x0 Lane 0. ADJDIR is the direction to adjust the DAC LMFC. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Received ILAS configuration on 0x0 Lane 0. PHADJ is the phase adjustment request to DAC. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Received ILAS LID configuration 0x0 on Lane 0. LID0 is the lane identification for Lane 0. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Received ILAS configuration on 0x0 Lane 0. SCR is the Tx scrambling status. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. 0 Scrambling is disabled. 1 Scrambling is enabled. Reserved. 0x0 Received ILAS configuration on 0x0 Lane 0. L is the number of lanes per converter device. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. 00000 1 lane per converter device. 00001 2 lanes per converter device. 00011 4 lanes per converter device. 00111 8 lanes per converter device. Received ILAS configuration on 0x0 Lane 0. F is the number of octets per frame. Settings of 1, 2, and 4 are valid (value in register is F - 1). Link information received on Lane 0 as specified in Section 8.3 of JESD204B. 0 1 octet per frame. 1 2 octets per frame. 11 4 octets per frame. Access R R R R R R R R R R Rev. D | Page 114 of 144 Data Sheet Hex. Addr. Name 0x405 K_REG 0x406 M_REG 0x407 CS_N_REG 0x408 NP_REG 0x409 S_REG AD9161/AD9162 Bits Bit Name [7:5] RESERVED [4:0] K_RD [7:0] M_RD [7:6] CS_RD 5 RESERVED [4:0] N_RD [7:5] SUBCLASSV_RD [4:0] NP_RD [7:5] JESDV_RD [4:0] S_RD Settings Description Reset Reserved. 0x0 Received ILAS configuration on 0x0 Lane 0. K is the number of frames per multiframe. Settings of 16 or 32 are valid. On this device, all modes use K = 32 (value in register is K - 1). Link information received on Lane 0 as specified in Section 8.3 of JESD204B. 01111 16 frames per multiframe. 11111 32 frames per multiframe. Received ILAS configuration on 0x0 Lane 0. M is the number of converters per device. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. M is 1 for real interface and 2 for complex interface (value in register is M - 1). Received ILAS configuration on 0x0 Lane 0. CS is the number of control bits per sample. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. CS is always 0 on this device. Reserved. 0x0 Received ILAS configuration on 0x0 Lane 0. N is the converter resolution. Value in register is N - 1 (for example, 16 bits = 0b01111). Received ILAS configuration on 0x0 Lane 0. SUBCLASSV is the device subclass version. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. 000 Subclass 0. 001 Subclass 1. Received ILAS configuration on 0x0 Lane 0. NP is the total number of bits per sample. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Value in register is NP - 1, for example, 16 bits per sample = 0b01111. Received ILAS configuration on 0x0 Lane 0. JESDV is the JESD204x version. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. 000 JESD204A. 001 JESD204B. Received ILAS configuration on 0x0 Lane 0. S is the number of samples per converter per frame cycle. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Value in register is S - 1. Access R R R R R R R R R R Rev. D | Page 115 of 144 AD9161/AD9162 Hex. Addr. Name 0x40A HD_CF_REG 0x40B RES1_REG 0x40C RES2_REG 0x40D CHECKSUM0_REG 0x40E COMPSUM0_REG 0x412 LID1_REG 0x415 CHECKSUM1_REG 0x416 COMPSUM1_REG 0x41A LID2_REG 0x41D CHECKSUM2_REG Data Sheet Bits Bit Name 7 HD_RD [6:5] RESERVED [4:0] CF_RD [7:0] RES1_RD [7:0] RES2_RD [7:0] LL_FCHK0 [7:0] LL_FCMP0 [7:5] RESERVED [4:0] LL_LID1 [7:0] LL_FCHK1 [7:0] LL_FCMP1 [7:5] RESERVED [4:0] LL_LID2 [7:0] LL_FCHK2 Rev. D | Page 116 of 144 Settings Description Reset Received ILAS configuration on 0x0 Lane 0. HD is the high density format. Refer to Section 5.1.3 of JESD204B standard. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. 0 Low density mode. 1 High density mode. Reserved. 0x0 Received ILAS configuration on 0x0 Lane 0. CF is the number of control words per frame clock period per link. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. CF is always 0 on this device. Received ILAS configuration on 0x0 Lane 0. Reserved Field 1. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Received ILAS configuration on 0x0 Lane 0. Reserved Field 2. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Received checksum during ILAS 0x0 on Lane 0. Checksum for Lane 0. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Computed checksum on Lane 0. 0x0 Computed checksum for Lane 0. The JESD204B Rx computes the checksum of the link information received on Lane 0 as specified in Section 8.3 of JESD204B. The computation method is set by the CHECKSUM_MODE bit (Register 0x300, Bit 6) and must match the likewise calculated checksum in Register 0x40D. Reserved. 0x0 Received ILAS LID configuration 0x0 on Lane 1. Lane identification for Lane 1. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Received checksum during ILAS 0x0 on lane 1. Checksum for Lane 1. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Computed checksum on Lane 1. 0x0 Computed checksum for Lane 1 (see description for Register 0x40E). Reserved. 0x0 Received ILAS LID configuration 0x0 on Lane 2. Lane identification for Lane 2. Received checksum during ILAS 0x0 on Lane 2. Checksum for Lane 2. Access R R R R R R R R R R R R R R Data Sheet Hex. Addr. Name 0x41E COMPSUM2_REG 0x422 LID3_REG 0x425 CHECKSUM3_REG 0x426 COMPSUM3_REG 0x42A LID4_REG 0x42D CHECKSUM4_REG 0x42E COMPSUM4_REG 0x432 LID5_REG 0x435 CHECKSUM5_REG 0x436 COMPSUM5_REG 0x43A LID6_REG 0x43D CHECKSUM6_REG 0x43E COMPSUM6_REG 0x442 LID7_REG 0x445 CHECKSUM7_REG 0x446 COMPSUM7_REG Bits Bit Name [7:0] LL_FCMP2 [7:5] RESERVED [4:0] LL_LID3 [7:0] LL_FCHK3 [7:0] LL_FCMP3 [7:5] RESERVED [4:0] LL_LID4 [7:0] LL_FCHK4 [7:0] LL_FCMP4 [7:5] RESERVED [4:0] LL_LID5 [7:0] LL_FCHK5 [7:0] LL_FCMP5 [7:5] RESERVED [4:0] LL_LID6 [7:0] LL_FCHK6 [7:0] LL_FCMP6 [7:5] RESERVED [4:0] LL_LID7 [7:0] LL_FCHK7 [7:0] LL_FCMP7 AD9161/AD9162 Settings Description Reset Computed checksum on Lane 2. 0x0 Computed checksum for Lane 2 (see description for Register 0x40E). Reserved. 0x0 Received ILAS LID configuration 0x0 on Lane 3. Lane identification for Lane 3. Received checksum during ILAS 0x0 on Lane 3. Checksum for Lane 3. Computed checksum on Lane 3. 0x0 Computed checksum for Lane 3 (see description for Register 0x40E). Reserved. 0x0 Received ILAS LID configuration 0x0 on Lane 4. Lane identification for Lane 4. Received checksum during ILAS 0x0 on Lane 4. Checksum for Lane 4. Computed checksum on Lane 4. 0x0 Computed checksum for Lane 4 (see description for Register 0x40E). Reserved. 0x0 Received ILAS LID configuration 0x0 on Lane 5. Lane identification for Lane 5. Received checksum during ILAS 0x0 on lane 5. Checksum for Lane 5. Computed checksum on Lane 5. 0x0 Computed checksum for Lane 5 (see description for Register 0x40E). Reserved. 0x0 Received ILAS LID configuration 0x0 on Lane 6. Lane identification for Lane 6. Received checksum during ILAS 0x0 on Lane 6. Checksum for Lane 6. Computed checksum on Lane 6. 0x0 Computed checksum for Lane 6 (see description for Register 0x40E). Reserved. 0x0 Received ILAS LID configuration 0x0 on Lane 7. Lane identification for Lane 7. Received checksum during ILAS 0x0 on Lane 7. Checksum for Lane 7. Computed checksum on Lane 5. 0x0 Computed checksum for Lane 7 (see description for Register 0x40E). Access R R R R R R R R R R R R R R R R R R R R R Rev. D | Page 117 of 144 AD9161/AD9162 Hex. Addr. Name 0x450 ILS_DID 0x451 ILS_BID 0x452 ILS_LID0 0x453 ILS_SCR_L Data Sheet Bits Bit Name [7:0] DID [7:0] BID 7 RESERVED 6 ADJDIR 5 PHADJ [4:0] LID0 7 SCR [6:5] RESERVED Settings Description Reset Device (= link) identification 0x0 number. DID is the device ID number. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. Must be set to the value read in Register 0x400. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Bank ID, extension to DID. This 0x0 signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Direction to adjust DAC LMFC 0x0 (Subclass 2 only). ADJDIR is the direction to adjust DAC LMFC. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Phase adjustment to DAC 0x0 (Subclass 2 only). PHADJ is the phase adjustment request to the DAC. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Lane identification number 0x0 (within link). LID0 is the lane identification for Lane 0. Link information received on Lane 0 as specified in Section 8.3 of JESD204B. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Scramble enable. SCR is the Rx 0x1 descrambling enable. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 0 Descrambling is disabled. 1 Descrambling is enabled. Reserved. 0x0 Access R/W R/W R R/W R/W R/W R/W R Rev. D | Page 118 of 144 Data Sheet Hex. Addr. Name 0x454 ILS_F 0x455 ILS_K 0x456 ILS_M 0x457 ILS_CS_N 0x458 ILS_NP 0x459 ILS_S AD9161/AD9162 Bits Bit Name [4:0] L [7:0] F [7:5] RESERVED [4:0] K [7:0] M [7:6] CS 5 RESERVED [4:0] N [7:5] SUBCLASSV [4:0] NP [7:5] JESDV Settings Description Reset Number of lanes per converter 0x7 (minus 1). L is the number of lanes per converter device. Settings of 1, 2, 3, 4, 6, and 8 are valid. Refer to Table 16 and Table 17. Number of octets per frame 0x0 (minus 1). This value of F is not used to soft configure the QBD. Register CTRLREG1 is used to soft-configure the QBD. Reserved. 0x0 Number of frames per 0x1F multiframe (minus 1). K is the number of frames per multiframe. On this device, all modes use K = 32 (value in register is K - 1). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 01111 16 frames per multiframe. 11111 32 frames per multiframe. Number of converters per 0x1 device (minus 1). M is the number of converters/device. Settings of 1 and 2 are valid. Refer to Table 16 and Table 17. Number of control bits per 0x0 sample. CS is the number of control bits per sample. Must be set to 0. Control bits are not supported. Reserved. 0x0 Converter resolution (minus 1). 0xF N is the converter resolution. Must be set to 16 (0x0F). Device subclass version. 0x0 SUBCLASSV is the device subclass version. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 000 Subclass 0. 001 Subclass 1. 010 Subclass 2 (not supported.) Total number of bits per sample 0xF (minus 1) NP is the total number of bits per sample. Must be set to 16 (0x0F). Refer to Table 16 and Table 17. JESD204x version. JESDV is the 0x0 JESD204x version. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 000 JESD204A. 001 JESD204B. Access R R R R/W R R R R R/W R R/W Rev. D | Page 119 of 144 AD9161/AD9162 Hex. Addr. Name 0x45A ILS_HD_CF 0x45B ILS_RES1 0x45C ILS_RES2 0x45D ILS_CHECKSUM 0x46C LANE_DESKEW Data Sheet Bits Bit Name [4:0] S 7 HD [6:5] RESERVED [4:0] CF [7:0] RES1 [7:0] RES2 [7:0] FCHK0 7 ILD7 6 ILS6 5 ILD5 Rev. D | Page 120 of 144 Settings Description Reset Number of samples per 0x1 converter per frame cycle (minus 1). S is the number of samples per converter per frame cycle. Settings of 1 and 2 are valid. Refer to Table 16 and Table 17. High density format. HD is the 0x1 high density mode. Refer to Section 5.1.3 of JESD204B standard. 0 Low density mode. 1 High density mode. Reserved. 0x0 Number of control bits per 0x0 sample. CF is the number of control words per frame clock period per link. Must be set to 0. Control bits are not supported. Reserved. Reserved Field 1. This 0x0 signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. Reserved Field 2. This 0x0 signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Link configuration checksum. 0x0 Checksum for Lane 0. The checksum for the configuration values (not the whole register content) programmed into Register 0x450 to Register 0x45C must be calculated according to Section 8.3 of the JESD204B specification and written to this register (SUM(DID,..., SC, L-1,...CF) % 256). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Interlane deskew status for 0x0 Lane 7 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 6 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Interlane deskew status for 0x0 Lane 5 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Access R R R R R/W R/W R/W R R R Data Sheet Hex. Addr. Name 0x46D BAD_DISPARITY AD9161/AD9162 Bits Bit Name 4 ILD4 3 ILD3 2 ILD2 1 ILD1 0 ILD0 7 BDE7 6 BDE6 5 BDE5 4 BDE4 3 BDE3 2 BDE2 1 BDE1 0 BDE0 Settings Description Reset Interlane deskew status for 0x0 Lane 4 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Interlane deskew status for 0x0 Lane 3 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Interlane deskew status for 0x0 Lane 2 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Interlane deskew status for 0x0 Lane 1 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Interlane deskew status for Lane 0 0x0 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Bad disparity error status for 0x0 Lane 7. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Bad disparity error status for 0x0 Lane 6. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Bad disparity errors status for 0x0 Lane 5. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Bad disparity error status for 0x0 Lane 4. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Bad disparity error status for 0x0 Lane 3. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Bad disparity error status for 0x0 Lane 2. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Bad disparity error status for 0x0 Lane 1. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Bad disparity error status for 0x0 Lane 0. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Access R R R R R R R R R R R R R Rev. D | Page 121 of 144 AD9161/AD9162 Hex. Addr. Name 0x46E NOT_IN_TABLE 0x46F UNEXPECTED_KCHAR Data Sheet Bits Bit Name 7 NIT7 6 NIT6 5 NIT5 4 NIT4 3 NIT3 2 NIT2 1 NIT1 0 NIT0 7 UEK7 6 UEK6 5 UEK5 4 UEK4 3 UEK3 2 UEK2 1 UEK1 Settings Description Reset Not in table error status for Lane 7. 0x0 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table error status for Lane 6. 0x0 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 5. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table error status for Lane 4. 0x0 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table error status for Lane 3. 0x0 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table error status for Lane 2. 0x0 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table error status for Lane 1. 0x0 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table error status for Lane 0. 0x0 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character error 0x0 status for Lane 7. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character error 0x0 status for Lane 6. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character error 0x0 status for Lane 5. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character error 0x0 status for Lane 4. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character error 0x0 status for Lane 3. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character error 0x0 status for Lane 2. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character error 0x0 status for Lane 1. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Access R R R R R R R R R R R R R R R Rev. D | Page 122 of 144 Data Sheet Hex. Addr. Name 0x470 CODE_GRP_SYNC 0x471 FRAME_SYNC AD9161/AD9162 Bits Bit Name 0 UEK0 7 CGS7 6 CGS6 5 CGS5 4 CGS4 3 CGS3 2 CGS2 1 CGS1 0 CGS0 7 FS7 6 FS6 5 FS5 4 FS4 Settings Description Unexpected K character error status for Lane 0. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Code group sync status for Lane 7. 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for Lane 6. 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for Lane 5. 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for Lane 4. 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for Lane 3. 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for Lane 2. 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for Lane 1. 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for Lane 0. 0 Synchronization lost. 1 Synchronization achieved. Frame sync status for Lane 7 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Frame sync status for Lane 6 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Frame sync status for Lane 5 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Frame sync status for Lane 4(ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Reset Access 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R 0x0 R Rev. D | Page 123 of 144 AD9161/AD9162 Hex. Addr. Name 0x472 GOOD_CHECKSUM Bits Bit Name 3 FS3 2 FS2 1 FS1 0 FS0 7 CKS7 6 CKS6 5 CKS5 4 CKS4 3 CKS3 2 CKS2 1 CKS1 Data Sheet Settings Description Reset Frame sync status for Lane 3 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Frame sync status for Lane 2 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Frame sync status for Lane 1 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Frame sync status for Lane 0 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Computed checksum status for 0x0 Lane 7 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Computed checksum status for 0x0 Lane 6 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Computed checksum status for 0x0 Lane 5 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Computed checksum status for 0x0 Lane 4 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Computed checksum status for 0x0 Lane 3 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Computed checksum status for 0x0 Lane 2 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Computed checksum status for 0x0 Lane 1 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Access R R R R R R R R R R R Rev. D | Page 124 of 144 Data Sheet Hex. Addr. Name 0x473 INIT_LANE_SYNC 0x475 CTRLREG0 AD9161/AD9162 Bits Bit Name 0 CKS0 7 ILS7 6 ILS6 5 ILS5 4 ILS4 3 ILS3 2 ILS2 1 ILS1 0 ILS0 7 RX_DIS Settings Description Reset Computed checksum status for 0x0 Lane 0 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Initial lane synchronization 0x0 status for Lane 7 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Initial lane synchronization 0x0 status for Lane 6(ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Initial lane synchronization 0x0 status for Lane 5 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Initial lane synchronization 0x0 status for Lane 4 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Initial lane synchronization 0x0 status for Lane 3 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Initial lane synchronization 0x0 status for Lane 2 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Initial lane synchronization 0x0 status for Lane 1 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Initial lane synchronization 0x0 status for Lane 0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Level input: disable deframer 0x0 receiver when this input = 1. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 1 Disable character replacement of /A/ and /F/ control characters at the end of received frames and multiframes. 0 Enables the substitution. Access R R R R R R R R R R/W Rev. D | Page 125 of 144 AD9161/AD9162 Hex. Addr. Name 0x476 CTRLREG1 Data Sheet Bits Bit Name 6 CHAR_REPL_DIS [5:4] RESERVED 3 SOFTRST 2 FORCESYNCREQ 1 RESERVED 0 REPL_FRM_ENA [7:5] RESERVED 4 QUAL_RDERR 3 DEL_SCR 2 CGS_SEL Rev. D | Page 126 of 144 Settings Description Reset When this input = 1, character 0x0 replacement at the end of frame/multiframe is disabled. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Soft reset. Active high 0x0 synchronous reset. Resets all hardware to power-on state. 1 Disables the deframer reception. 0 Enable deframer logic. Command from application to 0x0 assert a sync request (SYNCOUT ). Active high. Reserved. 0x0 When this level input is set, it 0x1 enables replacement of frames received in error. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Error reporting behavior for 0x1 concurrent NIT and RD errors. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 0 NIT has no effect on RD error. 1 NIT error masks concurrent RD error. Alternative descrambler enable. 0x0 (see JESD204B Section 5.2.4) This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 1 Descrambling begins at Octet 2 of user data. 0 Descrambling begins at Octet 0 of user data. This is the common usage. Determines the QBD behavior 0x1 after code group sync has been achieved. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 0 After code group sync is achieved, the QBD asserts SYNCOUT only if there are sufficient disparity errors as per the JESD204B standard. Access R/W R R/W R/W R R/W R R/W R/W R/W Data Sheet Hex. Addr. Name 0x477 CTRLREG2 AD9161/AD9162 Bits Bit Name 1 NO_ILAS 0 FCHK_N 7 ILS_MODE 6 RESERVED 5 REPDATATEST 4 QUETESTERR Settings Description Reset 1 After code group sync is achieved, if a /K/ is followed by any character other than an /R/ or another /K/, QBD asserts SYNCOUT. This signal must only be 0x0 programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 1 For single-lane operation, ILAS is omitted. Code group sync is followed by user data. 0 Code group sync is followed by ILAS. For multilane operation, NO_ILAS must always be set to 0. Checksum calculation method. 0x0 This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Register 3), and must not be changed during normal operation. 0 Calculate checksum by summing individual fields (this more closely matches the definition of the checksum field in the JESD204B standard. 1 Calculate checksum by summing the registers containing the packed fields (this setting is provided in case the framer of another vendor performs the calculation with this method). Data link layer test mode. This 0x0 signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. 0 Normal mode. 1 Code group sync pattern is followed by a perpetual ILAS sequence. Reserved. 0x0 Repetitive data test enable, 0x0 using JTSPAT pattern. To enable the test, ILS_MODE must = 0. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Queue test error mode. This 0x0 signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Access R/W R/W R/W R R/W R/W Rev. D | Page 127 of 144 AD9161/AD9162 Hex. Addr. Name 0x478 KVAL 0x47C ERRORTHRES 0x47D SYNC_ASSERT_MASK Data Sheet Bits Bit Name 3 AR_ECNTR [2:0] RESERVED [7:0] KSYNC [7:0] ETH [7:3] RESERVED [2:0] SYNC_ASSERT_MASK Settings Description Reset 0 Simultaneous errors on multiple lanes are reported as one error. 1 Detected errors from all lanes are trapped in a counter and sequentially signaled on SYNCOUT. Automatic reset of error 0x0 counter. The error counter that causes assertion of SYNCOUT is automatically reset to 0 when AR_ECNTR = 1. All other counters are unaffected. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Number of 4 × K multiframes 0x1 during ILS. F is the number of octets per frame. Settings of 1, 2, and 4 are valid. Refer to Table 16 and Table 17. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Error threshold value. Bad 0xFF disparity, NIT disparity, and unexpected K character errors are counted and compared to the error threshold value. When the count is equal, either an IRQ is generated or SYNCOUT± is asserted per the mask register settings or both. Function is performed in all lanes. This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 SYNCOUT assertion enable 0x7 mask for BD, NIT, and UEK error conditions. Active high, SYNCOUT assertion enable mask for BD, NIT, and UEK error conditions, respectively. When an error counter, in any lane, has reached the error threshold count, ETH[7:0], and the corresponding SYNC_ASSERT_ MASK bit is set, SYNCOUT is asserted. The mask bits are as follows. Note that the bit sequence is reversed with respect to the other error count controls and the error counters. Bit 2 = bad disparity error (BDE). Access R/W R R/W R/W R R/W Rev. D | Page 128 of 144 Data Sheet Hex. Addr. Name 0x480 ECNT_CTRL0 0x481 ECNT_CTRL1 0x482 ECNT_CTRL2 0x483 ECNT_CTRL3 AD9161/AD9162 Bits Bit Name [7:6] RESERVED [5:3] ECNT_ENA0 [2:0] ECNT_RST0 [7:6] RESERVED [5:3] ECNT_ENA1 [2:0] ECNT_RST1 [7:6] RESERVED [5:3] ECNT_ENA2 [2:0] ECNT_RST2 [7:6] RESERVED [5:3] ECNT_ENA3 [2:0] ECNT_RST3 Rev. D | Page 129 of 144 Settings Description Reset Bit 1 = not in table error (NIT). Bit 0 = unexpected K (UEK) character error. Reserved. 0x0 Error counter enable for Lane 0. 0x7 Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Error counters enable for Lane 0x7 0, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Error counters enable for Lane 0x7 1, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Error counters enable for Lane 0x7 1, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Error counters enable for Lane 0x7 2, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Error counters enable for Lane 0x7 2, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Error counters enable for Lane 0x7 3, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Error counters enable for Lane 0x7 3, active high. Counters of each lane are addressed as follows: Access R R/W R/W R R/W R/W R R/W R/W R R/W R/W AD9161/AD9162 Hex. Addr. Name 0x484 ECNT_CTRL4 0x485 ECNT_CTRL5 0x486 ECNT_CTRL6 0x487 ECNT_CTRL7 Data Sheet Bits Bit Name [7:6] RESERVED [5:3] ECNT_ENA4 [2:0] ECNT_RST4 [7:6] RESERVED [5:3] ECNT_ENA5 [2:0] ECNT_RST5 [7:6] RESERVED [5:3] ECNT_ENA6 [2:0] ECNT_RST6 [7:6] RESERVED [5:3] ECNT_ENA7 Settings Description Reset Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Error counters enable for Lane 0x7 4, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Error counters enable for Lane 0x7 4, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Error counters enable for Lane 0x7 5, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Error counters enable for Lane 0x7 5, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Error counters enable for Lane 0x7 6, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Error counters enable for Lane 0x7 6, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Error counters enable for Lane 0x7 7, active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Access R R/W R/W R R/W R/W R R/W R/W R R/W Rev. D | Page 130 of 144 Data Sheet Hex. Addr. Name 0x488 ECNT_TCH0 0x489 ECNT_TCH1 0x48A ECNT_TCH2 AD9161/AD9162 Bits Bit Name [2:0] ECNT_RST7 [7:3] RESERVED [2:0] ECNT_TCH0 [7:3] RESERVED [2:0] ECNT_TCH1 [7:3] RESERVED [2:0] ECNT_TCH2 Rev. D | Page 131 of 144 Settings Description Reset Reset error counters for Lane 7, 0x7 active high. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 0. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 1. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 2. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Access R/W R R/W R R/W R R/W AD9161/AD9162 Hex. Addr. Name 0x48B ECNT_TCH3 0x48C ECNT_TCH4 0x48D ECNT_TCH5 Data Sheet Bits Bit Name [7:3] RESERVED [2:0] ECNT_TCH3 [7:3] RESERVED [2:0] ECNT_TCH4 [7:3] RESERVED [2:0] ECNT_TCH5 Settings Description Reset This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 3. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 4. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 5. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Access R R/W R R/W R R/W Rev. D | Page 132 of 144 Data Sheet Hex. Addr. Name 0x48E ECNT_TCH6 0x48F ECNT_TCH7 0x490 ECNT_STAT0 AD9161/AD9162 Bits Bit Name [7:3] RESERVED [2:0] ECNT_TCH6 [7:3] RESERVED [2:0] ECNT_TCH7 [7:4] RESERVED 3 LANE_ENA0 [2:0] ECNT_TCR0 Rev. D | Page 133 of 144 Settings Description Reset This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 6. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 Terminal count hold enable of 0x7 error counters for Lane 7. When set, the designated counter is to hold the terminal count value of 0xFF when it is reached until the counter is reset by the user. Otherwise, the designated counter rolls over. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). This signal must only be programmed while the QBD is held in soft reset (Register 0x475, Bit 3), and must not be changed during normal operation. Reserved. 0x0 This output indicates if lane0 is 0x0 enabled. 0 Lane0 is held in soft reset. 1 Lane0 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 0. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows. Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Access R R/W R R/W R R R AD9161/AD9162 Hex. Addr. Name 0x491 ECNT_STAT1 0x492 ECNT_STAT2 0x493 ECNT_STAT3 0x494 ECNT_STAT4 Data Sheet Bits Bit Name [7:4] RESERVED 3 LANE_ENA1 [2:0] ECNT_TCR1 [7:4] RESERVED 3 LANE_ENA2 [2:0] ECNT_TCR2 [7:4] RESERVED 3 LANE_ENA3 [2:0] ECNT_TCR3 [7:4] RESERVED 3 LANE_ENA4 [2:0] ECNT_TCR4 Settings Description Reset Reserved. 0x0 This output indicates if Lane 1 is 0x0 enabled. 0 Lane 1 is held in soft reset. 1 Lane 1 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 1. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows. Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 This output indicates if Lane 2 is 0x0 enabled. 0 Lane 2 is held in soft reset. 1 Lane 2 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 2. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows. Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 This output indicates if Lane 3 is 0x0 enabled. 0 Lane 3 is held in soft reset. 1 Lane 3 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 3. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 This output indicates if Lane 4 is 0x0 enabled. 0 Lane 4 is held in soft reset. 1 Lane 4 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 4. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows: Access R R R R R R R R R R R R Rev. D | Page 134 of 144 Data Sheet Hex. Addr. Name 0x495 ECNT_STAT5 0x496 ECNT_STAT6 0x497 ECNT_STAT7 0x498 BD_CNT0 0x499 BD_CNT1 0x49A BD_CNT2 0x49B BD_CNT3 AD9161/AD9162 Bits Bit Name [7:4] RESERVED 3 LANE_ENA5 [2:0] ECNT_TCR5 [7:4] RESERVED 3 LANE_ENA6 [2:0] ECNT_TCR6 [7:4] RESERVED 3 LANE_ENA7 [2:0] ECNT_TCR7 [7:0] BD_CNT0 [7:0] BD_CNT1 [7:0] BD_CNT2 [7:0] BD_CNT3 Rev. D | Page 135 of 144 Settings Description Reset Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 This output indicates if Lane 5 is 0x0 enabled. 0 Lane 5 is held in soft reset. 1 Lane 5 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 5. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 This output indicates if Lane 6 is 0x0 enabled. 0 Lane 6 is held in soft reset. 1 Lane 6 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 6. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Reserved. 0x0 This output indicates if Lane 7 is 0x0 enabled. 0 Lane 7 is held in soft reset. 1 Lane 7 is enabled. Terminal count reached 0x0 indicator of error counters for Lane 7. Set to 1 when the corresponding counter terminal count value of 0xFF has been reached. Counters of each lane are addressed as follows: Bit 2 = unexpected K (UEK) character error. Bit 1 = not in table error (NIT). Bit 0 = bad disparity error (BDE). Bad disparity 8-bit error 0x0 counters for Lane 0. Bad disparity 8-bit error 0x0 counters for Lane 1. Bad disparity 8-bit error 0x0 counters for Lane 2. Bad disparity 8-bit error 0x0 counters for Lane 3. Access R R R R R R R R R R R R R AD9161/AD9162 Hex. Addr. Name 0x49C BD_CNT4 0x49D BD_CNT5 0x49E BD_CNT6 0x49F BD_CNT7 0x4A0 NIT_CNT0 0x4A1 NIT_CNT1 0x4A2 NIT_CNT2 0x4A3 NIT_CNT3 0x4A4 NIT_CNT4 0x4A5 NIT_CNT5 0x4A6 NIT_CNT6 0x4A7 NIT_CNT7 0x4A8 UEK_CNT0 0x4A9 UEK_CNT1 0x4AA UEK_CNT2 0x4AB UEK_CNT3 0x4AC UEK_CNT4 0x4AD UEK_CNT5 0x4AE UEK_CNT6 0x4AF UEK_CNT7 0x4B0 LINK_STATUS0 Data Sheet Bits Bit Name [7:0] BD_CNT4 [7:0] BD_CNT5 [7:0] BD_CNT6 [7:0] BD_CNT7 [7:0] NIT_CNT0 [7:0] NIT_CNT1 [7:0] NIT_CNT2 [7:0] NIT_CNT3 [7:0] NIT_CNT4 [7:0] NIT_CNT5 [7:0] NIT_CNT6 [7:0] NIT_CNT7 [7:0] UEK_CNT0 [7:0] UEK_CNT1 [7:0] UEK_CNT2 [7:0] UEK_CNT3 [7:0] UEK_CNT4 [7:0] UEK_CNT5 [7:0] UEK_CNT6 [7:0] UEK_CNT7 7 BDE0 6 NIT0 5 UEK0 4 ILD0 Settings Description Reset Bad disparity 8-bit error 0x0 counters for Lane 4. Bad disparity 8-bit error 0x0 counters for Lane 5. Bad disparity 8-bit error 0x0 counters for Lane 6. Bad disparity 8-bit error 0x0 counters for Lane 7. Not in table 8-bit error counters 0x0 for Lane 0. Not in table 8-bit error counters 0x0 for Lane 1. Not in table 8-bit error counters 0x0 for Lane 2. Not in table 8-bit error counters 0x0 for Lan e 3. Not in table 8-bit error counters 0x0 for Lane 4. Not in table 8-bit error counters 0x0 for Lane 5. Not in table 8-bit error counters 0x0 for Lane 6. Not in table 8-bit error counters 0x0 for Lane 7. Unexpected K character 8-bit 0x0 error counters for Lane 0. Unexpected K character 8-bit 0x0 error counters for Lane 1. Unexpected K character 8-bit 0x0 error counters for Lane 2. Unexpected K character 8-bit 0x0 error counters for Lane 3. Unexpected K character 8-bit 0x0 error counters for Lane 4. Unexpected K character 8-bit 0x0 error counters for Lane 5. Unexpected K character 8-bit 0x0 error counters for Lane 6. Unexpected K character 8-bit 0x0 error counters for Lane 7. Bad disparity errors status for 0x0 Lane 0. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 0. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 0. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 0 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Access R R R R R R R R R R R R R R R R R R R R R R R R Rev. D | Page 136 of 144 Data Sheet Hex. Addr. Name 0x4B1 LINK_STATUS1 Bits Bit Name 3 ILS0 2 CKS0 1 FS0 0 CGS0 7 BDE1 6 NIT1 5 UEK1 4 ILD1 3 ILS1 2 CKS1 1 FS1 0 CGS1 AD9161/AD9162 Settings Description Reset Initial lane synchronization 0x0 status for Lane 0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Computed checksum status for 0x0 Lane 0 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 0 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 0. 0 Synchronization lost. 1 Synchronization achieved. Bad Disparity errors status for 0x0 Lane 1. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 1. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 1. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 1 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 1 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Computed checksum status for 0x0 Lane 1 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 1 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 1. 0 Synchronization lost. 1 Synchronization achieved. Access R R R R R R R R R R R R Rev. D | Page 137 of 144 AD9161/AD9162 Hex. Addr. Name 0x4B2 LINK_STATUS2 0x4B3 LINK_STATUS3 Data Sheet Bits Bit Name 7 BDE2 6 NIT2 5 UEK2 4 ILD2 3 ILS2 2 CKS2 1 FS2 0 CGS2 7 BDE3 6 NIT3 5 UEK3 4 ILD3 3 ILS3 Rev. D | Page 138 of 144 Settings Description Reset Bad Disparity errors status for 0x0 Lane 2. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 2. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 2. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 2 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 2 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Computed checksum status for 0x0 Lane 2 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 2 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 2. 0 Synchronization lost. 1 Synchronization achieved. Bad Disparity errors status for 0x0 Lane 3. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 3. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 3. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 3 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 3 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Access R R R R R R R R R R R R R Data Sheet Hex. Addr. Name 0x4B4 LINK_STATUS4 0x4B5 LINK_STATUS5 Bits Bit Name 2 CKS3 1 FS3 0 CGS3 7 BDE4 6 NIT4 5 UEK4 4 ILD4 3 ILS4 2 CKS4 1 FS4 0 CGS4 7 BDE5 AD9161/AD9162 Settings Description Reset Computed checksum status for 0x0 Lane 3 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 3 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 3. 0 Synchronization lost. 1 Synchronization achieved. Bad Disparity errors status for 0x0 Lane 4. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 4. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 4. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 4 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 4 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Computed checksum status for 0x0 Lane 4 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 4 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 4. 0 Synchronization lost. 1 Synchronization achieved. Bad disparity errors status for 0x0 Lane 5. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Access R R R R R R R R R R R R Rev. D | Page 139 of 144 AD9161/AD9162 Hex. Addr. Name 0x4B6 LINK_STATUS6 Bits Bit Name 6 NIT5 5 UEK5 4 ILD5 3 ILS5 2 CKS5 1 FS5 0 CGS5 7 BDE6 6 NIT6 5 UEK6 4 ILD6 3 ILS6 Data Sheet Settings Description Reset Not in table errors status for 0x0 Lane 5. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 5. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 5 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 5 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Computed checksum status for 0x0 Lane 5 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 5 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 5. 0 Synchronization lost. 1 Synchronization achieved. Bad Disparity errors status for 0x0 Lane 6. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 6. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 6. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 6 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 6 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Access R R R R R R R R R R R R Rev. D | Page 140 of 144 Data Sheet Hex. Addr. Name 0x4B7 LINK_STATUS7 0x4B8 JESD_IRQ_ENABLEA Bits Bit Name 2 CKS6 1 FS6 0 CGS6 7 BDE7 6 NIT7 5 UEK7 4 ILD7 3 ILS7 2 CKS7 1 FS7 0 CGS7 7 EN_BDE 6 EN_NIT 5 EN_UEK 4 EN_ILD 3 EN_ILS AD9161/AD9162 Settings Description Reset Computed checksum status for 0x0 Lane 6 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 6 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 6. 0 Synchronization lost. 1 Synchronization achieved. Bad Disparity errors status for 0x0 Lane 7. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Not in table errors status for 0x0 Lane 7. 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Unexpected K character errors 0x0 status for Lane 7 0 Error count < ETH[7:0] value. 1 Error count ETH[7:0] value. Interlane deskew status for 0x0 Lane 7 (ignore this output when NO_ILAS = 1). 0 Deskew failed. 1 Deskew achieved. Initial lane synchronization 0x0 status for Lane 7 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Computed checksum status for 0x0 Lane 7 (ignore this output when NO_ILAS = 1). 0 Checksum is incorrect. 1 Checksum is correct. Frame sync status for Lane 7 0x0 (ignore this output when NO_ILAS = 1). 0 Synchronization lost. 1 Synchronization achieved. Code group sync status for 0x0 Lane 7. 0 Synchronization lost. 1 Synchronization achieved. Bad disparity error counter. 0x0 Not in table error counter. 0x0 Unexpected K error counter. 0x0 Interlane deskew. 0x0 Initial lane sync. 0x0 Access R R R R R R R R R R R R/W R/W R/W R/W R/W Rev. D | Page 141 of 144 AD9161/AD9162 Hex. Addr. Name Bits Bit Name 2 EN_CKS 0x4B9 JESD_IRQ_ENABLEB 1 EN_FS 0 EN_CGS [7:1] RESERVED 0 EN_ILAS 0x4BA JESD_IRQ_STATUSA 0x4BB JESD_IRQ_STATUSB 0x800 HOPF_CTRL 7 IRQ_BDE 6 IRQ_NIT 5 IRQ_UEK 4 IRQ_ILD 3 IRQ_ILS 2 IRQ_CKS 1 IRQ_FS 0 IRQ_CGS [7:1] RESERVED 0 IRQ_ILAS [7:6] HOPF_MODE [5:0] RESERVED Data Sheet Settings Description Reset Good checksum. This is an 0x0 interrupt that compares two checksums: the checksum that the transmitter sent over the link during the ILAS, and the checksum that the receiver calculated from the ILAS data that the transmitter sent over the link. Note that the checksum IRQ never at any time looks at the checksum that is programmed over the SPI into Register 0x45D. The checksum IRQ only looks at the data sent by the transmitter, and never looks at any data programmed via the SPI. Frame sync. 0x0 Code group sync. 0x0 Reserved. 0x0 Configuration mismatch 0x0 (checked for Lane 0 only). The ILAS IRQ compares the two sets of ILAS data that the receiver has: the ILAS data sent over the JESD204B link by the transmitter, and the ILAS data programmed into the receiver via the SPI (Register 0x450 to Register 0x45D). If the data differs, the IRQ is triggered. Note that all of the ILAS data (including the checksum) is compared. Bad disparity error counter. 0x0 Not in table error counter. 0x0 Unexpected K error counter. 0x0 Interlane deskew. 0x0 Initial lane sync. 0x0 Good checksum. 0x0 Frame sync. 0x0 Code group sync. 0x0 Reserved. 0x0 Configuration mismatch 0x0 (checked for Lane 0 only). 00 Frequency switch mode. 0x0 01 Phase discontinuous switch. Changes the frequency tuning word and resets the phase accumulator. 10 Reserved. Reserved. 0x0 Access R/W R/W R/W R R/W R/W R/W R/W R/W R/W R/W R/W R/W R R/W R/W R Rev. D | Page 142 of 142 Data Sheet AD9161/AD9162 08-30-2017-B OUTLINE DIMENSIONS A1 BALL CORNER 8.05 8.00 SQ 7.95 5.85 BSC 0.86 MAX 0.76 MOM TOP VIEW DETAIL A 5.895 BSC 7.00 REF SQ 0.50 BSC 0.50 REF 15 14 13 12 1110 9 8 7 6 5 4 3 2 1 A1 BALL CORNER A B C D E F G H J K L M N P R BOTTOM VIEW 0.24 REF SEATING PLANE DETAIL A 0.35 0.30 0.25 0.27 0.22 0.17 0.35 COPLANARITY 0.30 0.08 0.25 BALL DIAMETER PKG-004576 A1 BALL CORNER 2.405 BSC *0.95 MAX Figure 195. 165-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-165-1) Dimensions shown in millimeters 11.05 11.00 SQ 10.95 TOP VIEW 5.890 BSC 1.285 BSC 5.935 BSC 9.60 REF SQ 0.80 BSC 0.70 REF 13 12 11 10 9 8 7 6 5 4 3 2 1 A1 BALL PAD CORNER A B C D E F G H J K L M N BOTTOM VIEW DETAIL A 0.35 0.30 0.25 DETAIL A 0.36 0.31 0.26 SEATING PLANE 0.45 0.40 0.35 BALL DIAMETER COPLANARITY 0.12 *COMPLIANT TO JEDEC STANDARDS MO-275-FFAC-1 WITH THE EXCEPTION OF PACKAGE HEIGHT AND THICKNESS. Figure 196. 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-169-2) Dimensions shown in millimeters PKG-004675 08-30-2017-B Rev. D | Page 143 of 143 AD9161/AD9162 ORDERING GUIDE Model1 AD9161BBCZ AD9161BBCZRL AD9162BBCZ AD9162BBCZRL AD9162BBCAZ AD9162BBCAZRL AD9162BBCA AD9162BBCARL AD9161-FMCC-EBZ Temperature Range -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C AD9162-FMC-EBZ AD9162-FMCB-EBZ AD9162-FMCC-EBZ 1 Z = RoHS Compliant Part. Data Sheet Package Description 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 165-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 165-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] 169-Ball Chip Scale Package Ball Grid Array [CSP_BGA] Evaluation Board with Balun and Match Optimized for Wider Output Bandwidth Evaluation Board for 8 mm × 8 mm Package with High Accuracy Balance Balun Evaluation Board for 8 mm × 8 mm Package with Balun and Match Optimized For Wider Output Bandwidth Evaluation Board for 11 mm × 11 mm Package with Balun and Match Optimized for Wider Output Bandwidth Package Option BC-169-2 BC-169-2 BC-165-1 BC-165-1 BC-169-2 BC-169-2 BC-169-2 BC-169-2 ©20162019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D14379-0-5/19(D) Rev. D | Page 144 of 144Adobe PDF Library 11.0
