Introduction

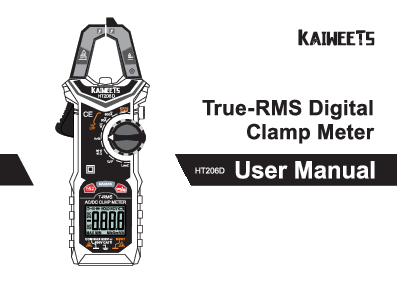

The KAIWEETS HT206D is a versatile True-RMS digital clamp meter designed for accurate electrical measurements. Featuring automatic range selection and a Low Impedance (Low-Z) mode, it effectively detects and eliminates ghost or stray voltages, ensuring reliable readings in various electrical applications. This manual provides essential information on its operation, safety precautions, and specifications.

Key Features & Safety

This clamp meter offers a wide range of measurement capabilities including AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, temperature, diode testing, continuity testing, and non-contact AC voltage detection (NCV). Users are strongly advised to read and adhere to all safety warnings and instructions provided in the manual to prevent electric shock or personal injury. Always inspect test leads for damage before use and avoid measuring voltages exceeding the meter's rated capacity.

Operating Instructions

The manual details the step-by-step process for using the HT206D, from inserting batteries and turning the device on/off to performing various measurements. It explains how to utilize functions like Auto-ranging, MAX/MIN value display, backlight, work light, and data hold. Specific sections guide users through AC/DC current measurements using the clamp, voltage measurements, frequency/duty cycle analysis, resistance checks, continuity tests, capacitance measurements, diode testing, temperature readings with a K-type thermocouple, and non-contact AC voltage detection.

Specifications & Maintenance

Detailed specifications for the KAIWEETS HT206D are provided, including display capabilities, update frequency, operating voltage, dimensions, and compliance with safety standards such as EN61010-1 and EN61326-1 CATIII 600V. The manual also covers essential maintenance procedures, including cleaning the meter and proper battery replacement, emphasizing the importance of disconnecting test leads before opening the casing. For warranty claims or service inquiries, KAIWEETS offers a three-year warranty and can be contacted via email at support@Kaiweets.com.
