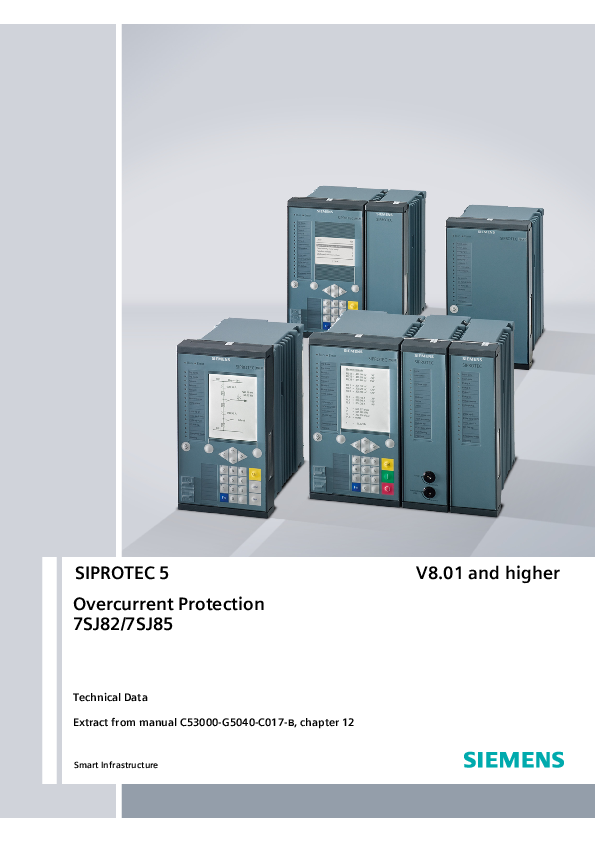

SIPROTEC 5 Overcurrent Protection 7SJ82/7SJ85

V8.01 and higher

Technical Data Extract from manual C53000-G5040-C017-B, chapter 12
Smart Infrastructure

i

NOTE For your own safety, observe the warnings and safety instructions contained in this document, if available.

Disclaimer of Liability
Subject to changes and errors. The information given in this document only contains general descriptions and/or performance features which may not always specifically reflect those described, or which may undergo modification in the course of further development of the products. The requested performance features are binding only when they are expressly agreed upon in the concluded contract.
Document version: C53000-G5040-C017-B.03
Edition: 12.2019
Version of the product described: V08.01

Copyright
Copyright � Siemens 2019. All rights reserved. The disclosure, duplication, distribution and editing of this document, or utilization and communication of the content are not permitted, unless authorized in writing. All rights, including rights created by patent grant or registration of a utility model or a design, are reserved.
Trademarks
SIPROTECTM, DIGSITM, SIGRATM, SIGUARDTM, SAFIRTM, SICAMTM, and MindSphereTM are trademarks of Siemens. Any unauthorized use is prohibited. All other designations in this document may represent trademarks whose use by third parties for their own purposes may violate the proprietary rights of the owner.

Preface

Purpose of the Manual
This manual describes the protection, automation, control, and monitoring functions of the SIPROTEC 5 devices.

Target Audience
Protection system engineers, commissioning engineers, persons entrusted with the setting, testing and maintenance of automation, selective protection and control equipment, and operational crew in electrical installations and power plants.

Scope

This manual applies to the SIPROTEC 5 device family.

Further Documentation

[dwprefdm-221012-01.tif, 3, en_US]
� Device manuals
Each Device manual describes the functions and applications of a specific SIPROTEC 5 device. The printed manual and the online help for the device have the same informational structure.
� Hardware manual
The Hardware manual describes the hardware building blocks and device combinations of the SIPROTEC 5 device family.
� Operating manual
The Operating manual describes the basic principles and procedures for operating and assembling the devices of the SIPROTEC 5 range.

SIPROTEC 5, 7SJ82/7SJ85, Manual

3

C53000-G5040-C017-B, Edition 12.2019

Preface

� Communication protocol manual
The Communication protocol manual contains a description of the protocols for communication within the SIPROTEC 5 device family and to higher-level network control centers.
� Product information
The Product information includes general information about device installation, technical data, limiting values for input and output modules, and conditions when preparing for operation. This document is provided with each SIPROTEC 5 device.
� Engineering Guide
The Engineering Guide describes the essential steps when engineering with DIGSI 5. In addition, the Engineering Guide shows you how to load a planned configuration to a SIPROTEC 5 device and update the functionality of the SIPROTEC 5 device.
� DIGSI 5 online help
The DIGSI 5 online help contains a help package for DIGSI 5 and CFC.
The help package for DIGSI 5 includes a description of the basic operation of software, the DIGSI principles and editors. The help package for CFC includes an introduction to CFC programming, basic examples of working with CFC, and a reference chapter with all the CFC blocks available for the SIPROTEC 5 range.
� SIPROTEC 5/DIGSI 5 Tutorial
The tutorial on the DVD contains brief information about important product features, more detailed information about the individual technical areas, as well as operating sequences with tasks based on practical operation and a brief explanation.
� SIPROTEC 5 catalog
The SIPROTEC 5 catalog describes the system features and the devices of SIPROTEC 5.
� Selection guide for SIPROTEC and Reyrolle
The selection guide offers an overview of the device series of the Siemens protection devices, and a device selection table.

Indication of Conformity

This product complies with the directive of the Council of the European Communities on harmonization of the laws of the Member States concerning electromagnetic compatibility (EMC Directive 2014/30/EU), restriction on usage of hazardous substances in electrical and electronic equipment (RoHS Directive 2011/65/EU), and electrical equipment for use within specified voltage limits (Low Voltage Directive 2014/35/EU).
This conformity has been proved by tests performed according to the Council Directive in accordance with the product standard EN 60255-26 (for EMC directive), the standard EN 50581 (for RoHS directive), and with the product standard EN 60255-27 (for Low Voltage Directive) by Siemens.
The device is designed and manufactured for application in an industrial environment.
The product conforms with the international standards of IEC 60255 and the German standard VDE 0435.

Standards
IEEE Std C 37.90 The technical data of the product is approved in accordance with UL. For more information about the UL database, see ul.com You can find the product with the UL File Number E194016.

IND. CONT. EQ. 69CA

4

SIPROTEC 5, 7SJ82/7SJ85, Manual

C53000-G5040-C017-B, Edition 12.2019

Preface

Additional Support For questions about the system, contact your Siemens sales partner.

Customer Support Center

Our Customer Support Center provides a 24-hour service.

Siemens AG

Customer Support Center

Humboldtstrasse 59

90459 Nuremberg

Germany

E-mail:

support.energy@siemens.com

Training Courses

Inquiries regarding individual training courses should be addressed to our Training Center:

Siemens AG Siemens Power Academy TD Humboldtstrasse 59 90459 Nuremberg Germany

Phone: +49 (911) 433-7415 Fax: +49 (911) 433-7929
E-mail: poweracademy@siemens.com Internet: www.siemens.com/poweracademy

Notes on Safety
This document is not a complete index of all safety measures required for operation of the equipment (module or device). However, it comprises important information that must be followed for personal safety, as well as to avoid material damage. Information is highlighted and illustrated as follows according to the degree of danger:

! DANGER
DANGER means that death or severe injury will result if the measures specified are not taken. � Comply with all instructions, in order to avoid death or severe injuries.

! WARNING
WARNING means that death or severe injury may result if the measures specified are not taken. � Comply with all instructions, in order to avoid death or severe injuries.

! CAUTION
CAUTION means that medium-severe or slight injuries can occur if the specified measures are not taken. � Comply with all instructions, in order to avoid moderate or minor injuries.

SIPROTEC 5, 7SJ82/7SJ85, Manual

5

C53000-G5040-C017-B, Edition 12.2019

Preface

NOTICE
NOTICE means that property damage can result if the measures specified are not taken. � Comply with all instructions, in order to avoid property damage.

i

NOTE Important information about the product, product handling or a certain section of the documentation

which must be given attention.

Qualified Electrical Engineering Personnel
Only qualified electrical engineering personnel may commission and operate the equipment (module, device) described in this document. Qualified electrical engineering personnel in the sense of this manual are people who can demonstrate technical qualifications as electrical technicians. These persons may commission, isolate, ground and label devices, systems and circuits according to the standards of safety engineering.

Proper Use
The equipment (device, module) may be used only for such applications as set out in the catalogs and the technical description, and only in combination with third-party equipment recommended and approved by Siemens. Problem-free and safe operation of the product depends on the following:
� Proper transport � Proper storage, setup and installation � Proper operation and maintenance
When electrical equipment is operated, hazardous voltages are inevitably present in certain parts. If proper action is not taken, death, severe injury or property damage can result:
� The equipment must be grounded at the grounding terminal before any connections are made. � All circuit components connected to the power supply may be subject to dangerous voltage. � Hazardous voltages may be present in equipment even after the supply voltage has been disconnected
(capacitors can still be charged).
� Operation of equipment with exposed current-transformer circuits is prohibited. Before disconnecting the
equipment, ensure that the current-transformer circuits are short-circuited.
� The limiting values stated in the document must not be exceeded. This must also be considered during
testing and commissioning.

Used Symbols on Device No. Symbol 1

Description Direct current, IEC 60417, 5031

2

Alternating current, IEC 60417, 5032

3

Direct and alternating current, IEC 60417, 5033

4

Earth (ground) terminal, IEC 60417, 5017

5

Protective conductor terminal, IEC 60417, 5019

6

SIPROTEC 5, 7SJ82/7SJ85, Manual

C53000-G5040-C017-B, Edition 12.2019

No. Symbol 6

Description Caution, risk of electric shock

7

Caution, risk of danger, ISO 7000, 0434

8

Protective Insulation, IEC 60417, 5172, Safety Class II devices

9

Guideline 2002/96/EC for electrical and electronic devices

10

Guideline for the Eurasian Market

Preface

SIPROTEC 5, 7SJ82/7SJ85, Manual

7

C53000-G5040-C017-B, Edition 12.2019

12 Technical Data

12.1 12.2 12.3 12.4 12.5 12.6 12.7 12.8 12.9 12.10 12.11 12.12 12.13 12.14 12.15 12.16 12.17 12.18 12.19 12.20 12.21 12.22 12.23 12.24 12.25 12.26 12.27 12.28 12.29 12.30 12.31 12.32 12.33 12.34

General Device Data Protection Interface and Protection Topology Date and Time Synchronization Analog-Units Function Group Overcurrent Protection, Phases Voltage-Dependent Overcurrent Protection, Phases Overcurrent Protection, Ground Directional Overcurrent Protection, Phases Directional Overcurrent Protection, Ground Inrush-Current Detection 2nd Harmonic Detection Ground Arc Protection Instantaneous High-Current Tripping Instantaneous Tripping at Switch onto Fault Overcurrent Protection, 1-Phase Overcurrent Protection, 1-Phase (Fast Stage) Positive-Sequence Overcurrent Protection Non-Directional Intermittent Ground-Fault Protection Directional Intermittent Ground-Fault Protection Sensitive Ground-Fault Detection Undercurrent Protection Negative-Sequence Protection Directional Negative-Sequence Protection with Definite-Time Delay Thermal Overload Protection, 3-Phase � Advanced Thermal Overload Protection, User-Defined Characteristic Curve Thermal Overload Protection, 1-Phase Unbalanced-Load Protection Overcurrent Protection for Capacitor Banks Current-Unbalance Protection for Capacitors, 3-Phase Current-Unbalance Protection for Capacitors, 1-Phase Voltage-Differential Protection for Capacitors Differential Protection for Capacitor Banks Overvoltage Protection with 3-Phase Voltage Overvoltage Protection with Zero-Sequence Voltage/Residual Voltage

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1612 1624 1626 1627 1628 1640 1643 1653 1659 1669 1671 1672 1673 1674 1675 1682 1683 1686 1688 1690 1702 1704 1708 1710 1714 1715 1718 1720 1732 1734 1736 1737 1740 1742
1609

Technical Data

1610

12.35 12.36 12.37 12.38 12.39 12.40 12.41 12.42 12.43 12.44 12.45 12.46 12.47 12.48 12.49 12.50 12.51 12.52 12.53 12.54 12.55 12.56 12.57 12.58 12.59 12.60 12.61 12.62 12.63 12.64 12.65 12.66 12.67 12.68 12.69 12.70 12.71 12.72 12.73 12.74 12.75 12.76

Overvoltage Protection with Positive-Sequence Voltage Overvoltage Protection with Negative-Sequence Voltage Overvoltage Protection with Any Voltage Peak Overvoltage Protection for Capacitors Overvoltage Protection with Negative-Sequence Voltage/Positive-Sequence Voltage Undervoltage Protection with 3-Phase Voltage Undervoltage Protection with Positive-Sequence Voltage Undervoltage Protection with Any Voltage Overfrequency Protection Underfrequency Protection Underfrequency Load Shedding Rate of Frequency Change Protection Vector-Jump Protection Power Protection (P,Q), 3-Phase Reverse-Power Protection Overexcitation Protection Undervoltage-Controlled Reactive-Power Protection Circuit-Breaker Failure Protection Circuit-Breaker Restrike Protection Restricted Ground-Fault Protection External Trip Initiation Automatic Reclosing Fault Locator Fault Locator Plus Temperature Supervision Current-Jump Detection Voltage-Jump Detection Synchronization Function Voltage Controller Current-Balance Supervision Voltage-Balance Supervision Current-Sum Supervision Voltage-Sum Supervision Current Phase-Rotation Supervision Voltage Phase-Rotation Supervision Voltage-Comparison Supervision Trip-Circuit Supervision Closing-Circuit Supervision Analog Channel Supervision via Fast Current Sum Measuring-Voltage Failure Detection Voltage-Transformer Circuit Breaker Operational Measured Values and Statistical Values

1744 1745 1746 1748 1750 1751 1754 1756 1758 1759 1760 1762 1764 1765 1766 1767 1769 1771 1773 1774 1776 1777 1778 1779 1780 1781 1782 1783 1786 1790 1791 1792 1793 1794 1795 1796 1797 1798 1799 1800 1802 1803

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.77 12.78 12.79 12.80 12.81 12.82

THD and Harmonics Energy Values Phasor Measurement Unit Circuit-Breaker Wear Monitoring CFC Point-on-Wave Switching

Technical Data
1807 1808 1809 1810 1811 1815

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1611

Technical Data 12.1 General Device Data
12.1 General Device Data

12.1.1 Analog Inputs

Current Inputs

All current, voltage, and power data are specified as RMS values.

Rated frequency frated

50 Hz, 60 Hz

Protection-class current transformers

Rated current Irated

Measuring range of the modular devices

5 A

0 A to 500 A

1 A

0 A to 100 A

Instrument transformers

5 A

0 A to 8 A

1 A

0 A to 1.6 A

Burden for rated current

Approx. 0.1 VA

Thermal rating

20 A continuously

(protection and instrument trans- 25 A for 3 min

formers)

30 A for 2 min

150 A for 10 s

500 A for 1 s

Dynamic load-carrying capacity

1250 A one half wave

Measuring range of the non-modular devices
0 A to 250 A 0 A to 50 A
0 A to 8 A 0 A to 1.6 A

GIS Low-Power Current Input (via Module IO240)

All current, voltage, and power data are specified as RMS values.

Rated frequency frated

50 Hz 60 Hz

Rated current Irated - 50 Hz

Min. 13 mV Max. 332 mV

Rated current Irated - 60 Hz

Min. 15.4 mV Max. 386 mV

Measuring range

50  Irated (Protection channel) 1.6  Irated (Metering channel)

Power consumption per current circuit at rated current

Max. 40 mVA Burden = 9.5 k

Thermal rating

Max. input voltage = 20 V

Accuracy

Class 5TPE (Protection channel)

Class 0.2S (Metering channel)

Voltage Input

All current, voltage, and power data are specified as RMS values.

Rated frequency frated

50 Hz, 60 Hz

Input and output modules

IO102, IO202, IO208, IO211, IO214

Measuring range

0 V to 200 V

Burden

< 0.1 VA

Thermal rating

230 V continuously

IO215
0 V to 7.07 V < 0.01 VA 20 V continuously

1612

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.1 General Device Data

GIS Low-Power Voltage Input (via Module IO240)

All current, voltage, and power data are specified as RMS values.

Rated frequency frated

50 Hz 60 Hz

Rated voltage Vrated - 50 Hz

Min. 0.25 mA Max. 2.00 mA

Rated voltage Vrated - 60 Hz

Min. 0.30 mA Max. 2.20 mA

Measuring range

2  Vrated

Power consumption per current circuit at rated current

Max. 1 mVA Burden = 50

Thermal rating

Max. input current = 4.4 mA

Accuracy

Class 0.1

Measuring-Transducer Inputs (via Module ANAI-CA-4EL)

Insulation class Connector type Differential current input channels Measuring range Fault Input impedance Conversion principle Permissible potential difference between channels Galvanic separation from ground/ housing Permissible overload Measured-value repetition

SELV (Safety Extra Low Voltage) (according to IEC 60255-27) 8-pin terminal spring 4 DC -25.6 mA to +25.6 mA < 0.5 % of the measuring range 140  Delta-sigma (16 bit) DC 20 V
DC 700 V
DC 100 mA continuously 200 ms

Inputs for Optical Sensors for Arc Protection (via Module ARC-CD-3FO)

Connector type Number of transceivers Fiber type Receiver Maximum Minimum Spectrum Attenuation
Optical budget43 Analog sampling rate ADC type Transmitter Type Wavelength

AVAGO AFBR-4526Z 3 Plastic Optical Fiber (POF) 1 mm
-10 dBm � 2 dBm -40 dBm � 2 dBm 400 nm to 1100 nm In the case of plastic optical fibers, you can expect a path attenuation of 0.2 dB/m. Additional attenuation comes from the plug and sensor head. Minimal 25 dB 16 kHz 10-bit successive approximation
LED  = 650 nm

43 All values in combination with sensors approved by Siemens.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1613

Technical Data 12.1 General Device Data

Transmitter power
Numerical aperture Signal rate connection test Pulse duration connection test

Minimum 0 dBm Maximum 2 dBm 0.5 44 1 pulse per second 11 s

High-Speed Measuring-Transducer Inputs, Voltage/Current (via IO210, IO212)

i

NOTE Current and voltage must not be connected at the same time to one measuring-transducer input. Instead,

only connect either current or voltage. For EMC reasons, do not connect a line to an unused input (current

or voltage).

Use shielded cables.

Table 12-1 High-Speed Measuring-Transducer Inputs, Voltage

Differential voltage input channels
Measuring range Fault Input impedance Max. permissible voltage with respect to ground on the measuring inputs Permissible overload

IO210: 445 IO212: 846 DC -10 V to +10 V < 0.5 % of the measuring range 48 k 300 V
DC 20 V continuously DC 60 V continuously (IO210 MT3 terminal point C9)

Table 12-2 High-Speed Measuring-Transducer Inputs, Current

Differential current input channels IO210: 447

IO212: 848

Measuring range

DC -20 mA to +20 mA

Fault

< 0.5 % of the measuring range

Input impedance, current

12

Permissible potential difference between channels

DC 3.5 kV

Galvanic separation with respect to DC 3.5 kV ground/housing

Permissible current overload

DC 100 mA continuously

Table 12-3 Common Data for the Fast Measuring-Transducer Inputs, Voltage/Current

Conversion principle

Delta-sigma (16 bit)

Insulation test voltage between the DC 3.5 kV channels

44 Numerical aperture (NA = sin  (launch angle)) 45 The IO210 has 4 high-speed measuring-transducer inputs. They can be used either as a voltage or current input. 46 The IO212 has 8 high-speed measuring-transducer inputs. They can be used either as a voltage or current input. 47 The IO210 has 4 high-speed measuring-transducer inputs. They can be used either as a voltage or current input. 48 The IO212 has 8 high-speed measuring-transducer inputs. They can be used either as a voltage or current input.

1614

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.1 General Device Data

Insulation test voltage with respect DC 3.5 kV to ground/housing

Measured-value repetition

62.5 s

Insulation class IO210

ELV (Extra Low Voltage) (as per IEC 60255-27)

Insulation class IO212

SELV (as per IEC 60255-27)

Temperature Inputs Settings Insulation class Measurement mode
Connector type Temperature measuring range

Value

Note

PELV (Protective Extra Low Voltage) �

(acc. to IEC 60255-27)

� Pt 100

�

� Ni 100

� Ni 120

3-wire connection, shielded cables

16-pin, 17-pin terminal spring

�

-65 �C to +710 �C

For PT100

-50 �C to +250 �C

For NI100

-50 �C to +250 �C

For NI120

Temperature Inputs (via Module IO240) Settings Sensor Type
Measurement range
Accuracy

Value PT100 (Class F 0.3 EN 60751) 4-wire shielded cable connection -50 �C to +150 �C Shot circuit and broken-wire detection �1 �C

LPIT Digital Input (via Module IO240)
Shield Cover Input Sensor type Measurement type

Dry contact input Output voltage of 1 mA current injection @ max. DC 5 V

12.1.2 Supply Voltage

Integrated Power Supply

For modular devices, the following modules contain a power supply:

PS201 � Power supply of the base module and of the 1st device row

PS203 � Power supply of the 2nd device row

PS204 � Redundant power supply

CB202 � Plug-in module assembly with integrated power supply, for example, to accommodate communication modules

Permissible voltage ranges
(PS201, PS203, PS204, CB202)

DC 19 V to DC 60 V

DC 48 V to DC 300 V AC 80 V to AC 265 V, 50 Hz/60 Hz

Auxiliary rated voltage VH
(PS201, PS203, PS204, CB202)

DC 24 V/DC 48 V

DC 60 V/DC 110 V/DC 125 V/DC 220 V/ DC 250 V or AC 100 V/AC 115 V/AC 230 V, 50 Hz/60 Hz

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1615

Technical Data 12.1 General Device Data

Integrated Power Supply

Permissible voltage ranges (PS101)
Only for non-modular devices

DC 19 V to DC 60 V

DC 48 V to 150 V

DC 88 V to DC 300 V
AC 80 V to AC 265 V, 50 Hz/60 Hz

Auxiliary rated voltage VH DC 24 V/DC 48 V (PS101)

DC 60 V/DC 110 V/ DC 125 V

DC 110 V/ DC 125 V/ DC 220 V/DC 250 V

Only for non-modular devices

or AC 100 V/AC 115 V/

AC 230 V, 50 Hz/60 Hz

Superimposed alternating  15 % of the DC auxiliary rated voltage (applies only to direct voltage) voltage, peak-to-peak, IEC 60255-11, IEC 61000-4-17

Inrush current

 18 A

Recommended external Miniature circuit breaker 6 A, characteristic C according to IEC 60898 protection

Internal fuse

�

DC 24 V to DC 48 V

DC 60 V to DC 125 V

DC 24 V to DC 48 V

AC 100 V to AC 230 V

PS101
Only for non-modular devices

4 A inert, AC 250 V, DC 150 V,
UL recognized

2 A time-lag, AC 250 V, DC 300 V, UL recognized SIBA type 179200 or Schurter type SPT 5x20

SIBA type 179200 or Schurter type SPT 5x20

PS201, PS203, CB202 (to device version xA)

4 A inert, AC 250 V, DC 150 V,
UL recognized

2 A time-lag, AC 250 V, DC 300 V, UL recognized SIBA type 179200 or Schurter type SPT 5x20

SIBA type 179200 or Schurter type SPT 5x20

PS201, PS203, PS204, CB202
(Device version xB and higher)

4 A inert, AC 250 V, DC 150 V,
UL recognized
SIBA type 179200 or Schurter type SPT 5x20

3.15 A time-lag, AC 250 V, DC 300 V, UL recognized SIBA type 179200 or Schurter type SPT 5x20

Power consumption (life relay active)

�

DC

AC 230 V/50 Hz

AC 115 V/50 Hz

1/3 module, non-modular 7 W

16 VA

12.5 VA

Without plug-in modules

1/3 base module, modular 13 W

55 VA

40 VA

Without plug-in modules

1/6 expansion module 3 W

6 VA

6 VA

1/6 plug-in module

3.5 W

assembly without plug-in

modules (modules CB202)

14 VA

7 VA

Plug-in module for base < 5 W module or plug-in module assembly (for example, communication module)

< 6 VA

< 6 VA

1616

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Integrated Power Supply
Stored-energy time for auxiliary voltage outage or short circuit, modular devices IEC 61000-4-11 IEC 61000-4-29
Stored-energy time for auxiliary voltage outage or short circuit, non-modular devices IEC 61000-4-11 IEC 61000-4-29

For V  DC 24 V  50 ms For V  DC 110 V  50 ms For V  AC 115 V  50 ms
For V  DC 24 V  20 ms For V  DC 60 V  50 ms For V  AC 115 V  200 ms

Technical Data 12.1 General Device Data

12.1.3 Binary Inputs

Standard Binary Input

Rated voltage range

DC 24 V to 250 V

The binary inputs of SIPROTEC 5 are bipolar, with the exception of the binary inputs on the modules IO230, IO231, and IO233.

Current consumption, excited

Approx. DC 0.6 mA to 2.5 mA (independent of the control voltage)

Power consumption, max.

0.6 W

Pickup time

Approx. 3 ms

Dropout time49

Capacitive load (supply-line capaci- Dropout time tance)

< 5 nF

< 4 ms

< 10 nF

< 6 ms

< 50 nF

< 10 ms

< 220 nF

< 35 ms

Control voltage for all modules with binary inputs, except module IO233

Adapt the binary-input threshold to be set in the device to the control voltage.

Range 1 for 24 V, 48 V, and 60 V Control voltage

Vlow  DC 10 V Vhigh  DC 19 V

Range 2 for 110 V and 125 V Control voltage

Vlow  DC 44 V Vhigh  DC 88 V

Range 3 for 220 V and 250 V Control voltage

Vlow  DC 88 V Vhigh  DC 176 V

Control voltage for binary inputs of Range for 125 V

the IO233 module

Control voltage

Vlow  DC 85 V Vhigh  DC 105 V

Maximum permitted voltage

DC 300 V

The binary inputs contain interference suppression capacitors. To ensure EMC immunity, use the terminals shown in the terminal diagrams/connection diagrams to connect the binary inputs to the common potential.

Special Binary Input with Maximized Robustness against Electrical Disturbances and Failures (IO216)

Rated voltage range Input impedance

DC 220 V
The special binary inputs of the SIPROTEC 5 with maximized robustness against electrical disturbances and failures are bipolar and available only on the module IO216.
50 k to 60 k

49 For time-critical applications with low-active signals, consider the specified dropout times. If necessary, provide for active discharge of the binary input (for example, a resistor in parallel to the binary input or using a change-over contact).

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1617

Technical Data 12.1 General Device Data

Rejection pulse charge

> 200 �C

Current consumption, excited

Approx. DC 1.2 mA to 2.0 mA (additionally to the current consumption of the input impedance)

Power consumption, max.

1.5 W at DC 242 V

Pickup time

Approx. 3 ms

Dropout time50

Capacitive load (supply-line capaci- Dropout time tance)

< 5 nF

< 3 ms

< 10 nF

< 4 ms

< 50 nF

< 5 ms

< 220 nF

< 10 ms

Control voltage for the module IO216

Range for 220 V control voltage Threshold pickup

158 V to 170 V

Threshold dropout

132 V to 154 V

Maximum permitted voltage

DC 300 V

The binary inputs contain interference suppression capacitors. To ensure EMC immunity, use the terminals shown in the terminal diagrams/connection diagrams to connect the binary inputs to the common potential.

12.1.4 Relay Outputs

Standard Relay (Type S)

Making capacity
Breaking capacity
AC and DC contact voltage Permissible current per contact (continuous) Permissible current per contact (switching on and holding) Short-time current across closed contact Total permissible current for contacts connected to common potential Switching time OOT (Output Operating Time) Additional delay of the output medium used Max. rated data of the output contacts in accordance with UL certification
Interference suppression capacitors across the contacts

Max. 1000 W (L/R = 40 ms) Max. 3600 VA (power factor  0.35, 50 Hz to 60 Hz) Max. 30 W (L/R = 40 ms) Max. 360 VA (power factor  0.35, 50 Hz to 60 Hz) 250 V 5 A 30 A for 1 s (make contact)
250 A for 30 ms 5 A
Make time: typical: 8 ms; maximum: 10 ms Break time: typical: 2 ms; maximum: 5 ms DC 24 V, 5 A, General Purpose DC 48 V, 0.8 A, General Purpose DC 240 V, 0.1 A, General Purpose AC 240 V, 5 A, General Purpose AC 120 V, 1/6 hp AC 250 V, 1/2 hp B300 R300 4.7 nF, � 20 %, AC 250 V

50 For time-critical applications with low-active signals, consider the specified dropout times. If necessary, provide for active discharge of the binary input (for example, a resistor in parallel to the binary input or using a change-over contact).

1618

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.1 General Device Data

Fast Relay (Type F)

Making capacity
Breaking capacity
AC and DC contact voltage Permissible current per contact (continuous) Permissible current per contact (switching on and holding) Short-time current across closed contact Total permissible current for contacts connected to common potential Switching time OOT (Output Operating Time) Additional delay of the output medium used Rated data of the output contacts in accordance with UL certification
Interference suppression capacitors across the contacts Supervision

Max. 1000 W (L/R = 40 ms) Max. 3600 VA (power factor  0.35, 50 Hz to 60 Hz) Max. 30 W (L/R = 40 ms) Max. 360 VA (power factor  0.35, 50 Hz to 60 Hz) 250 V 5 A 30 A for 1 s (make contact)
250 A for 30 ms 5 A
Make time: typical: 4 ms; maximum: 5 ms Break time: typical: 2 ms; maximum: 5 ms DC 24 V, 5 A, General Purpose DC 48 V, 0.8 A, General Purpose DC 240 V, 0.1 A, General Purpose AC 120 V, 5 A, General Purpose AC 250 V, 5 A, General Purpose AC 250 V, 0.5 hp B300 R300 4.7 nF, � 20 %, AC 250 V
2-channel activation with cyclic testing (only for make contact)

High-Speed Relay with Semiconductor Acceleration (Type HS)

Making capacity
Breaking capacity
Contact voltage Permissible current per contact (continuous)
Permissible current per contact (switching on and holding) Short-time current across closed contact Switching time OOT (Output Operating Time) Additional delay of the output medium used Rated data of the output contacts in accordance with UL certification

Max. 2500 W (L/R = 40 ms) Max. 3600 VA (power factor  0.35, 50 Hz to 60 Hz) Max. 2500 W (L/R = 40 ms) Max. 360 VA (power factor  0.35, 50 Hz to 60 Hz) AC 200 V, DC 250 V 5 A (according to UL certification) 10 A (no UL certification; AWG 14 / 2.5-mm2 (0.0039in2) copper conductors necessary) 30 A for 1 s (make contact)
250 A for 30 ms Make time, typical: 0.2 ms; maximum: 0.2 ms Break time, typical: 9 ms; maximum: 9 ms B150 Q300

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1619

Technical Data 12.1 General Device Data

Power Relay (for Direct Control of Motor Switches)

Switching power for permanent and periodic operation

250 V/4.0 A 220 V/4.5 A 110 V/5.0 A

1000 W 1000 W 550 W

In order to prevent any damage, the external protection circuit must switch off the motor in case the rotor is blocked.

60 V/5.0 A

300 W

48 V/5.0 A

240 W

24 V/5.0 A

120 W

Turn on switching power for 30 s, recovery time until switching on again is 15 minutes.

For short-term switching operations, an impulse/pause ratio of 3 % must be considered.

100 V/9.0 A

1000 W

Continuous and inching operation is not permitted.

60 V/10.0 A 48 V/10.0 A 24 V/10.0 A

600 W 480 W 240 W

In order to prevent any damage, the external protection circuit must switch off the motor in case the rotor is blocked.

AC and DC contact voltage

250 V

Permissible continuous current per contact

5 A

Permissible current per contact (switching on and holding)

30 A for 1 s

Short-time current across closed contact

250 A for 30 ms

Total permissible current for contacts connected to 5 A common potential

Switching time OOT (Output Operating Time)

 16 ms

Additional delay of the output medium used

Rated data of the output contacts in accordance with DC 300 V, 4.5 A - 30 s ON, 15 min OFF

UL certification

DC 250 V, 1 hp motor - 30 s ON, 15 min OFF

DC 110 V, 3/4 hp motor - 30 s ON, 15 min OFF

DC 60 V, 10 A, 1/2 hp motor - 30 s ON, 15 min OFF

DC 48 V, 10 A, 1/3 hp motor - 30 s ON, 15 min OFF

DC 24 V, 10 A, 1/6 hp motor - 30 s ON, 15 min OFF

Interference suppression capacitors across the contacts

4.7 nF, � 20 %, AC 250 V

The power relays operate in interlocked mode, that is, only one relay of each switching pair picks up at a time thereby avoiding a power-supply short circuit.

12.1.5 Design Data

Masses

Type of construction
Flush-mounting device
Surface-mounted device with integrated on-site operation panel
Surface-mounted device with detached on-site operation panel

Device Size

Weight of the Modular Devices

1/3

1/2

2/3

4.4 kg

7.2 kg

9.9 kg

7.4 kg

11.7 kg

15.9 kg

4.7 kg

7.8 kg

10.8 kg

5/6 12.7 kg 20.2 kg
13.9 kg

Size Detached on-site operation panel 1/3 Detached on-site operation panel 1/6

Weight 1.9 kg 1.1 kg

1/1 15.5 kg 24.5 kg
17.0 kg

1620

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.1 General Device Data

Type of construction
Flush-mounting device
Bracket for non-modular surfacemounted variant

Device Size Weight of the Non-Modular Devices 7xx81, 7xx82 1/3 3.6 kg 1.9 kg

Dimensions of the Base and 1/3 Modules

Type of Construction (Maximum Dimensions)

Width over all x Height over all x Depth (incl. Current Terminal), Width and Depth Each Rounded up to the Next Full mm (in Inches)

Flush-mounting device

150 mm x 266 mm x 229 mm

(5.91 x 10.47 x 9.02)

Surface-mounted device with integrated on-site oper- 150 mm x 314 mm x 337 mm

ation panel

(5.91 x 12.36 x 13.27)

Surface-mounted device with detached on-site opera- 150 mm x 314 mm x 230 mm

tion panel

(5.91 x 12.36 x 9.06)

Dimensions of the Device Rows

Type of Construction

Width over all x Height over all x Depth (incl. Current Terminal), Width and Depth Each Rounded up to the Next Full mm (in Inches)

(Maximum Dimensions)

Type of construc- 1/3

1/2

2/3

5/6

1/1

tion

Flush-mounting 150 mm x

device

266 mm x

229 mm

225 mm x 266 mm x 229 mm

300 mm x 266 mm x 229 mm

375 mm x 266 mm x 229 mm

450 mm x 266 mm x 229 mm

(5.91 x 10.47 x (8.86 x 10.47 x (11.81 x 10.47 x (14.76 x 10.47 x (17.72 x 10.47 x

9.02)

9.02)

9.02)

9.02)

9.02)

Surface-

150 mm x

mounted device 314 mm x

with integrated 337 mm

on-site operation (5.91 x 12.36 x

panel

13.27)

225 mm x 314 mm x 337 mm
(8.86 x 12.36 x 13.27)

300 mm x 314 mm x 337 mm

375 mm x 314 mm x 337 mm

450 mm x 314 mm x 337 mm

(11.81 x 12.36 x (14.76 x 12.36 x (17.72 x 12.36 x

13.27)

13.27)

13.27)

Surface-

150 mm x

mounted device 314 mm x

with detached 230 mm

on-site operation (5.91 x 12.36 x

panel

9.06)

225 mm x 314 mm x 230 mm
(8.86 x 12.36 x 9.06)

300 mm x 314 mm x 230 mm

375 mm x 314 mm x 230 mm

450 mm x 314 mm x 230 mm

(11.81 x 12.36 x (14.76 x 12.36 x (17.72 x 12.36 x

9.06)

9.06)

9.06)

Expansion Module Dimensions

Type of Construction (Maximum Dimensions)

Width x Height x Depth, Width and Depth Each Rounded up to the Next Full mm (in Inches)

Flush-mounting device

75 mm x 266 mm x 229 mm

(2.95 x 10.47 x 9.02)

Surface-mounted device with integrated on-site oper- 75 mm x 314 mm x 337 mm

ation panel

(2.95 x 12.36 x 13.27)

Surface-mounted device with detached on-site opera- 75 mm x 314 mm x 230 mm

tion panel

(2.95 x 12.36 x 9.06)

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1621

Technical Data 12.1 General Device Data

Plug-In Module Dimensions Type of Construction (Maximum Dimensions) USART-Ax-xEL, ETH-Bx-xEL
USART-Ax-xFO, ETH-Bx-xFO (without protection cover) ANAI-CA-4EL
ARC-CD-3FO

Width x Height x Depth (in Inches)
61 mm x 45 mm x 120.5 mm (2.4 x 1.77 x 4.74) 61 mm x 45 mm x 132.5 mm (2.4 x 1.77 x 5.22) 61 mm x 45 mm x 119.5 mm (2.4 x 1.77 x 4.7) 61 mm x 45 mm x 120.5 mm (2.4 x 1.77 x 4.74)

Minimum Bending Radii of the Connecting Cables Between the On-Site Operation Panel and the Base Module

Fiber-optic cable D-Sub cable

R = 50 mm Pay attention to the length of the cable protection sleeve, which you must also include in calculations.
R = 50 mm (minimum bending radius)

Degree of Protection According to IEC 60529 For equipment in the surface-mounted housing For equipment in the flush-mounting housing For operator protection (back side)
Degree of pollution, IEC 60255-27 Maximum operating altitude above sea level

IP5451 for front IP5451 for front IP2x for current terminal (installed) IP2x for voltage terminal (installed) 2 2000 m (6561.68 ft)

UL Note

Type 1 if mounted into a door or front cover of an enclosure.
When expanding the device with the 2nd device row, then they must be mounted completely inside an enclosure.

Tightening Torques for Terminal Screws

Type of Line

Current Terminal

Stranded wires with ring- 2.7 Nm type lug

Stranded wires with boot- 2.7 Nm lace ferrules or pin-type lugs

Solid conductor, bare (2 mm2)

2.0 Nm

Bare stranded wire

Not permitted

Voltage Terminal with Voltage Terminal with Spring-Loaded Terminals Screw Connection

No ring-type lug

No ring-type lug

1.0 Nm

0.6 Nm

1.0 Nm 1 Nm

� 0.6 Nm

i

NOTE For current and voltage terminals, the maximum speed of the tool must not exceed 640 rpm.

51 The provided plug-in label must be used for expansion modules with LEDs. 1622

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

i

NOTE Use copper cables only.

Torques for Other Screw Types
Screw Type M4 x 20 M4 x 8 M2.5 x 6 Countersunk screw, M2.5 x 6 Countersunk screw, M2.5 x 8 Collar screw, M4 x 20

Technical Data 12.1 General Device Data
Torque 1.2 Nm 1.2 Nm 0.39 Nm 0.39 Nm 0.39 Nm 0.7 Nm

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1623

Technical Data 12.2 Protection Interface and Protection Topology

12.2 Protection Interface and Protection Topology

Setting Values

Mode

On

Off

PPS Synchronization

Telegr. and PPS

Telegr. or PPS

PPS synchronization off

Blocking of the unbalanced

Yes

runtimes

No

Maximum signal runtime threshold 0.1 ms to 30.0 ms

Maximum runtime difference

0.000 ms to 3.000 ms

Failure indication after

0.05 s to 2.00 s

Transm. fail. alarm after

0.0 s to 6.0 s

Max. error rate/h

0.000 % to 100.000 %

Max. error rate/min

0.000 % to 100.000 %

PPS failure indication after

0.5 s to 60.0 s

Increments of 0.1 ms Increments of 0.001 ms Increments of 0.01 s Increments of 0.1 s Increments of 0.001 % Increments of 0.001 % Increments of 0.1 s

Transmission Rate Direct connection: Transmission rate Connection via communication networks: Supported network interfaces
Transmission rate

2048 kbit/s
G703.1 with 64 kbit/s G703-T1 with 1.455 Mbit/s G703-E1 with 2.048 Mbit/s X.21 with 64 kbit/s or 128 kbit/s or 512 kbit/s Pilot wires with 128 kbit/s 64 kbit/s at G703.1 1.455 Mbit/s at G703-T1 2.048 Mbit/s at G703-E1 512 kbit/s or 128 kbit/s or 64 kbit/s at X.21 128 kbit/s for pilot wires

Transmission Times Priority 1: Response time, total approx. For 2 ends
For 3 ends
For 6 ends
Dropout times, total approx. For 2 ends For 3 ends For 6 ends

Minimum Typical Minimum Typical Minimum Typical
Typical Typical Typical

8 ms 10 ms 10 ms 14 ms 15 ms 18 ms
20 ms 20 ms 26 ms

1624

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Priority 2: Response time, total approx. For 2 ends
For 3 ends
For 6 ends
Dropout times, total approx. For 2 ends For 3 ends For 6 ends
Priority 352 Response time, total approx. For 2 ends
For 3 ends
For 6 ends
Dropout times, total approx. For 2 ends For 3 ends For 6 ends

Minimum Typical Minimum Typical Minimum Typical
Typical Typical Typical
Minimum Typical Minimum Typical Minimum Typical
Typical Typical Typical

Technical Data 12.2 Protection Interface and Protection Topology
9 ms 16 ms 12 ms 18 ms 17 ms 23 ms
24 ms 25 ms 32 ms
100 ms
150 ms
200 ms
100 ms 150 ms 200 ms

52 Times cannot be determined because the signals are transmitted in fragments.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1625

Technical Data 12.3 Date and Time Synchronization
12.3 Date and Time Synchronization

Date format Time source 1, time source 2
Time zone 1, time zone 2 Failure indication after Time zone and daylight saving time Time zone offset with respect to GMT Switching over to daylight saving time Beginning of daylight saving time End of daylight saving time Offset daylight saving time

DD.MM.YYYY (Europe) MM/DD/YYYY (USA) YYYY-MM-DD (China) None IRIG-B 002(003) IRIG-B 006(007) IRIG-B 005(004) with extension according to IEEE C37.118-2005 DCF77 PI (protection interface) 53 SNTP IEC 60870-5-103 DNP3 IEEE 1588 T104 Local UTC 0 s to 3600 s Manually setting the time zones -720 min to 840 min Active Inactive Input: day and time Input: day and time 0 min to 120 min [steps of 15]

53 If provided 1626

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.4 Analog-Units Function Group

12.4 Analog-Units Function Group

20-mA Unit Ether. 7XV5674-0KK00-1AA1

Max. number of connected 20-mA units

4

Max. number of channels per 20-mA unit

12

20-mA Unit Serial 7XV5674-0KK30-1AA1 (RS485) and 7XV5674-0KK40-1AA1 (Fiberglass)

Max. number of connected 20-mA units

4

Max. number of channels per 20-mA unit

12

RTD Unit (Ziehl TR1200) 7XV5662-6AD10
Max. number of connected RTD units Max. number of sensors per RTD unit Sensor type

4
12
Pt 100 to EN 60751; connection of Ni 100 and Ni 120 sensors possible. The measured values must be converted in the evaluation unit.

RTD Unit (Ziehl TR1200 IP) 7XV5662-8AD10
Max. number of connected RTD units Max. number of sensors per RTD unit Sensor type

4
12
Pt 100 to EN 60751; connection of Ni 100 and Ni 120 sensors possible. The measured values must be converted in the evaluation unit.

Temperature Measured Values
Unit of measurement for temperature Pt 100 Ni 100 Ni 120 Resolution Tolerance

�C or �F, adjustable -199 �C to 800 �C (-326 �F to 1472 �F) -54 �C to 278 �C (-65 �F to 532 �F) -52 �C to 263 �C (-62 �F to 505 �F) 1 �C or 1 �F �0.5 % of the measured value �1 K

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1627

Technical Data 12.5 Overcurrent Protection, Phases
12.5 Overcurrent Protection, Phases

12.5.1 Stage with Definite-Time Characteristic Curve

Setting Value for the Function Block Filter
h(0) h(1) h(2) h(3) h(4)

-100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000

Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001

Setting Values for Protection Stage Method of measurement

Threshold value54
Dropout ratio Operate delay Dropout delay Pickup delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.90 to 0.99 0.00 s to 100.00 s 0.00 s to 60.00 s 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 25 ms + OOT 55 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

54 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec. 55 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1628

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.5 Overcurrent Protection, Phases

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value, no filter applied

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the compensation of the amplitude attenuation due to the anti-aliasing filter

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

2 % of the setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the gain of harmonics (including compensation of the amplitude attenuation56

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1.5 % of the setting value or 10 mA (Irated = 1 A)

or 50 mA (Irated = 5 A), (frated � 10 %) 57

Up to 50th harmonic, frated = 50 Hz

3% of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 58

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 59

Time delays

1 % of the setting value or 10 ms

56 In case that the filter response exactly matches the user-defined gain factors 57 In case that the user-defined gain factor is set below 3. The tolerance increases, if the gain factor is larger. 58 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger. 59 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1629

Technical Data 12.5 Overcurrent Protection, Phases
Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.5.2 Stage with Inverse-Time Characteristic Curve

Setting Value for the Function Block Filter
h(0) h(1) h(2) h(3) h(4)

-100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000

Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001

Setting Values for Protection Stage Method of measurement

Threshold value Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Pickup delay Minimum time of the curve Additional time delay

Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A Disk emulation Instantaneous 0.00 to 15.00 0.00 s to 60.00 s 0.00 s to 1.00 s 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Operate Curves and Dropout-Time Characteristic Curves according to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection

1630

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.5 Overcurrent Protection, Phases

[dwocpki1-080213-01.tif, 1, en_US]
Figure 12-1 Operate Curves and Dropout-Time Characteristic Curves According to IEC

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1631

Technical Data 12.5 Overcurrent Protection, Phases

[dwocpki2-080213-01.tif, 1, en_US]
Figure 12-2 Operate Curves and Dropout-Time Characteristic Curves According to IEC

1632

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

Technical Data 12.5 Overcurrent Protection, Phases

[dwocpka1-080213-01.tif, 2, en_US]
Figure 12-3 Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1633

Technical Data 12.5 Overcurrent Protection, Phases

[dwocpka2-080213-01.tif, 2, en_US]
Figure 12-4 Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

1634

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.5 Overcurrent Protection, Phases

[dwocpka3-080213-01.tif, 2, en_US]
Figure 12-5 Tripping Characteristic Curves and Dropout Characteristic Curves According to ANSI/IEEE

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1635

Technical Data 12.5 Overcurrent Protection, Phases

[dwocpka4-080213-01.tif, 2, en_US]
Figure 12-6 Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value, no filter applied

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A)

or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the compensation of the amplitude attenuation due to the anti-aliasing filter

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1 % of the setting value or 5 mA (Irated = 1 A)

or 25 mA (Irated = 5 A), (frated � 10 %)

1636

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.5 Overcurrent Protection, Phases

Up to 50th harmonic, frated = 50 Hz

2 % of the setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the gain of harmonics (including compensation of the amplitude attenuation60

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1.5 % of the setting value or 10 mA (Irated = 1 A)

or 50 mA (Irated = 5 A), (frated � 10 %) 61

Up to 50th harmonic, frated = 50 Hz

3% of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 62

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 63

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Time delays

1 % of the setting value or 10 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.5.3 Stage with User-Defined Characteristic Curve

Setting Value for the Function Block Filter
h(0) h(1) h(2) h(3) h(4)

-100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000

Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001

Setting Values for Protection Stage Method of measurement

Threshold value

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

60 In case that the filter response exactly matches the user-defined gain factors 61 In case that the user-defined gain factor is set below 3. The tolerance increases, if the gain factor is larger. 62 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger. 63 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1637

Technical Data 12.5 Overcurrent Protection, Phases

Absolute pickup value Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Number of value pairs for the operate curve X values of the operate curve Y values of the operate curve Number of value pairs for the dropout characteristic curve X values of the dropout characteristic curve Y values of the dropout characteristic curve Additional time delay

0.000 A to 35.000 A 0.00 A to 175.00 A 0.000 A to 1.600 A 0.000 A to 8.000 A Disk emulation Instantaneous 0.05 to 15.00 2 to 30 1.00 p.u. to 20.00 p.u. 0.00 s to 999.00 s 2 to 30
0.05 p.u. to 0.95 p.u. 0.00 s to 999.00 s 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 1 Increments of 0.01 p.u. Increments of 0.01 s Increments of 1
Increments of 0.01 p.u. Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value or 95 % of the absolute pickup value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value, no filter applied

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

1638

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.5 Overcurrent Protection, Phases

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the compensation of the amplitude attenuation due to the anti-aliasing filter

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

2 % of the setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the gain of harmonics (including compensation of the amplitude attenuation64

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1.5 % of the setting value or 10 mA (Irated = 1 A)

or 50 mA (Irated = 5 A), (frated � 10 %) 65

Up to 50th harmonic, frated = 50 Hz

3% of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 66

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 67

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Time delays

1 % of the setting value or 10 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)
Operate Curves and Dropout-Time Characteristic Curves According to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection

64 In case that the filter response exactly matches the user-defined gain factors 65 In case that the user-defined gain factor is set below 3. The tolerance increases, if the gain factor is larger. 66 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger. 67 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1639

Technical Data 12.6 Voltage-Dependent Overcurrent Protection, Phases

12.6 Voltage-Dependent Overcurrent Protection, Phases

Setting Values for All Stage Types Method of measurement

Overcurrent threshold value
Time delay

For Irated = 1 A For Irated = 5 A

Fundamental component RMS value 0.030 A to 35.000 A

� Increments of 0.001 A

0.15 A to 175.00 A

Increments of 0.01 A

0.10 s to 60.00 s

Increments of 0.01 s

Setting Values for Inverse-Time Overcurrent Protection Stages

Method of measurement
Dropout ratio of undervoltage68 Undervoltage threshold value68 Dropout
Time multiplier

Fundamental component RMS value 1.01 to 1.20
0.300 V to 175.000 V Disk emulation Instantaneous 0.05 to 15.00

�
Increments of 0.01 Increments of 0.001 V �
Increments of 0.01

Setting Values for Definite-Time Overcurrent Protection Stages

Seal-in voltage Phase-to-phase voltage Negative-sequence voltage V2 Time delay Duration of V-seal-in time

0.300 V to 175.000 V 0.300 V to 175.000 V 0.300 V to 200.000 V 0.00 s to 60.00 s 0.10 s to 60.00 s

Increments of 0.001 V Increments of 0.001 V Increments of 0.001 V Increments of 0.01 s Increments of 0.01 s

Dropout for Inverse-Time Overcurrent Protection Stages

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Current Voltage68 Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer
Voltage transformer 68

95 % of 1.1  threshold value 105 % of threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A) 150 mV sec.

Reset of the Integration Timer for Inverse-Time Overcurrent Protection Stages

Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

68 The value is for the inverse-time overcurrent voltage-released stage. 1640

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.6 Voltage-Dependent Overcurrent Protection, Phases

Dropout for Definite-Time Overcurrent Protection Stages

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent/overvoltage and of 105 % for undervoltage functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or

75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Voltage transformer

150 mV sec.

Operate Curves and Dropout Characteristic Curves According to IEC
Extension of the operate time during operation with Approx. 10 ms inrush-current detection
The operate curves and dropout characteristic curves according to IEC can be found in the chapter Technical Data under Inverse-Time Overcurrent Protection.

Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE
The operate curves and dropout characteristic curves according to IEC can be found in the chapter Technical Data under Inverse-Time Overcurrent Protection.

Times for Definite-Time Overcurrent Protection Stages Operate time with time delay = 0 ms, typical
Operate time with time delay = 0 ms, maximum
Dropout time, typical Dropout time, maximum

Approx. 25 ms + OOT69 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % part of harmonic in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

69 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1641

Technical Data 12.6 Voltage-Dependent Overcurrent Protection, Phases

Up to 50th harmonic, frated = 50 Hz
Up to 50th harmonic, frated = 60 Hz
Voltage Operate time for 2  I/I threshold value  20 Dropout time for I/I threshold value  0.90 Time delays

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %) 4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %) 0.5 % of the setting value or 0.05 V 5 % of the reference (calculated) value + 2 % current tolerance or 30 ms 5 % of the reference (calculated) value + 2 % current tolerance or 30 ms 1 % of the setting value or 10 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

1642

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.7 Overcurrent Protection, Ground

Technical Data 12.7 Overcurrent Protection, Ground

12.7.1 Stage with Definite-Time Characteristic Curve

Setting Values Method of measurement

Threshold value70
Dropout ratio Time delay Dropout delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Fundamental component RMS value 0.010 A to 35.000 A 0.05 A to 175.00 A 0.001 A to 1.600 A 0.002 A to 8.000 A 0.90 to 0.99 0.00 s to 60.00 s 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 25 ms + OOT71 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

70 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec. 71 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1643

Technical Data 12.7 Overcurrent Protection, Ground

Tolerances

3I0 measured via I472, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

3I0 measured via I473, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A)

or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

Time delays

1 % of the setting value or 10 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.7.2 Stage with Inverse-Time Characteristic Curve

Setting Values Method of measurement

Threshold value74 Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Minimum time of the curve Additional time delay

Fundamental component RMS value 0.010 A to 35.000 A 0.05 A to 175.00 A 0.001 A to 1.600 A 0.002 A to 8.000 A Disk emulation Instantaneous 0.00 to 15.00 0.00 s to 1.00 s 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

72 Slightly expanded tolerances will occur during the calculation of 3I0, maximum factor of 2 73 Slightly expanded tolerances will occur during the calculation of 3I0, maximum factor of 2 74 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec.

1644

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.7 Overcurrent Protection, Ground

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Operate Curves and Dropout Characteristic Curves According to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection

[dwocpki1-080213-01.tif, 1, en_US]
Figure 12-7 Operate Curves and Dropout Characteristic Curves According to IEC
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1645

Technical Data 12.7 Overcurrent Protection, Ground

[dwocpki2-080213-01.tif, 1, en_US]
Figure 12-8 Operate Curves and Dropout Characteristic Curves According to IEC

1646

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE

Technical Data 12.7 Overcurrent Protection, Ground

[dwocpka1-080213-01.tif, 2, en_US]
Figure 12-9 Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1647

Technical Data 12.7 Overcurrent Protection, Ground

[dwocpka2-080213-01.tif, 2, en_US]
Figure 12-10 Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE

1648

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.7 Overcurrent Protection, Ground

[dwocpka3-080213-01.tif, 2, en_US]
Figure 12-11 Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1649

Technical Data 12.7 Overcurrent Protection, Ground

[dwocpka4-080213-01.tif, 2, en_US]
Figure 12-12 Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

3I0 measured via I475, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

3I0 measured via I476, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A)

or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

75 Insignificantly increased tolerances will occur during the calculation of 3I0, maximum factor of 2 76 Insignificantly increased tolerances will occur during the calculation of 3I0, maximum factor of 2

1650

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.7 Overcurrent Protection, Ground

Operate time for 2  I/I threshold value  20 Dropout time for 2  I/threshold value I  0.90

5 % of the reference (calculated) value +2 % current tolerance or 30 ms 5 % of the reference (calculated) value +2 % current tolerance or 30 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.7.3 Stage with User-Defined Characteristic Curve

Setting Values Method of measurement

Threshold value Absolute pickup value Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated 1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Number of value pairs for the operate curve X values of the operate curve Y values of the operate curve Number of value pairs for the dropout characteristic curve X values of the dropout characteristic curve Y values of the dropout characteristic curve Additional time delay

Fundamental component RMS value 0.010 A to 35.000 A 0.05 A to 175.00 A 0.001 A to 1.600 A 0.002 A to 8.000 A 0.000 A to 35.000 A 0.00 A to 175.00 A 0.000 A to 1.600 A 0.000 A to 8.000 A Disk emulation Instantaneous 0.05 to 15.00 2 to 30 1.00 p.u. to 20.00 p. u. 0.00 s to 999.00 s 2 to 30

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 1 Increments of 0.01 p.u. Increments of 0.01 s Increments of 1

0.05 p.u. to 0.95 p. u. 0.00 s to 999.00 s 0.00 s to 60.00 s

Increments of 0.01 p.u. Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value or 95 % of the absolute pickup value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1651

Technical Data 12.7 Overcurrent Protection, Ground

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

3I0 measured via I477, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

3I0 measured via I478, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

Operate Curves and Dropout-Time Characteristic Curves According to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection

77 Insignificantly increased tolerances will occur during the calculation of 3I0, maximum factor of 2 78 Insignificantly increased tolerances will occur during the calculation of 3I0, maximum factor of 2

1652

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.8 Directional Overcurrent Protection, Phases
12.8 Directional Overcurrent Protection, Phases

12.8.1 Stage with Definite-Time Characteristic Curve

Setting Values
Rotation angle of the reference voltage Directional mode

Method of measurement

Threshold value79
Dropout ratio Time delay Dropout delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

-180� to +180� Forward Reverse Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.90 to 0.99 0.00 s to 60.00 s 0.00 s to 60.00 s

Increments of 1� �
�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Direction Determination Type
Forward range Dropout differential forward/reverse range Directional sensitivity

With healthy voltages With voltage memory 2 s Vref,rot �88� 1� Unlimited for 1 and 2-phase short circuits Dynamically unlimited, stationary for 3-phase short circuits Approx. 13 V phase-to-phase

79 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1653

Technical Data 12.8 Directional Overcurrent Protection, Phases

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time, typical Dropout time, maximum

Approx. 37 ms + OOT 80 at 50 Hz Approx. 31 ms + OOT at 60 Hz Approx. 10 ms
Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Time delay

1 % of the setting value or 10 ms

Direction-determination angle error

1 �

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.8.2 Stage with Inverse-Time Characteristic Curve

Setting Values Rotation angle of the reference voltage Directional mode
Method of measurement

-180� to +180� Forward Backward Fundamental component RMS value

Increments of 1� �
�

80 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1654

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.8 Directional Overcurrent Protection, Phases

Threshold value81 Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Minimum time of the curve Additional time delay

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A Disk emulation Instantaneous 0.00 to 15.00 0.00 s to 1.00 s 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Operate Curves and Dropout-Time Characteristic Curves according to IEC

Normal inverse: type A Very inverse: type B Extremely inverse: type C Long-time inverse: type B

See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-1
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-2

Operate Curves and Dropout-Time Characteristic Curves according to ANSI/IEEE

Inverse: type C Short inverse Long inverse Moderately inverse Very inverse Extremely inverse Definite inverse

See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-3
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-4
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-5
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-6

Direction Determination Type
Forward range

With healthy voltages With voltage memory 2 s Vref,rot �88�

81 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1655

Technical Data 12.8 Directional Overcurrent Protection, Phases

Dropout differential forward/reverse range Directional sensitivity

1�
Unlimited for 1 and 2-phase short circuits Dynamically unlimited, stationary for 3-phase short circuits Approx. 13 V phase-to-phase

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time, typical Dropout time, maximum

Approx. 37 ms + OOT 82 at 50 Hz Approx. 31 ms + OOT at 60 Hz Approx. 10 ms
Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Operate time for 2  I/threshold value I  20

5 % of the reference (calculated) value

+2 % current tolerance or 10 ms

Dropout time for I/threshold value I  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 10 ms

Direction-determination angle error

1�

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

82 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1656

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.8 Directional Overcurrent Protection, Phases

12.8.3 Stage with User-Defined Characteristic Curve

Setting Values
Rotation angle of the reference voltage Directional mode

Method of measurement

Threshold value83 Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier
Number of value pairs for the operate characteristic curve
X values of the operate curve
Y values of the operate curve
Number of value pairs for the dropout characteristic curve
X values of the dropout characteristic curve
Y values of the dropout characteristic curve

-180� to +180� Forward Reverse Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A Disk emulation Instantaneous 0.05 to 15.00 2 to 30

Increments of 1� �
�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A -
Increments of 0.01 Increments of 1

1.00 p.u. to 66.67 p.u. 0.00 s to 999.00 s 2 to 30

Increments of 0.01 p.u. Increments of 0.01 s Increments of 1

0.05 p.u. to 0.95 p.u. 0.00 s to 999.00 s

Increments of 0.01 p.u. Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Direction Determination Type
Forward range

With healthy voltages With voltage memory 2 s Vref,rot �88�

83 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1657

Technical Data 12.8 Directional Overcurrent Protection, Phases

Dropout differential forward/reverse range Directional sensitivity

1�
Unlimited for 1-phase and 2-phase short circuits Dynamically unlimited, stationary for 3-phase short circuits Approx. 13 V phase-to-phase

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time, typical Dropout time, maximum

Approx. 37 ms + OOT 84 at 50 Hz Approx. 31 ms + OOT at 60 Hz Approx. 10 ms
Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Operate time for 2  I/threshold value I 20

5 % of the reference (calculated) value

+2 % current tolerance or 10 ms

Dropout time for I/threshold value I  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 10 ms

Direction-determination angle error

1�

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

84 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1658

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.9 Directional Overcurrent Protection, Ground
12.9 Directional Overcurrent Protection, Ground

12.9.1 Stage with Definite-Time Characteristic Curve

Setting Values for the Function Direction Determination Method for direction determination
Minimum V0 or V2 threshold Rotation angle of the reference voltage Forward range

Zero sequence Negative sequence 0.150 V to 20.000 V -180� to 180� 0� to 180�

�
0.001 V 1� 1�

Setting Values Direction mode

Method of measurement

Threshold value
Dropout ratio Operate delay Dropout delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Forward Reverse Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.90 to 0.99 0.00 s to 60.00 s 0.00 s to 60.00 s

�
�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

The maximum pickup time with operate delay = 0 ms
Extension of the operate time during operation with inrush-current detection Dropout time

Approx. 30 ms + OOT at 50 Hz Approx. 25 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1659

Technical Data 12.9 Directional Overcurrent Protection, Ground

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A)

Currents, method of measurement = RMS value

(33 % part of harmonic, referring to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Time delays

1 % of the setting value or 10 ms

Direction-determination angle error

1�

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.9.2 Stage with Inverse-Time Characteristic Curve

Setting Values for the Function Direction Determination Method for direction determination
Minimum V0 or V2 threshold Rotation angle of the reference voltage Forward range

Zero sequence Negative sequence 0.150 V to 20.000 V -180� to 180� 0� to 180�

�
0.001 V 1� 1�

Setting Values Direction mode

Method of measurement

Threshold value

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Type of characteristic curve

Forward

�

Reverse

Fundamental component �

RMS value

0.030 A to 35.000 A

Increments of 0.001 A

0.15 A to 175.00 A

Increments of 0.01 A

0.001 A to 1.600 A

Increments of 0.001 A

0.005 A to 8.000 A

Increments of 0.001 A

Characteristic curves according to IEC and ANSI

1660

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.9 Directional Overcurrent Protection, Ground

Dropout
Time multiplier Minimum time of the curve Additional time delay

Disk emulation Instantaneous 0.00 to 15.00 0.00 s to 1.00 s 0.00 s to 60.00 s

�
Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Operate Curves and Dropout-Time Characteristic Curves according to IEC

Normal inverse: type A Very inverse: type B Extremely inverse: type C Long-time inverse: type B

Refer to the respective figure of the technical data for the non-dir-OC-ground function 12.7.2 Stage with Inverse-Time Characteristic Curve

Operate Curves and Dropout-Time Characteristic Curves according to ANSI/IEEE

Inverse: type C Short inverse Long inverse Moderately inverse Very inverse Extremely inverse Definite inverse

Refer to the respective figure of the technical data for the non-dir-OC-ground function 12.7.2 Stage with Inverse-Time Characteristic Curve

Times

The maximum pickup time with operate delay = 0 ms
Extension of the operate time during operation with inrush-current detection Dropout time

Approx. 30 ms + OOT at 50 Hz Approx. 25 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1661

Technical Data 12.9 Directional Overcurrent Protection, Ground

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A)

Currents, method of measurement = RMS value

(33 % part of harmonic, referring to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+ 2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+ 2 % current tolerance or 30 ms

Direction-determination angle error

1�

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.9.3 Stage with Inverse-Time Overcurrent Protection with Logarithmic-Inverse Characteristic Curve

Setting Values for the Function Direction Determination Method for direction determination
Minimum V0 or V2 threshold Rotation angle of the reference voltage Forward range

Zero sequence Negative sequence 0.150 V to 20.000 V -180� to 180� 0� to 180�

�
0.001 V 1� 1�

Setting Values Direction mode
Method of measurement

Forward

�

Reverse

Fundamental component �

RMS value

1662

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.9 Directional Overcurrent Protection, Ground

Threshold value

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Characteristic curve: see Figure 12-13

Threshold value multiplier

Time multiplier

Minimum time of the characteristic curve

Maximum time of the characteristic curve

Additional time delay

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A
1.00 to 4.00 0.000 s to 60.000 s 0.000 s to 60.000 s 0.000 s to 60.000 s 0.000 s to 60.000 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A
Increments of 0.01 Increments of 0.001 s Increments of 0.001 s Increments of 0.001 s Increments of 0.001 s

[dwloginv-300913, 3, en_US]
Figure 12-13 Operate Curve of Logarithmic Inverse-Time Characteristic

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1663

Technical Data 12.9 Directional Overcurrent Protection, Ground

Times

The maximum pickup time with operate delay = 0 ms
Extension of the operate time during operation with inrush-current detection Dropout time

Approx. 30 ms + OOT at 50 Hz Approx. 25 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A)

Currents, method of measurement = RMS value

(33 % part of harmonic, referring to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Inverse-time operate time to logarithmic inverse-time 5 % of the reference (calculated) value

characteristic

+ 2 % current tolerance or 30 ms

Inverse-time dropout time to logarithmic inverse-time 5 % of the reference (calculated) value

characteristic

+ 2 % current tolerance or 30 ms

Direction-determination angle error

1�

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.9.4 Stage with Knee-Point Characteristic Curve

Setting Values for the Function Direction Determination Method for direction determination
Minimum V0 or V2 threshold Rotation angle of the reference voltage Forward range

Zero sequence Negative sequence 0.150 V to 20.000 V -180� to 180� 0� to 180�

�
0.001 V 1� 1�

1664

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.9 Directional Overcurrent Protection, Ground

Setting Values Direction mode

Method of measurement

Threshold value

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Characteristic curve: see Figure 12-14

Minimum time of the characteristic curve

Knee-point time of the curve

Maximum time of the characteristic curve

Knee-point value

Current at minimum time of the curve

Time multiplier

Forward Reverse Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

�
�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

0.00 s to 30.00 s 0.00 s to 100.00 s 0.00 s to 200.00 s 0.030 A to 35.000 A 0.030 A to 35.000 A 0.05 to 1.50

Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s Increments of 0.001 A Increments of 0.001 A Increments of 0.01

[dwdrloinkn-171013, 1, en_US]
Figure 12-14 Operate Curve of the Logarithmic Inverse Time with Knee-Point Characteristic (In the Example of Threshold = 0.004 A)

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1665

Technical Data 12.9 Directional Overcurrent Protection, Ground

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

The maximum pickup time with operate delay = 0 ms
Extension of the operate time during operation with inrush-current detection Dropout time

Approx. 30 ms + OOT at 50 Hz Approx. 25 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A)

Currents, method of measurement = RMS value

(33 % part of harmonic, referring to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Inverse-time operate time to logarithmic inverse time 5 % of the reference (calculated) value

with knee-point characteristic

+ 2 % current tolerance or 30 ms

Inverse-time dropout time to logarithmic inverse time 5 % of the reference (calculated) value

with knee-point characteristic

+ 2 % current tolerance or 30 ms

Direction-determination angle error

1�

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

1666

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.9 Directional Overcurrent Protection, Ground

12.9.5 Stage with User-Defined Characteristic Curve

Setting Values for the Function Direction Determination Method for direction determination
Minimum V0 or V2 threshold Rotation angle of the reference voltage Forward range

Zero sequence Negative sequence 0.150 V to 20.000 V -180� to 180� 0� to 180�

�
0.001 V 1� 1�

Setting Values Direction mode

Method of measurement

Threshold value Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier X values of the operate curve Y values of the operate curve Number of value pairs for the dropout characteristic curve X values of the dropout characteristic curve Y values of the dropout characteristic curve

Forward Reverse Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A Disk emulation Instantaneous 0.05 to 15.00 1.00 p. u. to 66.67 p. u. 0.00 s to 999.00 s 2 to 30

�
�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 0.01 p. u. Increments of 0.01 s Increments of 1

0.05 p. u. to 0.95 p. u. 0.00 s to 999.00 s

Increments of 0.01 p. u. Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1667

Technical Data 12.9 Directional Overcurrent Protection, Ground

Times

The maximum pickup time with operate delay = 0 ms
Extension of the operate time during operation with inrush-current detection Dropout time

Approx. 30 ms + OOT at 50 Hz Approx. 25 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A)

Currents, method of measurement = RMS value

(33 % part of harmonic, referring to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+ 2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+ 2 % current tolerance or 30 ms

Direction-determination angle error

1�

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

1668

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.10 Inrush-Current Detection

12.10 Inrush-Current Detection

Setting Values
Operat.-range limit Imax 1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated
Content 2nd harmonic Duration of the crossblock function

0.030 A to 35.000 A
0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 10 % to 45 % 0.03 s to 200.00 s

Increments of 0.001 A
Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 % Increments of 0.01 s

Times

Operating times

Approx. 29 ms

Pickup

Harmonic: I2nd harm/I1st harm

Setting value or at least
I1st harm = 10 mA sec. and I2nd harm = 10 mA sec. (Irated = 1 A)
I1st harm = 50 mA sec. and I2nd harm = 50 mA sec. (Irated = 5 A)

Dropout

The greater dropout differential (= | pickup threshold � dropout threshold |) of the following criteria is used:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overcurrent protection and a dropout ratio of 105 % applies for the undercurrent protection.

Minimum absolute dropout differential

Protection-class current transformers

15 mA sec. (Irated = 1 A) or

75 mA sec. (Irated = 5 A)

Instrument transformers

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Harmonic: I2nd harm/I1st harm

0.75 or I2nd harm = 5 mA sec. (Irated = 1 A) or I2nd harm = 25 mA sec. (Irated = 5 A)

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1669

Technical Data 12.10 Inrush-Current Detection
Tolerances
Current measurement Imax Harmonic: I2nd harm/I1st harm Time delays

1 % of the setting value or 5 mA 1 % of the setting value 1 % of the setting value or 10 ms

1670

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.11 2nd Harmonic Detection Ground

12.11 2nd Harmonic Detection Ground

Setting Values Measured value
2nd harmonic content

IN measured 3I0 calculated 10 % to 45 %

Increments of 1%

Times

Operating times

Approx. 29 ms

Pickup

Harmonic: I2nd harm/I1st harm

Setting value or at least I1st harm = 10 mA sec. and I2nd harm = 10 mA sec. (Irated = 1 A) I1st harm = 50 mA sec. and I2nd harm = 50 mA sec. (Irated = 5 A)

Dropout

The greater dropout differential (= | pickup threshold � dropout threshold |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overcurrent protection and a dropout ratio of 105 % applies for the undercurrent protection.

Minimum absolute dropout differential

Protection-class current transformers

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument transformers

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Harmonics: I2nd harm/I1st harm

0.75 or I2nd harm = 5 mA sec. (Irated = 1 A) or I2nd harm = 25 mA sec. (Irated = 5 A)

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances Harmonics: I2nd harm/I1st harm

1 % of the setting value for setting values l2nd harm/1st harm

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1671

Technical Data 12.12 Arc Protection

12.12 Arc Protection

Setting Values Threshold I>
Threshold 3I0>>
External trip initiation Operating mode Sensor Threshold light Channel

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated 1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

0.030 A to 35.000 A

Increments of 0.001 A

0.15 A to 175.00 A

Increments of 0.01 A

0.001 A to 1.600 A

Increments of 0.001 A

0.005 A to 8.000 A

Increments of 0.001 A

0.030 A to 35.000 A

Increments of 0.001 A

0.15 A to 175.00 A

Increments of 0.01 A

0.001 A to 1.600 A

Increments of 0.001 A

0.005 A to 8.000 A

Increments of 0.001 A

no

current

light

light only

current and light

point sensor

line sensor

custom

-28.00 dB to 0.00 dB

Increments of 0.01

Possible settings, application-dependent

Dropout

The larger dropout differential (= | pickup threshold � dropout threshold |) of the following 2 criteria is used:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 90 % applies to the current threshold values.

Minimum absolute dropout differential

Protection-class current transformers

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument transformers

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Shortest operate time Operating mode = light only Shortest operate time Operating mode = Current and light

Approx. 2.6 ms + OOT 85
Approx. 4.0 ms + OOT at 50 Hz Approx. 3.8 ms + OOT at 60 Hz

85 OOT (Output Operating Time): Additional delay of the output medium used, for example, 5 ms with fast relay, see chapter 12.1.4 Relay Outputs

1672

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.13 Instantaneous High-Current Tripping

12.13 Instantaneous High-Current Tripping

Setting Values Threshold value
Dropout ratio

1 A @ 100 Irated 5 A @ 100 Irated 1 A @ 50 Irated 5 A @ 50 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

0.030 A to 35.000 A 0.15 A to 175.00 A 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.50 to 0.90

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time for current > 2 � 2 � threshold value

Approx. 8 ms + OOT86

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances Response tolerance, current
Time delays

5 % of setting value or 10 mA at Irated = 1 A 5 % of setting value or 50 mA at Irated = 5 A 1 % of the setting value or 10 ms

86 OOT (Output Operating Time) Additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1673

Technical Data 12.14 Instantaneous Tripping at Switch onto Fault

12.14 Instantaneous Tripping at Switch onto Fault

Setting Values Tripping delay

0.00 s to 60.00 s

Tolerances Times

< 1 % of the setting value or 10 ms

Increments of 0.01 s

1674

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.15 Overcurrent Protection, 1-Phase

Technical Data 12.15 Overcurrent Protection, 1-Phase

12.15.1 Stage with Definite-Time Characteristic Curve

Setting Values Method of measurement

Threshold value87
Dropout ratio (fixed) Time delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Fundamental component RMS value 0.010 A to 35.000 A 0.05 A to 175.00 A 0.001 A to 1.600 A 0.002 A to 8.000 A 0.95 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A � Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 15 ms + OOT88 at 50 Hz Approx. 14 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT at 50 Hz Approx. 17 ms + OOT at 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

87 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec. 88 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1675

Technical Data 12.15 Overcurrent Protection, 1-Phase

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Time delays

1 % of the setting value or 10 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.15.2 Stage with Inverse-Time Characteristic Curve

Setting Values Method of measurement

Threshold value89 Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier

Fundamental component RMS value 0.010 A to 35.000 A 0.05 A to 175.00 A 0.001 A to 1.600 A 0.002 A to 8.000 A Disk emulation Instantaneous 0.05 to 15.00

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

89 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec.

1676

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.15 Overcurrent Protection, 1-Phase

Operate Curves and Dropout Characteristic Curves According to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection
The operate curves and dropout characteristic curves according to IEC can be found in the Technical Data chapter under Inverse-Time Overcurrent Protection.

Operate Curves and Dropout Characteristic Curves According to ANSI/IEEE
The operate curves and dropout characteristic curves according to ANSI/IEEE can be found in the Technical Data chapter under Inverse-Time Overcurrent Protection.

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1677

Technical Data 12.15 Overcurrent Protection, 1-Phase

12.15.3 Stage with Inverse-Time Overcurrent Protection with Logarithmic-Inverse Characteristic Curve

Setting Values Method of measurement

Threshold value

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Characteristic curve: see Figure 12-15

Threshold value multiplier

Time dial

Minimum time of the characteristic curve

Maximum time of the characteristic curve

Additional time delay

Fundamental component RMS value 0.010 A to 35.000 A 0.050 A to 175.00 A 0.001 A to 1.600 A 0.002 A to 8.000 A

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

1.00 to 4.00 0.000 s to 60.000 s 0.000 s to 60.000 s 0.000 s to 60.000 s 0.000 s to 60.000 s

Increments of 0.01 Increments of 0.001 s Increments of 0.001 s Increments of 0.001 s Increments of 0.001 s

[dw_ocp 1phase logarithmic, 1, en_US]
Figure 12-15 Operate Curve of Logarithmic Inverse-Time Characteristic

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

1678

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.15 Overcurrent Protection, 1-Phase

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

The maximum pickup time with operate delay = 0 ms
Extension of the operate time during operation with inrush-current detection Dropout time

Approx. 30 ms + OOT at 50 Hz Approx. 25 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A)

Currents, method of measurement = RMS value

(33 % part of harmonic, referring to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Inverse-time operate time to logarithmic inverse-time 5 % of the reference (calculated) value

characteristic

+ 2 % current tolerance or 30 ms

Inverse-time dropout time to logarithmic inverse-time 5 % of the reference (calculated) value

characteristic

+ 2 % current tolerance or 30 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1679

Technical Data 12.15 Overcurrent Protection, 1-Phase

12.15.4 Stage with User-Defined Characteristic Curve

Setting Values Method of measurement

Threshold value Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Number of value pairs for the operate curve X values of the operate curve Y values of the operate curve Number of value pairs for the dropout characteristic curve X values of the dropout characteristic curve Y values of the dropout characteristic curve

Fundamental component RMS value 0.010 A to 35.000 A 0.05 A to 175.00 A 0.001 A to 1.600 A 0.002 A to 8.000 A Disk emulation Instantaneous 0.05 to 15.00 2 to 30 1.00 p.u. to 66.67 p. u. 0.00 s to 999.00 s 2 to 30

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 1 Increments of 0.01 p.u. Increments of 0.01 s Increments of 1

0.05 p.u. to 0.95 p. u. 0.00 s to 999.00 s

Increments of 0.01 p.u. Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

1680

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.15 Overcurrent Protection, 1-Phase

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

Operate Curves and Dropout-Time Characteristic Curves According to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1681

Technical Data 12.16 Overcurrent Protection, 1-Phase (Fast Stage)

12.16 Overcurrent Protection, 1-Phase (Fast Stage)

Setting Values Threshold value
Dropout ratio (fixed) Time delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.90 to 0.99 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms Dropout time

Approx. 8 ms + OOT90 Approx. 25 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances Pickup tolerance, current
Time delays

5 % of the setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A) 1 % of the setting value or 10 ms

90 OOT (Output Operating Time): additional time delay of the output medium used, for example, 5 ms with fast relay

1682

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.17 Positive-Sequence Overcurrent Protection
12.17 Positive-Sequence Overcurrent Protection

12.17.1 Stage with Definite-Time Characteristic Curve

Setting Values for Protection Stage

Threshold value Operate delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 25 ms + OOT 91 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 10 ms
Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances Current
Time delays

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %) 1 % of the setting value or 10 ms

91 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1683

Technical Data 12.17 Positive-Sequence Overcurrent Protection

12.17.2 Stage with Inverse-Time Characteristic Curve

Setting Values for Protection Stage

Threshold Reset

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time dial

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A instantaneous disk emulation
0.00 to 15.00

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Operate and Dropout Characteristic Curves You can select from the following operate and dropout characteristic curves:

Table 12-4 Standard Characteristic Curves according to IEC

Normal inverse: type A Very inverse: type B Extremely inverse: type C Long-time inverse: type B

See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-1
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-2

Table 12-5 Standard Characteristic Curves according to ANSI

Inverse: type C Short inverse Long inverse Moderately inverse Very inverse Extremely inverse Definite inverse

See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-3
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-4
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-5
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-6

1684

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.17 Positive-Sequence Overcurrent Protection

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 25 ms + OOT 92 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 10 ms
Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances Current
Operate time for 2  I/I threshold value  20 Dropout time for I/I threshold value  0.90 Time delays

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %) 5 % of the reference (calculated) value + 2 % current tolerance or 30 ms 5 % of the reference (calculated) value + 2 % current tolerance or 30 ms 1 % of the setting value or 10 ms

92 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1685

Technical Data 12.18 Non-Directional Intermittent Ground-Fault Protection

12.18 Non-Directional Intermittent Ground-Fault Protection

Setting Values

Threshold value 3I0> interm.

For current transformer type protection 0.030 A to 35.000 A and Irated = 1 A
For current transformer type protection 0.15 A to 175.00 A and Irated = 5 A

For IN transformer type sensitive and IN-rated = 1 A

For Iph-rated = 1 A For Iph-rated = 5 A

0.001 A to 35.000 A 0.001 A to 175.000 A

For IN transformer type sensitive and IN-rated = 5 A

For Iph-rated = 1 A For Iph-rated = 5 A

0.005 A to 35.000 A 0.005 A to 175.000 A

Number of pickups until intermittent ground fault 2 to 10

Pickup extension time

0.00 s to 10.00 s

Sum of extended pickup times

0.00 s to 100.00 s

Reset time

1.00 s to 600.00 s

Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A Increments of 0.001 A
Increments of 0.001 A Increments of 0.001 A
Increments of 1 Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms Dropout time

Approx. 25 ms + OOT93 at 50 Hz Approx. 23 ms + OOT at 60 Hz Approx. 25 ms + OOT at 50 Hz Approx. 22 ms + OOT at 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

93 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1686

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Tolerances Currents
Times

Technical Data 12.18 Non-Directional Intermittent Ground-Fault Protection
-3I0 via protection-class current transformers: 1 % of setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A) -3I0 via sensitive current transformer: 1 % of setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A) 1 % of the setting value or � 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1687

Technical Data 12.19 Directional Intermittent Ground-Fault Protection

12.19 Directional Intermittent Ground-Fault Protection

Setting Values

Threshold For current transformer type value 3I0> protection and Irated = 1 A

For current transformer type

protection and Irated = 5 A

For IN transformer type sensitive and IN-rated = 1 A

For Iph-rated = 1 A For Iph-rated = 5 A

For IN transformer type sensitive and IN-rated = 5 A

For Iph-rated = 1 A For Iph-rated = 5 A

Number of pulses until intermittent ground fault

Pickup extension time

Sum of extended pickup times

Reset time

Number of pulses for operate

0.030 A to 35.000 A
0.15 A to 175.00 A
0.001 A to 35.000 A 0.001 A to 175.000 A
0.005 A to 35.000 A 0.005 A to 175.000 A
2 to 10
0.00 s to 10.00 s 0.00 s to 100.00 s 1.00 s to 600.00 s 2 to 100

Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A Increments of 0.001 A
Increments of 0.001 A Increments of 0.001 A
Increments of 1
Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s Increments of 1

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Pickup time Dropout time

Approx. 30 ms + OOT94 at 50 Hz Approx. 23 ms + OOT at 60 Hz Approx. 25 ms + OOT at 50 Hz Approx. 22 ms + OOT at 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

94 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1688

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Tolerances Currents
Times

Technical Data 12.19 Directional Intermittent Ground-Fault Protection
3I0 via protection-class current transformers: 1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A) 3I0 via sensitive current transformer: 1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A) 1 % of the setting value or � 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1689

Technical Data 12.20 Sensitive Ground-Fault Detection
12.20 Sensitive Ground-Fault Detection

12.20.1 General

Setting Values

Decay time V0

Dropout delay

Core balance

Protection-class

current transformer current trans-

current 1

formers

Core balance current transformer current 2

For IN transformer type sensitive

and IN-rated = 1 A

For Iph-rated = 1 A
For Iph-rated = 5 A For Iph-rated = 1 A
For Iph-rated = 5 A

For IN transformer type sensitive
and IN-rated = 5 A

For Iph-rated = 1 A For Iph-rated = 5 A

Core balance current transformer angle correction F1 Core balance current transformer angle correction F2

0.03 s to 0.20 s
0.00 s to 60.00 s
0.030 A to 35.000 A
0.15 A to 175.00 A

Increments of 0.01 s Increments of 0.01 s Increments of 0.001 A
Increments of 0.01 A

0.001 A to 35.000 A
0.001 A to 175.000 A
0.005 A to 35.000 A
0.005 A to 175.000 A
0.0� to 5.0�

Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.1�

Times

Pickup times Dropout times

Approx. 25 ms + OOT95 at 50 Hz Approx. 23 ms + OOT at 60 Hz Approx. 25 ms + OOT at 50 Hz Approx. 22 ms + OOT at 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances 96
Active with less sensitivity 97

Tolerances Currents
Voltages

-3I0 via sensitive current transformer: 1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A, frated � 10 %) -3I0 via protection-class current transformers: 1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A, frated � 10 %) 1 % of the setting value or 0.05 V

95 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays 96 Transient ground-fault stage is inactive 97 Transient ground-fault stage is inactive

1690

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Times Direction-calculation angle error98

Technical Data 12.20 Sensitive Ground-Fault Detection
1 % of the setting value or �10 ms  1� at 3I0 > 5 mA, V0 = 0.6 V  2� at 3I0  5 mA, V0 = 0.6 V

12.20.2 Directional 3I0 Stage with Cos  or Sin  Measurement

Setting Values Direction method of measurement

Threshold value Protection-class For Iph-rated =

3I0>

current trans-

1 A

Minimum directional 3I0> for direction determination

formers For IN transformer

For Iph-rated = 5 A
For Iph-rated =

type sensitive 1 A

and IN-rated = 1 A For Iph-rated =

5 A

For IN transformer For Iph-rated = type sensitive 1 A and IN-rated = 5 A For Iph-rated =
5 A

Threshold value V0>

Time delay of the direction determination

1 constraint of the direction range

2 constraint of the direction range

Angle correction

Tripping delay

cos  sin  0.030 A to 35.000 A
0.15 A to 175.00 A
0.001 A to 35.000 A
0.001 A to 175.000 A
0.005 A to 35.000 A
0.005 A to 175.000 A
0.300 V to 200.000 V 0.00 s to 60.00 s 1� to 15�
-45� to 45� 0.00 s to 60.00 s

�
Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A
Increments of 0.001 A
Increments of 0.001 A
Increments of 0.001 A
Increments of 0.001 V Increments of 0.01 s Increments of 1�
Increments of 1� Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent/overvoltage and of 105 % for undercurrent/undervoltage functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Voltage transformer

150 mV sec.

98 Not applicable to 12.20.4 Directional 3I0 Stage with (V0,3I0) Measurement
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1691

Technical Data 12.20 Sensitive Ground-Fault Detection

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 32 ms + OOT99 at 50 Hz Approx. 29 ms + OOT at 60 Hz Approx. 10 ms
Approx. 32 ms + OOT at 50 Hz Approx. 27 ms + OOT at 60 Hz

12.20.3 Directional Transient Ground-Fault Stage

Setting Values

3I0> threshold value
3I0> threshold for operate

Protection-class

For Iph-rated =

current transformers 1 A

For Iph-rated = 5 A

Sensitive current transformer for IN

IN-rated = 1 A IN-rated = 5 A

Threshold value V0>

Maximum operational V0

Dropout delay

Tripping delay

0.000 A to 35.000 A
0.00 A to 175.00 A
0.000 A to 1.600 A 0.000 A to 8.000 A 0.300 V to 200.000 V 0.300 V to 200.000 V 0.00 s to 60.00 s 0.00 s to 60.00 s

Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A Increments of 0.001 A Increments of 0.001 V Increments of 0.001 V Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent/overvoltage and of 105 % for undercurrent/undervoltage functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Voltage transformer

150 mV sec.

Times

Operate time with time delay = 0 ms Dropout time

Approx. 115 ms + OOT100 at 50 Hz Approx. 112 ms + OOT at 60 Hz Approx. 20 ms + OOT at 50 Hz Approx. 15 ms + OOT at 60 Hz

99 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs 100 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs

1692

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.20 Sensitive Ground-Fault Detection

12.20.4 Directional 3I0 Stage with (V0,3I0) Measurement

Setting Values

Threshold value Protection-class

3I0>

current transformers

For Iph-rated = 1 A For Iph-rated = 5 A

For IN transformer type For Iph-rated = 1 A

sensitive and IN-rated = 1 A

For Iph-rated = 5 A

For IN transformer type For Iph-rated = 1 A

sensitive and IN-rated = 5 A

For Iph-rated = 5 A

Min. V0> for direction determination

Time delay of the direction determination

Rotation angle of the reference voltage

Forward range +/-

Tripping delay

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 35.000 A 0.001 A to 175.000 A
0.005 A to 35.000 A 0.005 A to 175.000 A
0.300 V to 200.000 V 0.00 s to 60.00 s -180� to 180� 0� to 180� 0.00 s to 100.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A
Increments of 0.001 A Increments of 0.001 A
Increments of 0.001 V Increments of 0.01 s Increments of 1� Increments of 1� Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent/overvoltage and of 105 % for undercurrent/undervoltage functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or

75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Voltage transformer

150 mV sec.

Times

Operate time with time delay = 0 ms
Extension of operate time during operation with transformer inrush-current detection Dropout time

Approx. 23 ms + OOT101 at 50 Hz Approx. 21 ms + OOT at 60 Hz Approx. 10 ms
Approx. 21 ms + OOT at 50 Hz Approx. 20 ms + OOT at 60 Hz

Tolerances Direction-calculation angle error

 1� at 3I0  10 mA, V0 = 0.6 V  2� at 2 mA < 3I0 < 10 mA, V0 = 0.6 V  3� at 3I0  2 mA, V0 = 0.6 V

101 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1693

Technical Data 12.20 Sensitive Ground-Fault Detection

12.20.5 Directional Y0 Stage with G0 or B0 Measurement (Admittance)

Setting Values Direction method of measurement

Release
Threshold value 3I0>

Protection-class

For Iph-rated =

current transformers 1 A

For Iph-rated = 5 A

For IN transformer type sensitive and IN-rated = 1 A

For Iph-rated = 1 A
For Iph-rated = 5 A

For IN transformer type sensitive and IN-rated = 5 A

For Iph-rated = 1 A
For Iph-rated = 5 A

Threshold value V0>

Threshold value Y0>

Time delay of direction determination

1 constraint of direction range

2 constraint of direction range

Angle correction

Tripping delay

B0 G0 0.030 A to 35.000 A
0.15 A to 175.00 A
0.001 A to 35.000 A
0.001 A to 175.000 A
0.005 A to 35.000 A
0.005 A to 175.000 A
0.300 V to 200.000 V 0.10 mS to 100.00 mS 0.00 s to 60.00 s 1� to 15�
-45� to 45� 0.00 s to 60.00 s

�
Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A
Increments of 0.001 A
Increments of 0.001 A
Increments of 0.001 A
Increments of 0.001 V Increments of 0.01 mS Increments of 0.01 s Increments of 1�
Increments of 1� Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent/overvoltage and of 105 % for undercurrent/undervoltage functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or

75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Voltage transformer

150 mV sec.

Times

Operate time with time delay = 0 ms
Extension of operate time during operation with transformer inrush-current detection Dropout time

Approx. 32 ms + OOT102 at 50 Hz Approx. 29 ms + OOT at 60 Hz Approx. 10 ms
Approx. 32 ms + OOT at 50 Hz Approx. 27 ms + OOT at 60 Hz

102 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs

1694

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Tolerances Admittance

Technical Data 12.20 Sensitive Ground-Fault Detection
1 % of the setting value or 0.05 mS (Irated = 1.6 A) or 0.25 mS (Irated = 8 A), (frated � 10 %)

12.20.6 Directional Stage with Phasor Measurement of a Harmonic

Setting Values

Min. 3I0> of the Protection-class

selected

current transformers

harmonic phasor

For Iph-rated = 1 A For Iph-rated = 5 A

For IN transformer type For Iph-rated = 1 A

sensitive and IN-rated = 1 A

For Iph-rated = 5 A

For IN transformer type For Iph-rated = 1 A

sensitive and IN-rated = 5 A

For Iph-rated = 5 A

Dropout ratio of the direction determination in terms of the zero-sequence harmonic current

Threshold value V0>

Time delay of the direction determination

Extension of the direction result

Forward range +/-

Tripping delay

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 35.000 A 0.001 A to 175.000 A
0.005 A to 35.000 A 0.005 A to 175.000 A
0.10 to 0.95
0.300 V to 200.000 V 0.00 s to 60.00 s 0.00 s to 60.00 s 0� to 90� 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A
Increments of 0.001 A Increments of 0.001 A
Increments of 0.01
Increments of 0.001 V Increments of 0.01 s Increments of 0.01 s Increments of 1� Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent/overvoltage and of 105 % for undercurrent/undervoltage functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or

75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Voltage transformer

150 mV sec.

Times

Operate time with time delay = 0 ms Dropout time

Approx. 70 ms + OOT103 at 50 Hz Approx. 60 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 20 ms + OOT at 60 Hz

103 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1695

Technical Data 12.20 Sensitive Ground-Fault Detection

Tolerances Zero-sequence harmonic current 3I0harm.
V0 fundamental-component value Direction-calculation angle error of the 3rd, 5th, or 7th harmonic phasor

-3I0harm. via sensitive current transformer: 1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A, frated � 10 %) -3I0harm. via protection-class current transformers: 1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A, frated � 10 %) 1 % of the setting value or 0.05 V  1� at 3I0harm. > 5 mA  2� at 3I0harm.  5 mA

12.20.7 Non-Directional V0 Stage with Zero-Sequence Voltage/Residual Voltage

Setting Values
Threshold value104 Time delay Pickup delay Dropout ratio V< faulty ph-gnd vltg. V> healthy ph-gnd. vltg.

0.300 V to 200.000 V
0.00 s to 100.00 s 0.00 s to 60.00 s 0.90 to 0.99 0.300 V to 200.000 V 0.300 V to 200.000 V

Increments of 0.001 V
Increments of 0.01 s Increments of 0.01 s Increments of 0.01 Increments of 0.001 V Increments of 0.001 V

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms Standard filter, true RMS
2 cycle filters
Dropout time Standard filter, true RMS
2 cycle filters

Approx. 25 ms + OOT105 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 45 ms + OOT at 50 Hz Approx. 39 ms + OOT at 60 Hz
Approx. 20 ms + OOT at 50 Hz Approx. 16.6 ms + OOT at 60 Hz Approx. 31.06 ms + OOT at 50 Hz Approx. 27.06 ms + OOT at 60 Hz

Tolerances
Voltages Time delays

0.5 % of the setting value or 0.05 V 1 % of the setting value or 10 ms

104 If you have selected the method of measurement = RMS value, do not set the threshold value under 10 V. 105 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

1696

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.20 Sensitive Ground-Fault Detection

12.20.8 Non-Directional 3I0 Stage

Setting Values Method of Measurement

Threshold value 3I0>
Pickup delay Tripping delay

Protection-class

For Iph-rated =

current transformers 1 A

For Iph-rated = 5 A

For transformer type For Iph-rated =

I-sensitive and

1 A

IN-rated = 1 A

For Iph-rated = 5 A

For transformer type For Iph-rated =

I-sensitive and

1 A

IN-rated = 5 A

For Iph-rated = 5 A

Fundamental component RMS value 0.030 A to 35.000 A

Increments of 0.001 A

0.15 A to 175.00 A

Increments of 0.01 A

0.001 A to 35.000 A

Increments of 0.001 A

0.001 A to 175.000 A

Increments of 0.001 A

0.005 A to 35.000 A

Increments of 0.001 A

0.005 A to 175.000 A

Increments of 0.001 A

0.00 s to 60.00 s 0.00 s to 100.00 s

Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 25 ms + OOT106 at 50 Hz Approx. 23 ms + OOT at 60 Hz Approx. 10 ms
Approx. 25 ms + OOT at 50 Hz Approx. 22 ms + OOT at 60 Hz

12.20.9 Non-Directional Y0 Stage

Setting Values
V0> threshold value Threshold Y0>

0.300 V to 200.000 V 0.10 mS to 100.00 mS

Increments of 0.001 V Increments of 0.01 mS

106 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1697

Technical Data 12.20 Sensitive Ground-Fault Detection

Pickup delay Operate delay

0.00 s to 60.00 s 0.00 s to 60.00 s

Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms
Extension of operate time during operation with transformer inrush-current detection Dropout time

Approx. 32 ms + OOT107 at 50 Hz Approx. 29 ms + OOT at 60 Hz Approx. 10 ms
Approx. 32 ms + OOT at 50 Hz Approx. 27 ms + OOT at 60 Hz

Current Operating Range
Minimum 3I0 threshold for Y0 calculation

Protection-class current transformers
Sensitive current transformer

30 mA sec. (Irated = 1 A) 150 mA sec. (Irated = 5 A) 1 mA sec. (Irated = 1 A) 5 mA sec. (Irated = 5 A)

Tolerances Admittance

1 % of the setting value or 0.05 mS (Irated = 1.6 A) or 0.25 mS (Irated = 8 A), (frated � 10 %)

12.20.10 Non-Directional 3I0 Harmonic Stage

Setting Values

3I0 harm. threshold

Protection-class current transformers

For Iph-rated = 1 A For Iph-rated = 5 A

For IN transformer type For Iph-rated = 1 A

sensitive and IN-rated = 1 A

For Iph-rated = 5 A

For IN transformer type For Iph-rated = 1 A

sensitive and IN-rated = 5 A

For Iph-rated = 5 A

3I0 harm. dropout ratio

Pickup extension time

Operate delay

Stabilization counter

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 35.000 A 0.001 A to 175.000 A
0.005 A to 35.000 A 0.005 A to 175.000 A
0.10 to 0.95 0.00 s to 60.00 s 0.00 s to 60.00 s 1 to 10

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A
Increments of 0.001 A Increments of 0.001 A
Increments of 0.01 Increments of 0.01 s Increments of 0.01 s Increments of 1

107 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs

1698

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.20 Sensitive Ground-Fault Detection

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms and stabilization Approx. 70 ms + OOT108 at 50 Hz

counter = 4

Approx. 60 ms + OOT at 60 Hz

Dropout time

Approx. 40 ms + OOT at 50 Hz

Approx. 30 ms + OOT at 60 Hz

Tolerances Zero-sequence harmonic current 3I0harm.

-3I0harm. via sensitive current transformer: 1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A, frated � 10 %) -3I0harm. via protection-class current transformers: 1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A, frated � 10 %)

12.20.11 Pulse-Pattern Detection Stage

Setting Values V0> threshold value

3I0> threshold value

Protection-class current transformers
For IN transformer type sensitive and IN-rated = 1 A

For Iph-rated = 1 A
For Iph-rated = 5 A For Iph-rated = 1 A
For Iph-rated = 5 A

For IN transformer type sensitive and IN-rated = 5 A

For Iph-rated = 1 A For Iph-rated = 5 A

3I0 delta pulse off-on Pulse-on duration Pulse-off duration

0.300 V to 200.000 V
0.030 A to 35.000 A
0.15 A to 175.00 A

Increments of 0.001 V Increments of 0.001 A Increments of 0.01 A

0.001 A to 35.000 A
0.001 A to 175.000 A
0.005 A to 35.000 A
0.005 A to 175.000 A
2 % to 50%
0.20 s to 10.00 s

Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 1 % Increments of 0.01 s

108 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1699

Technical Data 12.20 Sensitive Ground-Fault Detection

No. of pulses for operate Monitoring time(in pulses) Max.tolera.pulse-on or off

2 to 100 0.02 s to 2.00 s

Increments of 1 Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent/overvoltage and of 105 % for undercurrent/undervoltage functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Voltage transformer

150 mV sec.

Times

Operate delay = 0 ms Dropout time

Approx. 2.5 s + 0.3 s + OOT109 at 50 Hz and 60 Hz110 Approx. 32 ms + OOT at 50 Hz and 60 Hz

12.20.12 Intermittent Ground-Fault Blocking Stage

Setting Values

Threshold

For current transformer type

0.030 A to 35.000 A

protection and Irated = 1 A

For current transformer type

0.15 A to 175.00 A

protection and Irated = 5 A

For IN transformer type sensitive 0.001 A to 1.600 A and IN-rated = 1 A

For IN transformer type sensitive 0.005 A to 8.000 A and IN-rated = 5 A

No.of pulses for interm.GF

2 to 50

Reset time

1.00 s to 600.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

109 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
110 After the first valid pulse is detected, the function picks up. For the typical settings 1.00 s of Pulse-on duration, 1.50 s of Pulse-off duration, and 0.15 s of Max.tolera.pulse-on or off, the inherent pickup time is approx. 1 s + 1.5 s + 2  0.15 s + OOT

1700

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.20 Sensitive Ground-Fault Detection

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active with reduced sensitivity

Tolerances Currents
Times

3I0 via protection-class current transformers: 1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A) 3I0 via sensitive current transformer: 1 % of the setting value or 0.2 mA (Irated = 1.6 A) or 1 mA (Irated = 8 A) 1 % of the setting value or � 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1701

Technical Data 12.21 Undercurrent Protection

12.21 Undercurrent Protection

Setting Values Method of measurement

Threshold value I<
Pickup delay Operate delay

1 A @ 100 Irated 5 A @ 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 60.00 s 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Times

Operate time Dropout time

Approx. 25 ms + OOT111 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 25 ms + OOT at 50 Hz Approx. 22 ms + OOT at 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

111 OOT (Output Operating Time): additional delay of the output medium used, for example, 5 ms with fast relays, see chapter Relay Outputs

1702

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.21 Undercurrent Protection

Tolerances

Currents, method of measurement = fundamental component

1 % of setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

(33 % portion harmonic, referring to fundamental component)

Up to 30th harmonic

1 % of setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Time delays

1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1703

Technical Data 12.22 Negative-Sequence Protection
12.22 Negative-Sequence Protection

12.22.1 Stage with Definite-Time Characteristic Curve

Setting Values Reference value for I2 (Iref)

Pickup value

Dropout ratio

Time delay

Release current (minimum 1 A @ 50 and 100 Irated

current release)

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Maximum phase current (maximum current limiting)

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated

5 A @ 1.6 Irated

Rated object current Irated, obj. Positive-sequence current I1 5.0 % to 999.9 % l2/lref 0.40 to 0.99 0.00 s to 60.00 s 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

Increments of 0.1
Increments of 0.01 Increments of 0.01 s Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:
� Dropout differential derived from the parameter Dropout ratio � Dropout differential of 0.5 % of the object rated current

Times

Pickup time Dropout time

Approx. 40 ms + OOT112 at 50 Hz Approx. 35 ms + OOT at 60 Hz Approx. 35 ms + OOT

Current Operating Range Current range

At least one phase current  setting value Irelease All phase currents  setting value Iph, max

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

112 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs

1704

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Tolerances Pickup value I2/Irated, obj I2/I1
Time delays

Technical Data 12.22 Negative-Sequence Protection
Approx. 1% of the setting value or 0.3% of the absolute value Approx. 1 % of the setting value or 0.5 % of the absolute value (I1 > 50 mA (Irated = 1 A) or 250 mA (Irated = 5 A)) 1 % of the setting value or 10 ms

12.22.2 Stage with Inverse-Time Characteristic Curve

Setting Values Reference value for I2 (Iref)

Pickup value Dropout

Time multiplier

Release current (minimum 1 A @ 50 and 100 Irated

current release)

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Maximum phase current (maximum current limiting)

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated

5 A @ 1.6 Irated

Rated object current Irated,obj. Positive-sequence current I1 5.0 % to 999.9 % l2/lref Disk emulation Instantaneous 0.05 to 15.00 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

Increments of 0.1
Increments of 0.01 Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:
� Dropout of 95 % of 1.1  threshold value � Dropout differential of 0.5 % of the object rated current

Times

Pickup time Dropout time

Approx. 40 ms + OOT113 at 50 Hz Approx. 35 ms + OOT at 60 Hz Approx. 35 ms + OOT

Dropout Ratio
Disk emulation Instantaneous

Approx. 0.90  threshold value Approx. 1.05  threshold value Approx. 0.95  pickup value

113 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1705

Technical Data 12.22 Negative-Sequence Protection

Operate and Dropout Characteristic Curves You can select from the following operate and dropout characteristic curves:

Table 12-6 Standard Characteristic Curves to IEC
Normal inverse: type A Very inverse: type B Extremely inverse: type C Long-time inverse: type B

See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-1
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-2

Table 12-7 Standard Characteristic Curves to ANSI

Inverse: type C Short inverse Long inverse Moderately inverse Very inverse Extremely inverse Definite inverse

See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-3
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-4
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-5
See chapter 12.5.2 Stage with Inverse-Time Characteristic Curve, Figure 12-6

Extension of the Operating Time
Extension of the operate time during operation with transformer inrush-current detection

Approx. 10 ms

Current Operating Range Current range
Frequency Operating Range 0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

At least one phase current  setting value Irelease All phase currents  setting value Iph, max
According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances Reference value = rated current Pickup value
Operate time for 2  I/I threshold value  20
Dropout time for I/I threshold value  0.90
Reference value = pos. seq. current Pickup value

Approx. 1 % of the setting value or 0.3 % of the absolute value 5 % of the setting value or + 2 % of the current tolerance or 30 ms 5 % of the setting value or + 2 % of the current tolerance or 30 ms
Approx. 1 % of the setting value or 0.5 % of the absolute value (I1 > 50 mA (Irated = 1 A) or 250 mA (Irated = 5 A))

1706

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Operate time for 2  I/I threshold value  20 Dropout time for I/I threshold value  0.90

Technical Data 12.22 Negative-Sequence Protection
5 % of the reference (calculated) value + 2 % current tolerance or 30 ms 5 % of the reference (calculated) value + 2 % current tolerance or 30 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1707

Technical Data 12.23 Directional Negative-Sequence Protection with Definite-Time Delay

12.23 Directional Negative-Sequence Protection with Definite-Time Delay

Setting Values Directional mode Stabilization with phase currents
Threshold value (pickup value) at IN-rated = 1 A Threshold value (pickup value) at IN-rated = 5 A
Extension time of the blocking after a 1-pole pause

Forward, backward, non-directional

0 % to 30 %

Increments of 1 %

0.030 A to 35.000 A 0.15 A to 175.00 A

Increments of 0.001 A Increments of 0.01 A

0.00 s to 60.00 s

Increments of 0.01 s

Setting Values for Direction Determination

Minimum negative-sequence system voltage V2

Minimum negative-sequence system current I2
Upper limit angle forward,

For Irated = 1 A For Irated = 5 A

Lower limit angle forward,

0.150 V to 20.000 V 0.030 A to 10.000 A 0.15 A to 50.00 A
0o to 360o 0o to 360o

Increments of 0.001 V Increments of 0.001 A Increments of 0.01 A
Increments of 1o Increments of 1o

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:
� Dropout differential derived from the parameter Dropout ratio � Dropout differential of 0.5 % of the object rated current

Times

Operate time with time delay = 0 ms Dropout time

Approx. 40 ms + OOT114 at 50 Hz Approx. 40 ms + OOT at 60 Hz Approx. 39 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances Threshold values: Negative-sequence voltage V2 Negative-sequence current I2
Times: Independent time delays

1 % of the setting value or 0.05 V 2 % of the setting value or 10 mA at Irated = 1 A 1 % of the setting value or 50 mA at Irated = 5 A
1 % of the setting value or 10 ms

114 OOT (Output Operating Time) Additional delay of the output medium used, see chapter 12.1.4 Relay Outputs

1708

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.23 Directional Negative-Sequence Protection with Definite-Time Delay

Limit angle in determining the direction

1o

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1709

Technical Data 12.24 Thermal Overload Protection, 3-Phase � Advanced

12.24 Thermal Overload Protection, 3-Phase � Advanced

Setting Value for the Function Block Filter
h(0) h(1) h(2) h(3) h(4)

-100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000

Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001

Setting Values/Increments for the Protection Stage

Threshold current 1 A @ 50 and 100 Irated

warning

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Threshold thermal warn.

Dropout threshold operate

Emerg. start T overtravel

K-factor acc. to IEC 60225-149

Thermal time constant

Cooling time constant

Imax thermal

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Imin cooling

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Temperature rise at Irated

Default temperature

Minimal temperature

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 50 % to 100 % 50 % to 99 % 0 s to 15 000 s 0.10 to 4.00 10 s to 60 000 s 10 s to 60 000 s 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.000 A to 10.000 A 0.00 A to 50.00 A 0.000 A to 1.600 A 0.000 A to 8.000 A 40 K to 200 K -55�C to 55�C -55�C to 40�C

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 % Increments of 1 % Increments of 10 s Increments of 0.01 Increments of 1 s Increments of 1 s Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 K Increments of 1�C Increments of 1�C

Dropout Ratios Tripping threshold (fixed at 100 %)
Thermal warning threshold Current warning threshold

Dropout if value drops below operate indication dropout threshold
About 0.99 of the setting value
About 0.95 of the setting value

Frequency Range of the Input Signals The function captures input signals up to the 50th harmonic.

1710

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.24 Thermal Overload Protection, 3-Phase � Advanced

Tolerances

No filter applied

(33 % harmonics, in relation to the fundamental component)

With reference to k  Irated Up to 30th harmonic

2 % or 10 mA ( Irated = 1 A) or 50 mA ( Irated = 5 A), 2 % class acc. to IEC 60255-149

Up to 50th harmonic, frated = 50 Hz

4 % or 20 mA ( Irated = 1 A) or 100 mA ( Irated = 5 A), 4 % class acc. to IEC 60255-149

Up to 50th harmonic, frated = 60 Hz

5 % or 25 mA ( Irated = 1 A) or 125 mA ( Irated = 5 A), 5 % class acc. to IEC 60255-149

With the filter for compensation of the amplitude attenuation due to the anti-aliasing filter

(33 % harmonics, in relation to the fundamental component)

With reference to k  Irated Up to 30th harmonic

2 % or 10 mA ( Irated = 1 A) or 50 mA ( Irated = 5 A), 2 % class acc. to IEC 60255-149

Up to 50th harmonic, frated = 50 Hz

3 % or 20 mA ( Irated = 1 A) or 100 mA ( Irated = 5 A), 3 % class acc. to IEC 60255-149

Up to 50th harmonic, frated = 60 Hz

4 % or 20 mA ( Irated = 1 A) or 100 mA ( Irated = 5 A), 4 % class acc. to IEC 60255-149

With the filter for gain of harmonics including compensation of the amplitude attenuation115

(33 % harmonics, in relation to the fundamental component)

With reference to k  Irated Up to 30th harmonic

2 % or 10 mA ( Irated = 1 A) or 50 mA ( Irated = 5 A),

2 % class acc. to IEC 60255-149116

Up to 50th harmonic, frated = 50 Hz

4 % or 20 mA ( Irated = 1 A) or 100 mA ( Irated = 5 A),

4 % class acc. to IEC 60255-149117

Up to 50th harmonic, frated = 60 Hz

5 % or 25 mA ( Irated = 1 A) or 125 mA ( Irated = 5 A),

5 % class acc. to IEC 60255-149117

With reference to the operate time

Up to 30th harmonic

3 % or 1 s for I/(k  Irated) > 1.25, 3 % class acc. to IEC 60255-149

115 In case that the filter response exactly matches the user-defined gain factor. 116 In case that the user-defined gain factor is set below 3. The tolerance is increased if the gain factor is larger. 117 In case that the user-defined gain factor is set below 7. The tolerance is increased if the gain factor is larger.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1711

Technical Data 12.24 Thermal Overload Protection, 3-Phase � Advanced
Operate Curve Operate curve

Where

t th I Ipreload k
Irated, obj

Operate time Time constant
Current load current Preload current
Setting factor according to VDE 0435 part 3011 or IEC 60255-149 (K factor) Rated current of the protected object

1712

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.24 Thermal Overload Protection, 3-Phase � Advanced

[dwauslke-100611-01.tif, 1, en_US]
Figure 12-16 Operate Curve of Overload Protection
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1713

Technical Data 12.25 Thermal Overload Protection, User-Defined Characteristic Curve

12.25 Thermal Overload Protection, User-Defined Characteristic Curve

Setting Values

Threshold current warning

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Threshold thermal warn.

Dropout threshold operate

Emerg. start T overtravel

Imax thermal

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Imin cooling

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Curve based on preload

Number of value pairs for the operate curve

X values of the operate curve

Y values of the operate curve

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 50 % to 100 % 50 % to 99 % 0 s to 15 000 s 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.000 A to 10.000 A 0.00 A to 50.00 A 0.000 A to 1.600 A 0.000 A to 8.000 A 1 % to 100 % 2 to 30 1.10 p.u. to 20.00 p. u. 1.00 s to 20 000.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 % Increments of 1 % Increments of 10 s Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 % Increments of 1 Increments of 0.0 p.u. Increments of 0.01 s

Dropout Ratios Tripping threshold (fixed at 100 %)
Thermal warning threshold Current warning threshold

Dropout if value drops below operate indication dropout threshold
About 0.99 of the setting value
About 0.95 of the setting value

Frequency Range of the Input Signals The function captures input signals up to the 50th harmonic.

Tolerances
With reference to k  Irated For Irated = 1 A For Irated = 5 A
With reference to operate time

2 % or 10 mA, class 2 % acc. to IEC 60255-149 2 % or 50 mA, class 2 % acc. to IEC 60255-149 3 % or 1 s, class 3 % acc. to IEC 60255-149 for I/(k  Irated) > 1.25

1714

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.26 Thermal Overload Protection, 1-Phase

12.26 Thermal Overload Protection, 1-Phase

Setting Values/Increments for the Protection Stage

Threshold current 1 A @ 50 and 100 Irated

warning

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Threshold thermal warn.

Dropout threshold operate

K-factor acc. to IEC 60225-149

Thermal time constant

Imax thermal

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Temperature rise at Irated

Default temperature

Minimal temperature

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 50 % to 100 % 50 % to 99 % 0.10 to 4.00 10 s to 60 000 s 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 40 K to 200 K -55�C to 55�C -55�C to 40�C

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 % Increments of 1 % Increments of 0.01 Increments of 1 s Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 1 K Increments of 1�C Increments of 1�C

Dropout Ratios Tripping threshold (fixed at 100 %)
Thermal warning threshold Current warning threshold

Dropout if value drops below operate indication dropout threshold
About 0.99 of the setting value
About 0.95 of the setting value

Frequency Range of the Input Signals The function captures input signals up to the 50th harmonic.

Tolerances With reference to k  Irated Up to 30th harmonic

With reference to the operate time

Up to 50th harmonic, frated = 50 Hz
Up to 50th harmonic, frated = 60 Hz
Up to 30th harmonic

2 % or 10 mA ( Irated = 1 A) or 50 mA ( Irated = 5 A), 2 % class acc. to IEC 60255-149 4 % or 20 mA ( Irated = 1 A) or 100 mA ( Irated = 5 A), 4 % class acc. to IEC 60255-149 5 % or 25 mA ( Irated = 1 A) or 125 mA ( Irated = 5 A), 5 % class acc. to IEC 60255-149 3 % or 1 s for I/(k  Irated) > 1.25, 3 % class acc. to IEC 60255-149

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1715

Technical Data 12.26 Thermal Overload Protection, 1-Phase
Operate Curve Operate curve

Where

t th I Ipreload k
Irated, obj

Operate time Time constant
Current load current Preload current
Setting factor according to VDE 0435 part 3011 or IEC 60255-8 (K factor) Rated current of the protected object

1716

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.26 Thermal Overload Protection, 1-Phase

[dwauslke-100611-01.tif, 1, en_US]
Figure 12-17 Operate Curve of Overload Protection
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1717

Technical Data 12.27 Unbalanced-Load Protection

12.27 Unbalanced-Load Protection

Setting Values
Maximum continuously perm. I2 Unbalanced load factor K Warning delay Cooling time thermal replica

3.0 % to 30.0 % l2/lrated,machine 1.0 s to 100.0 s 0.0 s to 60.0 s;  0 s to 50 000 s

Increments of 0.1 %
Increments of 0.1 s Increments of 0.1 s Increments of 1 s

Dropout

I2perm  Irated.machine  10 mA 10 mA < I2perm  Irated.machine  100 mA I2perm  Irated.machine > 100 mA

Operate Characteristics Characteristic of the thermal replica

Dropout value = 0.5  I2perm  lrated,machine Dropout value = I2perm  lrated,machine - 5 mA Dropout value = 0.95  I2perm  lrated,machine

Where:

tI2perm
K I2/Irated,machine

Permissible application time of the negative-sequence current
Unbalanced load factor K
Unbalanced load (negativesequence current/rated current of the machine)

[dwunbaop-300913, 1, en_US]
Figure 12-18 Thermal Characteristic for Unbalanced Load Protection

1718

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Times

Pickup time of the warning stage

Dropout time
Frequency Operating Range 0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz
Tolerances Negative-sequence current I2

Warning delay Time for I2/I2perm  10
Influencing Variables for the Thresholds Harmonics � Up to 10 % 3rd harmonic � Up to 10 % 5th harmonic

Technical Data 12.27 Unbalanced-Load Protection
Approx. 60 ms + OOT118 at 50 Hz Approx. 50 ms + OOT at 60 Hz Approx. 50 ms or better
According to specified tolerances Slightly expanded tolerances
Inactive
The value can be any of the following:
�  1% of the setting value � 3 mA at Irated = 1 A � 15 mA at Irated = 5 A
1 % of the setting value or 10 ms < (5 % of the reference value + 2 % of the current tolerance) or 100 ms
 1 %  1 %

118 OOT (Output Operating Time): additional delay of the output medium used, for example, 5 ms with fast relays
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1719

Technical Data 12.28 Overcurrent Protection for Capacitor Banks
12.28 Overcurrent Protection for Capacitor Banks

12.28.1 Stage with Definite-Time Characteristic Curve

Setting Value for the Function Block Filter
h(0) h(1) h(2) h(3) h(4)

-100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000

Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001

Setting Values for Protection Stage Method of measurement

Threshold value119
Dropout ratio Operate delay Dropout delay Pickup delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.90 to 0.99 0.00 s to 100.00 s 0.00 s to 60.00 s 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms
Extension of the operate time during operation with transformer inrush-current detection Dropout time

Approx. 25 ms + OOT 120 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 10 ms
Approx. 20 ms + OOT

119 If you have selected the method of measurement = RMS value, do not set the threshold value under 0.1 lrated,sec. 120 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1720

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value, no filter applied

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the compensation of the amplitude attenuation due to the anti-aliasing filter

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

2 % of the setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the gain of harmonics (including compensation of the amplitude attenuation121

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1.5 % of the setting value or 10 mA (Irated = 1 A)

or 50 mA (Irated = 5 A), (frated � 10 %) 122

Up to 50th harmonic, frated = 50 Hz

3% of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 123

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 124

Time delays

1 % of the setting value or 10 ms

121 In case that the filter response exactly matches the user-defined gain factors 122 In case that the user-defined gain factor is set below 3. The tolerance increases, if the gain factor is larger. 123 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger. 124 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1721

Technical Data 12.28 Overcurrent Protection for Capacitor Banks
Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.28.2 Stage with Inverse-Time Characteristic Curve

Setting Value for the Function Block Filter
h(0) h(1) h(2) h(3) h(4)

-100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000

Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001

Setting Values for Protection Stage Method of measurement

Threshold value Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Pickup delay Minimum time of the curve Additional time delay

Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A Disk emulation Instantaneous 0.00 to 15.00 0.00 s to 60.00 s 0.00 s to 1.00 s 0.00 s to 60.00 s

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Operate Curves and Dropout-Time Characteristic Curves according to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection

1722

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

[dwocpki1-080213-01.tif, 1, en_US]
Figure 12-19 Operate Curves and Dropout-Time Characteristic Curves According to IEC

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1723

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

[dwocpki2-080213-01.tif, 1, en_US]
Figure 12-20 Operate Curves and Dropout-Time Characteristic Curves According to IEC

1724

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.28 Overcurrent Protection for Capacitor Banks
Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

[dwocpka1-080213-01.tif, 2, en_US]
Figure 12-21 Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1725

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

[dwocpka2-080213-01.tif, 2, en_US]
Figure 12-22 Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

1726

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

[dwocpka3-080213-01.tif, 2, en_US]
Figure 12-23 Tripping Characteristic Curves and Dropout Characteristic Curves According to ANSI/IEEE

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1727

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

[dwocpka4-080213-01.tif, 2, en_US]
Figure 12-24 Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value, no filter applied

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A)

or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the compensation of the amplitude attenuation due to the anti-aliasing filter

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1 % of the setting value or 5 mA (Irated = 1 A)

or 25 mA (Irated = 5 A), (frated � 10 %)

1728

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

Up to 50th harmonic, frated = 50 Hz

2 % of the setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the gain of harmonics (including compensation of the amplitude attenuation125

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1.5 % of the setting value or 10 mA (Irated = 1 A)

or 50 mA (Irated = 5 A), (frated � 10 %) 126

Up to 50th harmonic, frated = 50 Hz

3% of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 127

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 128

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Time delays

1 % of the setting value or 10 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)

12.28.3 Stage with User-Defined Characteristic Curve

Setting Value for the Function Block Filter
h(0) h(1) h(2) h(3) h(4)

-100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000 -100.000 to 100.000

Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001 Increments of 0.001

Setting Values for Protection Stage Method of measurement

Threshold value

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Fundamental component RMS value 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

�
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

125 In case that the filter response exactly matches the user-defined gain factors 126 In case that the user-defined gain factor is set below 3. The tolerance increases, if the gain factor is larger. 127 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger. 128 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1729

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

Absolute pickup value Dropout

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Time multiplier Number of value pairs for the operate curve X values of the operate curve Y values of the operate curve Number of value pairs for the dropout characteristic curve X values of the dropout characteristic curve Y values of the dropout characteristic curve Additional time delay

0.000 A to 35.000 A 0.00 A to 175.00 A 0.000 A to 1.600 A 0.000 A to 8.000 A Disk emulation Instantaneous 0.05 to 15.00 2 to 30 1.00 p.u. to 20.00 p.u. 0.00 s to 999.00 s 2 to 30
0.05 p.u. to 0.95 p.u. 0.00 s to 999.00 s 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A �
Increments of 0.01 Increments of 1 Increments of 0.01 p.u. Increments of 0.01 s Increments of 1
Increments of 0.01 p.u. Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer

95 % of 1.1  threshold value or 95 % of the absolute pickup value
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Reset of the Integration Timer
Instantaneous Disk emulation

With dropout Approx. < 0.90  threshold value

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Currents, method of measurement = fundamental component

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value, no filter applied

(33 % harmonics, in relation to fundamental component)

Up to 30th harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

1730

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.28 Overcurrent Protection for Capacitor Banks

Up to 50th harmonic, frated = 50 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the compensation of the amplitude attenuation due to the anti-aliasing filter

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 50 Hz

2 % of the setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A), (frated � 10 %)

Up to 50th harmonic, frated = 60 Hz

3 % of the setting value or 20 mA (Irated = 1 A) or 100 mA (Irated = 5 A), (frated � 10 %)

Currents, method of measurement = RMS value

with filter for the gain of harmonics (including compensation of the amplitude attenuation129

(33 % harmonics, in relation to the fundamental component)

Up to 30 harmonic

1.5 % of the setting value or 10 mA (Irated = 1 A)

or 50 mA (Irated = 5 A), (frated � 10 %) 130

Up to 50th harmonic, frated = 50 Hz

3% of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 131

Up to 50th harmonic, frated = 60 Hz

4 % of the setting value or 20 mA (Irated = 1 A)

or 100 mA (Irated = 5 A), (frated � 10 %) 132

Operate time for 2  I/I threshold value  20

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Dropout time for I/I threshold value  0.90

5 % of the reference (calculated) value

+2 % current tolerance or 30 ms

Time delays

1 % of the setting value or 10 ms

Influencing Variables for Thresholds
Transient excess pickup in method of measurement = < 5 % fundamental component, for  > 100 ms (with complete unbalance)
Operate Curves and Dropout-Time Characteristic Curves According to IEC
Extension of the operate time during operation with Approx. 10 ms transformer inrush-current detection

129 In case that the filter response exactly matches the user-defined gain factors 130 In case that the user-defined gain factor is set below 3. The tolerance increases, if the gain factor is larger. 131 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger. 132 In case that the user-defined gain factor is set below 7. The tolerance increases, if the gain factor is larger.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1731

Technical Data 12.29 Current-Unbalance Protection for Capacitors, 3-Phase

12.29 Current-Unbalance Protection for Capacitors, 3-Phase

Setting Values for the Function Automatic compensation

Time between switch off and switch on Normalization with Ic

Threshold of defective Celement

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Yes No 0.00 s to 60.00 s Yes No 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

Increments of 0.01 s
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

Setting Values (Overcurrent-Protection Stage I>) Measured value

Iunbal. Iunbal. Operate delay

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

compensated non-compensated 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s

Setting Values (Counter Stage) Type of counting groups
Max. no. of def. elem. phs A Max. no. of def. elem. phs B Max. no. of def. elem. phs C Operate delay

segregated sum 1 to 1000 1 to 1000 1 to 1000 0.00 s to 10000.00 s

Increments of 1 Increments of 1 Increments of 1 Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

1732

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Times

Operate time with time delay = 0 ms Dropout time

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz
Tolerances
Currents Ic, Iunbal. Protection-class current transformers Currents Iunbal. Sensitive current transformer Time delays

Technical Data 12.29 Current-Unbalance Protection for Capacitors, 3-Phase
Approx. 32 ms + OOT133 at 50 Hz Approx. 29 ms + OOT at 60 Hz Approx. 32 ms + OOT at 50 Hz Approx. 27 ms + OOT at 60 Hz
According to specified tolerances Slightly expanded tolerances
Active
1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %) 1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A), (frated � 10 %) 1 % of the setting value or 10 ms

133 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1733

Technical Data 12.30 Current-Unbalance Protection for Capacitors, 1-Phase

12.30 Current-Unbalance Protection for Capacitors, 1-Phase

Setting Values for the Function Automatic compensation

Time between switch off and switch on Normalization with Ic

Threshold of defective Celement

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Yes No 0.00 s to 60.00 s Yes No 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

Increments of 0.01 s
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

Setting Values (Overcurrent-Protection Stage I>)

Current threshold Iunbal.
Operate delay Measured value

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

0.030 A to 35.000 A 0.150 A to 175.000 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.005 A Increments of 0.01 s compensated non-compensated

Setting Values (Counter Stage) Type of counting groups
Type of counting phases
Max. no. of def. elem. phs A Max. no. of def. elem. phs B Max. no. of def. elem. phs C Max. no. of def. elem. Operate delay

1 to 1000 1 to 1000 1 to 1000 1 to 1000 0.00 s to 10000.00 s

segregated sum segregated sum Increments of 1 Increments of 1 Increments of 1 Increments of 1 Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

1734

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Times

Operate time with time delay = 0 ms Dropout time

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz
Tolerances
Currents Ic, Iunbal. Protection-class current transformers Currents Iunbal. Sensitive current transformer Time delays

Technical Data 12.30 Current-Unbalance Protection for Capacitors, 1-Phase
Approx. 32 ms + OOT134 at 50 Hz Approx. 29 ms + OOT at 60 Hz Approx. 32 ms + OOT at 50 Hz Approx. 27 ms + OOT at 60 Hz
According to specified tolerances Slightly expanded tolerances
Active
1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10%) 1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A), (frated � 10%) 1 % of the setting value or 10 ms

134 OOT (Output Operating Time): additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1735

Technical Data 12.31 Voltage-Differential Protection for Capacitors

12.31 Voltage-Differential Protection for Capacitors

Setting Values (General Functionality) Matching-factor setting
Voltage matching factor k

not phase-selective phase-selective 0.5000 to 2000.0000

Increments of 0.0001

Setting Values (Protection Stage Vdiff>) Threshold
Operate delay

0.005 p.u. to 1.000 p.u.135
0.00 s to 60.00 s

Increments of 0.001 p.u. Increments of 0.01 s

Dropout

Dropout ratio for sec. threshold > 3 V Dropout differential for sec. threshold 0.3 V to 3 V Dropout ratio for sec. threshold 0.2 V to 0.3 V

95 % 150 mV 50 %

Times

Operate time with time delay = 0 ms

Dropout time

Approx. 30 ms + OOT (Output Operating Time) at 50 Hz Approx. 27 ms + OOT (Output Operating Time) at 60 Hz Approx. 20 ms + OOT (Output Operating Time) at 50 Hz Approx. 18 ms + OOT (Output Operating Time) at 60 Hz

Tolerances
Threshold  0.2 V Time delays

1 % of the setting value or 0.05 V (compensated) 1 % of the setting value or 10 ms

Operating Range of the Secondary Differential Voltage Operating Range of the secondary differential voltage  0.1 V (compensated)

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

135 Minimum secondary setting threshold = 0.2 V 1736

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.32 Differential Protection for Capacitor Banks

12.32 Differential Protection for Capacitor Banks

Setting Values

Operate curve

Threshold value

I/Irated,obj

Slope 1

Intersection 1 Irest

I/Irated,obj

Slope 2

Intersection 2 Irest

I/Irated,obj

Startup detection

Startup detection threshold value

I/Irated,obj

Characteristic curve increase factor

Maximum starting time

DC-component detection

Characteristic curve increase factor DC

Inrush-current detection

2nd harmonic content

Crossblk. time 2nd har.

Detection of external faults

Add-on stabilization threshold value I/Irated,obj

Add-on stabilization time

Crossblk. time additional stabilization

Operate curve

0.05 to 2.00 0.00 to 0.80 0.00 to 5.00 0.25 to 0.95 1.00 to 20.00
0.1 to 2.0
1.0 to 5.0 0.1 s to 180.0 s
1.0 to 5.0

Increments of 0.01 Increments of 0.01 Increments of 0.01 Increments of 0.01 Increments of 0.01
Increments of 0.1
Increments of 0.1 Increments of 0.1 s
Increments of 0.1

10 % to 45 %

Increments of 1 %

0.00 s to 200.00 s or  Increments of 0.01 s

1.00 to 20.00
0.00 s to 5.00 s or  0.00 s to 2.00 s or  See figure Figure 12-25

Increments of 0.01
Increments of 0.01 s Increments of 0.01 s

I-DIFF Fast Threshold value Tripping delay

I/Irated,obj

0.5 to 35.0 0.00 s to 60.00 s

Increments of 0.1 Increments of 0.01 s

I-DIFF Unrestrained Threshold value Tripping delay

I/Irated,obj

0.5 to 35.0 0.00 s to 60.00 s

Increments of 0.1 Increments of 0.01 s

Dropout Ratio
I-DIFF stage I-DIFF fast stage I-DIFF unrestrained stage

Approx. 0.7 Approx. 0.8 Approx. 0.7

Response Tolerance

For preset characteristic curve parameters; for 2 sides with 1 measuring point each

I-DIFF stage and characteristic curve

2 % of the setting value

I-DIFF fast stage

2 % of the setting value

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1737

Technical Data 12.32 Differential Protection for Capacitor Banks
Time Delays
I-DIFF stage I-DIFF fast stage Timer tolerance

0.00 s to 60.00 s

Increments of 0.01 s

0.00 s to 60.00 s

Increments of 0.01 s

1 % of the setting value or 10 ms

[dwdifaus-030912-01.tif, 2, en_US]
Figure 12-25 Operate Curve of the Differential Protection

Operate Times Operate times for one-sided supply I-DIFF stage, min
I-DIFF fast stage, min
I-DIFF unrestrained stage, min
Dropout time, approx.

50 Hz 60 Hz
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz

23 ms + OOT136 20 ms + OOT1) 8 ms + OOT1) 8 ms + OOT1) 8 ms + OOT1) 8 ms + OOT1) 29 ms 26 ms

136 Refer to protection functions, for example overcurrent protection 1738

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

Technical Data 12.32 Differential Protection for Capacitor Banks
According to specified tolerances Slightly expanded tolerances
Active

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1739

Technical Data 12.33 Overvoltage Protection with 3-Phase Voltage

12.33 Overvoltage Protection with 3-Phase Voltage

Setting Values for the Function Stabilization counter

0 to 10

Increments of 1

Setting Values for Stage Type Definite-Time Overvoltage Protection

Measured value
Method of measurement
Pickup mode
Pickup value137 Time delay Dropout ratio

Phase-to-phase Phase-to-ground Fundamental component RMS value 1 out of 3 3 out of 3 0.300 V to 340.000 V
0.00 s to 300.00 s 0.90 to 0.99

Increments of 0.001 V Increments of 0.01 s Increments of 0.01

Setting Values for Stage Type Inverse-Time Overvoltage Protection

Measured value
Method of measurement
Pickup mode
Pickup value Pickup factor Characteristic constant k Characteristic constant  Characteristic constant c Time multiplier Additional time delay Reset time

Phase-to-phase Phase-to-ground Fundamental component RMS value 1 out of 3 3 out of 3 0.300 V to 340.000 V 1.00 to 1.20 0.00 to 300.00 0.010 to 5.000 0.000 to 5.000 0.05 to 15.00 0.00 s to 60.00 s 0.00 s to 60.00 s

Increments of 0.001 V Increments of 0.01 Increments of 0.01 Increments of 0.001 Increments of 0.001 Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Operate Curve for Stage Type Inverse-Time Overvoltage Protection

Where Top Tinv Tadd

Operate delay Inverse-time delay Additional time delay (parameter Additional time delay)

137 If you have selected the method of measurement = RMS value, do not set the threshold value under 10 V.

1740

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.33 Overvoltage Protection with 3-Phase Voltage

Where Tinv Tp V Vthresh k  c

Inverse-time delay
Time multiplier (parameter Time dial) Measured voltage Threshold value (parameter Threshold) Curve constant k (parameter Charact. constant k) Curve constant  (parameter Charact. constant ) Curve constant c (parameter Charact. constant c)

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms, typical
Operate time with time delay = 0 ms, maximum
Dropout time, typical Dropout time, maximum

Approx. 25 ms + OOT138 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances for Stage Type Definite-Time Overvoltage Protection

Voltages Time delays

0.5 % of the setting value or 0.05 V 1 % of the setting value or 10 ms

Tolerances for Stage Type Inverse-Time Overvoltage Protection

Voltages Operate time for 1.2  V/V threshold value  20 Reset time delay

0.5 % of the setting value or 0.05 V 5 % of the setting value or 30 ms
1 % of the setting value or 10 ms

138 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1741

Technical Data 12.34 Overvoltage Protection with Zero-Sequence Voltage/Residual Voltage

12.34 Overvoltage Protection with Zero-Sequence Voltage/Residual Voltage

Setting Values Method of measurement
Block. on measuring-voltage outage
Determ. ph. aff. by grd. flt.
Threshold value139 Time delay Pickup delay Dropout ratio V< faulty ph-gnd vltg. V> healthy ph-gnd. vltg.

RMS value Fundamental component Fundamental component over 2 cycle filters Yes No Yes No 0.300 V to 340.000 V
0.00 s to 60.00 s 0.00 s to 320.00 s 0.90 to 0.99 0.300 V to 200.000 V 0.300 V to 200.000 V

Increments of 0.001 V
Increments of 0.01 s Increments of 0.01 s Increments of 0.01 Increments of 0.001 V Increments of 0.001 V

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms Standard filter, true RMS, typical
Standard filter, true RMS, maximum
2 cycle filters, typical
2 cycle filters, maximum
Dropout time Standard filter, true RMS, typical
Standard filter, true RMS, maximum

Approx. 25 ms + OOT140 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 40 ms + OOT at 50 Hz Approx. 35 ms + OOT at 60 Hz Approx. 45 ms + OOT at 50 Hz Approx. 40 ms + OOT at 60 Hz
Approx. 20 ms + OOT at 50 Hz Approx. 17 ms + OOT at 60 Hz Approx. 25 ms + OOT at 50 Hz Approx. 20 ms + OOT at 60 Hz

139 If you have selected the method of measurement = RMS value, do not set the threshold value under 10 V. 140 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

1742

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

2 cycle filters, typical
2 cycle filters, maximum
Frequency Operating Range 0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz
Tolerances Voltages Time delays

Technical Data 12.34 Overvoltage Protection with Zero-Sequence Voltage/Residual Voltage
Approx. 30 ms + OOT at 50 Hz Approx. 25 ms + OOT at 60 Hz Approx. 35 ms + OOT at 50 Hz Approx. 30 ms + OOT at 60 Hz
According to specified tolerances Slightly expanded tolerances
Active
0.5 % of the setting value or 0.05 V 1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1743

Technical Data 12.35 Overvoltage Protection with Positive-Sequence Voltage

12.35 Overvoltage Protection with Positive-Sequence Voltage

Setting Values
Pickup value Time delay Dropout ratio

0.300 V to 200.000 V 0.00 s to 60.00 s 0.90 to 0.99

Increments of 0.001 V Increments of 0.01 s Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms, typical
Operate time with time delay = 0 ms, maximum
Dropout time, typical Dropout time, maximum

Approx. 25 ms + OOT141 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances
Voltages Time delays

0.5 % of the setting value or 0.05 V 1 % of the setting value or 10 ms

141 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

1744

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.36 Overvoltage Protection with Negative-Sequence Voltage

12.36 Overvoltage Protection with Negative-Sequence Voltage

Setting Values for the Function Measuring window

1 cycle to 10 cycles

Increments of 1 cycle

Setting Values
Pickup value of V2 Operate delay Dropout ratio

0.300 V to 200.000 V 0.00 s to 60.00 s 0.90 to 0.99

Increments of 0.001 V Increments of 0.01 s Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Pickup times

Dropout time

55 ms to 210 ms + OOT 142 (depends on the measuring-window length) at 50 Hz 48 ms to 185 ms + OOT (depends on the measuring-window length) at 60 Hz 20 ms to 70 ms + OOT (depends on the measuring-window length)

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances
Voltages Time delays

0.50 % of the setting value or 0.050 V 1.00 % of the setting value or 10 ms

142 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1745

Technical Data 12.37 Overvoltage Protection with Any Voltage

12.37 Overvoltage Protection with Any Voltage

Setting Values Measured value143
Method of measurement Pickup value144 Time delay Dropout ratio

Measured phase-to-ground voltage VA Measured phase-to-ground voltage VB Measured phase-to-ground voltage VC Measured phase-to-phase voltage VAB Measured phase-to-phase voltage VBC Measured phase-to-phase voltage VCA Measured phase-to-phase voltage VAB Measured phase-to-phase voltage VBC Measured phase-to-phase voltage VCA Calculated voltage V0 Fundamental component RMS value 0.300 V to 340.000 V
0.00 s to 60.00 s 0.90 to 0.99

Increments of 0.001 V Increments of 0.01 s Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms, typical
Operate time with time delay = 0 ms, maximum
Dropout time, typical Dropout time, maximum

Approx. 25 ms + OOT145 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

143 If the function Overvoltage protection with any voltage is used in a 1-phase function group, the measured-value parameter is not visible.
144 If you have selected the method of measurement = RMS value, do not set the threshold value under 10 V.
145 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

1746

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Tolerances
Voltages Time delays

Technical Data 12.37 Overvoltage Protection with Any Voltage
0.5 % of the setting value or 0.05 V 1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1747

Technical Data 12.38 Peak Overvoltage Protection for Capacitors

12.38 Peak Overvoltage Protection for Capacitors

Setting Values
Threshold value Inverse-time stage Definite-time stage User-defined characteristic curve Tripping delay Dropout delay Down integration time Time multiplier Number of value pairs for the operate curve X values of the operate curve Y values of the operate curve Number of value pairs for the dropout characteristic curve X values of the dropout characteristic curve Y values of the dropout characteristic curve

0.80 to 3.00 p.u. 0.80 to 10.00 p.u. 0.80 to 3.00 p.u. 0.01 s to 3600.00 s 0.00 s to 3600.00 s 1 min to 1500 min 0.05 to 15.00 30 1.00 p.u. to 4.00 p.u. 0.00 s to 9999.99 s 30
0.01 p.u. to 0.95 p.u. 0.00 s to 9999.99 s

Inverse-Time Characteristic Curve (IEC/IEEE)

Increments of 0.01 Increments of 0.01 Increments of 0.01 Increments of 0.01 s Increments of 1.00 s Increments of 1 min Increments of 0.01 Increments of 1 Increments of 0.01 p.u. Increments of 0.01 s Increments of 1
Increments of 0.01 p.u. Increments of 0.01 s

[dw_pecinv-230813, 2, en_US]
Figure 12-26 Inverse-Time Characteristic Curve
The points on the characteristic curve defined in the standards result from a threshold setting of 1.1. These single points are connected via semi-logarithmic line segments.

1748

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.38 Peak Overvoltage Protection for Capacitors

Table 12-8 Peak Overvoltage Inverse-Time Characteristic (for Threshold Setting 1.1)

Measurand �/Vc,rated <1.15 1.15 1.2 1.3 1.4 1.7 2 2.2 >2.2

Time Delay
 (no pickup) 1800.00 s 300.00 s 60.00 s 15.00 s 1.00 s 0.25 s 0.1 s 0.01 s

Curve Point According to
Siemens definition IEC 60871-1:2005 IEC 60871-1:2005 IEC 60871-1:2005, IEEE Std 1036-2010 IEEE Std 1036-2010 IEEE Std 1036-2010 IEEE Std 1036-2010 IEEE Std 1036-2010 IEEE Std 1036-2010

Times

Pickup time

Approx. 35 ms + OOT at 50 Hz1

Approx. 25 ms + OOT at 60 Hz1

Dropout Time

Depending on settings

1 OOT (Output Operating Time) additional delay of the output medium used, for example, 5 ms with fast relays

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances

Peak overvoltage

(33 % harmonics, with reference to fundamental component)

Up to 30th harmonic Up to 50th harmonic, frated = 50 Hz Up to 50th harmonic, frated = 60 Hz

1 % of the setting value or 0.005 p.u. (frated � 10%) 3 % of the setting value or 0.02 p.u. (frated � 10%) 4 % of the setting value or 0.02 p.u. (frated � 10%)

Time delays

Measured value of definite-time stage

1 % of the setting value or 10 ms

Measured value of inverse-time stage and stage with 5 % of the setting value +1 % of the measured value

user-defined characteristic curve

or 30 ms

Down integration time

5 % of the setting value or 30 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1749

Technical Data 12.39 Overvoltage Protection with Negative-Sequence Voltage/Positive-Sequence Voltage

12.39 Overvoltage Protection with Negative-Sequence Voltage/PositiveSequence Voltage

Setting Values for the Function
Measuring window Minimum voltage V1

1 cycle to 10 cycles 0.300 V to 60.000 V

Increments of 1 cycle Increments of 0.001 V

Setting Values for Stage Types
Pickup value of V2/V1 Operate delay Dropout ratio

0.50 % to 100.00 % 0.00 s to 60.00 s 0.90 to 0.99

Increments of 0.01 % Increments of 0.01 s Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Pickup times

Dropout times

55 ms to 210 ms + OOT146 (depends on the measuring-window length) at 50 Hz 48 ms to 190 ms + OOT (depends on the measuring-window length) at 60 Hz 22 ms to 55 ms + OOT (depends on the measuring-window length) at 50 Hz 18 ms to 45 ms + OOT (depends on the measuring-window length) at 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances
Voltages Time delays

0.50 % of the setting value or 0.050 V 1.00 % of the setting value or 10 ms

146 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays

1750

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.40 Undervoltage Protection with 3-Phase Voltage

12.40 Undervoltage Protection with 3-Phase Voltage

Setting Values for the Function Stabilization counter

0 to 10

Increments of 1

Setting Values for Stage Type Definite-Time Undervoltage Protection

Measured value

Method of measurement

Current-flow criterion

Threshold value I>
Threshold value147 Time delay Dropout ratio

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Phase-to-phase Phase-to-ground Fundamental component RMS value On Off 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.300 V to 175.000 V
0.00 s to 60.00 s 1.01 to 1.20

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 V
Increments of 0.01 s Increments of 0.01

Setting Values for Stage Type Inverse-Time Undervoltage Protection

Measured value

Method of measurement

Current-flow criterion

Threshold value I>
Threshold Pickup factor Characteristic constant k Characteristic constant  Characteristic constant c Time multiplier Additional time delay Reset time

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Phase-to-phase Phase-to-ground Fundamental component RMS value On Off 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.300 V to 175.000 V 0.80 to 1.00 0.00 to 300.00 0.010 to 5.000 0.000 to 5.000 0.05 to 15.00 0.00 s to 60.00 s 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 V Increments of 0.01 Increments of 0.01 Increments of 0.001 Increments of 0.001 Increments of 0.01 Increments of 0.01 s Increments of 0.01 s

Operate Curve

Top=TInv+Tadd

Where:

Top

Operate delay

147 If you have selected the Method of measurement = RMS value, do not set the threshold value under 10 V.
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1751

Technical Data 12.40 Undervoltage Protection with 3-Phase Voltage

TInv

Inverse-time delay

Tadd

Additional time delay (parameter Additional time delay)

[fo_UVP3ph_inverse, 2, en_US]

Where
TInv Tp V VThresh k  c

Inverse-time delay
Time multiplier (parameter Time dial) Measured undervoltage Threshold value (parameter Threshold) Curve constant k (parameter Charact. constant k) Curve constant  (parameter Charact. constant ) Curve constant c (parameter Charact. constant c)

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms, typical
Operate time with time delay = 0 ms, maximum
Dropout time, typical Dropout time, maximum

Approx. 25 ms + OOT148 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive, maintained; Dropout of the pickup induced by blocking or by increasing the measurand beyond the dropout threshold

148 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

1752

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.40 Undervoltage Protection with 3-Phase Voltage

Tolerances for Stage Type Definite-Time Undervoltage Protection

Voltages Currents
Time delays

0.5 % of the setting value or 0.05 V
1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A, frated � 10 %), valid for protection-class current transformers
1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A, frated � 10 %), valid for instrument transformers
1 % of the setting value or 10 ms

Tolerances for Stage Type Inverse-Time Undervoltage Protection

Voltages Currents
Operate time for 0 < V/VThresh < 0.9 Reset time delay

0.5 % of the setting value or 0.05 V
1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A, frated � 10 %), valid for protection-class current transformers
1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A, frated � 10 %), valid for instrument transformers
5 % of the setting value or 30 ms
1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1753

Technical Data 12.41 Undervoltage Protection with Positive-Sequence Voltage

12.41 Undervoltage Protection with Positive-Sequence Voltage

Setting Values Threshold value Time delay Dropout ratio Current-flow criterion
Threshold value I>

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

0.300 V to 200.000 V 0.00 s to 60.00 s 1.01 to 1.20 On Off 0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A

Increments of 0.001 V Increments of 0.01 s Increments of 0.01
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms, typical
Operate time with time delay = 0 ms, maximum
Dropout time, typical Dropout time, maximum

Approx. 25 ms + OOT149 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive, maintained; Dropout of the pickup induced by blocking or by increasing the measurand beyond the dropout threshold

149 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

1754

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Tolerances Voltages Currents
Time delays

Technical Data 12.41 Undervoltage Protection with Positive-Sequence Voltage
0.5 % of the setting value or 0.05 V 1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A, frated � 10 %), valid for protection-class current transformers 1 % of the setting value or 0.1 mA (Irated = 1.6 A) or 0.5 mA (Irated = 8 A, frated � 10 %), valid for instrument transformers 1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1755

Technical Data 12.42 Undervoltage Protection with Any Voltage

12.42 Undervoltage Protection with Any Voltage

Setting Values Measured value
Method of measurement Threshold value150 Time delay Dropout ratio

Measured phase-to-ground voltage VA Measured phase-to-ground voltage VB Measured phase-to-ground voltage VC Measured phase-to-phase voltage VAB Measured phase-to-phase voltage VBC Measured phase-to-phase voltage VCA Calculated phase-to-phase voltage VAB Calculated phase-to-phase voltage VBC Calculated phase-to-phase voltage VCA Calculated voltage V0 Fundamental component RMS value 0.300 V to 340.000 V
0.00 s to 60.00 s 1.01 to 1.20

Increments of 0.001 V Increments of 0.01 s Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for the overvoltage and of 105 % for the undervoltage functionality.

Minimum absolute dropout differential

150 mV sec.

Times

Operate time with time delay = 0 ms, typical
Operate time with time delay = 0 ms, maximum
Dropout time, typical Dropout time, maximum

Approx. 25 ms + OOT151 at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 30 ms + OOT at 50 Hz Approx. 26 ms + OOT at 60 Hz Approx. 25 ms + OOT Approx. 30 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive, maintained; Dropout of the pickup induced by blocking or by increasing the measurand beyond the dropout threshold

150 If you have selected the method of measurement = RMS value, do not set the threshold value under 10 V. 151 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

1756

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Tolerances
Voltages Time delays

Technical Data 12.42 Undervoltage Protection with Any Voltage
0.5 % of the setting value or 0.05 V 1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1757

Technical Data 12.43 Overfrequency Protection

12.43 Overfrequency Protection

Setting Values Pickup values f>
Dropout differential Time delay T Minimum voltage

Angle difference method 40.00 Hz to 90.00 Hz Filtering method 40.00 Hz to 70.00 Hz 20 mHz to 2 000 mHz 0.00 s to 600.00 s 3.000 V to 175.000 V

Increments of 0.01 Hz
Increments of 0.01 Hz Increments of 10 mHz Increments of 0.01 s Increments of 0.001 V

Times

Pickup times f>

Dropout times f>

Angle difference method 50 Hz 60 Hz
Filtering method 50 Hz 60 Hz 60 ms to 80 ms

Approx. 70 ms + OOT152 Approx. 60 ms + OOT
Approx. 79 ms + OOT Approx. 65 ms + OOT

Dropout

The larger dropout differential (= | pickup value � dropout threshold |) of the following 2 criteria is used:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 99.97 % applies to the overfrequency protection.

Minimum absolute dropout differential

5 mHz

Operating Ranges
Voltage range Frequency range

5 V to 230 V (phase-phase)

Angle difference method 10 Hz to 90 Hz

Filtering method

25 Hz to 80 Hz

Tolerances
Frequency f> frated - 0.20 Hz < f < frated + 0.20 Hz frated - 3.0 Hz < f < frated + 3.0 Hz Time delay T(f>) Minimum voltage

� 5 mHz at V = Vrated � 10 mHz at V = Vrated 1 % of the setting value or 10 ms 1 % of the setting value or 0.5 V

152 OOT (Output Operating Time): Additional delay of the output medium used, for example, 5 ms with fast relays, see chapter 12.1.4 Relay Outputs

1758

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.44 Underfrequency Protection

12.44 Underfrequency Protection

Setting Values
Pickup values f< Dropout differential Time delay T Minimum voltage

30.00 Hz to 70.00 Hz 20 mHz to 2 000 mHz 0.00 s to 600.00 s 3.000 V to 175.000 V

Increments of 0.01 Hz Increments of 10 mHz Increments of 0.01 s Increments of 0.001 V

Times

Pickup times f<

Dropout times f<

Angle difference method 50 Hz 60 Hz
Filtering method 50 Hz 60 Hz 60 ms to 80 ms

Approx. 70 ms + OOT153 Approx. 60 ms + OOT
Approx. 75 ms + OOT Approx. 64 ms + OOT

Dropout

The larger dropout differential (= | pickup value � dropout threshold |) of the following 2 criteria is used:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not present, a dropout ratio of 100.03 % applies to the underfrequency protection.

Minimum absolute dropout differential

5 mHz

Operating Ranges
Voltage range Frequency range

5 V to 230 V (phase-phase)

Angle difference method 10 Hz to 90 Hz

Filtering method

25 Hz to 80 Hz

Tolerances
Frequency f< frated - 0.20 Hz < f < frated + 0.20 Hz frated - 3.0 Hz < f < frated + 3.0 Hz Time delay T(f<) Minimum voltage

� 5 mHz at V = Vrated � 10 mHz at V = Vrated 1 % of the setting value or 10 ms 1 % of the setting value or 0.5 V

153 OOT (Output Operating Time): Additional delay of the output medium used, for example, 5 ms with fast relays, see chapter 12.1.4 Relay Outputs

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1759

Technical Data 12.45 Underfrequency Load Shedding

12.45 Underfrequency Load Shedding

Setting Values for the Function

Minimum voltage Minimum current Power angle Positive power direction
Threshold value for the df/dt-rising rate or df/dt-falling rate df/dt measuring window df/dt dropout differential f < stabilization counter

0.300 p.u. to 0.900 p.u. 0.020 p.u. to 0.200 p.u. -30� to 30� inv. to CT neu.pnt sett. acc. to CT neu.pnt sett. 0.1 Hz/s to 20.0 Hz/s
2 periods to 5 periods 0.02 Hz/s to 0.99 Hz/s 1 to 20

Increments of 0.001 p.u. Increments of 0.001 p.u. Increments of 1�
Increments of 0.1 Hz/s
Increments of 1 period Increments of 0.10 Hz/s Increments of 1

Setting Values for the Stage
Pickup threshold Dropout differential Time delay

40.00 Hz to 70.00 Hz 20 mHz to 2000 mHz 0.00 s to 60.00 s

Increments of 0.01 Hz Increments of 10 mHz Increments of 0.01 s

Times

Pickup times with stabilization counter = 6 Dropout time

Approx. 85 ms + OOT154 at 50 Hz Approx. 80 ms + OOT at 60 Hz Approx. 80 ms + OOT at 50 Hz Approx. 75 ms + OOT at 60 Hz

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout Frequency df/dt-rising rate and df/dt-falling rate Voltage V1 Current I1
Power angle Minimum absolute dropout differential Protection-class current transformer
Instrument current transformer
Voltage transformer

0.01 Hz 0.1 Hz/s 105 % of the threshold value 105 % of the threshold value at   0 95.23 % of the threshold value at  > 0 1�
15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A) 0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A) 150 mV sec.

Tolerances
Frequency f< frated - 0.20 Hz < f < frated + 0.20 Hz

� 5 mHz at V = Vrated

154 OOT (Output Operating Time): additional time delay of the output medium used, for example, 5 ms with fast relay

1760

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

frated - 3.0 Hz < f < frated + 3.0 Hz df/dt, measuring window > 3 periods df/dt, measuring window  3 periods Minimum voltage Minimum current
Power angle Time delays
Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

Technical Data 12.45 Underfrequency Load Shedding
� 10 mHz at V = Vrated Approx. 3 % or 0.06 Hz/s Approx. 5 % or 0.06 Hz/s 0.5 % of the setting value or 0.05 V 1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %) 1� 1 % of the setting value or 10 ms
According to specified tolerances Slightly expanded tolerances
Active

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1761

Technical Data 12.46 Rate of Frequency Change Protection

12.46 Rate of Frequency Change Protection

Setting Values for the Function
Minimum voltage Measuring window

3.000 V to 175.000 V 2 periods to 5 periods

Increments of 0.001 V Increments of 1 period

Setting Values for Stage Types
Threshold Dropout differential Operate delay

0.100 Hz/s to 20.000 Hz/s 0.02 Hz/s to 0.99 Hz/s 0.00 s to 60.00 s

Increments of 0.025 Hz/s Increments of 0.01 Hz/s Increments of 0.01 s

Dropout

Frequency

Parameterizable dropout differential

Minimum voltage

The larger dropout differential (= | pickup value � dropout threshold |) of the following 2 criteria is used:

Dropout differential derived from Dropout ratio 105 % for the Minimum voltage parameter

Minimum absolute dropout differential

150 mV secondary

Times

Pickup time

Dropout time

Approx. 160 ms + OOT155 to 220 ms + OOT (depends on measuring window length)
at 50 Hz
Approx. 140 ms + OOT to 200 ms + OOT (depends on measuring window length)
at 60 Hz
Approx. 160 ms + OOT to 220 ms + OOT (depends on measuring window length)
at 50 Hz
Approx. 140 ms + OOT to 200 ms + OOT (depends on measuring window length)
at 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances
Threshold, measuring window > 3 periods Threshold, measuring window  3 periods

Approx. 3 % or 0.060 Hz/s Approx. 5 % or 0.060 Hz/s

155 OOT (Output Operating Time): Additional delay of the output medium used, for example, 5 ms with fast relays, see chapter 12.1.4 Relay Outputs

1762

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Minimum voltage Time delays
Functional Measured Value Value df/dt

Technical Data 12.46 Rate of Frequency Change Protection
1 % of the setting value or 0.5 V 1 % of the setting value or 10 ms
Description Calculated rate of frequency change

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1763

Technical Data 12.47 Vector-Jump Protection
12.47 Vector-Jump Protection
Setting Values
Threshold V1 min Threshold V1 max Threshold  Operate delay T Reset T Block I< Threshold

Times

Pickup times Dropout times

Frequency Operating Range frated - 3 Hz  f or frated  frated + 3 Hz f < frated - 3 Hz or f > frated + 3 Hz
Tolerances Angle jump Voltage blocking Undercurrent release
Time delay T

0.300 V to 175.000 V 0.300 V to 175.000 V 2.0� to 30.0� 0.00 s to 60.00 s 0.00 s to 60.00 s 0.00 s to 60.00 s 0.030 A to 35.000 A at 1 A 0.150 A to 175.000 A at 5 A

Increments of 0.001 V Increments of 0.001 V Increments of 0.1� Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s Increments of 0.001 A

Approx. 80 ms + OOT 156at 50 Hz Approx. 66.8 ms + OOT at 60 Hz Approx. 80 ms + OOT at 50 Hz Approx. 66.8 ms + OOT at 60 Hz
According to specified tolerances Inactive

0.5� at V > 0.5 Vrated 1 % of the setting value or 0.500 V For Irated = 1 A: 1 % of the setting value or 10 mA For Irated = 5 A: 1 % of the setting value or 50 mA 1 % or 10 ms

156 OOT (Output Operating Time): additional delay of the output medium used. You can find more information in chapter 12.1.4 Relay Outputs.

1764

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.48 Power Protection (P,Q), 3-Phase

12.48 Power Protection (P,Q), 3-Phase

Setting Values Measured value
Threshold value Tilt-power characteristic Dropout delay time Time delay Dropout ratio

Positive sequence power Power of phase A Power of phase B Power of phase C -200.0 % to +200.0 % -89.0� to +89.0� 0.00 s to 60.00 s 0.00 s to 60.00 s Upper stage: 0.90 to 0.99 Lower stage: 1.01 to 1.10

Increments of 0.1 Increments of 0.1� Increments of 0.01 s Increments of 0.01 s Increments of 0.01 Increments of 0.01

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

Minimum absolute dropout differential

0.5 % Srated

Times

Pickup times Dropout times

Approx. 55 ms + OOT157 at 50 Hz Approx. 45 ms + OOT at 60 Hz Approx. 55 ms + OOT at 50-Hz Approx. 45 ms + OOT at 60 Hz

Tolerances Power
Time delays

0.5 % Srated � 3 % of setting value (Srated: rated apparent power) 1 % of the setting value or 10 ms

Variables That Influence Pickup Values
Auxiliary DC voltage in the range 0.8  Vaux./ Vaux.,rated  1.15 Frequency in the range 0.95  f/frated  1.05 Harmonics - Up to 10 % of 3rd harmonics - Up to 10 % of 5th harmonics

 1 %
 1 %  1 %  1 %

Frequency Operating Range
0.9  f/frated  1.1 10 Hz < f < 0.9 frated 1.1 frated < f f  10 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

157 OOT (Output Operating Time): additional delay of the output medium used, see Chapter 12.1.4 Relay Outputs

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1765

Technical Data 12.49 Reverse-Power Protection

12.49 Reverse-Power Protection

Setting Values
Reverse power Preverse (p.u.) Angle correction Minimum voltage V1 Tripping delay Tripping delay with quick stop Dropout delay Dropout ratio

-0.30 % to -30.00 %
-10.00 � to 10.00 � 0.300 V to 60.000 V 0.00 s to 60.00 s 0.00 s to 60.00 s 0.00 s to 60.00 s 0.40 to 0.99

Increments of 0.01 %
Increments of 0.01 � Increments of 0.001 V 0.00 s to 60.00 s 0.00 s to 60.00 s Increments of 0.01 s Increments of 0.01

Dropout

Reverse power Preverse (p.u.)

Times

Pickup times

Dropout times

Parameterizable dropout differential
Approx. 360 ms at f = 50 Hz Approx. 300 ms at f = 60 Hz Approx. 360 ms at f = 50 Hz Approx. 300 ms at f = 60 Hz

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Tolerances Reverse power
Time delays

0.15 % Srated or 5 % of the setting value when Q < 0.5 Srated 1 % or 10 ms

1766

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.50 Overexcitation Protection

12.50 Overexcitation Protection

Setting Values
Threshold value (Inverse-time characteristic curve pickup) Threshold value (Definite-time characteristic curve pickup) Time delay (warning delay and tripping delay) Characteristic value pairs
Ranges of values V/f t
Cooling time therm. replica

1.00 to 1.20

Increments of 0.01

1.00 to 1.40

Increments of 0.01

0.00 s to 60.00 s 2 to 30 1.00 p.u. to 10.00 p.u. 0 s to 100 000 s 0 s to 100 000 s

Increments of 0.01 s
Increments of 0.01 p.u. Increments of 1 s Increments of 1 s

Functional Measured Values

Measured Value (_:2311:322) V/f (_:13591) Therm.charact.

Description
Value calculated from voltage and frequency.
Thermal tripping of the overexcitation protection. If the value reaches 100 %, tripping occurs.

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Inactive

Operating Times
Operate times/dropout times Operate time at frequency Minimum Dropout time

50 Hz 33 ms + OOT1 10 ms + OOT1

60 Hz 30 ms + OOT158 10 ms + OOT1

Dropout Ratios Warning, tripping (independent stage)

Approx. 0.98

Operate Curve Thermal replica

For default setting refer to the following characteristic curve Figure 12-27

Tolerances
V/f pickup Time delays Thermal replica

2 % of the setting value 1 % of the setting value or 10 ms (min. 1.5 periods) 5 % based on V/f � 600 ms

158 Refer to protection functions, for example overcurrent protection

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1767

Technical Data 12.50 Overexcitation Protection
Voltage measurement accuracy
Frequency measurement accuracy
Influencing Quantities Auxiliary direct voltage in the 0.8 range Time delays Thermal replica Harmonics up to 10 % of 3rd harmonics up to 10 % of 5th harmonics

0.5 % of the setting value or 0.5 V in the range fn � 10 % 1.0 % of the setting value or 1.0 Hz in the frequency range 10 Hz to 90 Hz
 1 %  0.5 %/10 K  1 %
 1 %  1 %

[dwrsasuf-070513-01.tif, 1, en_US]
Figure 12-27 Operate Curve from the Thermal Replica of the Overexcitation Protection (Default Setting)

1768

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.51 Undervoltage-Controlled Reactive-Power Protection

12.51 Undervoltage-Controlled Reactive-Power Protection

Setting Values

Threshold value

Power Q

Voltage of protection stage

Voltage of reclosure stage

Current I1 release threshold

1 A @ 50 and 100 Irated 5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Operate delay

Release time delay of reclosure stage

1.00 % to 200.00 % 3.000 to 175.000
3.000 V to 340.000 V
0.030 A to 10.000 A 0.15 A to 50.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 60.00 s 0.00 s to 3600.00 s

Increments of 0.01 % Increments of 0.001 V
Increments of 0.001 V
Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s Increments of 0.01 s

Dropout Ratio
Protection stage Reactive-power flow Q Voltage Release current
Reclosure stage Voltage Release current

Approx. 0.95 Approx. 1.02 Approx. 0.95
Approx. 0.98 Approx. 0.95

Times

Pickup time Dropout time

Approx. 55 ms + OOT159 at 50 Hz Approx. 45 ms + OOT at 60 Hz Approx. 55 ms + OOT at 50 Hz Approx. 45 ms + OOT at 60 Hz

Tolerances Current I1
Voltage Power Q
Time delays Reclosure time delay

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A) 0.5 % of the setting value or 0.05 V 0.5 % Srated � 3 % of the setting value (Srated: rated apparent power) 1 % of the setting value or 10 ms 1 % of the setting value or 10 ms

159 OOT (Output Operating Time): additional delay of the output medium used, for example 5 ms with fast relays
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1769

Technical Data 12.51 Undervoltage-Controlled Reactive-Power Protection
Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

1770

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.52 Circuit-Breaker Failure Protection

12.52 Circuit-Breaker Failure Protection

Starting Conditions For circuit-breaker failure protection

3-pole tripping internal or external160

Setting Values

Phase-current threshold 1 A @ 100 Irated

values

1 A @ 50 Irated

5 A @ 100 Irated

5 A @ 50 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Sensitive threshold value 1 A @ 100 Irated

1 A @ 50 Irated

5 A @ 100 Irated

5 A @ 50 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Supervision time of release signal

Time delays T1

Time delays T2

Supervision times of the binary inputs

0.030 A to 35.000 A
0.15 A to 175.00 A
0.001 A to 1.600 A 0.005 A to 8.000 A 0.030 A to 35.000 A
0.15 A to 175.00A
0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 1.00 s 0.000 s to 60.000 s 0.050 s to 60.000 s 0.05 s to 60.00 s

Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s Increments of 0.001 s Increments of 0.001 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup threshold � dropout threshold |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies to the current threshold values.

Minimum absolute dropout differential

Protection-class current transformers

15 mA sec. (Irated = 1 A) or

75 mA sec. (Irated = 5 A)

Instrument transformers

0.5 mA sec. (Irated = 1 A) or

2.5 mA sec. (Irated = 5 A)

Circuit-Breaker Supervision

Position supervision via circuit-breaker auxiliary contacts

For 3-pole CB tripping

1 input each for make contact and break contact

i

NOTE The circuit-breaker failure protection can also work without the circuit-breaker auxiliary contacts stated.

Auxiliary contacts are required for circuit-breaker failure protection in cases where the current flow is

absent or too low for tripping (for example with a transformer or a Buchholz protection).

160 Via binary inputs
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1771

Technical Data 12.52 Circuit-Breaker Failure Protection

Times

Pickup time, in the case of an internal start Pickup time, in the case of an external start
Typical dropout time
Dropout time, via circuit-breaker auxiliary contact criterion161

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

Tolerances
Threshold values, dropout thresholds Times

< 1 ms < 5 ms < 15 ms < 5 ms
According to specified tolerances Slightly expanded tolerances
Active
2 % of the setting value or 1 % of the rated current 1 % of the setting value or 10 ms

161 The use of the transformer connection types 2ph, 2p. CT + IN-sep result in slightly expanded tolerances

1772

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.53 Circuit-Breaker Restrike Protection

12.53 Circuit-Breaker Restrike Protection

Setting Values

Threshold value

1 A @ 50 and 100 Irated

5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Monitoring duration

Position recognition delay

Dropout delay

Trip delay time

Retrip delay time

Minimum operate (trip) time

0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 1.00 s to 600.00 s 0.00 s to 60.00 s 0.00 s to 60.00 s 0.05 s to 60.00 s 0.00 s to 60.00 s 0.00 s to 60.00 s

Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s Increments of 0.01 s

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

Operate time with time delay = 0 ms Dropout time

Approx. 25 ms + OOT at 50 Hz Approx. 22 ms + OOT at 60 Hz Approx. 20 ms + OOT

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Slightly expanded tolerances
Active

Tolerances Threshold
Time delays

1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A)
1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1773

Technical Data 12.54 Restricted Ground-Fault Protection

12.54 Restricted Ground-Fault Protection

Setting Values

Threshold value162

0.05 A to 2.00 A

Increments of 0.01 A

Gradient

0.00 to 0.95

Increments of 0.01

Operate curve

See figure

Pickup tolerance

2 %

(for preset characteristic curve parameters; for 2 sides with 1 measuring point each)

Tripping delay

0.00 s to 60.00 s or

Increments of 0.01 s

(no tripping)

Timer tolerance

1 % of the setting value or 10 ms

Functional Measured Values Measured Value (_:306) I REF,operate
(_:307) I Angle,REF
(_:311) I REF,Trip operate
(_:312) I angle,REF operate
(_:301) I diff. (_:302) I restr.

Description
Operate quantity of the restricted ground-fault protection from the angle criterion and can be displayed in the fault record
Stabilizing value (angle) of the restricted ground-fault protection from the angle criterion and can be displayed in the fault record
Operate quantity of the restricted ground-fault protection when OFF; will be issued in the log
Stabilizing value of the restricted ground-fault protection when OFF; will be issued in the log
Differential current; can be displayed in the fault record
Restraint current; can be displayed in the fault record

Dropout Ratio

Threshold value

0.7

Dropout

The greater dropout differential (= | pickup value � dropout value |) of the following 2 criteria applies:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies for overcurrent and of 105 % for undercurrent functionality.

Minimum absolute dropout differential

Protection-class current transformer

15 mA sec. (Irated = 1 A) or 75 mA sec. (Irated = 5 A)

Instrument current transformer

0.5 mA sec. (Irated = 1 A) or 2.5 mA sec. (Irated = 5 A)

Times

7UT82/7UT85/7UT86/7UT87 Frequency

50 Hz Operate time

60 Hz Operate time

162 The specified setting limit can be dynamically further limited, depending on the transformer adaptation factor, (for this refer to chapter 6.44.4 Application and Setting Notes).

1774

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

At 1.5 � setting value threshold value At 2.5 � setting value threshold value Dropout time approx.

33 ms + OOT 27 ms + OOT 80 ms

Technical Data 12.54 Restricted Ground-Fault Protection
32 ms + OOT 26 ms + OOT 67 ms

[dwausken-170712-01.tif, 2, en_US]
Figure 12-28 Restricted Ground-Fault Protection Operate Curve Depending on the Phase Angle between IY* and 3I0* with Extended Operate Range.

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1775

Technical Data 12.55 External Trip Initiation

12.55 External Trip Initiation

Setting Values Tripping delay

Times

Operate time with time delay = 0 ms - At initiation via binary input signal

Tolerance Sequence tolerance for delay times

0.00 s to 60.00 s

Increments of 0.01 s

Approx. 10 ms + OOT 163.

1 % of the setting value or 10 ms

163 OOT (Output Operating Time) additional delay of the output medium used, for example 5 ms with fast relays, see chapter 12.1.4 Relay Outputs

1776

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.56 Automatic Reclosing

Technical Data 12.56 Automatic Reclosing

Function specifications

Cyclic automatic reclosing function

Automatic reclosing function with adaptive dead time (ADT)

Operation with External Automatic Reclosing Function

Number of reclosings

Max. 8, per individual settings

Type (depending on the order variation)

1-pole, 3-pole, or 1-/3-pole

Operating mode of the automatic With trip command, without action time

reclosing function

With trip command, with action time

With pickup, without action time

With pickup, with action time

Reclaim time after reclosing

0.50 s to 300.00 s

Increments of 0.01 s

Blocking time after dynamic

0.5 s

-

blocking

Blocking time after manual closure 0.00 s to 300.00 s

Increments of 0.01 s

Start supervision time

0.01 s to 300.00 s

Increments of 0.01 s

Circuit-breaker supervision time 0.01 s to 300.00 s

Increments of 0.01 s

Evolving-fault detection

With trip command

With Pickup

Reaction to evolving faults

Blocks Automatic reclosing function

Start, evolving fault, dead time

Action times (separated for all cycles)

0.00 s to 300.00 s or oo (ineffec- Increments of 0.01 s tive)

Dead times after trip command (separated for all types and all cycles)

0.00 s to 1 800.00 s or oo (ineffec- Increments of 0.01 s tive)

Dead time after evolving-fault

0.00 s to 1 800.00 s

detection (separated for all cycles)

Increments of 0.01 s

Synchrocheck after 3-pole dead time

None Internal

External

Transmission delay, inter close command

0.00 s to 300.00 s or oo (ineffec- Increments of 0.01 s tive)

Dead-line check/reduced dead time Without

Reduced dead time (VWE)

Dead line checking

Voltage supervision warning time 0.10 s to 30.00 s

Increments of 0.01 s

Limiting value for fault-free line 0.3 V to 340.0 V

Increments of 0.1 V

Limiting value for zero potential 0.3 V to 340.0 V

Increments of 0.1 V

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1777

Technical Data 12.57 Fault Locator

12.57 Fault Locator

Setting Values

Reactance per unit length of the line per kilometer or per mile

Line length for the correct output of the fault distance as a percentage of the line length

The residual compensation factors in the setting format Kr and Kx or K0 and angle (K0)

Consideration of the load current for 1-pole ground Correction of the X value, for connection and discon-

faults

nection

Fault Distance Output of the fault distance (line length)

In  primary and secondary In km, miles or in percent. 164

Tolerances
Measuring tolerances during sinusoidal measurands and error duration > 25 ms at 60 Hz or > 30 ms at 50 Hz

1.5 % from fault location at VK/Vrated  0.01 and one of the following scenarios:
� Metal fault � Non-metallic fault for one-side infeed without
load

164 The output of the fault distance in km, miles and percent presupposes a homogenous line.

1778

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.58 Fault Locator Plus

12.58 Fault Locator Plus

Setting Values

� Cb per length unit, C0 per length unit, and X per length unit of the line per kilometer or per mile

� Line angle in �

� Line length for the correct output of the fault distance in km or miles and percent of the line length

� The residual compensation factors in the setting format Kr and Kx or K0 and angle (K0)

Consideration of the load current in the case of 1-

Correction of the X value, for connection and discon-

phase ground faults

nection

Output Values

Output of the fault distance (line length), for non- In km, miles, or percent homogeneous lines with indication of the line section

Output of the fault resistance, fault contact resistance, and fault reactance

In  primary and secondary

Tolerances
Measuring tolerances during sinusoidal measurands and fault duration > 25 ms at 60 Hz or > 30 ms at 50 Hz

1.5 % from fault location165 with VK/Vrated  0.01 and IF/Irated  0.1

165 Tolerance referenced to the total line length
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1779

Technical Data 12.59 Temperature Supervision

12.59 Temperature Supervision

Setting Values Pickup value
Time delay

-50 �C to 250 �C -58 �F to 482 �F 0 s to 60 s or

Increments of 1�C Increments of 1�F Increments of 1 s

Dropout

Dropout differential

3 �C or 6 �F

Tolerances
Tripping delay Measured temperature value

�1 % of the setting value or �10 ms �0.5 % of the setting value or �1 �C or �2 �F

1780

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.60 Current-Jump Detection

Times

Pickup time

Frequency Operating Range
0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz
Tolerances
Currents

Pulse time

Technical Data 12.60 Current-Jump Detection
Approx. 10 ms + OOT166 at 50 Hz Approx. 8 ms + OOT at 60 Hz
According to specified tolerances Slightly expanded tolerances Inactive
3 % of setting value or 10 mA (Irated = 1 A) or 50 mA (Irated = 5 A), (frated � 10 %) for amplitude changes of sinusoidal measurands 1 % of the setting value or 10 ms

166 OOT (Output Operating Time) additional delay of the output medium used, for example 5 ms with fast relays
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1781

Technical Data 12.61 Voltage-Jump Detection

12.61 Voltage-Jump Detection

Times

Pickup time

Frequency Operating Range 0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz
Tolerances Voltages
Pulse time

Approx. 10 ms + OOT167 at 50 Hz Approx. 8 ms + OOT at 60 Hz
According to specified tolerances Slightly expanded tolerances
Inactive
2 % of the setting value or 0.100 V for amplitude changes of sinusoidal measurands 1 % of the setting value or 10 ms

167 OOT (Output Operating Time) additional delay of the output medium used, for example 5 ms with fast relays

1782

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.62 Synchronization Function

12.62 Synchronization Function

Operating Modes
Synchrocheck Switching synchronous systems Switching asynchronous systems Switching synchronous/asynchronous systems with balancing commands De-energized switching Direct closing command Balancing Voltage Balancing Frequency

Setting Values

Supervision/Delay/Pulse times:

Max.durat. sync.process

0.00 s to 3 600.00 s or  (ineffec- Increments of 0.01 s tive)

Supervision time de-energized switching

0.00 s to 60.00 s

Increments of 0.01 s

Closure delay

0.00 s to 60.00 s

Increments of 0.01 s

T V pulse min/T f pulse min

0.01 s to 1.00 s

Increments of 0.01 s

T V pulse max/T f pulse max

0.01 s to 60.00 s

Increments of 0.01 s

T pause V/T pause f

0.01 s to 60.00 s

Increments of 0.01 s

T close without balancing

1.00 s to 100.00 s

Increments of 0.01 s

Voltage threshold values:

Upper voltage limit Vmax

0.300 V to 340.000 V (phase-tophase)

Increments of 0.001 V

Lower voltage limit Vmin

0.300 V to 340.000 V (phase-tophase)

Increments of 0.001 V

V<, for off-circuit conditions V>, for voltage present

0.300 V to 170.000 V (phase-tophase)
0.300 V to 340.000 V (phase-tophase)

Increments of 0.001 V Increments of 0.001 V

Differential values, changeover thresholds asynchronous/synchronous/balancing/adjusting commands:

Voltage differences

0.000 V to 170.000 V

Increments of 0.001 V

V2 > V1; V2 < V1

Frequency difference f2 > f1; f2 < f1

0.000 Hz to 2.000 Hz (synchronous)

Increments of 0.001 Hz

0.000 Hz to 4.000 Hz (asynchronous)

Angle difference 2 > 1; 2 < 1 0o to 90o

Increments of 1o

f threshold ASYN <-> SYN

0.010 Hz to 0.200 Hz

Increments of 0.001 Hz

f set point for balancing

-1.00 Hz to 1.00 Hz

Increments of 0.01 Hz

f for the kick pulse

-1.00 Hz to 1.00 Hz

Increments of 0.01 Hz

Adjustments of the sides:

Angle adjustment

0.0o to 360.0o

Increments of 0.1o

Voltage adjustment

0.500 to 2.000

Increments of 0.001

Circuit breaker

Closing time of the circuit breaker 0.01 s to 0.60 s

Increments of 0.01 s

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1783

Technical Data 12.62 Synchronization Function

Dropout Ratio
Min./max. operating limit Voltage differential De-energized/energized Frequency difference Angle difference

1 % of the setting value 10 % of the setting value or 0.5 V 5 % of the setting value 3 mHz 0.1o

Measured Values of the Synchronization Function
Reference voltage V1
� Range � Tolerance at rated frequency
Voltage to be synchronized V2
� Range � Tolerance at rated frequency
Frequency of the voltage V1f1
� Range � Tolerance at rated frequency
Frequency of the voltage V1f2
� Range � Tolerance at rated frequency
Voltage difference V2-V1
� Range � Tolerance at rated frequency
Frequency difference f2-f1
� Range � Tolerance at rated frequency
Angle difference 2-1
� Range � Tolerance at rated frequency

In kV primary, in V secondary or in % Vrated Display always as phase-to-phase voltage 10 % to 120 % of Vrated  1 % of the measured value or 0.5 % Vrated In kV primary, in V secondary or in % Vrated Display always as phase-to-phase voltage 10 % to 120 % of Vrated  1 % of the measured value or 0.5 % Vrated f1 in Hz 25 Hz  f  70 Hz 1 mHz
f2 in Hz 25 Hz  f  70 Hz 1 mHz
In kV primary, in V secondary or in % Vrated Display always as phase-to-phase voltage in relation to side 1 10 % to 120 % of Vrated  1 % of the measured value or 0.5 % Vrated
In mHz frated � 10 % 1 mHz
In o -180o to +180o 0.5o

Times

Measuring time, after switching on the variables

Approx. 80 ms

Operating Range Voltage Frequency
Tolerances Tolerances of the voltage settings Voltage difference V2>V1; V2<V1

20 V to 340 V frated - 4 Hz  frated  frated + 4 Hz
2 % of the pickup value or 1 V 1 V

1784

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Frequency difference f2>f1; f2<f1 Angle difference 2>1; 2<1 Pulse time
Tolerance of all time settings Max. phase displacement angle

Technical Data 12.62 Synchronization Function
10 mHz 1o 1 % of the calculated impulse or 10 ms 10 ms 5o for f  1 Hz 10o for f > 1 Hz

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1785

Technical Data 12.63 Voltage Controller

12.63 Voltage Controller

Setting Values

General Information

I reference for % values168

0.20 A to 100000.00 A

V reference for % values169

0.20 kV to 1200.00 kV

Rated app. power transf.170

0.20 MVA to 5000.00 MVA

Volt. cont. 2W

Target voltage 1

Target voltage 2 Target voltage 3

10.000 V to 340.000 V

Target voltage 4

Volt. cont. 3W and GC

Target voltage 1 w1

Target voltage 2 w1

Target voltage 3 w1

Target voltage 4 w1 Target voltage 1 w2

10.000 V to 340.000 V

Target voltage 2 w2

Target voltage 3 w2

Target voltage 4 w2

Volt. cont. 2W, 3W, and GC

Bandwidth

0.2 % to 10.0 %

T1 delay

5 s to 600 s

T1 Inverse Min

5 s to 100 s

T2 delay

0 s to 100 s

Fast step down limit

0.0 % to 50.0 %

Fast step down T delay

0.0 s to 10.0 s

Fast step up limit

-50.0 % to 0.0 %

Fast step up T delay

0.0 s to 10.0 s

Function monitoring

0 min to 120 min

Line compensation LDC-Z

Target voltage rising

0.0 % to 20.0 %

Max load current

0.0 % to 500.0 %

Line compensation LDC-XandR (two-winding transformer)

R line

0.00  to 30.00

X line

-30.00  to 30.00

Line compensation LDC-XandR

R line

0.0  to 30.0

X line

-30.0  to 30.0

Limiting values

Vmin threshold

10.000 V to 340.000 V

Vmin time delay

0 s to 20 s

Vmax threshold

10.000 V to 340.000 V

Increments of 0.01 A Increments of 0.01 kV Increments of 0.01 MVA
Increments of 0.001 V
Increments of 0.001 V
Increments of 0.1 % Increments of 1 s Increments of 1 s Increments of 1 s Increments of 0.1 % Increments of 0.1 s Increments of 0.1 % Increments of 0.1 s Increments of 1 min Increments of 0.1 % Increments of 0.1 % Increments of 0.01  Increments of 0.01  Increments of 0.1  Increments of 0.1  Increments of 0.001 V Increments of 1 s Increments of 0.001 V

168 Only visible in the voltage-control operation without parallel operation 169 Only visible in the voltage-control operation without parallel operation 170 Only visible in the voltage-control operation without parallel operation

1786

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.63 Voltage Controller

Vmax time delay Blockings V< Threshold V< Time delay I> Threshold I> Time delay I< Threshold I< Time delay Parallel control Parallel-transfomer id Maximal tap difference Reactive I control factor VT supervision threshold VT supervision time delay Circul. current threshold Circul. current time delay

0 s to 20 s
10.000 V to 340.000 V 0 s to 20 s 10 % to 500 % 0 s to 20 s 3 % to 100 % 0 s to 20 s
0 to 8 1 to 9 0.01 to 100.00 0.5 % to 10.0 % 1 s to 600 s 10 % to 500 % 0 s to 1000 s

Increments of 1 s
Increments of 0.001 V Increments of 1 s Increments of 1 % Increments of 1 s Increments of 1 % Increments of 1 s
Increments of 1 Increments of 1 Increments of 0.01 Increments of 0.1 % Increments of 1 s Increments of 1 % Increments of 1 s

Measured Values, Two-Winding Transformer

Measured Value V act.
V act.
I load V max
V min
V target
PhAng I load
I circul. Vact.m

Description

Primary

Current, measured positive- kV sequence voltage (referenced to phase-to-phase)

Voltage difference between % the target voltage and the actual voltage

Current measured load current A (positive-sequence system)

Maximum positive-sequence kV voltage ever measured (referenced to phase-to-phase)

Minimum positive-sequence kV voltage ever measured (reference to phase-to-phase)

Calculated target voltage with kV consideration of Z compensation

Phase angle of the currently � measured load current

Sum of the currently measured A load currents. Active when line compensation is activated.

Currently measured circulating A reactive current

Currently measured control kV voltage

Secondary % Referenced to

V

Target voltage of the primary

system referenced to the rated

voltage

%

Voltage difference referenced

to the rated voltage of the

controlled winding

A

Load current referenced to the

rated value of the function

V

Maximum voltage of the

winding referenced to the

rated voltage of the winding

V

Minimum voltage of the

winding referenced to the

rated voltage of the winding

V

Target voltage of the winding

referenced to the rated voltage

of the winding

�

-

A

Load current referenced to the

rated current of the function

A

Circulating reactive current

V

Current voltage of the control

referenced to the rated voltage

of the function

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1787

Technical Data 12.63 Voltage Controller

Measured Value Description

V act V

Voltage difference

V act C

Voltage difference

Primary %
%

Secondary % Referenced to

%

Voltage difference referenced

to the rated voltage of the

function

%

Voltage difference referenced

to the rated voltage of the

function

Measured Values for Parallel Control, Proxy

Measured Value Description

V act.

Actual voltage of winding

Primary kV

1/X trf. I load PhAng

Susceptance, internal value for 1/ GOOSE transmission

Load current

A

Phase angle of the load current � relative to the voltage with a power factor of 1.0

Secondary % Referenced to

V

Target voltage of the primary

system referenced to the rated

voltage of the function

-

Load current referenced to the

rated current of the function

�

Phase angle of the load current

100 % = 180�

Measured Values, Three-Winding Transformer

Measured Value Description

Vact.w1

Actual voltage of winding 1

Primary kV

Vact.w2

Actual voltage of winding 2 kV

V act.
I load w1 I load w2 Vmax 1

Voltage difference between % the target voltage and the actual voltage

Load current of winding 1

A

Load current of winding 2

A

Maximum voltage of winding 1 kV

Vmax 2

Maximum voltage of winding 2 kV

Vmin 1

Minimum voltage of winding 1 kV

Vmin 2

Minimum voltage of winding 2 kV

Secondary % Referenced to

V

Target voltage of the primary

system referenced to the rated

voltage

V

Target voltage of the primary

system referenced to the rated

voltage

%

Voltage difference referenced

to the rated voltage of the

controlled winding

A

Load current referenced to the

rated current of winding 1

A

Load current referenced to the

rated current of winding 2

V

Maximum voltage of winding 1

referenced to the rated voltage

of winding 1

V

Maximum voltage of winding 2

referenced to the rated voltage

of winding 2

V

Minimum voltage of winding 1

referenced to the rated voltage

of winding 1

V

Minimum voltage of winding 2

referenced to the rated voltage

of winding 2

1788

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.63 Voltage Controller

Measured Value Description

V tar.w1

Target voltage of winding 1

V tar.w2

Target voltage of winding 2

Primary kV
kV

Secondary % Referenced to

V

Target voltage of winding 1

referenced to the rated voltage

of winding 1

V

Target voltage of winding 2

referenced to the rated voltage

of winding 2

Measured Values Grid Coupling Transformer

Measured Value Description

Vact.w1

Actual voltage of winding 1

Primary kV

Vact.w2

Actual voltage of winding 2 kV

V act.
I load w1 I load w2 Vmax 1

Voltage difference between % the target voltage and the actual voltage

Load current of winding 1

A

Load current of winding 2

A

Maximum voltage of winding 1 kV

Vmax 2

Maximum voltage of winding 2 kV

Vmin 1

Minimum voltage of winding 1 kV

Vmin 2

Minimum voltage of winding 2 kV

V tar.w1

Target voltage of winding 1 kV

V tar.w2

Target voltage of winding 2 kV

Secondary % Referenced to

V

Target voltage of the primary

system referenced to the rated

voltage

V

Target voltage of the primary

system referenced to the rated

voltage

%

Voltage difference referenced

to the rated voltage of the

controlled winding

A

Load current referenced to the

rated current of winding 1

A

Load current referenced to the

rated current of winding 2

V

Maximum voltage of winding 1

referenced to the rated voltage

of winding 1

V

Maximum voltage of winding 2

referenced to the rated voltage

of winding 2

V

Minimum voltage of winding 1

referenced to rated voltage of

winding 1

V

Minimum voltage of winding 2

referenced to rated voltage of

winding 2

V

Target voltage of winding 1

referenced to the rated voltage

of winding 1

V

Target voltage of winding 2

referenced to the rated voltage

of winding 2

Dropout Ratio
Threshold of the voltage limit Threshold of the current limit

About 0.98 of the setting value About 0.95 of the setting value

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1789

Technical Data 12.64 Current-Balance Supervision

12.64 Current-Balance Supervision

Setting Values Release threshold
Threshold min/max Delay failure indication

1 A @ 100 Irated 1 A @ 50 Irated 5 A @ 100 Irated 5 A @ 50 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated

Dropout Ratio
Overcurrent dropout ratio Undercurrent dropout ratio

Times

Tripping time Dropout time

0.030 A to 35.000 A
0.15 A to 175.00 A
0.001 A to 1.600 A 0.005 A to 8.000 A 0.10 to 0.95 0.00 s to 100.00 s

Increments of 0.001 A
Increments of 0.01 A
Increments of 0.001 A Increments of 0.001 A Increments of 0.01 Increments of 0.01 s

Approx. 0.97 Approx. 1.05

Approx. 500 ms Approx. 500 ms

1790

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.65 Voltage-Balance Supervision

Setting Values
Release threshold Threshold min/max Delay failure indication

0.300 V to 170.000 V 0.58 to 0.95 0.00 s to 100.00 s

Dropout Ratio
Overvoltage dropout ratio Undervoltage dropout ratio

Times

Tripping time Dropout time

Technical Data 12.65 Voltage-Balance Supervision
Increments of 0.001 V Increments of 0.01 Increments of 0.01 s
Approx. 0.97 Approx. 1.05
Approx. 500 ms Approx. 500 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1791

Technical Data 12.66 Current-Sum Supervision

12.66 Current-Sum Supervision

Setting Values Slope factor Threshold
Delay failure indication

1 A @ 50 and100 Irated
5 A @ 50 and100 Irated
1 A @ 1.6 Irated
5 A @ 1.6 Irated

0.00 to 0.95 0.030 A to 10.000 A
0.15 A to 50.00 A
0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 100.00 s

Dropout Ratio Dropout ratio

Approx. 0.97

Times

Tripping time Dropout time

Approx. 500 ms Approx. 500 ms

Increments of 0.01 Increments of 0.001 A
Increments 0.01 A
Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s

1792

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.67 Voltage-Sum Supervision

Setting Values
Threshold Delay failure indication

0.300 V to 170.000 V 0.00 s to 100.00 s

Dropout Ratio Dropout ratio

Times

Tripping time Dropout time

Technical Data 12.67 Voltage-Sum Supervision
Increments of 0.001 V Increments of 0.01 s
Approx. 0.97
Approx. 500 ms Approx. 500 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1793

Technical Data 12.68 Current Phase-Rotation Supervision

12.68 Current Phase-Rotation Supervision

Setting Values
Tripping delay Phase-rotation direction

0.00 s to 100.00 s A B C A C B

Times

Tripping time Dropout time

Approx. 500 ms Approx. 500 ms

Increments of 0.01 s

1794

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.69 Voltage Phase-Rotation Supervision

12.69 Voltage Phase-Rotation Supervision

Setting Values
Tripping delay Phase-rotation direction

0.00 s to 100.00 s A B C A C B

Increments of 0.01 s

Times

Tripping time Dropout time

Approx. 500 ms Approx. 500 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1795

Technical Data 12.70 Voltage-Comparison Supervision

12.70 Voltage-Comparison Supervision

Times

Alarm times Dropout time

Approx. 3 ms to 12 ms + OOT 171at 50 Hz Approx. 2.5 ms to 10 ms + OOT at 60 Hz 20 ms

Frequency Operating Range
10 Hz  f  90 Hz f < 10 Hz f > 90 Hz

According to specified tolerances Inactive

Tolerances
Pickup threshold Voltage

0.5 % of the setting value or 0.05 V

171 OOT (Output Operating Time): extra delay of the output medium used 1796

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.71 Trip-Circuit Supervision

12.71 Trip-Circuit Supervision

Setting Values

Number of monitored circuits per circuit-breaker function group Operating mode per circuit
Pickup and dropout time Adjustable indication delay with 1 binary input Adjustable indication delay with 2 binary inputs

1 to 3 With 1 binary input With 2 binary inputs About 1 s to 2 s 1.00 s to 600.00 s Increments of 0.01 s 1.00 s to 600.00 s Increments of 0.01 s

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1797

Technical Data 12.72 Closing-Circuit Supervision
12.72 Closing-Circuit Supervision
Setting Values Operating mode per circuit
Adjustable indication delay with 1 binary input Adjustable indication delay with 2 binary inputs

With 1 binary input With 2 binary inputs 1.00 s to 600.00 s 1.00 s to 30.00 s

Increments of 0.01 s Increments of 0.01 s

1798

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.73 Analog Channel Supervision via Fast Current Sum

12.73 Analog Channel Supervision via Fast Current Sum

Times

Pickup times Dropout time

Approx. 2 ms (faster than the fastest protection function) Approx. 100 ms

Blockings Blocked functions

All functions that process the measured values from this current measuring point (for example, differential protection).

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1799

Technical Data 12.74 Measuring-Voltage Failure Detection

12.74 Measuring-Voltage Failure Detection

Setting Values
3ph.fail. - VA,VB,VC < 3ph.fail. - phs.curr.release 1 A @ 50 and100 Irated
5 A @ 50 and100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated 3ph.fail. - phs.curr. jump 1 A @ 50 and100 Irated 5 A @ 50 and100 Irated 1 A @ 1.6 Irated 5 A @ 1.6 Irated Asym.fail. - time delay SO 3ph.fail. - time delay

0.300 V to 340 000 V 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A 0.00 s to 30.00 s 0.00 s to 30.00 s

Increments of 0.001 V Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.01 s Increments of 0.01 s

Dropout

The larger dropout differential (= | pickup value � dropout threshold |) of the following 2 criteria is used:

Dropout differential derived from the parameter Dropout ratio

If this parameter is not available, a dropout ratio of 95 % applies to the current threshold value and a dropout ratio of 105 % applies to the voltage threshold value.

Minimum absolute dropout differential

150 mV sec.

Times

Pickup time Dropout time

Approx. 10 ms + OOT172 at 50 Hz Approx. 10 ms + OOT at 60 Hz Approx. 20 ms + OOT

Times

Use in function group Line Pickup time

Use in other function group types Pickup time

Approx. 10 ms + OOT173 at 50 Hz Approx. 9 ms + OOT at 60 Hz
Approx. 20 ms + OOT174 at 50 Hz Approx. 18 ms + OOT at 60 Hz

172 OOT (Output Operating Time) Additional delay of the output medium used, see chapter 12.1.4 Relay Outputs
173 OOT (Output Operating Time) Additional delay of the output medium used, for example 5 ms with fast relays, see chapter 12.1.4 Relay Outputs
174 OOT (Output Operating Time) Additional delay of the output medium used, for example 5 ms with fast relays, see chapter 12.1.4 Relay Outputs

1800

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Frequency Operating Range 0.9  f/frated  1.1 10 Hz  f < 0.9 frated 1.1 frated < f  90 Hz f < 10 Hz f > 90 Hz
Tolerances Currents
Voltages Time delays

Technical Data 12.74 Measuring-Voltage Failure Detection
According to specified tolerances Slightly expanded tolerances
Active
1 % of the setting value or 5 mA (Irated = 1 A) or 25 mA (Irated = 5 A), (frated � 10 %) 0.5 % of the setting value or 0.5 V 1 % of the setting value or 10 ms

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1801

Technical Data 12.75 Voltage-Transformer Circuit Breaker

12.75 Voltage-Transformer Circuit Breaker

Setting Values Response time

0.000 s to 0.030 s

Increments of 0.001 s

1802

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.76 Operational Measured Values and Statistical Values

12.76 Operational Measured Values and Statistical Values

The following applies to the tolerances of currents and voltages:
� The values apply both to the RMS values and the absolute value and phase angle of the fundamental
components.
� The values were determined for pure sinusoidal signals � without harmonics. � All measured values have an additional tolerance of 1 DIGIT.

Voltages VA, VB, VC Voltage range Secondary rated voltage Measuring range Frequency range
Tolerance
Frequency range (expanded)
Tolerance
VAB, VBC, VCA Voltage range Secondary rated voltage Measuring range Frequency range
Tolerance
Frequency range (expanded)
Tolerance

V secondary < 200 V secondary
100 V to 125 V (0.1 to 2) � Vrated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz 0.2 % of the measured value in the above-mentioned measuring range 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.3 % of the measured value in the above-mentioned measuring range V secondary < 200 V
100 V to 125 V (0.1 to 2) � Vrated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz 0.2 % of the measured value in the above-mentioned measuring range 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.3 % of the measured value in the above-mentioned measuring range

Currents, Instrument Transformers IA, IB, IC, 3I0 Current range Rated currents Measuring range Frequency range
Tolerance

A secondary < 1.6 Irated
1 A, 5 A (0.1 to 1.6) � Irated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz
0.1 % of the measured value in the above-mentioned measuring range

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1803

Technical Data 12.76 Operational Measured Values and Statistical Values
Frequency range (expanded)
Tolerance
Currents, Protection-Class Current Transformer IA, IB, IC, 3I0 Current range Rated currents Measuring range Frequency range
Tolerance Frequency range (expanded)
Tolerance
Currents, Protection-Class Current Transformer IA, IB, IC, 3I0 Current range Rated currents Measuring range Frequency range
Tolerance Frequency range (expanded)
Tolerance
Currents, Sensitive Ground-Current Transformer 3I0 Current range Rated currents Measuring range Frequency range
Tolerance Frequency range (expanded)
Tolerance
1804

45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.3 % of the measured value in the above-mentioned measuring range
A secondary < 100 Irated 1 A, 5 A (0.1 to 5) � Irated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz 0.2 % of the measured value in the above-mentioned measuring range 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.3 % of the measured value in the above-mentioned measuring range
A secondary < 50 Irated 1 A, 5 A (0.1 to 5) � Irated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz 0.2 % of the measured value in the above-mentioned measuring range 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.3 % of the measured value in the above-mentioned measuring range
A secondary < 1.6 Irated 1 A, 5 A (0.1 to 1.6) � Irated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz 0.1 % of the measured value in the above-mentioned measuring range 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.3 % of the measured value in the above-mentioned measuring range
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Phase Angle V Frequency range
Tolerance V I Frequency range
Tolerance I Power Values
Active power P Voltage range Current range Frequency range
Power factor Tolerance
Reactive power Q Voltage range Current range Frequency range
Power factor Tolerance
Apparent power S Voltage range Current range Frequency range
Tolerance
Power Factor Voltage range Current range Frequency range
Tolerance
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.76 Operational Measured Values and Statistical Values
� 47.5 Hz to 52.5 Hz at frated = 50 Hz 57.5 Hz to 62.5 Hz at frated = 60 Hz 0.2� at rated voltage � 47.5 Hz to 52.5 Hz at frated = 50 Hz 57.5 Hz to 62.5 Hz at frated = 60 Hz 0.2� at rated current
W secondary (0.8 to 1.2) � Vrated (0.1 to 2) � Irated 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz |cos|  0.707
0.5 % of Srated in the above-mentioned measuring range var secondary (0.8 to 1.2) � Vrated (0.1 to 2) � Irated 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz |cos|  0.707
0.5 % of Srated in the above-mentioned measuring range VA secondary (0.8 to 1.2) � Vrated (0.01 to 2) � Irated 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.5 % of Srated in the above-mentioned measuring range
(0.8 to 1.2) � Vrated (0.1 to 2) � Irated 45 Hz to 55 Hz at frated = 50 Hz 55 Hz to 65 Hz at frated = 60 Hz 0.02 in the above-mentioned measuring range
1805

Technical Data 12.76 Operational Measured Values and Statistical Values
Frequency
Frequency f Range Tolerance Range Tolerance Range
Tolerance
Statistical Values of the Device
Device operating hours Range Tolerance
Statistical Values of the Circuit Breaker
Op.cnt. (operation counter) Range Tolerance I Off (sum of the primary currents switched off) Range Operating hours Range Tolerance Circuit breaker open hours Range Tolerance
Statistical Values of the Disconnector
Op.cnt. (operation counter) Range Tolerance

Hz frated - 0.20 Hz  f  frated + 0.20 Hz � 2 mHz at V = Vrated or at I = Irated frated - 3.00 Hz  f < frated + 3.00 Hz � 5 mHz at V = Vrated or at I = Irated 25 Hz to 80 Hz; operational measured values 10 Hz to 90 Hz; functional measured values, system frequency � 10 mHz at V = Vrated or at I = Irated
h 0 to 9999999 h 1 h
0 to 999999999 None A, kA, MA, GA, TA, PA primary 0 to 9.2e+15 h 0 to 9999999 h 1 h h 0 to 9999999 h 1 h
0 to 999999999 None

1806

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.77 THD and Harmonics
Current Stage Current range (Ia, Ib, Ic)
Frequency range Tolerance of the THD value Tolerance of the 2nd to 20th harmonics Voltage Stage Voltage range (Va, Vb, Vc) Frequency range Tolerance of the THD value Tolerance of the 2nd to 20th harmonics

Technical Data 12.77 THD and Harmonics
Instrument transformer: < 1.6 Irated Protection transformer:
� < 100 Irated for modular devices � < 50 Irated for non-modular devices
0.9 frated to 1.1 frated 0.5 % in the measured range 0.5 % in the measured range
V secondary < 200 V 0.9 frated to 1.1 frated 0.5 % in the measured range 0.5 % in the measured range

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1807

Technical Data 12.78 Energy Values
12.78 Energy Values
Setting Values Active energy Wp Measuring range Voltage range Current range Frequency range
Tolerance
Frequency range (expanded)
Tolerance
Reactive energy Wq Measuring range Voltage range Current range Frequency range
Tolerance
Frequency range (expanded)
Tolerance

kWh, MWh, GWh
|cos|  0.01 (0.8 to 1.2) � Vrated (0.1 to 2) � Irated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz 0.3 % of the measured value in the above mentioned measuring range 40 Hz to 69 Hz at frated = 50 Hz 50 Hz to 70 Hz at frted = 60 Hz 0.5 % of the measured value in the above mentioned measuring range
kvarh, Mvarh, Gvarh
|cos|  0,984 (0.8 to 1.2) � Vrated (0.1 to 2) � Irated 49 Hz to 51 Hz at frated = 50 Hz 59 Hz to 61 Hz at frated = 60 Hz 1.0 % of the measured value in the above mentioned measuring range 40 Hz to 69 Hz at frated = 50 Hz 50 Hz to 70 Hz at frated = 60 Hz 1.5 % of the measured value in the above mentioned measuring range

1808

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

12.79 Phasor Measurement Unit
Accuracy IEEE Standard for Synchrophasor Measurements IEEE Std C37.118.1aTM-2014
Data Transfer IEEE Standard for Synchrophasor Data transfer IEEE Std C37.118.2TM-2011

Technical Data 12.79 Phasor Measurement Unit

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1809

Technical Data 12.80 Circuit-Breaker Wear Monitoring

12.80 Circuit-Breaker Wear Monitoring

Setting Values

Threshold value Ix-method stage

2P-method stage

I2t-method stage

CB opening time

CB break time

CB make time

Exponent for the Ix method

Switching cycles at Irated Rated short-circuit breaking current Isc Switching cycles at Isc Level of warning 1

Level of warning 2

Operating

1 A @ 50 and 100 Irated

current threshold 5 A @ 50 and 100 Irated

1 A @ 1.6 Irated

5 A @ 1.6 Irated

Delay correction time

0 to 10 000 000 0 to 10 000 000 0.00 I/Ir*s to 21 400 000.00 I/Ir*s 0.001 s to 0.500 s 0.001 s to 0.600 s 0.001 s to 0.600 s 1.0 to 3.0 100 to 1 000 000
10 to 100 000
1 to 1000
1 % to 100 % 1 % to 100 % 0.030 A to 35.000 A 0.15 A to 175.00 A 0.001 A to 1.600 A 0.005 A to 8.000 A -0.050 s to 0.050 s

Increments of 1 Increments of 1 Increments of 0.01 Increments of 0.001 s Increments of 0.001 s Increments of 0.001 s Increments of 0.1 Increments of 1
Increments of 1
Increments of 1
Increments of 1 % Increments of 1 % Increments of 0.001 A Increments of 0.01 A Increments of 0.001 A Increments of 0.001 A Increments of 0.001 s

Tolerances Tolerance of the measured value make time

� 2 ms

1810

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.81 CFC

12.81 CFC

Typical response times and maximum number of ticks of the CFC task levels:

Task Level

Time (in ms)

Fast Event-

< 1

Triggered

Event-Triggered <10

Interlocking

<10

Measurement

250

Ticks for NonModular Devices with CP100
500

Ticks for Modular Ticks for Modular Devices with CP200 Devices with CP300

500

1000

12 367 117 564 in total

12 757 121 537 in total

14 702 141 398 in total

The times describe the response time of a typical CFC chart at the respective task level. The maximum number of ticks applies to a typical load for the device based on the application template Directional overcurrent protection, grounded system. The maximum number can be lower in case of extensive protection applications. The task level Measurement runs in cycles every 500 ms. All other task levels are event-triggered. In order to estimate the tick consumption of a CFC chart, you can use the following formula:
TChart = 5  nInp + 5  nOutp + TTLev + i Tint + j TBlock

where:

nInp nOutp TTLev
Tint TBlock

Number of indications routed as input in the CFC chart
Number of indications routed as output in the CFC chart
101 Ticks in Fast Event-Triggered level 104 Ticks in Event-Triggered level 54 Ticks in Measurement level 74 Ticks in Interlocking level Number of internal connections between 2 CFC blocks in one chart
Used ticks per CFC block (see Table 12-9)

Table 12-9
Element ABS_D ABS_R ACOS_R ADD_D4 ADD_R4 ADD_XMV ALARM AND_SPS AND10 APC_DEF APC_EXE APC_INFO ASIN_R ATAN_R BLINK BOOL_CNT BOOL_INT

Ticks of the Individual CFC Blocks

Ticks 2.3 1.5 6.9 3.4 3.3 6.4 1.8 1.1 2.9 1.2 1.0 3.9 1.3 1.2 1.3 2.0 1.5

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1811

Technical Data 12.81 CFC
Element BSC_DEF BSC_EXE BSC_INFO BUILD_ACD BUILD_ACT BUILD_BSC BUILD_CMV BUILD_DEL BUILD_DPS BUILD_ENS BUILD_INS BUILD_Q BUILD_SPS BUILD_WYE BUILD_XMV BUILDC_Q CHART_STATE CMP_DPS CON_ACD CON_ACT CONNECT COS_R CTD CTU CTUD DINT_REAL DINT_UINT DIV_D DIV_R DIV_XMV DPC_DEF DPC_EXE DPC_INFO DPC_OUT DPS_SPS DRAGI_R ENC_DEF ENC_EXE EQ_D EQ_R EXP_R EXPT_R F_TRGM F_TRIG FF_D FF_D_MEM FF_RS
1812

Ticks 1.3 1.1 2.7 2.9 2.2 1.2 2.3 2.1 1.4 1.3 0.5 0.8 0.6 3.2 2.9 3.0 5.9 1.5 0.7 0.5 0.4 2.5 1.8 1.6 2.3 3.0 3.0 2.9 1.6 2.2 0.4 0.4 1.1 1.3 1.0 1.7 3.6 3.8 1.0 1.9 1.5 2.7 0.3 0.3 0.9 1.4 0.7

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Element FF_RS_MEM FF_SR FF_SR_MEM GE_D GE_R GT_D GT_R HOLD_D HOLD_R INC_INFO LE_D LE_R LIML_R LIMU_R LN_R LOG_R LOOP LT_D LT_R MAX_D MAX_R MEMORY_D MEMORY_R MIN_D MIN_R MOD_D MUL_D4 MUL_R4 MUL_XMV MUX_D MUX_R NAND10 NE_D NE_R NEG NEG_SPS NL_LZ NL_MV NL_ZP NOR10 OR_DYN OR_SPS OR10 R_TRGM R_TRIG REAL_DINT REAL_SXMV
SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Ticks 1.2 0.8 1.1 0.9 1.1 0.9 1.2 1.1 1.0 0.9 1.1 1.1 1.5 1.5 3.3 1.2 1.5 0.9 0.9 0.9 1.4 0.9 1.1 0.7 1.3 1.5 2.5 2.7 2.8 1.2 0.9 3.5 0.9 0.9 1.2 0.8 3.8 5.6 2.7 3.2 1.1 1.3 2.6 0.4 0.4 3.0 3.0

Technical Data 12.81 CFC
1813

Technical Data 12.81 CFC
Element SIN_R SPC_DEF SPC_EXE SPC_INFO SPC_OUT SPLIT_ACD SPLIT_ACT SPLIT_BSC SPLIT_CMV SPLIT_DEL SPLIT_DPS SPLIT_INS SPLIT_Q SPLIT_SPS SPLIT_WYE SPLIT_XMV SQRT_R SUB_D SUB_R SUB_XMV SUBST_B SUBST_BQ SUBST_D SUBST_R SUBST_XQ SXMV_REAL TAN_R TLONG TOF TON TP TSHORT UINT_DINT XOR2

Ticks 0.8 0.4 0.4 0.4 0.4 3.4 1.0 1.3 2.2 2.0 1.0 0.5 0.7 0.8 2.6 2.1 0.6 1.3 1.6 2.4 1.0 1.5 1.0 1.0 1.4 3.0 1.1 2.2 1.0 1.1 2.5 1.9 3.0 2.6

1814

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

Technical Data 12.82 Point-on-Wave Switching
12.82 Point-on-Wave Switching
You can find more information about the technical data of the Point-on-wave switching function in the Point-on-Wave Switching Function Manual.

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019

1815

1816

SIPROTEC 5, 7SJ82/7SJ85, Manual C53000-G5040-C017-B, Edition 12.2019
