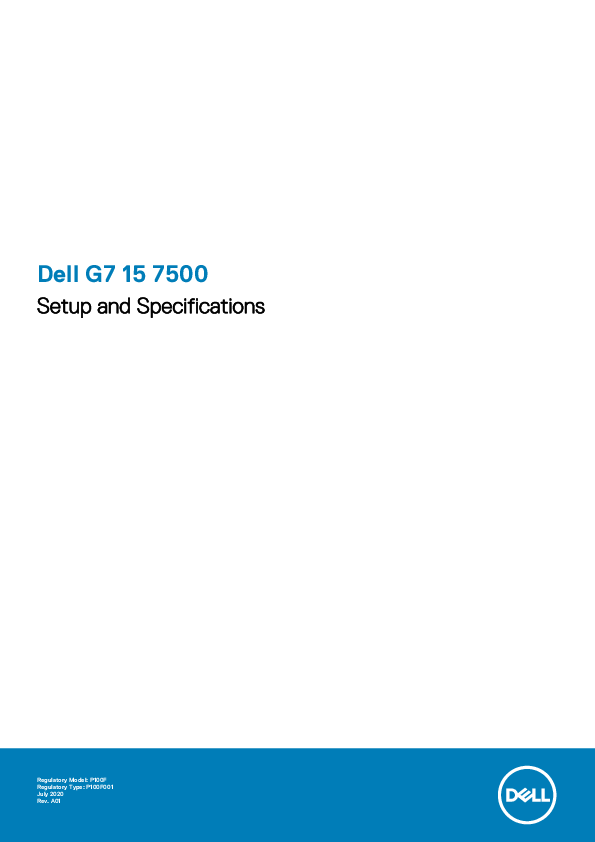

Dell G7 15 7500
Setup and Specifications
Regulatory Model: P100F Regulatory Type: P100F001 July 2020 Rev. A01

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
� 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Contents
Chapter 1: Set up your Dell G7 15 7500..............................................................................................4
Chapter 2: Views of Dell G7 15 7500................................................................................................. 6 Right........................................................................................................................................................................................ 6 Left.......................................................................................................................................................................................... 6 Back......................................................................................................................................................................................... 7 Base......................................................................................................................................................................................... 8 Display..................................................................................................................................................................................... 9 Bottom...................................................................................................................................................................................10
Chapter 3: Specifications of Dell G7 15 7500.................................................................................... 11 Dimensions and weight.........................................................................................................................................................11 Processor............................................................................................................................................................................... 11 Chipset...................................................................................................................................................................................12 Operating system................................................................................................................................................................. 12 Memory................................................................................................................................................................................. 12 External ports....................................................................................................................................................................... 12 Internal slots..........................................................................................................................................................................13 Communications................................................................................................................................................................... 14 Audio...................................................................................................................................................................................... 14 Storage.................................................................................................................................................................................. 15 Intel Optane Memory H10 with Solid State Storage (optional)..................................................................................... 15 Media-card reader................................................................................................................................................................16 Keyboard............................................................................................................................................................................... 16 Camera...................................................................................................................................................................................17 Touchpad...............................................................................................................................................................................17 Power adapter...................................................................................................................................................................... 18 Battery................................................................................................................................................................................... 18 Display....................................................................................................................................................................................19 Fingerprint reader (optional)..............................................................................................................................................20 GPU--Integrated................................................................................................................................................................ 20 GPU--Discrete....................................................................................................................................................................20 Operating and storage environment................................................................................................................................. 20
Chapter 4: Keyboard shortcuts.......................................................................................................22
Chapter 5: Getting help and contacting Dell.................................................................................... 24

Contents

1
Set up your Dell G7 15 7500
NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1. Connect the power adapter and press the power button.

NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.

2. Finish Windows setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
� Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
� If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account. � On the Support and Protection screen, enter your contact details.

3. Locate and use Dell apps from the Windows Start menu--Recommended.

Table 1. Locate Dell apps

Resources

Description

My Dell
Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.

Set up your Dell G7 15 7500

Table 1. Locate Dell apps (continued)

Resources

Description

SupportAssist
Proactively checks the health of your computer's hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support.

NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.

Dell Update
Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
Dell Digital Delivery
Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/ support.

Set up your Dell G7 15 7500

Right

2
Views of Dell G7 15 7500

1. SD-card slot Reads from and writes to the SD card. The computer supports the following card types: � Secure Digital (SD) � Secure Digital High Capacity (SDHC) � Secure Digital Extended Capacity (SDXC)
2. USB 3.2 Gen 1 port Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
Left

1. Power-adapter port Connect a power adapter to provide power to your computer and charge the battery.
2. Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity.
NOTE: Press Fn+H to toggle between the power and battery-status light, and hard-drive activity light.
Hard-drive activity light Turns on when the computer reads from or writes to the hard drive. Power and battery-status light Indicates the power and battery-charge status. Solid white -- Power adapter is connected and the battery has more than 5% charge. Amber -- Computer is running on battery and the battery has less than 5% charge. Off � Power adapter is connected and the battery is fully charged. � Computer is running on battery and the battery has more than 5% charge. � Computer is in sleep state, hibernation, or turned off. 3. USB 3.2 Gen 1 port with PowerShare Connect peripherals such as external storage devices and printers.

Views of Dell G7 15 7500

Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off.
NOTE: If your computer is turned off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. You must enable this feature in the BIOS setup program.
NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device. 4. Headset port Connect headphones or a headset (headphone and microphone combo).
Back
Computers shipped with NVIDIA GeForce GTX 1650 Ti

1. USB 3.2 Gen 2 Type-C port with DisplayPort Connect peripherals such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps. Supports DisplayPort 1.4 and also enables you to connect an external display using a USB Type-C to DisplayPort adapter.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device. 2. HDMI port
Connect to a TV or another HDMI-in enabled device. Provides video and audio output. 3. USB 3.2 Gen 1 port
Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. 4. Network port
Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access. Computers shipped with NVIDIA GeForce GTX 1660 Ti/NVIDIA GeForce RTX 2060/NVIDIA GeForce RTX 2070 with Max-Q Design

1. Thunderbolt 3 USB Type-C port Connect peripherals such as external storage devices, printers, and external displays. Provides data transfer rate of up to 40 Gbps. Supports DisplayPort 1.4 and also enables you to connect an external display using a USB Type-C to DisplayPort adapter.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device. 2. Mini DisplayPort
Connect to a TV or another DisplayPort-in enabled device. Provides video and audio output. 3. HDMI port
Connect to a TV or another HDMI-in enabled device. Provides video and audio output. 4. USB 3.2 Gen 1 port
Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. 5. Network port
Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.

Views of Dell G7 15 7500

Base

1. Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click. 2. Left-click area
Press to left-click. 3. Right-click area
Press to right-click. 4. Power button with optional fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 4 seconds to force shut-down the computer.
If the power button has a fingerprint reader, place your finger on the power button to log in.
NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.

Views of Dell G7 15 7500

Display

1. Left microphone
Provides digital sound input for audio recording and voice calls. 2. Camera
Enables you to video chat, capture photos, and record videos. 3. Camera-status light
Turns on when the camera is in use. 4. Right microphone
Provides digital sound input for audio recording and voice calls. 5. Dynamic chassis light
Dynamic lighting that can be controlled using the Alienware Command Center.

Views of Dell G7 15 7500

Bottom

1. Left speaker
Provides audio output. 2. Service Tag label
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker
Provides audio output.

Views of Dell G7 15 7500

3
Specifications of Dell G7 15 7500

Dimensions and weight

The following table lists the height, width, depth, and weight of your Dell G7 15 7500.

Table 2. Dimensions and weight Description Height:
Front height

Values 18.33 mm (0.72 in.)

Rear height

18.80 mm (0.74 in.)

Width

357.20 mm (14.06 in.)

Depth

267.70 mm (10.54 in.)

Weight (maximum)

2.56 kg (5.64 lb)
NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.

Processor

The following table lists the details of the processors supported by your Dell G7 15 7500.

Table 3. Processor Description Processor type

Option one
10th Generation Intel Core i5-10300H

Option two
10th Generation Intel Core i7-10750H

Processor wattage

45 W

Processor core count

Processor thread count

Processor speed

Up to 4.50 GHz

Up to 5 GHz

Processor cache

8 MB

12 MB

Integrated graphics

Intel UHD Graphics

Option three 10th Generation Intel Core i9-10885H 45 W 8 16 Up to 5.30 GHz 16 MB Intel UHD Graphics

Specifications of Dell G7 15 7500

Chipset

The following table lists the details of the chipset supported by your Dell G7 15 7500.

Table 4. Chipset Description Chipset

Values HM470

Processor

10th Generation Intel Core i5/i7/i9

DRAM bus width

64-bit

Flash EPROM

24 MB

PCIe bus

Up to Gen3

Operating system
Your Dell G7 15 7500 supports the following operating systems: � Windows 10 Home (64-bit) � Windows 10 Pro (64-bit)

Memory

The following table lists the memory specifications of your Dell G7 15 7500.

Table 5. Memory specifications Description Memory slots

Values Two SODIMM slots

Memory type

DDR4

Memory speed

2933 MHz

Maximum memory configuration

32 GB

Minimum memory configuration

8 GB

Memory size per slot

4 GB, 8 GB, 16 GB

Memory configurations supported

� 8 GB DDR4 at 2933 MHz (2 x 4 GB), dual-channel � 12 GB DDR4 at 2933 MHz (1 x 4 GB + 1 x 8 GB) � 16 GB DDR4 at 2933 MHz (2 x 8 GB), dual-channel � 32 GB DDR4 at 2933 MHz (2 x 16 GB), dual-channel

External ports

The following table lists the external ports of your Dell G7 15 7500.

Table 6. External ports Description Network port

Values One RJ45 port

Specifications of Dell G7 15 7500

Table 6. External ports (continued) Description USB ports
Audio port Video port
Media-card reader Docking port Power-adapter port Security

Values
� One USB 3.2 Gen 1 port with PowerShare � Two USB 3.2 Gen 1 ports � One USB 3.2 Gen 2 Type-C port with Power Delivery and
DisplayPort Alt-Mode (only on computers that are shipped with graphics card NVIDIA GeForce GTX 1650Ti) � One Thunderbolt 3 USB 3.2 Gen 2 Type-C port (only on computers that are shipped with NVIDIA GeForce GTX 1660 Ti or NVIDIA GeForce RTX 2060 or NVIDIA GeForce RTX 2070 with Max-Q Design) NOTE: Your computer supports either one USB 3.2 Gen 2 Type-C port with Power Delivery and DisplayPort AltMode or one Thunderbolt 3 port depending on the configuration.
One headset (headphone and microphone combo) port
� One HDMI 2.0 port � One Mini DisplayPort 1.4 (only on computers shipped with
NVIDIA GeForce GTX 1660 Ti or NVIDIA GeForce RTX 2060 or NVIDIA GeForce RTX 2070 with Max-Q Design)
One SD-card slot
Supported through USB Type-C port
One 7.40 mm x 5.10 mm power-adapter port
Not supported

Internal slots
The following table lists the internal slots of your Dell G7 15 7500. Table 7. Internal slots Description M.2

Values
� One M.2 2230 slot for WiFi and Bluetooth combo card � One M.2 2230/2280 slots for solid-state drive/Intel Optane
storage
NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626 at www.dell.com/support.

Specifications of Dell G7 15 7500

Communications

Ethernet
Table 8. Ethernet specifications Description Model number
Transfer rate

Values
� Killer E2500V2 PCI-e Gigabit ethernet controller (only on computers shipped with graphics card NVIDIA GeForce GTX 1660Ti, RTX 2060, RTX 2070, or RTX 2070 Max-Q Design)
� Realtek RTL8111H Gigabit ethernet controller (only on computers shipped with graphics card NVIDIA GeForce GTX 1650Ti)
10/100/1000 Mbps

Wireless module

Table 9. Wireless module specifications

Description

Model number

Killer 1650i

Intel 9560

Options Intel AX201

Transfer rate

Up to 2400 Mbps

Up to 1733 Mbps

Up to 2400 Mbps

Frequency bands supported
Wireless standards

2.4 GHz/5 GHz

� WiFi 802.11a/b/g � Wi-Fi 4 (WiFi
802.11n) � Wi-Fi 5 (WiFi
802.11ac) � Wi-Fi 6 (WiFi
802.11ax)

� WiFi 802.11a/b/g � Wi-Fi 4 (WiFi
802.11n) � Wi-Fi 5 (WiFi
802.11ac)

� WiFi 802.11a//b/g � Wi-Fi 4 (WiFi 802.11n) � Wi-Fi 5 (WiFi 802.11ac) � Wi-Fi 6 (WiFi 802.11ax)

Encryption

� 64-bit/128-bit WEP � 64-bit/128-bit WEP � 64-bit/128-bit WEP

� AES-CCMP

� TKIP

Bluetooth

Bluetooth 5.1

Bluetooth 5.0

Bluetooth 5.1

Qualcomm QCA61x4A
Up to 867 Mbps
2.4 GHz/5 GHz
� WiFi 802.11a/b/g � Wi-Fi 4 (WiFi
802.11n) � Wi-Fi 5 (WiFi
802.11ac)
� 64-bit/128-bit WEP � AES-CCMP � TKIP
Bluetooth 5.0

Audio

The following table lists the audio specifications of your Dell G7 15 7500.

Table 10. Audio specifications Description Audio controller

Values Realtek ALC3281 with Nahimic 3D audio for Gamers

Stereo conversion

Supported

Internal audio interface

High-definition audio (HDA)

Specifications of Dell G7 15 7500

Table 10. Audio specifications (continued) Description External audio interface

Number of speakers

Internal-speaker amplifier

External volume controls

Speaker output:

Average speaker output

Peak speaker output

Subwoofer output

Microphone

Values Universal audio jack Two Supported (audio codec integrated amplifier) Keyboard shortcut controls
2 W 2.5 W Not supported Dual-array microphones

Storage

This section lists the storage options on your Dell G7 15 7500. Your Dell G7 15 7500 supports one of the following storage options: � One M.2 2230/2280 solid-state drive � One M.2 Intel Optane Memory H10 with solid-state storage

Table 11. Storage specifications Storage type

Interface type

M.2 2230 solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

M.2 2230 solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

M.2 2230 solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

M.2 2280 solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

M.2 2280 solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

M.2 2280 solid-state drive

PCIe Gen3 x4 NVMe, up to 32 Gbps

Capacity Up to 256 GB Up to 512 GB Up to 1 TB Up to 256 GB Up to 512 GB Up to 1 TB

Intel Optane Memory H10 with Solid State Storage (optional)

Intel Optane Memory technology utilizes 3D XPoint memory technology and functions as a non-volatile storage cache/accelerator and/or storage device depending on the Intel Optane Memory installed in your computer.
Intel Optane Memory H10 with Solid State Storage functions as both a non-volatile storage cache/accelerator (enabling enhanced read/ write speeds for hard-drive storage) and a solid-state storage solution. It neither replaces nor adds to the memory (RAM) installed on your computer.

Table 12. Intel Optane Memory H10 with Solid State Storage specifications

Description

Values

Interface

PCIe 3 x4 NVMe

Specifications of Dell G7 15 7500

Table 12. Intel Optane Memory H10 with Solid State Storage specifications (continued)

Description

Values

� One PCIe 3 x2 for Optane memory � One PCIe 3 x2 for solid-state storage

Connector

M.2

Form factor Capacity (Intel Optane memory) Capacity (solid-state storage)

2280 Up to 32 GB Up to 512 GB

NOTE: Intel Optane Memory H10 with Solid State Storage is supported on computers that meet the following requirements:
� 9th Generation or higher Intel Core i3/i5/i7 processors � Windows 10 64-bit version or higher (Anniversary Update) � Intel Rapid Storage Technology driver version 15.9.1.1018 or higher

Media-card reader

The following table lists the media cards supported by your Dell G7 15 7500.

Table 13. Media-card reader specifications Description Media-card type

Values One SD card

Media-cards supported

� Secure Digital (SD) � Secure Digital High Capacity (SDHC) � Secure Digital Extended Capacity (SDXC)

NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard

The following table lists the keyboard specifications of your Dell G7 15 7500.

Table 14. Keyboard specifications Description Keyboard type

Values Four-zone RGB backlit keyboard

Keyboard layout

QWERTY

Number of keys

� United States and Canada: 82 keys � United Kingdom: 83 keys � Japan: 86 keys

Keyboard size

X =19.05 mm key pitch Y =19.05 mm key pitch

Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift

Specifications of Dell G7 15 7500

Table 14. Keyboard specifications (continued) Description

Values
and the desired key. To perform secondary functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the function keys (F1�F12) changing Function Key Behavior in BIOS setup program.
For more information, see Keyboard shortcuts.

Camera

The following table lists the camera specifications of your Dell G7 15 7500.

Table 15. Camera specifications Description Number of cameras

Values One

Camera type

HD RGB camera

Camera location

Front

Camera sensor type

CMOS sensor technology

Camera resolution: Still image

0.92 megapixel

Video

1280 x 720 (HD) at 30 fps

Diagonal viewing angle:

74.9 degrees

Touchpad

The following table lists the touchpad specifications of your Dell G7 15 7500.

Table 16. Touchpad specifications Description Touchpad resolution:
Horizontal

Values 1349

Vertical

929

Touchpad dimensions: Horizontal

115 mm (4.53 in.)

Vertical

80 mm (3.15 in.)

Touchpad gestures

For more information about touchpad gestures available on Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Specifications of Dell G7 15 7500

Power adapter

The following table lists the power adapter specifications of your Dell G7 15 7500.

Table 17. Power adapter specifications

Description

Option one

Type

E4 130 W

Connector dimensions: External diameter

7.40 mm

Internal diameter

5.10 mm

Input voltage

100 VAC�240 VAC

Input frequency

50 Hz�60 Hz

Input current (maximum)

� 1.80 A � 2.50 A

Output current (continuous)

6.70 A

Rated output voltage

19.50 VDC

Temperature range: Operating

0�C to 40�C (32�F to 104�F)

Storage

-40�C to 70�C (-40�F to 158�F)

Battery

The following table lists the battery specifications of your Dell G7 15 7500.

Table 18. Battery specifications Description Battery type

Option one 3-cell (56 WHr) "smart" lithium-ion

Battery voltage

13.20 VDC

Battery weight (maximum) Battery dimensions:
Height Width Depth Temperature range: Operating Storage

0.26 kg (0.57 lb)
7.56 mm (0.30 in.) 295.20 mm (11.62 in.) 77.70 mm (3.06 in.)
0�C to 35�C (32�F to 95�F) -40�C to 65�C (-40�F to 149�F)

Option two E4 240 W
7.40 mm 5.10 mm 100 VAC�240 VAC 50 Hz�60 Hz 3.50 A 12.31 A 19.50 VDC
0�C to 40�C (32�F to 104�F) -40�C to 70�C (-40�F to 158�F)
Option two 6-cell (86 WHr) "smart" lithium-ion � 13.20 VDC � 13.35 VDC 0.34 kg (0.75 lb)
7.56 mm (0.30 in.) 295.20 mm (11.62 in.) 77.70 mm (3.06 in.)
0�C to 35�C (32�F to 95�F) -40�C to 65�C (-40�F to 149�F)

Specifications of Dell G7 15 7500

Table 18. Battery specifications (continued)

Description

Option one

Battery operating time

Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Battery charging time (approximate)

�

NOTE: Control the charging time, �

duration, start and end time, and so

on using the Dell Power Manager

application. For more information

on the Dell Power Manager see, Me

and My Dell on www.dell.com.

4 hours (when the computer is off) 2 hours (ExpressCharge)

Coin-cell battery

CR2032

Option two Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. 4 hours (when the computer is off)
CR2032

Display

The following table lists the display specifications of your Dell G7 15 7500.

Table 19. Display specifications

Description

Option one

Display type

Full High Definition (FHD)

Option two Full High Definition (FHD)

Display-panel technology

Wide-Viewing Angle (WVA)

Display-panel dimensions (active area):
Height

193.60 mm (7.62 in.)

Width

344.16 mm (13.55 in.)

Diagonal

394.87 mm (15.55 in.)

Display-panel native resolution 1920 x 1080

1920 x 1080

Luminance (typical)

300 nits

Megapixels

2.07

Color gamut

72% NTSC (Typical)

100% sRGB (Typical)

Pixels Per Inch (PPI)

141

Contrast ratio (typ)

800:1

1000:1

Response time (max)

19 ms

3 ms

Refresh rate

144 Hz

300 Hz

Horizontal view angle

80 degrees (minimum)

Vertical view angle

80 degrees (minimum)

Pixel pitch

0.18 mm

Power consumption (maximum) 7.80 W

6.30 W

Option three Ultra High Definition (UHD) OLED
193.62 mm (7.62 in.) 344.22 mm (13.55 in.) 394.94 mm (15.55 in.) 3840 x 2160 400 nits 3.29 DCI-P3 282 100K:1 2 ms 60 Hz 80 degrees (minimum) 80 degrees (minimum) 0.09 mm 17.30 W

Specifications of Dell G7 15 7500

Table 19. Display specifications (continued)

Description Anti-glare vs glossy finish

Option one Anti-glare

Touch options

Option two Anti-glare No

Option three TrueLife No

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Dell G7 15 7500.

Table 20. Fingerprint reader specifications Description Fingerprint-reader sensor technology

Values Capacitive

Fingerprint-reader sensor resolution

500 dpi

Fingerprint-reader sensor area

11.92 mm x 7.42 mm

Fingerprint-reader sensor pixel size

80 x 64

GPU--Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Dell G7 15 7500.

Table 21. GPU--Integrated

Controller

External display support

Intel UHD Graphics

HDMI 2.0 port

Memory size Shared system memory

Processor
10th Generation Intel Core i5/i7/i9

GPU--Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Dell G7 15 7500.

Table 22. GPU--Discrete Controller

External display support

Memory size

Memory type

NVIDIA GeForce GTX 1650 Ti HDMI 2.0 port

4 GB

GDDR6

NVIDIA GeForce GTX 1660 Ti

� HDMI 2.0 port � Mini DisplayPort 1.4 port

6 GB

GDDR6

NVIDIA GeForce RTX 2060

� HDMI 2.0 port � Mini DisplayPort 1.4 port

6 GB

GDDR6

NVIDIA GeForce RTX 2070 with � HDMI 2.0 port

Max-Q Design

� Mini DisplayPort 1.4 port

8 GB

GDDR6

Operating and storage environment
This table lists the operating and storage specifications of your Dell G7 15 7500. Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Specifications of Dell G7 15 7500

Table 23. Computer environment Description Temperature range Relative humidity (maximum) Vibration (maximum)* Shock (maximum) Altitude (maximum)

Operating 0�C to 35�C (32�F to 95�F)

Storage -40�C to 65�C (-40�F to 149�F)

10% to 90% (non-condensing)

0% to 95% (non-condensing)

0.66 GRMS

1.30 GRMS

110 G

160 G

-15.2 m to 3,048 m (-49.87 ft to 10,000 ft) -15.2 m to 10,668 m (-49.87 ft to 35,000 ft)

* Measured using a random vibration spectrum that simulates user environment. Measured using a 2 ms half-sine pulse when the hard drive is in use.

Specifications of Dell G7 15 7500

Keyboard shortcuts

Function keys
NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press Shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1 to F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F3 mutes the audio (refer to the table below).
However, if the function keys F1 to F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F3.
NOTE: You can also define the primary behavior of the function keys (F1 to F12) by changing Function Key Behavior in the BIOS setup program.

Table 24. List of keyboard shortcuts

Function key

Redefined key (for multimedia control) Behavior

Toggle between enabling and disabling wireless connection

Toggle between muting and unmuting audio

Decrease volume

Increase volume
Toggle between enabling and disabling the Windows key
Toggle between turning keyboard backlight on and off
Switch to external display

Decrease brightness

Increase brightness

Keyboard shortcuts

Table 24. List of keyboard shortcuts (continued)

Function key

Redefined key (for multimedia control) Behavior

Toggle between enabling and disabling the touchpad

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 25. List of keyboard shortcuts Function key

Behavior

Toggle between power and battery-status light/hard-drive activity light

Toggle between scroll lock on and scroll lock off

Toggle between Break and Pause

Initiate system request

Open application menu

Toggle between locking and unlocking the fn key

G key Table 26. G key Function key

Open the Emoji window
Behavior Toggle between Windows power settings and the thermal setting for optimal gaming performance.

Keyboard shortcuts

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 27. Self-help resources Self-help resources Information about Dell products and services

Resource location www.dell.com

My Dell

Tips

Contact Support Online help for operating system
Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on. Dell knowledge base articles for a variety of computer concerns
Learn and know the following information about your product: � Product specifications � Operating system � Setting up and using your product � Data backup � Troubleshooting and diagnostics � Factory and system restore � BIOS information

In Windows search, type Contact Support, and press Enter.
www.dell.com/support/windows www.dell.com/support/linux
www.dell.com/support
1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select
Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the
keyword, topic, or model number, and then click or tap the search icon to view the related articles.
See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: � Select Detect Product. � Locate your product through the drop-down menu under View
Products. � Enter the Service Tag number or Product ID in the search
bar.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell. NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Getting help and contacting Dell

DELL G7 15 7500 Gaming Laptop User Guide

Full PDF Document

Extracted Text

References
